Institut für Informationsverarbeitung
Intra-coding using non-linear
prediction, KLT and Texture
Synthesis
AV1 encoders open the door to seemingly
unconstrained video coding complexity
Jörn Ostermann, Thorsten Laude, Yiqun Liu,
Bastian Wandt, Jan Voges, Holger Meuel
Decoder Runtimes
2
Thorsten Laude
laude@tnt.uni-hannover.de
Relative factors to HM, i.e. HM=1
0
2
4
6
8
10
12
14
JEM AV1 JEM AV1
All-intra Random Access
Complexityincrease
Class A1 Class A2 Class B Class C Class D Class E Class F Overall HM
Better
Encoder Runtimes
3
Thorsten Laude
laude@tnt.uni-hannover.de
Relative factors to HM, i.e. HM=1
0
10
20
30
40
50
60
JEM AV1 JEM AV1
All-intra Random Access
Complexityincrease
Class A1 Class A2 Class B Class C Class D Class E Class F Overall HM
Better
e.g. 10
frames/dayTotal CPU time: ≈ 1 decade
Runtime-memory Complexity
4
Thorsten Laude
laude@tnt.uni-hannover.de
Trade-off Coding Efficiency vs. Complexity
5
Thorsten Laude
laude@tnt.uni-hannover.de
Better
Better
Institut für Informationsverarbeitung
Contour-based Multidirectional
Intra Coding for HEVC
Thorsten Laude and Jörn Ostermann
Prediction process
• 33 angular modes, DC, planar
• Extrapolation base: right column of left
block, bottom row of top block
Limitations of HEVC intra prediction
• Only one direction for angular modes
• Only one adjacent sample column/row as
extrapolation base
Motivation
7
Thorsten Laude
laude@tnt.uni-hannover.de
CurrentAlready coded Top image: Lainema et al., Intra Coding of the HEVC Standard, TCSVT, 2012
Limitations of HEVC intra prediction
• Only one direction for angular modes
• Only one adjacent sample column/row as
extrapolation base
Motivation
8
Thorsten Laude
laude@tnt.uni-hannover.de
CurrentAlready coded
Contour-based Multidirectional
Intra Coding
(CoMIC)
9
Thorsten Laude
laude@tnt.uni-hannover.de
Reconstructed
samples
• Available at
encoder and
decoder
Contour
extraction
• Detection
• Parameterization
Contour
extrapolation
• Sample value
continuation
• Various
extrapolation
methods
Contour-based Multidirectional Intra Coding
10
Thorsten Laude
laude@tnt.uni-hannover.de
Contour
detection
Contour
parameterization
Contour
extrapolation
Contour-based Multidirectional Intra Coding
11
Thorsten Laude
laude@tnt.uni-hannover.de
Contour
detection
Contour
parameterization
Contour
extrapolation
Contour-based Multidirectional Intra Coding
12
Thorsten Laude
laude@tnt.uni-hannover.de
Canny edge detection
Signal-adaptive thresholds following Otsu1, 2
1Otsu, A Threshold Selection Method from Gray-Level Histograms, SMC, 1979
2Fang et al., The Study on an Application of Otsu Method in Canny Operator, ISIP, 2009
Contour
detection
Contour
parameterization
Contour
extrapolation
Contour-based Multidirectional Intra Coding
13
Thorsten Laude
laude@tnt.uni-hannover.de
Polynomial parameterization
Linear regression problem  least squares
Contour
detection
Contour
parameterization
Contour
extrapolation
Contour-based Multidirectional Intra Coding
14
Thorsten Laude
laude@tnt.uni-hannover.de

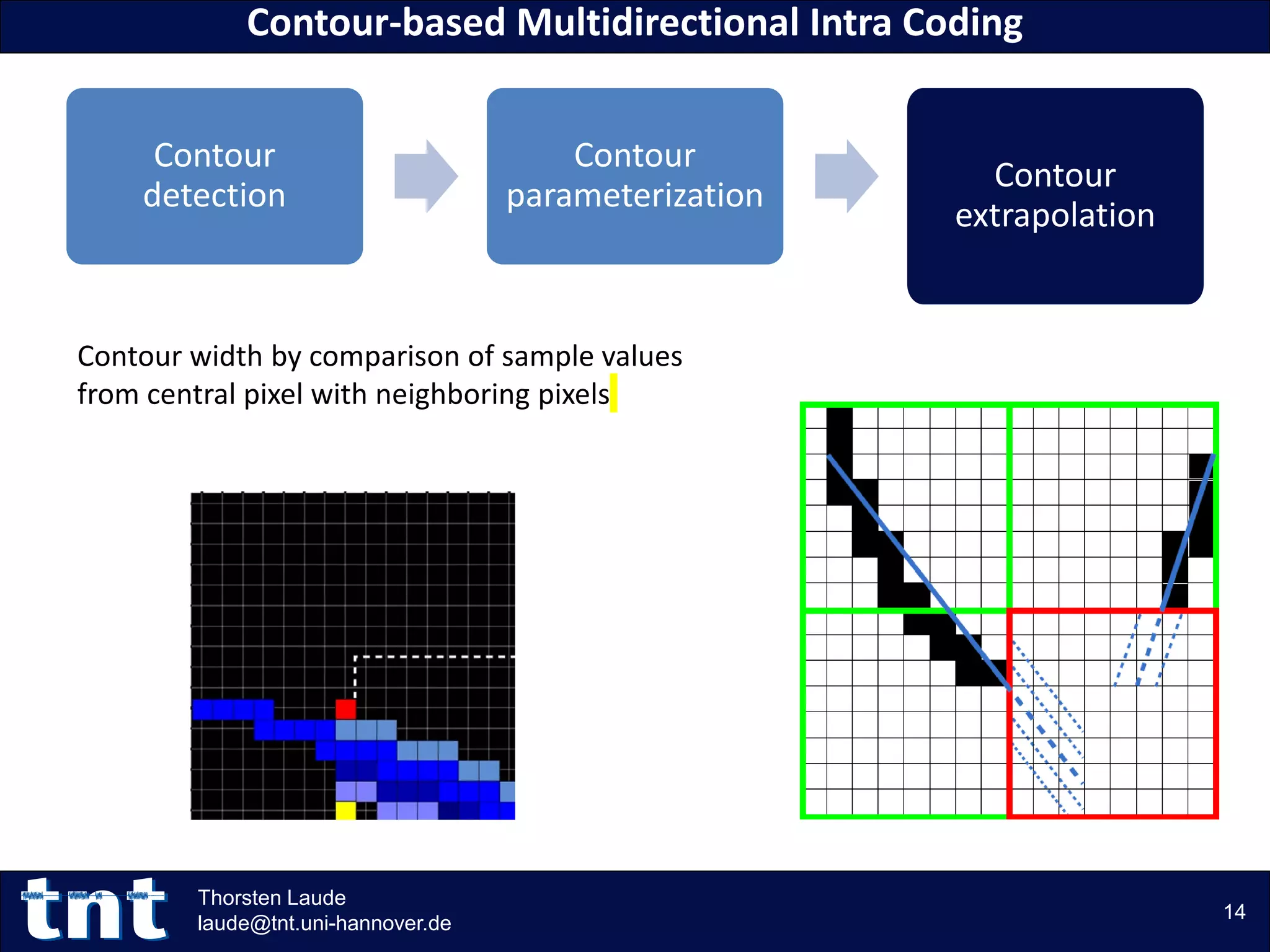

Contour width by comparison of sample values
from central pixel with neighboring pixels
Contour
detection
Contour
parameterization
Contour
extrapolation
Contour-based Multidirectional Intra Coding
15
Thorsten Laude
laude@tnt.uni-hannover.de
Varying prediction certainty  Diminishing towards
mean sample value of reconstructed area
𝑠𝑠𝑒𝑒 =
𝑠𝑠𝑚𝑚 𝑑𝑑 + 𝑠𝑠𝑎𝑎(𝑑𝑑max − 𝑑𝑑)
𝑑𝑑max
𝑑𝑑 = (𝑥𝑥𝑎𝑎 − 𝑥𝑥𝑒𝑒)2+(𝑦𝑦𝑎𝑎 − 𝑦𝑦𝑒𝑒)2
𝑠𝑠𝑚𝑚
𝑠𝑠𝑎𝑎
𝑠𝑠𝑒𝑒
Contour
detection
Contour
parameterization
Contour
extrapolation
Contour-based Multidirectional Intra Coding
16
Thorsten Laude
laude@tnt.uni-hannover.de
Background prediction: continuation of sample values
• horizontal and vertical fill
• mean fill for shielded pixels
𝑠𝑠𝑚𝑚
Comparison with state-of-the art of Liu et al.1
Contour-based Multidirectional Intra Coding
17
Thorsten Laude
laude@tnt.uni-hannover.de
1Liu et al., Image Compression with Edge-based Inpainting, TCSVT, 2007
CoMIC (Ours) Liu et al.
Contour extrapolation solely
based on reconstructed samples
 no signalling
Signalling of side information for
the contour shape
Sample value continuation PDE-based inpainting
Signalling of representative
sample values for the inpainting

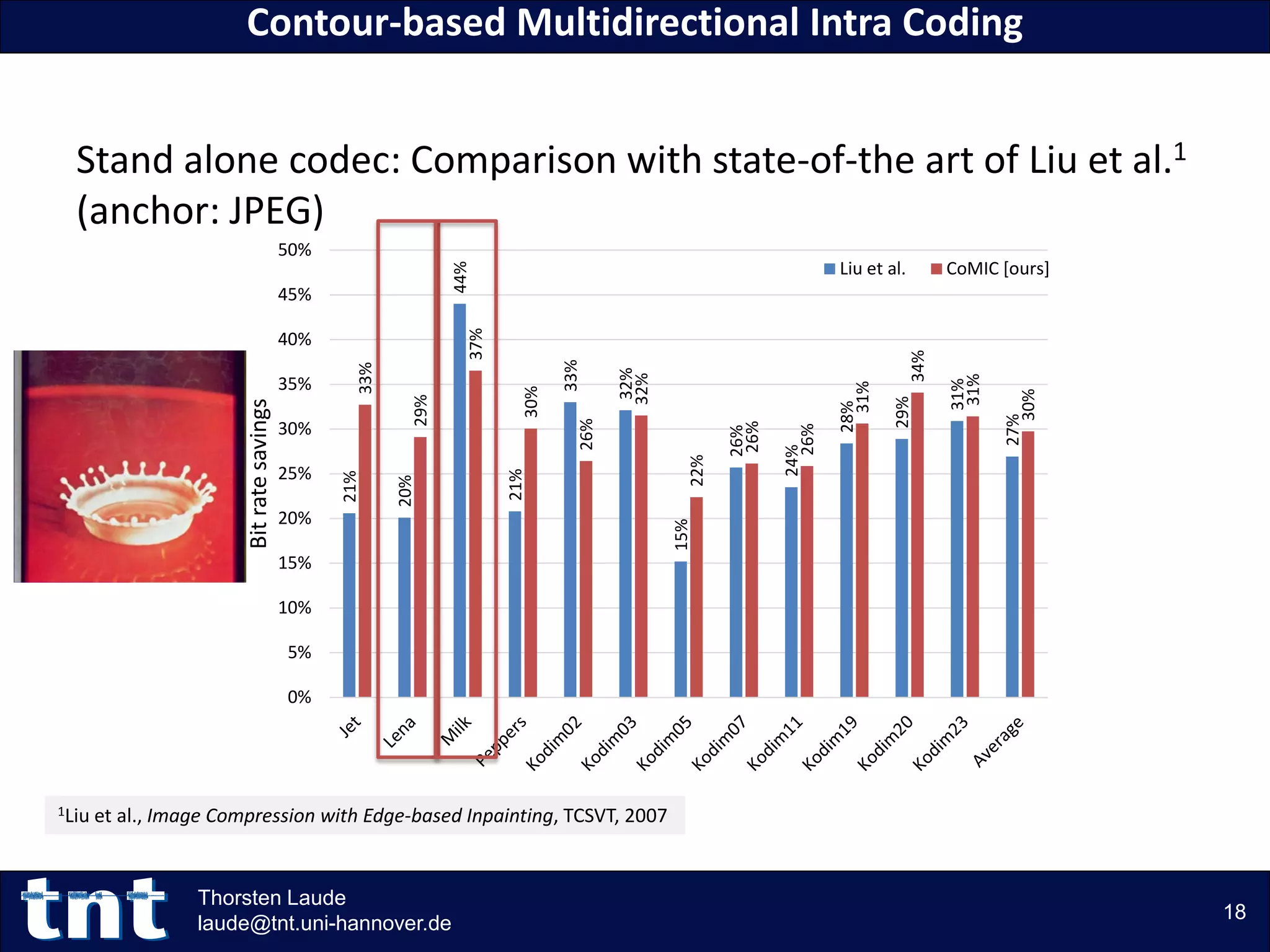

Stand alone codec: Comparison with state-of-the art of Liu et al.1
(anchor: JPEG)
Contour-based Multidirectional Intra Coding
18
Thorsten Laude
laude@tnt.uni-hannover.de
21%
20%
44%
21%
33%
32%
15%
26%
24%
28%
29%
31%
27%
33%
29%
37%
30%
26%
32%
22%
26%
26%
31%
34%
31%
30%
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
50%
Bitratesavings Liu et al. CoMIC [ours]
1Liu et al., Image Compression with Edge-based Inpainting, TCSVT, 2007
better
Additional coding mode in HEVC (HM-16.3)
Contour-based Multidirectional Intra Coding
19
Thorsten Laude
laude@tnt.uni-hannover.de
-2,0%
-1,8%
-1,6%
-1,4%
-1,2%
-1,0%
-0,8%
-0,6%
-0,4%
-0,2%
0,0%
Bike 14
BVI Ball
Under Water
BVI Bubbles
Clear BVI Sparkler
Basketball
Drive BQTerrace Kimono Mean
WeightedaverageBD-rate
All intra Low delay Random access Mean
better

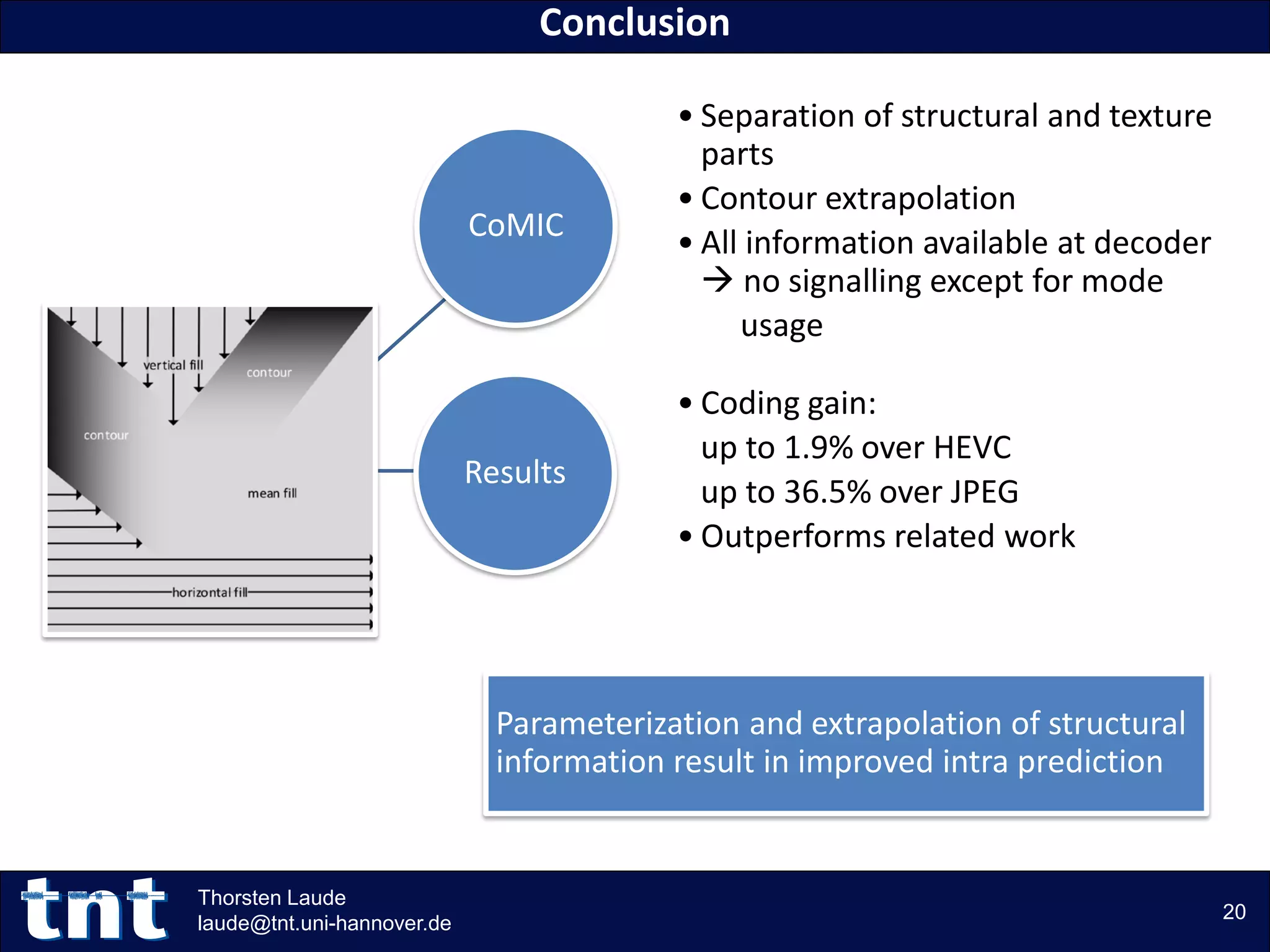

• Separation of structural and texture
parts
• Contour extrapolation
• All information available at decoder
 no signalling except for mode
usage
• Coding gain:
up to 1.9% over HEVC
up to 36.5% over JPEG
• Outperforms related work
CoMIC
Results
Parameterization and extrapolation of structural
information result in improved intra prediction
Conclusion
20
Thorsten Laude
laude@tnt.uni-hannover.de
Institut für Informationsverarbeitung
Scene-based KLT for Intra
Coding in HEVC
Yiqun Li and Jörn Ostermann
General Idea
22
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Transform Coding
Original Luminance
Prediction Error
 Input: Prediction errors
 Output: Data for quantization
Desired:
 Content representable by few
coefficients in zig-zag order
16 ×16 TU
Logarithm of Energy
after DCT
Outline
General Idea
HM / JEM
Karhunen Loeve Transform
Conclusion
23
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
HM / JEM
24
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
DCT / DST
Benefit:
 Fixed coefficients
 Sensitivity of eyes
Drawbacks:
 DCT / DST not data-based
 Computational complexity
HM JEM
General DCT-II DCT-II
Special 4×4 DST-VII
for intra
Adaptive multiple Core transform (AMT) : (DST-
VII, DCT-VIII, DST-I, DCT-V)
Mode dependent non-separable
secondary transform (MDNSST) : 33
matrices for directional
2 matrices for non-directional modes
HM / JEM
25
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de

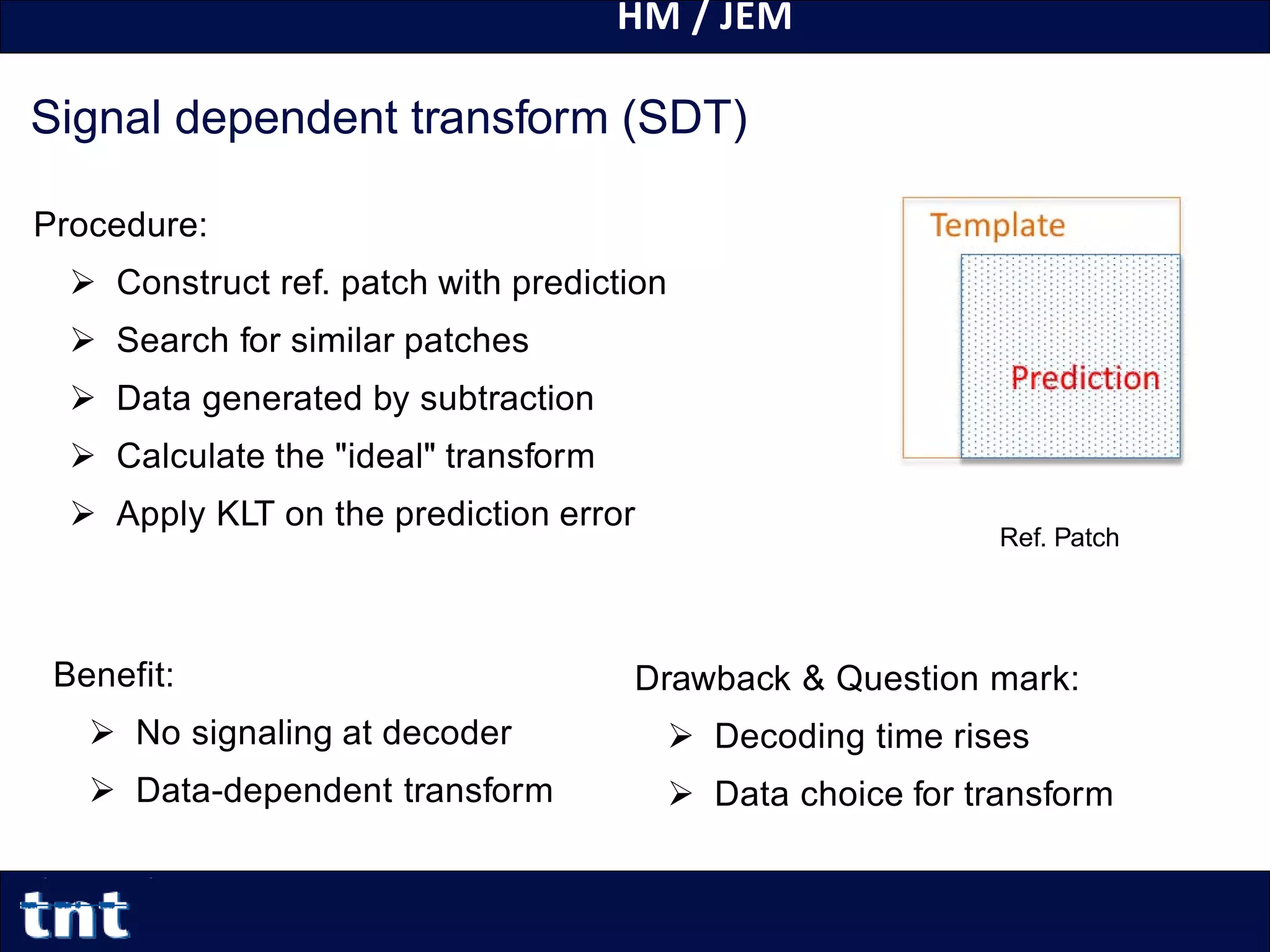

Signal dependent transform (SDT)
Procedure:
 Construct ref. patch with prediction
 Search for similar patches
 Data generated by subtraction
 Calculate the "ideal" transform
 Apply KLT on the prediction error
Ref. Patch
Benefit:
 No signaling at decoder
 Data-dependent transform
Drawback & Question mark:
 Decoding time rises
 Data choice for transform
Karhunen Loeve Transform
26
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
General Idea
HM / JEM
Karhunen Loeve Transform
Conclusion
Karhunen Loeve Transform
Desired Transform
Energy compaction
 Data dependent
⇒ Karhunen Loeve Transform (KLT)
Efficiency
 No re-generation at decoder
⇒ One off-line-trained transform for each case
27
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Karhunen Loeve Transform

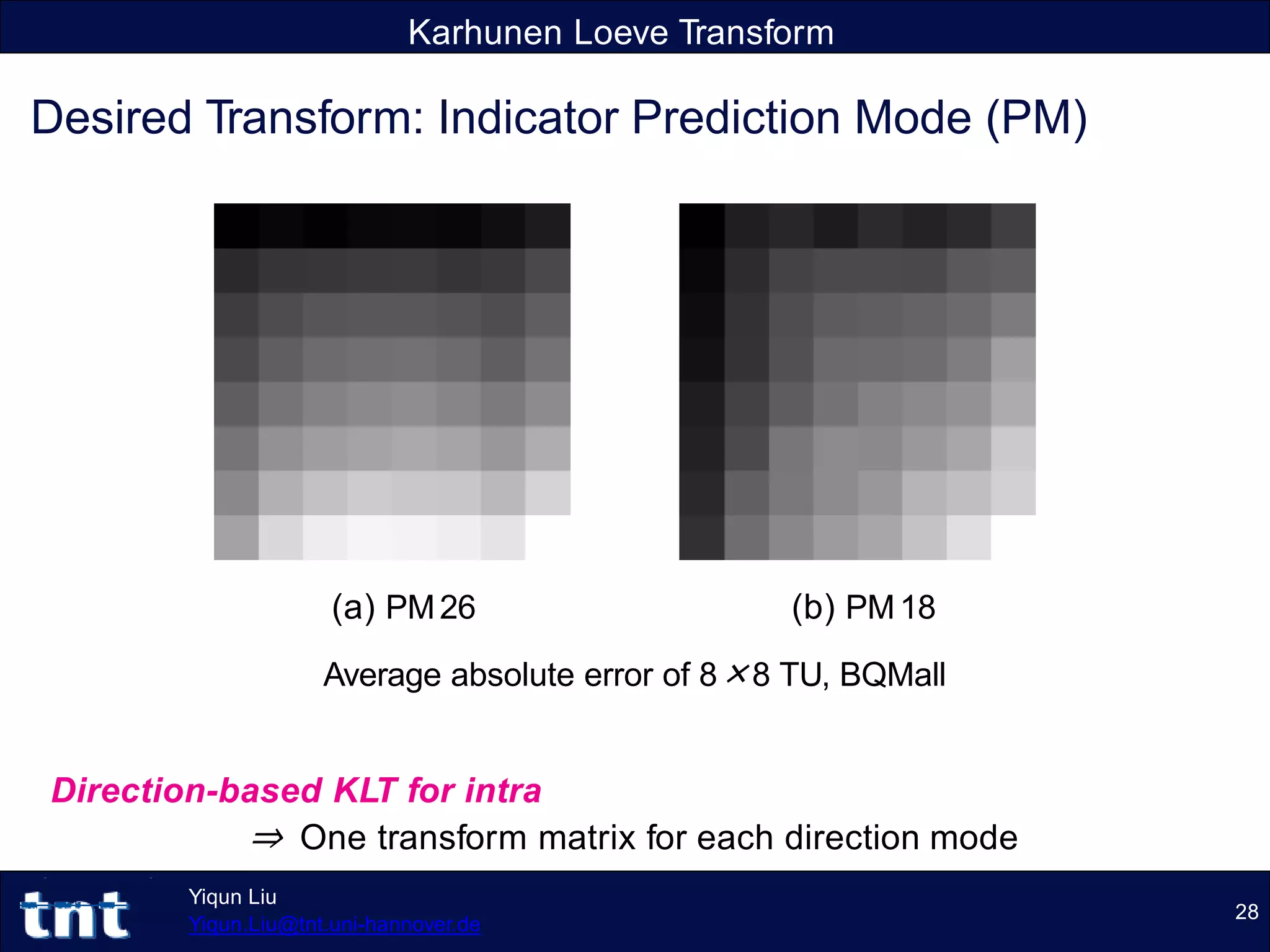

Desired Transform: Indicator Prediction Mode (PM)
(a) PM26 (b) PM18
Average absolute error of 8×8 TU, BQMall
Direction-based KLT for intra
⇒ One transform matrix for each direction mode
28
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Karhunen Loeve Transform

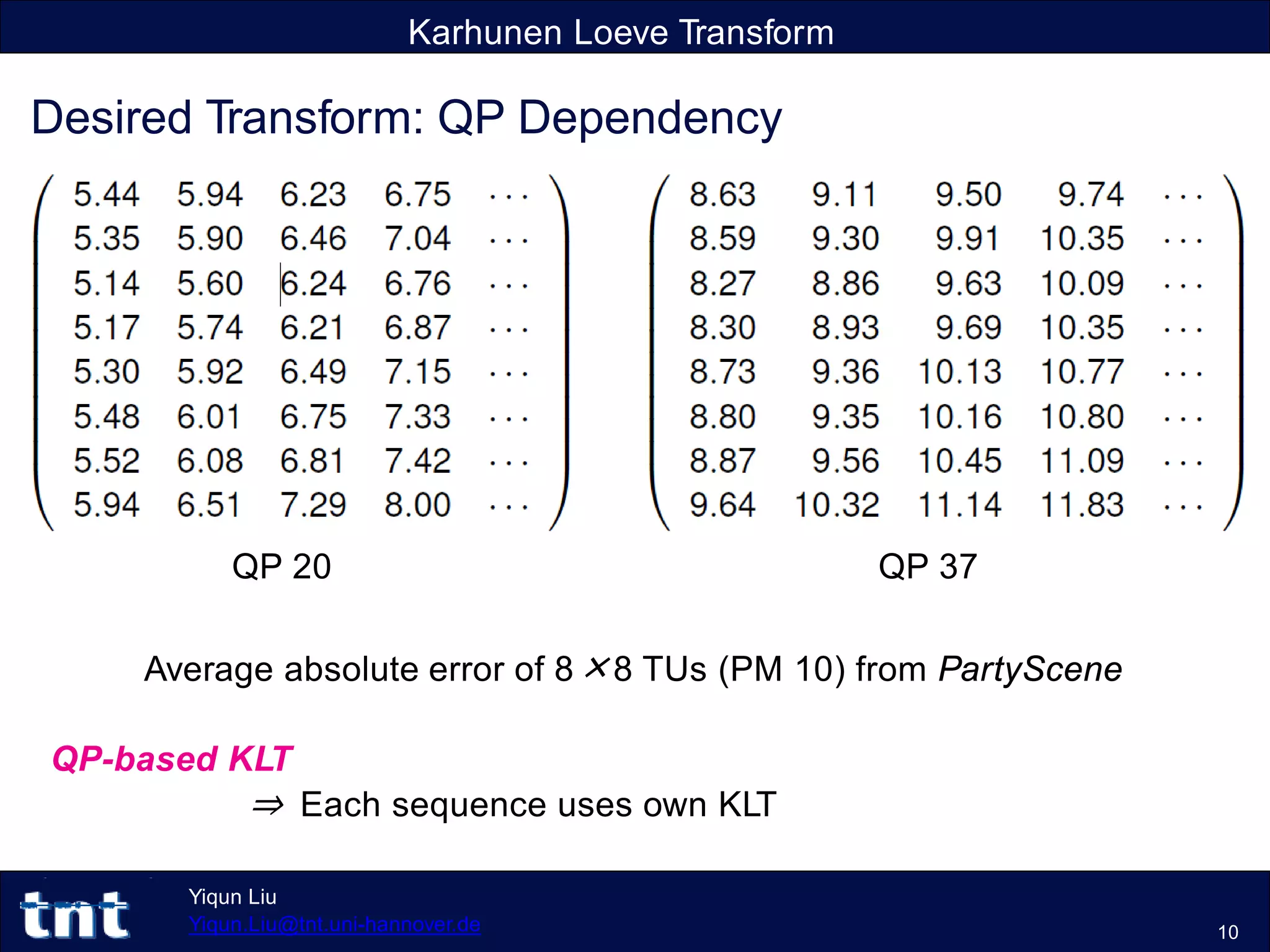

Desired Transform: QP Dependency
Average absolute error of 8×8 TUs (PM 10) from PartyScene
QP-based KLT
⇒ Each sequence uses own KLT
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 10
QP 20 QP 37
Karhunen Loeve Transform

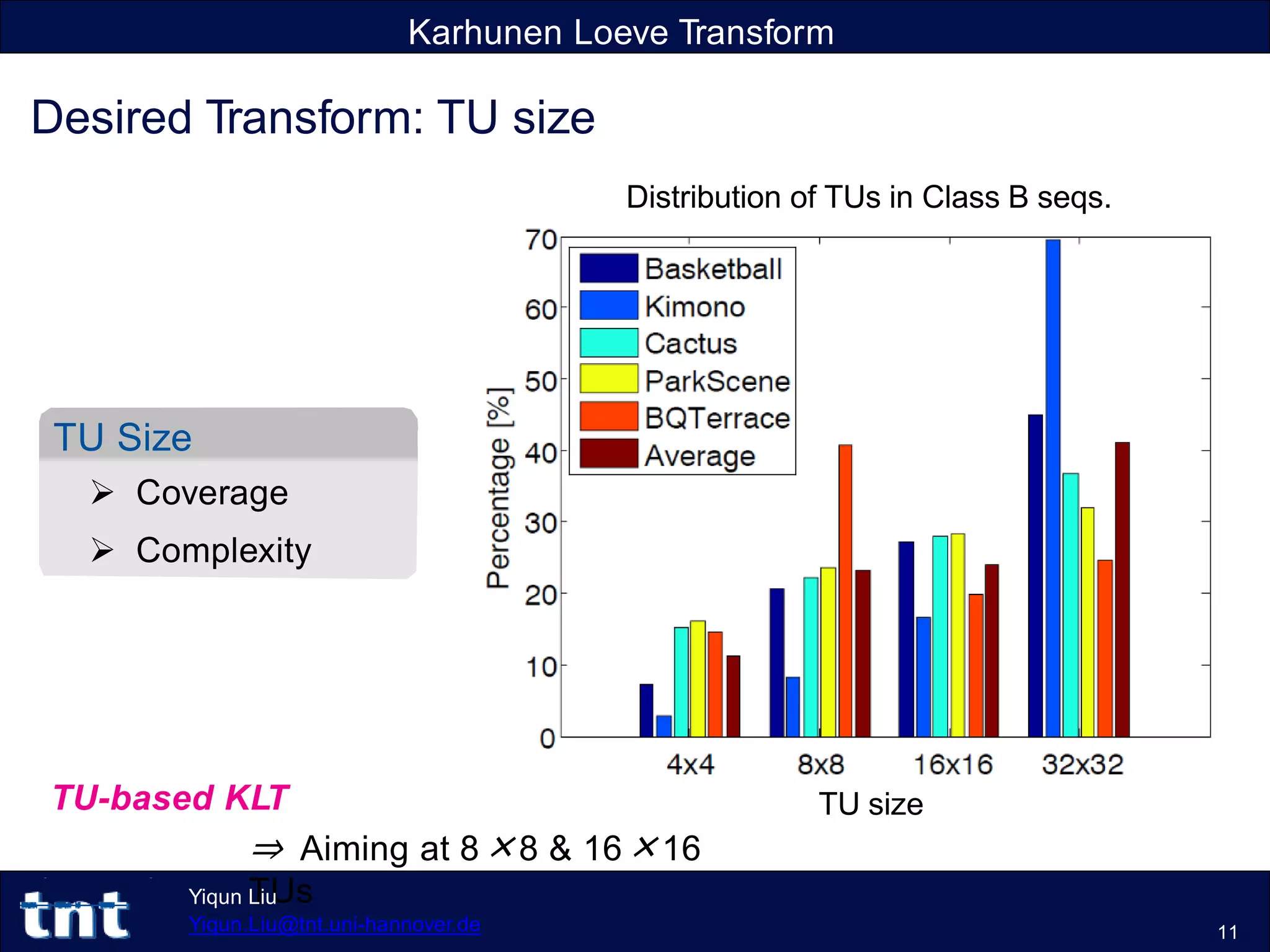

Desired Transform: TU size
TU Size
 Coverage
 Complexity
TU size
Distribution of TUs in Class B seqs.
TU-based KLT
⇒ Aiming at 8×8 & 16×16
TUsYiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 11
Karhunen Loeve Transform
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de

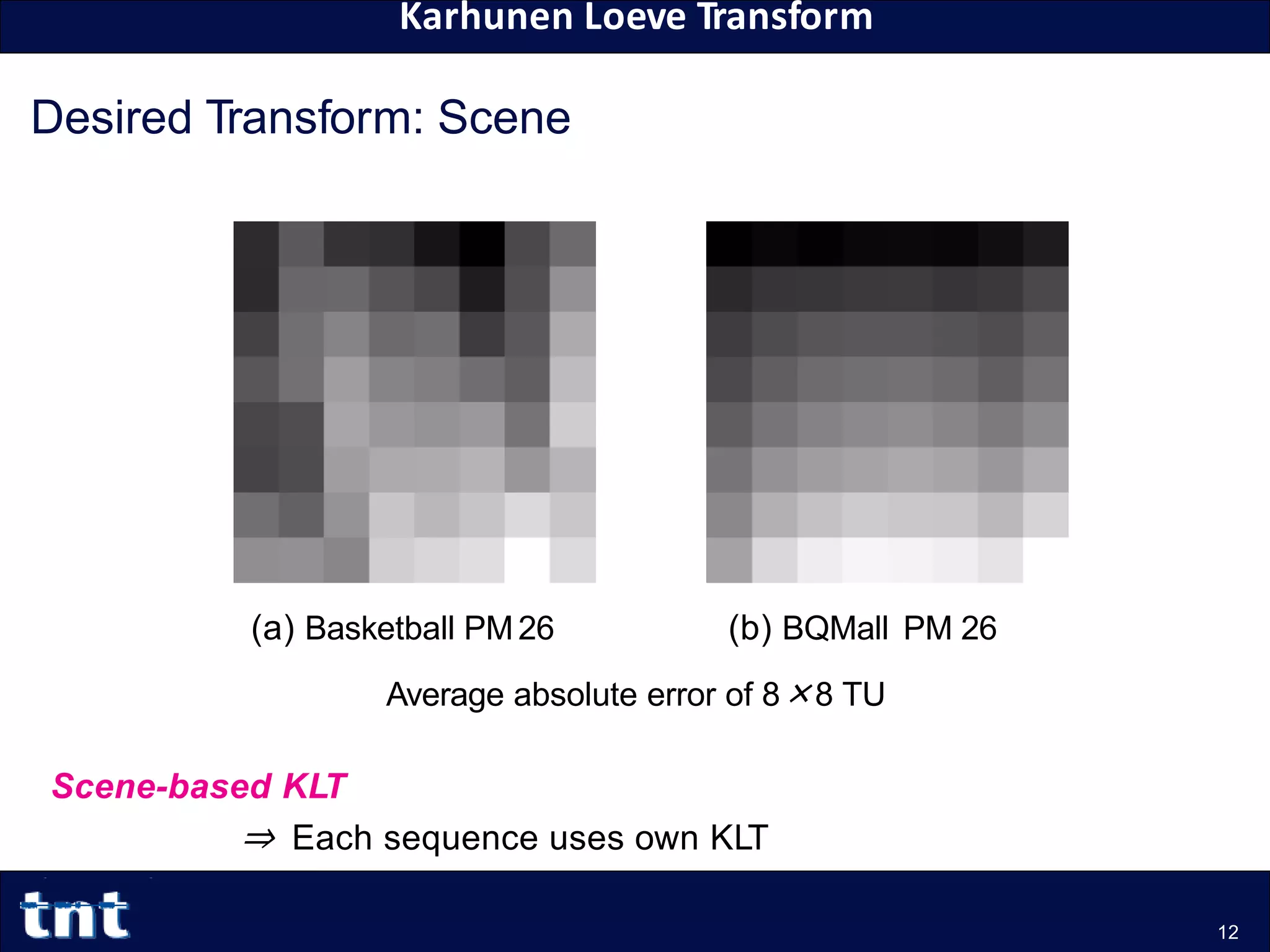

Desired Transform: Scene
(a) Basketball PM26 (b) BQMall PM 26
Average absolute error of 8×8 TU
Scene-based KLT
⇒ Each sequence uses own KLT
12
Karhunen Loeve Transform
Structure
Block diagram of the hybrid encoder with KLT
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 13
Karhunen Loeve Transform

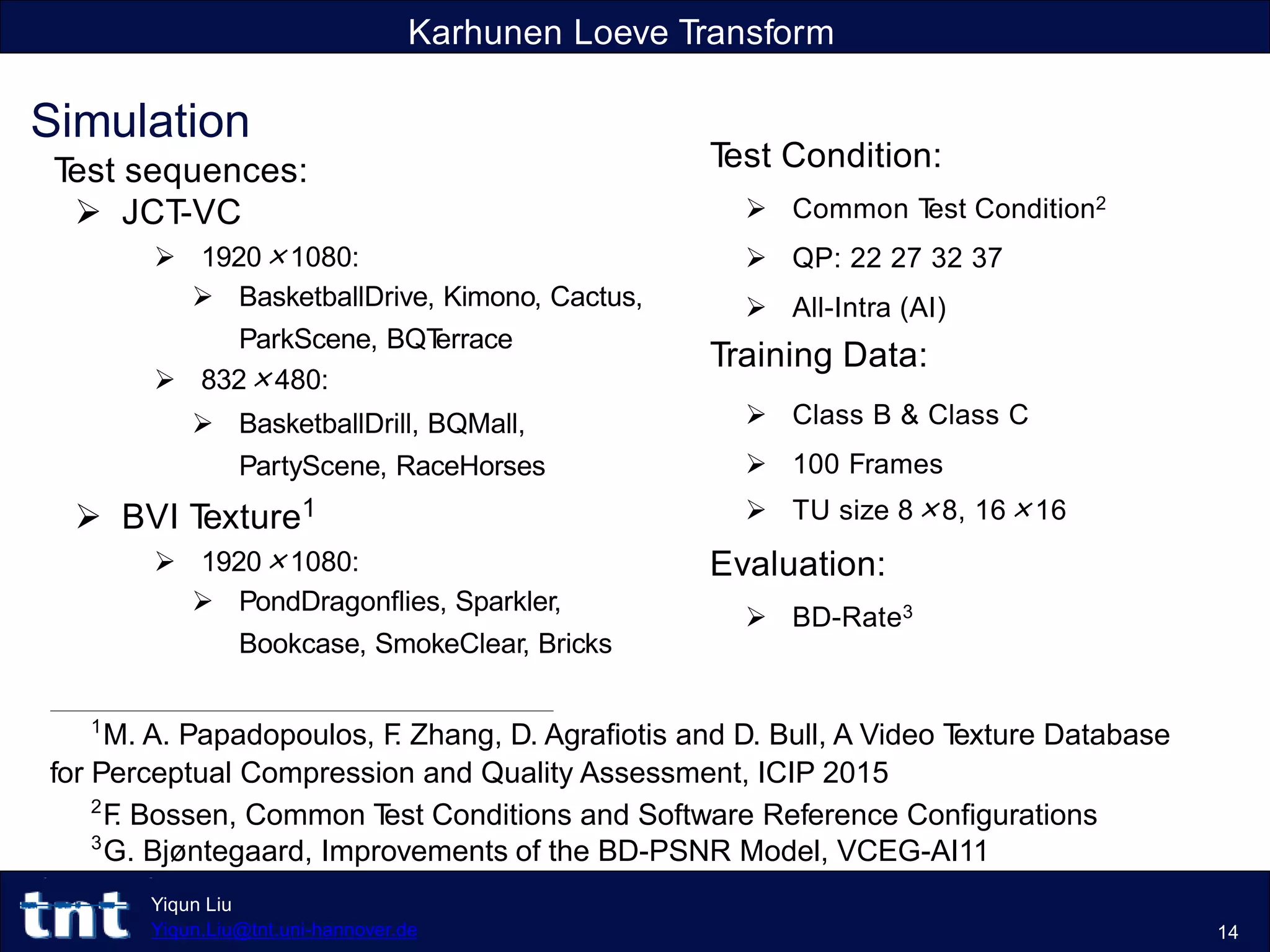

Simulation
Test sequences:
 JCT-VC
 1920×1080:
 BasketballDrive, Kimono, Cactus,
ParkScene, BQTerrace
 832×480:
 BasketballDrill, BQMall,
PartyScene, RaceHorses
 BVI Texture1
 1920×1080:
 PondDragonflies, Sparkler,
Bookcase, SmokeClear, Bricks
Test Condition:
 Common Test Condition2
 QP: 22 27 32 37
 All-Intra (AI)
Training Data:
 Class B & Class C
 100 Frames
 TU size 8×8, 16×16
Evaluation:
 BD-Rate3
1
M. A. Papadopoulos, F. Zhang, D. Agrafiotis and D. Bull, A Video Texture Database
for Perceptual Compression and Quality Assessment, ICIP 2015
2
F. Bossen, Common Test Conditions and Software Reference Configurations
3
G. Bjøntegaard, Improvements of the BD-PSNR Model, VCEG-AI11
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 14
Karhunen Loeve Transform
34
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de

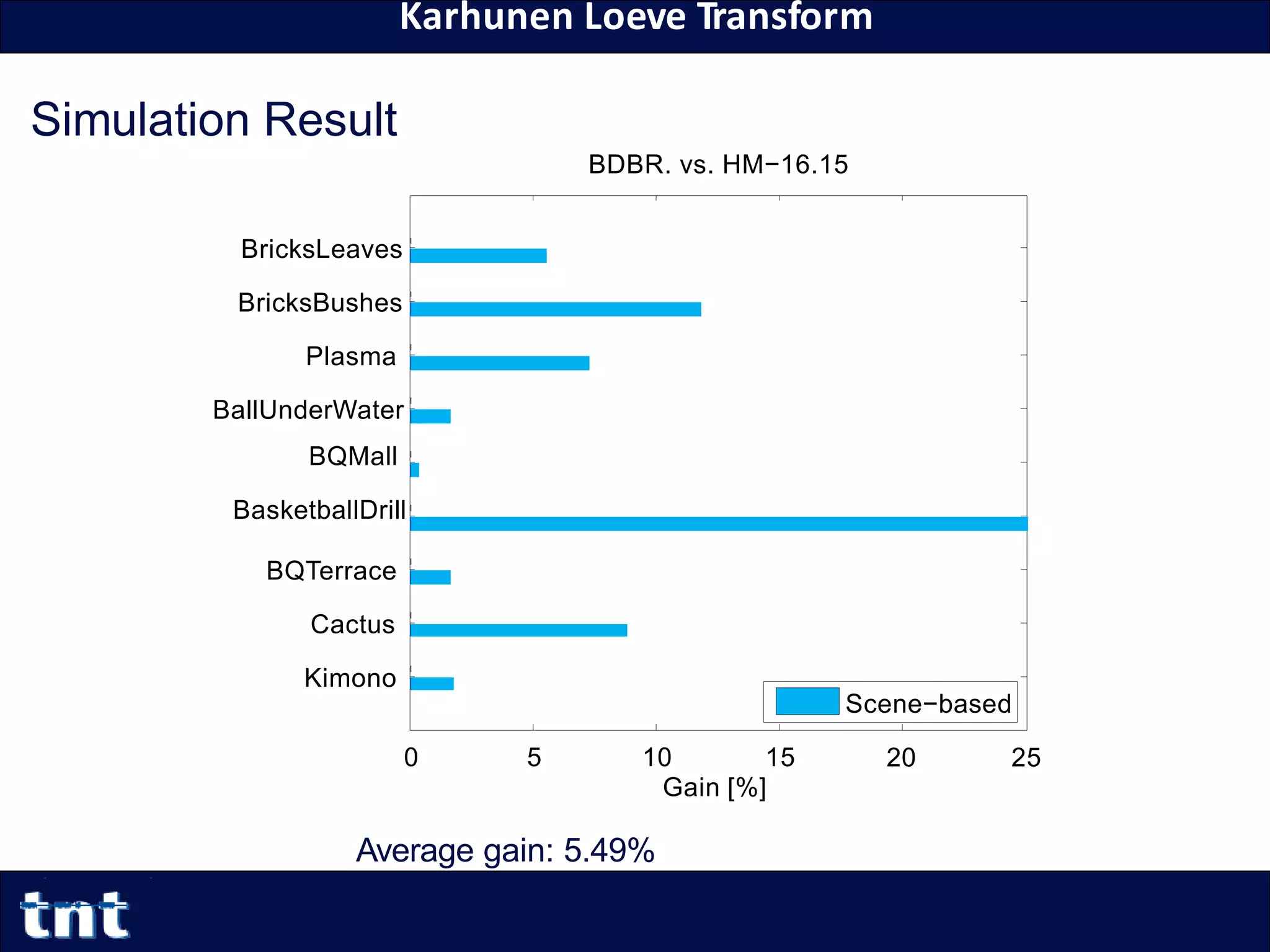

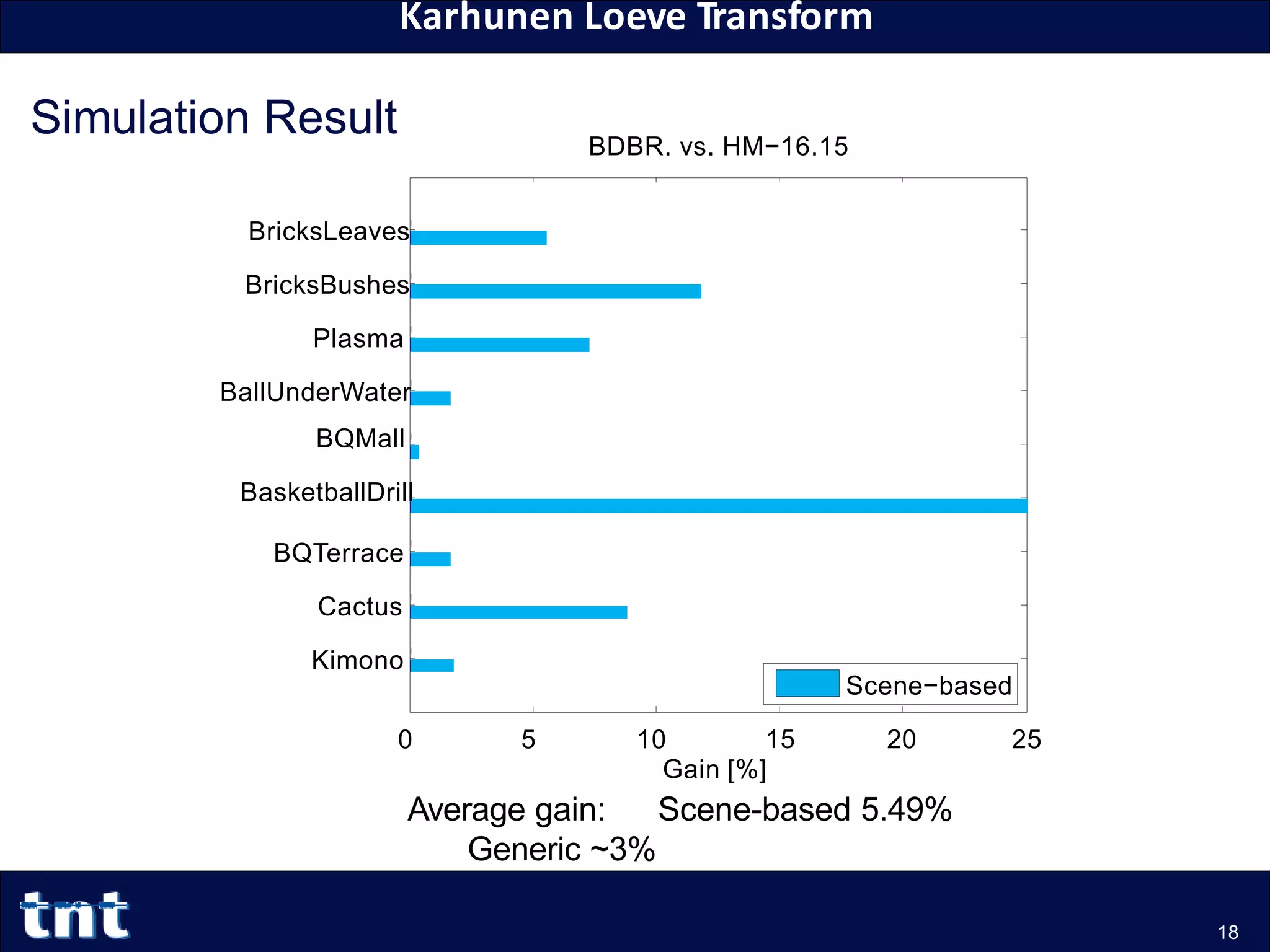

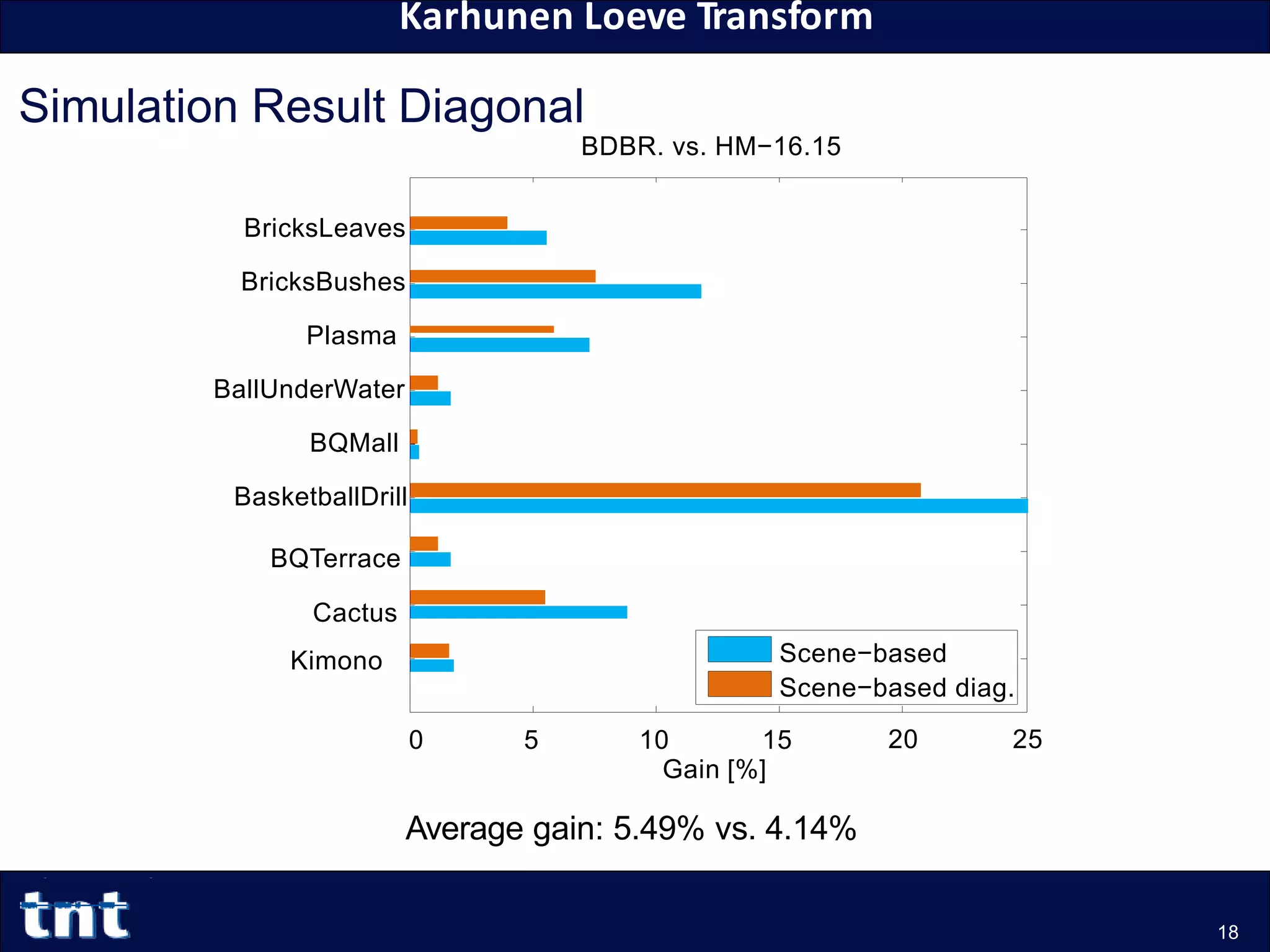

Simulation Result
0 5 10 15
Scene−based
20 25
Kimono
Cactus
BQTerrace
BallUnderWater
BQMall
BasketballDrill
Plasma
BricksBushes
BricksLeaves
Gain [%]
BDBR. vs. HM−16.15
Average gain: 5.49%

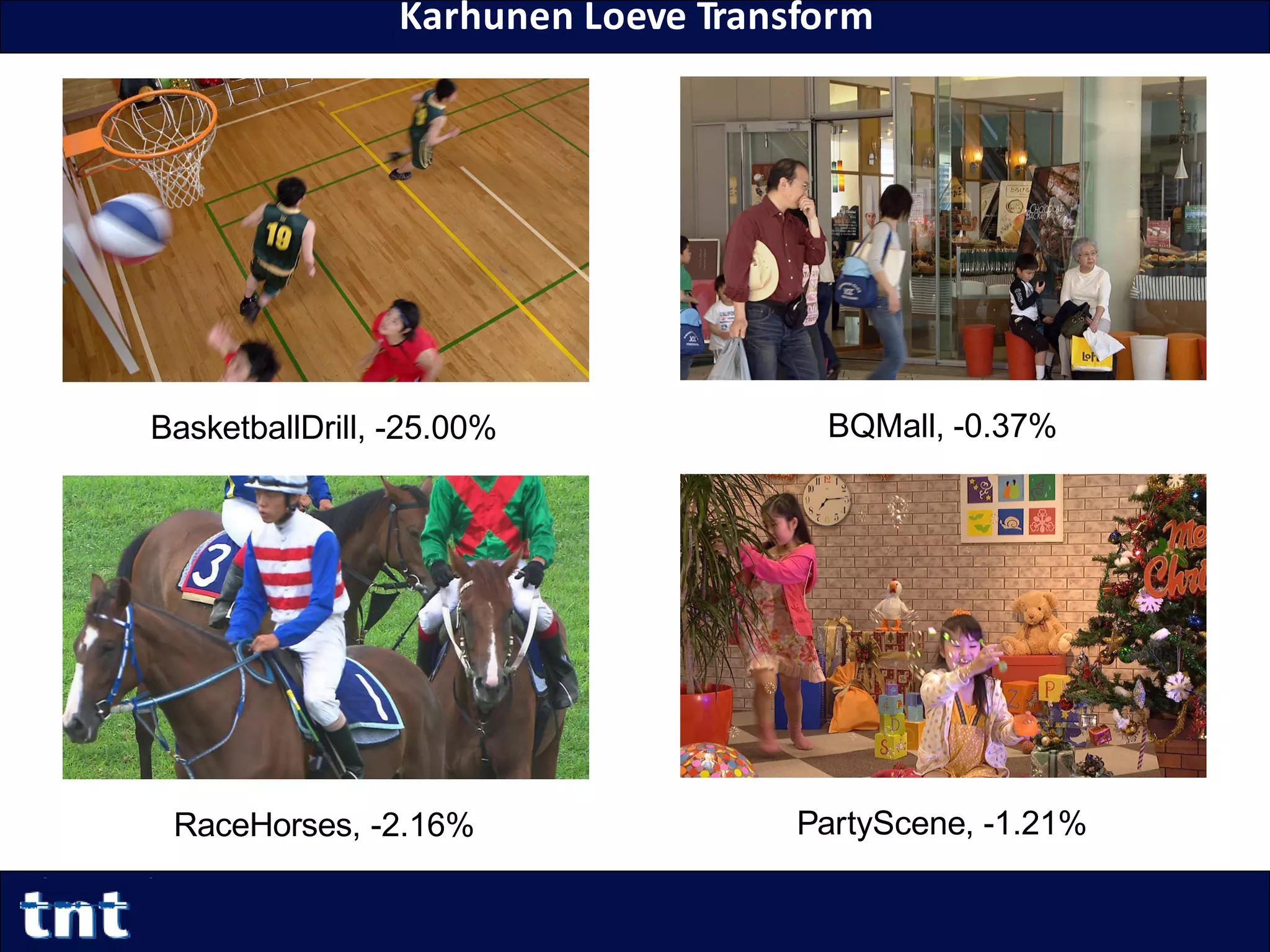

Karhunen Loeve Transform
35
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
BasketballDrill, -25.00%
RaceHorses, -2.16%
BQMall, -0.37%
PartyScene, -1.21%
Karhunen Loeve Transform

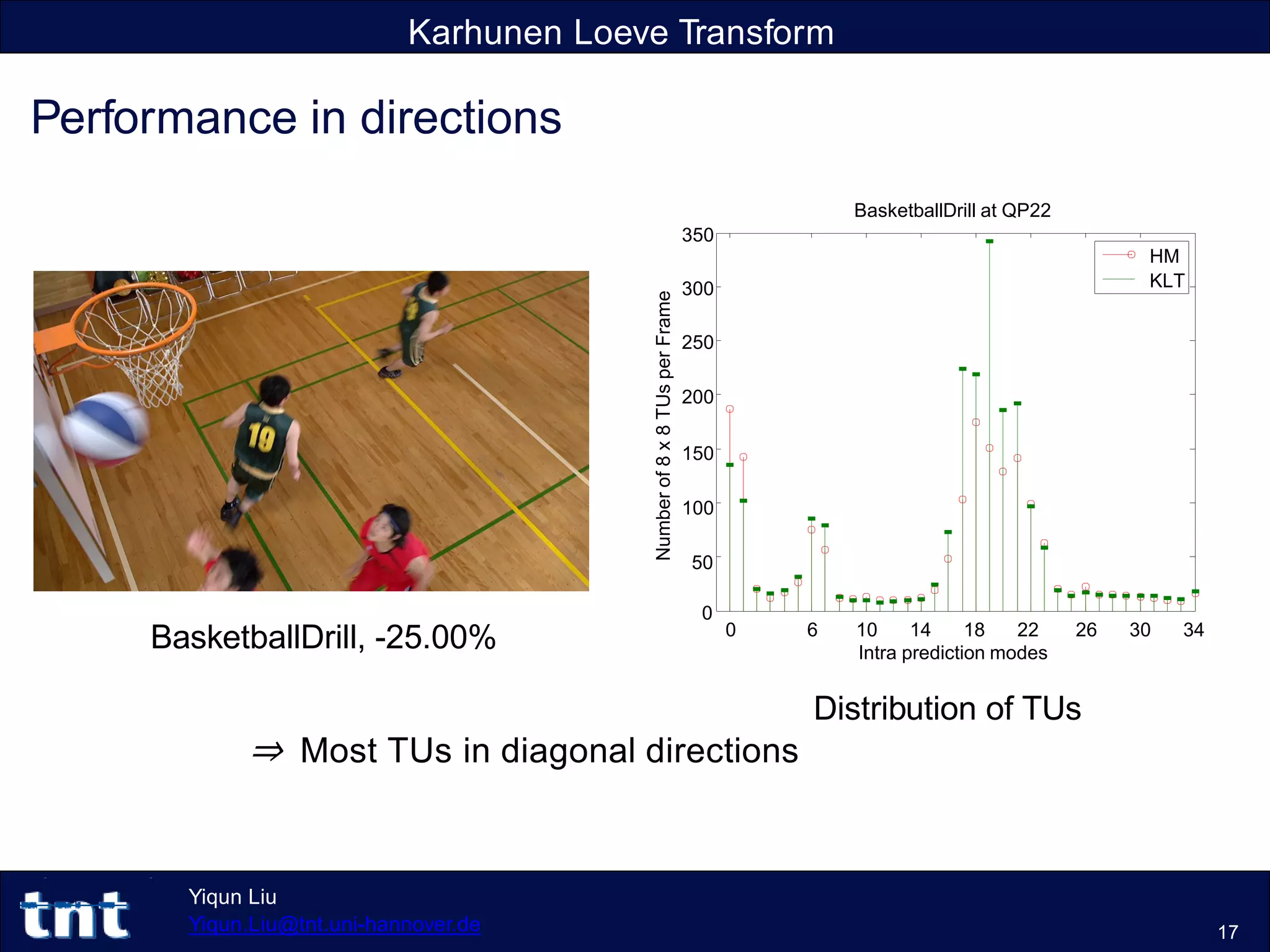

Performance in directions
BasketballDrill, -25.00% 0 6 10 14 18 22
Intra prediction modes
26 30 34
0
250
200
150
100
50
300
350
Numberof8x8TUsperFrame
BasketballDrill at QP22
HM
KLT
Distribution of TUs
⇒ Most TUs in diagonal directions
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 17
Karhunen Loeve Transform

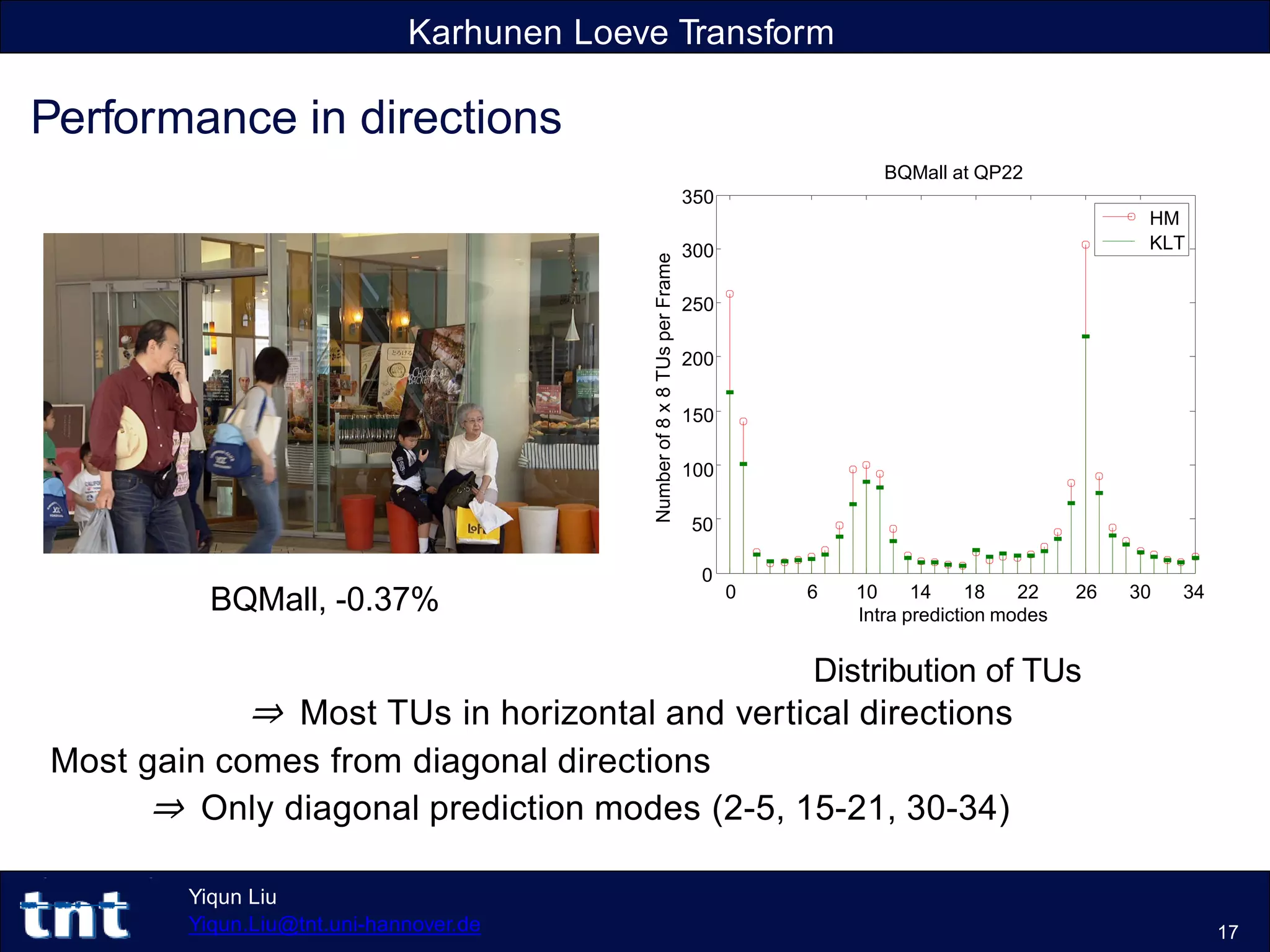

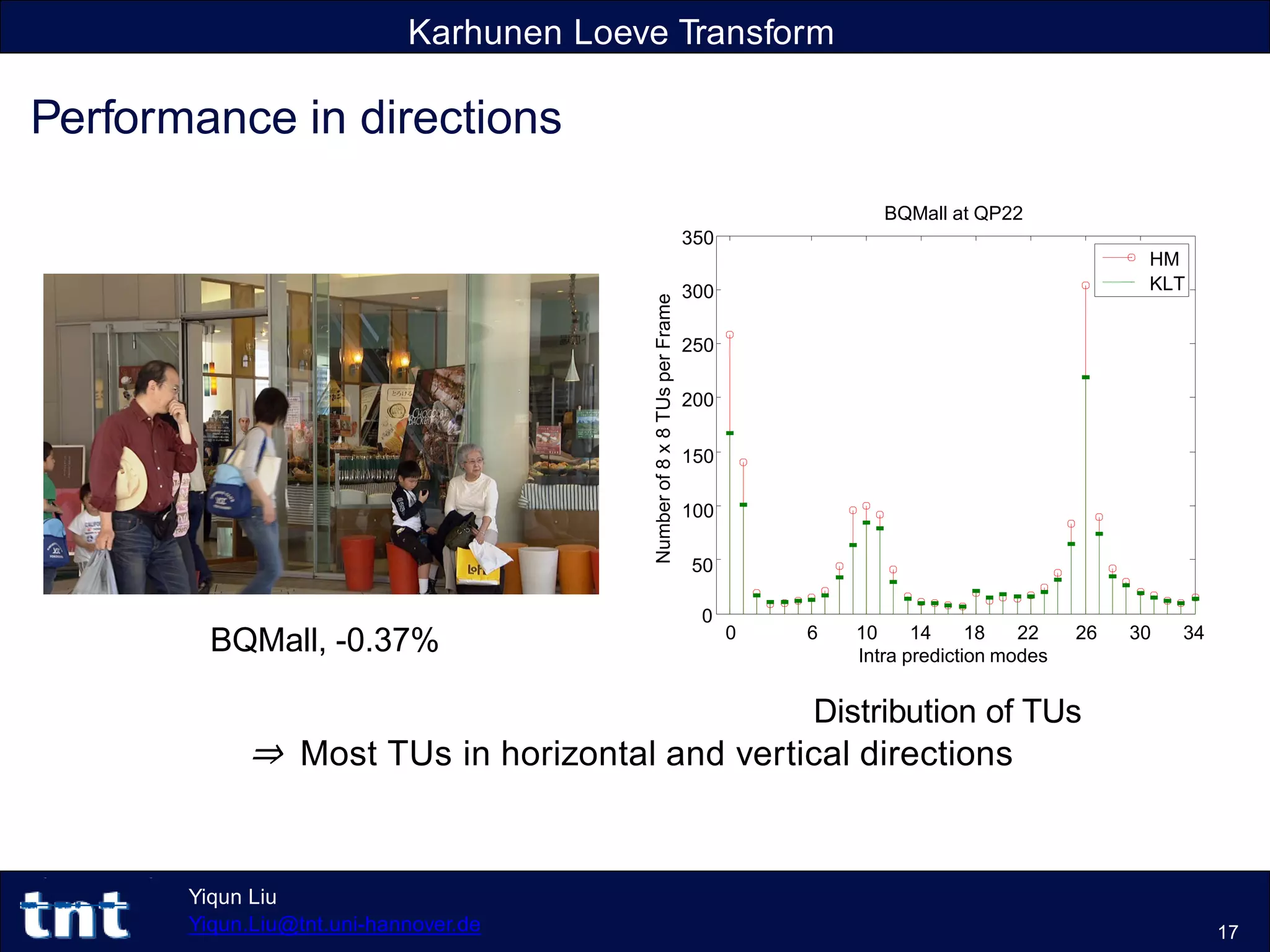

Performance in directions
BQMall, -0.37% 0 6 10 14 18 22
Intra prediction modes
26 30 34
0
250
200
150
100
50
300
350
Numberof8x8TUsperFrame
BQMall at QP22
HM
KLT
Distribution of TUs
⇒ Most TUs in horizontal and vertical directions
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 17
Karhunen Loeve Transform
Performance in directions
BQMall, -0.37% 0 6 10 14 18 22
Intra prediction modes
26 30 34
0
250
200
150
100
50
300
350
Numberof8x8TUsperFrame
BQMall at QP22
HM
KLT
Distribution of TUs
⇒ Most TUs in horizontal and vertical directions
Most gain comes from diagonal directions
⇒ Only diagonal prediction modes (2-5, 15-21, 30-34)
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de 17
Karhunen Loeve Transform
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Simulation Result
Kimono
0 5 10 15
Scene−based
20 25
Cactus
BQTerrace
BallUnderWater
BQMall
BasketballDrill
Plasma
BricksBushes
BricksLeaves
Gain [%]
BDBR. vs. HM−16.15
Average gain: Scene-based 5.49%
Generic ~3%
18
Karhunen Loeve Transform
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Kimono
0 5 10 15 20 25
Simulation Result Diagonal
BDBR. vs. HM−16.15
BricksLeaves
BricksBushes
Plasma
BallUnderWater
BQMall
BasketballDrill
BQTerrace
Cactus
Gain [%]
Average gain: 5.49% vs. 4.14%
Scene−based
Scene−based diag.
18
Karhunen Loeve Transform
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de

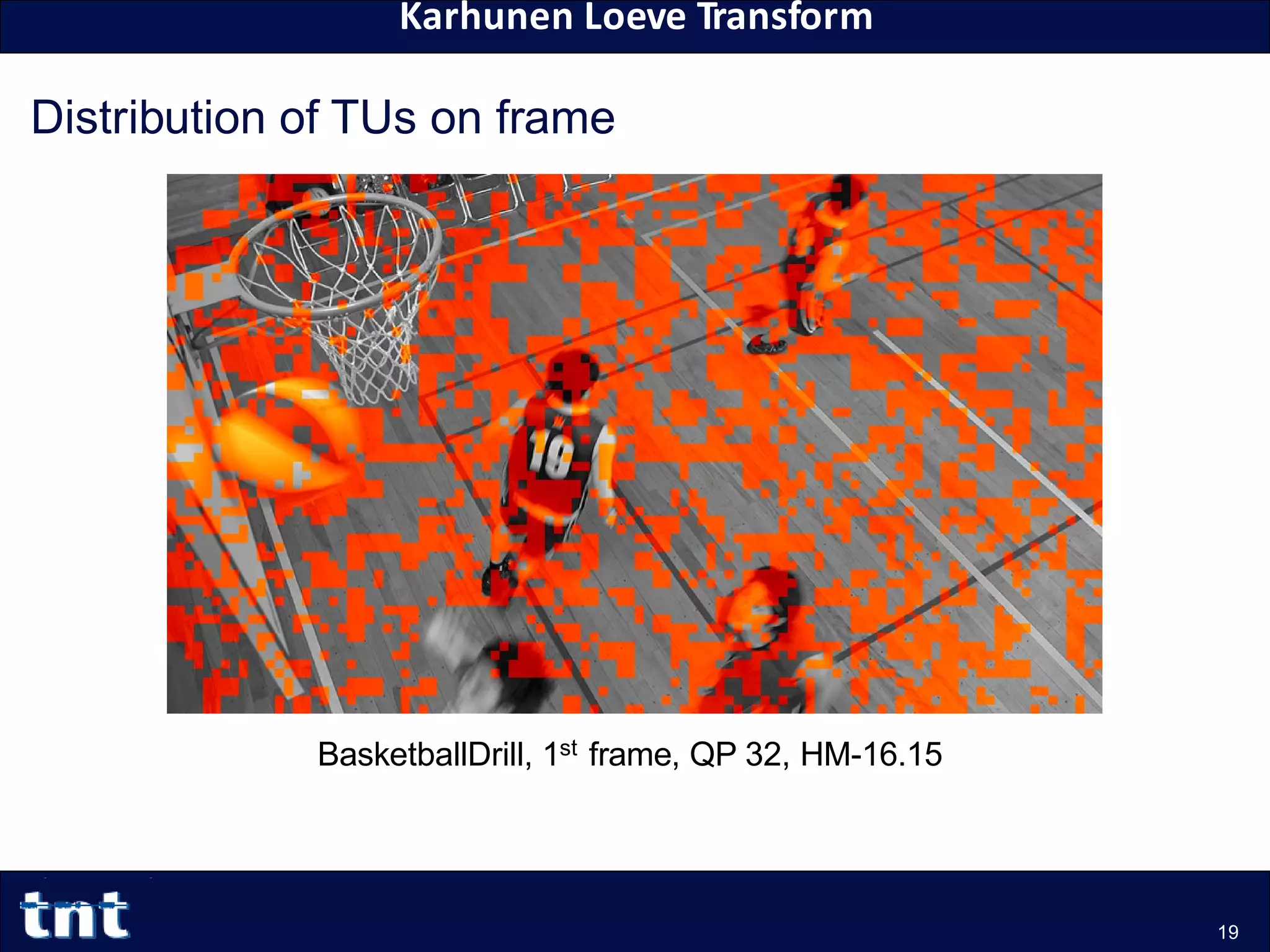

Distribution of TUs on frame
BasketballDrill, 1st frame, QP 32, HM-16.15
19
Karhunen Loeve Transform
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Distribution of TUs on frame
BasketballDrill, 1st frame, QP 32, scene-based KLT
19
Conclusion
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
General Idea
HM / JEM
Karhunen Loeve Transform
Conclusion
20

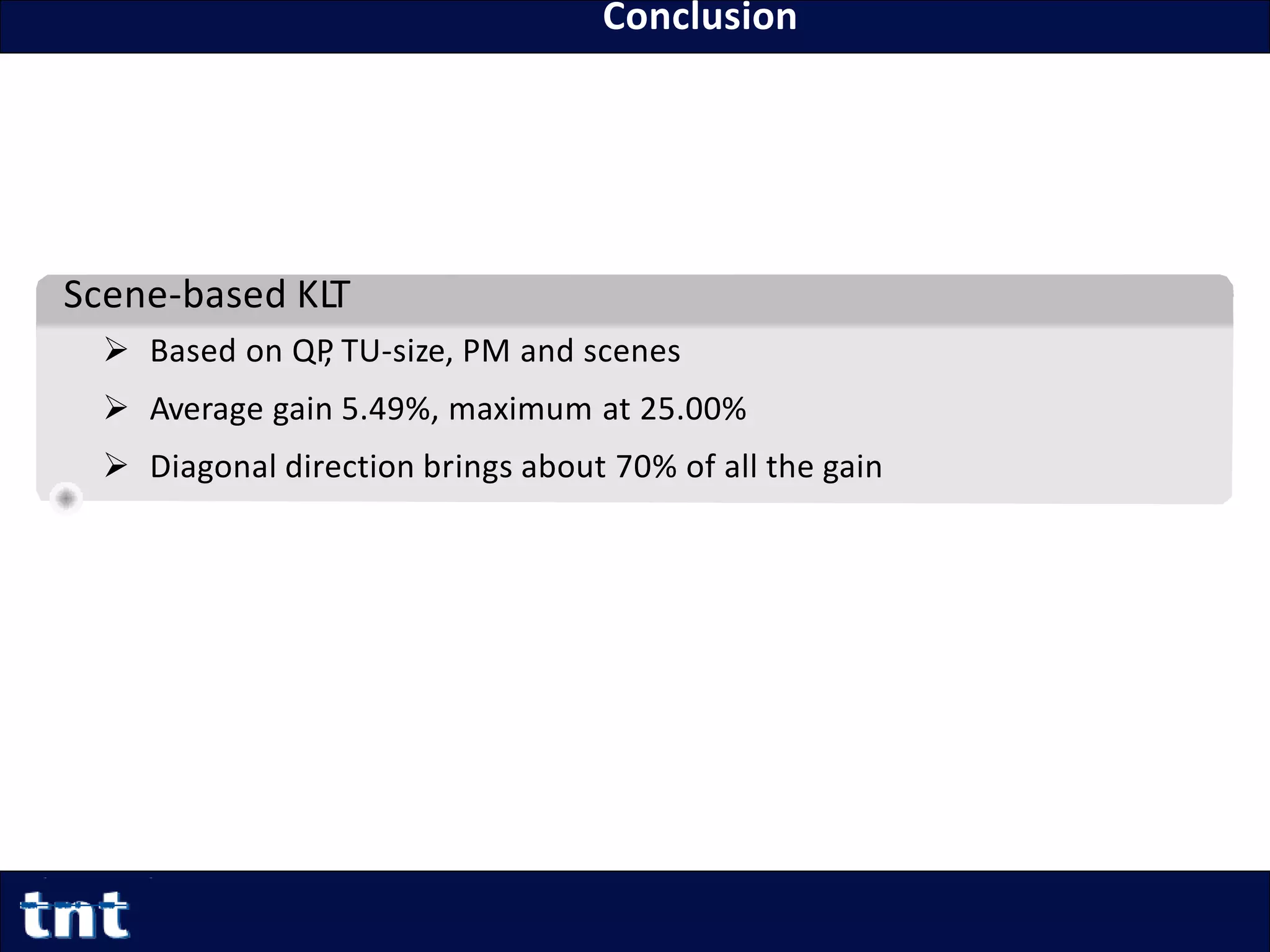

Scene-based KLT
 Based on QP, TU-size, PM and scenes
 Average gain 5.49%, maximum at 25.00%
 Diagonal direction brings about 70% of all the gain
Conclusion
21
Yiqun Liu
Yiqun.Liu@tnt.uni-hannover.de
Institut für Informationsverarbeitung
Texture Synthesis
Bastain Wandt, Thorsten Laude, Bodo
Rosenhahn, Jörn Ostermann
pdf
Goal1
Penalty1
Penalty3
Penalty4
Texture Synthesis
46
Dipl.-Ing. Bastian Wandt
wandt@tnt.uni-hannover.de

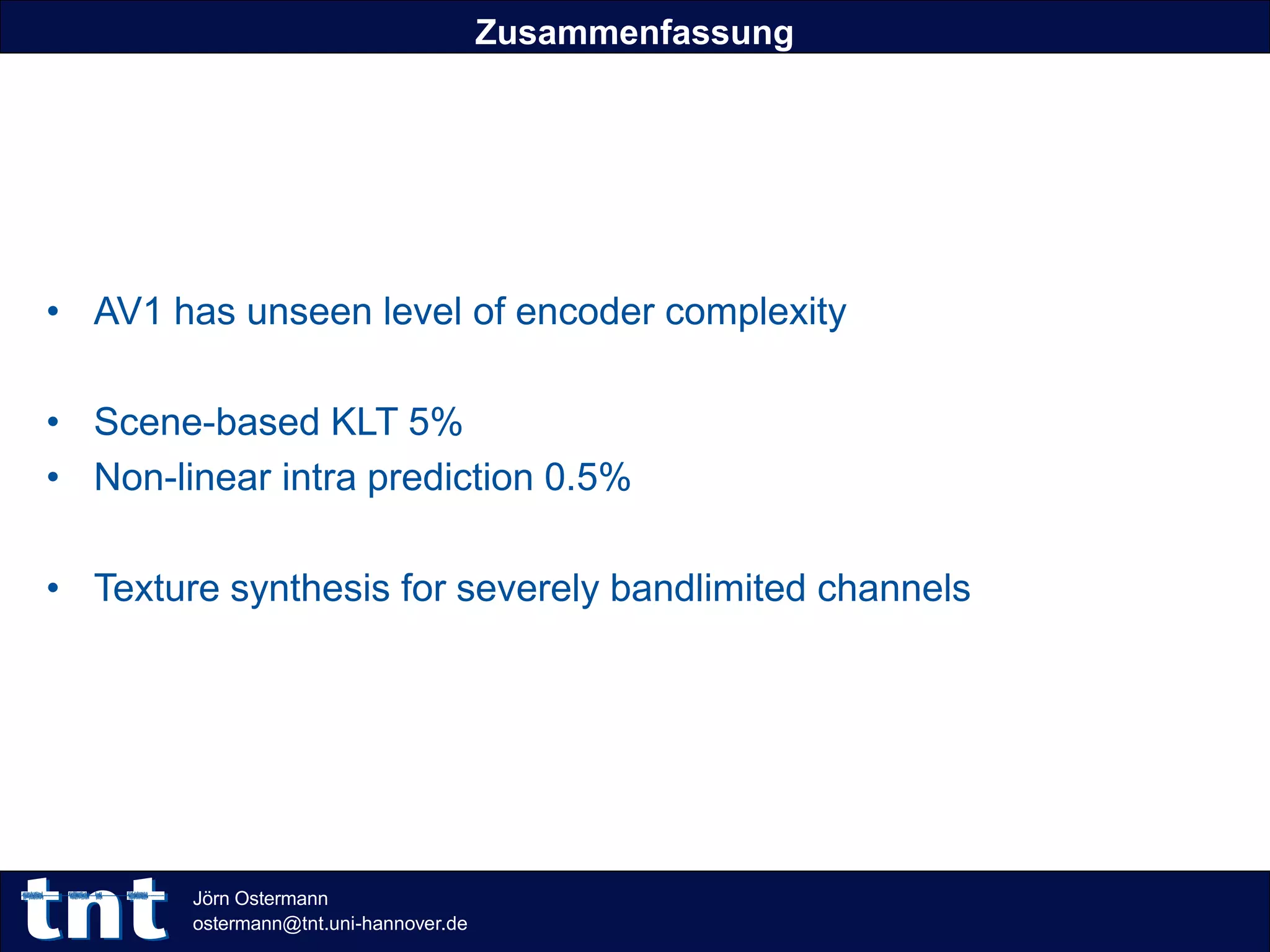

Zusammenfassung
• AV1 has unseen level of encoder complexity
• Scene-based KLT 5%
• Non-linear intra prediction 0.5%
• Texture synthesis for severely bandlimited channels
Jörn Ostermann
ostermann@tnt.uni-hannover.de

More Related Content

What's hot

C++ neural networks and fuzzy logic
C++ neural networks and fuzzy logicC++ neural networks and fuzzy logic
C++ neural networks and fuzzy logic
Jamerson Ramos

(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...
Bomm Kim

"Semantic Segmentation for Scene Understanding: Algorithms and Implementation...
"Semantic Segmentation for Scene Understanding: Algorithms and Implementation..."Semantic Segmentation for Scene Understanding: Algorithms and Implementation...
"Semantic Segmentation for Scene Understanding: Algorithms and Implementation...
Edge AI and Vision Alliance

Saptashwa_Mitra_Sitakanta_Mishra_Final_Project_Report
Saptashwa_Mitra_Sitakanta_Mishra_Final_Project_ReportSaptashwa_Mitra_Sitakanta_Mishra_Final_Project_Report
Saptashwa_Mitra_Sitakanta_Mishra_Final_Project_Report
Sitakanta Mishra

“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...
“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...
“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...
Edge AI and Vision Alliance


What's hot (18)

C++ neural networks and fuzzy logic
C++ neural networks and fuzzy logicC++ neural networks and fuzzy logic
C++ neural networks and fuzzy logic

(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...

Spine net learning scale permuted backbone for recognition and localization
Spine net learning scale permuted backbone for recognition and localizationSpine net learning scale permuted backbone for recognition and localization
Spine net learning scale permuted backbone for recognition and localization

"Semantic Segmentation for Scene Understanding: Algorithms and Implementation...
"Semantic Segmentation for Scene Understanding: Algorithms and Implementation..."Semantic Segmentation for Scene Understanding: Algorithms and Implementation...
"Semantic Segmentation for Scene Understanding: Algorithms and Implementation...

In datacenter performance analysis of a tensor processing unit
In datacenter performance analysis of a tensor processing unitIn datacenter performance analysis of a tensor processing unit
In datacenter performance analysis of a tensor processing unit

Dynamic Texture Coding using Modified Haar Wavelet with CUDA
Dynamic Texture Coding using Modified Haar Wavelet with CUDADynamic Texture Coding using Modified Haar Wavelet with CUDA
Dynamic Texture Coding using Modified Haar Wavelet with CUDA

Motion estimation overview
Motion estimation overviewMotion estimation overview
Motion estimation overview

Review-image-segmentation-by-deep-learning
Review-image-segmentation-by-deep-learningReview-image-segmentation-by-deep-learning
Review-image-segmentation-by-deep-learning

Saptashwa_Mitra_Sitakanta_Mishra_Final_Project_Report
Saptashwa_Mitra_Sitakanta_Mishra_Final_Project_ReportSaptashwa_Mitra_Sitakanta_Mishra_Final_Project_Report
Saptashwa_Mitra_Sitakanta_Mishra_Final_Project_Report

[unofficial] Pyramid Scene Parsing Network (CVPR 2017)
[unofficial] Pyramid Scene Parsing Network (CVPR 2017)[unofficial] Pyramid Scene Parsing Network (CVPR 2017)
[unofficial] Pyramid Scene Parsing Network (CVPR 2017)

A brief introduction to recent segmentation methods
A brief introduction to recent segmentation methodsA brief introduction to recent segmentation methods
A brief introduction to recent segmentation methods

"Trade-offs in Implementing Deep Neural Networks on FPGAs," a Presentation fr...
"Trade-offs in Implementing Deep Neural Networks on FPGAs," a Presentation fr..."Trade-offs in Implementing Deep Neural Networks on FPGAs," a Presentation fr...
"Trade-offs in Implementing Deep Neural Networks on FPGAs," a Presentation fr...

PR095: Modularity Matters: Learning Invariant Relational Reasoning Tasks
PR095: Modularity Matters: Learning Invariant Relational Reasoning TasksPR095: Modularity Matters: Learning Invariant Relational Reasoning Tasks
PR095: Modularity Matters: Learning Invariant Relational Reasoning Tasks

“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...
“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...
“Introduction to the TVM Open Source Deep Learning Compiler Stack,” a Present...

Future semantic segmentation with convolutional LSTM
Future semantic segmentation with convolutional LSTMFuture semantic segmentation with convolutional LSTM
Future semantic segmentation with convolutional LSTM

LOW AREA FPGA IMPLEMENTATION OF DROMCSLA-QTL ARCHITECTURE FOR CRYPTOGRAPHIC A...
LOW AREA FPGA IMPLEMENTATION OF DROMCSLA-QTL ARCHITECTURE FOR CRYPTOGRAPHIC A...LOW AREA FPGA IMPLEMENTATION OF DROMCSLA-QTL ARCHITECTURE FOR CRYPTOGRAPHIC A...
LOW AREA FPGA IMPLEMENTATION OF DROMCSLA-QTL ARCHITECTURE FOR CRYPTOGRAPHIC A...

Hz2514321439
Hz2514321439Hz2514321439
Hz2514321439

Solution(1)
Solution(1)Solution(1)
Solution(1)


Similar to Intra-coding using non-linear prediction, KLT and Texture Synthesis: AV1 encoders open the door to seemingly unconstrained video coding complexity

Fixed-Point Code Synthesis for Neural Networks
Fixed-Point Code Synthesis for Neural NetworksFixed-Point Code Synthesis for Neural Networks
Fixed-Point Code Synthesis for Neural Networks
gerogepatton

"An adaptive modular approach to the mining of sensor network ...
"An adaptive modular approach to the mining of sensor network ..."An adaptive modular approach to the mining of sensor network ...
"An adaptive modular approach to the mining of sensor network ...
butest

CyberSec_JPEGcompressionForensics.pdf
CyberSec_JPEGcompressionForensics.pdfCyberSec_JPEGcompressionForensics.pdf
CyberSec_JPEGcompressionForensics.pdf
MohammadAzreeYahaya

When Discrete Optimization Meets Multimedia Security (and Beyond)
When Discrete Optimization Meets Multimedia Security (and Beyond)When Discrete Optimization Meets Multimedia Security (and Beyond)
When Discrete Optimization Meets Multimedia Security (and Beyond)
Shujun Li

Computing near-optimal policies from trajectories by solving a sequence of st...
Computing near-optimal policies from trajectories by solving a sequence of st...Computing near-optimal policies from trajectories by solving a sequence of st...
Computing near-optimal policies from trajectories by solving a sequence of st...
Université de Liège (ULg)

GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用
GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用
GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用
NVIDIA Taiwan


Similar to Intra-coding using non-linear prediction, KLT and Texture Synthesis: AV1 encoders open the door to seemingly unconstrained video coding complexity (20)

Strategies to Combat Pilot Contamination in Massive MIMO Systems
Strategies to Combat Pilot Contamination in Massive MIMO SystemsStrategies to Combat Pilot Contamination in Massive MIMO Systems
Strategies to Combat Pilot Contamination in Massive MIMO Systems

IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVCIEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC

INCEPT: Intra CU Depth Prediction for HEVC
INCEPT: Intra CU Depth Prediction for HEVCINCEPT: Intra CU Depth Prediction for HEVC
INCEPT: Intra CU Depth Prediction for HEVC

Basics of ct lecture 2
Basics of ct  lecture 2Basics of ct  lecture 2
Basics of ct lecture 2

Fixed-Point Code Synthesis for Neural Networks
Fixed-Point Code Synthesis for Neural NetworksFixed-Point Code Synthesis for Neural Networks
Fixed-Point Code Synthesis for Neural Networks

Fixed-Point Code Synthesis for Neural Networks
Fixed-Point Code Synthesis for Neural NetworksFixed-Point Code Synthesis for Neural Networks
Fixed-Point Code Synthesis for Neural Networks

Mm chap08 -_lossy_compression_algorithms
Mm chap08 -_lossy_compression_algorithmsMm chap08 -_lossy_compression_algorithms
Mm chap08 -_lossy_compression_algorithms

Noise Resilience of Variational Quantum Compiling
Noise Resilience of Variational Quantum CompilingNoise Resilience of Variational Quantum Compiling
Noise Resilience of Variational Quantum Compiling

"An adaptive modular approach to the mining of sensor network ...
"An adaptive modular approach to the mining of sensor network ..."An adaptive modular approach to the mining of sensor network ...
"An adaptive modular approach to the mining of sensor network ...

Bivariatealgebraic integerencoded arai algorithm for
Bivariatealgebraic integerencoded arai algorithm forBivariatealgebraic integerencoded arai algorithm for
Bivariatealgebraic integerencoded arai algorithm for

CyberSec_JPEGcompressionForensics.pdf
CyberSec_JPEGcompressionForensics.pdfCyberSec_JPEGcompressionForensics.pdf
CyberSec_JPEGcompressionForensics.pdf

B Eng Final Year Project Presentation
B Eng Final Year Project PresentationB Eng Final Year Project Presentation
B Eng Final Year Project Presentation

notes_Image Compression_edited.ppt
notes_Image Compression_edited.pptnotes_Image Compression_edited.ppt
notes_Image Compression_edited.ppt

When Discrete Optimization Meets Multimedia Security (and Beyond)
When Discrete Optimization Meets Multimedia Security (and Beyond)When Discrete Optimization Meets Multimedia Security (and Beyond)
When Discrete Optimization Meets Multimedia Security (and Beyond)

Lecture 3 image sampling and quantization
Lecture 3 image sampling and quantizationLecture 3 image sampling and quantization
Lecture 3 image sampling and quantization

MPEG-21-based Cross-Layer Optimization Techniques for enabling Quality of Exp...
MPEG-21-based Cross-Layer Optimization Techniques for enabling Quality of Exp...MPEG-21-based Cross-Layer Optimization Techniques for enabling Quality of Exp...
MPEG-21-based Cross-Layer Optimization Techniques for enabling Quality of Exp...

Recurrent Instance Segmentation (UPC Reading Group)
Recurrent Instance Segmentation (UPC Reading Group)Recurrent Instance Segmentation (UPC Reading Group)
Recurrent Instance Segmentation (UPC Reading Group)

Computing near-optimal policies from trajectories by solving a sequence of st...
Computing near-optimal policies from trajectories by solving a sequence of st...Computing near-optimal policies from trajectories by solving a sequence of st...
Computing near-optimal policies from trajectories by solving a sequence of st...

GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用
GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用
GTC Taiwan 2017 GPU 平台上導入深度學習於半導體產業之 EDA 應用

An identification of the tolerable time-interleaved analog-todigital convert...
An identification of the tolerable time-interleaved analog-todigital convert...An identification of the tolerable time-interleaved analog-todigital convert...
An identification of the tolerable time-interleaved analog-todigital convert...


More from Förderverein Technische Fakultät

The Digital Transformation of Education: A Hyper-Disruptive Era through Block...
The Digital Transformation of Education: A Hyper-Disruptive Era through Block...The Digital Transformation of Education: A Hyper-Disruptive Era through Block...
The Digital Transformation of Education: A Hyper-Disruptive Era through Block...
Förderverein Technische Fakultät

Don't Treat the Symptom, Find the Cause!.pptx
Don't Treat the Symptom, Find the Cause!.pptxDon't Treat the Symptom, Find the Cause!.pptx
Don't Treat the Symptom, Find the Cause!.pptx
Förderverein Technische Fakultät

The Computing Continuum.pdf
The Computing Continuum.pdfThe Computing Continuum.pdf
The Computing Continuum.pdf
Förderverein Technische Fakultät


More from Förderverein Technische Fakultät (20)

Supervisory control of business processes
Supervisory control of business processesSupervisory control of business processes
Supervisory control of business processes

The Digital Transformation of Education: A Hyper-Disruptive Era through Block...
The Digital Transformation of Education: A Hyper-Disruptive Era through Block...The Digital Transformation of Education: A Hyper-Disruptive Era through Block...
The Digital Transformation of Education: A Hyper-Disruptive Era through Block...

A Game of Chess is Like a Swordfight.pdf
A Game of Chess is Like a Swordfight.pdfA Game of Chess is Like a Swordfight.pdf
A Game of Chess is Like a Swordfight.pdf

From Mind to Meta.pdf
From Mind to Meta.pdfFrom Mind to Meta.pdf
From Mind to Meta.pdf

Miniatures Design for Tabletop Games.pdf
Miniatures Design for Tabletop Games.pdfMiniatures Design for Tabletop Games.pdf
Miniatures Design for Tabletop Games.pdf

Distributed Systems in the Post-Moore Era.pptx
Distributed Systems in the Post-Moore Era.pptxDistributed Systems in the Post-Moore Era.pptx
Distributed Systems in the Post-Moore Era.pptx

Don't Treat the Symptom, Find the Cause!.pptx
Don't Treat the Symptom, Find the Cause!.pptxDon't Treat the Symptom, Find the Cause!.pptx
Don't Treat the Symptom, Find the Cause!.pptx

Engineering Serverless Workflow Applications in Federated FaaS.pdf
Engineering Serverless Workflow Applications in Federated FaaS.pdfEngineering Serverless Workflow Applications in Federated FaaS.pdf
Engineering Serverless Workflow Applications in Federated FaaS.pdf

The Role of Machine Learning in Fluid Network Control and Data Planes.pdf
The Role of Machine Learning in Fluid Network Control and Data Planes.pdfThe Role of Machine Learning in Fluid Network Control and Data Planes.pdf
The Role of Machine Learning in Fluid Network Control and Data Planes.pdf

Nonequilibrium Network Dynamics_Inference, Fluctuation-Respones & Tipping Poi...
Nonequilibrium Network Dynamics_Inference, Fluctuation-Respones & Tipping Poi...Nonequilibrium Network Dynamics_Inference, Fluctuation-Respones & Tipping Poi...
Nonequilibrium Network Dynamics_Inference, Fluctuation-Respones & Tipping Poi...

Towards a data driven identification of teaching patterns.pdf
Towards a data driven identification of teaching patterns.pdfTowards a data driven identification of teaching patterns.pdf
Towards a data driven identification of teaching patterns.pdf

Förderverein Technische Fakultät.pptx
Förderverein Technische Fakultät.pptxFörderverein Technische Fakultät.pptx
Förderverein Technische Fakultät.pptx

The Computing Continuum.pdf
The Computing Continuum.pdfThe Computing Continuum.pdf
The Computing Continuum.pdf

East-west oriented photovoltaic power systems: model, benefits and technical ...
East-west oriented photovoltaic power systems: model, benefits and technical ...East-west oriented photovoltaic power systems: model, benefits and technical ...
East-west oriented photovoltaic power systems: model, benefits and technical ...

Machine Learning in Finance via Randomization
Machine Learning in Finance via RandomizationMachine Learning in Finance via Randomization
Machine Learning in Finance via Randomization

IT does not stop
IT does not stopIT does not stop
IT does not stop

Advances in Visual Quality Restoration with Generative Adversarial Networks
Advances in Visual Quality Restoration with Generative Adversarial NetworksAdvances in Visual Quality Restoration with Generative Adversarial Networks
Advances in Visual Quality Restoration with Generative Adversarial Networks

Recent Trends in Personalization at Netflix
Recent Trends in Personalization at NetflixRecent Trends in Personalization at Netflix
Recent Trends in Personalization at Netflix

Industriepraktikum_ Unterstützung bei Projekten in der Automatisierung.pdf
Industriepraktikum_ Unterstützung bei Projekten in der Automatisierung.pdfIndustriepraktikum_ Unterstützung bei Projekten in der Automatisierung.pdf
Industriepraktikum_ Unterstützung bei Projekten in der Automatisierung.pdf

Introduction to 5G from radio perspective
Introduction to 5G from radio perspectiveIntroduction to 5G from radio perspective
Introduction to 5G from radio perspective


Recently uploaded

Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo DiehlFuture Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Peter Udo Diehl


Recently uploaded (20)

WSO2CONMay2024OpenSourceConferenceDebrief.pptx
WSO2CONMay2024OpenSourceConferenceDebrief.pptxWSO2CONMay2024OpenSourceConferenceDebrief.pptx
WSO2CONMay2024OpenSourceConferenceDebrief.pptx

ECS 2024 Teams Premium - Pretty Secure
ECS 2024   Teams Premium - Pretty SecureECS 2024   Teams Premium - Pretty Secure
ECS 2024 Teams Premium - Pretty Secure

Intro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераIntro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджера

Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)
Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)
Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)

Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone KomSalesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom

Where to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdfWhere to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdf

Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo DiehlFuture Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl

PLAI - Acceleration Program for Generative A.I. Startups
PLAI - Acceleration Program for Generative A.I. StartupsPLAI - Acceleration Program for Generative A.I. Startups
PLAI - Acceleration Program for Generative A.I. Startups

The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfThe Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf

Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdfLinux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf

Designing for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at ComcastDesigning for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at Comcast

Speed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in MinutesSpeed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in Minutes

Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxUnpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024

10 Differences between Sales Cloud and CPQ, Blanka Doktorová
10 Differences between Sales Cloud and CPQ, Blanka Doktorová10 Differences between Sales Cloud and CPQ, Blanka Doktorová
10 Differences between Sales Cloud and CPQ, Blanka Doktorová

Connecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAKConnecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAK

IESVE for Early Stage Design and Planning
IESVE for Early Stage Design and PlanningIESVE for Early Stage Design and Planning
IESVE for Early Stage Design and Planning

FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM Performance


Intra-coding using non-linear prediction, KLT and Texture Synthesis: AV1 encoders open the door to seemingly unconstrained video coding complexity

  • 1. Institut für Informationsverarbeitung Intra-coding using non-linear prediction, KLT and Texture Synthesis AV1 encoders open the door to seemingly unconstrained video coding complexity Jörn Ostermann, Thorsten Laude, Yiqun Liu, Bastian Wandt, Jan Voges, Holger Meuel
  • 2. Decoder Runtimes 2 Thorsten Laude laude@tnt.uni-hannover.de Relative factors to HM, i.e. HM=1 0 2 4 6 8 10 12 14 JEM AV1 JEM AV1 All-intra Random Access Complexityincrease Class A1 Class A2 Class B Class C Class D Class E Class F Overall HM Better
  • 3. Encoder Runtimes 3 Thorsten Laude laude@tnt.uni-hannover.de Relative factors to HM, i.e. HM=1 0 10 20 30 40 50 60 JEM AV1 JEM AV1 All-intra Random Access Complexityincrease Class A1 Class A2 Class B Class C Class D Class E Class F Overall HM Better e.g. 10 frames/dayTotal CPU time: ≈ 1 decade
  • 5. Trade-off Coding Efficiency vs. Complexity 5 Thorsten Laude laude@tnt.uni-hannover.de Better Better
  • 6. Institut für Informationsverarbeitung Contour-based Multidirectional Intra Coding for HEVC Thorsten Laude and Jörn Ostermann
  • 7. Prediction process • 33 angular modes, DC, planar • Extrapolation base: right column of left block, bottom row of top block Limitations of HEVC intra prediction • Only one direction for angular modes • Only one adjacent sample column/row as extrapolation base Motivation 7 Thorsten Laude laude@tnt.uni-hannover.de CurrentAlready coded Top image: Lainema et al., Intra Coding of the HEVC Standard, TCSVT, 2012
  • 8. Limitations of HEVC intra prediction • Only one direction for angular modes • Only one adjacent sample column/row as extrapolation base Motivation 8 Thorsten Laude laude@tnt.uni-hannover.de CurrentAlready coded
  • 10. Reconstructed samples • Available at encoder and decoder Contour extraction • Detection • Parameterization Contour extrapolation • Sample value continuation • Various extrapolation methods Contour-based Multidirectional Intra Coding 10 Thorsten Laude laude@tnt.uni-hannover.de
  • 12. Contour detection Contour parameterization Contour extrapolation Contour-based Multidirectional Intra Coding 12 Thorsten Laude laude@tnt.uni-hannover.de Canny edge detection Signal-adaptive thresholds following Otsu1, 2 1Otsu, A Threshold Selection Method from Gray-Level Histograms, SMC, 1979 2Fang et al., The Study on an Application of Otsu Method in Canny Operator, ISIP, 2009
  • 13. Contour detection Contour parameterization Contour extrapolation Contour-based Multidirectional Intra Coding 13 Thorsten Laude laude@tnt.uni-hannover.de Polynomial parameterization Linear regression problem  least squares
  • 14. Contour detection Contour parameterization Contour extrapolation Contour-based Multidirectional Intra Coding 14 Thorsten Laude laude@tnt.uni-hannover.de Contour width by comparison of sample values from central pixel with neighboring pixels
  • 15. Contour detection Contour parameterization Contour extrapolation Contour-based Multidirectional Intra Coding 15 Thorsten Laude laude@tnt.uni-hannover.de Varying prediction certainty  Diminishing towards mean sample value of reconstructed area 𝑠𝑠𝑒𝑒 = 𝑠𝑠𝑚𝑚 𝑑𝑑 + 𝑠𝑠𝑎𝑎(𝑑𝑑max − 𝑑𝑑) 𝑑𝑑max 𝑑𝑑 = (𝑥𝑥𝑎𝑎 − 𝑥𝑥𝑒𝑒)2+(𝑦𝑦𝑎𝑎 − 𝑦𝑦𝑒𝑒)2 𝑠𝑠𝑚𝑚 𝑠𝑠𝑎𝑎 𝑠𝑠𝑒𝑒
  • 16. Contour detection Contour parameterization Contour extrapolation Contour-based Multidirectional Intra Coding 16 Thorsten Laude laude@tnt.uni-hannover.de Background prediction: continuation of sample values • horizontal and vertical fill • mean fill for shielded pixels 𝑠𝑠𝑚𝑚
  • 17. Comparison with state-of-the art of Liu et al.1 Contour-based Multidirectional Intra Coding 17 Thorsten Laude laude@tnt.uni-hannover.de 1Liu et al., Image Compression with Edge-based Inpainting, TCSVT, 2007 CoMIC (Ours) Liu et al. Contour extrapolation solely based on reconstructed samples  no signalling Signalling of side information for the contour shape Sample value continuation PDE-based inpainting Signalling of representative sample values for the inpainting
  • 18. Stand alone codec: Comparison with state-of-the art of Liu et al.1 (anchor: JPEG) Contour-based Multidirectional Intra Coding 18 Thorsten Laude laude@tnt.uni-hannover.de 21% 20% 44% 21% 33% 32% 15% 26% 24% 28% 29% 31% 27% 33% 29% 37% 30% 26% 32% 22% 26% 26% 31% 34% 31% 30% 0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% Bitratesavings Liu et al. CoMIC [ours] 1Liu et al., Image Compression with Edge-based Inpainting, TCSVT, 2007 better
  • 19. Additional coding mode in HEVC (HM-16.3) Contour-based Multidirectional Intra Coding 19 Thorsten Laude laude@tnt.uni-hannover.de -2,0% -1,8% -1,6% -1,4% -1,2% -1,0% -0,8% -0,6% -0,4% -0,2% 0,0% Bike 14 BVI Ball Under Water BVI Bubbles Clear BVI Sparkler Basketball Drive BQTerrace Kimono Mean WeightedaverageBD-rate All intra Low delay Random access Mean better
  • 20. • Separation of structural and texture parts • Contour extrapolation • All information available at decoder  no signalling except for mode usage • Coding gain: up to 1.9% over HEVC up to 36.5% over JPEG • Outperforms related work CoMIC Results Parameterization and extrapolation of structural information result in improved intra prediction Conclusion 20 Thorsten Laude laude@tnt.uni-hannover.de
  • 21. Institut für Informationsverarbeitung Scene-based KLT for Intra Coding in HEVC Yiqun Li and Jörn Ostermann
  • 22. General Idea 22 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Transform Coding Original Luminance Prediction Error  Input: Prediction errors  Output: Data for quantization Desired:  Content representable by few coefficients in zig-zag order 16 ×16 TU Logarithm of Energy after DCT
  • 23. Outline General Idea HM / JEM Karhunen Loeve Transform Conclusion 23 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de
  • 24. HM / JEM 24 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de DCT / DST Benefit:  Fixed coefficients  Sensitivity of eyes Drawbacks:  DCT / DST not data-based  Computational complexity HM JEM General DCT-II DCT-II Special 4×4 DST-VII for intra Adaptive multiple Core transform (AMT) : (DST- VII, DCT-VIII, DST-I, DCT-V) Mode dependent non-separable secondary transform (MDNSST) : 33 matrices for directional 2 matrices for non-directional modes
  • 25. HM / JEM 25 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Signal dependent transform (SDT) Procedure:  Construct ref. patch with prediction  Search for similar patches  Data generated by subtraction  Calculate the "ideal" transform  Apply KLT on the prediction error Ref. Patch Benefit:  No signaling at decoder  Data-dependent transform Drawback & Question mark:  Decoding time rises  Data choice for transform
  • 26. Karhunen Loeve Transform 26 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de General Idea HM / JEM Karhunen Loeve Transform Conclusion
  • 27. Karhunen Loeve Transform Desired Transform Energy compaction  Data dependent ⇒ Karhunen Loeve Transform (KLT) Efficiency  No re-generation at decoder ⇒ One off-line-trained transform for each case 27 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de
  • 28. Karhunen Loeve Transform Desired Transform: Indicator Prediction Mode (PM) (a) PM26 (b) PM18 Average absolute error of 8×8 TU, BQMall Direction-based KLT for intra ⇒ One transform matrix for each direction mode 28 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de
  • 29. Karhunen Loeve Transform Desired Transform: QP Dependency Average absolute error of 8×8 TUs (PM 10) from PartyScene QP-based KLT ⇒ Each sequence uses own KLT Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de 10 QP 20 QP 37
  • 30. Karhunen Loeve Transform Desired Transform: TU size TU Size  Coverage  Complexity TU size Distribution of TUs in Class B seqs. TU-based KLT ⇒ Aiming at 8×8 & 16×16 TUsYiqun Liu Yiqun.Liu@tnt.uni-hannover.de 11
  • 31. Karhunen Loeve Transform Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Desired Transform: Scene (a) Basketball PM26 (b) BQMall PM 26 Average absolute error of 8×8 TU Scene-based KLT ⇒ Each sequence uses own KLT 12
  • 32. Karhunen Loeve Transform Structure Block diagram of the hybrid encoder with KLT Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de 13
  • 33. Karhunen Loeve Transform Simulation Test sequences:  JCT-VC  1920×1080:  BasketballDrive, Kimono, Cactus, ParkScene, BQTerrace  832×480:  BasketballDrill, BQMall, PartyScene, RaceHorses  BVI Texture1  1920×1080:  PondDragonflies, Sparkler, Bookcase, SmokeClear, Bricks Test Condition:  Common Test Condition2  QP: 22 27 32 37  All-Intra (AI) Training Data:  Class B & Class C  100 Frames  TU size 8×8, 16×16 Evaluation:  BD-Rate3 1 M. A. Papadopoulos, F. Zhang, D. Agrafiotis and D. Bull, A Video Texture Database for Perceptual Compression and Quality Assessment, ICIP 2015 2 F. Bossen, Common Test Conditions and Software Reference Configurations 3 G. Bjøntegaard, Improvements of the BD-PSNR Model, VCEG-AI11 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de 14
  • 34. Karhunen Loeve Transform 34 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Simulation Result 0 5 10 15 Scene−based 20 25 Kimono Cactus BQTerrace BallUnderWater BQMall BasketballDrill Plasma BricksBushes BricksLeaves Gain [%] BDBR. vs. HM−16.15 Average gain: 5.49%
  • 35. Karhunen Loeve Transform 35 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de BasketballDrill, -25.00% RaceHorses, -2.16% BQMall, -0.37% PartyScene, -1.21%
  • 36. Karhunen Loeve Transform Performance in directions BasketballDrill, -25.00% 0 6 10 14 18 22 Intra prediction modes 26 30 34 0 250 200 150 100 50 300 350 Numberof8x8TUsperFrame BasketballDrill at QP22 HM KLT Distribution of TUs ⇒ Most TUs in diagonal directions Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de 17
  • 37. Karhunen Loeve Transform Performance in directions BQMall, -0.37% 0 6 10 14 18 22 Intra prediction modes 26 30 34 0 250 200 150 100 50 300 350 Numberof8x8TUsperFrame BQMall at QP22 HM KLT Distribution of TUs ⇒ Most TUs in horizontal and vertical directions Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de 17
  • 38. Karhunen Loeve Transform Performance in directions BQMall, -0.37% 0 6 10 14 18 22 Intra prediction modes 26 30 34 0 250 200 150 100 50 300 350 Numberof8x8TUsperFrame BQMall at QP22 HM KLT Distribution of TUs ⇒ Most TUs in horizontal and vertical directions Most gain comes from diagonal directions ⇒ Only diagonal prediction modes (2-5, 15-21, 30-34) Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de 17
  • 39. Karhunen Loeve Transform Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Simulation Result Kimono 0 5 10 15 Scene−based 20 25 Cactus BQTerrace BallUnderWater BQMall BasketballDrill Plasma BricksBushes BricksLeaves Gain [%] BDBR. vs. HM−16.15 Average gain: Scene-based 5.49% Generic ~3% 18
  • 40. Karhunen Loeve Transform Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Kimono 0 5 10 15 20 25 Simulation Result Diagonal BDBR. vs. HM−16.15 BricksLeaves BricksBushes Plasma BallUnderWater BQMall BasketballDrill BQTerrace Cactus Gain [%] Average gain: 5.49% vs. 4.14% Scene−based Scene−based diag. 18
  • 41. Karhunen Loeve Transform Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Distribution of TUs on frame BasketballDrill, 1st frame, QP 32, HM-16.15 19
  • 42. Karhunen Loeve Transform Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de Distribution of TUs on frame BasketballDrill, 1st frame, QP 32, scene-based KLT 19
  • 43. Conclusion Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de General Idea HM / JEM Karhunen Loeve Transform Conclusion 20
  • 44. Scene-based KLT  Based on QP, TU-size, PM and scenes  Average gain 5.49%, maximum at 25.00%  Diagonal direction brings about 70% of all the gain Conclusion 21 Yiqun Liu Yiqun.Liu@tnt.uni-hannover.de
  • 45. Institut für Informationsverarbeitung Texture Synthesis Bastain Wandt, Thorsten Laude, Bodo Rosenhahn, Jörn Ostermann pdf
  • 47. Zusammenfassung • AV1 has unseen level of encoder complexity • Scene-based KLT 5% • Non-linear intra prediction 0.5% • Texture synthesis for severely bandlimited channels Jörn Ostermann ostermann@tnt.uni-hannover.de
