This document discusses Internet Protocol Version 6 (IPv6), including its key features, objectives, addressing scheme, headers, security, and relationship to IPv4. IPv6 was developed as a replacement for IPv4 due to IPv4's limited address space and other constraints. IPv6 features a much larger 128-bit address space to allow for continued growth of the Internet, as well as improvements to security, extensibility, and mobility support. The transition from IPv4 to IPv6 will take several years as both protocols coexist during migration.

1. INTERNET PROTOCOL
VERSION 6
(IPv6)

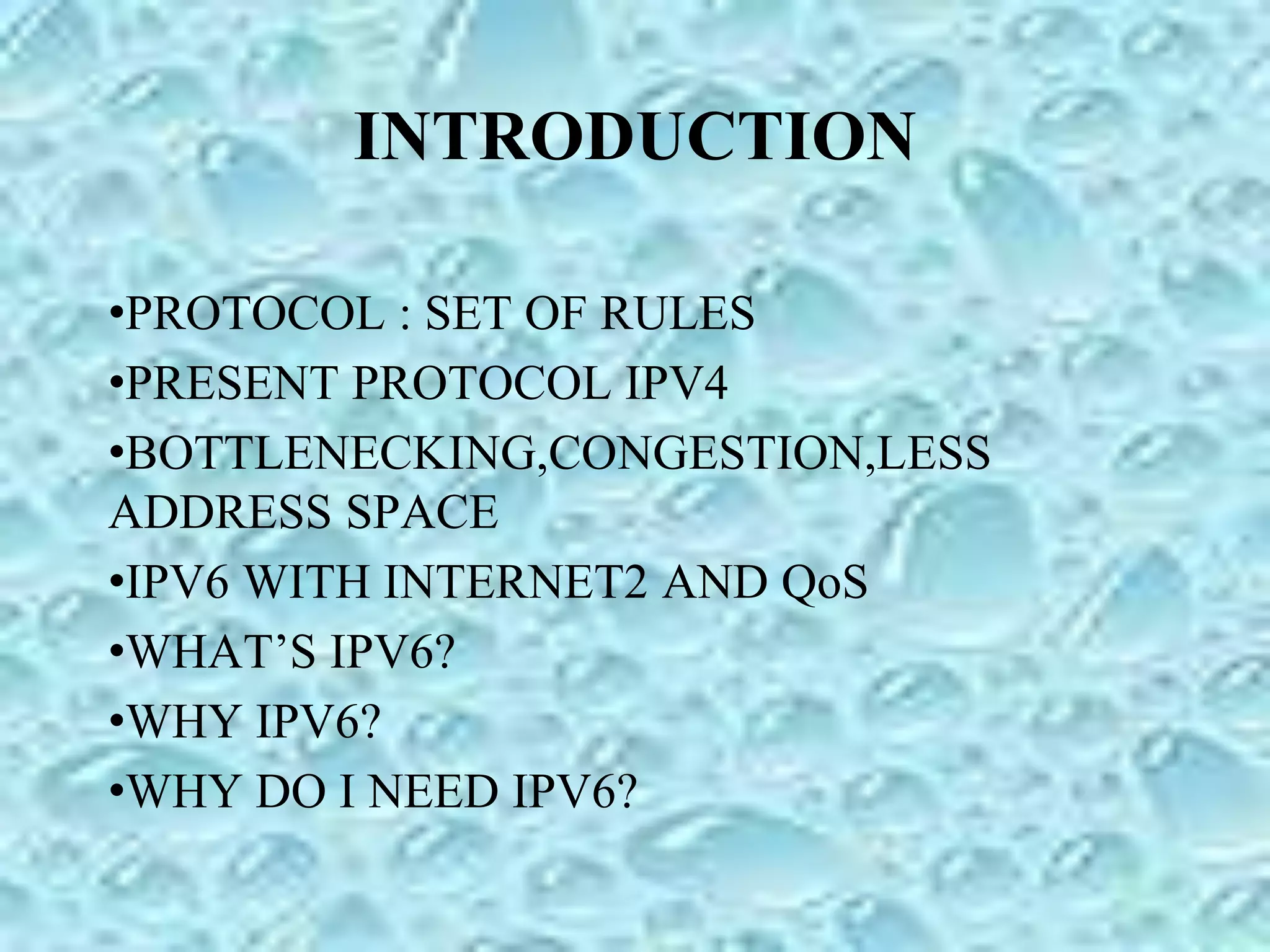

2. INTRODUCTION
•PROTOCOL : SET OF RULES
•PRESENT PROTOCOL IPV4
•BOTTLENECKING,CONGESTION,LESS
ADDRESS SPACE
•IPV6 WITH INTERNET2 AND QoS
•WHAT’S IPV6?
•WHY IPV6?
•WHY DO I NEED IPV6?

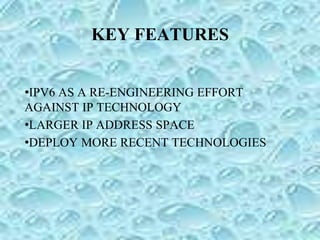

3. KEY FEATURES
•IPV6 AS A RE-ENGINEERING EFFORT
AGAINST IP TECHNOLOGY
•LARGER IP ADDRESS SPACE
•DEPLOY MORE RECENT TECHNOLOGIES

4. DEPLOY MORE RECENT TECHNOLOGIES
•AUTO CONFIGURATION
•SECURITY
•FRIENDLY TO TRAFFIC ENGINEERING
•MULTICAST
•BETTER SUPPORT FOR AD-HOC NETWORKING
•A CURE TO ROUTING TABLE GROWTH
•SIMPLIFIED HEADER STRUCTURE
•ALLOWS FLEXIBLE PROTOCOL EXTENSIONS
•SMOOTHEN TRANSITION FROM IPV4
•FOLLOWS KEY DESIGN PRINCILES OF IPV4

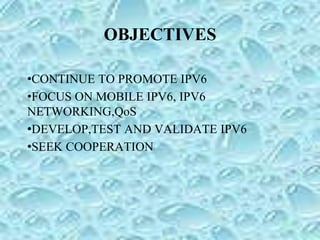

5. OBJECTIVES
•CONTINUE TO PROMOTE IPV6
•FOCUS ON MOBILE IPV6, IPV6
NETWORKING,QoS
•DEVELOP,TEST AND VALIDATE IPV6
•SEEK COOPERATION

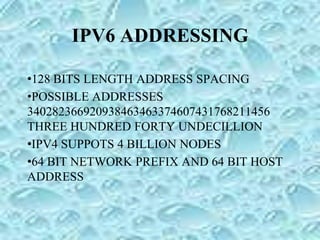

6. IPV6 ADDRESSING
•128 BITS LENGTH ADDRESS SPACING
•POSSIBLE ADDRESSES
340282366920938463463374607431768211456
THREE HUNDRED FORTY UNDECILLION
•IPV4 SUPPOTS 4 BILLION NODES
•64 BIT NETWORK PREFIX AND 64 BIT HOST
ADDRESS

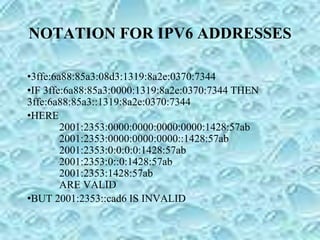

7. NOTATION FOR IPV6 ADDRESSES
•3ffe:6a88:85a3:08d3:1319:8a2e:0370:7344
•IF 3ffe:6a88:85a3:0000:1319:8a2e:0370:7344 THEN
3ffe:6a88:85a3::1319:8a2e:0370:7344
•HERE
2001:2353:0000:0000:0000:0000:1428:57ab
2001:2353:0000:0000:0000::1428:57ab
2001:2353:0:0:0:0:1428:57ab
2001:2353:0::0:1428:57ab
2001:2353:1428:57ab
ARE VALID
•BUT 2001:2353::cad6 IS INVALID

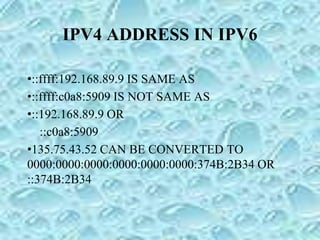

8. IPV4 ADDRESS IN IPV6
•::ffff:192.168.89.9 IS SAME AS
•::ffff:c0a8:5909 IS NOT SAME AS
•::192.168.89.9 OR
::c0a8:5909
•135.75.43.52 CAN BE CONVERTED TO
0000:0000:0000:0000:0000:0000:374B:2B34 OR
::374B:2B34

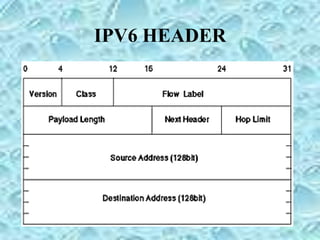

9. IPV6 HEADER

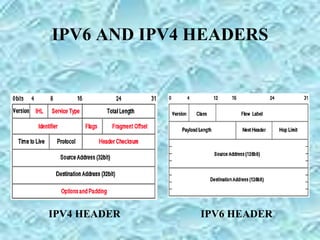

10. IPV6 AND IPV4 HEADERS
IPV4 HEADER IPV6 HEADER

11. IPV6 EXTENSION HEADER
•HOP- BY-HOP
•ROUTING
•FRAGMENT
•DESTINATION
OPTIONS
•AUTHENTICATI
ON
•ESP

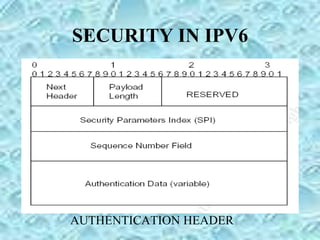

12. SECURITY IN IPV6
AUTHENTICATION HEADER

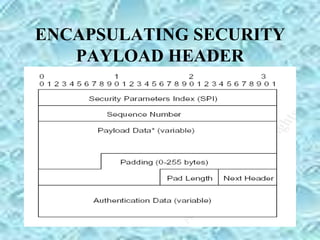

13. ENCAPSULATING SECURITY
PAYLOAD HEADER

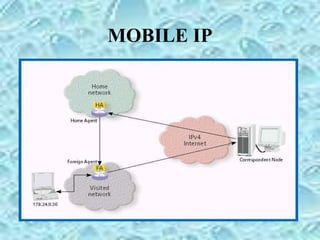

14. MOBILE IP

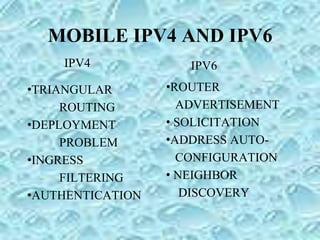

15. MOBILE IPV4 AND IPV6
•TRIANGULAR
ROUTING
•DEPLOYMENT
PROBLEM
•INGRESS
FILTERING
•AUTHENTICATION
•ROUTER
ADVERTISEMENT
• SOLICITATION
•ADDRESS AUTO-
CONFIGURATION
• NEIGHBOR
DISCOVERY
IPV4 IPV6

16. MOBILE IPV6 IN
GPRS/WCDMA
•MOBILE IPV6 FOR INTER-PLMN MOBILITY
•THE BASIC OPERATION IN GPRS/WCDMA

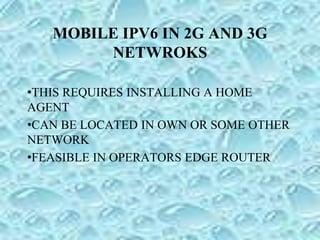

17. MOBILE IPV6 IN 2G AND 3G
NETWROKS
•THIS REQUIRES INSTALLING A HOME
AGENT
•CAN BE LOCATED IN OWN OR SOME OTHER
NETWORK
•FEASIBLE IN OPERATORS EDGE ROUTER

18. MIGRATION FROM 6 TO 4
NEWORK
•IPV6 WITHOUT ANY GLOBAL IPV6 PREFIX
•NO MANUAL CONFIGURATION FOR ISATAP

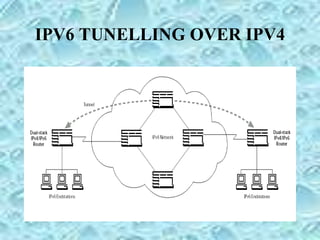

19. IPV6 TUNELLING OVER IPV4

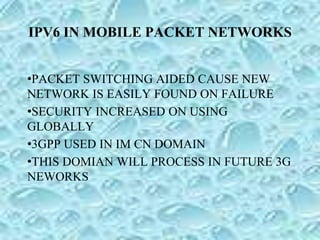

20. IPV6 IN MOBILE PACKET NETWORKS
•PACKET SWITCHING AIDED CAUSE NEW
NETWORK IS EASILY FOUND ON FAILURE
•SECURITY INCREASED ON USING
GLOBALLY
•3GPP USED IN IM CN DOMAIN
•THIS DOMIAN WILL PROCESS IN FUTURE 3G
NEWORKS

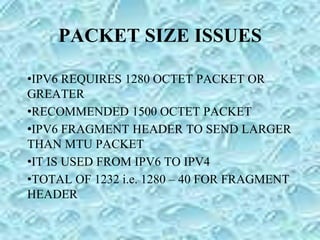

21. PACKET SIZE ISSUES
•IPV6 REQUIRES 1280 OCTET PACKET OR
GREATER
•RECOMMENDED 1500 OCTET PACKET
•IPV6 FRAGMENT HEADER TO SEND LARGER
THAN MTU PACKET
•IT IS USED FROM IPV6 TO IPV4
•TOTAL OF 1232 i.e. 1280 – 40 FOR FRAGMENT
HEADER

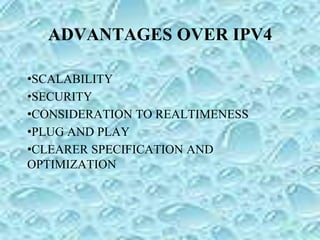

22. ADVANTAGES OVER IPV4
•SCALABILITY
•SECURITY
•CONSIDERATION TO REALTIMENESS
•PLUG AND PLAY
•CLEARER SPECIFICATION AND
OPTIMIZATION

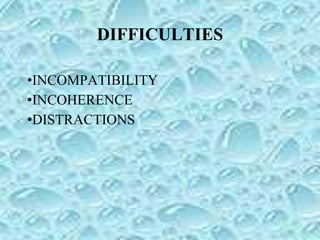

23. DIFFICULTIES
•INCOMPATIBILITY
•INCOHERENCE
•DISTRACTIONS

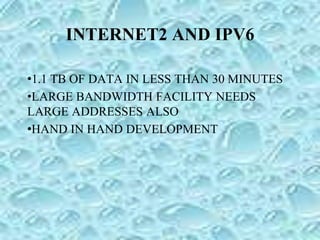

24. INTERNET2 AND IPV6
•1.1 TB OF DATA IN LESS THAN 30 MINUTES
•LARGE BANDWIDTH FACILITY NEEDS
LARGE ADDRESSES ALSO
•HAND IN HAND DEVELOPMENT

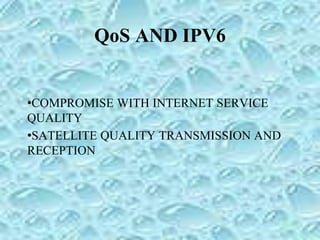

25. QoS AND IPV6
•COMPROMISE WITH INTERNET SERVICE
QUALITY
•SATELLITE QUALITY TRANSMISSION AND
RECEPTION

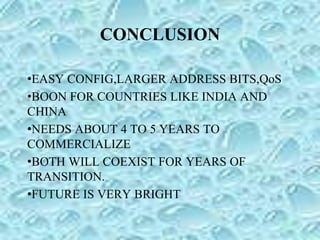

26. CONCLUSION
•EASY CONFIG,LARGER ADDRESS BITS,QoS
•BOON FOR COUNTRIES LIKE INDIA AND
CHINA
•NEEDS ABOUT 4 TO 5 YEARS TO
COMMERCIALIZE
•BOTH WILL COEXIST FOR YEARS OF
TRANSITION.
•FUTURE IS VERY BRIGHT
