By: Ivan Jeremy V. Guerrero

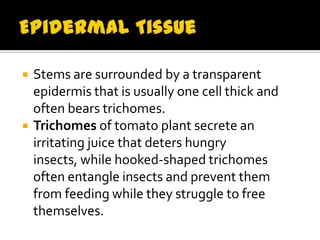

   Stems are surrounded by a transparent
    epidermis that is usually one cell thick and
    often bears trichomes.
   Trichomes of tomato plant secrete an
    irritating juice that deters hungry
    insects, while hooked-shaped trichomes
    often entangle insects and prevent them
    from feeding while they struggle to free
    themselves.

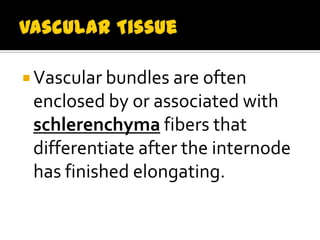

 Vascular bundles are often
 enclosed by or associated with
 schlerenchyma fibers that
 differentiate after the internode
 has finished elongating.
 Vascular bundles are as follows:
  monocots have vascular bundles
  embedded s throughout in the ground
  tissue.
 Dicots have vascular bundles embedded
  in a single ring in ground tissue.
 Gymnosperms and some dicots have
  concentric cylindrical vascular bundles:
  the phloem surrounds the xylem.
 Between the epidermis and the vascular
  tissue is the cortex. Most cortical cells
  are parenchyma; also, some are
  photosynthetic.
 In dicots, parenchymatous ground tissue
  in the center of the stem is called the
  pith. These pith are lignified & specified
  for storage.

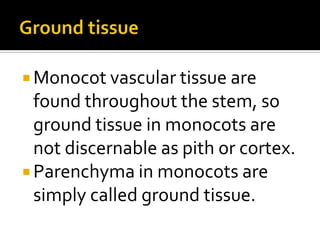

 Monocot vascular tissue are
  found throughout the stem, so
  ground tissue in monocots are
  not discernable as pith or cortex.
 Parenchyma in monocots are
  simply called ground tissue.
