Anatomy of dicot and monocot root,stem and leaf (2).pdf

The document describes the anatomy of dicot and monocot roots and leaves. It discusses the tissues found in dicot roots such as the epidermis, cortex, endodermis, pericycle, vascular bundles and pith. It also describes the tissues in monocot roots like the epidermis, cortex, endodermis, pericycle and vascular tissue. For dicot and monocot leaves, it explains the tissues like epidermis, mesophyll and vascular bundles. It provides a detailed summary of the internal structures of a dicot leaf like the sunflower leaf and of a monocot leaf like the grass leaf.

Science◦
Download as PDF, PPTX
ANATOMY OF DICOT AND MONOCOT ROOT

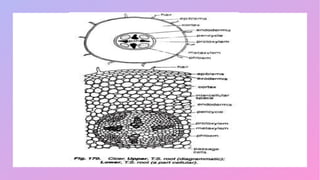

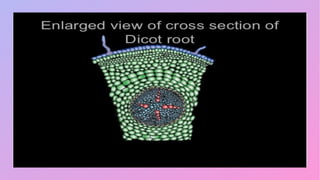

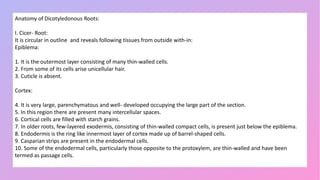

Anatomy of Dicotyledonous Roots: I. Cicer- Root: It is circular in outline and reveals following tissues from outside with-in: Epiblema: 1. It is the outermost layer consisting of many thin-walled cells. 2. From some of its cells arise unicellular hair. 3. Cuticle is absent. Cortex: 4. It is very large, parenchymatous and well- developed occupying the large part of the section. 5. In this region there are present many intercellular spaces. 6. Cortical cells are filled with starch grains. 7. In older roots, few-layered exodermis, consisting of thin-walled compact cells, is present just below the epiblema. 8. Endodermis is the ring like innermost layer of cortex made up of barrel-shaped cells. 9. Casparian strips are present in the endodermal cells. 10. Some of the endodermal cells, particularly those opposite to the protoxylem, are thin-walled and have been termed as passage cells.
Pericycle: 11. Single-layered, ring-like pericycle is present close to the endodermis on its inner side. 12. It is also a compact layer of thin-walled cells. Vascular Bundles: 13. The vascular bundles are 2 to 6 and radial, i.e., xylem and phloem present on different radii alternating with each other. 14. Xylem and phloem patches are equal in number. 15. Xylem consists of protoxylem and metaxylem. 16. Protoxylem is exarch and consists of small annular and spiral vessels. 17. Metaxylem strands are big, present towards the centre and are made up of large reticulate and pitted vessels. 18. In some cases the metaxylem meet in the centre and thus obliterate the pith. 19. Phloem is made up of sieve tubes, companion cells and phloem parenchyma. 20. In mature roots, cambium also appears cutting the secondary structures. 21. The parenchymatous cells in between xylem and phloem strands form conjunctive tissue. Pith: 22. It is very small, parenchymatous and without any intercellular spaces. It gets reduced after the formation of secondary structures.

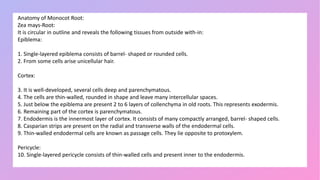

Anatomy of Monocot Root: Zea mays-Root: It is circular in outline and reveals the following tissues from outside with-in: Epiblema: 1. Single-layered epiblema consists of barrel- shaped or rounded cells. 2. From some cells arise unicellular hair. Cortex: 3. It is well-developed, several cells deep and parenchymatous. 4. The cells are thin-walled, rounded in shape and leave many intercellular spaces. 5. Just below the epiblema are present 2 to 6 layers of collenchyma in old roots. This represents exodermis. 6. Remaining part of the cortex is parenchymatous. 7. Endodermis is the innermost layer of cortex. It consists of many compactly arranged, barrel- shaped cells. 8. Casparian strips are present on the radial and transverse walls of the endodermal cells. 9. Thin-walled endodermal cells are known as passage cells. They lie opposite to protoxylem. Pericycle: 10. Single-layered pericycle consists of thin-walled cells and present inner to the endodermis.

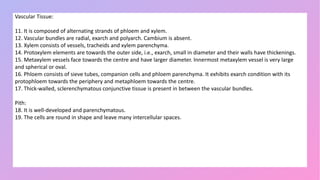

Vascular Tissue: 11. It is composed of alternating strands of phloem and xylem. 12. Vascular bundles are radial, exarch and polyarch. Cambium is absent. 13. Xylem consists of vessels, tracheids and xylem parenchyma. 14. Protoxylem elements are towards the outer side, i.e., exarch, small in diameter and their walls have thickenings. 15. Metaxylem vessels face towards the centre and have larger diameter. Innermost metaxylem vessel is very large and spherical or oval. 16. Phloem consists of sieve tubes, companion cells and phloem parenchyma. It exhibits exarch condition with its protophloem towards the periphery and metaphloem towards the centre. 17. Thick-walled, sclerenchymatous conjunctive tissue is present in between the vascular bundles. Pith: 18. It is well-developed and parenchymatous. 19. The cells are round in shape and leave many intercellular spaces.
Dicot and monocot stem

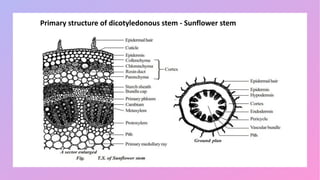

Primary structure of dicotyledonous stem - Sunflower stem

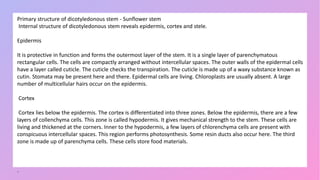

Primary structure of dicotyledonous stem - Sunflower stem Internal structure of dicotyledonous stem reveals epidermis, cortex and stele. Epidermis It is protective in function and forms the outermost layer of the stem. It is a single layer of parenchymatous rectangular cells. The cells are compactly arranged without intercellular spaces. The outer walls of the epidermal cells have a layer called cuticle. The cuticle checks the transpiration. The cuticle is made up of a waxy substance known as cutin. Stomata may be present here and there. Epidermal cells are living. Chloroplasts are usually absent. A large number of multicellular hairs occur on the epidermis. Cortex Cortex lies below the epidermis. The cortex is differentiated into three zones. Below the epidermis, there are a few layers of collenchyma cells. This zone is called hypodermis. It gives mechanical strength to the stem. These cells are living and thickened at the corners. Inner to the hypodermis, a few layers of chlorenchyma cells are present with conspicuous intercellular spaces. This region performs photosynthesis. Some resin ducts also occur here. The third zone is made up of parenchyma cells. These cells store food materials. .

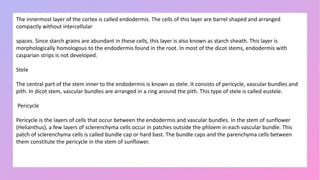

The innermost layer of the cortex is called endodermis. The cells of this layer are barrel shaped and arranged compactly without intercellular spaces. Since starch grains are abundant in these cells, this layer is also known as starch sheath. This layer is morphologically homologous to the endodermis found in the root. In most of the dicot stems, endodermis with casparian strips is not developed. Stele The central part of the stem inner to the endodermis is known as stele. It consists of pericycle, vascular bundles and pith. In dicot stem, vascular bundles are arranged in a ring around the pith. This type of stele is called eustele. Pericycle Pericycle is the layers of cells that occur between the endodermis and vascular bundles. In the stem of sunflower (Helianthus), a few layers of sclerenchyma cells occur in patches outside the phloem in each vascular bundle. This patch of sclerenchyma cells is called bundle cap or hard bast. The bundle caps and the parenchyma cells between them constitute the pericycle in the stem of sunflower.
Vascular bundles The vascular bundles consist of xylem, phloem and cambium. Xylem and phloem in the stem occur together and form the vascular bundles. These vascular bundles are wedge shaped. They are arranged in the form of a ring. Each vascular bundle is conjoint, collateral, open and endarch. Phloem Primary phloem lies towards the periphery. It consists of protophloem and metaphloem. Phloem consists of sieve tubes, companion cells and phloem parenchyma. Phloem fibres are absent in the primary phloem. Phloem conducts organic food materials from the leaves to other parts of the plant body. Cambium Cambium consists of brick shaped and thin walled meristematic cells. It is two to three layers in thickness. These cells are capable of forming new cells during secondary growth. Xylem Xylem consists of xylem fibres, xylem parenchyma, vessels and tracheids. Vessels are thick walled and arranged in a few rows. Xylem conducts water and minerals from the root to the other parts of the plant body. Pith -The large central portion of the stem is called pith. It is composed of parenchyma cells with intercellular spaces. The pith is also known as medulla. The pith extends between the vascular bundles. These extensions of the pith between the vascular bundles are called primary pith rays or primary medullary rays. Function of the pith is storage of food.
Primary structure of monocot stem - Maize stem

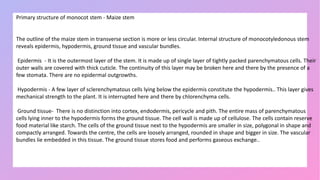

Primary structure of monocot stem - Maize stem The outline of the maize stem in transverse section is more or less circular. Internal structure of monocotyledonous stem reveals epidermis, hypodermis, ground tissue and vascular bundles. Epidermis - It is the outermost layer of the stem. It is made up of single layer of tightly packed parenchymatous cells. Their outer walls are covered with thick cuticle. The continuity of this layer may be broken here and there by the presence of a few stomata. There are no epidermal outgrowths. Hypodermis - A few layer of sclerenchymatous cells lying below the epidermis constitute the hypodermis.. This layer gives mechanical strength to the plant. It is interrupted here and there by chlorenchyma cells. Ground tissue- There is no distinction into cortex, endodermis, pericycle and pith. The entire mass of parenchymatous cells lying inner to the hypodermis forms the ground tissue. The cell wall is made up of cellulose. The cells contain reserve food material like starch. The cells of the ground tissue next to the hypodermis are smaller in size, polygonal in shape and compactly arranged. Towards the centre, the cells are loosely arranged, rounded in shape and bigger in size. The vascular bundles lie embedded in this tissue. The ground tissue stores food and performs gaseous exchange..

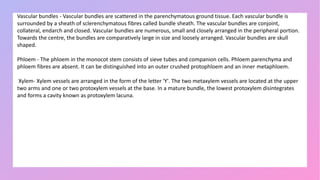

Vascular bundles - Vascular bundles are scattered in the parenchymatous ground tissue. Each vascular bundle is surrounded by a sheath of sclerenchymatous fibres called bundle sheath. The vascular bundles are conjoint, collateral, endarch and closed. Vascular bundles are numerous, small and closely arranged in the peripheral portion. Towards the centre, the bundles are comparatively large in size and loosely arranged. Vascular bundles are skull shaped. Phloem - The phloem in the monocot stem consists of sieve tubes and companion cells. Phloem parenchyma and phloem fibres are absent. It can be distinguished into an outer crushed protophloem and an inner metaphloem. Xylem- Xylem vessels are arranged in the form of the letter 'Y'. The two metaxylem vessels are located at the upper two arms and one or two protoxylem vessels at the base. In a mature bundle, the lowest protoxylem disintegrates and forms a cavity known as protoxylem lacuna.

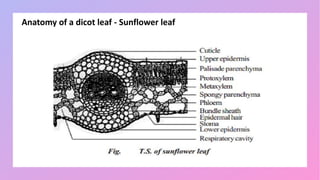

Anatomy of a dicot leaf - Sunflower leaf

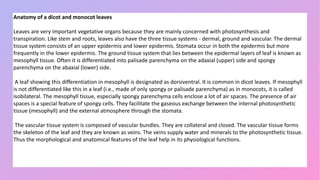

Anatomy of a dicot and monocot leaves Leaves are very important vegetative organs because they are mainly concerned with photosynthesis and transpiration. Like stem and roots, leaves also have the three tissue systems - dermal, ground and vascular. The dermal tissue system consists of an upper epidermis and lower epidermis. Stomata occur in both the epidermis but more frequently in the lower epidermis. The ground tissue system that lies between the epidermal layers of leaf is known as mesophyll tissue. Often it is differentiated into palisade parenchyma on the adaxial (upper) side and spongy parenchyma on the abaxial (lower) side. A leaf showing this differentiation in mesophyll is designated as dorsiventral. It is common in dicot leaves. If mesophyll is not differentiated like this in a leaf (i.e., made of only spongy or palisade parenchyma) as in monocots, it is called isobilateral. The mesophyll tissue, especially spongy parenchyma cells enclose a lot of air spaces. The presence of air spaces is a special feature of spongy cells. They facilitate the gaseous exchange between the internal photosynthetic tissue (mesophyll) and the external atmosphere through the stomata. The vascular tissue system is composed of vascular bundles. They are collateral and closed. The vascular tissue forms the skeleton of the leaf and they are known as veins. The veins supply water and minerals to the photosynthetic tissue. Thus the morphological and anatomical features of the leaf help in its physiological functions.

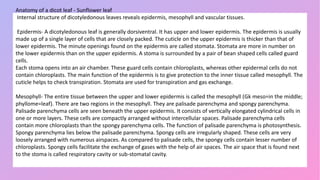

Anatomy of a dicot leaf - Sunflower leaf Internal structure of dicotyledonous leaves reveals epidermis, mesophyll and vascular tissues. Epidermis- A dicotyledonous leaf is generally dorsiventral. It has upper and lower epidermis. The epidermis is usually made up of a single layer of cells that are closely packed. The cuticle on the upper epidermis is thicker than that of lower epidermis. The minute openings found on the epidermis are called stomata. Stomata are more in number on the lower epidermis than on the upper epidermis. A stoma is surrounded by a pair of bean shaped cells called guard cells. Each stoma opens into an air chamber. These guard cells contain chloroplasts, whereas other epidermal cells do not contain chloroplasts. The main function of the epidermis is to give protection to the inner tissue called mesophyll. The cuticle helps to check transpiration. Stomata are used for transpiration and gas exchange. Mesophyll- The entire tissue between the upper and lower epidermis is called the mesophyll (Gk meso=in the middle; phyllome=leaf). There are two regions in the mesophyll. They are palisade parenchyma and spongy parenchyma. Palisade parenchyma cells are seen beneath the upper epidermis. It consists of vertically elongated cylindrical cells in one or more layers. These cells are compactly arranged without intercellular spaces. Palisade parenchyma cells contain more chloroplasts than the spongy parenchyma cells. The function of palisade parenchyma is photosynthesis. Spongy parenchyma lies below the palisade parenchyma. Spongy cells are irregularly shaped. These cells are very loosely arranged with numerous airspaces. As compared to palisade cells, the spongy cells contain lesser number of chloroplasts. Spongy cells facilitate the exchange of gases with the help of air spaces. The air space that is found next to the stoma is called respiratory cavity or sub-stomatal cavity.

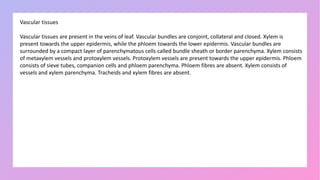

Vascular tissues Vascular tissues are present in the veins of leaf. Vascular bundles are conjoint, collateral and closed. Xylem is present towards the upper epidermis, while the phloem towards the lower epidermis. Vascular bundles are surrounded by a compact layer of parenchymatous cells called bundle sheath or border parenchyma. Xylem consists of metaxylem vessels and protoxylem vessels. Protoxylem vessels are present towards the upper epidermis. Phloem consists of sieve tubes, companion cells and phloem parenchyma. Phloem fibres are absent. Xylem consists of vessels and xylem parenchyma. Tracheids and xylem fibres are absent.
Anatomy and Primary Structure of a Monocot Leaf - Grass Leaf

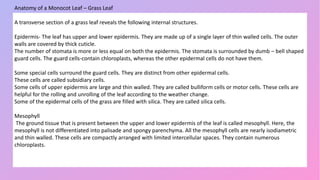

Anatomy of a Monocot Leaf – Grass Leaf A transverse section of a grass leaf reveals the following internal structures. Epidermis- The leaf has upper and lower epidermis. They are made up of a single layer of thin walled cells. The outer walls are covered by thick cuticle. The number of stomata is more or less equal on both the epidermis. The stomata is surrounded by dumb – bell shaped guard cells. The guard cells-contain chloroplasts, whereas the other epidermal cells do not have them. Some special cells surround the guard cells. They are distinct from other epidermal cells. These cells are called subsidiary cells. Some cells of upper epidermis are large and thin walled. They are called bulliform cells or motor cells. These cells are helpful for the rolling and unrolling of the leaf according to the weather change. Some of the epidermal cells of the grass are filled with silica. They are called silica cells. Mesophyll The ground tissue that is present between the upper and lower epidermis of the leaf is called mesophyll. Here, the mesophyll is not differentiated into palisade and spongy parenchyma. All the mesophyll cells are nearly isodiametric and thin walled. These cells are compactly arranged with limited intercellular spaces. They contain numerous chloroplasts.

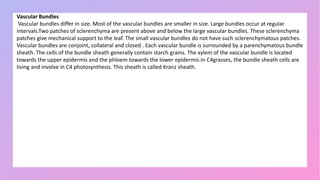

Vascular Bundles Vascular bundles differ in size. Most of the vascular bundles are smaller in size. Large bundles occur at regular intervals.Two patches of sclerenchyma are present above and below the large vascular bundles. These sclerenchyma patches give mechanical support to the leaf. The small vascular bundles do not have such sclerenchymatous patches. Vascular bundles are conjoint, collateral and closed . Each vascular bundle is surrounded by a parenchymatous bundle sheath. The cells of the bundle sheath generally contain starch grains. The xylem of the vascular bundle is located towards the upper epidermis and the phloem towards the lower epidermis.In C4grasses, the bundle sheath cells are living and involve in C4 photosynthesis. This sheath is called Kranz sheath.

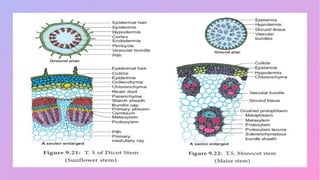

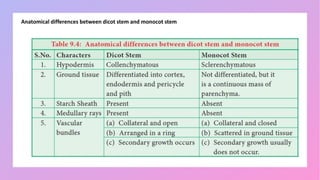

Anatomical differences between dicot stem and monocot stem

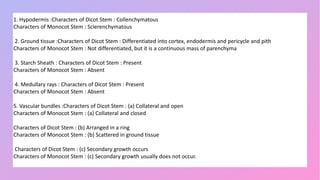

1. Hypodermis :Characters of Dicot Stem : Collenchymatous Characters of Monocot Stem : Sclerenchymatous 2. Ground tissue :Characters of Dicot Stem : Differentiated into cortex, endodermis and pericycle and pith Characters of Monocot Stem : Not differentiated, but it is a continuous mass of parenchyma 3. Starch Sheath : Characters of Dicot Stem : Present Characters of Monocot Stem : Absent 4. Medullary rays : Characters of Dicot Stem : Present Characters of Monocot Stem : Absent 5. Vascular bundles :Characters of Dicot Stem : (a) Collateral and open Characters of Monocot Stem : (a) Collateral and closed Characters of Dicot Stem : (b) Arranged in a ring Characters of Monocot Stem : (b) Scattered in ground tissue Characters of Dicot Stem : (c) Secondary growth occurs Characters of Monocot Stem : (c) Secondary growth usually does not occur.

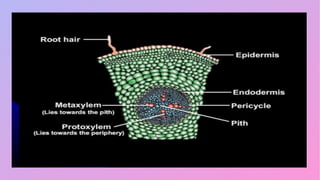

the T.S of the dicot root shows the following plan of arrangement of tissues from the periphery to the centre Anatomy of Monocot roots (Zea mays)
