This document provides information on developing plugins for IntelliJ IDEA. It discusses the main components of a plugin including application-level, project-level, and module-level components. It also describes plugin extensions/extension points that allow a plugin to interact with other plugins or the IDE itself. The document gives an overview of services and actions in plugins, and provides examples of developing an Android Styler plugin that allows extracting styles from layouts.

1. IntelliJ IDEA
PLUGIN DEVELOPMENT

2. Plugin Components
Components are the fundamental concept of plugin
integration. There are three kinds of components:
 Application-level
 Project-level
 Module-level

3. Plugin Extensions and Extension Points
The IntelliJ Platform provides the concept of extensions
and extension points that allows a plugin to interact
with other plugins or with the IDE itself.

4. Plugin Services
A service is a plugin component loaded on demand.
IntelliJ Platform ensures that only one instance of a
service is loaded even though the service is called
several times.

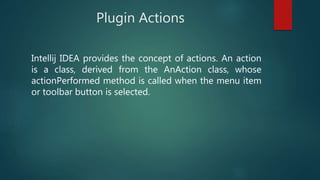

5. Plugin Actions
Intellij IDEA provides the concept of actions. An action
is a class, derived from the AnAction class, whose
actionPerformed method is called when the menu item
or toolbar button is selected.

6. Plugin Content
.IntelliJIDEAx0
plugins
sample.jar/
com/foo/.....
...
...
META-INF
plugin.xml

7. Android Styler plugin development

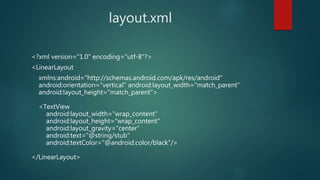

8. layout.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical" android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:text="@string/stub"
android:textColor="@android:color/black"/>
</LinearLayout>

9. styles.xml
<style name="TextStub">
<item name="android:layout_width">wrap_content</item>
<item name="android:layout_height">wrap_content</item>
<item name="android:layout_gravity">center</item>
<item name="android:textColor">@android:color/black</item>
</style>

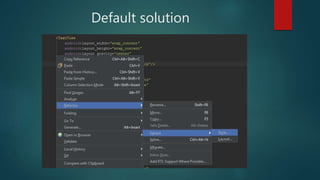

10. Default solution

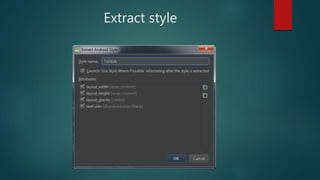

11. Extract style

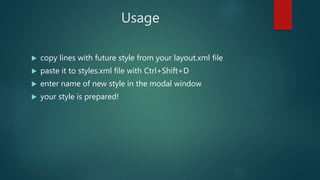

12. Usage
 copy lines with future style from your layout.xml file
 paste it to styles.xml file with Ctrl+Shift+D
 enter name of new style in the modal window
 your style is prepared!

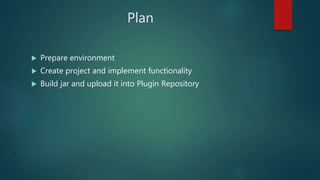

13. Plan
 Prepare environment
 Create project and implement functionality
 Build jar and upload it into Plugin Repository

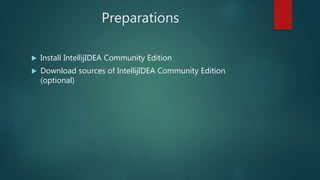

14. Preparations
 Install IntellijIDEA Community Edition
 Download sources of IntellijIDEA Community Edition
(optional)

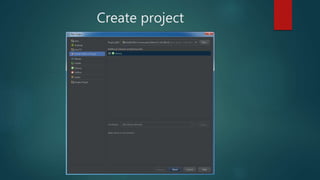

15. Create project

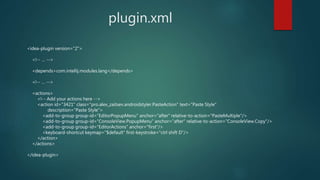

16. plugin.xml
<idea-plugin version="2">
<!-- … -->
<depends>com.intellij.modules.lang</depends>
<!-- … -->
<actions>
<!-- Add your actions here -->
<action id="3421" class="pro.alex_zaitsev.androidstyler.PasteAction" text="Paste Style"
description="Paste Style">
<add-to-group group-id="EditorPopupMenu" anchor="after" relative-to-action="PasteMultiple"/>
<add-to-group group-id="ConsoleView.PopupMenu" anchor="after" relative-to-action="ConsoleView.Copy"/>
<add-to-group group-id="EditorActions" anchor="first"/>
<keyboard-shortcut keymap="$default" first-keystroke="ctrl shift D"/>
</action>
</actions>
</idea-plugin>

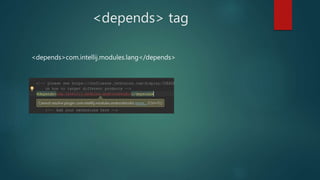

17. <depends> tag
<depends>com.intellij.modules.lang</depends>

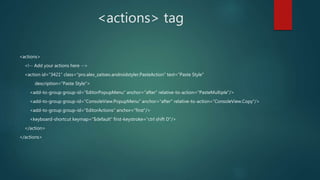

18. <actions> tag
<actions>
<!-- Add your actions here -->
<action id="3421" class="pro.alex_zaitsev.androidstyler.PasteAction" text="Paste Style"
description="Paste Style">
<add-to-group group-id="EditorPopupMenu" anchor="after" relative-to-action="PasteMultiple"/>
<add-to-group group-id="ConsoleView.PopupMenu" anchor="after" relative-to-action="ConsoleView.Copy"/>
<add-to-group group-id="EditorActions" anchor="first"/>
<keyboard-shortcut keymap="$default" first-keystroke="ctrl shift D"/>
</action>
</actions>

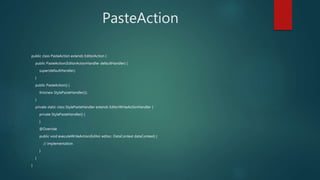

19. PasteAction
public class PasteAction extends EditorAction {
public PasteAction(EditorActionHandler defaultHandler) {
super(defaultHandler);
}
public PasteAction() {
this(new StylePasteHandler());
}
private static class StylePasteHandler extends EditorWriteActionHandler {
private StylePasteHandler() {
}
@Override
public void executeWriteAction(Editor editor, DataContext dataContext) {
// implementation
}
}
}

20. Implementation

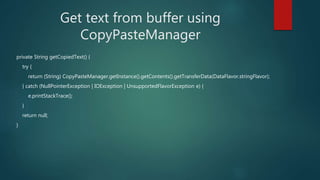

21. Get text from buffer using
CopyPasteManager
private String getCopiedText() {
try {
return (String) CopyPasteManager.getInstance().getContents().getTransferData(DataFlavor.stringFlavor);
} catch (NullPointerException | IOException | UnsupportedFlavorException e) {
e.printStackTrace();
}
return null;
}

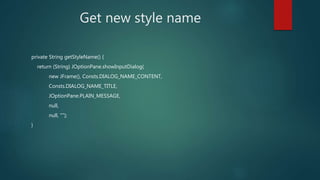

22. Get new style name
private String getStyleName() {
return (String) JOptionPane.showInputDialog(
new JFrame(), Consts.DIALOG_NAME_CONTENT,
Consts.DIALOG_NAME_TITLE,
JOptionPane.PLAIN_MESSAGE,
null,
null, "");
}

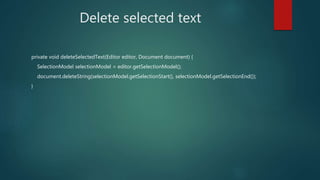

23. Delete selected text
private void deleteSelectedText(Editor editor, Document document) {
SelectionModel selectionModel = editor.getSelectionModel();
document.deleteString(selectionModel.getSelectionStart(), selectionModel.getSelectionEnd());
}

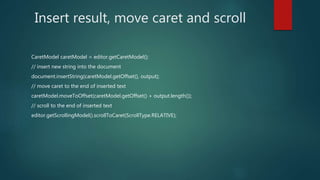

24. Insert result, move caret and scroll
CaretModel caretModel = editor.getCaretModel();
// insert new string into the document
document.insertString(caretModel.getOffset(), output);
// move caret to the end of inserted text
caretModel.moveToOffset(caretModel.getOffset() + output.length());
// scroll to the end of inserted text
editor.getScrollingModel().scrollToCaret(ScrollType.RELATIVE);

25. Publish

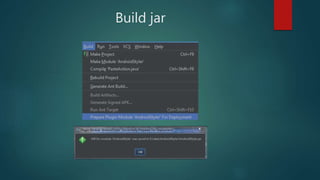

26. Build jar

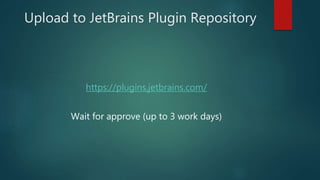

27. Upload to JetBrains Plugin Repository
https://plugins.jetbrains.com/
Wait for approve (up to 3 work days)

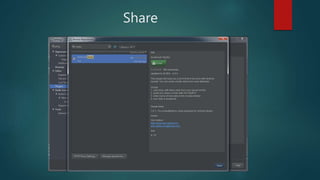

28. Share

29. Have a good plugin development!
