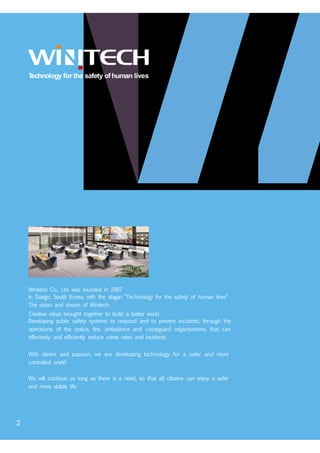

3. Technology for the safety ofhuman lives
Winitech Co., Ltd. was founded in 1997
In Daegu, South Korea, with the slogan âTechnology for the safety of human livesâ
The vision and dream of Winitech
Creative ideas brought together to build a better world
Developing public safety systems to respond and to prevent incidents, through the
operations of the police, fire, ambulance and coastguard organisations, that can
effectively and efficiently reduce crime rates and incidents
With desire and passion, we are developing technology for a safer and more
controlled world
We will continue as long as there is a need, so that all citizens can enjoy a safer
and more stable life
2

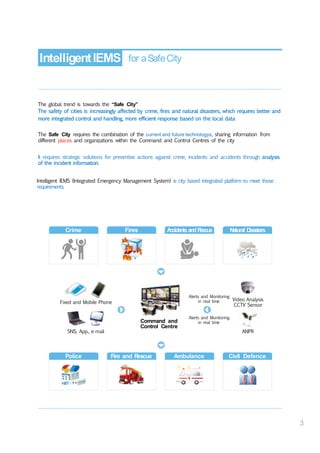

4. IntelligentIEMS for aSafeCity
The global trend is towards the âSafe Cityâ
The safety of cities is increasingly affected by crime, fires and natural disasters, which requires better and
more integrated control and handling, more efficient response based on the local data
The Safe City requires the combination of the current and future technologys, sharing information from
different places and organizations within the Command and Control Centres of the city
It requires strategic solutions for preventive actions against crime, incidents and accidents through analysis
of the incident information.
Intelligent IEMS (Integrated Emergency Management System) is city based integrated platform to meet those
requirements.
Crime Fires Accidentsand Rescue Natural Disasters
Alerts and Monitoring
in real time Video Analysis
CCTV Sensor
Fixed and Mobile Phone
Alerts and Monitoring
in real timeCommand and
Control Centre
SNS, App., e-mail ANPR
Police Fire and Rescue Ambulance Civil Defence
3
5. IntelligentIEMS Configuration
The CTS, ARS, CAD, LBS, MRS and GIS modules cover command and control operations, receiving calls
from citizens, alarms from various sources of communication media such as sensors, CCTV analysis and
messages, local dispatch and sharing of the operational situation in the field
ANPR and Intelligent Video Analysis System perform more than just CCTV monitoring functions, being more
intelligent in detecting and tracking of an objects individuals and generating alarm event outcomes which are
sent to the ARS and it is helpful to prevention activities.
Incident and event data is stored within the Intelligent IEMS, forming a crime and risk analysis service platform
that offers Big data based solutions for the prevention of Crimes and Incidents
Multi-access
Incidents, Events
Dispatch
Response team
Incident Receipt Field Support
Fixed and
Mobile Phone
SMS
e-mail
SNS
App.
CCTV
Intelligent
Video Analysis
ANPR
Sensor
Panic Button
CAD
CTS MRS
LBS
ARS Radio
GIS
ANI/ALI PDA
Tablet
SmartphoneCCTV
GIS
ANPRCCTV Laptop
Intelligent
Video Analysis
ANPR Related Agencies
Crime/ Incident/ Accident
Information
Prevention Solutions
â˘Sharing risk level information to local residents
â˘Location based risk alert service and information
sharing in real-time
â˘Crime mapping system
â˘Crime and risk analysis service
CTS: Call Taking System
ARS: Alarm Receiving System
ANI/ALI: Automatic Number Identification/Automatic
Location Identification
GIS: Geographical Information System
ANPR: Automatic Number Plate Recognition
CAD: Computer Aided Dispatch
L B S : Location Based Service

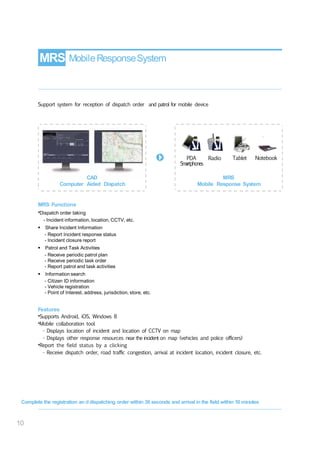

M RS: Mobile Response System
4
6. IntelligentIEMS Main Features
Intelligent IEMS is a total solution for Command and Control Centres, scalable and flexible to integrate and
extend to all the systems of the various sectors of Public Safety and Security
Integrated Emergency Management System
â˘Integrated solution for emergency response
â˘Communication with multi-media access: fixed and mobile phone, SMS,
sensors, e-mail, social networks(SNS), App., CCTV, etc.
â˘Easy selection of available resources and simultaneous dispatch order
to different existing devices
â˘Scalable system size for applying to population coverage from 100,000 to
10million
â˘Flexibility to change or expand a software, hardware and devices
â˘Supports both open source-based engines and commercial engines
IEMS

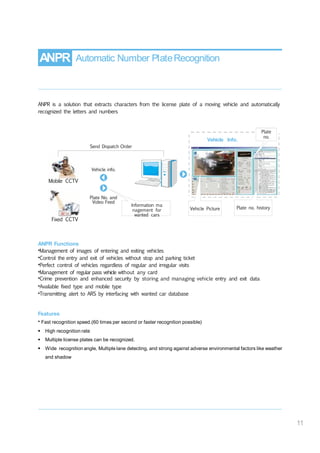

Automatic Number Plate Recognition
â˘Solution for wanted cars detections
â˘Fast recognition speed (60 times a second)
â˘99% recognition rate(In normal condition, Korea)
â˘Wide recognition angle, multiple lane detection, stable p
erformance in poor weather conditions and shadowsANPR
Intelligent Video Analysis
â˘Intensive monitoring through video analysis and early warning
- Concentrated monitoring of moving objects (persons, vehicle,
etc.)
- Event detection alarm
â˘Integrated all-in-one system for video analysis and NVR functions
â˘Integration with ANPR and automatic tracking with PTZ camera
â˘Abnormal sound detection (screams, shouts, explosions, gunfire, etc.)
and automatic tracking with PTZ camera
CCTV
Crime Prevention Solution
â˘Supports crime map and crime prediction map based on âBig Dataâ analysis
â˘Provides Risk level assessment system based on the situation
recognition within each local area

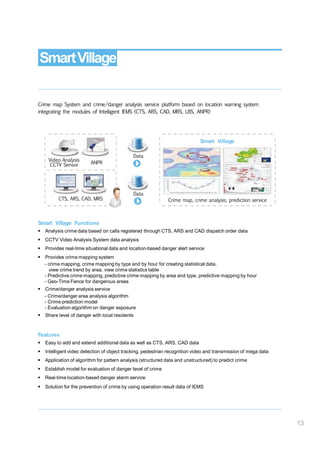

â˘Supports a Smart Village Service Platform for safety and security
â˘Provides statistical information for crime, location information, risk by
time, level, etc.
Big Data
5
7. CTS Call TakingSystem
System for receiving and recording incident calls made on fixed and mobile phones
CTI
PBX
CAD
ALI
CTS
Call Taking System
CTS Functions
â˘On-screen call control
- Shows status of the CTS phone line and phone number
- Complete control of phone line: Answer/Release, Hold/Retrieve, Transfer/Conference
â˘Call verification
- Call management for blacklist, VIP and so on
- Shows the call history
â˘ALI support
- Display the location of fixed and mobile phone on the map
- Display callerâs location on the GIS
â˘Incident
- Input incident classification, location and details
ď - Add comments to incident
ď - Automatic Incident distribution to CAD
â˘CTS map
- Display callerâs location on map
- Pinpoint of incident location on map
Features
â˘Scalable to cover population from 100,000 to 10 million
â˘Support various types of PBX/CTI equipment and it is scalable and expandable without system
changes
â˘Support various size of PSAP (Public Safety Answering Point)
â˘Support integration of external equipment (such as CCTV) which is compatible with CTS
â˘Open source based engine (database, WAS)
6
8. ARS Alarm ReceivingSystem
SMS e-mail App.
SNS Sensor
CADCCTV
ARS
Alarm Receiving System
ANPR
ARS Functions
â˘Supports various alarm sources
- Integration of alarms from different types of media (SMS, sensors, e-mail, social networks, CCTV, et
c.)
- Support call taking from other region EMS and related agencies
â˘Alarm verification
- Displays related information by alarm type to verify its effectiveness
- Displays the history of the alarm
â˘Alarm location support
- Displays location of the alarm on the map if the Iocation is recognized
â˘Incident Register
- Input incident classification, location and details
- Add comments to the incident
- Send incident to CAD for dispatching
â˘ARS Map
- Display location of alarm on map
- Pinpoint location of incident on map
Features
â˘Supports CAP (Common Alerting Protocol)
- Integration with alert media that use CAP
â˘Easy to interface with other agencies and system by using international standard protocol(CAD)
â˘Supports various types of alarm source and it is scalable and expandable without system changes
â˘Open source based engine (database, WAS)
â˘Automatic alarm distribution to ARS desk
7
System for monitoring alarms received from various media
in order to respond to alarms and register incidents
9. CAD ComputerAidedDispatch
Organize the most appropriate resources for the incident and sends order to them by various kinds of commun
ication media
MRS
CTS TRS
PDA Tablet
Smartphone
Notebook
PC
ARS
CAD
Computer Aided Dispatch
CAD Functions
â˘Incident distribution
- The incidents received from the CTS and ARS are automatically distributed to the CADs
- The incident details and the information in the CTS or ARS are automatically displayed
simultaneously
â˘Unit status and mobilization
- Displays operational status of unit and assign them in real time
- Provides decision supporting tool for prompt dispatching ( for example nearest unit)
â˘Integration with AVL/APL
- Through integration of LBS (AVL/APL), displays the locations of the units in real time
- Organize the team or unit on the map(on the fly)
â˘Dispatch and monitoring
- Sends the dispatch order to various communication media at a
click(mobile phone, messages, laptop, PC, etc.)
- Monitoring and control in real time the operational status (dispatched, en route, arrived, etc.)
of the resource units in the field
â˘CAD map
- Integrated with AVL/APL
- Displays location of incidents, unit location, nearby unit from the incident location
Features
â˘Extendable to related agencies by using the EDI (Electronic Data Interchange) protocol
â˘Automatic management of resource units status (receipt of dispatch order, road congestion, arrival at loc
ation, incident closure, etc.)
â˘Decide the most appropriate resource in combination with LBS
⢠Dissemination dispatching order or notification to multiple media simultaneously or selectively
- TRS, PDA, Tablet, Smartphone, Notebook, PC, etc.
â˘Open source based engine (database, WAS)
8

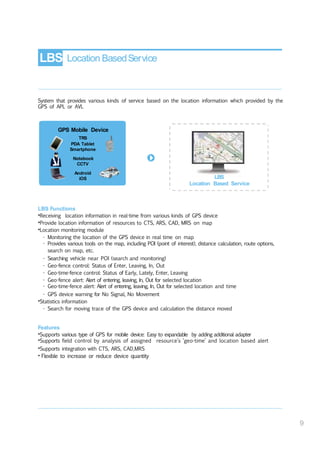

10. LBS Location BasedService
System that provides various kinds of service based on the location information which provided by the
GPS of APL or AVL
GPS Mobile Device
TRS
PDA Tablet
Smartphone
Notebook
CCTV
Android
iOS LBS
Location Based Service
LBS Functions
â˘Receiving location information in real-time from various kinds of GPS device
â˘Provide location information of resources to CTS, ARS, CAD, MRS on map
â˘Location monitoring module
- Monitoring the location of the GPS device in real time on map
- Provides various tools on the map, including POI (point of interest), distance calculation, route options,
search on map, etc.
- Searching vehicle near POI (search and monitoring)
- Geo-fence control: Status of Enter, Leaving, In, Out
- Geo-time-fence control: Status of Early, Lately, Enter, Leaving
- Geo-fence alert: Alert of entering, leaving, In, Out for selected location
- Geo-time-fence alert: Alert of entering, leaving, In, Out for selected location and time
- GPS device warning for No Signal, No Movement
â˘Statistics information
- Search for moving trace of the GPS device and calculation the distance moved
Features
â˘Supports various type of GPS for mobile device: Easy to expandable by adding additional adapter
â˘Supports field control by analysis of assigned resourceâs âgeo-timeâ and location based alert
â˘Supports integration with CTS, ARS, CAD,MRS
⢠Flexible to increase or reduce device quantity
9
11. MRS MobileResponseSystem
Support system for reception of dispatch order and patrol for mobile device
PDA Radio
Smartphones
Tablet Notebook
CAD
Computer Aided Dispatch
MRS
Mobile Response System
MRS Functions
â˘Dispatch order taking
- Incident information, location, CCTV, etc.
ď§ Share Incident Information
- Report Incident response status
- Incident closure report
ď§ Patrol and Task Activities
- Receive periodic patrol plan
- Receive periodic task order
- Report patrol and task activities
ď§ Information search
- Citizen ID information
- Vehicle registration
- Point of Interest, address, jurisdiction, store, etc.
Features
â˘Supports Android, iOS, Windows 8
â˘Mobile collaboration tool
- Displays location of incident and location of CCTV on map
- Displays other response resources near the incident on map (vehicles and police officers)
â˘Report the field status by a clicking
- Receive dispatch order, road traffic congestion, arrival at incident location, incident closure, etc.
Complete the registration an d dispatching order within 30 seconds and arrival in the field within 10 minutes
10
12. ANPR Automatic Number PlateRecognition
ANPR is a solution that extracts characters from the license plate of a moving vehicle and automatically
recognized the letters and numbers
Plate
no.
Vehicle Info.
Send Dispatch Order
Vehicle info.
Mobile CCTV
Plate No. and
Video Feed
Information ma
nagement for
wanted cars
Plate no. historyVehicle Picture
Fixed CCTV
ANPR Functions
â˘Management of images of entering and exiting vehicles
â˘Control the entry and exit of vehicles without stop and parking ticket
â˘Perfect control of vehicles regardless of regular and irregular visits
â˘Management of regular pass vehicle without any card
â˘Crime prevention and enhanced security by storing and managing vehicle entry and exit data
â˘Available fixed type and mobile type
â˘Transmitting alert to ARS by interfacing with wanted car database
Features
⢠Fast recognition speed.(60 times per second or faster recognition possible)
ď§ High recognition rate
ď§ Multiple license plates can be recognized.
ď§ Wide recognition angle, Multiple lane detecting, and strong against adverse environmental factors like weather
and shadow
11

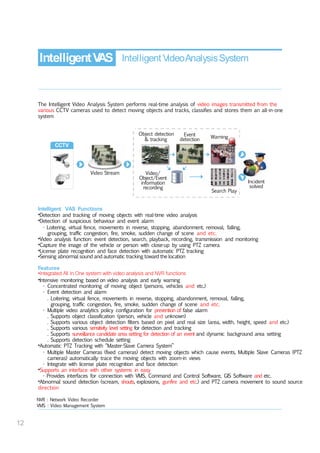

13. IntelligentVAS Intelligent VideoAnalysisSystem
The Intelligent Video Analysis System performs real-time analysis of video images transmitted from the
various CCTV cameras used to detect moving objects and tracks, classifies and stores them an all-in-one
system
Object detection
& tracking
Event
detection
Warning
CCTV
Video Stream Video/
Object/Event
information
recording
Incident
solved
Search Play
Intelligent VAS Functions
â˘Detection and tracking of moving objects with real-time video analysis
â˘Detection of suspicious behaviour and event alarm
- Loitering, virtual fence, movements in reverse, stopping, abandonment, removal, falling,
grouping, traffic congestion, fire, smoke, sudden change of scene and etc.
â˘Video analysis function: event detection, search, playback, recording, transmission and monitoring
â˘Capture the image of the vehicle or person with close-up by using PTZ camera
â˘License plate recognition and face detection with automatic PTZ tracking
â˘Sensing abnormal sound and automatic tracking toward the location
Features
â˘Integrated All In One system with video analysis and NVR functions
â˘Intensive monitoring based on video analysis and early warning
- Concentrated monitoring of moving object (persons, vehicles and etc.)
- Event detection and alarm
. Loitering, virtual fence, movements in reverse, stopping, abandonment, removal, falling,
grouping, traffic congestion, fire, smoke, sudden change of scene and etc.
- Multiple video analytics policy configuration for prevention of false alarm
. Supports object classification (person, vehicle and unknown)
. Supports various object detection filters based on pixel and real size (area, width, height, speed and etc.)
. Supports various sensitivity level setting for detection and tracking
. Supports surveillance candidate area setting for detection of an event and dynamic background area setting
. Supports detection schedule setting
â˘Automatic PTZ Tracking with âMaster-Slave Camera Systemâ
- Multiple Master Cameras (fixed cameras) detect moving objects which cause events, Multiple Slave Cameras (PTZ
cameras) automatically trace the moving objects with zoom-in views
- Integrate with license plate recognition and face detection
â˘Supports an interface with other systems in easy
- Provides interfaces for connection with VMS, Command and Control Software, GIS Software and etc.
â˘Abnormal sound detection (scream, shouts, explosions, gunfire and etc.) and PTZ camera movement to sound source
direction
NVR : Network Video Recorder
VMS : Video Management System
12
14. SmartVillage
Crime map System and crime/danger analysis service platform based on location warning system
integrating the modules of Intelligent IEMS (CTS, ARS, CAD, MRS, LBS, ANPR)
Smart Village
Data
Video Analysis
CCTV Sensor ANPR
Data
CTS, ARS, CAD, MRS Crime map, crime analysis, prediction service
Smart Village Functions
ď§ Analysis crime data based on calls registered through CTS, ARS and CAD dispatch order data
ď§ CCTV Video Analysis System data analysis
ď§ Provides real-time situational data and location-based danger alert service
ď§ Provides crime mapping system
- crime mapping, crime mapping by type and by hour for creating statistical data,
view crime trend by area, view crime statistics table
- Predictive crime mapping, predictive crime mapping by area and type, predictive mapping by hour
- Geo-Time Fence for dangerous areas
ď§ Crime/danger analysis service
- Crime/danger area analysis algorithm
- Crime prediction model
- Evaluation algorithm on danger exposure
ď§ Share level of danger with local residents
Features
ď§ Easy to add and extend additional data as well as CTS, ARS, CAD data
ď§ Intelligent video detection of object tracking, pedestrian recognition video and transmission of mega data
ď§ Application of algorithm for pattern analysis (structured data and unstructured) to predict crime
ď§ Establish model for evaluation of danger level of crime
ď§ Real-time location-based danger alarm service
ď§ Solution for the prevention of crime by using operation result data of IEMS
13

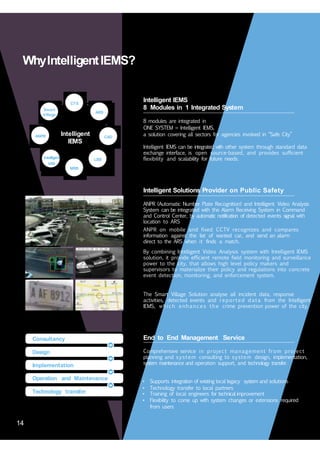

15. 14
WhyIntelligentIEMS?
Intelligent IEMS
8 Modules in 1 Integrated System
CTS
Smart
Village
ARS
8 modules are integrated in
ONE SYSTEM = Intelligent IEMS,
a solution covering all sectors for agencies involved in âSafe CityâIntelligent
IEMS
ANPR CAD
Intelligent IEMS can be integrated with other system through standard data
exchange interface, is open source-based, and provides sufficient
flexibility and scalability for future needs.Intelligent
VAS
LBS
MRS
Intelligent Solutions Provider on Public Safety
ANPR (Automatic Number Plate Recognition) and Intelligent Video Analysis
System can be integrated with the Alarm Receiving System in Command
and Control Center, by automatic notification of detected events signal with
location to ARS
ANPR on mobile and fixed CCTV recognizes and compares
information against the list of wanted car, and send an alarm
direct to the ARS when it finds a match.
By combining Intelligent Video Analysis system with Intelligent IEMS
solution, it provide efficient remote field monitoring and surveillance
power to the city, that allows high level policy makers and
supervisors to materialize their policy and regulations into concrete
event detection, monitoring, and enforcement system.
The Smart Village Solution analyse all incident data, response
activities, detected events and reported data from the Intelligent
IEMS, which enhances the crime prevention power of the city.
End to End Management ServiceConsultancy
Comprehensive service in project management from project
planning and system consulting to system design, implementation,
system maintenance and operation support, and technology transfer.
Design
Implementation
⢠Supports integration of existing local legacy system and solutions
⢠Technology transfer to local partners
⢠Training of local engineers for technical improvement
⢠Flexibility to come up with system changes or extensions required
from users
Operation and Maintenance
Technology transfer
14

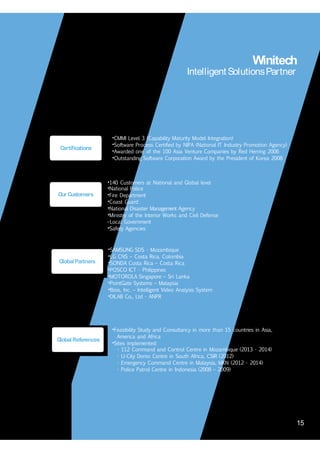

16. 15
Winitech
Intelligent SolutionsPartner
â˘CMMI Level 3 (Capability Maturity Model Integration)
â˘Software Process Certified by NIPA (National IT Industry Promotion Agency)
â˘Awarded one of the 100 Asia Venture Companies by Red Herring 2006
â˘Outstanding Software Corporation Award by the President of Korea 2008
Certifications
â˘140 Customers at National and Global level
â˘National Police
â˘Fire Department
â˘Coast Guard
â˘National Disaster Management Agency
â˘Ministry of the Interior Works and Civil Defense
⢠Local Government
â˘Safety Agencies
Our Customers
â˘SAMSUNG SDS - Mozambique
â˘LG CNS â Costa Rica, Colombia
â˘SONDA Costa Rica â Costa Rica
â˘POSCO ICT - Philippines
â˘MOTOROLA Singapore â Sri Lanka
â˘PointGate Systems â Malaysia
â˘Illisis, Inc. â Intelligent Video Analysis System
â˘DILAB Co., Ltd - ANPR
GlobalPartners
â˘Feasibility Study and Consultancy in more than 15 countries in Asia,
America and Africa
â˘Sites implemented:
GlobalReferences
- 112 Command and Control Centre in Mozambique (2013 - 2014)
- U-City Demo Centre in South Africa, CSIR (2012)
- Emergency Command Centre in Malaysia, MKN (2012 - 2014)
- Police Patrol Centre in Indonesia (2008 â 2009)
15
