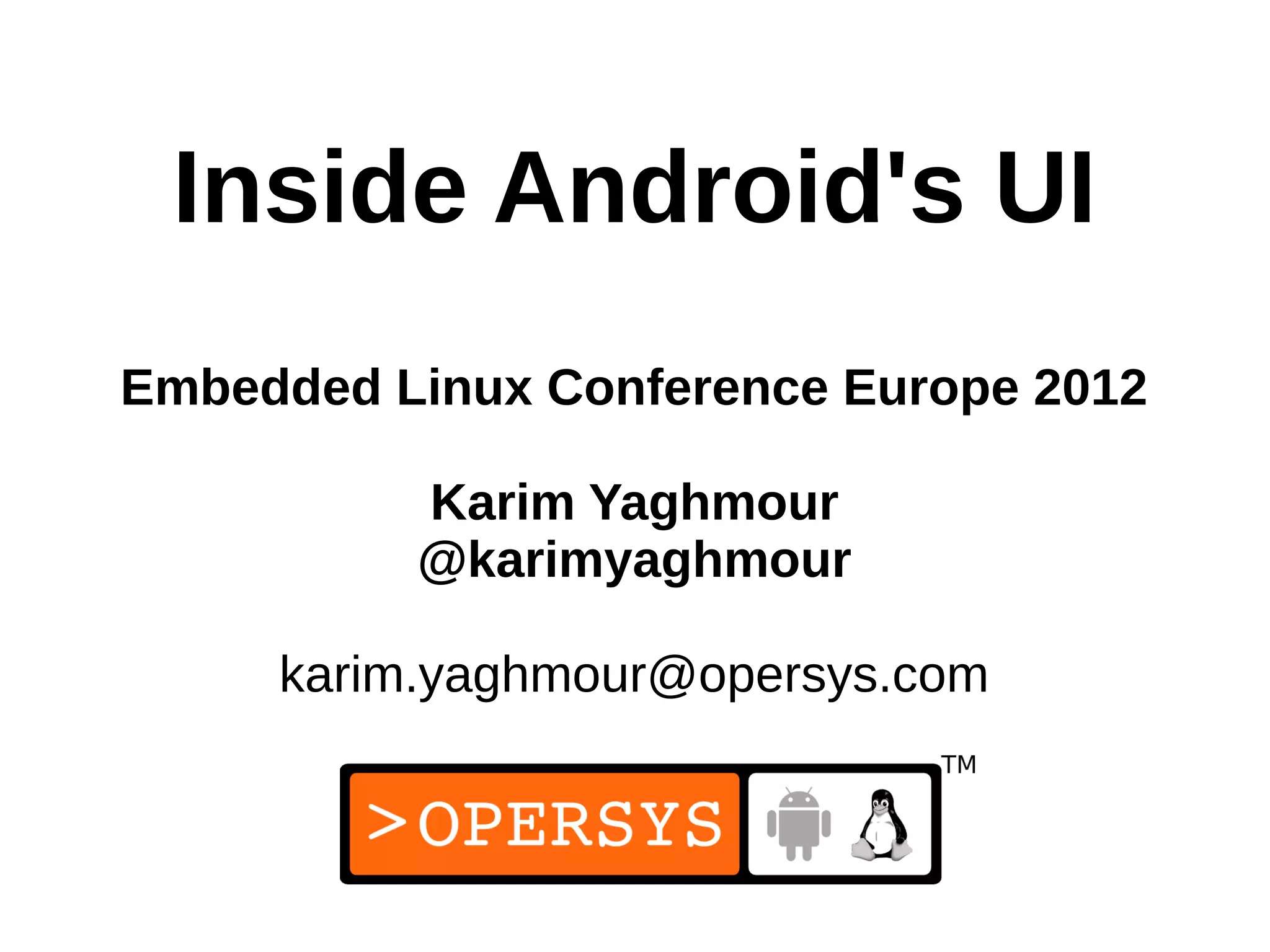

Inside Android's UI
Embedded Linux Conference Europe 2012

          Karim Yaghmour
          @karimyaghmour

     karim.yaghmour@opersys.com


                              1

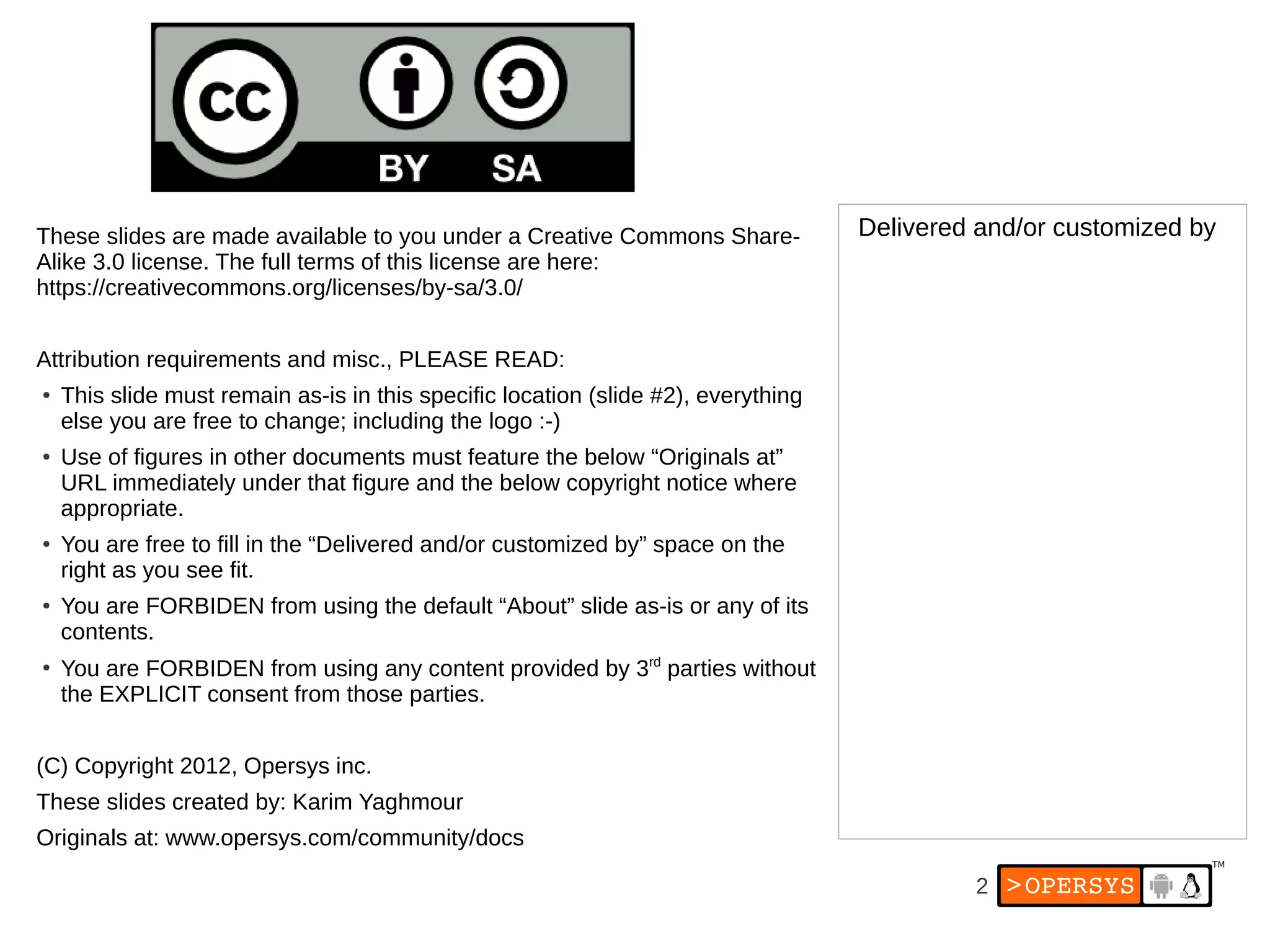

These slides are made available to you under a Creative Commons Share-              Delivered and/or customized by
Alike 3.0 license. The full terms of this license are here:
https://creativecommons.org/licenses/by-sa/3.0/


Attribution requirements and misc., PLEASE READ:
●   This slide must remain as-is in this specific location (slide #2), everything
    else you are free to change; including the logo :-)
●   Use of figures in other documents must feature the below “Originals at”
    URL immediately under that figure and the below copyright notice where
    appropriate.
●   You are free to fill in the “Delivered and/or customized by” space on the
    right as you see fit.
●   You are FORBIDEN from using the default “About” slide as-is or any of its
    contents.
●
    You are FORBIDEN from using any content provided by 3rd parties without
    the EXPLICIT consent from those parties.


(C) Copyright 2012, Opersys inc.
These slides created by: Karim Yaghmour
Originals at: www.opersys.com/community/docs

                                                                                             2
About
●   Author of:




●   Introduced Linux Trace Toolkit in 1999
●   Originated Adeos and relayfs (kernel/relay.c)
●   Training, Custom Dev, Consulting, ...
                                              3
Agenda
●   Android's UI, what's that?
●   Architecture Basics
●   Display Core
●   OpenGL
●   Input Layer
●   Relevant Apps and Services
●   System Startup
●   References and Pointers
                                 4
1. Android's UI, what's that?



                       ●SoC / GPU
                ???    ●Touch input

                       ●LCD

                       ●Keyboard




                           5
1.1. What I'm NOT covering
●   Media layer
●   StageFright
●   Video playback
●   Camera
●   DRM
●   Etc.



                              6
2. Architecture Basics
●   Hardware used to run Android
●   AOSP
●   Binder
●   System Services
●   HAL




                                      7
8
9
10
11
12
/frameworks/base/core/...


                  /frameworks/base/services/java/...
AOSP-provided
    ASL
                  /frameworks/base/services/jni/


                  /hardware/libhardware/

                  /device/[MANUF.]/[DEVICE]
Manuf.-provided   /sdk/emulator/
Manuf. license
                  Kernel or module
Manuf.-provided
 GPL-license




                            13
3. Display Core
●   Display Hardware
●   Classic Linux display stack
●   Display stack in Android
●   Kernel driver
●   HAL definition
●   HAL module
●   Surface Flinger
●   Window Manager
●   Walkthrough
                                       14
3.1. Display Hardware


 MMU




IOMMU




                    15
3.2. Classic Linux display stack




                          16
3.3. Display stack in Android




                         17
18
3.4. Kernel driver
●
    Video memory management
●
    Mode setting
●   Checking of parameters
●   Motorola Xoom:
    ●
        /dev/nvhdcp1
    ●   /dev/nvhost-ctrl
    ●   /dev/nvhost-display
    ●   /dev/nvhost-dsi
    ●
        /dev/nvhost-gr2d
    ●   /dev/nvhost-gr3d
    ●
        /dev/nvhost-isp
    ●
        /dev/nvhost-mpe
    ●   /dev/nvhost-vi
    ●   /dev/nvmap
    ●   /dev/tegra-crypto
    ●
        /dev/tegra_avp
    ●
        /dev/tegra_camera
    ●
        /dev/tegra_fuse
    ●   /dev/tegra_rpc
    ●   /dev/tegra_sema
●   ... whatever hides in hwcomposer HAL module    19
3.5. HAL Definition
●   /hardware/libhardware/include/hardware/hwcomposer.h
●   struct hwc_procs:
    ●   invalidate()
    ●   vsync()
●   struct hwc_composer_device:
    ●   prepare()
    ●   set()
    ●   dump()
    ●   registerProcs()
    ●   query()
    ●   *()
                                                      20
3.6. HAL module
●   Skeleton /hardware/libhardware/modules/hwcomposer.cpp
●   /system/lib/hw/hwcomposer.BOARD.so
●   /system/lib/hw/gralloc.BOARD.so
●   Ex. - Mot Xoom:
    ●   hwcomposer.tegra.so
    ●   gralloc.tegra.so
●   Surface Flinger hook:
    ●   /frameworks/native/services/surfaceflinger/DisplayHardware
        –   HWComposer.cpp
        –   Provides fake vsync if none is provided in HW



                                                            21
3.7. Surface Flinger
●   Actual server:
    ●   /frameworks/native/services/surfaceflinger
●   Client side:
    ●   /frameworks/native/libs/gui
●   Client / Server interface:
    ●   ISurfaceComposerClient.cpp
    ●   ISurfaceComposer.cpp
●   This is NOT an aidl'ed service
●   All communication is manually
    marshalled/unmarshalled
                                                     22
3.8. Window Manager
●   Server side:
    ●   /frameworks/base/services/java/com/android/server/wm/
         –   WindowManagerService.java
         –   Session.java
●   Client side:
    ●   /frameworks/base/core/java/android/view/
         –   WindowManager.java
         –   WindowManagerImpl.java
         –   ViewRootImpl.java
●   Interfaces:
    ●   IWindowManager.aidl
    ●   IWindowSession.aidl
●   Parameters (incl. z-order):
    ●   See WindowManager.java

                                                                23
3.9. Walkthrough
●   Activity Manager relies on Activity Thread
●   AT calls on attach() and makeVisible()
●   makeVisible does wm.addView()
●   vm.addView() - this also called by StatusBar to display itself
    ●   Creates a new ViewRootImpl
    ●   Call on its setView()
●   setView() calls on sWindowSession.add(...)
●   This results in call to WM's addWindow()
●   ViewRootImpl's performTraversals()
    ●   Calls on relayoutWindow()
    ●   Calls to WM session's relayout()
    ●   Call to WM's relayoutWindow()
    ●   Call to createSurfaceLocked()
    ●   new Surface(...)

                                                                     24
4. OpenGL
●   What's OpenGL?
●   What's in a modern-day GPU?
●   Software layers involved
●   Kernel driver
●   EGL libs
●   Native interface
●   Java interface
●   Software GL implementation

                                   25
4.1. What's OpenGL?
●   It's just an API ... nothing but an API ...
●   Check out Wikipedia
●   Multiple versions out
●   “ES” versions for embedded use
●   Up to ES 3.0
●   Android support up to ES 2.0



                                             26
4.2. What's in a modern-day GPU?
●   A tremendous amount of parallel processing units
●   “SIMD”-like instruction set
●   Video decoding/encoding capabilities
●   ...




                                           27
4.3. Software layers involved
●   Kernel driver
●   GL libraries
●   Native GL API
●   Java GL API




                                28
4.4. Kernel driver




            Y
         AR
      ET
    RI
  OP
PR



                       29
4.5. EGL libs
●   /frameworks/base/native/opengl/libs
●   Entry point: /system/lib/libEGL.so
●
    Looks for /system/lib/egl/egl.cfg
●   /system/lib/egl - Mot Xoom:
    ●   egl.cfg
    ●   libEGL_perfhud.so
    ●   libEGL_tegra.so
    ●   libGLES_android.so
    ●   libGLESv1_CM_perfhud.so
    ●   libGLESv1_CM_tegra.so
    ●   libGLESv2_perfhud.so
    ●   libGLESv2_tegra.so
●
    elg.cfg:
               0 0 tegra



                                                30
4.6. Native interface
●   /frameworks/native/opengl/include
    ●   EGL
    ●   ETC1
    ●   GLES
    ●   GLES2
    ●   KHR




                                        31
4.7. Java interface
●   GL libs required by libandroid_runtime.so
●   /frameworks/base/opengl/java/android/opengl:
    ●   ...




                                         32
4.8. Software GL implementation
●   /frameworks/native/opengl/libagl




                                       33
5. Input Layer
●   Kernel side - “std” Linux input layer:
    ●   /dev/input/*
●   No HAL use
●   Native lib:
    ●   libinput
    ●   /frameworks/base/services/input
●   Input Manager Service:
    ●   /frameworks/base/services/java/com/android/server/input
    ●   Started and directly tied to Window Manager
●   Specific config files (see source.android.com)
●   Soft keyboard:
    ●   /frameworks/base/core/java/android/inputmethodservice
●   Input methods:
    ●   /packages/inputmehods
    ●   http://developer.android.com/guide/topics/text/creating-input-method.html

                                                                                    34
6. Relevant Apps and Services
●   Launcher
●   StatusBar
●   Wallpaper Manager Service
●   Notification Service
●   App Widgets




                                35
6.1. Launcher
●   An app like any other
●   See /packages/app/Launcher2




                                  36
6.2. StatusBar
●   A unique app
●   See /frameworks/base/packages/SystemUI
●   Connects to Status Bar Manager and gives an
    interface it can use to call back into Status Bar
●   Can use setIcon() to display icons on the right
●   Provides a CPU usage add-on that renders
    straight on rest of display using higher z-order


                                           37
6.3. Wallpaper Manager Service
●   See
    /frameworks/base/services/java/com/android/se
    rver/WallpaperManagerService.java




                                       38
6.4. Notification Service
●   Toasts
●   Status bar notifications
●   Gets handle to Status Bar Service at
    instantiation
●   Uses handle to communicate with Status Bar




                                           39
6.5. App Widgets
●   See
    /frameworks/base/services/java/com/android/se
    rver/AppWidgetService.java




                                       40
7. System Startup
●   Kernel
●   Init
●   Boot animation
●   Launcher




                                   41
7.1. Boot animation
●   Started by Surface Flinger
●   “bootanim” binary
●   /frameworks/base/cmds/bootanimation
●   Relies on bootanimation.zip w/ PNGs (nothing but)
●   See
    https://github.com/CyanogenMod/android_vendor_cm/tree/jellybean/pre
    built/common/bootanimatino
●   Must contain a desc.txt:
           <width> <height> <fps>
           p <count> <pause> <path>
           p <count> <pause> <path>


                                                        42
8. References and Pointers
●   “Use the source, Luke”
●   Jim Huang's “Android Graphics”
●   Benjamin Zores' “Linux Magazine / France” articles
●   MIPS article on graphics internals:
●   http://developer.mips.com/2012/04/11/learning-about-
    android-graphics-subsystem/
●   Stéphane Marchesin's “Linux Graphics Drivers: an
    Introduction”
●   http://source.android.com/tech/input/index.html


                                                 43
Thank you ...

karim.yaghmour@opersys.com




                         44

More Related Content

What's hot

Android Boot Time Optimization
Android Boot Time OptimizationAndroid Boot Time Optimization
Android Boot Time Optimization
Kan-Ru Chen

Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)
Emertxe Information Technologies Pvt Ltd

Applied Computer Science Concepts in Android
Applied Computer Science Concepts in AndroidApplied Computer Science Concepts in Android
Applied Computer Science Concepts in Android
National Cheng Kung University

LCE13: Android Graphics Upstreaming
LCE13: Android Graphics UpstreamingLCE13: Android Graphics Upstreaming
LCE13: Android Graphics Upstreaming
Linaro

Using and Customizing the Android Framework / part 4 of Embedded Android Work...
Using and Customizing the Android Framework / part 4 of Embedded Android Work...Using and Customizing the Android Framework / part 4 of Embedded Android Work...
Using and Customizing the Android Framework / part 4 of Embedded Android Work...
Opersys inc.

Android IPC Mechanism
Android IPC MechanismAndroid IPC Mechanism
Android IPC Mechanism
National Cheng Kung University

Explore Android Internals
Explore Android InternalsExplore Android Internals
Explore Android Internals
National Cheng Kung University

Embedded Android : System Development - Part IV
Embedded Android : System Development - Part IVEmbedded Android : System Development - Part IV
Embedded Android : System Development - Part IV
Emertxe Information Technologies Pvt Ltd

Android Internals
Android InternalsAndroid Internals
Android Internals
Opersys inc.

An Introduction to the Android Framework -- a core architecture view from app...
An Introduction to the Android Framework -- a core architecture view from app...An Introduction to the Android Framework -- a core architecture view from app...
An Introduction to the Android Framework -- a core architecture view from app...
William Liang

Embedded Android : System Development - Part III
Embedded Android : System Development - Part IIIEmbedded Android : System Development - Part III
Embedded Android : System Development - Part III
Emertxe Information Technologies Pvt Ltd

Android for Embedded Linux Developers
Android for Embedded Linux DevelopersAndroid for Embedded Linux Developers
Android for Embedded Linux Developers
Opersys inc.

Understaing Android EGL
Understaing Android EGLUnderstaing Android EGL
Understaing Android EGL
Suhan Lee

Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)
Emertxe Information Technologies Pvt Ltd

Embedded Linux on ARM
Embedded Linux on ARMEmbedded Linux on ARM
Android Internals at Linaro Connect Asia 2013
Android Internals at Linaro Connect Asia 2013Android Internals at Linaro Connect Asia 2013
Android Internals at Linaro Connect Asia 2013
Opersys inc.

"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
Nanik Tolaram

Android Treble: Blessing or Trouble?
Android Treble: Blessing or Trouble?Android Treble: Blessing or Trouble?
Android Treble: Blessing or Trouble?
Opersys inc.

Virtual Machine Constructions for Dummies
Virtual Machine Constructions for DummiesVirtual Machine Constructions for Dummies
Virtual Machine Constructions for Dummies
National Cheng Kung University

Learning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device DriverLearning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device Driver
Nanik Tolaram


What's hot (20)

Android Boot Time Optimization
Android Boot Time OptimizationAndroid Boot Time Optimization
Android Boot Time Optimization

Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)Embedded Android : System Development - Part II (HAL)
Embedded Android : System Development - Part II (HAL)

Applied Computer Science Concepts in Android
Applied Computer Science Concepts in AndroidApplied Computer Science Concepts in Android
Applied Computer Science Concepts in Android

LCE13: Android Graphics Upstreaming
LCE13: Android Graphics UpstreamingLCE13: Android Graphics Upstreaming
LCE13: Android Graphics Upstreaming

Using and Customizing the Android Framework / part 4 of Embedded Android Work...
Using and Customizing the Android Framework / part 4 of Embedded Android Work...Using and Customizing the Android Framework / part 4 of Embedded Android Work...
Using and Customizing the Android Framework / part 4 of Embedded Android Work...

Android IPC Mechanism
Android IPC MechanismAndroid IPC Mechanism
Android IPC Mechanism

Explore Android Internals
Explore Android InternalsExplore Android Internals
Explore Android Internals

Embedded Android : System Development - Part IV
Embedded Android : System Development - Part IVEmbedded Android : System Development - Part IV
Embedded Android : System Development - Part IV

Android Internals
Android InternalsAndroid Internals
Android Internals

An Introduction to the Android Framework -- a core architecture view from app...
An Introduction to the Android Framework -- a core architecture view from app...An Introduction to the Android Framework -- a core architecture view from app...
An Introduction to the Android Framework -- a core architecture view from app...

Embedded Android : System Development - Part III
Embedded Android : System Development - Part IIIEmbedded Android : System Development - Part III
Embedded Android : System Development - Part III

Android for Embedded Linux Developers
Android for Embedded Linux DevelopersAndroid for Embedded Linux Developers
Android for Embedded Linux Developers

Understaing Android EGL
Understaing Android EGLUnderstaing Android EGL
Understaing Android EGL

Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)Embedded Android : System Development - Part II (Linux device drivers)
Embedded Android : System Development - Part II (Linux device drivers)

Embedded Linux on ARM
Embedded Linux on ARMEmbedded Linux on ARM
Embedded Linux on ARM

Android Internals at Linaro Connect Asia 2013
Android Internals at Linaro Connect Asia 2013Android Internals at Linaro Connect Asia 2013
Android Internals at Linaro Connect Asia 2013

"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)"Learning AOSP" - Android Hardware Abstraction Layer (HAL)
"Learning AOSP" - Android Hardware Abstraction Layer (HAL)

Android Treble: Blessing or Trouble?
Android Treble: Blessing or Trouble?Android Treble: Blessing or Trouble?
Android Treble: Blessing or Trouble?

Virtual Machine Constructions for Dummies
Virtual Machine Constructions for DummiesVirtual Machine Constructions for Dummies
Virtual Machine Constructions for Dummies

Learning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device DriverLearning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device Driver


Viewers also liked

Embedded Android Workshop at ELC Europe
Embedded Android Workshop at ELC EuropeEmbedded Android Workshop at ELC Europe
Embedded Android Workshop at ELC Europe
Opersys inc.

Is Android the New Embedded Linux? at AnDevCon VI
Is Android the New Embedded Linux? at AnDevCon VIIs Android the New Embedded Linux? at AnDevCon VI
Is Android the New Embedded Linux? at AnDevCon VI
Opersys inc.

Embedded Android Workshop with Marshmallow
Embedded Android Workshop with MarshmallowEmbedded Android Workshop with Marshmallow
Embedded Android Workshop with Marshmallow
Opersys inc.

Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Opersys inc.

Android UI System
Android UI SystemAndroid UI System
Android UI System
Kan-Han (John) Lu

KillrChat: Building Your First Application in Apache Cassandra (English)
KillrChat: Building Your First Application in Apache Cassandra (English)KillrChat: Building Your First Application in Apache Cassandra (English)
KillrChat: Building Your First Application in Apache Cassandra (English)
DataStax Academy

Android Ui
Android UiAndroid Ui
Android Ui
Jetti Chowdary

Embedded Android Workshop
Embedded Android WorkshopEmbedded Android Workshop
Embedded Android Workshop
Opersys inc.

안드로이드App개발 10.activity데이터송수신 thread
안드로이드App개발 10.activity데이터송수신 thread안드로이드App개발 10.activity데이터송수신 thread
안드로이드App개발 10.activity데이터송수신 threadDaeHee Jang

04 안드로이드 응용프로그램의 구조
04 안드로이드 응용프로그램의 구조04 안드로이드 응용프로그램의 구조
04 안드로이드 응용프로그램의 구조Wanbok Choi

Jag201610 API Diffで見るNougat
Jag201610   API Diffで見るNougat Jag201610   API Diffで見るNougat
Jag201610 API Diffで見るNougat
mokelab

20161026 What is Nougat
20161026  What is Nougat20161026  What is Nougat
20161026 What is Nougat
Kenichi Ohwada

Layouts in android
Layouts in androidLayouts in android
Layouts in android
Durai S

Androidの新ビルドシステム
Androidの新ビルドシステムAndroidの新ビルドシステム
Androidの新ビルドシステム
l_b__

Working with the AOSP - Linaro Connect Asia 2013
Working with the AOSP - Linaro Connect Asia 2013Working with the AOSP - Linaro Connect Asia 2013
Working with the AOSP - Linaro Connect Asia 2013
Opersys inc.

Android HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacyAndroid HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacy
Jollen Chen

Accessing Hardware on Android
Accessing Hardware on AndroidAccessing Hardware on Android
Accessing Hardware on Android
Gary Bisson

Pythonで画面付きのアプリを作成する
Pythonで画面付きのアプリを作成するPythonで画面付きのアプリを作成する
Pythonで画面付きのアプリを作成する
Jun Okazaki

mobile Os
mobile Osmobile Os
mobile Os
Abhishek Singh


Viewers also liked (20)

Embedded Android Workshop at ELC Europe
Embedded Android Workshop at ELC EuropeEmbedded Android Workshop at ELC Europe
Embedded Android Workshop at ELC Europe

Is Android the New Embedded Linux? at AnDevCon VI
Is Android the New Embedded Linux? at AnDevCon VIIs Android the New Embedded Linux? at AnDevCon VI
Is Android the New Embedded Linux? at AnDevCon VI

Embedded Android Workshop with Marshmallow
Embedded Android Workshop with MarshmallowEmbedded Android Workshop with Marshmallow
Embedded Android Workshop with Marshmallow

Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...
Native Android Userspace part of the Embedded Android Workshop at Linaro Conn...

Android UI System
Android UI SystemAndroid UI System
Android UI System

KillrChat: Building Your First Application in Apache Cassandra (English)
KillrChat: Building Your First Application in Apache Cassandra (English)KillrChat: Building Your First Application in Apache Cassandra (English)
KillrChat: Building Your First Application in Apache Cassandra (English)

Android Ui
Android UiAndroid Ui
Android Ui

Embedded Android Workshop
Embedded Android WorkshopEmbedded Android Workshop
Embedded Android Workshop

안드로이드App개발 10.activity데이터송수신 thread
안드로이드App개발 10.activity데이터송수신 thread안드로이드App개발 10.activity데이터송수신 thread
안드로이드App개발 10.activity데이터송수신 thread

04 안드로이드 응용프로그램의 구조
04 안드로이드 응용프로그램의 구조04 안드로이드 응용프로그램의 구조
04 안드로이드 응용프로그램의 구조

Jag201610 API Diffで見るNougat
Jag201610   API Diffで見るNougat Jag201610   API Diffで見るNougat
Jag201610 API Diffで見るNougat

20161026 What is Nougat
20161026  What is Nougat20161026  What is Nougat
20161026 What is Nougat

Layouts in android
Layouts in androidLayouts in android
Layouts in android

Androidの新ビルドシステム
Androidの新ビルドシステムAndroidの新ビルドシステム
Androidの新ビルドシステム

Working with the AOSP - Linaro Connect Asia 2013
Working with the AOSP - Linaro Connect Asia 2013Working with the AOSP - Linaro Connect Asia 2013
Working with the AOSP - Linaro Connect Asia 2013

Android HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacyAndroid HAL Introduction: libhardware and its legacy
Android HAL Introduction: libhardware and its legacy

Accessing Hardware on Android
Accessing Hardware on AndroidAccessing Hardware on Android
Accessing Hardware on Android

Pythonで画面付きのアプリを作成する
Pythonで画面付きのアプリを作成するPythonで画面付きのアプリを作成する
Pythonで画面付きのアプリを作成する

Android概要資料
Android概要資料Android概要資料
Android概要資料

mobile Os
mobile Osmobile Os
mobile Os


Similar to Inside Android's UI

Inside Android's UI / ABS 2013
Inside Android's UI / ABS 2013Inside Android's UI / ABS 2013
Inside Android's UI / ABS 2013
Opersys inc.

Inside Android's UI at AnDevCon VI
Inside Android's UI at AnDevCon VIInside Android's UI at AnDevCon VI
Inside Android's UI at AnDevCon VI
Opersys inc.

Inside Android's UI at AnDevCon V
Inside Android's UI at AnDevCon VInside Android's UI at AnDevCon V
Inside Android's UI at AnDevCon V
Opersys inc.

Inside Android's UI at AnDevCon IV
Inside Android's UI at AnDevCon IVInside Android's UI at AnDevCon IV
Inside Android's UI at AnDevCon IV
Opersys inc.

Leveraging Android's Linux Heritage at AnDevCon3
Leveraging Android's Linux Heritage at AnDevCon3Leveraging Android's Linux Heritage at AnDevCon3
Leveraging Android's Linux Heritage at AnDevCon3
Opersys inc.

Android Internals
Android InternalsAndroid Internals
Android Internals
Opersys inc.

Android Platform Debugging & Development
Android Platform Debugging & Development Android Platform Debugging & Development
Android Platform Debugging & Development
Qualcomm Developer Network

Android Variants, Hacks, Tricks and Resources presented at AnDevConII
Android Variants, Hacks, Tricks and Resources presented at AnDevConIIAndroid Variants, Hacks, Tricks and Resources presented at AnDevConII
Android Variants, Hacks, Tricks and Resources presented at AnDevConII
Opersys inc.

Leveraging Android's Linux Heritage
Leveraging Android's Linux HeritageLeveraging Android's Linux Heritage
Leveraging Android's Linux Heritage
Opersys inc.

Android Hacks, Variants, Tricks and Resources ESC SV 2012
Android Hacks, Variants, Tricks and Resources ESC SV 2012Android Hacks, Variants, Tricks and Resources ESC SV 2012
Android Hacks, Variants, Tricks and Resources ESC SV 2012
Opersys inc.

Customizing Android's UI
Customizing Android's UICustomizing Android's UI
Customizing Android's UI
Opersys inc.

Leveraging Android's Linux Heritage at AnDevCon IV
Leveraging Android's Linux Heritage at AnDevCon IVLeveraging Android's Linux Heritage at AnDevCon IV
Leveraging Android's Linux Heritage at AnDevCon IV
Opersys inc.

Customizing Android's UI
Customizing Android's UICustomizing Android's UI
Customizing Android's UI
Opersys inc.

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development
Opersys inc.

Customizing Android's UI
Customizing Android's UICustomizing Android's UI
Customizing Android's UI
Opersys inc.

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development
Opersys inc.

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development
Opersys inc.

Leveraging Android's Linux Heritage at ELC-E 2011
Leveraging Android's Linux Heritage at ELC-E 2011Leveraging Android's Linux Heritage at ELC-E 2011
Leveraging Android's Linux Heritage at ELC-E 2011
Opersys inc.

Headless Android
Headless AndroidHeadless Android
Headless Android
Opersys inc.

Headless Android at AnDevCon3
Headless Android at AnDevCon3Headless Android at AnDevCon3
Headless Android at AnDevCon3
Opersys inc.


Similar to Inside Android's UI (20)

Inside Android's UI / ABS 2013
Inside Android's UI / ABS 2013Inside Android's UI / ABS 2013
Inside Android's UI / ABS 2013

Inside Android's UI at AnDevCon VI
Inside Android's UI at AnDevCon VIInside Android's UI at AnDevCon VI
Inside Android's UI at AnDevCon VI

Inside Android's UI at AnDevCon V
Inside Android's UI at AnDevCon VInside Android's UI at AnDevCon V
Inside Android's UI at AnDevCon V

Inside Android's UI at AnDevCon IV
Inside Android's UI at AnDevCon IVInside Android's UI at AnDevCon IV
Inside Android's UI at AnDevCon IV

Leveraging Android's Linux Heritage at AnDevCon3
Leveraging Android's Linux Heritage at AnDevCon3Leveraging Android's Linux Heritage at AnDevCon3
Leveraging Android's Linux Heritage at AnDevCon3

Android Internals
Android InternalsAndroid Internals
Android Internals

Android Platform Debugging & Development
Android Platform Debugging & Development Android Platform Debugging & Development
Android Platform Debugging & Development

Android Variants, Hacks, Tricks and Resources presented at AnDevConII
Android Variants, Hacks, Tricks and Resources presented at AnDevConIIAndroid Variants, Hacks, Tricks and Resources presented at AnDevConII
Android Variants, Hacks, Tricks and Resources presented at AnDevConII

Leveraging Android's Linux Heritage
Leveraging Android's Linux HeritageLeveraging Android's Linux Heritage
Leveraging Android's Linux Heritage

Android Hacks, Variants, Tricks and Resources ESC SV 2012
Android Hacks, Variants, Tricks and Resources ESC SV 2012Android Hacks, Variants, Tricks and Resources ESC SV 2012
Android Hacks, Variants, Tricks and Resources ESC SV 2012

Customizing Android's UI
Customizing Android's UICustomizing Android's UI
Customizing Android's UI

Leveraging Android's Linux Heritage at AnDevCon IV
Leveraging Android's Linux Heritage at AnDevCon IVLeveraging Android's Linux Heritage at AnDevCon IV
Leveraging Android's Linux Heritage at AnDevCon IV

Customizing Android's UI
Customizing Android's UICustomizing Android's UI
Customizing Android's UI

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development

Customizing Android's UI
Customizing Android's UICustomizing Android's UI
Customizing Android's UI

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development

Leveraging Android's Linux Heritage at ELC-E 2011
Leveraging Android's Linux Heritage at ELC-E 2011Leveraging Android's Linux Heritage at ELC-E 2011
Leveraging Android's Linux Heritage at ELC-E 2011

Headless Android
Headless AndroidHeadless Android
Headless Android

Headless Android at AnDevCon3
Headless Android at AnDevCon3Headless Android at AnDevCon3
Headless Android at AnDevCon3


More from Opersys inc.

Android Automotive
Android AutomotiveAndroid Automotive
Android Automotive
Opersys inc.

Android 10 Internals Update
Android 10 Internals UpdateAndroid 10 Internals Update
Android 10 Internals Update
Opersys inc.

Android Security Internals
Android Security InternalsAndroid Security Internals
Android Security Internals
Opersys inc.

Embedded Android Workshop with Pie
Embedded Android Workshop with PieEmbedded Android Workshop with Pie
Embedded Android Workshop with Pie
Opersys inc.

Embedded Android Workshop with Oreo
Embedded Android Workshop with OreoEmbedded Android Workshop with Oreo
Embedded Android Workshop with Oreo
Opersys inc.

Scheduling in Android
Scheduling in AndroidScheduling in Android
Scheduling in Android
Opersys inc.

Android Things Internals
Android Things InternalsAndroid Things Internals
Android Things Internals
Opersys inc.

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development
Opersys inc.

Embedded Android Workshop with Nougat
Embedded Android Workshop with NougatEmbedded Android Workshop with Nougat
Embedded Android Workshop with Nougat
Opersys inc.

Embedded Android Workshop with Nougat
Embedded Android Workshop with NougatEmbedded Android Workshop with Nougat
Embedded Android Workshop with Nougat
Opersys inc.

Android Things: Android for IoT
Android Things: Android for IoTAndroid Things: Android for IoT
Android Things: Android for IoT
Opersys inc.

Android Things Internals
Android Things InternalsAndroid Things Internals
Android Things Internals
Opersys inc.

Scheduling in Android
Scheduling in AndroidScheduling in Android
Scheduling in Android
Opersys inc.

Brillo / Weave Internals
Brillo / Weave InternalsBrillo / Weave Internals
Brillo / Weave Internals
Opersys inc.

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development
Opersys inc.

Memory Management in Android
Memory Management in AndroidMemory Management in Android
Memory Management in Android
Opersys inc.

Embedded Android Workshop with Nougat
Embedded Android Workshop with NougatEmbedded Android Workshop with Nougat
Embedded Android Workshop with Nougat
Opersys inc.

Brillo / Weave Internals
Brillo / Weave InternalsBrillo / Weave Internals
Brillo / Weave Internals
Opersys inc.

Project Ara
Project AraProject Ara
Project Ara
Opersys inc.

Memory Management in Android
Memory Management in AndroidMemory Management in Android
Memory Management in Android
Opersys inc.


More from Opersys inc. (20)

Android Automotive
Android AutomotiveAndroid Automotive
Android Automotive

Android 10 Internals Update
Android 10 Internals UpdateAndroid 10 Internals Update
Android 10 Internals Update

Android Security Internals
Android Security InternalsAndroid Security Internals
Android Security Internals

Embedded Android Workshop with Pie
Embedded Android Workshop with PieEmbedded Android Workshop with Pie
Embedded Android Workshop with Pie

Embedded Android Workshop with Oreo
Embedded Android Workshop with OreoEmbedded Android Workshop with Oreo
Embedded Android Workshop with Oreo

Scheduling in Android
Scheduling in AndroidScheduling in Android
Scheduling in Android

Android Things Internals
Android Things InternalsAndroid Things Internals
Android Things Internals

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development

Embedded Android Workshop with Nougat
Embedded Android Workshop with NougatEmbedded Android Workshop with Nougat
Embedded Android Workshop with Nougat

Embedded Android Workshop with Nougat
Embedded Android Workshop with NougatEmbedded Android Workshop with Nougat
Embedded Android Workshop with Nougat

Android Things: Android for IoT
Android Things: Android for IoTAndroid Things: Android for IoT
Android Things: Android for IoT

Android Things Internals
Android Things InternalsAndroid Things Internals
Android Things Internals

Scheduling in Android
Scheduling in AndroidScheduling in Android
Scheduling in Android

Brillo / Weave Internals
Brillo / Weave InternalsBrillo / Weave Internals
Brillo / Weave Internals

Android Platform Debugging and Development
Android Platform Debugging and DevelopmentAndroid Platform Debugging and Development
Android Platform Debugging and Development

Memory Management in Android
Memory Management in AndroidMemory Management in Android
Memory Management in Android

Embedded Android Workshop with Nougat
Embedded Android Workshop with NougatEmbedded Android Workshop with Nougat
Embedded Android Workshop with Nougat

Brillo / Weave Internals
Brillo / Weave InternalsBrillo / Weave Internals
Brillo / Weave Internals

Project Ara
Project AraProject Ara
Project Ara

Memory Management in Android
Memory Management in AndroidMemory Management in Android
Memory Management in Android


Recently uploaded

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024
Intelisync

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture
fredae14

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

System Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - HiikeSystem Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - Hiike
Hiike

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques
Postman

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining
LucaBarbaro3

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf
Shinana2

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus
Zilliz

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation
Wouter Lemaire

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Alpen-Adria-Universität

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx
HarisZaheer8

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek


Recently uploaded (20)

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

System Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - HiikeSystem Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - Hiike

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)


Inside Android's UI

  • 1. Inside Android's UI Embedded Linux Conference Europe 2012 Karim Yaghmour @karimyaghmour karim.yaghmour@opersys.com 1
  • 2. These slides are made available to you under a Creative Commons Share- Delivered and/or customized by Alike 3.0 license. The full terms of this license are here: https://creativecommons.org/licenses/by-sa/3.0/ Attribution requirements and misc., PLEASE READ: ● This slide must remain as-is in this specific location (slide #2), everything else you are free to change; including the logo :-) ● Use of figures in other documents must feature the below “Originals at” URL immediately under that figure and the below copyright notice where appropriate. ● You are free to fill in the “Delivered and/or customized by” space on the right as you see fit. ● You are FORBIDEN from using the default “About” slide as-is or any of its contents. ● You are FORBIDEN from using any content provided by 3rd parties without the EXPLICIT consent from those parties. (C) Copyright 2012, Opersys inc. These slides created by: Karim Yaghmour Originals at: www.opersys.com/community/docs 2
  • 3. About ● Author of: ● Introduced Linux Trace Toolkit in 1999 ● Originated Adeos and relayfs (kernel/relay.c) ● Training, Custom Dev, Consulting, ... 3
  • 4. Agenda ● Android's UI, what's that? ● Architecture Basics ● Display Core ● OpenGL ● Input Layer ● Relevant Apps and Services ● System Startup ● References and Pointers 4
  • 5. 1. Android's UI, what's that? ●SoC / GPU ??? ●Touch input ●LCD ●Keyboard 5
  • 6. 1.1. What I'm NOT covering ● Media layer ● StageFright ● Video playback ● Camera ● DRM ● Etc. 6
  • 7. 2. Architecture Basics ● Hardware used to run Android ● AOSP ● Binder ● System Services ● HAL 7
  • 8. 8
  • 9. 9
  • 10. 10
  • 11. 11
  • 12. 12
  • 13. /frameworks/base/core/... /frameworks/base/services/java/... AOSP-provided ASL /frameworks/base/services/jni/ /hardware/libhardware/ /device/[MANUF.]/[DEVICE] Manuf.-provided /sdk/emulator/ Manuf. license Kernel or module Manuf.-provided GPL-license 13
  • 14. 3. Display Core ● Display Hardware ● Classic Linux display stack ● Display stack in Android ● Kernel driver ● HAL definition ● HAL module ● Surface Flinger ● Window Manager ● Walkthrough 14
  • 15. 3.1. Display Hardware MMU IOMMU 15
  • 16. 3.2. Classic Linux display stack 16
  • 17. 3.3. Display stack in Android 17
  • 18. 18
  • 19. 3.4. Kernel driver ● Video memory management ● Mode setting ● Checking of parameters ● Motorola Xoom: ● /dev/nvhdcp1 ● /dev/nvhost-ctrl ● /dev/nvhost-display ● /dev/nvhost-dsi ● /dev/nvhost-gr2d ● /dev/nvhost-gr3d ● /dev/nvhost-isp ● /dev/nvhost-mpe ● /dev/nvhost-vi ● /dev/nvmap ● /dev/tegra-crypto ● /dev/tegra_avp ● /dev/tegra_camera ● /dev/tegra_fuse ● /dev/tegra_rpc ● /dev/tegra_sema ● ... whatever hides in hwcomposer HAL module 19
  • 20. 3.5. HAL Definition ● /hardware/libhardware/include/hardware/hwcomposer.h ● struct hwc_procs: ● invalidate() ● vsync() ● struct hwc_composer_device: ● prepare() ● set() ● dump() ● registerProcs() ● query() ● *() 20
  • 21. 3.6. HAL module ● Skeleton /hardware/libhardware/modules/hwcomposer.cpp ● /system/lib/hw/hwcomposer.BOARD.so ● /system/lib/hw/gralloc.BOARD.so ● Ex. - Mot Xoom: ● hwcomposer.tegra.so ● gralloc.tegra.so ● Surface Flinger hook: ● /frameworks/native/services/surfaceflinger/DisplayHardware – HWComposer.cpp – Provides fake vsync if none is provided in HW 21
  • 22. 3.7. Surface Flinger ● Actual server: ● /frameworks/native/services/surfaceflinger ● Client side: ● /frameworks/native/libs/gui ● Client / Server interface: ● ISurfaceComposerClient.cpp ● ISurfaceComposer.cpp ● This is NOT an aidl'ed service ● All communication is manually marshalled/unmarshalled 22
  • 23. 3.8. Window Manager ● Server side: ● /frameworks/base/services/java/com/android/server/wm/ – WindowManagerService.java – Session.java ● Client side: ● /frameworks/base/core/java/android/view/ – WindowManager.java – WindowManagerImpl.java – ViewRootImpl.java ● Interfaces: ● IWindowManager.aidl ● IWindowSession.aidl ● Parameters (incl. z-order): ● See WindowManager.java 23
  • 24. 3.9. Walkthrough ● Activity Manager relies on Activity Thread ● AT calls on attach() and makeVisible() ● makeVisible does wm.addView() ● vm.addView() - this also called by StatusBar to display itself ● Creates a new ViewRootImpl ● Call on its setView() ● setView() calls on sWindowSession.add(...) ● This results in call to WM's addWindow() ● ViewRootImpl's performTraversals() ● Calls on relayoutWindow() ● Calls to WM session's relayout() ● Call to WM's relayoutWindow() ● Call to createSurfaceLocked() ● new Surface(...) 24
  • 25. 4. OpenGL ● What's OpenGL? ● What's in a modern-day GPU? ● Software layers involved ● Kernel driver ● EGL libs ● Native interface ● Java interface ● Software GL implementation 25
  • 26. 4.1. What's OpenGL? ● It's just an API ... nothing but an API ... ● Check out Wikipedia ● Multiple versions out ● “ES” versions for embedded use ● Up to ES 3.0 ● Android support up to ES 2.0 26
  • 27. 4.2. What's in a modern-day GPU? ● A tremendous amount of parallel processing units ● “SIMD”-like instruction set ● Video decoding/encoding capabilities ● ... 27
  • 28. 4.3. Software layers involved ● Kernel driver ● GL libraries ● Native GL API ● Java GL API 28
  • 29. 4.4. Kernel driver Y AR ET RI OP PR 29
  • 30. 4.5. EGL libs ● /frameworks/base/native/opengl/libs ● Entry point: /system/lib/libEGL.so ● Looks for /system/lib/egl/egl.cfg ● /system/lib/egl - Mot Xoom: ● egl.cfg ● libEGL_perfhud.so ● libEGL_tegra.so ● libGLES_android.so ● libGLESv1_CM_perfhud.so ● libGLESv1_CM_tegra.so ● libGLESv2_perfhud.so ● libGLESv2_tegra.so ● elg.cfg: 0 0 tegra 30
  • 31. 4.6. Native interface ● /frameworks/native/opengl/include ● EGL ● ETC1 ● GLES ● GLES2 ● KHR 31
  • 32. 4.7. Java interface ● GL libs required by libandroid_runtime.so ● /frameworks/base/opengl/java/android/opengl: ● ... 32
  • 33. 4.8. Software GL implementation ● /frameworks/native/opengl/libagl 33
  • 34. 5. Input Layer ● Kernel side - “std” Linux input layer: ● /dev/input/* ● No HAL use ● Native lib: ● libinput ● /frameworks/base/services/input ● Input Manager Service: ● /frameworks/base/services/java/com/android/server/input ● Started and directly tied to Window Manager ● Specific config files (see source.android.com) ● Soft keyboard: ● /frameworks/base/core/java/android/inputmethodservice ● Input methods: ● /packages/inputmehods ● http://developer.android.com/guide/topics/text/creating-input-method.html 34
  • 35. 6. Relevant Apps and Services ● Launcher ● StatusBar ● Wallpaper Manager Service ● Notification Service ● App Widgets 35
  • 36. 6.1. Launcher ● An app like any other ● See /packages/app/Launcher2 36
  • 37. 6.2. StatusBar ● A unique app ● See /frameworks/base/packages/SystemUI ● Connects to Status Bar Manager and gives an interface it can use to call back into Status Bar ● Can use setIcon() to display icons on the right ● Provides a CPU usage add-on that renders straight on rest of display using higher z-order 37
  • 38. 6.3. Wallpaper Manager Service ● See /frameworks/base/services/java/com/android/se rver/WallpaperManagerService.java 38
  • 39. 6.4. Notification Service ● Toasts ● Status bar notifications ● Gets handle to Status Bar Service at instantiation ● Uses handle to communicate with Status Bar 39
  • 40. 6.5. App Widgets ● See /frameworks/base/services/java/com/android/se rver/AppWidgetService.java 40
  • 41. 7. System Startup ● Kernel ● Init ● Boot animation ● Launcher 41
  • 42. 7.1. Boot animation ● Started by Surface Flinger ● “bootanim” binary ● /frameworks/base/cmds/bootanimation ● Relies on bootanimation.zip w/ PNGs (nothing but) ● See https://github.com/CyanogenMod/android_vendor_cm/tree/jellybean/pre built/common/bootanimatino ● Must contain a desc.txt: <width> <height> <fps> p <count> <pause> <path> p <count> <pause> <path> 42
  • 43. 8. References and Pointers ● “Use the source, Luke” ● Jim Huang's “Android Graphics” ● Benjamin Zores' “Linux Magazine / France” articles ● MIPS article on graphics internals: ● http://developer.mips.com/2012/04/11/learning-about- android-graphics-subsystem/ ● Stéphane Marchesin's “Linux Graphics Drivers: an Introduction” ● http://source.android.com/tech/input/index.html 43
