1. INSERTION SORT
SOUMEN SANTRA
MCA, M.Tech, SCJP, MCP
1

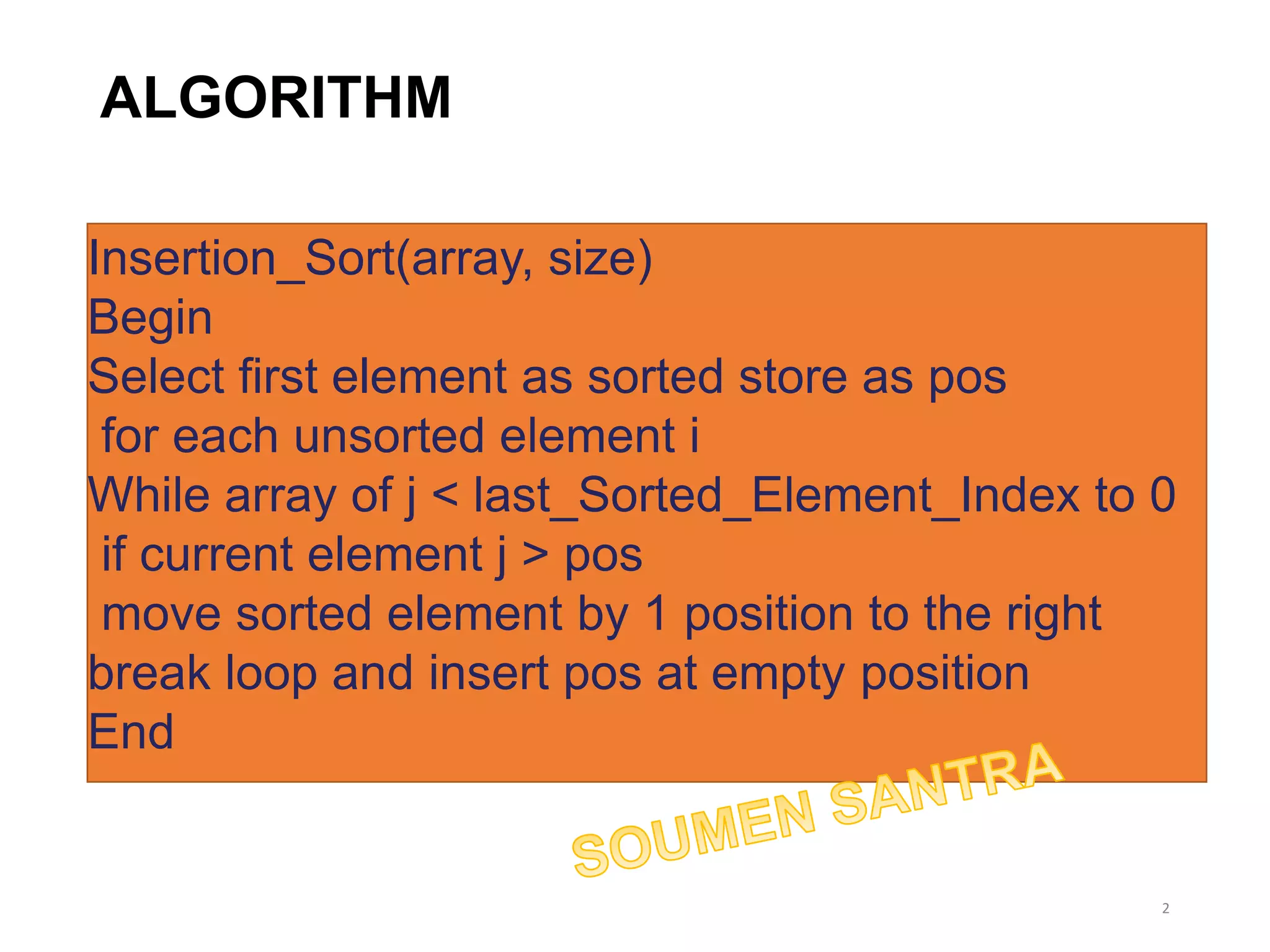

2. ALGORITHM
2
Insertion_Sort(array, size)
Begin
Select first element as sorted store as pos
for each unsorted element i
While array of j < last_Sorted_Element_Index to 0
if current element j > pos
move sorted element by 1 position to the right
break loop and insert pos at empty position
End

3. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

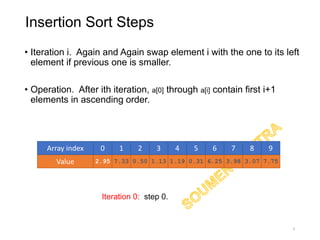

3
0.50 1.13 1.19 0.312.95 7.33 3.07 7.75Value 6.25 3.98
Iteration 0: step 0.
2 3 4 50 1 8 9Array index 6 7

4. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
4
0.50 1.13 1.19 0.312.95 7.33 3.07 7.75Value 6.25 3.98

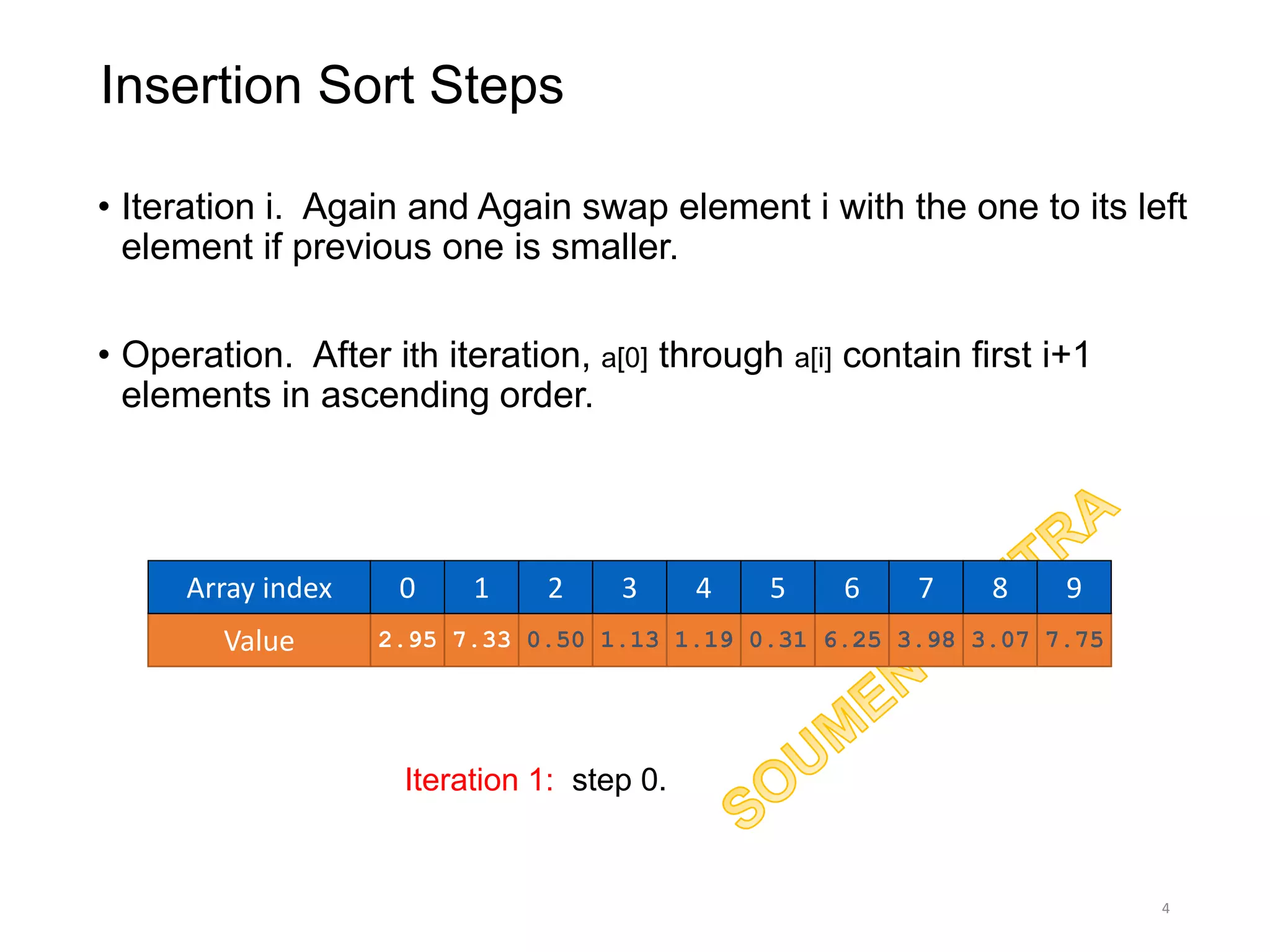

Iteration 1: step 0.
2 3 4 50 1 8 9Array index 6 7

5. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
5
0.50 1.13 1.19 0.312.95 7.33 3.07 7.75Value 6.25 3.98

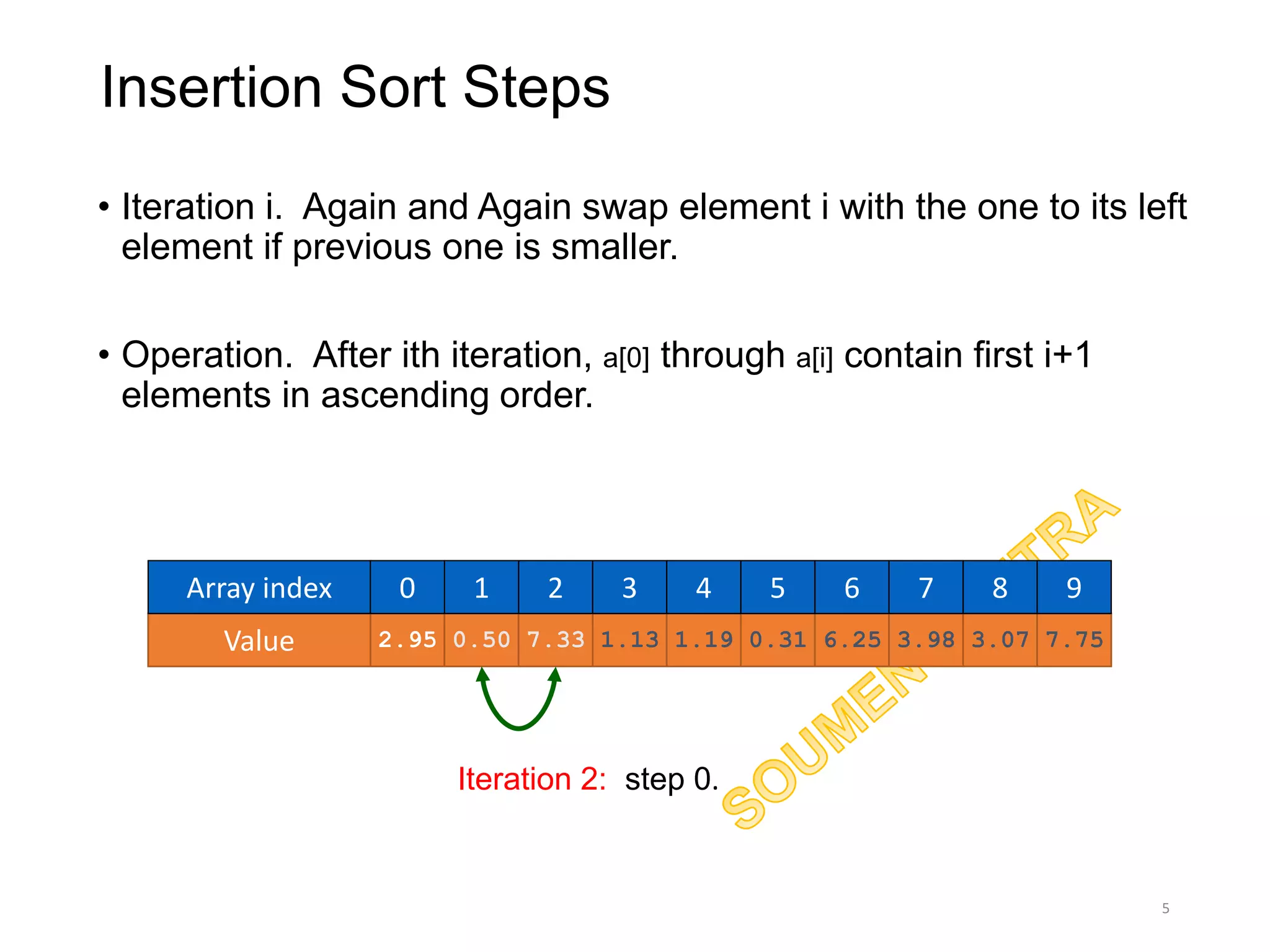

Iteration 2: step 0.
0.50 7.33
2 3 4 50 1 8 9Array index 6 7

6. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
6
7.33 1.13 1.19 0.312.95 0.50 3.07 7.75Value 6.25 3.98

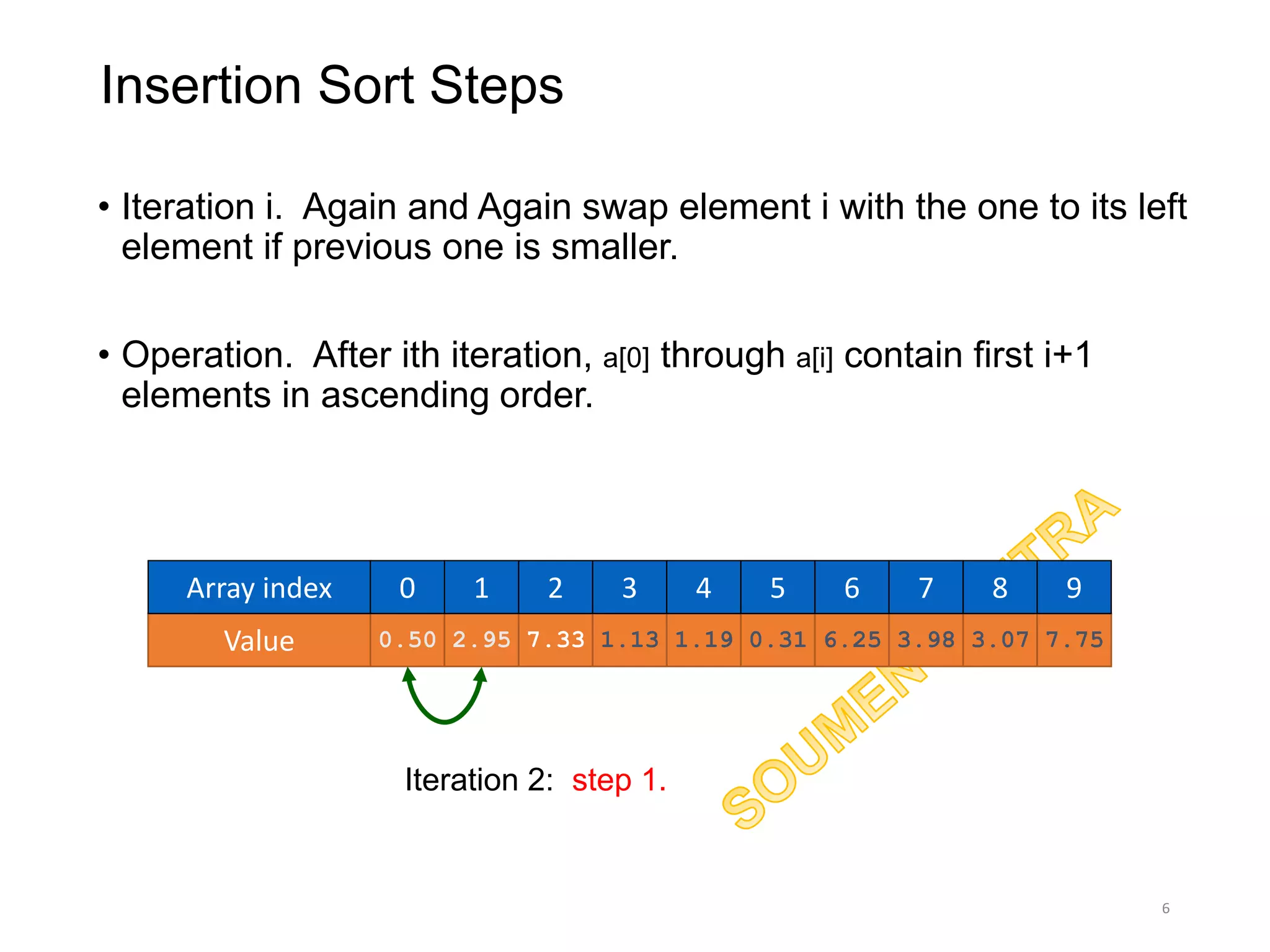

Iteration 2: step 1.
0.50 2.95
2 3 4 50 1 8 9Array index 6 7

7. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
7
7.33 1.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 2: step 2.
2 3 4 50 1 8 9Array index 6 7

8. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
8
7.33 1.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98

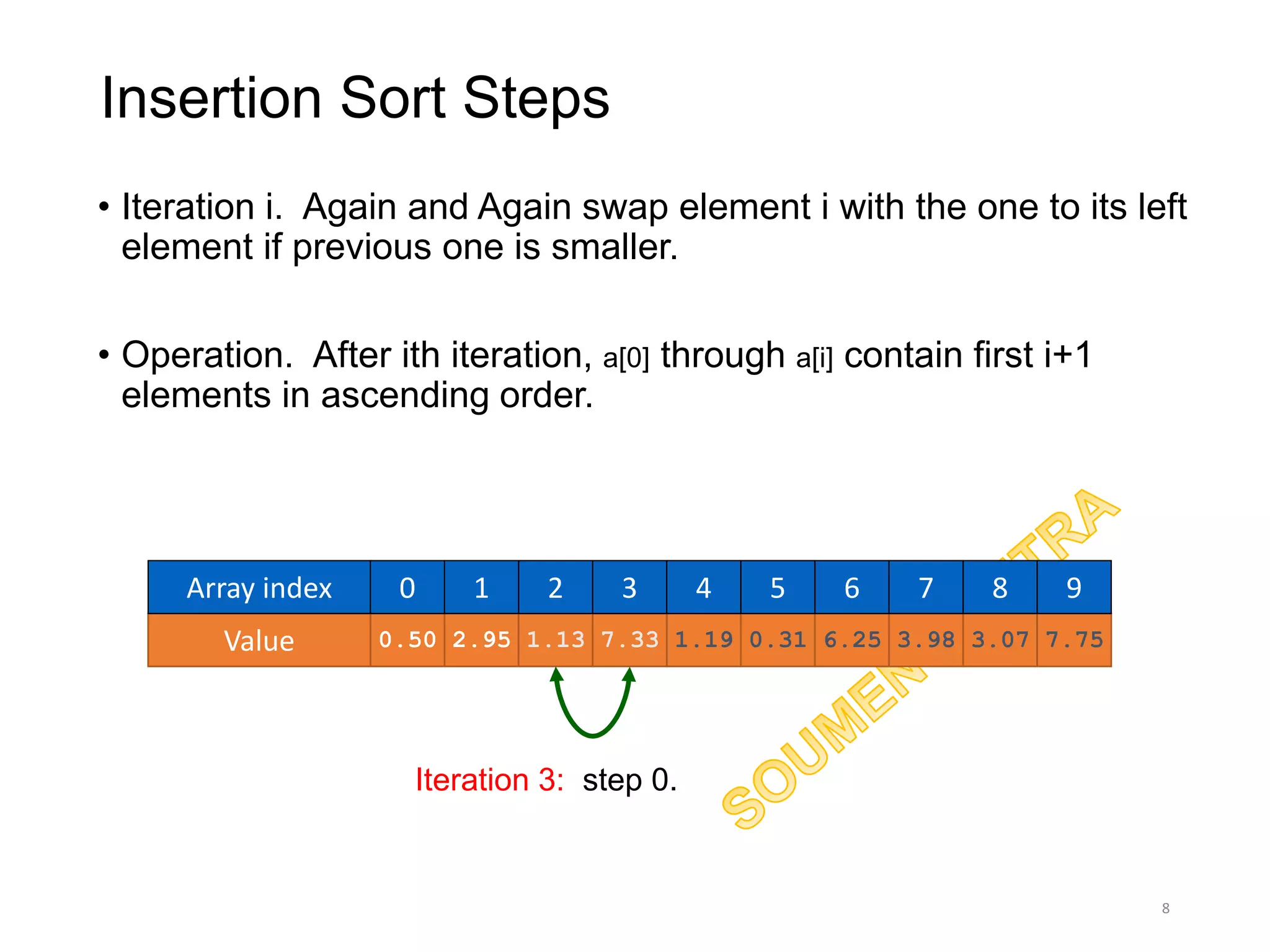

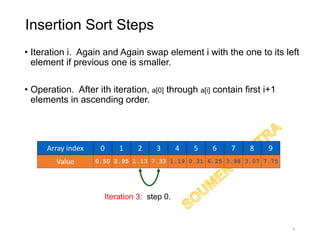

Iteration 3: step 0.
1.13 7.33
2 3 4 50 1 8 9Array index 6 7

9. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

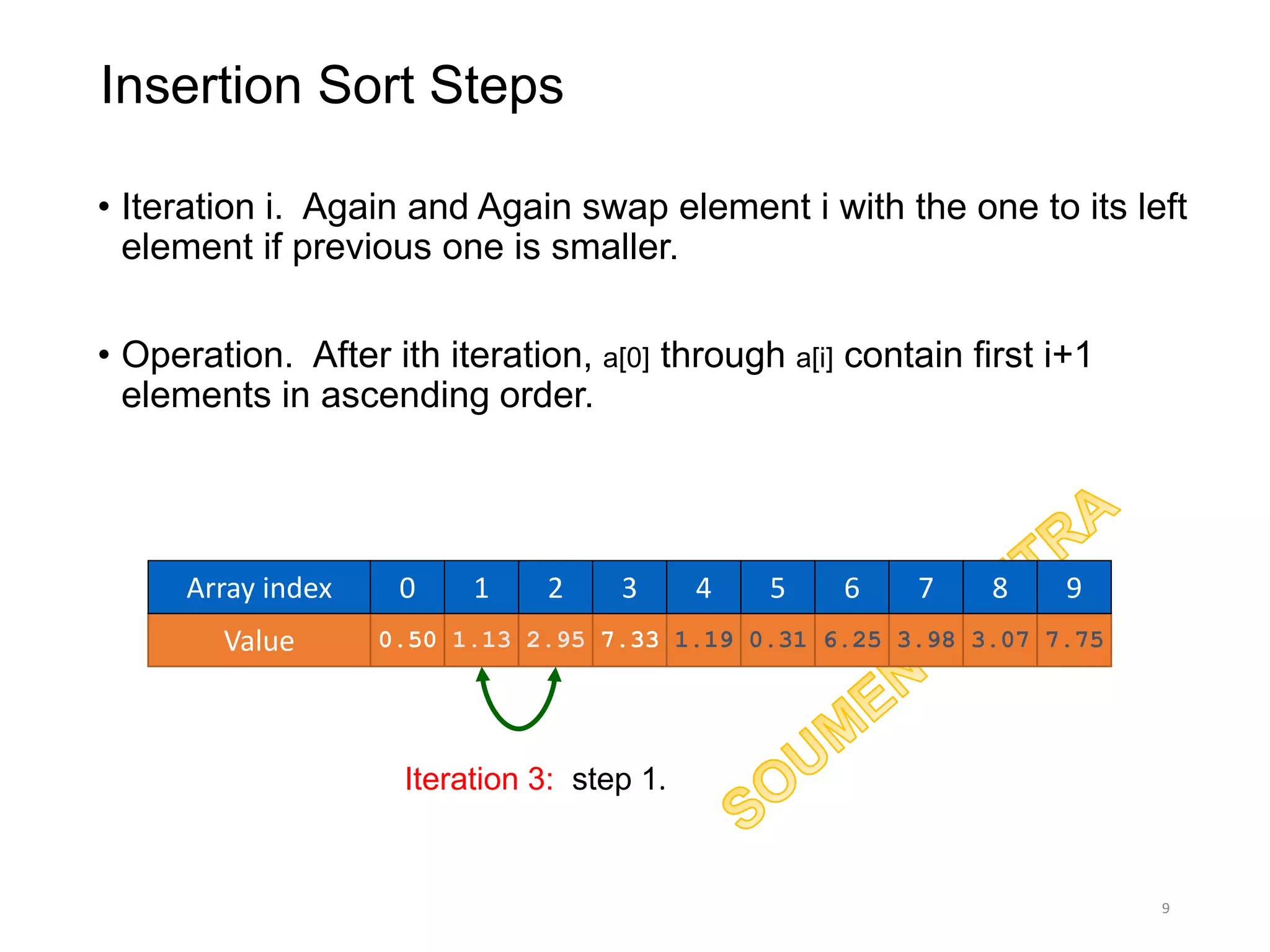

9
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 3: step 1.
1.13 2.95
2 3 4 50 1 8 9Array index 6 7

10. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
10
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 3: step 2.
2 3 4 50 1 8 9Array index 6 7

11. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

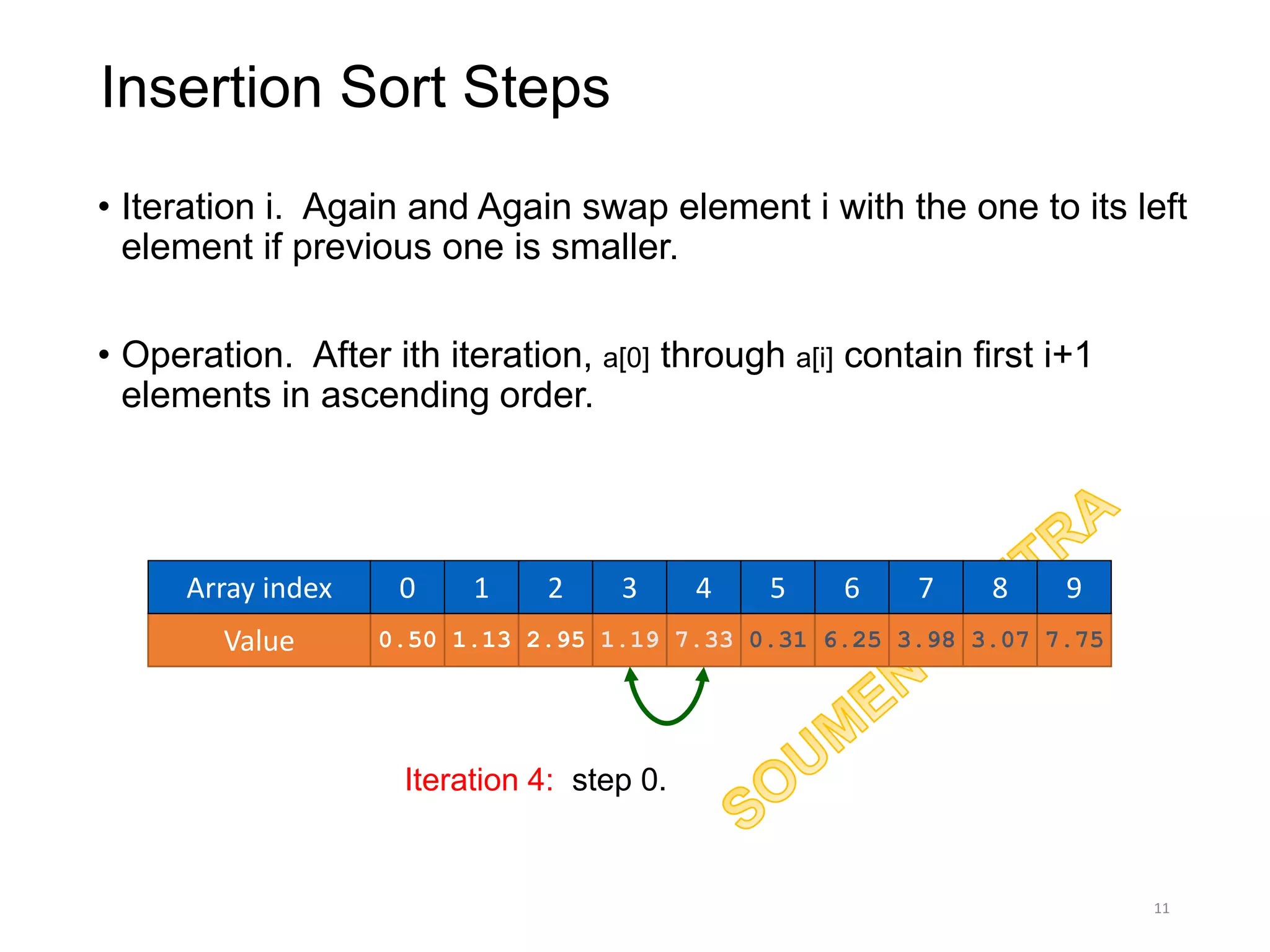

11
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 4: step 0.
1.19 7.33
2 3 4 50 1 8 9Array index 6 7

12. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

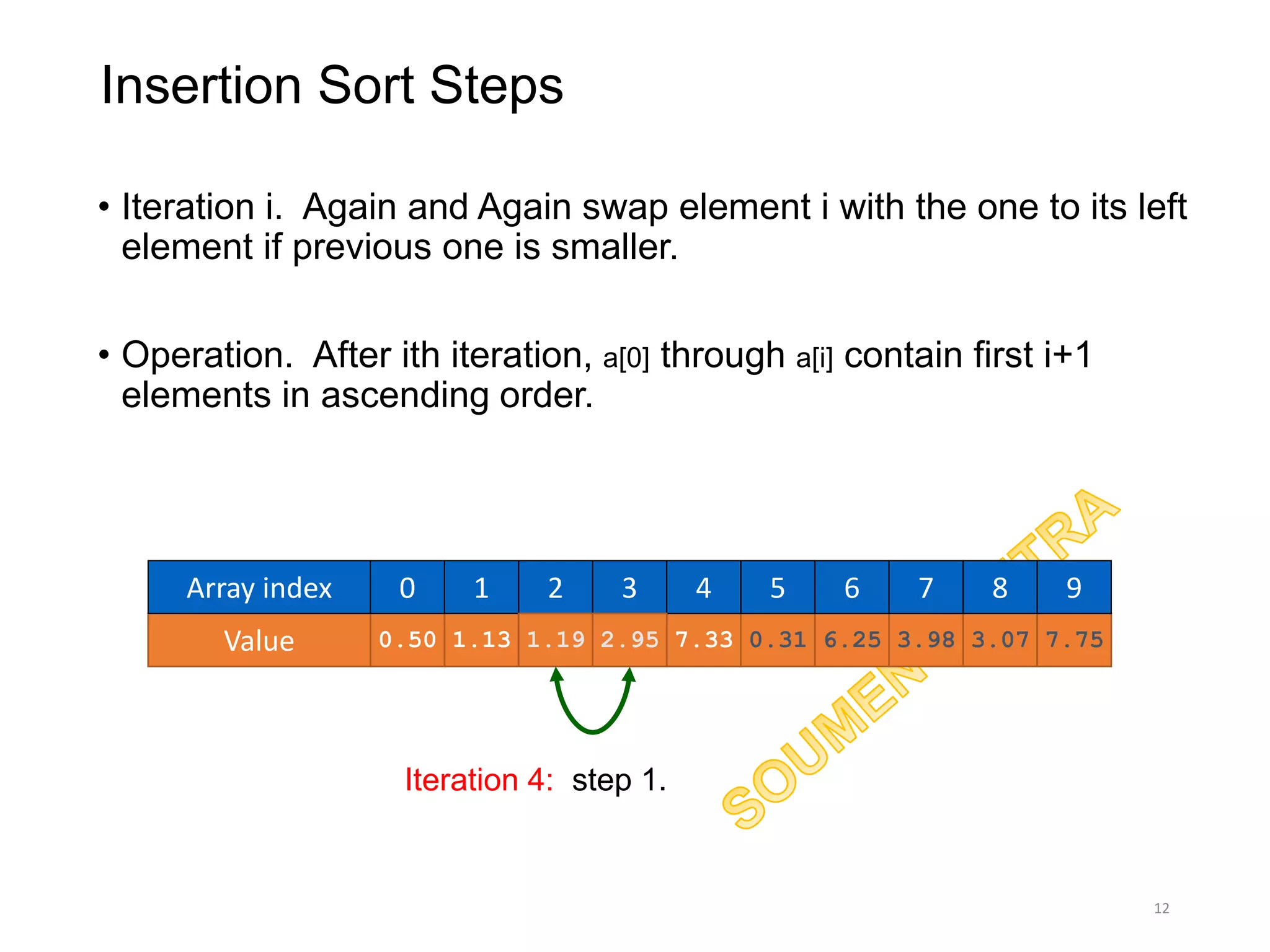

12
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
2 3 4 50 1 8 9Array index 6 7
Iteration 4: step 1.
1.19 2.95

13. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
13
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 4: step 2.
2 3 4 50 1 8 9Array index 6 7

14. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
14
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 5: step 0.
0.31 7.33
2 3 4 50 1 8 9Array index 6 7

15. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
15
7.331.13 1.19 0.312.950.50 3.07 7.75Value 6.25 3.98
Iteration 5: step 1.
0.31 2.95
2 3 4 50 1 8 9Array index 6 7

16. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
16
7.331.13 1.19 0.31 2.950.50 3.07 7.75Value 6.25 3.98
Iteration 5: step 2.
0.31 1.19
2 3 4 50 1 8 9Array index 6 7

17. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
17
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98

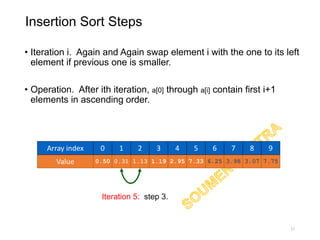

Iteration 5: step 3.
0.31 1.13
2 3 4 50 1 8 9Array index 6 7

18. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

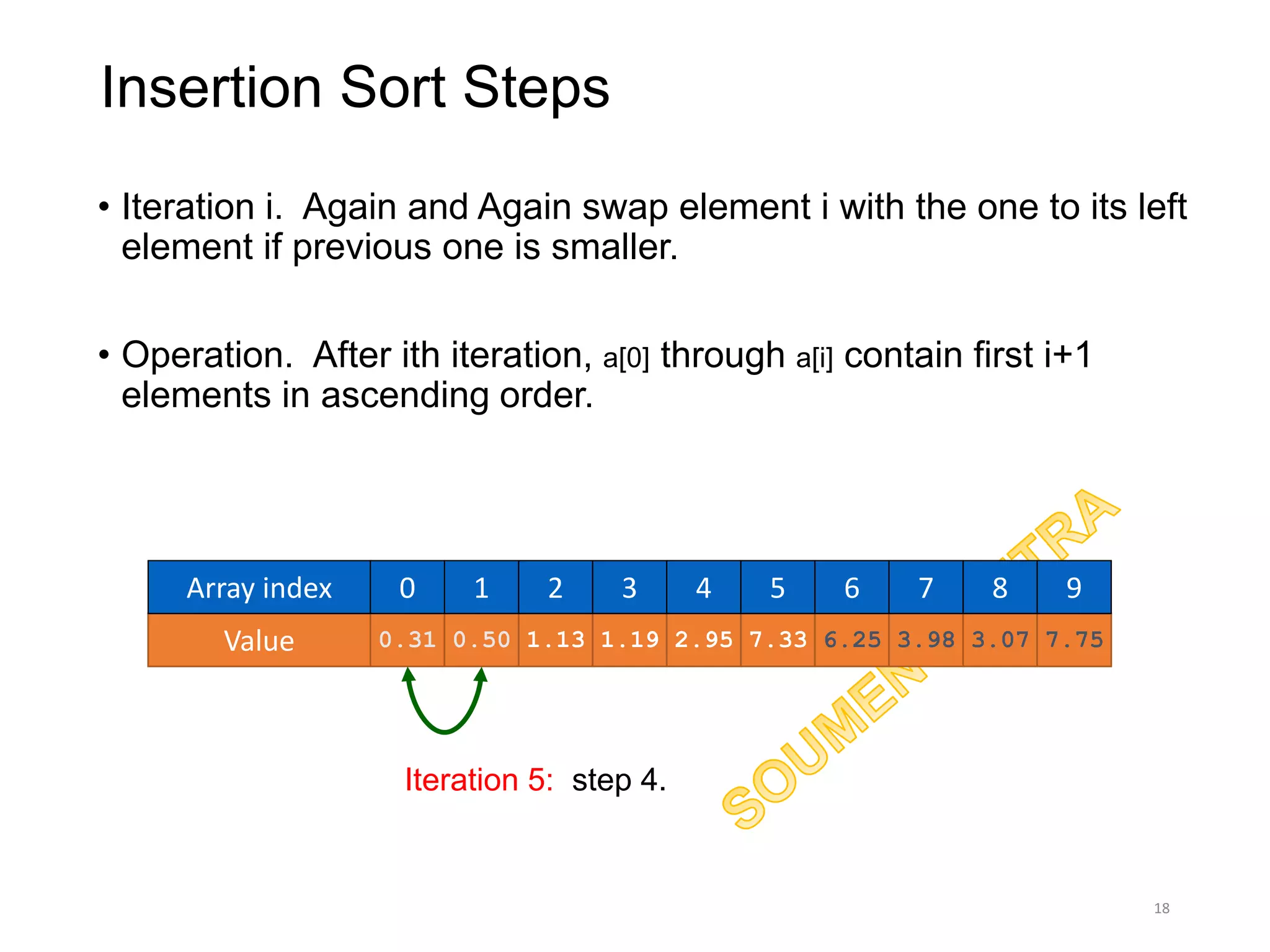

18
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98
Iteration 5: step 4.
0.31 0.50
2 3 4 50 1 8 9Array index 6 7

19. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
19
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98
Iteration 5: step 5.
2 3 4 50 1 8 9Array index 6 7

20. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
20
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98

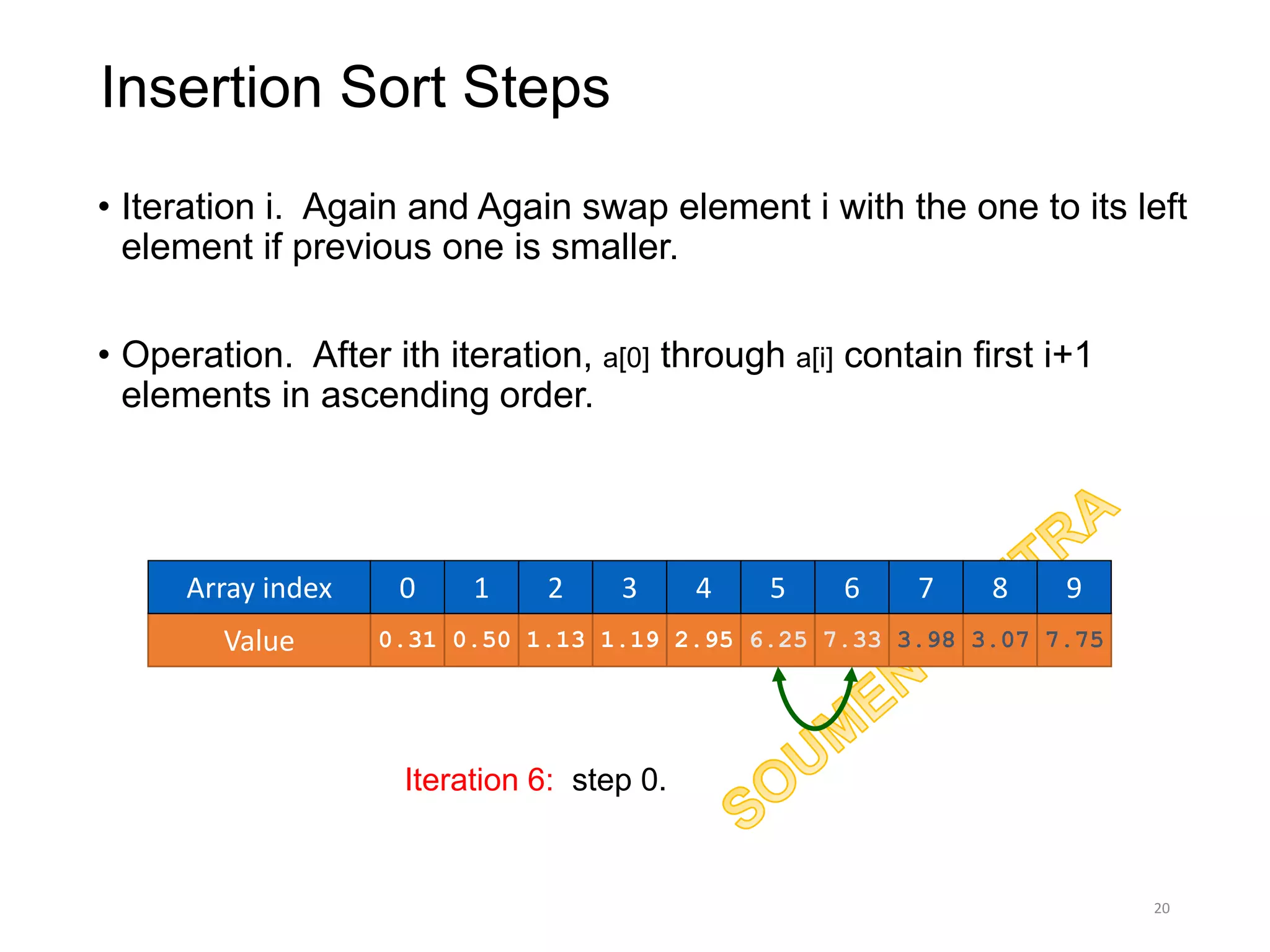

Iteration 6: step 0.
6.25 7.33
2 3 4 50 1 8 9Array index 6 7

21. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
21
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98
Iteration 6: step 1.
2 3 4 50 1 8 9Array index 6 7

22. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

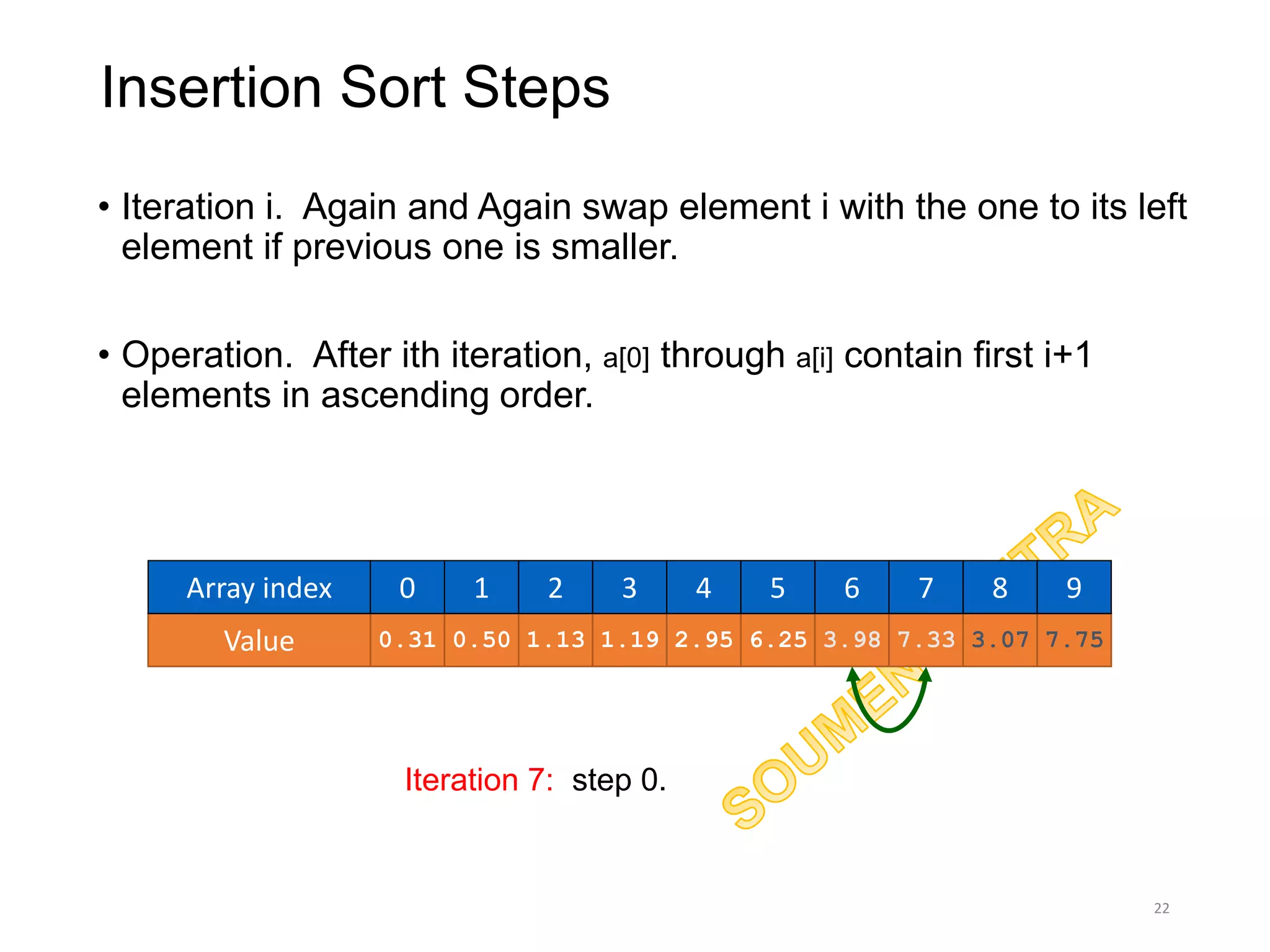

22
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98
Iteration 7: step 0.
3.98 7.33
2 3 4 50 1 8 9Array index 6 7

23. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
23
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.25 3.98

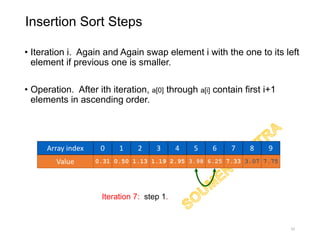

Iteration 7: step 1.
3.98 6.25
2 3 4 50 1 8 9Array index 6 7

24. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.

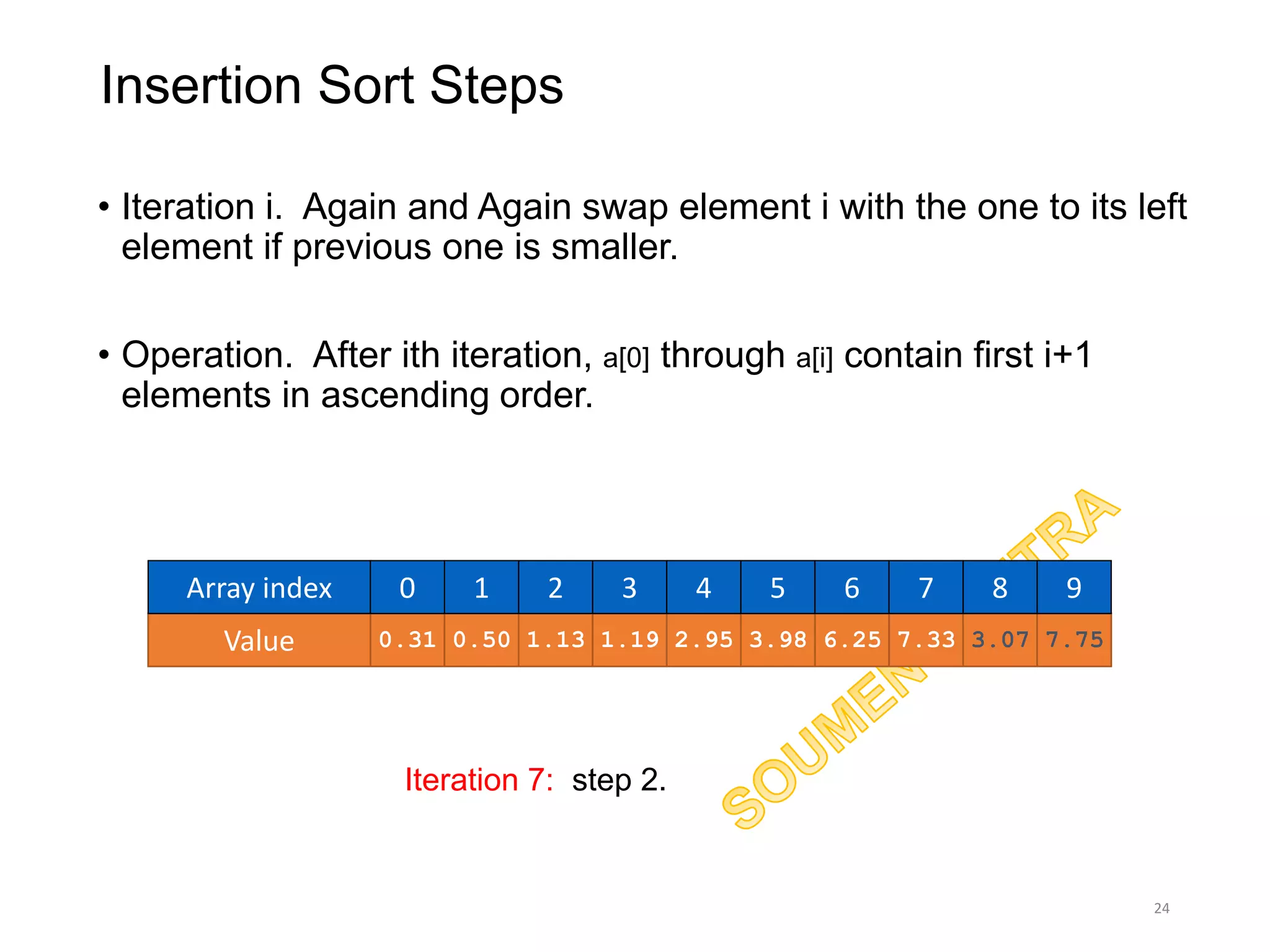

24
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98
Iteration 7: step 2.
2 3 4 50 1 8 9Array index 6 7

25. • Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
25
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98
Iteration 8: step 0.
3.07 7.33
2 3 4 50 1 8 9Array index 6 7
Insertion Sort Steps

26. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
26
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98

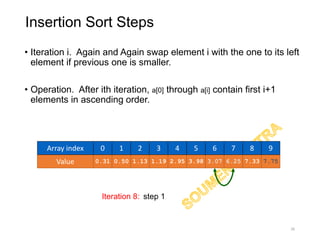

Iteration 8: step 1.
3.07 6.25
2 3 4 50 1 8 9Array index 6 7

27. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
27
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98

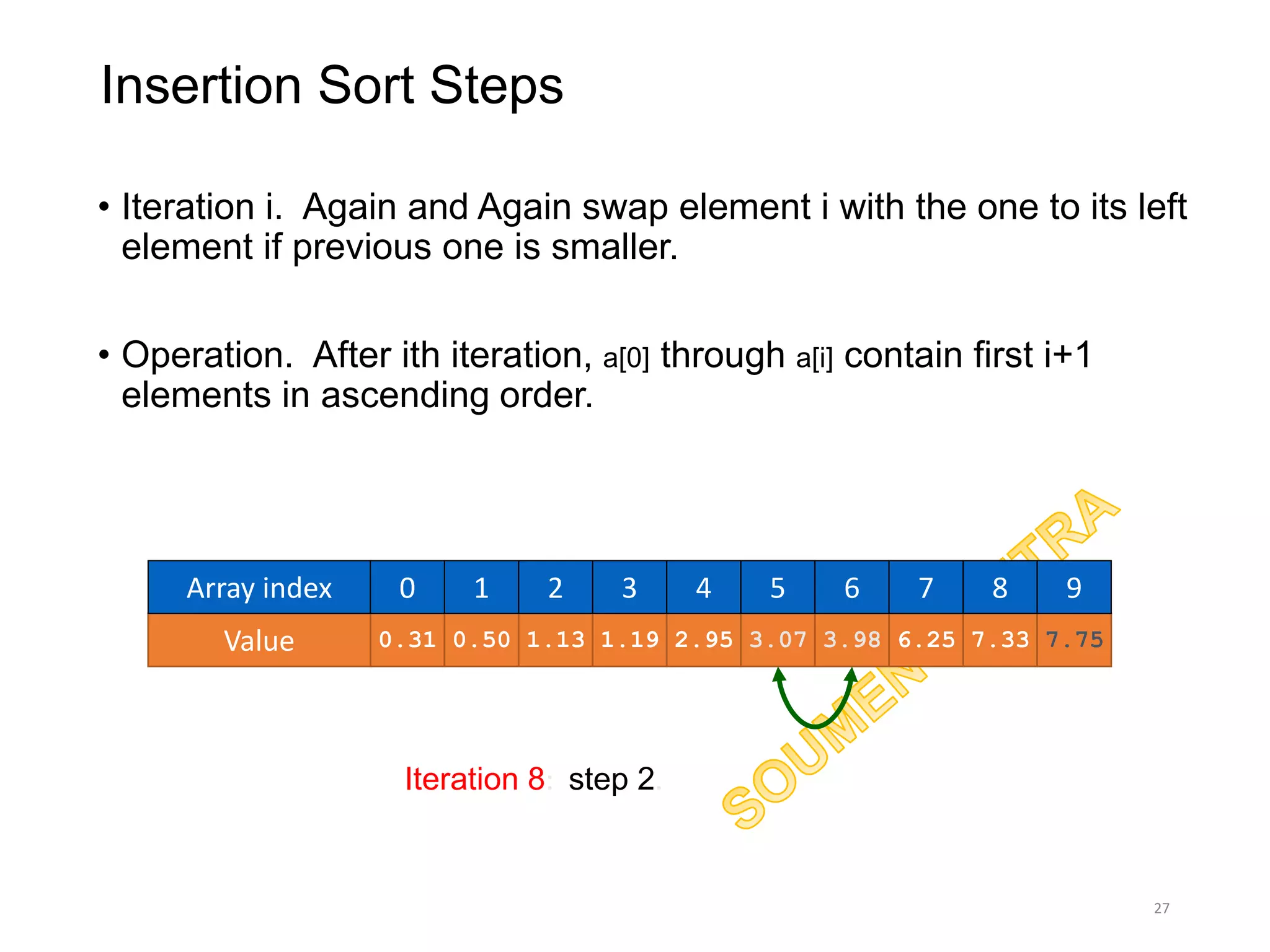

Iteration 8: step 2.
3.07 3.98
2 3 4 50 1 8 9Array index 6 7

28. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
28
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98
Iteration 8: step 3.
2 3 4 50 1 8 9Array index 6 7

29. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
29
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98
Iteration 9: step 0.
2 3 4 50 1 8 9Array index 6 7

30. Insertion Sort Steps
• Iteration i. Again and Again swap element i with the one to its left
element if previous one is smaller.
• Operation. After ith iteration, a[0] through a[i] contain first i+1
elements in ascending order.
30
7.331.13 1.190.31 2.950.50 3.07 7.75Value 6.253.98

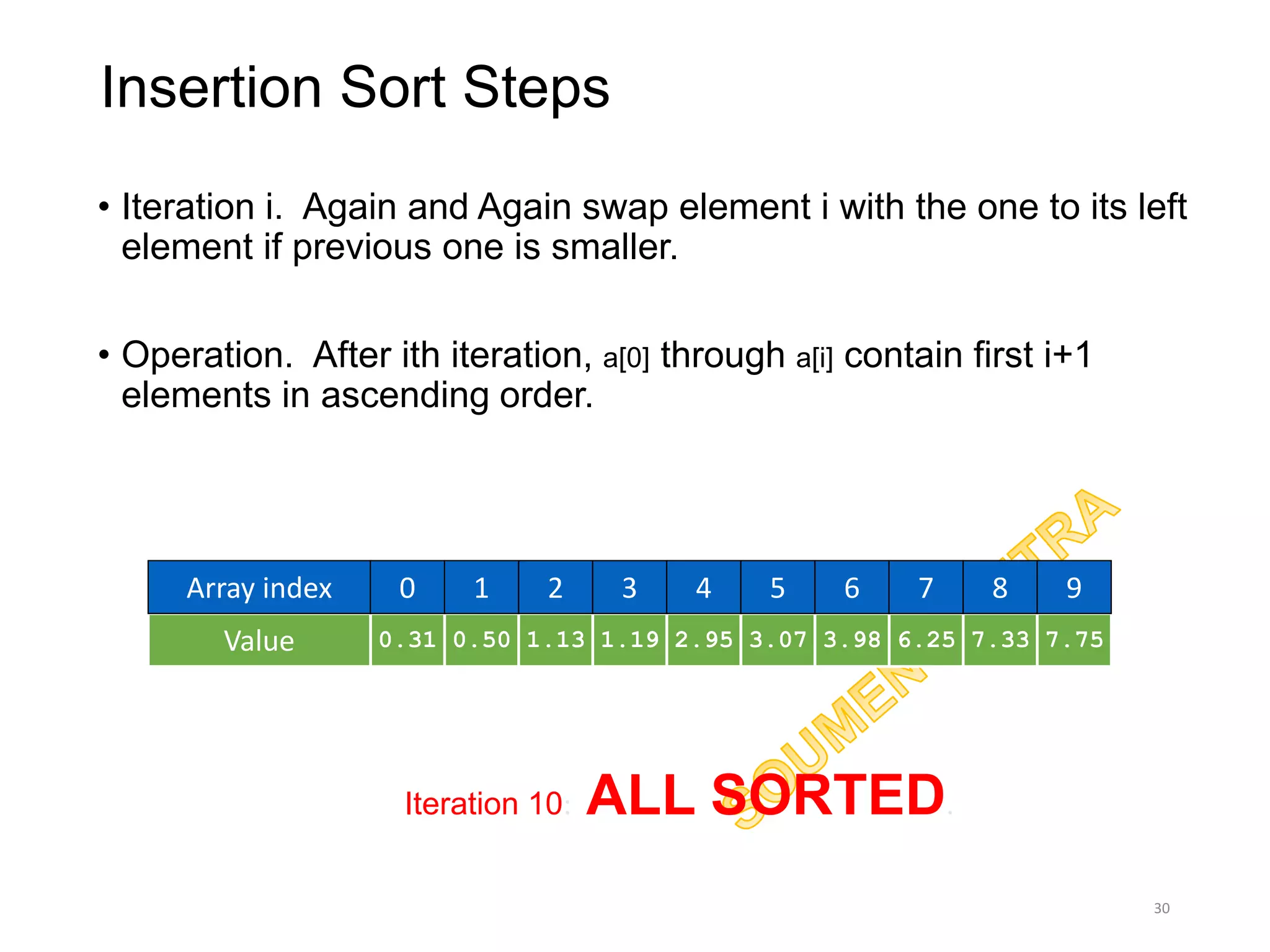

Iteration 10: ALL SORTED.
2 3 4 50 1 8 9Array index 6 7

31. Implementation in C
31
#include <stdio.h>
void Display(int array[], int size)
{
for (int i = 0; i < size; i++)
{ printf("%f ", array[i]); }
printf("n");
}
void Insertion_Sort(int array[], int size)
{
for (int i = 1; step < sizeofArray; step++)
{
int pos = array[i];
int j = i - 1;
while (pos < array[j] && j >= 0)
{
array[j + 1] = array[j];
--j;
}
array[j + 1] = pos;
}
}
void main()
{
float array[] = {2.95,7.33,0.50,1.13,1.19,0.31,6.25,3.98,3.07,7.75};
int sizeofArray = sizeof(array) / sizeof(array[0]);
Insertion_Sort(data, size);
printf("Sorted array in ascending order:n");
Display(array, size); }
