1. New Developments in Instrumentation for Ink Jet Analysis Presented by: Yair Kipman ImageXpert, Inc. Nashua, New Hampshire www . imagexpert . com

2. Outline Company description, markets we serve Drop-in-flight measurement JetXpert- a machine vision based system for analysis of drops in flight Overview of other inkjet related products Nozzle plate inspection Print head alignment Dot position analysis Print quality and color measurement

3. Company Description Since 1989, ImageXpert Inc. has been providing machine-vision solutions for automated image quality and part inspection for digital printers, consumables, and components to leading imaging companies throughout the world for use in in R&D and production environments

4. Markets and Applications Who can benefit from our technology? Developers of printing systems and fluids for traditional and new inkjet applications. The inkjet market is evolving beyond traditional printed materials to include: Printed electronics and display technology Biomedical applications: Micro dispensing Micro deposition Microarray fabrication Coatings Expansion of traditional marking applications: Variable data, hybrid printing systems Custom and vanity on-demand printing- décor, housewares, wall coverings…

5. Measurement and visualization of drops-in-flight

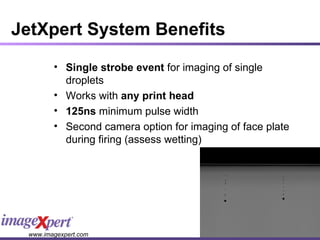

6. JetXpert System Benefits Single strobe event for imaging of single droplets Works with any print head 125ns minimum pulse width Second camera option for imaging of face plate during firing (assess wetting)

7. JetXpert System Description Fully integrated system includes: LED strobe, optics, strobe control box, and strobe control software (GUI) Calibrated digital camera for image capture with proprietary optics ImageXpert software for image capture and drop analysis

8. JetXpert System Capabilities Works with any print head including those from Kodak, HP, Konica Minolta, Xaar, Spectra (Dimatix), Seiko and Epson. Control all aspects of strobing via custom GUI Settings communicated to strobe electronics via RS232 Strobe frequency up to 100kHz Long delay times up to 20ms Minimum pulse width is 125ns Single, double and triple dot visualization and analysis Drop series visualization

9. JetXpert System Capabilities Digital camera (1024 x 768 pixels) for image capture Calibration process (with calibration target) for accurate results reported in real-world units Camera shutter speed can be used to increase image contrast Digital strobe control system enables repeatable measurement at the same settings

10. Strobe User Interface The strobe user interface allows for easy control of all strobe characteristics such as : Number of pulses Pulse width Delay times Intensity

11. Strobe User Interface Select single, double or triple drops Start or stop the strobe Set delay times, pulse width, change shutter speed and intensity. Visualize droplets in motion by using variable delay times. Choose firing mode and trigger type Automatically save image to file Close the GUI window

12. Theory of Operation Print head drive frequency or internal frequency Strobe pulse width Strobe intensity Delay 2 Delay 1

13. Single Strobe Event Single event image of single droplet (left) vs. 4 drop aggregated droplet image (right). Both images were taken with a strobe pulse width of 500ns. Single droplet 4 droplets Images from Kodak print head, #10 cartridge.

14. Strobe Pulse Width Single event images of droplet imaged with a pulse width of 500ns (left) vs. a strobe pulse width of 1500ns (right). 500ns 1500ns Images from Kodak print head, #10 cartridge.

15. Drop Analysis ImageXpert software allows for real-time, dynamic analysis of drops such as: Droplet volume Velocity Trajectory Ligature volume, length, break-off length

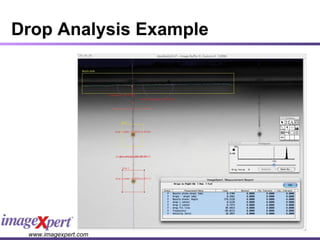

16. Drop Analysis Example

17. Sequential Imaging of Drops-in-Flight Both incremental and cyclic droplet motion can be imaged to offer insight into print head performance Incremental motion: Cyclic motion: Start time Stop time Stop time Start time

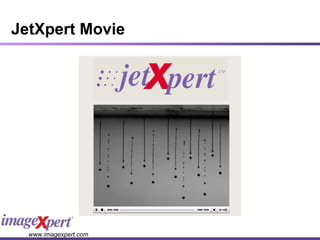

18. JetXpert Movie

19. Measurement and visualization of drops-in-flight

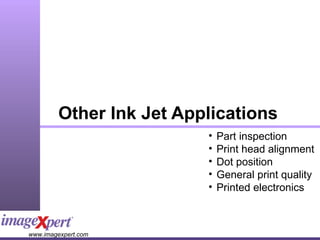

20. Other Ink Jet Applications Part inspection Print head alignment Dot position General print quality Printed electronics

21. Part Inspection: Nozzle Plates A line-scan camera is used for high speed, high magnification imaging of entire nozzle array Measurements can include nozzle shape, size, concentricity, alignment... Assess defects (clogs, debris, etc.)

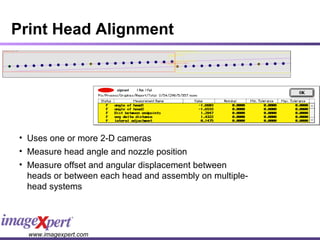

22. Print Head Alignment Uses one or more 2-D cameras Measure head angle and nozzle position Measure offset and angular displacement between heads or between each head and assembly on multiple-head systems

23. Dot Position Analysis Using a line scan camera, large images of printed dot patterns can be captured in a single pass without step-and-repeat High accuracy High speed Small footprint Dot position analysis often compares actual dot centroid positions to an ideal grid of locations:

24. Dot Position Animation Here is a conceptual animation showing the dot position analysis process using line scan camera technology and ImageXpert software

25. Print Quality Analysis Line quality Dot quality Text quality Solid area Jet health Color bleed Satellites Graininess …

26. Dot Quality Common dot quality measurements include: Size, shape (roundness and axis ratio), perimeter length (raggedness), darkness and position Both statistical data and data from the individual dots can be reported Dots and satellites can be measured separately

27. Dot Quality

28. Text Quality Common features for assessing text quality include: Character area Perimeter length Edge raggedness Detection of breaks Detection of fill-ins

29. Line Quality Common line quality features include: Average line width Edge raggedness Edge sharpness Line area Line darkness Since line quality is dependent on orientation, both vertical and horizontal lines are usually measured

30. Inter-Color Bleed Inter-color bleed is the unintentional intermixing of adjacent colorants. Different color combinations often have different quality levels. Common measurements include comparisons of: line width edge raggedness edge sharpness

31. Solid Area Quality Solid area mottle measurement methods include: Simple statistics (standard deviation) ISO/IEC 13660 using tiled cells or a “moving ROI” Cluster-based analysis

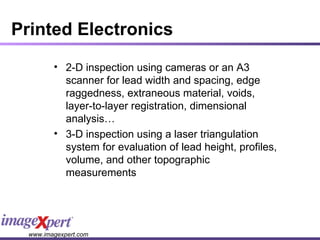

32. Printed Electronics 2-D inspection using cameras or an A3 scanner for lead width and spacing, edge raggedness, extraneous material, voids, layer-to-layer registration, dimensional analysis… 3-D inspection using a laser triangulation system for evaluation of lead height, profiles, volume, and other topographic measurements

33. Printed Electronics: Lead width

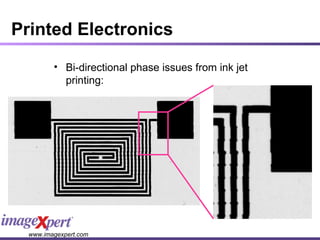

34. Printed Electronics Bi-directional phase issues from ink jet printing:

35. Printed Electronics

36. Printed Electronics: Ink Volume Using Laser Triangulation Data Ink volume calculated: 0.808 microliter/ 5mm length

37. Inspection Systems

38. Scanner Handheld camera Full motion: camera and laser and/or line scan Your microscope Multi-angle camera system All hardware configurations use the same software JetXpert: Drop-in-flight analysis system Manual motion camera system X X i

39. Research & Development Production (QA/QC) Benchmarking/ Competitive analysis Use in R&D and Production ImageXpert systems offer: Objective, quantitative analysis necessary for competitive analysis Flexibility, interactive tools and powerful algorithms necessary for R&D Automation, reliability and repeatability necessary for production X X i

40. Innovations Our scanner-based system has duplex capabilities for automated analysis of second side 2048 x 2048 black and white camera option for automated and manual motion systems Larger format camera can decrease inspection time versus standard cameras by imaging larger areas in each picture Second camera option for JetXpert for face plate imaging, or full trajectory analysis of drops-in-flight
