1. Infrastructure development using
Consul
DevOps engineer
Volodymyr Tselm

2. Who am I
• System administrator and DevOps more than 10 years
• Web developer > 5 years

3. Agenda
• First application
• Problems
• What is Consul
• Service discovery and DNS
• Key-value store
• Consul-template and Key-Value
• Service and health check
• Consul-template and services
• Consul-template use cases
• Consul use case: fast deploy development environment
• Result

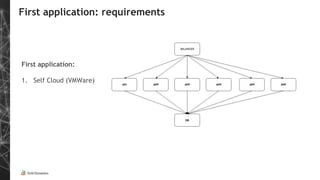

4. First application: requirements
First application:
1. Self Cloud (VMWare)

5. First application: requirements
First application:
1. Self Cloud (VMWare)
2. Nginx balancer - 1

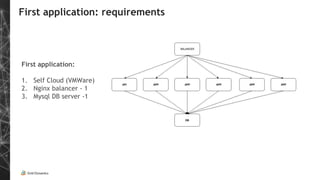

6. First application: requirements
First application:
1. Self Cloud (VMWare)
2. Nginx balancer - 1
3. Mysql DB server -1

7. First application: requirements
First application:
1. Self Cloud (VMWare)
2. Nginx balancer - 1
3. Mysql DB server -1
4. Api node - 1

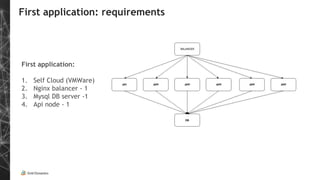

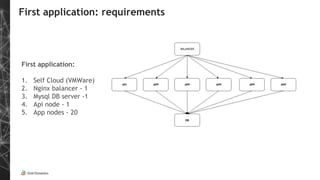

8. First application: requirements
First application:
1. Self Cloud (VMWare)
2. Nginx balancer - 1
3. Mysql DB server -1
4. Api node - 1
5. App nodes - 20

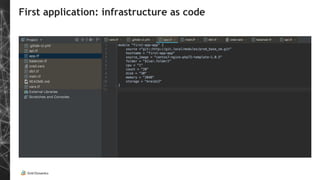

9. First application: infrastructure as code

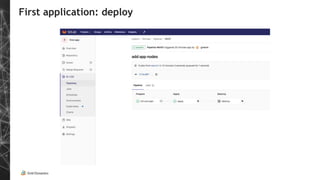

10. First application: deploy

11. First application in private cloud

12. First application: addresses and configuration
NGINX
http {
upstream myfirstapp {
server 192.168.1.13;
server 192.168.1.14;
server 192.168.1.15;
server 192.168.1.16;
server 192.168.1.17;
server 192.168.1.18;
………………..
server 192.168.1.29;
server 192.168.1.30;
server 192.168.1.31;
server 192.168.1.32;
server 192.168.1.33;
}
server {
listen 80;
location / {
proxy_pass
http://myfirstappx;
}
}
}
APP configuration:
define("DB_HOST", 192.168.1.12);
define("DB_USER", “user”);
define("DB_PASSWORD", “password”);
define("API_HOST", 192.168.1.11);

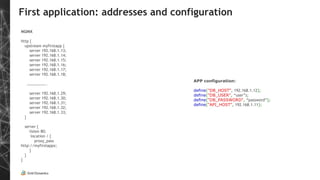

13. First application: addresses and configuration
NGINX
http {
upstream myfirstapp {
server 192.168.1.13;
server 192.168.1.14;
server 192.168.1.15;
server 192.168.1.16;
server 192.168.1.17;
server 192.168.1.18;
………………..
server 192.168.1.29;
server 192.168.1.30;
server 192.168.1.31;
server 192.168.1.32;
server 192.168.1.33;
}
server {
listen 80;
location / {
proxy_pass http://myfirstappx;
}
}
}
APP configuration:
define("DB_HOST", 192.168.1.12);
define("DB_USER", “user”);
define("DB_PASSWORD", “password”);
define("API_HOST", 192.168.1.11);

14. First application: first results

15. Problems
1. We can’t use DHCP
2. Hardcoded IP addresses in config files
3. Config files is “in place”
4. We need to make many changes manually

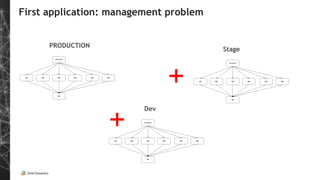

16. First application: management problem
PRODUCTION
Stage
Dev
+
+

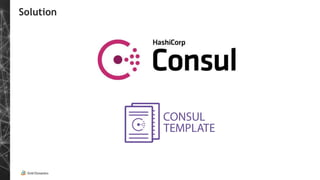

17. Solution

18. What is Consul?
HA Client-Server Architecture

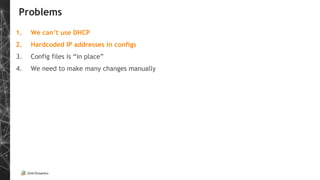

19. Problems
1. We can’t use DHCP
2. Hardcoded IP addresses in configs
3. Config files is “in place”
4. We need to make many changes manually

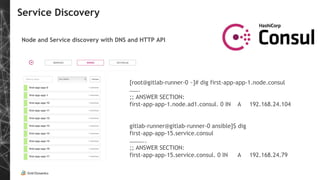

20. Service Discovery
Node and Service discovery with DNS and HTTP API
[root@gitlab-runner-0 ~]# dig first-app-app-1.node.consul
…….
;; ANSWER SECTION:
first-app-app-1.node.ad1.consul. 0 IN A 192.168.24.104
gitlab-runner@gitlab-runner-0 ansible]$ dig
first-app-app-15.service.consul
………..
;; ANSWER SECTION:
first-app-app-15.service.consul. 0 IN A 192.168.24.79

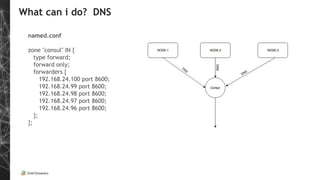

21. What can i do? DNS
named.conf
zone "consul" IN {
type forward;
forward only;
forwarders {
192.168.24.100 port 8600;
192.168.24.99 port 8600;
192.168.24.98 port 8600;
192.168.24.97 port 8600;
192.168.24.96 port 8600;
};
};

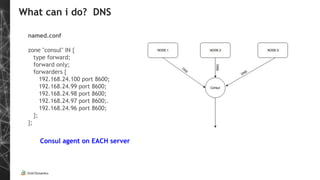

22. What can i do? DNS
named.conf
zone "consul" IN {
type forward;
forward only;
forwarders {
192.168.24.100 port 8600;
192.168.24.99 port 8600;
192.168.24.98 port 8600;
192.168.24.97 port 8600;.
192.168.24.96 port 8600;
};
};
Consul agent on EACH server

23. Problems
1. We can’t use DHCP
2. Hardcoded IP addresses in config files
3. Config files is “in place”
4. We need to make many changes manually

24. Key-value store
Key-value store with HTTP API

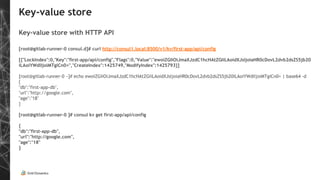

25. Key-value store
Key-value store with HTTP API
[root@gitlab-runner-0 consul.d]# curl http://consul1.local:8500/v1/kv/first-app/api/config
[{"LockIndex":0,"Key":"first-app/api/config","Flags":0,"Value":"ewoiZGIiOiJmaXJzdC1hcHAtZGIiLAoidXJsIjoiaHR0cDovL2dvb2dsZS5jb20
iLAoiYWdlIjoiMTgiCn0=","CreateIndex":1425749,"ModifyIndex":1425793}]
[root@gitlab-runner-0 ~]# echo ewoiZGIiOiJmaXJzdC1hcHAtZGIiLAoidXJsIjoiaHR0cDovL2dvb2dsZS5jb20iLAoiYWdlIjoiMTgiCn0= | base64 -d
{
"db":"first-app-db",
"url":"http://google.com",
"age":"18"
}
[root@gitlab-runner-0 ]# consul kv get first-app/api/config
{
"db":"first-app-db",
"url":"http://google.com",
"age":"18"
}

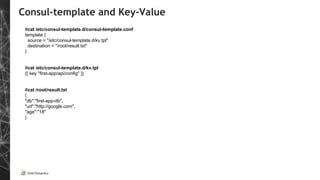

26. Consul-template and Key-Value
#cat /etc/consul-template.d/consul-template.conf
template {
source = "/etc/consul-template.d/kv.tpl"
destination = "/root/result.txt"
}
#cat /etc/consul-template.d/kv.tpl
{{ key "first-app/api/config" }}
#cat /root/result.txt
{
"db":"first-app-db",
"url":"http://google.com",
"age":"18"
}

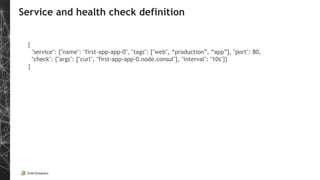

27. Service and health check definition
{
"service": {"name": "first-app-app-0", "tags": ["web", “production”, “app”], "port": 80,
"check": {"args": ["curl", "first-app-app-0.node.consul"], "interval": "10s"}}
}

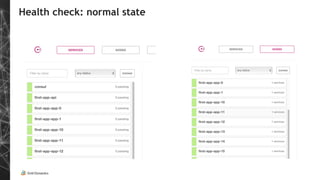

28. Health check: normal state

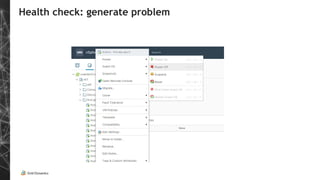

29. Health check: generate problem

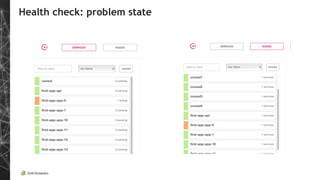

30. Health check: problem state

31. Consul-template and services
#cat nginx-template.tpl
upstream first-app {
{{range services }}
{{range service .Name}}
{{ if .Tags.Contains "web" }}
server {{.Name}}.service.consul max_fails=3 fail_timeout=60 weight=1;
{{ end }}
{{ end }}
{{end}}
}
#consul-template -template "template.tpl:upstream.conf:nginx -s reload"

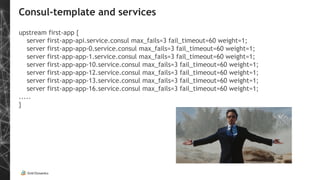

32. Consul-template and services
upstream first-app {
server first-app-api.service.consul max_fails=3 fail_timeout=60 weight=1;
server first-app-app-0.service.consul max_fails=3 fail_timeout=60 weight=1;
server first-app-app-1.service.consul max_fails=3 fail_timeout=60 weight=1;
server first-app-app-10.service.consul max_fails=3 fail_timeout=60 weight=1;
server first-app-app-12.service.consul max_fails=3 fail_timeout=60 weight=1;
server first-app-app-13.service.consul max_fails=3 fail_timeout=60 weight=1;
server first-app-app-16.service.consul max_fails=3 fail_timeout=60 weight=1;
.....
}

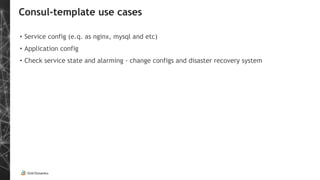

33. Consul-template use cases
• Service config (e.q. as nginx, mysql and etc)
• Application config
• Check service state and alarming - change configs and disaster recovery system

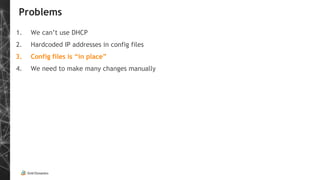

34. Problems
1. We can’t use DHCP
2. Hardcoded IP addresses in config files
3. Config files is “in place”
4. We need to make many changes manually

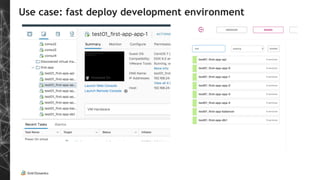

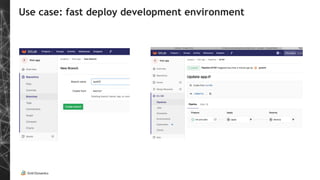

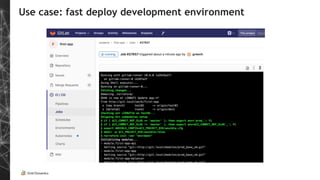

35. Use case: fast deploy development environment

36. Use case: fast deploy development environment

37. Use case: fast deploy development environment

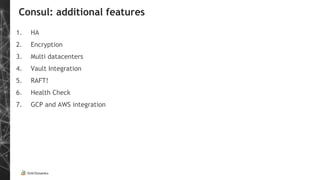

38. Consul: additional features
1. HA
2. Encryption
3. Multi datacenters
4. Vault Integration
5. RAFT!
6. Health Check
7. GCP and AWS integration

39. Result:

40. Result:

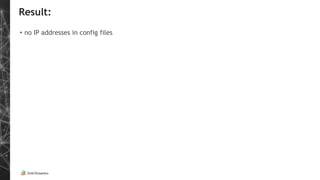

• no IP addresses in config files

41. Result:
• no IP addresses in configs
• no config files “in place”

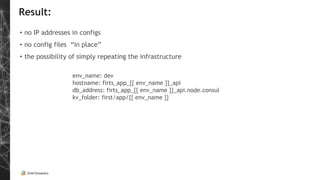

42. Result:
• no IP addresses in configs
• no config files “in place”
• the possibility of simply repeating the infrastructure
env_name: dev
hostname: firts_app_{{ env_name }}_api
db_address: firts_app_{{ env_name }}_api.node.consul
kv_folder: first/app/{{ env_name }}

43. You choose

44. Questions & Answers

45. www.griddynamics.co
m
