Taima Ganga Engineering Works, founded in 1978, specializes in manufacturing water lifting pumps for agricultural, domestic, and industrial applications. The company has developed a range of products including dewatering pumps, sewage pumps, and submersible pumps, ensuring quality by adhering to Indian standards. With a commitment to customer satisfaction, Ganga Engineering provides high-performance pumps designed to meet diverse client needs.

1. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit
v

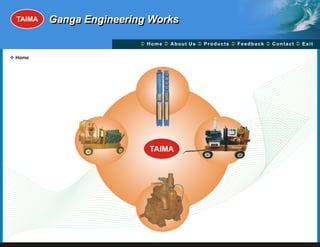

Home
TAIMA

2. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit
v

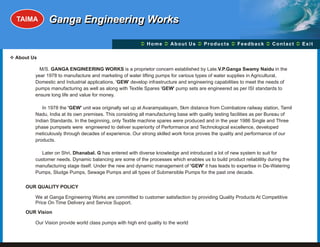

About Us
M/S. GANGA ENGINEERING WORKS is a proprietor concern established by Late.V.P.Ganga Swamy Naidu in the
year 1978 to manufacture and marketing of water lifting pumps for various types of water supplies in Agricultural,
Domestic and Industrial applications. 'GEW' develop infrastructure and engineering capabilities to meet the needs of
pumps manufacturing as well as along with Textile Spares 'GEW' pump sets are engineered as per ISI standards to
ensure long life and value for money.
In 1978 the 'GEW' unit was originally set up at Avarampalayam, 5km distance from Coimbatore railway station, Tamil
Nadu, India at its own premises. This consisting all manufacturing base with quality testing facilities as per Bureau of
Indian Standards. In the beginning, only Textile machine spares were produced and in the year 1986 Single and Three
phase pumpsets were engineered to deliver superiority of Performance and Technological excellence, developed
meticulously through decades of experience. Our strong skilled work force proves the quality and performance of our
products.
Later on Shri, Dhanabal. G has entered with diverse knowledge and introduced a lot of new system to suit for
customer needs. Dynamic balancing are some of the processes which enables us to build product reliablility during the
manufacturing stage itself. Under the new and dynamic management of 'GEW' it has leads to expertise in De-Watering
Pumps, Sludge Pumps, Sewage Pumps and all types of Submersible Pumps for the past one decade.
OUR QUALITY POLICY
We at Ganga Engineering Works are committed to customer satisfaction by providing Quality Products At Competitive
Price On Time Delivery and Service Support.
OUR Vision
Our Vision provide world class pumps with high end quality to the world

3. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

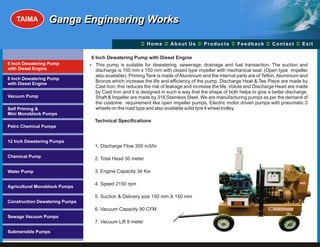

6 Inch Dewatering Pump with Diesel Engine
6 Inch Dewatering Pump ? This pump is suitable for dewatering, sewerage, drainage and fuel transaction. The suction and
with Diesel Engine discharge is 150 mm x 150 mm with closed type impeller with mechanical seal. (Open type impeller
also available). Priming Tank is made of Aluminium and the internal parts are of Teflon, Aluminium and
8 Inch Dewatering Pump
with Diesel Engine
Bronze which increase the life and efficiency of the pump. Discharge Heat & Tee Piece are made by
Cast Iron; this reduces the risk of leakage and increase the life. Volute and Discharge Head are made
by Cast Iron and it is designed in such a way that the shape of both helps to give a better discharge.
Vacuum Pump Shaft & Impeller are made by 316 Stainless Steel. We are manufacturing pumps as per the demand of
the custome requirement like open impeller pumps, Electric motor driven pumps with pneumatic 2
Self Priming & wheels on the road type and also available solid tyre 4 wheel trolley.
Mini Monoblock Pumps
Technical Specifications
Petro Chemical Pumps
12 Inch Dewatering Pumps
1. Discharge Flow 350 m3/hr
Chemical Pump
2. Total Head 30 meter
Water Pump 3. Engine Capacity 34 Kw
4. Speed 2150 rpm GEW
Agricultural Monoblock Pumps
5. Suction & Delivery size 150 mm X 150 mm
Construction Dewatering Pumps
6. Vacuum Capacity 90 CFM
Sewage Vacuum Pumps
7. Vacuum Lift 9 meter
Submersible Pumps

4. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

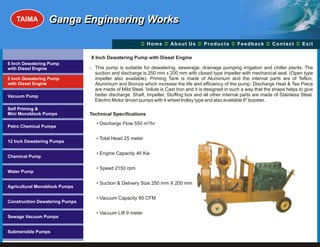

8 Inch Dewatering Pump with Diesel Engine
6 Inch Dewatering Pump
with Diesel Engine ? This pump is suitable for dewatering, sewerage, drainage pumping irrigation and chiller plants. The
suction and discharge is 250 mm x 200 mm with closed type impeller with mechanical seal. (Open type
8 Inch Dewatering Pump impeller also available). Priming Tank is made of Aluminium and the internal parts are of Teflon,
with Diesel Engine Aluminium and Bronze which increase the life and efficiency of the pump. Discharge Heat & Tee Piece
are made of Mild Steel. Volute is Cast Iron and it is designed in such a way that the shape helps to give
Vacuum Pump better discharge. Shaft, Impeller, Stuffing box and all other internal parts are made of Stainless Steel.
Electric Motor driven pumps with 4 wheel trolley type and also available 8” booster.
Self Priming &
Mini Monoblock Pumps Technical Specifications
• Discharge Flow 550 m³/hr
Petro Chemical Pumps
• Total Head 25 meter
12 Inch Dewatering Pumps
• Engine Capacity 46 Kw
Chemical Pump
• Speed 2150 rpm
Water Pump
• Suction & Delivery Size 250 mm X 200 mm
Agricultural Monoblock Pumps
• Vacuum Capacity 90 CFM
Construction Dewatering Pumps
• Vacuum Lift 9 meter
Sewage Vacuum Pumps
Submersible Pumps

5. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

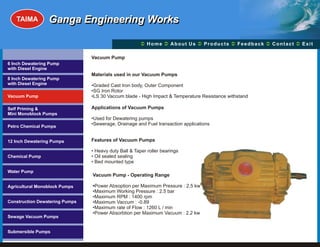

Vacuum Pump
6 Inch Dewatering Pump
with Diesel Engine
Materials used in our Vacuum Pumps
8 Inch Dewatering Pump
with Diesel Engine •Graded Cast Iron body, Outer Component
•SG Iron Rotor
Vacuum Pump •LS 30 Vaccum blade - High Impact & Temperature Resistance withstand
Self Priming & Applications of Vacuum Pumps
Mini Monoblock Pumps
•Used for Dewatering pumps
Petro Chemical Pumps
•Sewerage, Drainage and Fuel transaction applications
12 Inch Dewatering Pumps Features of Vacuum Pumps
• Heavy duty Ball & Taper roller bearings
Chemical Pump • Oil sealed sealing
• Bed mounted type
Water Pump
Vacuum Pump - Operating Range
Agricultural Monoblock Pumps •Power Absoption per Maximum Pressure : 2.5 kw
•Maximum Working Pressure : 2.5 bar
•Maximum RPM : 1400 rpm
Construction Dewatering Pumps •Maximum Vaccum : -0.89
•Maximum rate of Flow : 1260 L / min
•Power Absorbtion per Maximum Vacuum : 2.2 kw
Sewage Vacuum Pumps
Submersible Pumps

6. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

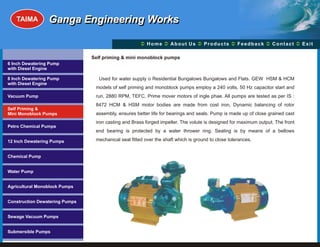

Self priming & mini monoblock pumps
6 Inch Dewatering Pump
with Diesel Engine
8 Inch Dewatering Pump Used for water supply o Residential Bungalows Bungalows and Flats. GEW HSM & HCM
with Diesel Engine
models of self priming and monoblock pumps employ a 240 volts, 50 Hz capacitor start and
Vacuum Pump run, 2880 RPM, TEFC, Prime mover motors of ingle phae. All pumps are tested as per IS :
8472 HCM & HSM motor bodies are made from cost iron, Dynamic balancing of rotor
Self Priming &
Mini Monoblock Pumps assembly, ensures better life for bearings and seals. Pump is made up of close grained cast
iron casting and Brass forged impeller. The volute is designed for maximum output. The front
Petro Chemical Pumps
end bearing is protected by a water thrower ring. Sealing is by means of a bellows
12 Inch Dewatering Pumps mechanical seal fitted over the shaft which is ground to close tolerances.
Chemical Pump
Water Pump
Agricultural Monoblock Pumps
Construction Dewatering Pumps
Sewage Vacuum Pumps
Submersible Pumps

7. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

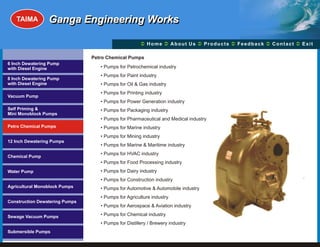

Petro Chemical Pumps
6 Inch Dewatering Pump
with Diesel Engine • Pumps for Petrochemical industry
• Pumps for Paint industry
8 Inch Dewatering Pump
with Diesel Engine • Pumps for Oil & Gas industry
• Pumps for Printing industry
Vacuum Pump
• Pumps for Power Generation industry
Self Priming & • Pumps for Packaging industry
Mini Monoblock Pumps
• Pumps for Pharmaceutical and Medical industry
Petro Chemical Pumps • Pumps for Marine industry
• Pumps for Mining industry
12 Inch Dewatering Pumps
• Pumps for Marine & Maritime industry
• Pumps for HVAC industry
Chemical Pump
• Pumps for Food Processing industry
Water Pump • Pumps for Dairy industry
• Pumps for Construction industry
Agricultural Monoblock Pumps • Pumps for Automotive & Automobile industry
• Pumps for Agriculture industry
Construction Dewatering Pumps
• Pumps for Aerospace & Aviation industry
Sewage Vacuum Pumps • Pumps for Chemical industry
• Pumps for Distillery / Brewery industry
Submersible Pumps

8. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

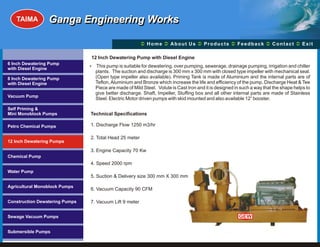

12 Inch Dewatering Pump with Diesel Engine
6 Inch Dewatering Pump
This pump is suitable for dewatering, over pumping, sewerage, drainage pumping, irrigation and chiller
?
with Diesel Engine
plants. The suction and discharge is 300 mm x 300 mm with closed type impeller with mechanical seal.
8 Inch Dewatering Pump (Open type impeller also available). Priming Tank is made of Aluminium and the internal parts are of
with Diesel Engine Teflon, Aluminium and Bronze which increase the life and efficiency of the pump. Discharge Heat & Tee
Piece are made of Mild Steel. Volute is Cast Iron and it is designed in such a way that the shape helps to
give better discharge. Shaft, Impeller, Stuffing box and all other internal parts are made of Stainless
Vacuum Pump
Steel. Electric Motor driven pumps with skid mounted and also available 12” booster.
Self Priming &
Mini Monoblock Pumps Technical Specifications
Petro Chemical Pumps 1. Discharge Flow 1250 m3/hr
2. Total Head 25 meter
12 Inch Dewatering Pumps
3. Engine Capacity 70 Kw
Chemical Pump
4. Speed 2000 rpm
Water Pump
5. Suction & Delivery size 300 mm X 300 mm
Agricultural Monoblock Pumps
6. Vacuum Capacity 90 CFM
Construction Dewatering Pumps 7. Vacuum Lift 9 meter
Sewage Vacuum Pumps GEW
Submersible Pumps

9. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

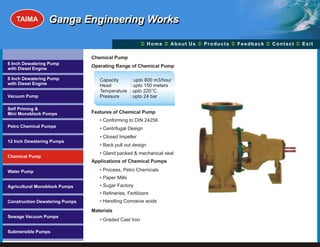

Chemical Pump
6 Inch Dewatering Pump
Operating Range of Chemical Pump
with Diesel Engine
8 Inch Dewatering Pump Capacity : upto 800 m3/hour
with Diesel Engine Head : upto 150 meters
Temperature : upto 220°C
Vacuum Pump Pressure : upto 24 bar
Self Priming &
Mini Monoblock Pumps Features of Chemical Pump
• Conforming to DIN 24256
Petro Chemical Pumps • Centrifugal Design
• Closed Impeller
12 Inch Dewatering Pumps
• Back pull out design
• Gland packed & mechanical seal
Chemical Pump
Applications of Chemical Pumps
Water Pump • Process, Petro Chemicals
• Paper Mills
Agricultural Monoblock Pumps • Sugar Factory
• Refineries, Fertilizers
Construction Dewatering Pumps • Handling Corrosive acids
Materials
Sewage Vacuum Pumps
• Graded Cast Iron
Submersible Pumps

10. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

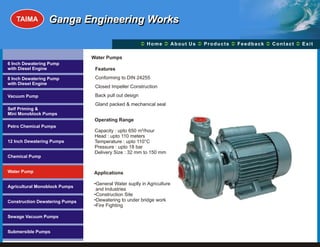

Water Pumps
6 Inch Dewatering Pump
with Diesel Engine Features
8 Inch Dewatering Pump Conforming to DIN 24255
with Diesel Engine
Closed Impeller Construction
Vacuum Pump Back pull out design
Gland packed & mechanical seal
Self Priming &
Mini Monoblock Pumps
Operating Range
Petro Chemical Pumps
Capacity : upto 650 m³/hour
Head : upto 110 meters
12 Inch Dewatering Pumps Temperature : upto 110°C
Pressure : upto 18 bar
Delivery Size : 32 mm to 150 mm
Chemical Pump
Water Pump Applications
•General Water suplly in Agriculture
Agricultural Monoblock Pumps
and Industries
•Construction Site
Construction Dewatering Pumps •Dewatering to under bridge work
•Fire Fighting
Sewage Vacuum Pumps
Submersible Pumps

11. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

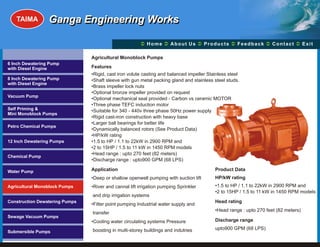

Agricultural Monoblock Pumps
6 Inch Dewatering Pump
with Diesel Engine Features
•Rigid, cast iron volute casting and balanced impeller Stainless steel
8 Inch Dewatering Pump •Shaft sleeve with gun metal packing gland and stainless steel studs.
with Diesel Engine
•Brass impeller lock nuts
•Optional bronze impeller provided on request
Vacuum Pump
•Optional mechanical seal provided - Carbon vs ceramic MOTOR
•Three phase TEFC induction motor
Self Priming & •Suitable for 340 - 440v three phase 50Hz power supply
Mini Monoblock Pumps
•Rigid cast-iron construction with heavy base
•Larger ball bearings for better life
Petro Chemical Pumps
•Dynamically balanced rotors (See Product Data)
•HP/kW rating
12 Inch Dewatering Pumps •1.5 to HP / 1.1 to 22kW in 2900 RPM and
•2 to 15HP / 1.5 to 11 kW in 1450 RPM models
•Head range : upto 270 feet (82 meters)
Chemical Pump
•Discharge range : upto900 GPM (68 LPS)
Water Pump Application Product Data
•Deep or shallow openwell pumping with suction lift HP/kW rating
Agricultural Monoblock Pumps •River and cannal lift irrigation pumping Sprinkler •1.5 to HP / 1.1 to 22kW in 2900 RPM and
•2 to 15HP / 1.5 to 11 kW in 1450 RPM models
and drip irrigation systems
Construction Dewatering Pumps Head rating
•Filter point pumping Industrial water supply and
•Head range : upto 270 feet (82 meters)
transfer
Sewage Vacuum Pumps
•Cooling water circulating systems Pressure Discharge range
boosting in multi-storey buildings and indutries upto900 GPM (68 LPS)
Submersible Pumps

12. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

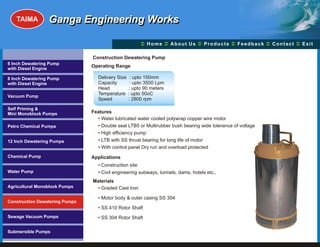

Construction Dewatering Pump
6 Inch Dewatering Pump
Operating Range
with Diesel Engine
8 Inch Dewatering Pump Delivery Size : upto 150mm
with Diesel Engine Capacity : upto 3500 Lpm
Head : upto 90 meters
Temperature : upto 50oC
Vacuum Pump
Speed : 2800 rpm
Self Priming &
Mini Monoblock Pumps Features
• Water lubricated water cooled polywrap copper wire motor
Petro Chemical Pumps • Double seal LTB5 or Multirubber bush bearing wide tolerance of voltage
• High efficiency pump
12 Inch Dewatering Pumps • LTB with SS thrust bearing for long life of motor
• With control panel Dry run and overload protected
Chemical Pump Applications
• Construction site
Water Pump • Civil engineering subways, tunnels, dams, hotels etc.,
Materials
Agricultural Monoblock Pumps • Graded Cast Iron
• Motor body & outer casing SS 304
Construction Dewatering Pumps
• SS 410 Rotor Shaft
Sewage Vacuum Pumps • SS 304 Rotor Shaft
Submersible Pumps

13. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

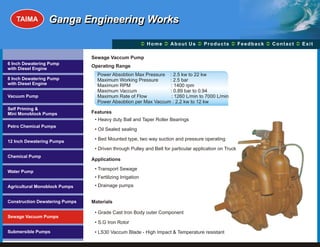

Sewage Vaccum Pump
6 Inch Dewatering Pump
Operating Range
with Diesel Engine
Power Absobtion Max Pressure : 2.5 kw to 22 kw
8 Inch Dewatering Pump Maximum Working Pressure : 2.5 bar
with Diesel Engine Maximum RPM : 1400 rpm
Maximum Vaccum : 0.89 bar to 0.94
Vacuum Pump Maximum Rate of Flow : 1260 L/min to 7000 L/min
Power Absobtion per Max Vaccum : 2.2 kw to 12 kw
Self Priming &
Mini Monoblock Pumps Features
• Heavy duty Ball and Taper Roller Bearings
Petro Chemical Pumps
• Oil Sealed sealing
12 Inch Dewatering Pumps
• Bed Mounted type, two way suction and pressure operating
• Driven through Pulley and Belt for particular application on Truck
Chemical Pump
Applications
• Transport Sewage
Water Pump
• Fertilizing Irrigation
Agricultural Monoblock Pumps • Drainage pumps
Construction Dewatering Pumps Materials
• Grade Cast Iron Body outer Component
Sewage Vacuum Pumps
• S.G Iron Rotor
Submersible Pumps • LS30 Vaccum Blade - High Impact & Temperature resistant

14. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit

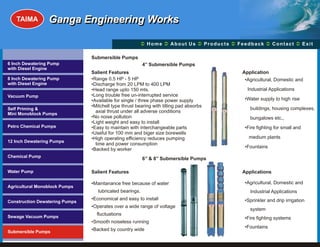

Submersible Pumps
6 Inch Dewatering Pump 4’’ Submersible Pumps
with Diesel Engine
Salient Features Application
8 Inch Dewatering Pump •Range 0.5 HP - 5 HP •Agricultural, Domestic and
with Diesel Engine •Discharge from 20 LPM to 400 LPM
•Head range upto 150 mts. Industrial Applications
Vacuum Pump •Long trouble free un-interrupted service
•Available for single / three phase power supply •Water supply to high rise
•Mitchell type thrust bearing with tilting pad absorbs
Self Priming & buildings, housing complexes,
Mini Monoblock Pumps
axial thrust under all adverse conditions
•No noise pollution bungalows etc.,
•Light weight and easy to install
Petro Chemical Pumps •Easy to maintain with interchangeable parts •Fire fighting for small and
•Useful for 100 mm and biger size borewells
•High operating efficiency reduces pumping medium plants
12 Inch Dewatering Pumps
time and power consumption
•Fountains
•Backed by worker
Chemical Pump
6’’ & 8’’ Submersible Pumps
Water Pump Salient Features Applications
•Maintanance free because of water •Agricultural, Domestic and
Agricultural Monoblock Pumps
lubricated bearings. Industrial Applications
•Economical and easy to install •Sprinkler and drip irrigation
Construction Dewatering Pumps
•Operates over a wide range of voltage
system
fluctuations
Sewage Vacuum Pumps •Fire fighting systems
•Smooth noiseless running
•Fountains
Submersible Pumps •Backed by country wide

15. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit
v

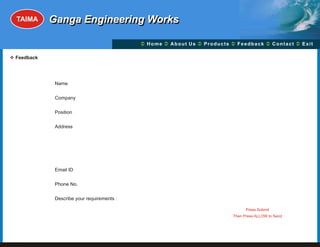

Feedback
Name
Company
Position
Address
Email ID
Phone No. Reset Form
Describe your requirements : Submit
Press Submit
Then Press ALLOW to Send

16. TAIMA Ganga Engineering Works
Ü A b o u t U s Ü t s Ü c k Üt Ü
Home Ü Produc Feedba Contac Exit
v

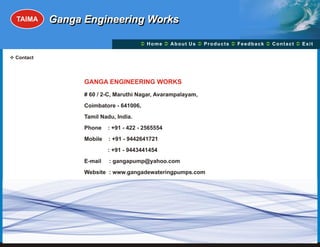

Contact
GANGA ENGINEERING WORKS
# 60 / 2-C, Maruthi Nagar, Avarampalayam,
Coimbatore - 641006,
Tamil Nadu, India.
Phone : +91 - 422 - 2565554
Mobile : +91 - 9442641721
: +91 - 9443441454
E-mail : gangapump@yahoo.com
Website : www.gangadewateringpumps.com
