The document describes an incremental model compiler for executable UML models called xUML-RT. The compiler allows for faster turnaround times through incremental code generation. It utilizes the VIATRA framework to synchronize UML models with xUML-RT and generate C++ code. The compiler supports platform-level optimizations, reusability across platforms, and integration with modeling tools like Papyrus.

1. INCREMENTAL MODEL COMPILER
FOR EXECUTABLE UML
ÁKOS HORVÁTH, PHD
MANAGING DIRECTOR

2. Executable Modeling – the birth of xUML-RT
We are proud user of
executable modeling!
At an undisclosed Nordic telecommunication company
Which standard are you
using?
UML-RT of course!
xtUML of course!
??
We are proud user of
UML executable
modeling!
??

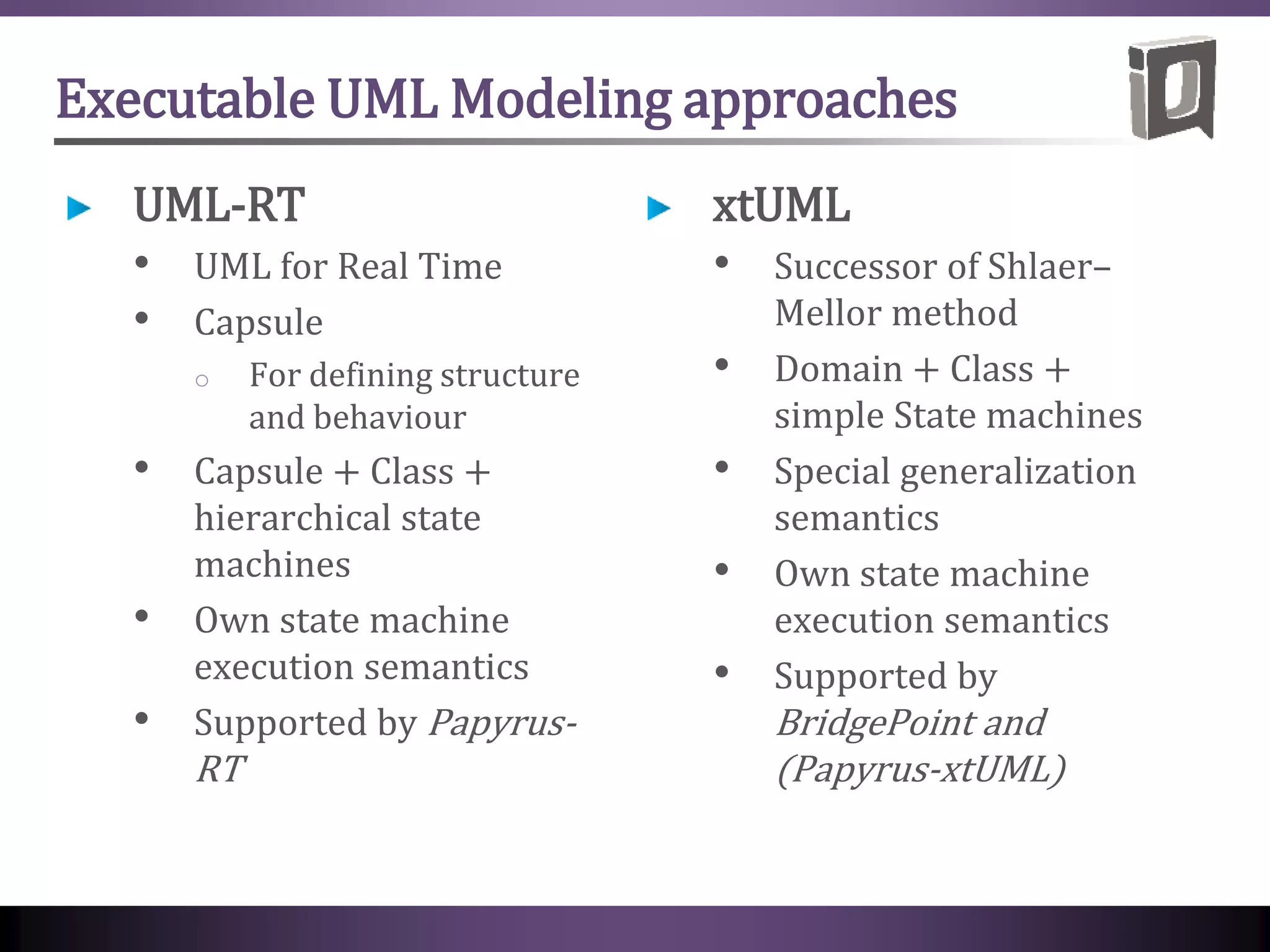

3. Executable UML Modeling approaches
UML-RT
• UML for Real Time
• Capsule
o For defining structure
and behaviour
• Capsule + Class +
hierarchical state
machines
• Own state machine
execution semantics
• Supported by Papyrus-
RT
xtUML
• Successor of Shlaer–
Mellor method
• Domain + Class +
simple State machines
• Special generalization
semantics
• Own state machine
execution semantics
• Supported by
BridgePoint and
(Papyrus-xtUML)

4. Executable UML Modeling approaches
UML-RT
• UML for Real Time
• Capsule
o For defining structure
and behaviour
• Capsule + Class +
hierarchical state
machines
• Own state machine
execution semantics
• Supported by Papyrus-
RT
xtUML
• Successor of Shlaer–
Mellor method
• Domain + Class +
simple State machines
• Special generalization
semantics
• Own state machine
execution semantics
• Supported by
BridgePoint and
(Papyrus-xtUML)

5. Executable Modeling – the birth of xUML-RT
We are proud user of
executable modeling!
At an undisclosed Nordic telecommunication company
I did not know that
we’re using similar
standards!
We are proud user of
executable modeling!
Lets try to create a
novel language that
combines the two
approaches!
We are proud user of
executable modeling!
Lets call it xUML-RT!

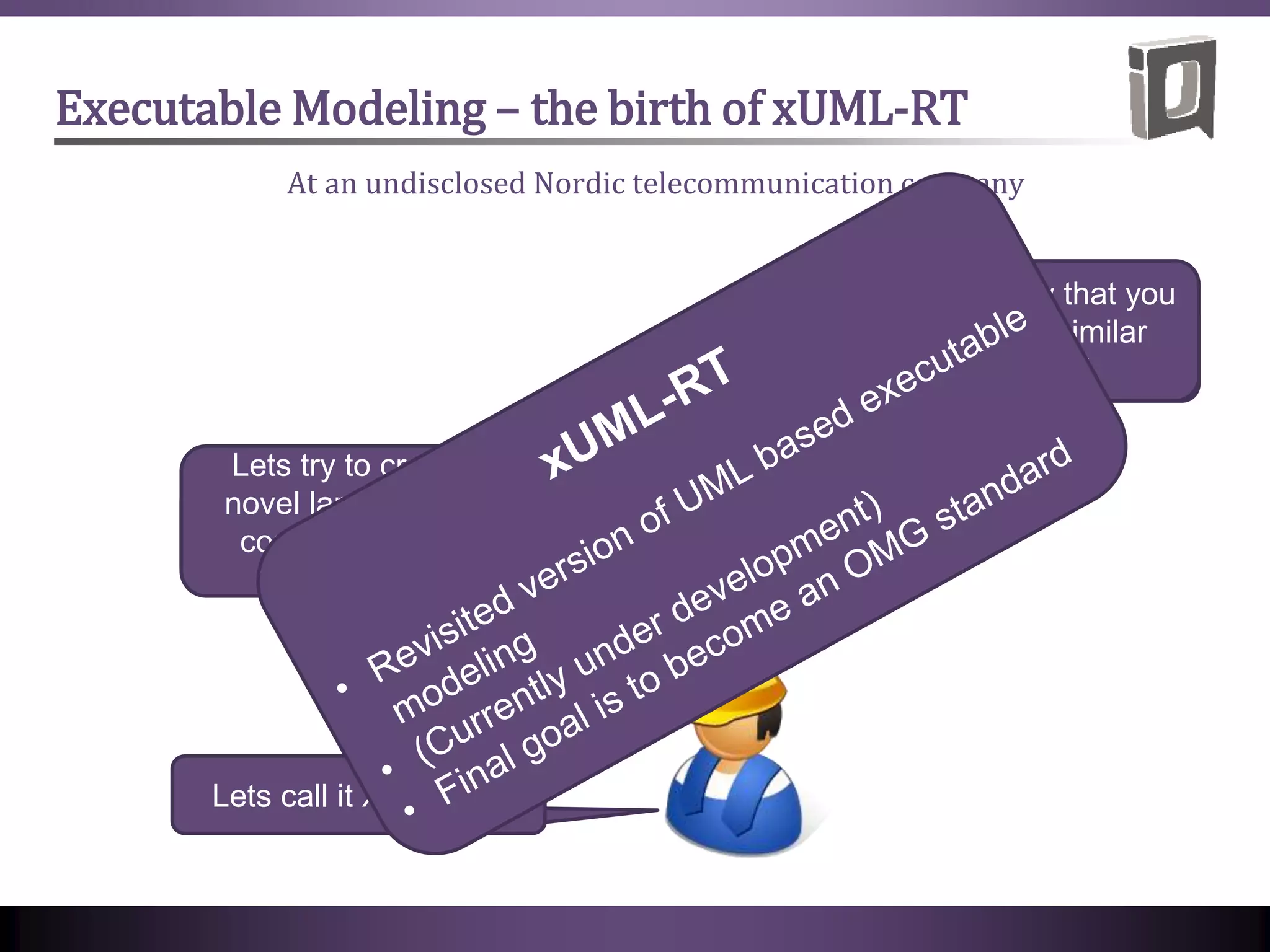

6. Executable Modeling – the birth of xUML-RT
We are proud user of
executable modeling!
At an undisclosed Nordic telecommunication company
I did not know that you
we’re using similar
standards!
We are proud user of
executable modeling!
Lets try to create a
novel language that
combines the two
approaches
We are proud user of
executable modeling!
Lets call it xUML-RT!

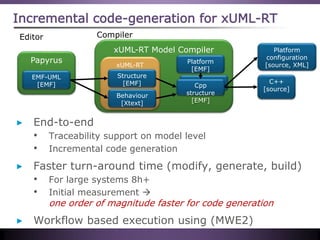

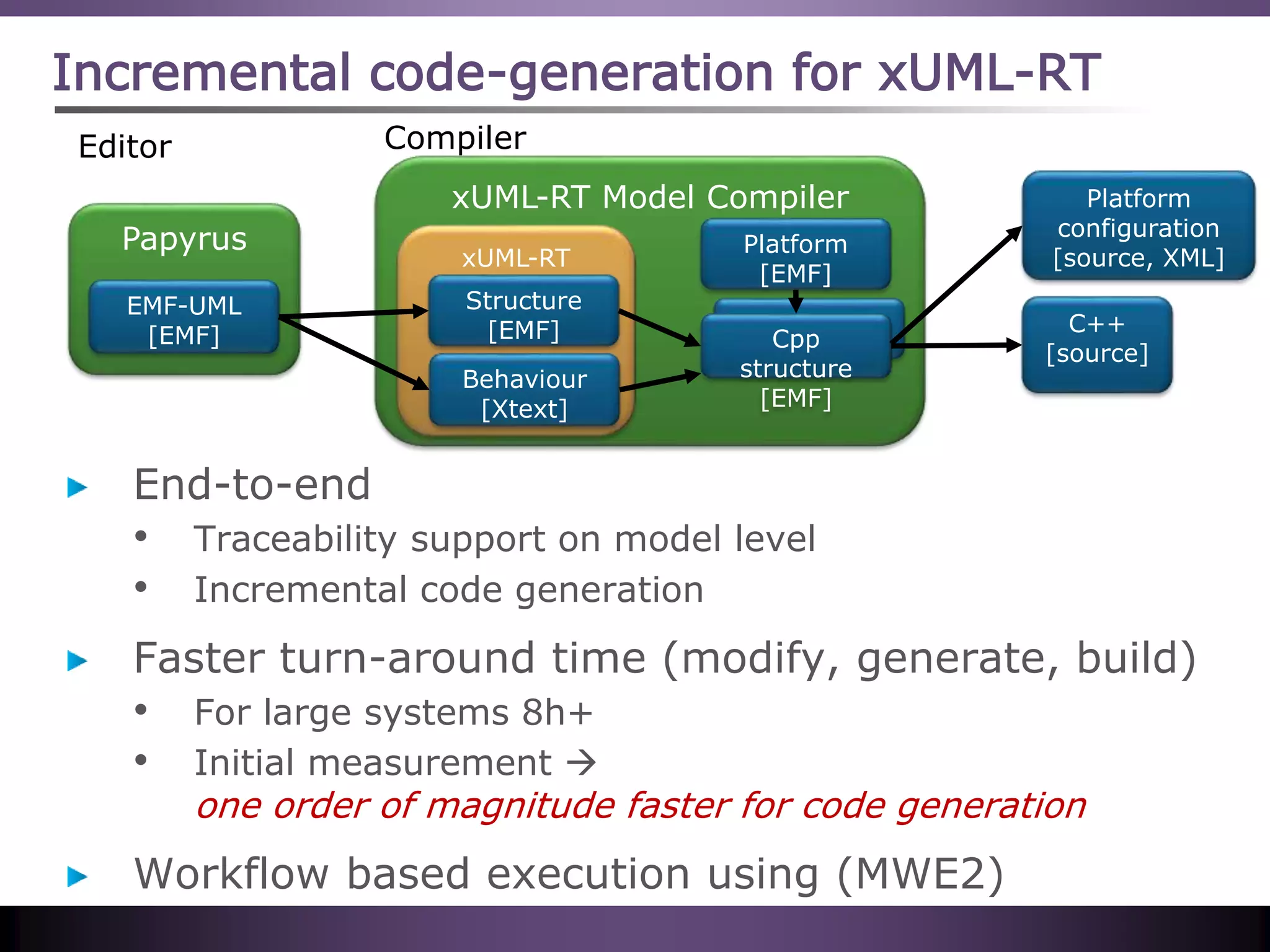

7. xUML-RT Model Compiler
xUML-RT
Incremental code-generation for xUML-RT
End-to-end
• Traceability support on model level
• Incremental code generation
Faster turn-around time (modify, generate, build)
• For large systems 8h+
• Initial measurement 
one order of magnitude faster for code generation
Workflow based execution using (MWE2)
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]

8. xUML-RT Model Compiler
xUML-RT
Incremental code-generation for xUML-RT
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]
End-to-end
• Traceability support on model level
• Incremental code generation
Faster turn-around time (modify, generate, build)
• For large systems 8h+
• Initial measurement 
one order of magnitude faster for code generation
Workflow based execution using (MWE2)

9. xUML-RT Model Compiler
xUML-RT
Incremental code-generation for xUML-RT
Front-end agnostic model storage and processing
On-the fly synchronization between
EMF-UML and xUML-RT using VIATRA
• Transaction aware synchronization points
• Advanced EMF-UML support
o Incremental evaluation of UML derived features
o Querying UML profiles
o https://wiki.eclipse.org/VIATRA/Integration/UMLSupport
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]

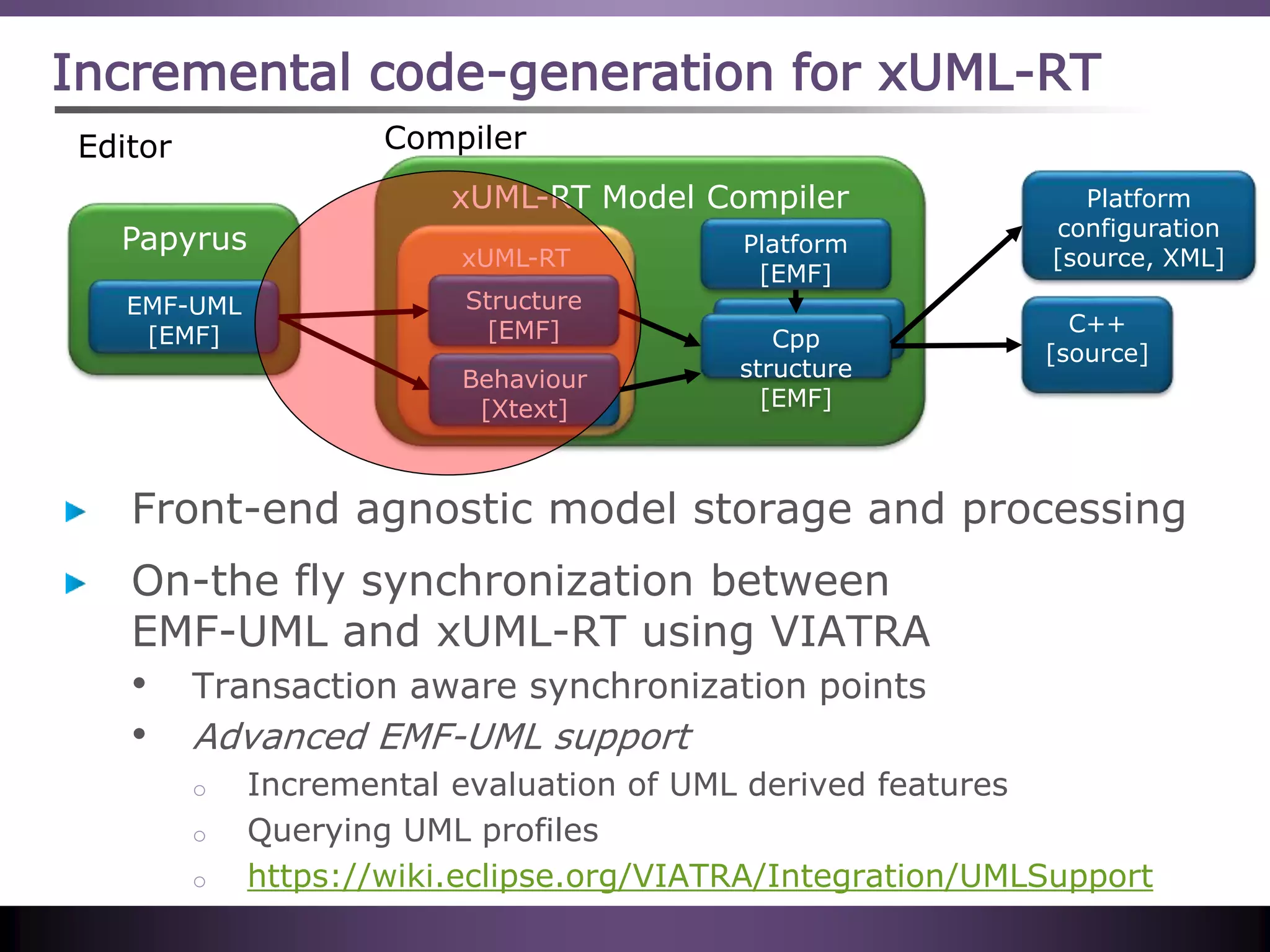

10. xUML-RT Model Compiler
xUML-RT
Incremental code-generation for xUML-RT
Front-end agnostic model storage and processing
On-the fly synchronization between
EMF-UML and xUML-RT using VIATRA
• Transaction aware synchronization points
• Advanced EMF-UML support
o Incremental evaluation of UML derived features
o Querying UML profiles
o https://wiki.eclipse.org/VIATRA/Integration/UMLSupport
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]

11. xUML-RT Model Compiler
xUML-RT
Incremenetal code-generation for xUML-RT
Platform level optimizations
• External library configuration
• Template definition on model level
o Platform specific data structures and libraries
Reusability
• Same xUML-RT model with multiple Platform instances
• Easy extension due to MWE2
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]

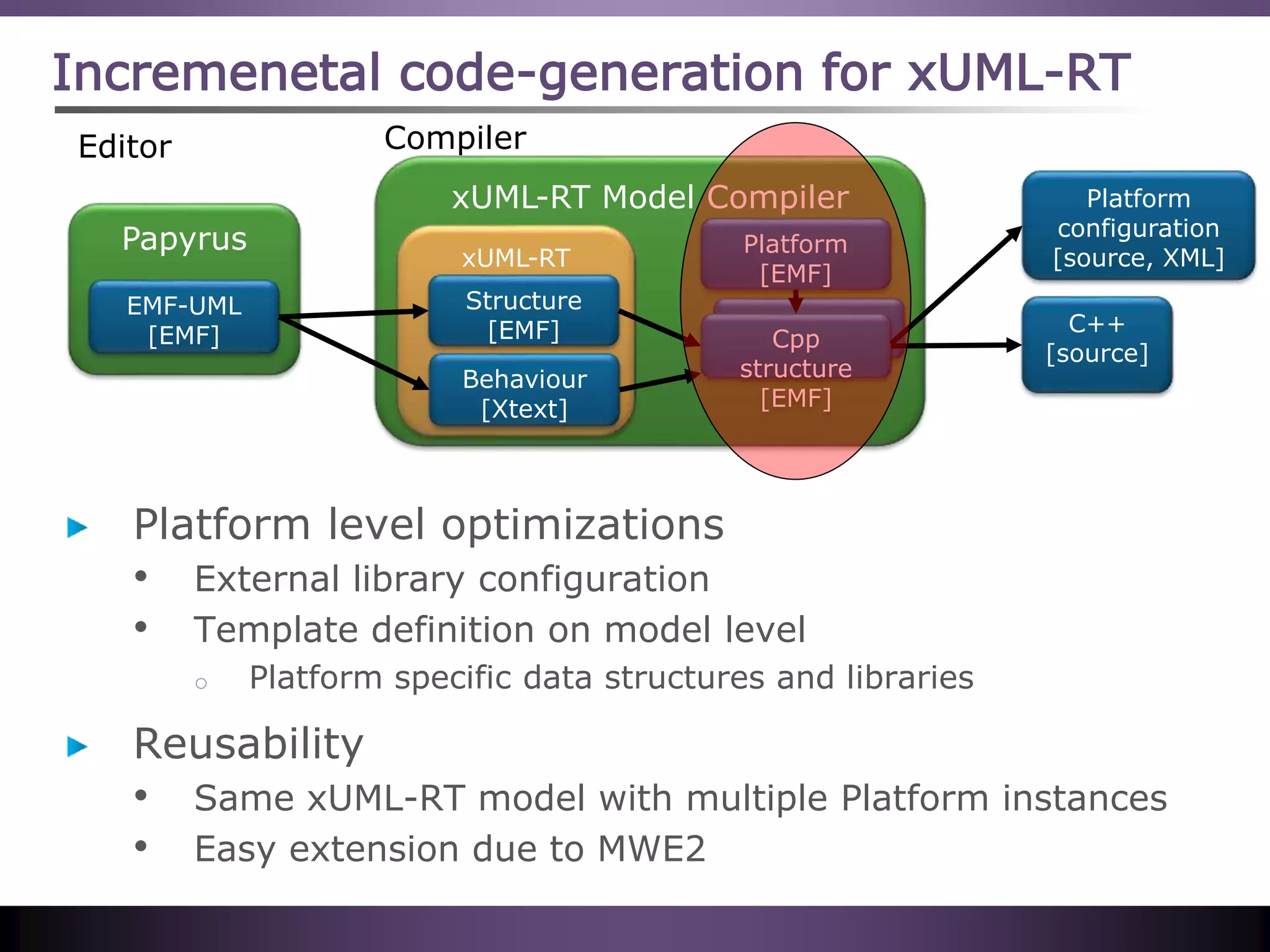

12. xUML-RT Model Compiler
xUML-RT
Incremenetal code-generation for xUML-RT
Platform level optimizations
• External library configuration
• Template definition on model level
o Platform specific data structures and libraries
Reusability
• Same xUML-RT model with multiple Platform instances
• Easy extension due to MWE2
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]

13. xUML-RT Model Compiler
xUML-RT
Incremenetal code-generation for xUML-RT
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]
C++ source code
• Support for query execution
• Optimized container usage
• Unity build
Platform configuration
• Execution environment
• Interfaces with hand-coded components

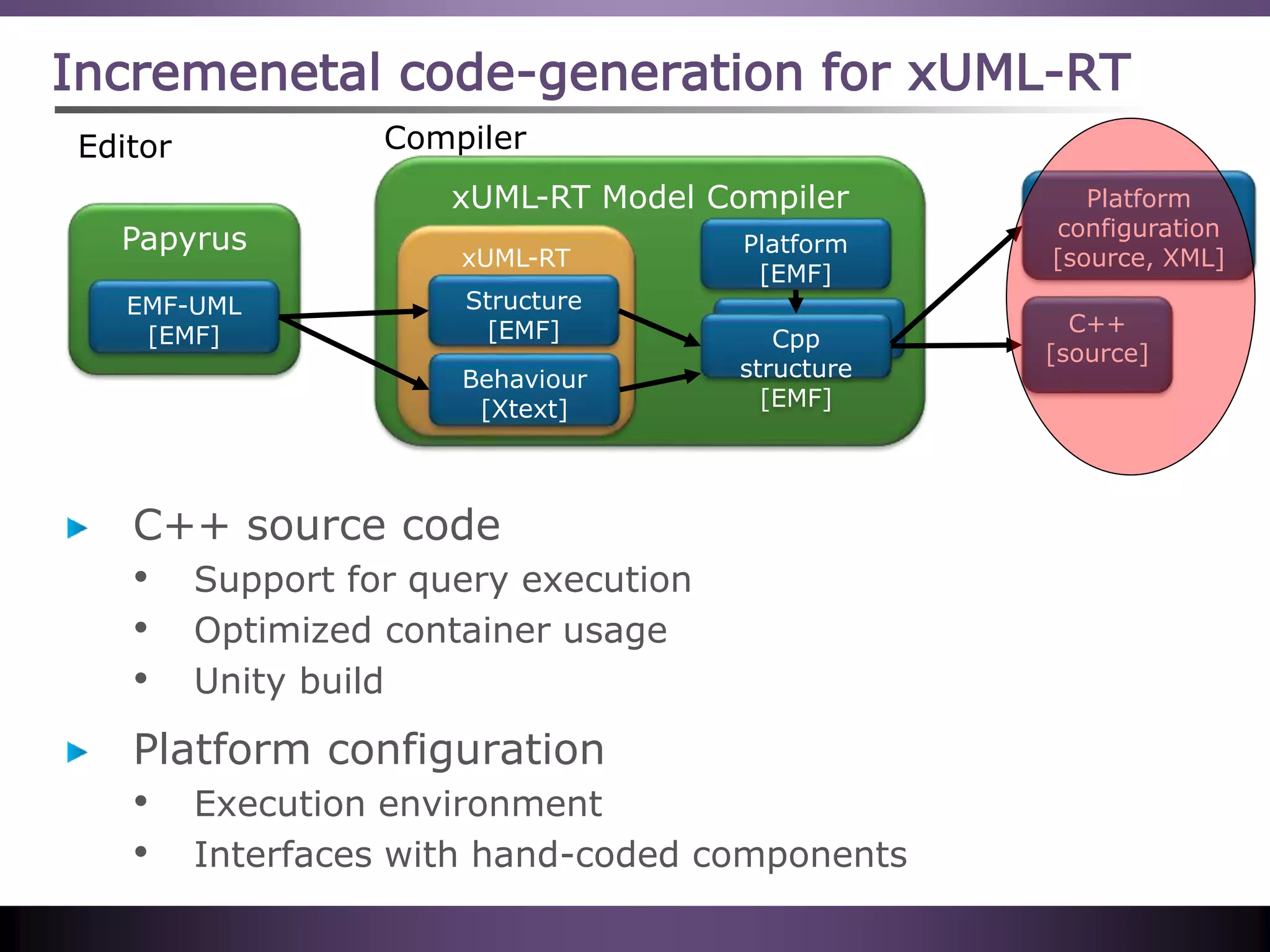

14. xUML-RT Model Compiler
xUML-RT
Incremenetal code-generation for xUML-RT
Cpp
Papyrus
EMF-UML
[EMF]
Structure
[EMF] Cpp
structure
[EMF]
Behaviour
[Xtext]
C++
[source]
Editor
Platform
configuration
[source, XML]
Compiler
Platform
[EMF]
C++ source code
• Support for query execution
• Optimized container usage
• Unity build
Platform configuration
• Execution environment
• Interfaces with hand-coded components

15. Incremental
query engine for EMF
• Declarative language
• Incremental, live queries
• Highly scalable
Advanced support for
• On-the-fly validation
• Custom views
• Traceability
• Derived features
Model transformation
framework
• Event-based + reactive
execution platform
• Xtend based API
• Scalable M2M & M2T
High-level features
• Complex event processing
• Design space exploration
• Incremental transform.

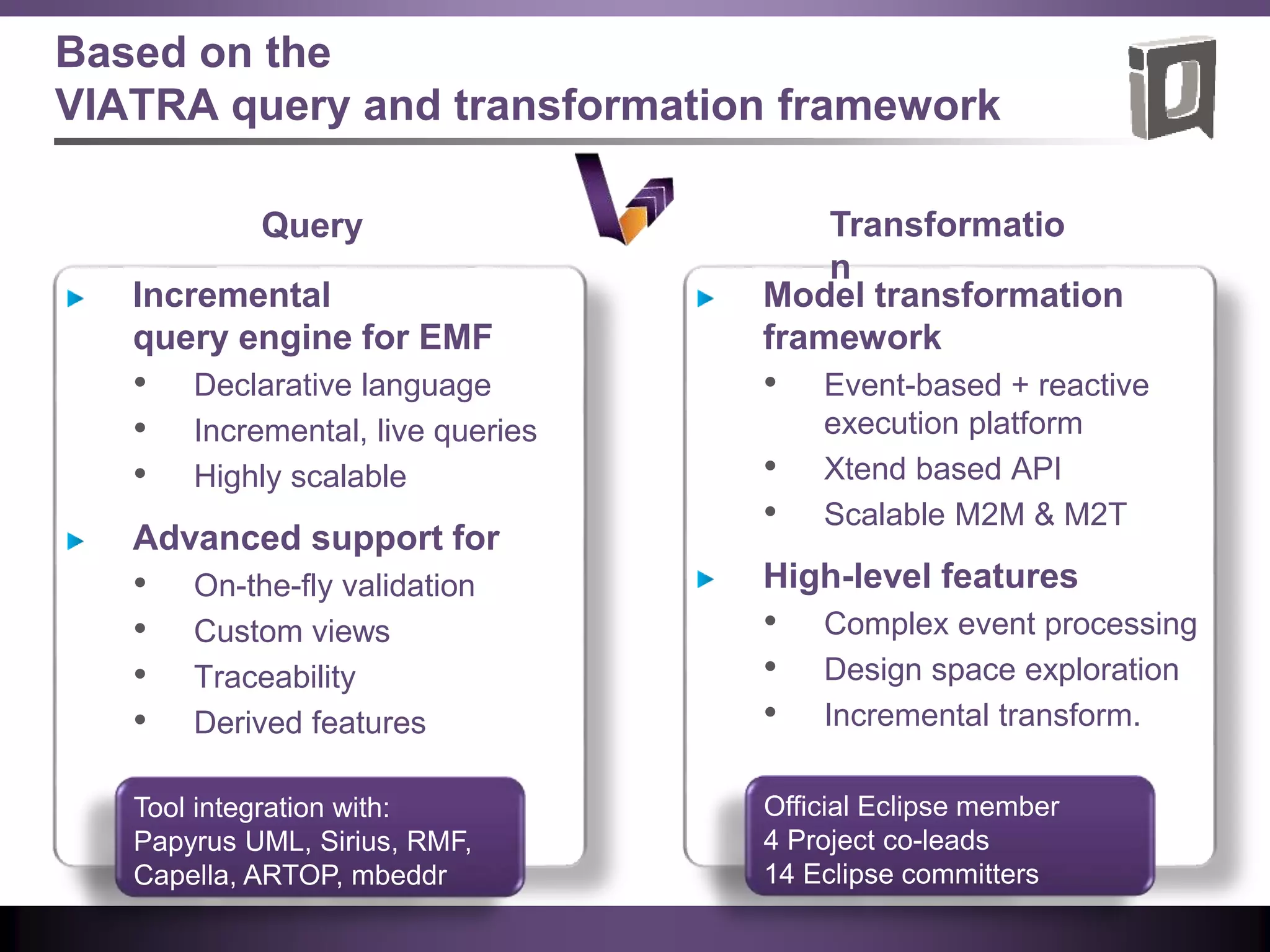

Based on the
VIATRA query and transformation framework
Transformatio
n
Official Eclipse member
4 Project co-leads
14 Eclipse committers
Tool integration with:
Papyrus UML, Sirius, RMF,
Capella, ARTOP, mbeddr
Query

16. Incremental
query engine for EMF
• Declarative language
• Incremental, live queries
• Highly scalable
Advanced support for
• On-the-fly validation
• Custom views
• Traceability
• Derived features
Model transformation
framework
• Event-based + reactive
execution platform
• Xtend based API
• Scalable M2M & M2T
High-level features
• Complex event processing
• Design space exploration
• Incremental transform.
Based on the
VIATRA query and transformation framework
Transformatio
n
Tool integration with:
Papyrus UML, Sirius, RMF,
Capella, ARTOP, mbeddr
Query
Official Eclipse member
4 Project co-leads
14 Eclipse committers

17. Incremental
query engine for EMF
• Declarative language
• Incremental, live queries
• Highly scalable
Advanced support for
• On-the-fly validation
• Custom views
• Traceability
• Derived features
Model transformation
framework
• Event-based + reactive
execution platform
• Xtend based API
• Scalable M2M & M2T
High-level features
• Complex event processing
• Design space exploration
• Incremental transform.
Based on the
VIATRA query and transformation framework
Transformatio
n
Tool integration with:
Papyrus UML, Sirius, RMF,
Capella, ARTOP, mbeddr
Query
Official Eclipse member
4 Project co-leads
14 Eclipse committers

18. Incremental
query engine for EMF
• Declarative language
• Incremental, live queries
• Highly scalable
Advanced support for
• On-the-fly validation
• Custom views
• Traceability
• Derived features
Model transformation
framework
• Event-based + reactive
execution platform
• Xtend based API
• Scalable M2M & M2T
High-level features
• Complex event processing
• Design space exploration
• Incremental transform.
Based on the
VIATRA query and transformation framework
Transformatio
n
Query
Official Eclipse member
4 Project co-leads
14 Eclipse committers
Tool integration with:
Papyrus UML, Sirius, RMF,
Capella, ARTOP, mbeddr

19. Conclusions
Initial version is out
• Model compiler
https://github.com/IncQueryLabs/EMDW-MC
o Out of the box compatibility with CDT
• Simulator
http://modelexecution.eltesoft.hu/
Model Compiler frontend integrated into Papyrus
Built on VIATRA
Your contributions (feedback, forum posts, ideas, bugzillas,
patches) are very welcome!
