Uml to code with acceleo
The document discusses the motivation and importance of model-driven development in software engineering, highlighting the need for tools that accommodate diverse platforms, devices, and frameworks. Acceleo is introduced as an Eclipse-based tool for transforming models to text, such as code, with features that facilitate easy learning and usage. Additionally, Papyrus is presented as a customizable graphical modeling tool supporting UML and SysML, enabling effective model-based system engineering.
More Related Content
![Syntaxe concrète des DSL en IDM [avec Xtext]](https://cdn.slidesharecdn.com/ss_thumbnails/dsl-140513103904-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Uml to code with acceleo
- 1. UML to codewith Acceleo Tarun Telang December 12, 2011 Public

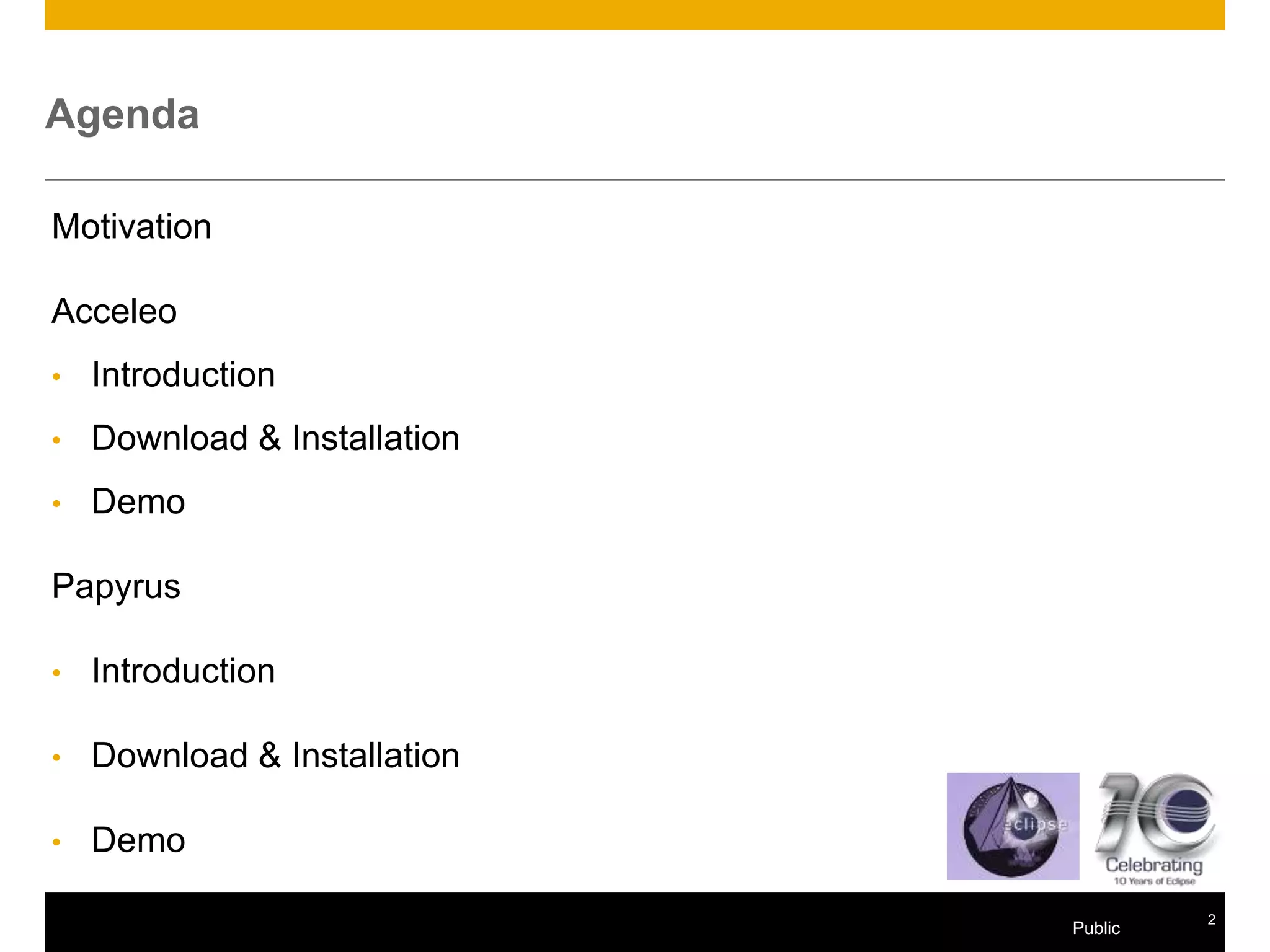

- 2. Agenda Motivation Acceleo • Introduction • Download & Installation • Demo Papyrus • Introduction • Download & Installation • Demo © 2011 SAP AG. All rights reserved. 2 Public

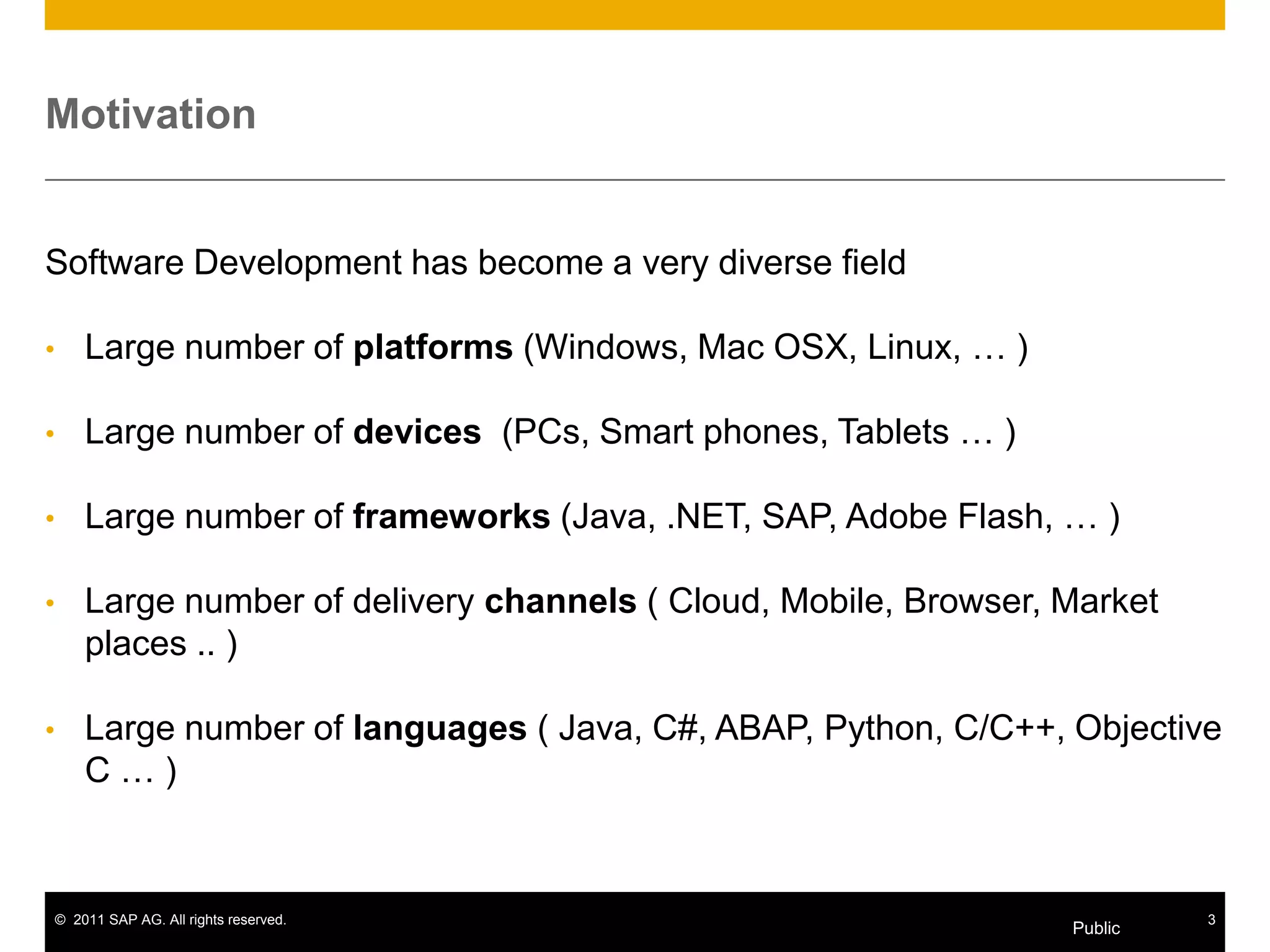

- 3. Motivation Software Development hasbecome a very diverse field • Large number of platforms (Windows, Mac OSX, Linux, … ) • Large number of devices (PCs, Smart phones, Tablets … ) • Large number of frameworks (Java, .NET, SAP, Adobe Flash, … ) • Large number of delivery channels ( Cloud, Mobile, Browser, Market places .. ) • Large number of languages ( Java, C#, ABAP, Python, C/C++, Objective C…) © 2011 SAP AG. All rights reserved. 3 Public

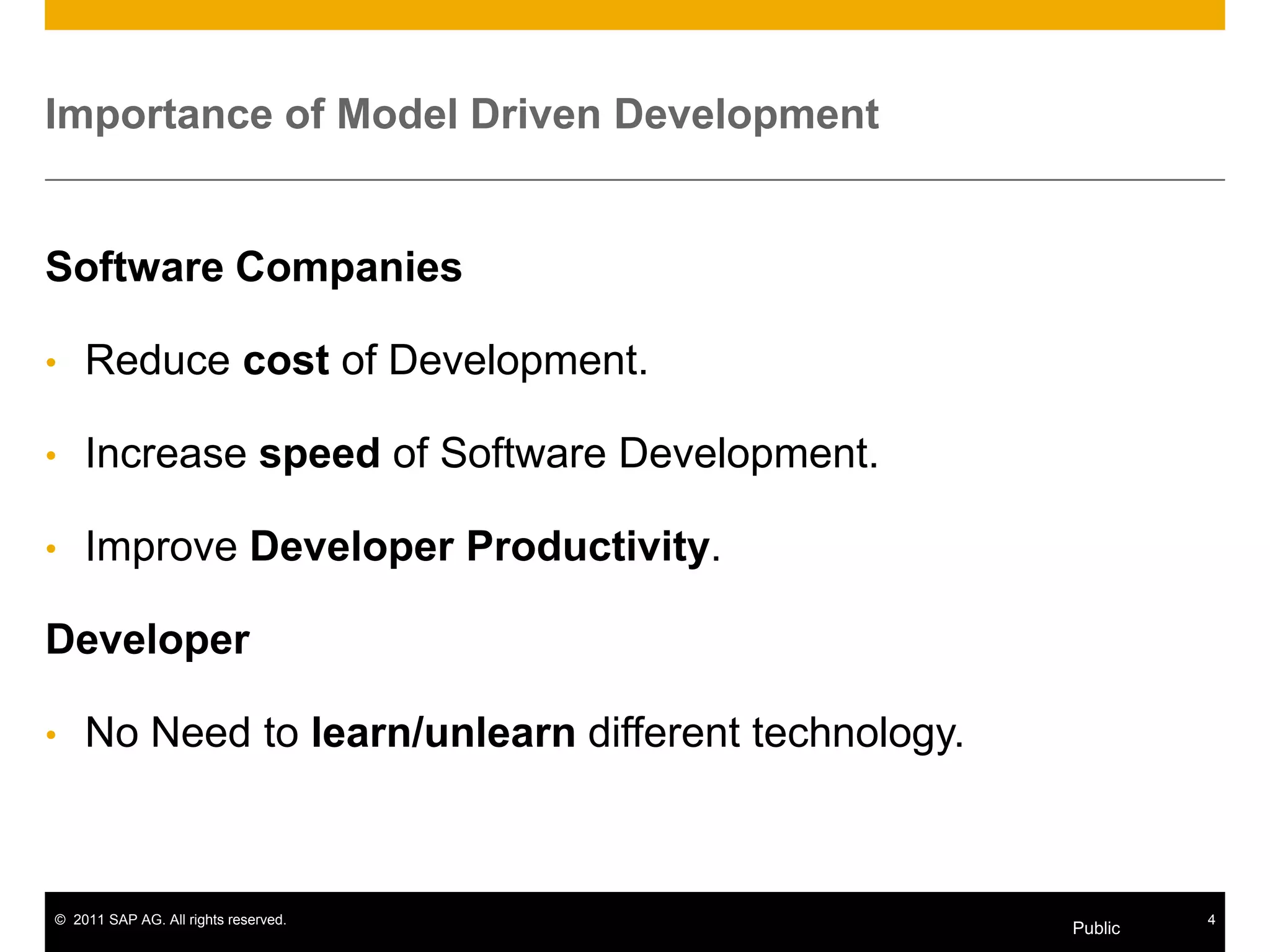

- 4. Importance of ModelDriven Development Software Companies • Reduce cost of Development. • Increase speed of Software Development. • Improve Developer Productivity. Developer • No Need to learn/unlearn different technology. © 2011 SAP AG. All rights reserved. 4 Public
- 5.
- 6. Acceleo An eclipsebased model (e.g. UML2, Ecore, SysML.. ) to text (e.g. code, documentation, tests .. ) transformation tool. (http://www.eclipse.org/acceleo/). Acceleo is the result of several man-years of R&D started in the French company Obeo. Features: 1. Model to Code Generation 2. Low Learning Curve : using the provided example projects and the powerful completion feature of the Acceleo editor, it is very easy to get started and understand the basic principles. 3. Simple Syntax © 2011 SAP AG. All rights reserved. 6 Public
- 7. Acceleo Template [template publicclassToJava(c : Class)] class Employee class [c.name/] { { // Constructor // Constructor Employee () [c.name/]() { { } } } } [/template] © 2011 SAP AG. All rights reserved. 7 Public

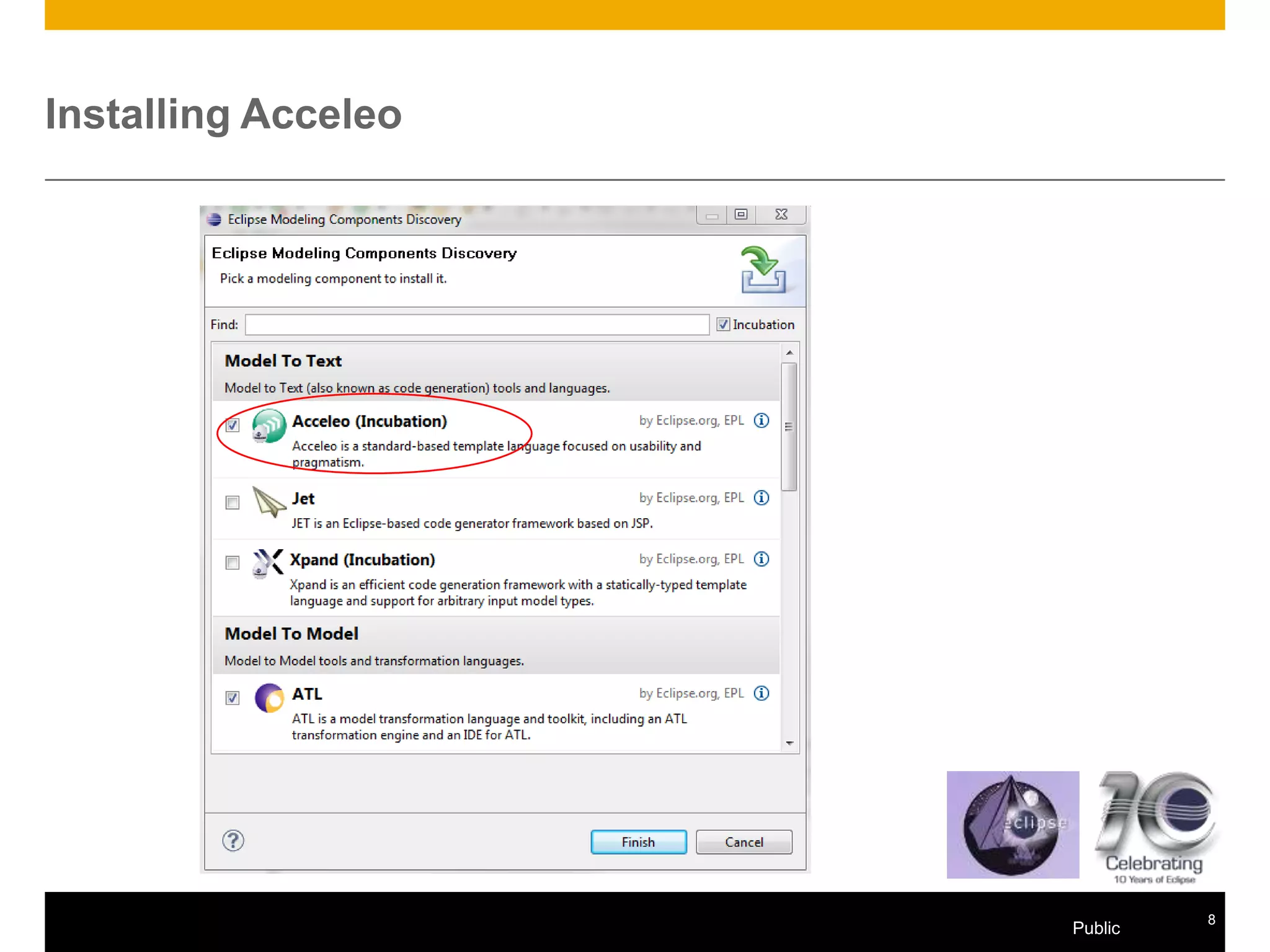

- 8. Installing Acceleo © 2011SAP AG. All rights reserved. 8 Public
- 9.

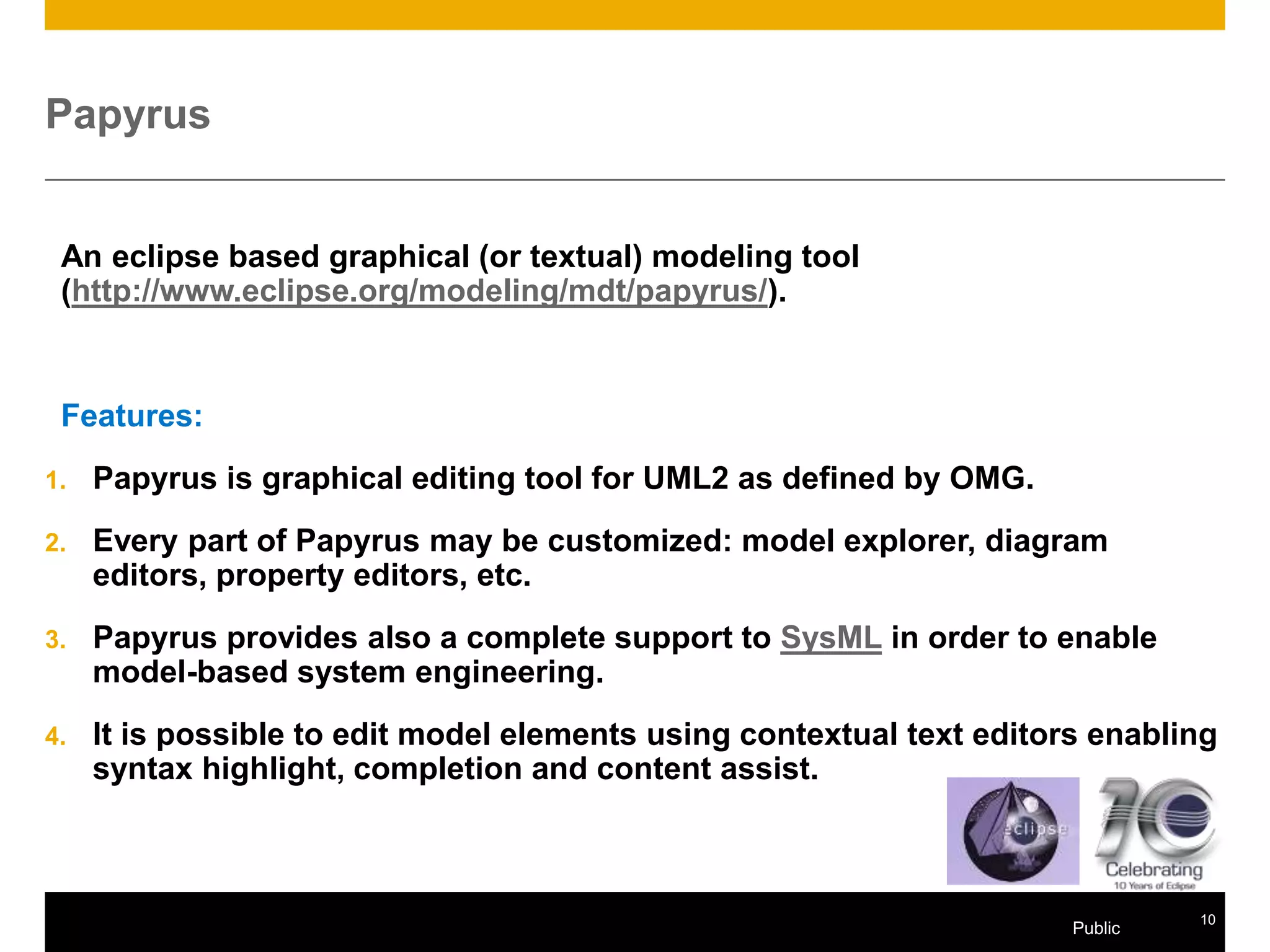

- 10. Papyrus An eclipsebased graphical (or textual) modeling tool (http://www.eclipse.org/modeling/mdt/papyrus/). Features: 1. Papyrus is graphical editing tool for UML2 as defined by OMG. 2. Every part of Papyrus may be customized: model explorer, diagram editors, property editors, etc. 3. Papyrus provides also a complete support to SysML in order to enable model-based system engineering. 4. It is possible to edit model elements using contextual text editors enabling syntax highlight, completion and content assist. © 2011 SAP AG. All rights reserved. 10 Public

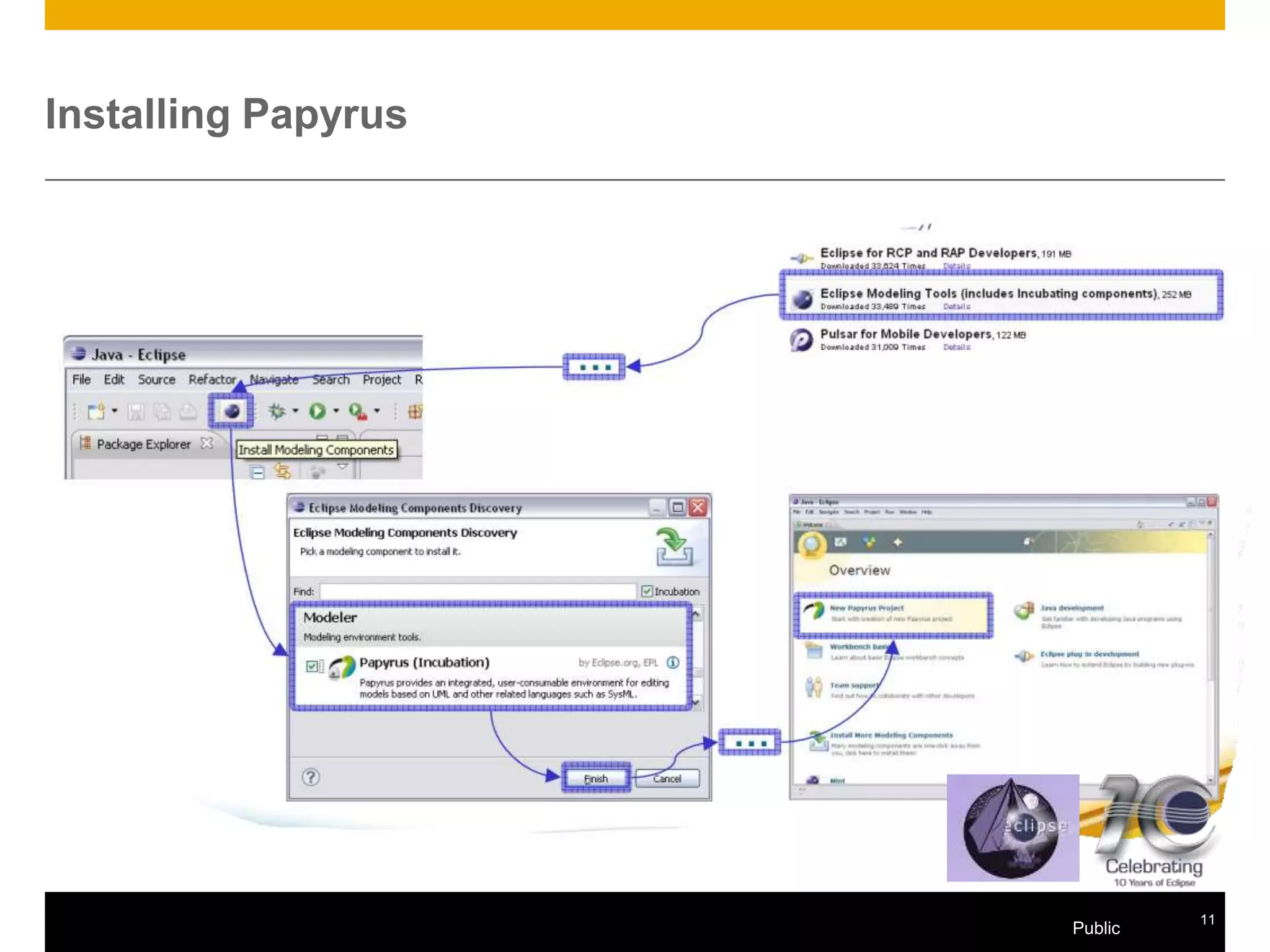

- 11. Installing Papyrus © 2011SAP AG. All rights reserved. 11 Public
- 12. Thank You! Contact information: TarunTelang tarun.telang@gmail.com
