By Li Jin PyData New York City 2017 Apache Spark has become a popular and successful way for Python programming to parallelize and scale up data processing. However, it's not well integrated with popular Python tools such as Pandas, and often result in poor performance when using Pandas with PySpark. In this talk, we will demonstrate how we improve PySpark performance with Apache Arrow.

1. Improving Pandas and
PySpark interoperability
with Apache Arrow
Li Jin
PyData NYC
November 2017

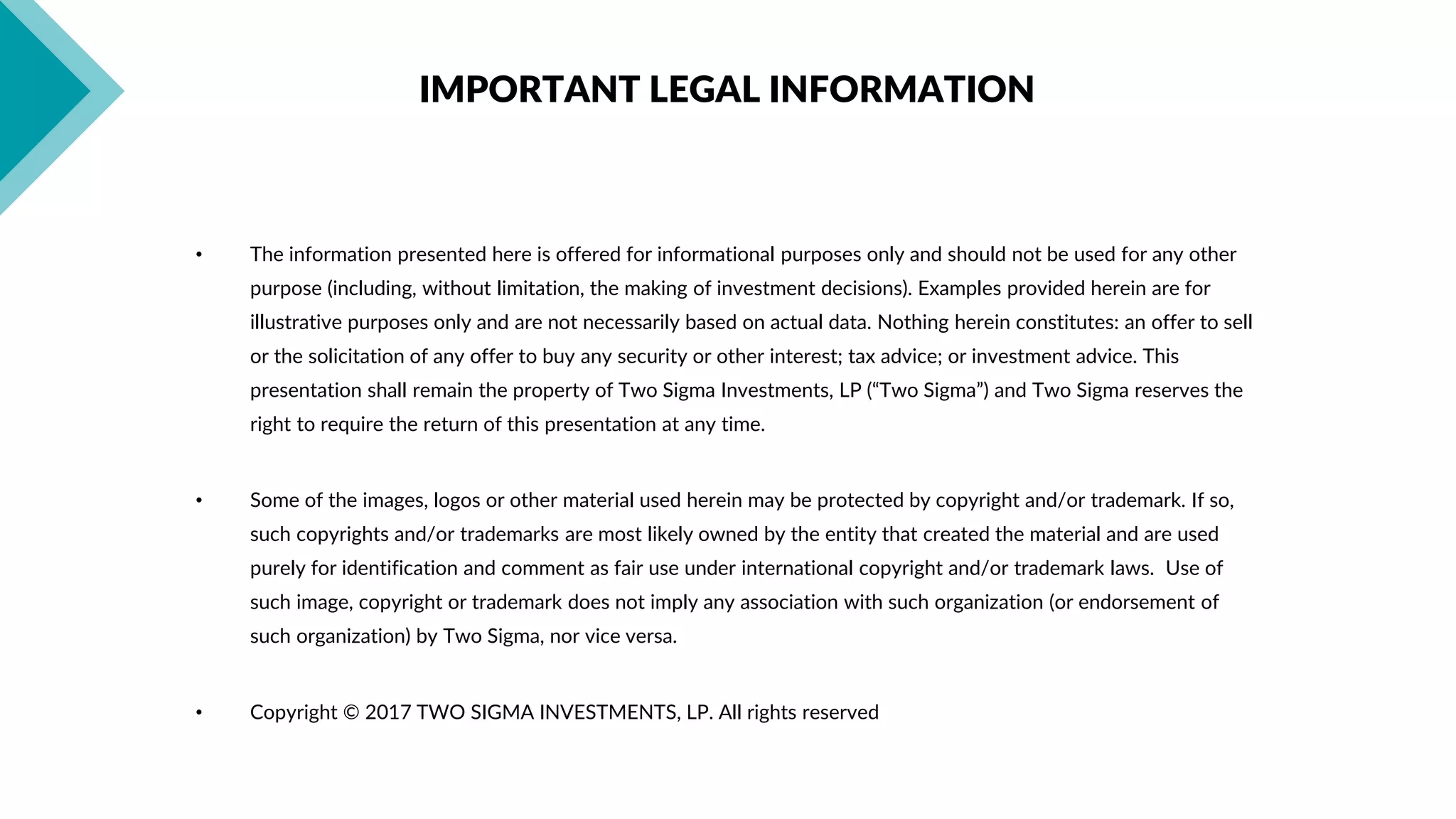

2. • The information presented here is offered for informational purposes only and should not be used for any other
purpose (including, without limitation, the making of investment decisions). Examples provided herein are for
illustrative purposes only and are not necessarily based on actual data. Nothing herein constitutes: an offer to sell
or the solicitation of any offer to buy any security or other interest; tax advice; or investment advice. This
presentation shall remain the property of Two Sigma Investments, LP (“Two Sigma”) and Two Sigma reserves the
right to require the return of this presentation at any time.
• Some of the images, logos or other material used herein may be protected by copyright and/or trademark. If so,
such copyrights and/or trademarks are most likely owned by the entity that created the material and are used
purely for identification and comment as fair use under international copyright and/or trademark laws. Use of
such image, copyright or trademark does not imply any association with such organization (or endorsement of
such organization) by Two Sigma, nor vice versa.
• Copyright © 2017 TWO SIGMA INVESTMENTS, LP. All rights reserved
IMPORTANT LEGAL INFORMATION

3. About Me
3
• Li Jin (@icexelloss)
• Software Engineer @ Two Sigma Investments
• Apache Arrow Committer
• Analytics Tools Smith
• Other Open Source Projects:
• Flint: A Time Series Library on Spark
• Cook: A Fair Scheduler on Mesos

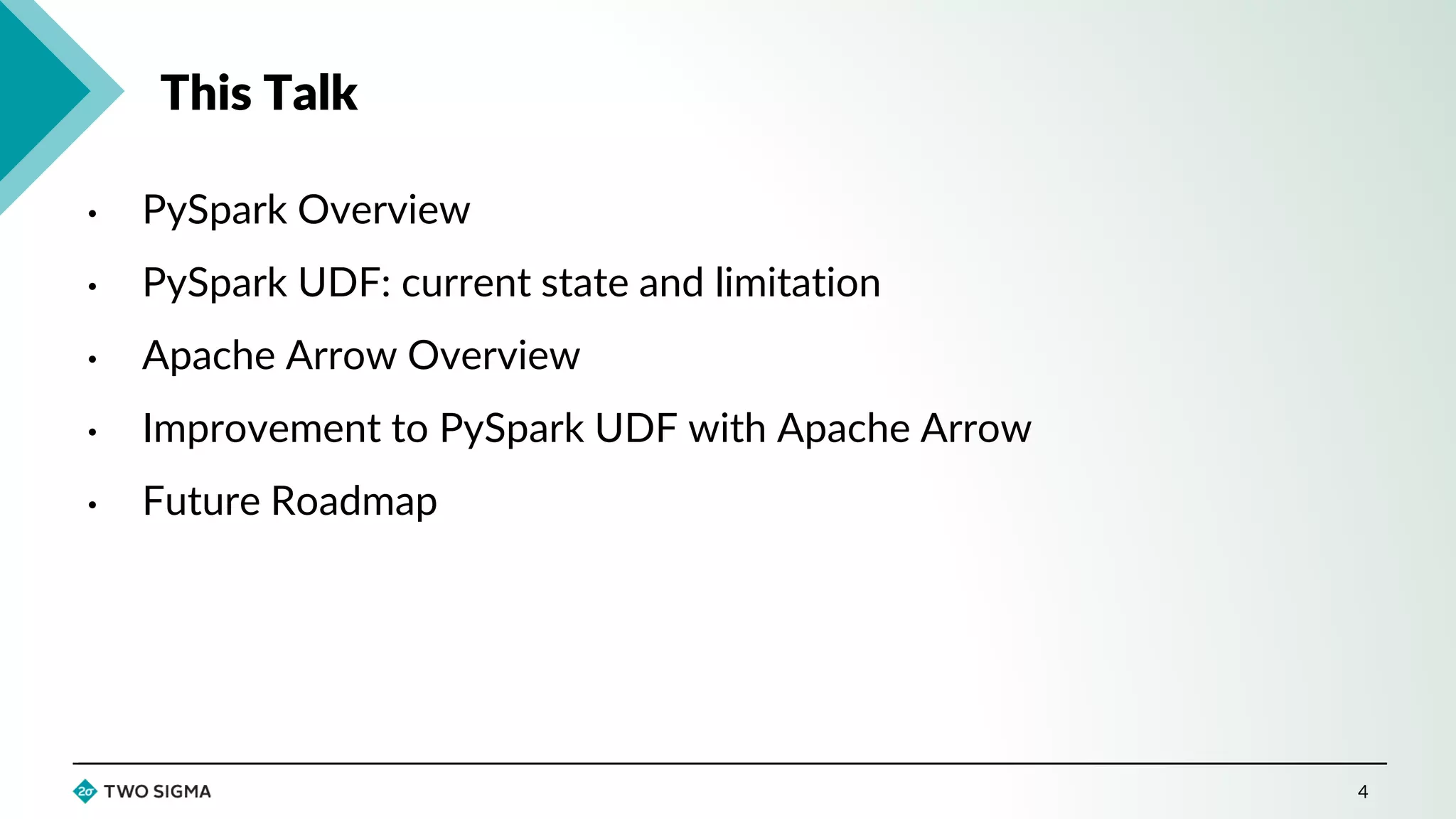

4. • PySpark Overview
• PySpark UDF: current state and limitation
• Apache Arrow Overview
• Improvement to PySpark UDF with Apache Arrow
• Future Roadmap
This Talk
4

5. PySpark Overview
5

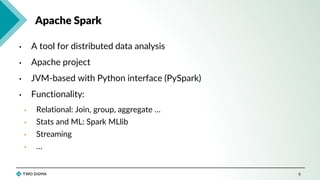

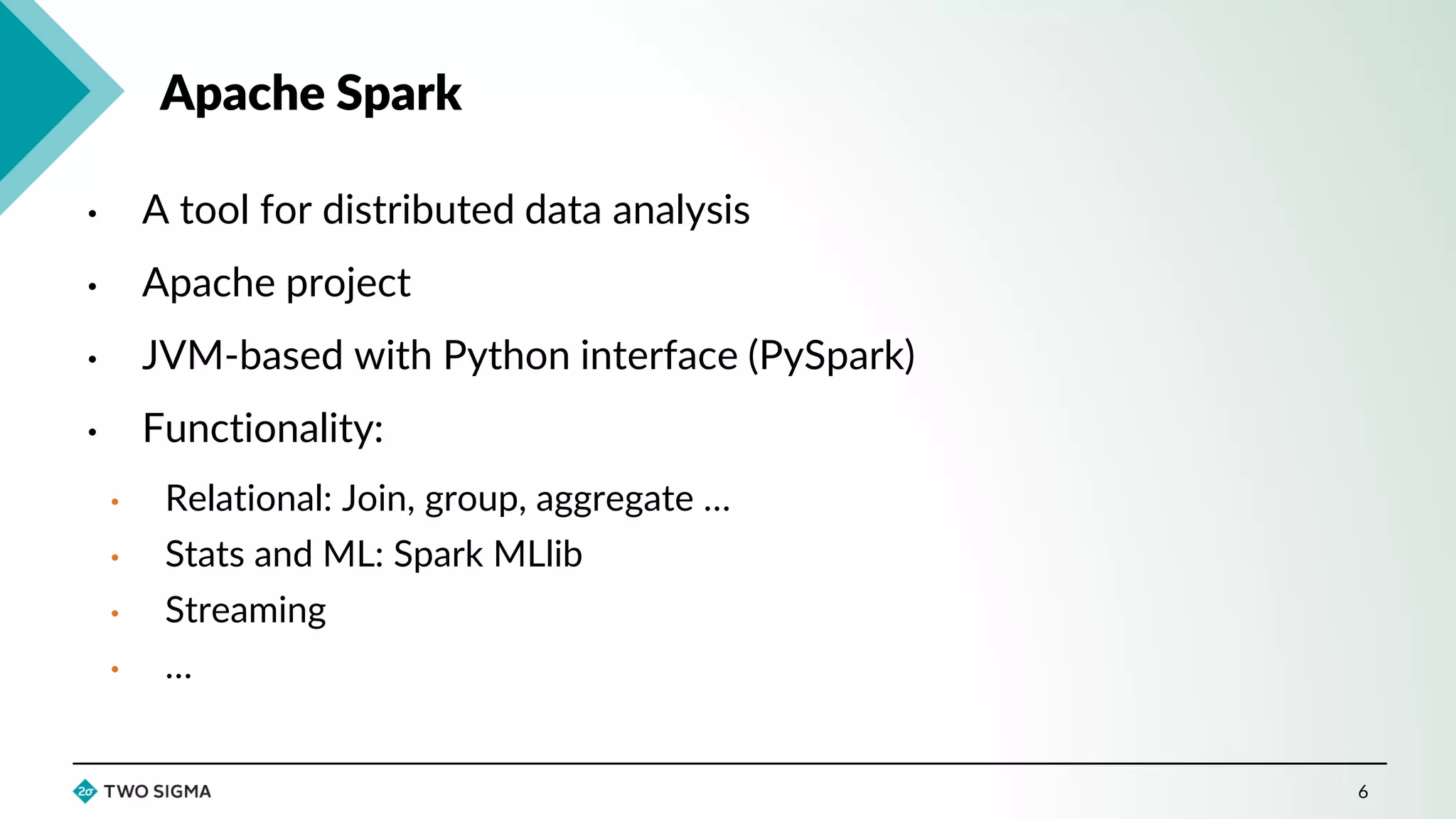

6. • A tool for distributed data analysis
• Apache project
• JVM-based with Python interface (PySpark)
• Functionality:
• Relational: Join, group, aggregate …
• Stats and ML: Spark MLlib
• Streaming
• …
Apache Spark
6

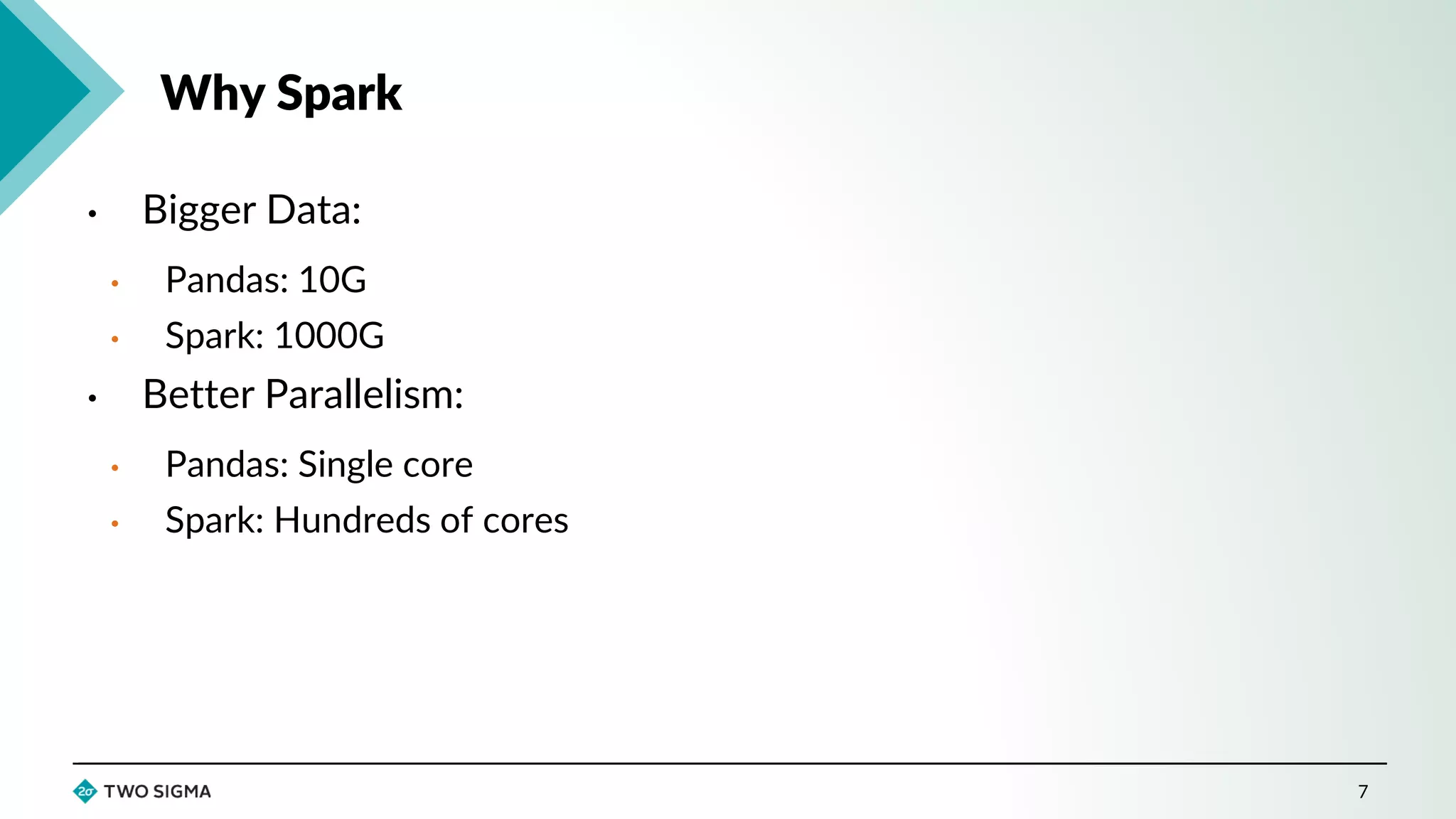

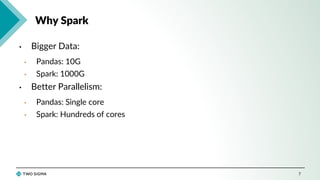

7. • Bigger Data:
• Pandas: 10G
• Spark: 1000G
• Better Parallelism:
• Pandas: Single core
• Spark: Hundreds of cores
Why Spark
7

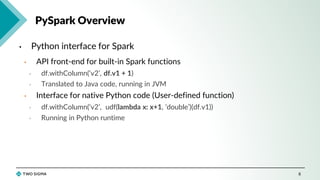

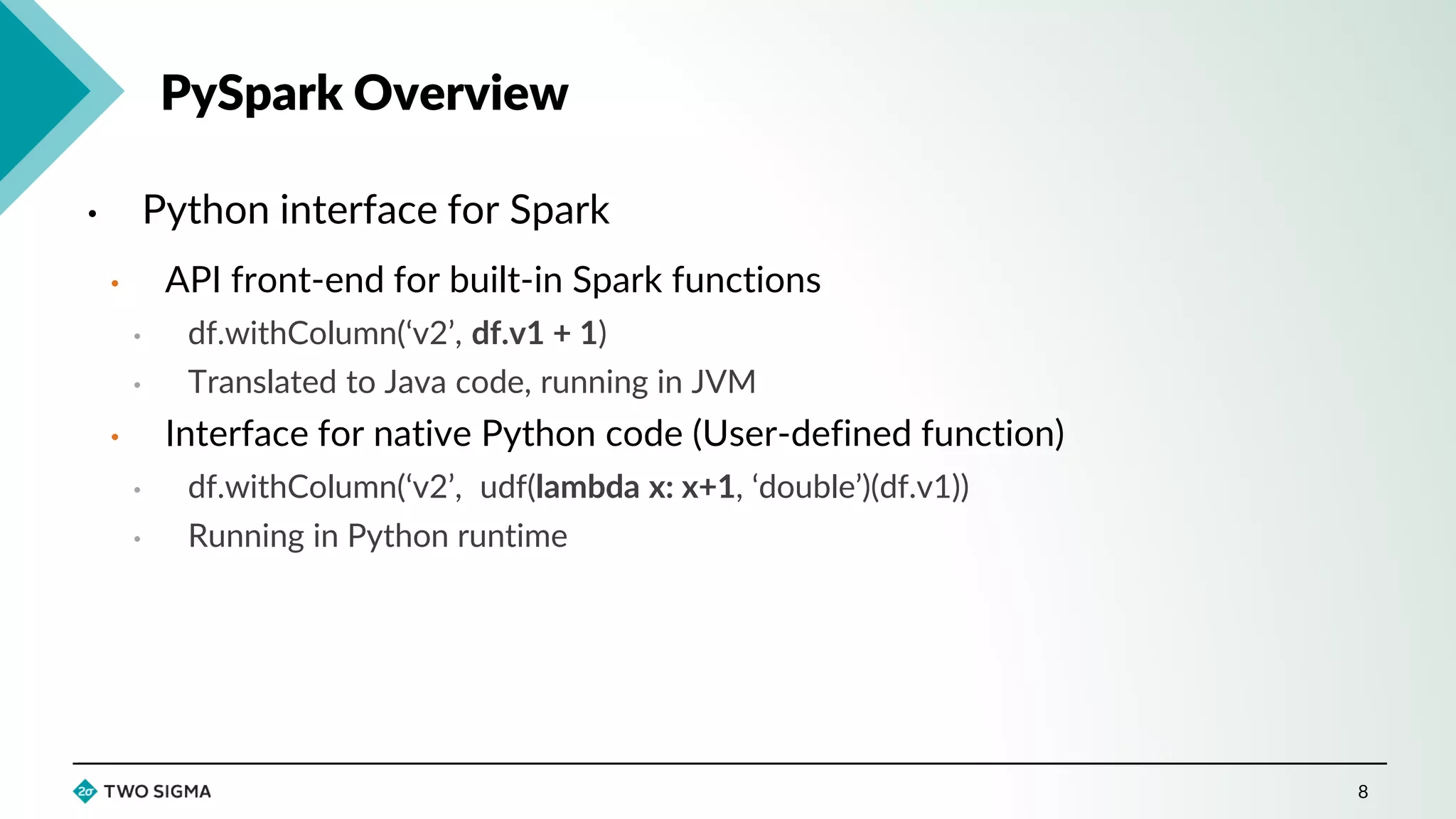

8. • Python interface for Spark
• API front-end for built-in Spark functions
• df.withColumn(‘v2’, df.v1 + 1)
• Translated to Java code, running in JVM
• Interface for native Python code (User-defined function)
• df.withColumn(‘v2’, udf(lambda x: x+1, ‘double’)(df.v1))
• Running in Python runtime
PySpark Overview
8

9. PySpark UDF:
Current state and
limitation
9

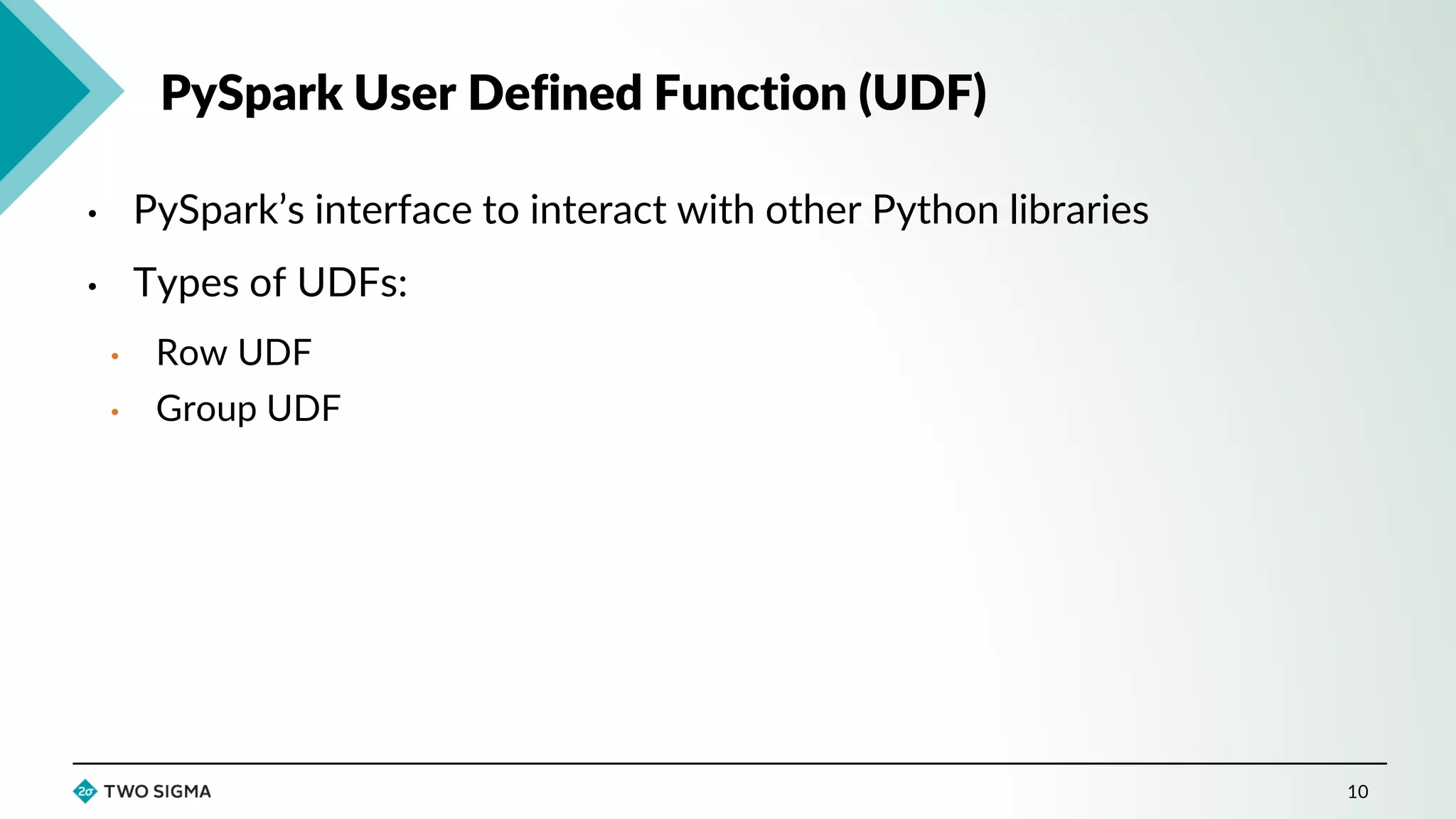

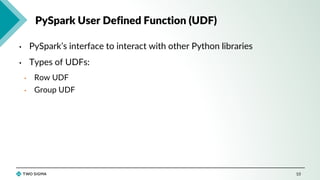

10. • PySpark’s interface to interact with other Python libraries
• Types of UDFs:
• Row UDF
• Group UDF
PySpark User Defined Function (UDF)
10

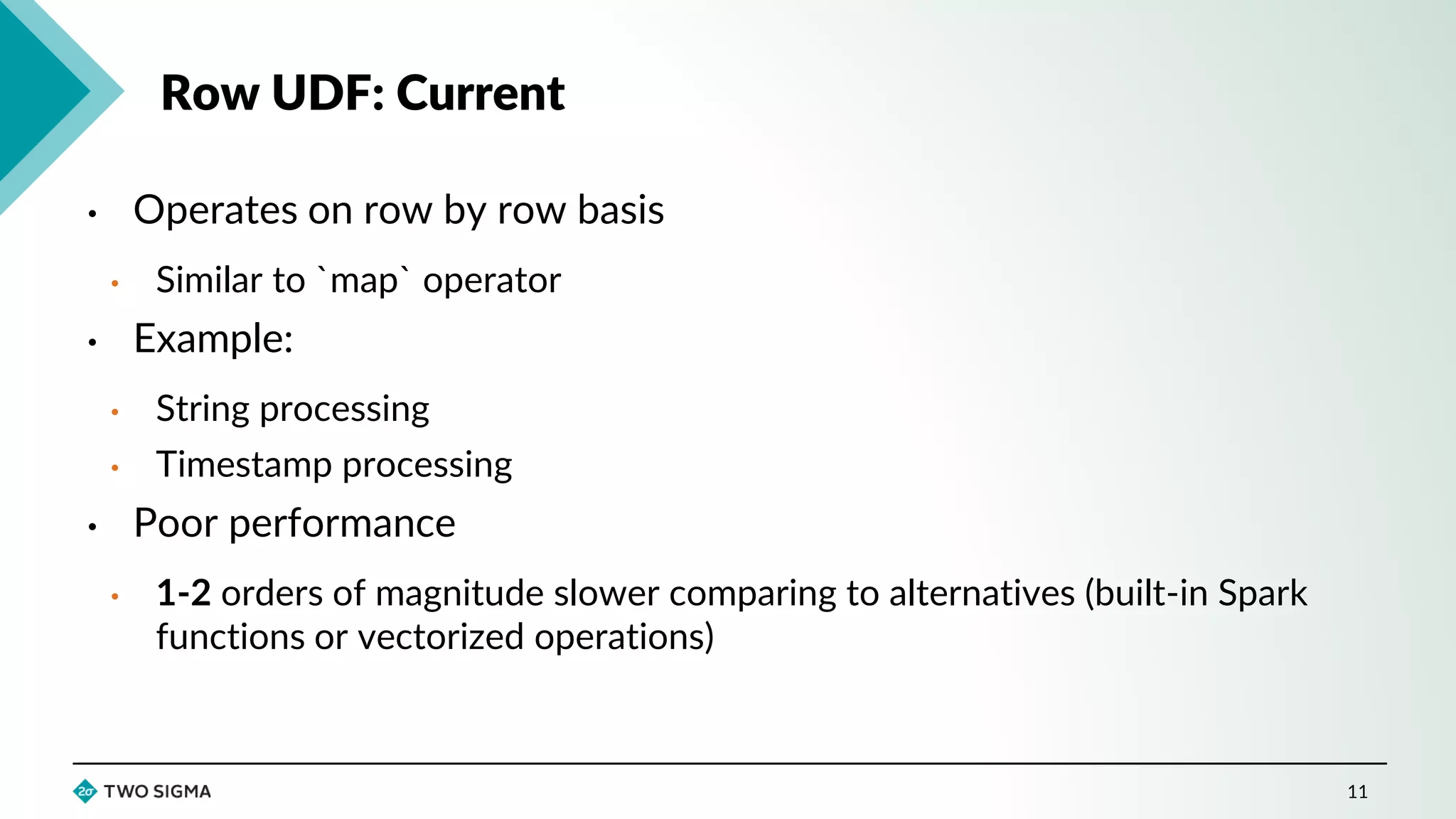

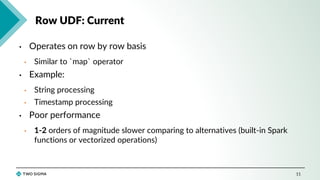

11. • Operates on row by row basis
• Similar to `map` operator
• Example:
• String processing
• Timestamp processing
• Poor performance
• 1-2 orders of magnitude slower comparing to alternatives (built-in Spark
functions or vectorized operations)
Row UDF: Current
11

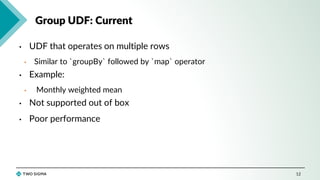

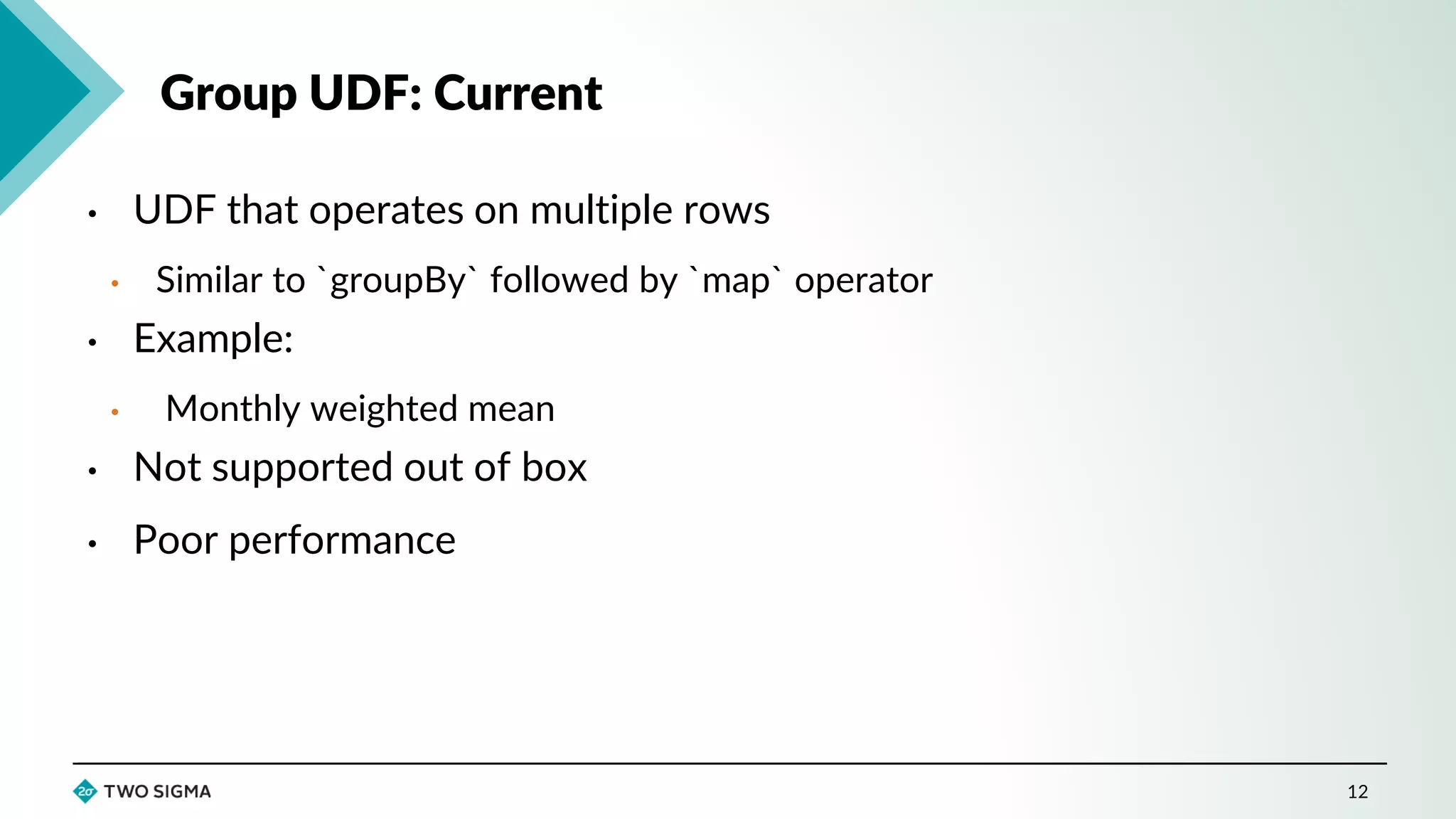

12. • UDF that operates on multiple rows
• Similar to `groupBy` followed by `map` operator
• Example:
• Monthly weighted mean
• Not supported out of box
• Poor performance
Group UDF: Current
12

13. • (values – values.mean()) / values.std()
Group UDF: Example
13

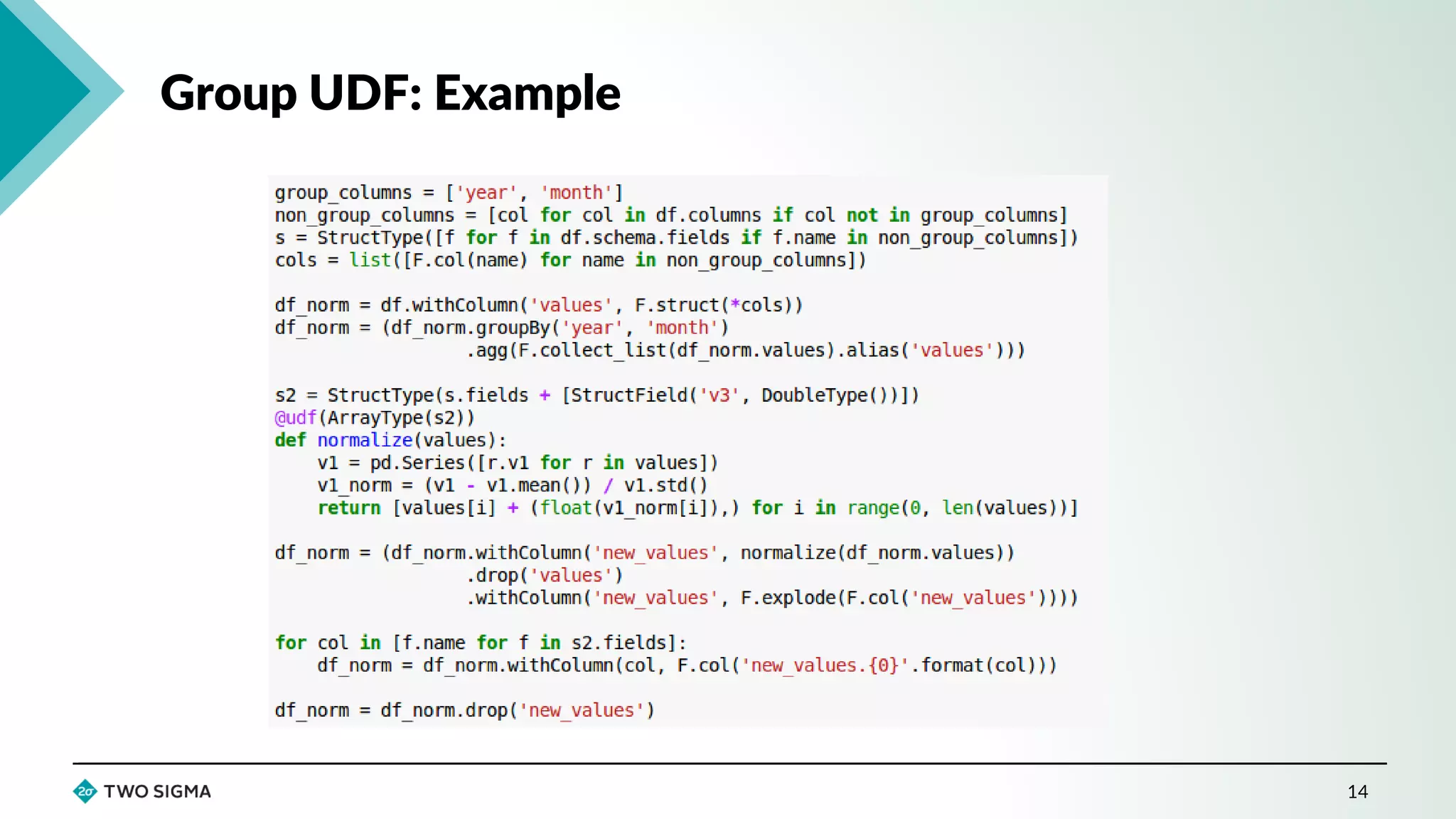

14. Group UDF: Example
14

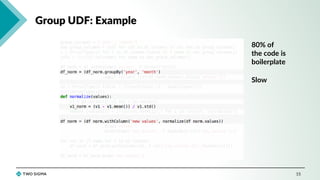

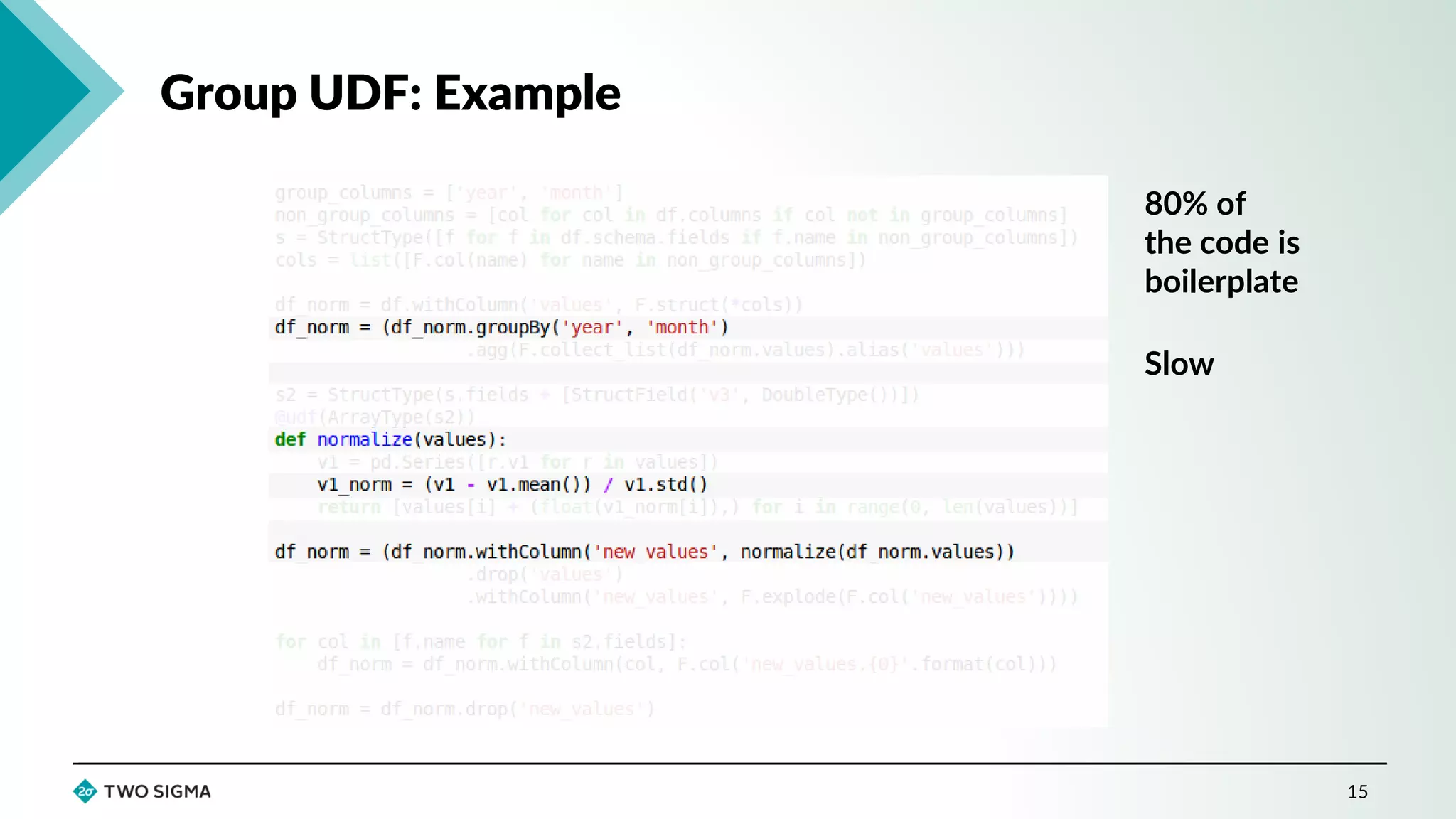

15. Group UDF: Example
15
80% of
the code is
boilerplate
Slow

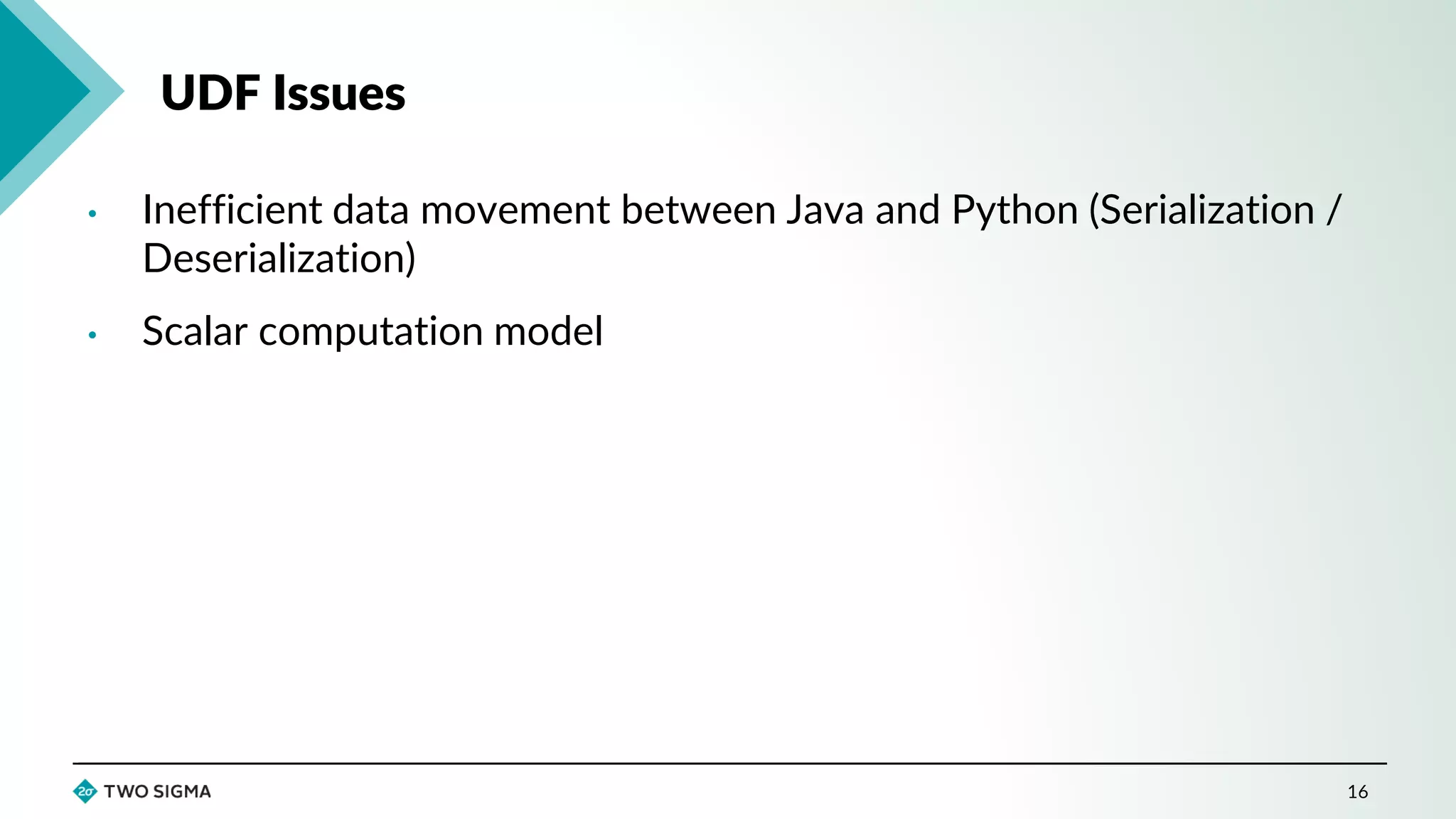

16. • Inefficient data movement between Java and Python (Serialization /
Deserialization)
• Scalar computation model
UDF Issues
16

17. Apache Arrow
17

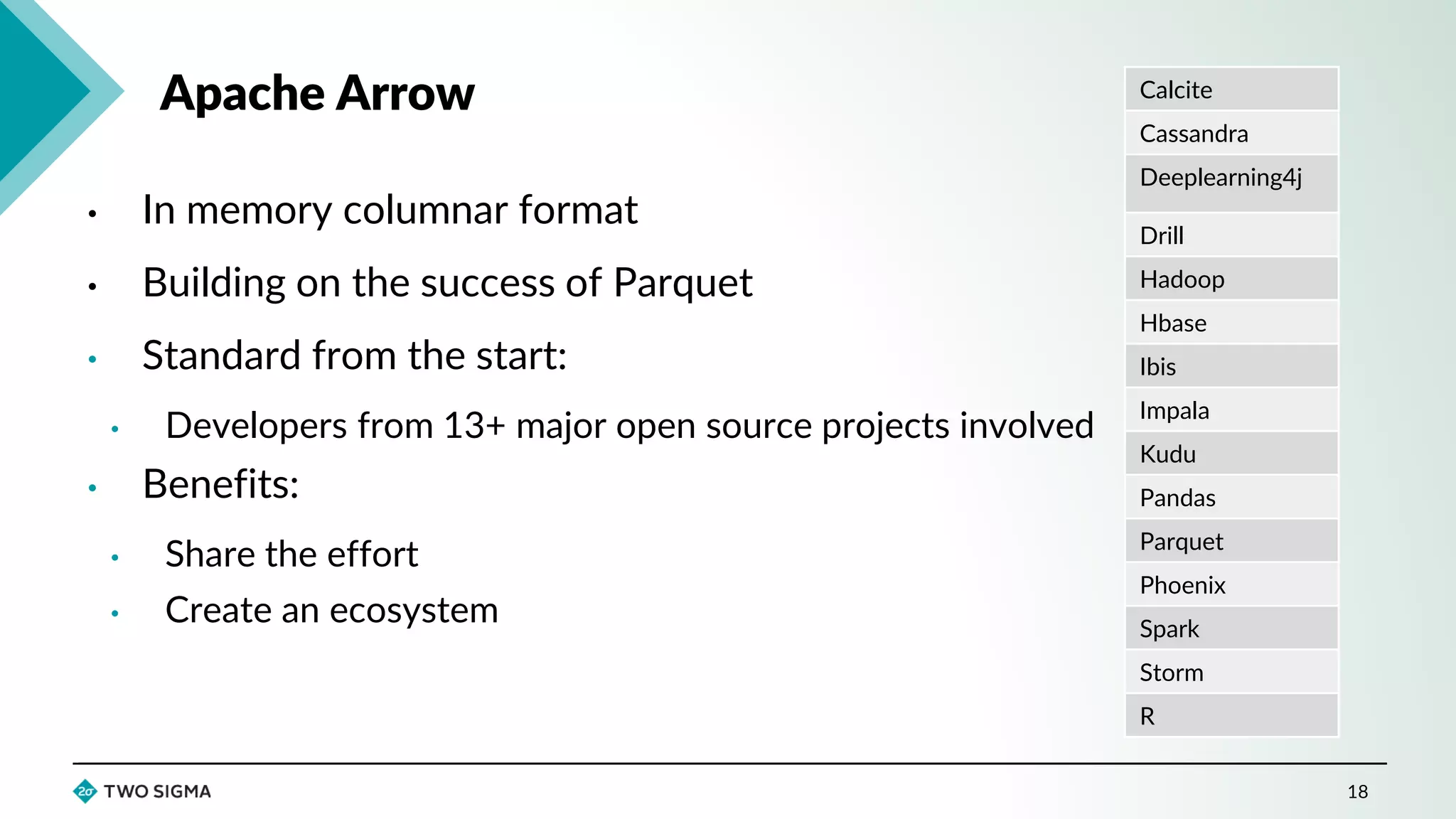

18. • In memory columnar format
• Building on the success of Parquet
• Standard from the start:
• Developers from 13+ major open source projects involved
• Benefits:
• Share the effort
• Create an ecosystem
Apache Arrow
18
Calcite
Cassandra
Deeplearning4j
Drill
Hadoop
Hbase
Ibis
Impala
Kudu
Pandas
Parquet
Phoenix
Spark
Storm
R

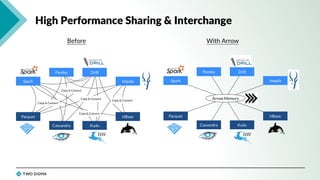

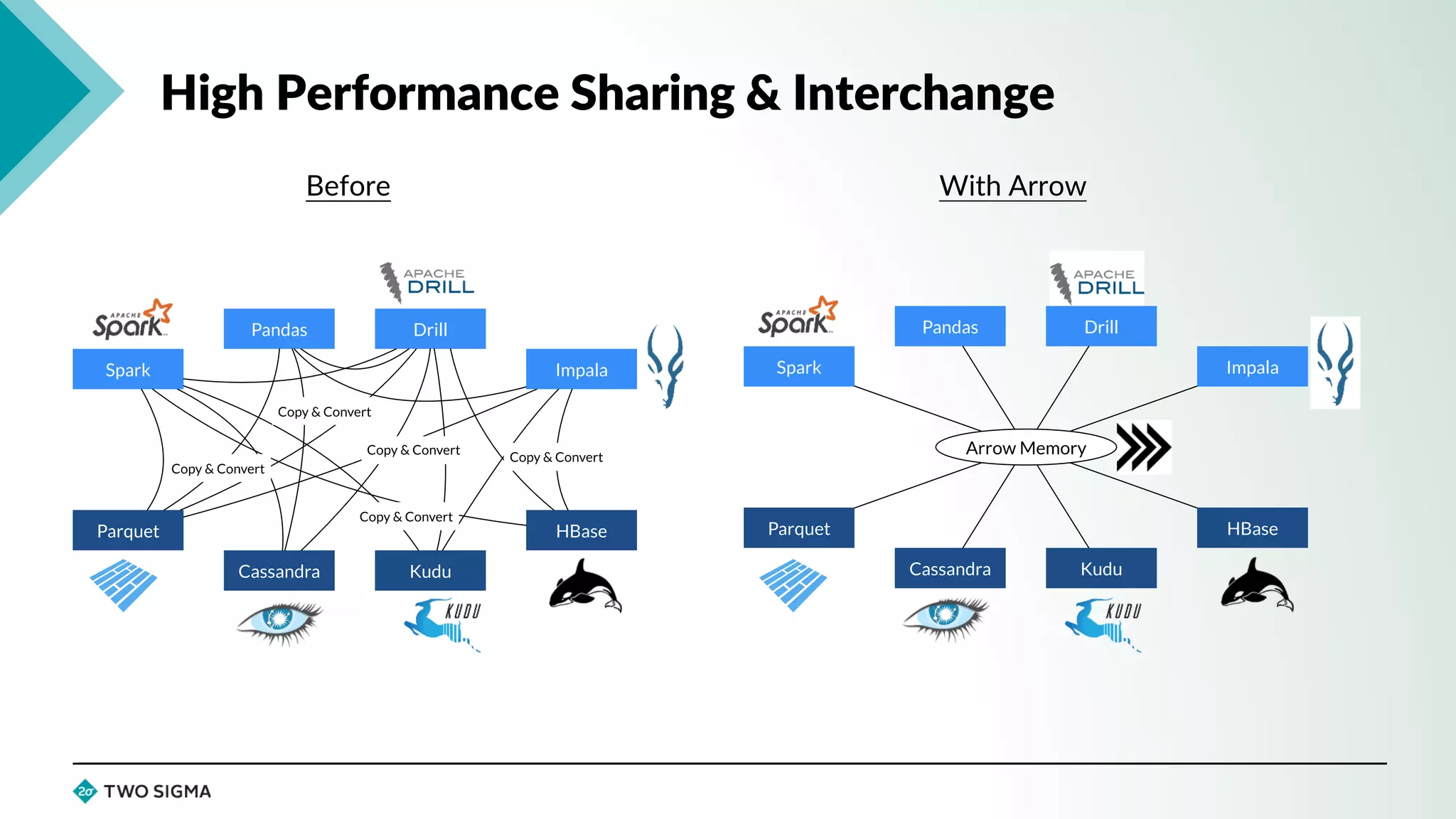

19. High Performance Sharing & Interchange
Before With Arrow

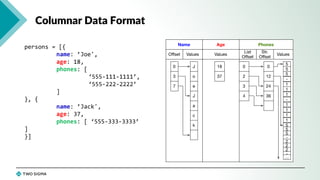

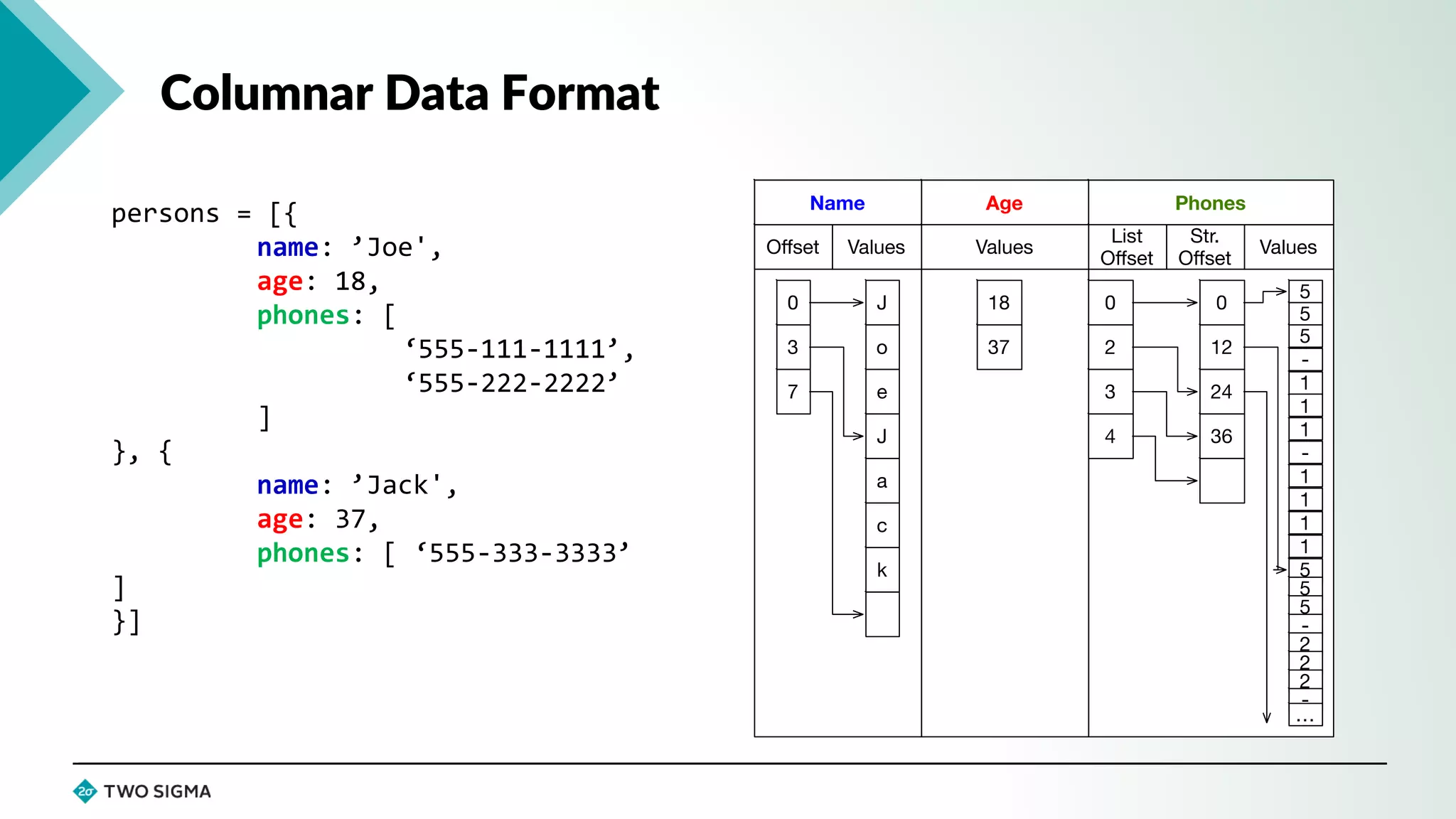

20. Columnar Data Format
persons = [{
name: ’Joe',
age: 18,
phones: [
‘555-111-1111’,
‘555-222-2222’
]
}, {
name: ’Jack',
age: 37,
phones: [ ‘555-333-3333’
]
}]

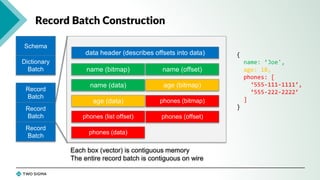

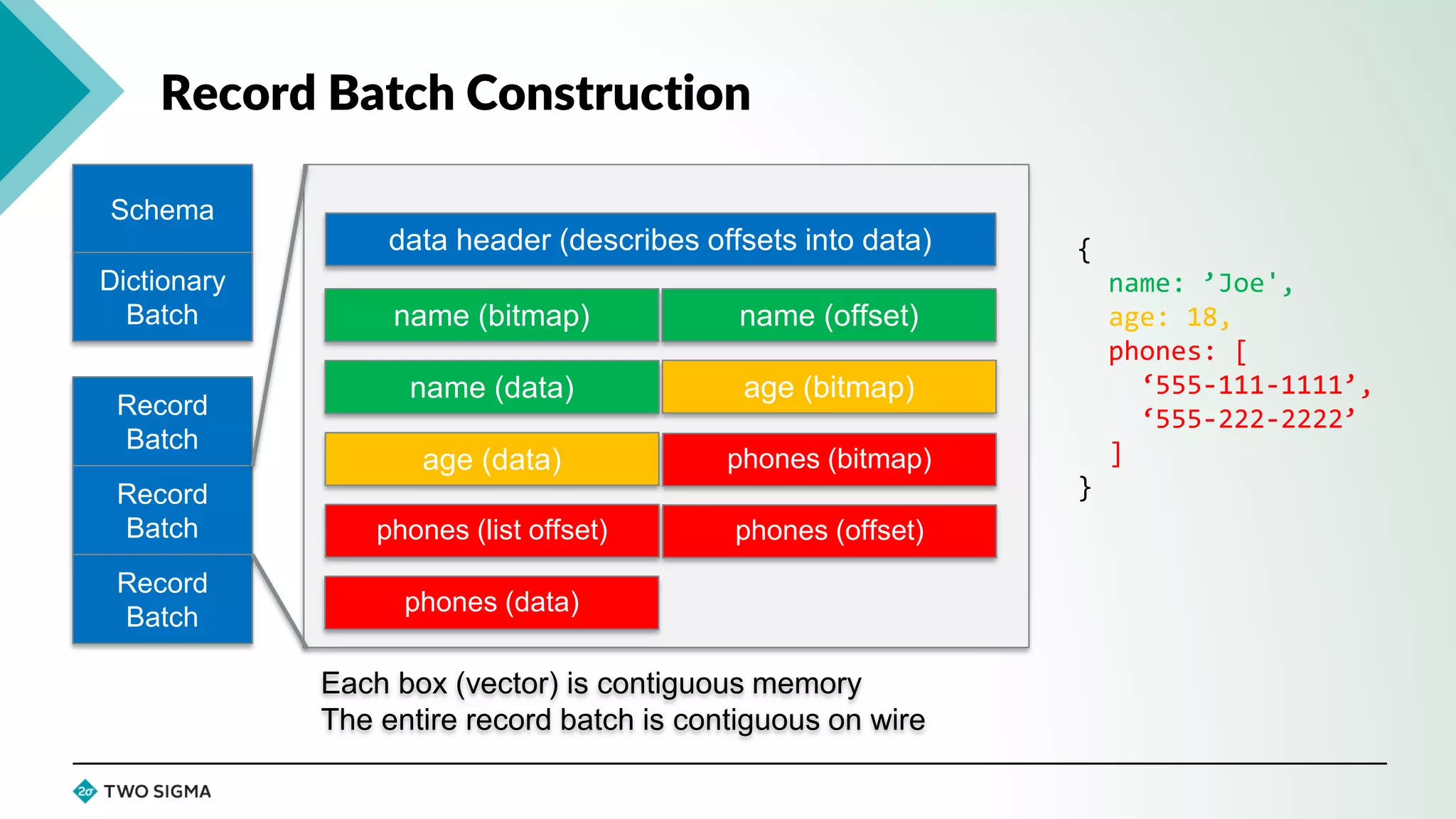

21. Record Batch Construction
Schema
Dictionary
Batch
Record
Batch
Record
Batch
Record
Batch
name (offset)
name (data)
age (data)
phones (list offset)
phones (data)
data header (describes offsets into data)
name (bitmap)
age (bitmap)
phones (bitmap)
phones (offset)
{
name: ’Joe',
age: 18,
phones: [
‘555-111-1111’,
‘555-222-2222’
]
}
Each box (vector) is contiguous memory
The entire record batch is contiguous on wire

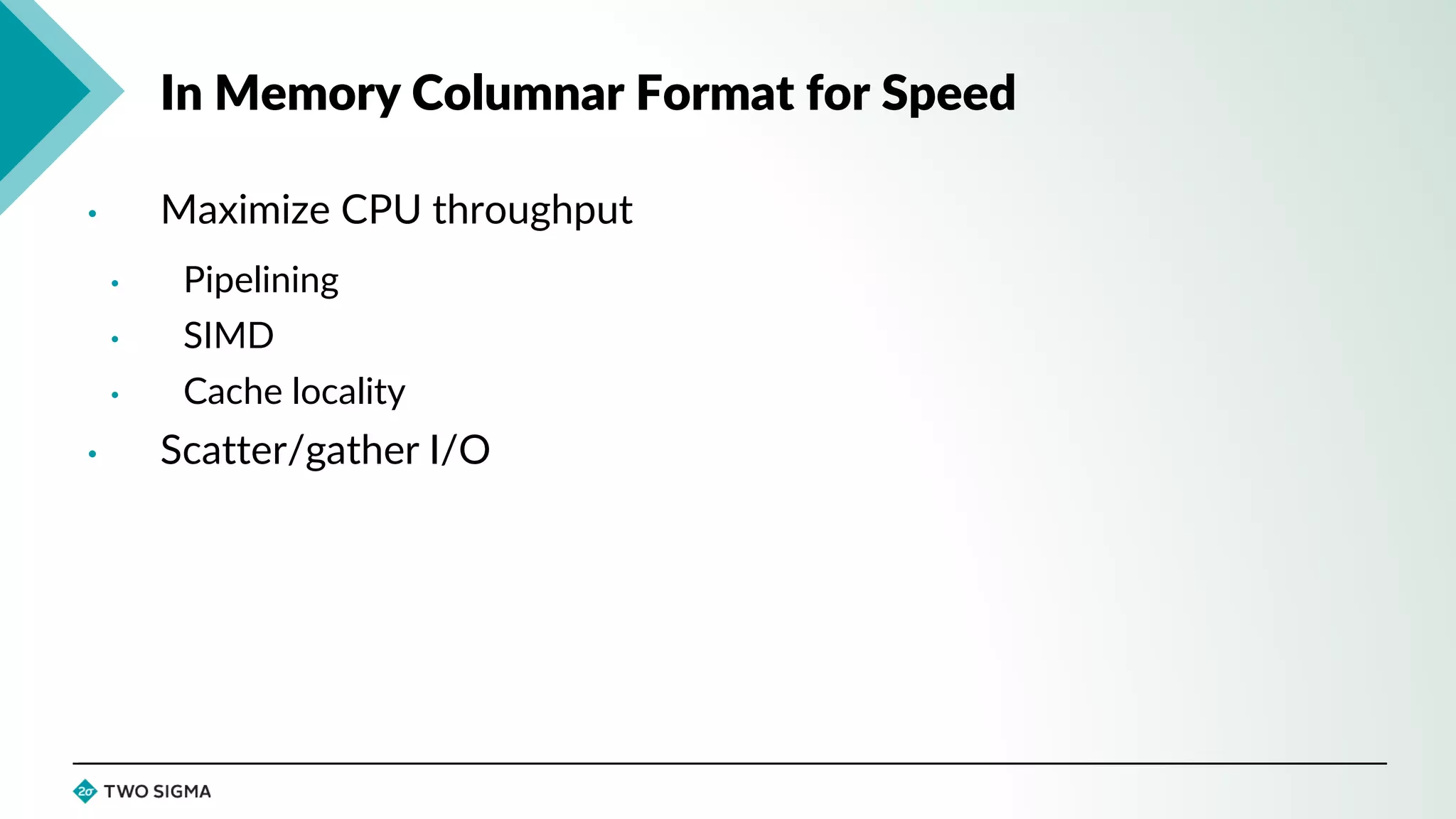

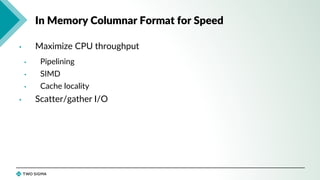

22. • Maximize CPU throughput
• Pipelining
• SIMD
• Cache locality
• Scatter/gather I/O
In Memory Columnar Format for Speed

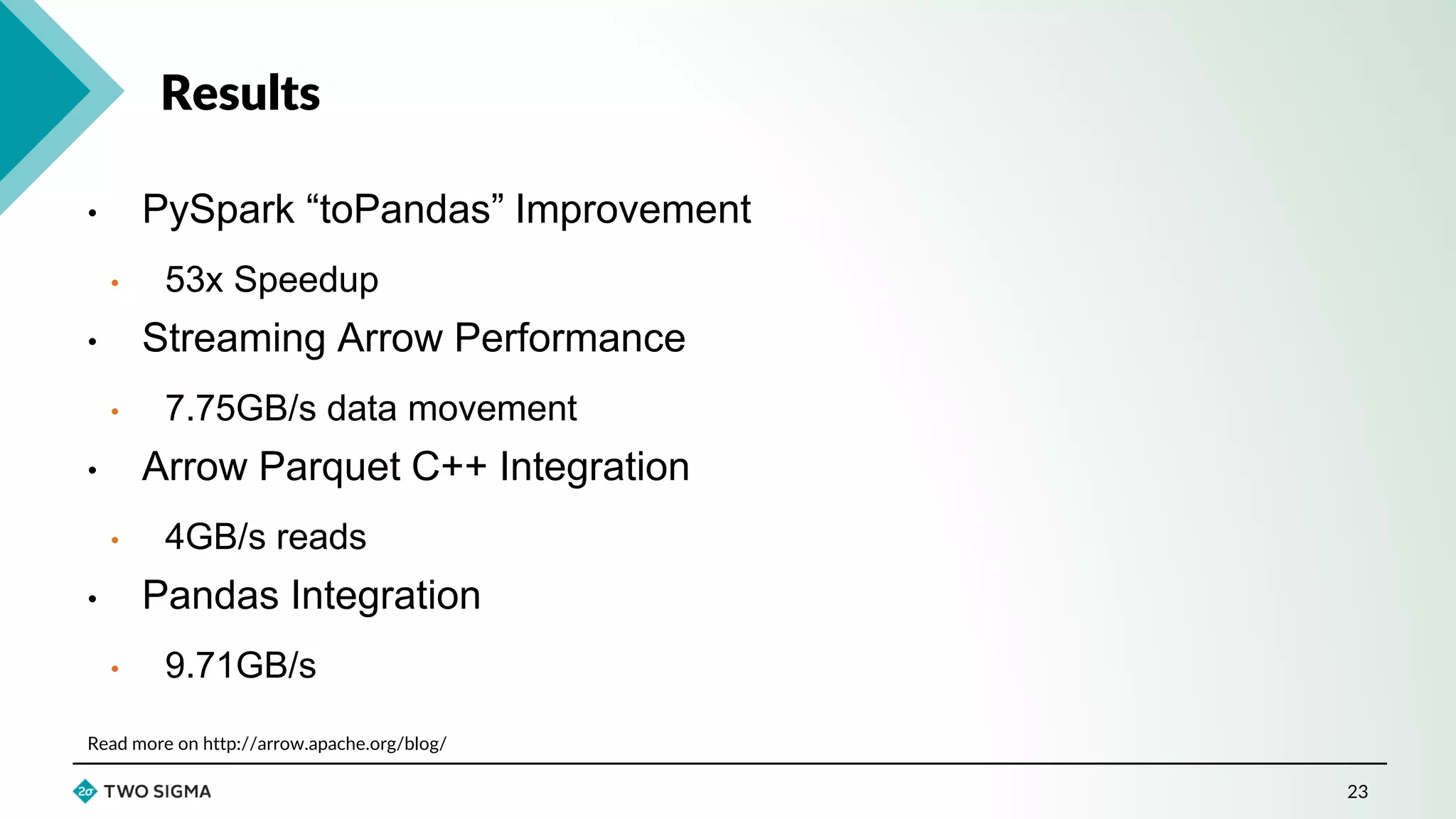

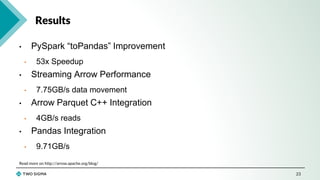

23. • PySpark “toPandas” Improvement
• 53x Speedup
• Streaming Arrow Performance
• 7.75GB/s data movement
• Arrow Parquet C++ Integration
• 4GB/s reads
• Pandas Integration
• 9.71GB/s
Results
Read more on http://arrow.apache.org/blog/
23

24. Improving PySpark
UDF
24

25. Vectorizing Row
UDF
25

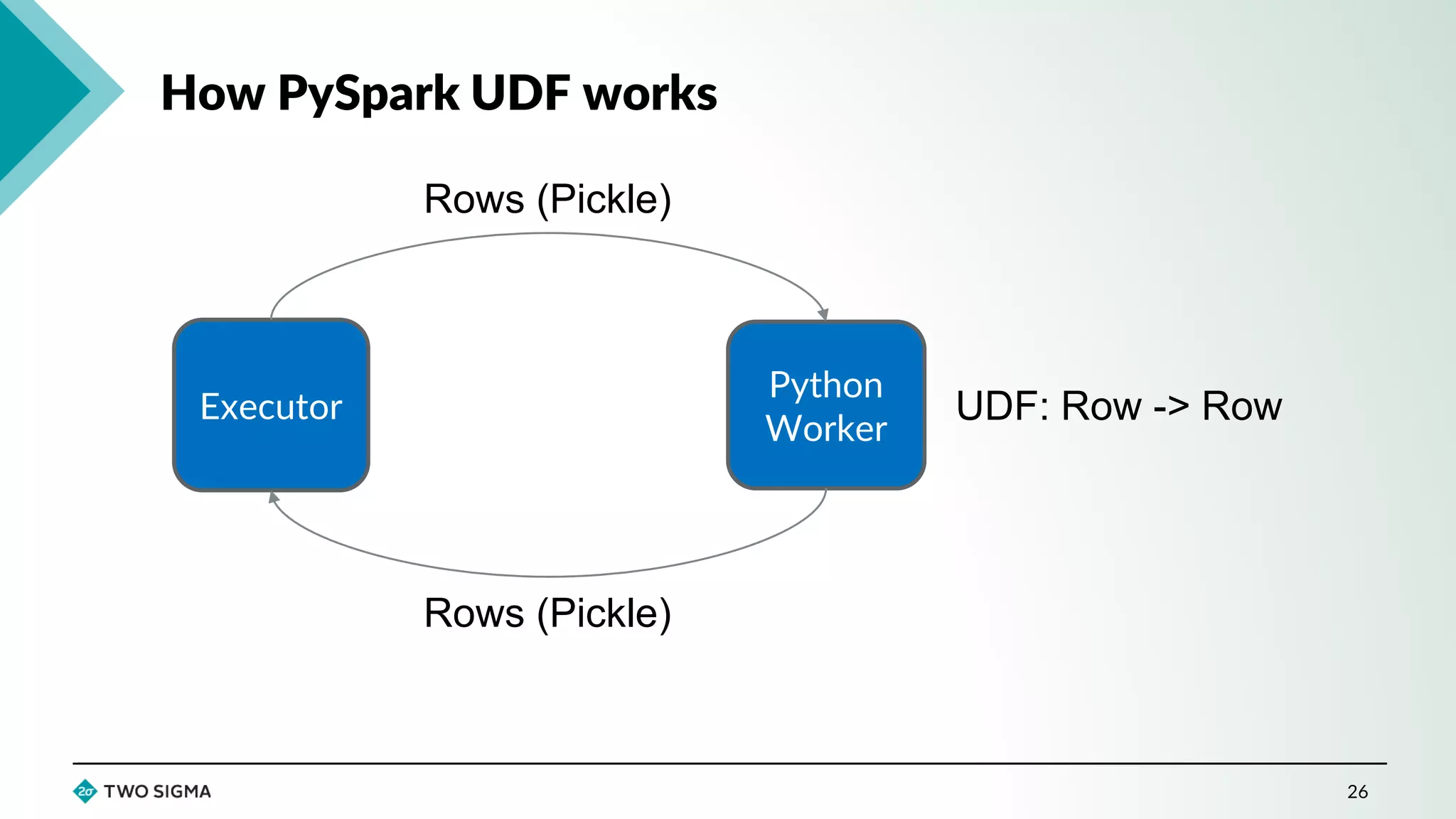

26. How PySpark UDF works
26
Executor
Python
Worker
UDF: Row -> Row
Rows (Pickle)
Rows (Pickle)

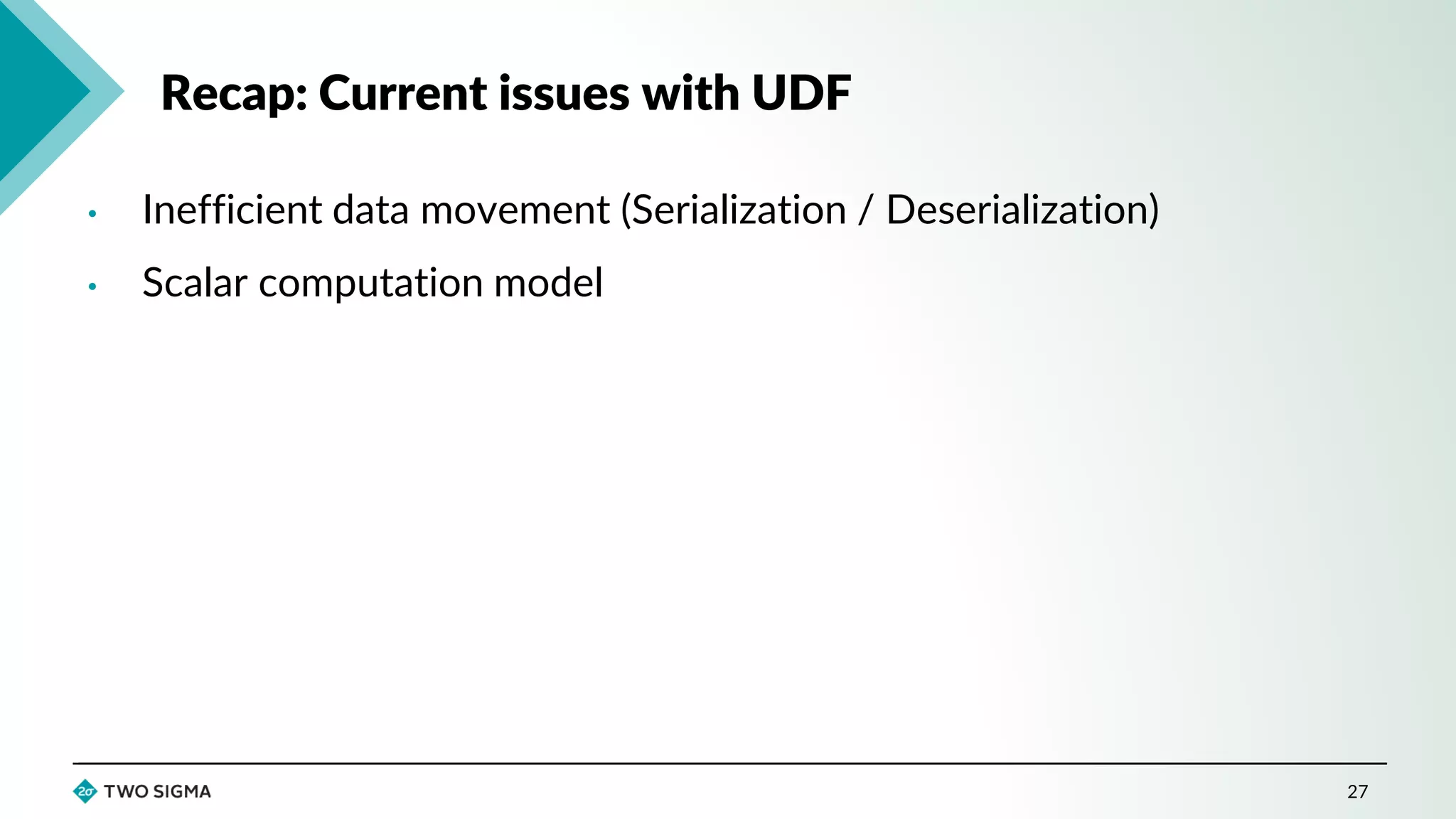

27. • Inefficient data movement (Serialization / Deserialization)
• Scalar computation model
Recap: Current issues with UDF
27

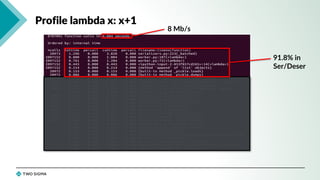

28. Profile lambda x: x+1
8 Mb/s
91.8% in
Ser/Deser

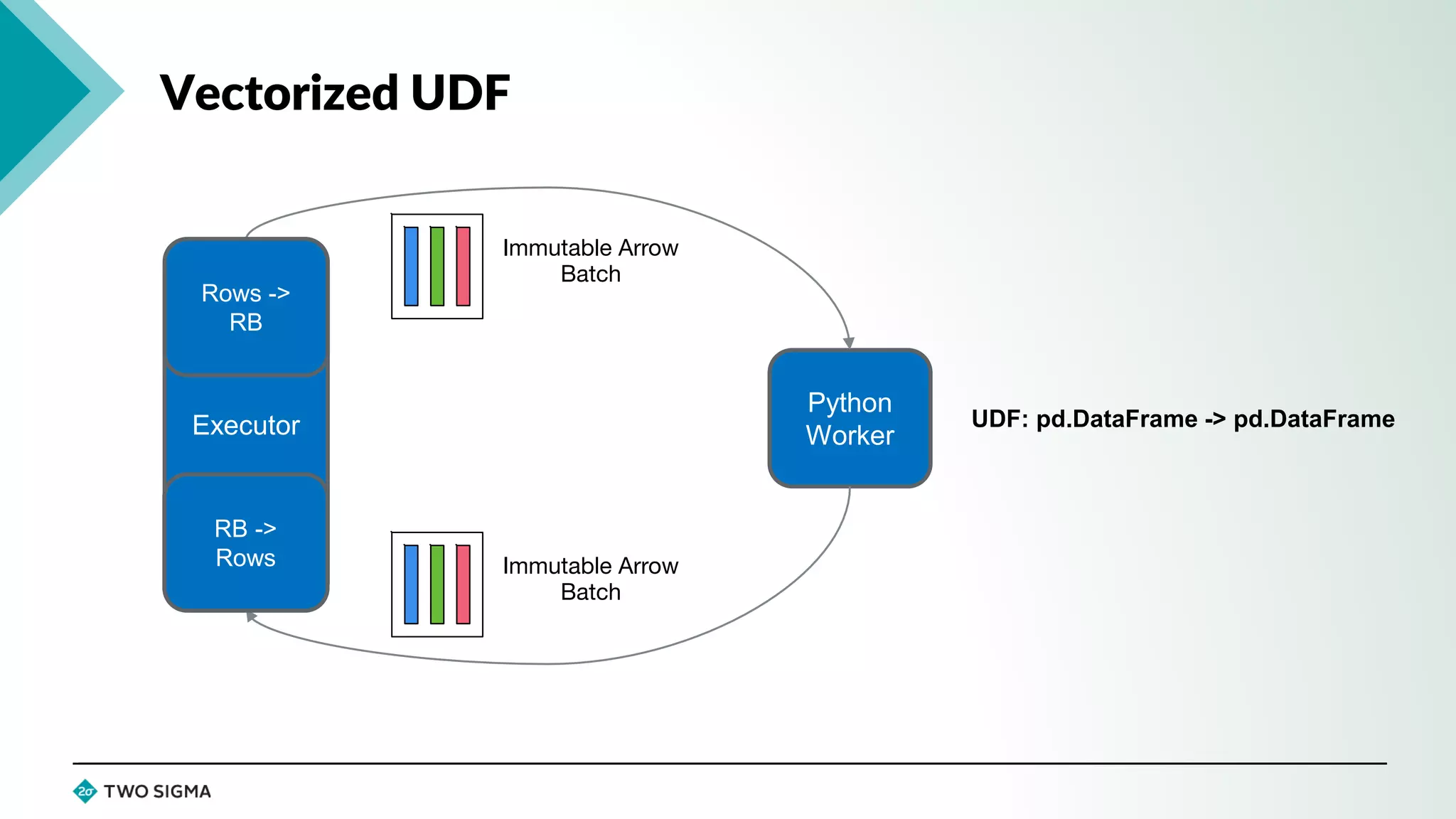

29. Vectorized UDF
Executor
Python
Worker
UDF: pd.DataFrame -> pd.DataFrame
Rows ->
RB
RB ->
Rows

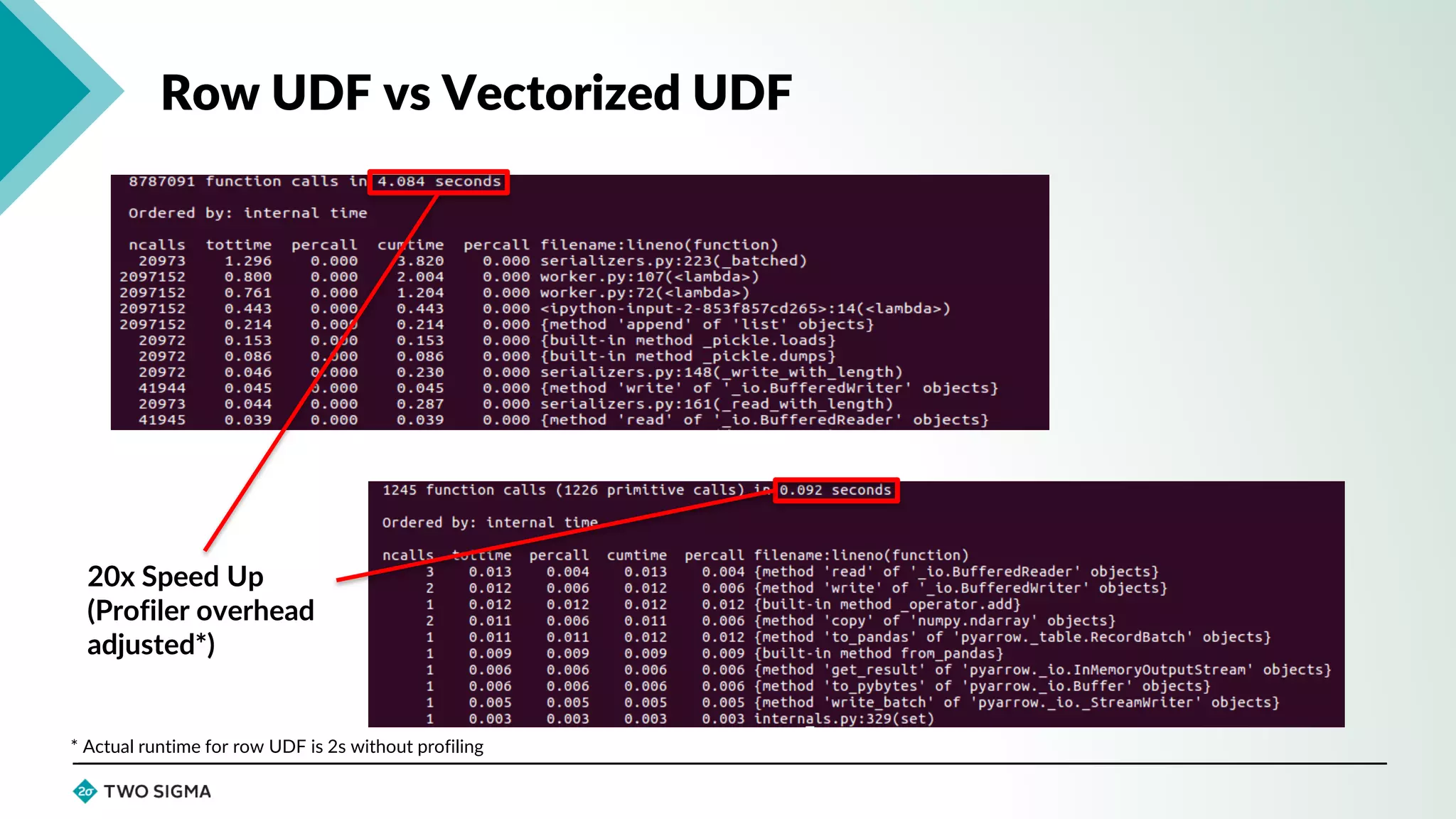

30. Row UDF vs Vectorized UDF
* Actual runtime for row UDF is 2s without profiling
20x Speed Up
(Profiler overhead
adjusted*)

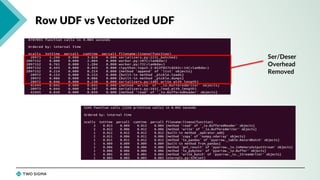

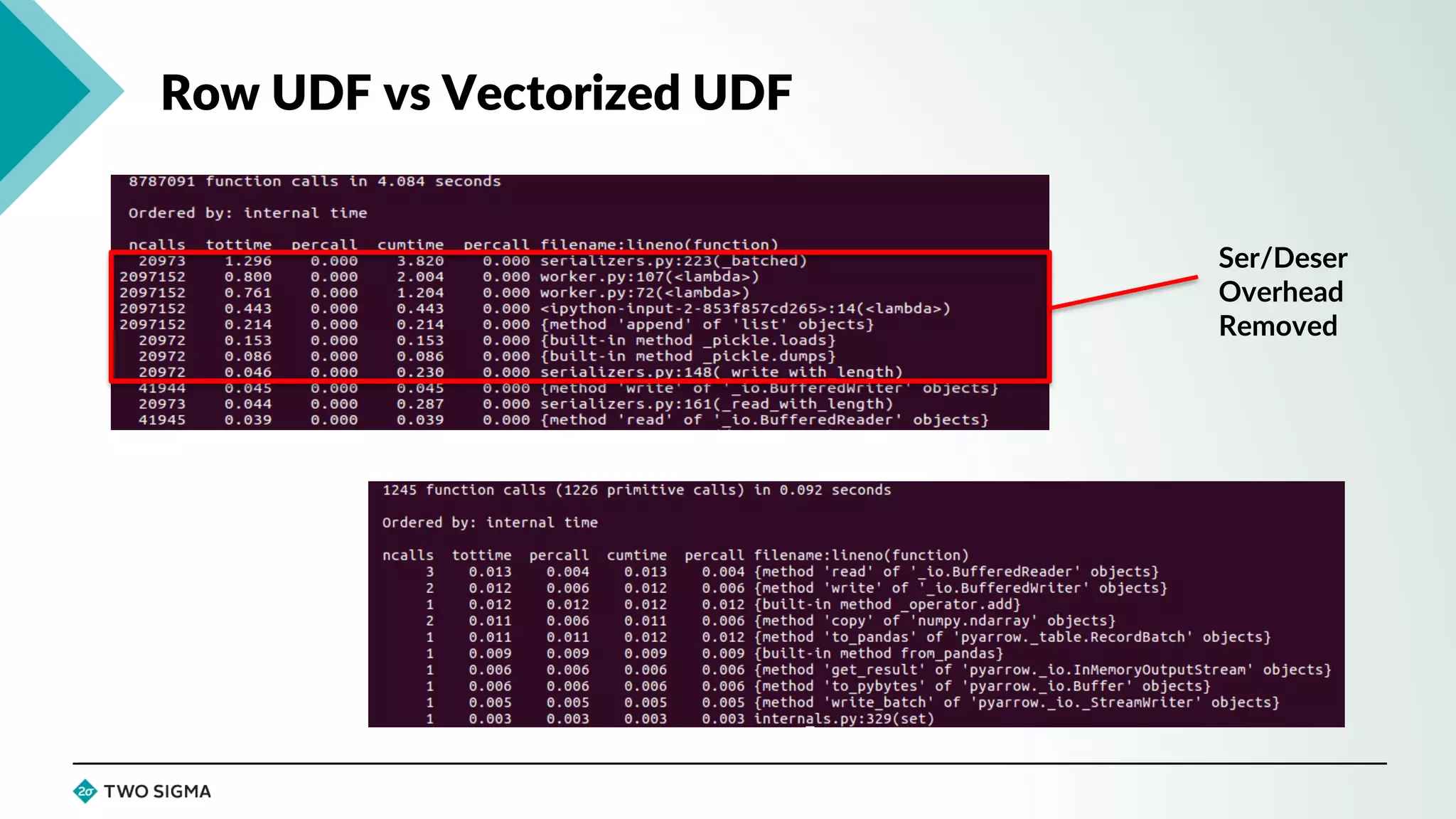

31. Row UDF vs Vectorized UDF
Ser/Deser
Overhead
Removed

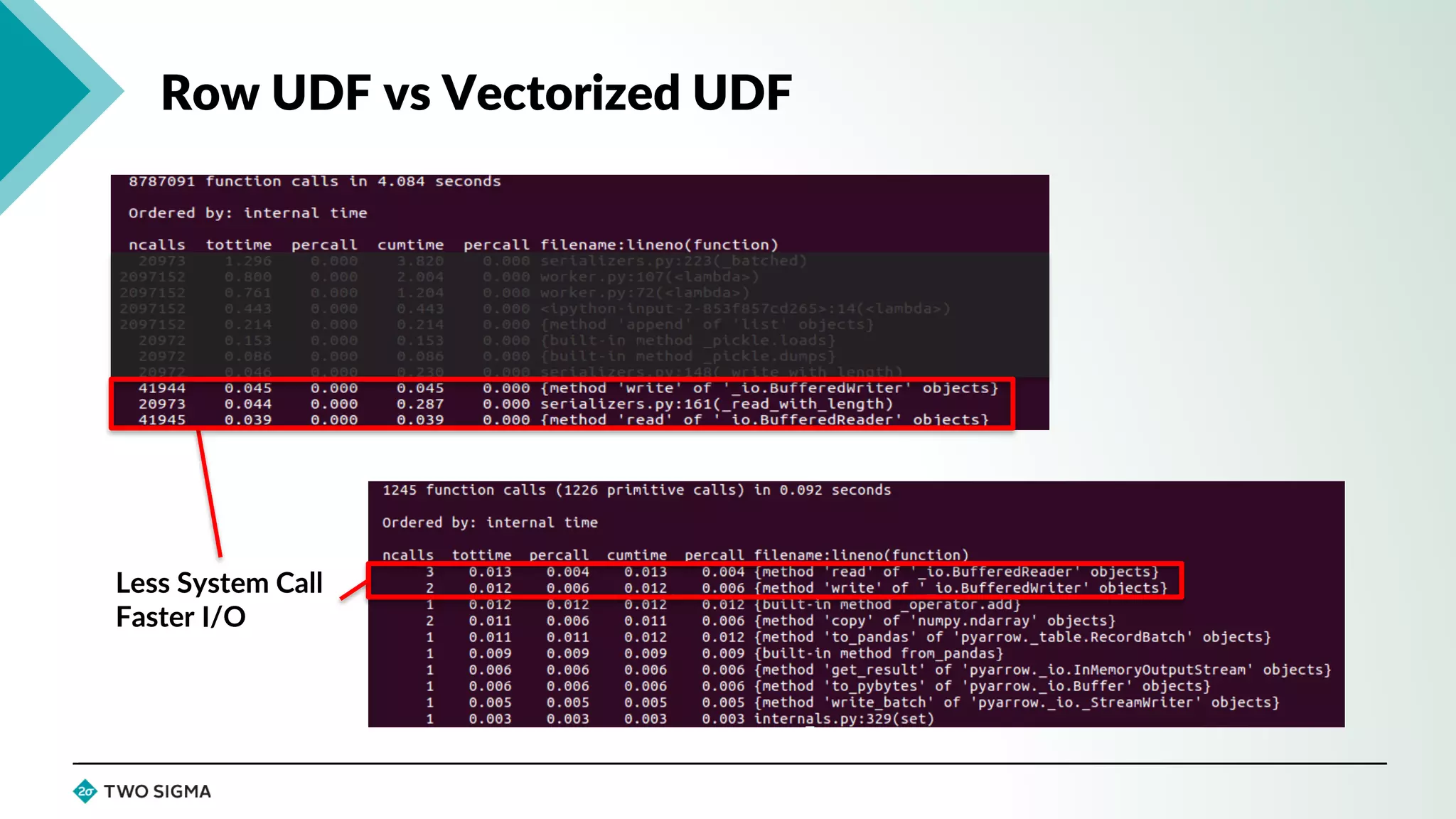

32. Row UDF vs Vectorized UDF
Less System Call
Faster I/O

33. Improving Group
UDF
33

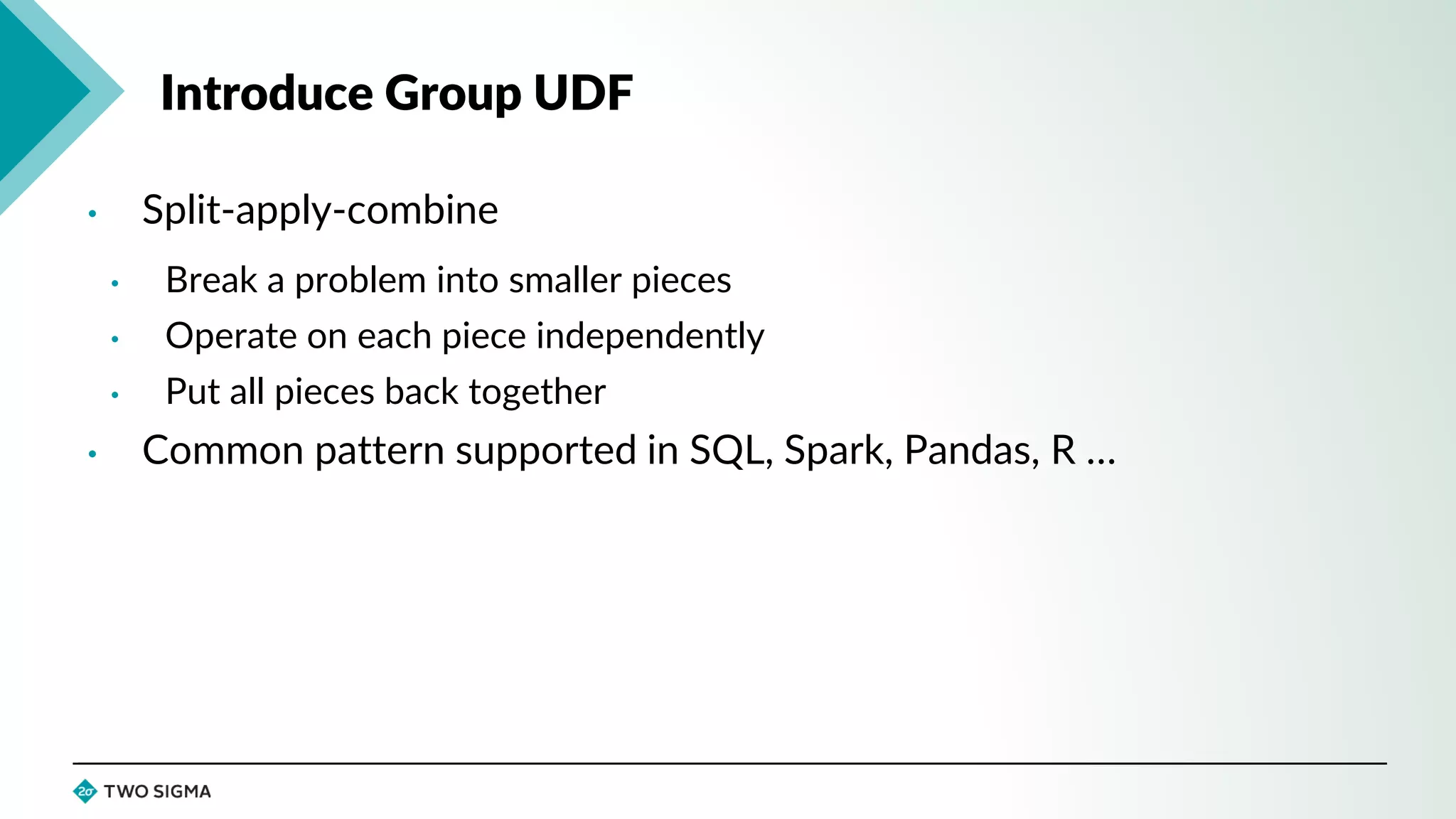

34. • Split-apply-combine
• Break a problem into smaller pieces
• Operate on each piece independently
• Put all pieces back together
• Common pattern supported in SQL, Spark, Pandas, R …
Introduce Group UDF

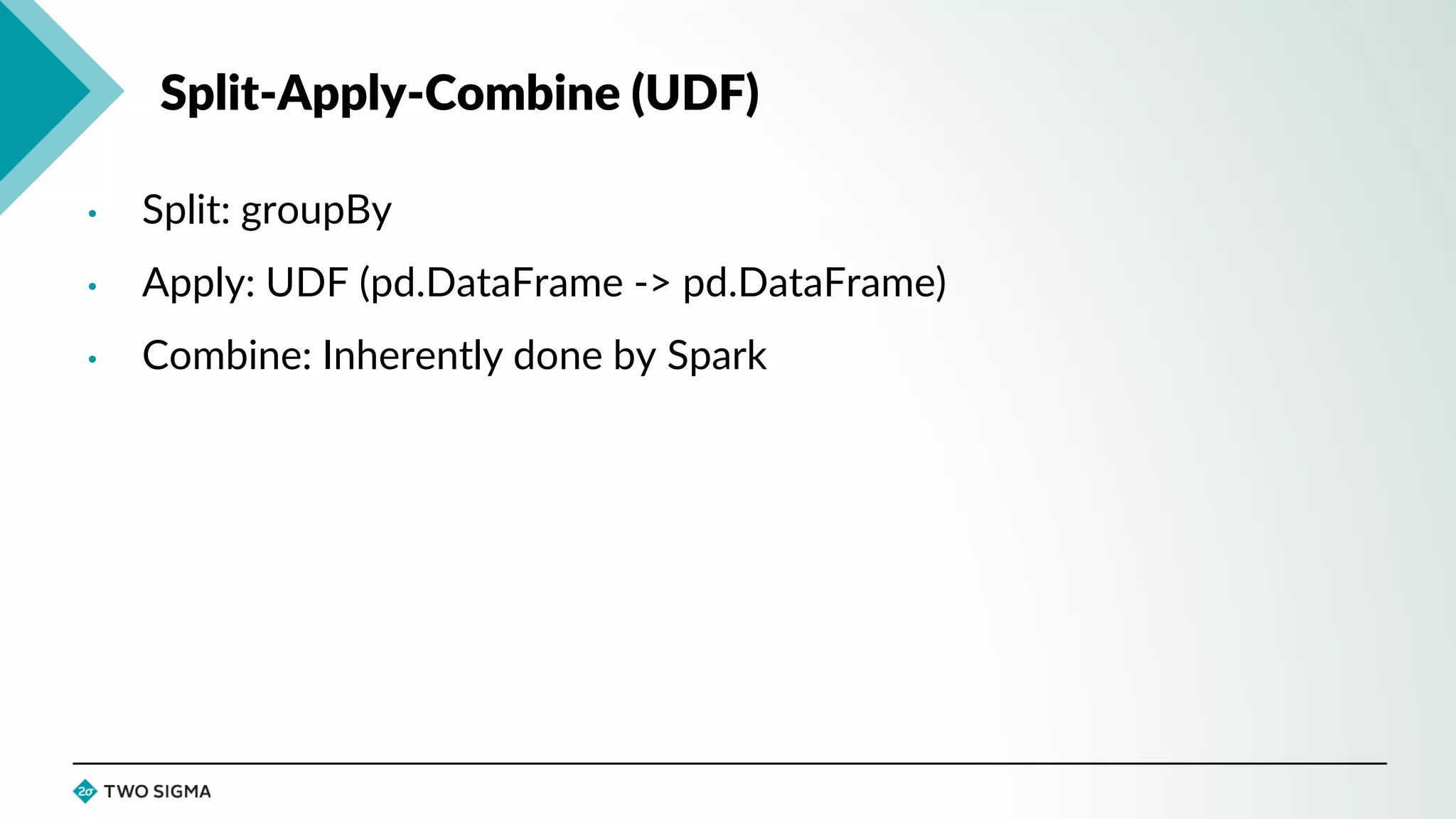

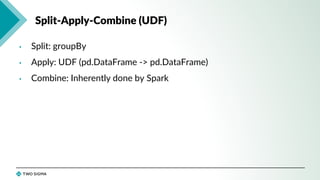

35. • Split: groupBy
• Apply: UDF (pd.DataFrame -> pd.DataFrame)
• Combine: Inherently done by Spark
Split-Apply-Combine (UDF)

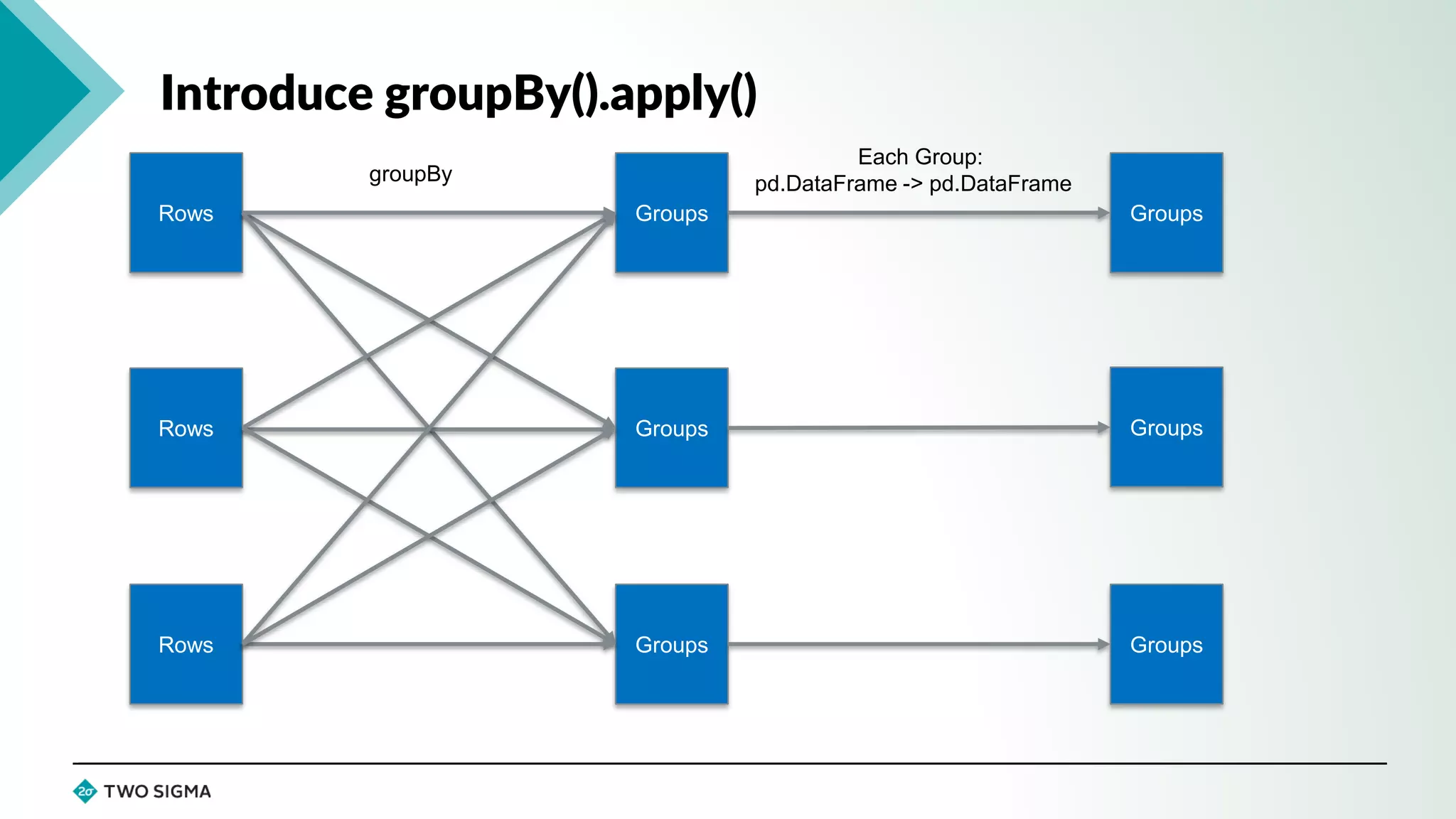

36. Introduce groupBy().apply()
Rows
Rows
Rows
Groups
Groups
Groups
Groups
Groups
Groups
Each Group:
pd.DataFrame -> pd.DataFramegroupBy

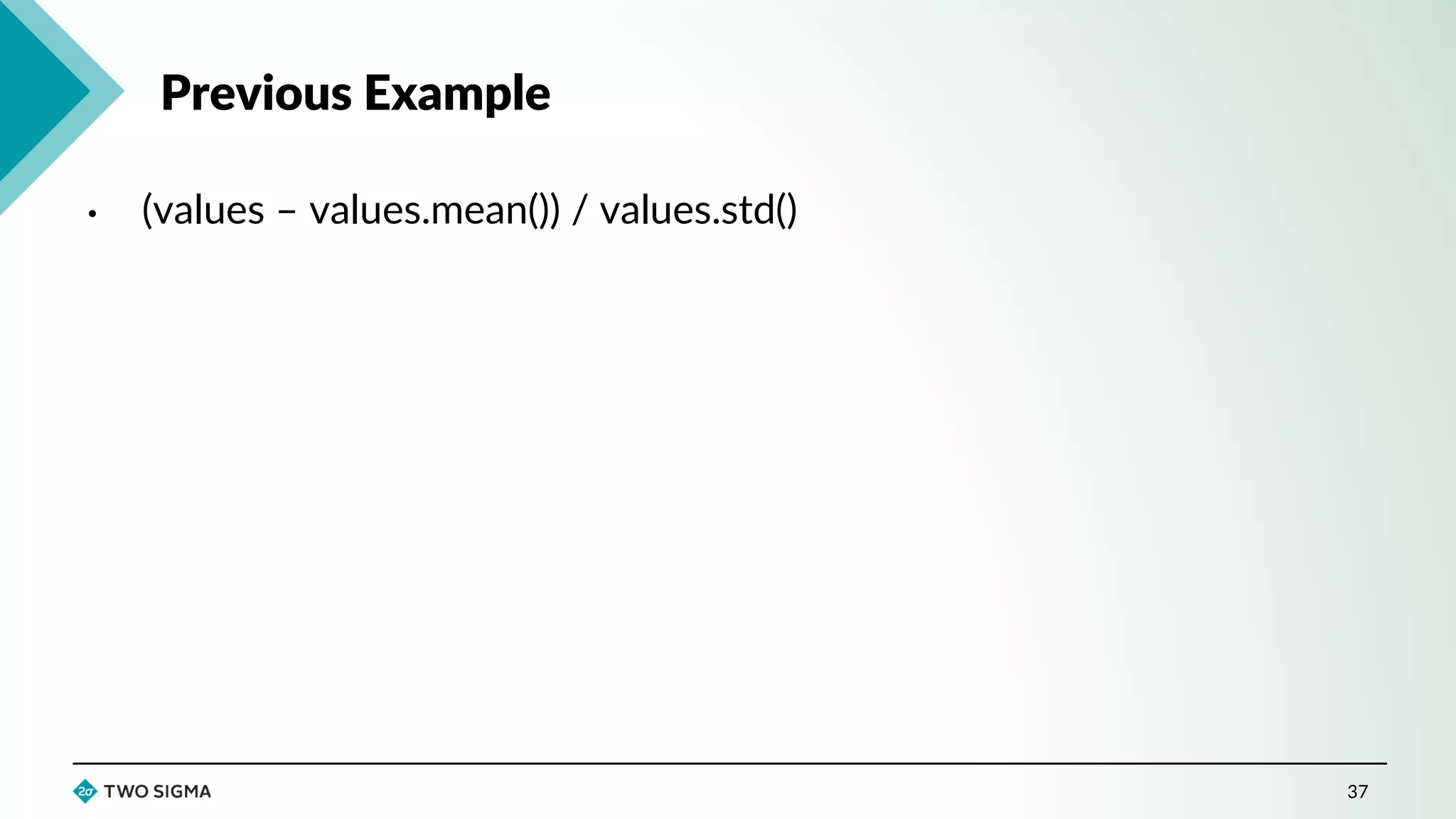

37. • (values – values.mean()) / values.std()
Previous Example
37

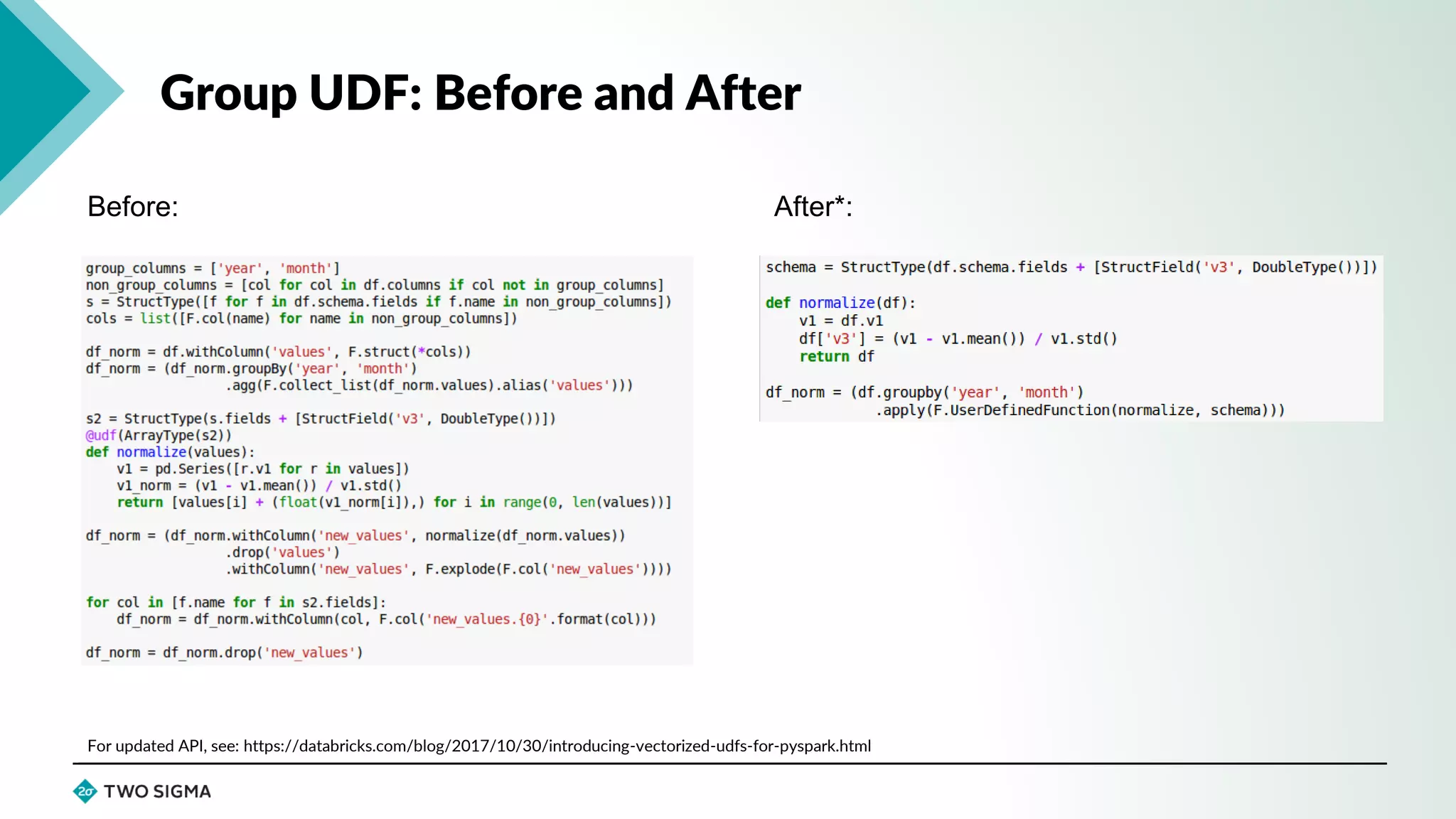

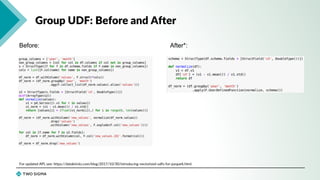

38. Group UDF: Before and After
For updated API, see: https://databricks.com/blog/2017/10/30/introducing-vectorized-udfs-for-pyspark.html
Before: After*:

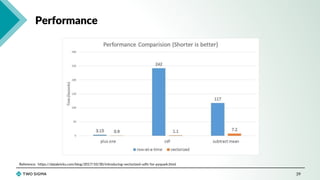

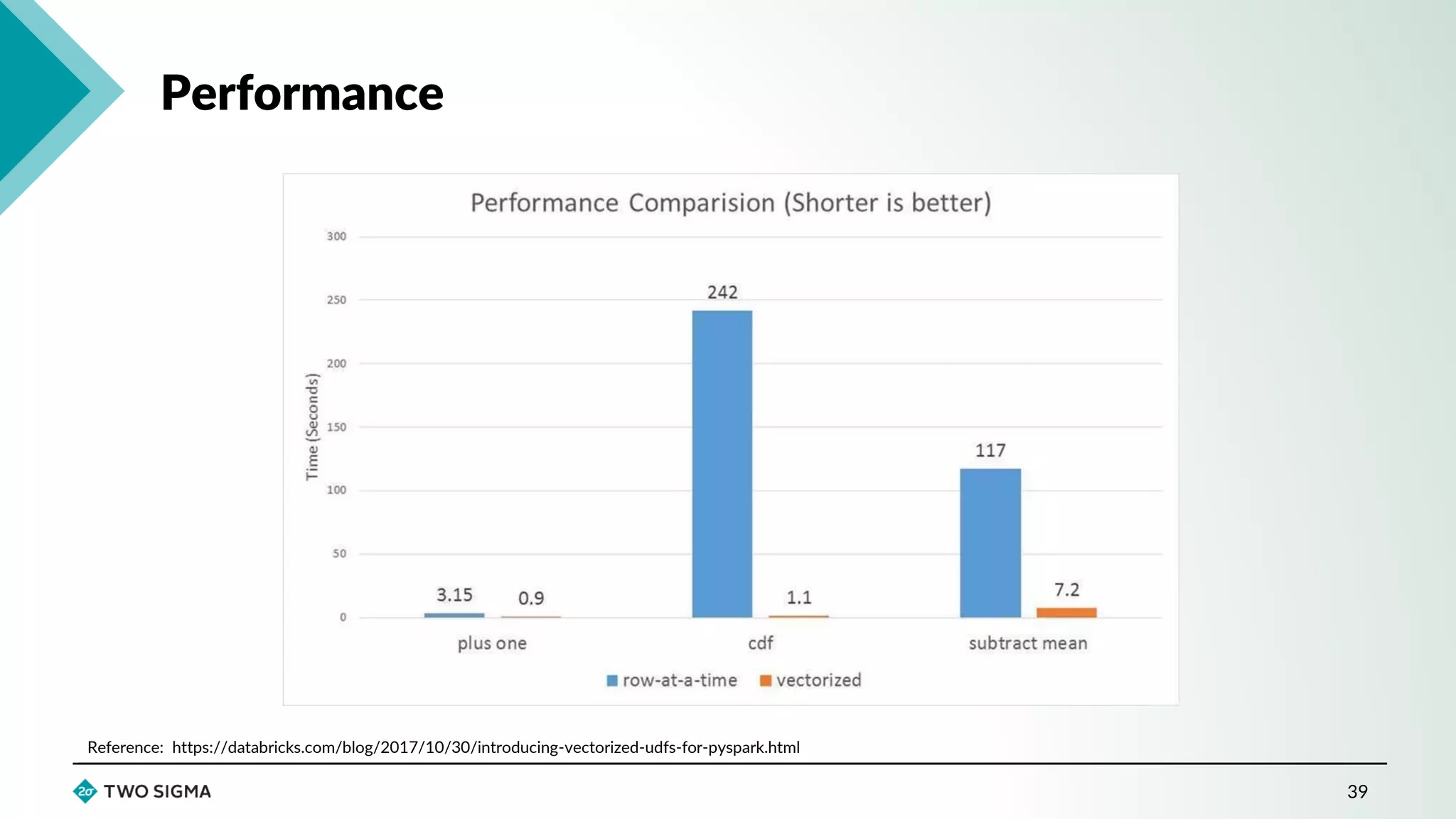

39. Performance
Reference: https://databricks.com/blog/2017/10/30/introducing-vectorized-udfs-for-pyspark.html
39

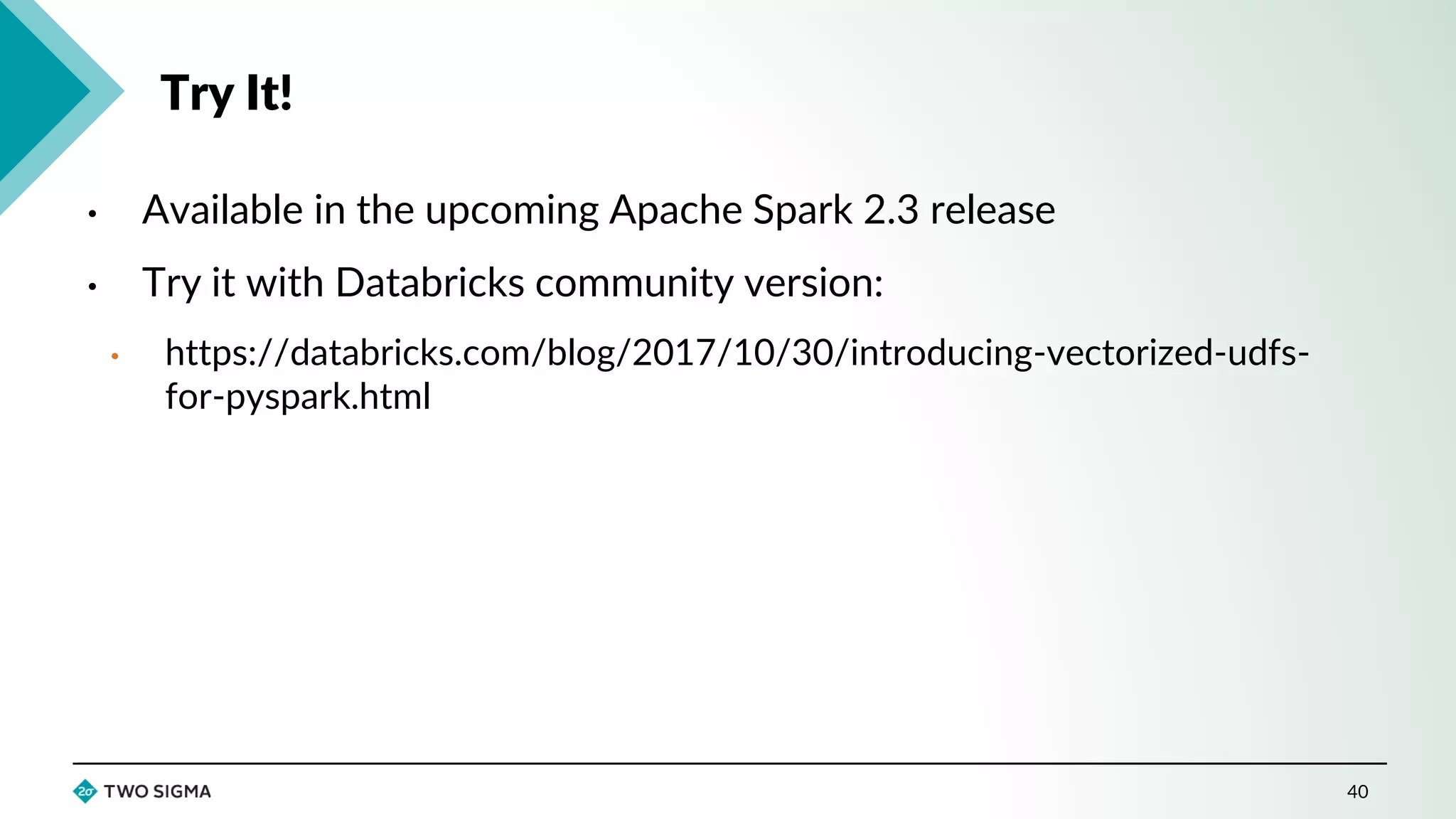

40. • Available in the upcoming Apache Spark 2.3 release
• Try it with Databricks community version:
• https://databricks.com/blog/2017/10/30/introducing-vectorized-udfs-
for-pyspark.html
Try It!
40

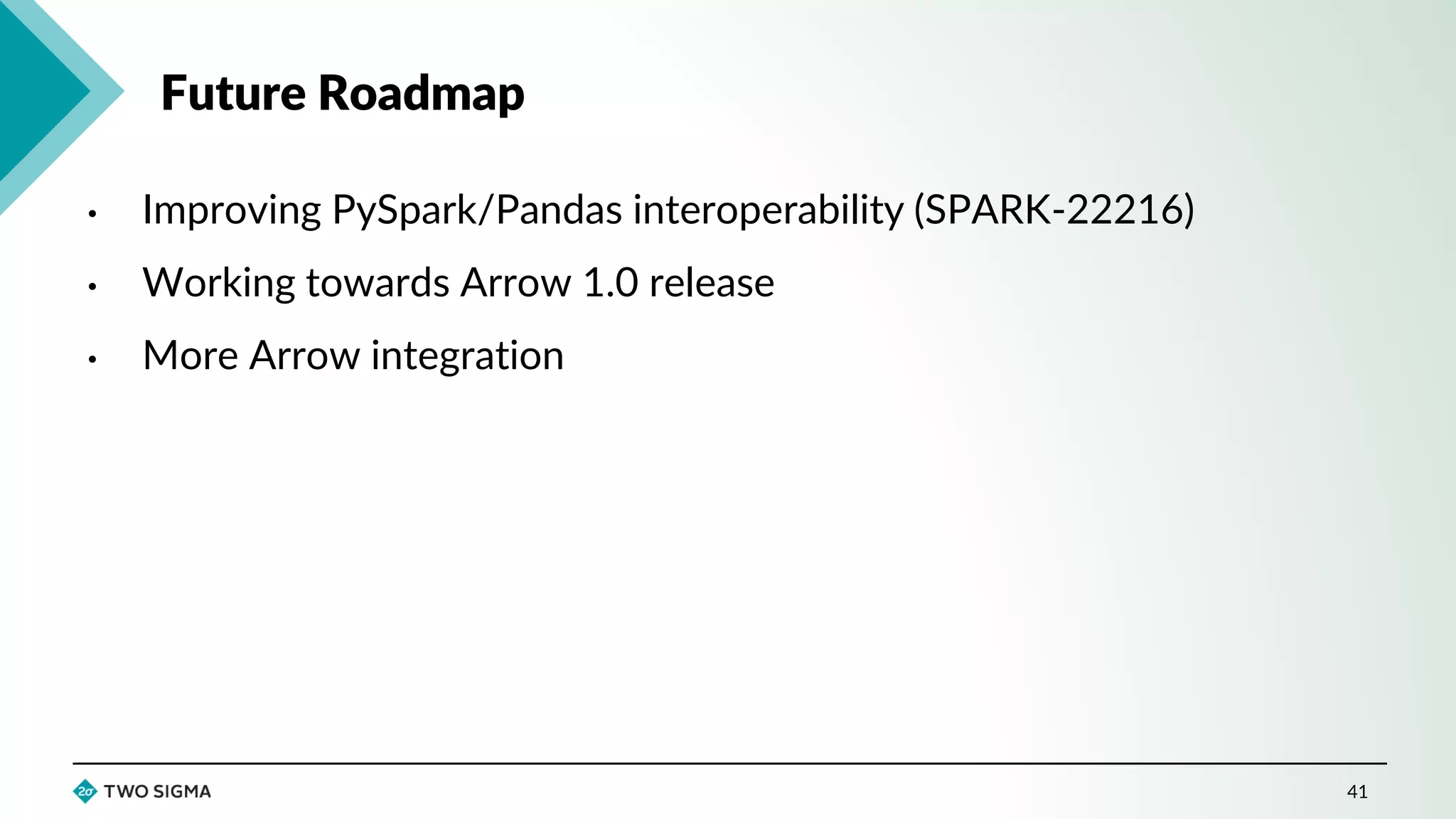

41. • Improving PySpark/Pandas interoperability (SPARK-22216)
• Working towards Arrow 1.0 release
• More Arrow integration
Future Roadmap
41

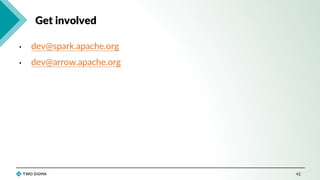

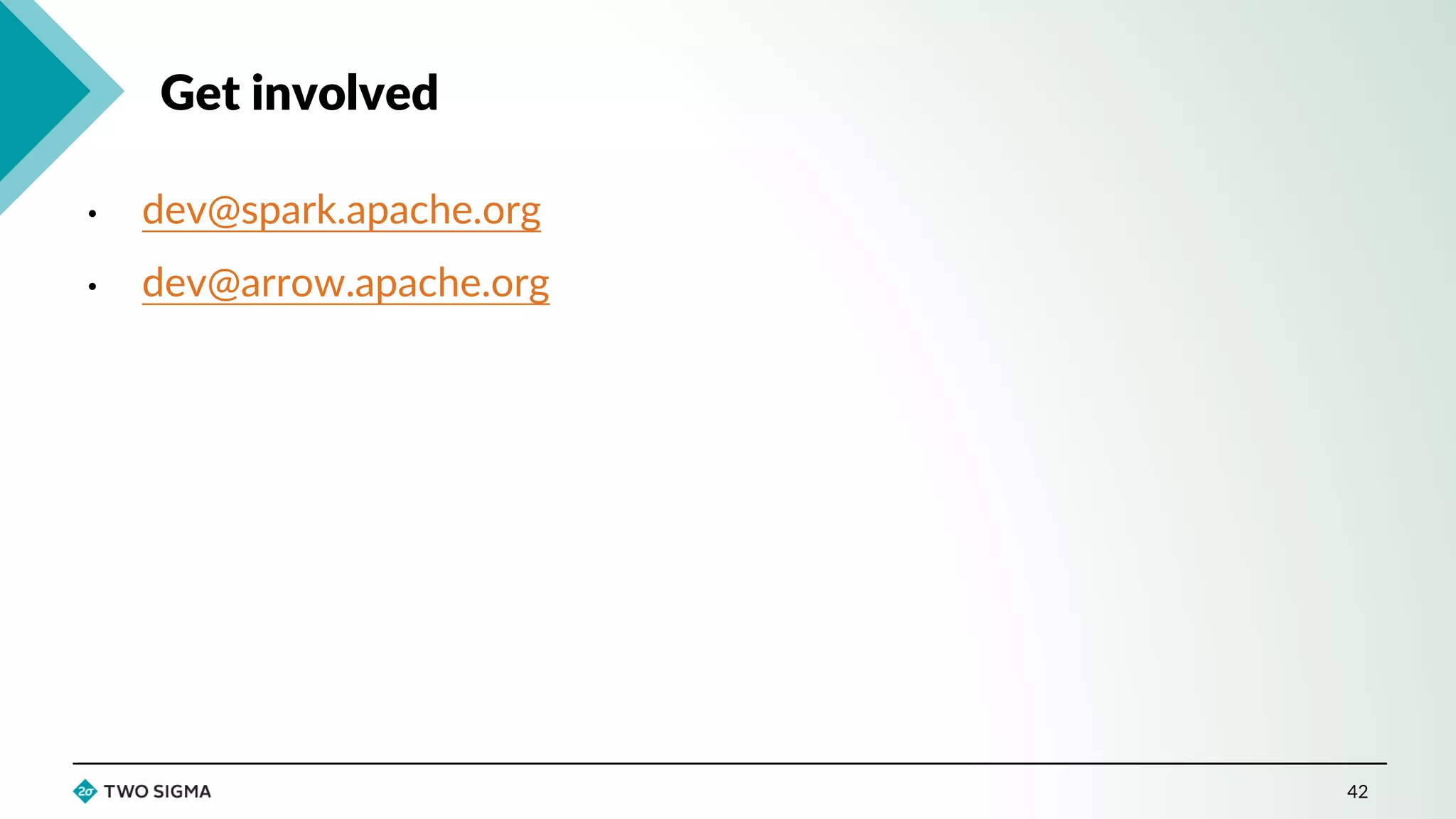

42. • dev@spark.apache.org
• dev@arrow.apache.org
Get involved
42

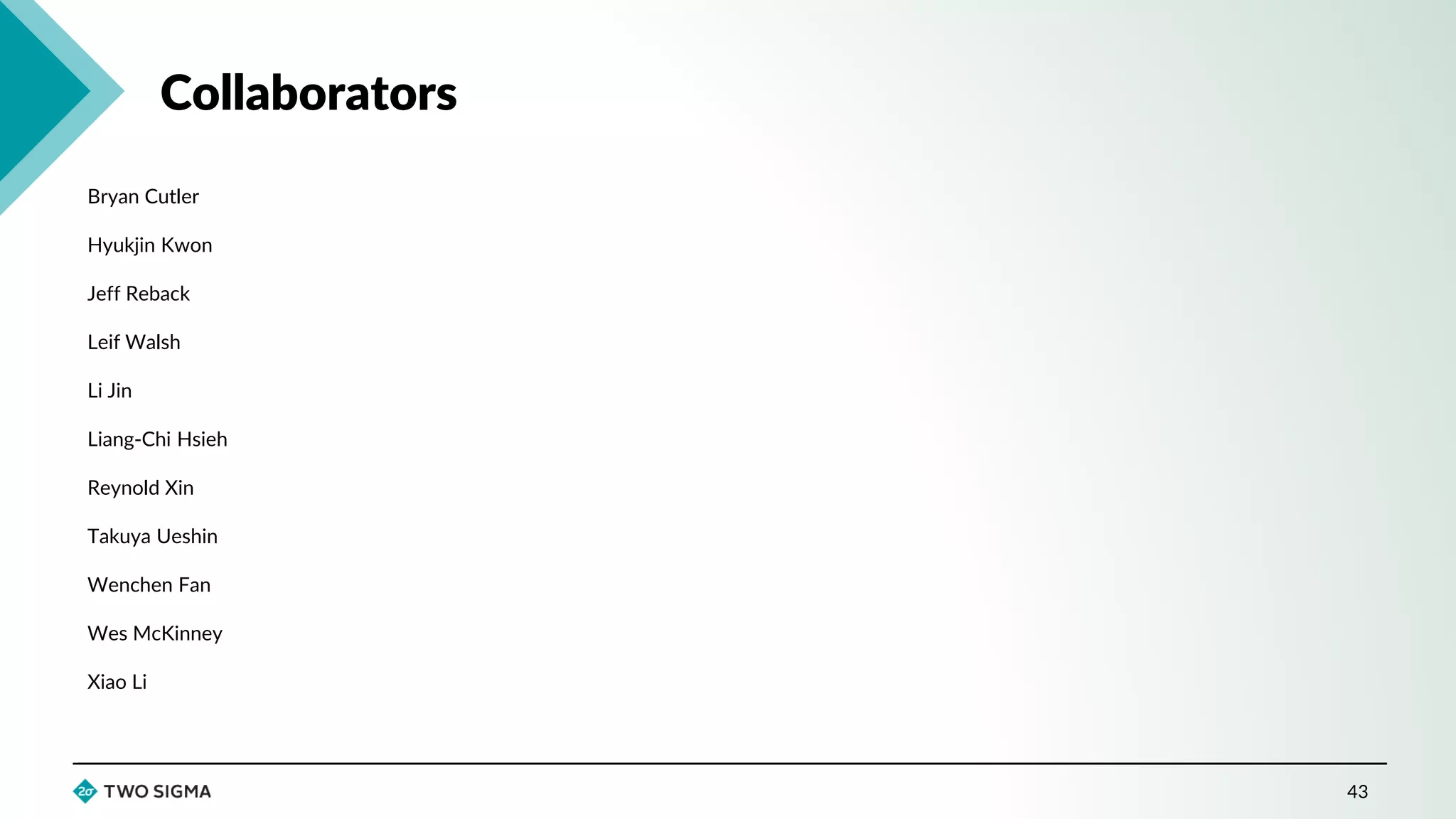

43. Bryan Cutler
Hyukjin Kwon
Jeff Reback
Leif Walsh
Li Jin
Liang-Chi Hsieh
Reynold Xin
Takuya Ueshin
Wenchen Fan
Wes McKinney
Xiao Li
Collaborators
43

44. Questions
44
