This document discusses using Packer and Jenkins to create immutable AWS deployments. Packer is used to build machine images from the ground up with all necessary software and code pre-installed. Provisioners further configure and customize the images. Jenkins automates building the images with Packer whenever code is committed. The immutable images prevent drift and ensure consistency. The process allows fully automated deployments through launching instances from the pre-built images.

1. Immutable AWS Deployments
with Packer and Jenkins
Scale by the Bay, 2017
Manish Pandit

2. About
Manish Pandit
Director of Platform Engineering @Marqeta
Twitter : @lobster1234
Blog: lobster1234.github.io

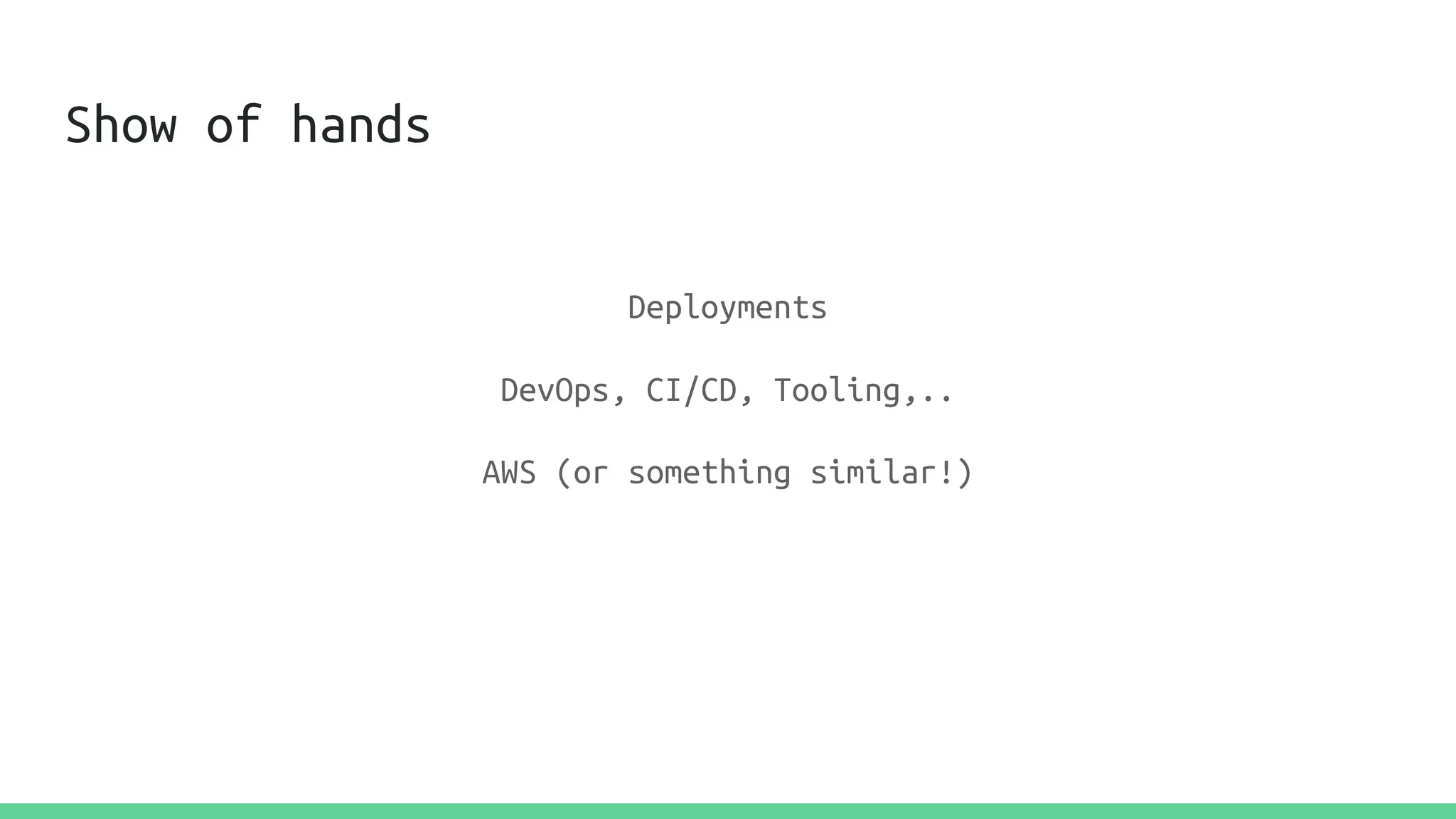

3. Show of hands
Deployments
DevOps, CI/CD, Tooling,..
AWS (or something similar!)

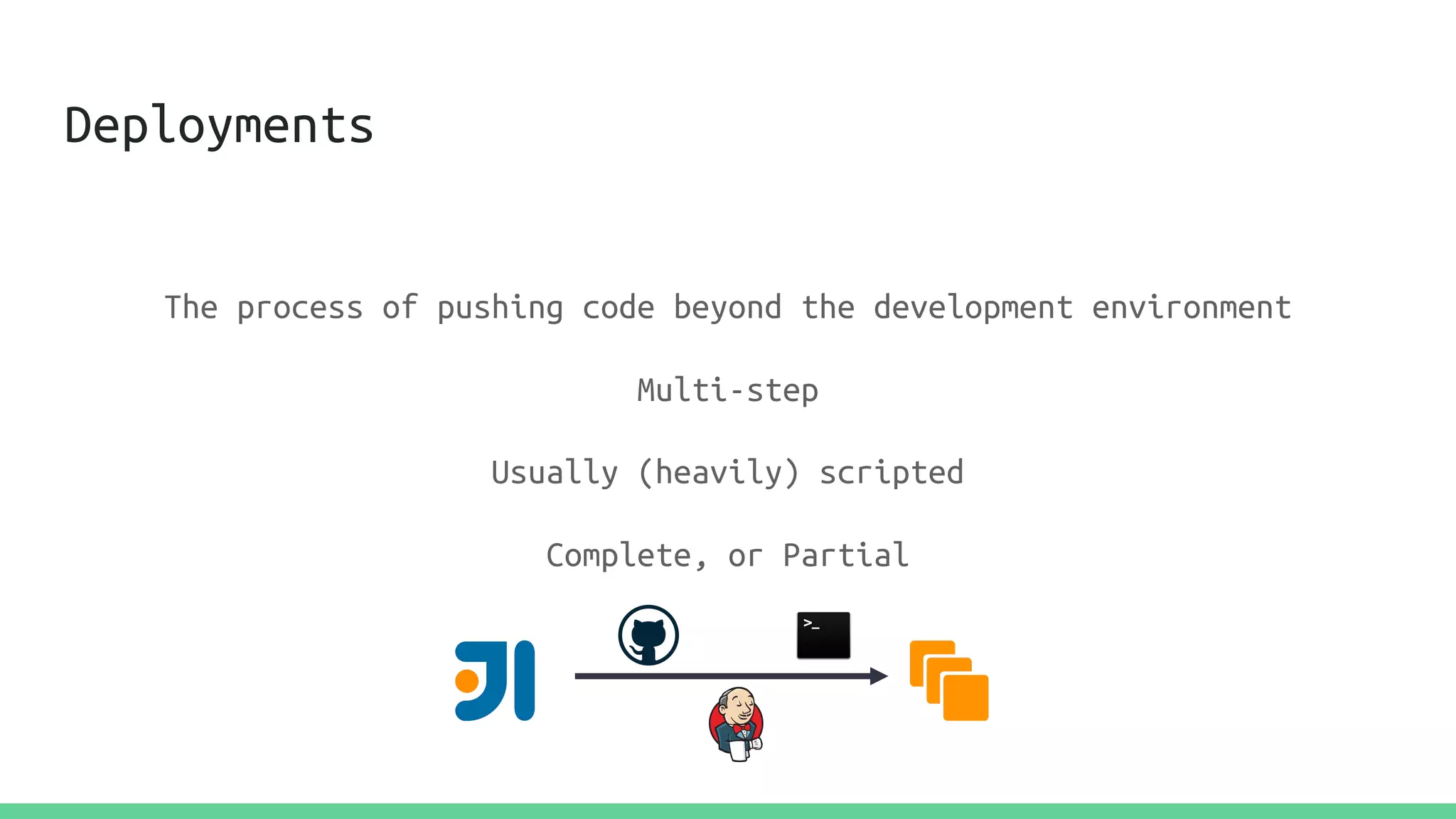

4. Deployments
The process of pushing code beyond the development environment
Multi-step
Usually (heavily) scripted
Complete, or Partial

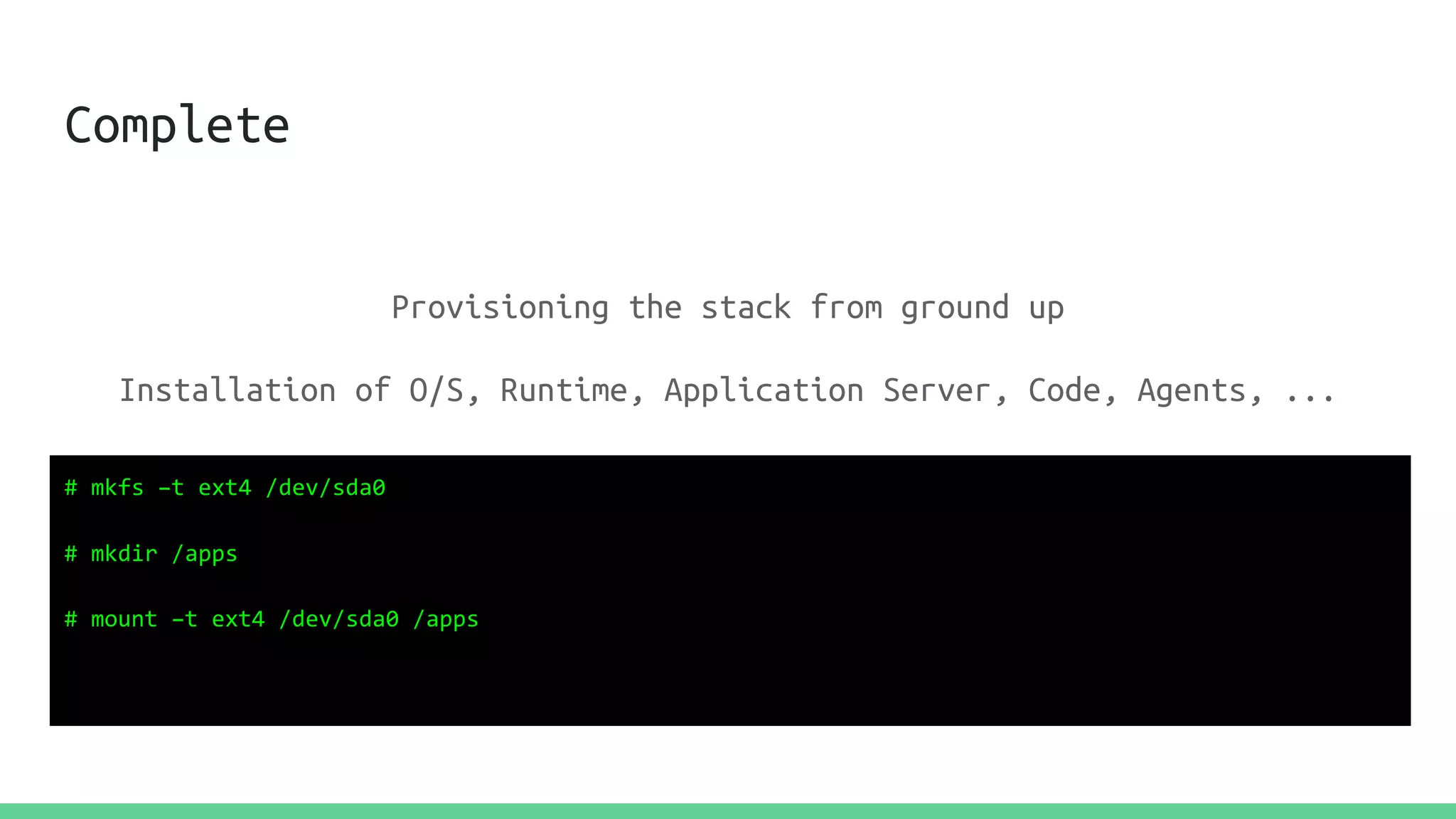

5. Complete
Provisioning the stack from ground up
Installation of O/S, Runtime, Application Server, Code, Agents, ...
# mkfs –t ext4 /dev/sda0
# mkdir /apps
# mount –t ext4 /dev/sda0 /apps

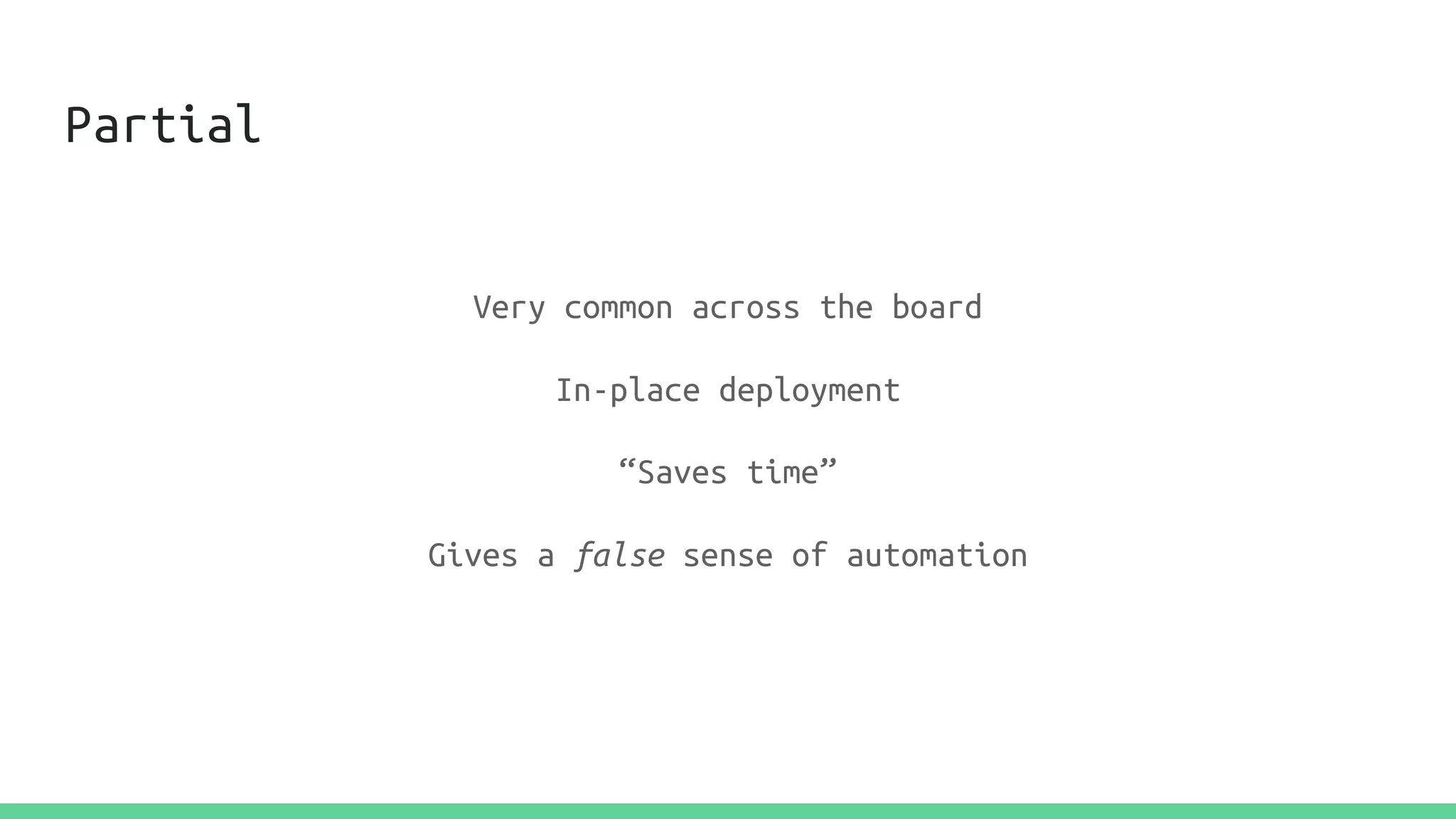

6. Partial
Very common across the board
In-place deployment
“Saves time”
Gives a false sense of automation

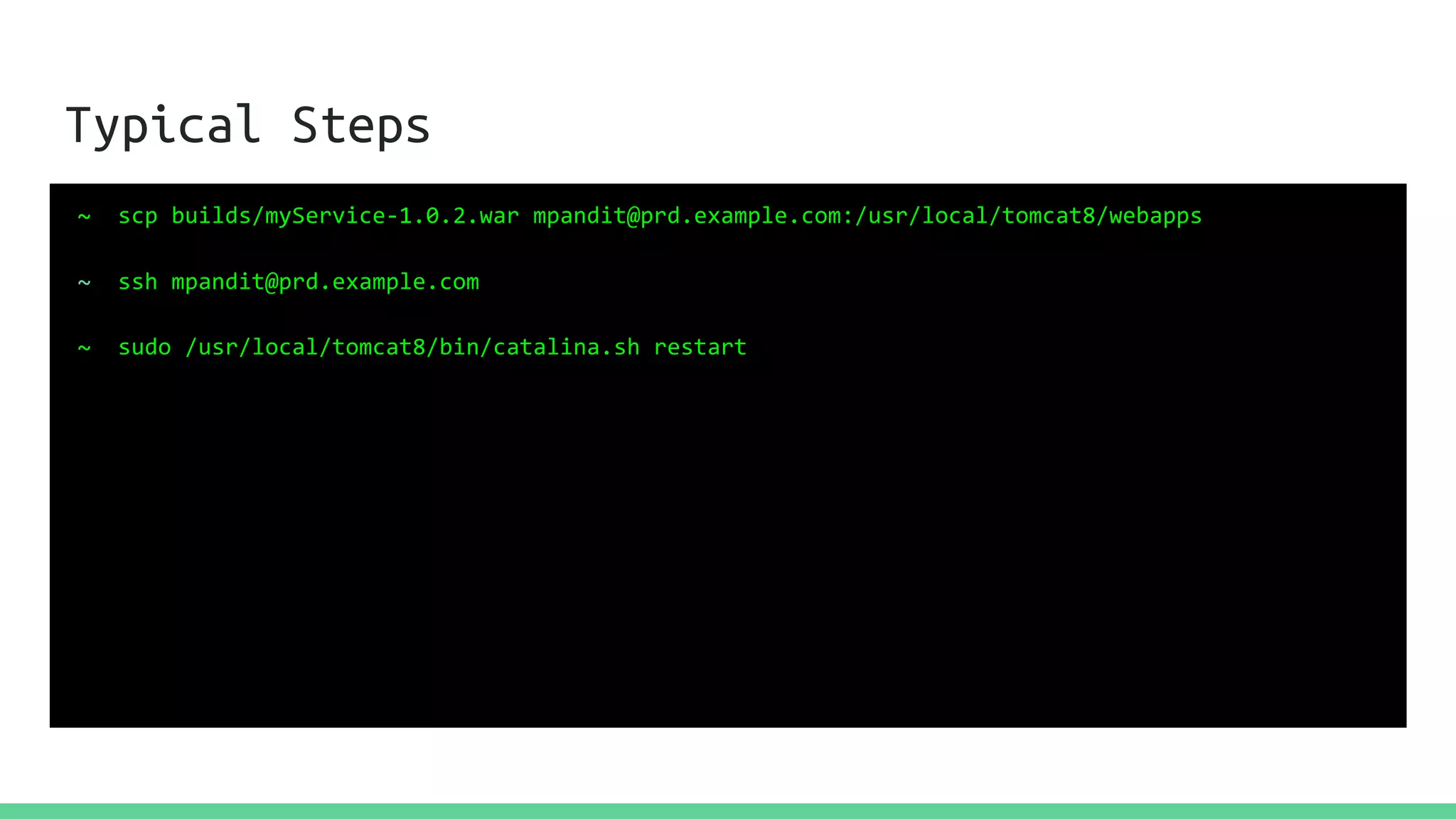

7. Typical Steps
~ scp builds/myService-1.0.2.war mpandit@prd.example.com:/usr/local/tomcat8/webapps
~ ssh mpandit@prd.example.com
~ sudo /usr/local/tomcat8/bin/catalina.sh restart

8. Typical Steps
~ ssh mpandit@prd.example.com
~ wget https://nx.example.com/com/foo/myService.war -O /usr/local/tomcat8/webapps
~ sudo /usr/local/tomcat8/catalina.sh restart

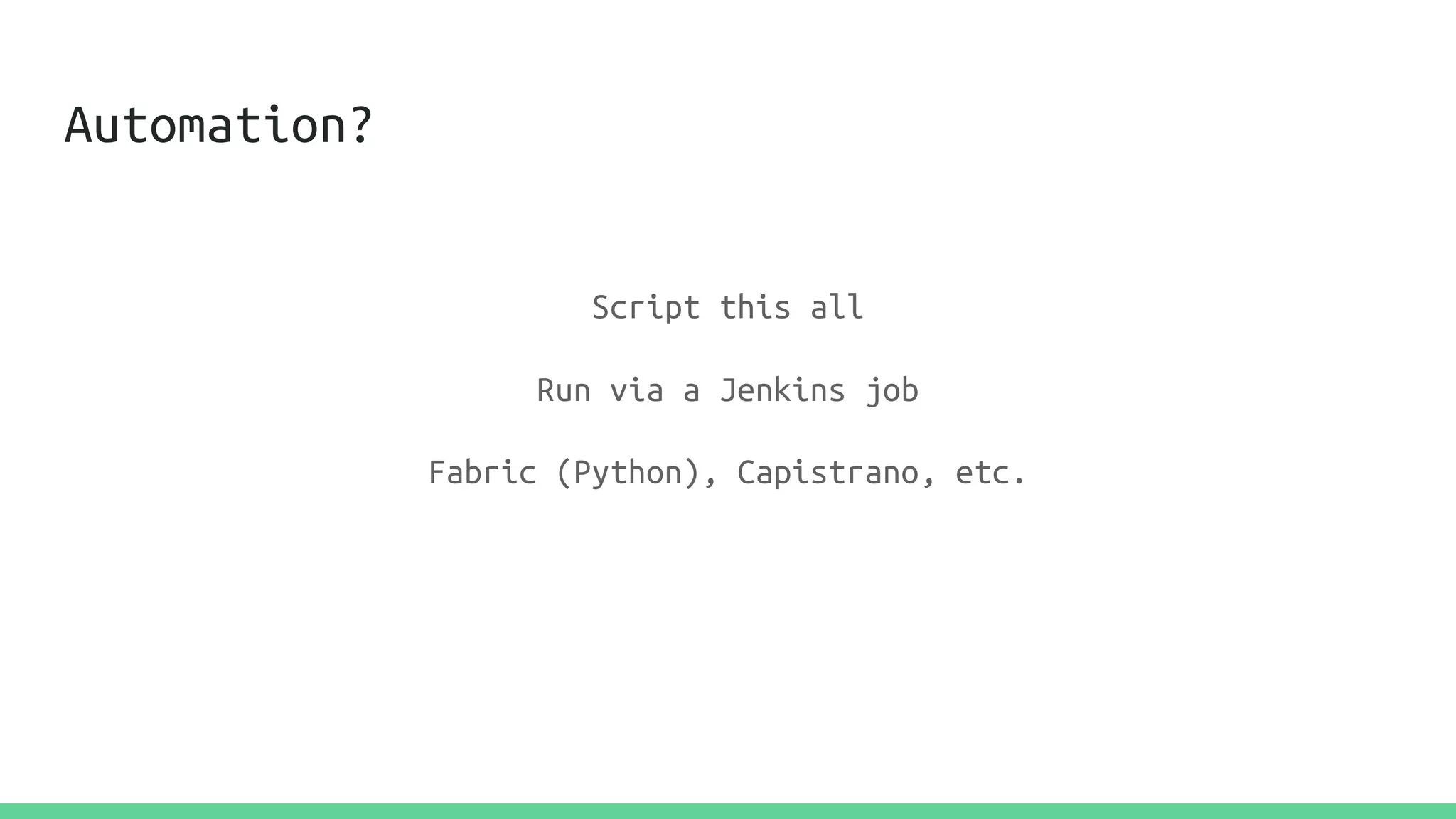

9. Automation?
Script this all
Run via a Jenkins job
Fabric (Python), Capistrano, etc.

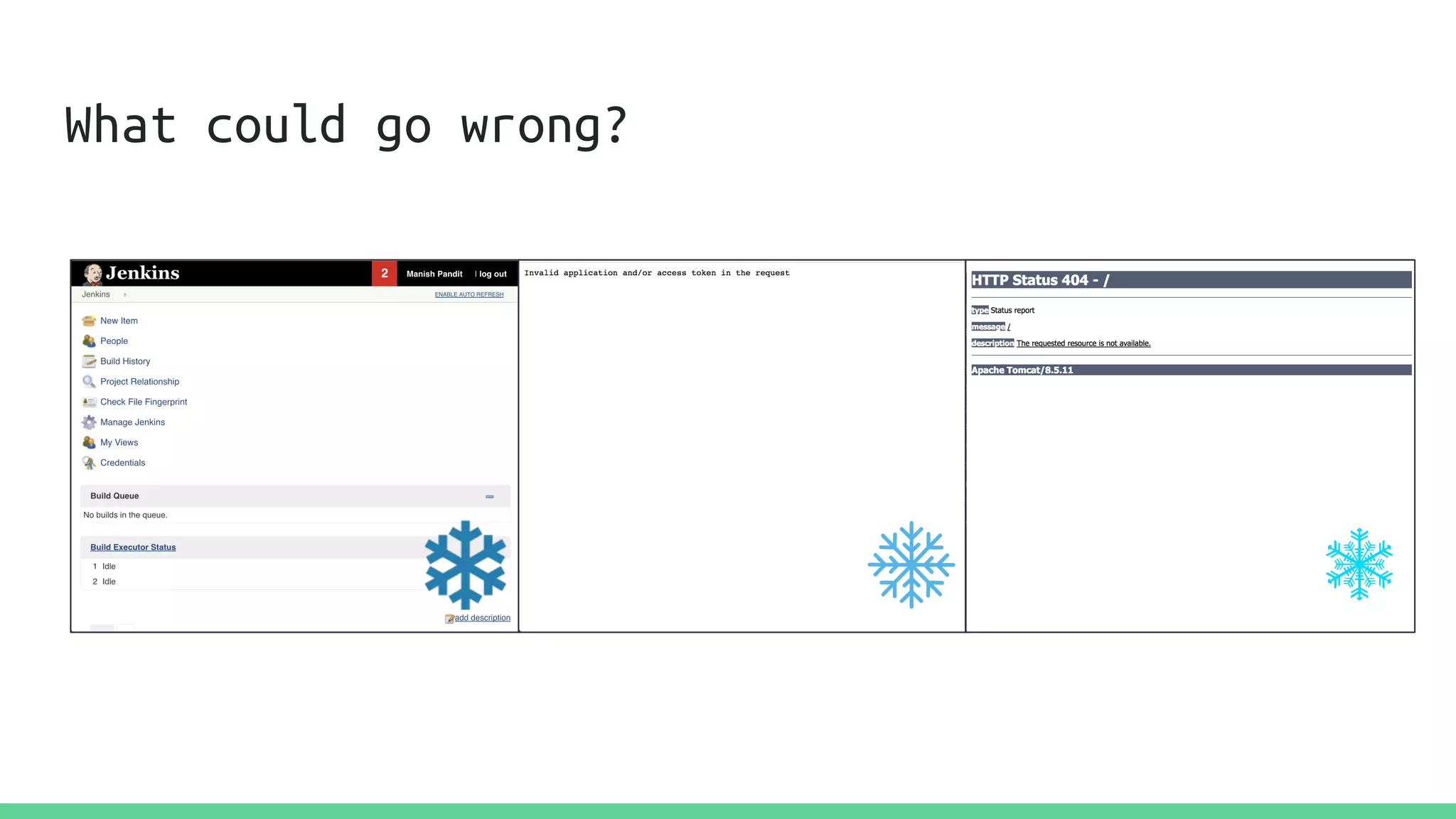

10. What could go wrong?

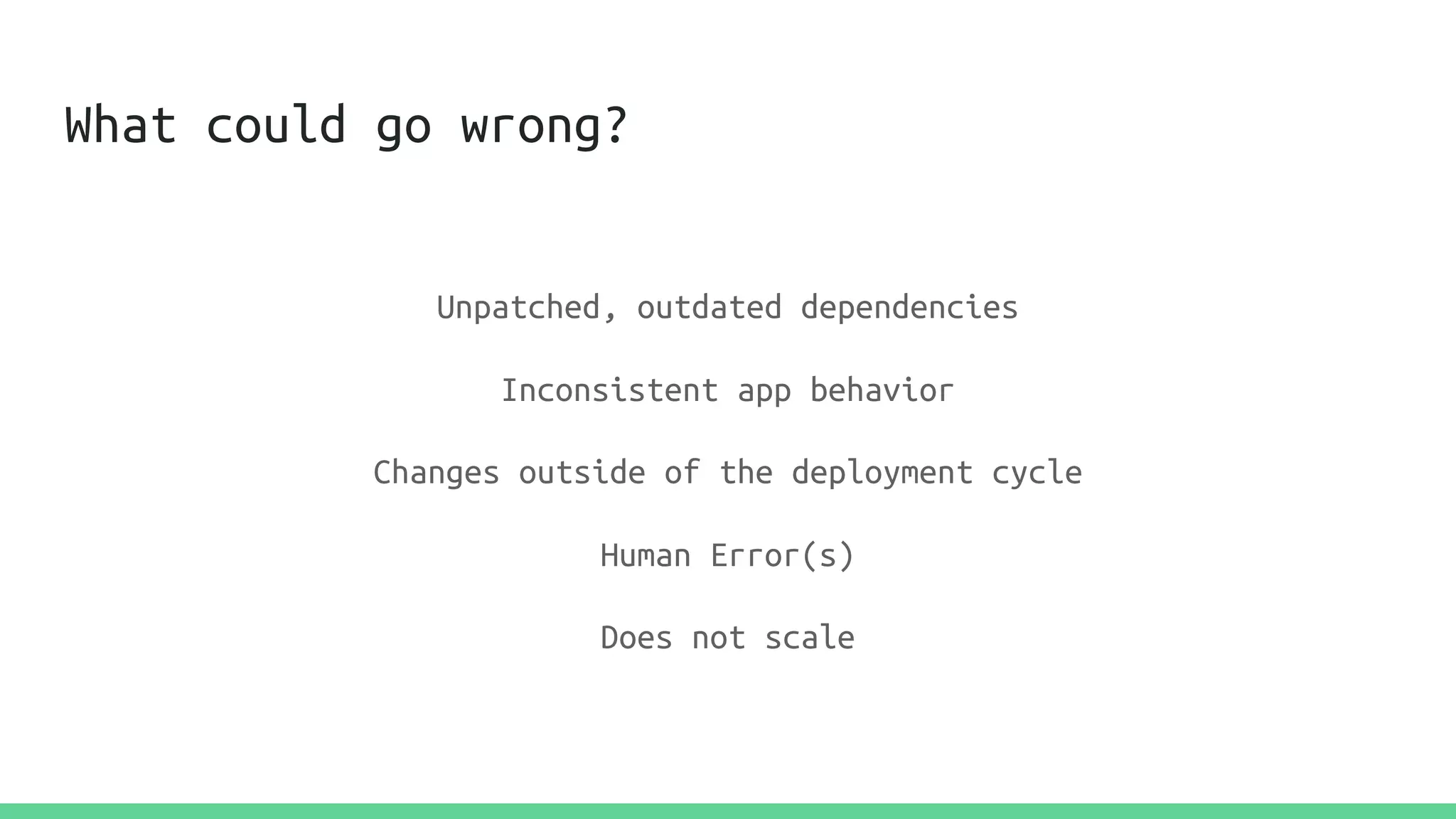

11. What could go wrong?
Unpatched, outdated dependencies
Inconsistent app behavior
Changes outside of the deployment cycle
Human Error(s)
Does not scale

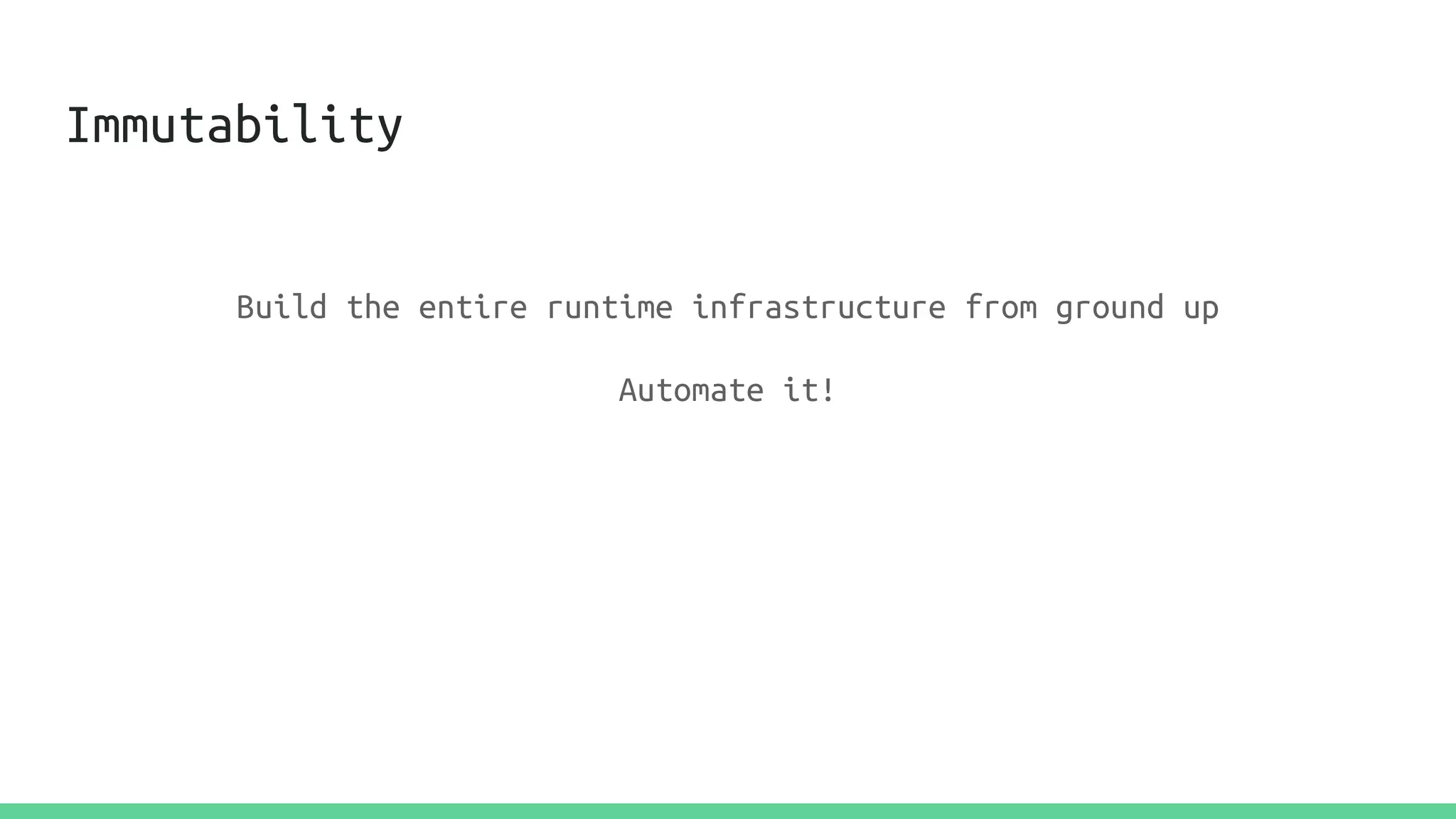

12. Immutability
Build the entire runtime infrastructure from ground up
Automate it!

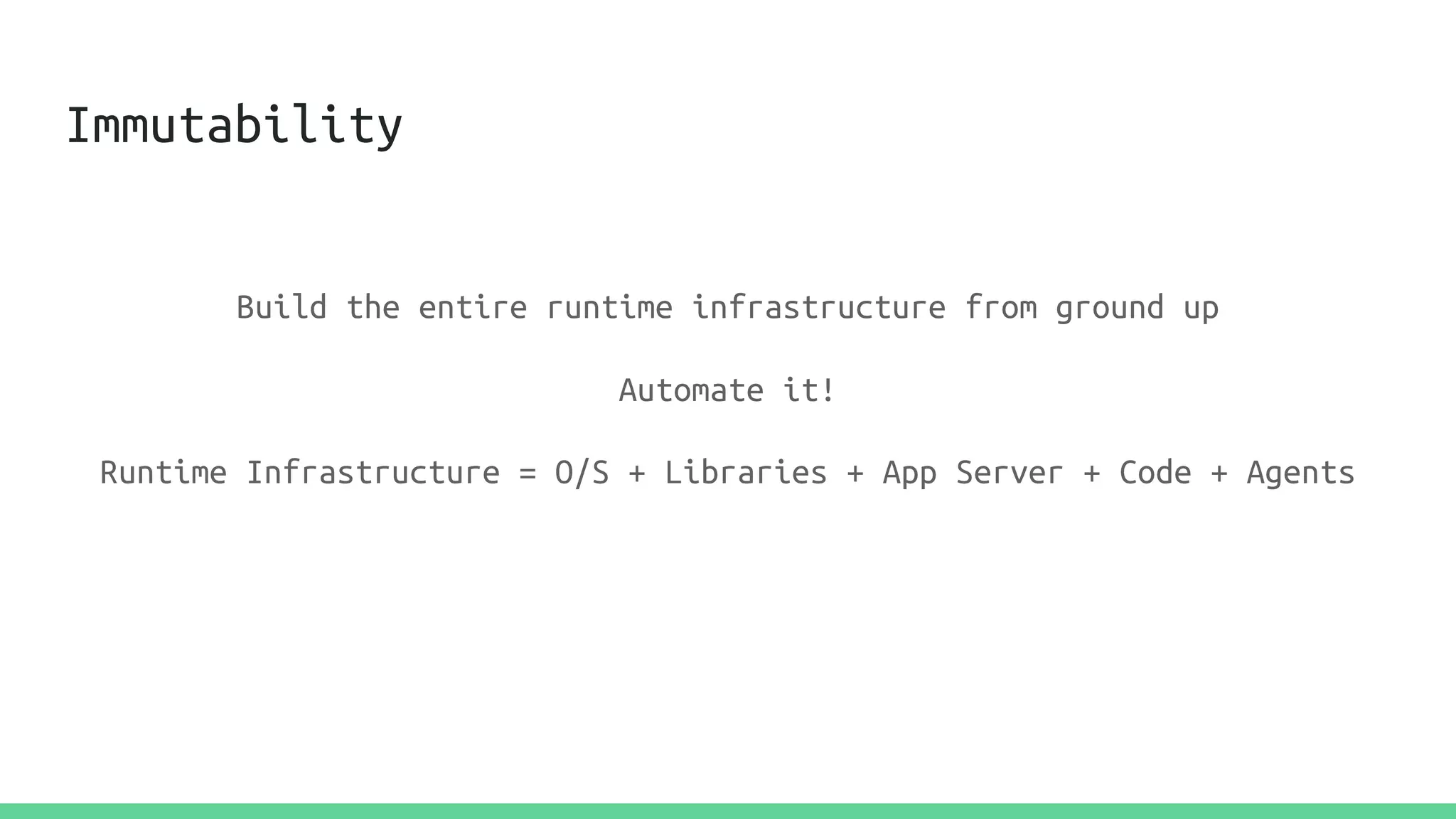

13. Immutability
Build the entire runtime infrastructure from ground up
Automate it!
Runtime Infrastructure = O/S + Libraries + App Server + Code + Agents

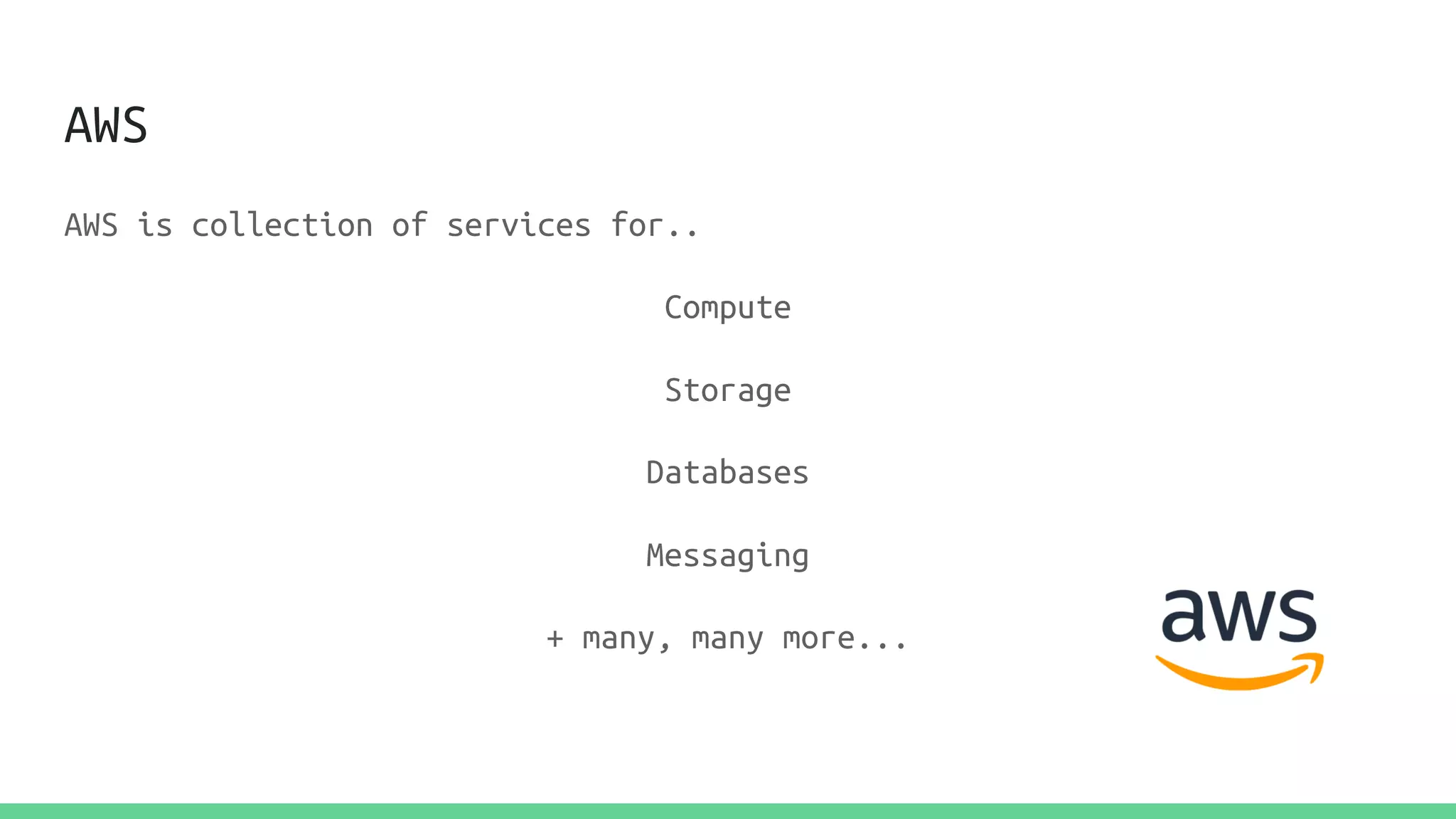

14. AWS
AWS is collection of services for..
Compute
Storage
Databases
Messaging
+ many, many more...

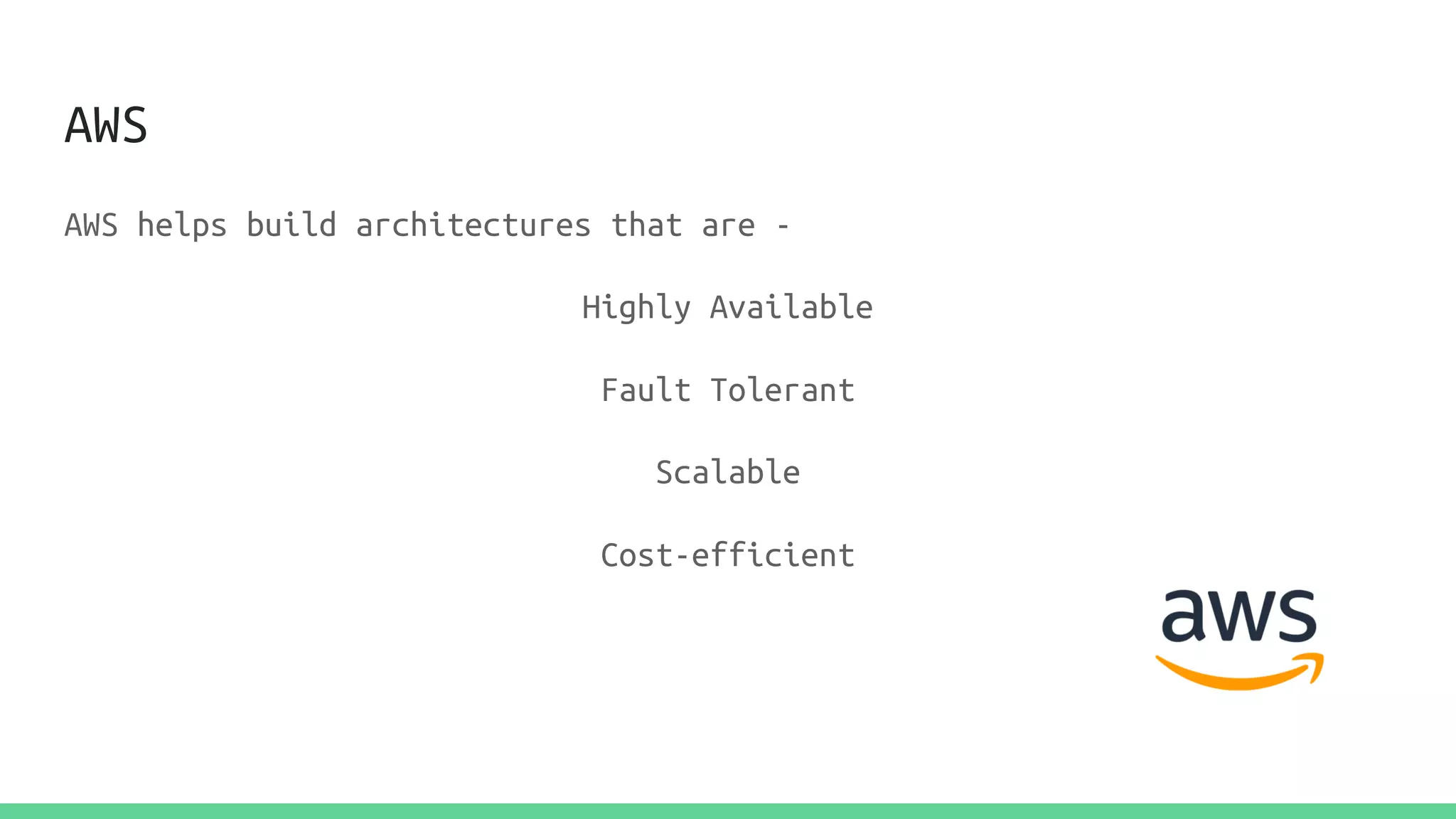

15. AWS
AWS helps build architectures that are -
Highly Available
Fault Tolerant
Scalable
Cost-efficient

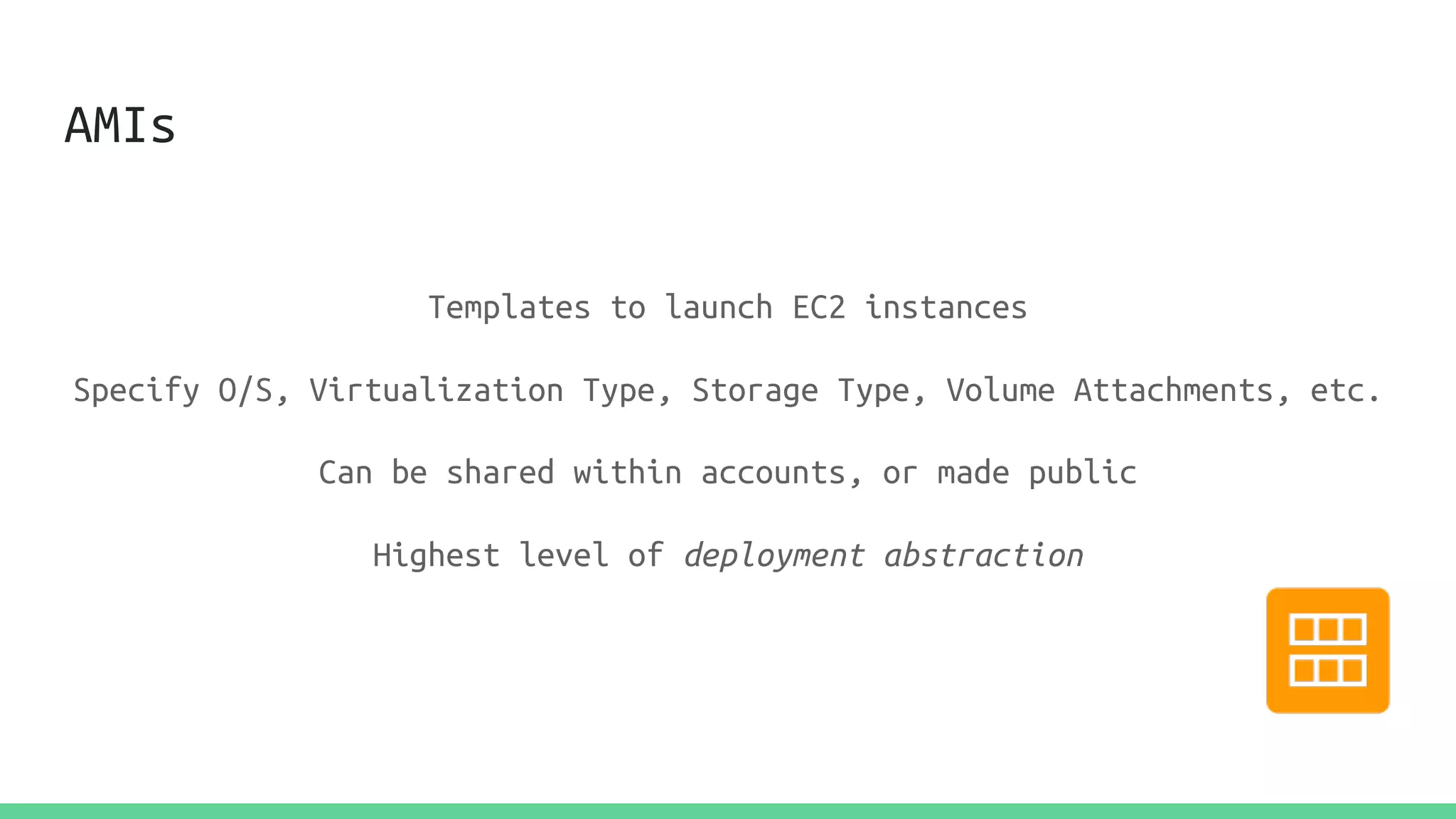

16. AMIs
Templates to launch EC2 instances
Specify O/S, Virtualization Type, Storage Type, Volume Attachments, etc.
Can be shared within accounts, or made public
Highest level of deployment abstraction

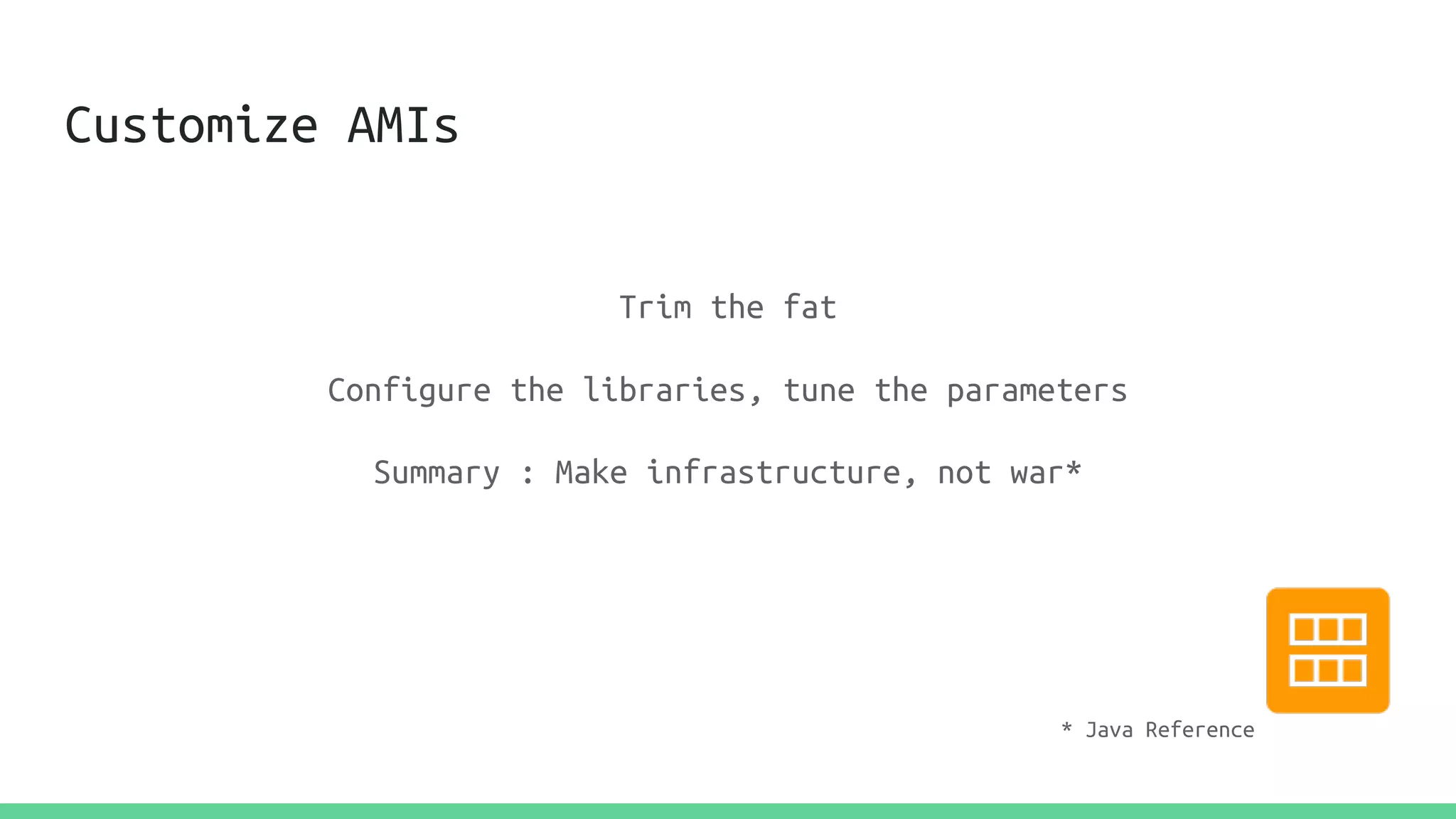

18. Customize AMIs
Trim the fat
Configure the libraries, tune the parameters
Summary : Make infrastructure, not war*
* Java Reference

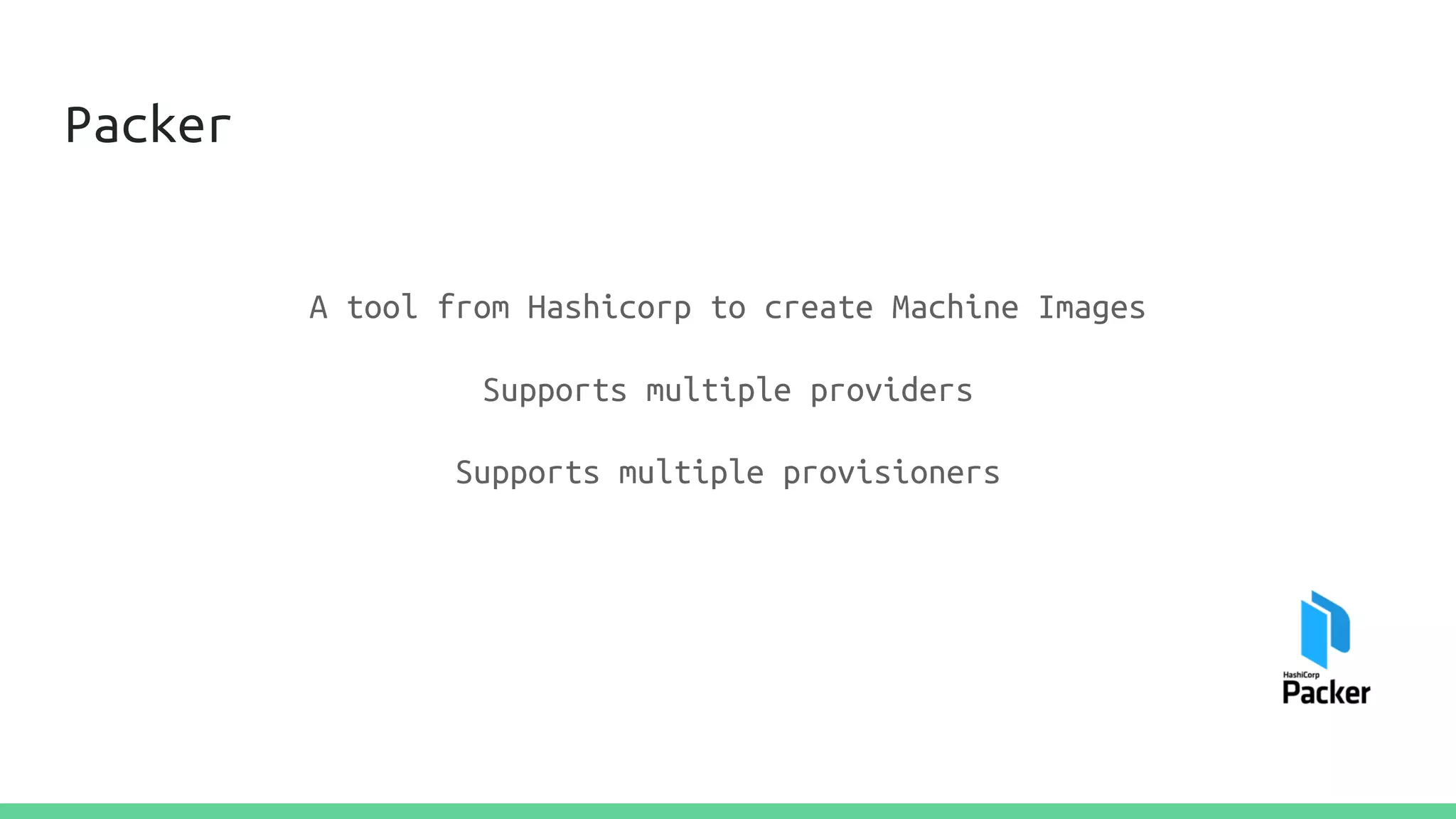

19. Packer
A tool from Hashicorp to create Machine Images
Supports multiple providers
Supports multiple provisioners

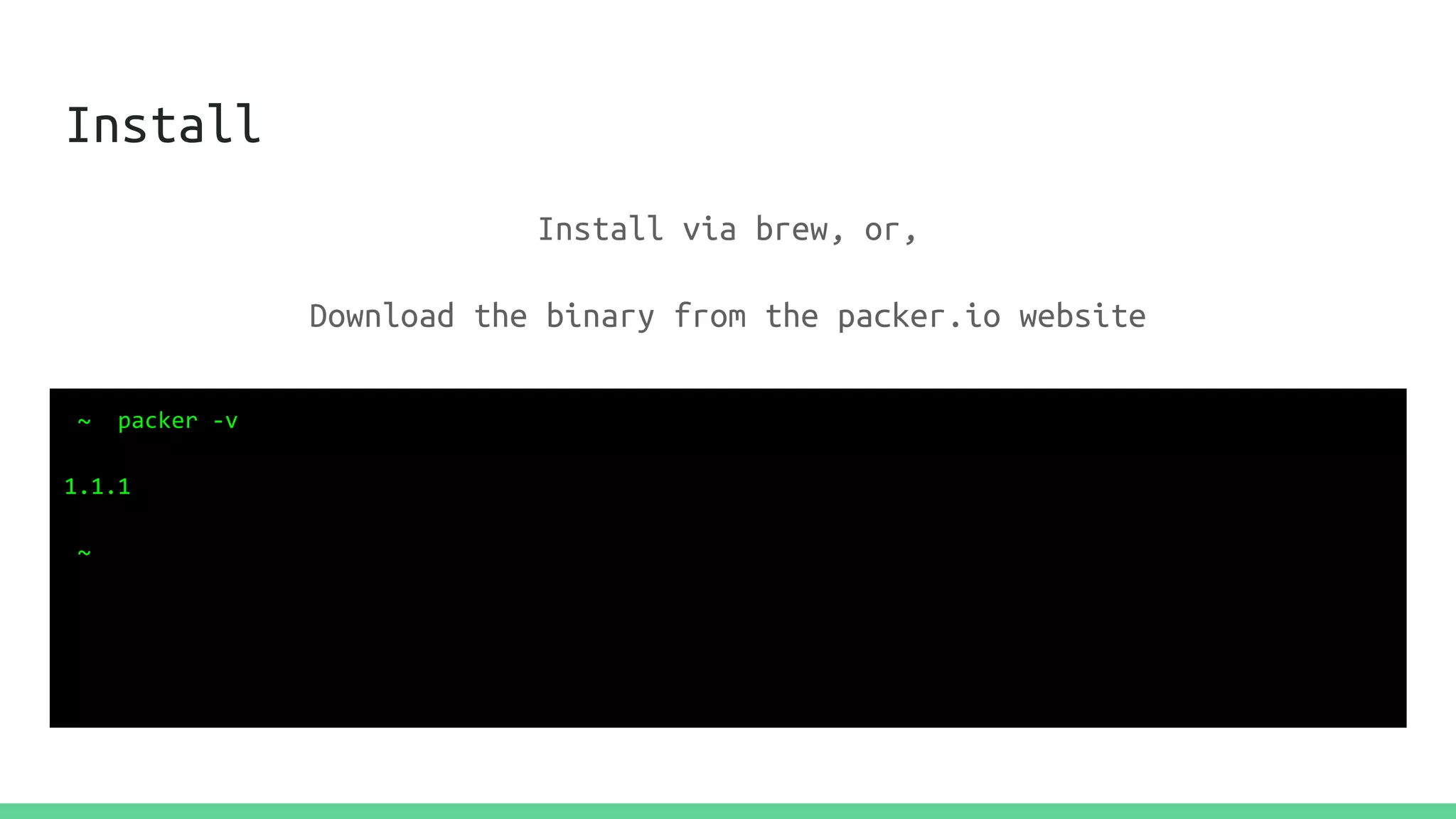

20. Install
~ packer -v
1.1.1
~
Install via brew, or,
Download the binary from the packer.io website

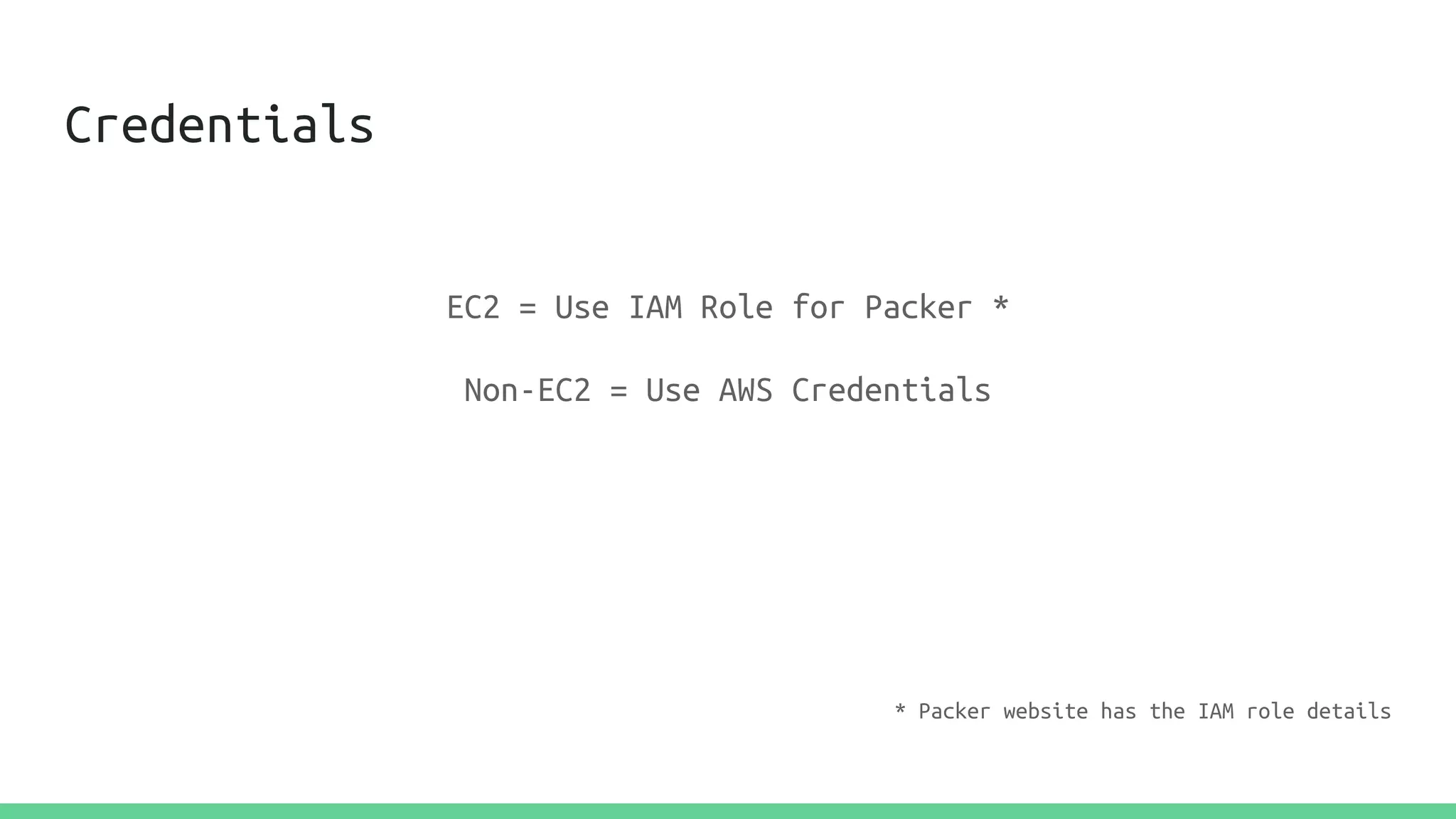

21. Credentials
EC2 = Use IAM Role for Packer *
Non-EC2 = Use AWS Credentials
* Packer website has the IAM role details

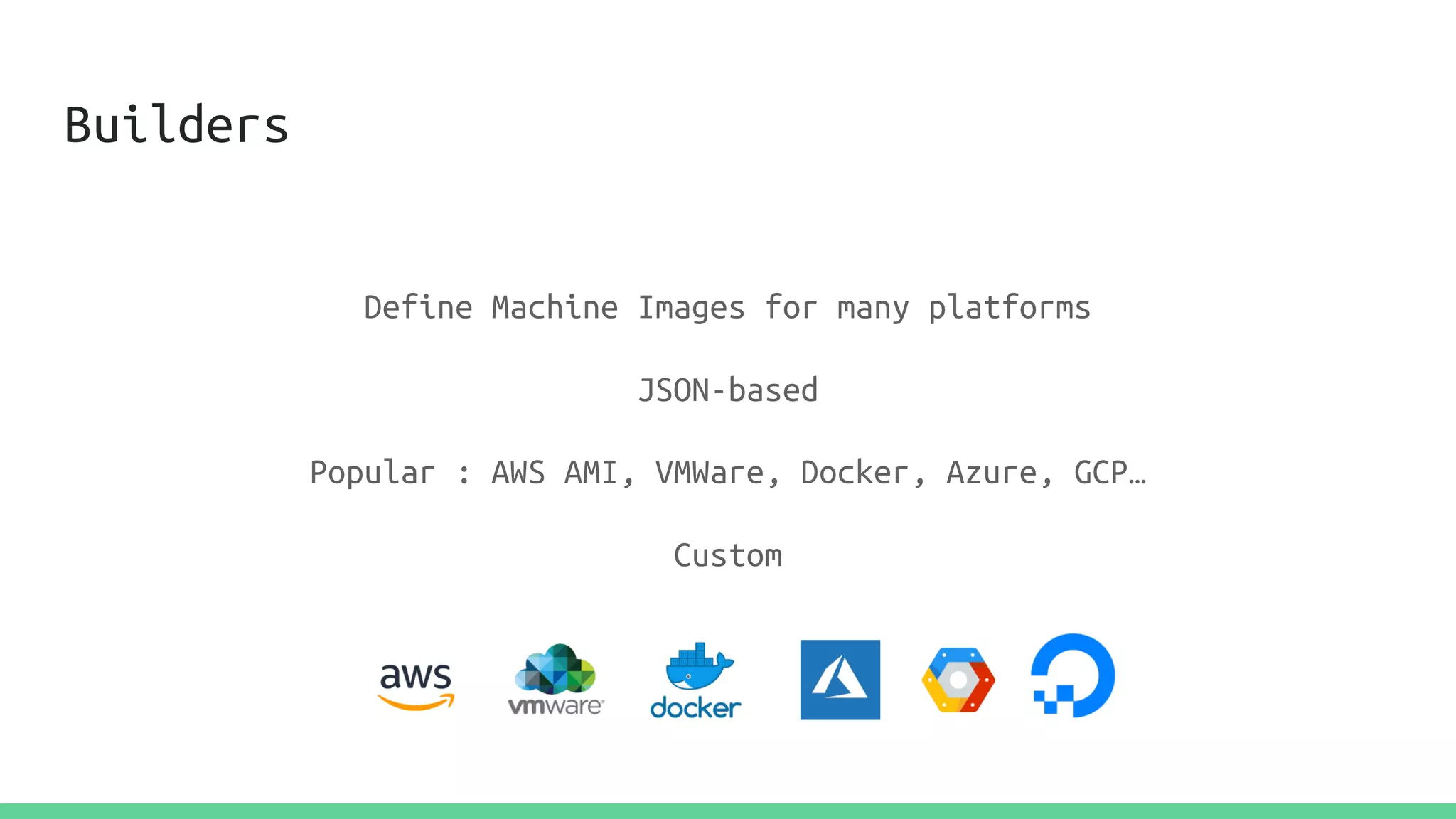

22. Builders
Define Machine Images for many platforms
JSON-based
Popular : AWS AMI, VMWare, Docker, Azure, GCP…
Custom

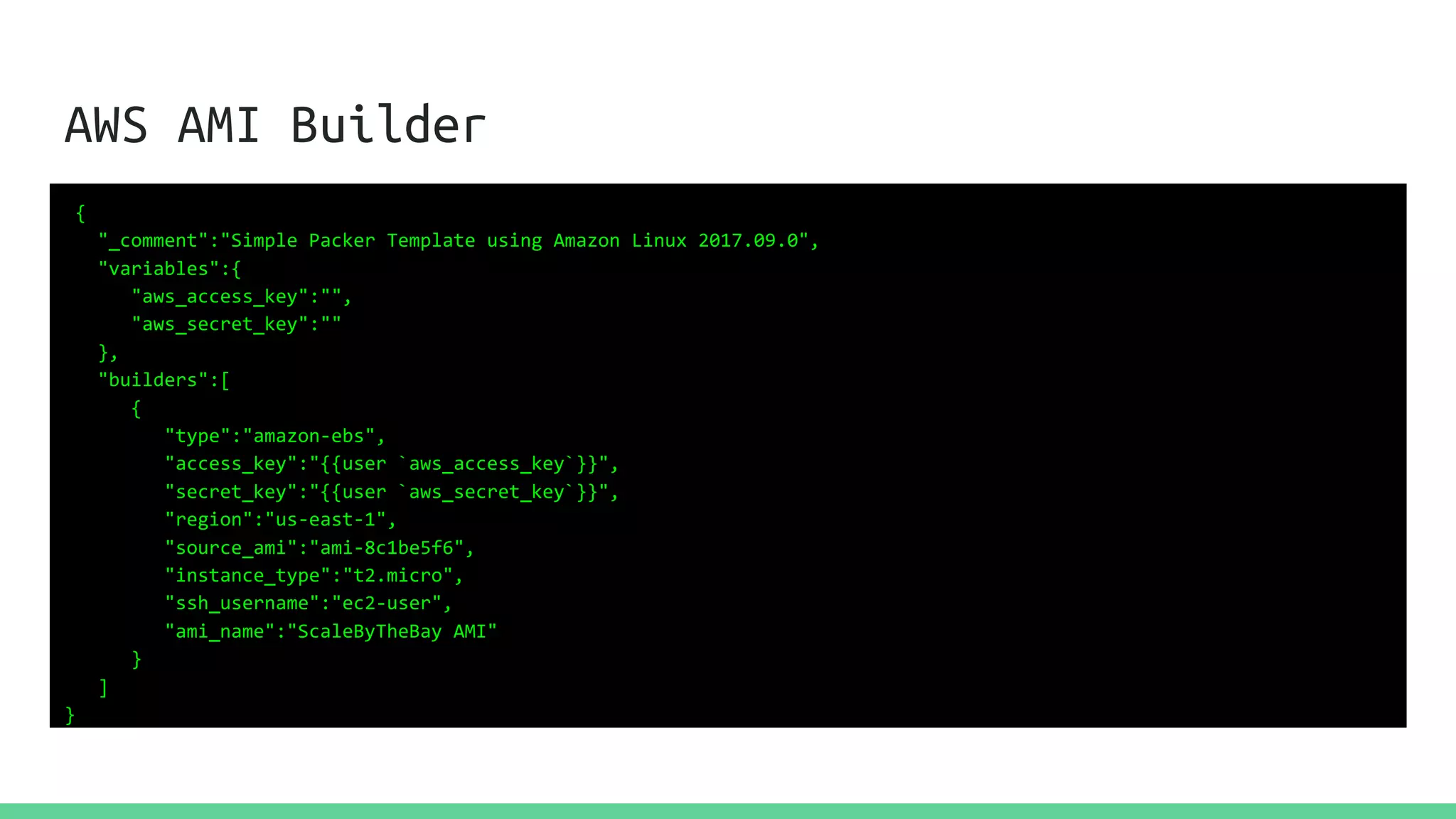

23. AWS AMI Builder
{
"_comment":"Simple Packer Template using Amazon Linux 2017.09.0",
"variables":{
"aws_access_key":"",
"aws_secret_key":""
},
"builders":[
{
"type":"amazon-ebs",
"access_key":"{{user `aws_access_key`}}",
"secret_key":"{{user `aws_secret_key`}}",
"region":"us-east-1",
"source_ami":"ami-8c1be5f6",
"instance_type":"t2.micro",
"ssh_username":"ec2-user",
"ami_name":"ScaleByTheBay AMI"
}
]
}

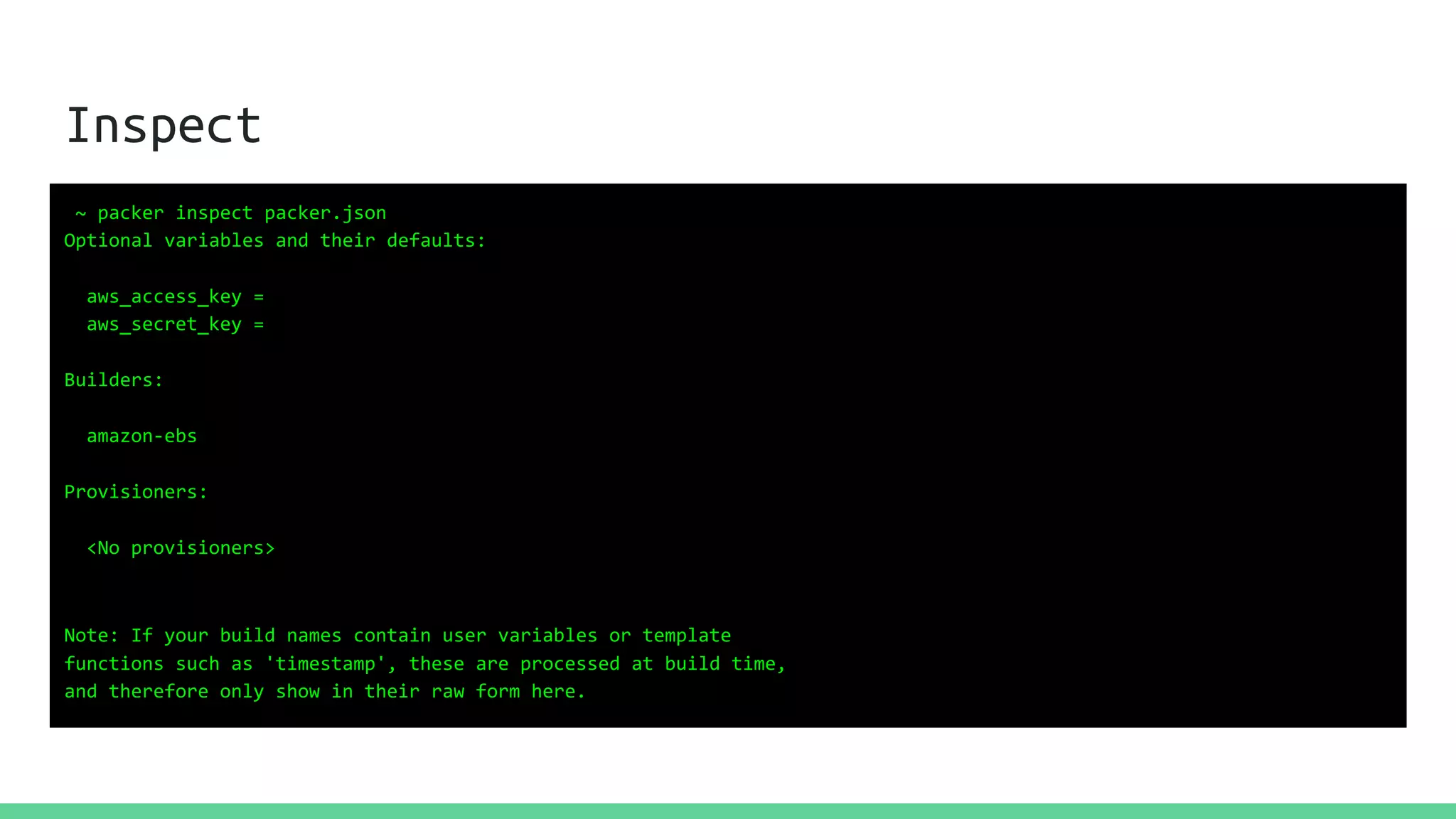

24. Inspect
~ packer inspect packer.json
Optional variables and their defaults:
aws_access_key =
aws_secret_key =
Builders:
amazon-ebs
Provisioners:
<No provisioners>
Note: If your build names contain user variables or template
functions such as 'timestamp', these are processed at build time,
and therefore only show in their raw form here.

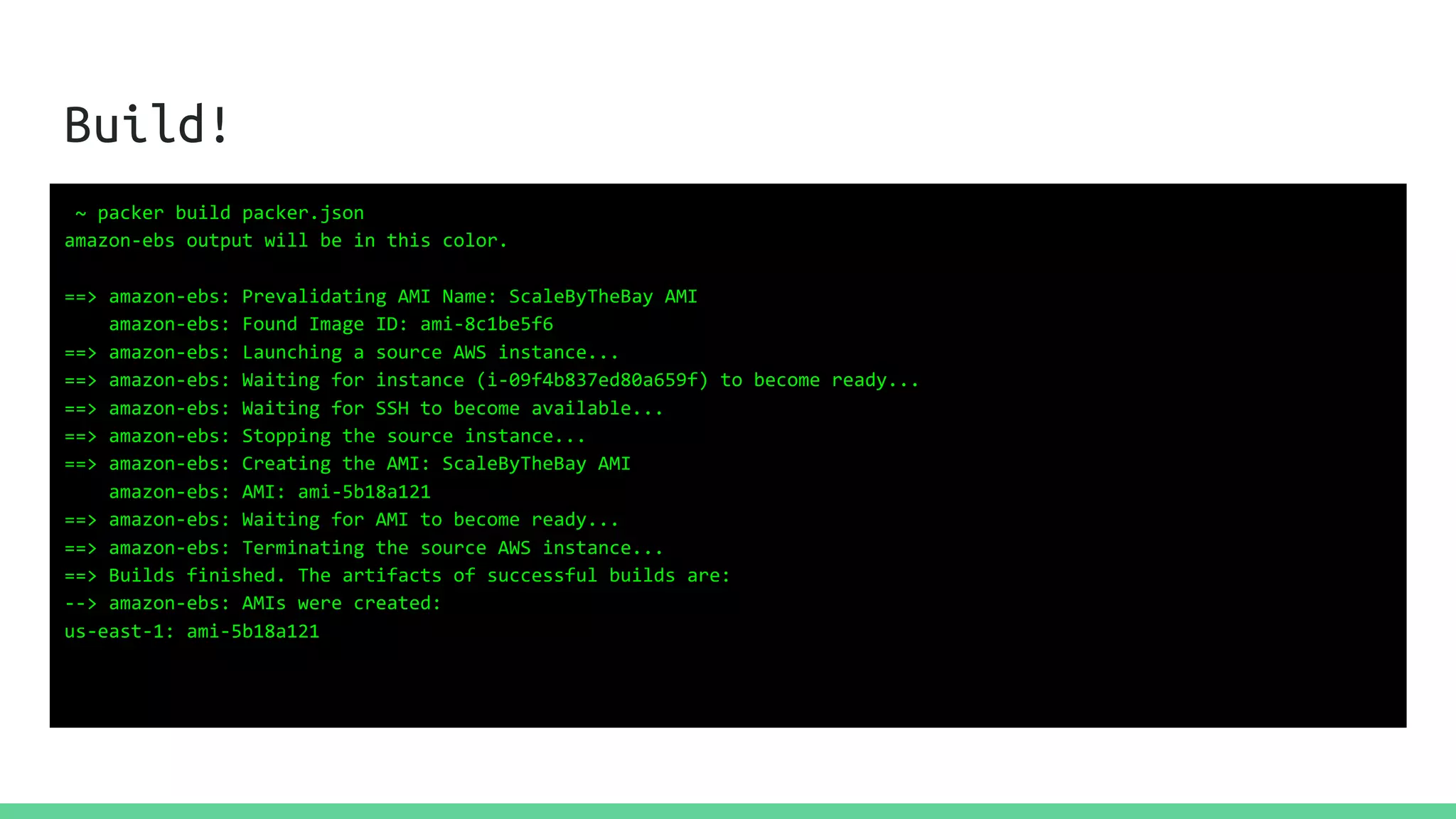

25. Build!
~ packer build packer.json
amazon-ebs output will be in this color.
==> amazon-ebs: Prevalidating AMI Name: ScaleByTheBay AMI
amazon-ebs: Found Image ID: ami-8c1be5f6
==> amazon-ebs: Launching a source AWS instance...
==> amazon-ebs: Waiting for instance (i-09f4b837ed80a659f) to become ready...
==> amazon-ebs: Waiting for SSH to become available...
==> amazon-ebs: Stopping the source instance...
==> amazon-ebs: Creating the AMI: ScaleByTheBay AMI
amazon-ebs: AMI: ami-5b18a121
==> amazon-ebs: Waiting for AMI to become ready...
==> amazon-ebs: Terminating the source AWS instance...
==> Builds finished. The artifacts of successful builds are:
--> amazon-ebs: AMIs were created:
us-east-1: ami-5b18a121

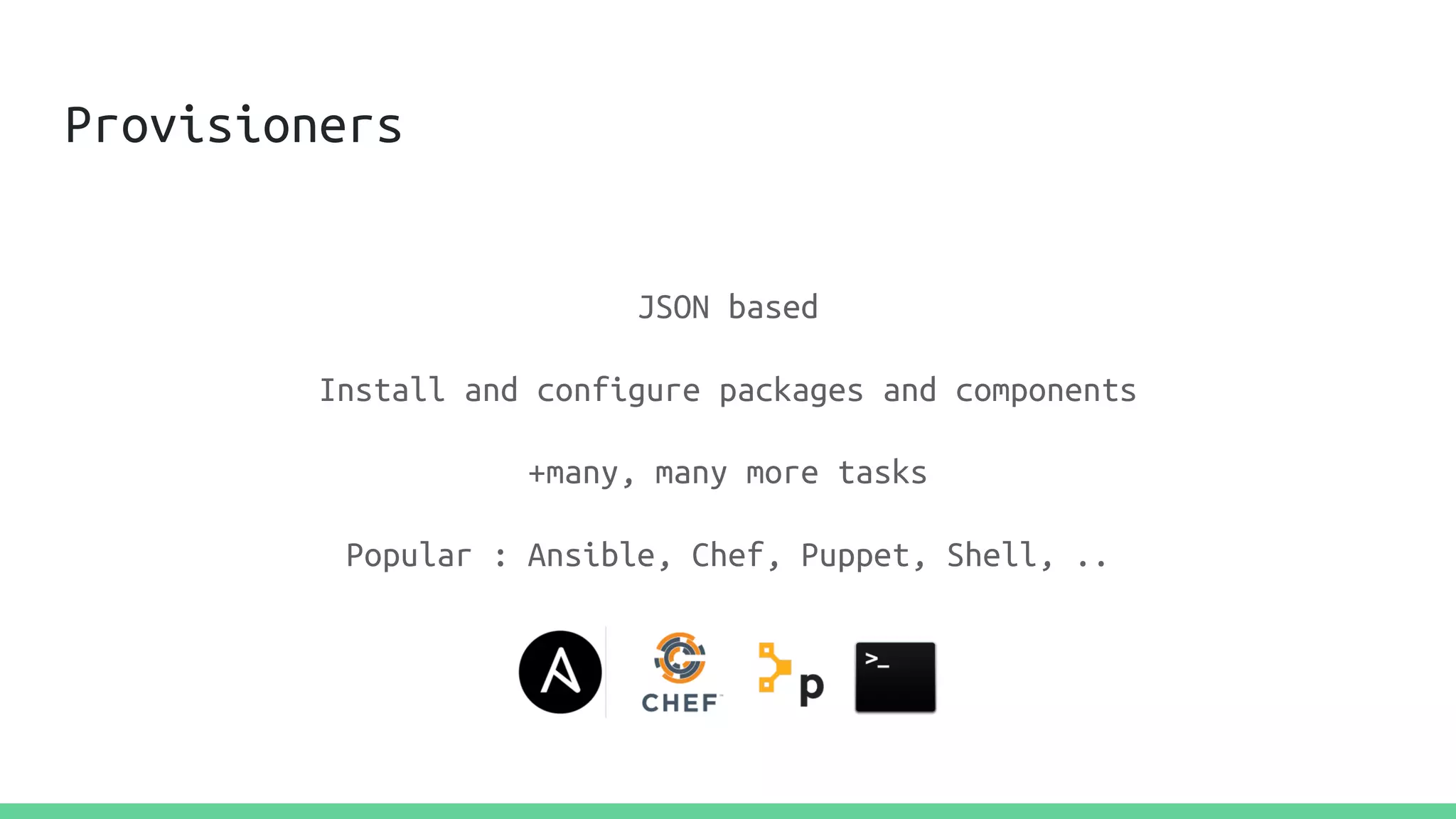

28. Provisioners
JSON based
Install and configure packages and components
+many, many more tasks
Popular : Ansible, Chef, Puppet, Shell, ..

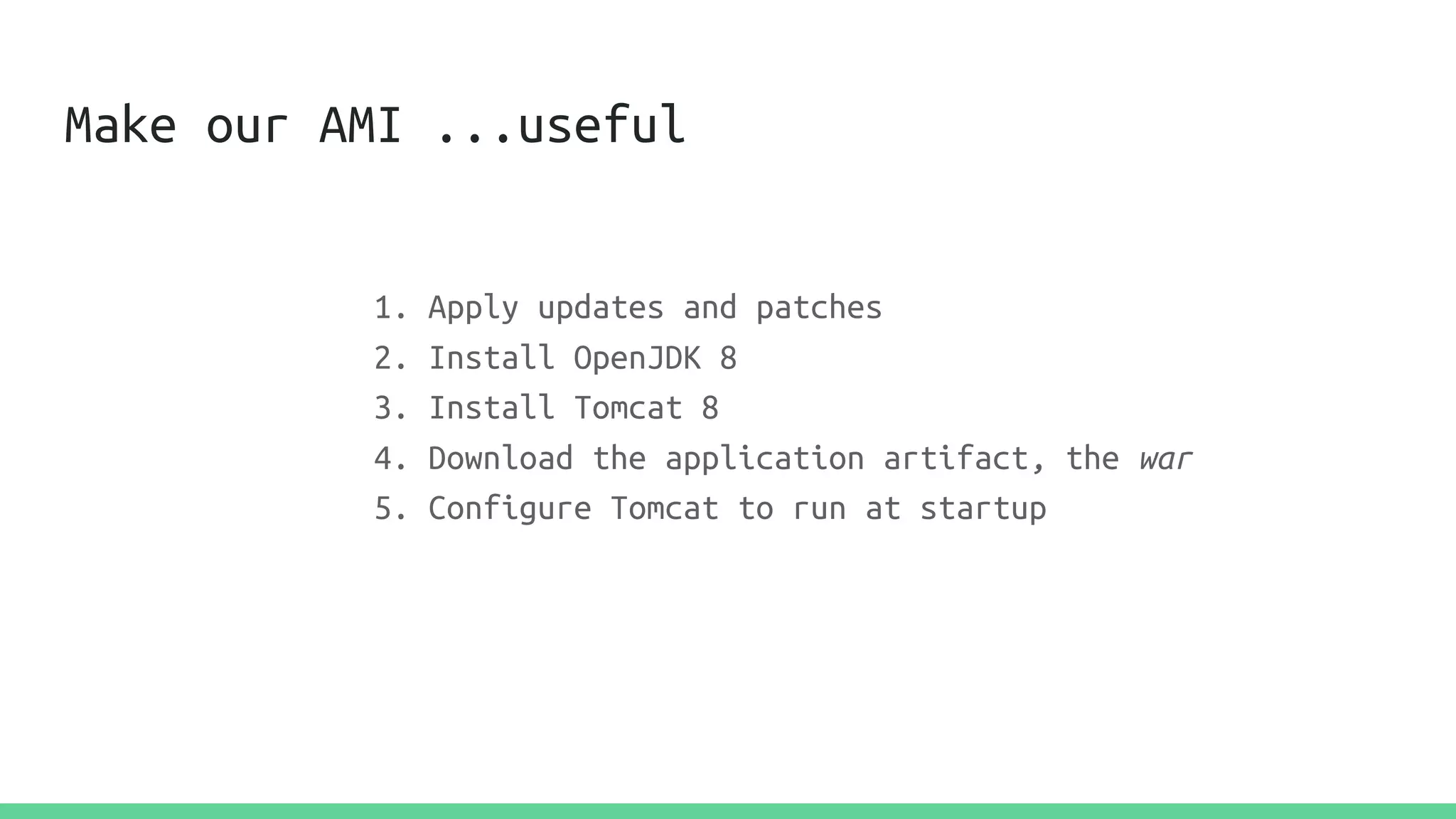

29. Make our AMI ...useful
1. Apply updates and patches
2. Install OpenJDK 8
3. Install Tomcat 8
4. Download the application artifact, the war
5. Configure Tomcat to run at startup

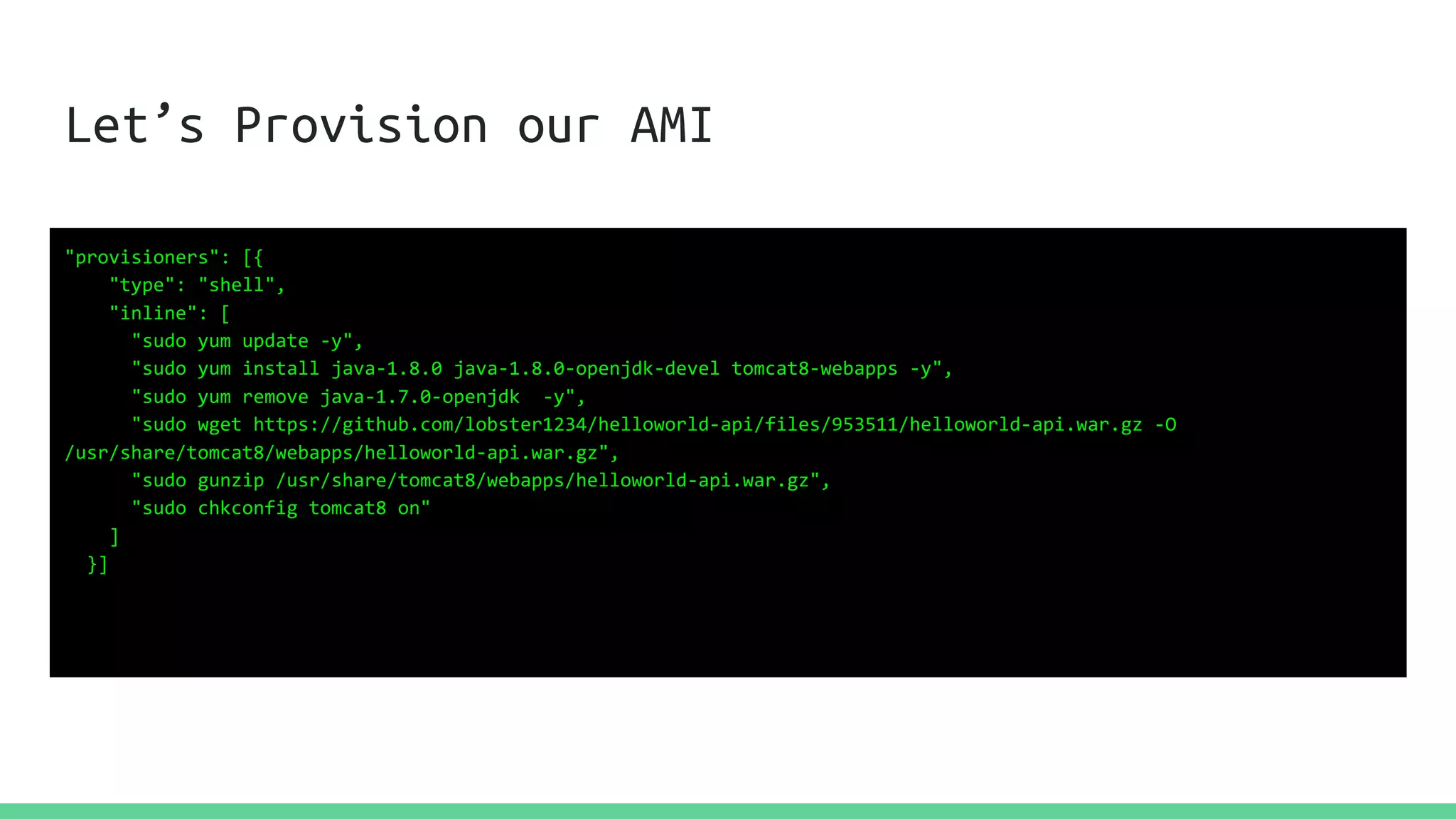

30. Let’s Provision our AMI
"provisioners": [{
"type": "shell",
"inline": [
"sudo yum update -y",
"sudo yum install java-1.8.0 java-1.8.0-openjdk-devel tomcat8-webapps -y",
"sudo yum remove java-1.7.0-openjdk -y",
"sudo wget https://github.com/lobster1234/helloworld-api/files/953511/helloworld-api.war.gz -O
/usr/share/tomcat8/webapps/helloworld-api.war.gz",
"sudo gunzip /usr/share/tomcat8/webapps/helloworld-api.war.gz",
"sudo chkconfig tomcat8 on"
]
}]

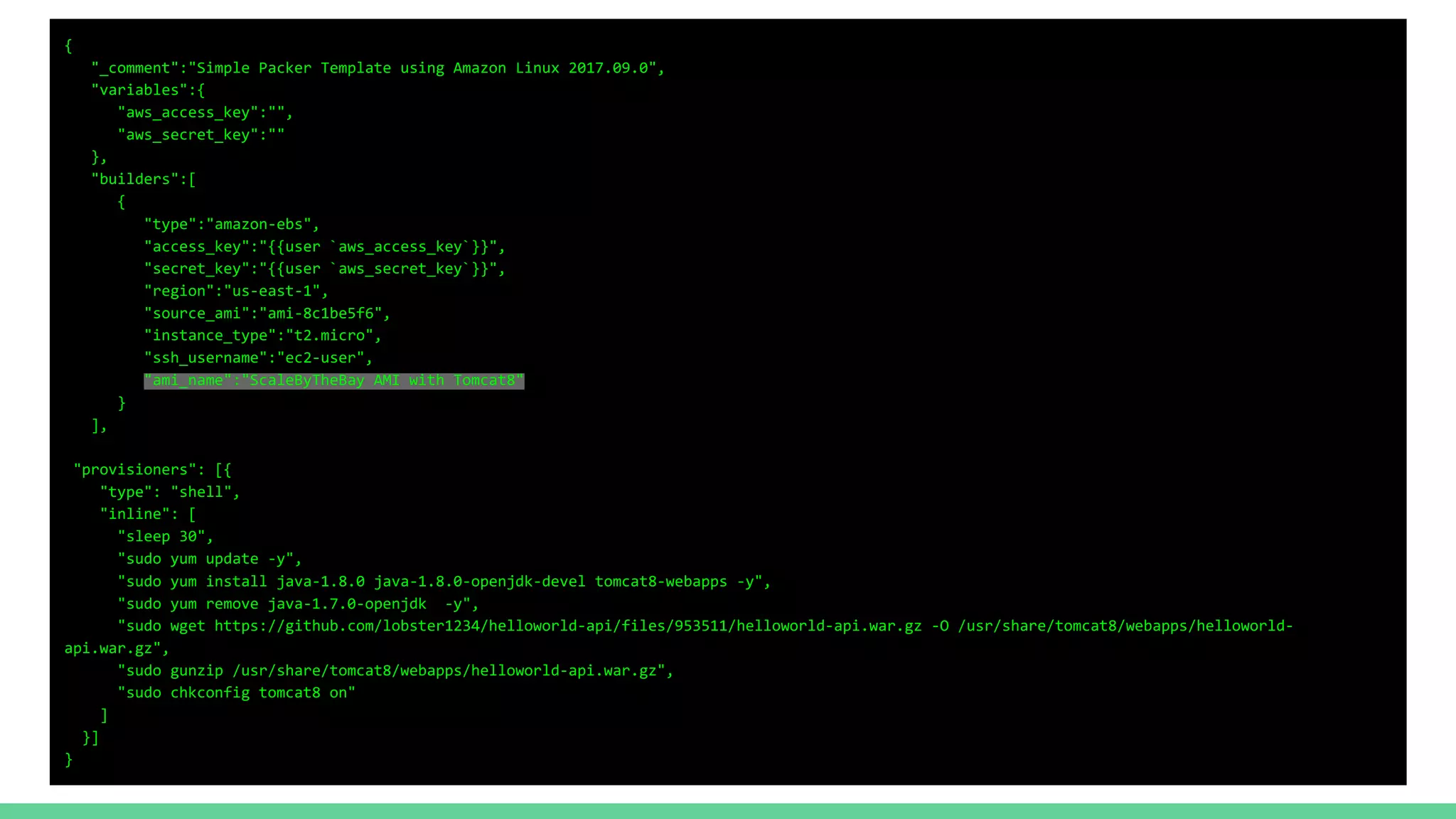

31. {
"_comment":"Simple Packer Template using Amazon Linux 2017.09.0",
"variables":{
"aws_access_key":"",
"aws_secret_key":""
},
"builders":[
{
"type":"amazon-ebs",
"access_key":"{{user `aws_access_key`}}",
"secret_key":"{{user `aws_secret_key`}}",
"region":"us-east-1",
"source_ami":"ami-8c1be5f6",
"instance_type":"t2.micro",
"ssh_username":"ec2-user",
"ami_name":"ScaleByTheBay AMI with Tomcat8"
}
],
"provisioners": [{
"type": "shell",
"inline": [
"sleep 30",
"sudo yum update -y",
"sudo yum install java-1.8.0 java-1.8.0-openjdk-devel tomcat8-webapps -y",
"sudo yum remove java-1.7.0-openjdk -y",
"sudo wget https://github.com/lobster1234/helloworld-api/files/953511/helloworld-api.war.gz -O /usr/share/tomcat8/webapps/helloworld-
api.war.gz",
"sudo gunzip /usr/share/tomcat8/webapps/helloworld-api.war.gz",
"sudo chkconfig tomcat8 on"
]
}]
}

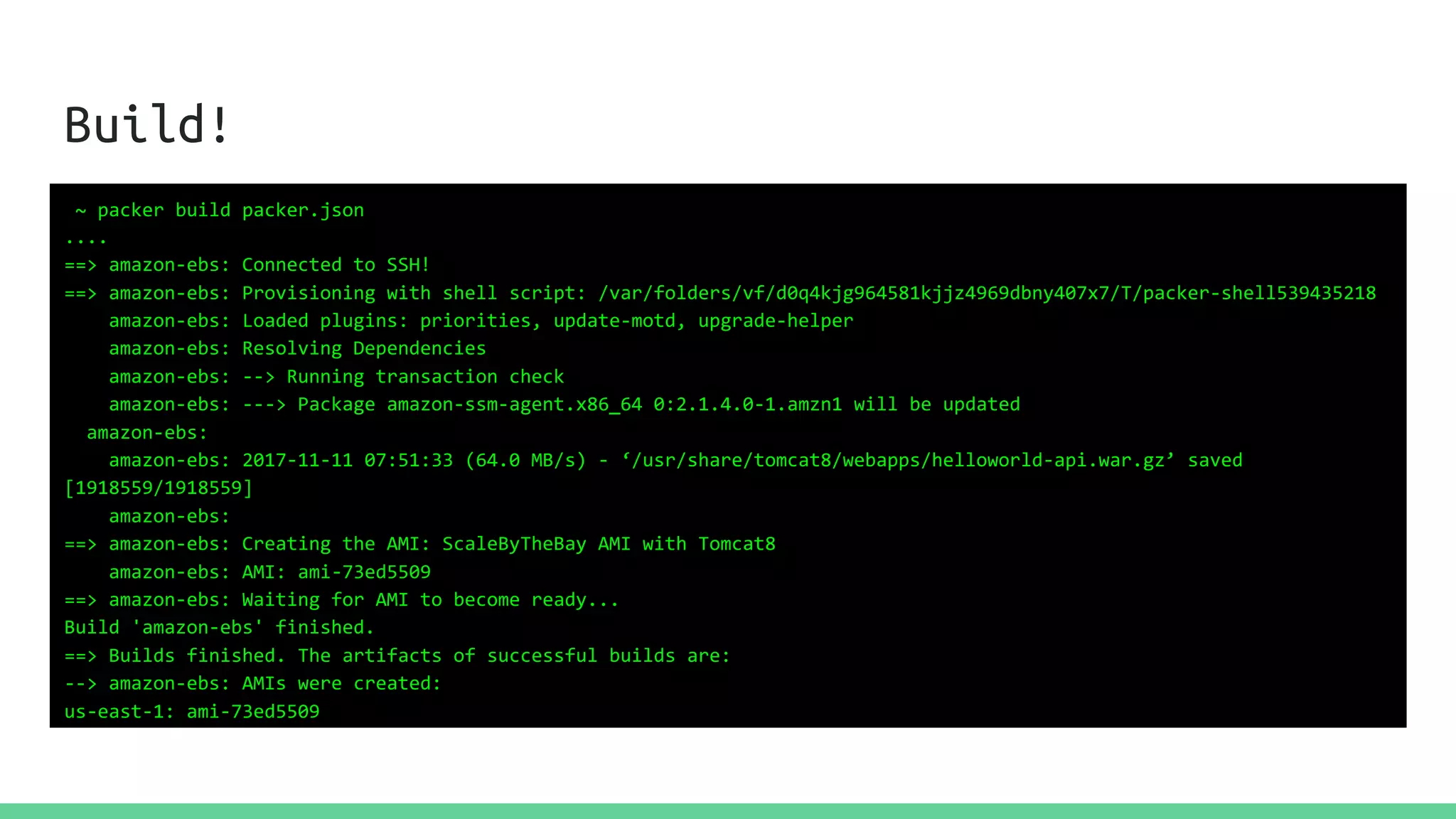

32. Build!
~ packer build packer.json
....
==> amazon-ebs: Connected to SSH!
==> amazon-ebs: Provisioning with shell script: /var/folders/vf/d0q4kjg964581kjjz4969dbny407x7/T/packer-shell539435218
amazon-ebs: Loaded plugins: priorities, update-motd, upgrade-helper
amazon-ebs: Resolving Dependencies
amazon-ebs: --> Running transaction check
amazon-ebs: ---> Package amazon-ssm-agent.x86_64 0:2.1.4.0-1.amzn1 will be updated
amazon-ebs:
amazon-ebs: 2017-11-11 07:51:33 (64.0 MB/s) - ‘/usr/share/tomcat8/webapps/helloworld-api.war.gz’ saved
[1918559/1918559]
amazon-ebs:
==> amazon-ebs: Creating the AMI: ScaleByTheBay AMI with Tomcat8
amazon-ebs: AMI: ami-73ed5509
==> amazon-ebs: Waiting for AMI to become ready...
Build 'amazon-ebs' finished.
==> Builds finished. The artifacts of successful builds are:
--> amazon-ebs: AMIs were created:
us-east-1: ami-73ed5509

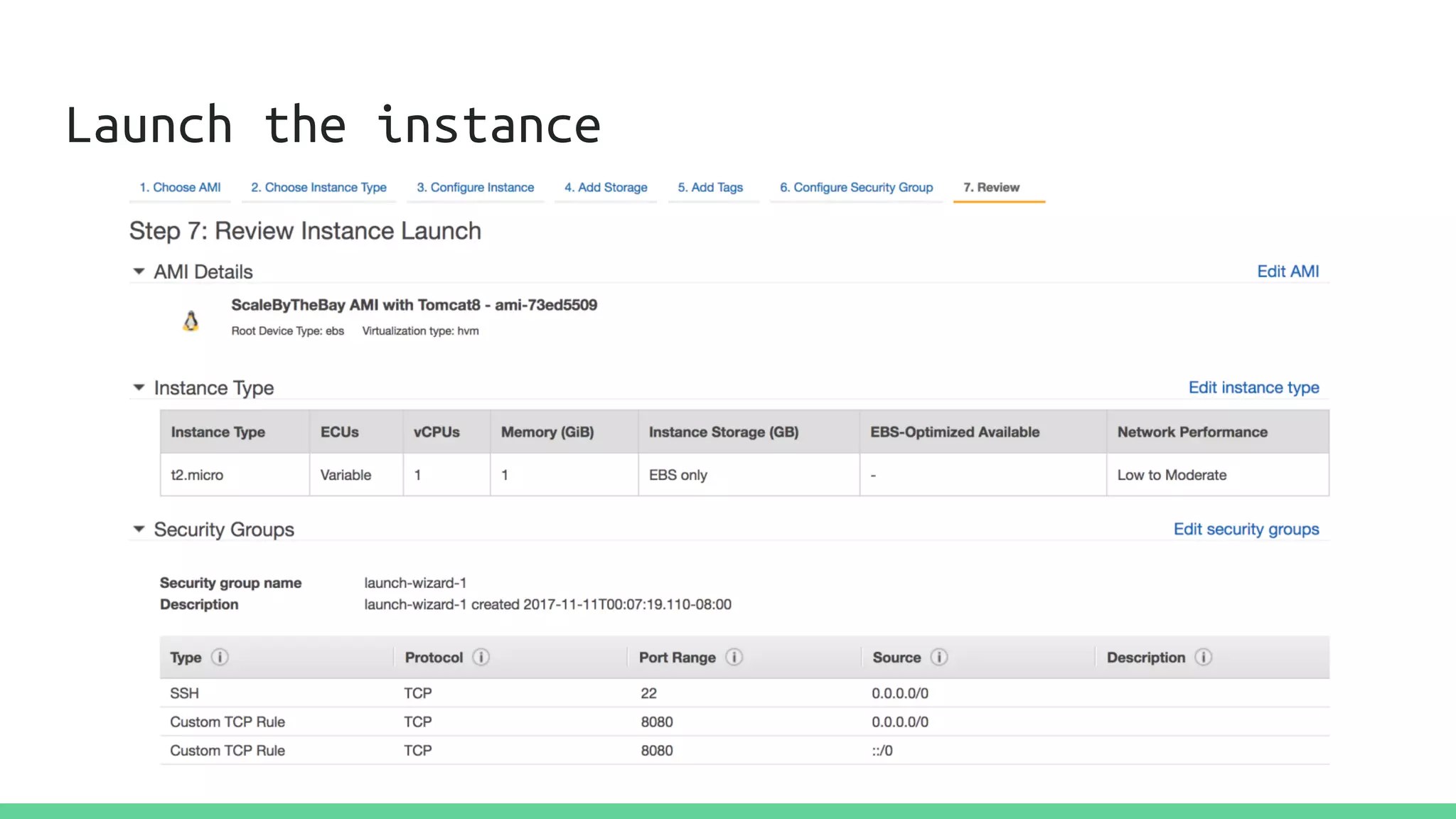

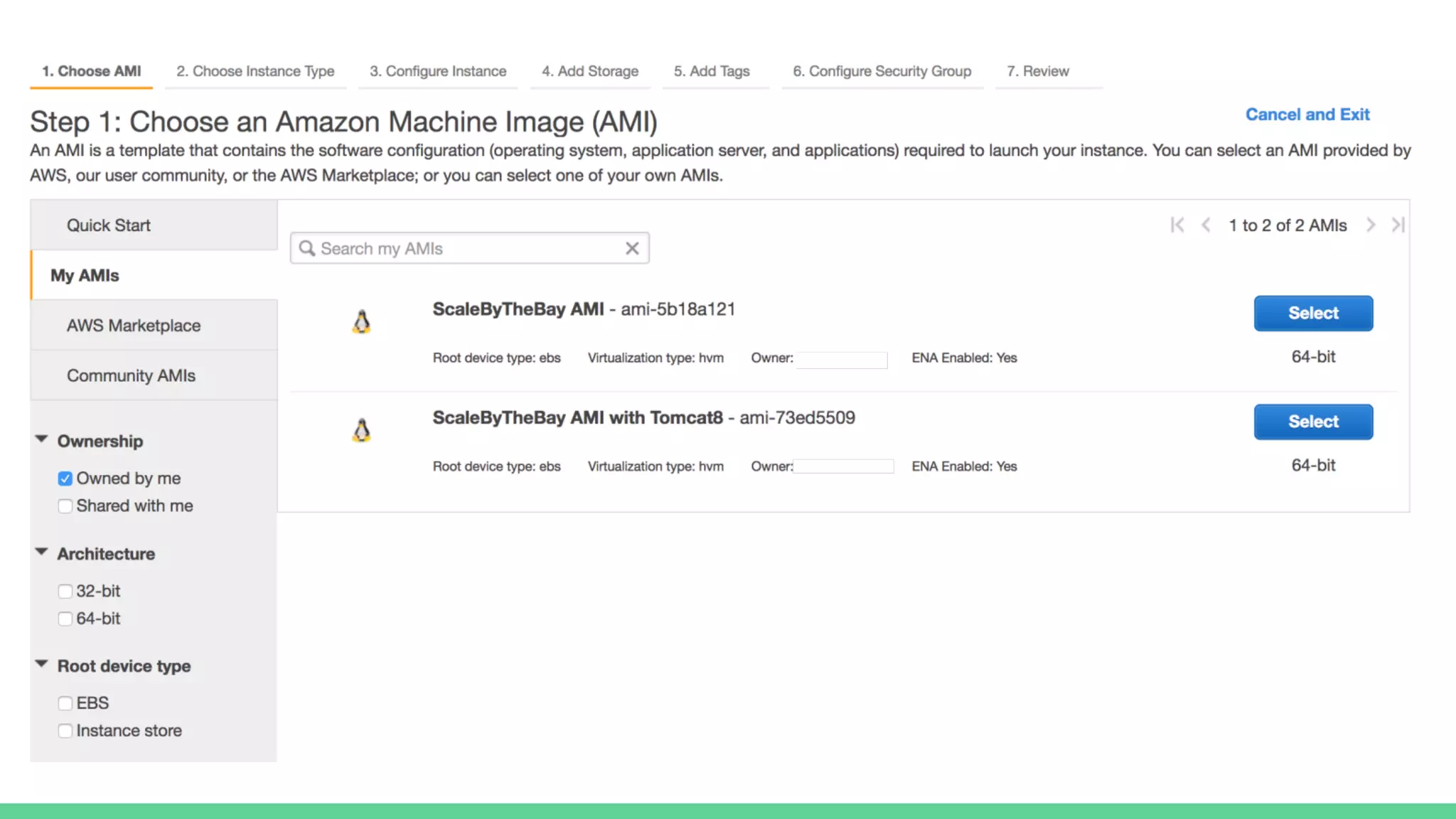

34. Launch the instance

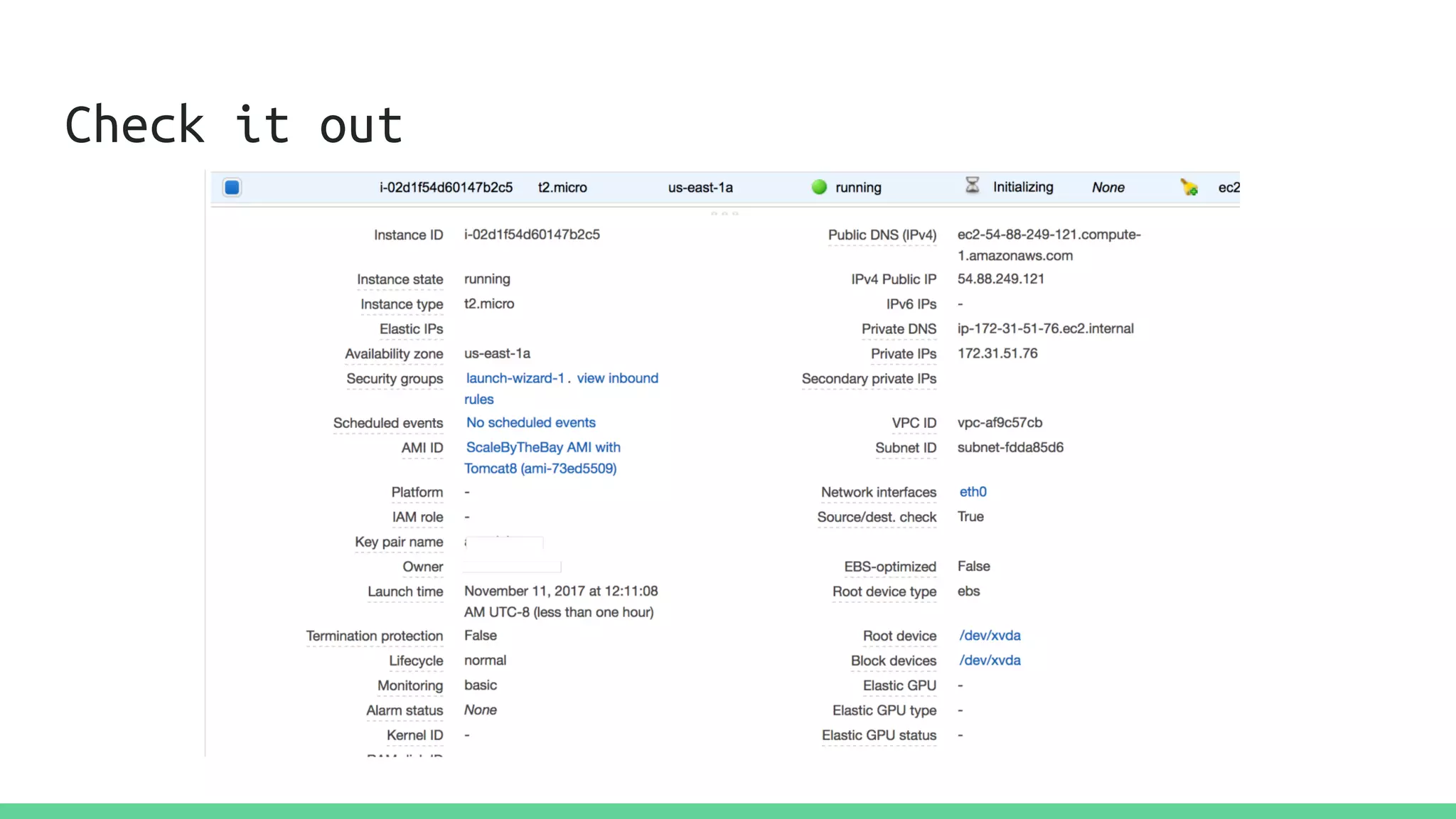

35. Check it out

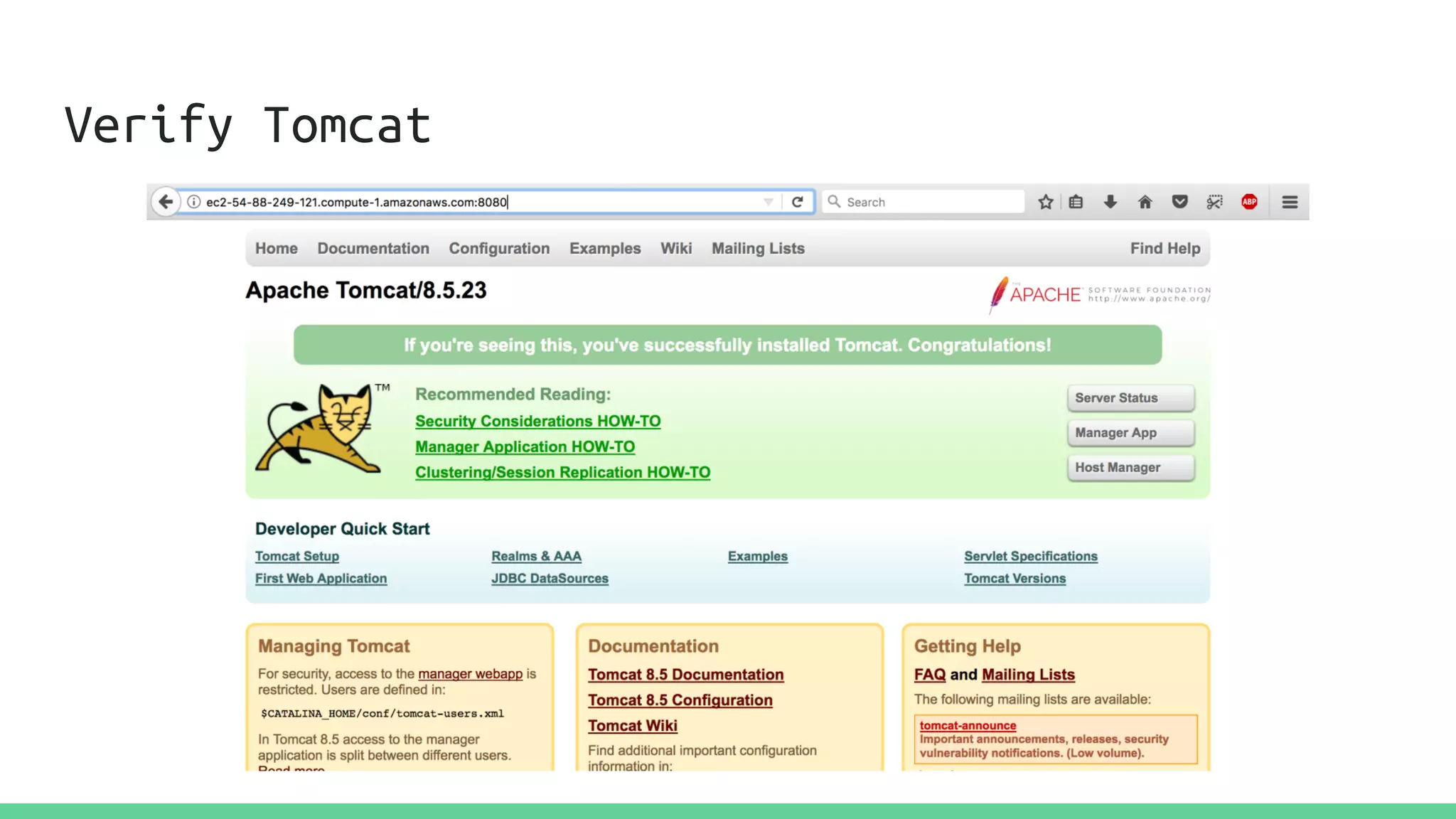

36. Verify Tomcat

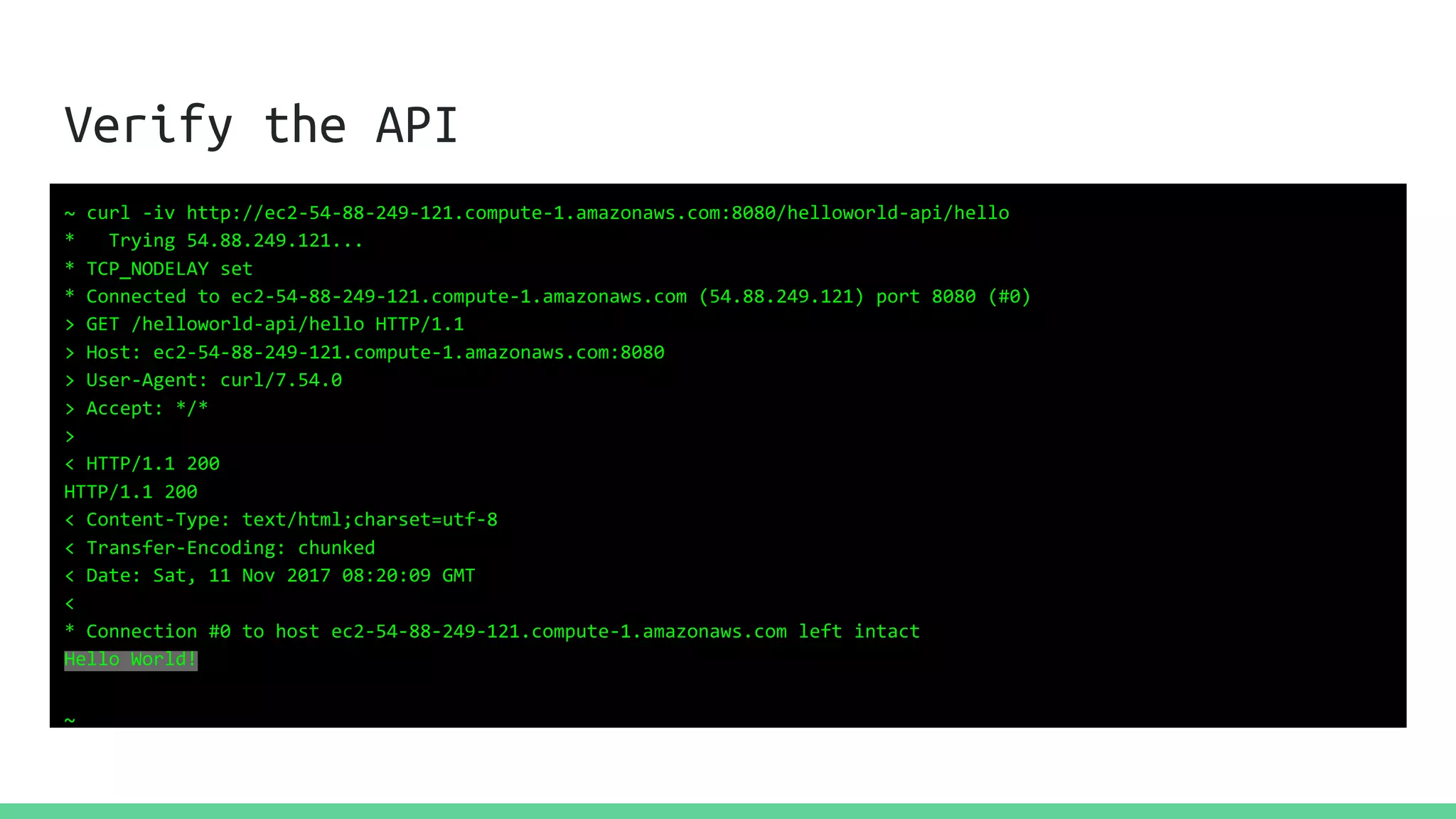

37. Verify the API
~ curl -iv http://ec2-54-88-249-121.compute-1.amazonaws.com:8080/helloworld-api/hello
* Trying 54.88.249.121...
* TCP_NODELAY set
* Connected to ec2-54-88-249-121.compute-1.amazonaws.com (54.88.249.121) port 8080 (#0)
> GET /helloworld-api/hello HTTP/1.1
> Host: ec2-54-88-249-121.compute-1.amazonaws.com:8080
> User-Agent: curl/7.54.0
> Accept: */*
>
< HTTP/1.1 200
HTTP/1.1 200
< Content-Type: text/html;charset=utf-8
< Transfer-Encoding: chunked
< Date: Sat, 11 Nov 2017 08:20:09 GMT
<
* Connection #0 to host ec2-54-88-249-121.compute-1.amazonaws.com left intact
Hello World!
~

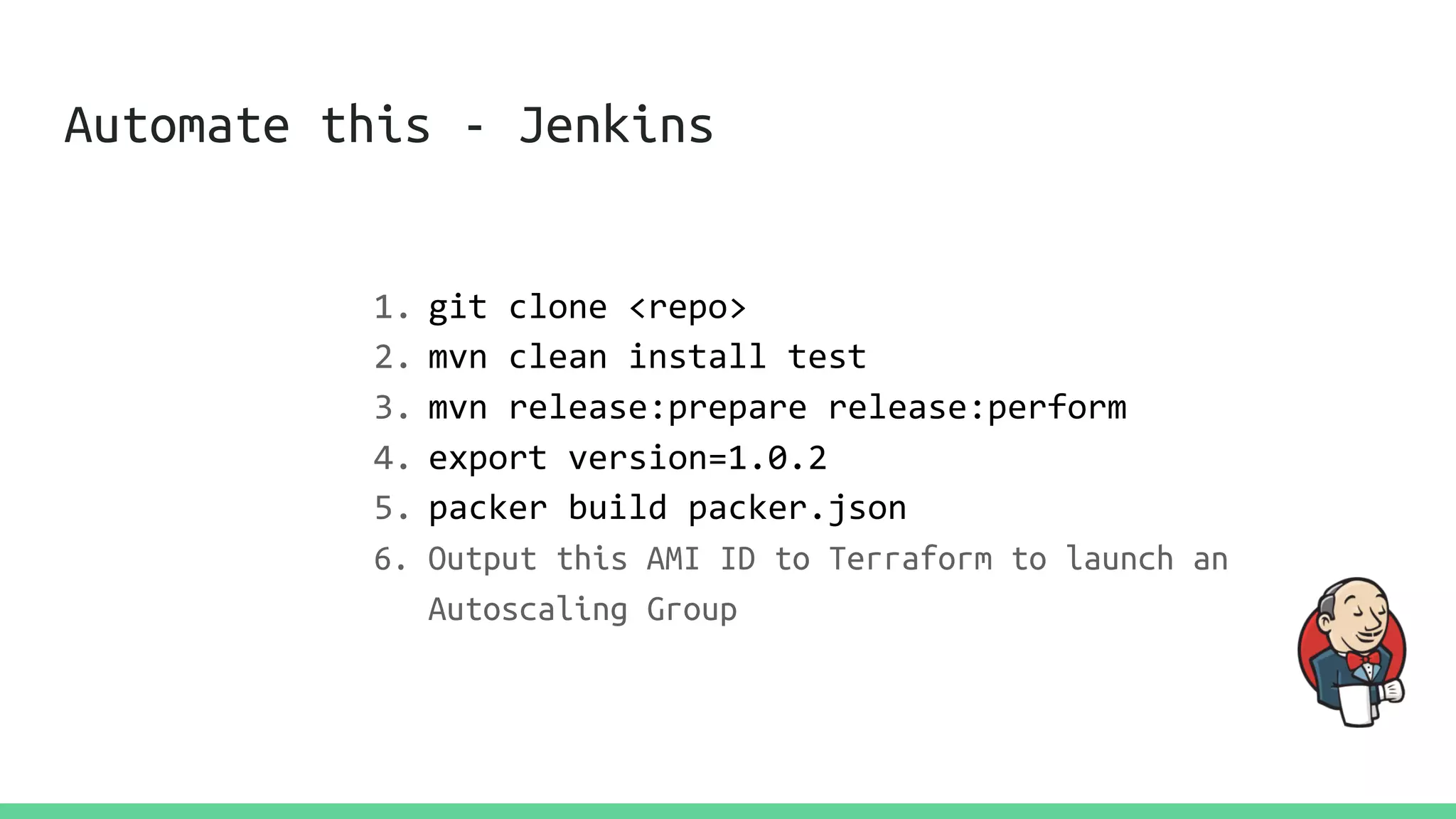

38. Automate this - Jenkins
1. git clone <repo>
2. mvn clean install test
3. mvn release:prepare release:perform
4. export version=1.0.2
5. packer build packer.json
6. Output this AMI ID to Terraform to launch an
Autoscaling Group

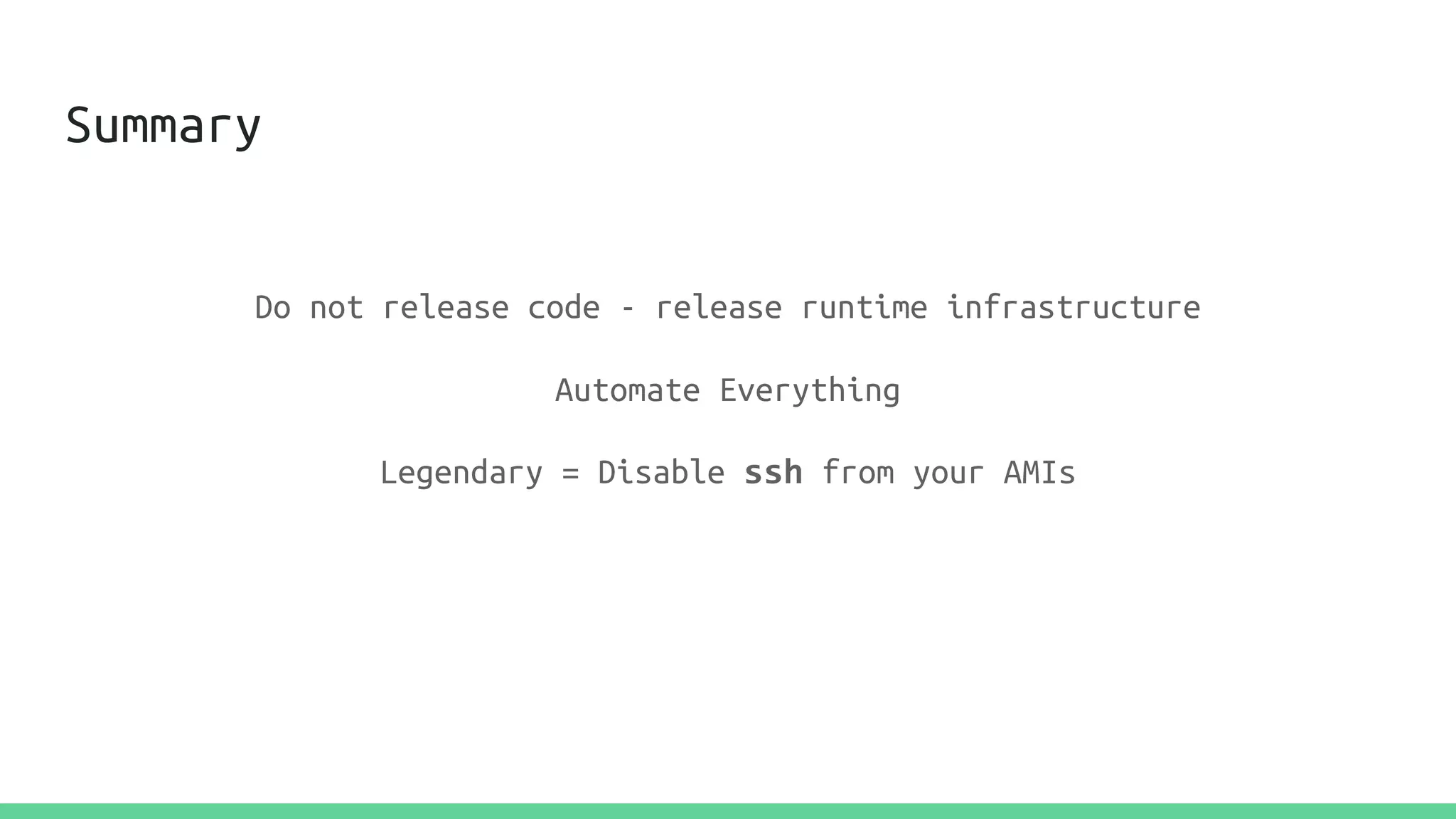

39. Summary
Do not release code - release runtime infrastructure
Automate Everything
Legendary = Disable ssh from your AMIs

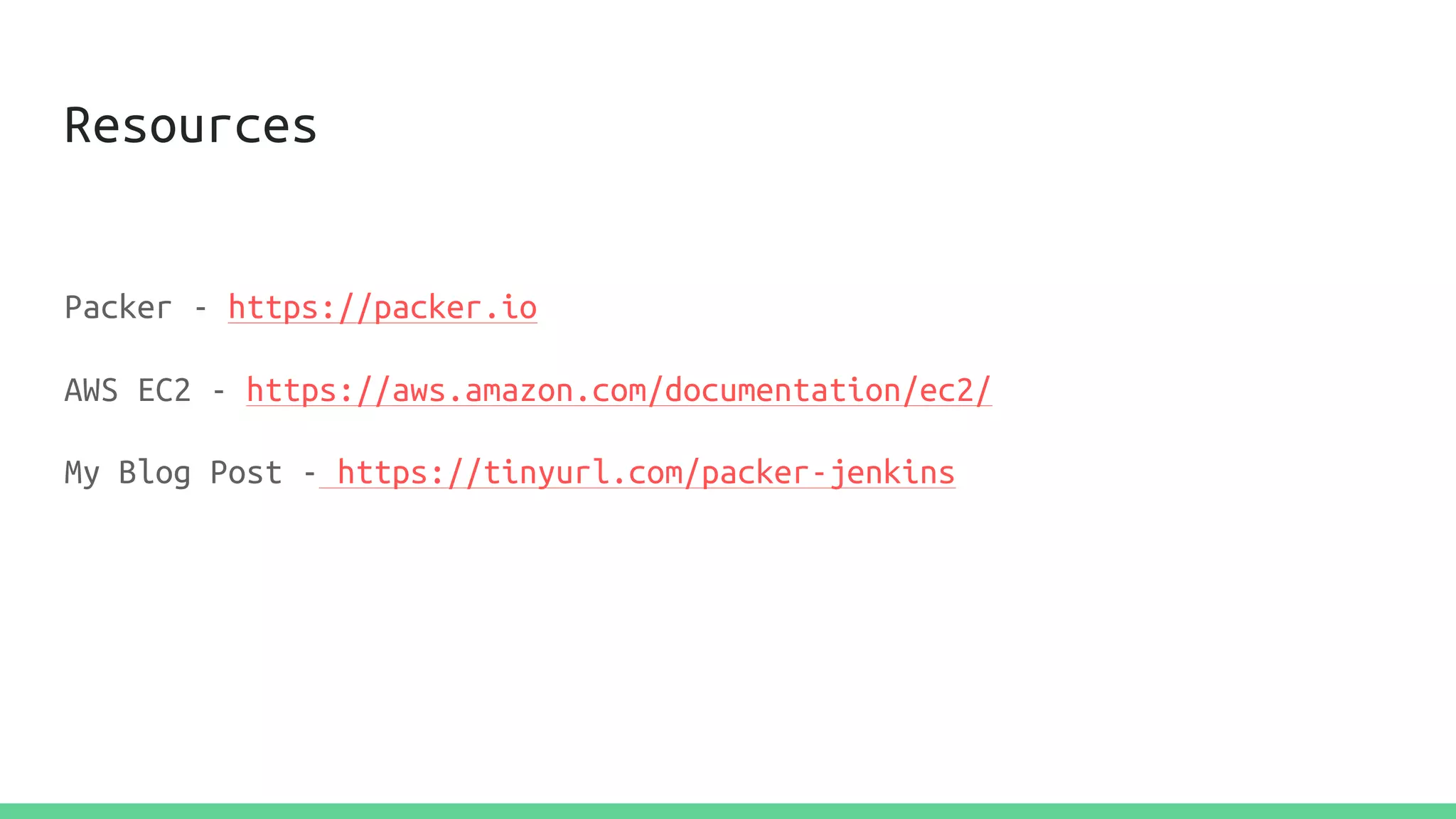

40. Resources
Packer - https://packer.io
AWS EC2 - https://aws.amazon.com/documentation/ec2/
My Blog Post - https://tinyurl.com/packer-jenkins

41. Questions
Manish Pandit
@lobster1234
lobster1234.github.io
Like what you saw? Come work with me @Marqeta!
