![.ebextensions/01install.config
packages:
yum:
libmemcached: []
ruby-devel: []
gcc: []
rubygems:
chef: '0.10.2'
apt:
mysql-client: []
packages:
msi:
mysql: http://dev.mysql.com/.../mysql-connector-net-6.6.5.msi/.../](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-13-320.jpg)

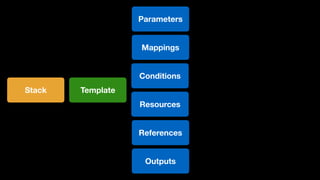

![Conditions
Resources
References
Mappings
Outputs
Parameters
"Parameters" : {!
"InstanceType" : {!
"Type" : "String",!
"Default" : "t1.micro",!
"AllowedValues" : ["t1.micro", "m1.small", "m1.large"],!
"Description" : "Enter t1.micro, m1.small, or m1.large. Default is t1.micro."!
}!
}](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-45-320.jpg)
![Conditions
Resources
References
Mappings
Outputs
Parameters "Parameters" : {!
"EnvType" : {!
"Description" : "Environment type.",!
"Default" : "test",!
"Type" : "String",!
"AllowedValues" : ["prod", "test"]!
}!
},!
!
"Conditions" : {!
"CreateProdInstance" : {"Fn::Equals" : [{"Ref" : "EnvType"}, "prod"]}!
}!
!
"ProductionInstance" : {!
"Type" : "AWS::EC2::Instance",!
"Condition" : "CreateProdInstance",!
"Properties" : {!
"InstanceType" : "c1.xlarge",!
"SecurityGroups" : [ { "Ref" : "ProdSecurityGroup" } ],!
"KeyName" : { "Ref" : "ProdKeyName" },!
"ImageId" : { "Fn::FindInMap" : [ "RegionMap", { "Ref" : "AWS::Region" }, "AMI" ]}!
}!
}](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-47-320.jpg)
![Conditions
Outputs
Mappings
References
Pseudo
Parameters
Resource
Properties
Parameters
Resources "Outputs" : {!
"URL" : {!
"Value" : { "Fn::GetAtt" : [ "MyLoadBalancer", "DNSName" ] }!
}!
}
Intrinsic
Functions
Name
Fn::Base64
Fn::FindInMap
Fn::GetAtt
Fn::GetAZs
Fn::Join
Ref](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-54-320.jpg)
!["AWS::CloudFormation::Init"
:
{
"config"
:
{
!
"packages"
:
{
"yum"
:
{
"mysql"
:
[],
"mysql-‐server"
:
[],
"httpd"
:
[],
"php"
:
[],
"php-‐mysql"
:
[]
}
},
"sources"
:
{
"/var/www/html"
:
"https://s3.amazonaws.com/my-‐builds/build-‐v4.zip"
}
}](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-57-320.jpg)
![aws ec2 describe-instances!
--filter Name=instance-state-name,Values=running,!
Name=tag:aws:autoscaling:groupName,Values=XXX!
--query Reservations[].Instances[].PublicDnsName!
--output text](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-61-320.jpg)
![for ip in $(!
!
aws ec2 describe-instances!
--filter Name=instance-state-name,Values=running,!
Name=tag:aws:autoscaling:groupName,Values=XXX!
--query Reservations[].Instances[].PublicDnsName!
--output text!
!
); do ssh -t ec2-user@$ip "sudo yum update"; done!
!](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-62-320.jpg)
![for ip in $(!
!
aws ec2 describe-instances!
--filter Name=instance-state-name,Values=running,!
Name=tag:aws:autoscaling:groupName,Values=XXX!
--query Reservations[].Instances[].PublicDnsName!
--output text!
!
); do ssh -t ec2-user@$ip "cd /app ; git pull"; done!
!](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-63-320.jpg)
![for ip in $(!
!
aws ec2 describe-instances!
--filter Name=instance-state-name,Values=running,!
Name=tag:aws:autoscaling:groupName,Values=XXX!
--query Reservations[].Instances[].PublicDnsName!
--output text!
!
); do ssh -t ec2-user@$ip "/app/update.sh"; done!
!](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-64-320.jpg)
![aws sns list-subscriptions |!
jq -c '.Subscriptions[] |!
select(.Protocol == "sqs")' |!
while read s!
do!
if [ "$(aws sqs get-queue-url —queue-name!
$(echo $s | jq -r .Endpoint |!
sed ’s/^arn:aws:sqs:[^:]*:[^:]*://')!
2>&1 >/dev/null ;!
echo $?)" != "0" ]!
then!
echo "Unsubscribing $s ..."!
aws sns unsubscribe —subscription-arn!
$(echo $s | jq -r .SubscriptionArn)!
echo "Done."!
fi;!
done](https://image.slidesharecdn.com/cloudconf-2-20140331-140728060144-phpapp01/85/Deployment-and-Management-on-AWS-A-Deep-Dive-on-Options-and-Tools-66-320.jpg)
Uploaded byDanilo Poccia
Deployment and Management on AWS: A Deep Dive on Options and Tools
This document provides an overview and comparison of different options for deploying and managing applications on AWS: AWS Elastic Beanstalk, AWS OpsWorks, AWS CloudFormation, and raw Amazon EC2. It discusses the tradeoffs between convenience, control, and complexity for each option. It also includes code samples and descriptions of features for each service.
More Related Content
Similar to Deployment and Management on AWS: A Deep Dive on Options and Tools
Deployment and Management on AWS: A Deep Dive on Options and Tools
- 1. DEPLOYMENT AND MANAGEMENT ONAWS: A DEEP DIVE ON OPTIONS AND TOOLS Danilo Poccia – Solutions Architect

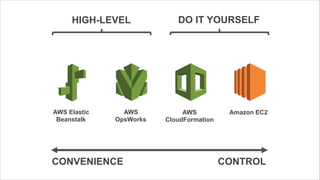

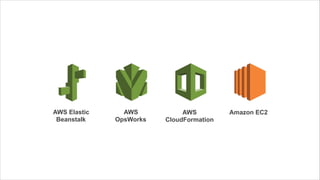

- 2. AWS Elastic Beanstalk AWS OpsWorks AWS CloudFormation Amazon EC2 CONVENIENCECONTROL HIGH-LEVEL DO IT YOURSELF

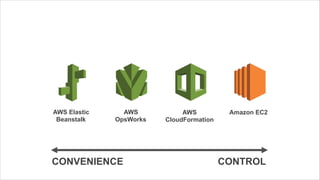

- 3. AWS Elastic Beanstalk AWS OpsWorks AWS CloudFormation Amazon EC2 CONVENIENCECONTROL HIGH-LEVEL DO IT YOURSELF
- 4. AWS Elastic Beanstalk AWS OpsWorks AWS CloudFormation Amazon EC2 CONVENIENCECONTROL HIGH-LEVEL DO IT YOURSELF
- 5. AWS ELASTIC BEANSTALK QUICKLY DEPLOY ANDMANAGE APPLICATIONS
- 9.
- 10.

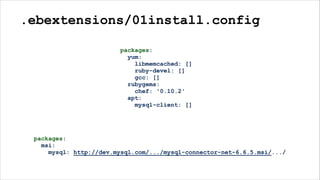

- 13. .ebextensions/01install.config packages: yum: libmemcached: [] ruby-devel: [] gcc:[] rubygems: chef: '0.10.2' apt: mysql-client: [] packages: msi: mysql: http://dev.mysql.com/.../mysql-connector-net-6.6.5.msi/.../

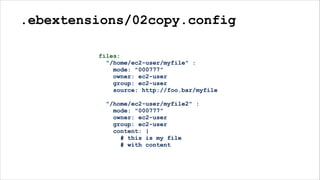

- 14. .ebextensions/02copy.config files: "/home/ec2-user/myfile" : mode: "000777" owner:ec2-user group: ec2-user source: http://foo.bar/myfile "/home/ec2-user/myfile2" : mode: "000777" owner: ec2-user group: ec2-user content: | # this is my file # with content
- 15.

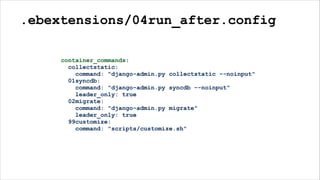

- 16. .ebextensions/04run_after.config container_commands: collectstatic: command: "django-admin.py collectstatic--noinput" 01syncdb: command: "django-admin.py syncdb --noinput" leader_only: true 02migrate: command: "django-admin.py migrate" leader_only: true 99customize: command: "scripts/customize.sh"

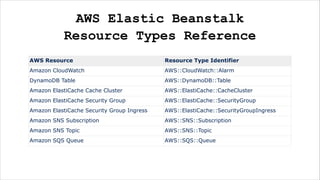

- 17. AWS Elastic Beanstalk ResourceTypes Reference AWS Resource Resource Type Identifier Amazon CloudWatch AWS::CloudWatch::Alarm DynamoDB Table AWS::DynamoDB::Table Amazon ElastiCache Cache Cluster AWS::ElastiCache::CacheCluster Amazon ElastiCache Security Group AWS::ElastiCache::SecurityGroup Amazon ElastiCache Security Group Ingress AWS::ElastiCache::SecurityGroupIngress Amazon SNS Subscription AWS::SNS::Subscription Amazon SNS Topic AWS::SNS::Topic Amazon SQS Queue AWS::SQS::Queue
- 18. AWS Elastic Beanstalk Built-inResources Resource Name Description AWSEBAutoScalingGroup The name of the Auto Scaling group that Elastic Beanstalk uses when it launches Amazon EC2 instances. AWSEBAutoScalingLaunchConfiguration The name for the launch configuration settings that Elastic Beanstalk uses when it launches EC2 instances. AWSEBEnvironmentName The name of the Elastic Beanstalk environment. AWSEBLoadBalancer The name of the elastic load balancer used in the Elastic Beanstalk environment. AWSEBRDSDatabase The name of the Amazon RDS database. AWSEBSecurityGroup The name for the EC2 security group that Elastic Beanstalk uses when it launches EC2 instances.
- 19.
- 20. AWS OPSWORKS MODEL ANDMANAGE THE ENTIRE APPLICATION
- 21.
- 22.
- 23.
- 24.

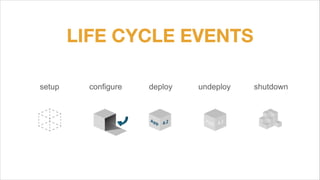

- 26. LIFE CYCLE EVENTS setupconfigure deploy undeploy shutdown
- 27.
- 28.

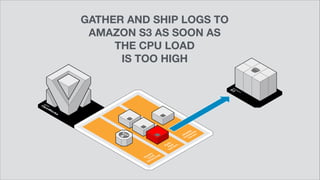

- 29. GATHER AND SHIPLOGS TO AMAZON S3 AS SOON AS THE CPU LOAD IS TOO HIGH

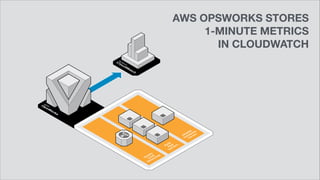

- 30. AWS OPSWORKS STORES 1-MINUTEMETRICS IN CLOUDWATCH

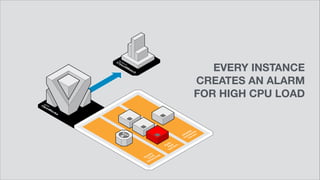

- 31. EVERY INSTANCE CREATES ANALARM FOR HIGH CPU LOAD
- 32.

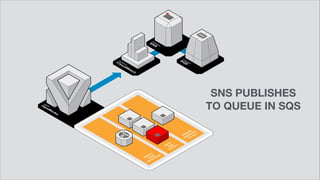

- 33. SNS PUBLISHES TO QUEUEIN SQS
- 34.
- 35.

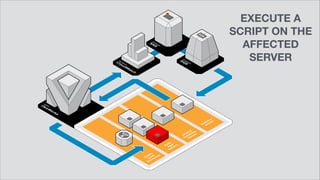

- 36. EXECUTE A SCRIPT ONTHE AFFECTED SERVER

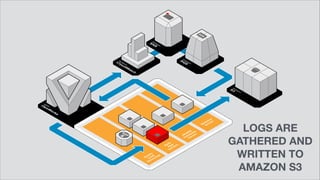

- 37. LOGS ARE GATHERED AND WRITTENTO AMAZON S3

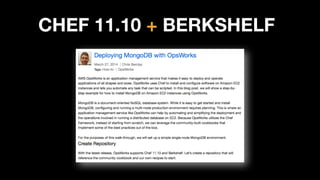

- 38. CHEF 11.10 +BERKSHELF
- 39.
- 40.
- 42.
- 43.
- 44.

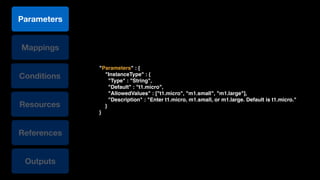

- 45. Conditions Resources References Mappings Outputs Parameters "Parameters" : {! "InstanceType": {! "Type" : "String",! "Default" : "t1.micro",! "AllowedValues" : ["t1.micro", "m1.small", "m1.large"],! "Description" : "Enter t1.micro, m1.small, or m1.large. Default is t1.micro."! }! }

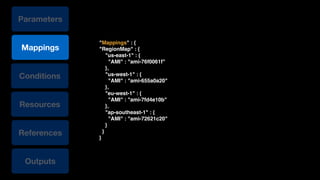

- 46. Conditions Resources References Mappings Outputs Parameters "Mappings" : {! "RegionMap": {! "us-east-1" : {! "AMI" : "ami-76f0061f"! },! "us-west-1" : {! "AMI" : "ami-655a0a20"! },! "eu-west-1" : {! "AMI" : "ami-7fd4e10b"! },! "ap-southeast-1" : {! "AMI" : "ami-72621c20"! }! }! }

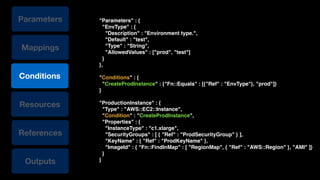

- 47. Conditions Resources References Mappings Outputs Parameters "Parameters" :{! "EnvType" : {! "Description" : "Environment type.",! "Default" : "test",! "Type" : "String",! "AllowedValues" : ["prod", "test"]! }! },! ! "Conditions" : {! "CreateProdInstance" : {"Fn::Equals" : [{"Ref" : "EnvType"}, "prod"]}! }! ! "ProductionInstance" : {! "Type" : "AWS::EC2::Instance",! "Condition" : "CreateProdInstance",! "Properties" : {! "InstanceType" : "c1.xlarge",! "SecurityGroups" : [ { "Ref" : "ProdSecurityGroup" } ],! "KeyName" : { "Ref" : "ProdKeyName" },! "ImageId" : { "Fn::FindInMap" : [ "RegionMap", { "Ref" : "AWS::Region" }, "AMI" ]}! }! }

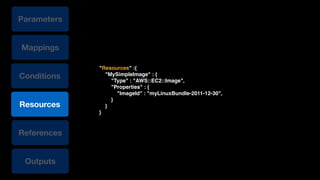

- 48. Conditions Resources References Outputs Parameters "Resources" :{! "MySimpleImage" :{! "Type" : "AWS::EC2::Image",! "Properties" : {! "ImageId" : "myLinuxBundle-2011-12-30",! }! }! } Mappings

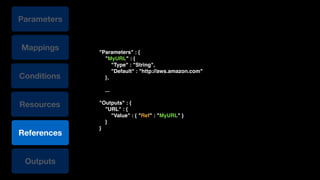

- 49. Conditions References Outputs Parameters "Parameters" : {! "MyURL": {! "Type" : "String",! "Default" : "http://aws.amazon.com"! },! ! ...! ! "Outputs" : {! "URL" : {! "Value" : { "Ref" : "MyURL" }! }! } Mappings Resources
- 50. Conditions Outputs Parameters "Outputs" : {! "URL": {! "Value" : "http://aws.amazon.com/cloudformation"! }! } Mappings Resources References
- 51.
- 52. Conditions Outputs Mappings References Pseudo Parameters Resource Properties Parameters Resources Resources : {! "MyVolume": {! "Type" : "AWS::EC2::Volume",! "Properties" : {! "Size" : "4",! "SnapshotId" : "snap234",! "AvailabilityZone" : "us-east-1a"! }! }! } Intrinsic Functions
- 53. Conditions Outputs Mappings References Pseudo Parameters Resource Properties Parameters Resources "Outputs" {! "MyStacksRegion" :{ "Value" : { "Ref" : "AWS::Region" } }! } Intrinsic Functions

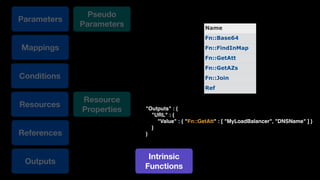

- 54. Conditions Outputs Mappings References Pseudo Parameters Resource Properties Parameters Resources "Outputs" :{! "URL" : {! "Value" : { "Fn::GetAtt" : [ "MyLoadBalancer", "DNSName" ] }! }! } Intrinsic Functions Name Fn::Base64 Fn::FindInMap Fn::GetAtt Fn::GetAZs Fn::Join Ref
- 55.
- 56. { "Description" : "Create RDS with username and password", "Resources" : { ! "MyDB" : { "Type" : "AWS::RDS::DBInstance", "Properties" : { "AllocatedStorage" : "500", "DBInstanceClass" : "db.m1.small", "Engine" : "MySQL", "EngineVersion" : "5.6", "MasterUsername" : "MyName", "MasterUserPassword" : "MyPassword" } } } }

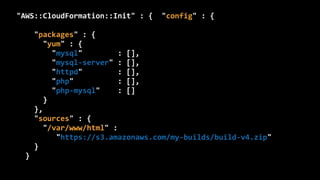

- 57. "AWS::CloudFormation::Init" : { "config" : { ! "packages" : { "yum" : { "mysql" : [], "mysql-‐server" : [], "httpd" : [], "php" : [], "php-‐mysql" : [] } }, "sources" : { "/var/www/html" : "https://s3.amazonaws.com/my-‐builds/build-‐v4.zip" } }

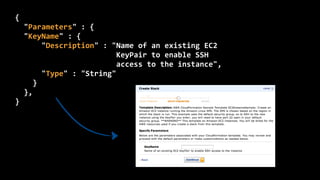

- 58. { "Parameters" : { "KeyName" : { "Description" : "Name of an existing EC2 KeyPair to enable SSH access to the instance", "Type" : "String" } }, }
- 60. AMAZON EC2 API /SDK / CLI

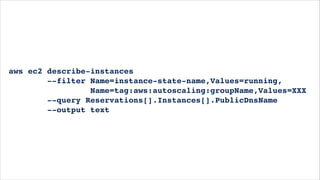

- 61. aws ec2 describe-instances! --filterName=instance-state-name,Values=running,! Name=tag:aws:autoscaling:groupName,Values=XXX! --query Reservations[].Instances[].PublicDnsName! --output text

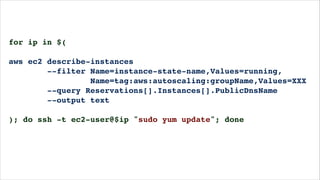

- 62. for ip in$(! ! aws ec2 describe-instances! --filter Name=instance-state-name,Values=running,! Name=tag:aws:autoscaling:groupName,Values=XXX! --query Reservations[].Instances[].PublicDnsName! --output text! ! ); do ssh -t ec2-user@$ip "sudo yum update"; done! !

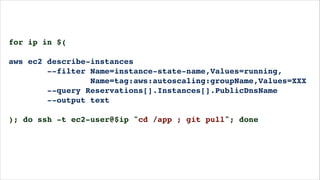

- 63. for ip in$(! ! aws ec2 describe-instances! --filter Name=instance-state-name,Values=running,! Name=tag:aws:autoscaling:groupName,Values=XXX! --query Reservations[].Instances[].PublicDnsName! --output text! ! ); do ssh -t ec2-user@$ip "cd /app ; git pull"; done! !

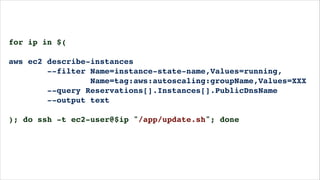

- 64. for ip in$(! ! aws ec2 describe-instances! --filter Name=instance-state-name,Values=running,! Name=tag:aws:autoscaling:groupName,Values=XXX! --query Reservations[].Instances[].PublicDnsName! --output text! ! ); do ssh -t ec2-user@$ip "/app/update.sh"; done! !
- 65.

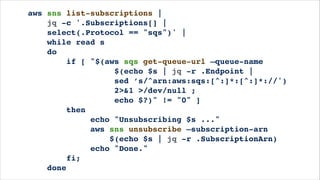

- 66. aws sns list-subscriptions|! jq -c '.Subscriptions[] |! select(.Protocol == "sqs")' |! while read s! do! if [ "$(aws sqs get-queue-url —queue-name! $(echo $s | jq -r .Endpoint |! sed ’s/^arn:aws:sqs:[^:]*:[^:]*://')! 2>&1 >/dev/null ;! echo $?)" != "0" ]! then! echo "Unsubscribing $s ..."! aws sns unsubscribe —subscription-arn! $(echo $s | jq -r .SubscriptionArn)! echo "Done."! fi;! done
- 67. AWS Elastic Beanstalk AWS OpsWorks AWS CloudFormation Amazon EC2 CONVENIENCECONTROL HIGH-LEVEL DO IT YOURSELF
- 68. DEPLOYMENT AND MANAGEMENT ONAWS: A DEEP DIVE ON OPTIONS AND TOOLS Danilo Poccia – Solutions Architect
