This document discusses the drivers for data center virtualization. It notes that legacy systems are difficult to manage, have poor reliability and high management costs. Server utilization rates are often only 5-10% leading to high power and cooling costs. Virtualization can help improve utilization rates and reduce costs by consolidating multiple physical servers onto fewer physical servers. The document outlines how virtualization can be implemented at different levels including the processor, operating system, network and storage. It also discusses how a next generation virtualized data center may integrate automation, standardization, and cloud compatibility.

1. Next-Gen Data Center
Road to DataCenter Virtualization
Anil Vasudeva
Chief Analyst & President
imex@imexresearch.com
IMEX
RESEARCH.COM
408-268-0800
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

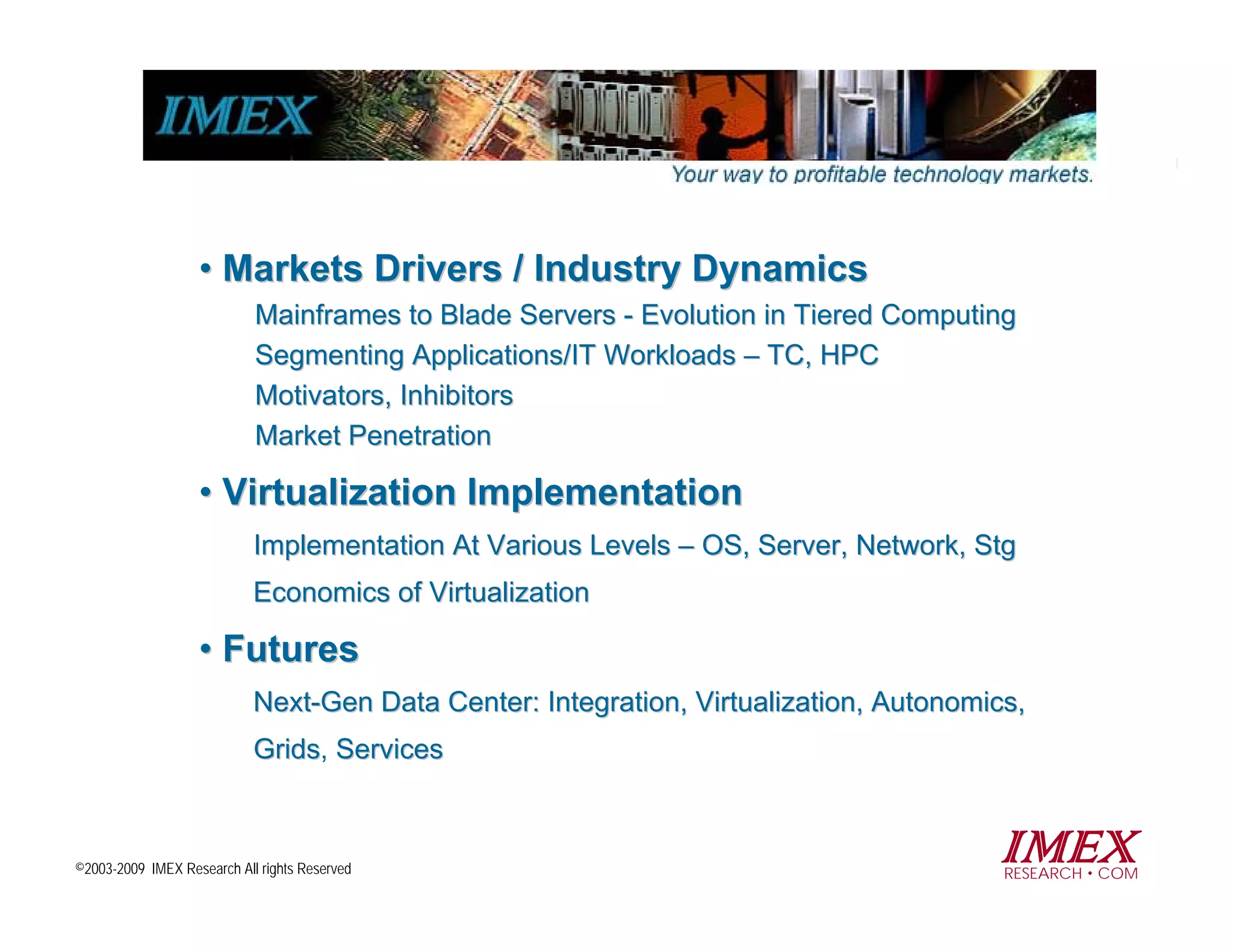

2. • Markets Drivers / Industry Dynamics
Mainframes to Blade Servers - Evolution in Tiered Computing
Segmenting Applications/IT Workloads – TC, HPC
Motivators, Inhibitors
Market Penetration
• Virtualization Implementation
Implementation At Various Levels – OS, Server, Network, Stg
Economics of Virtualization
• Futures
Next-Gen Data Center: Integration, Virtualization, Autonomics,
Grids, Services
Grids
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

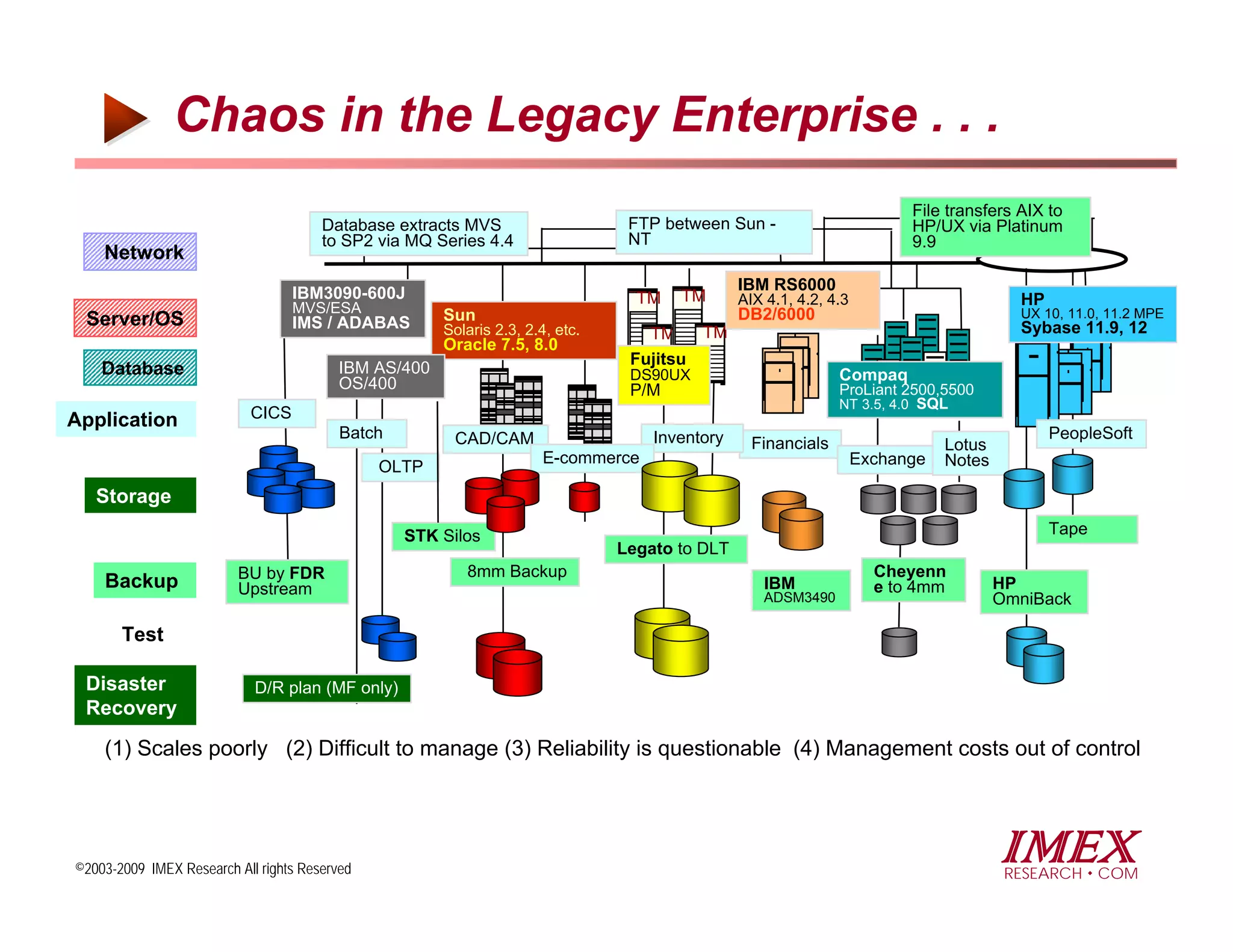

3. Chaos in the Legacy Enterprise . . .
File transfers AIX to
Database extracts MVS FTP between Sun - HP/UX via Platinum
to SP2 via MQ Series 4.4 NT 9.9
Network
IBM3090-600J IBM RS6000
TM TM AIX 4.1, 4.2, 4.3 HP
MVS/ESA Sun DB2/6000 UX 10, 11.0, 11.2 MPE
Server/OS IMS / ADABAS Solaris 2.3, 2.4, etc. Sybase 11.9, 12
TM TM
Oracle 7.5, 8.0
Fujitsu
Database IBM AS/400 DS90UX Compaq
OS/400 P/M ProLiant 2500,5500
NT 3.5, 4.0 SQL
Application CICS
Batch CAD/CAM Inventory PeopleSoft
Financials Lotus
E-commerce Exchange Notes
OLTP
Storage
STK Silos Tape
Legato to DLT
BU by FDR 8mm Backup Cheyenn
Backup Upstream IBM e to 4mm HP
ADSM3490 OmniBack
Test
Disaster D/R plan (MF only)
Recovery
(1) Scales poorly (2) Difficult to manage (3) Reliability is questionable (4) Management costs out of control
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

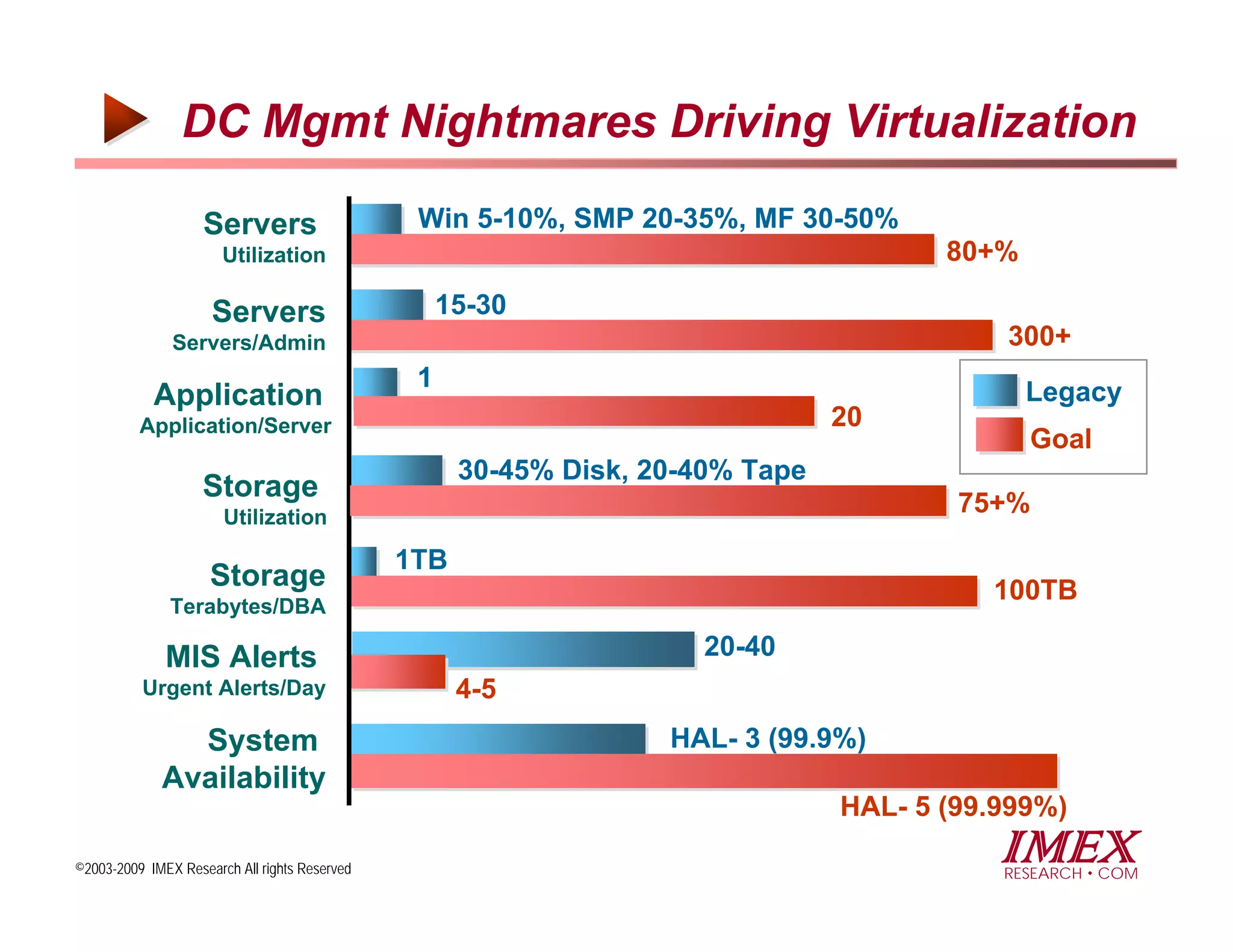

4. DC Mgmt Nightmares Driving Virtualization
Servers Win 5-10%, SMP 20-35%, MF 30-50%
Utilization 80+%
Servers 15-30
Servers/Admin 300+
1
Application Legacy
Application/Server 20
Goal
30-45% Disk, 20-40% Tape
Storage
Utilization
75+%
1TB
Storage 100TB
Terabytes/DBA
MIS Alerts 20-40
Urgent Alerts/Day 4-5
System HAL- 3 (99.9%)
Availability
HAL- 5 (99.999%)
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

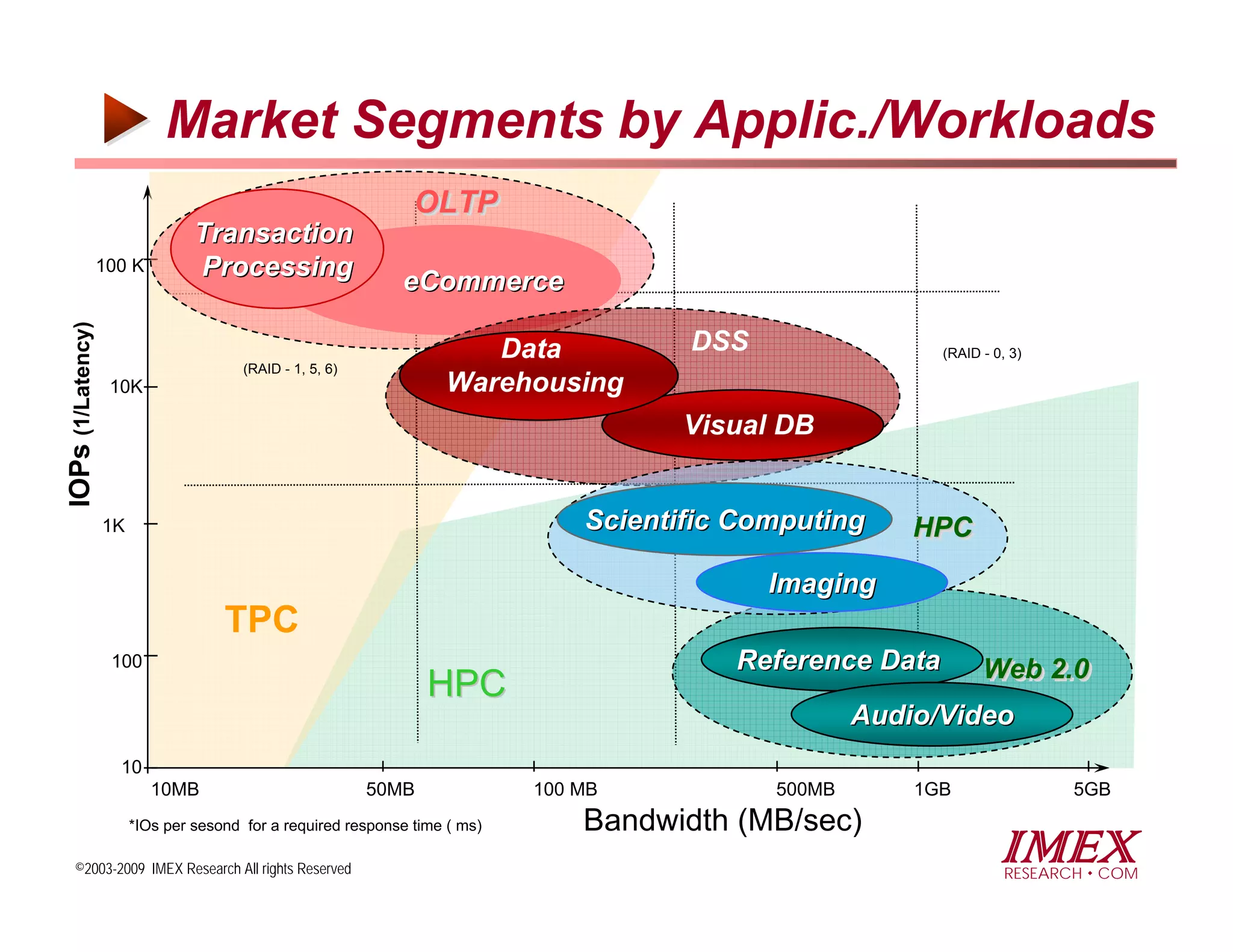

5. Market Segments by Applic./Workloads
OLTP
Transaction
100 K Processing
eCommerce
IOPs (1/Latency)
Data DSS (RAID - 0, 3)
(RAID - 1, 5, 6)
10K Warehousing
Visual DB
1K Scientific Computing HPC
HPC
Imaging
TPC
100 Reference Data Web 2.0
Web 2.0
HPC
Audio/Video
10
10MB 50MB 100 MB 500MB 1GB 5GB
Bandwidth (MB/sec)
*IOs per sesond for a required response time ( ms)
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

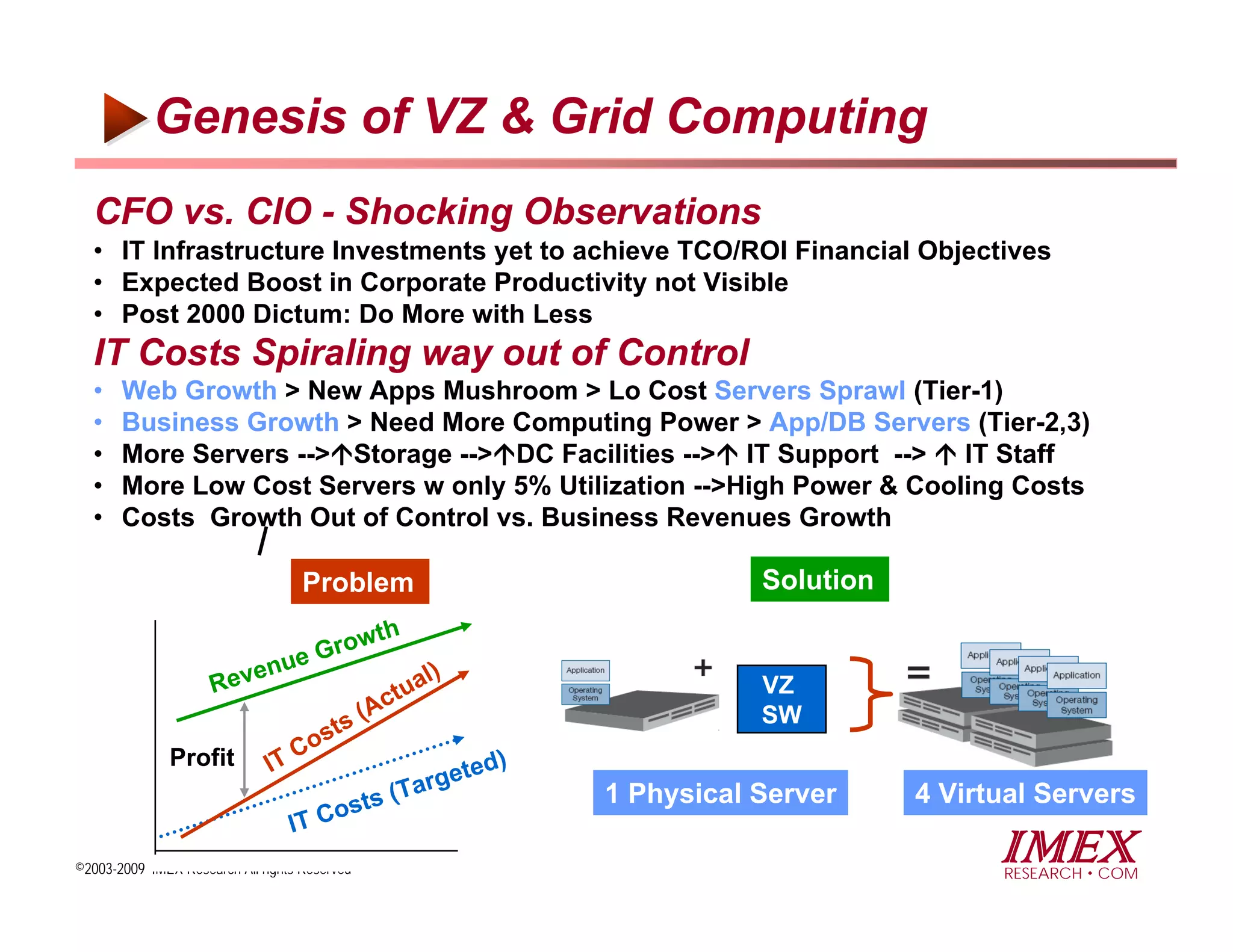

6. Genesis of VZ & Grid Computing
CFO vs. CIO - Shocking Observations
• IT Infrastructure Investments yet to achieve TCO/ROI Financial Objectives
• Expected Boost in Corporate Productivity not Visible
• Post 2000 Dictum: Do More with Less
IT Costs Spiraling way out of Control
• Web Growth > New Apps Mushroom > Lo Cost Servers Sprawl (Tier-1)
• Business Growth > Need More Computing Power > App/DB Servers (Tier-2,3)
• More Servers --> Storage --> DC Facilities --> IT Support --> IT Staff
• More Low Cost Servers w only 5% Utilization -->High Power & Cooling Costs
• Costs Growth Out of Control vs. Business Revenues Growth
Problem Solution
th
row
ue G
Re ven l)
c tua VZ
(A SW
ts
os
Profit IT C d)
gete
(Tar 1 Physical Server 4 Virtual Servers
o sts
IT C
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

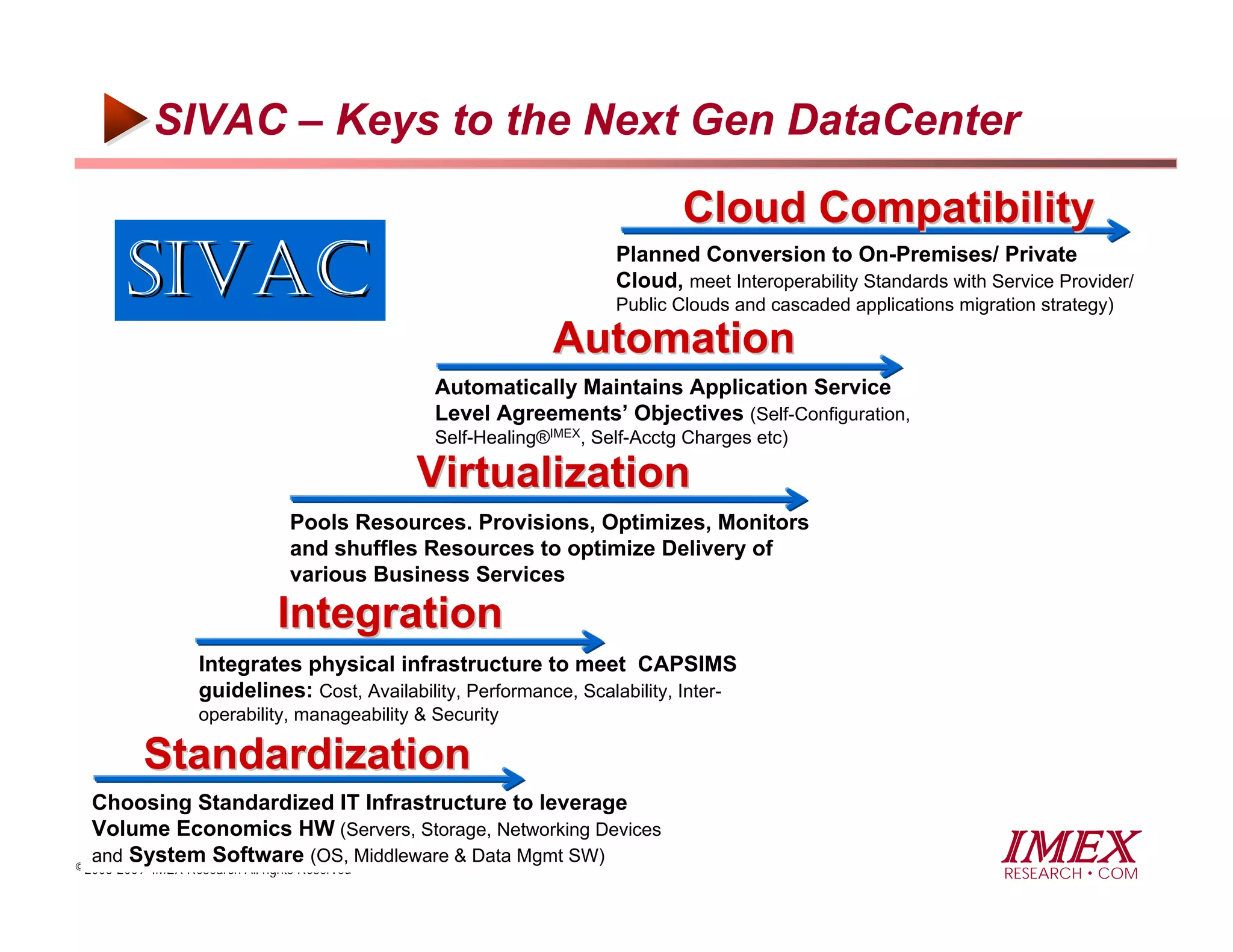

7. SIVAC – Keys to the Next Gen DataCenter
Cloud Compatibility
SIVAC Planned Conversion to On-Premises/ Private
Cloud, meet Interoperability Standards with Service Provider/
Public Clouds and cascaded applications migration strategy)
Automation
Automatically Maintains Application Service
Level Agreements’ Objectives (Self-Configuration,
Self-Healing®IMEX, Self-Acctg Charges etc)
Virtualization
Pools Resources. Provisions, Optimizes, Monitors
and shuffles Resources to optimize Delivery of
various Business Services
Integration
Integrates physical infrastructure to meet CAPSIMS
guidelines: Cost, Availability, Performance, Scalability, Inter-
operability, manageability & Security
Standardization
Choosing Standardized IT Infrastructure to leverage
Volume Economics HW (Servers, Storage, Networking Devices
and System Software (OS, Middleware & Data Mgmt SW)
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

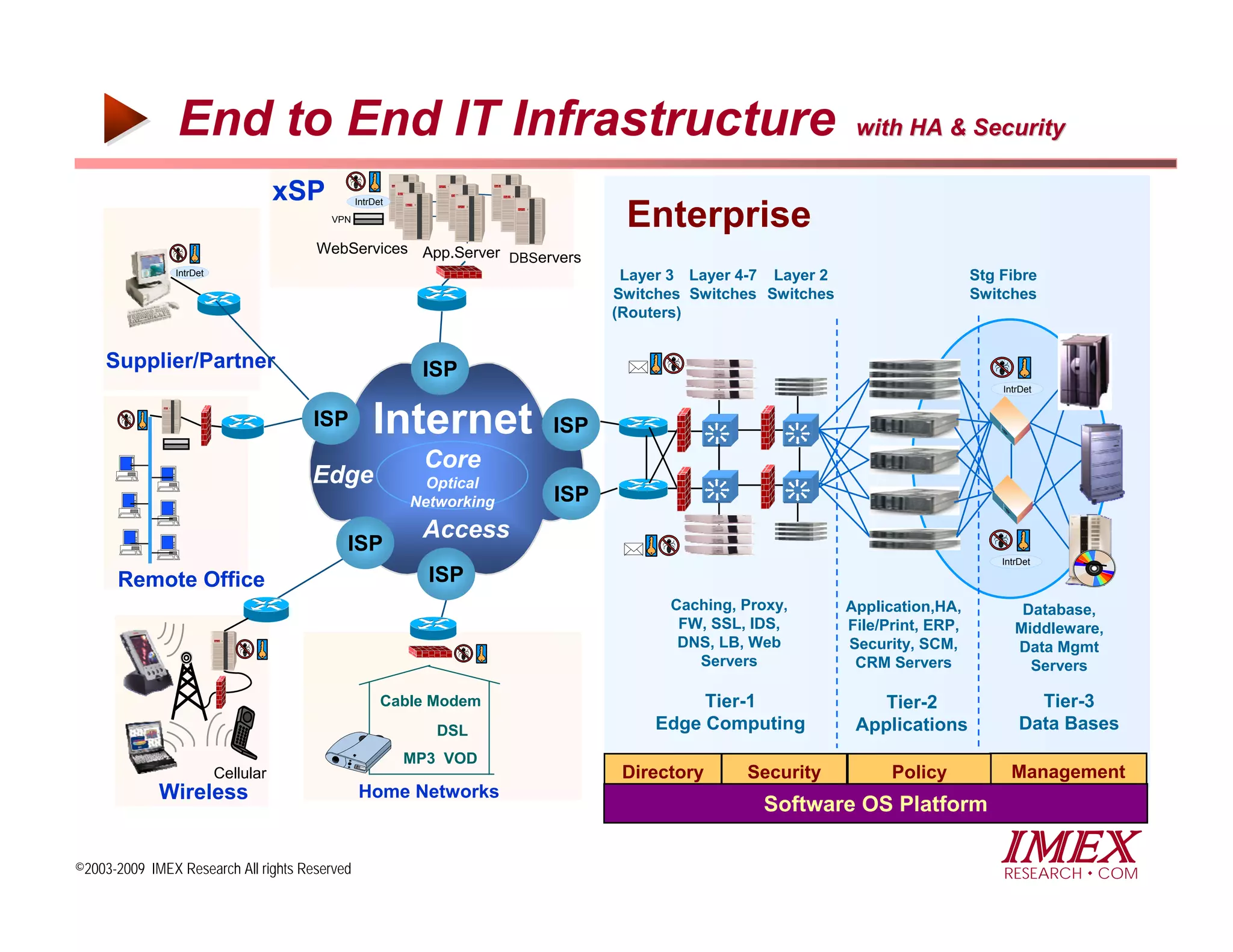

8. End to End IT Infrastructure with HA & Security
xSP IntrDet
VPN Enterprise
WebServices App.Server
DBServers
IntrDet Layer 3 Layer 4-7 Layer 2 Stg Fibre
Switches Switches Switches Switches
(Routers)
Supplier/Partner ISP
IntrDet
ISP Internet ISP
Core
Edge Optical
Networking ISP
Access
ISP
IntrDet
Remote Office ISP
Caching, Proxy, Application,HA, Database,
FW, SSL, IDS, File/Print, ERP, Middleware,
DNS, LB, Web Security, SCM, Data Mgmt
Servers CRM Servers Servers
Cable Modem Tier-1 Tier-2 Tier-3
DSL Edge Computing Applications Data Bases
MP3 VOD
Cellular Directory Security Policy Management
Wireless Home Networks
Software OS Platform
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

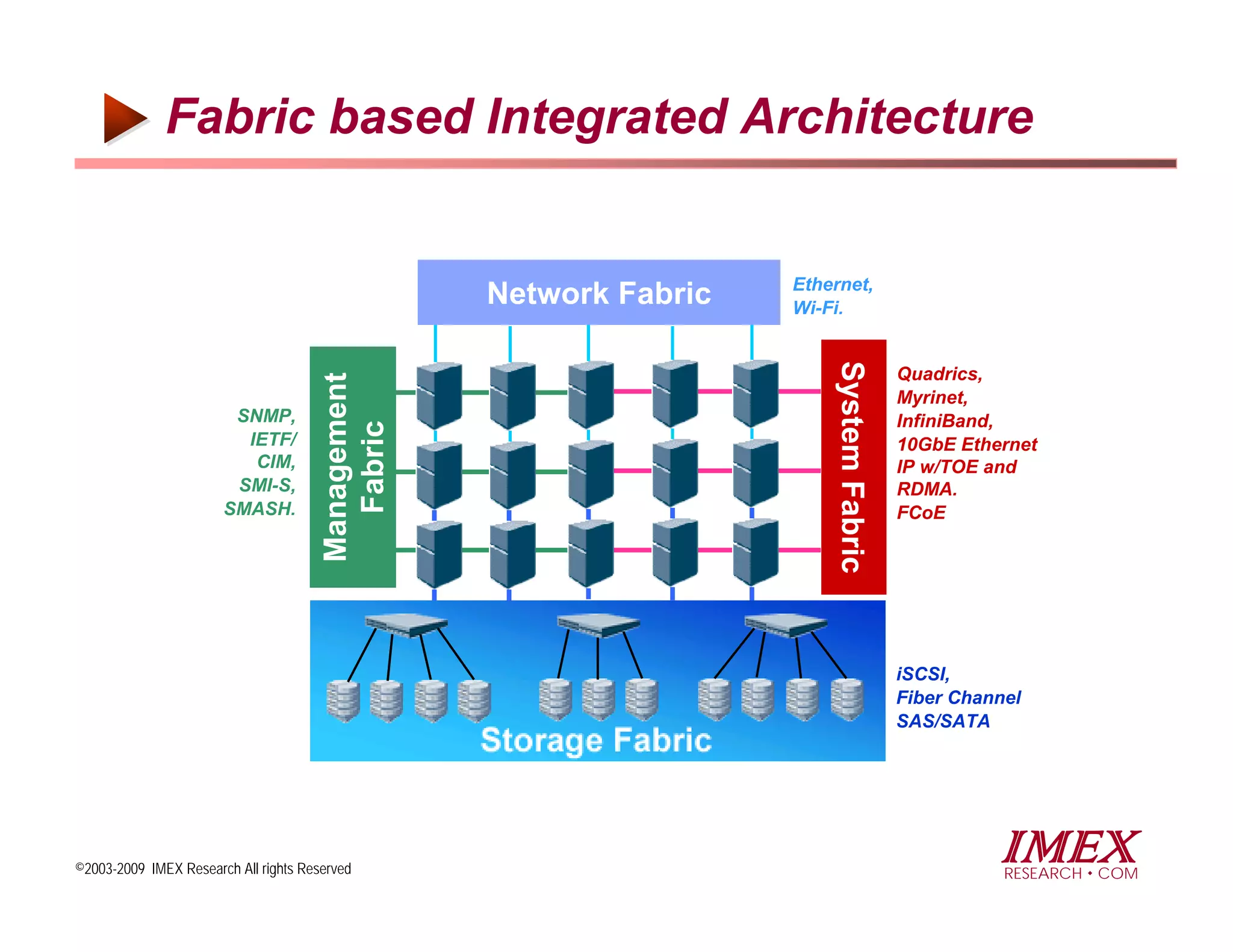

9. Fabric based Integrated Architecture
Ethernet,
Network Fabric Wi-Fi.
System Fabric
Quadrics,
Management
Myrinet,
SNMP, InfiniBand,
Fabric
IETF/ 10GbE Ethernet
CIM, IP w/TOE and
SMI-S, RDMA.
SMASH. FCoE
iSCSI,
Fiber Channel
SAS/SATA
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

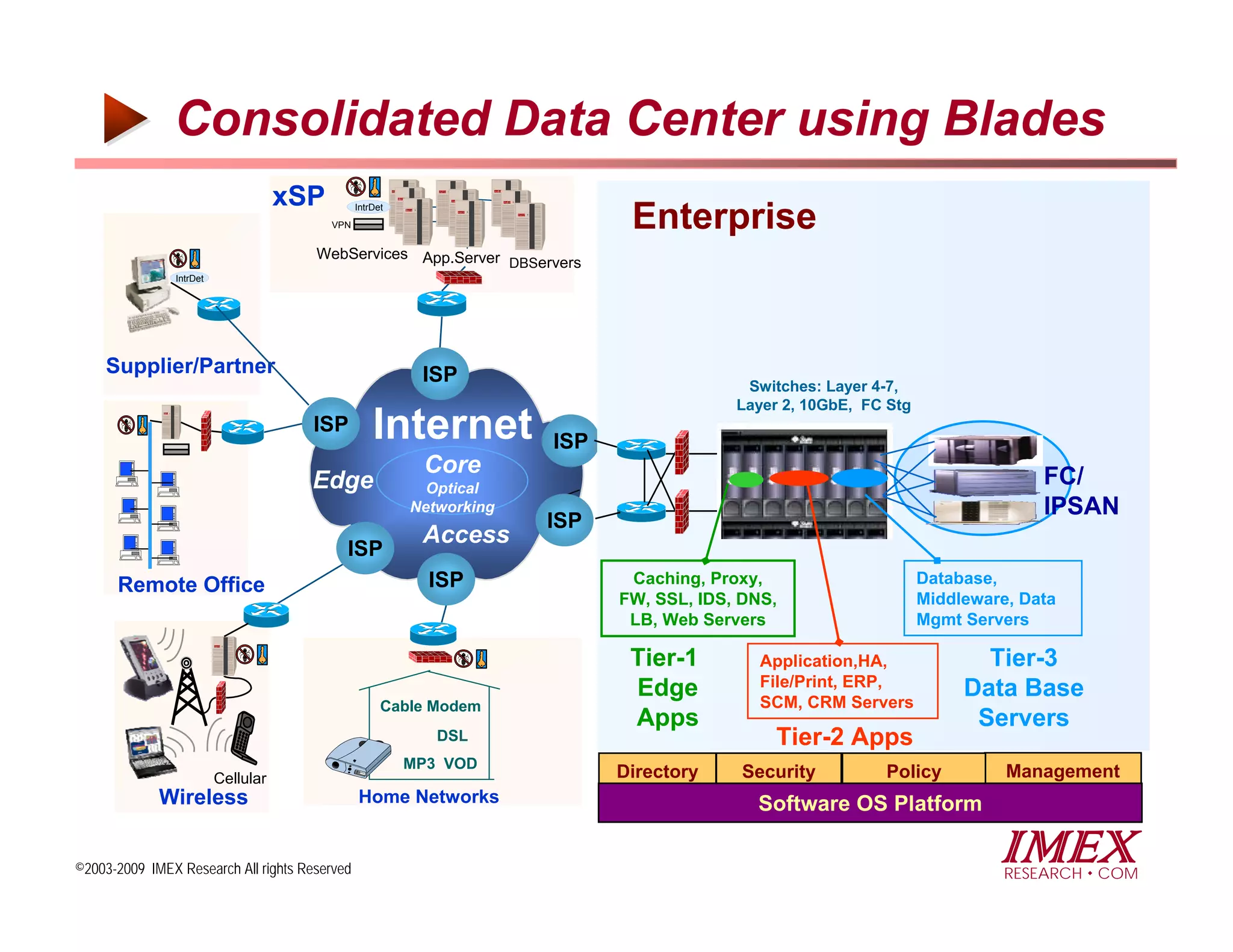

10. Consolidated Data Center using Blades
xSP
VPN
IntrDet
Enterprise
WebServices App.Server
DBServers
IntrDet
Supplier/Partner ISP Switches: Layer 4-7,
Layer 2, 10GbE, FC Stg
ISP Internet ISP
Core FC/
Edge Optical
Networking IPSAN
ISP
Access
ISP
Remote Office ISP Caching, Proxy, Database,
FW, SSL, IDS, DNS, Middleware, Data
LB, Web Servers Mgmt Servers
Tier-1
Tier-1 Application,HA, Tier-3
Edge File/Print, ERP,
Edge Data Base
Cable Modem Servers SCM, CRM Servers
Apps Servers
DSL Tier-2 Apps
MP3 VOD
Cellular Directory Security Policy Management
Wireless Home Networks Software OS Platform
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

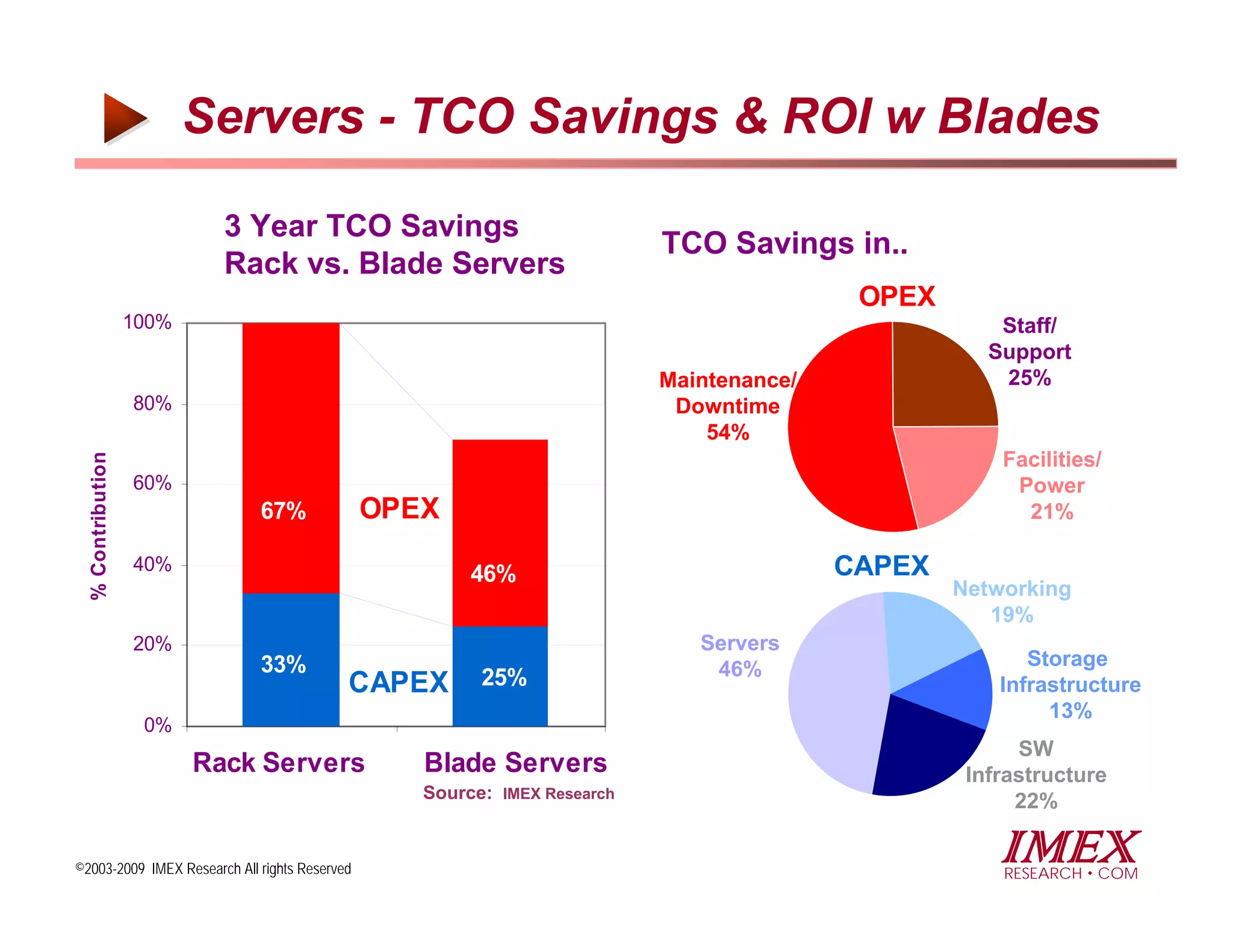

11. Servers - TCO Savings & ROI w Blades
3 Year TCO Savings
TCO Savings in..
Rack vs. Blade Servers
OPEX
100% Staff/
Support
Maintenance/ 25%
80% Downtime
54%
Facilities/
% Contribution
60% Power
67% OPEX 21%
40%
46% CAPEX
Networking
19%
20% Servers
33% 46% Storage
CAPEX 25% Infrastructure
13%
0%
1 SW
Rack Servers Blade2Servers Infrastructure
Source: IMEX Research 22%
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

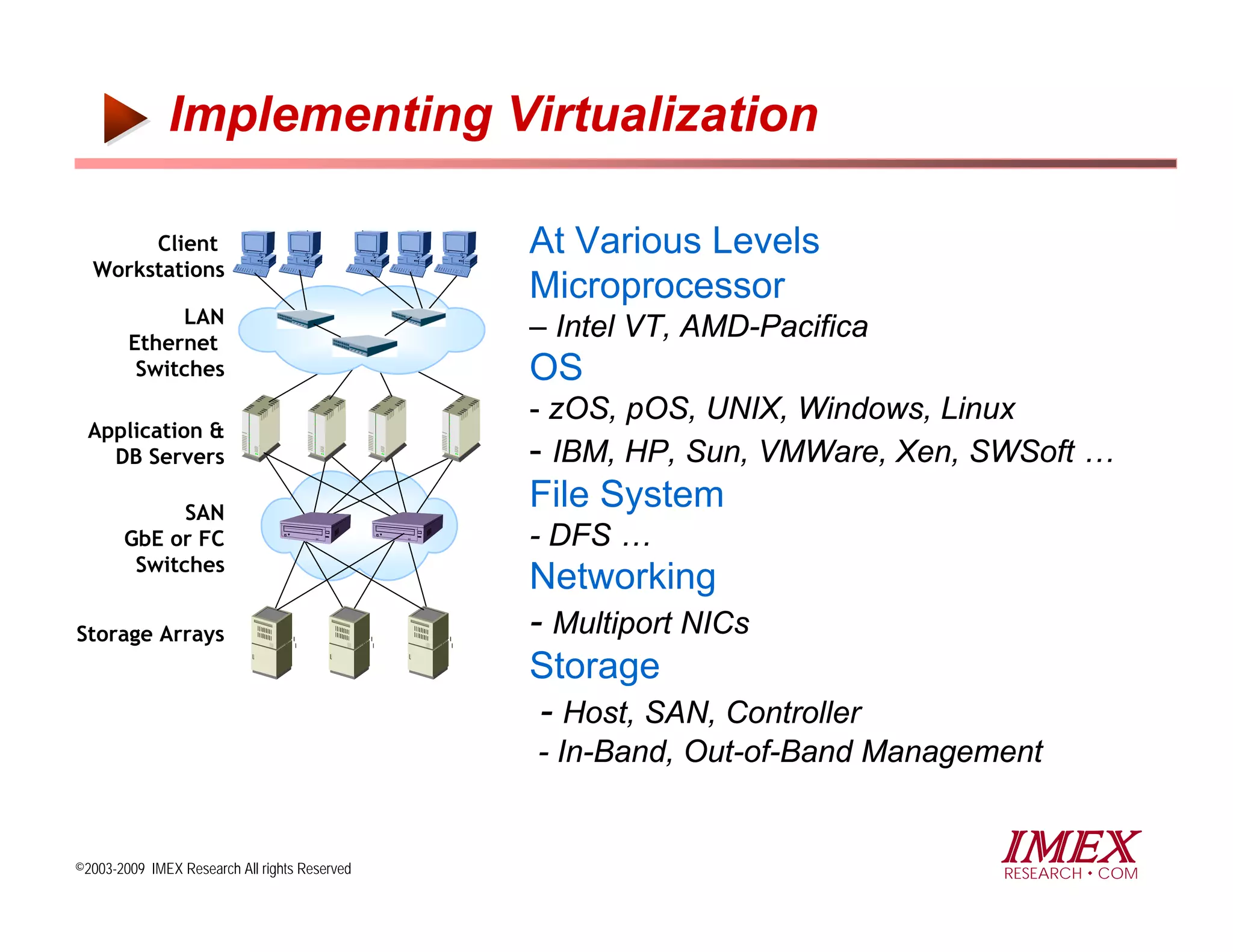

12. Implementing Virtualization
Client At Various Levels
Workstations
Microprocessor
LAN
Ethernet
– Intel VT, AMD-Pacifica
Switches OS
- zOS, pOS, UNIX, Windows, Linux
Application &
DB Servers - IBM, HP, Sun, VMWare, Xen, SWSoft …
SAN
File System
GbE or FC - DFS …
Switches
Networking
Storage Arrays - Multiport NICs
Storage
- Host, SAN, Controller
- In-Band, Out-of-Band Management
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

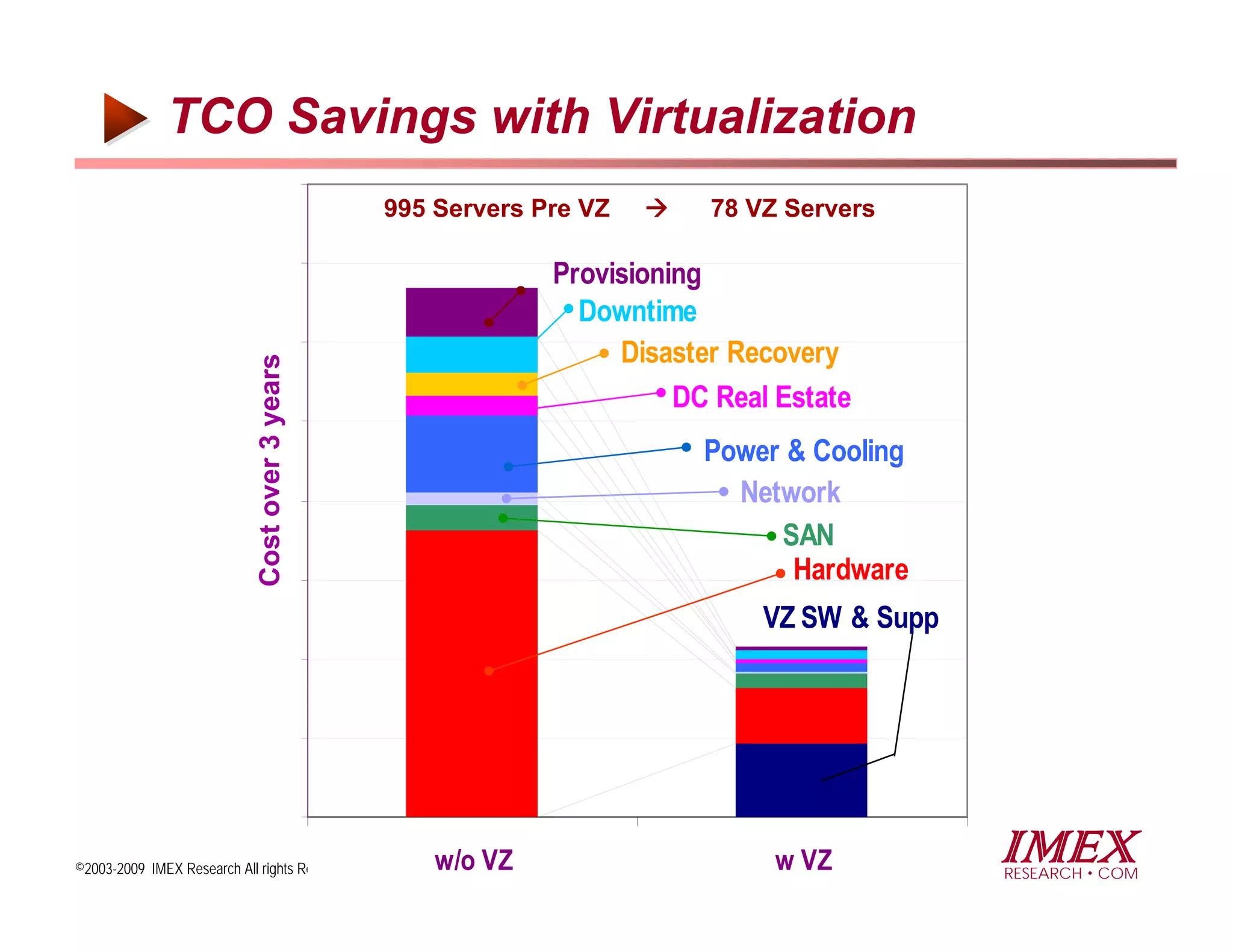

13. TCO Savings with Virtualization
995 Servers Pre VZ 78 VZ Servers
Provisioning
Downtime
Disaster Recovery
Cost over 3 years
DC Real Estate
Power & Cooling
Network
SAN
Hardware
VZ SW & Supp
©2003-2009 IMEX Research All rights Reserved w/o VZ w VZ IMEX
RESEARCH COM

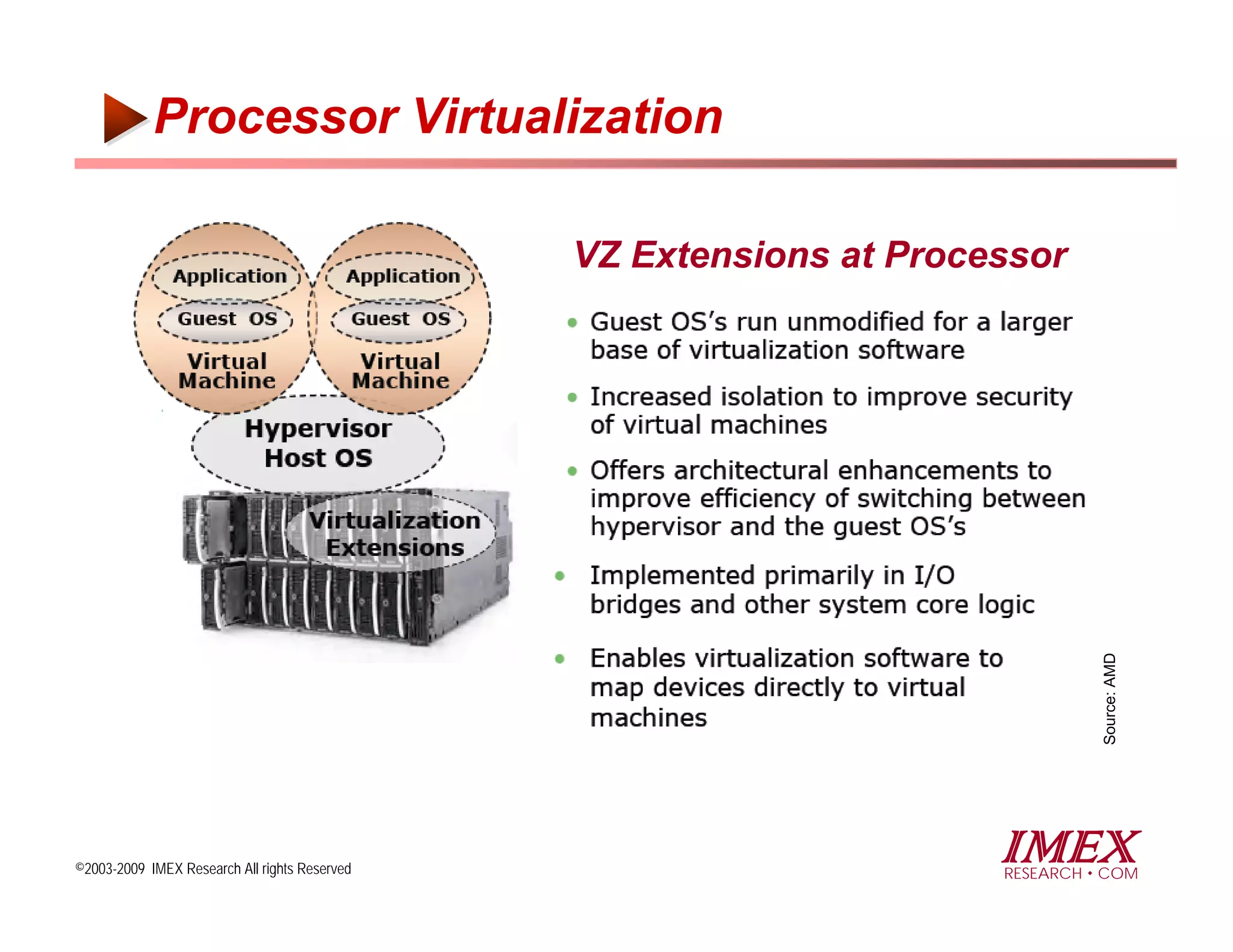

14. Processor Virtualization
VZ Extensions at Processor
Source: AMD
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM

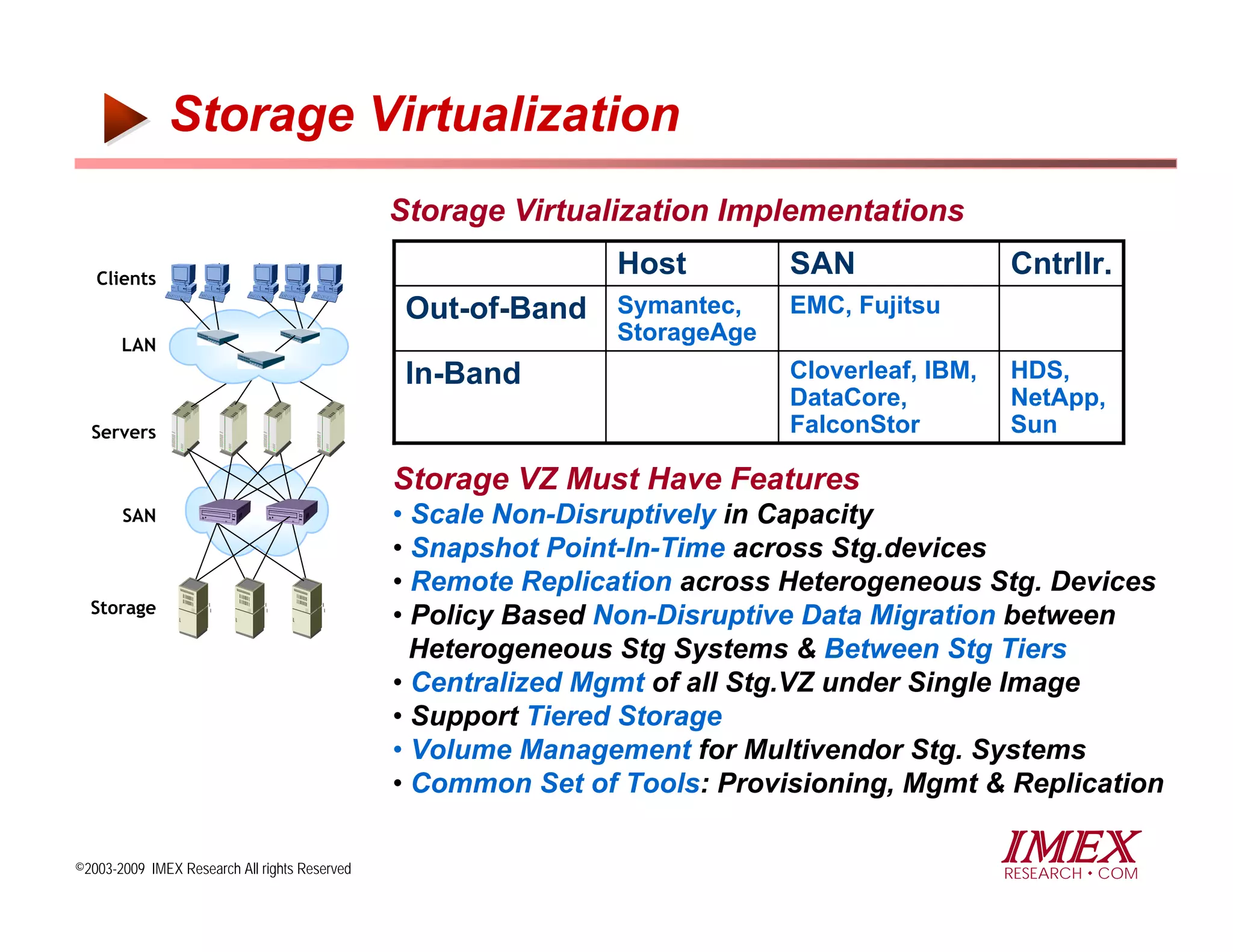

15. Storage Virtualization
Storage Virtualization Implementations
Clients
Host SAN Cntrllr.
Out-of-Band Symantec, EMC, Fujitsu
LAN
StorageAge
In-Band Cloverleaf, IBM, HDS,
DataCore, NetApp,
Servers FalconStor Sun
Storage VZ Must Have Features
SAN • Scale Non-Disruptively in Capacity
• Snapshot Point-In-Time across Stg.devices
• Remote Replication across Heterogeneous Stg. Devices
Storage
• Policy Based Non-Disruptive Data Migration between
Heterogeneous Stg Systems & Between Stg Tiers
• Centralized Mgmt of all Stg.VZ under Single Image
• Support Tiered Storage
• Volume Management for Multivendor Stg. Systems
• Common Set of Tools: Provisioning, Mgmt & Replication
©2003-2009 IMEX Research All rights Reserved
IMEX
RESEARCH COM
