iLumTech - support in rapid prototyping: CNC machining (plastic and aluminium parts) FDM (Fused Deposition Modelling) 3D printing (Stereolitography, Selective Laser Sintering) Sheet metal work Vacuum Casting Handmade prototypes and mock-ups

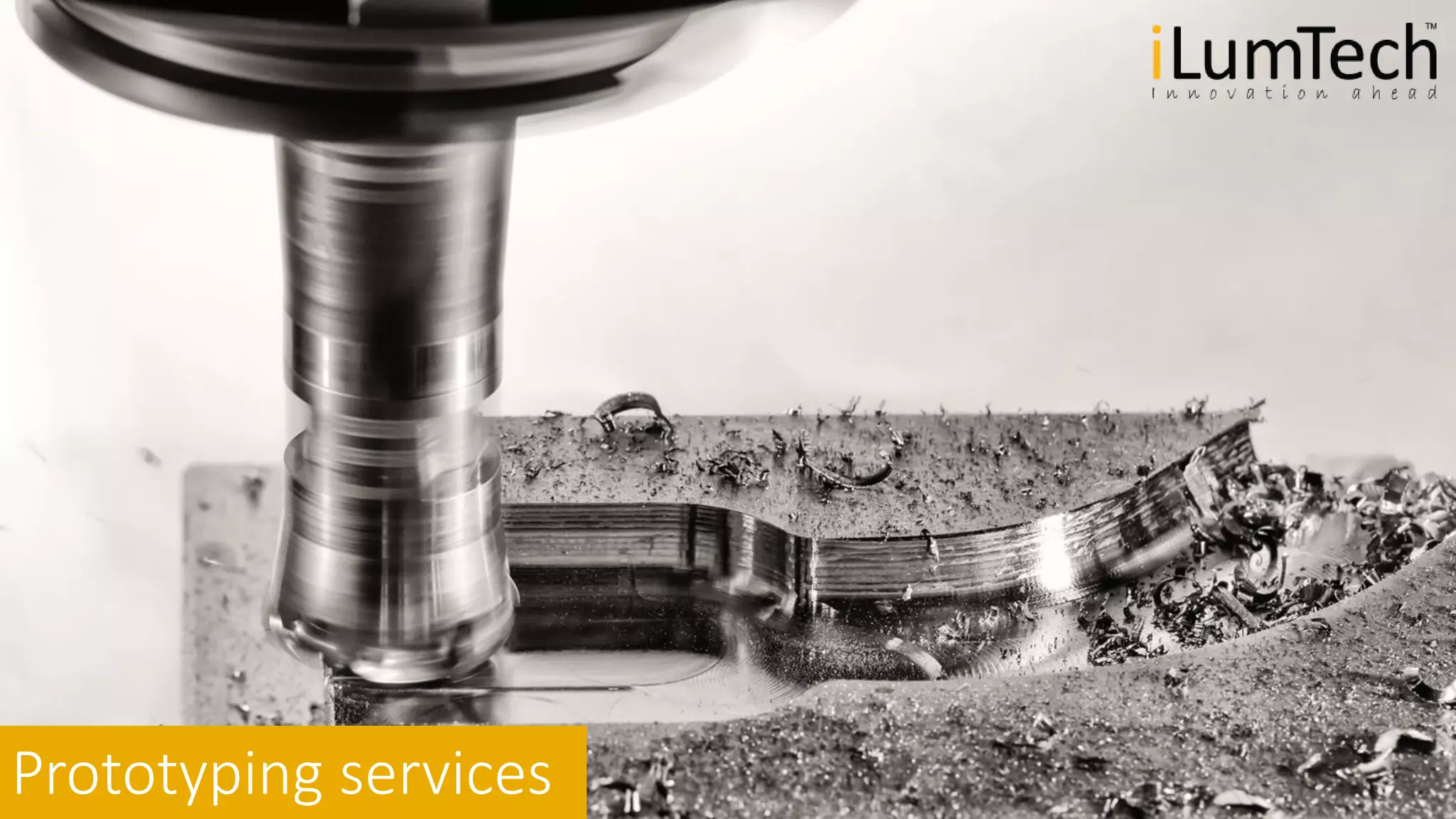

1. Prototyping services

2. iLumTech Prototyping services | Technologies
Technologies
● CNC machining (plastic and aluminium parts)
● FDM (Fused Deposition Modelling)
● 3D printing (Stereolitography, Selective Laser Sintering)
● Sheet metal work
● Vacuum Casting
● Handmade prototypes and mock-ups

3. iLumTech Prototyping services | CNC machining
CNC machining
● Low- to mid-volume CNC rapid production of metal or plastic parts
● CNC machining is a fast, accurate, robust, and cost-effective part fabrication option
● Possibility to produce also large parts (max. 3500 mm x 2500 mm x 1200 mm)
● 3-, 4-, and 5-axis CNC technology

4. iLumTech Prototyping services | SLA prototyping
SLA Stereolithography
● 3D models made directly from CAD files in just a few hours
● Build Envelope 450 x 450 x 300 mm, resolution +/- 0.05 mm
● Materials: EP06, Somos 14120, and others on request

5. iLumTech Prototyping services | SLS prototyping
Selective Laser Sintering (SLS) Prototype
● 3D printing technology similar to SLA, works by fusing or sintering a powdered material together via a highly
accurate computer controlled laser and mirror system
● Using a laser as the power source to sinter powdered material it binds the material together to create a
solid structure. Used materials: PA13, PA12+GF, and others upon request
● Smooth and accurate plastic and metal parts with very tight tolerances (+/- 0.1 mm)
● Each part is precision cleaned and polished

6. iLumTech Prototyping services | FDM prototyping
Fused Deposition Modeling (FDM)
● Great for quick modelling and prototyping thanks to its high versitility
● Process: Thermoplastics past their glass transition temperatures are deposited in thin layers by an extrusion
head follwowing a path determined by CAM. The parts are build from the bottom up.
● Materials: PLA and ABS 1.75 mm and 3.0 mm
● Massive range of colours

7. iLumTech Prototyping services | Metal turning
Metal turning
● Aluminium, brass, copper, stainless steel
● Single- or multi-stage metal forming operations, ideal for volume production due to low tooling costs
● Hydrofoaming

8. iLumTech Prototyping services| Sheet metal work
Sheet metal work
● Laser cutting, wire cutting, CNC punching, CNC folding, bending, shearing, stamping,
drilling, tapping, countersinking, counterboring, and laser welding
● Sheet metal parts customised regarding thickness, tolerance, and quantity
● Ferrous / non-ferrous materials

9. iLumTech Prototyping services| Vacuum casting
Vacuum casting
● The perfect solution for one-offs in silicone or rubber, parts with complex geometries, and low volume
production
● Vacuum casting allows for parts to be self-coloured and offers a high degree of conformity
● Production can be in a broard range of surface finishes, colours, or transparencies
● Max. size 2500 x 1000 x 1000 mm
● Materials: variants of ABS, PMMA, PC, Nylon, PP, and EPDM rubber

10. iLumTech Prototyping services| Handmade sculptures and mock-ups
Handmade sculptures and mock-ups
● Handmade models for presentation purposes
● Material: styrofoam, gypsum, paper, wood, etc.

11. iLumTech Prototyping services | Finishing
Finishing
● Facilities: dust free paint rooms, hand finishing zones, sand and bead blasting areas, silk printing equipment
● Finishing according to Pantone and RAL colour standards
● Mold-Tech and VDI finishes on metal and plastic parts
● Chrome painting, anodising, heat treatments, zinc and other metal plating/coating, powder coating, water
transfer painting, metallising

12. iLumTech industries, s. r. o., Čáčovská cesta 2709/4, 905 01 Senica, Slovakia, info@ilumtech.eu
