Illuminated Hacks -- Where 2.0 101 Tutorial

Illuminated Hacks Mikel Maron Where 2.0 101 Tutorial [email_address] http://brainoff.com/

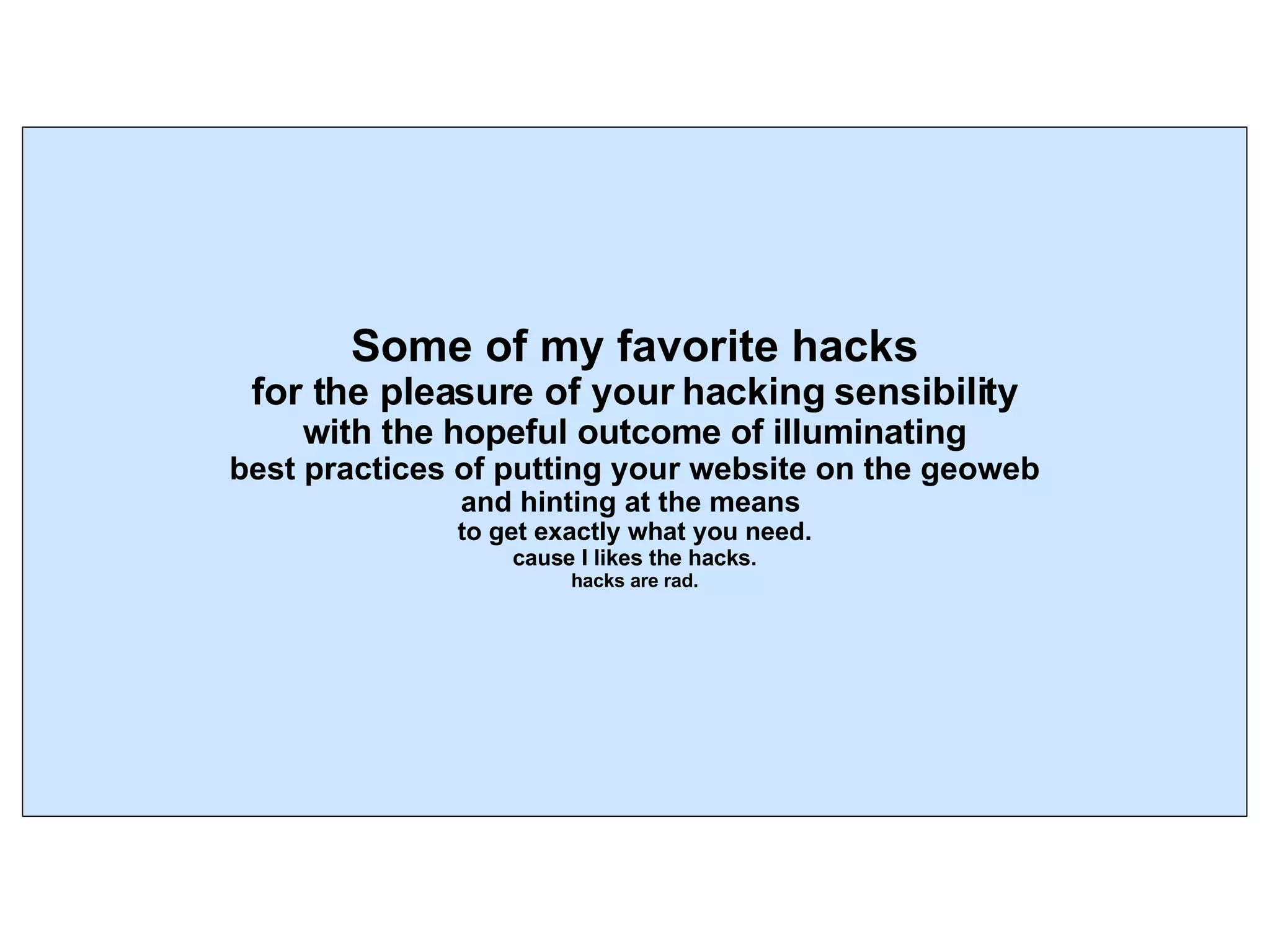

Some of my favorite hacks for the pleasure of your hacking sensibility with the hopeful outcome of illuminating best practices of putting your website on the geoweb and hinting at the means to get exactly what you need. cause I likes the hacks. hacks are rad.

http://googlesightseeing.com/2008/05/07/street-view-sabotage/

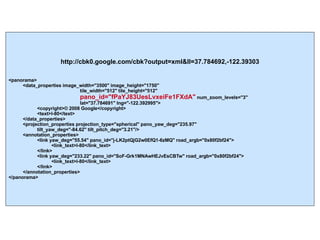

http://cbk0.google.com/cbk?output=xml&ll=37.784692,-122.39303 <panorama> <data_properties image_width="3500" image_height="1750" tile_width="512" tile_height="512" pano_id="fPaYJ83UesLvxeiFe1FXdA" num_zoom_levels="3" lat="37.784691" lng="-122.392995"> <copyright>© 2008 Google</copyright> <text>I-80</text> </data_properties> <projection_properties projection_type="spherical" pano_yaw_deg="235.97" tilt_yaw_deg="-84.62" tilt_pitch_deg="3.21"/> <annotation_properties> <link yaw_deg="55.54" pano_id="j-LK2ptQjG2w0EfQ1-6zMQ" road_argb="0x80f2bf24"> <link_text>I-80</link_text> </link> <link yaw_deg="233.22" pano_id="SoF-Grk1MNAwHEJvEsCBTw" road_argb="0x80f2bf24"> <link_text>I-80</link_text> </link> </annotation_properties> </panorama>

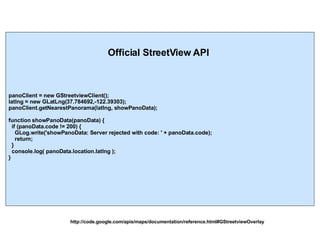

http://code.google.com/apis/maps/documentation/reference.html#GStreetviewOverlay Official StreetView API panoClient = new GStreetviewClient(); latlng = new GLatLng(37.784692,-122.39303); panoClient.getNearestPanorama(latlng, showPanoData); function showPanoData(panoData) { if (panoData.code != 200) { GLog.write('showPanoData: Server rejected with code: ' + panoData.code); return; } console.log( panoData.location.latlng ); }

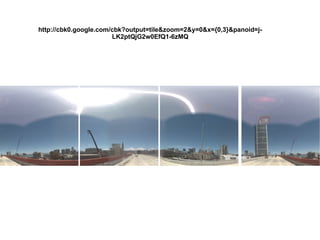

http://cbk0.google.com/cbk?output=tile&zoom=2&y=0&x={0,3}&panoid=j-LK2ptQjG2w0EfQ1-6zMQ

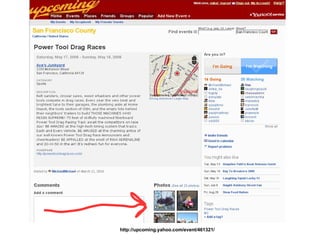

http://upcoming.yahoo.com/event/461321/

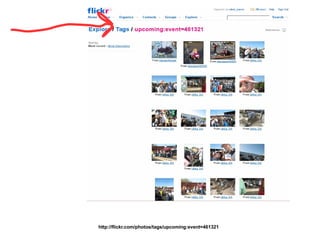

http://flickr.com/photos/tags/upcoming:event=461321

http://flickr.com/photos/10111/2467558023/

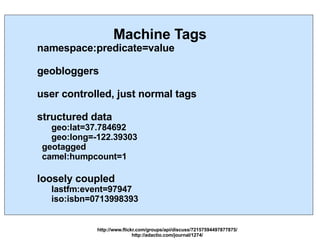

Machine Tags namespace:predicate=value geobloggers user controlled, just normal tags structured data geo:lat=37.784692 geo:long=-122.39303 geotagged camel:humpcount=1 loosely coupled lastfm:event=97947 iso:isbn=0713998393 http://www.flickr.com/groups/api/discuss/72157594497877875/ http://adactio.com/journal/1274/

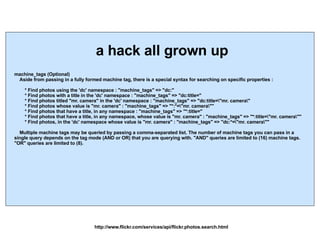

machine_tags (Optional) Aside from passing in a fully formed machine tag, there is a special syntax for searching on specific properties : * Find photos using the 'dc' namespace : "machine_tags" => "dc:" * Find photos with a title in the 'dc' namespace : "machine_tags" => "dc:title=" * Find photos titled "mr. camera" in the 'dc' namespace : "machine_tags" => "dc:title=\"mr. camera\" * Find photos whose value is "mr. camera" : "machine_tags" => "*:*=\"mr. camera\"" * Find photos that have a title, in any namespace : "machine_tags" => "*:title=" * Find photos that have a title, in any namespace, whose value is "mr. camera" : "machine_tags" => "*:title=\"mr. camera\"" * Find photos, in the 'dc' namespace whose value is "mr. camera" : "machine_tags" => "dc:*=\"mr. camera\"" Multiple machine tags may be queried by passing a comma-separated list. The number of machine tags you can pass in a single query depends on the tag mode (AND or OR) that you are querying with. "AND" queries are limited to (16) machine tags. "OR" queries are limited to (8). http://www.flickr.com/services/api/flickr.photos.search.html a hack all grown up

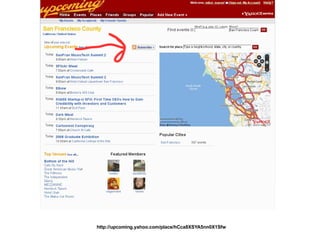

http://upcoming.yahoo.com/place/hCca8XSYA5nn0X1Sfw

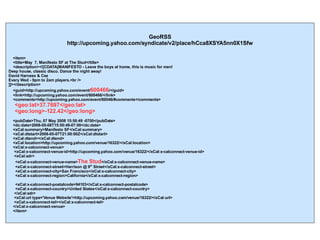

GeoRSS http://upcoming.yahoo.com/syndicate/v2/place/hCca8XSYA5nn0X1Sfw <item> <title>May 7, Manifesto SF at The Stud</title> <description><![CDATA[MANIFESTO - Leave the boys at home, this is music for men! Deep house, classic disco. Dance the night away! David Harness & Cez Every Wed - 9pm to 2am players. ]]></description> <guid>http://upcoming.yahoo.com/event/ 600466 /</guid> <link>http://upcoming.yahoo.com/event/600466/</link> <comments>http://upcoming.yahoo.com/event/60046/#comments</comments> <geo:lat>37.7697</geo:lat> <geo:long>-122.42</geo:long> <pubDate>Thu, 07 May 2008 15:50:49 -0700</pubDate> <dc:date>2008-05-08T15:50:49-07:00</dc:date> <xCal:summary>Manifesto SF</xCal:summary> <xCal:dtstart>2008-05-07T21:00:00Z</xCal:dtstart> <xCal:dtend></xCal:dtend> <xCal:location>http://upcoming.yahoo.com/venue/16322/</xCal:location> <xCal:x-calconnect-venue> <xCal:x-calconnect-venue-id>http://upcoming.yahoo.com/venue/16322/</xCal:x-calconnect-venue-id> <xCal:adr> <xCal:x-calconnect-venue-name> The Stud </xCal:x-calconnect-venue-name> <xCal:x-calconnect-street>Harrison @ 9 th Street</xCal:x-calconnect-street> <xCal:x-calconnect-city>San Francisco</xCal:x-calconnect-city> <xCal:x-calconnect-region>California</xCal:x-calconnect-region> <xCal:x-calconnect-postalcode>94103</xCal:x-calconnect-postalcode> <xCal:x-calconnect-country>United States</xCal:x-calconnect-country> </xCal:adr> <xCal:url type='Venue Website'>http://upcoming.yahoo.com/venue/16322/</xCal:url> <xCal:x-calconnect-tel></xCal:x-calconnect-tel> </xCal:x-calconnect-venue> </item>

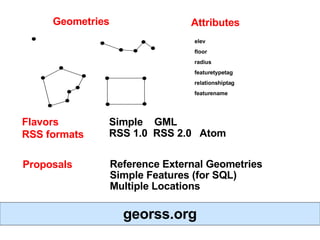

Proposals Reference External Geometries Simple Features (for SQL) Multiple Locations elev floor radius featuretypetag relationshiptag featurename georss.org Geometries Attributes Simple GML RSS 1.0 RSS 2.0 Atom Flavors RSS formats

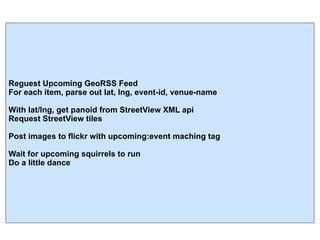

Reguest Upcoming GeoRSS Feed For each item, parse out lat, lng, event-id, venue-name With lat/lng, get panoid from StreetView XML api Request StreetView tiles Post images to flickr with upcoming:event maching tag Wait for upcoming squirrels to run Do a little dance

#!/usr/bin/ruby require 'rexml/document' include REXML require 'net/http' require 'cgi' require 'uri' upcomingrss = "http://upcoming.yahoo.com/syndicate/v2/place/hCca8XSYA5nn0X1Sfw--" panoxml = "http://cbk0.google.com/cbk?output=xml&ll=" panoimg = "http://cbk0.google.com/cbk?output=tile\\&zoom=2\\&y=0\\&panoid=" url = URI.parse(upcomingrss) req = Net::HTTP::Get.new(url.path) res = Net::HTTP.start(url.host, url.port) {|http| http.request(req) } doc = Document.new( res.body ) XPath.each( doc, "//item/") { |element| begin lat = XPath.first( element, "geo:lat" ).text lng = XPath.first( element, "geo:long" ).text venue = XPath.first( element, ".//xCal:x-calconnect-venue-name" ).text guid = XPath.first( element, "guid" ).text upid = /http:\/\/upcoming.yahoo.com\/event\/(.*)\//.match(guid)[1] panourl = URI.parse(panoxml + lat + "," + lng) panoreq = Net::HTTP::Get.new(panourl.path + "?" + panourl.query) panores = Net::HTTP.start(panourl.host, panourl.port) {|http| http.request(panoreq) } panodoc = Document.new( panores.body ) panoid = XPath.first(panodoc, "//data_properties").attributes["pano_id"] for i in 0..3 system("wget " + panoimg + panoid + "\\&x=" + i.to_s + " -O img/" + panoid + ".jpg") tags = "geo:lat=" + lat + " geo:long=" + lng + " upcoming:event=" + upid system("./flickr.pl img/" + panoid + ".jpg '" + venue + "' '" + tags + "'") end rescue end }

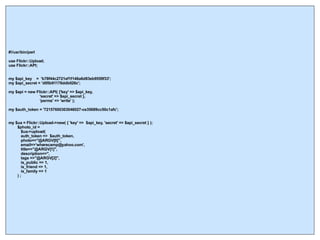

#!/usr/bin/perl use Flickr::Upload; use Flickr::API; my $api_key = 'b78f44c2721ef1f146a6d83eb9559f33'; my $api_secret = 'd05b91178ddb026c'; my $api = new Flickr::API( {'key' => $api_key, 'secret' => $api_secret }, 'perms' => 'write' ); my $auth_token = '72157600303046027-ce35689cc50c1afc'; my $ua = Flickr::Upload->new( { 'key' => $api_key, 'secret' => $api_secret } ); $photo_id = $ua->upload( auth_token => $auth_token, photo=>"@ARGV[0]", email=>'wherecamp@yahoo.com', title=>"@ARGV[1]", description=>'', tags =>"@ARGV[2]", is_public => 1, is_friend => 1, is_family => 1 ) ;

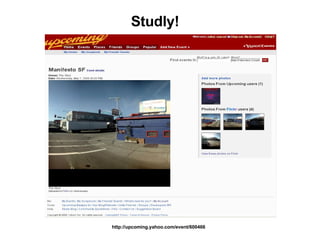

http://upcoming.yahoo.com/event/600466 Studly!

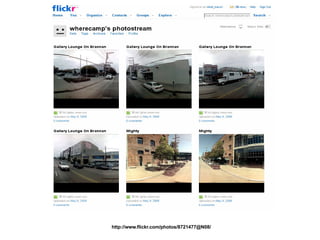

http://www.flickr.com/photos/8721477@N08/

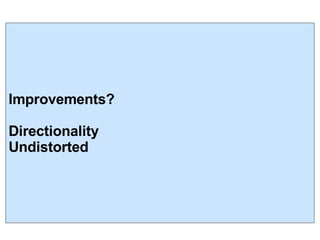

Improvements? Directionality Undistorted

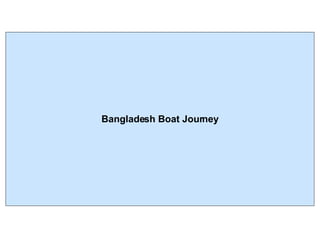

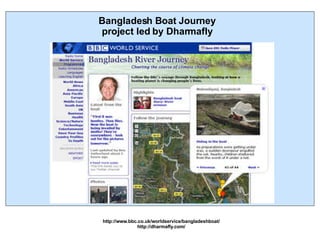

Bangladesh Boat Journey project led by Dharmafly http://www.bbc.co.uk/worldservice/bangladeshboat/ http://dharmafly.com/

http://www.flickr.com/photos/mikel_maron/2304719567/ Dharmafly. Prem melted my brain

Hack 1 Easily geotag posts and pics

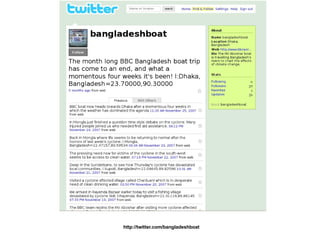

http://twitter.com/bangladeshboat

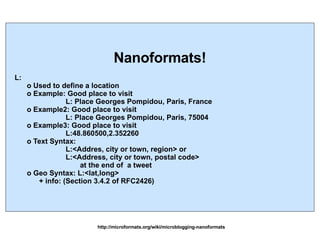

http://microformats.org/wiki/microblogging-nanoformats Nanoformats! L: o Used to define a location o Example: Good place to visit L: Place Georges Pompidou, Paris, France o Example2: Good place to visit L: Place Georges Pompidou, Paris, 75004 o Example3: Good place to visit L:48.860500,2.352260 o Text Syntax: L:<Addres, city or town, region> or L:<Address, city or town, postal code> at the end of a tweet o Geo Syntax: L:<lat,long> + info: (Section 3.4.2 of RFC2426)

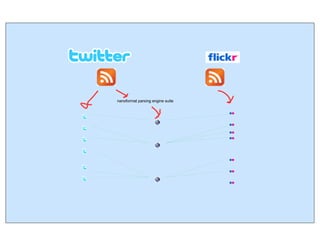

nanoformat parsing engine suite

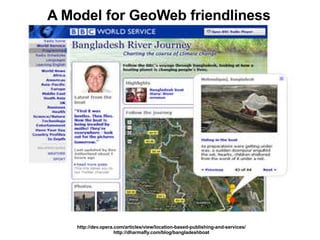

A Model for GeoWeb friendliness http://dev.opera.com/articles/view/location-based-publishing-and-services/ http://dharmafly.com/blog/bangladeshboat

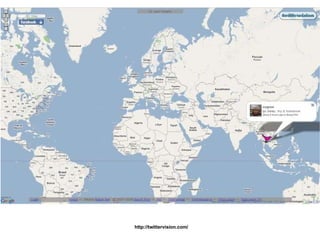

TwitterVision http://twittervision.com/bangladeshboat

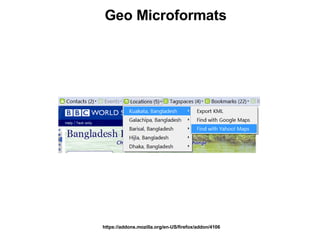

Geo Microformats https://addons.mozilla.org/en-US/firefox/addon/4106

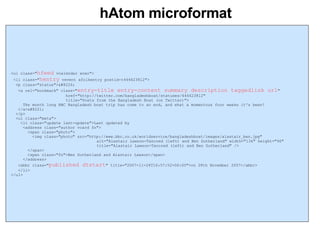

hAtom microformat <ul class=" hfeed vcalendar xoxo"> <li class=" hentry vevent xfolkentry postid-t444623812"> “ <a rel="bookmark" class=" entry-title entry-content summary description taggedlink url " href="http://twitter.com/bangladeshboat/statuses/444623812" title="Posts from the Bangladesh Boat (on Twitter)"> The month long BBC Bangladesh boat trip has come to an end, and what a momentous four weeks it's been! </a>” <ul class="meta"> <li class="update last-update">Last updated by <address class="author vcard fn"> <img class="photo" src="http://www.bbc.co.uk/worldservice/bangladeshboat/images/alastair_ben.jpg" alt="Alastair Lawson-Tancred (left) and Ben Sutherland" width="134" height="96" title="Alastair Lawson-Tancred (left) and Ben Sutherland" /> Ben Sutherland and Alastair Lawson </address> <abbr class=" published dtstart " title="2007-11-26T16:57:52+06:00">on 28th November 2007</abbr> </li> </ul>

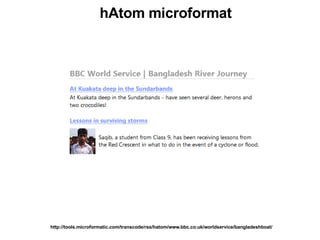

hAtom microformat http://tools.microformatic.com/transcode/rss/hatom/www.bbc.co.uk/worldservice/bangladeshboat/

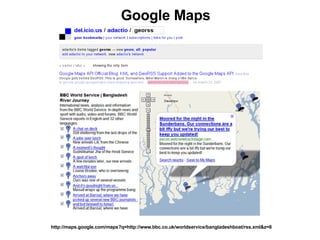

Google Maps http://maps.google.com/maps?q=http://www.bbc.co.uk/worldservice/bangladeshboat/rss.xml&z=8

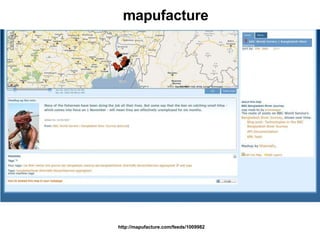

mapufacture http://mapufacture.com/feeds/1009982

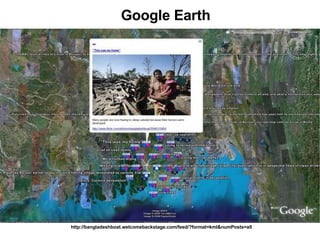

Google Earth http://bangladeshboat.welcomebackstage.com/feed/?format=kml&numPosts=all

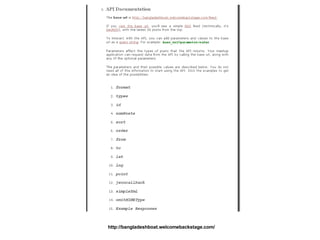

API http://bangladeshboat.welcomebackstage.com/

http://bangladeshboat.welcomebackstage.com/

Greasemonkey API http://bangladeshboat.welcomebackstage.com/

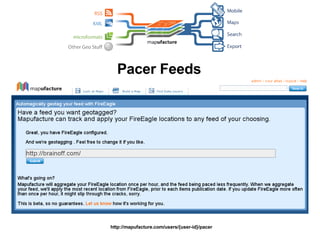

Pacer Feeds http://mapufacture.com/users/{user-id}/pacer

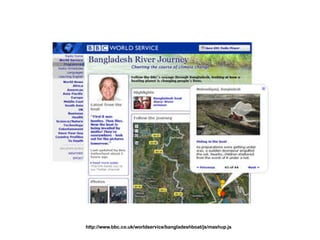

Hack 2 Free the Bubble! http://www.bbc.co.uk/worldservice/bangladeshboat/js/mashup.js

http://maps.google.com/intl/en_us/mapfiles/iw2.png

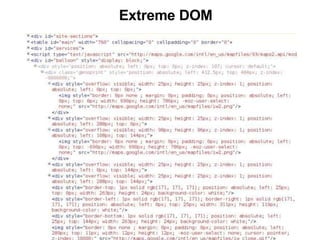

Explode the InfoWindow divs = document.getElementsByTagName('div'); for (var i=0; i < divs.length; i++) { if (divs[i].style.overflow == "hidden") { divs[i].style.overflow = "visible"; } }

Capture the Window Opening function CustomBalloon(map) { var that = this; this.gmap = map; this.visible = false; this.closed = true; this.infoWindow = this.gmap.getInfoWindow(); // Set global settings.map.custom_infowindow to false // for default GMaps behavior if (settings.map.custom_infowindow) { GEvent.addListener(this.gmap, "infowindowopen", function() { that.closed = false; if (that.grabbed) { // infoWindow opened off-screen -> move to correct location that.setPosition(); if (!that.visible){ that.show(); } } else { // wait until first infoWindow initialized // -> grab balloon element that.grabGMapInfoWindow(); } }); .. }

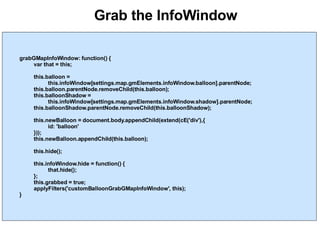

Grab the InfoWindow grabGMapInfoWindow: function() { var that = this; this.balloon = this.infoWindow[settings.map.gmElements.infoWindow.balloon].parentNode; this.balloon.parentNode.removeChild(this.balloon); this.balloonShadow = this.infoWindow[settings.map.gmElements.infoWindow.shadow].parentNode; this.balloonShadow.parentNode.removeChild(this.balloonShadow); this.newBalloon = document.body.appendChild(extend(cE('div'),{ id: 'balloon' })); this.newBalloon.appendChild(this.balloon); this.hide(); this.infoWindow.hide = function() { that.hide(); }; this.grabbed = true; applyFilters('customBalloonGrabGMapInfoWindow', this); }

move the window setPosition: function() { var x; var y; var a; //L[0] = div containing icon; L[1] is shadow a = findPos(this.marker[settings.map.gmElements.marker.icon_imgs][0]); x = a[0]; y = a[1]; // balloon.firstChild.lastChild is an image stretched to cover // the entire visible balloon, so it's the place to get width/height // arrowx, arrowy are offsets for "arrow" portion of the balloon var arrowx = -25; var arrowy = 70; x -= parseInt(this.balloon.firstChild.lastChild.style.width,10)/2 + arrowx; y -= parseInt(this.balloon.firstChild.lastChild.style.height,10) + arrowy; // offset by the specified offset position x -= this.offset.x; y -= this.offset.y; this.balloon.firstChild.style.left = x + "px"; this.balloon.firstChild.style.top = y +"px"; applyFilters('customBalloonSetPosition', this); }

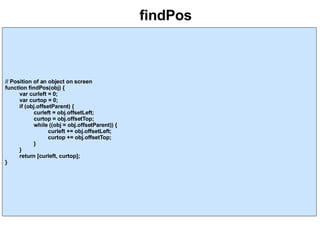

findPos // Position of an object on screen function findPos(obj) { var curleft = 0; var curtop = 0; if (obj.offsetParent) { curleft = obj.offsetLeft; curtop = obj.offsetTop; while ((obj = obj.offsetParent)) { curleft += obj.offsetLeft; curtop += obj.offsetTop; } } return [curleft, curtop]; }

http://www.bbc.co.uk/worldservice/bangladeshboat/js/mashup.js

cute cow code break lolcows! mooove!

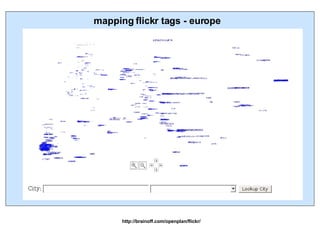

mapping flickr tags - europe http://brainoff.com/openplan/flickr/

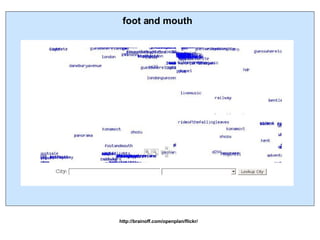

foot and mouth http://brainoff.com/openplan/flickr/

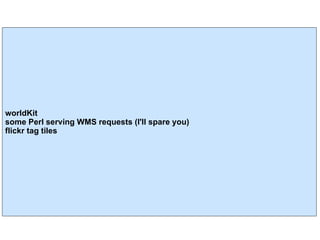

worldKit some Perl serving WMS requests (I'll spare you) flickr tag tiles

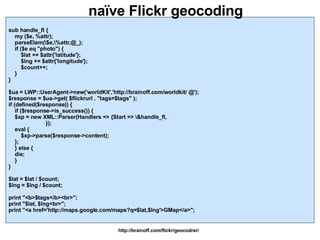

naïve Flickr geocoding http://brainoff.com/flickr/geocodrer/ sub handle_fl { my ($e, %attr); parseElem(\$e,\%attr,@_); if ($e eq "photo") { $lat += $attr{'latitude'}; $lng += $attr{'longitude'}; $count++; } } $ua = LWP::UserAgent->new('worldKit','http://brainoff.com/worldkit/ @'); $response = $ua->get( $flickrurl . "tags=$tags" ); if (defined($response)) { if ($response->is_success()) { $xp = new XML::Parser(Handlers => {Start => \&handle_fl, }); eval { $xp->parse($response->content); }; } else { die; } } $lat = $lat / $count; $lng = $lng / $count; print "$tags "; print "$lat, $lng "; print "<a href='http://maps.google.com/maps?q=$lat,$lng'>GMap</a>";

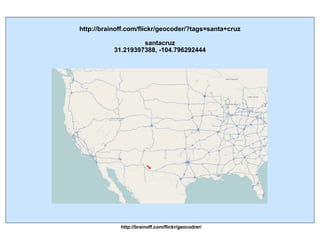

http://brainoff.com/flickr/geocodrer/ http://brainoff.com/flickr/geocoder/?tags=santa+cruz santacruz 31.219397388, -104.796292444

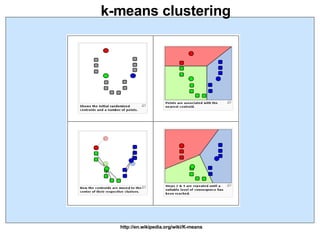

k-means clustering http://en.wikipedia.org/wiki/K-means

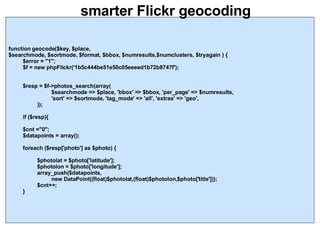

smarter Flickr geocoding function geocode($key, $place, $searchmode, $sortmode, $format, $bbox, $numresults,$numclusters, $tryagain ) { $error = "1"; $f = new phpFlickr('1b5c444be51e50c05eeeed1b72b8747f'); $resp = $f->photos_search(array( $searchmode => $place, 'bbox' => $bbox, 'per_page' => $numresults, 'sort' => $sortmode, 'tag_mode' => 'all', 'extras' => 'geo', )); if ($resp){ $cnt ="0"; $datapoints = array(); foreach ($resp['photo'] as $photo) { $photolat = $photo['latitude']; $photolon = $photo['longitude']; array_push($datapoints, new DataPoint((float)$photolat,(float)$photolon,$photo['title'])); $cnt++; }

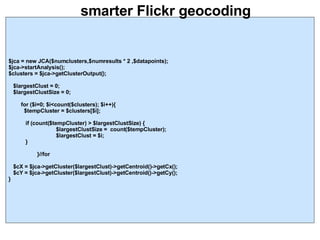

smarter Flickr geocoding $jca = new JCA($numclusters,$numresults * 2 ,$datapoints); $jca->startAnalysis(); $clusters = $jca->getClusterOutput(); $largestClust = 0; $largestClustSize = 0; for ($i=0; $i<count($clusters); $i++){ $tempCluster = $clusters[$i]; if (count($tempCluster) > $largestClustSize) { $largestClustSize = count($tempCluster); $largestClust = $i; } }//for $cX = $jca->getCluster($largestClust)->getCentroid()->getCx(); $cY = $jca->getCluster($largestClust)->getCentroid()->getCy(); }

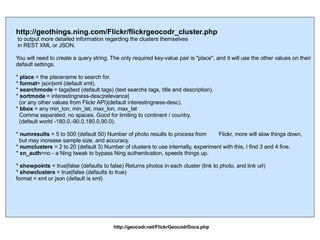

http://geothings.ning.com/Flickr/flickrgeocodr_cluster.php to output more detailed information regarding the clusters themselves in REST XML or JSON. You will need to create a query string. The only required key-value pair is "place", and it will use the other values on their default settings. * place = the placename to search for. * format = json|xml (default xml). * searchmode = tags|text (default tags) (text searchs tags, title and description). * sortmode = interestingness-desc|relevance| (or any other values from Flickr API)(default interestingness-desc). * bbox = any min_lon, min_lat, max_lon, max_lat Comma separated, no spaces. Good for limiting to continent / country. (default world -180.0,-90.0,180.0,90.0). * numresults = 5 to 500 (default 50) Number of photo results to process from Flickr, more will slow things down, but may increase sample size, and accuracy. * numclusters = 2 to 20 (default 3) Number of clusters to use internally, experiment with this, I find 3 and 4 fine. * xn_auth =no - a Ning tweak to bypass Ning authenitcation, speeds things up. * showpoints = true|false (defaults to false) Returns photos in each cluster (link to photo, and link url) * showclusters = true|false (defaults to true) format = xml or json (default is xml) http://geocodr.net/FlickrGeocodrDocs.php

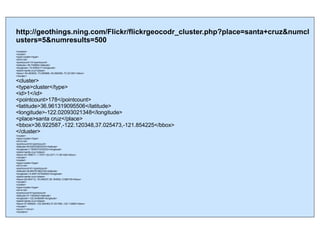

http://geothings.ning.com/Flickr/flickrgeocodr_cluster.php?place=santa+cruz&numclusters=5&numresults=500 <clusters> <cluster> <type>cluster</type> <id>0</id> <pointcount>10</pointcount> <latitude>-49.734894</latitude> <longitude>-72.9383211</longitude> <place>santa cruz</place> <bbox>-50.483625,-73.280869,-49.280298,-72.321281</bbox> </cluster> <cluster> <type>cluster</type> <id>1</id> <pointcount>178</pointcount> <latitude>36.961319095506</latitude> <longitude>-122.02093021348</longitude> <place>santa cruz</place> <bbox>36.922587,-122.120348,37.025473,-121.854225</bbox> </cluster> <cluster> <type>cluster</type> <id>2</id> <pointcount>6</pointcount> <latitude>49.930333833333</latitude> <longitude>1.7630273333333</longitude> <place>santa cruz</place> <bbox>43.769071,-1.70371,53.4371,11.261426</bbox> </cluster> <cluster> <type>cluster</type> <id>3</id> <pointcount>51</pointcount> <latitude>38.893761862745</latitude> <longitude>-9.4491147254902</longitude> <place>santa cruz</place> <bbox>28.454712,-16.249337,39.164552,-5.990155</bbox> </cluster> <cluster> <type>cluster</type> <id>4</id> <pointcount>5</pointcount> <latitude>37.1452402</latitude> <longitude>-122.2436208</longitude> <place>santa cruz</place> <bbox>37.000924,-122.394363,37.251595,-122.112962</bbox> </cluster> <error>1</error> </clusters>

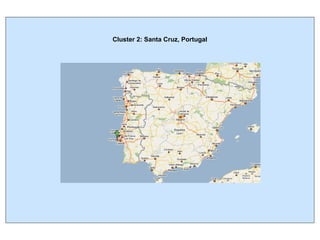

Cluster 2: Santa Cruz, Portugal

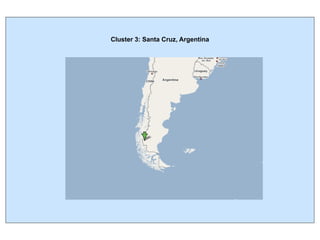

Cluster 3: Santa Cruz, Argentina

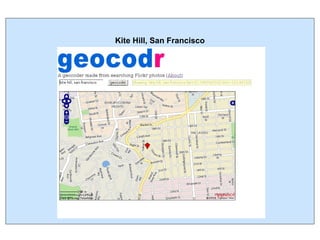

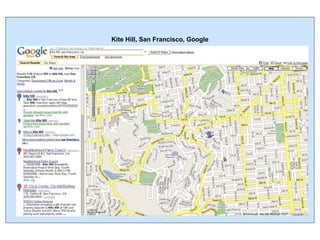

Kite Hill, San Francisco, Google

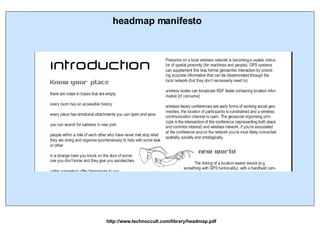

headmap manifesto http://www.technoccult.com/library/headmap.pdf

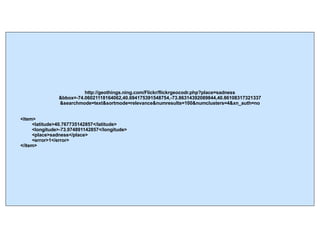

http://geothings.ning.com/Flickr/flickrgeocodr.php?place=sadness &bbox=-74.06021118164062,40.694175391548754,-73.86314392089844,40.86108317321337 &searchmode=text&sortmode=relevance&numresults=100&numclusters=4&xn_auth=no <item> <latitude>40.767735142857</latitude> <longitude>-73.974891142857</longitude> <place>sadness</place> <error>1</error> </item>

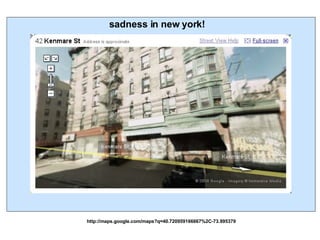

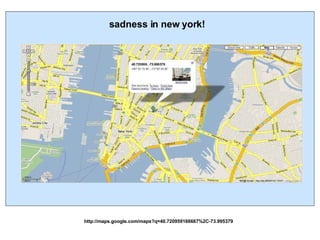

sadness in new york! http://maps.google.com/maps?q=40.720959166667%2C-73.995379

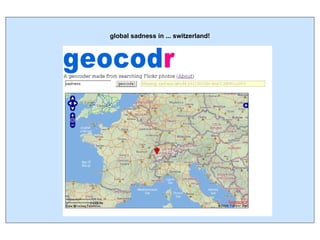

global sadness in ... switzerland!

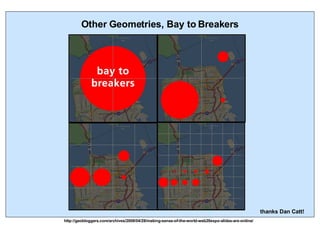

Other Geometries, Bay to Breakers http://geobloggers.com/archives/2008/04/28/making-sense-of-the-world-web20expo-slides-are-online/ thanks Dan Catt!

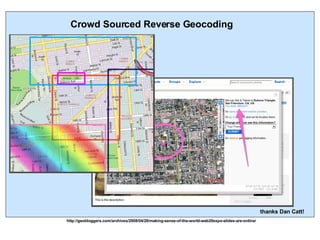

Crowd Sourced Reverse Geocoding http://geobloggers.com/archives/2008/04/28/making-sense-of-the-world-web20expo-slides-are-online/ thanks Dan Catt!

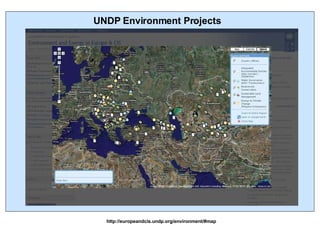

UNDP Environment Projects http://europeandcis.undp.org/environment/#map

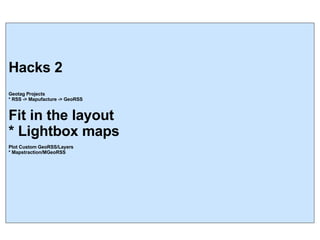

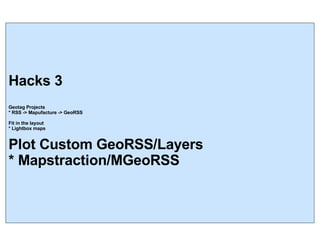

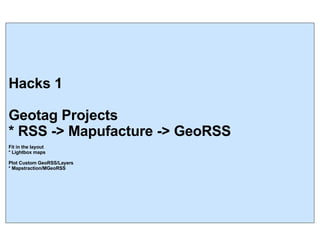

Hacks 1 Geotag Projects * RSS -> Mapufacture -> GeoRSS Fit in the layout * Lightbox maps Plot Custom GeoRSS/Layers * Mapstraction/MGeoRSS

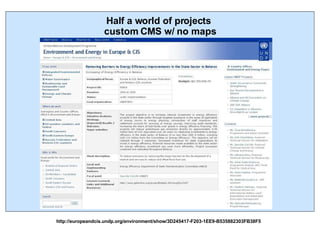

Half a world of projects custom CMS w/ no maps http://europeandcis.undp.org/environment/show/3D245417-F203-1EE9-B535882303FB38F5

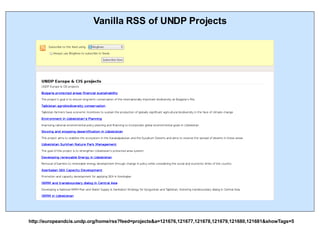

Vanilla RSS of UNDP Projects http://europeandcis.undp.org/home/rss?feed=projects&a=121676,121677,121678,121679,121680,121681&showTags=5

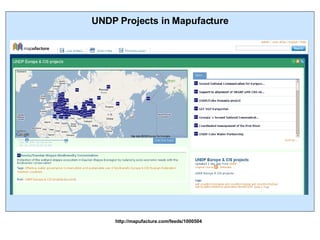

UNDP Projects in Mapufacture http://mapufacture.com/feeds/1000504

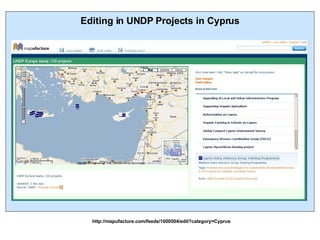

Editing in UNDP Projects in Cyprus http://mapufacture.com/feeds/1000504/edit?category=Cyprus

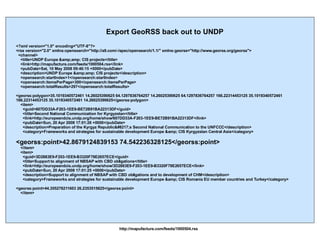

Export GeoRSS back out to UNDP <?xml version="1.0" encoding="UTF-8"?> <rss version="2.0" xmlns:opensearch="http://a9.com/-/spec/opensearch/1.1/" xmlns:georss="http://www.georss.org/georss"> <channel> <title>UNDP Europe &amp; CIS projects</title> <link>http://mapufacture.com/feeds/1000504.rss</link> <pubDate>Sat, 10 May 2008 09:46:15 +0000</pubDate> <description>UNDP Europe &amp; CIS projects</description> <opensearch:startIndex>1</opensearch:startIndex> <opensearch:itemsPerPage>300</opensearch:itemsPerPage> <opensearch:totalResults>297</opensearch:totalResults> <georss:polygon>35.1019340572461 14.26025390625 64.1297836764257 14.26025390625 64.1297836764257 166.22314453125 35.1019340572461 166.22314453125 35.1019340572461 14.26025390625</georss:polygon> <item> <guid>607DD33A-F203-1EE9-BE72B91BA22313DF</guid> <title>Second National Communication for Kyrgyzstan</title> <link>http://europeandcis.undp.org/home/show/607DD33A-F203-1EE9-BE72B91BA22313DF</link> <pubDate>Sun, 20 Apr 2008 17:01:26 +0000</pubDate> <description>Preparation of the Kyrgyz Republic’s Second National Communication to the UNFCCC</description> <category>Frameworks and strategies for sustainable development Europe & CIS Kyrgyzstan Central Asia</category> <georss:point>42.8679124839153 74.542236328125</georss:point> </item> <item> <guid>3D2883E9-F203-1EE9-B3320F78E2657ECE</guid> <title>Support to alignment of NBSAP with CBD obligations</title> <link>http://europeandcis.undp.org/home/show/3D2883E9-F203-1EE9-B3320F78E2657ECE</link> <pubDate>Sun, 20 Apr 2008 17:01:25 +0000</pubDate> <description>Support to alignment of NBSAP with CBD obligations and to development of CHM</description> <category>Frameworks and strategies for sustainable development Europe & CIS Romania EU member countries and Turkey</category> <georss:point>44.355278211603 26.2353515625</georss:point> </item> http://mapufacture.com/feeds/1000504.rss

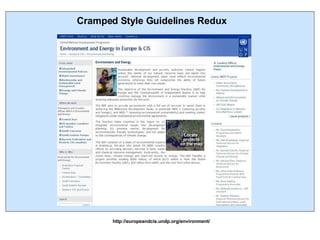

Cramped Style Guidelines Redux http://europeandcis.undp.org/environment/

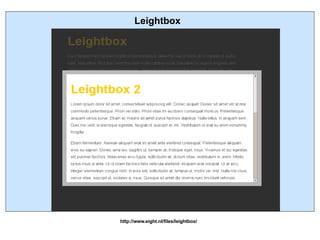

Leightbox http://www.eight.nl/files/leightbox/

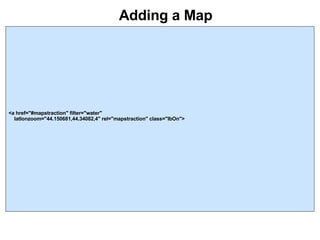

Adding a Map <a href="#mapstraction" filter="water" latlonzoom="44.150681,44.34082,4" rel="mapstraction" class="lbOn">

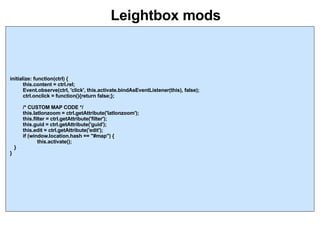

Leightbox mods initialize: function(ctrl) { this.content = ctrl.rel; Event.observe(ctrl, 'click', this.activate.bindAsEventListener(this), false); ctrl.onclick = function(){return false;}; /* CUSTOM MAP CODE */ this.latlonzoom = ctrl.getAttribute('latlonzoom'); this.filter = ctrl.getAttribute('filter'); this.guid = ctrl.getAttribute('guid'); this.edit = ctrl.getAttribute('edit'); if (window.location.hash == "#map") { this.activate(); } }

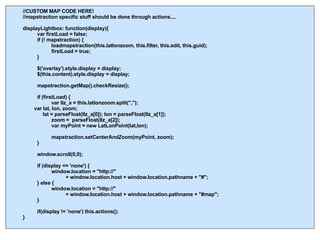

//CUSTOM MAP CODE HERE! //mapstraction specific stuff should be done through actions.... displayLightbox: function(display){ var firstLoad = false; if (! mapstraction) { loadmapstraction(this.latlonzoom, this.filter, this.edit, this.guid); firstLoad = true; } $('overlay').style.display = display; $(this.content).style.display = display; mapstraction.getMap().checkResize(); if (firstLoad) { var llz_a = this.latlonzoom.split(","); var lat, lon, zoom; lat = parseFloat(llz_a[0]); lon = parseFloat(llz_a[1]); zoom = parseFloat(llz_a[2]); var myPoint = new LatLonPoint(lat,lon); mapstraction.setCenterAndZoom(myPoint, zoom); } window.scroll(0,0); if (display == 'none') { window.location = "http://" + window.location.host + window.location.pathname + "#"; } else { window.location = "http://" + window.location.host + window.location.pathname + "#map"; } if(display != 'none') this.actions(); }

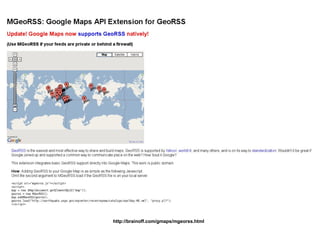

http://brainoff.com/gmaps/mgeorss.html

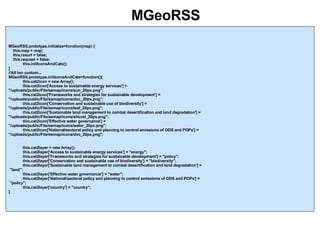

MGeoRSS MGeoRSS.prototype.initialize=function(map) { this.map = map; this.rssurl = false; this.request = false; this.initIconsAndCats(); } //All too custom... MGeoRSS.prototype.initIconsAndCats=function(){ this.cat2icon = new Array(); this.cat2icon['Access to sustainable energy services'] = "/uploads/public/File/eemap/icons/sun_20px.png"; this.cat2icon['Frameworks and strategies for sustainable development'] = "/uploads/public/File/eemap/icons/doc_20px.png"; this.cat2icon['Conservation and sustainable use of biodiversity'] = "/uploads/public/File/eemap/icons/leaf_20px.png"; this.cat2icon['Sustainable land management to combat desertification and land degradation'] = "/uploads/public/File/eemap/icons/shovel_20px.png"; this.cat2icon['Effective water governance'] = "/uploads/public/File/eemap/icons/water_20px.png"; this.cat2icon['National/sectoral policy and planning to control emissions of ODS and POPs'] = "/uploads/public/File/eemap/icons/doc_20px.png"; this.cat2layer = new Array(); this.cat2layer['Access to sustainable energy services'] = "energy"; this.cat2layer['Frameworks and strategies for sustainable development'] = "policy"; this.cat2layer['Conservation and sustainable use of biodiversity'] = "biodiversity"; this.cat2layer['Sustainable land management to combat desertification and land degradation'] = "land"; this.cat2layer['Effective water governance'] = "water"; this.cat2layer['National/sectoral policy and planning to control emissions of ODS and POPs'] = "policy"; this.cat2layer['country'] = "country"; }

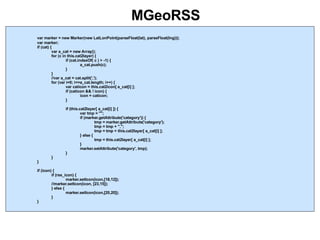

MGeoRSS var marker = new Marker(new LatLonPoint(parseFloat(lat), parseFloat(lng))); var marker; if (cat) { var a_cat = new Array(); for (c in this.cat2layer) { if (cat.indexOf( c ) > -1) { a_cat.push(c); } } //var a_cat = cat.split(','); for (var i=0; i<=a_cat.length; i++) { var caticon = this.cat2icon[ a_cat[i] ]; if (caticon && ! icon) { icon = caticon; } if (this.cat2layer[ a_cat[i] ]) { var tmp = ""; if (marker.getAttribute('category')) { tmp = marker.getAttribute('category'); tmp = tmp + ","; tmp = tmp + this.cat2layer[ a_cat[i] ]; } else { tmp = this.cat2layer[ a_cat[i] ]; } marker.setAttribute('category', tmp); } } } if (icon) { if (rss_icon) { marker.setIcon(icon,[18,12]); //marker.setIcon(icon, [23,15]); } else { marker.setIcon(icon,[20,20]); } }

Mapstraction/MGeoRSS setup function loadmapstraction(latlonzoom, filter, edit, guid) { .. if (filter) { mapstraction.addFilter('category','contains','country'); var filter_a = filter.split(","); for (var i=0; i < filter_a.length; i++) { mapstraction.addFilter('category', 'contains', filter_a[i]); var cb = "checkbox_" + filter_a[i]; if ($(cb)) { $(cb).checked = "CHECKED"; } } } else { mapstraction.addFilter('category','contains','country'); mapstraction.addFilter('category','contains','biodiversity'); mapstraction.addFilter('category','contains','water'); mapstraction.addFilter('category','contains','energy'); mapstraction.addFilter('category','contains','policy'); mapstraction.addFilter('category','contains','land'); } georss2 = new MGeoRSS(); if (guid) { georss2.centerOnGuid(guid); } mapstraction.addMGeoRSS(georss2); georss2.load("/uploads/public/File/eemap/projects.xml"); georss2 = new MGeoRSS(); mapstraction.addMGeoRSS(georss2); georss2.load("/uploads/public/File/eemap/countries.xml"); }

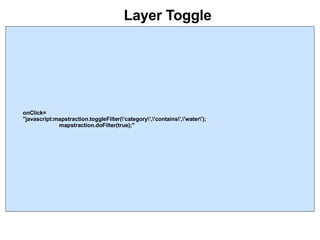

Layer Toggle onClick= "javascript:mapstraction.toggleFilter(\'category\',\'contains\',\'water\'); mapstraction.doFilter(true);"

THANKS! Illuminated Hacks http://www.slideshare.net/mikel_maron (soonish) Mikel Maron Where 2.0 101 Tutorial [email_address] http://brainoff.com/
