IJQRM (2014) Statistical Comparison of Final Scores In QFD

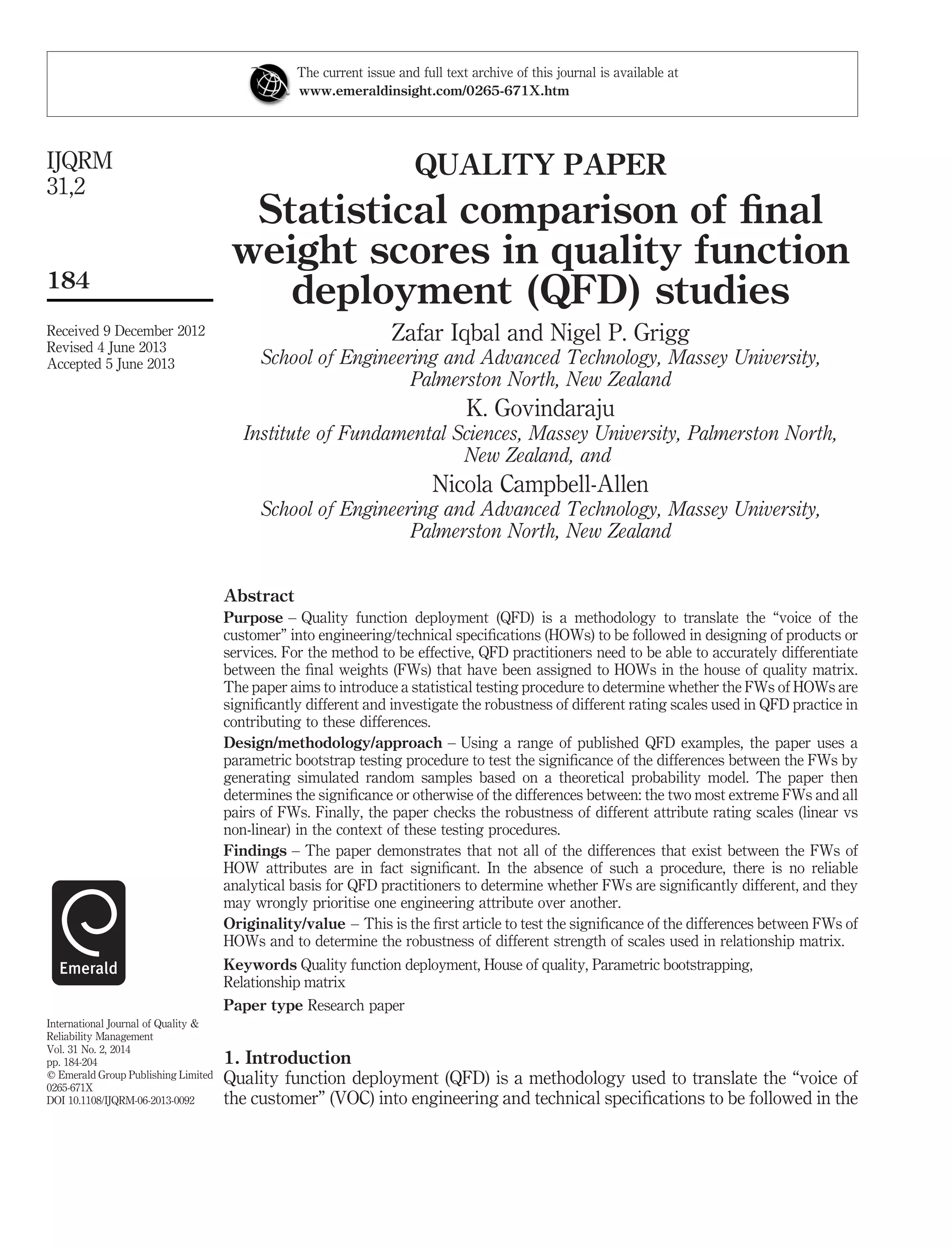

- 1. QUALITY PAPER Statistical comparisonof final weight scores in quality function deployment (QFD) studies Zafar Iqbal and Nigel P. Grigg School of Engineering and Advanced Technology, Massey University, Palmerston North, New Zealand K. Govindaraju Institute of Fundamental Sciences, Massey University, Palmerston North, New Zealand, and Nicola Campbell-Allen School of Engineering and Advanced Technology, Massey University, Palmerston North, New Zealand Abstract Purpose – Quality function deployment (QFD) is a methodology to translate the “voice of the customer” into engineering/technical specifications (HOWs) to be followed in designing of products or services. For the method to be effective, QFD practitioners need to be able to accurately differentiate between the final weights (FWs) that have been assigned to HOWs in the house of quality matrix. The paper aims to introduce a statistical testing procedure to determine whether the FWs of HOWs are significantly different and investigate the robustness of different rating scales used in QFD practice in contributing to these differences. Design/methodology/approach – Using a range of published QFD examples, the paper uses a parametric bootstrap testing procedure to test the significance of the differences between the FWs by generating simulated random samples based on a theoretical probability model. The paper then determines the significance or otherwise of the differences between: the two most extreme FWs and all pairs of FWs. Finally, the paper checks the robustness of different attribute rating scales (linear vs non-linear) in the context of these testing procedures. Findings – The paper demonstrates that not all of the differences that exist between the FWs of HOW attributes are in fact significant. In the absence of such a procedure, there is no reliable analytical basis for QFD practitioners to determine whether FWs are significantly different, and they may wrongly prioritise one engineering attribute over another. Originality/value – This is the first article to test the significance of the differences between FWs of HOWs and to determine the robustness of different strength of scales used in relationship matrix. Keywords Quality function deployment, House of quality, Parametric bootstrapping, Relationship matrix Paper type Research paper 1. Introduction Quality function deployment (QFD) is a methodology used to translate the “voice of the customer” (VOC) into engineering and technical specifications to be followed in the The current issue and full text archive of this journal is available at www.emeraldinsight.com/0265-671X.htm Received 9 December 2012 Revised 4 June 2013 Accepted 5 June 2013 International Journal of Quality & Reliability Management Vol. 31 No. 2, 2014 pp. 184-204 q Emerald Group Publishing Limited 0265-671X DOI 10.1108/IJQRM-06-2013-0092 IJQRM 31,2 184

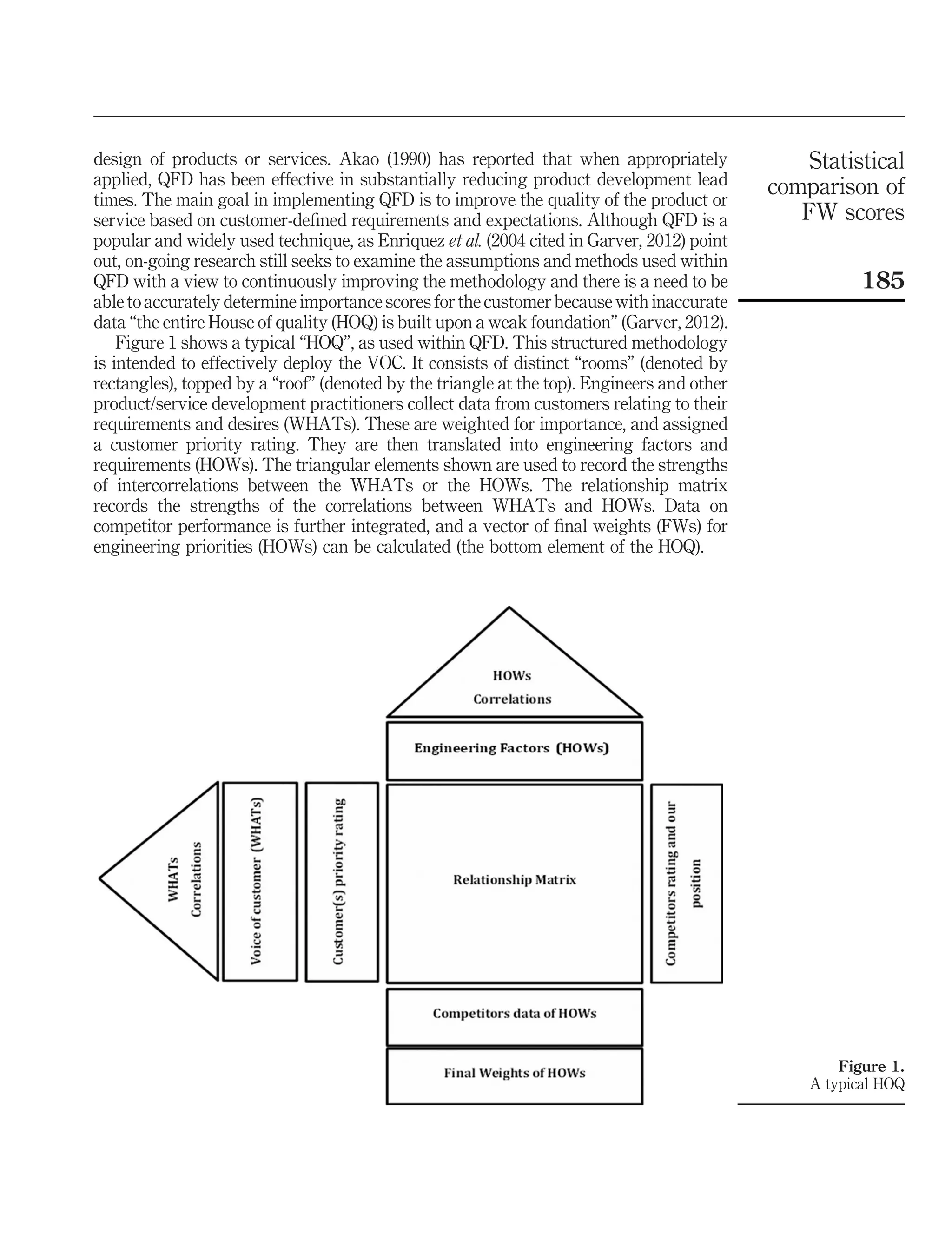

- 2. design of productsor services. Akao (1990) has reported that when appropriately applied, QFD has been effective in substantially reducing product development lead times. The main goal in implementing QFD is to improve the quality of the product or service based on customer-defined requirements and expectations. Although QFD is a popular and widely used technique, as Enriquez et al. (2004 cited in Garver, 2012) point out, on-going research still seeks to examine the assumptions and methods used within QFD with a view to continuously improving the methodology and there is a need to be able to accurately determine importance scores for the customer because with inaccurate data “the entire House of quality (HOQ) is built upon a weak foundation” (Garver, 2012). Figure 1 shows a typical “HOQ”, as used within QFD. This structured methodology is intended to effectively deploy the VOC. It consists of distinct “rooms” (denoted by rectangles), topped by a “roof” (denoted by the triangle at the top). Engineers and other product/service development practitioners collect data from customers relating to their requirements and desires (WHATs). These are weighted for importance, and assigned a customer priority rating. They are then translated into engineering factors and requirements (HOWs). The triangular elements shown are used to record the strengths of intercorrelations between the WHATs or the HOWs. The relationship matrix records the strengths of the correlations between WHATs and HOWs. Data on competitor performance is further integrated, and a vector of final weights (FWs) for engineering priorities (HOWs) can be calculated (the bottom element of the HOQ). Figure 1. A typical HOQ Statistical comparison of FW scores 185

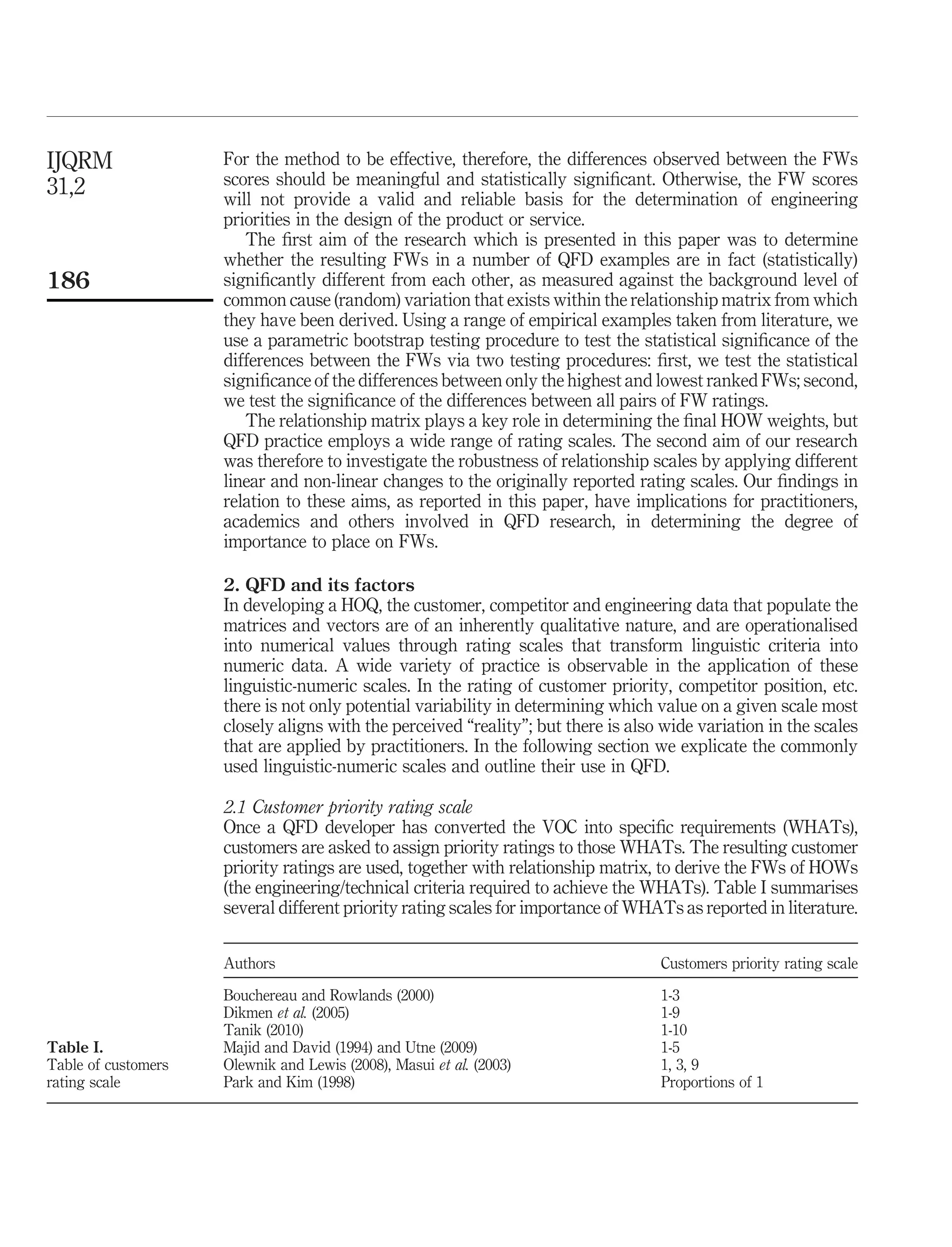

- 3. For the methodto be effective, therefore, the differences observed between the FWs scores should be meaningful and statistically significant. Otherwise, the FW scores will not provide a valid and reliable basis for the determination of engineering priorities in the design of the product or service. The first aim of the research which is presented in this paper was to determine whether the resulting FWs in a number of QFD examples are in fact (statistically) significantly different from each other, as measured against the background level of common cause (random) variation that exists within the relationship matrix from which they have been derived. Using a range of empirical examples taken from literature, we use a parametric bootstrap testing procedure to test the statistical significance of the differences between the FWs via two testing procedures: first, we test the statistical significance of the differences between only the highest and lowest ranked FWs; second, we test the significance of the differences between all pairs of FW ratings. The relationship matrix plays a key role in determining the final HOW weights, but QFD practice employs a wide range of rating scales. The second aim of our research was therefore to investigate the robustness of relationship scales by applying different linear and non-linear changes to the originally reported rating scales. Our findings in relation to these aims, as reported in this paper, have implications for practitioners, academics and others involved in QFD research, in determining the degree of importance to place on FWs. 2. QFD and its factors In developing a HOQ, the customer, competitor and engineering data that populate the matrices and vectors are of an inherently qualitative nature, and are operationalised into numerical values through rating scales that transform linguistic criteria into numeric data. A wide variety of practice is observable in the application of these linguistic-numeric scales. In the rating of customer priority, competitor position, etc. there is not only potential variability in determining which value on a given scale most closely aligns with the perceived “reality”; but there is also wide variation in the scales that are applied by practitioners. In the following section we explicate the commonly used linguistic-numeric scales and outline their use in QFD. 2.1 Customer priority rating scale Once a QFD developer has converted the VOC into specific requirements (WHATs), customers are asked to assign priority ratings to those WHATs. The resulting customer priority ratings are used, together with relationship matrix, to derive the FWs of HOWs (the engineering/technical criteria required to achieve the WHATs). Table I summarises several different priority rating scales for importance of WHATs as reported in literature. Authors Customers priority rating scale Bouchereau and Rowlands (2000) 1-3 Dikmen et al. (2005) 1-9 Tanik (2010) 1-10 Majid and David (1994) and Utne (2009) 1-5 Olewnik and Lewis (2008), Masui et al. (2003) 1, 3, 9 Park and Kim (1998) Proportions of 1 Table I. Table of customers rating scale IJQRM 31,2 186

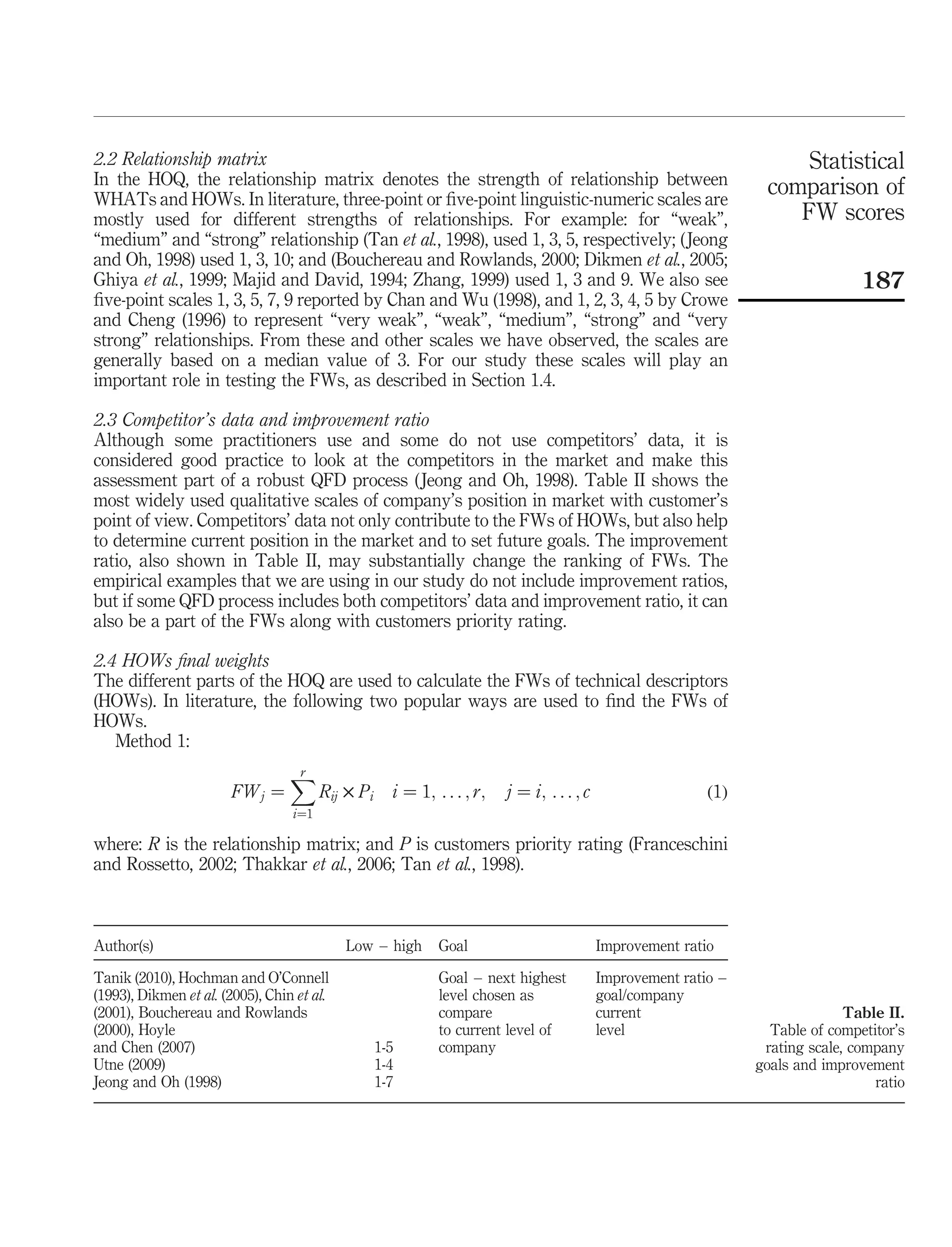

- 4. 2.2 Relationship matrix Inthe HOQ, the relationship matrix denotes the strength of relationship between WHATs and HOWs. In literature, three-point or five-point linguistic-numeric scales are mostly used for different strengths of relationships. For example: for “weak”, “medium” and “strong” relationship (Tan et al., 1998), used 1, 3, 5, respectively; (Jeong and Oh, 1998) used 1, 3, 10; and (Bouchereau and Rowlands, 2000; Dikmen et al., 2005; Ghiya et al., 1999; Majid and David, 1994; Zhang, 1999) used 1, 3 and 9. We also see five-point scales 1, 3, 5, 7, 9 reported by Chan and Wu (1998), and 1, 2, 3, 4, 5 by Crowe and Cheng (1996) to represent “very weak”, “weak”, “medium”, “strong” and “very strong” relationships. From these and other scales we have observed, the scales are generally based on a median value of 3. For our study these scales will play an important role in testing the FWs, as described in Section 1.4. 2.3 Competitor’s data and improvement ratio Although some practitioners use and some do not use competitors’ data, it is considered good practice to look at the competitors in the market and make this assessment part of a robust QFD process (Jeong and Oh, 1998). Table II shows the most widely used qualitative scales of company’s position in market with customer’s point of view. Competitors’ data not only contribute to the FWs of HOWs, but also help to determine current position in the market and to set future goals. The improvement ratio, also shown in Table II, may substantially change the ranking of FWs. The empirical examples that we are using in our study do not include improvement ratios, but if some QFD process includes both competitors’ data and improvement ratio, it can also be a part of the FWs along with customers priority rating. 2.4 HOWs final weights The different parts of the HOQ are used to calculate the FWs of technical descriptors (HOWs). In literature, the following two popular ways are used to find the FWs of HOWs. Method 1: FWj ¼ Xr i¼1 Rij £ Pi i ¼ 1; . . . ; r; j ¼ i; . . . ; c ð1Þ where: R is the relationship matrix; and P is customers priority rating (Franceschini and Rossetto, 2002; Thakkar et al., 2006; Tan et al., 1998). Author(s) Low – high Goal Improvement ratio Tanik (2010), Hochman and O’Connell (1993), Dikmen et al. (2005), Chin et al. (2001), Bouchereau and Rowlands (2000), Hoyle and Chen (2007) 1-5 Goal – next highest level chosen as compare to current level of company Improvement ratio – goal/company current level Utne (2009) 1-4 Jeong and Oh (1998) 1-7 Table II. Table of competitor’s rating scale, company goals and improvement ratio Statistical comparison of FW scores 187

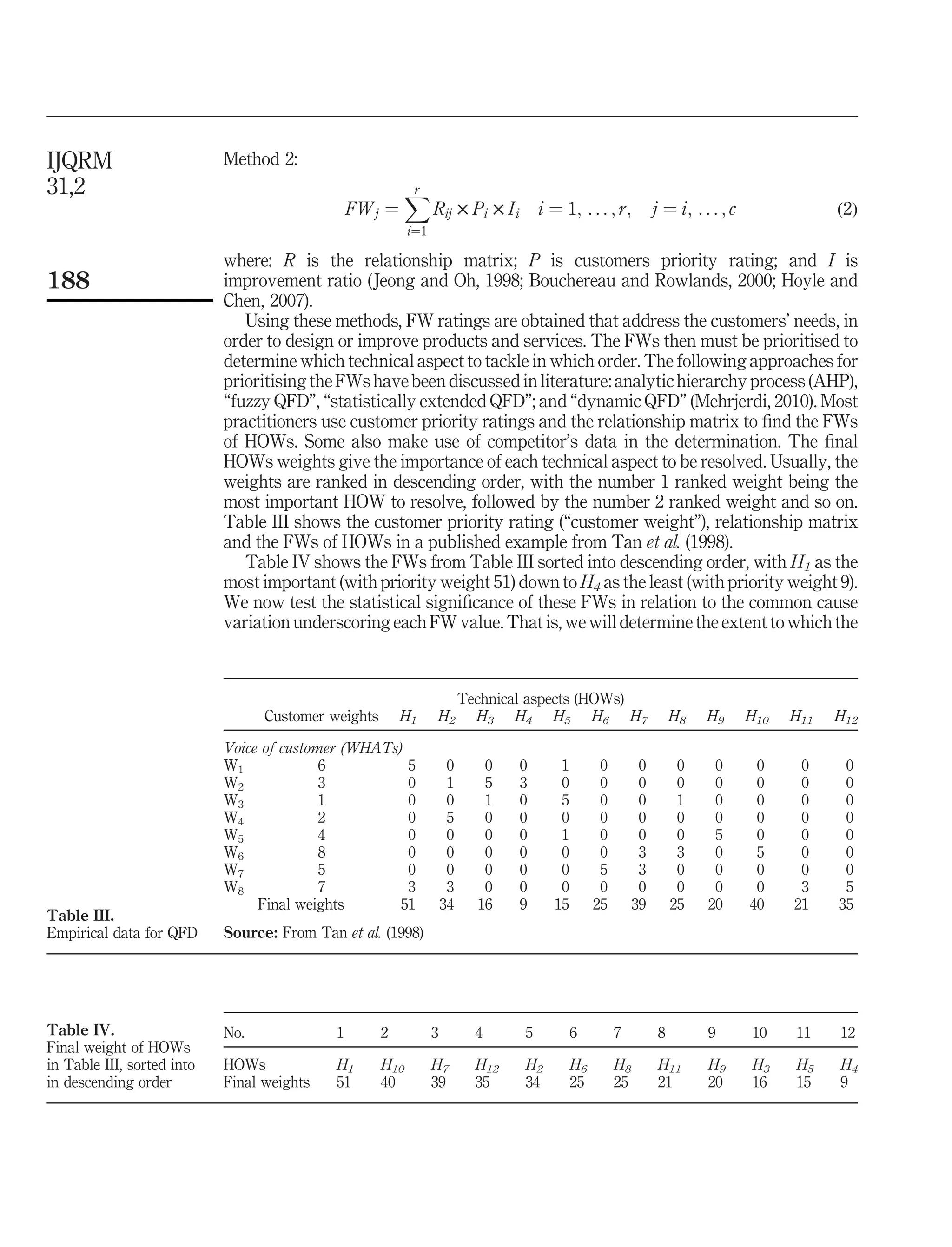

- 5. Method 2: FWj ¼ Xr i¼1 Rij£ Pi £ Ii i ¼ 1; . . . ; r; j ¼ i; . . . ; c ð2Þ where: R is the relationship matrix; P is customers priority rating; and I is improvement ratio (Jeong and Oh, 1998; Bouchereau and Rowlands, 2000; Hoyle and Chen, 2007). Using these methods, FW ratings are obtained that address the customers’ needs, in order to design or improve products and services. The FWs then must be prioritised to determine which technical aspect to tackle in which order. The following approaches for prioritising the FWs have been discussed in literature: analytic hierarchy process (AHP), “fuzzy QFD”, “statistically extended QFD”; and “dynamic QFD” (Mehrjerdi, 2010). Most practitioners use customer priority ratings and the relationship matrix to find the FWs of HOWs. Some also make use of competitor’s data in the determination. The final HOWs weights give the importance of each technical aspect to be resolved. Usually, the weights are ranked in descending order, with the number 1 ranked weight being the most important HOW to resolve, followed by the number 2 ranked weight and so on. Table III shows the customer priority rating (“customer weight”), relationship matrix and the FWs of HOWs in a published example from Tan et al. (1998). Table IV shows the FWs from Table III sorted into descending order, with H1 as the most important (with priority weight 51) down to H4 as the least (with priority weight 9). We now test the statistical significance of these FWs in relation to the common cause variation underscoring each FW value. That is, we will determine the extent to which the Technical aspects (HOWs) Customer weights H1 H2 H3 H4 H5 H6 H7 H8 H9 H10 H11 H12 Voice of customer (WHATs) W1 6 5 0 0 0 1 0 0 0 0 0 0 0 W2 3 0 1 5 3 0 0 0 0 0 0 0 0 W3 1 0 0 1 0 5 0 0 1 0 0 0 0 W4 2 0 5 0 0 0 0 0 0 0 0 0 0 W5 4 0 0 0 0 1 0 0 0 5 0 0 0 W6 8 0 0 0 0 0 0 3 3 0 5 0 0 W7 5 0 0 0 0 0 5 3 0 0 0 0 0 W8 7 3 3 0 0 0 0 0 0 0 0 3 5 Final weights 51 34 16 9 15 25 39 25 20 40 21 35 Source: From Tan et al. (1998) Table III. Empirical data for QFD No. 1 2 3 4 5 6 7 8 9 10 11 12 HOWs H1 H10 H7 H12 H2 H6 H8 H11 H9 H3 H5 H4 Final weights 51 40 39 35 34 25 25 21 20 16 15 9 Table IV. Final weight of HOWs in Table III, sorted into in descending order IJQRM 31,2 188

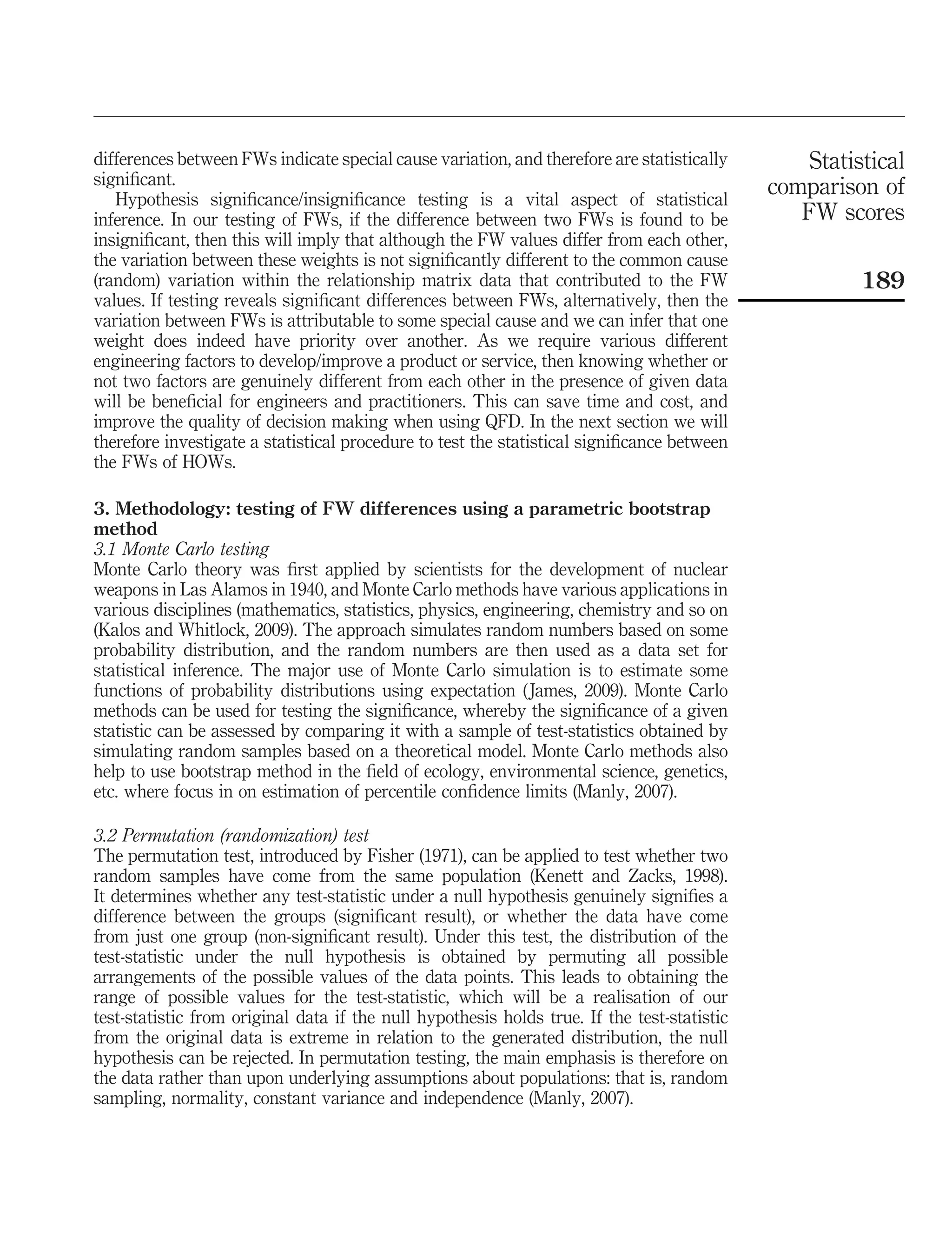

- 6. differences between FWsindicate special cause variation, and therefore are statistically significant. Hypothesis significance/insignificance testing is a vital aspect of statistical inference. In our testing of FWs, if the difference between two FWs is found to be insignificant, then this will imply that although the FW values differ from each other, the variation between these weights is not significantly different to the common cause (random) variation within the relationship matrix data that contributed to the FW values. If testing reveals significant differences between FWs, alternatively, then the variation between FWs is attributable to some special cause and we can infer that one weight does indeed have priority over another. As we require various different engineering factors to develop/improve a product or service, then knowing whether or not two factors are genuinely different from each other in the presence of given data will be beneficial for engineers and practitioners. This can save time and cost, and improve the quality of decision making when using QFD. In the next section we will therefore investigate a statistical procedure to test the statistical significance between the FWs of HOWs. 3. Methodology: testing of FW differences using a parametric bootstrap method 3.1 Monte Carlo testing Monte Carlo theory was first applied by scientists for the development of nuclear weapons in Las Alamos in 1940, and Monte Carlo methods have various applications in various disciplines (mathematics, statistics, physics, engineering, chemistry and so on (Kalos and Whitlock, 2009). The approach simulates random numbers based on some probability distribution, and the random numbers are then used as a data set for statistical inference. The major use of Monte Carlo simulation is to estimate some functions of probability distributions using expectation (James, 2009). Monte Carlo methods can be used for testing the significance, whereby the significance of a given statistic can be assessed by comparing it with a sample of test-statistics obtained by simulating random samples based on a theoretical model. Monte Carlo methods also help to use bootstrap method in the field of ecology, environmental science, genetics, etc. where focus in on estimation of percentile confidence limits (Manly, 2007). 3.2 Permutation (randomization) test The permutation test, introduced by Fisher (1971), can be applied to test whether two random samples have come from the same population (Kenett and Zacks, 1998). It determines whether any test-statistic under a null hypothesis genuinely signifies a difference between the groups (significant result), or whether the data have come from just one group (non-significant result). Under this test, the distribution of the test-statistic under the null hypothesis is obtained by permuting all possible arrangements of the possible values of the data points. This leads to obtaining the range of possible values for the test-statistic, which will be a realisation of our test-statistic from original data if the null hypothesis holds true. If the test-statistic from the original data is extreme in relation to the generated distribution, the null hypothesis can be rejected. In permutation testing, the main emphasis is therefore on the data rather than upon underlying assumptions about populations: that is, random sampling, normality, constant variance and independence (Manly, 2007). Statistical comparison of FW scores 189

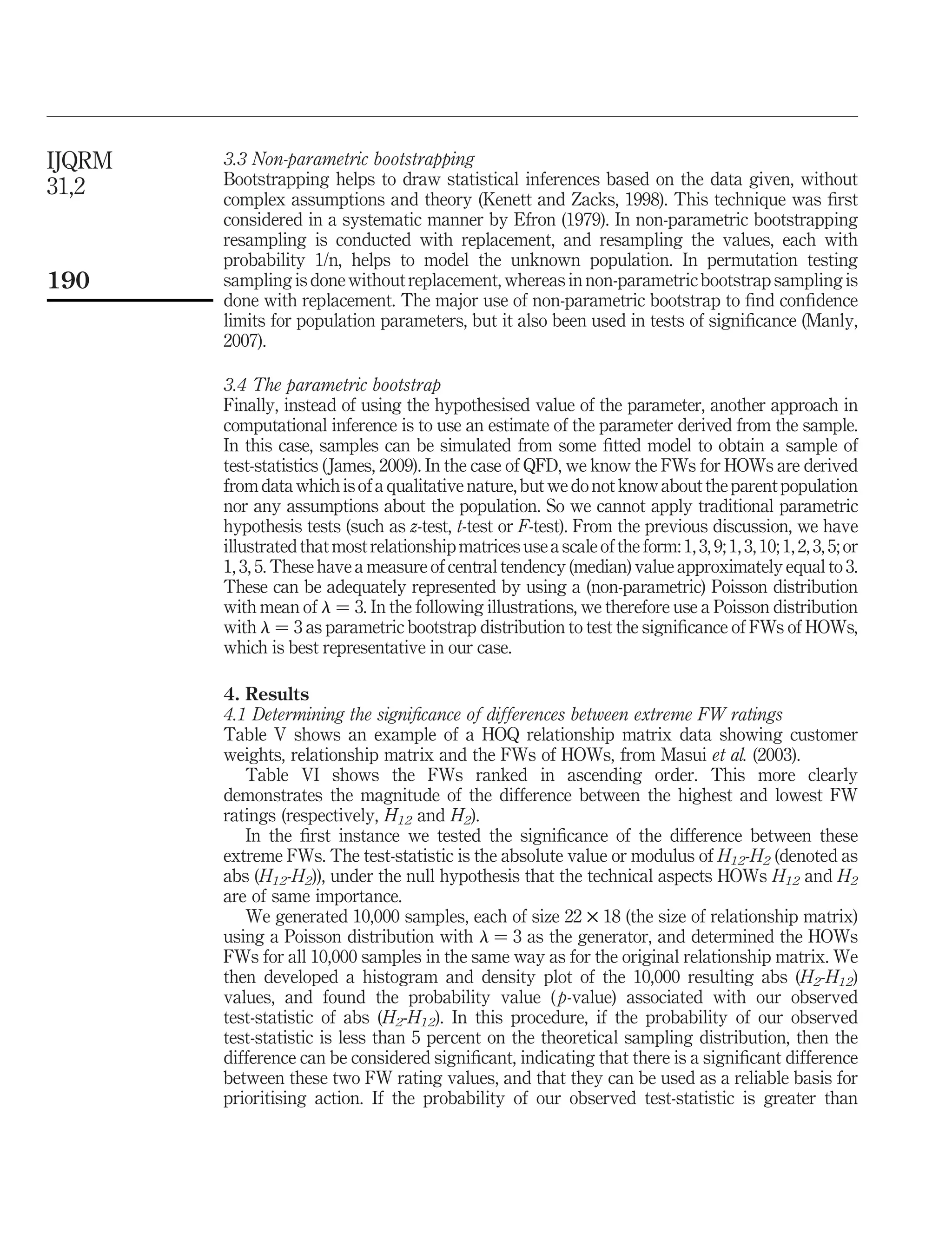

- 7. 3.3 Non-parametric bootstrapping Bootstrappinghelps to draw statistical inferences based on the data given, without complex assumptions and theory (Kenett and Zacks, 1998). This technique was first considered in a systematic manner by Efron (1979). In non-parametric bootstrapping resampling is conducted with replacement, and resampling the values, each with probability 1/n, helps to model the unknown population. In permutation testing sampling is done without replacement, whereas in non-parametric bootstrap sampling is done with replacement. The major use of non-parametric bootstrap to find confidence limits for population parameters, but it also been used in tests of significance (Manly, 2007). 3.4 The parametric bootstrap Finally, instead of using the hypothesised value of the parameter, another approach in computational inference is to use an estimate of the parameter derived from the sample. In this case, samples can be simulated from some fitted model to obtain a sample of test-statistics (James, 2009). In the case of QFD, we know the FWs for HOWs are derived from data which isof a qualitative nature,but we do not know about the parent population nor any assumptions about the population. So we cannot apply traditional parametric hypothesis tests (such as z-test, t-test or F-test). From the previous discussion, we have illustrated that most relationshipmatrices use a scale ofthe form:1,3, 9;1,3,10;1,2,3, 5;or 1, 3, 5. These have a measure of central tendency (median) value approximately equal to 3. These can be adequately represented by using a (non-parametric) Poisson distribution with mean of l ¼ 3. In the following illustrations, we therefore use a Poisson distribution with l ¼ 3 as parametric bootstrap distribution to test the significance of FWs of HOWs, which is best representative in our case. 4. Results 4.1 Determining the significance of differences between extreme FW ratings Table V shows an example of a HOQ relationship matrix data showing customer weights, relationship matrix and the FWs of HOWs, from Masui et al. (2003). Table VI shows the FWs ranked in ascending order. This more clearly demonstrates the magnitude of the difference between the highest and lowest FW ratings (respectively, H12 and H2). In the first instance we tested the significance of the difference between these extreme FWs. The test-statistic is the absolute value or modulus of H12-H2 (denoted as abs (H12-H2)), under the null hypothesis that the technical aspects HOWs H12 and H2 are of same importance. We generated 10,000 samples, each of size 22 £ 18 (the size of relationship matrix) using a Poisson distribution with l ¼ 3 as the generator, and determined the HOWs FWs for all 10,000 samples in the same way as for the original relationship matrix. We then developed a histogram and density plot of the 10,000 resulting abs (H2-H12) values, and found the probability value (p-value) associated with our observed test-statistic of abs (H2-H12). In this procedure, if the probability of our observed test-statistic is less than 5 percent on the theoretical sampling distribution, then the difference can be considered significant, indicating that there is a significant difference between these two FW rating values, and that they can be used as a reliable basis for prioritising action. If the probability of our observed test-statistic is greater than IJQRM 31,2 190
- 8.

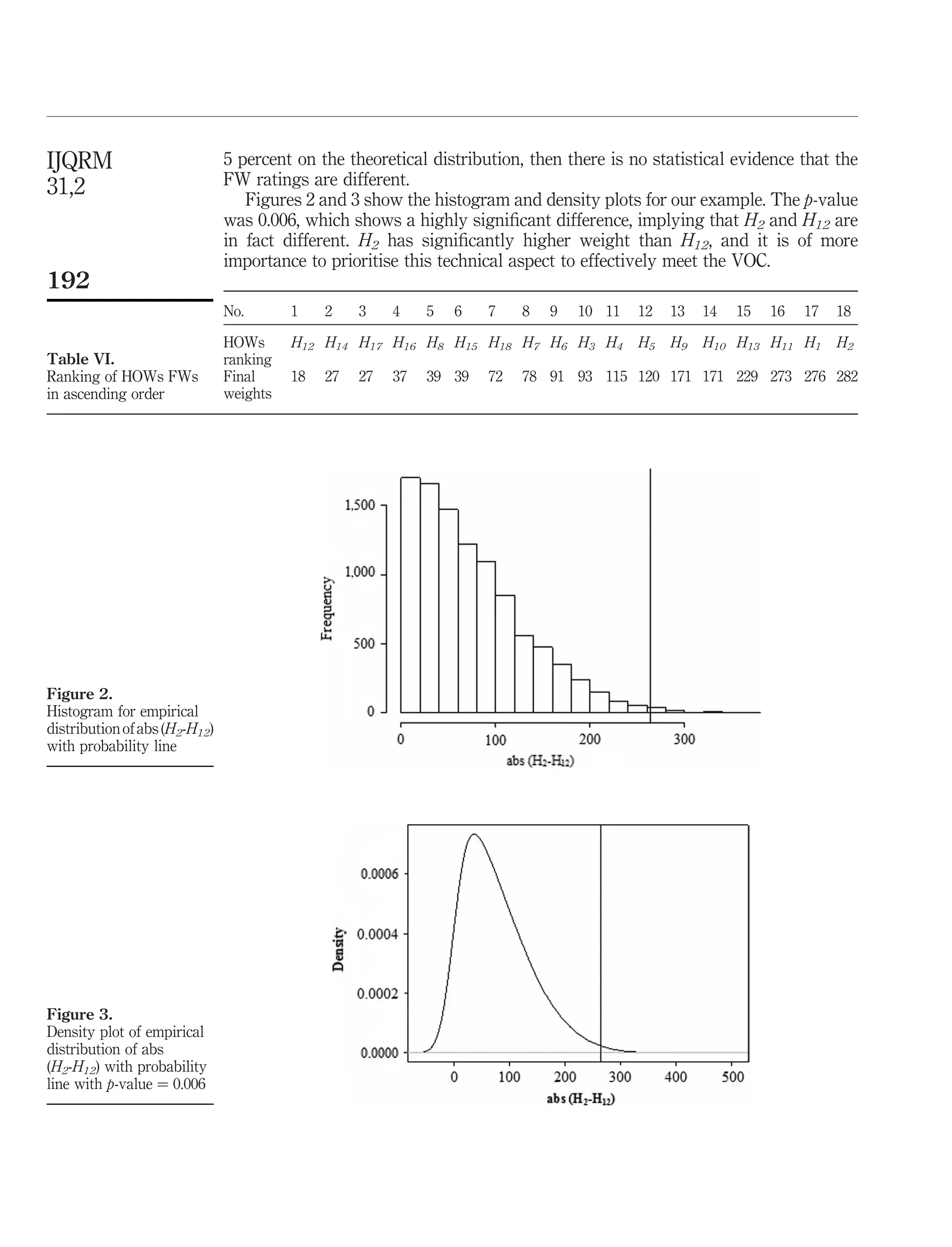

- 9. 5 percent onthe theoretical distribution, then there is no statistical evidence that the FW ratings are different. Figures 2 and 3 show the histogram and density plots for our example. The p-value was 0.006, which shows a highly significant difference, implying that H2 and H12 are in fact different. H2 has significantly higher weight than H12, and it is of more importance to prioritise this technical aspect to effectively meet the VOC. No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 HOWs ranking H12 H14 H17 H16 H8 H15 H18 H7 H6 H3 H4 H5 H9 H10 H13 H11 H1 H2 Final weights 18 27 27 37 39 39 72 78 91 93 115 120 171 171 229 273 276 282 Table VI. Ranking of HOWs FWs in ascending order Figure 2. Histogram for empirical distributionofabs(H2-H12) with probability line Figure 3. Density plot of empirical distribution of abs (H2-H12) with probability line with p-value ¼ 0.006 IJQRM 31,2 192

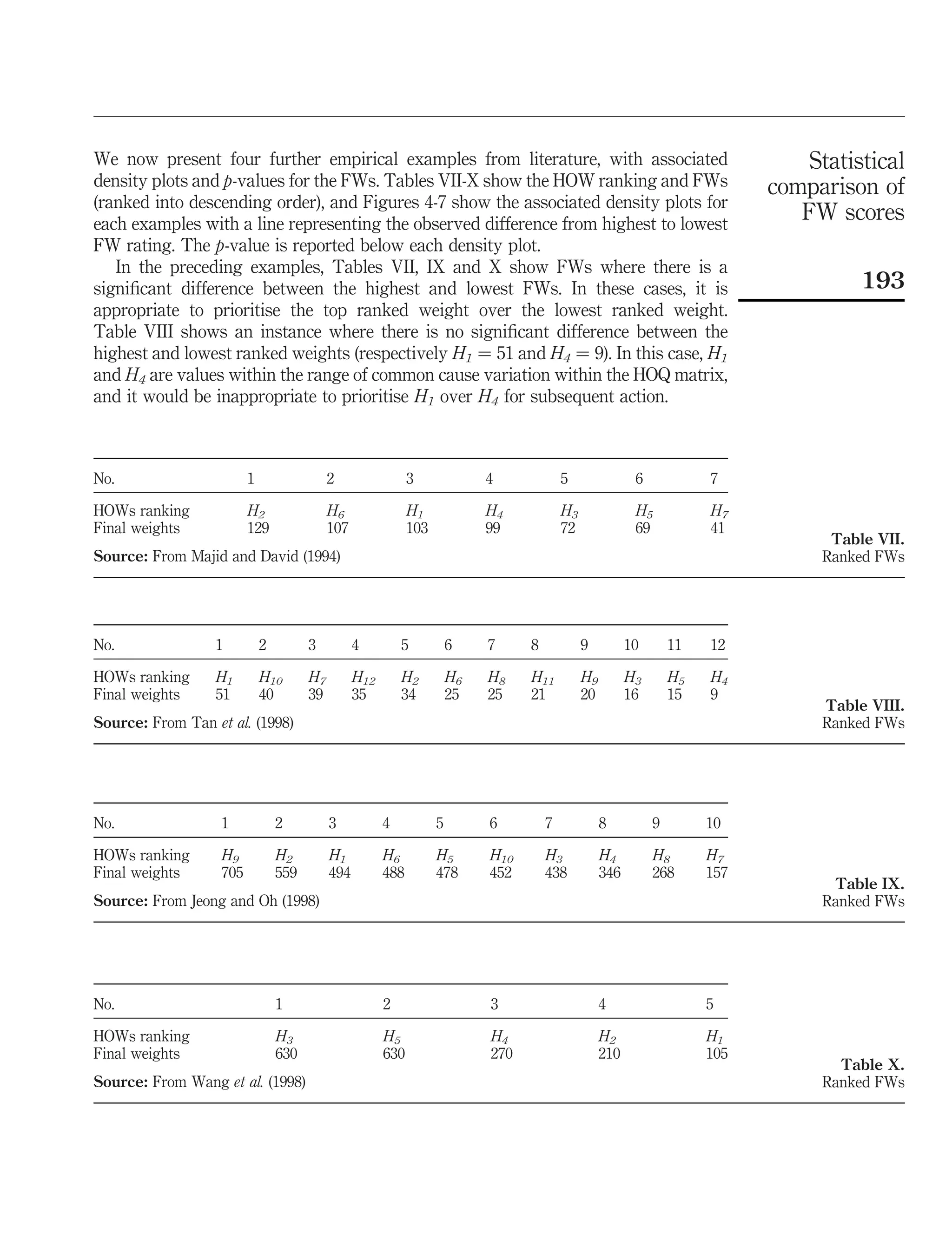

- 10. We now presentfour further empirical examples from literature, with associated density plots and p-values for the FWs. Tables VII-X show the HOW ranking and FWs (ranked into descending order), and Figures 4-7 show the associated density plots for each examples with a line representing the observed difference from highest to lowest FW rating. The p-value is reported below each density plot. In the preceding examples, Tables VII, IX and X show FWs where there is a significant difference between the highest and lowest FWs. In these cases, it is appropriate to prioritise the top ranked weight over the lowest ranked weight. Table VIII shows an instance where there is no significant difference between the highest and lowest ranked weights (respectively H1 ¼ 51 and H4 ¼ 9). In this case, H1 and H4 are values within the range of common cause variation within the HOQ matrix, and it would be inappropriate to prioritise H1 over H4 for subsequent action. No. 1 2 3 4 5 6 7 HOWs ranking H2 H6 H1 H4 H3 H5 H7 Final weights 129 107 103 99 72 69 41 Source: From Majid and David (1994) Table VII. Ranked FWs No. 1 2 3 4 5 6 7 8 9 10 11 12 HOWs ranking H1 H10 H7 H12 H2 H6 H8 H11 H9 H3 H5 H4 Final weights 51 40 39 35 34 25 25 21 20 16 15 9 Source: From Tan et al. (1998) Table VIII. Ranked FWs No. 1 2 3 4 5 6 7 8 9 10 HOWs ranking H9 H2 H1 H6 H5 H10 H3 H4 H8 H7 Final weights 705 559 494 488 478 452 438 346 268 157 Source: From Jeong and Oh (1998) Table IX. Ranked FWs No. 1 2 3 4 5 HOWs ranking H3 H5 H4 H2 H1 Final weights 630 630 270 210 105 Source: From Wang et al. (1998) Table X. Ranked FWs Statistical comparison of FW scores 193

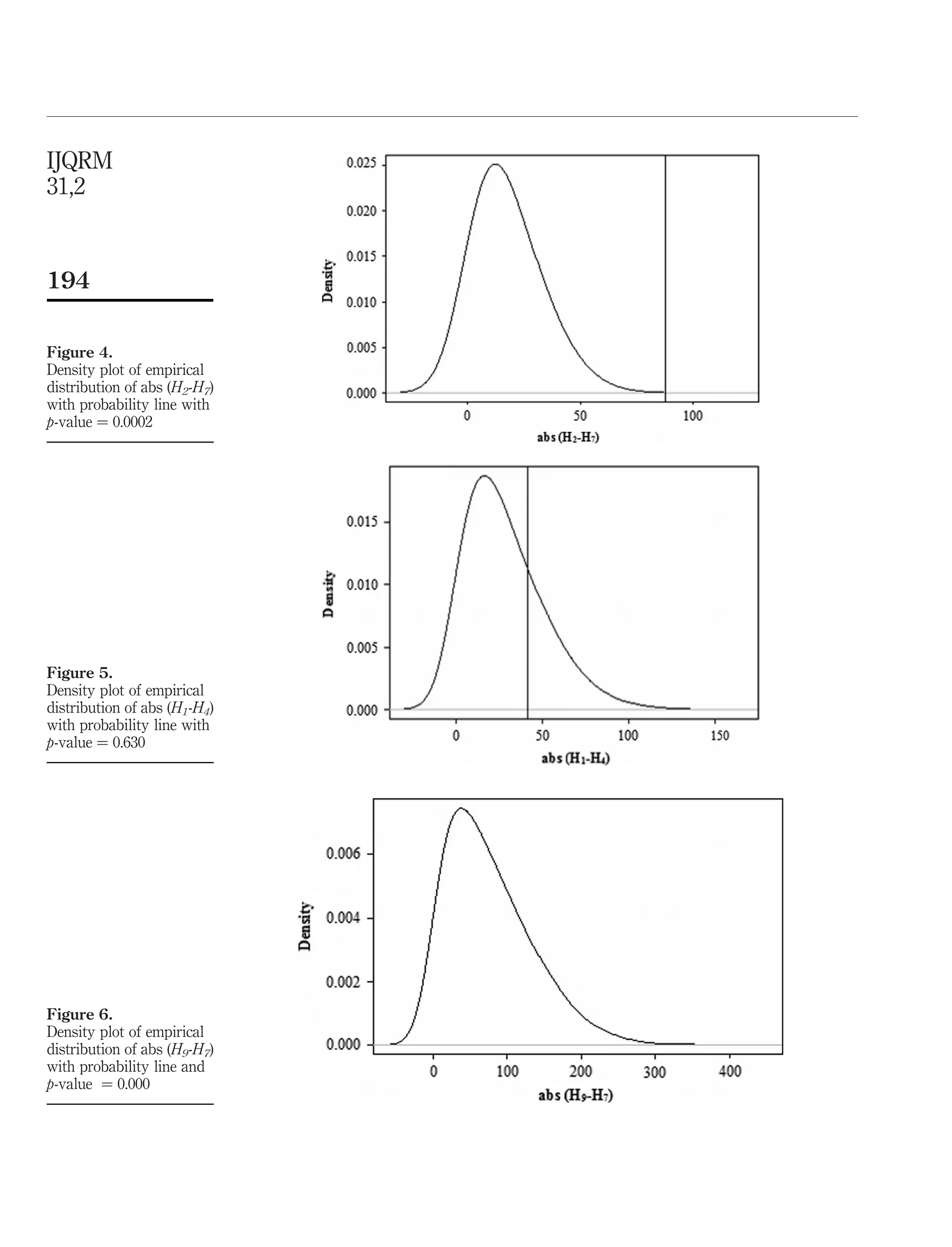

- 11. Figure 5. Density plotof empirical distribution of abs (H1-H4) with probability line with p-value ¼ 0.630 Figure 4. Density plot of empirical distribution of abs (H2-H7) with probability line with p-value ¼ 0.0002 Figure 6. Density plot of empirical distribution of abs (H9-H7) with probability line and p-value ¼ 0.000 IJQRM 31,2 194

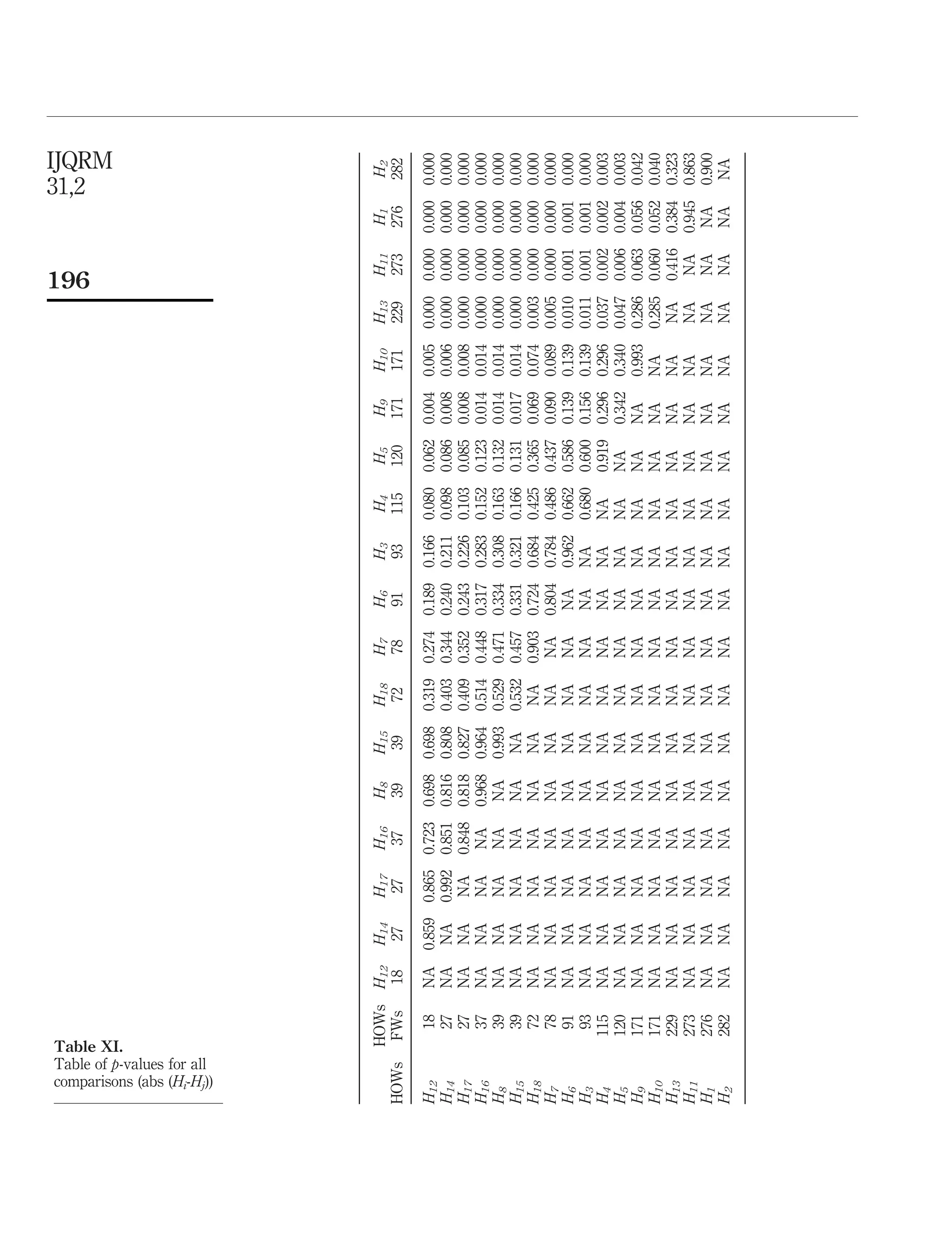

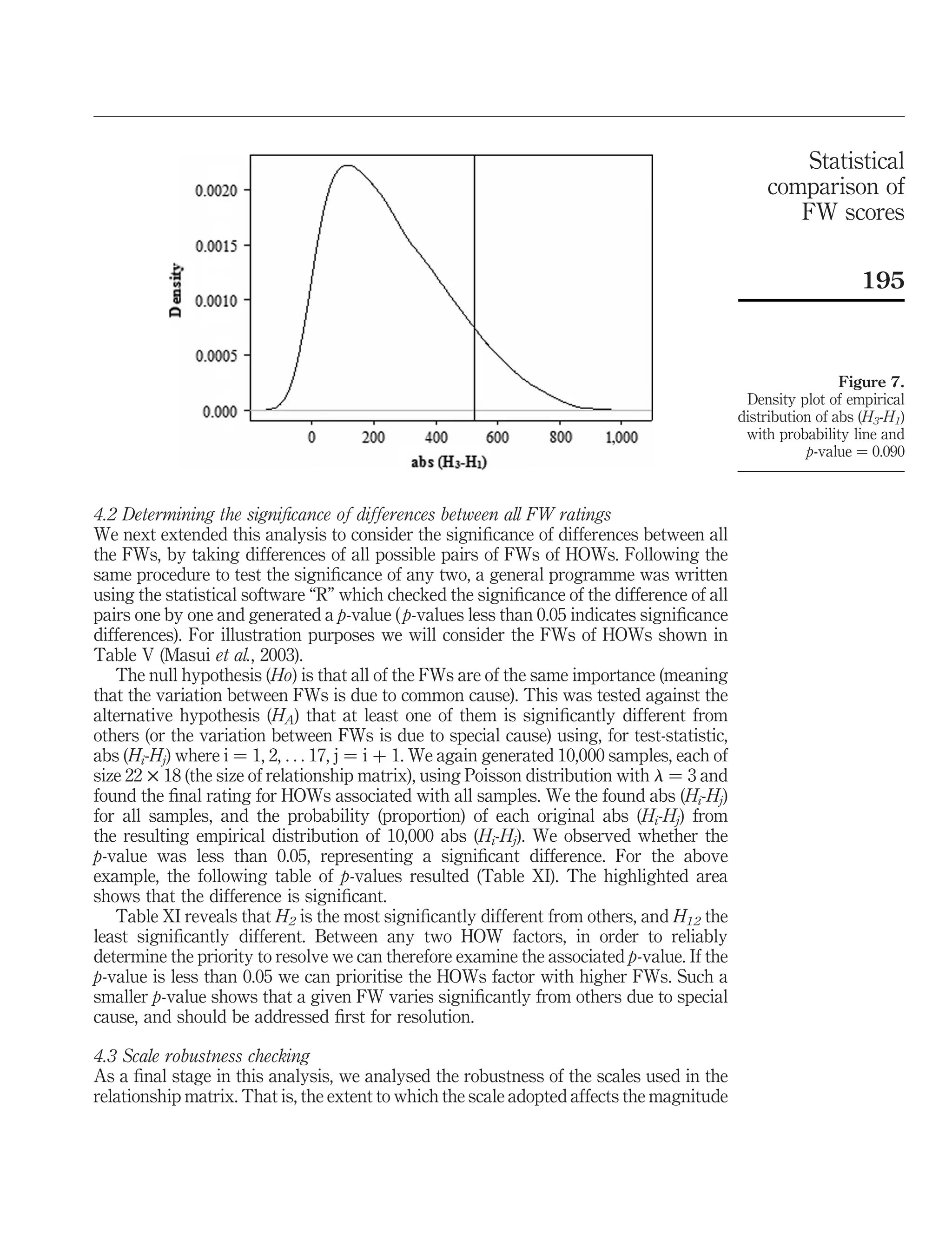

- 12. 4.2 Determining thesignificance of differences between all FW ratings We next extended this analysis to consider the significance of differences between all the FWs, by taking differences of all possible pairs of FWs of HOWs. Following the same procedure to test the significance of any two, a general programme was written using the statistical software “R” which checked the significance of the difference of all pairs one by one and generated a p-value ( p-values less than 0.05 indicates significance differences). For illustration purposes we will consider the FWs of HOWs shown in Table V (Masui et al., 2003). The null hypothesis (Ho) is that all of the FWs are of the same importance (meaning that the variation between FWs is due to common cause). This was tested against the alternative hypothesis (HA) that at least one of them is significantly different from others (or the variation between FWs is due to special cause) using, for test-statistic, abs (Hi-Hj) where i ¼ 1, 2, . . . 17, j ¼ i þ 1. We again generated 10,000 samples, each of size 22 £ 18 (the size of relationship matrix), using Poisson distribution with l ¼ 3 and found the final rating for HOWs associated with all samples. We the found abs (Hi-Hj) for all samples, and the probability (proportion) of each original abs (Hi-Hj) from the resulting empirical distribution of 10,000 abs (Hi-Hj). We observed whether the p-value was less than 0.05, representing a significant difference. For the above example, the following table of p-values resulted (Table XI). The highlighted area shows that the difference is significant. Table XI reveals that H2 is the most significantly different from others, and H12 the least significantly different. Between any two HOW factors, in order to reliably determine the priority to resolve we can therefore examine the associated p-value. If the p-value is less than 0.05 we can prioritise the HOWs factor with higher FWs. Such a smaller p-value shows that a given FW varies significantly from others due to special cause, and should be addressed first for resolution. 4.3 Scale robustness checking As a final stage in this analysis, we analysed the robustness of the scales used in the relationship matrix. That is, the extent to which the scale adopted affects the magnitude Figure 7. Density plot of empirical distribution of abs (H3-H1) with probability line and p-value ¼ 0.090 Statistical comparison of FW scores 195
- 13.

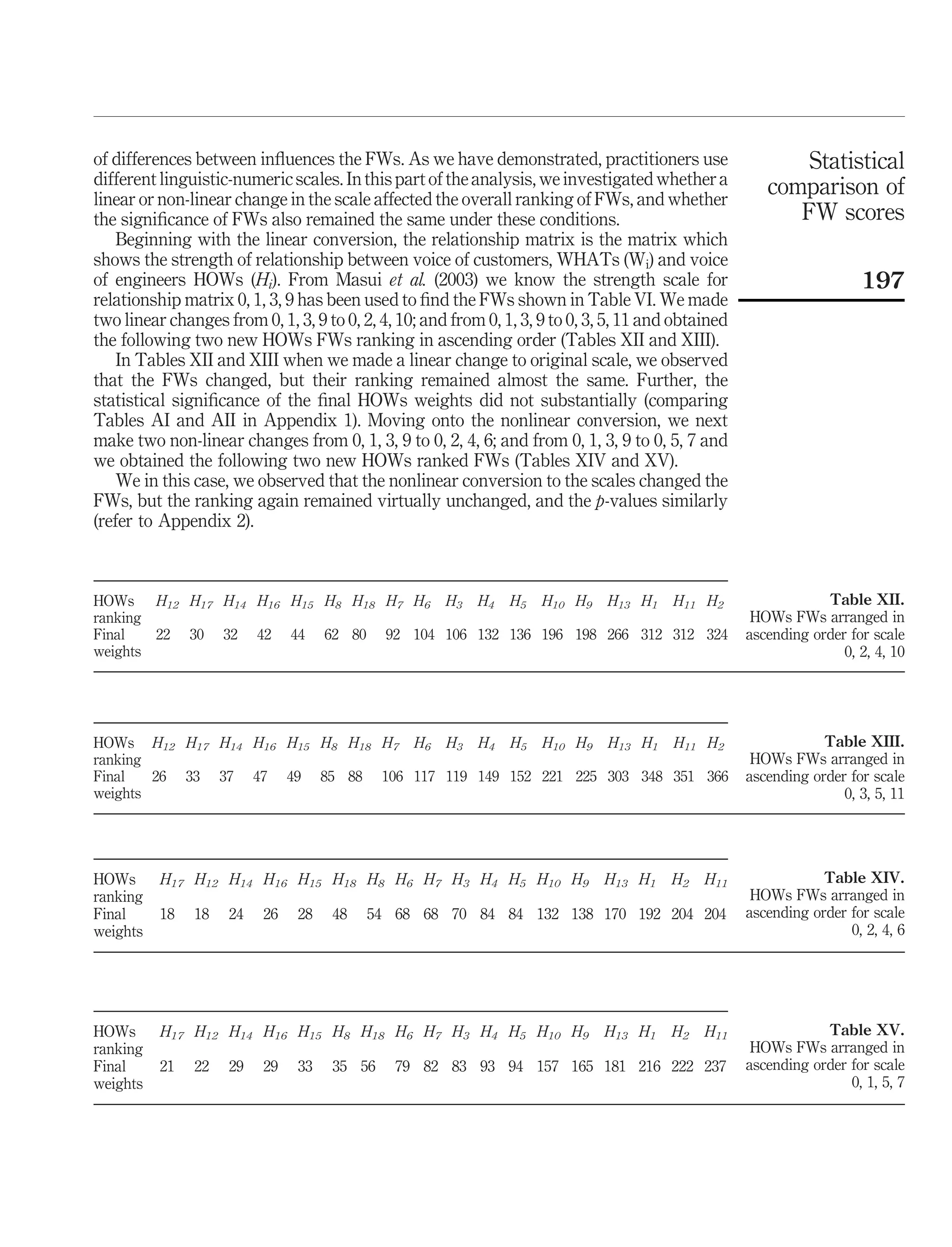

- 14. of differences betweeninfluences the FWs. As we have demonstrated, practitioners use different linguistic-numeric scales. In this part of the analysis, we investigated whether a linear or non-linear change in the scale affected the overall ranking of FWs, and whether the significance of FWs also remained the same under these conditions. Beginning with the linear conversion, the relationship matrix is the matrix which shows the strength of relationship between voice of customers, WHATs (Wi) and voice of engineers HOWs (Hi). From Masui et al. (2003) we know the strength scale for relationship matrix 0, 1, 3, 9 has been used to find the FWs shown in Table VI. We made two linear changes from 0, 1, 3, 9 to 0, 2, 4, 10; and from 0, 1, 3, 9 to 0, 3, 5, 11 and obtained the following two new HOWs FWs ranking in ascending order (Tables XII and XIII). In Tables XII and XIII when we made a linear change to original scale, we observed that the FWs changed, but their ranking remained almost the same. Further, the statistical significance of the final HOWs weights did not substantially (comparing Tables AI and AII in Appendix 1). Moving onto the nonlinear conversion, we next make two non-linear changes from 0, 1, 3, 9 to 0, 2, 4, 6; and from 0, 1, 3, 9 to 0, 5, 7 and we obtained the following two new HOWs ranked FWs (Tables XIV and XV). We in this case, we observed that the nonlinear conversion to the scales changed the FWs, but the ranking again remained virtually unchanged, and the p-values similarly (refer to Appendix 2). HOWs ranking H12 H17 H14 H16 H15 H8 H18 H7 H6 H3 H4 H5 H10 H9 H13 H1 H11 H2 Final weights 22 30 32 42 44 62 80 92 104 106 132 136 196 198 266 312 312 324 Table XII. HOWs FWs arranged in ascending order for scale 0, 2, 4, 10 HOWs ranking H12 H17 H14 H16 H15 H8 H18 H7 H6 H3 H4 H5 H10 H9 H13 H1 H11 H2 Final weights 26 33 37 47 49 85 88 106 117 119 149 152 221 225 303 348 351 366 Table XIII. HOWs FWs arranged in ascending order for scale 0, 3, 5, 11 HOWs ranking H17 H12 H14 H16 H15 H8 H18 H6 H7 H3 H4 H5 H10 H9 H13 H1 H2 H11 Final weights 21 22 29 29 33 35 56 79 82 83 93 94 157 165 181 216 222 237 Table XV. HOWs FWs arranged in ascending order for scale 0, 1, 5, 7 HOWs ranking H17 H12 H14 H16 H15 H18 H8 H6 H7 H3 H4 H5 H10 H9 H13 H1 H2 H11 Final weights 18 18 24 26 28 48 54 68 68 70 84 84 132 138 170 192 204 204 Table XIV. HOWs FWs arranged in ascending order for scale 0, 2, 4, 6 Statistical comparison of FW scores 197

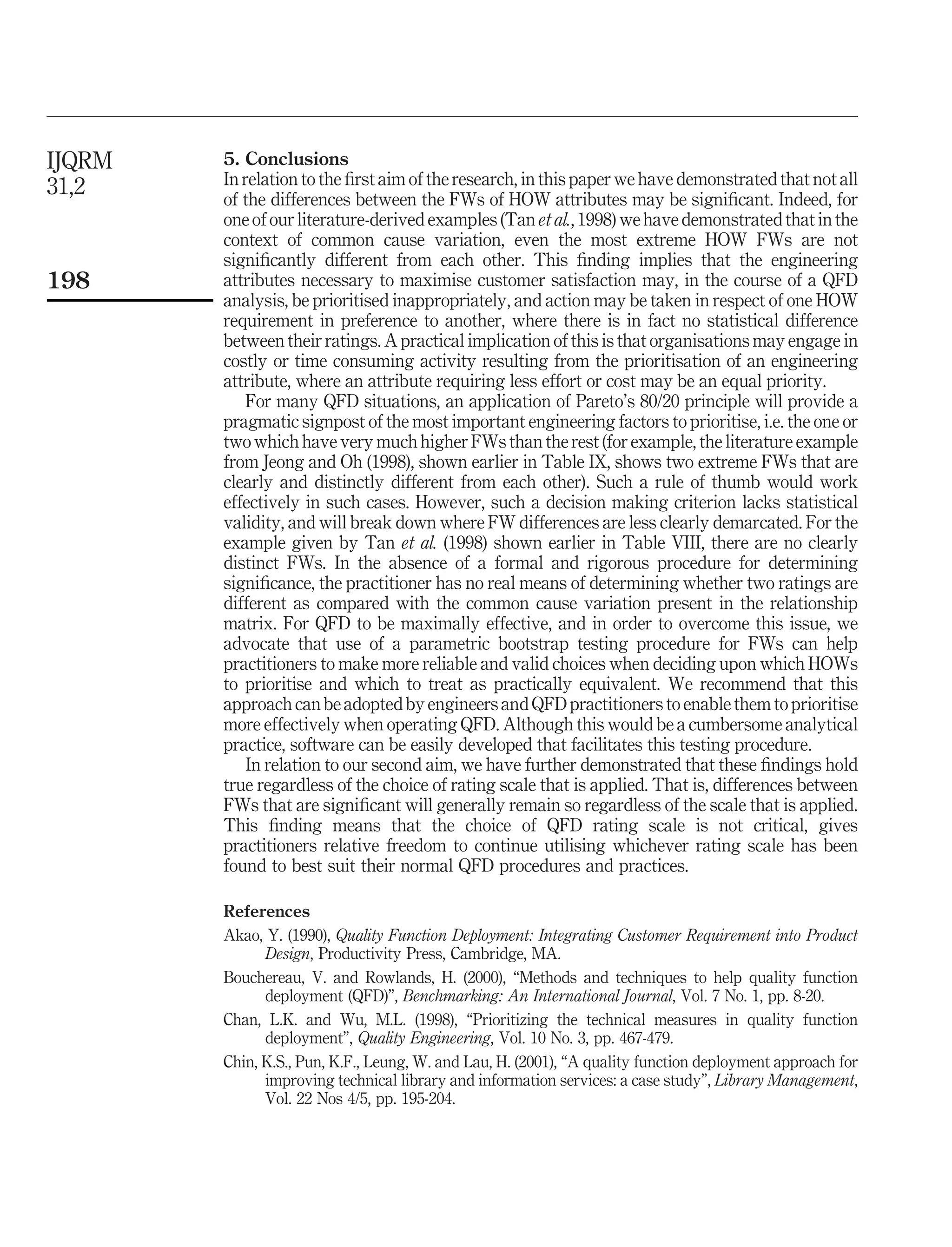

- 15. 5. Conclusions In relationto the first aim of the research, in this paper we have demonstrated that not all of the differences between the FWs of HOW attributes may be significant. Indeed, for one of our literature-derived examples (Tan et al., 1998) we have demonstrated that in the context of common cause variation, even the most extreme HOW FWs are not significantly different from each other. This finding implies that the engineering attributes necessary to maximise customer satisfaction may, in the course of a QFD analysis, be prioritised inappropriately, and action may be taken in respect of one HOW requirement in preference to another, where there is in fact no statistical difference between their ratings. A practical implication of this is that organisations may engage in costly or time consuming activity resulting from the prioritisation of an engineering attribute, where an attribute requiring less effort or cost may be an equal priority. For many QFD situations, an application of Pareto’s 80/20 principle will provide a pragmatic signpost of the most important engineering factors to prioritise, i.e. the one or two which have very much higher FWs than the rest (for example, the literature example from Jeong and Oh (1998), shown earlier in Table IX, shows two extreme FWs that are clearly and distinctly different from each other). Such a rule of thumb would work effectively in such cases. However, such a decision making criterion lacks statistical validity, and will break down where FW differences are less clearly demarcated. For the example given by Tan et al. (1998) shown earlier in Table VIII, there are no clearly distinct FWs. In the absence of a formal and rigorous procedure for determining significance, the practitioner has no real means of determining whether two ratings are different as compared with the common cause variation present in the relationship matrix. For QFD to be maximally effective, and in order to overcome this issue, we advocate that use of a parametric bootstrap testing procedure for FWs can help practitioners to make more reliable and valid choices when deciding upon which HOWs to prioritise and which to treat as practically equivalent. We recommend that this approach can be adopted by engineers and QFD practitioners to enable them to prioritise more effectively when operating QFD. Although this would be a cumbersome analytical practice, software can be easily developed that facilitates this testing procedure. In relation to our second aim, we have further demonstrated that these findings hold true regardless of the choice of rating scale that is applied. That is, differences between FWs that are significant will generally remain so regardless of the scale that is applied. This finding means that the choice of QFD rating scale is not critical, gives practitioners relative freedom to continue utilising whichever rating scale has been found to best suit their normal QFD procedures and practices. References Akao, Y. (1990), Quality Function Deployment: Integrating Customer Requirement into Product Design, Productivity Press, Cambridge, MA. Bouchereau, V. and Rowlands, H. (2000), “Methods and techniques to help quality function deployment (QFD)”, Benchmarking: An International Journal, Vol. 7 No. 1, pp. 8-20. Chan, L.K. and Wu, M.L. (1998), “Prioritizing the technical measures in quality function deployment”, Quality Engineering, Vol. 10 No. 3, pp. 467-479. Chin, K.S., Pun, K.F., Leung, W. and Lau, H. (2001), “A quality function deployment approach for improving technical library and information services: a case study”, Library Management, Vol. 22 Nos 4/5, pp. 195-204. IJQRM 31,2 198

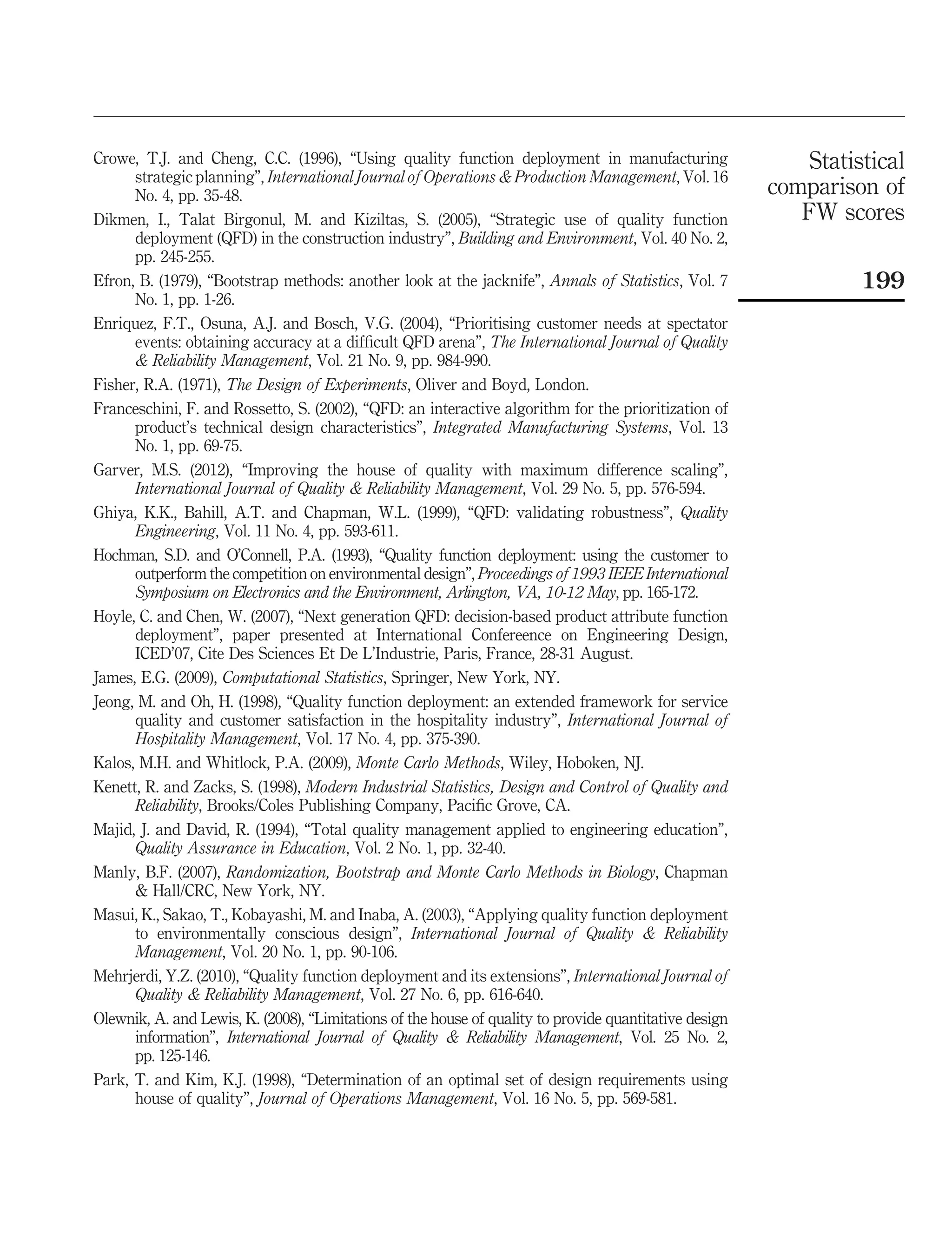

- 16. Crowe, T.J. andCheng, C.C. (1996), “Using quality function deployment in manufacturing strategic planning”, International Journal of Operations & Production Management, Vol. 16 No. 4, pp. 35-48. Dikmen, I., Talat Birgonul, M. and Kiziltas, S. (2005), “Strategic use of quality function deployment (QFD) in the construction industry”, Building and Environment, Vol. 40 No. 2, pp. 245-255. Efron, B. (1979), “Bootstrap methods: another look at the jacknife”, Annals of Statistics, Vol. 7 No. 1, pp. 1-26. Enriquez, F.T., Osuna, A.J. and Bosch, V.G. (2004), “Prioritising customer needs at spectator events: obtaining accuracy at a difficult QFD arena”, The International Journal of Quality & Reliability Management, Vol. 21 No. 9, pp. 984-990. Fisher, R.A. (1971), The Design of Experiments, Oliver and Boyd, London. Franceschini, F. and Rossetto, S. (2002), “QFD: an interactive algorithm for the prioritization of product’s technical design characteristics”, Integrated Manufacturing Systems, Vol. 13 No. 1, pp. 69-75. Garver, M.S. (2012), “Improving the house of quality with maximum difference scaling”, International Journal of Quality & Reliability Management, Vol. 29 No. 5, pp. 576-594. Ghiya, K.K., Bahill, A.T. and Chapman, W.L. (1999), “QFD: validating robustness”, Quality Engineering, Vol. 11 No. 4, pp. 593-611. Hochman, S.D. and O’Connell, P.A. (1993), “Quality function deployment: using the customer to outperform the competition on environmental design”, Proceedings of 1993 IEEE International Symposium on Electronics and the Environment, Arlington, VA, 10-12 May, pp. 165-172. Hoyle, C. and Chen, W. (2007), “Next generation QFD: decision-based product attribute function deployment”, paper presented at International Confereence on Engineering Design, ICED’07, Cite Des Sciences Et De L’Industrie, Paris, France, 28-31 August. James, E.G. (2009), Computational Statistics, Springer, New York, NY. Jeong, M. and Oh, H. (1998), “Quality function deployment: an extended framework for service quality and customer satisfaction in the hospitality industry”, International Journal of Hospitality Management, Vol. 17 No. 4, pp. 375-390. Kalos, M.H. and Whitlock, P.A. (2009), Monte Carlo Methods, Wiley, Hoboken, NJ. Kenett, R. and Zacks, S. (1998), Modern Industrial Statistics, Design and Control of Quality and Reliability, Brooks/Coles Publishing Company, Pacific Grove, CA. Majid, J. and David, R. (1994), “Total quality management applied to engineering education”, Quality Assurance in Education, Vol. 2 No. 1, pp. 32-40. Manly, B.F. (2007), Randomization, Bootstrap and Monte Carlo Methods in Biology, Chapman & Hall/CRC, New York, NY. Masui, K., Sakao, T., Kobayashi, M. and Inaba, A. (2003), “Applying quality function deployment to environmentally conscious design”, International Journal of Quality & Reliability Management, Vol. 20 No. 1, pp. 90-106. Mehrjerdi, Y.Z. (2010), “Quality function deployment and its extensions”, International Journal of Quality & Reliability Management, Vol. 27 No. 6, pp. 616-640. Olewnik, A. and Lewis, K. (2008), “Limitations of the house of quality to provide quantitative design information”, International Journal of Quality & Reliability Management, Vol. 25 No. 2, pp. 125-146. Park, T. and Kim, K.J. (1998), “Determination of an optimal set of design requirements using house of quality”, Journal of Operations Management, Vol. 16 No. 5, pp. 569-581. Statistical comparison of FW scores 199

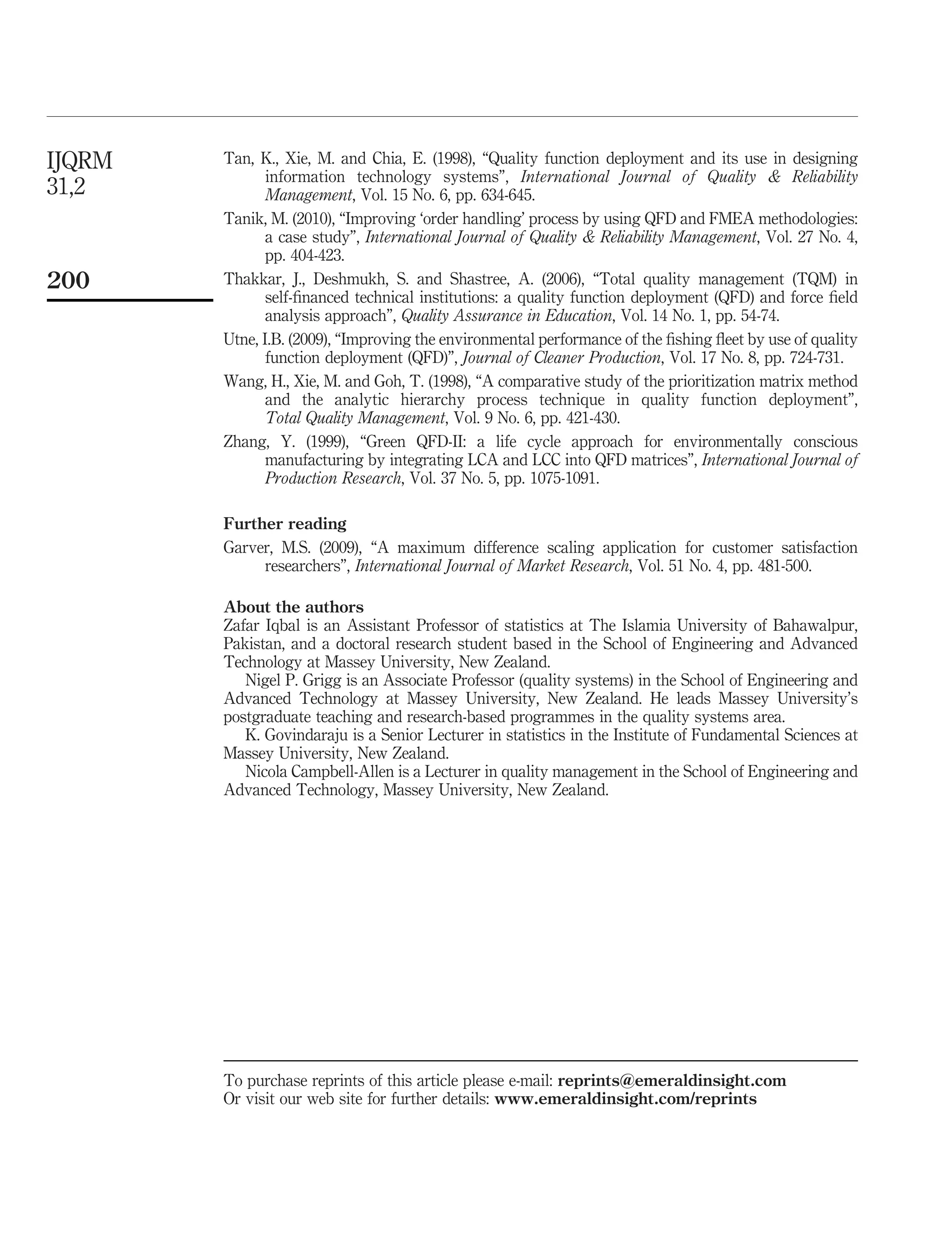

- 17. Tan, K., Xie,M. and Chia, E. (1998), “Quality function deployment and its use in designing information technology systems”, International Journal of Quality & Reliability Management, Vol. 15 No. 6, pp. 634-645. Tanik, M. (2010), “Improving ‘order handling’ process by using QFD and FMEA methodologies: a case study”, International Journal of Quality & Reliability Management, Vol. 27 No. 4, pp. 404-423. Thakkar, J., Deshmukh, S. and Shastree, A. (2006), “Total quality management (TQM) in self-financed technical institutions: a quality function deployment (QFD) and force field analysis approach”, Quality Assurance in Education, Vol. 14 No. 1, pp. 54-74. Utne, I.B. (2009), “Improving the environmental performance of the fishing fleet by use of quality function deployment (QFD)”, Journal of Cleaner Production, Vol. 17 No. 8, pp. 724-731. Wang, H., Xie, M. and Goh, T. (1998), “A comparative study of the prioritization matrix method and the analytic hierarchy process technique in quality function deployment”, Total Quality Management, Vol. 9 No. 6, pp. 421-430. Zhang, Y. (1999), “Green QFD-II: a life cycle approach for environmentally conscious manufacturing by integrating LCA and LCC into QFD matrices”, International Journal of Production Research, Vol. 37 No. 5, pp. 1075-1091. Further reading Garver, M.S. (2009), “A maximum difference scaling application for customer satisfaction researchers”, International Journal of Market Research, Vol. 51 No. 4, pp. 481-500. About the authors Zafar Iqbal is an Assistant Professor of statistics at The Islamia University of Bahawalpur, Pakistan, and a doctoral research student based in the School of Engineering and Advanced Technology at Massey University, New Zealand. Nigel P. Grigg is an Associate Professor (quality systems) in the School of Engineering and Advanced Technology at Massey University, New Zealand. He leads Massey University’s postgraduate teaching and research-based programmes in the quality systems area. K. Govindaraju is a Senior Lecturer in statistics in the Institute of Fundamental Sciences at Massey University, New Zealand. Nicola Campbell-Allen is a Lecturer in quality management in the School of Engineering and Advanced Technology, Massey University, New Zealand. To purchase reprints of this article please e-mail: reprints@emeraldinsight.com Or visit our web site for further details: www.emeraldinsight.com/reprints IJQRM 31,2 200
