2. Introduction and goal
Half of the communication applications nowadays, are not web applications. Native
apps, whether mobile, desktop or IoT represent more than 50% of the usage of
communication.
WebRTC is today the best technology to implement a communication app, and has
the sweet~~ advantage of being on-the-wire compatible with the browsers.
Facebook, Whatsapp, viber, … all use a variation of the webrtc code internally.
However many think WebRTC Native is just too hard!
This tutorial is here to demystify webrtc code and show how, given the right tools
and the right approach, you can write your own communication app, scratch that,
communication system, in 4 hours.
2

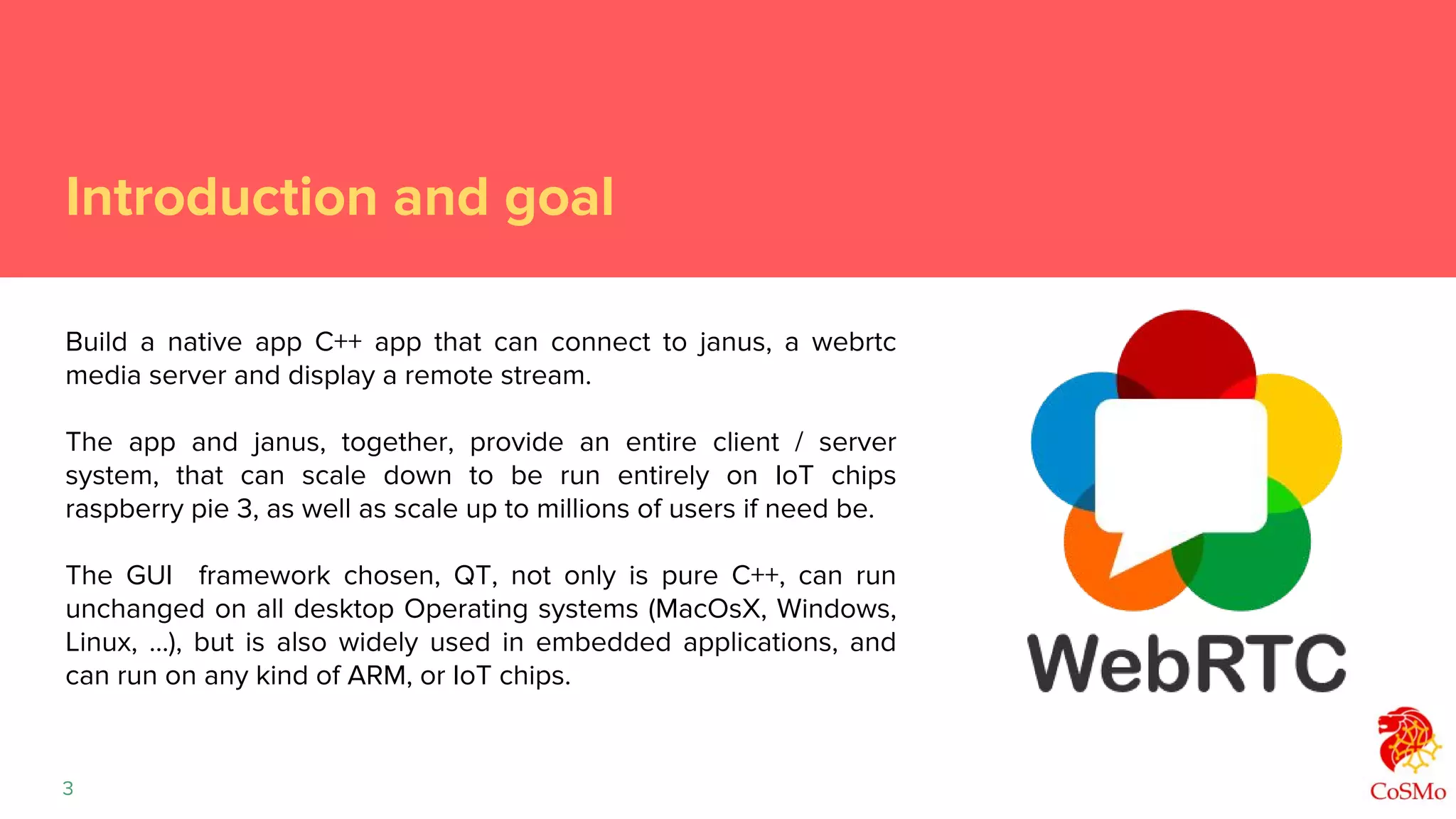

3. Introduction and goal
Build a native app C++ app that can connect to janus, a webrtc
media server and display a remote stream.
The app and janus, together, provide an entire client / server
system, that can scale down to be run entirely on IoT chips
raspberry pie 3, as well as scale up to millions of users if need be.
The GUI framework chosen, QT, not only is pure C++, can run
unchanged on all desktop Operating systems (MacOsX, Windows,
Linux, …), but is also widely used in embedded applications, and
can run on any kind of ARM, or IoT chips.
3
4. Introduction and goal
To make it achievable in 4 hours, we will provide you
with some components:

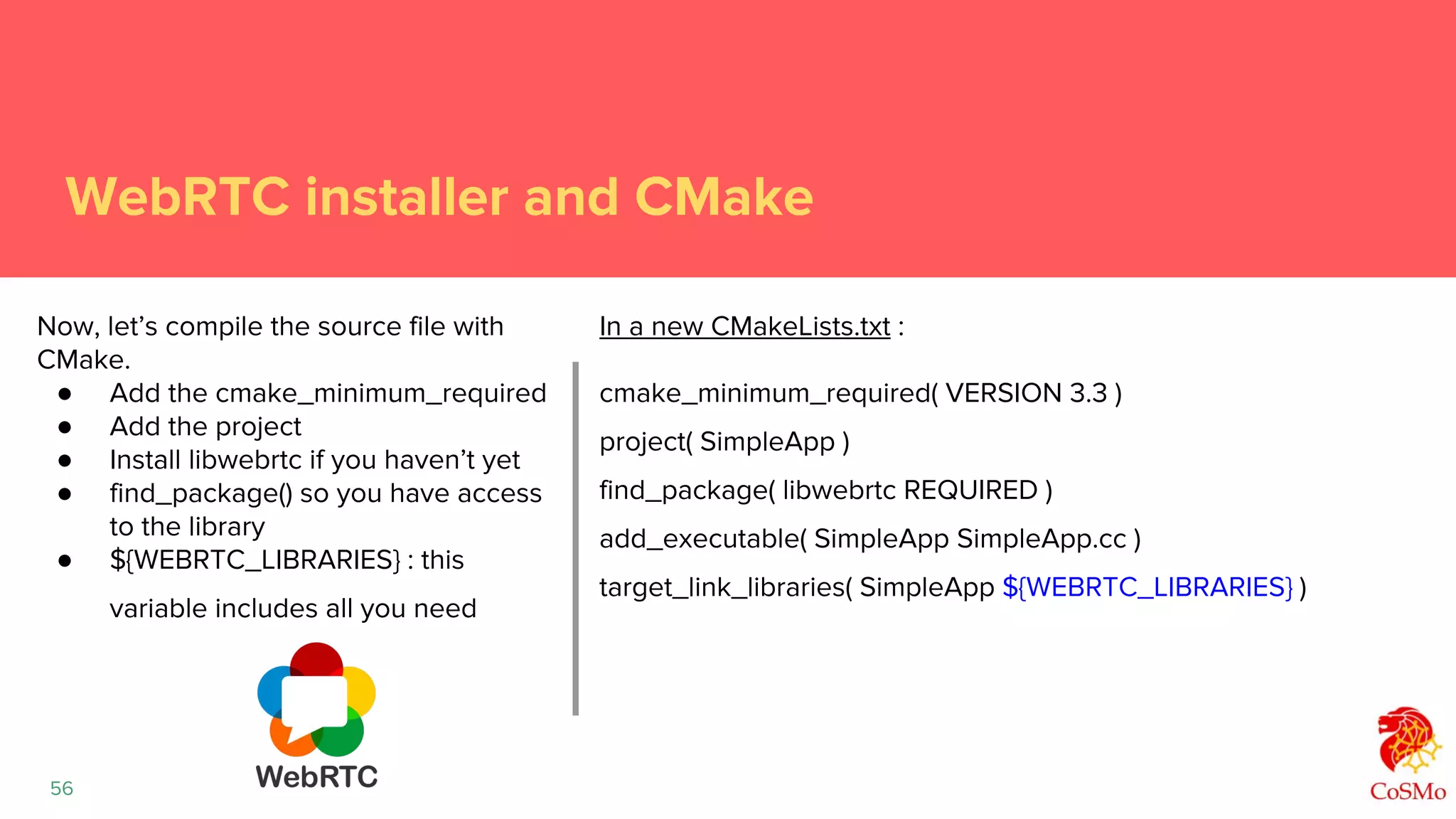

- A libwebrtc installer that will provide webrtc
libraries, headers, and other variables, ready to
use.
- A pre-configured, hosted janus instance with the
“video-room” plugin, to connect to.
- A continuous stream is available from the server
4
5. Compiling and using WebRTC … Don’t do it yourself
Mastering Google tools
requires time and patience:
Depots_tools, GN, Ninja
Compilers are differents on
each platform: CL,
MSBUILD, GCC, CLang,
LLVM… As well as linkers.
Compiling is hell: time
consumption, flags and
definitions are hidden and
the layout is changing
frequently.
Keep the code up-to-date
through the versions:
macros are changing,
folders are renamed,
methods deleted... and
maintain a backward
compatibility with older
versions of libwebrtc, every
6 weeks.
Customizing the code is
not simple and test
infrastructures are not
provided by Google.
5
6. Compiling and using WebRTC … Don’t do it yourself
Mastering Google tools
requires time and patience:
Depots_tools, GN, Ninja
Compilers are differents on
each platform: CL,
MSBUILD, GCC, CLang,
LLVM… As well as linkers.
Compiling is hell: time
consumption, flags and
definitions are hidden and
the layout is changing
frequently.
Keep the code up-to-date
through the versions:
macros are changing,
folders are renamed,
methods deleted... and
maintain a backward
compatibility with older
versions of libwebrtc, every
6 weeks.
Customizing the code is
not simple and test
infrastructures are not
provided by Google.
6
WebRTC is not designed to be used as a library
7. Summary
➔ CMake : the basics
◆ First app
7
➔ Qt5 QML module
◆ Hello World
◆ QML Signal Slot
◆ Websocket
◆ Janus API
◆ Debug w Qt Creator
➔ WebRTC
◆ JSEP Overview
◆ Offer impl.
◆ Answer impl.
◆ Trickle ICE impl.
30 mn 45 mn 45 mn 60 mn
➔ Qt5 C++ App
◆ CMake: find_package()
◆ main.cpp file
◆ Link against Qt5 library
◆ Runtime
◆ Signal Slot
8. CMAKE: Let’s get started
8
● Make a project folder
○ This is our source dir
mkdir CMakeTutorial
9. CMAKE: Let’s get started
In a new file CMakeLists.txt :
project( myFirstApp )
9
● Make a project folder
○ This is our source dir
● CMakeLists.txt is the main file
○ In Source Dir
10. CMAKE: Let’s get started
Add in CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR )
project( myFirstApp )
10
● Make a project folder
○ This is our source dir
● CMakeLists.txt is the main file
○ In Source Dir
11. CMAKE: Let’s get started
● Make a project folder
○ This is our source dir
● CMakeLists.txt is the main file
○ In Source Dir
● Main.cpp
○ In Source Dir
main.cpp:
#include <iostream>
void main(int argc, char** argv) {
std::cout << “Hello world” << std::endl;
}
11
12. CMAKE: Let’s get started
12
● Make a project folder
○ This is our source dir
● CMakeLists.txt is the main file
○ In Source Dir
● Main.cpp
○ In Source Dir
Edit CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR )
project( myFirstApp )
add_executable( myApp main.cpp )
13. CMAKE: Let’s get started
13
● Make a project folder
○ This is our source dir
● CMakeLists.txt is the main file
○ In Source Dir
● Main.cpp
○ In Source Dir
● CMake is out-of-source build style
New folder to be out-of-source
● mkdir MYBUILD
● cd MYBUILD
14. CMAKE: Let’s get started
14
● Make a project folder
○ This is our source dir
● CMakeLists.txt is the main file
○ In Source Dir
● Main.cpp
○ In Source Dir
● CMake is out-of-source build style
○ CMake commands in Build Dir
1. Configure the project
cmake ..
2. Compile with cross-platform command
cmake --build .
3. Run the project and make sure everything works fine.
15. CMAKE: Wrap-Up
CMake
● CMakeLists.txt
● project()
● add_executable()
● CMake configure
● CMake build
● run
I don’t care …. I love it !
Windows / Mac / Linux / …
MSVC / XCode / CLang / ...
15
16. Summary
➔ CMake : the basics
◆ First app
16
➔ Qt5 QML module
◆ Hello World
◆ QML Signal Slot
◆ Websocket
◆ Janus API
◆ Debug w Qt Creator
➔ Qt5 C++ App
◆ CMake: find_package()
◆ main.cpp file
◆ Link against Qt5 library
◆ Runtime
◆ Signal Slot
➔ WebRTC
◆ JSEP Overview
◆ Offer impl.
◆ Answer impl.
◆ Trickle ICE impl.
30 mn 45 mn 45 mn 60 mn
17. Qt5 C++ app: Cmake FindPackage
Create CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR )
project( QtFirstApp )
17
● In a new source directory Qt5App
18. Qt5 C++ app: Cmake FindPackage
Add in CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR )
project( QtFirstApp )
find_package( Qt5 COMPONENTS Widgets )
18
● In a new source directory Qt5App
● find_package()
19. Qt5 C++ app: Cmake FindPackage: Background
FindXXX.cmake
● One canonical install,
● possibly shipped with CMake,
● old school
xxxConfig.cmake
● Handle multiple installs
○ Which one? Use -D ….
● Shipped with library (always in sync)
● The current way of things
19
● In a new source directory Qt5App
● find_package()
○ FindXXX.cmake
○ XXXConfig.cmake
20. Qt5 C++ app: Cmake FindPackage
CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR )
project( myFirstApp )
message( STATUS “Qt5 Dir: ${Qt5Core_DIR}.” )
find_package( Qt5 COMPONENTS Widgets )
message( STATUS “Qt5 Dir: ${Qt5Core_DIR}.” )
20
● In a new source directory Qt5App
● find_package()
○ FindXXX.cmake
○ XXXConfig.cmake
● cmake -DQt5_DIR=...
21. Qt5 C++ app: main
main.cpp :
#include <QApplication>
int main(int argc, char *argv[])
{
QApplication app(argc, argv);
return app.exec();
}
Create a new file main.cpp in the same
folder as CMakeLists.txt
Since we are using Qt5 GUI, the app will
be running as a QApplication object type.
To run the app, you simply need to call
exec().
21
22. Qt5 C++ app: main
CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0
FATAL_ERROR )
project( myFirstApp )
message( STATUS “Qt5 Dir: ${Qt5Core_DIR}.” )
find_package( Qt5 COMPONENTS Widgets )
message( STATUS “Qt5 Dir: ${Qt5Core_DIR}.” )
add_executable( QtFirstApp main.cpp )
22
● In a new source directory Qt5App
● find_package()
○ FindXXX.cmake
○ XXXConfig.cmake
● cmake -DQt5_DIR=...
● Add executable
23. Qt5 C++ app: link to qt libs
At this point, you should have a
compilation error. The linker can not
resolve the QApplication inclusion.
Link the app against Qt library because we
are using Qt5 Widgets module.
Then compile and run the app.
Add to CMakeLists.txt :
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR )
project( myFirstApp )
message( STATUS “Qt5 Dir: ${Qt5Core_DIR}.” )
find_package( Qt5 COMPONENTS Widgets )
message( STATUS “Qt5 Dir: ${Qt5Core_DIR}.” )
add_executable( QtFirstApp main.cpp )
target_link_libraries( QtFirstApp Qt5::Widgets )
23
24. Qt5 C++ app: WIN: 64 bits and generators
In a Build directory :
Configure with a correct generator to have the app in 64 bits.
cmake -DQt5_DIR=path_to_qt5 -G “Visual Studio 14 2015 Win64” ..
Compile
cmake --build .
24
● In a new source directory Qt5App
● find_package()
○ FindXXX.cmake
○ XXXConfig.cmake
● cmake -DQt5_DIR=...
● Add executable
● cmake -G
○ “Visual Studio 14 2015 <arch>”
■ Win64
○ “NMake Makefiles”
2 ways to use 64 bits environments:
Admin CMD + x64 tools
Admin CMD + vcvarsall.bat
25. Qt5 C++ app: run: WIN: the Qt DLL problem
Windows users :
If you thought it would be that easy to
run a Qt5 app… Wrong!
You will need to copy the missing .dll
from Qt5 folder to the executable folder.
For example, I have 3 errors like this:
25
In C:Qt5.9.2msvc2015_64bin, copy
● Qt5Widgetsd.dll
● Qt5Cored.dll
● Qt5Guid.dll
and paste in the build directory
26. Qt5 C++ app: run: Signal Slot 101
Now, it would be nice to have a button
which can send a message to someone
else.
In general, Qt objects can communicate
with one another by a system called
Signals and Slots.
In main.cpp:
#include <QApplication>
#include <QPushButton>
int main(int argc, char *argv[]){
QApplication app(argc, argv);
QPushButton button("Quit");
button.show();
return app.exec();
}
26
27. Qt5 C++ app: run: Signal Slot 101
A Signal is emitted when a particular
event occurs, like a click.
A Slot is a function that is called in
response to a particular signal.
Let’s connect the button to the app :
When we click on the button, the app will
quit.
In main.cpp:
int main(int argc, char *argv[]){
QApplication app(argc, argv);
QPushButton button("Quit");
QObject::connect(
&button, SIGNAL( clicked() ),
&app, SLOT( quit() )
);
button.show();
return app.exec();
}
27
28. Qt5 C++ app: run: Signal Slot 101
28
1. Compile with cross-platform command
cmake --build .
2. Run the project and make sure everything works fine.
The project should be already
configured, we only need to recompile
the source files.
29. Qt5 C++ app: Wrap-Up
CMake:
cmake -G
cmake -D<VAR>=<VALUE> ..
find_package()
COMPONENTS
REQUIRED
message( STATUS “” )
target_link_library()
Cmake Qt5:
Cmake -DQt5_DIR= ..
target_link_library()
QT5::CORE
Qt5:
Signal
Slot
29
30. Summary
➔ CMake : the basics
◆ First app
30
➔ Qt5 QML module
◆ Hello World
◆ QML Signal Slot
◆ Websocket
◆ Janus API
◆ Debug w Qt Creator
➔ Qt5 C++ App
◆ CMake: find_package()
◆ main.cpp file
◆ Link against Qt5 library
◆ Runtime
◆ Signal Slot
➔ WebRTC
◆ JSEP Overview
◆ Offer impl.
◆ Answer impl.
◆ Trickle ICE impl.
30 mn 45 mn 45 mn 60 mn
31. Qt5 QML app: Hello world
31
Let’s make an app with QML. It is a module
of Qt and allows you to build fluid animated
user interfaces. QML is a JavaScript
compatible scripting language
● In a new source directory QMLTutorial
32. Qt5 QML app: Hello world
main.qml:
import QtQuick 2.0
import QtQuick.Window 2.2
Window {
visible : true
Rectangle {
text {
text: “Hello World”
}
}
}
32
● In a new source directory QMLTutorial
● New file main.qml
33. Qt5 QML app: Hello world
qml.qrc:
<RCC>
<qresource prefix=”/”>
<file>main.qml</file>
</qresource>
</RCC>
33
● In a new source directory QMLTutorial
● New file main.qml
● New file qml.qrc which lists all qml files
34. Qt5 QML app: Hello world
CMakeLists.txt:
cmake_minimum_required( VERSION 3.2.0 FATAL_ERROR)
project( QMLApp )
find_package( Qt5 COMPONENTS Quick Widgets REQUIRED )
set( CMAKE_AUTORCC ON )
add_executable( QMLApp main.cpp qml.qrc )
target_link_libraries( QMLApp Qt5::Widgets Qt5::Quick )
34
● In a new source directory QMLTutorial
● New file main.qml
● New file qml.qrc which lists all qml files
● Add qml.qrc to CMakeLists.txt in
“add_executable()”
● Add set( CMAKE_AUTORCC ON )
35. Qt5 QML app: QML Signal / Slot syntax
Edit main.qml :
import QtQuick.Controls 1.4
35
Let’s make a button that change the text
“Hello World” when we are clicking on it,
all in QML.
● Import QtQuick.Controls 1.4
36. Qt5 QML app: QML Signal / Slot syntax
Edit main.qml :
import QtQuick.Controls 1.4
…
Rectangle { … }
Button {
id: myButton
text : "emit signal"
anchors.centerIn: parent
}
36
● Import QtQuick.Controls 1.4
● Add a Button after Rectangle
○ We need an id to identify it
○ And place it in the middle of the
Window with anchors.centerIn
37. Qt5 QML app: QML Signal / Slot syntax
Edit main.qml :
Button {
id: myButton
text : "emit signal"
anchors.centerIn: parent
signal buttonClicked(string text)
}
37
● Import QtQuick.Controls 1.4
● Add a Button after Rectangle
○ We need an id to identify it
○ And place it in the middle of the
Window with anchors.centerIn
● Add a signal taking a string as an
argument
38. Qt5 QML app: QML Signal / Slot syntax
Edit main.qml :
Button {
id: myButton
text : "emit signal"
anchors.centerIn: parent
signal buttonClicked(string text)
onClicked: {
myButton.buttonClicked.connect(myText.changeText)
myButton.buttonClicked("Button Clicked")
}
}
38
● Import QtQuick.Controls 1.4
● Add a Button after Rectangle
○ We need an id to identify it
○ And place it in the middle of the
Window with anchors.centerIn
● Add a signal taking a string as an
argument
● Add the behaviors when the button is
Clicked
39. Qt5 QML app: QML Signal / Slot syntax
Edit main.qml :
Text {
id: myText
text: "Hello World"
}
39
Now the Button is connected, we need to
redefine a bit the Text
● Add an id to Text : myText
40. Qt5 QML app: QML Signal / Slot syntax
Edit main.qml :
Text {
id: myText
text: "Hello World"
function changeText(text) {
myText.text = text
}
}
40
Now the Button is connected, we need to
redefine a bit the Text
● Add an id to Text : myText
● Add a function that change the
attribute text
41. Qt5 QML app: QML Signal / Slot syntax
41
Here you go!
In the build directory:
1. Compile with cross-platform command
cmake --build .
2. Run the project and make sure everything works fine.
48. Summary
➔ CMake : the basics
◆ First app
48
➔ Qt5 QML module
◆ Hello World
◆ QML Signal Slot
◆ Websocket
◆ Janus API
◆ Debug w Qt Creator
➔ Qt5 C++ App
◆ CMake: find_package()
◆ main.cpp file
◆ Link against Qt5 library
◆ Runtime
◆ Signal Slot
➔ WebRTC
◆ JSEP Overview
◆ Offer impl.
◆ Answer impl.
◆ Trickle ICE impl.
30 mn 45 mn 45 mn 60 mn
49. WebRTC installer and CMake
With the libwebrtc installer, you can use
the library quite easily.
With CMake, you only need these :
● find_package()
● target_link_libraries
Let’s try the library!
49
50. WebRTC installer and CMake
First, we need a source file using
libwebrtc function.
● In a new source directory
WebRTCSimpleApp
● Make a new file SimpleApp.cpp
50
In a new main.cpp file :
int main(int argc, char** argv) {
return 0;
}
51. WebRTC installer and CMake
First, we need a source file using
libwebrtc function.
● In a new source directory
WebRTCSimpleApp
● Make a new file SimpleApp.cpp
● Include a header from libwebrtc
51
In a new SimpleApp.cpp file :
#include "webrtc/api/peerconnectioninterface.h"
int main(int argc, char** argv) {
return 0;
}
52. WebRTC installer and CMake
First, we need a source file using
libwebrtc function.
● In a new source directory
WebRTCSimpleApp
● Make a new file SimpleApp.cpp
● Include a header from libwebrtc
● Call functions from the library
52
In a new SimpleApp.cpp file :
#include "webrtc/api/peerconnectioninterface.h"
int main(int argc, char** argv) {
rtc::scoped_refptr<webrtc::PeerConnectionFactoryInterface>
peer_connection_factory = webrtc::CreatePeerConnectionFactory();
return 0;
}
53. WebRTC installer and CMake
Now, let’s compile the source file with
CMake.
● Add the cmake_minimum_required
● Add the project
53
In a new CMakeLists.txt :
cmake_minimum_required( VERSION 3.3 )
project( SimpleApp )
54. WebRTC installer and CMake
Now, let’s compile the source file with
CMake.
● Add the cmake_minimum_required
● Add the project
● Install libwebrtc if you haven’t yet
54
In a new CMakeLists.txt :
cmake_minimum_required( VERSION 3.3 )
project( SimpleApp )
55. WebRTC installer and CMake
Now, let’s compile the source file with
CMake.
● Add the cmake_minimum_required
● Add the project
● Install libwebrtc if you haven’t yet
● find_package() so you have access
to the library and configuration
55
In a new CMakeLists.txt :
cmake_minimum_required( VERSION 3.3 )
project( SimpleApp )
find_package( libwebrtc REQUIRED )
56. WebRTC installer and CMake
Now, let’s compile the source file with
CMake.
● Add the cmake_minimum_required
● Add the project
● Install libwebrtc if you haven’t yet
● find_package() so you have access
to the library
● ${WEBRTC_LIBRARIES} : this
variable includes all you need
56
In a new CMakeLists.txt :
cmake_minimum_required( VERSION 3.3 )
project( SimpleApp )
find_package( libwebrtc REQUIRED )
add_executable( SimpleApp SimpleApp.cc )
target_link_libraries( SimpleApp ${WEBRTC_LIBRARIES} )
58. WebRTC JSEP: QML Janus offer
● Janus Subscribe Flow
○ publishers
○ Create handle
○ subscribe
I got offer, let s give it to webrtc stack
58
59. WebRTC JSEP: C++ webrtc answer
● PeerconnectionFactory
● Peerconnection
● PeerconnectionObserver
○ setRemoteDescription()
○ createAnswer()
○ setLocalDescription()
● createSessionDescriptionObser
ver
I got an answer, let s give it back to QML
59
60. WebRTC JSEP: QML answer to janus and ack.
● Janus Subscribe Flow
○ Feed::new
○ Open
○ Answer
○ ....
Main.cpp
Main.qml
60
