ICR Coatings Brochure - Metal structures
The document provides product recommendations for coating various metal structures. It lists coating systems for metal structures like posts and trestles made of steel or galvanized sheet metal. It also provides options for building construction metal structures made of materials like sand-blasted steel, steel, and stainless steel. The document is an interactive technical catalogue that allows clicking between sections to find coating recommendations for different metal substrates.
More Related Content
Similar to ICR Coatings Brochure - Metal structures
More from Industria Chimica Reggiana - I.C.R. S.p.A.
ICR Coatings Brochure - Metal structures
- 1. YOUR COATING EXPERT| INDUSTRY Click on the various sections of the index to go directly to the relative information. INTERACTIVE VERSION

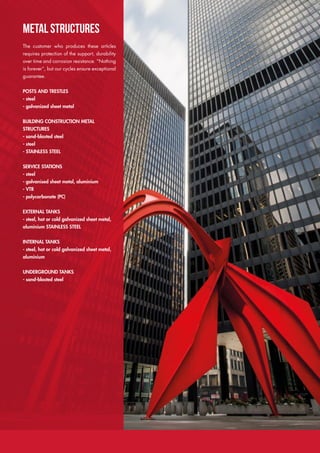

- 2. METAL STRUCTURES The customerwho produces these articles requires protection of the support, durability over time and corrosion resistance. “Nothing is forever”, but our cycles ensure exceptional guarantee. POSTS AND TRESTLES - steel - galvanized sheet metal BUILDING CONSTRUCTION METAL STRUCTURES - sand-blasted steel - steel - STAINLESS STEEL SERVICE STATIONS - steel - galvanised sheet metal, aluminium - VTR - polycarbonate (PC) EXTERNAL TANKS - steel, hot or cold galvanized sheet metal, aluminium STAINLESS STEEL INTERNAL TANKS - steel, hot or cold galvanized sheet metal, aluminium UNDERGROUND TANKS - sand-blasted steel

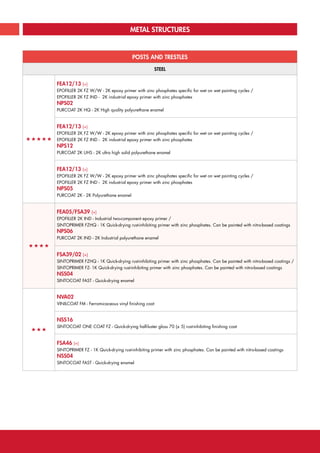

- 3. METAL STRUCTURES POSTS ANDTRESTLES STEEL ««««« FEA12/13 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates NPS02 PURCOAT 2K HQ - 2K High quality polyurethane enamel FEA12/13 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA12/13 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates NPS05 PURCOAT 2K - 2K Polyurethane enamel «««« FEA05/FSA39 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer / SINTOPRIMER FZHQ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel FSA39/02 (+) SINTOPRIMER FZHQ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings / SINTOPRIMER FZ- 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NSS04 SINTOCOAT FAST - Quick-drying enamel ««« NVA02 VINILCOAT FM - Ferromicaceous vinyl finishing coat NSS16 SINTOCOAT ONE COAT FZ - Quick-drying half-luster gloss 70 (± 5) rust-inhibiting finishing coat FSA46 (+) SINTOPRIMER FZ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NSS04 SINTOCOAT FAST - Quick-drying enamel 28 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX
- 4. METAL STRUCTURES POSTS ANDTRESTLES GALVANIZED SHEET METAL ««««« FEA12/13 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates NPS02 PURCOAT 2K HQ - 2K High quality polyurethane enamel FEA12/13 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel «««« FEA05 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer NPS05 PURCOAT 2K - 2K Polyurethane enamel FEA05 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel ««« NVA01 (+) VINILCOAT S/M - Half-luster gloss 30 (± 5) vinyl finishing coat NSS04 SINTOCOAT FAST - Quick-drying enamel NVF60 SHOPTHINNER - Specific thinner for enamel NVF60 Shop-Primer ICR SPRINT COATINGS TECHNICAL CATALOGUE | 29CLICK HERE TO RETURN TO THE MAIN INDEX

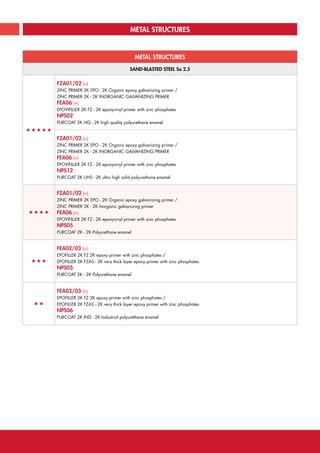

- 5. METAL STRUCTURES METAL STRUCTURES SAND-BLASTEDSTEEL Sa 2.5 ««««« FZA01/02 (+) ZINC PRIMER 2K EPO - 2K Organic epoxy galvanizing primer / ZINC PRIMER 2K - 2K INORGANIC GALVANIZING PRIMER FEA06 (+) EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FZA01/02 (+) ZINC PRIMER 2K EPO - 2K Organic epoxy galvanizing primer / ZINC PRIMER 2K - 2K INORGANIC GALVANIZING PRIMER FEA06 (+) EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel «««« FZA01/02 (+) ZINC PRIMER 2K EPO - 2K Organic epoxy galvanizing primer / ZINC PRIMER 2K - 2K Inorganic galvanizing primer FEA06 (+) EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates NPS05 PURCOAT 2K - 2K Polyurethane enamel ««« FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS05 PURCOAT 2K - 2K Polyurethane enamel «« FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel 30 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX

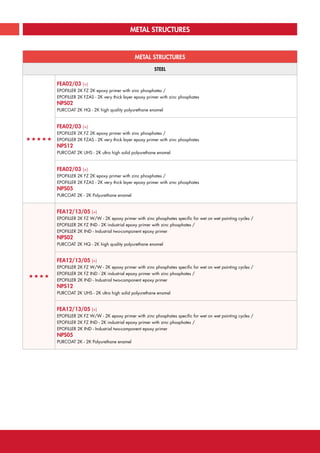

- 6. METAL STRUCTURES METAL STRUCTURES STEEL ««««« FEA02/03(+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS05 PURCOAT 2K - 2K Polyurethane enamel «««« FEA12/13/05 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FEA12/13/05 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA12/13/05 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS05 PURCOAT 2K - 2K Polyurethane enamel ICR SPRINT COATINGS TECHNICAL CATALOGUE | 31CLICK HERE TO RETURN TO THE MAIN INDEX

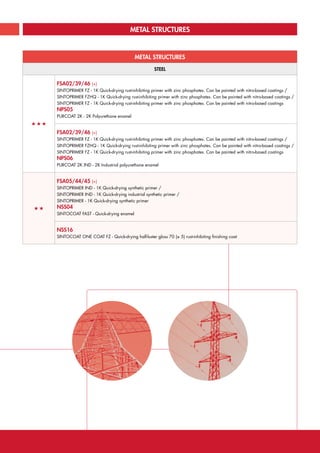

- 7. METAL STRUCTURES METAL STRUCTURES STEEL ««« FSA02/39/46(+) SINTOPRIMER FZ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings / SINTOPRIMER FZHQ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings / SINTOPRIMER FZ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NPS05 PURCOAT 2K - 2K Polyurethane enamel FSA02/39/46 (+) SINTOPRIMER FZ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings / SINTOPRIMER FZHQ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings / SINTOPRIMER FZ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel «« FSA05/44/45 (+) SINTOPRIMER IND - 1K Quick-drying synthetic primer / SINTOPRIMER IND - 1K Quick-drying industrial synthetic primer / SINTOPRIMER - 1K Quick-drying synthetic primer NSS04 SINTOCOAT FAST - Quick-drying enamel NSS16 SINTOCOAT ONE COAT FZ - Quick-drying half-luster gloss 70 (± 5) rust-inhibiting finishing coat 32 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX

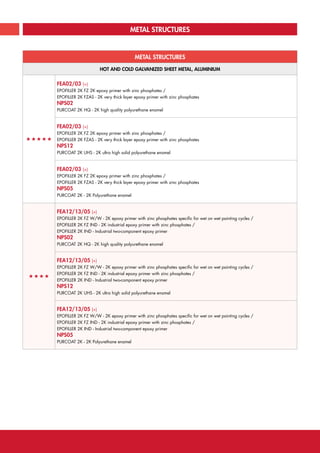

- 8. METAL STRUCTURES METAL STRUCTURES HOTAND COLD GALVANIZED SHEET METAL, ALUMINIUM ««««« FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS05 PURCOAT 2K - 2K Polyurethane enamel «««« FEA12/13/05 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FEA12/13/05 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA12/13/05 (+) EPOFILLER 2K FZ W/W - 2K epoxy primer with zinc phosphates specific for wet on wet painting cycles / EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS05 PURCOAT 2K - 2K Polyurethane enamel ICR SPRINT COATINGS TECHNICAL CATALOGUE | 33CLICK HERE TO RETURN TO THE MAIN INDEX

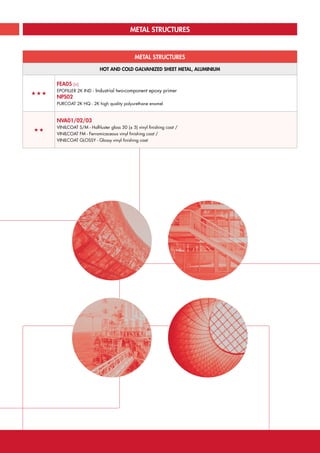

- 9. METAL STRUCTURES METAL STRUCTURES HOTAND COLD GALVANIZED SHEET METAL, ALUMINIUM ««« FEA05 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel «« NVA01/02/03 VINILCOAT S/M - Half-luster gloss 30 (± 5) vinyl finishing coat / VINILCOAT FM - Ferromicaceous vinyl finishing coat / VINILCOAT GLOSSY - Glossy vinyl finishing coat 34 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX

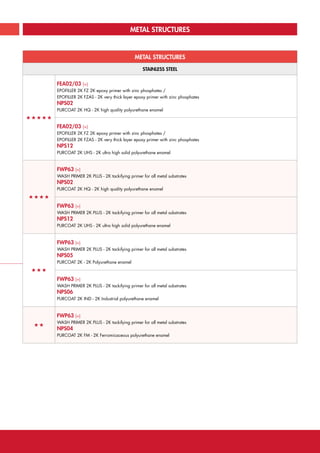

- 10. METAL STRUCTURES METAL STRUCTURES STAINLESSSTEEL ««««« FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel «««« FWP63 (+) WASH PRIMER 2K PLUS - 2K tackifying primer for all metal substrates NPS02 PURCOAT 2K HQ - 2K high quality polyurethane enamel FWP63 (+) WASH PRIMER 2K PLUS - 2K tackifying primer for all metal substrates NPS12 PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel ««« FWP63 (+) WASH PRIMER 2K PLUS - 2K tackifying primer for all metal substrates NPS05 PURCOAT 2K - 2K Polyurethane enamel FWP63 (+) WASH PRIMER 2K PLUS - 2K tackifying primer for all metal substrates NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel «« FWP63 (+) WASH PRIMER 2K PLUS - 2K tackifying primer for all metal substrates NPS04 PURCOAT 2K FM - 2K Ferromicaceous polyurethane enamel ICR SPRINT COATINGS TECHNICAL CATALOGUE | 35CLICK HERE TO RETURN TO THE MAIN INDEX

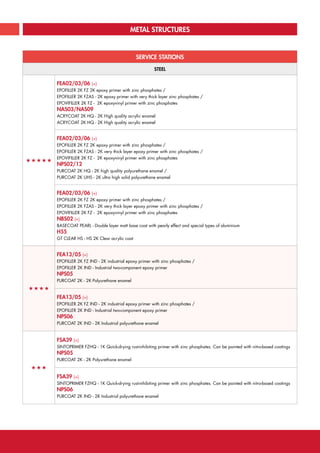

- 11. METAL STRUCTURES SERVICE STATIONS STEEL ««««« FEA02/03/06(+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K epoxy primer with very thick layer zinc phosphates / EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates NAS03/NAS09 ACRYCOAT 2K HQ - 2K High quality acrylic enamel ACRYCOAT 2K HQ - 2K High quality acrylic enamel FEA02/03/06 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates / EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates NPS02/12 PURCOAT 2K HQ - 2K high quality polyurethane enamel / PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA02/03/06 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates / EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates NBS02 (+) BASECOAT PEARL - Double layer matt base coat with pearly effect and special types of aluminium H55 GT CLEAR HS - HS 2K Clear acrylic coat «««« FEA13/05 (+) EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS05 PURCOAT 2K - 2K Polyurethane enamel FEA13/05 (+) EPOFILLER 2K FZ IND - 2K industrial epoxy primer with zinc phosphates / EPOFILLER 2K IND - Industrial two-component epoxy primer NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel ««« FSA39 (+) SINTOPRIMER FZHQ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NPS05 PURCOAT 2K - 2K Polyurethane enamel FSA39 (+) SINTOPRIMER FZHQ - 1K Quick-drying rust-inhibiting primer with zinc phosphates. Can be painted with nitro-based coatings NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel 36 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX

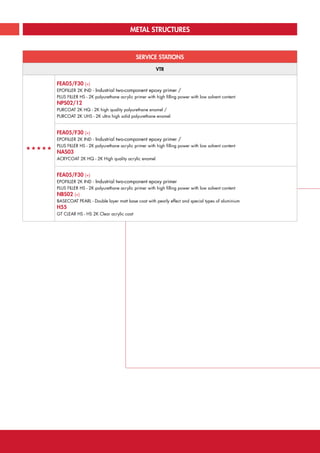

- 12. METAL STRUCTURES SERVICE STATIONS VTR ««««« FEA05/F30(+) EPOFILLER 2K IND - Industrial two-component epoxy primer / PLUS FILLER HS - 2K polyurethane acrylic primer with high filling power with low solvent content NPS02/12 PURCOAT 2K HQ - 2K high quality polyurethane enamel / PURCOAT 2K UHS - 2K ultra high solid polyurethane enamel FEA05/F30 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer / PLUS FILLER HS - 2K polyurethane acrylic primer with high filling power with low solvent content NAS03 ACRYCOAT 2K HQ - 2K High quality acrylic enamel FEA05/F30 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer PLUS FILLER HS - 2K polyurethane acrylic primer with high filling power with low solvent content NBS02 (+) BASECOAT PEARL - Double layer matt base coat with pearly effect and special types of aluminium H55 GT CLEAR HS - HS 2K Clear acrylic coat ICR SPRINT COATINGS TECHNICAL CATALOGUE | 37CLICK HERE TO RETURN TO THE MAIN INDEX
- 13. METAL STRUCTURES SERVICE STATIONS POLYCARBONATE(PC) WATERBORNE CYCLES ««««« FAW02 (+) FAW02 ACRYFILLER WB 2K HQ - 2K waterborne acrylic primer with high filling capacity NPS02/12 PURCOAT 2K HQ - 2K High quality polyurethane enamel / PURCOAT 2K UHS - 2K Ultra high solid polyurethane enamel FAW02 (+) FAW02 ACRYFILLER WB 2K HQ - 2K waterborne acrylic primer with high filling capacity NPS03 PURCOAT 2K MATT - 2K Matt gloss 30 (± 5) polyurethane enamel FAW02 (+) FAW02 ACRYFILLER WB 2K HQ - 2K waterborne acrylic primer with high filling capacity NBS02 (+) BASECOAT PEARL - Double layer matt base coat with pearly effect and special types of aluminium H55 GT CLEAR HS - HS 2K Clear acrylic coat 38 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX

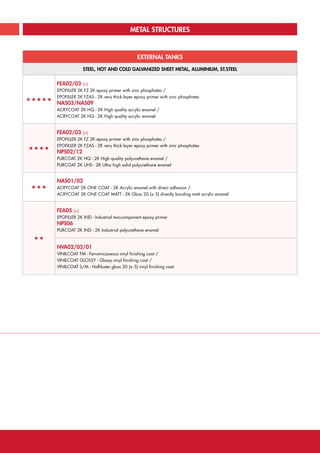

- 14. METAL STRUCTURES EXTERNAL TANKS STEEL,HOT AND COLD GALVANIZED SHEET METAL, ALUMINIUM, ST.STEEL ««««« FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NAS03/NAS09 ACRYCOAT 2K HQ - 2K High quality acrylic enamel / ACRYCOAT 2K HQ - 2K High quality acrylic enamel «««« FEA02/03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates / EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NPS02/12 PURCOAT 2K HQ - 2K High quality polyurethane enamel / PURCOAT 2K UHS - 2K Ultra high solid polyurethane enamel ««« NAS01/02 ACRYCOAT 2K ONE COAT - 2K Acrylic enamel with direct adhesion / ACRYCOAT 2K ONE COAT MATT - 2K Gloss 20 (± 5) directly bonding matt acrylic enamel «« FEA05 (+) EPOFILLER 2K IND - Industrial two-component epoxy primer NPS06 PURCOAT 2K IND - 2K Industrial polyurethane enamel NVA02/03/01 VINILCOAT FM - Ferromicaceous vinyl finishing coat / VINILCOAT GLOSSY - Glossy vinyl finishing coat / VINILCOAT S/M - Half-luster gloss 30 (± 5) vinyl finishing coat ICR SPRINT COATINGS TECHNICAL CATALOGUE | 39CLICK HERE TO RETURN TO THE MAIN INDEX

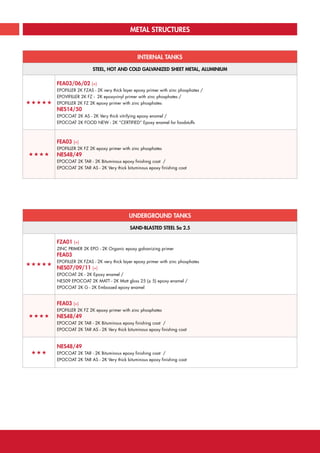

- 15. METAL STRUCTURES INTERNAL TANKS STEEL,HOT AND COLD GALVANIZED SHEET METAL, ALUMINIUM ««««« FEA03/06/02 (+) EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates / EPOVIFILLER 2K FZ - 2K epoxyvinyl primer with zinc phosphates / EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates NES14/50 EPOCOAT 2K AS - 2K Very thick vitrifying epoxy enamel / EPOCOAT 2K FOOD NEW - 2K “CERTIFIED” Epoxy enamel for foodstuffs «««« FEA03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates NES48/49 EPOCOAT 2K TAR - 2K Bituminous epoxy finishing coat / EPOCOAT 2K TAR AS - 2K Very thick bituminous epoxy finishing coat UNDERGROUND TANKS SAND-BLASTED STEEL Sa 2.5 ««««« FZA01 (+) ZINC PRIMER 2K EPO - 2K Organic epoxy galvanizing primer FEA03 EPOFILLER 2K FZAS - 2K very thick layer epoxy primer with zinc phosphates NES07/09/11 (+) EPOCOAT 2K - 2K Epoxy enamel / NES09 EPOCOAT 2K MATT - 2K Matt gloss 25 (± 5) epoxy enamel / EPOCOAT 2K G - 2K Embossed epoxy enamel «««« FEA03 (+) EPOFILLER 2K FZ 2K epoxy primer with zinc phosphates NES48/49 EPOCOAT 2K TAR - 2K Bituminous epoxy finishing coat / EPOCOAT 2K TAR AS - 2K Very thick bituminous epoxy finishing coat ««« NES48/49 EPOCOAT 2K TAR - 2K Bituminous epoxy finishing coat / EPOCOAT 2K TAR AS - 2K Very thick bituminous epoxy finishing coat 40 | ICR SPRINT COATINGS TECHNICAL CATALOGUE CLICK HERE TO RETURN TO THE MAIN INDEX
- 16. I.C.R. S.p.A. ReggioEmilia - T. +39/0522.517803 - Fax +39/0522.514384 S. Martino in Strada (LO) - T. +39/0371.475313 - Fax +39/0371.475370 ITALY e-mail: info@icrsprint.it - www.icrsprint.com ICR Ibérica, S.A. SPAIN - T. +34/901.101408 e-mail: info@icriberica.com - www.icriberica.com COMPANY WITH QUALITY SYSTEM CERTIFIED BY DNV GL = ISO 9001 =
