Dorner 2200 iDrive
The document introduces iDrive, a new space-saving conveyor system that integrates the motor, gearbox, and controller into a single compact package. The key benefits are its small size for handling small parts, reduced integration time, variable speed control, and maintenance-free brushless motor. It is suited for applications like packaging, assembly, and molding. The specifications include conveyor widths from 3 to 18 inches, speeds from 7 to 100 fpm, and load capacities up to 30 pounds. The price is estimated between $900 to $1,000. It will launch with a press release and promotional materials and be exhibited at trade shows.
More Related Content
![Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/apachesparkgettingstarted-260203175547-8361bcc3-thumbnail.jpg?width=640&height=640&fit=bounds)
Dorner 2200 iDrive

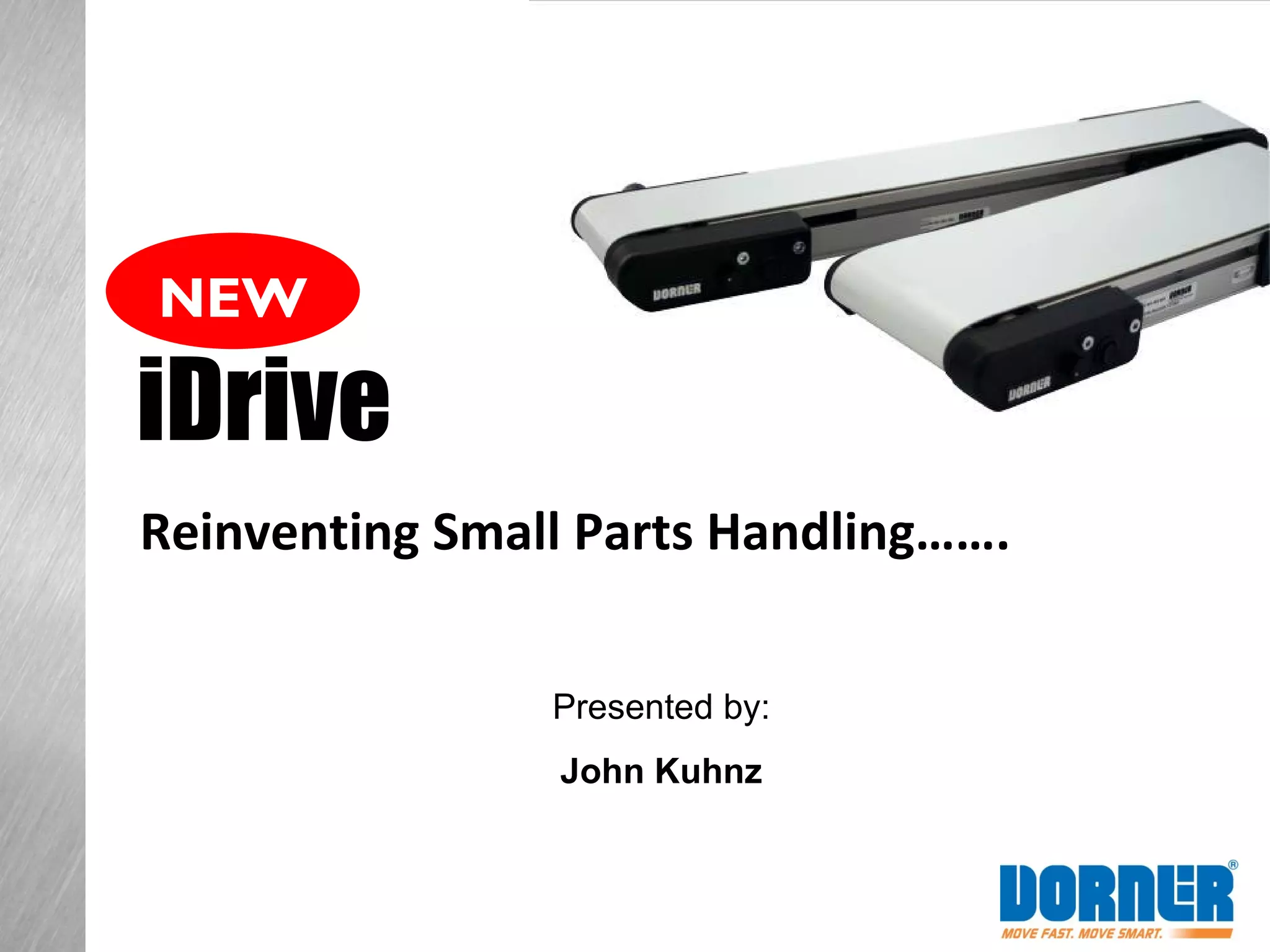

- 1. iDrive Reinventing Small PartsHandling……. NEW Presented by: John Kuhnz

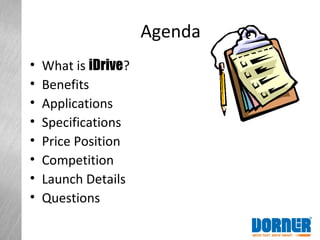

- 2. Agenda • What isiDrive? • Benefits • Applications • Specifications • Price Position • Competition • Launch Details • Questions
- 3. iDrive Defined • Integratingthe motor, gearbox, and motor controller into a single space-saving package.

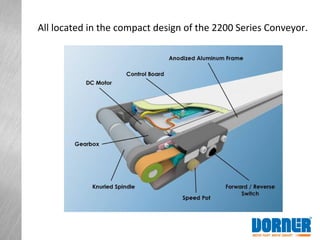

- 4. All located inthe compact design of the 2200 Series Conveyor.

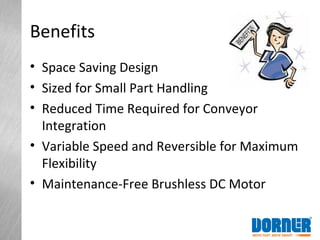

- 5. Benefits • Space SavingDesign • Sized for Small Part Handling • Reduced Time Required for Conveyor Integration • Variable Speed and Reversible for Maximum Flexibility • Maintenance-Free Brushless DC Motor

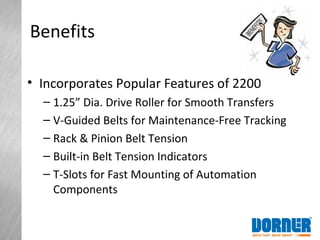

- 6. Benefits • Incorporates PopularFeatures of 2200 – 1.25” Dia. Drive Roller for Smooth Transfers – V-Guided Belts for Maintenance-Free Tracking – Rack & Pinion Belt Tension – Built-in Belt Tension Indicators – T-Slots for Fast Mounting of Automation Components

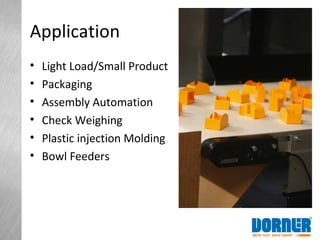

- 7. Application • Light Load/SmallProduct • Packaging • Assembly Automation • Check Weighing • Plastic injection Molding • Bowl Feeders

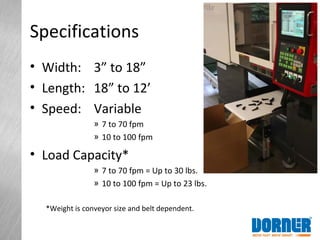

- 8. Specifications • Width: 3”to 18” • Length: 18” to 12’ • Speed: Variable » 7 to 70 fpm » 10 to 100 fpm • Load Capacity* » 7 to 70 fpm = Up to 30 lbs. » 10 to 100 fpm = Up to 23 lbs. *Weight is conveyor size and belt dependent.
- 9. Specifications • Control Models –Integrated Forward/Off/Reverse, Variable Speed Pot, 115V 1 Ph Input Power Supply – Integrated Forward/Off/Reverse, Variable Speed Pot* (24V DC power by others) – Flying Leads for Remote Speed and Direction

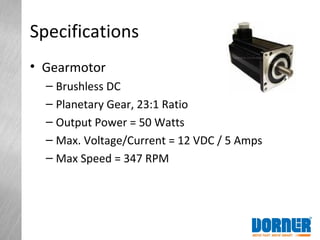

- 10. Specifications • Gearmotor – BrushlessDC – Planetary Gear, 23:1 Ratio – Output Power = 50 Watts – Max. Voltage/Current = 12 VDC / 5 Amps – Max Speed = 347 RPM

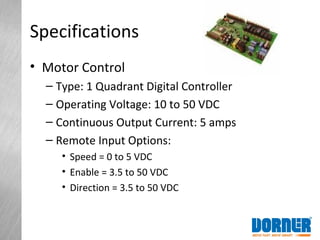

- 11. Specifications • Motor Control –Type: 1 Quadrant Digital Controller – Operating Voltage: 10 to 50 VDC – Continuous Output Current: 5 amps – Remote Input Options: • Speed = 0 to 5 VDC • Enable = 3.5 to 50 VDC • Direction = 3.5 to 50 VDC

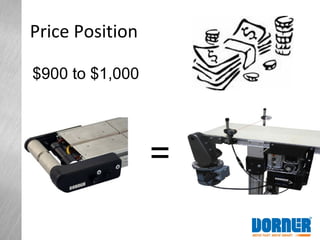

- 12. Price Position = $900 to$1,000

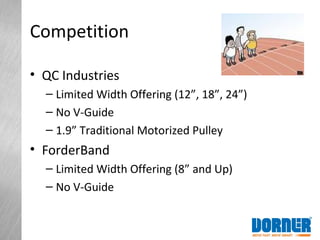

- 13. Competition • QC Industries –Limited Width Offering (12”, 18”, 24”) – No V-Guide – 1.9” Traditional Motorized Pulley • ForderBand – Limited Width Offering (8” and Up) – No V-Guide

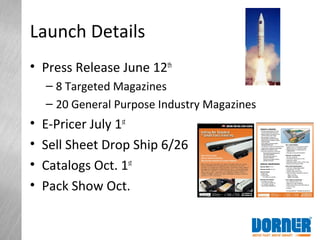

- 14. Launch Details • PressRelease June 12th – 8 Targeted Magazines – 20 General Purpose Industry Magazines • E-Pricer July 1st • Sell Sheet Drop Ship 6/26 • Catalogs Oct. 1st • Pack Show Oct.

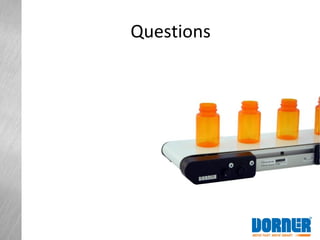

- 15.
