1. HYPERTHERMIA IN
RADIOTHERAPY
DR.JEWELL JOSEPH

2. INTRODUCTION
Elevation of temperature to a
supraphysiologic level
USA & Europe- 41.8–42 °C (107.2–107.6 °F)
Japan & Russia- 43–44 °C (109–111 °F)
Maintain the temperature about 1 hour

3. OVERVIEW
HISTORY OF MEDICAL HT
BIOLOGY OF HT
PHYSIOLOGICAL EFFECTS
PHYSICS
APPLICATIONS IN RADIOTHERAPY

5. 700 - 600 BC
Western Zhou Dynasty – China

6. 500 – 400 B.C
GREEKS
EGYPTIANS

7. 400 – 300 B.C
"What medicines do not heal, the lance will;
what the lance does not heal, fire will"

8. 100 A.D – 140 A.D
"If indeed any were so
good a physician as to be
able to produce fever, it
would not be necessary to
look for any other remedy
in sickness."

9. 1400 – 1500 A.D
NATIVE AMERICANS

10. 1600’S
“Fever is a mighty
engine, which nature
brings into the world
for the conquest of her
enemies”

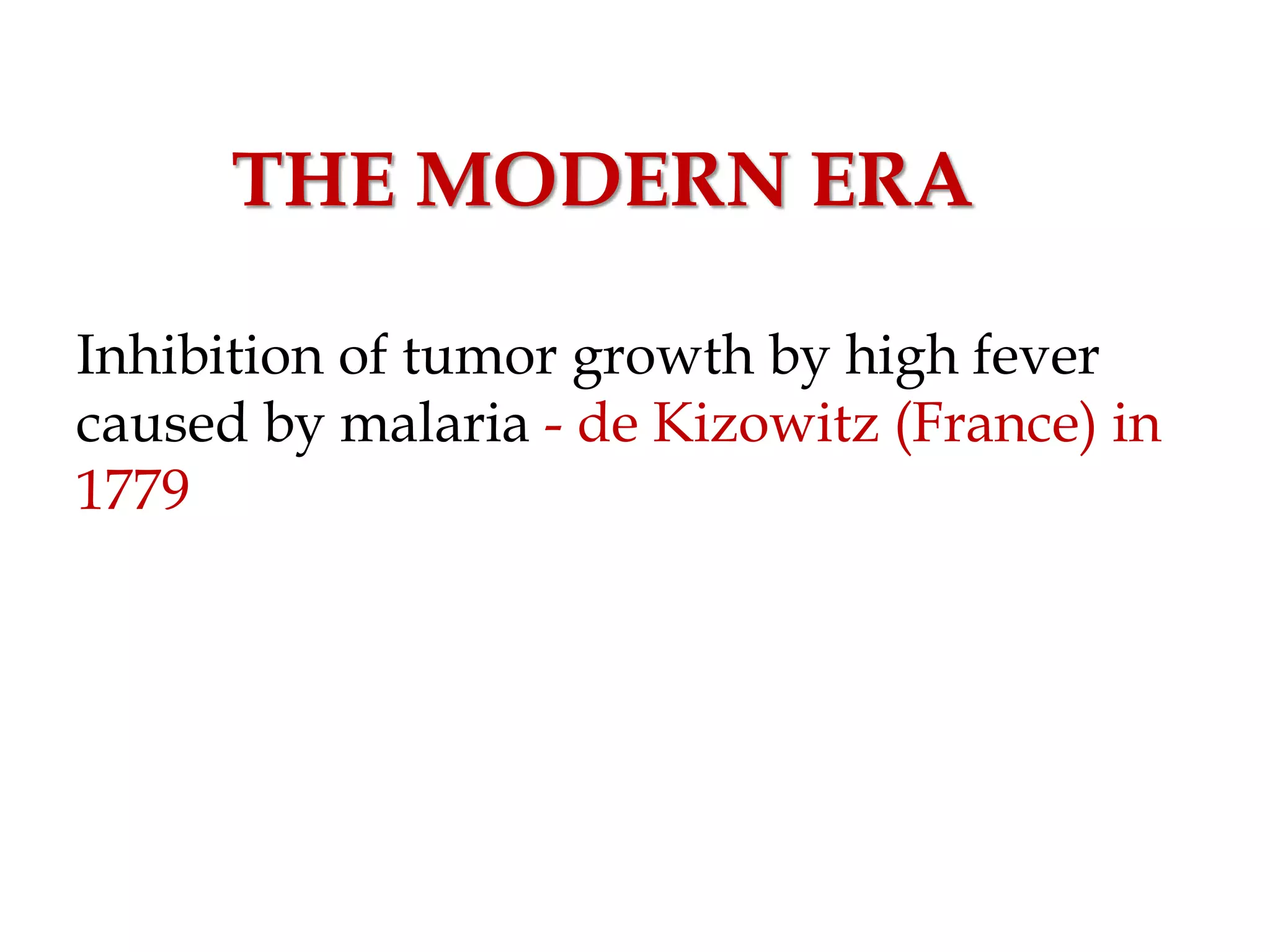

11. THE MODERN ERA
Inhibition of tumor growth by high fever
caused by malaria - de Kizowitz (France) in
1779

12. Complete remission of histologically
confirmed face sarcoma after two erysipelas
infections with subsequent 2-year disease-
free survival - Busch (Germany) in 1866

13. George W. Crile Jr.
Long-lasting increase of the temperature of
some tumors to 42 – 50°C could selectively
destroy them without damaging the healthy
tissues.

14. James Fulton Percy
3–7-year survival of
inoperable cancer of the
uterus after local
hyperthermia above 45°C

15. The first International
Symposium on Cancer Therapy by
Hyperthermia and Radiation
Washington D.C in 1975

16. BIOLOGY OF HT
DIRECT EFFECTS INDIRECT EFFECTS

17. DIRECT EFFECTS
When cells are heated in vitro to a
sufficient temperature and for a long
enough duration, they die in a predictable,
exponential manner, and the rate of killing
increases with temperature
The cell survival curves for heat are
similar in shape to those obtained for x-
rays

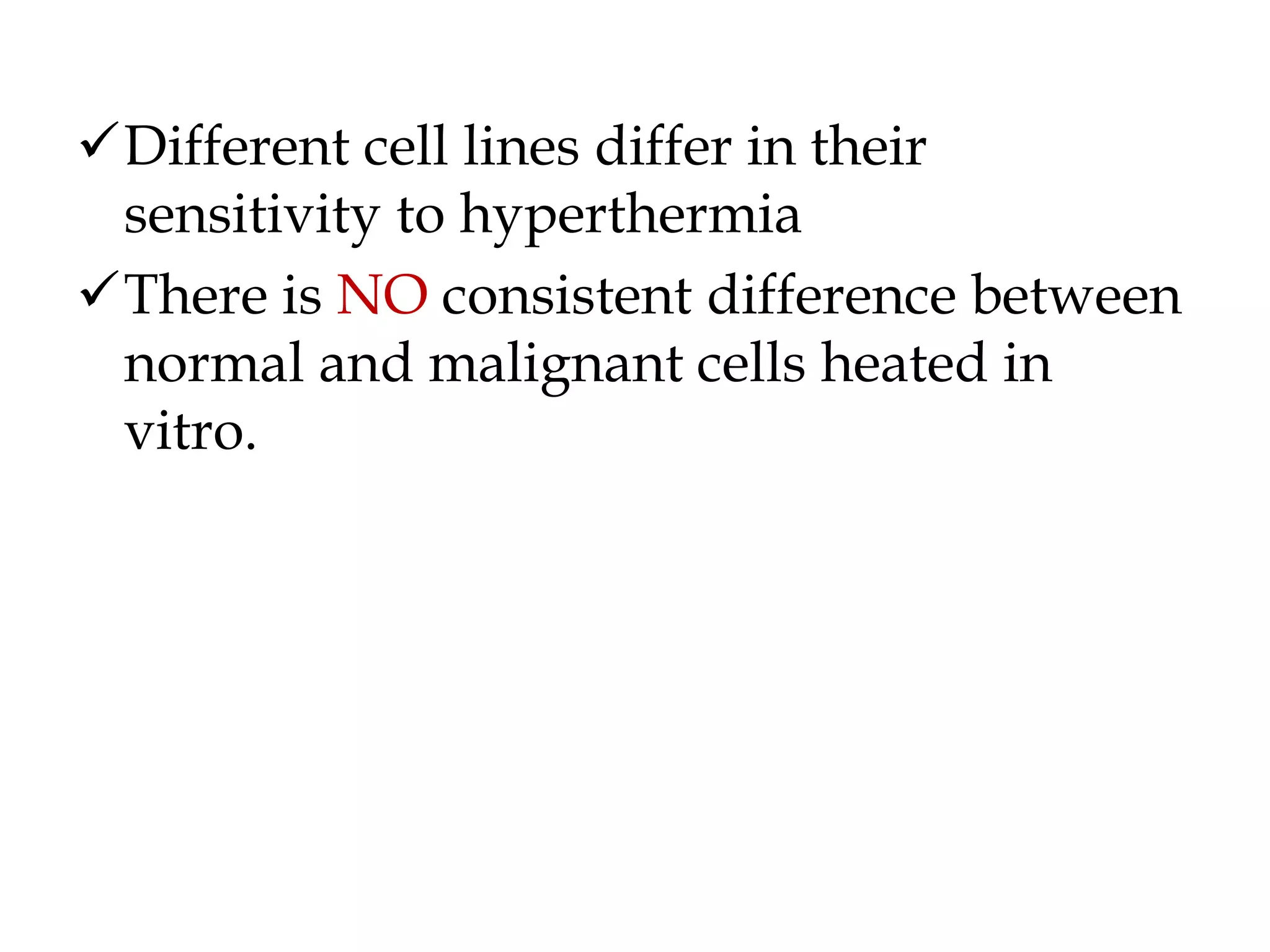

18. Different cell lines differ in their
sensitivity to hyperthermia
There is NO consistent difference between
normal and malignant cells heated in
vitro.

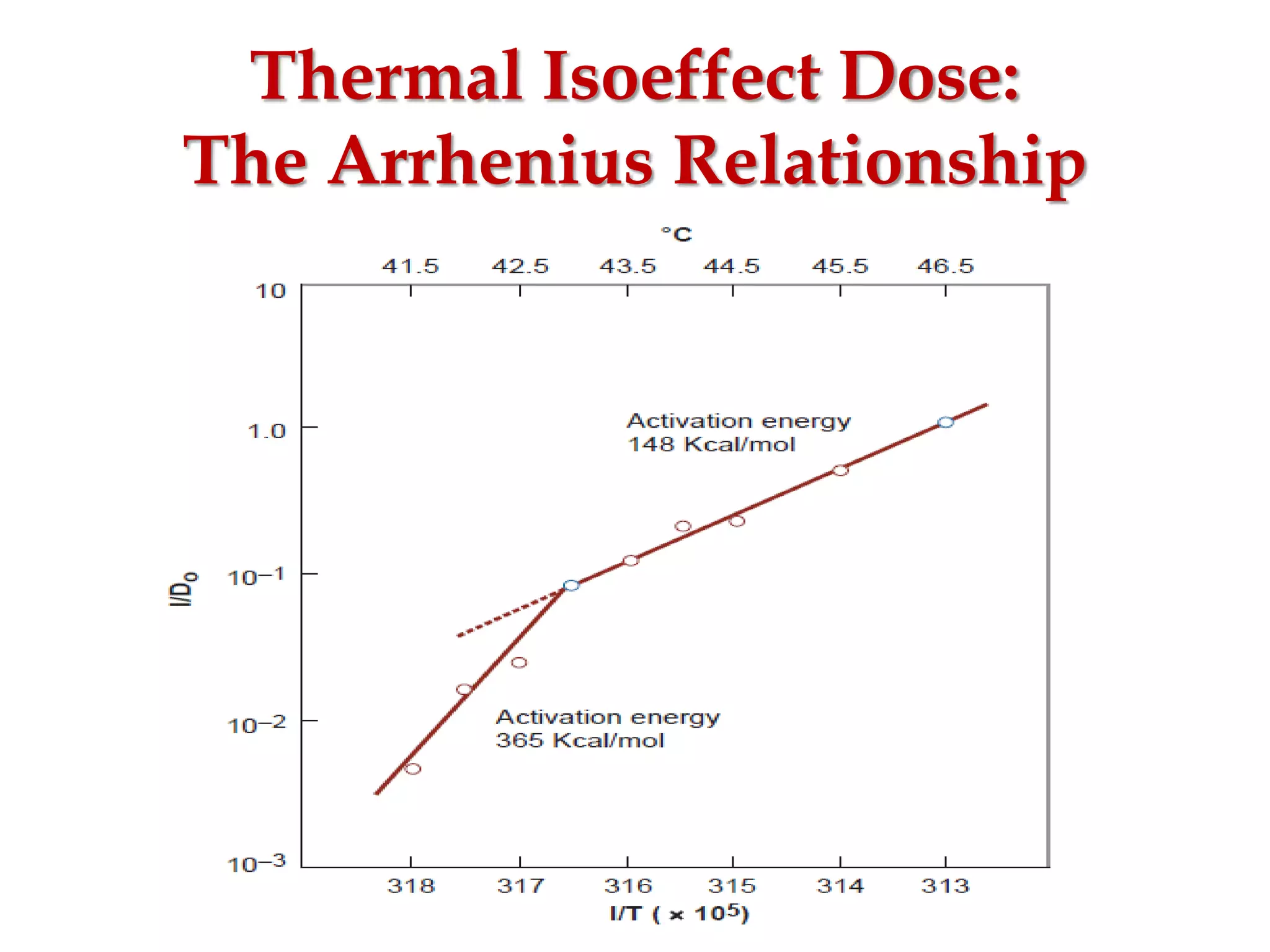

21. Thermal Isoeffect Dose:
The Arrhenius Relationship

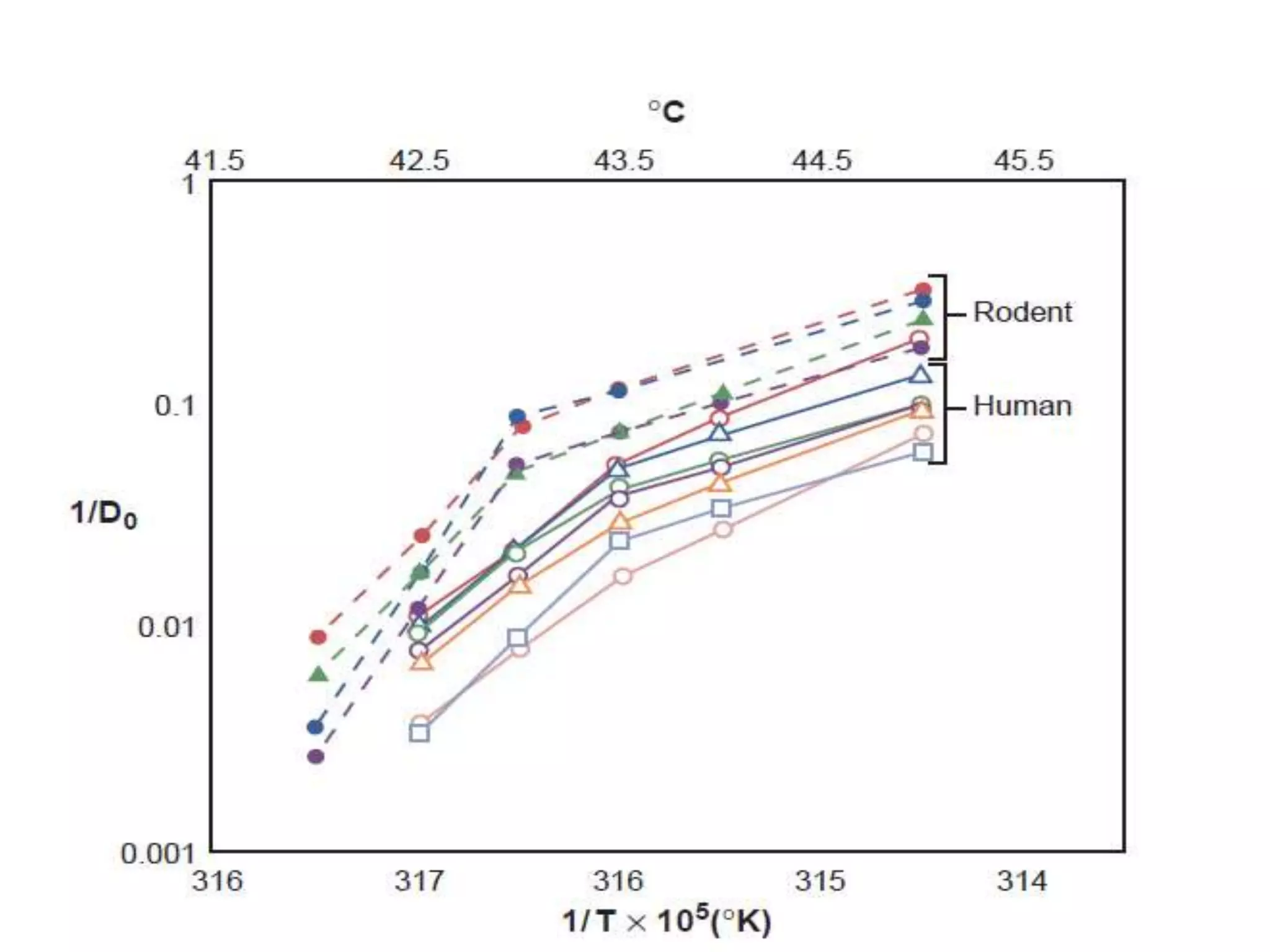

22. Temperature dependence of the rate of
cell killing by heat
Plots the log of the slope (1/Do) of cell
survival curves as a function of
temperature
Slope gives the activation energy of the
chemical process involved in the cell
killing
Arrhenius plots have a biphasic curve
Slope changes at the BREAK POINT(43
degrees for human cells)

23. Above this temperature, an increase of 1°C
doubles the rate of cell killing
Below the breakpoint, the rate of cell
killing by heat drops by a factor of 2 to 4
for each drop of 1° C

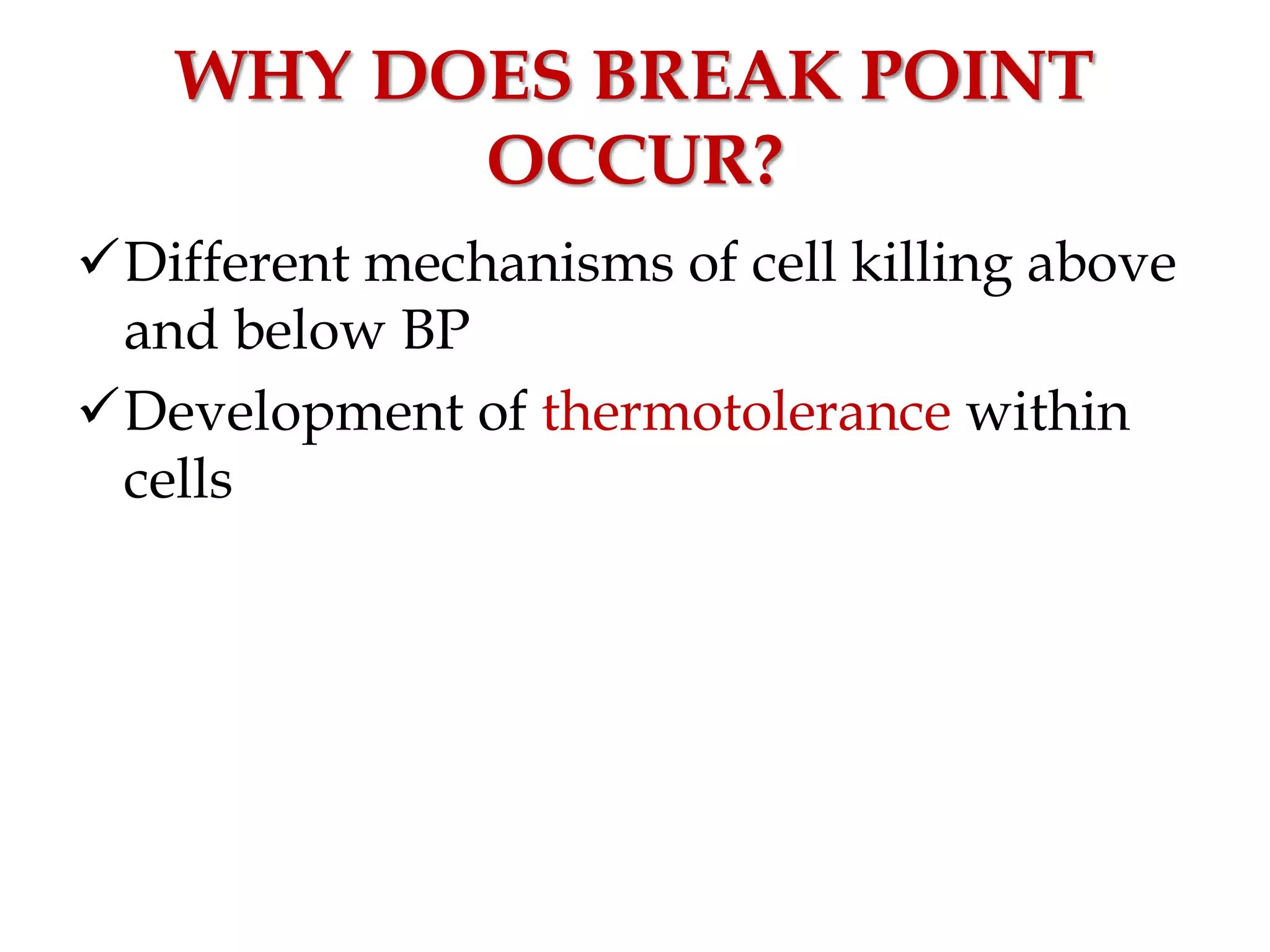

24. WHY DOES BREAK POINT
OCCUR?
Different mechanisms of cell killing above
and below BP
Development of thermotolerance within
cells

25. ARE PROTEINS THE TARGETS
FOR HEAT KILLING?
Activation energy for protein denaturation
to the activation energy for heat
cytotoxicity are similar
Heat of inactivation for cell killing and
thermal damage is similar to the energy
needed for protein denaturation (130–170
kcal/mol)
Increased expression of Heat Shock
Proteins

26. INDIRECT EFFECTS
Changes in the tumor microenvironment
42 to 44° C
Damage to tumor vascular endothelium
Decreased pO2,pH and nutrient status
Increased heat sensitivity but decreased
radiosensitivity

27. 41 to 41.5° C
Damage to respiratory enzymes
Shift to anaerobic pathways
Increased oxygen tension in the tissues &
increased radiosensitivity
(Brezel et al., Jones et al)

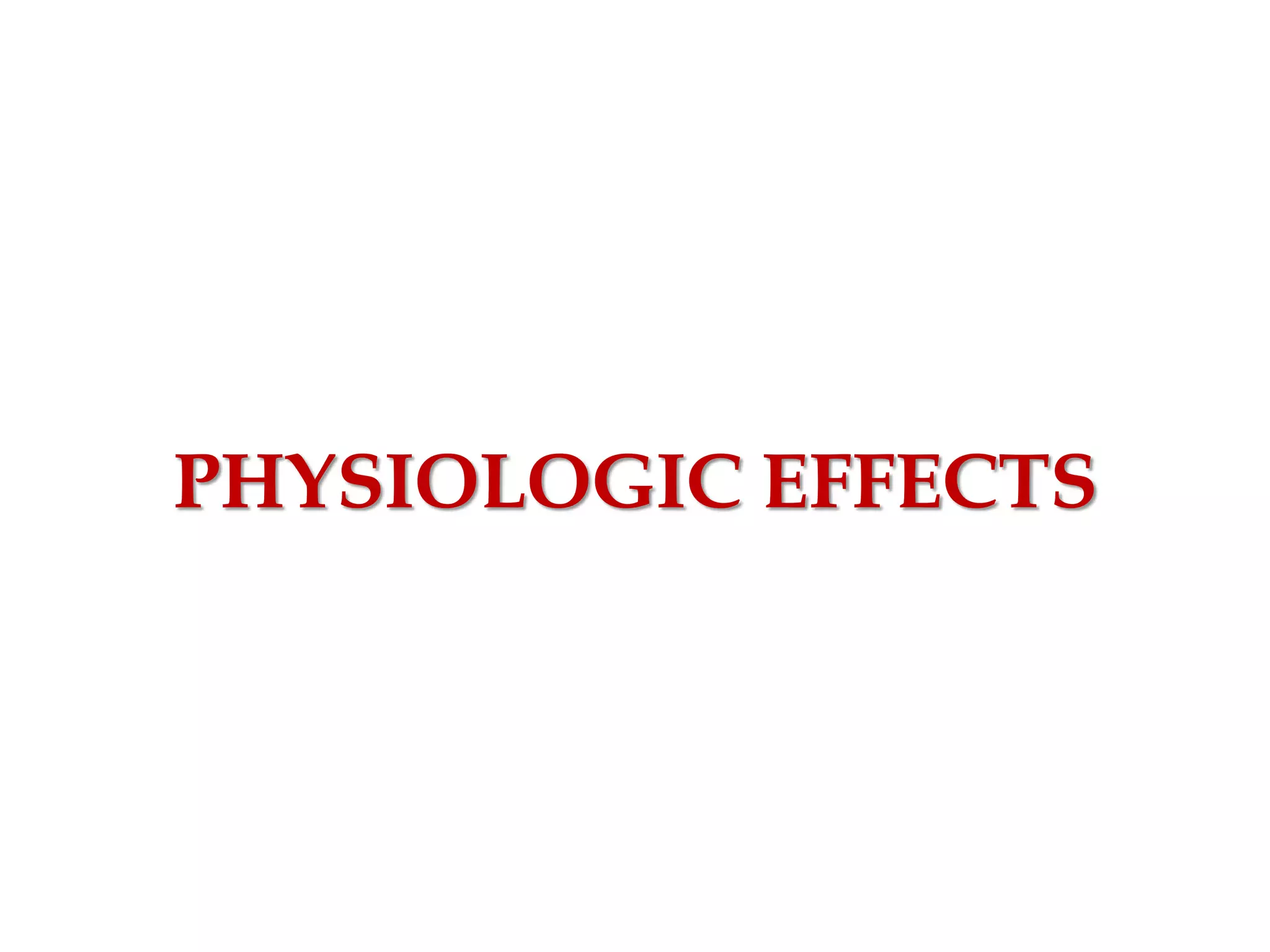

28. PHYSIOLOGIC EFFECTS

29. EFFECT ON PERFUSION
Increased tissue perfusion (41 – 41.5°C)
Changes in vascular permeability
Vascular stasis and hemorrhage (42 - 44°C)
The increase in liposomal extravasation can
be exploited as a drug delivery vehicle

30. EFFECT ON OXYGENATION

31. EFFECT OF pH

32. Tumor cells
Decrease in extracellular pH
Cannot increase proton pumping
Increase in intracellular pH

33. APPLICATIONS
Reduction in pH by hyperglycemia,
glucose + metaiodobenzylguanidine
Vasoactive agents to reduce the blood
flow

34. IMMUNOLOGIC EFFECTS

35. Enhanced immunogenicity and HSP
expression seen after tumor cells heating
Thermally enhanced immune effector cell
activation and function
Thermally enhanced vascular perfusion
and delivery or trafficking of immune
effector cells to tumors

36. HYPERTHERMIA PHYSICS

37. CHALLENGES IN DELIVERING
HT
Anatomical variations
Varying tissue interfaces
Blood perfusion

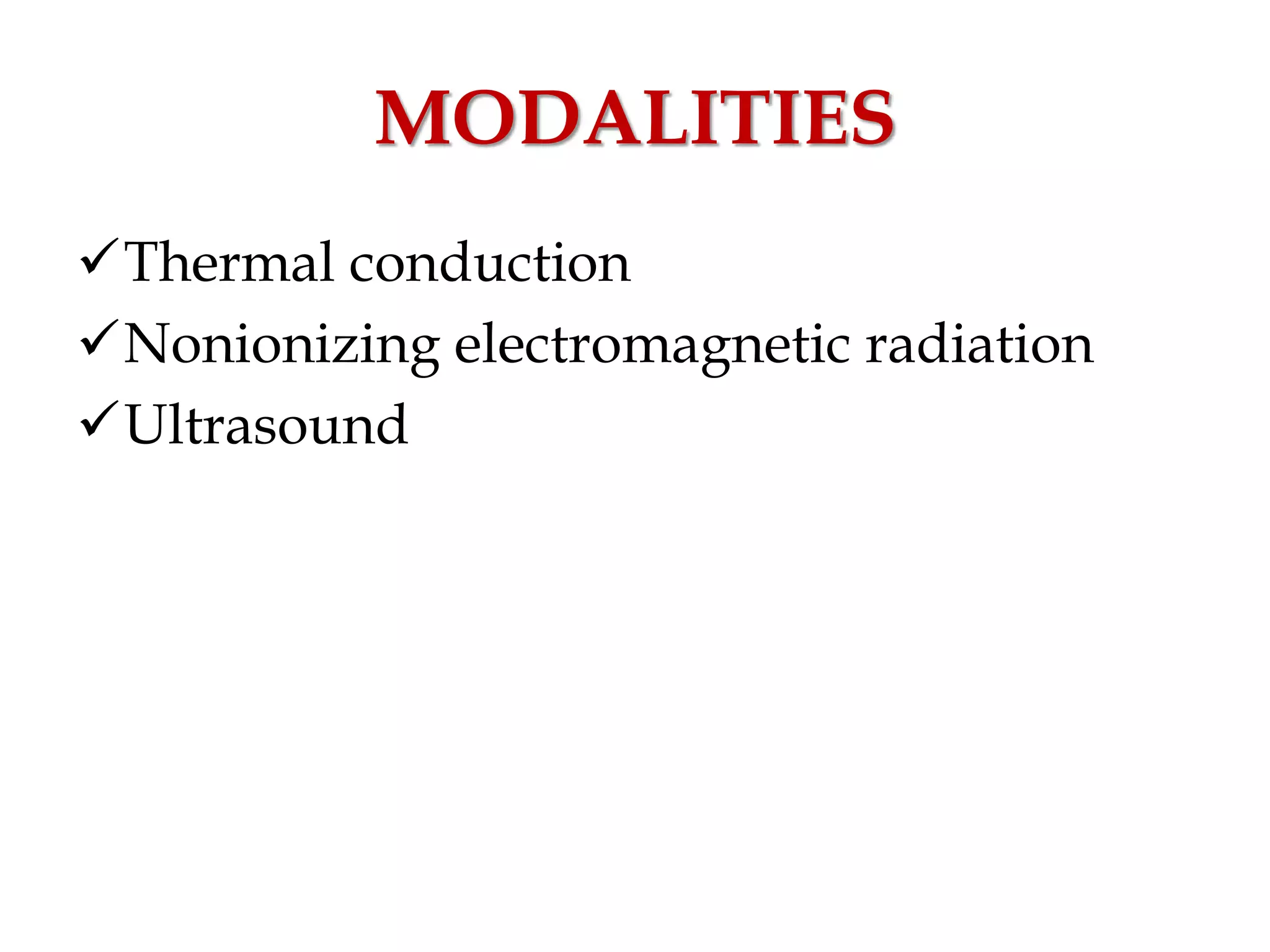

38. MODALITIES
Thermal conduction
Nonionizing electromagnetic radiation
Ultrasound

39. THERMAL CONDUCTION
Circulating hot water in a needle, a
catheter, surface pad
Limited penetration of heat
Restricted to interstitial applications with
closely spaced implant arrays

40. ELECTROMAGNETIC HEATING
Heating from resistive losses as a result of
electric current in a resistive media (tissue)
At higher microwave frequencies, heat is
generated from mechanical interactions
between adjacent polar water molecules
aligning to the alternating EM field
Superficial applicators – penetration 1 – 4 cm
Deep HT devices – penetration more than 4
cm

42. ULTRASOUND HEATING
Energy transfer results from the
mechanical losses of viscous friction
Wavelength of US is orders of magnitude
smaller than that of an EM field of similar
penetration capabilities
So, US energy can be focused into small
tissue volumes

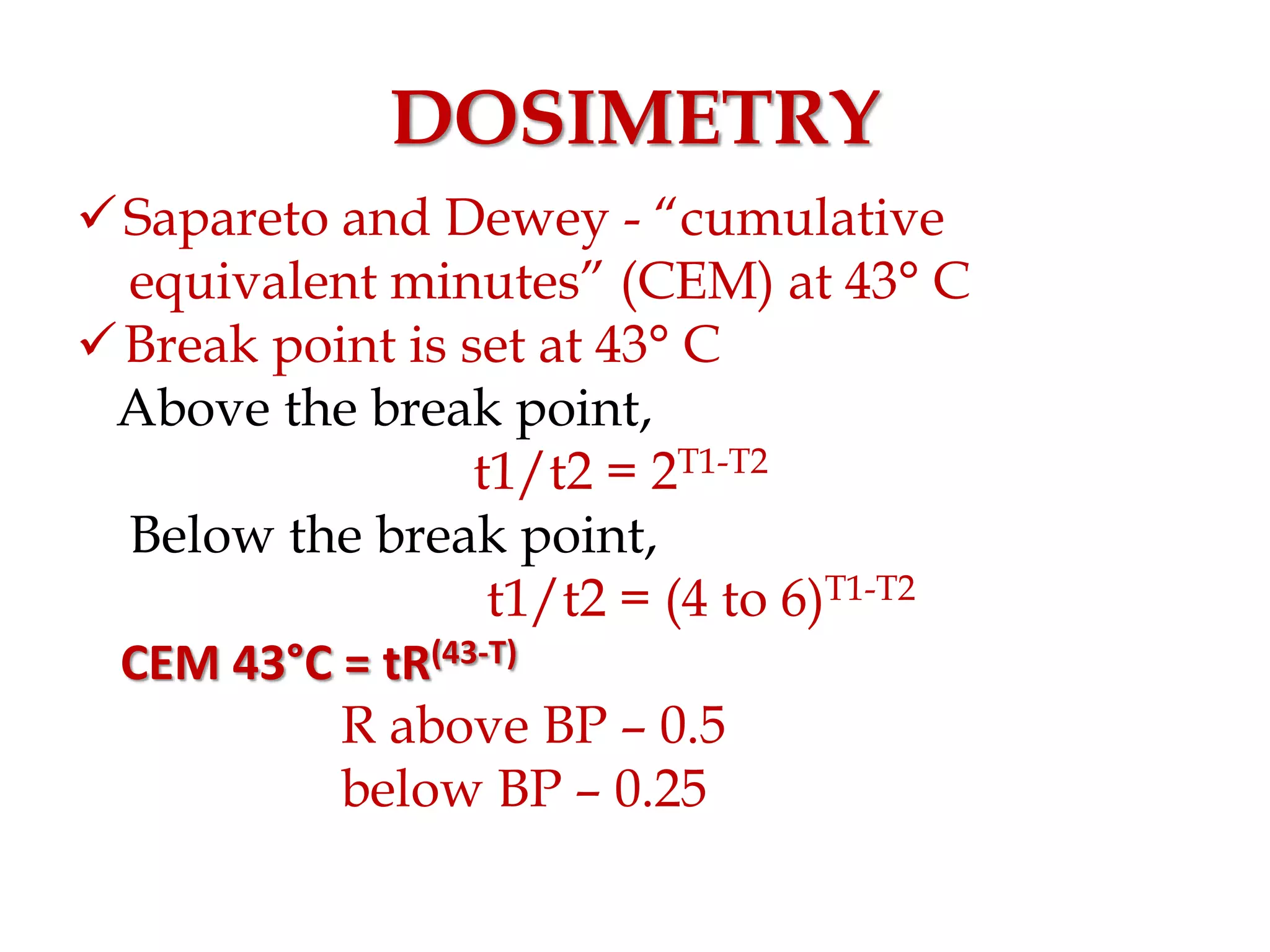

44. DOSIMETRY
Sapareto and Dewey - “cumulative
equivalent minutes” (CEM) at 43° C
Break point is set at 43° C
Above the break point,
t1/t2 = 2T1-T2
Below the break point,
t1/t2 = (4 to 6)T1-T2
CEM 43°C = tR(43-T)
R above BP – 0.5
below BP – 0.25

45. For a complex time–temperature history,
the heating profile is broken into short
intervals of time “t” length (typically 1 to 2
minutes), where the temperature remains
relatively constant
CEM 43° C = 𝒕R(43-avgT)

46. MEASURING LOCAL
TEMPERATURE
INVASIVE METHODS
Electrically conducting
Minimally conducting
Non conducting (optic)

47. NON-INVASIVE METHODS
Infrared thermography
Thermal monitoring sheet fiber optic
arrays
Electrical impedance tomography
Microwave tomography
Microwave radiometry
Ultrasonic temperature estimation
techniques
Magnetic resonance thermal imaging
(MRTI)

48. RATIONALE IN RT
Sensitizes the cells in S phase to RT
No difference in sensitivity to aerobic and
anaerobic cells
HT can lead to reoxygenation, which will
improve RT response
HT inhibits the repair of both sub lethal
and potentially lethal damage via its
effects in inactivating crucial DNA repair
pathways

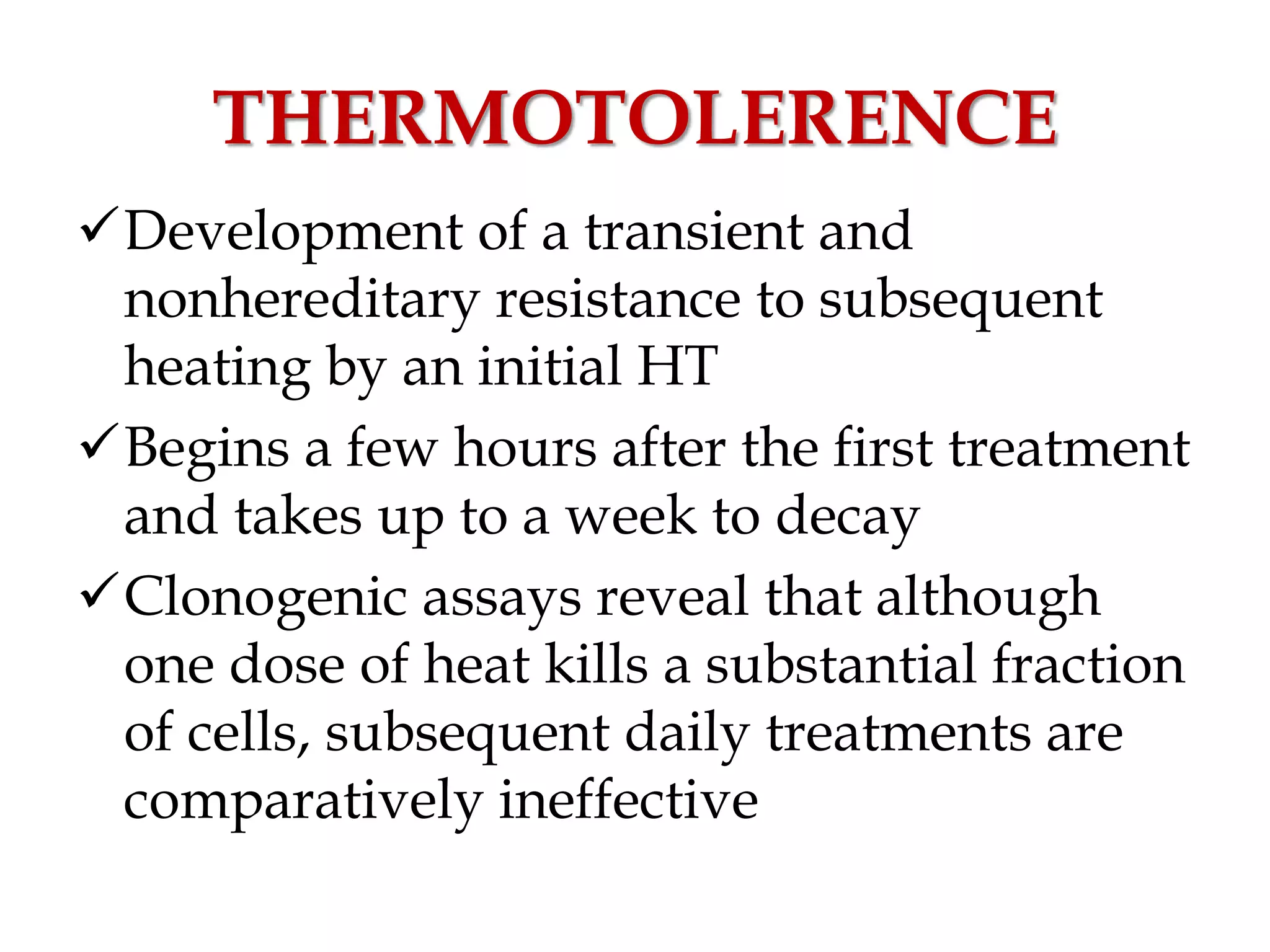

49. THERMOTOLERENCE
Development of a transient and
nonhereditary resistance to subsequent
heating by an initial HT
Begins a few hours after the first treatment
and takes up to a week to decay
Clonogenic assays reveal that although
one dose of heat kills a substantial fraction
of cells, subsequent daily treatments are
comparatively ineffective

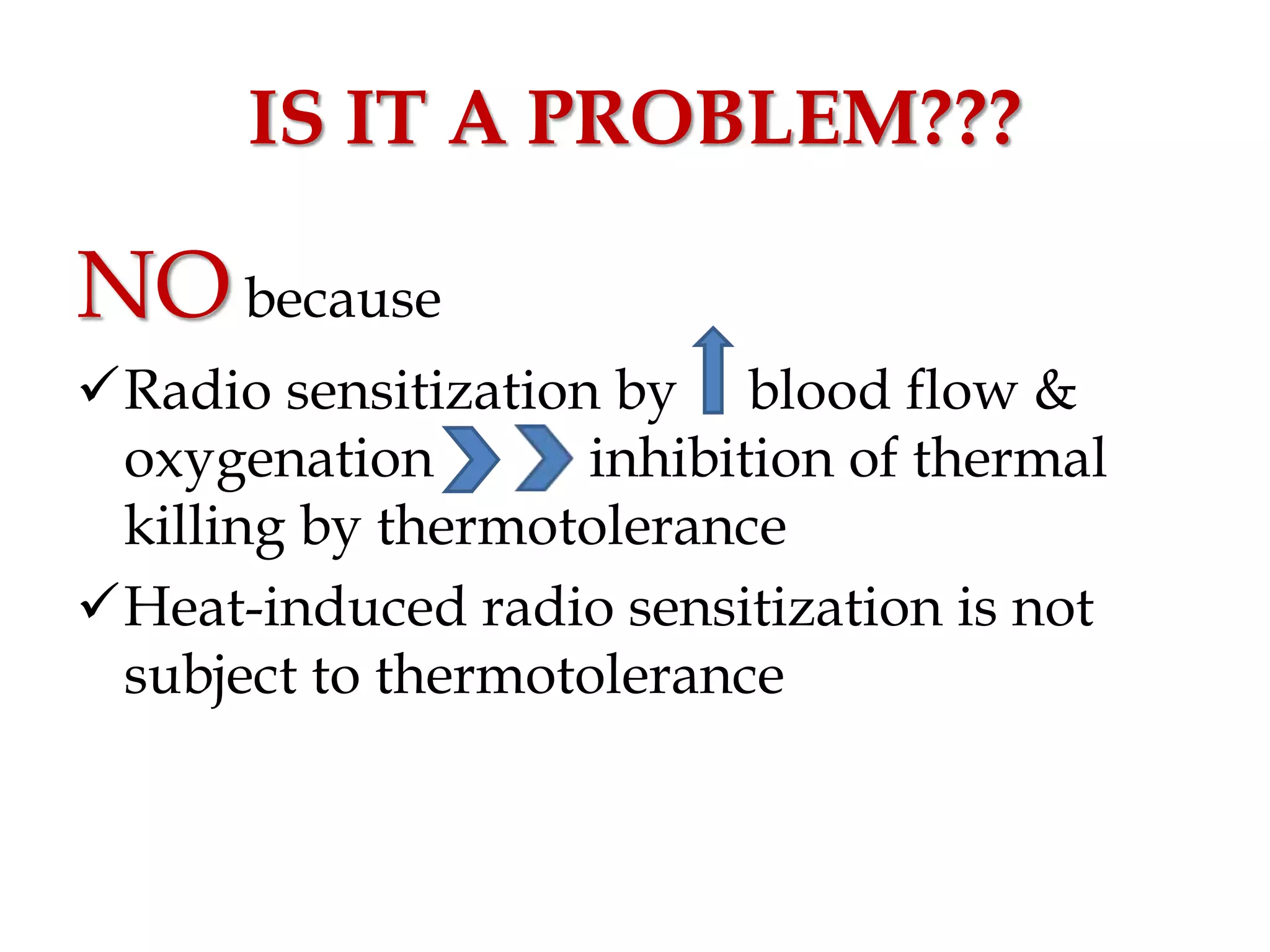

50. IS IT A PROBLEM???
NObecause
Radio sensitization by blood flow &
oxygenation inhibition of thermal
killing by thermotolerance
Heat-induced radio sensitization is not
subject to thermotolerance

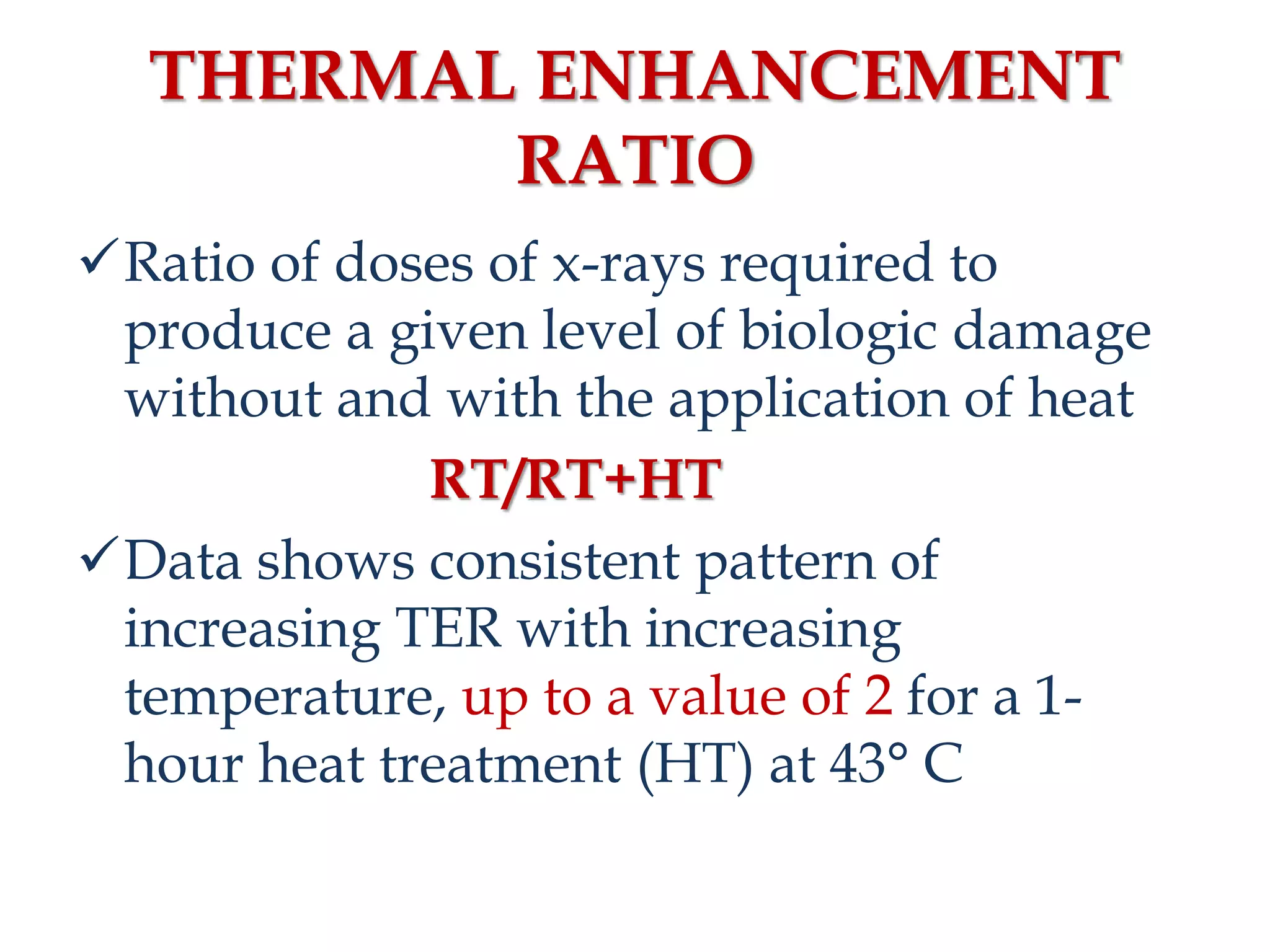

51. THERMAL ENHANCEMENT
RATIO
Ratio of doses of x-rays required to
produce a given level of biologic damage
without and with the application of heat
RT/RT+HT
Data shows consistent pattern of
increasing TER with increasing
temperature, up to a value of 2 for a 1-
hour heat treatment (HT) at 43° C

52. Typical TER values
1.4 at 41° C
2.7 at 42.5° C
4.3 at 43° C
Canine oral squamous cell carcinomas –
1.15
Superficial human tumor types – 1.5

53. THERAPEUTIC GAIN FACTOR
Ratio of the TER in the tumor to the TER
in normal tissues

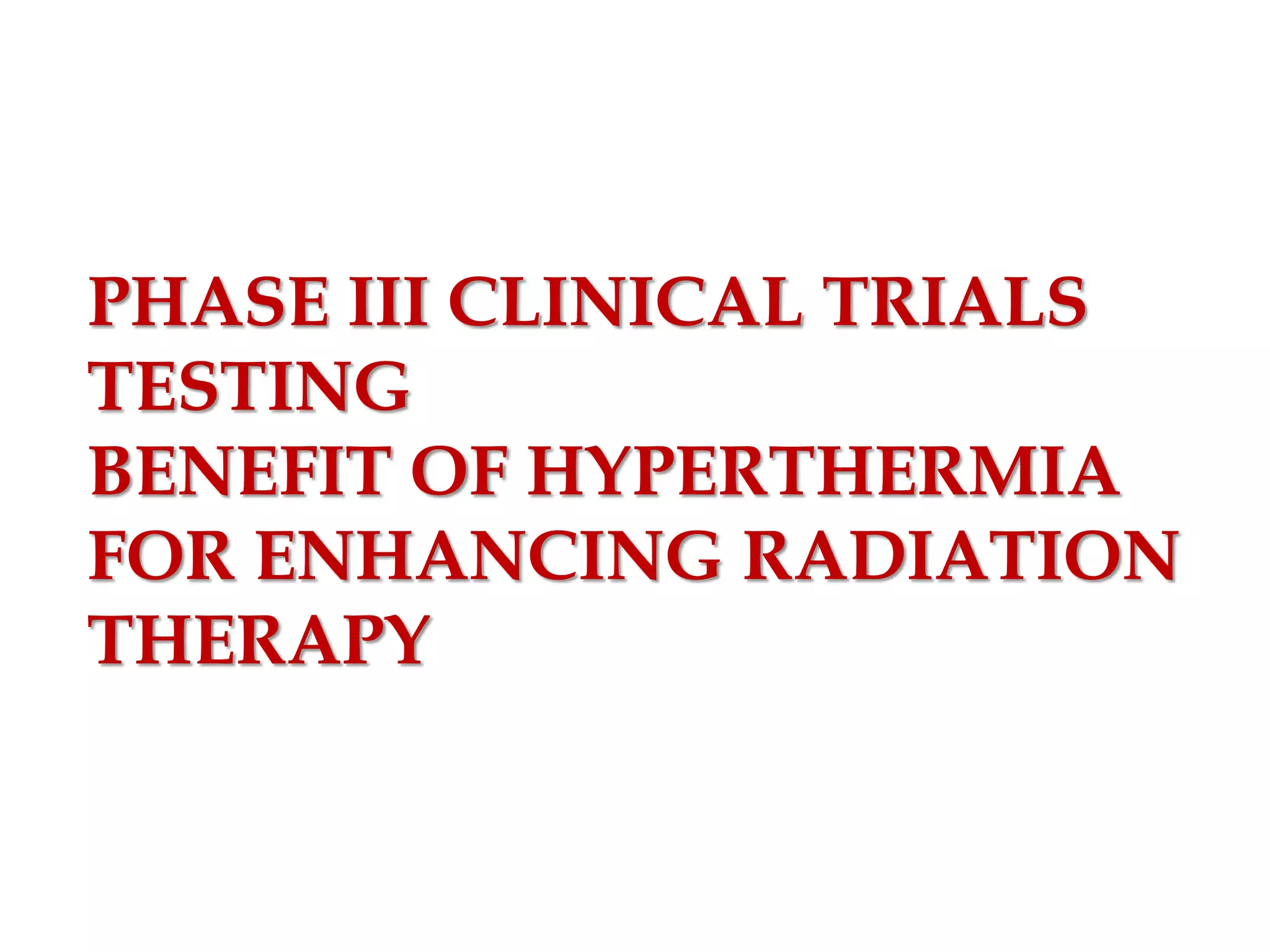

54. PHASE III CLINICAL TRIALS
TESTING
BENEFIT OF HYPERTHERMIA
FOR ENHANCING RADIATION
THERAPY

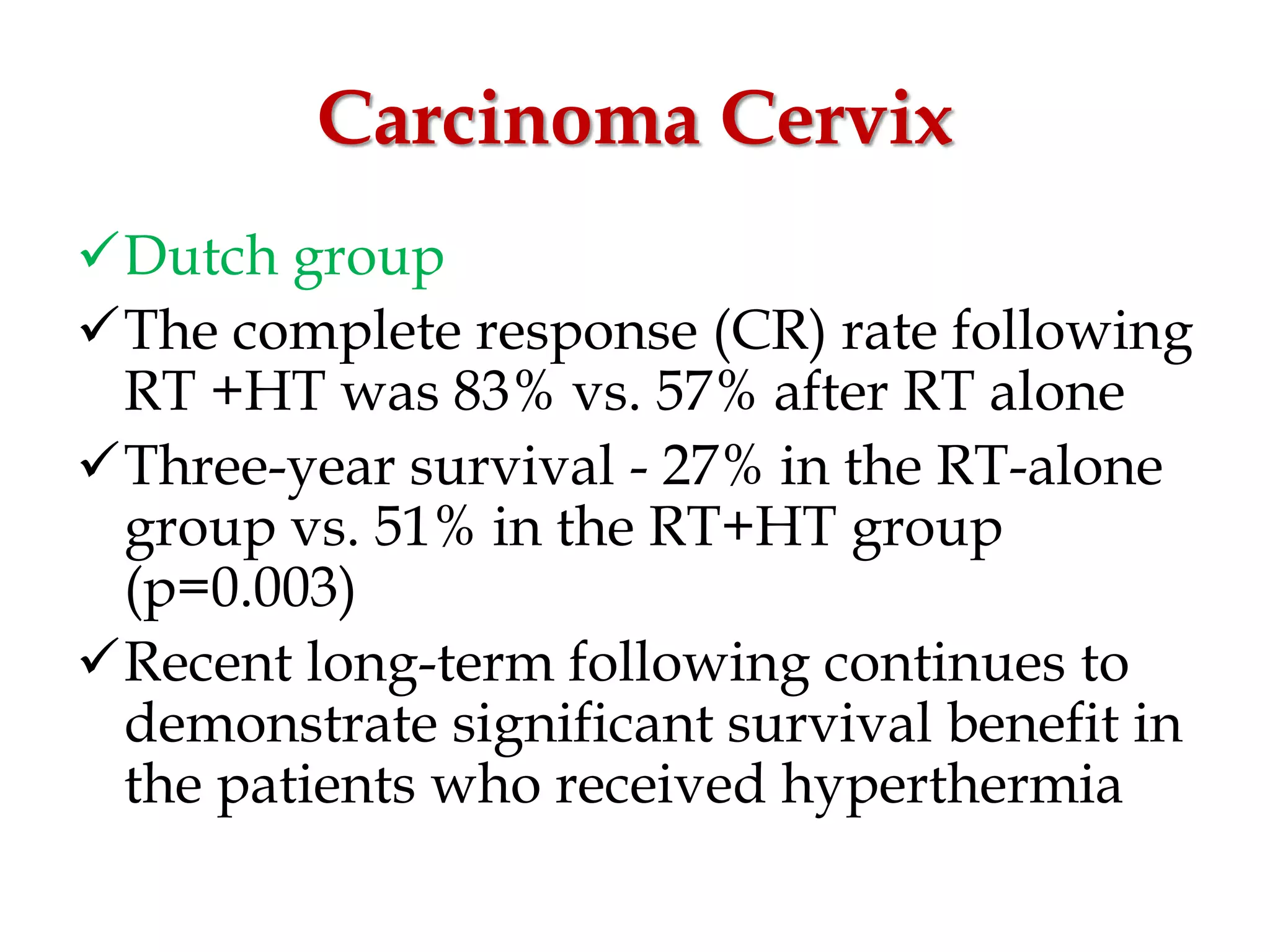

55. Carcinoma Cervix
Dutch group
The complete response (CR) rate following
RT +HT was 83% vs. 57% after RT alone
Three-year survival - 27% in the RT-alone
group vs. 51% in the RT+HT group
(p=0.003)
Recent long-term following continues to
demonstrate significant survival benefit in
the patients who received hyperthermia

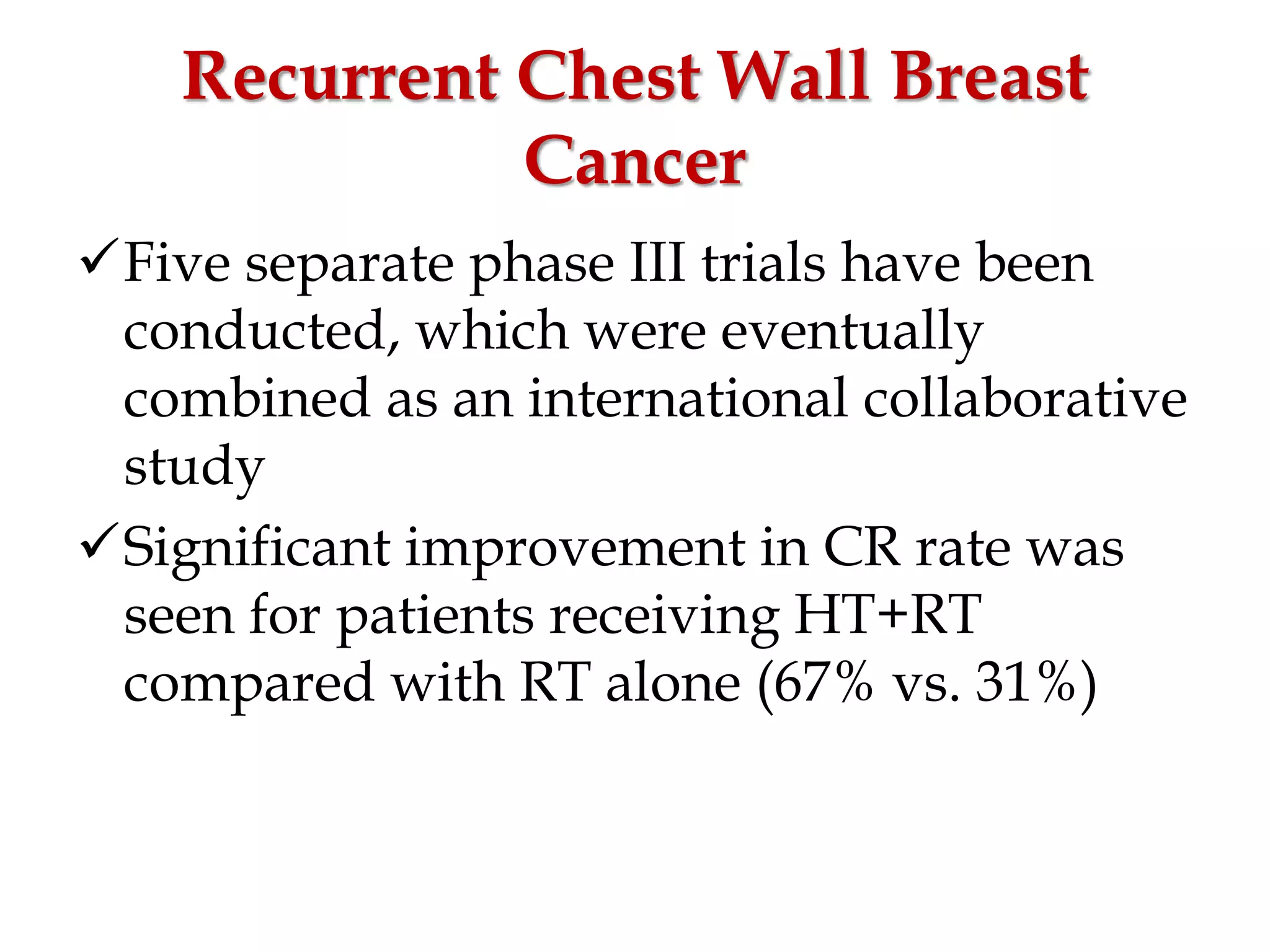

56. Recurrent Chest Wall Breast
Cancer
Five separate phase III trials have been
conducted, which were eventually
combined as an international collaborative
study
Significant improvement in CR rate was
seen for patients receiving HT+RT
compared with RT alone (67% vs. 31%)

57. Superficial Malignancies
Single institution prospective randomized
trial conducted by Jones et al.
The complete response rate in the
hyperthermia/ radiation group was 66%
versus 42% in the radiation-alone group
Previously irradiated patients had the
greatest benefit, enjoying a 68.2% response
rate in the hyperthermia/radiation group
versus 23.5% in the radiation alone group

58. Head and neck cancer
Valdagni et al., showed patients in stage
III receiving RT+HT had a 58% CR
compared with 20% in the RT group
Patients with stage IV disease achieved a
CR of 38% compared with 7% for those
receiving RT alone

59. Glioblastoma multiforme
Sneed et al. – time to tumor progression
and 2-year survival were significantly
improved for patients who received
hyperthermia compared with those
treated with brachytherapy alone (31% vs.
15%)

60. ADVERSE EFFECTS
External application of heat may cause
surface burns
Whole body hyperthermia can cause
swelling, blood clots, and bleeding
Systemic shock

61. CHALLENGES IN
IMPLEMENATAION
It is difficult to heat tumor tissue volumes
with uniformity and precision
There is no standardized equipment to
effect loco regional HT
Techniques for measuring temperature
and the actual definition and calculation
of thermal dose remain significant
problems
