HTTPプロクシライブラリproxy2の設計と実装
- 1. HTTPプロクシライブラリ proxy2の設計と実装 inaz2 PyCon JP 2016 2016/09/22 Designand Implementation of proxy2, the HTTP Proxy Library

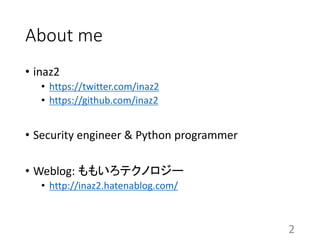

- 2. About me • inaz2 •https://twitter.com/inaz2 • https://github.com/inaz2 • Security engineer & Python programmer • Weblog: ももいろテクノロジー • http://inaz2.hatenablog.com/ 2

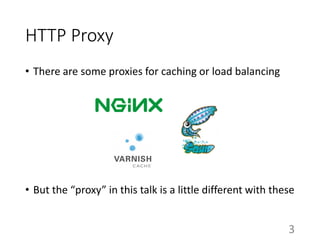

- 3. HTTP Proxy • Thereare some proxies for caching or load balancing • But the “proxy” in this talk is a little different with these 3
- 4. Do you knowProxomitron? • http://www.proxomitron.info/ • Since 1999 till 2003 4
- 5. Local debug proxy •Intercept and modify the HTTP request/response 5 Request Response Logging and modifying

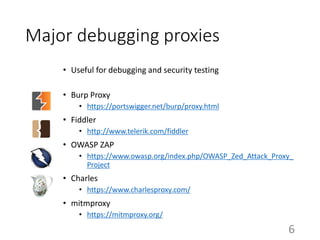

- 6. Major debugging proxies •Useful for debugging and security testing • Burp Proxy • https://portswigger.net/burp/proxy.html • Fiddler • http://www.telerik.com/fiddler • OWASP ZAP • https://www.owasp.org/index.php/OWASP_Zed_Attack_Proxy_ Project • Charles • https://www.charlesproxy.com/ • mitmproxy • https://mitmproxy.org/ 6

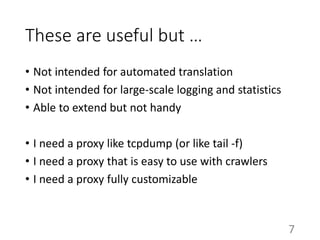

- 7. These are usefulbut … • Not intended for automated translation • Not intended for large-scale logging and statistics • Able to extend but not handy • I need a proxy like tcpdump (or like tail -f) • I need a proxy that is easy to use with crawlers • I need a proxy fully customizable 7
- 8. proxy2 • https://github.com/inaz2/proxy2 • Singlepython script • Require no external modules • Support IPv6 • Support HTTP/1.1 persistent connection • Support HTTPS relay/intercept • Easy to customize with Python! 8

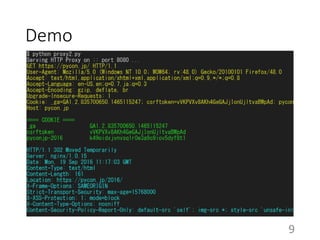

- 9.

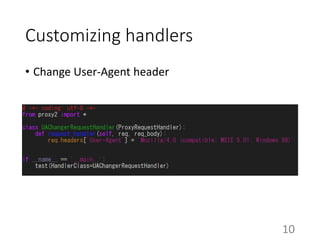

- 10. Customizing handlers • ChangeUser-Agent header 10

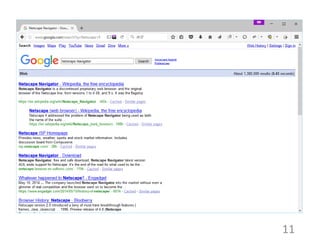

- 11.
- 12.

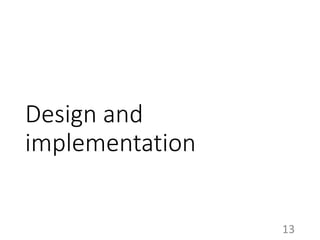

- 13.

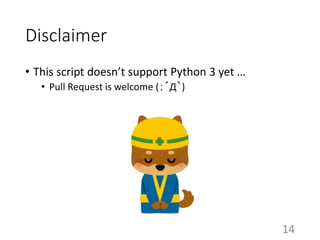

- 14. Disclaimer • This scriptdoesn’t support Python 3 yet … • Pull Request is welcome (；´Д｀) 14

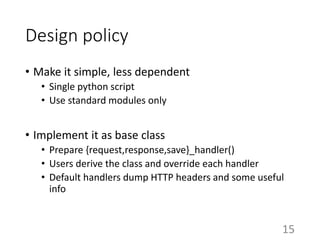

- 15. Design policy • Makeit simple, less dependent • Single python script • Use standard modules only • Implement it as base class • Prepare {request,response,save}_handler() • Users derive the class and override each handler • Default handlers dump HTTP headers and some useful info 15
- 16. Connection flow andhandlers 16 client proxy2 server Request Request Response Response request_handler(req) (modify the request) response_handler(req, res) (modify the response) save_handler(req, res) (task that takes long time)

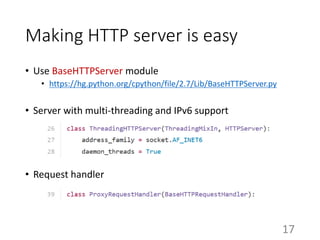

- 17. Making HTTP serveris easy • Use BaseHTTPServer module • https://hg.python.org/cpython/file/2.7/Lib/BaseHTTPServer.py • Server with multi-threading and IPv6 support • Request handler 17

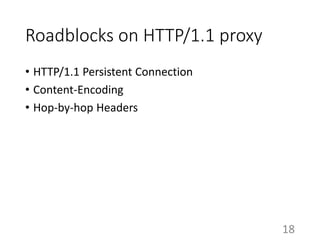

- 18. Roadblocks on HTTP/1.1proxy • HTTP/1.1 Persistent Connection • Content-Encoding • Hop-by-hop Headers 18

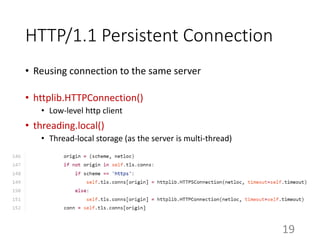

- 19. HTTP/1.1 Persistent Connection •Reusing connection to the same server • httplib.HTTPConnection() • Low-level http client • threading.local() • Thread-local storage (as the server is multi-thread) 19

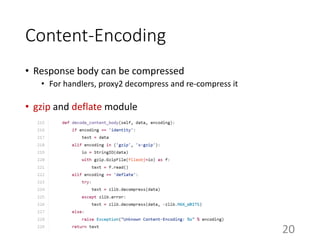

- 20. Content-Encoding • Response bodycan be compressed • For handlers, proxy2 decompress and re-compress it • gzip and deflate module 20

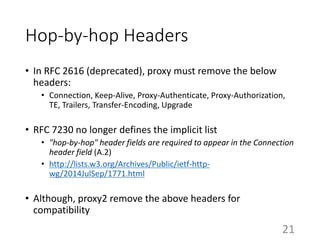

- 21. Hop-by-hop Headers • InRFC 2616 (deprecated), proxy must remove the below headers: • Connection, Keep-Alive, Proxy-Authenticate, Proxy-Authorization, TE, Trailers, Transfer-Encoding, Upgrade • RFC 7230 no longer defines the implicit list • "hop-by-hop" header fields are required to appear in the Connection header field (A.2) • http://lists.w3.org/Archives/Public/ietf-http- wg/2014JulSep/1771.html • Although, proxy2 remove the above headers for compatibility 21

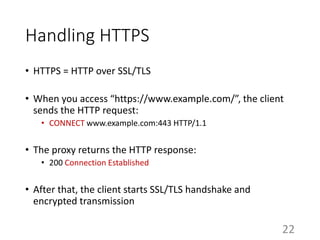

- 22. Handling HTTPS • HTTPS= HTTP over SSL/TLS • When you access “https://www.example.com/”, the client sends the HTTP request: • CONNECT www.example.com:443 HTTP/1.1 • The proxy returns the HTTP response: • 200 Connection Established • After that, the client starts SSL/TLS handshake and encrypted transmission 22

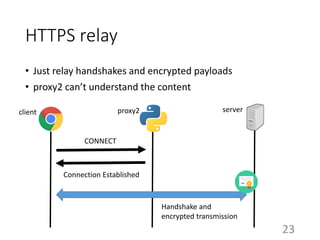

- 23. HTTPS relay • Justrelay handshakes and encrypted payloads • proxy2 can’t understand the content 23 client proxy2 server CONNECT Connection Established Handshake and encrypted transmission
- 24. HTTPS relay • select.select() •pick out readable sockets in the list • Receive data and send it to the other socket 24

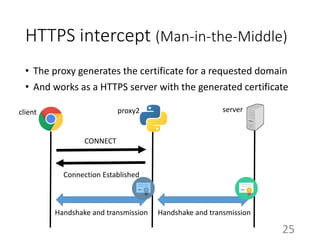

- 25. HTTPS intercept (Man-in-the-Middle) •The proxy generates the certificate for a requested domain • And works as a HTTPS server with the generated certificate 25 client proxy2 server CONNECT Connection Established Handshake and transmission Handshake and transmission

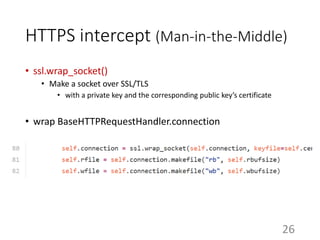

- 26. HTTPS intercept (Man-in-the-Middle) •ssl.wrap_socket() • Make a socket over SSL/TLS • with a private key and the corresponding public key’s certificate • wrap BaseHTTPRequestHandler.connection 26

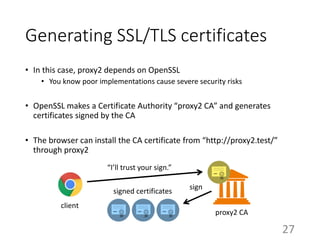

- 27. Generating SSL/TLS certificates •In this case, proxy2 depends on OpenSSL • You know poor implementations cause severe security risks • OpenSSL makes a Certificate Authority “proxy2 CA” and generates certificates signed by the CA • The browser can install the CA certificate from “http://proxy2.test/” through proxy2 27 proxy2 CA signed certificates sign “I’ll trust your sign.” client
- 28.

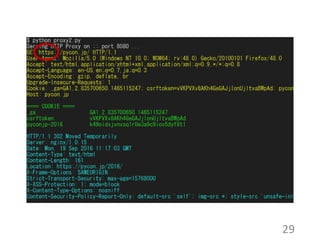

- 29.

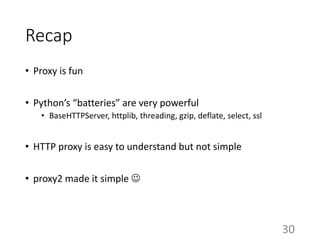

- 30. Recap • Proxy isfun • Python’s “batteries” are very powerful • BaseHTTPServer, httplib, threading, gzip, deflate, select, ssl • HTTP proxy is easy to understand but not simple • proxy2 made it simple 30

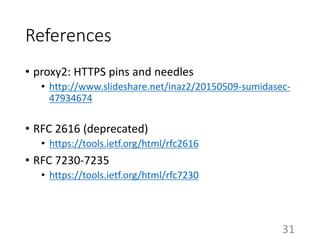

- 31. References • proxy2: HTTPSpins and needles • http://www.slideshare.net/inaz2/20150509-sumidasec- 47934674 • RFC 2616 (deprecated) • https://tools.ietf.org/html/rfc2616 • RFC 7230-7235 • https://tools.ietf.org/html/rfc7230 31
