This document discusses HTTP/2 prioritization and how resources are prioritized during loading. It begins by explaining how browsers prioritize different resource types during parsing and rendering. It then covers how HTTP/2 allows all requests to be sent immediately to the server with priority specifications, as opposed to HTTP/1.x which limits connections. The document concludes by discussing challenges with prioritization across connections and various tools for testing prioritization.

1. HTTP/2 Prioritization
Patrick Meenan
@PatMeenan
slideshare.net/patrickmeenan

2. The Browser

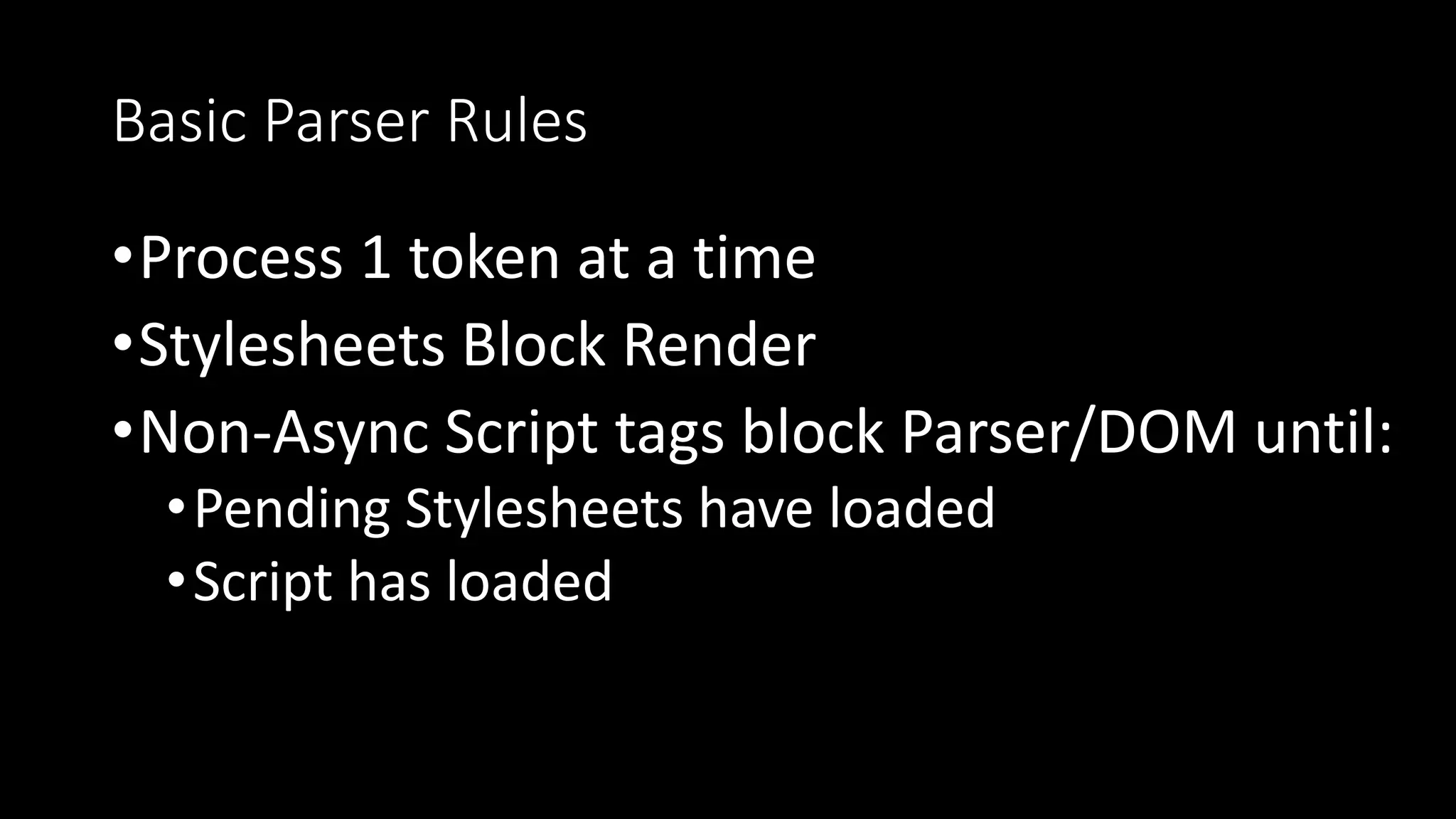

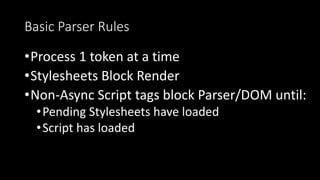

3. Basic Parser Rules
•Process 1 token at a time
•Stylesheets Block Render
•Non-Async Script tags block Parser/DOM until:
•Pending Stylesheets have loaded
•Script has loaded

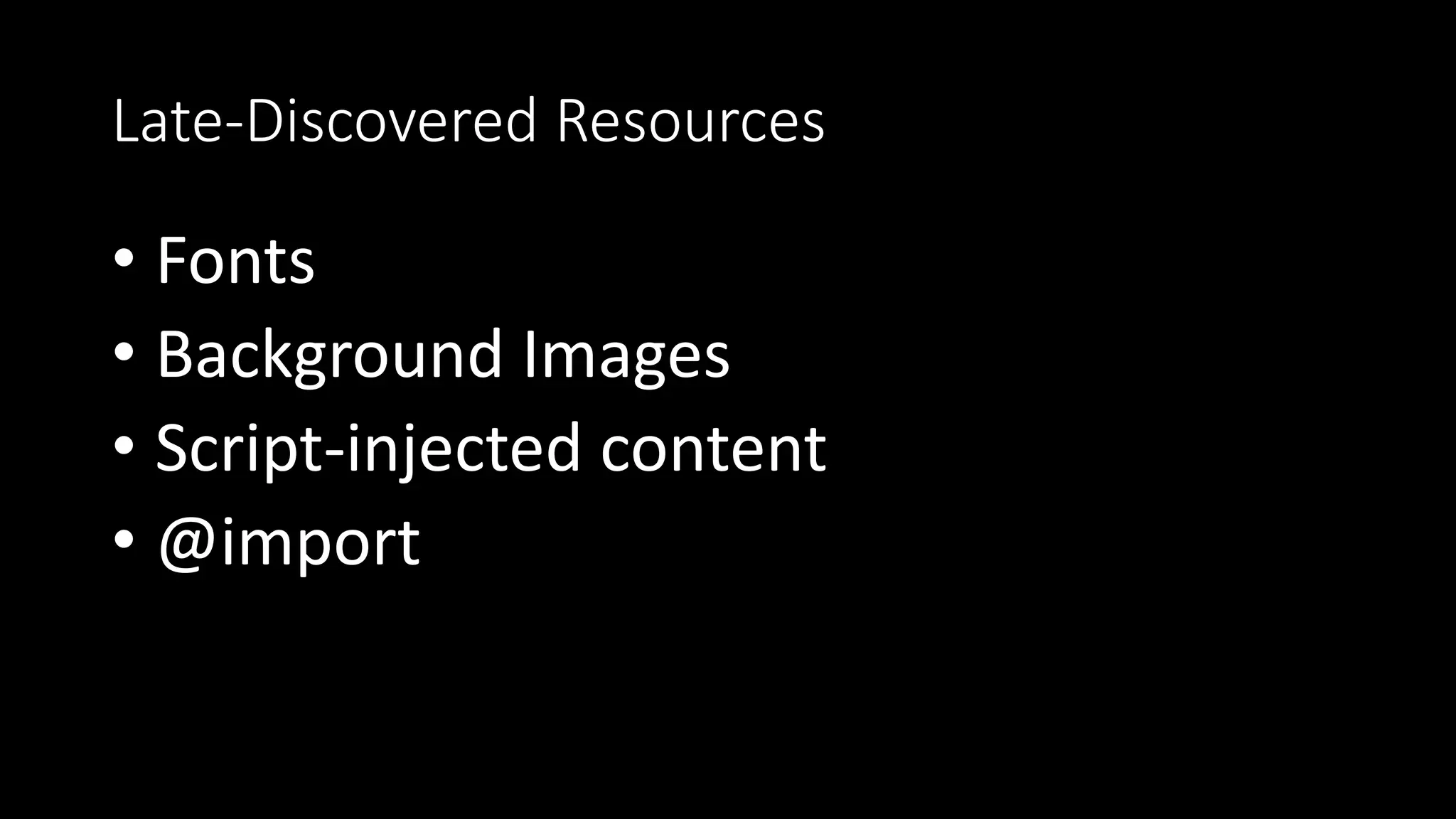

4. Late-Discovered Resources
• Fonts
• Background Images
• Script-injected content
• @import

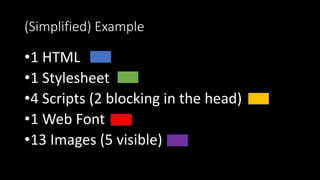

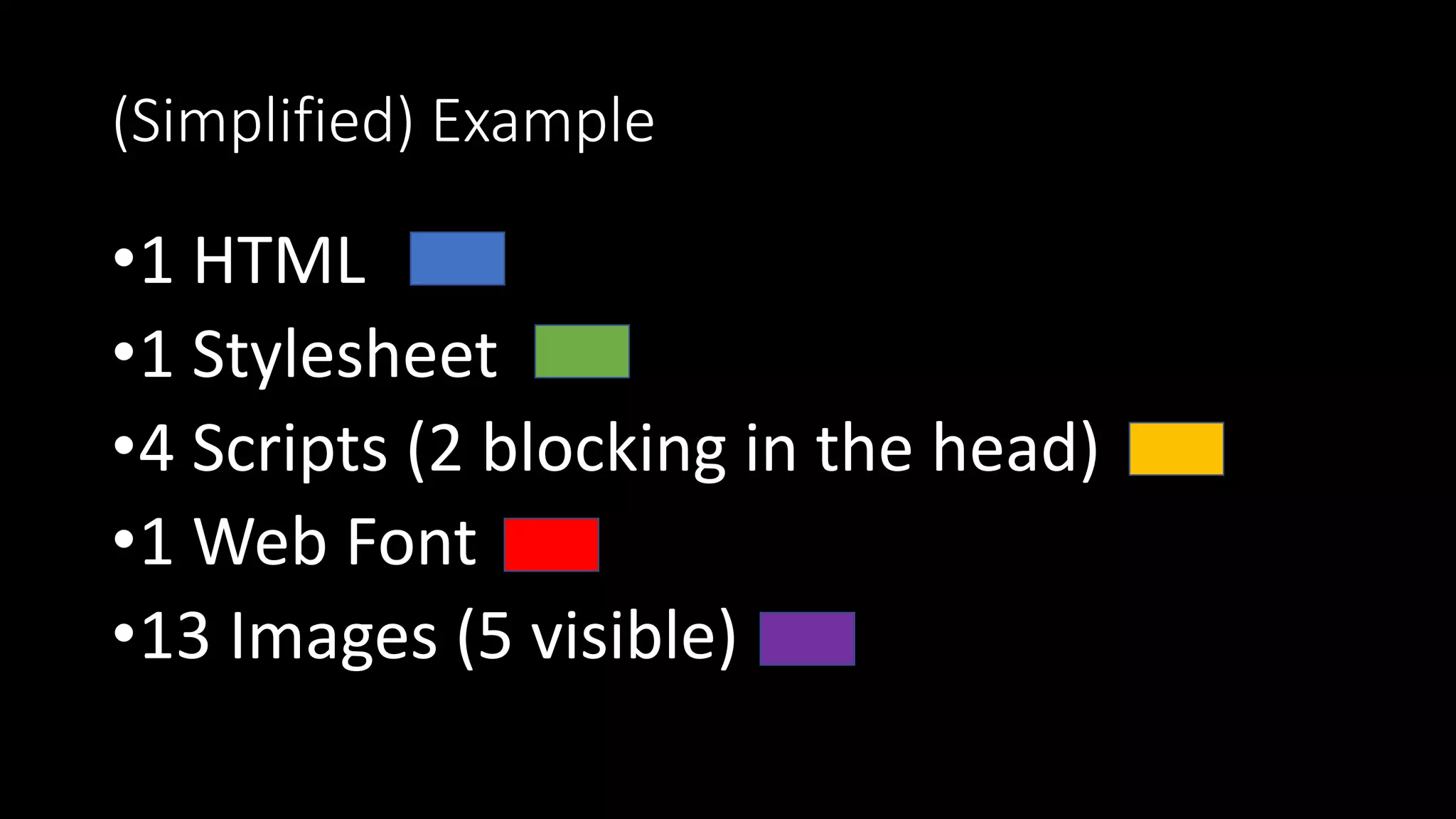

5. (Simplified) Example
•1 HTML
•1 Stylesheet
•4 Scripts (2 blocking in the head)
•1 Web Font
•13 Images (5 visible)

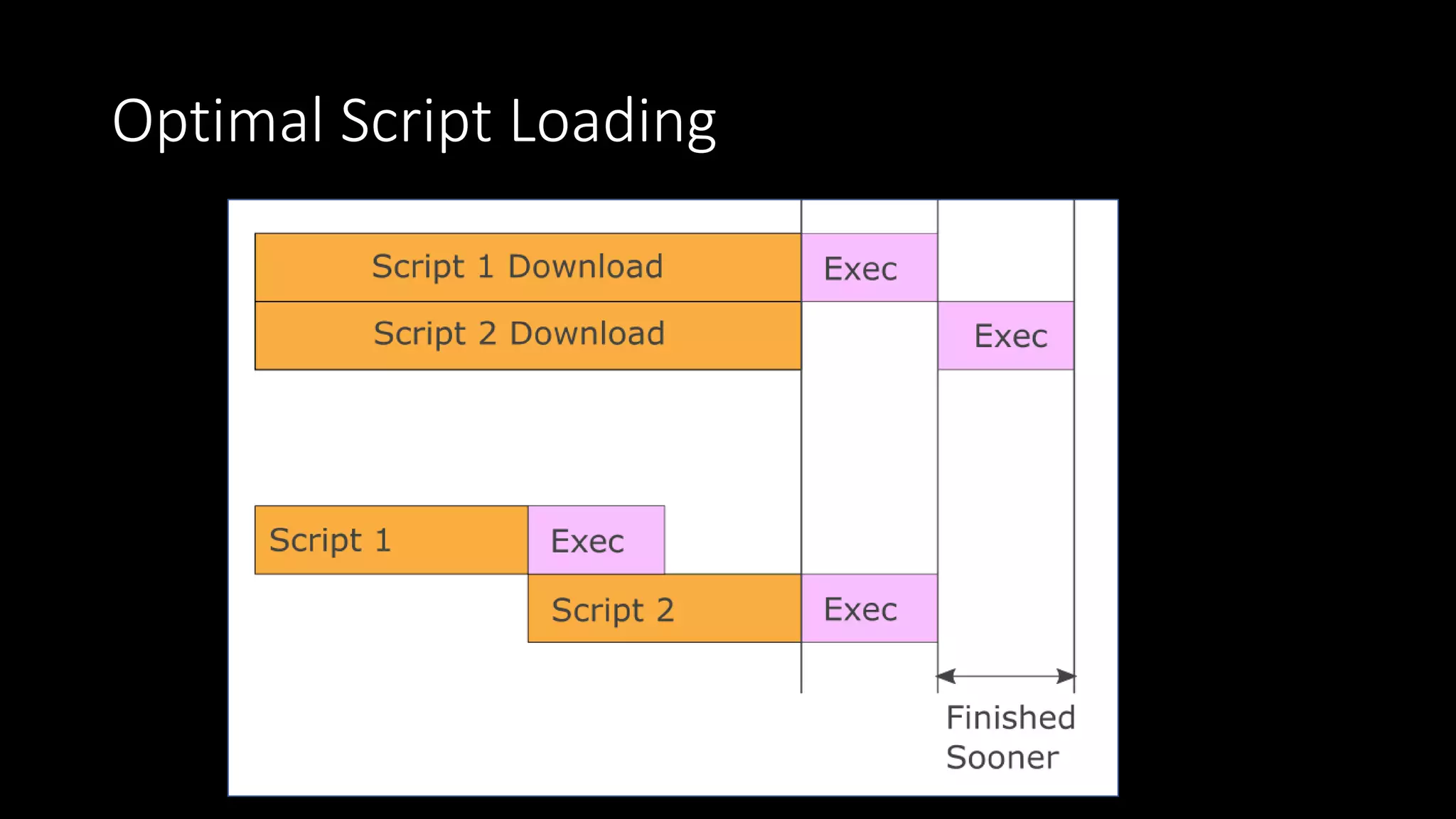

6. Optimal Script Loading

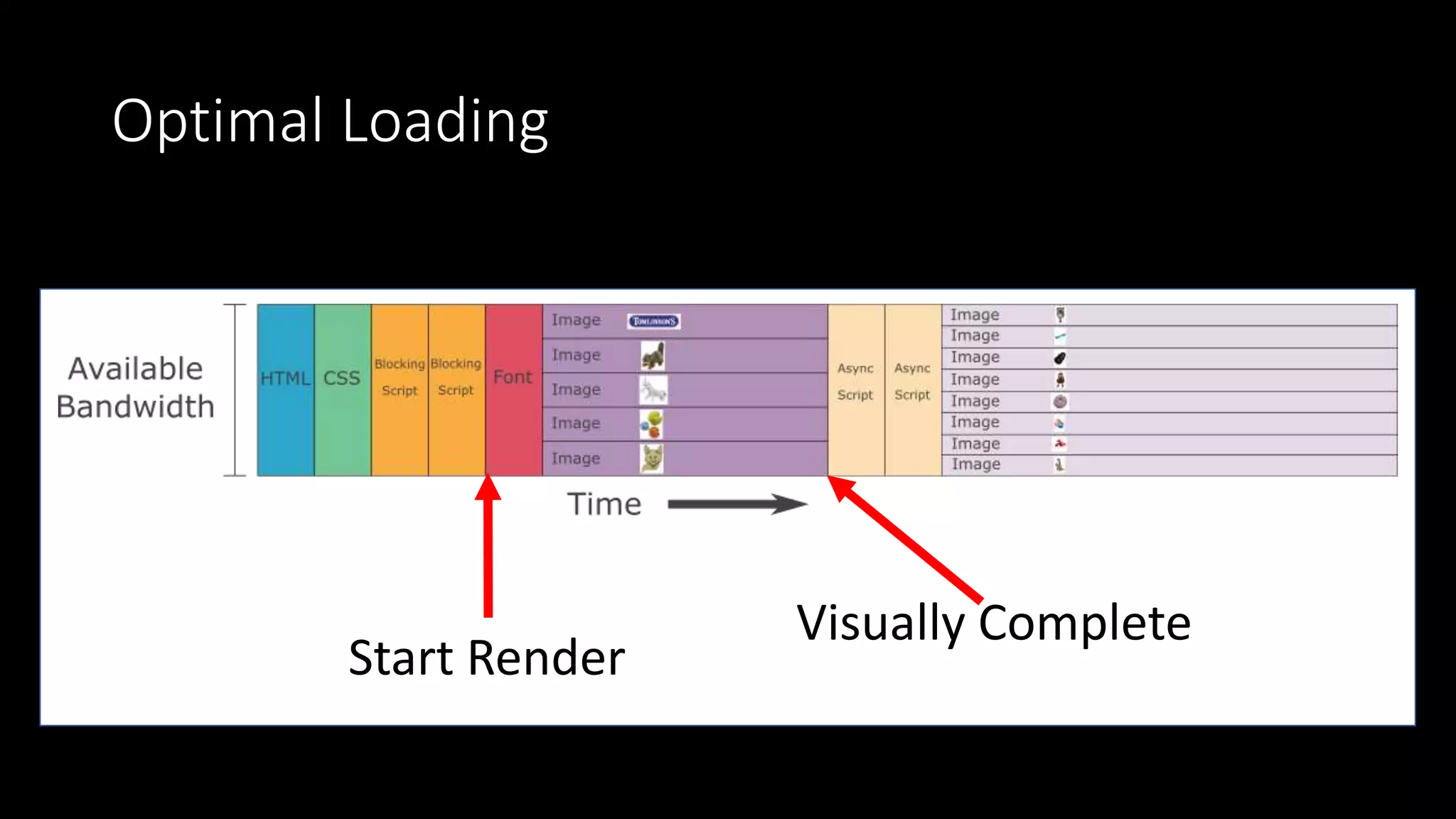

7. Optimal Loading
Start Render
Visually Complete

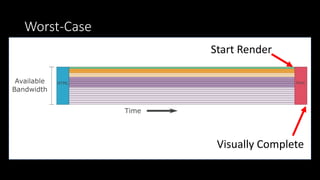

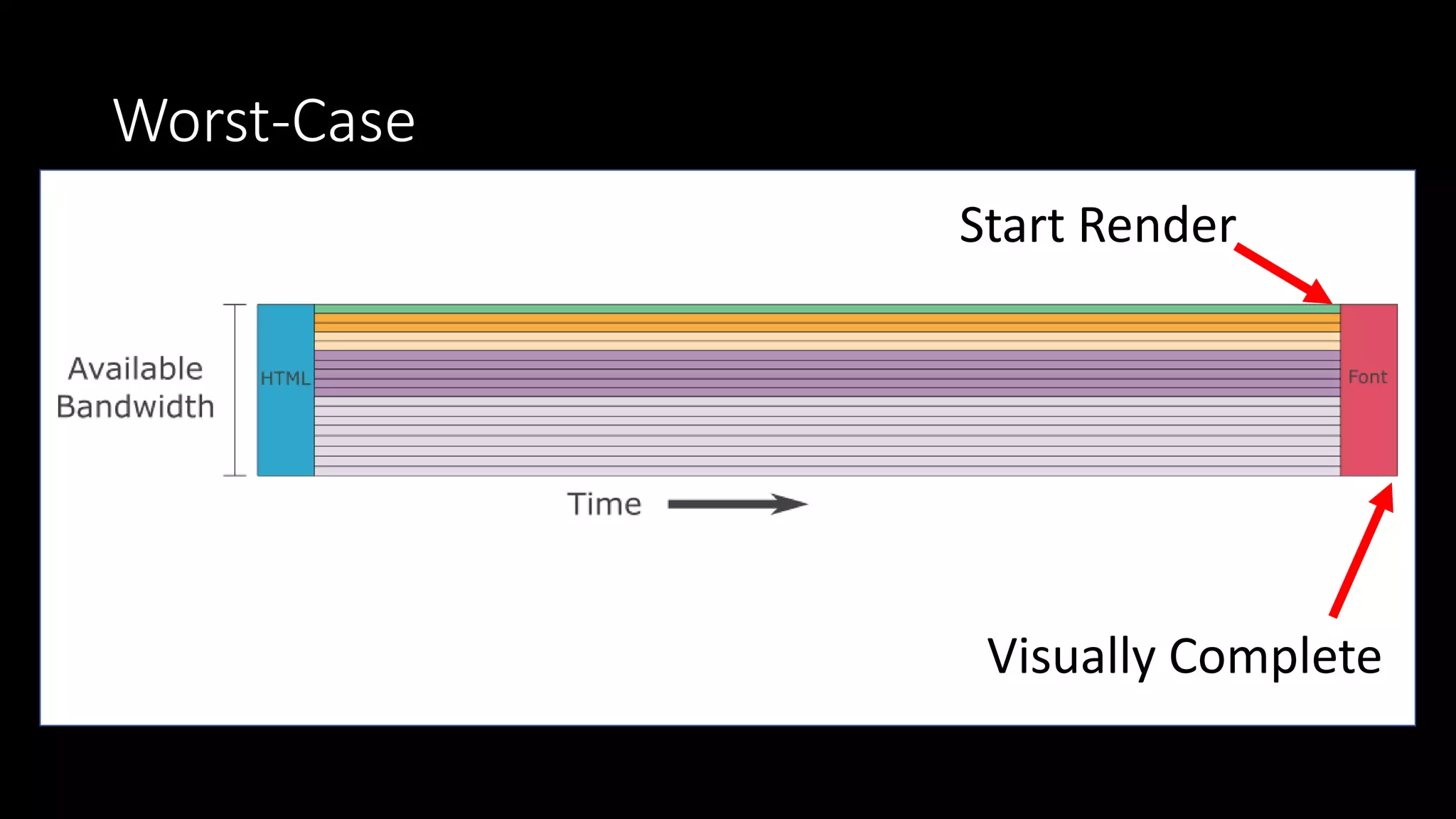

8. Worst-Case
Start Render
Visually Complete

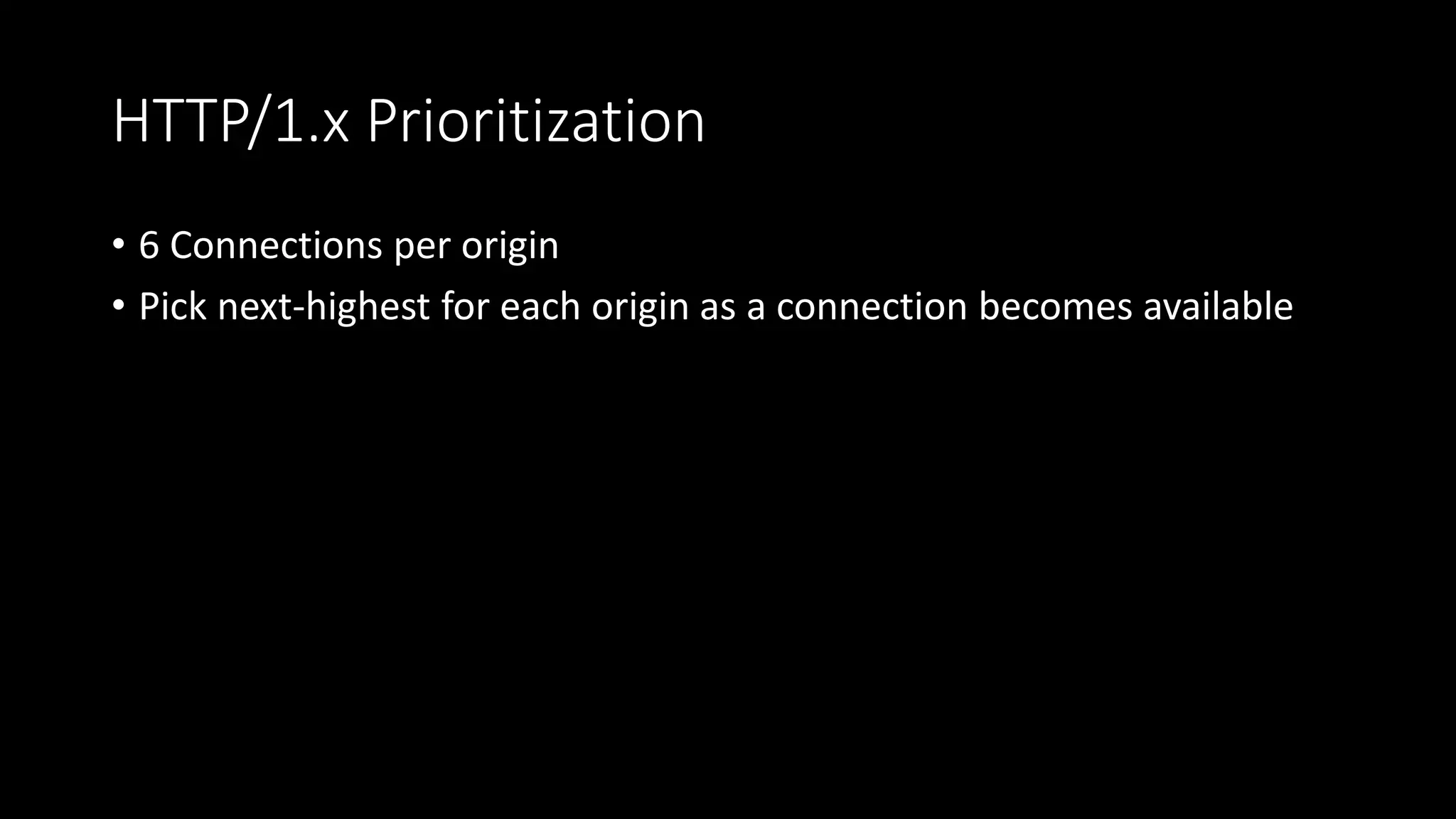

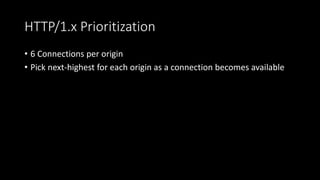

9. HTTP/1.x Prioritization
• 6 Connections per origin
• Pick next-highest for each origin as a connection becomes available

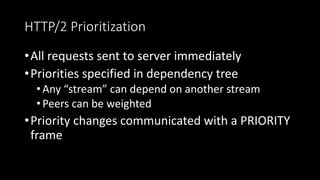

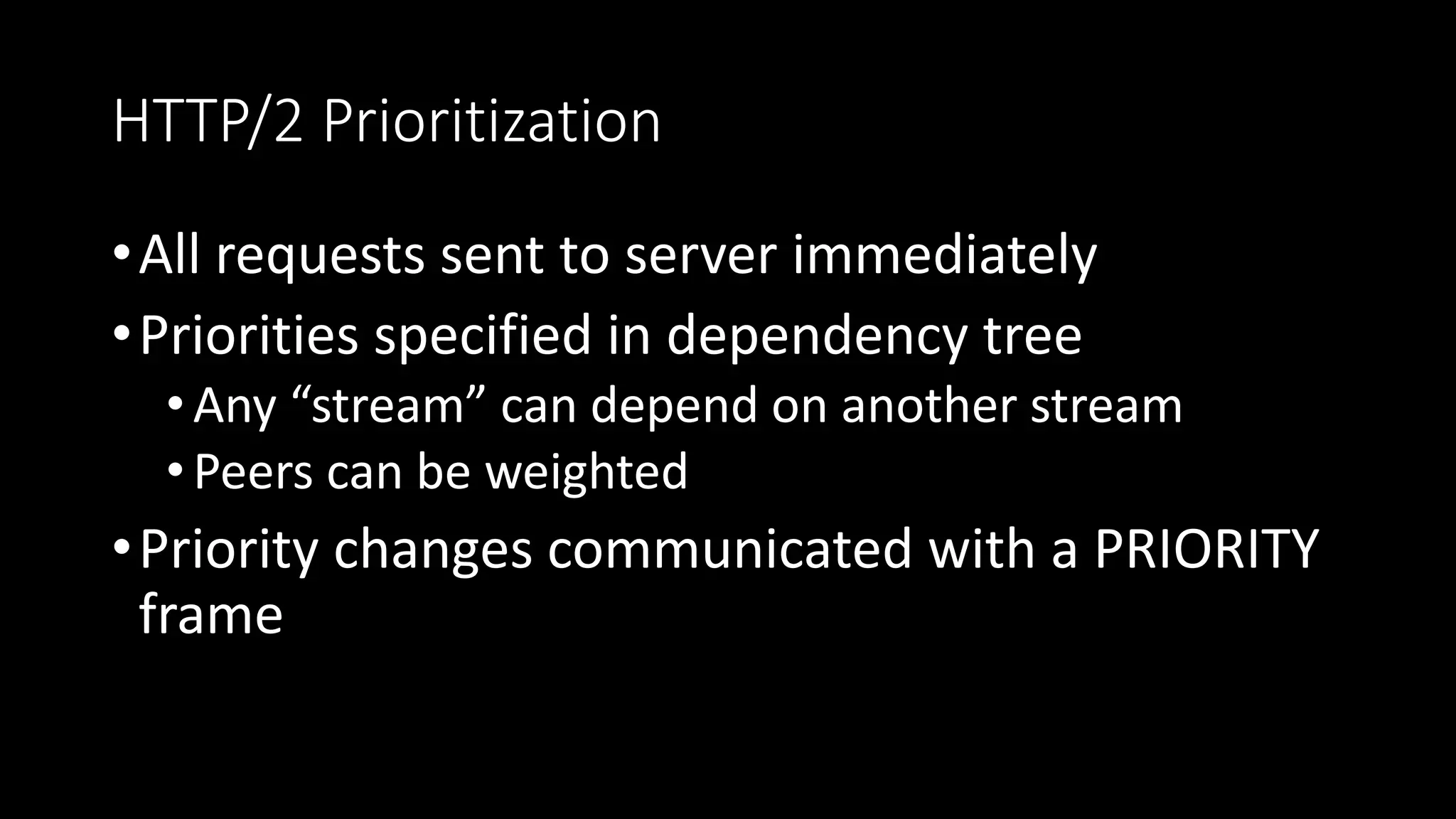

10. HTTP/2 Prioritization
•All requests sent to server immediately
•Priorities specified in dependency tree
•Any “stream” can depend on another stream
•Peers can be weighted
•Priority changes communicated with a PRIORITY
frame

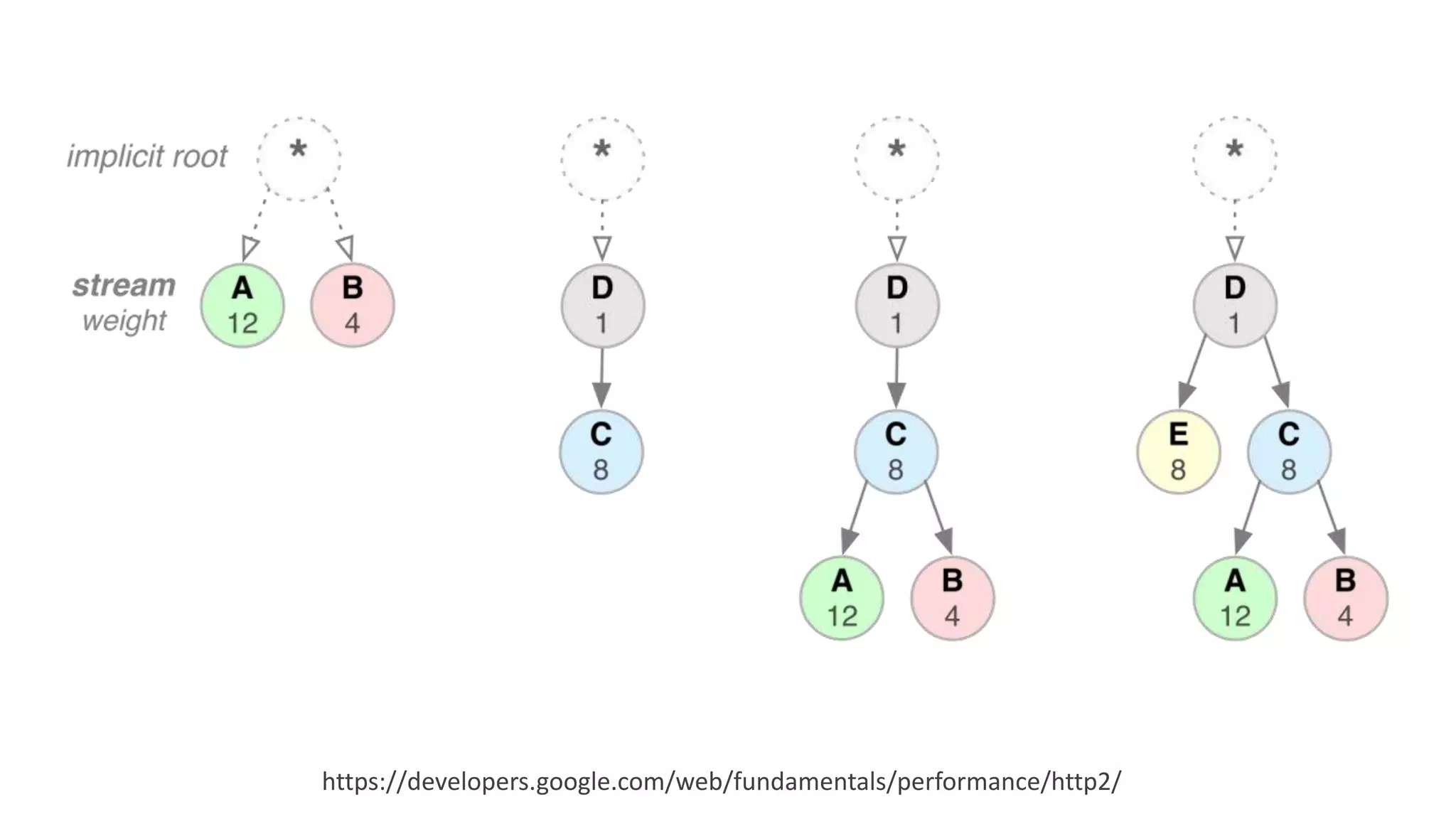

11. https://developers.google.com/web/fundamentals/performance/http2/

12. Browser Differences

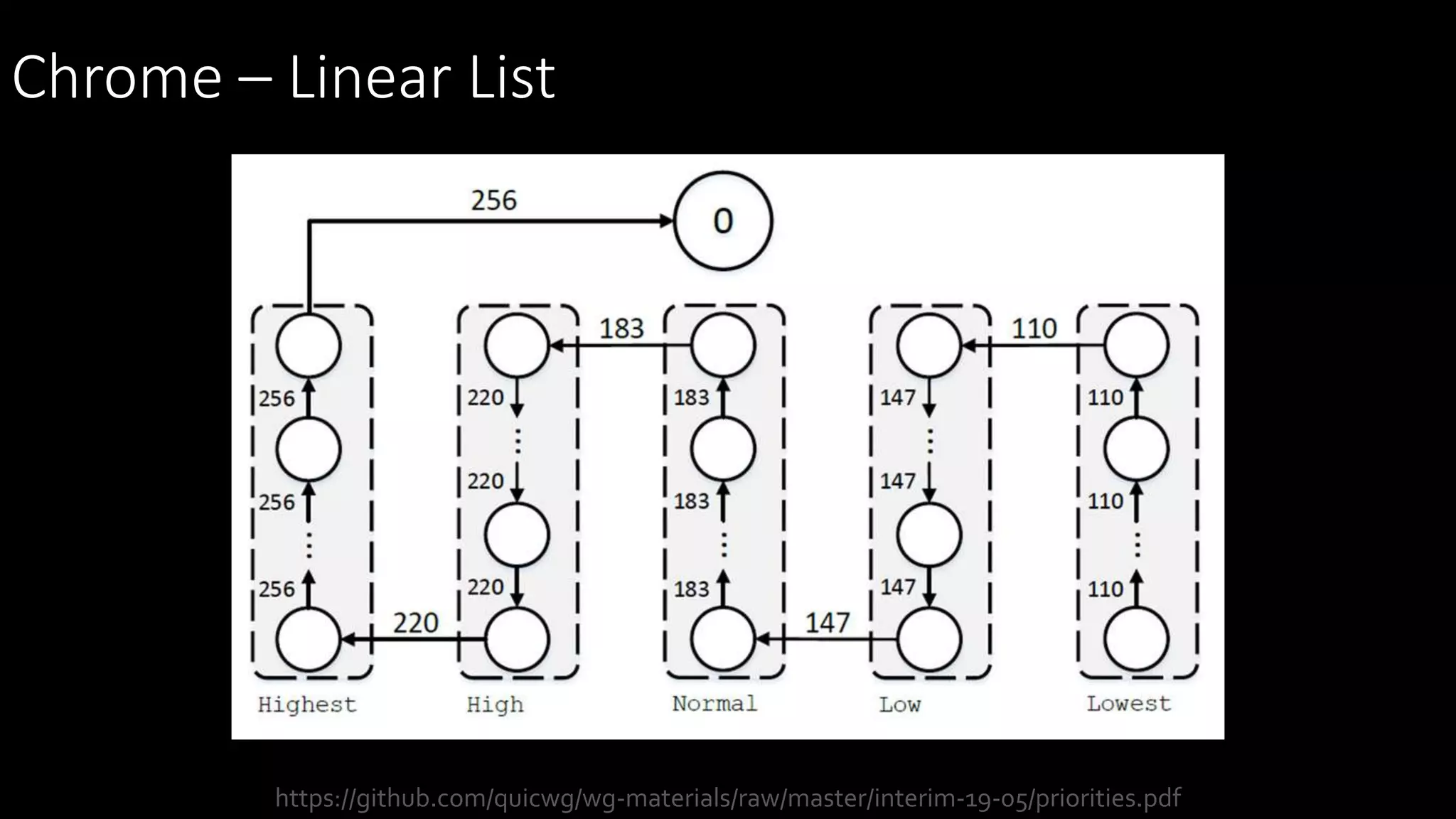

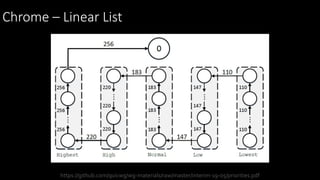

13. Chrome – Linear List
https://github.com/quicwg/wg-materials/raw/master/interim-19-05/priorities.pdf

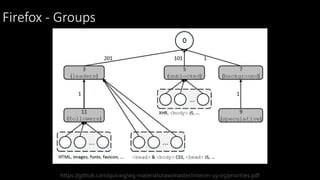

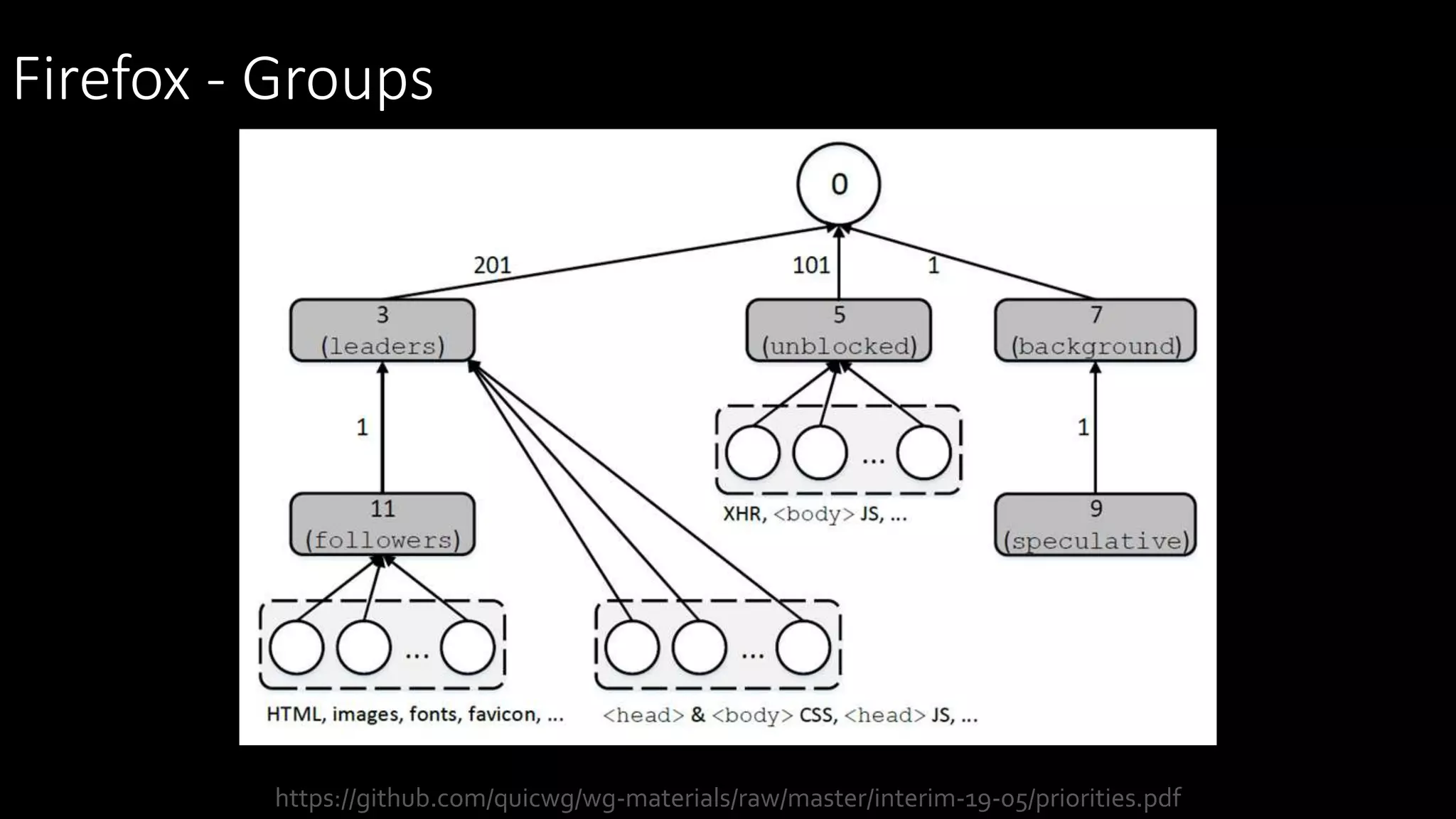

14. Firefox - Groups
https://github.com/quicwg/wg-materials/raw/master/interim-19-05/priorities.pdf

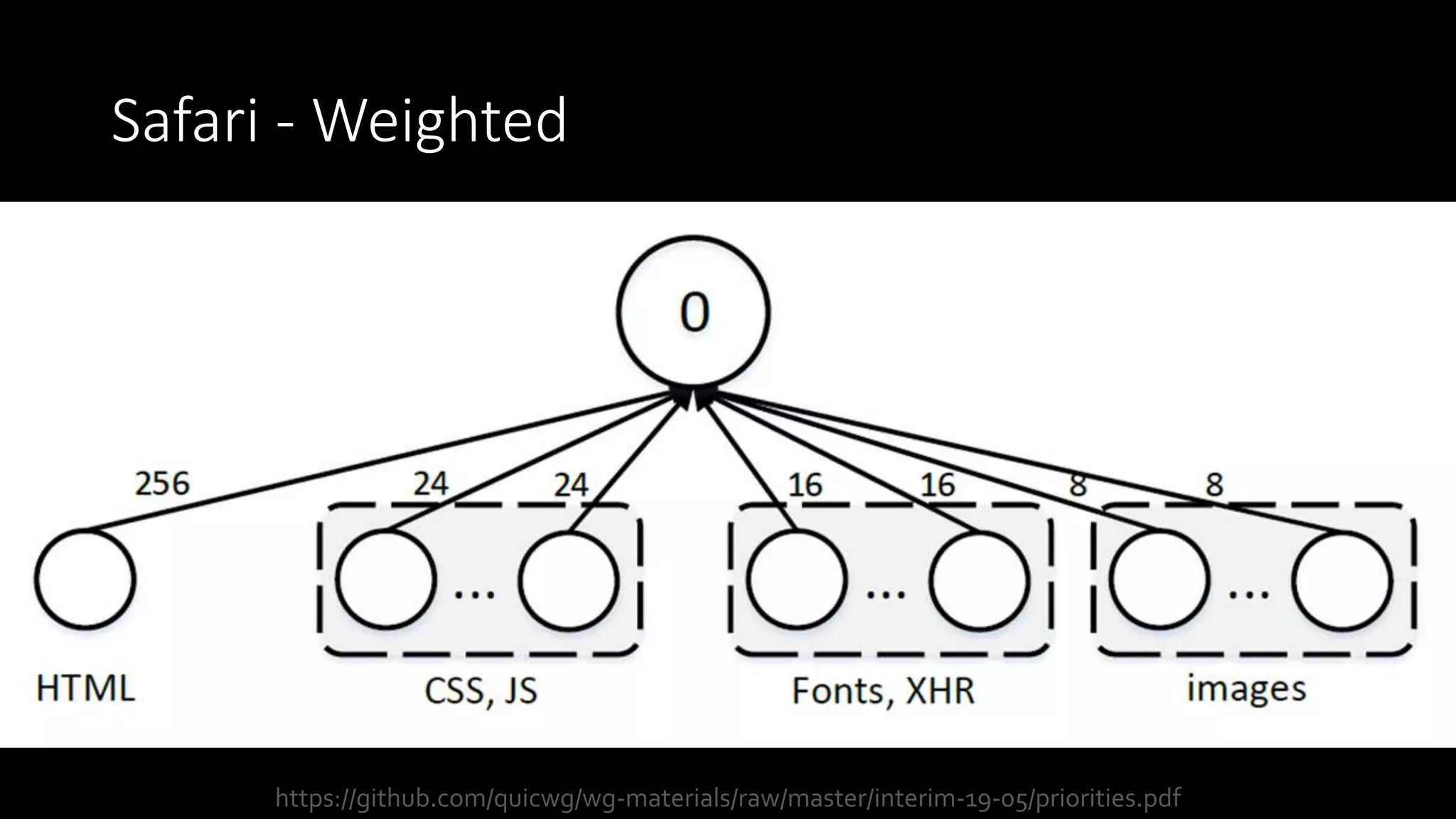

15. Safari - Weighted
https://github.com/quicwg/wg-materials/raw/master/interim-19-05/priorities.pdf

16. Edge (classic)
¯_(ツ)_/¯

17. Prioritizing across
connections

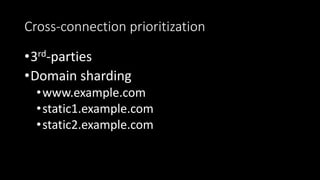

18. Cross-connection prioritization
•3rd-parties
•Domain sharding
•www.example.com
•static1.example.com
•static2.example.com

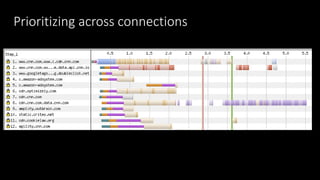

19. Prioritizing across connections

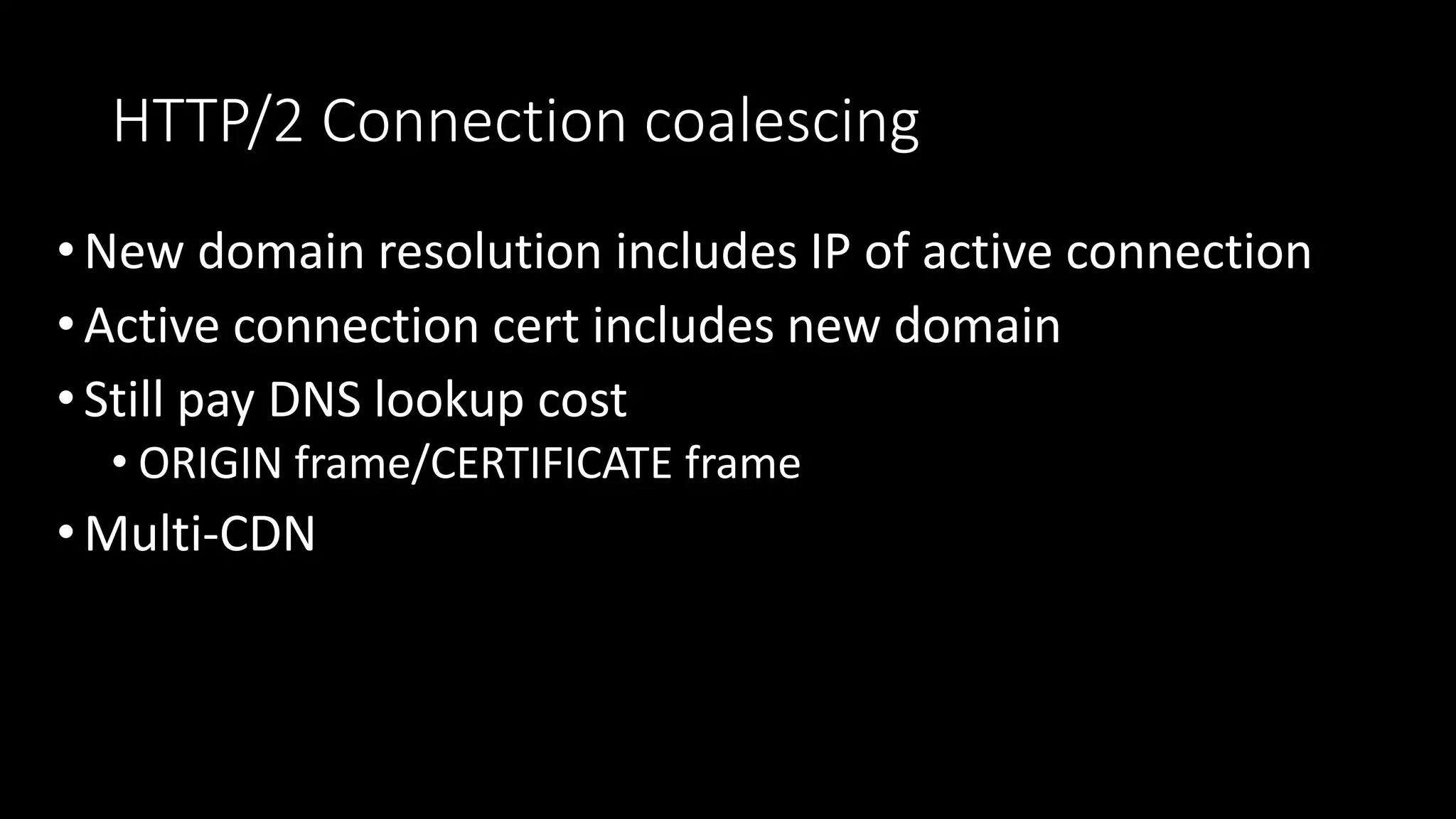

21. HTTP/2 Connection coalescing
•New domain resolution includes IP of active connection
•Active connection cert includes new domain
•Still pay DNS lookup cost
• ORIGIN frame/CERTIFICATE frame
•Multi-CDN

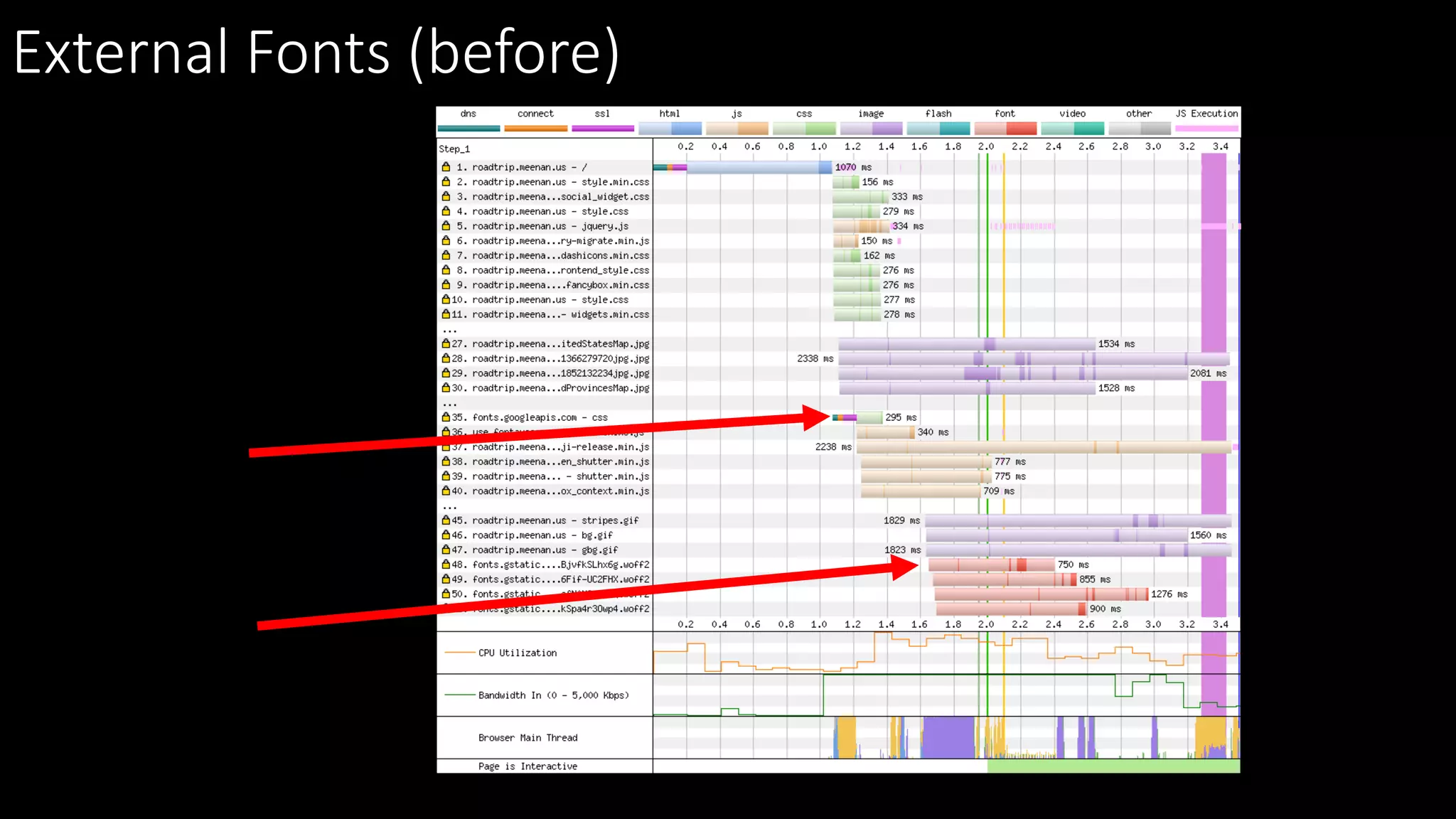

22. External Fonts (before)

23. Same-origin fonts (wtf)
Start Render

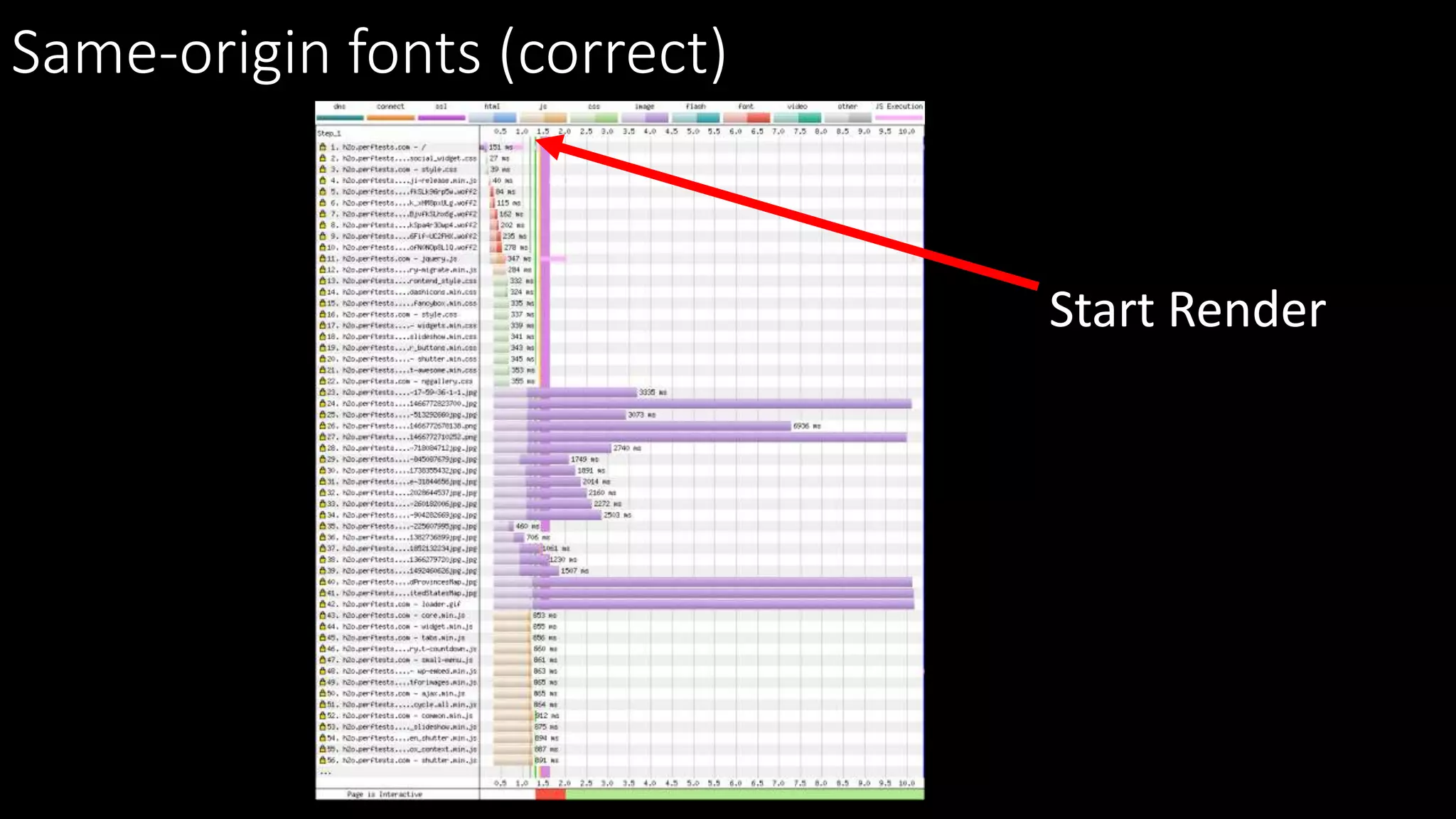

24. Same-origin fonts (correct)
Start Render

25. https://twitter.com/zachleat/status/1055219667894259712

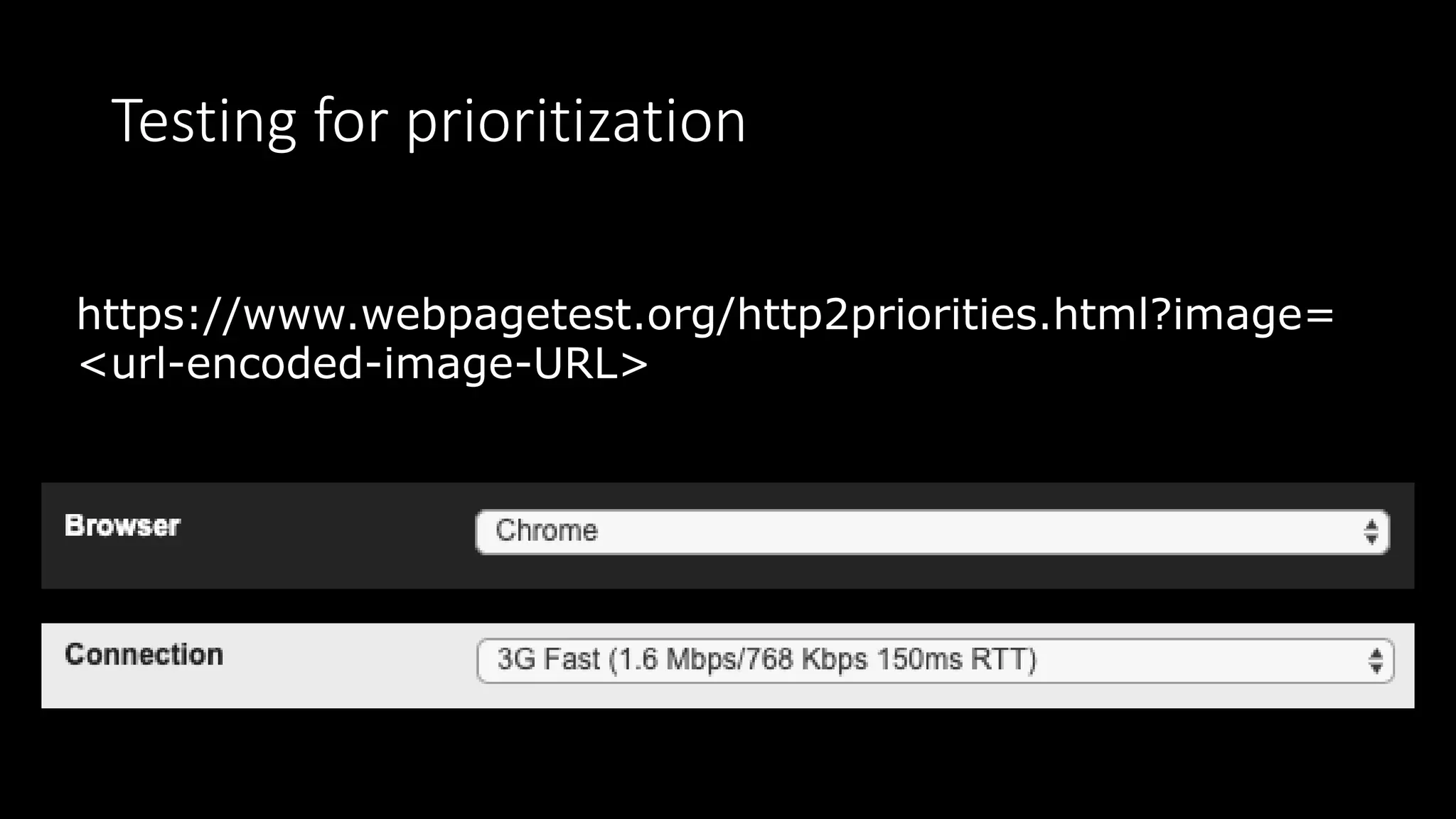

26. Testing for prioritization
https://www.webpagetest.org/http2priorities.html?image=
<url-encoded-image-URL>

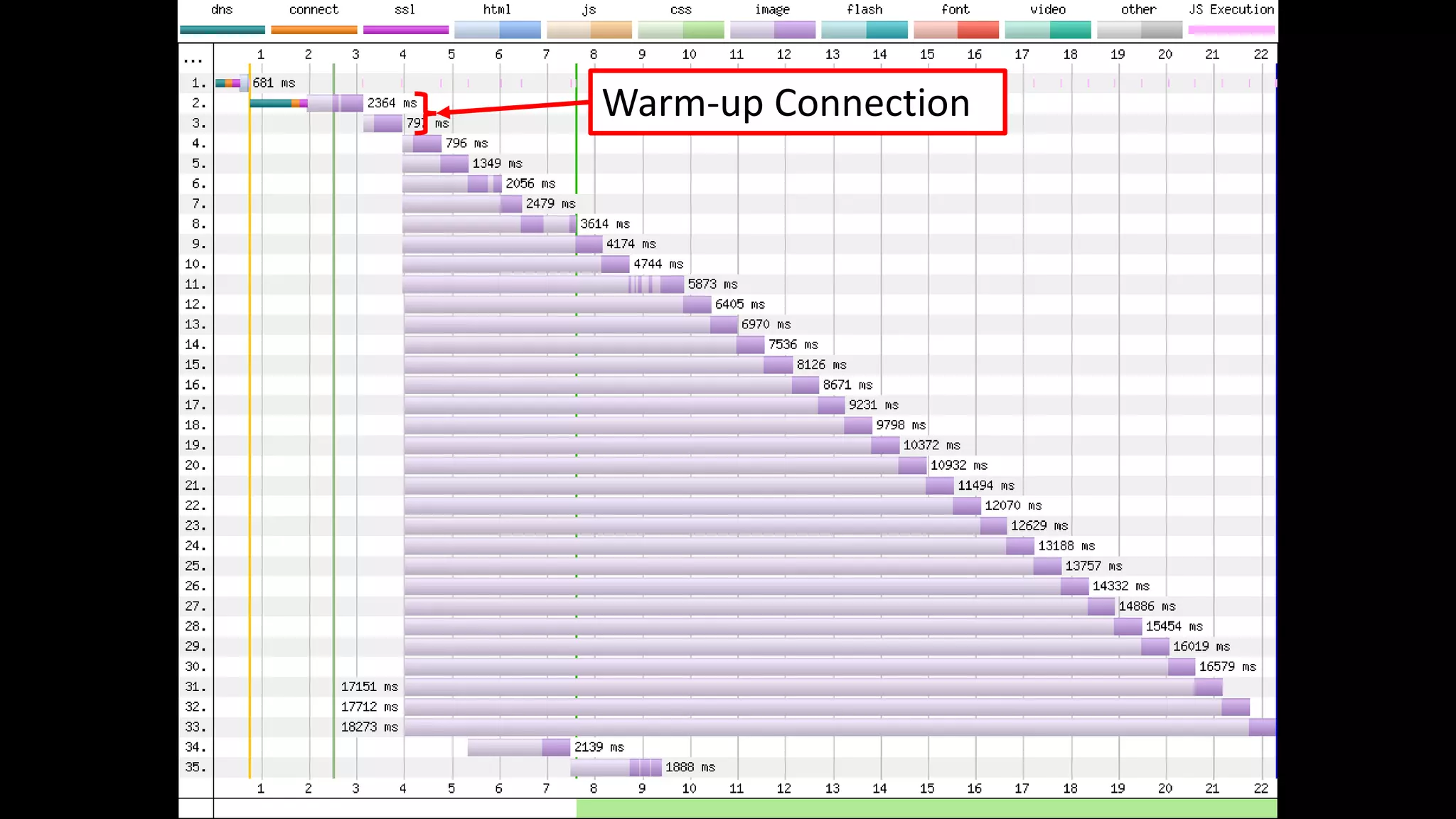

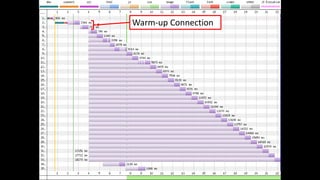

27. Warm-up Connection

28. Request 30
below-the-fold
Images
(low priority)

29. Delay until 2 images complete

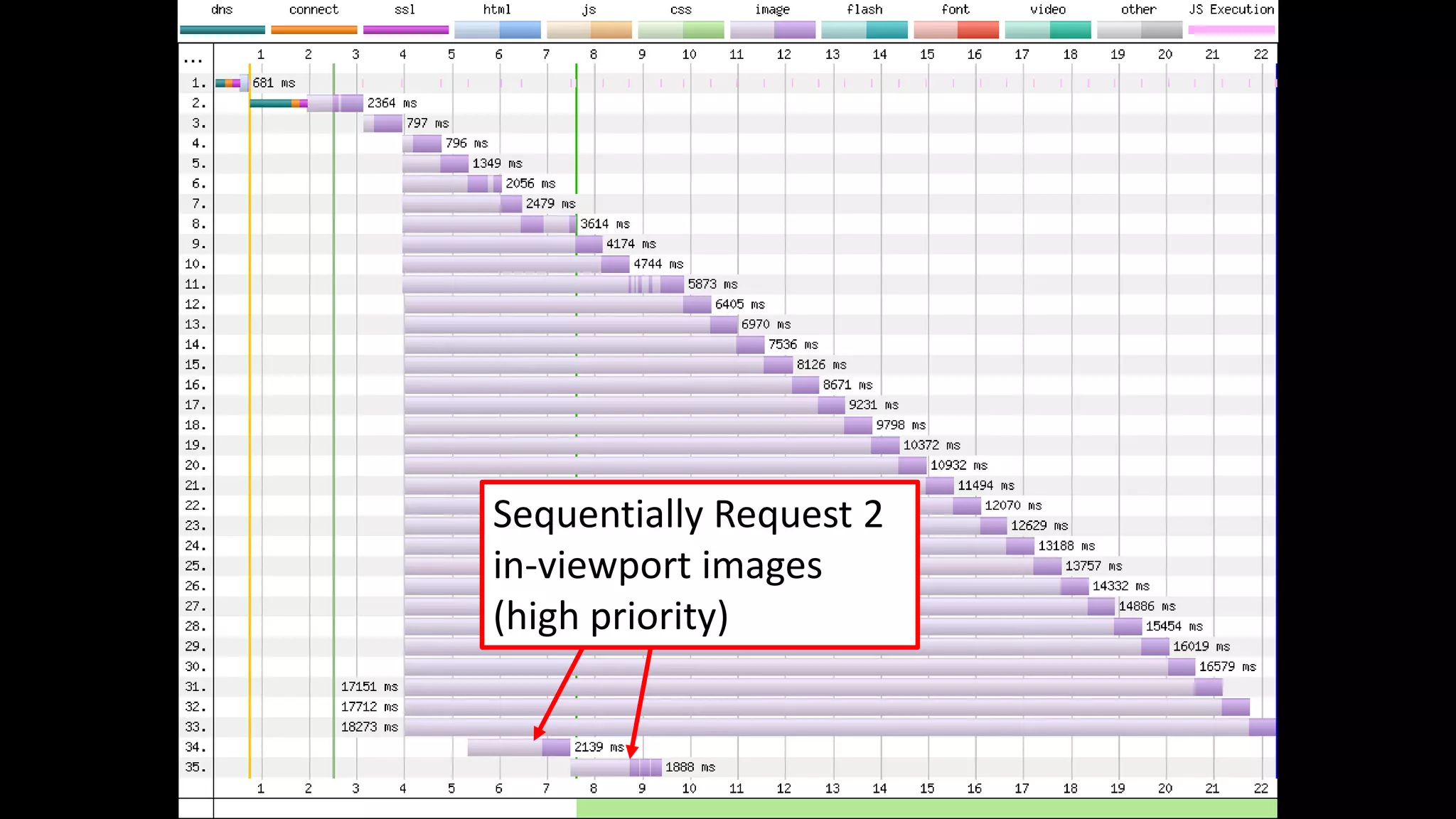

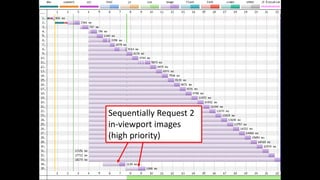

30. Sequentially Request 2
in-viewport images
(high priority)

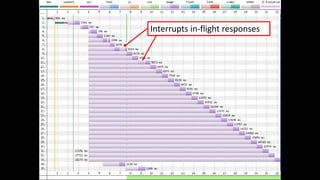

31. Interrupts in-flight responses

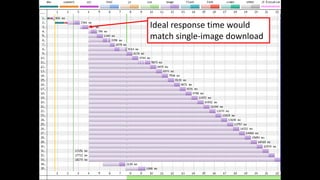

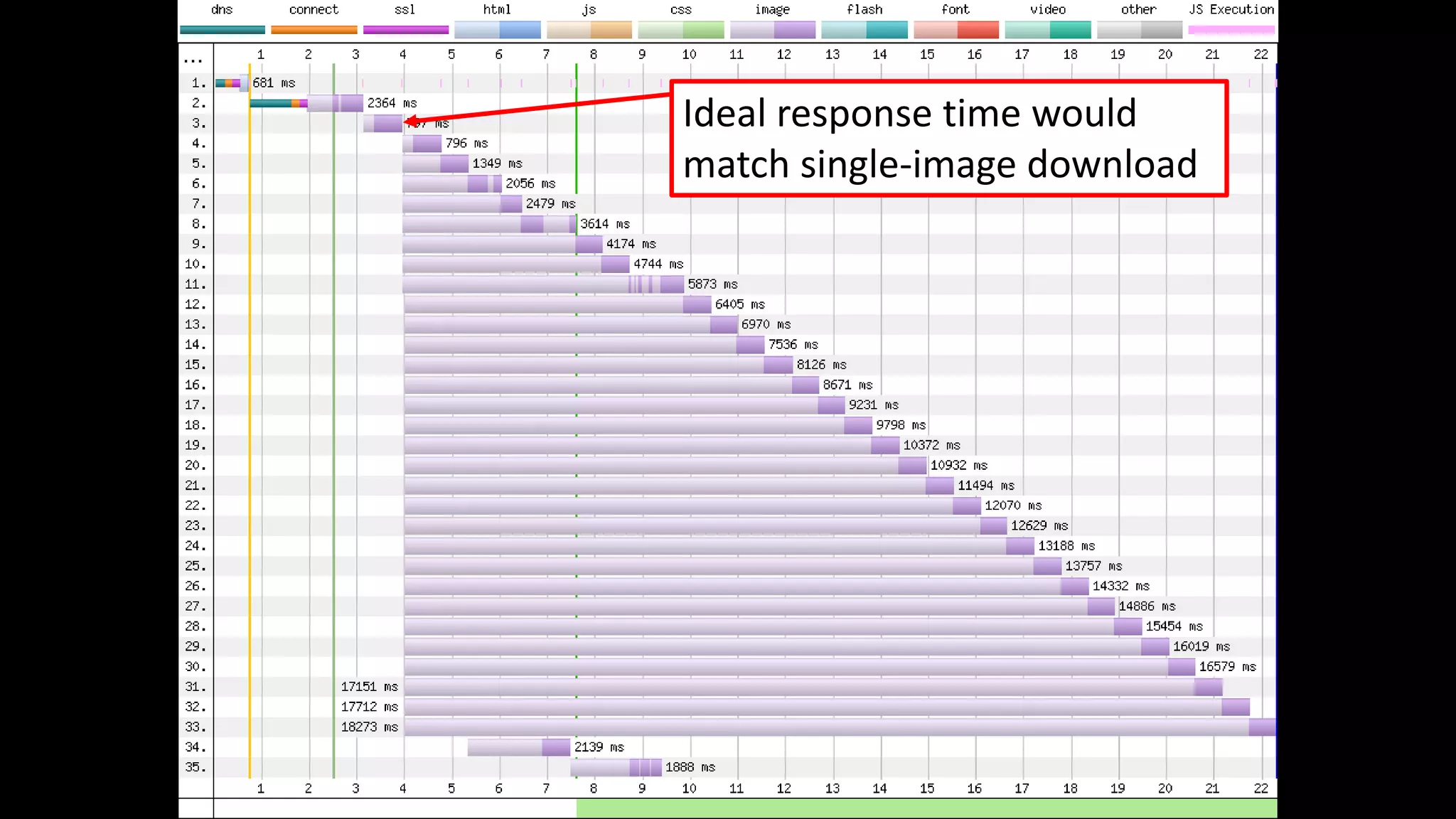

32. Ideal response time would
match single-image download

33. When it goes wrong

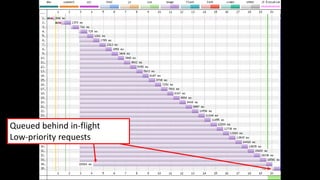

34. Queued behind in-flight
Low-priority requests

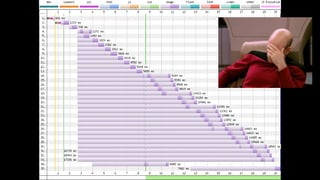

35. Round Robin?

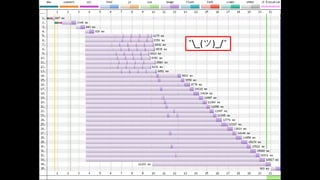

36. ¯_(ツ)_/¯

39. ishttp2fastyet.com

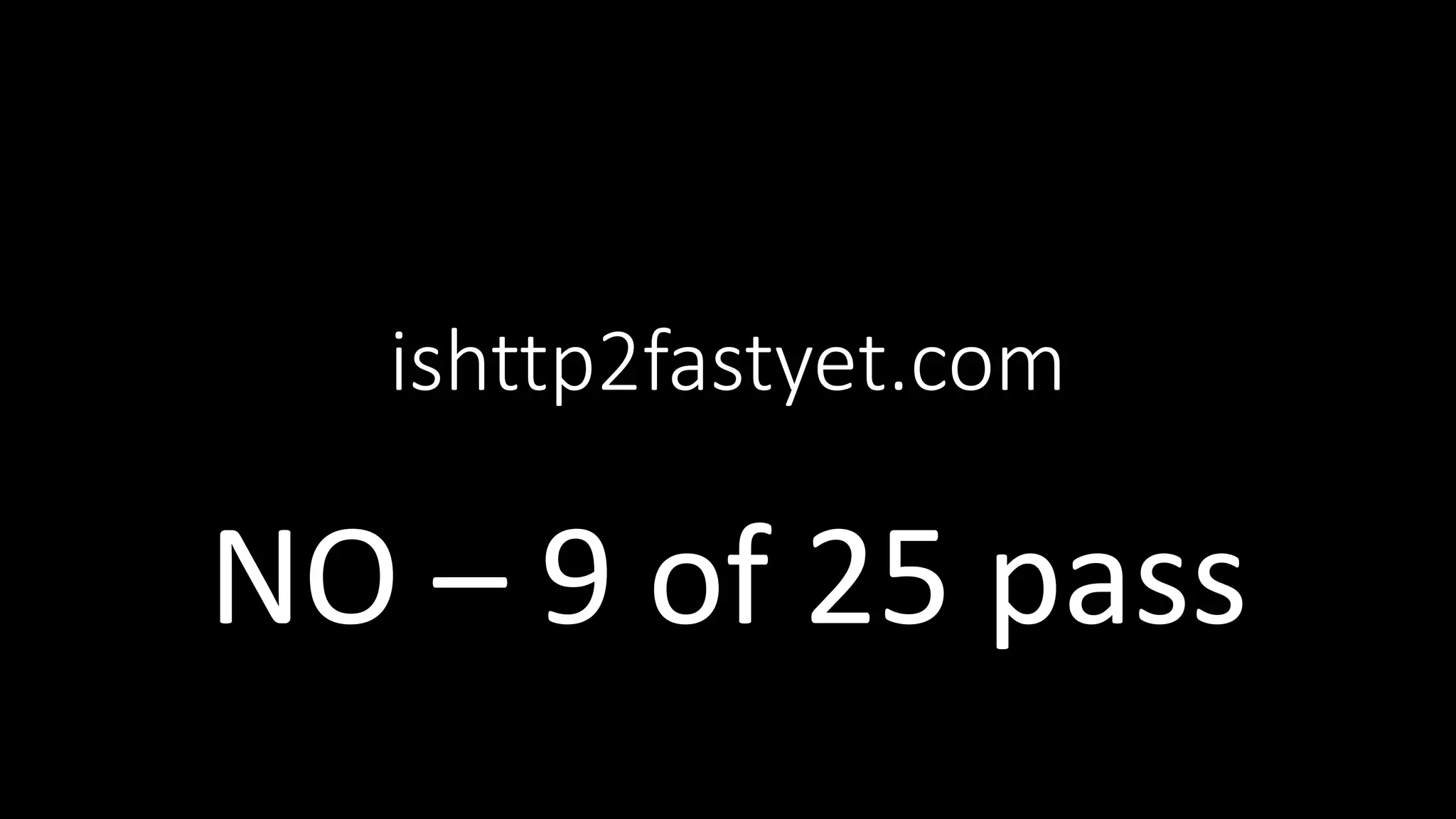

40. ishttp2fastyet.com
NO – 9 of 25 pass

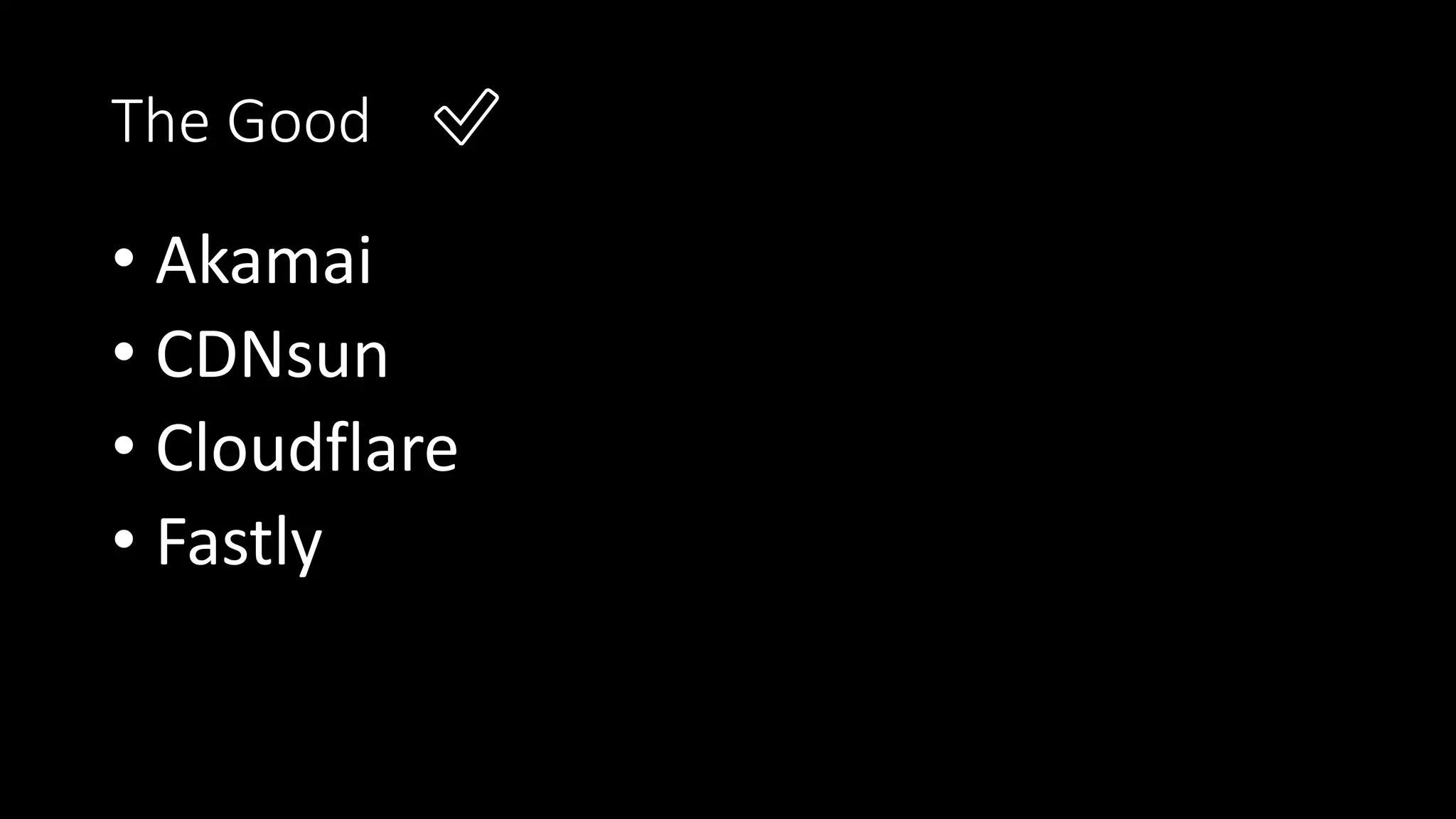

41. The Good ✅
• Akamai
• CDNsun
• Cloudflare
• Fastly

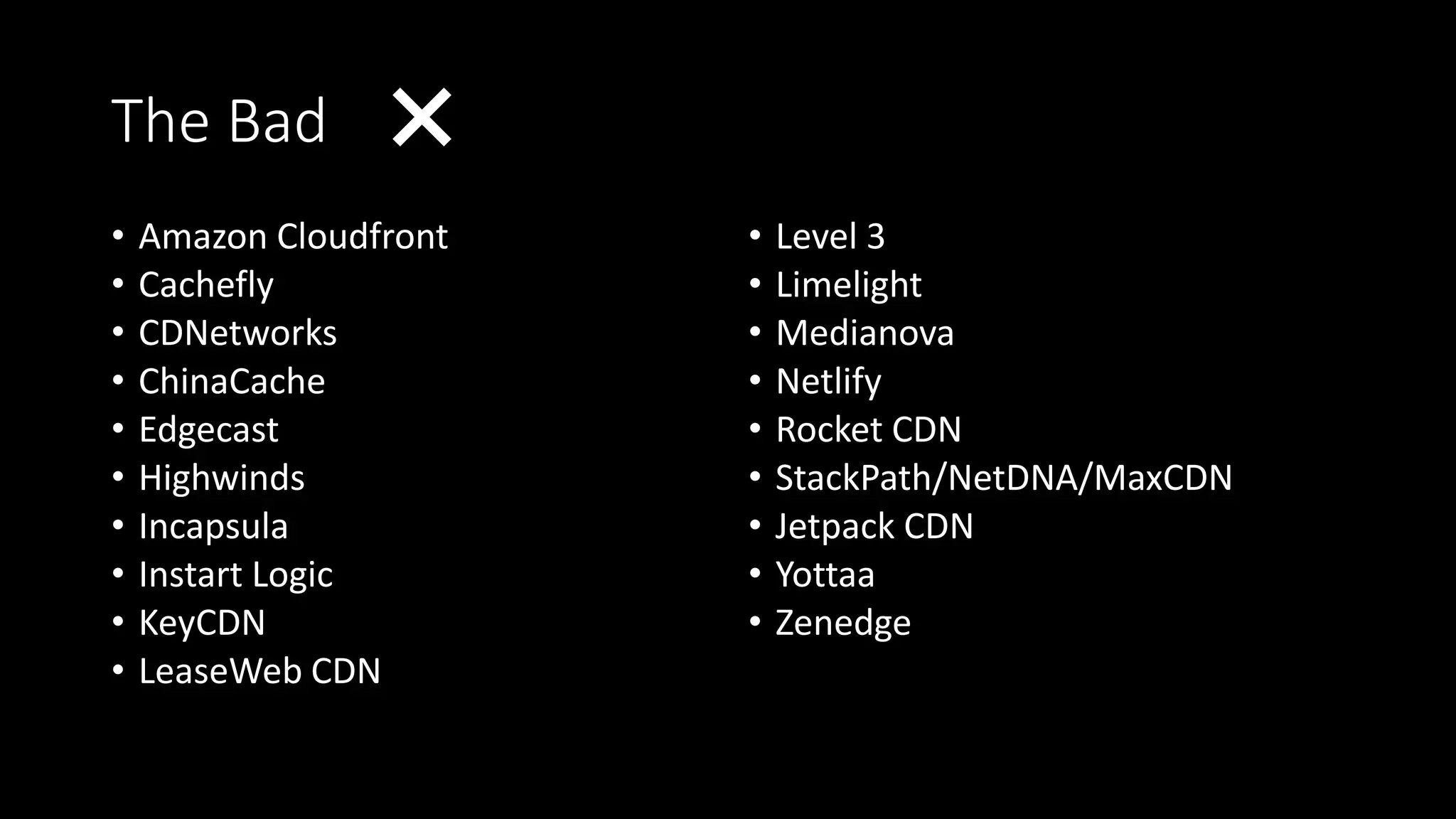

42. The Bad ❌
• Amazon Cloudfront
• Cachefly
• CDNetworks
• ChinaCache
• Edgecast
• Highwinds
• Incapsula
• Instart Logic
• KeyCDN
• LeaseWeb CDN
• Level 3
• Limelight
• Medianova
• Netlify
• Rocket CDN
• StackPath/NetDNA/MaxCDN
• Jetpack CDN
• Yottaa
• Zenedge

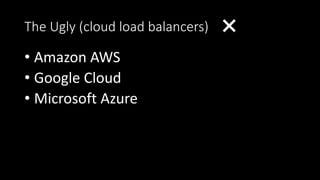

43. The Ugly (cloud load balancers) ❌
• Amazon AWS
• Google Cloud
• Microsoft Azure

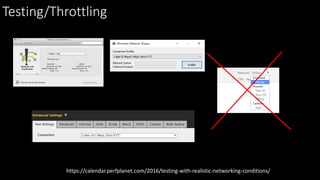

44. Testing/Throttling
https://calendar.perfplanet.com/2016/testing-with-realistic-networking-conditions/

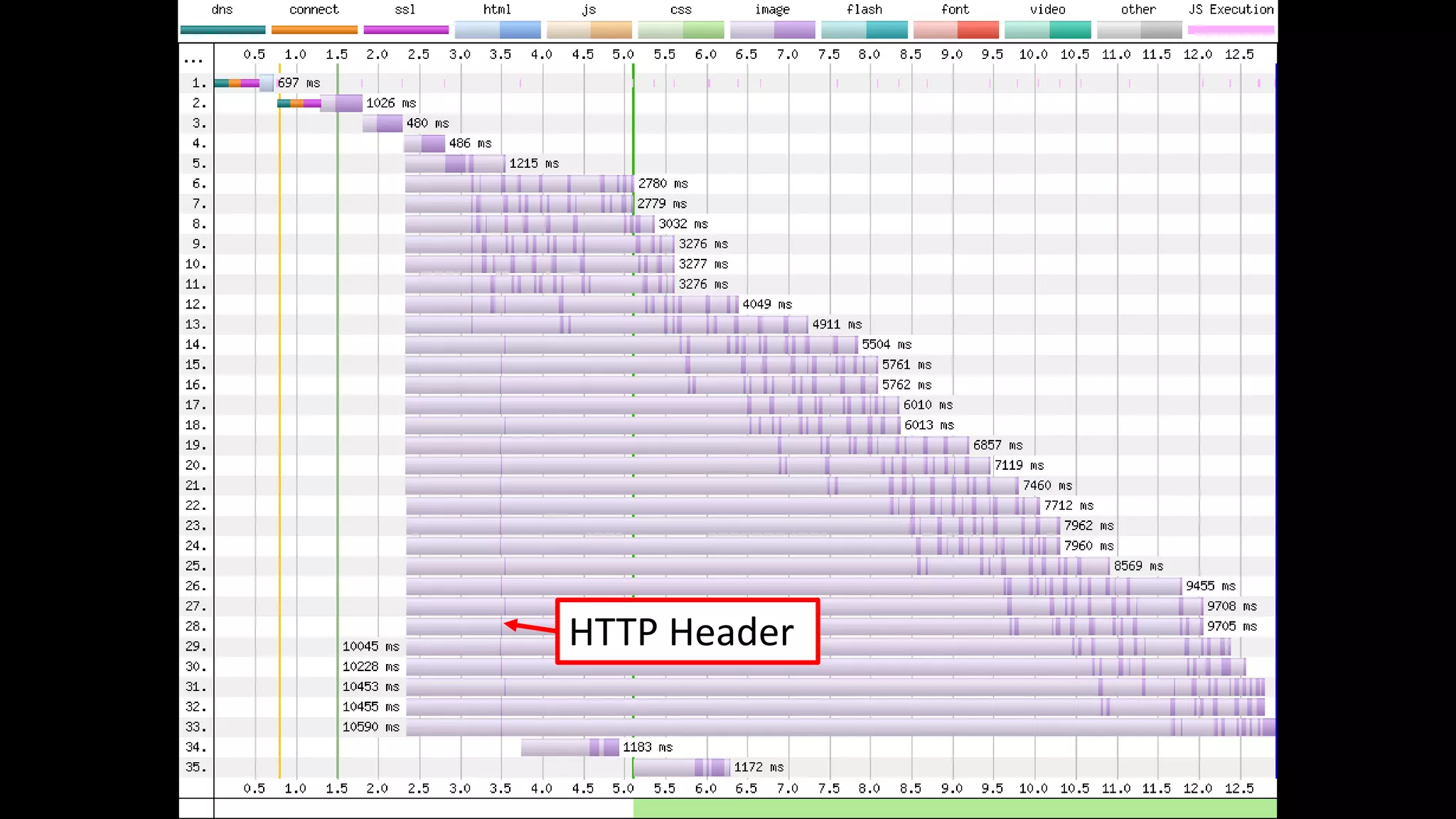

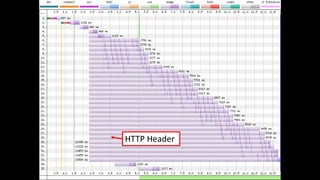

46. HTTP Header

47. Performance Monitoring
• Understand what (if any) traffic-shaping is
used
• Watch out for (avoid):
•Dev Tools
•Lighthouse
•Puppeteer
•Proxy

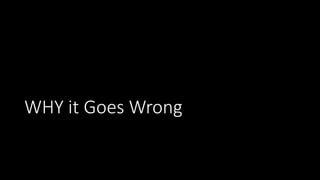

48. WHY it Goes Wrong

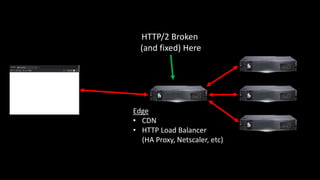

49. Edge
• CDN
• HTTP Load Balancer
(HA Proxy, Netscaler, etc)
HTTP/2 Broken
(and fixed) Here

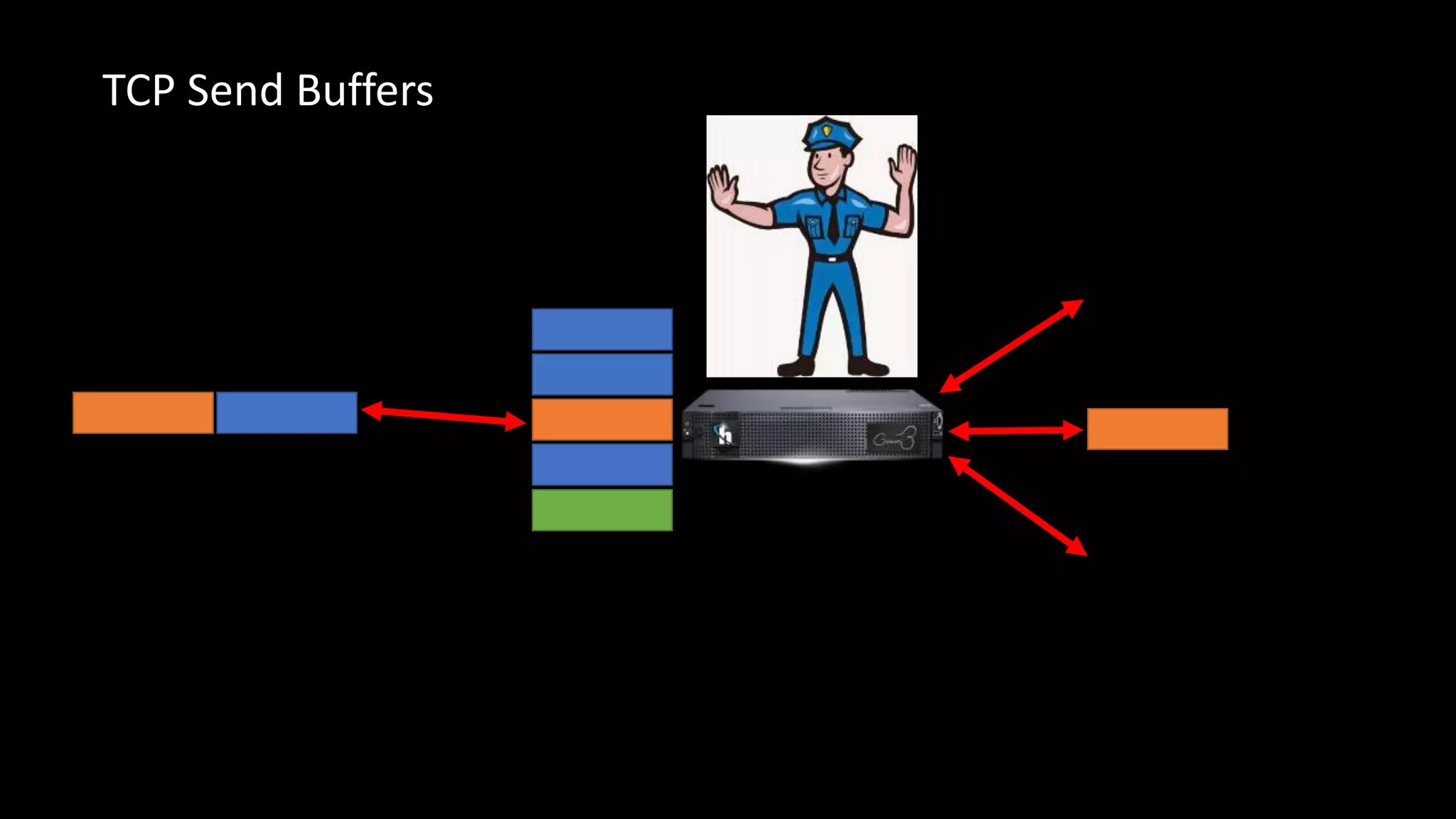

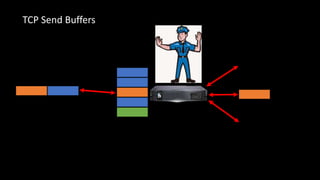

51. TCP Send Buffers

52. Over-buffering (TCP)
• Impact on reprioritization
• Server metrics (send time artificially low)

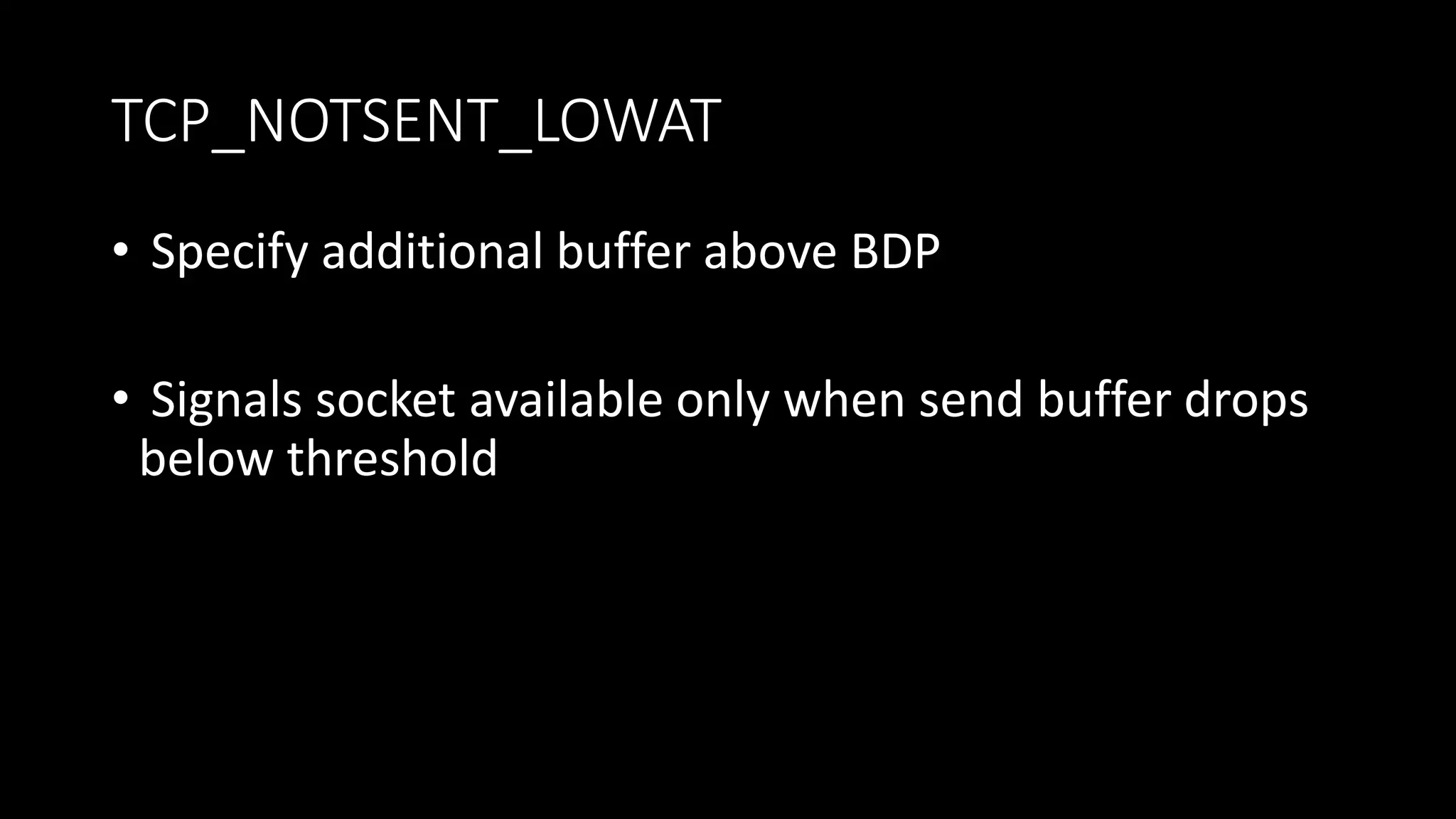

53. TCP_NOTSENT_LOWAT
• Specify additional buffer above BDP
• Signals socket available only when send buffer drops
below threshold

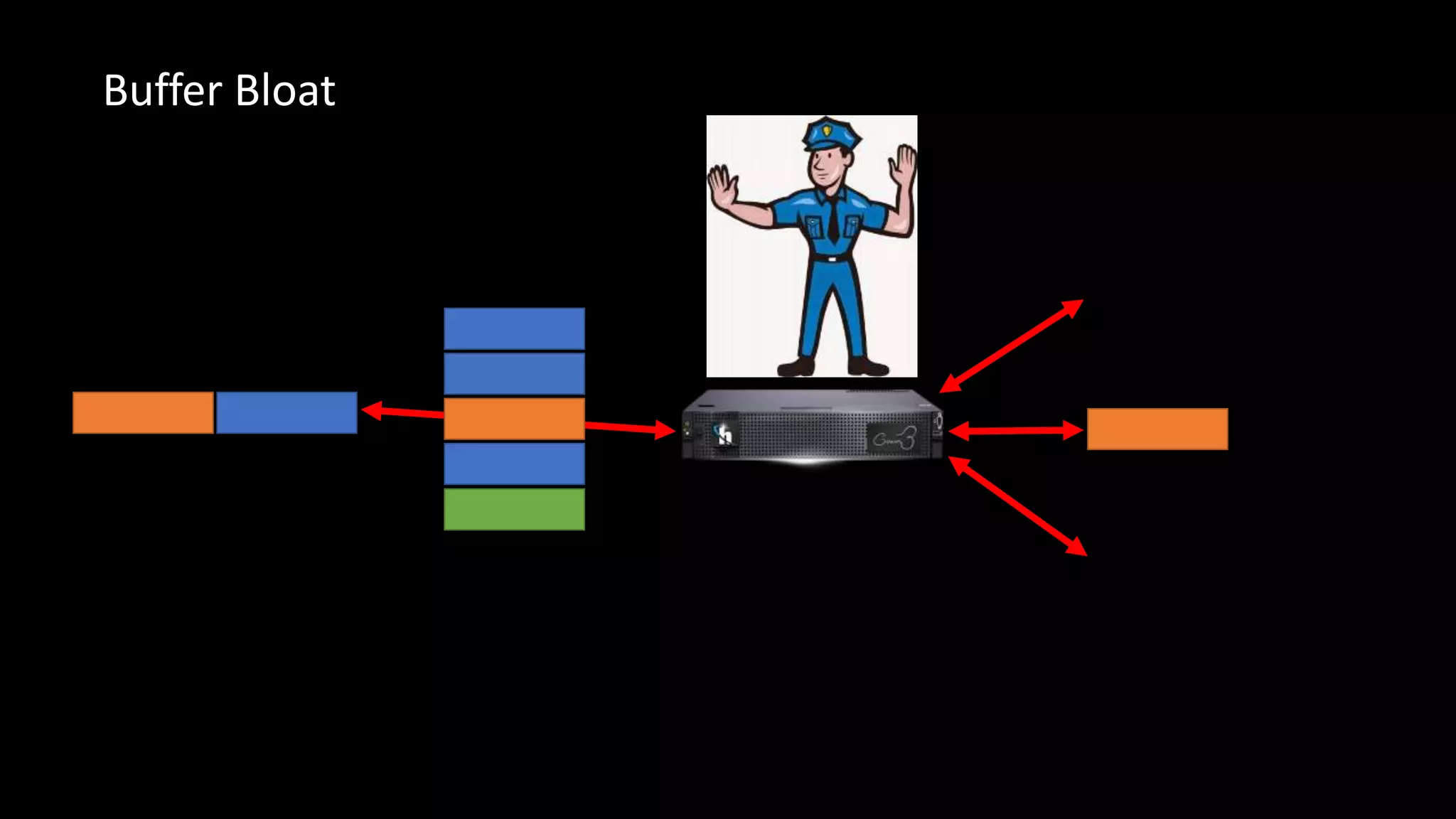

54. Buffer Bloat

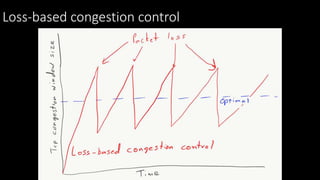

55. Loss-based congestion control

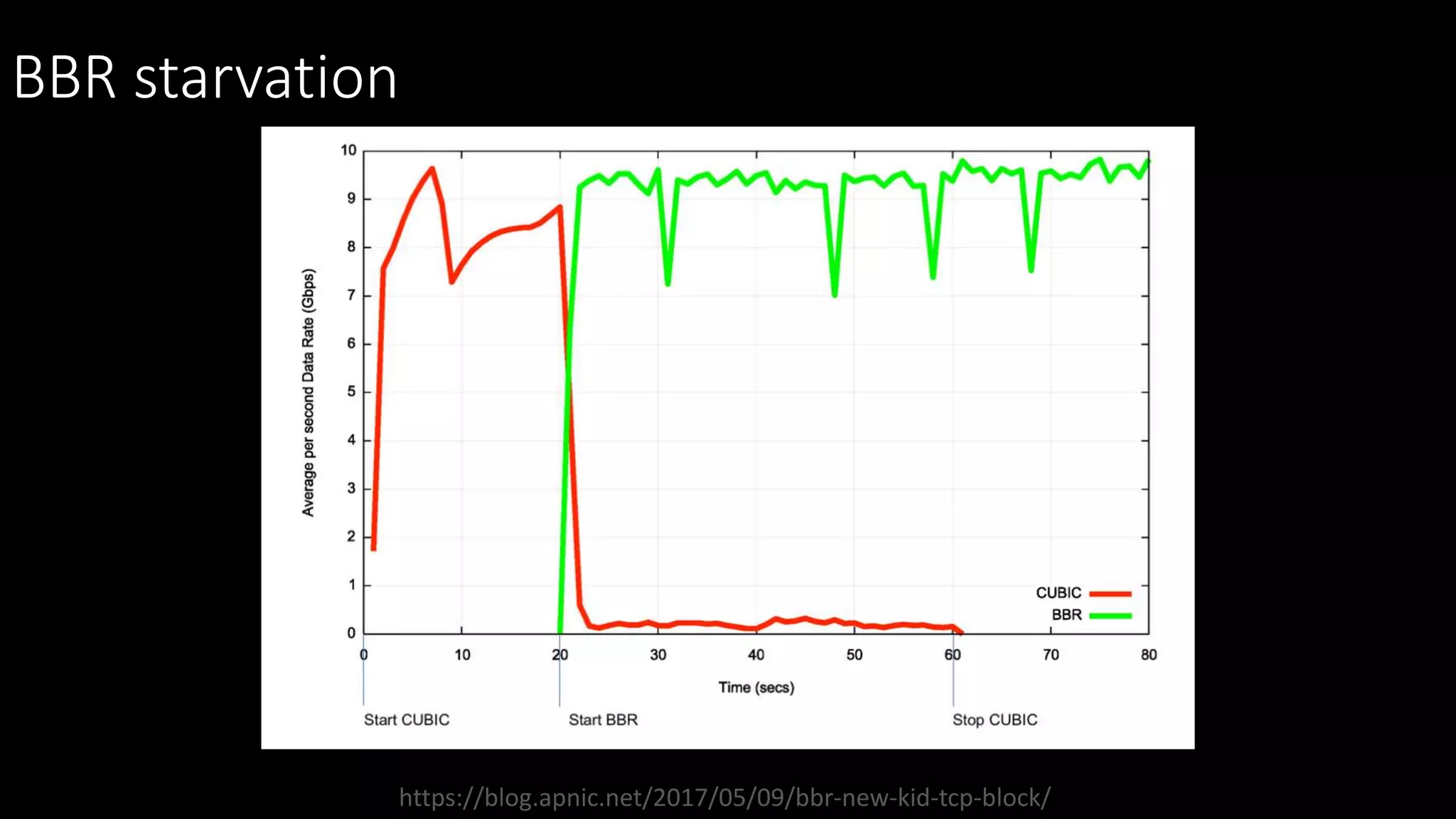

57. BBR starvation
https://blog.apnic.net/2017/05/09/bbr-new-kid-tcp-block/

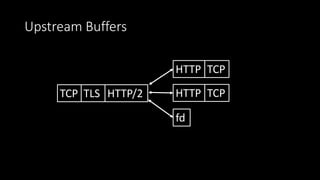

58. Upstream Buffers
TLSTCP HTTP/2
HTTP TCP
HTTP TCP
fd

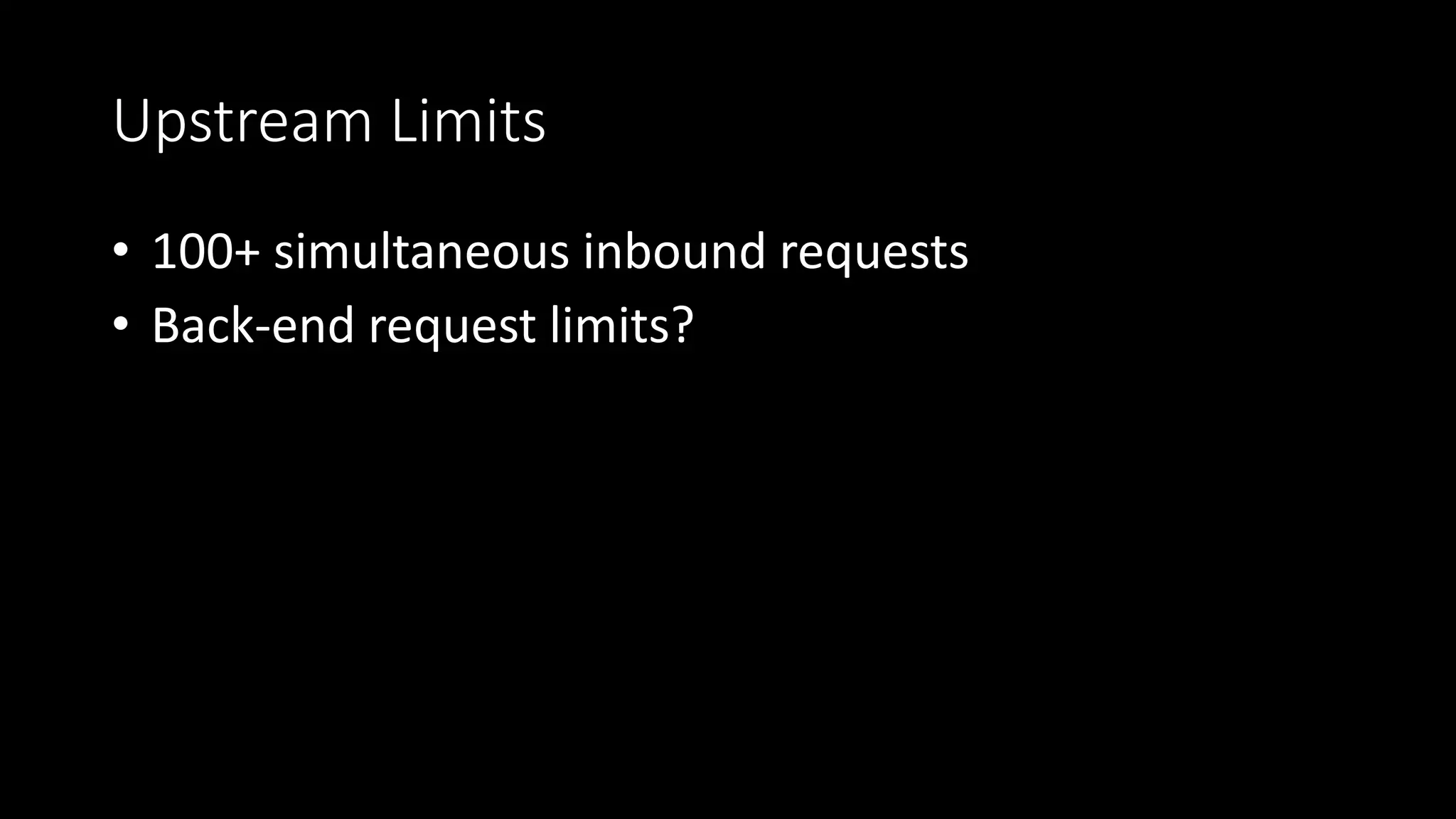

59. Upstream Limits
• 100+ simultaneous inbound requests
• Back-end request limits?

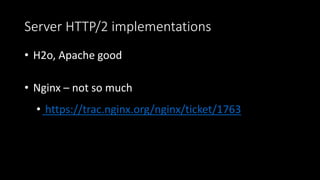

60. Server HTTP/2 implementations
• H2o, Apache good
• Nginx – not so much
• https://trac.nginx.org/nginx/ticket/1763

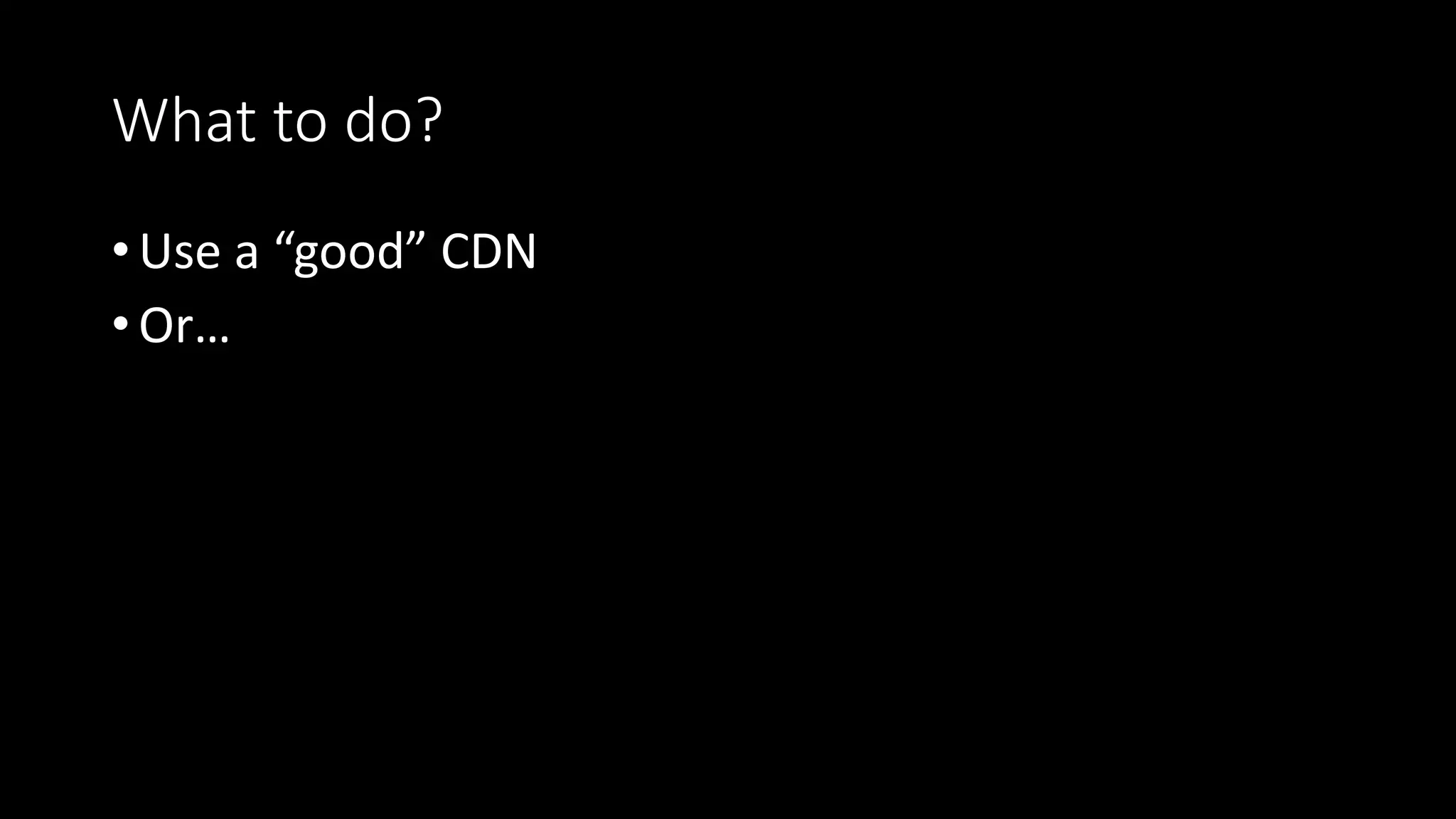

61. What to do?
• Use a “good” CDN
• Or…

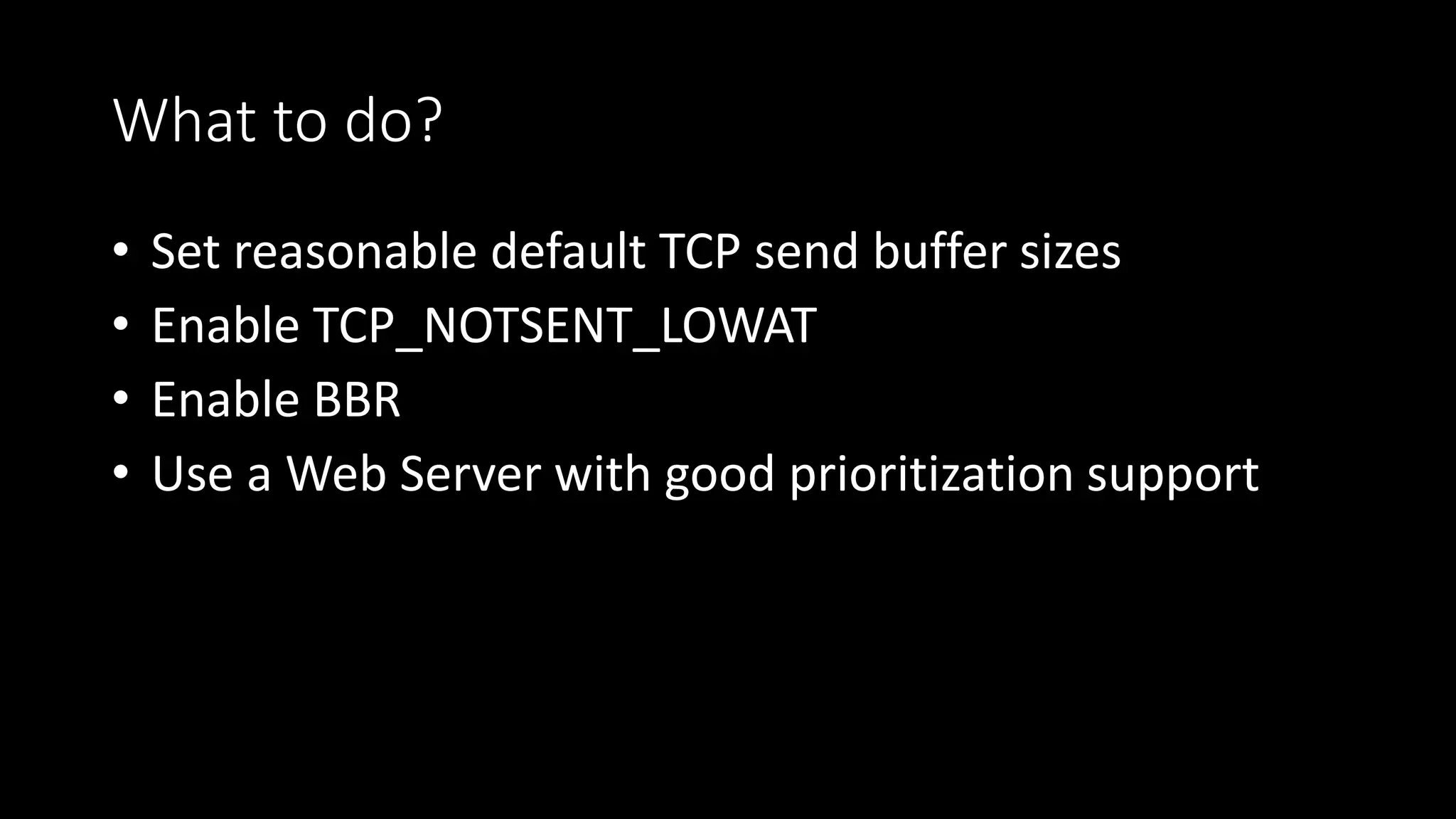

62. What to do?
• Set reasonable default TCP send buffer sizes
• Enable TCP_NOTSENT_LOWAT
• Enable BBR
• Use a Web Server with good prioritization support

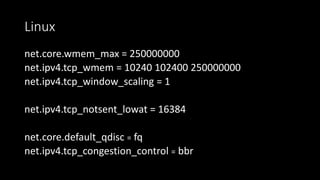

63. Linux
net.core.wmem_max = 250000000
net.ipv4.tcp_wmem = 10240 102400 250000000
net.ipv4.tcp_window_scaling = 1
net.ipv4.tcp_notsent_lowat = 16384
net.core.default_qdisc = fq
net.ipv4.tcp_congestion_control = bbr

64. Server-initiated prioritization

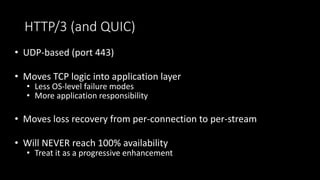

65. HTTP/3 (and QUIC)
• UDP-based (port 443)
• Moves TCP logic into application layer
• Less OS-level failure modes
• More application responsibility
• Moves loss recovery from per-connection to per-stream
• Will NEVER reach 100% availability
• Treat it as a progressive enhancement

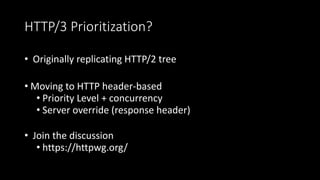

66. HTTP/3 Prioritization?
• Originally replicating HTTP/2 tree
• Moving to HTTP header-based
• Priority Level + concurrency
• Server override (response header)
• Join the discussion
• https://httpwg.org/

68. Thank You
Patrick Meenan
@PatMeenan
slideshare.net/patrickmeenan
https://www.facebook.com/careers/
