Amplify를 통해 클라우드 기반
모바일 앱 개발하기
박태성 / Javascript Dev, 아이디어샘

Speaker
박태성
TaeSeong Park
@geoseong in AWSKRUG
#gudi organizer
@geoseong in react-native-seoul
co-organizer
geoseong in Github
Open Source Challenger

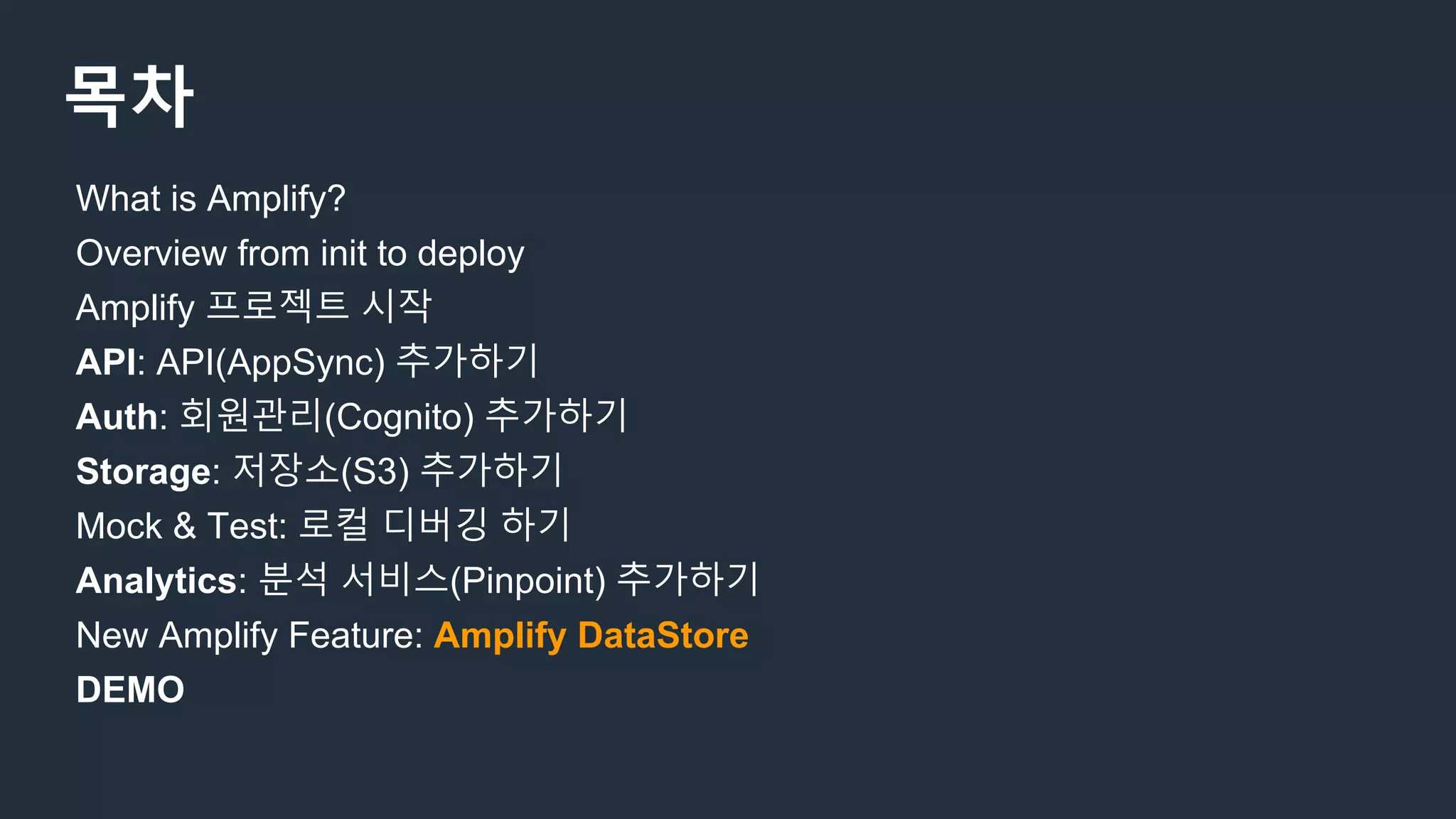

목차
What is Amplify?
Overview from init to deploy

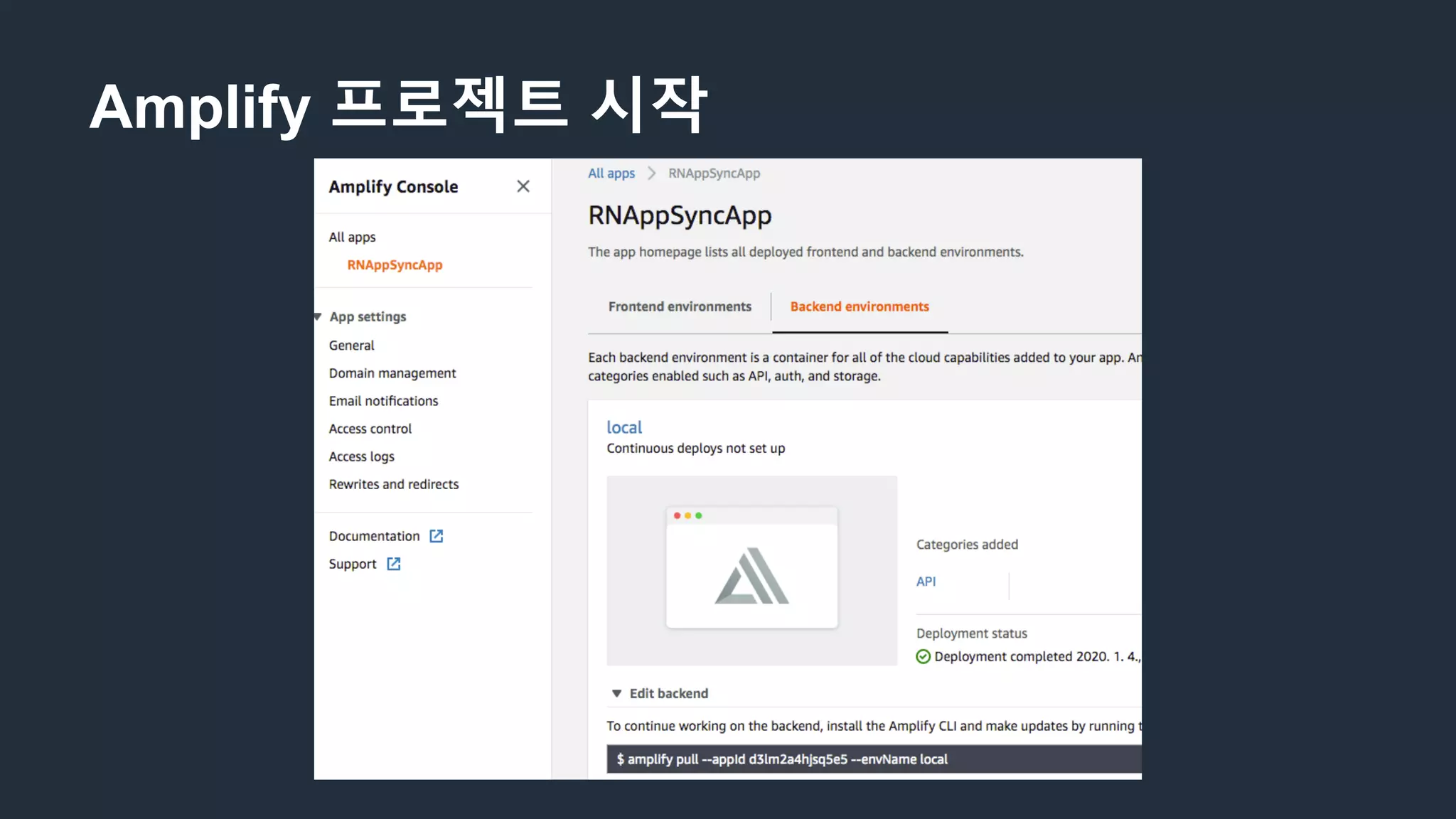

Amplify 프로젝트 시작
API: API(AppSync) 추가하기
Auth: 회원관리(Cognito) 추가하기
Storage: 저장소(S3) 추가하기
Mock & Test: 로컬 디버깅 하기
Analytics: 분석 서비스(Pinpoint) 추가하기
New Amplify Feature: Amplify DataStore
DEMO

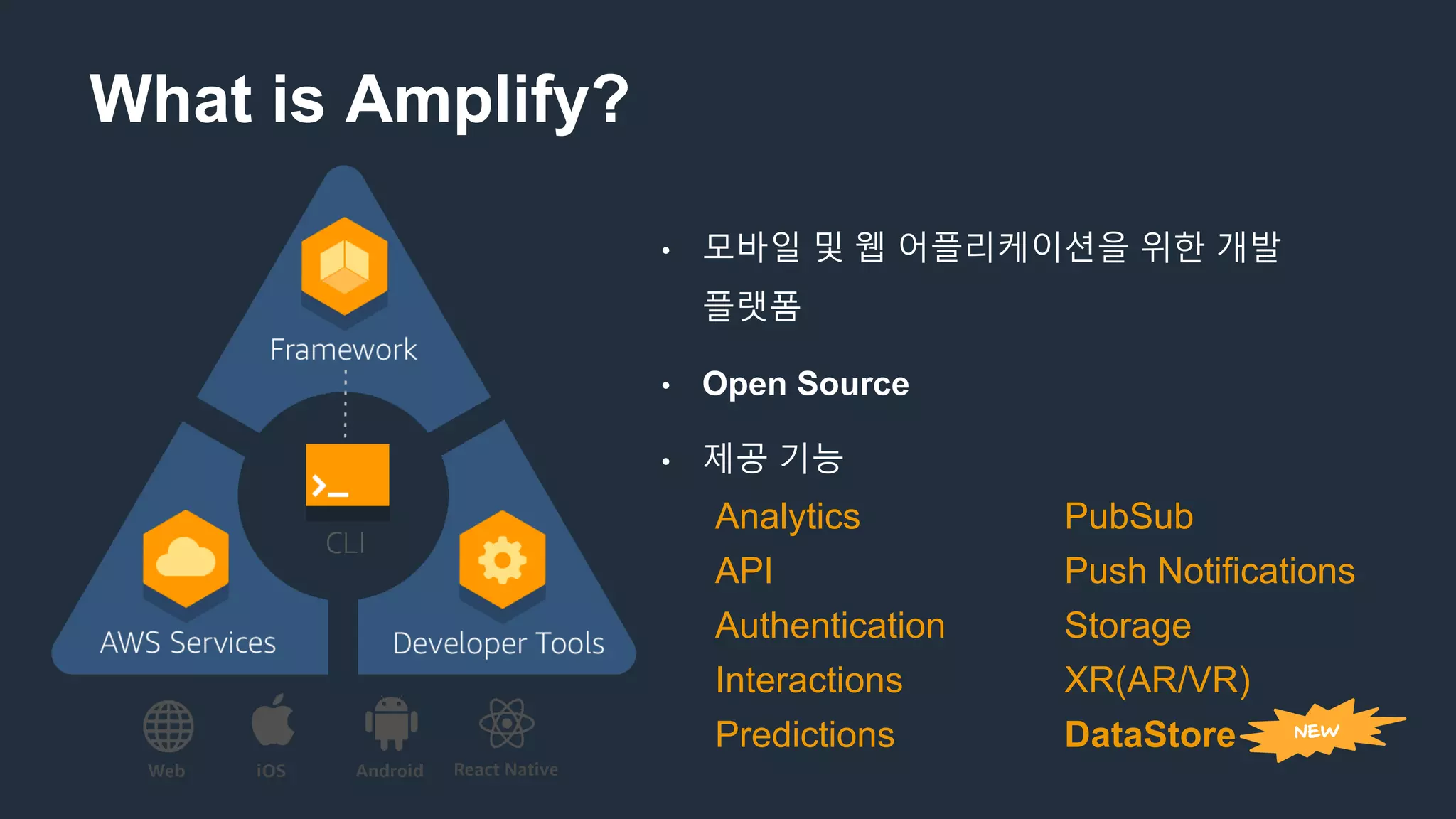

What is Amplify?
• 모바일 및 웹 어플리케이션을 위한 개발
플랫폼
• Open Source
• 제공 기능
Analytics PubSub
API Push Notifications
Authentication Storage
Interactions XR(AR/VR)
Predictions DataStore NEW

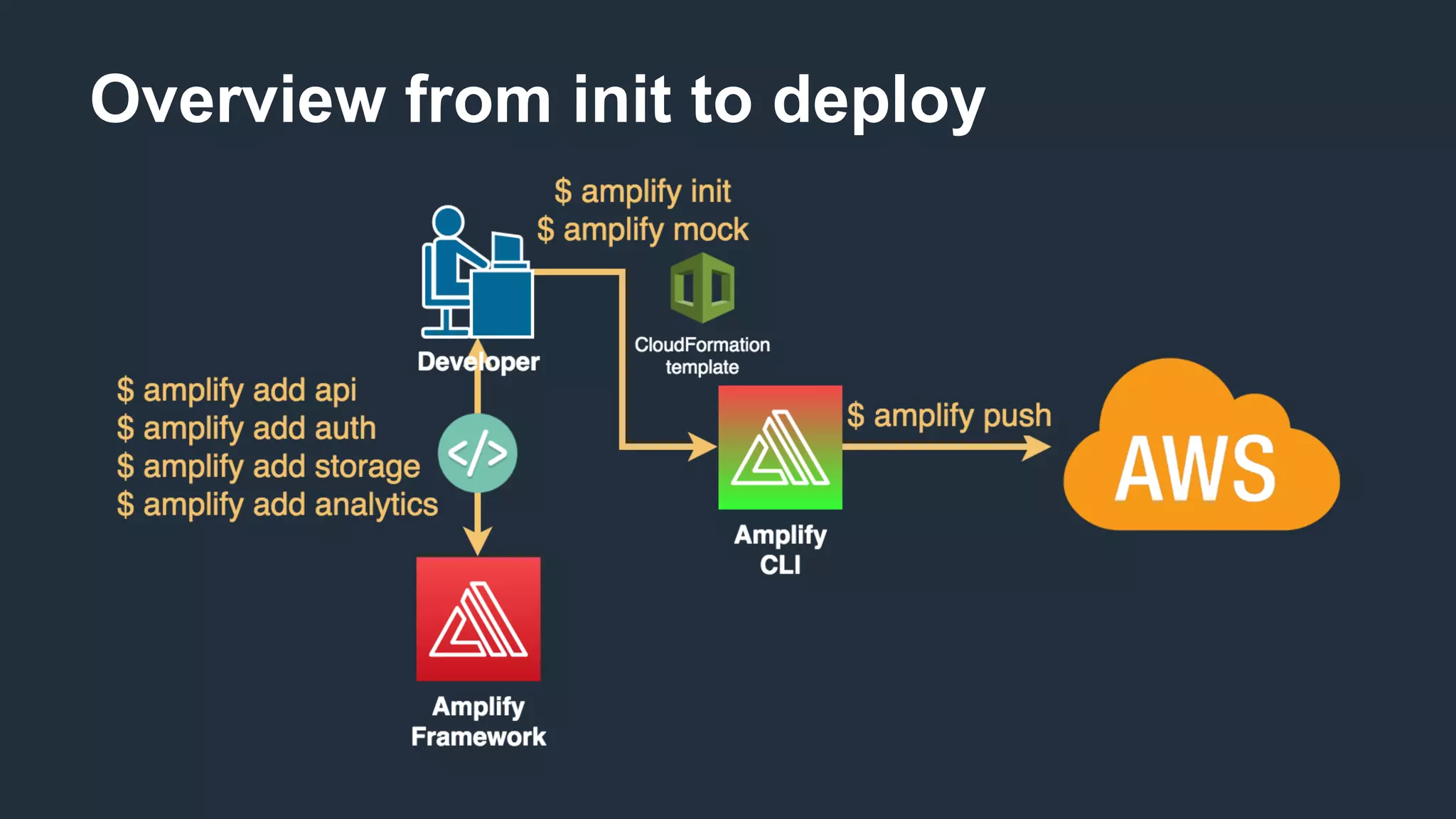

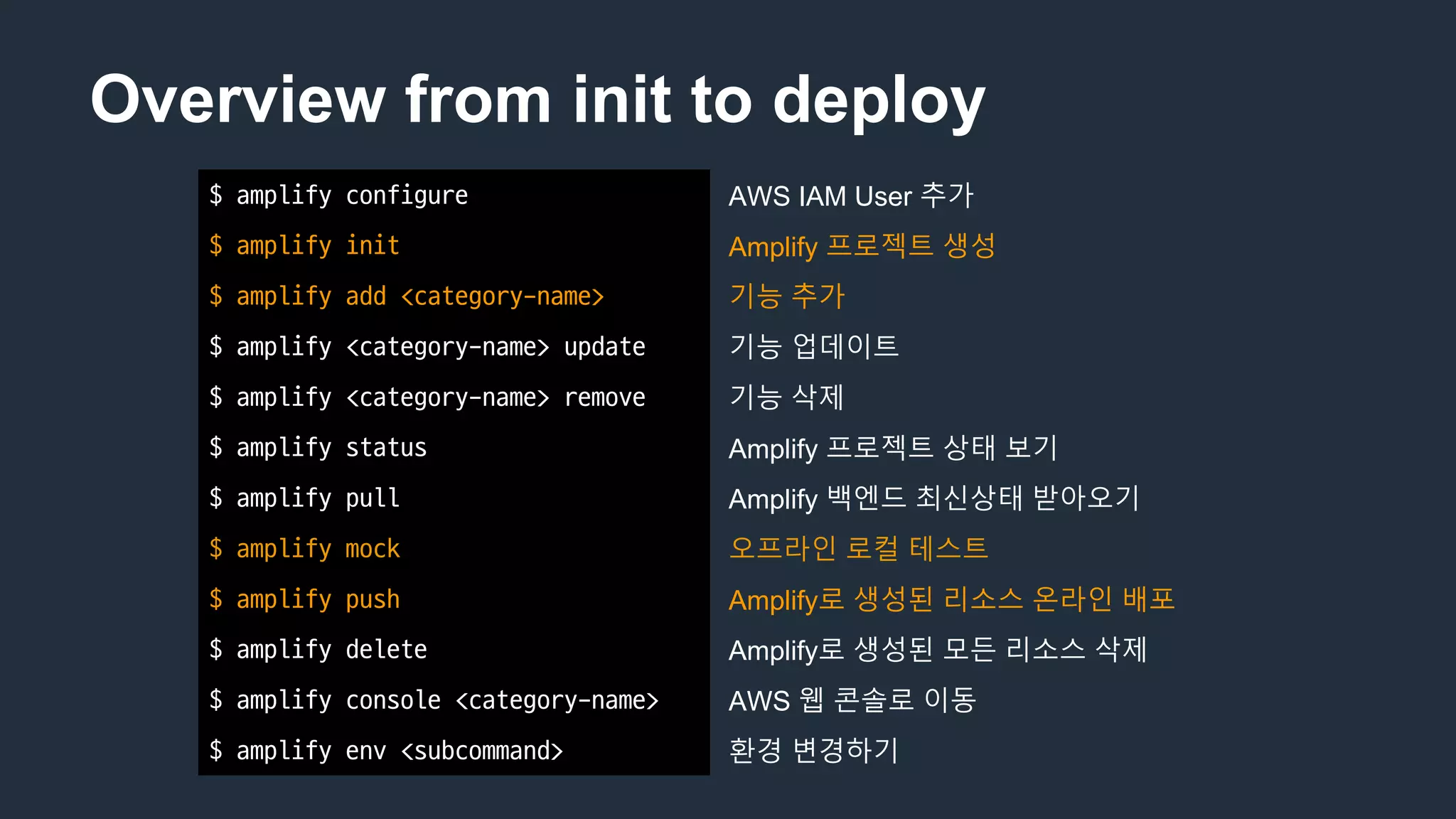

Overview from init to deploy
$ amplify configure AWS IAM User 추가
$ amplify init Amplify 프로젝트 생성
$ amplify add <category-name> 기능 추가
$ amplify <category-name> update 기능 업데이트
$ amplify <category-name> remove 기능 삭제
$ amplify status Amplify 프로젝트 상태 보기
$ amplify pull Amplify 백엔드 최신상태 받아오기
$ amplify mock 오프라인 로컬 테스트
$ amplify push Amplify로 생성된 리소스 온라인 배포
$ amplify delete Amplify로 생성된 모든 리소스 삭제
$ amplify console <category-name> AWS 웹 콘솔로 이동
$ amplify env <subcommand> 환경 변경하기

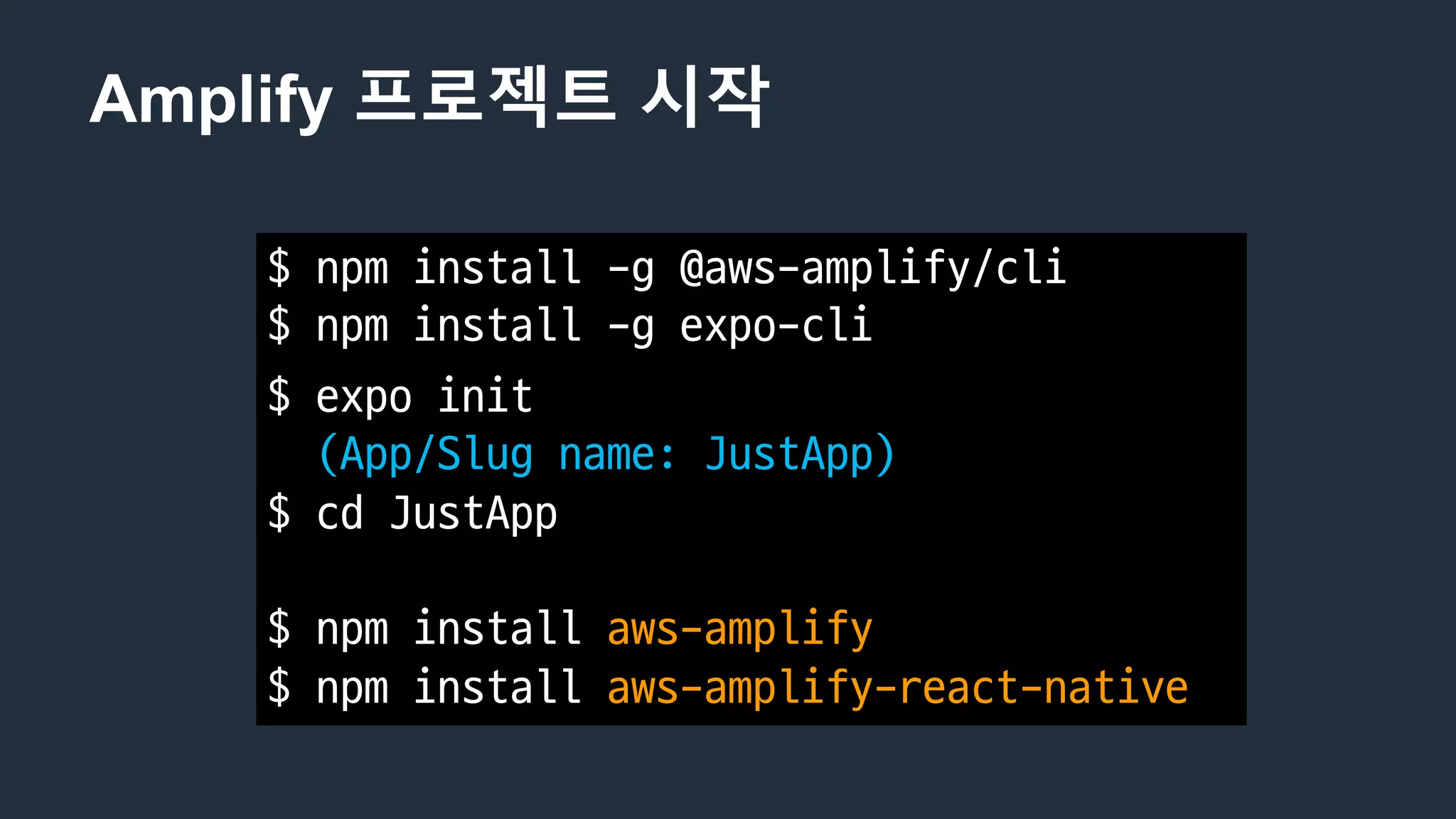

$ npm install -g @aws-amplify/cli
$ npm install -g expo-cli
$ expo init
(App/Slug name: JustApp)
$ cd JustApp
$ npm install aws-amplify
$ npm install aws-amplify-react-native

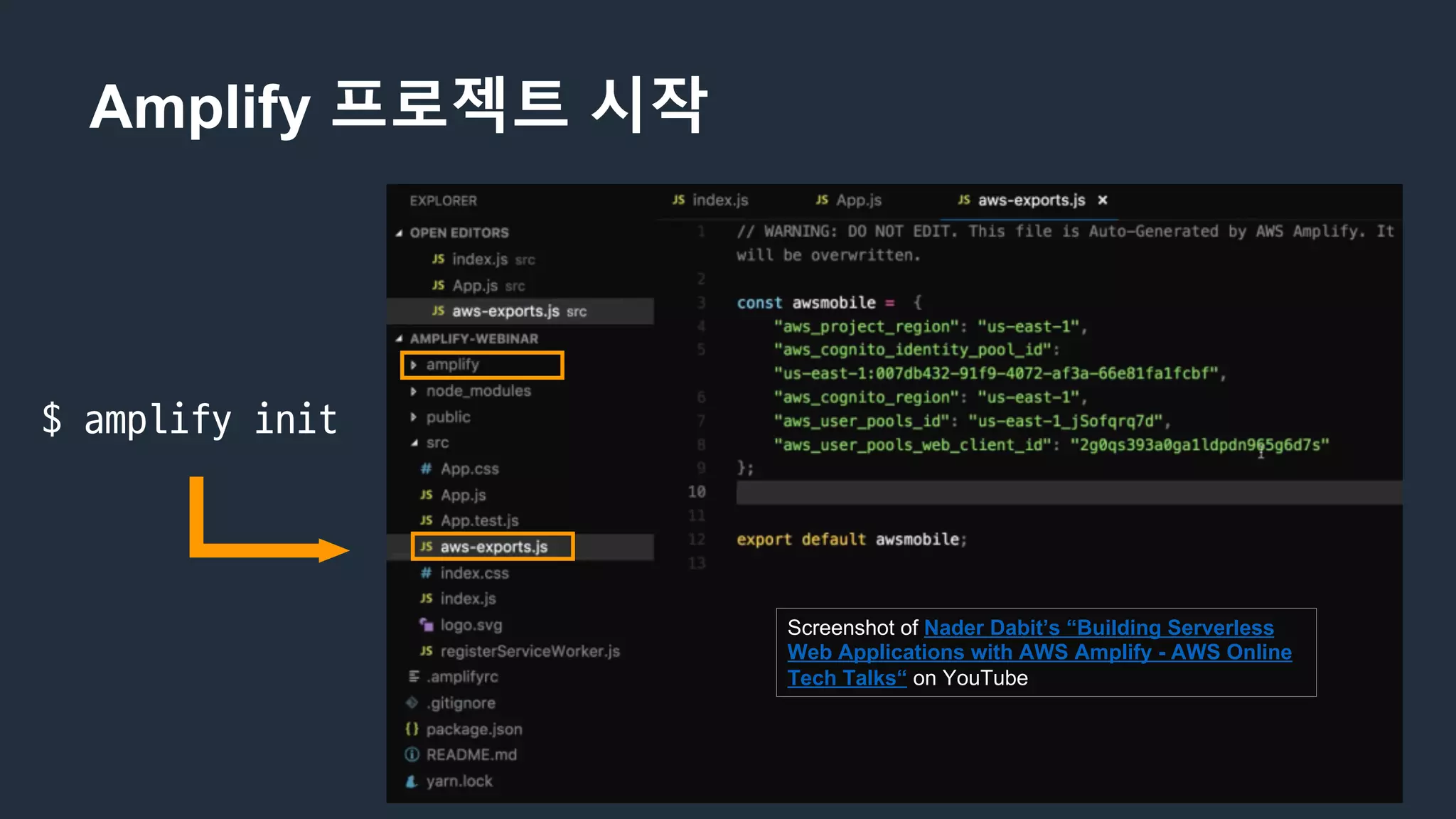

$ amplify init
Screenshot of Nader Dabit’s “Building Serverless
Web Applications with AWS Amplify - AWS Online
Tech Talks“ on YouTube

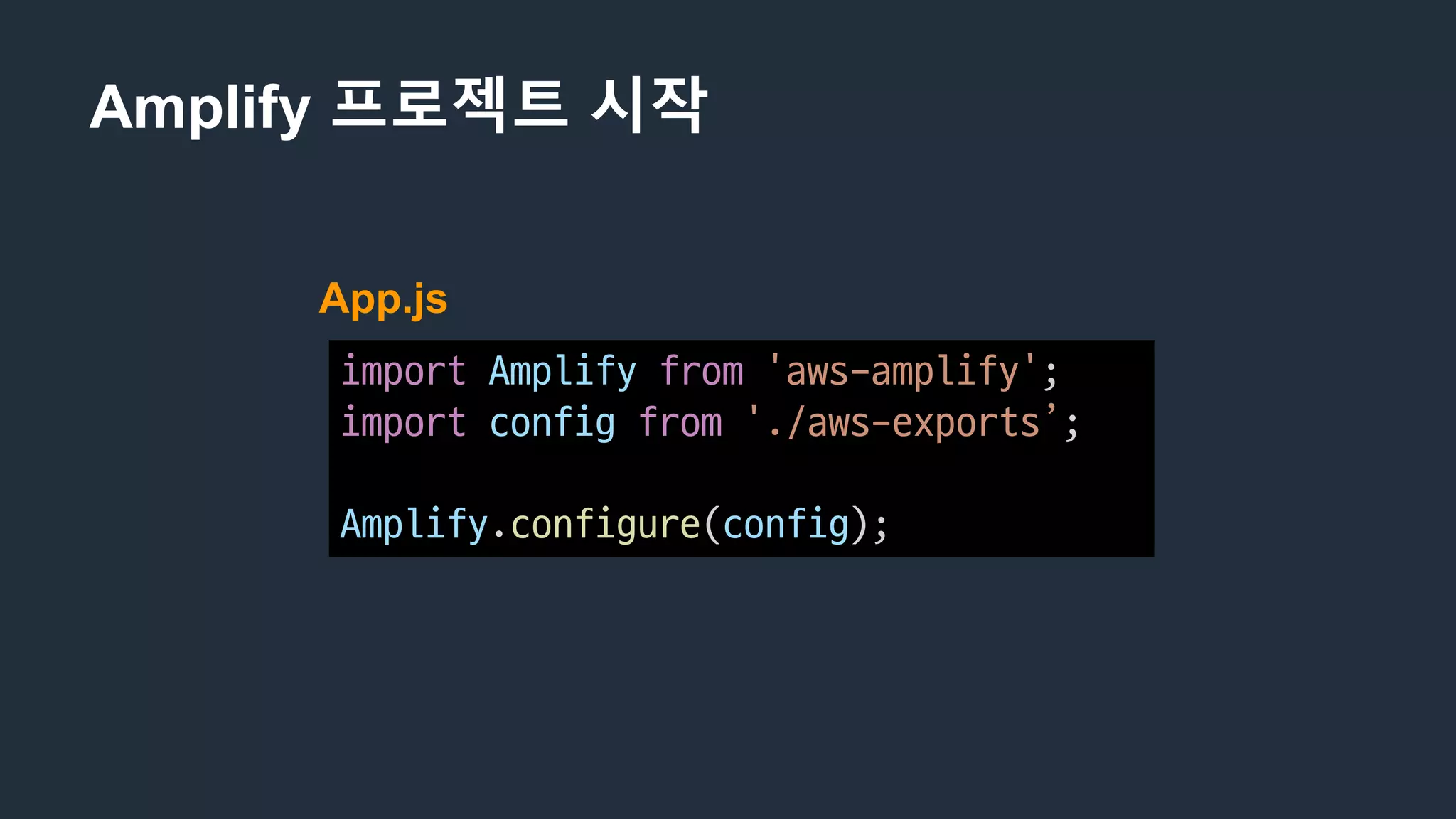

import Amplify from 'aws-amplify';
import config from './aws-exports’;
Amplify.configure(config);
App.js

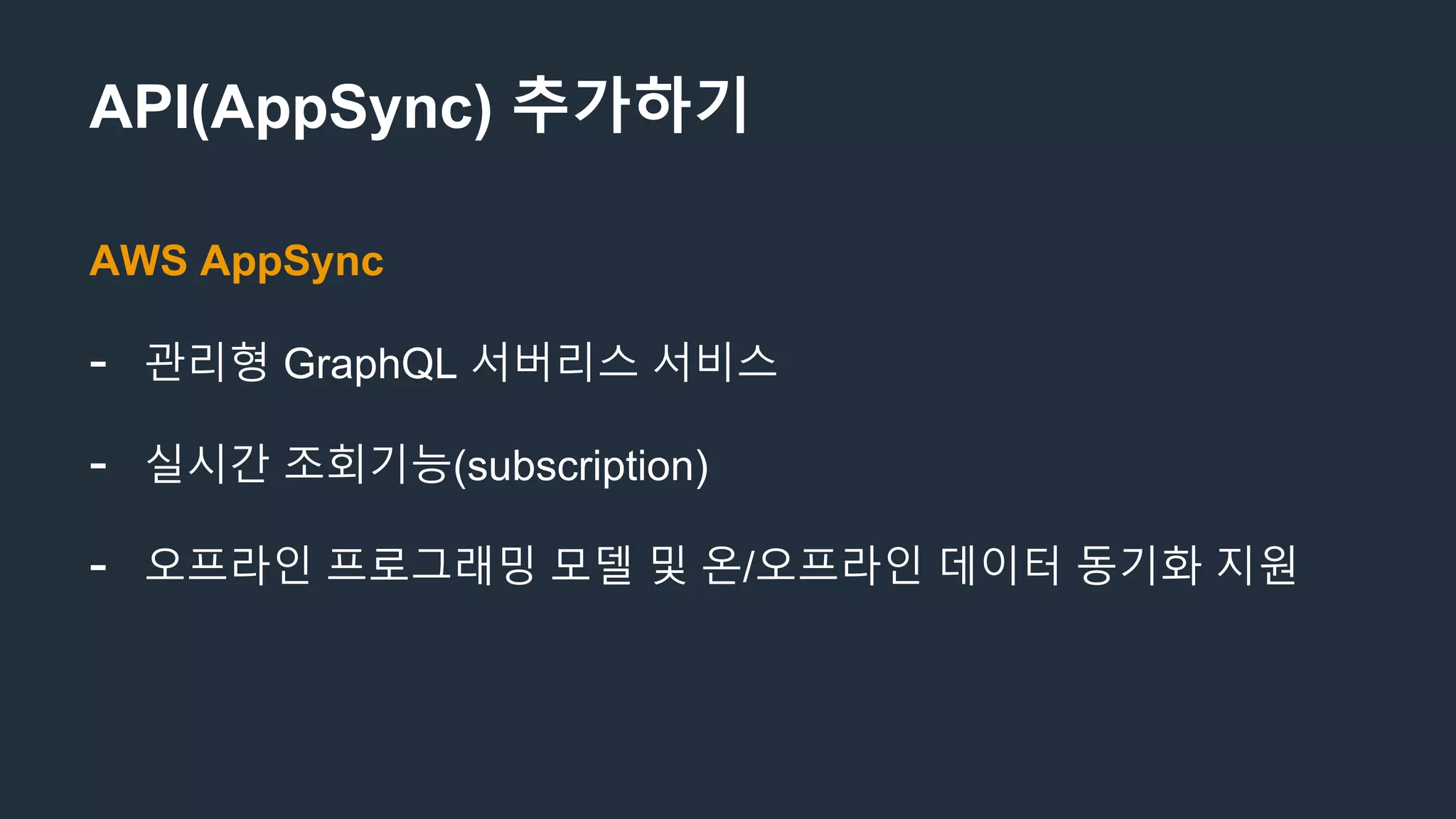

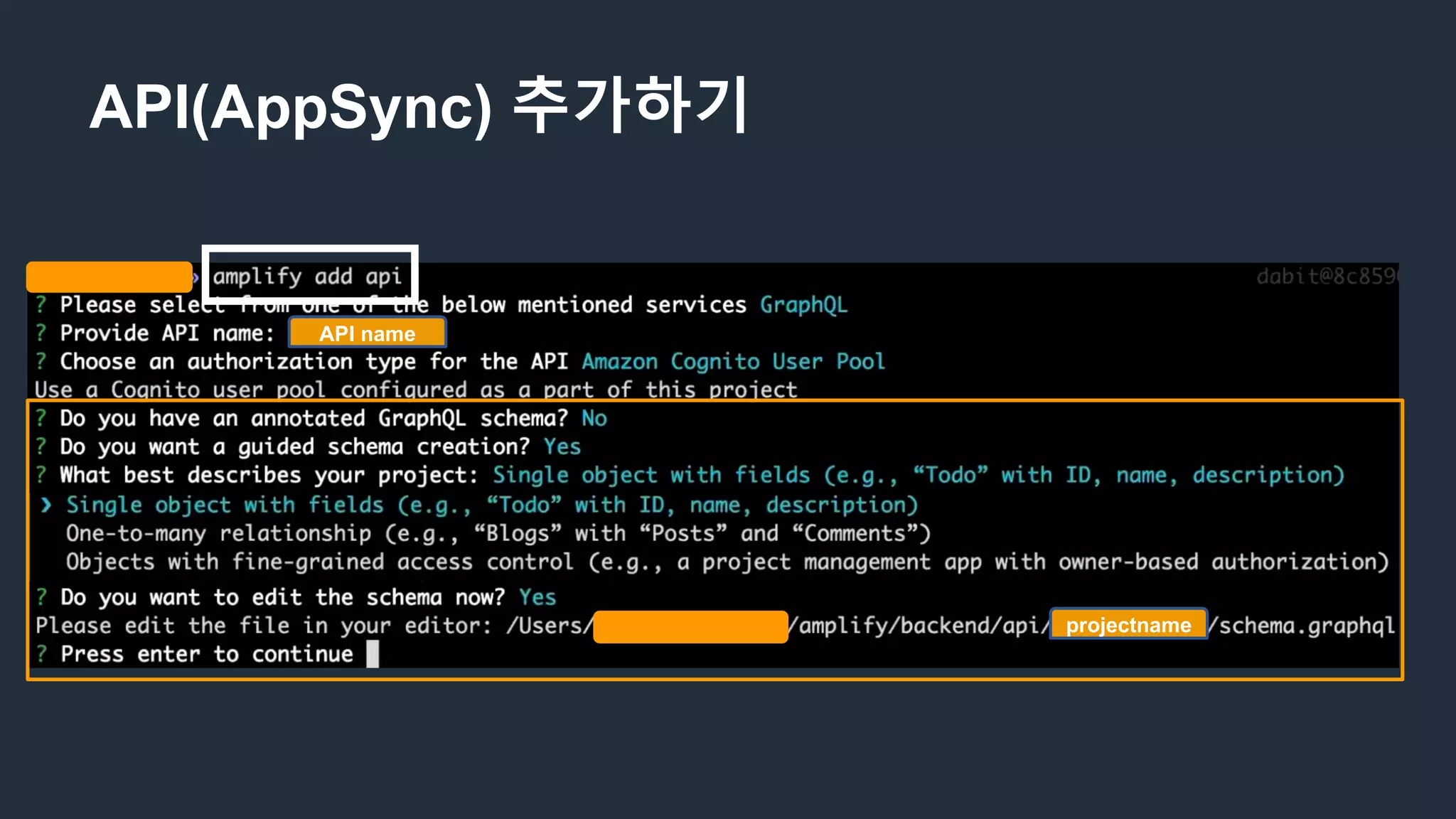

API(AppSync) 추가하기
AWS AppSync
- 관리형 GraphQL 서버리스 서비스
- 실시간 조회기능(subscription)
- 오프라인 프로그래밍 모델 및 온/오프라인 데이터 동기화 지원

projectname
API name

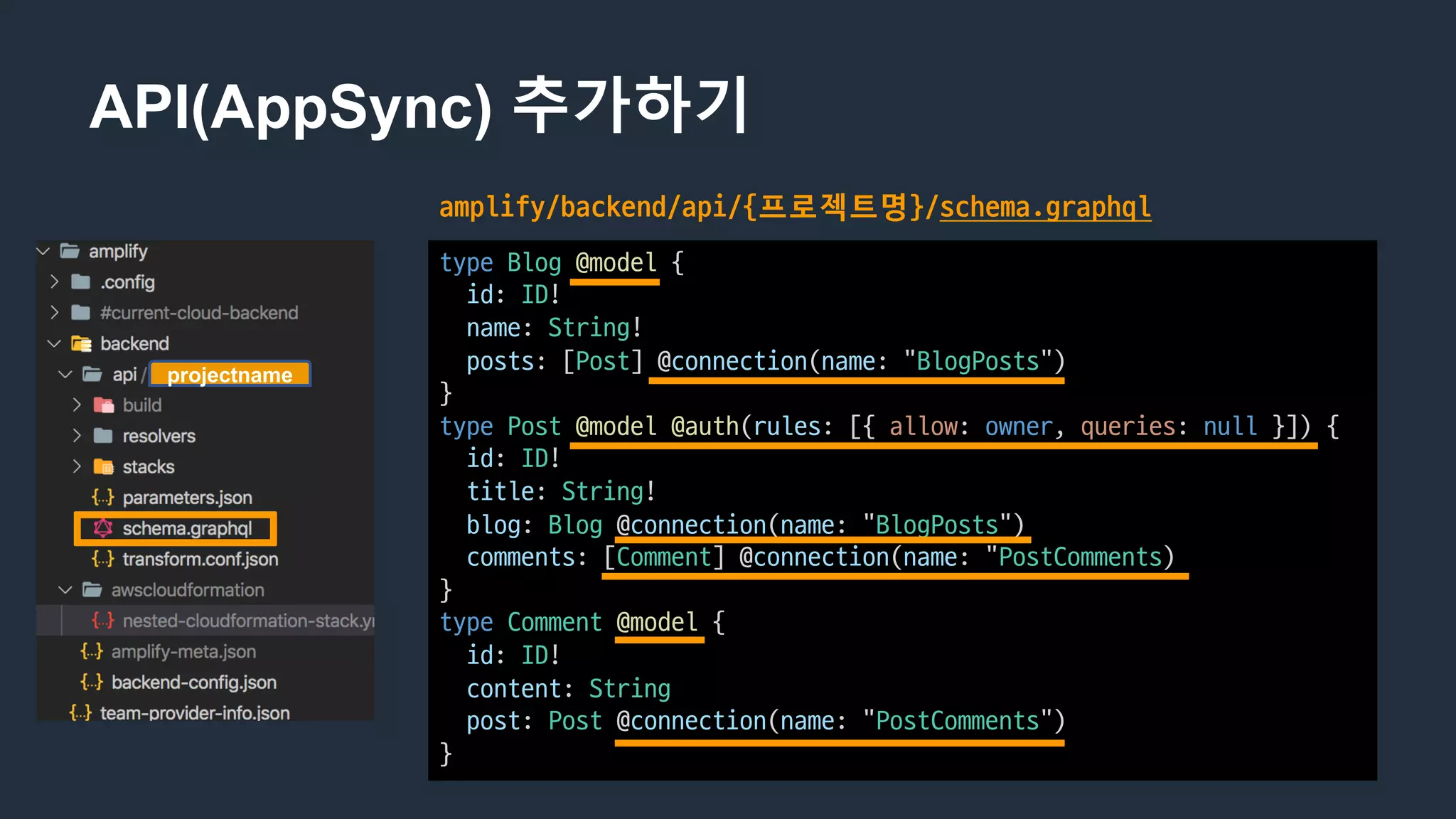

amplify/backend/api/{프로젝트명}/schema.graphql
type Blog @model {
id: ID!
name: String!
posts: [Post] @connection(name: "BlogPosts")
}
type Post @model @auth(rules: [{ allow: owner, queries: null }]) {
id: ID!
title: String!
blog: Blog @connection(name: "BlogPosts")
comments: [Comment] @connection(name: "PostComments)
}
type Comment @model {
id: ID!
content: String
post: Post @connection(name: "PostComments")
}
projectname

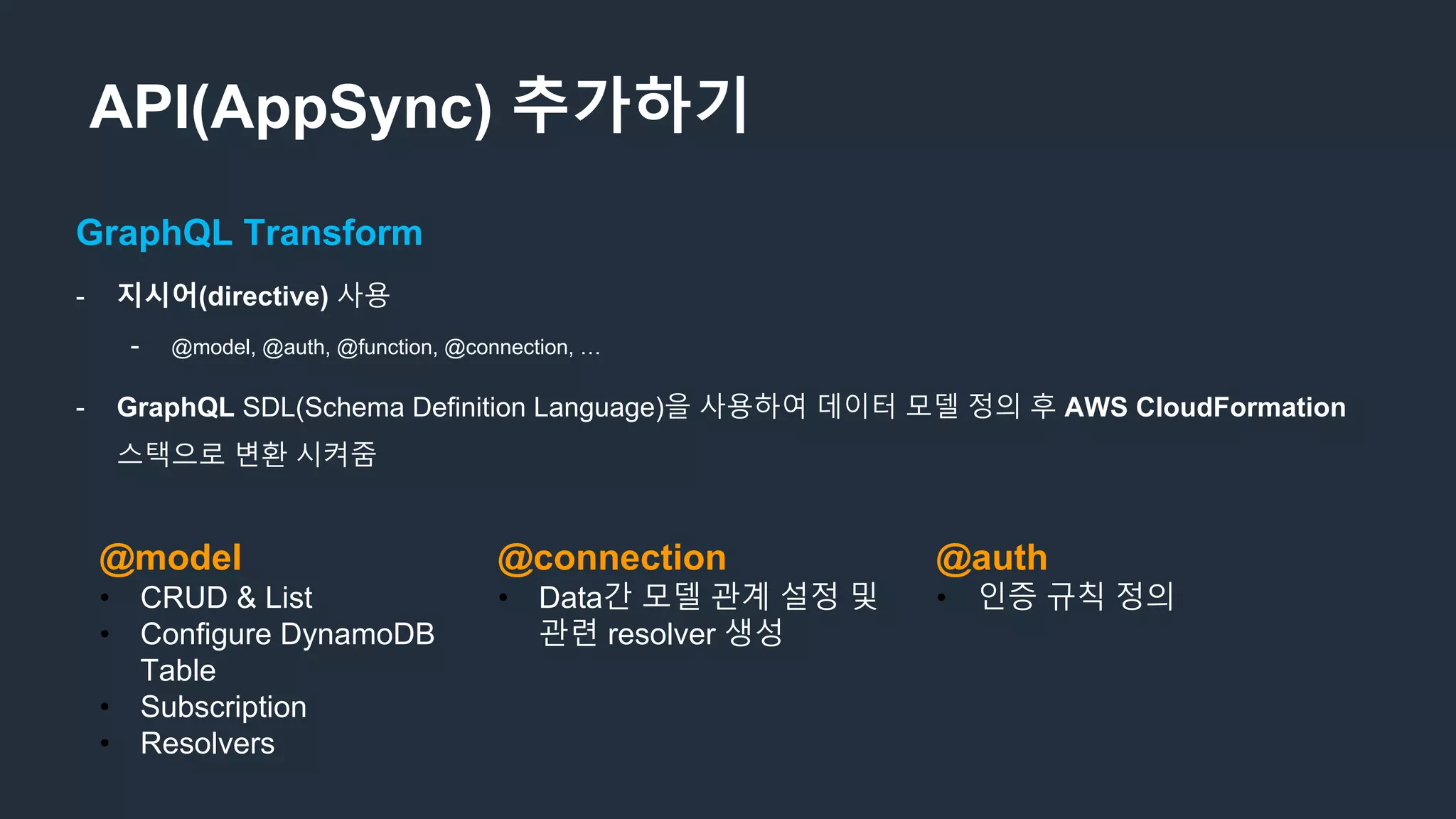

GraphQL Transform
- 지시어(directive) 사용
- @model, @auth, @function, @connection, …
- GraphQL SDL(Schema Definition Language)을 사용하여 데이터 모델 정의 후 AWS CloudFormation
스택으로 변환 시켜줌
@model
• CRUD & List
• Configure DynamoDB
Table
• Subscription
• Resolvers
@connection
• Data간 모델 관계 설정 및
관련 resolver 생성
@auth
• 인증 규칙 정의

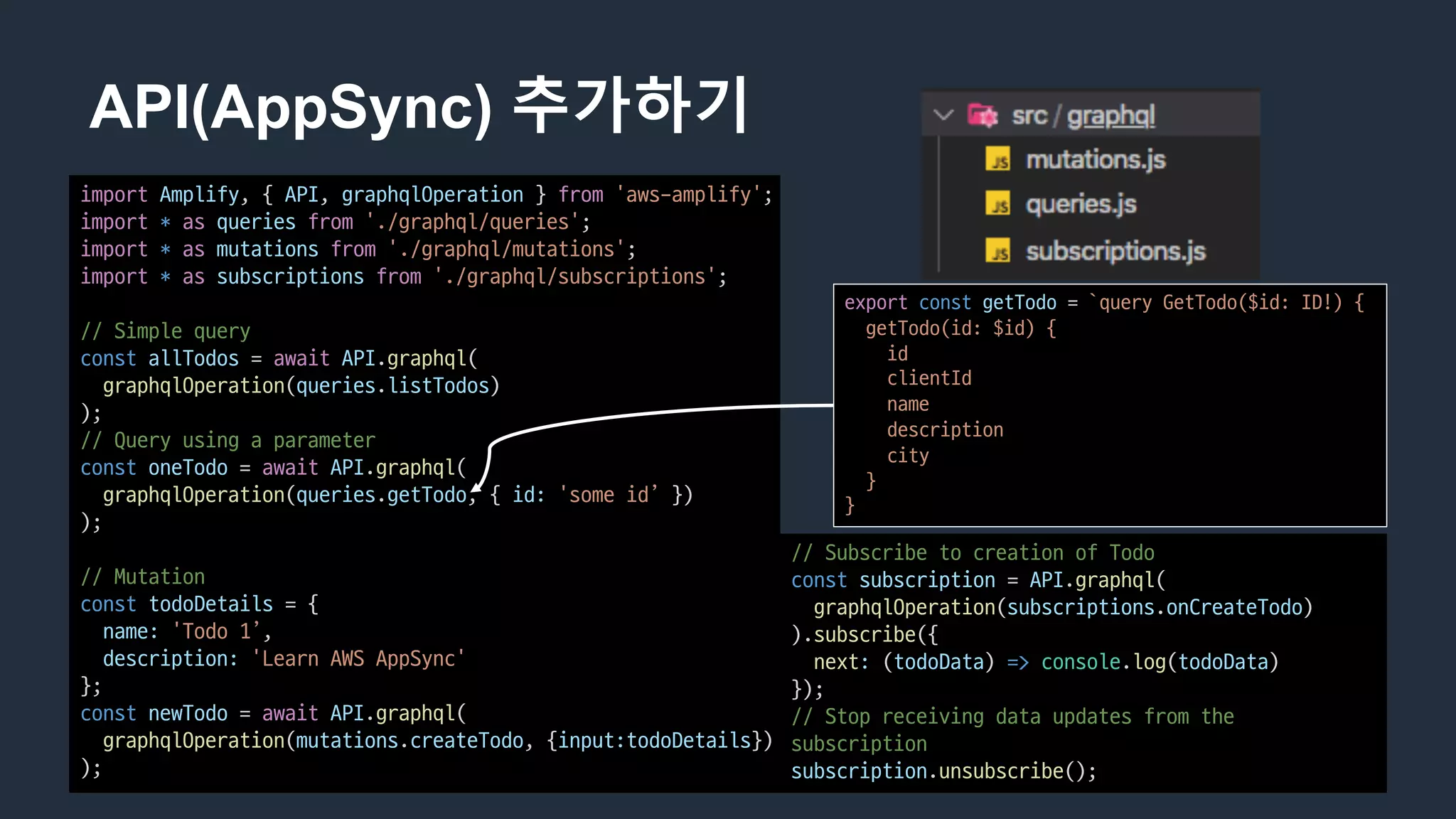

import Amplify, { API, graphqlOperation } from 'aws-amplify';
import * as queries from './graphql/queries';
import * as mutations from './graphql/mutations';
import * as subscriptions from './graphql/subscriptions';
// Simple query
const allTodos = await API.graphql(
graphqlOperation(queries.listTodos)
);
// Query using a parameter
const oneTodo = await API.graphql(
graphqlOperation(queries.getTodo, { id: 'some id’ })
);
// Mutation
const todoDetails = {
name: 'Todo 1’,
description: 'Learn AWS AppSync'
};
const newTodo = await API.graphql(
graphqlOperation(mutations.createTodo, {input:todoDetails})
);
// Subscribe to creation of Todo
const subscription = API.graphql(
graphqlOperation(subscriptions.onCreateTodo)
).subscribe({
next: (todoData) => console.log(todoData)
});
// Stop receiving data updates from the
subscription
subscription.unsubscribe();
export const getTodo = `query GetTodo($id: ID!) {
getTodo(id: $id) {
id
clientId
name
description
city
}
}

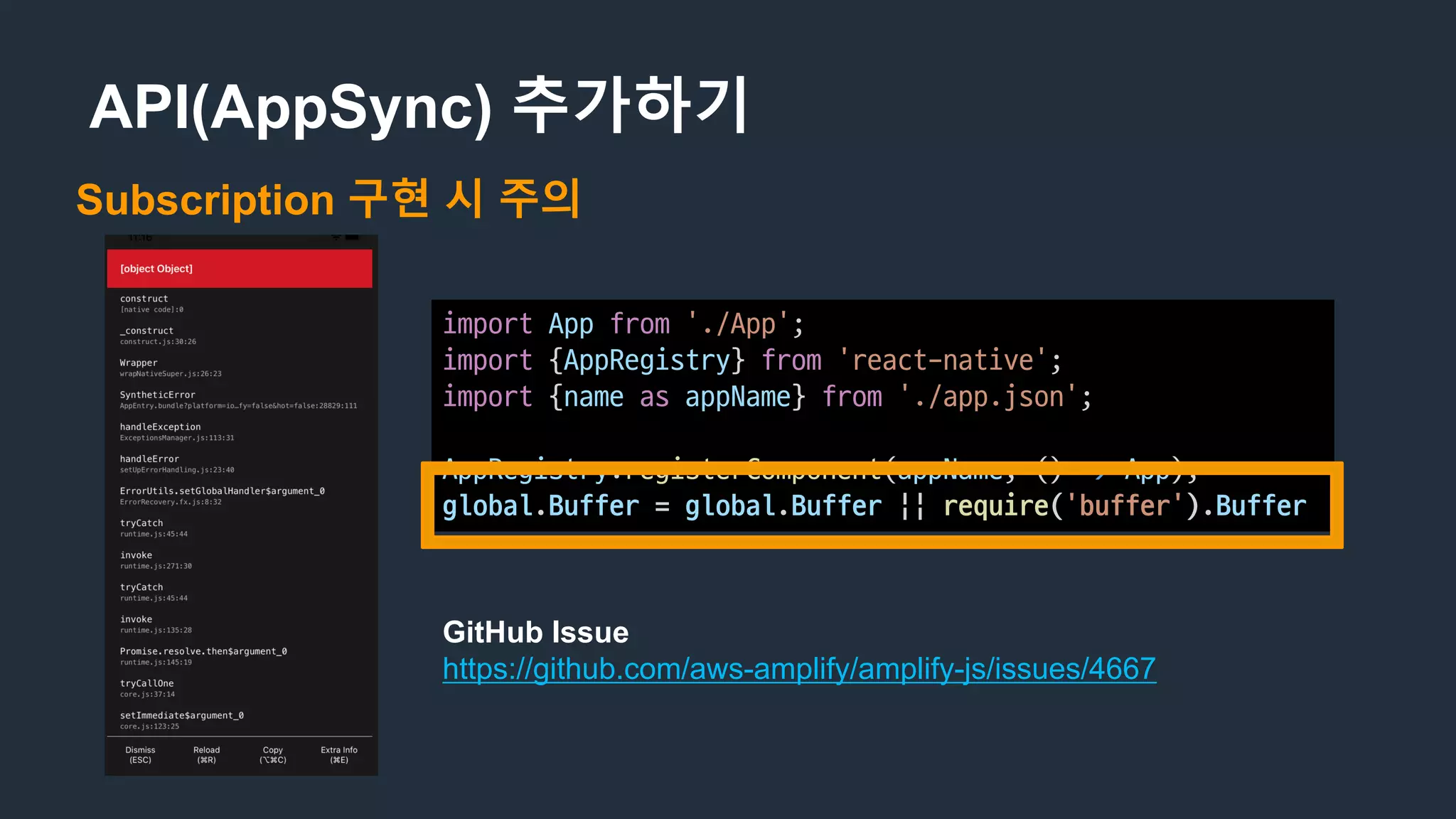

Subscription 구현 시 주의
import App from './App';
import {AppRegistry} from 'react-native';
import {name as appName} from './app.json';
AppRegistry.registerComponent(appName, () => App);
global.Buffer = global.Buffer || require('buffer').Buffer
GitHub Issue
https://github.com/aws-amplify/amplify-js/issues/4667

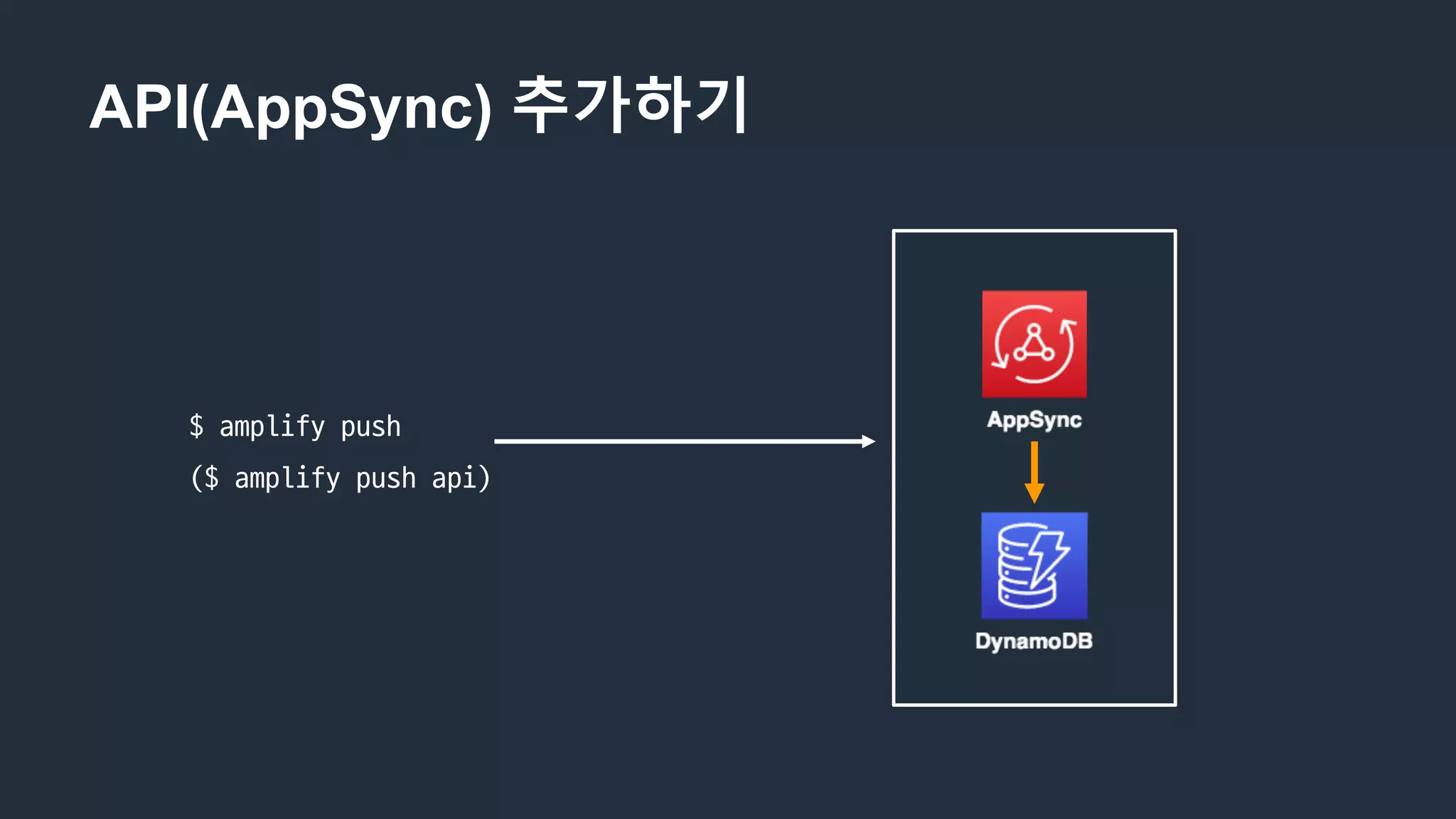

$ amplify push
($ amplify push api)

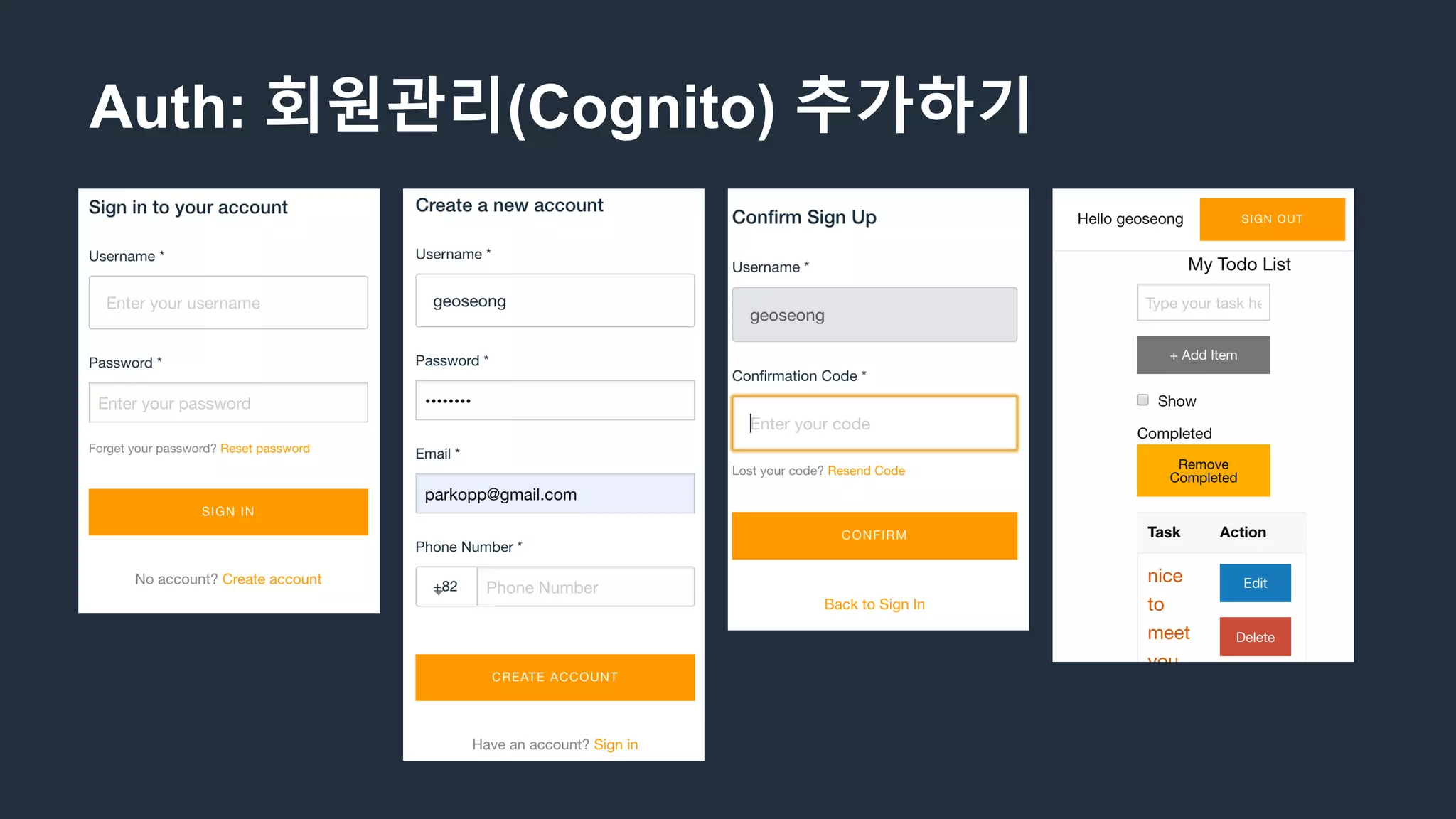

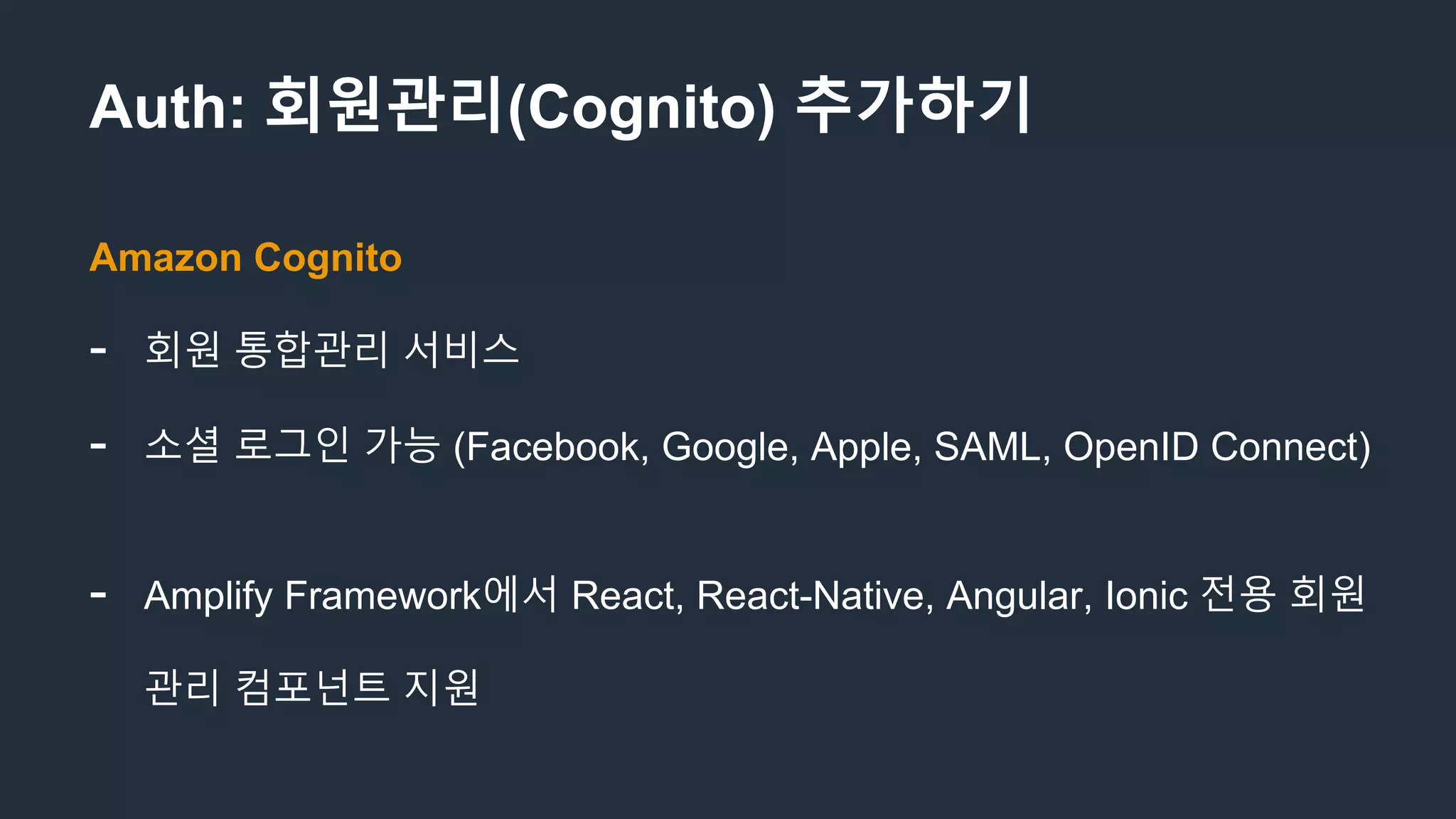

Amazon Cognito
- 회원 통합관리 서비스
- 소셜 로그인 가능 (Facebook, Google, Apple, SAML, OpenID Connect)
- Amplify Framework에서 React, React-Native, Angular, Ionic 전용 회원
관리 컴포넌트 지원

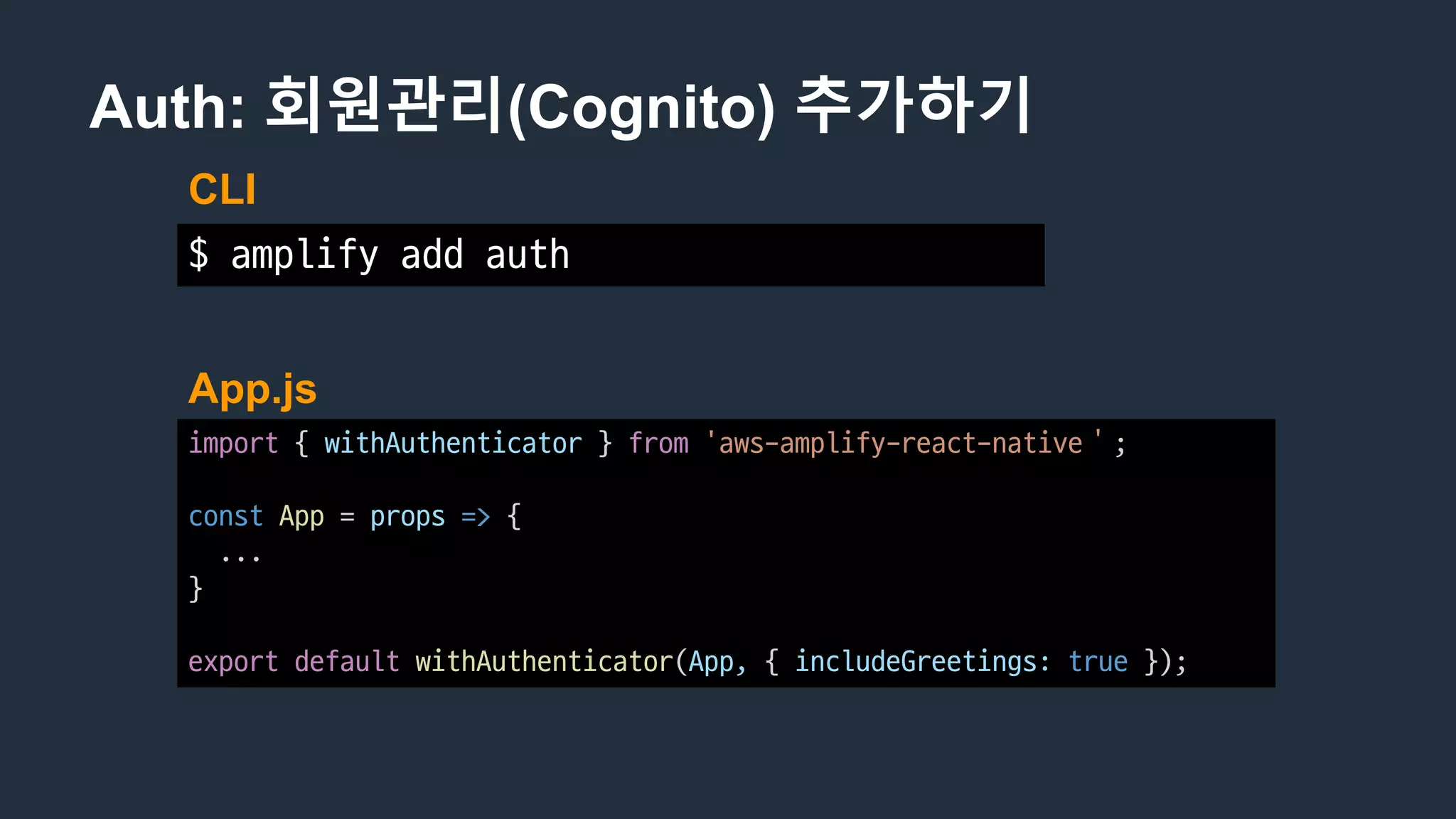

App.js
$ amplify add auth
CLI
import { withAuthenticator } from 'aws-amplify-react-native＇;
const App = props => {
...
}
export default withAuthenticator(App, { includeGreetings: true });

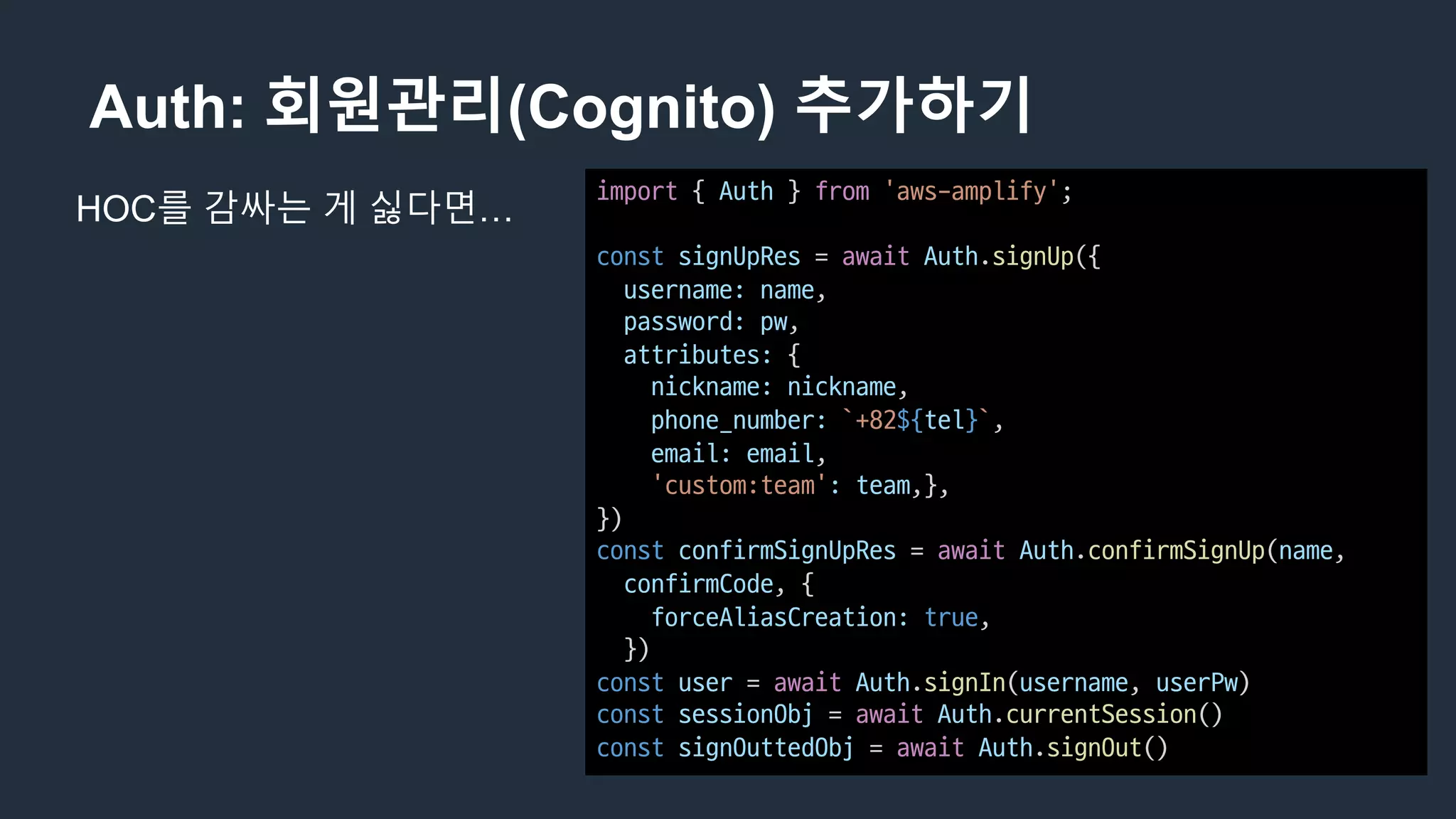

HOC를 감싸는 게 싫다면…
import { Auth } from 'aws-amplify';
const signUpRes = await Auth.signUp({
username: name,
password: pw,
attributes: {
nickname: nickname,
phone_number: `+82${tel}`,
email: email,
'custom:team': team,},
})
const confirmSignUpRes = await Auth.confirmSignUp(name,
confirmCode, {
forceAliasCreation: true,
})
const user = await Auth.signIn(username, userPw)
const sessionObj = await Auth.currentSession()
const signOuttedObj = await Auth.signOut()

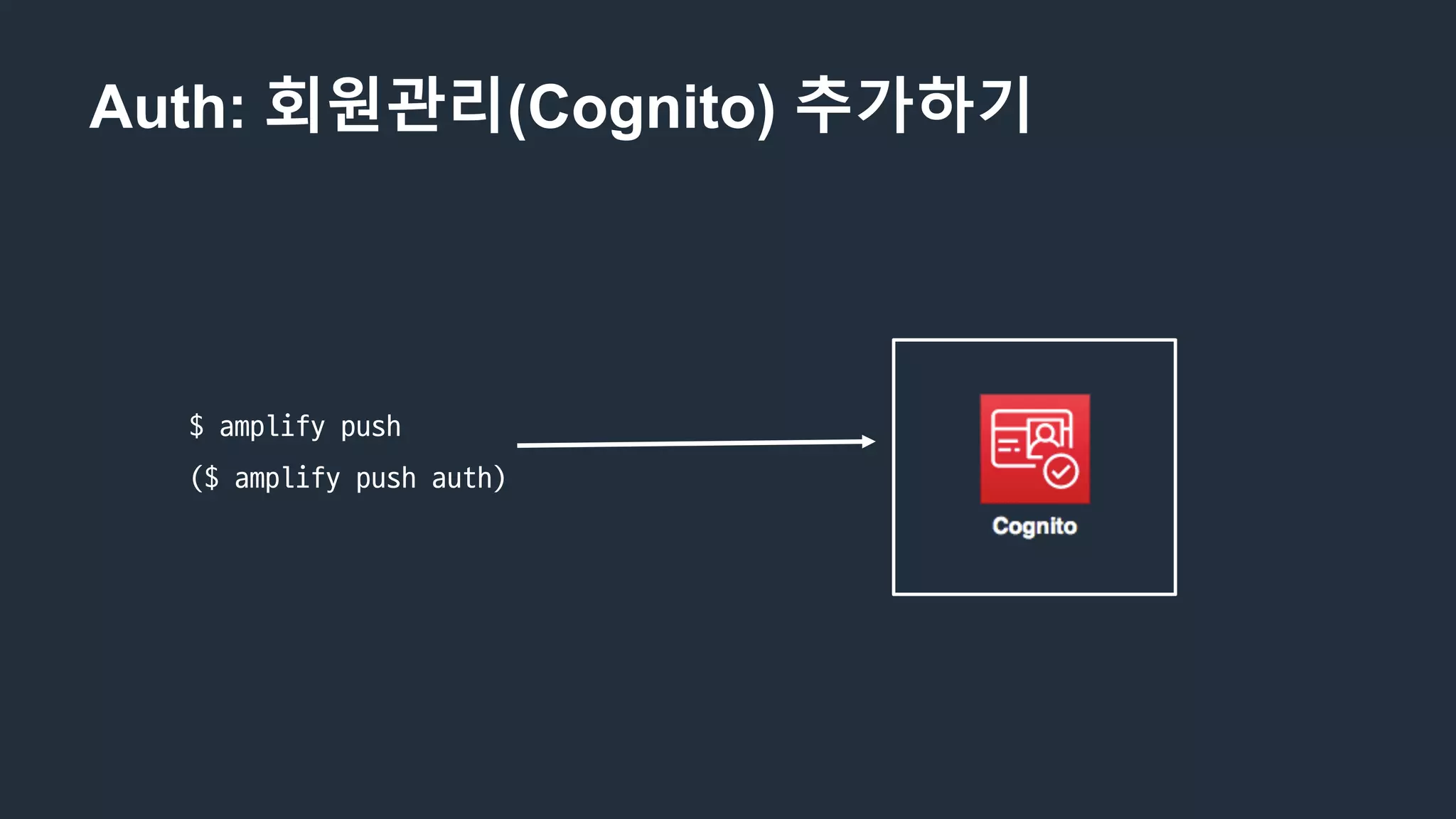

$ amplify push
($ amplify push auth)

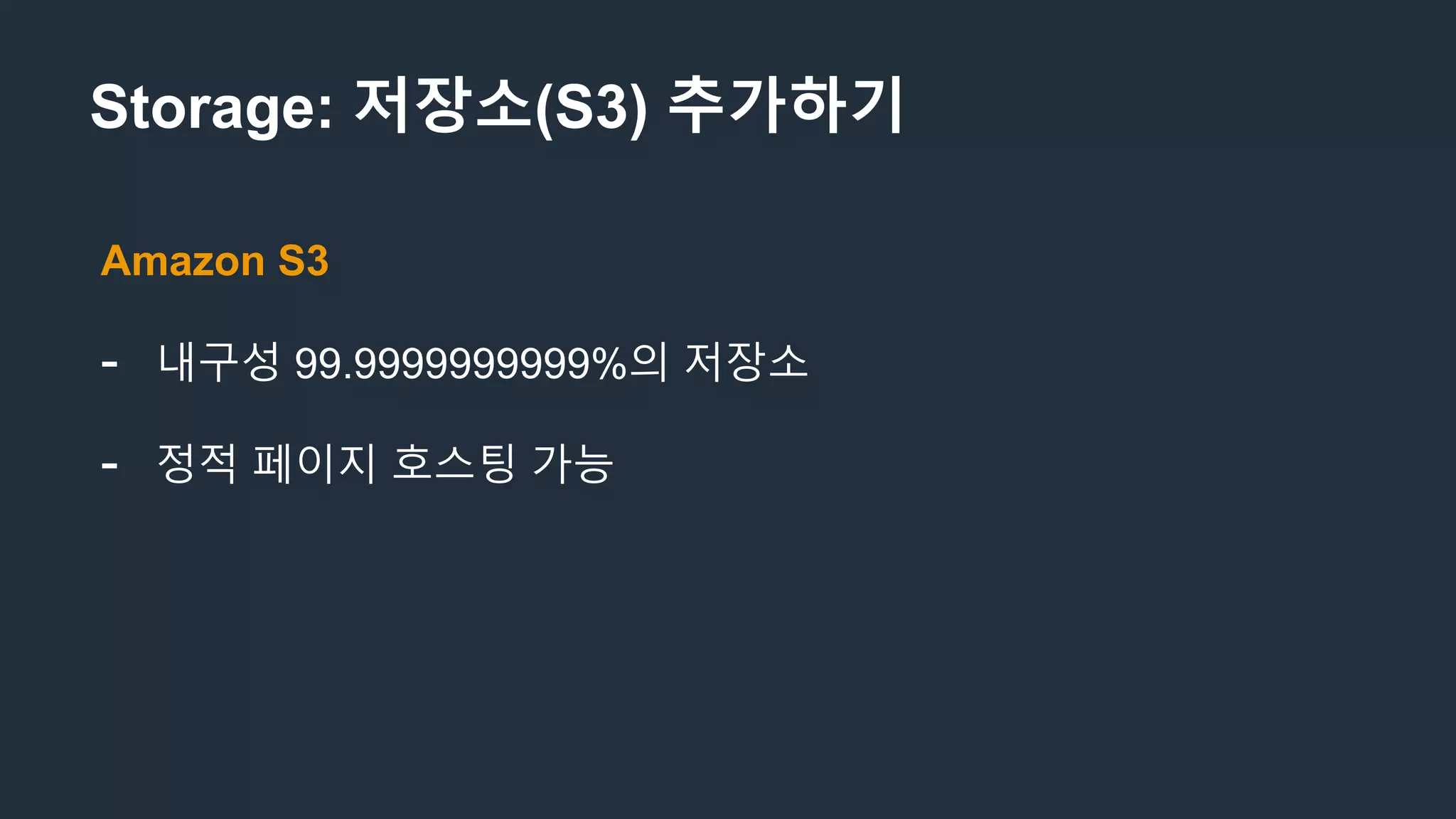

Amazon S3
- 내구성 99.9999999999%의 저장소
- 정적 페이지 호스팅 가능

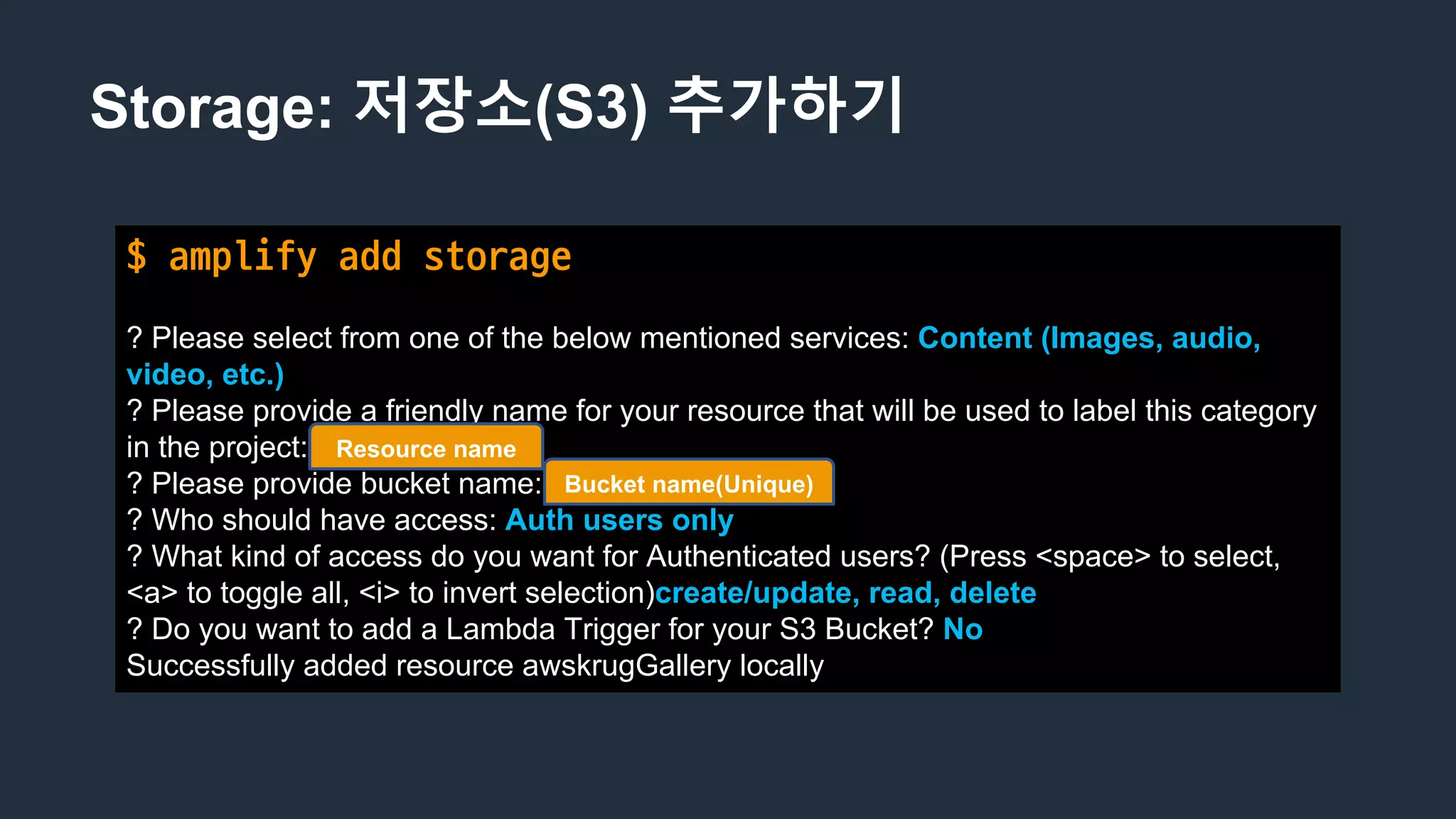

$ amplify add storage
? Please select from one of the below mentioned services: Content (Images, audio,
video, etc.)
? Please provide a friendly name for your resource that will be used to label this category
in the project: awskrugGallery
? Please provide bucket name: awskrug-gallery
? Who should have access: Auth users only
? What kind of access do you want for Authenticated users? (Press <space> to select,
<a> to toggle all, <i> to invert selection)create/update, read, delete
? Do you want to add a Lambda Trigger for your S3 Bucket? No
Successfully added resource awskrugGallery locally
Bucket name(Unique)
Resource name

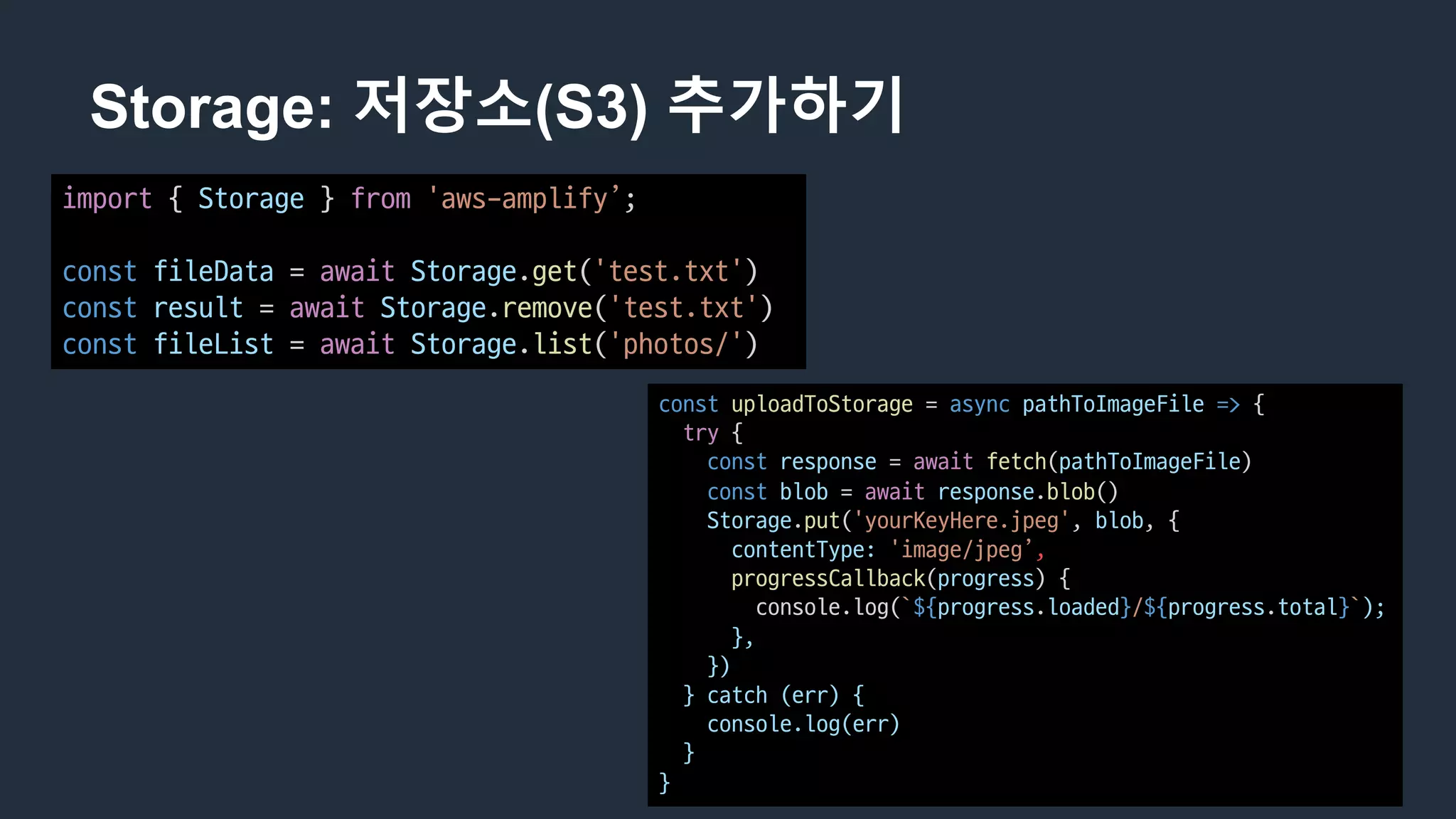

import { Storage } from 'aws-amplify’;
const fileData = await Storage.get('test.txt')
const result = await Storage.remove('test.txt')
const fileList = await Storage.list('photos/')
const uploadToStorage = async pathToImageFile => {
try {
const response = await fetch(pathToImageFile)
const blob = await response.blob()
Storage.put('yourKeyHere.jpeg', blob, {
contentType: 'image/jpeg’,
progressCallback(progress) {
console.log(`${progress.loaded}/${progress.total}`);
},
})
} catch (err) {
console.log(err)
}
}

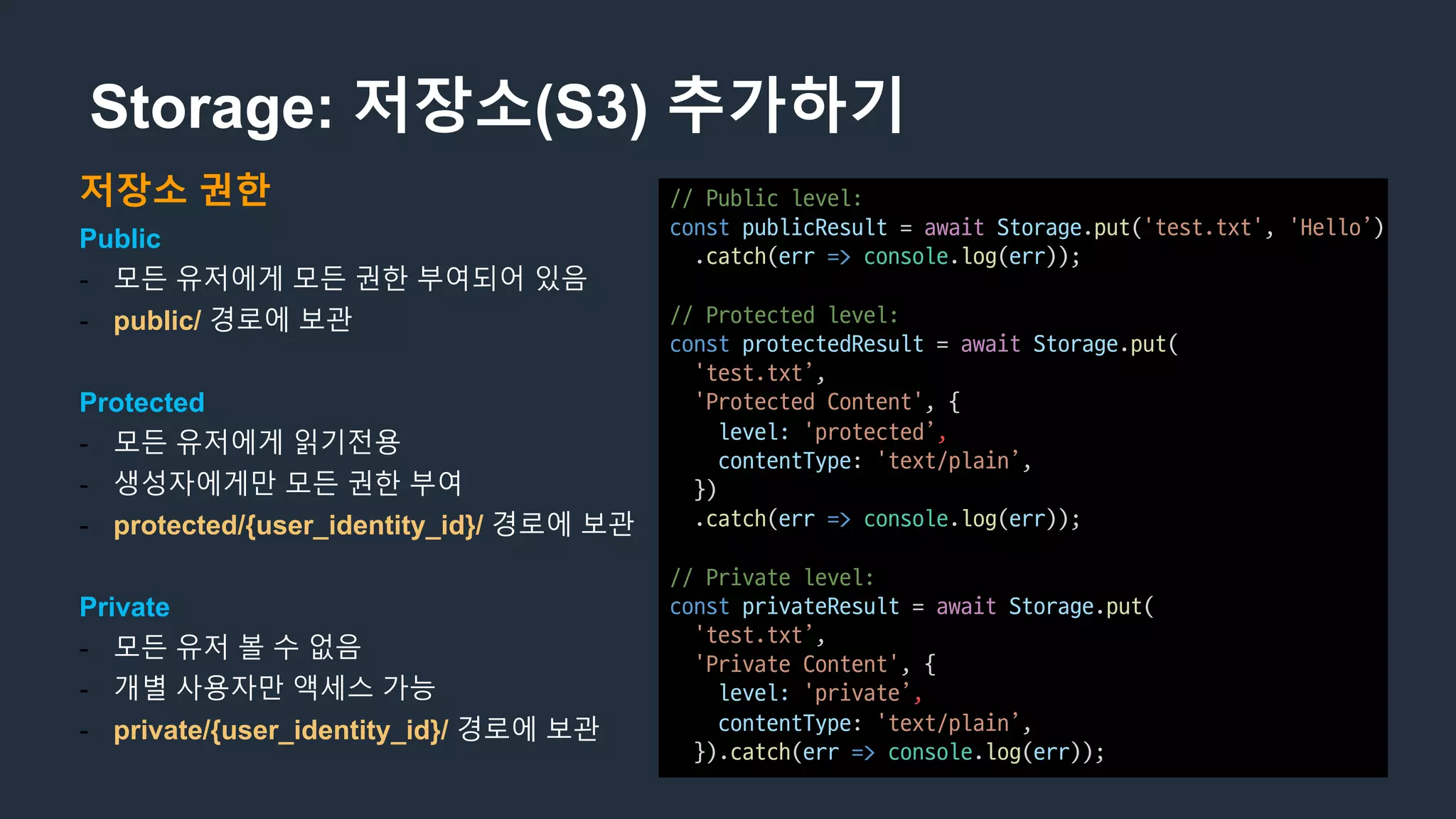

저장소 권한
Public
- 모든 유저에게 모든 권한 부여되어 있음
- public/ 경로에 보관
Protected
- 모든 유저에게 읽기전용
- 생성자에게만 모든 권한 부여
- protected/{user_identity_id}/ 경로에 보관
Private
- 모든 유저 볼 수 없음
- 개별 사용자만 액세스 가능
- private/{user_identity_id}/ 경로에 보관
// Public level:
const publicResult = await Storage.put('test.txt', 'Hello’)
.catch(err => console.log(err));
// Protected level:
const protectedResult = await Storage.put(
'test.txt’,
'Protected Content', {
level: 'protected’,
contentType: 'text/plain’,
})
.catch(err => console.log(err));
// Private level:
const privateResult = await Storage.put(
'test.txt’,
'Private Content', {
level: 'private’,
contentType: 'text/plain’,
}).catch(err => console.log(err));

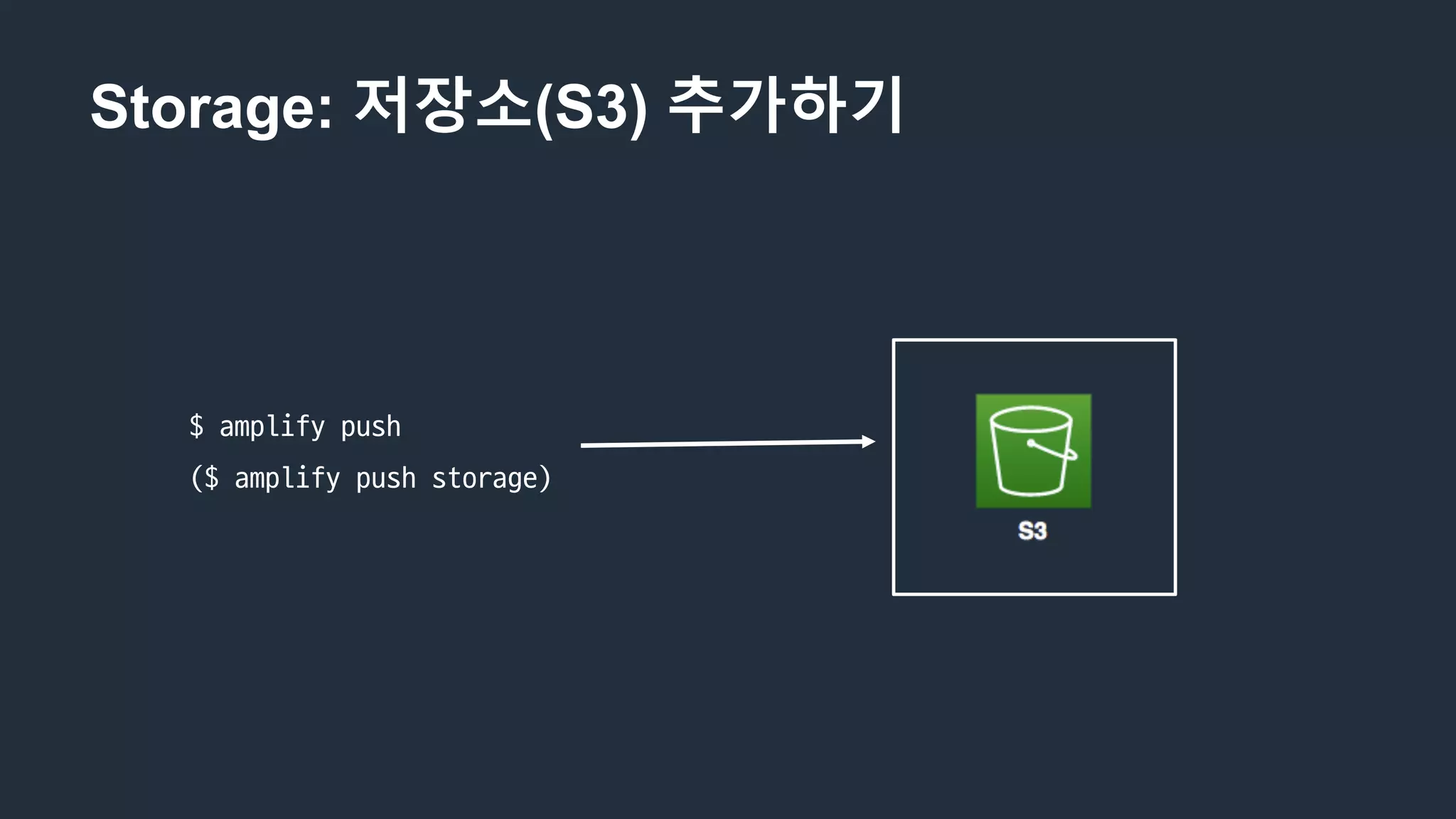

$ amplify push
($ amplify push storage)

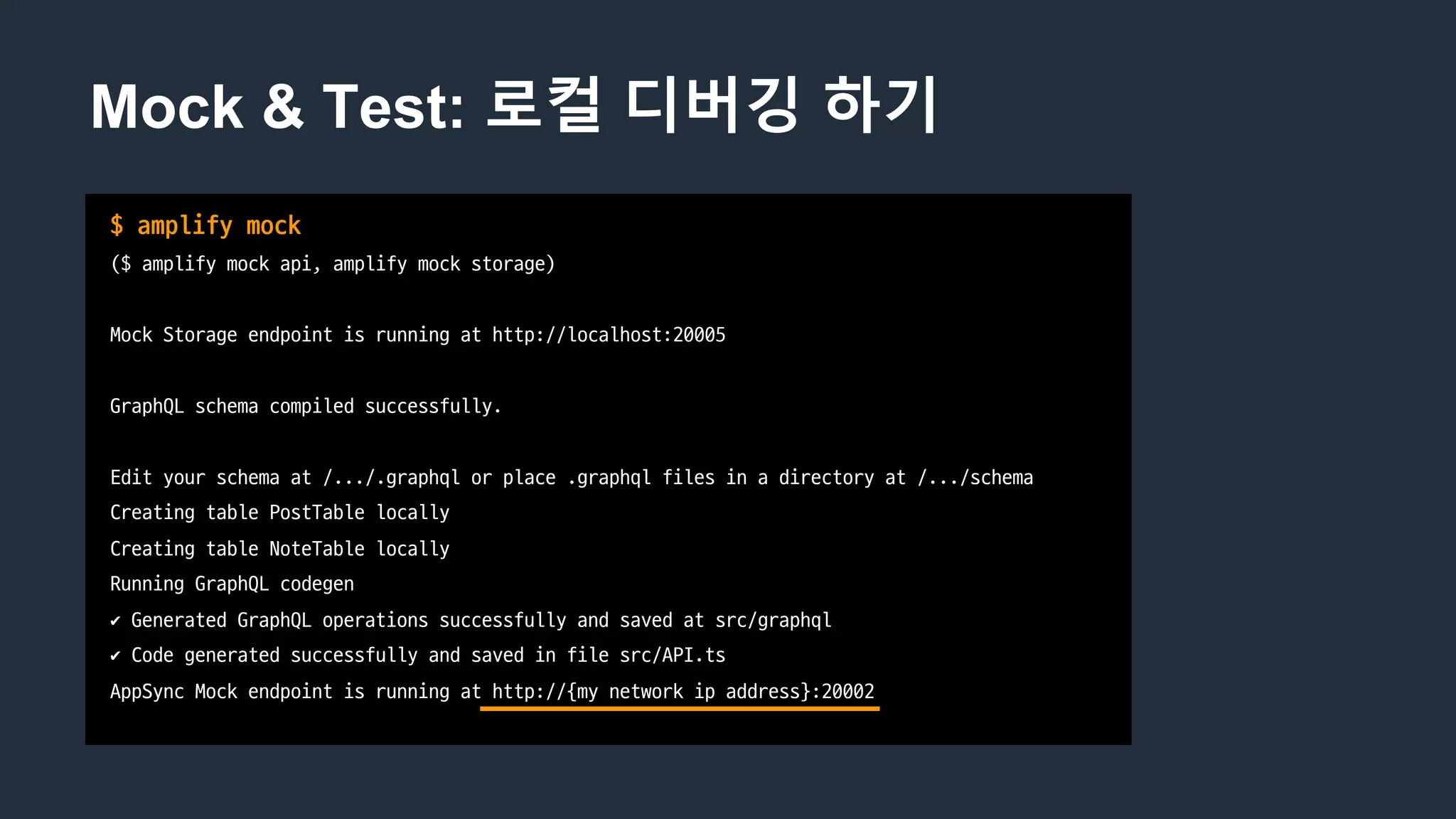

$ amplify mock
($ amplify mock api, amplify mock storage)
Mock Storage endpoint is running at http://localhost:20005
GraphQL schema compiled successfully.
Edit your schema at /.../.graphql or place .graphql files in a directory at /.../schema
Creating table PostTable locally
Creating table NoteTable locally
Running GraphQL codegen
✔ Generated GraphQL operations successfully and saved at src/graphql
✔ Code generated successfully and saved in file src/API.ts
AppSync Mock endpoint is running at http://{my network ip address}:20002

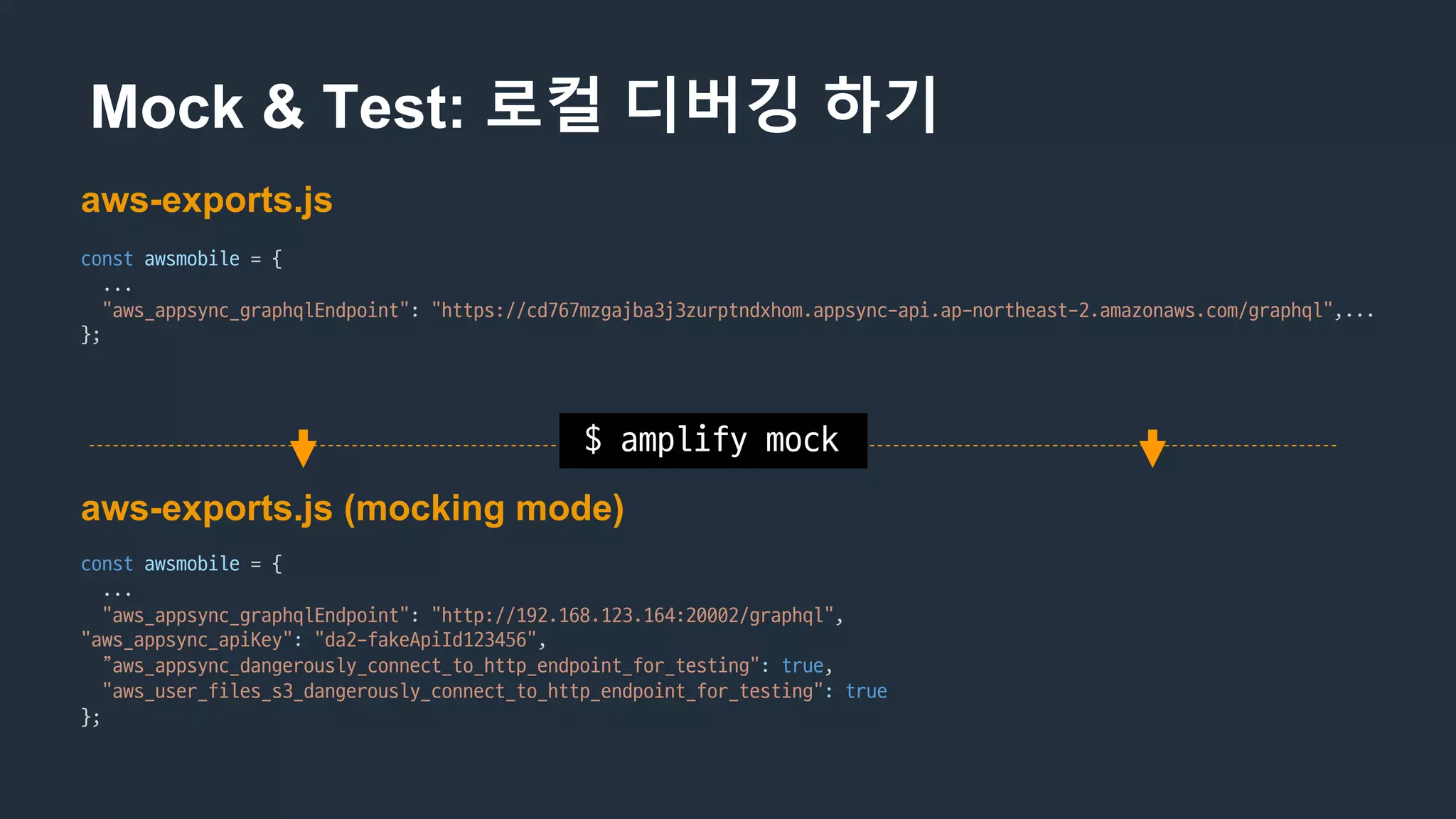

aws-exports.js
aws-exports.js (mocking mode)
const awsmobile = {
...
"aws_appsync_graphqlEndpoint": "https://cd767mzgajba3j3zurptndxhom.appsync-api.ap-northeast-2.amazonaws.com/graphql",...
};
const awsmobile = {
...
"aws_appsync_graphqlEndpoint": "http://192.168.123.164:20002/graphql",
"aws_appsync_apiKey": "da2-fakeApiId123456",
”aws_appsync_dangerously_connect_to_http_endpoint_for_testing": true,
"aws_user_files_s3_dangerously_connect_to_http_endpoint_for_testing": true
};

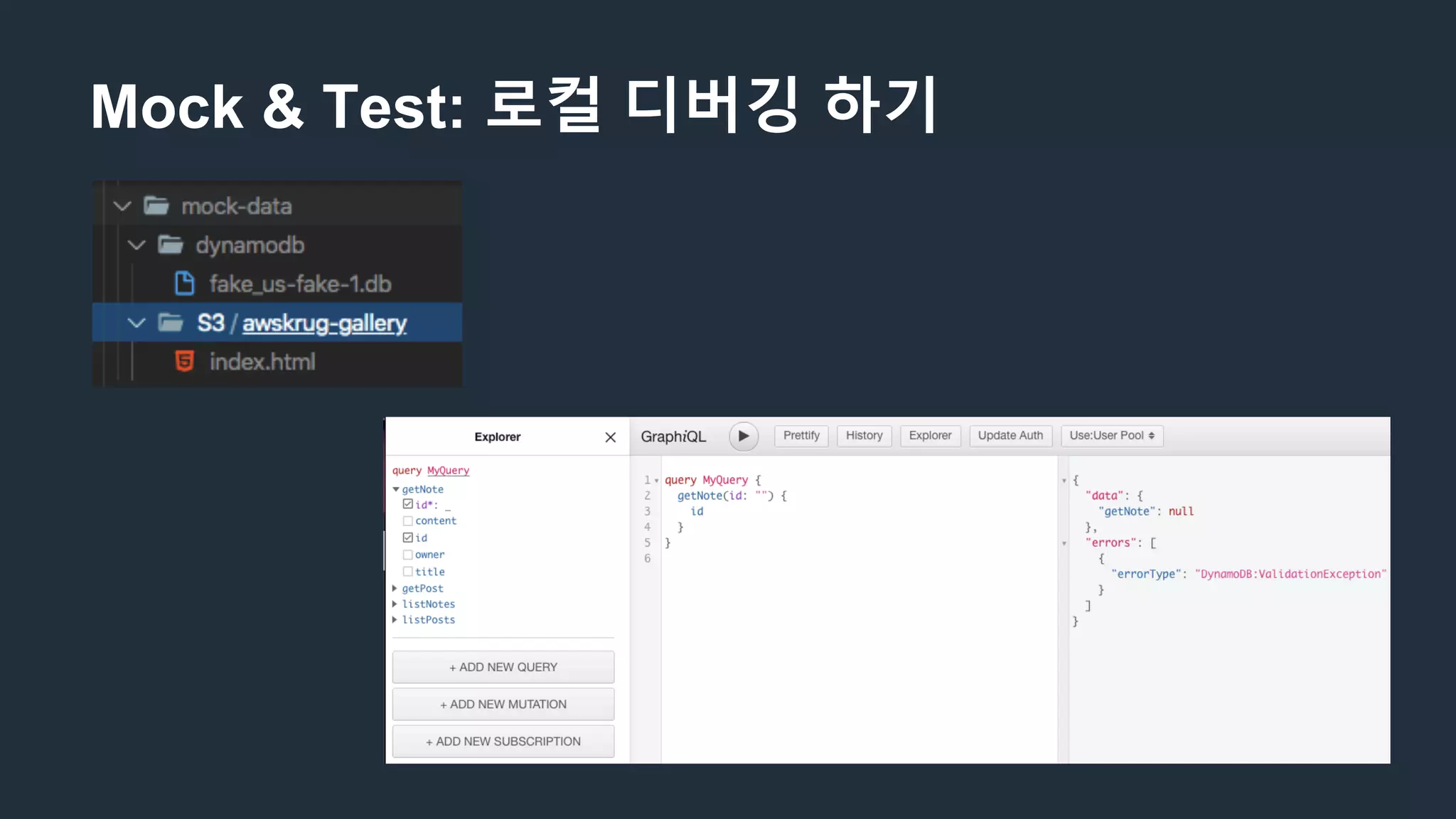

$ amplify mock

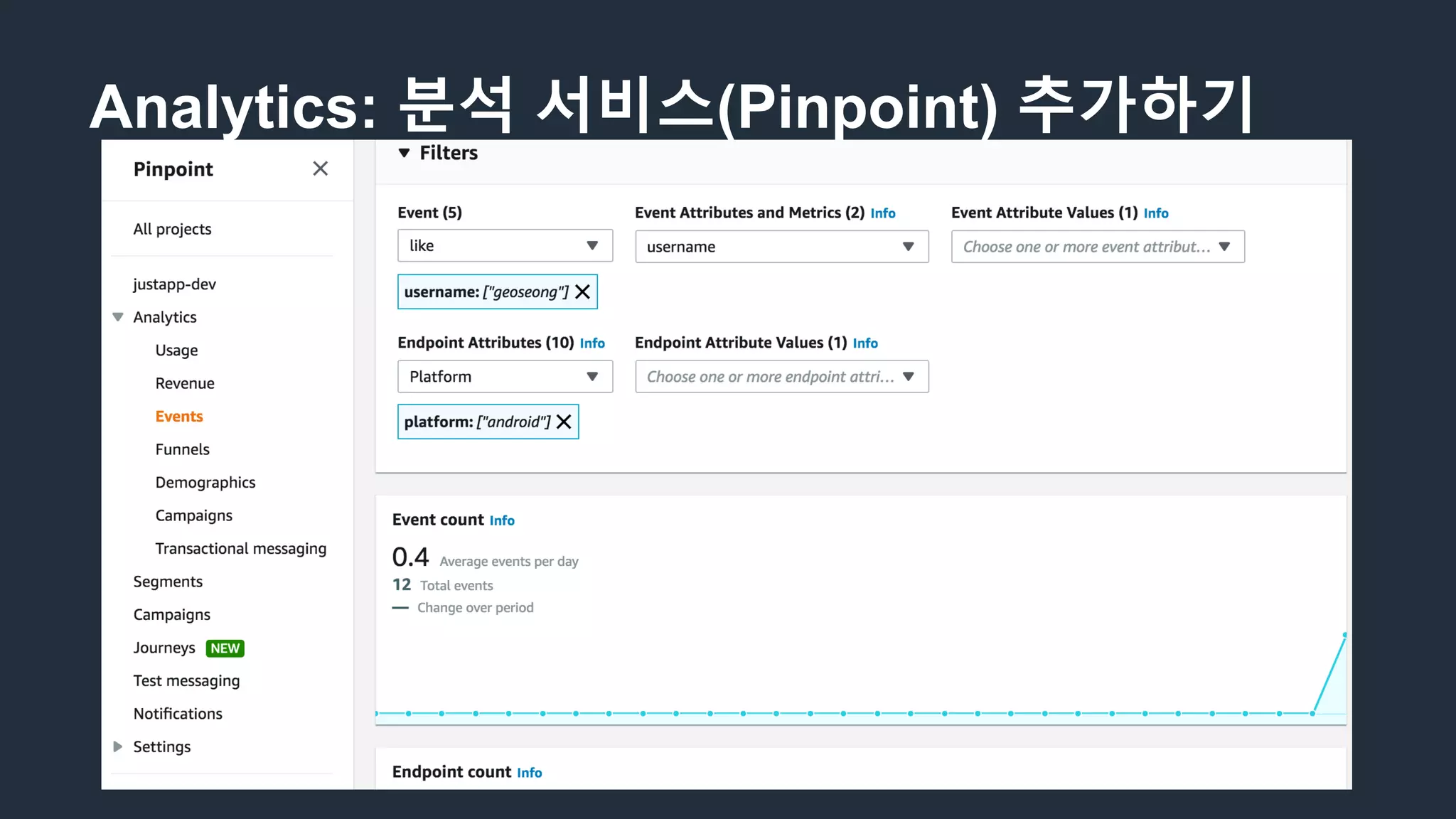

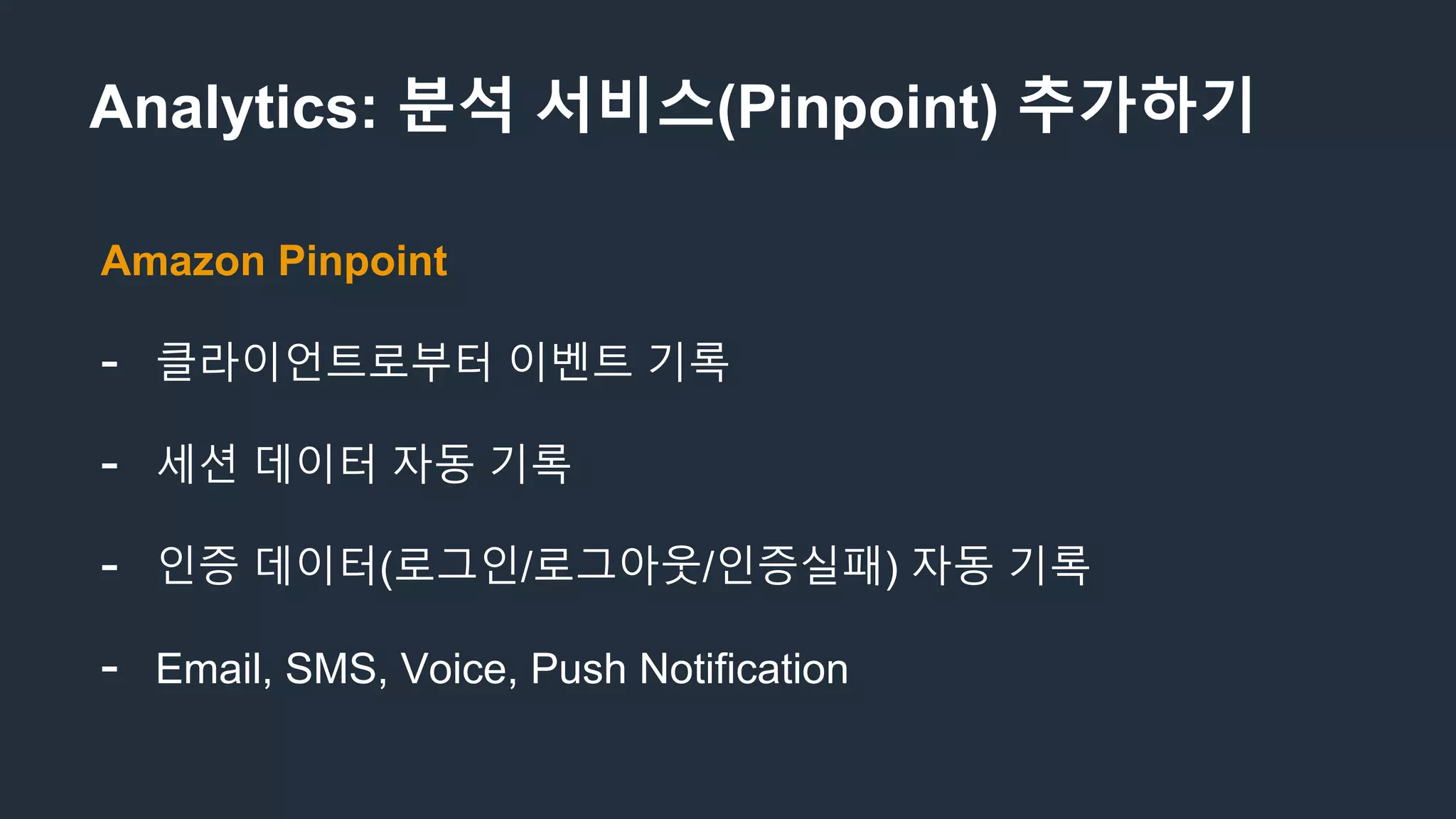

Amazon Pinpoint
- 클라이언트로부터 이벤트 기록
- 세션 데이터 자동 기록
- 인증 데이터(로그인/로그아웃/인증실패) 자동 기록
- Email, SMS, Voice, Push Notification

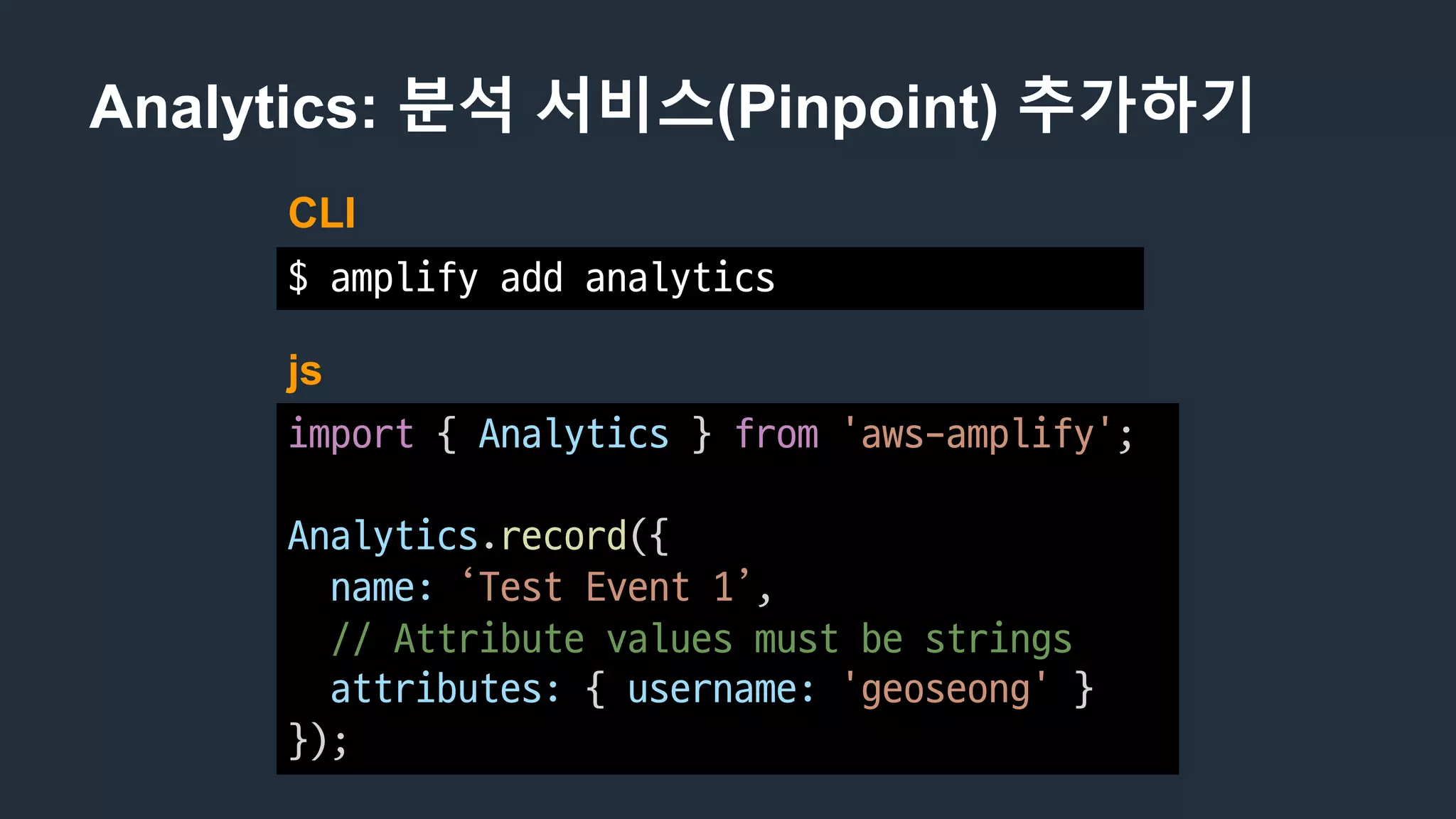

$ amplify add analytics
CLI
import { Analytics } from 'aws-amplify';
Analytics.record({
name: ‘Test Event 1’,
// Attribute values must be strings
attributes: { username: 'geoseong' }
});
js

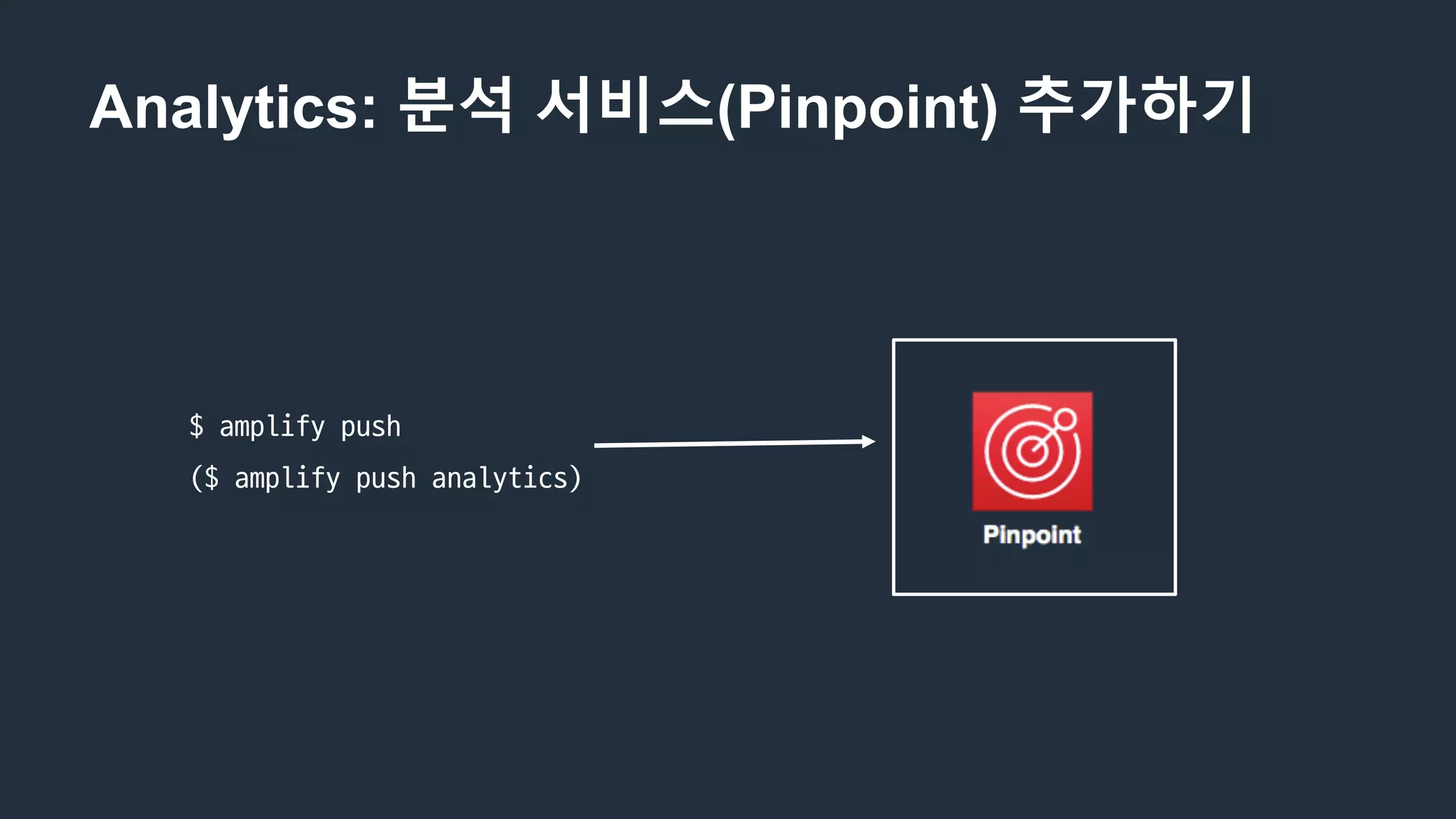

$ amplify push
($ amplify push analytics)

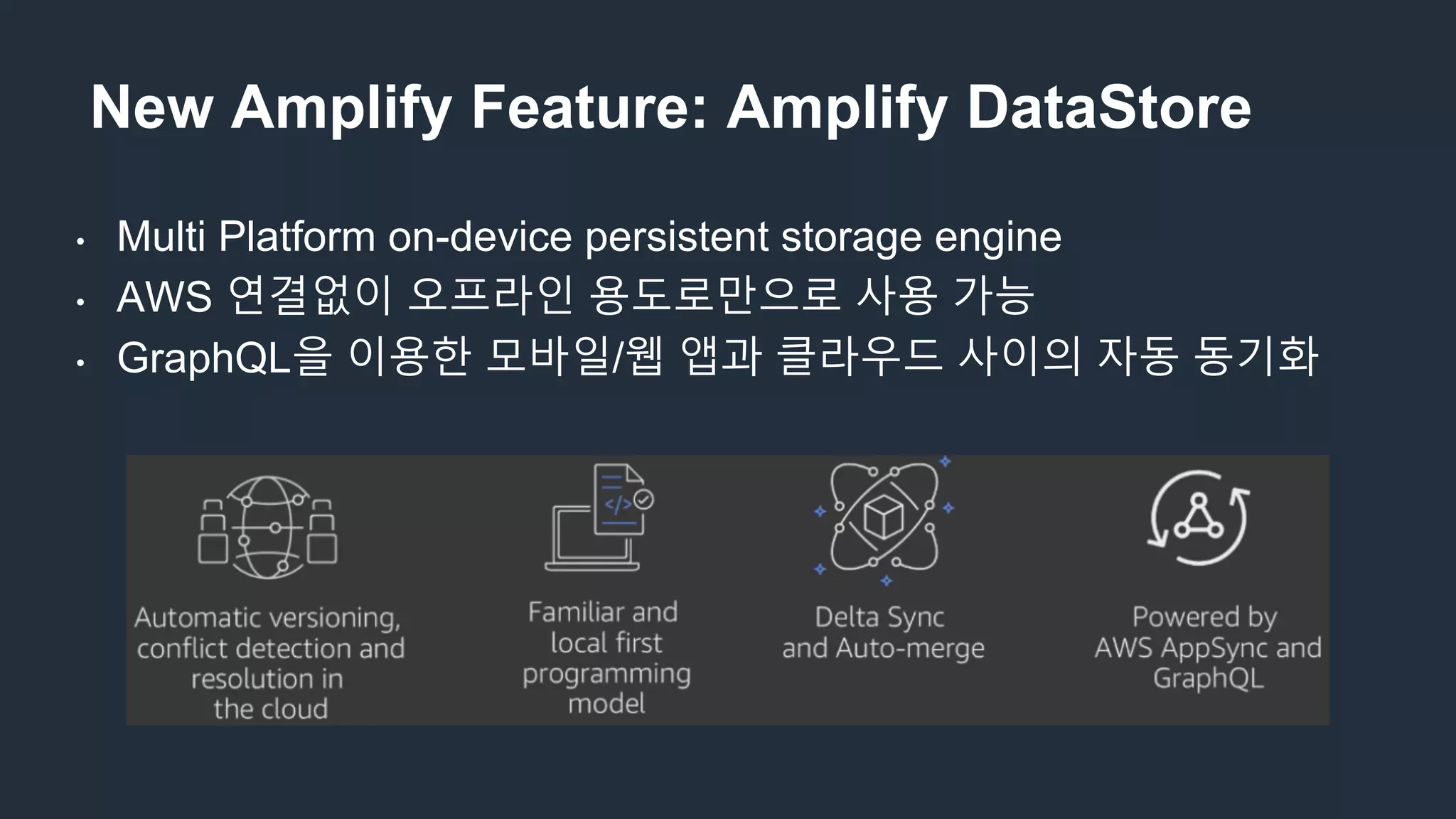

• Multi Platform on-device persistent storage engine
• AWS 연결없이 오프라인 용도로만으로 사용 가능
• GraphQL을 이용한 모바일/웹 앱과 클라우드 사이의 자동 동기화

offline

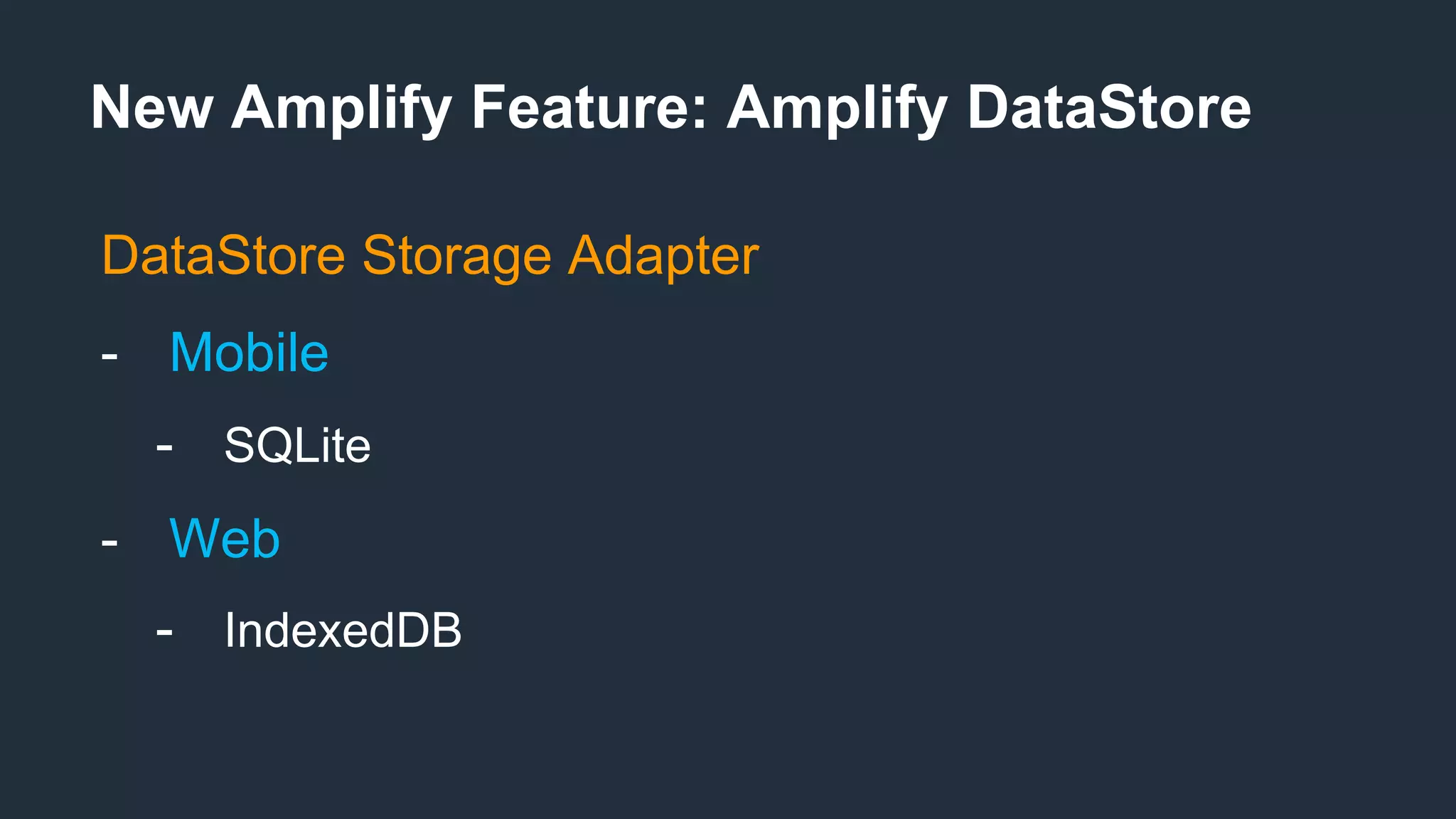

DataStore Storage Adapter
- Mobile
- SQLite
- Web
- IndexedDB

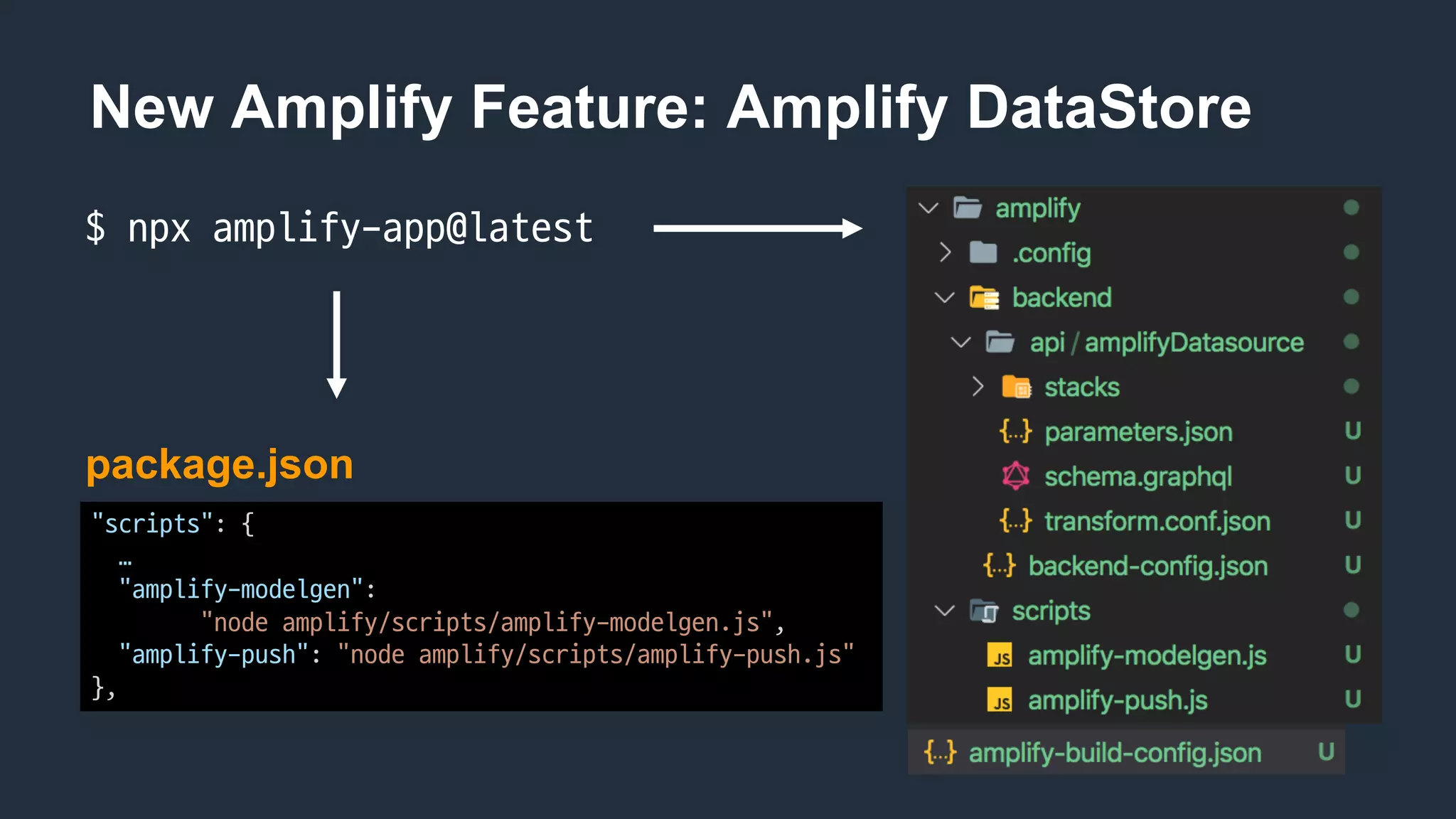

$ npx amplify-app@latest
"scripts": {
…
"amplify-modelgen":
"node amplify/scripts/amplify-modelgen.js",
"amplify-push": "node amplify/scripts/amplify-push.js"
},
package.json

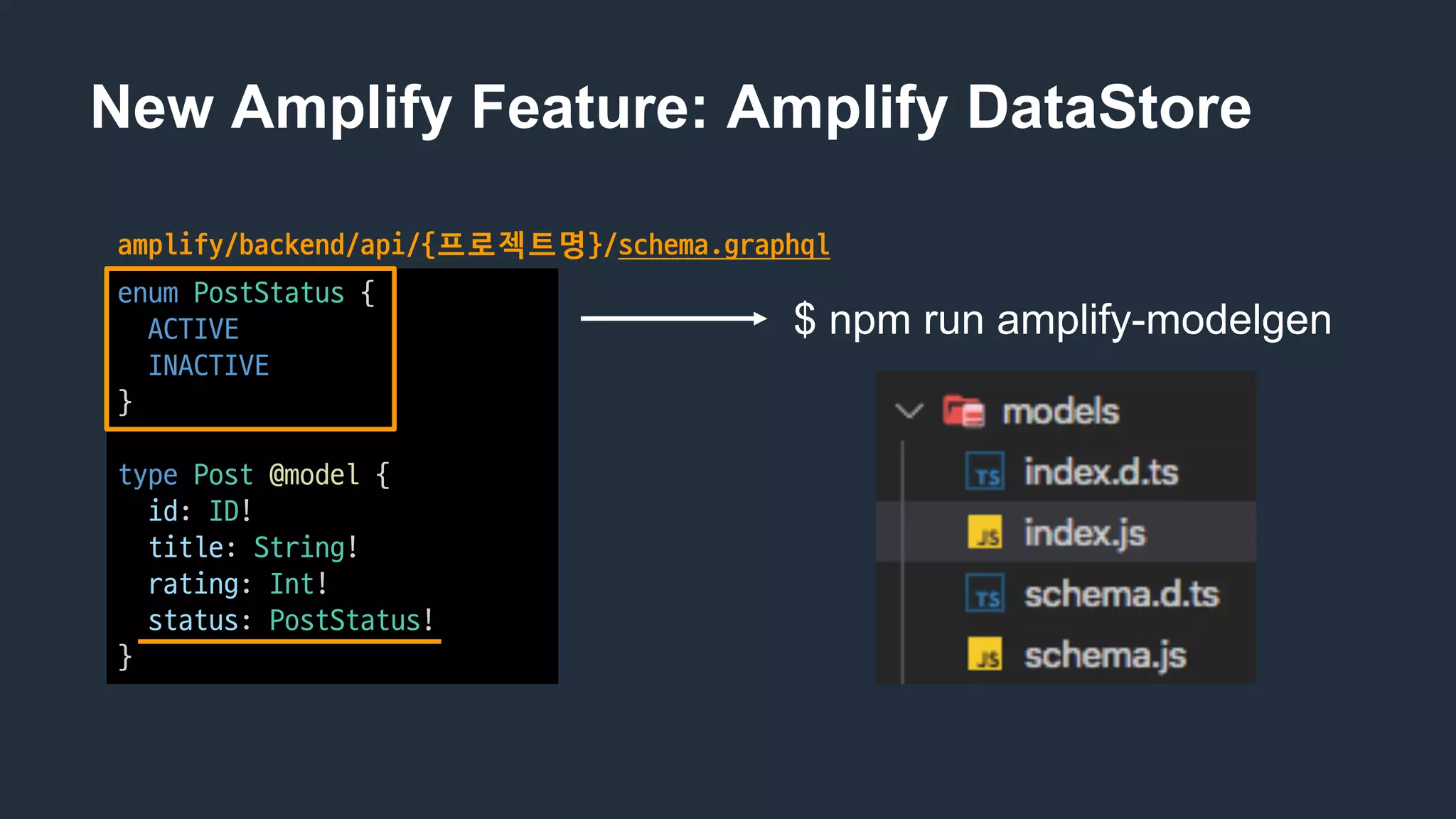

amplify/backend/api/{프로젝트명}/schema.graphql
enum PostStatus {
ACTIVE
INACTIVE
}
type Post @model {
id: ID!
title: String!
rating: Int!
status: PostStatus!
}
$ npm run amplify-modelgen

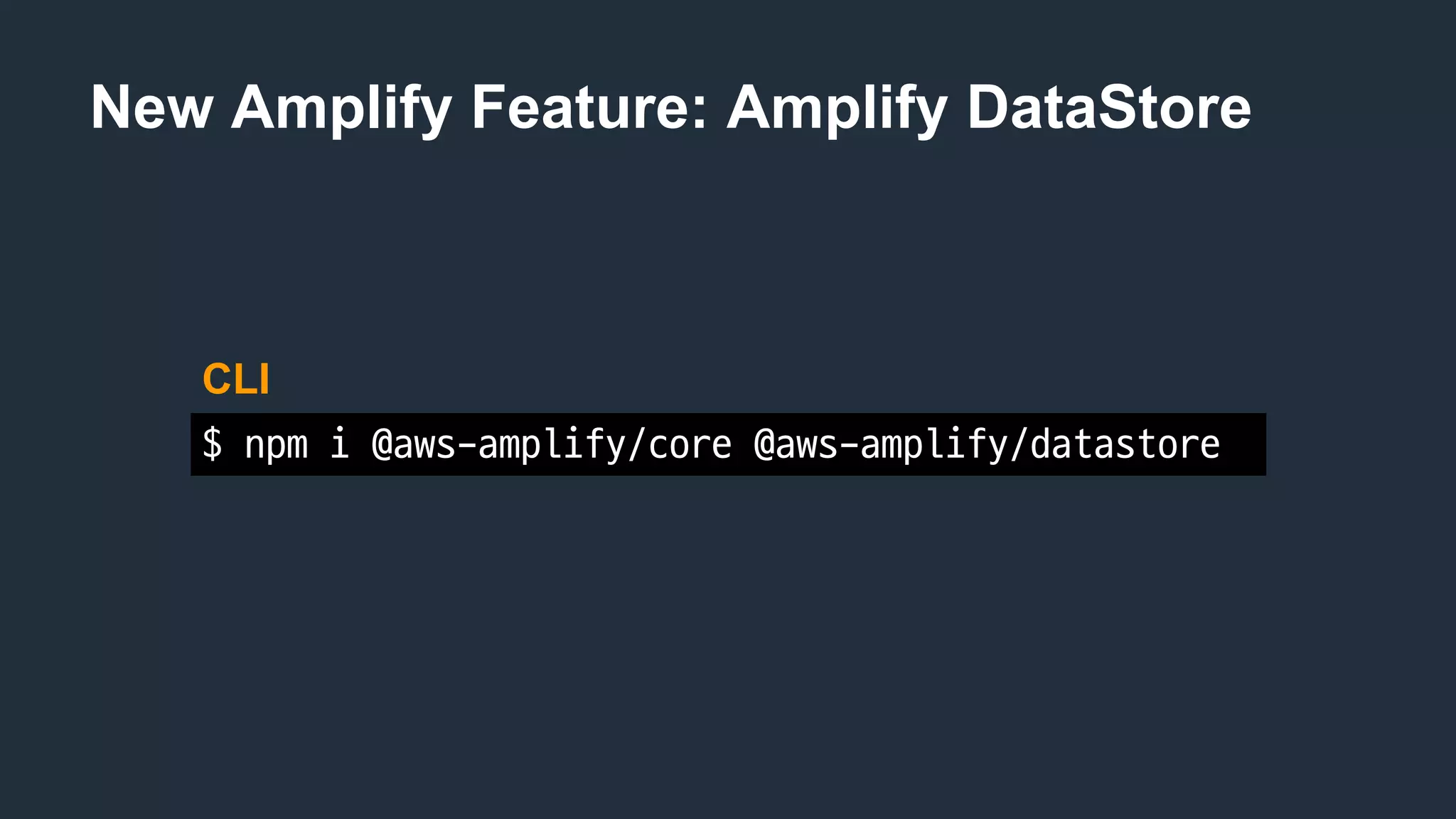

$ npm i @aws-amplify/core @aws-amplify/datastore
CLI

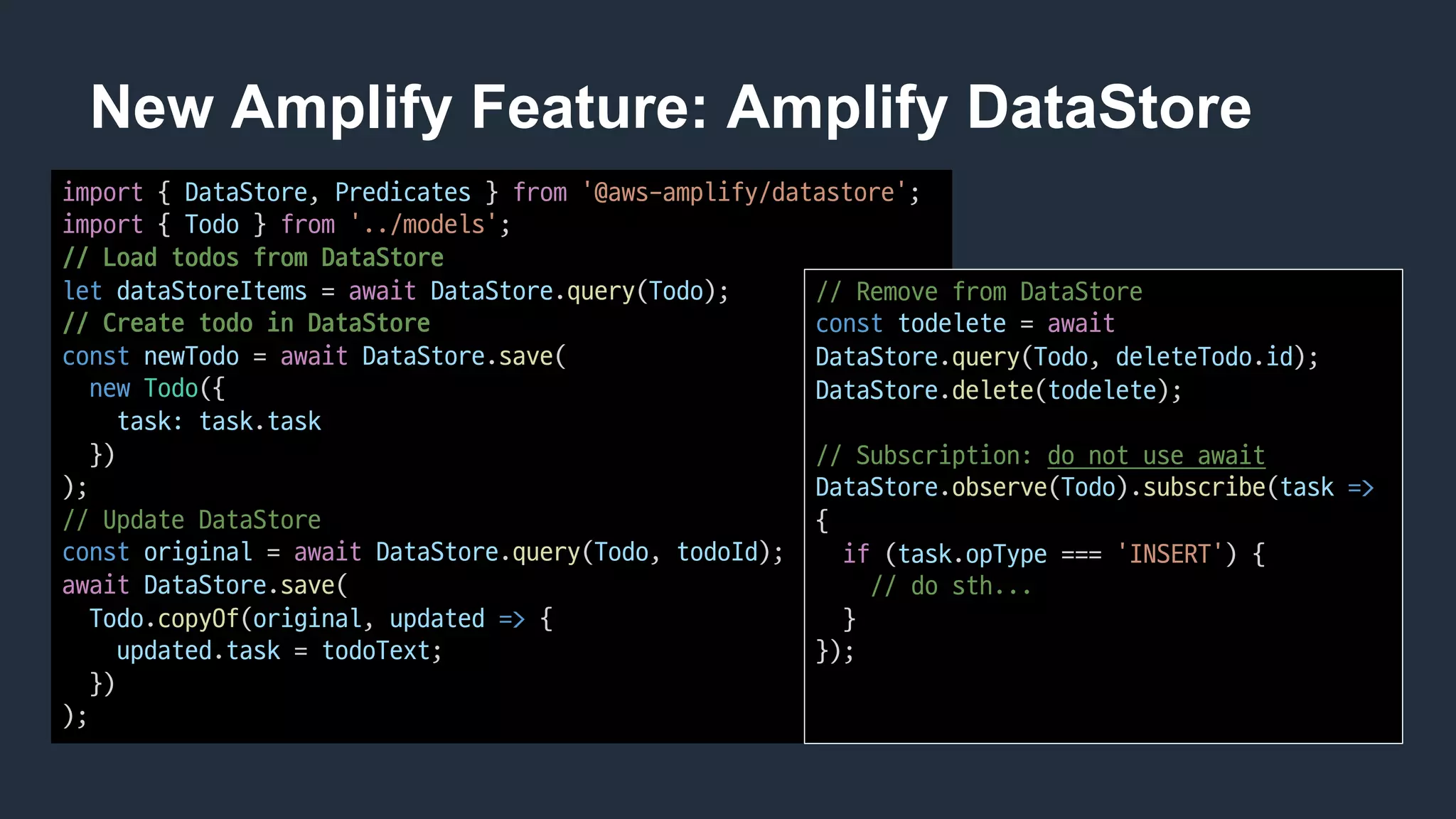

import { DataStore, Predicates } from '@aws-amplify/datastore';
import { Todo } from '../models';
// Load todos from DataStore
let dataStoreItems = await DataStore.query(Todo);
// Create todo in DataStore
const newTodo = await DataStore.save(
new Todo({
task: task.task
})
);
// Update DataStore
const original = await DataStore.query(Todo, todoId);
await DataStore.save(
Todo.copyOf(original, updated => {
updated.task = todoText;
})
);
// Remove from DataStore
const todelete = await
DataStore.query(Todo, deleteTodo.id);
DataStore.delete(todelete);
// Subscription: do not use await
DataStore.observe(Todo).subscribe(task =>
{
if (task.opType === 'INSERT') {
// do sth...
}
});

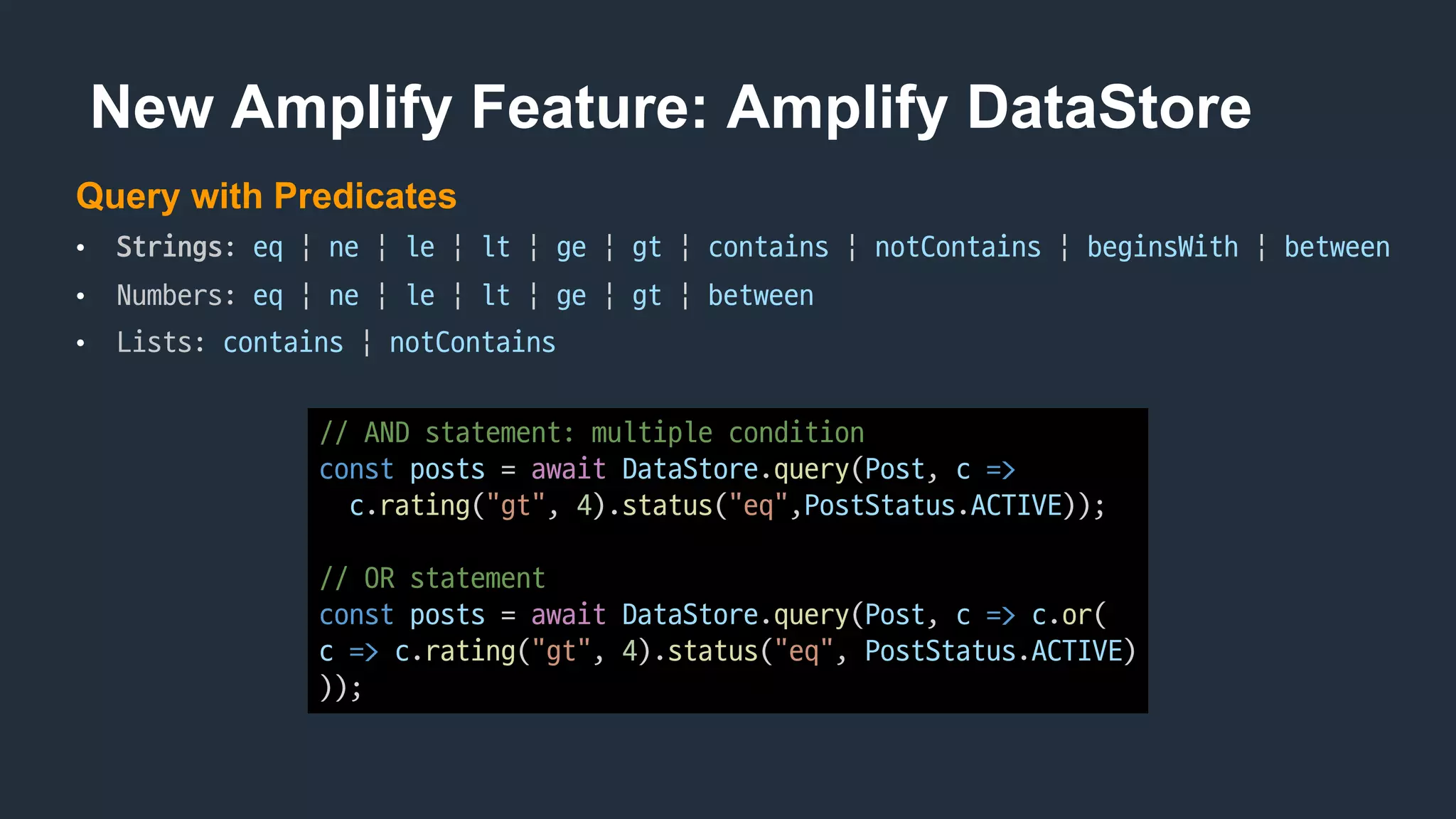

Query with Predicates
• Strings: eq | ne | le | lt | ge | gt | contains | notContains | beginsWith | between
• Numbers: eq | ne | le | lt | ge | gt | between
• Lists: contains | notContains
// AND statement: multiple condition
const posts = await DataStore.query(Post, c =>
c.rating("gt", 4).status("eq",PostStatus.ACTIVE));
// OR statement
const posts = await DataStore.query(Post, c => c.or(
c => c.rating("gt", 4).status("eq", PostStatus.ACTIVE)
));

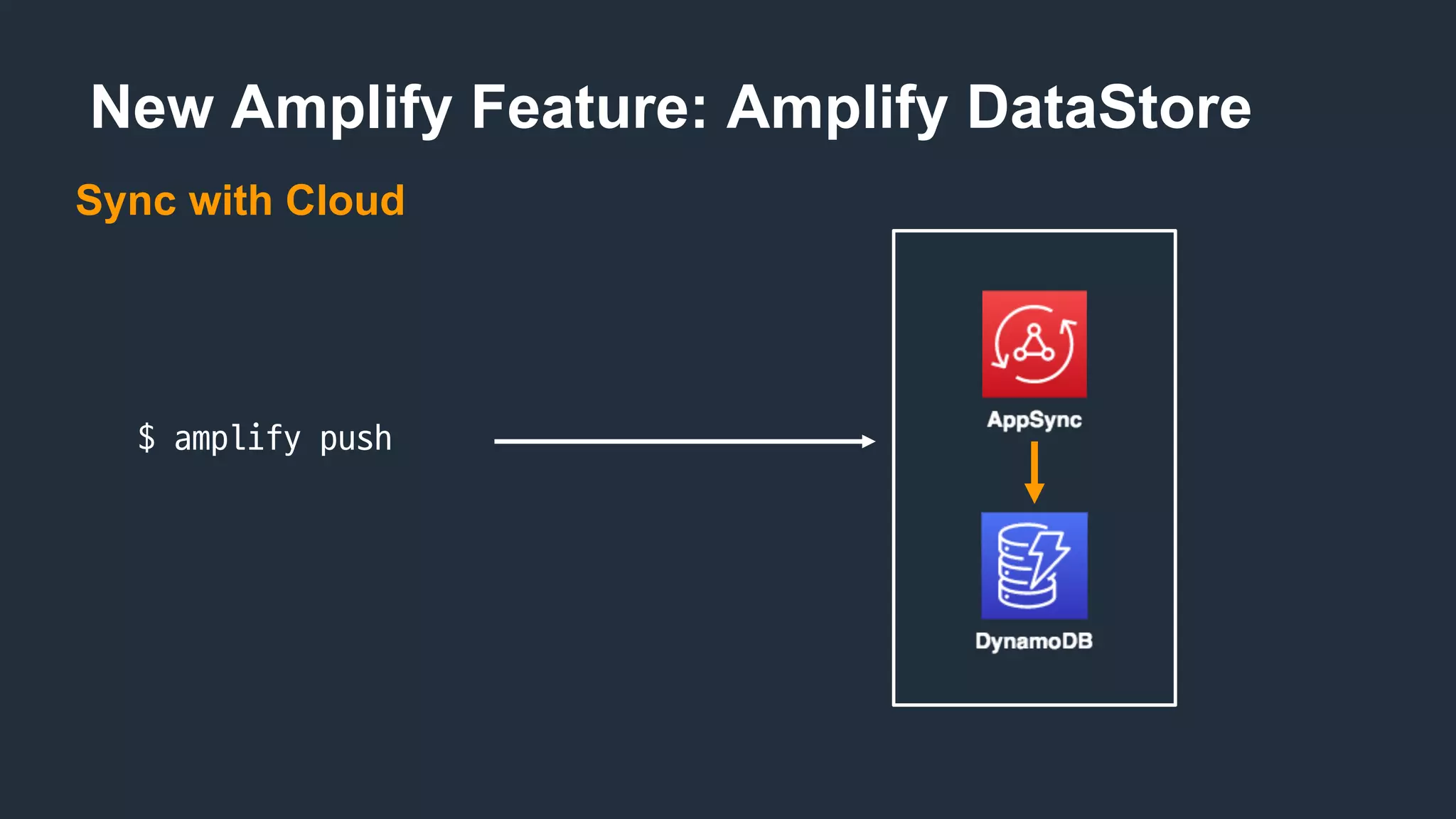

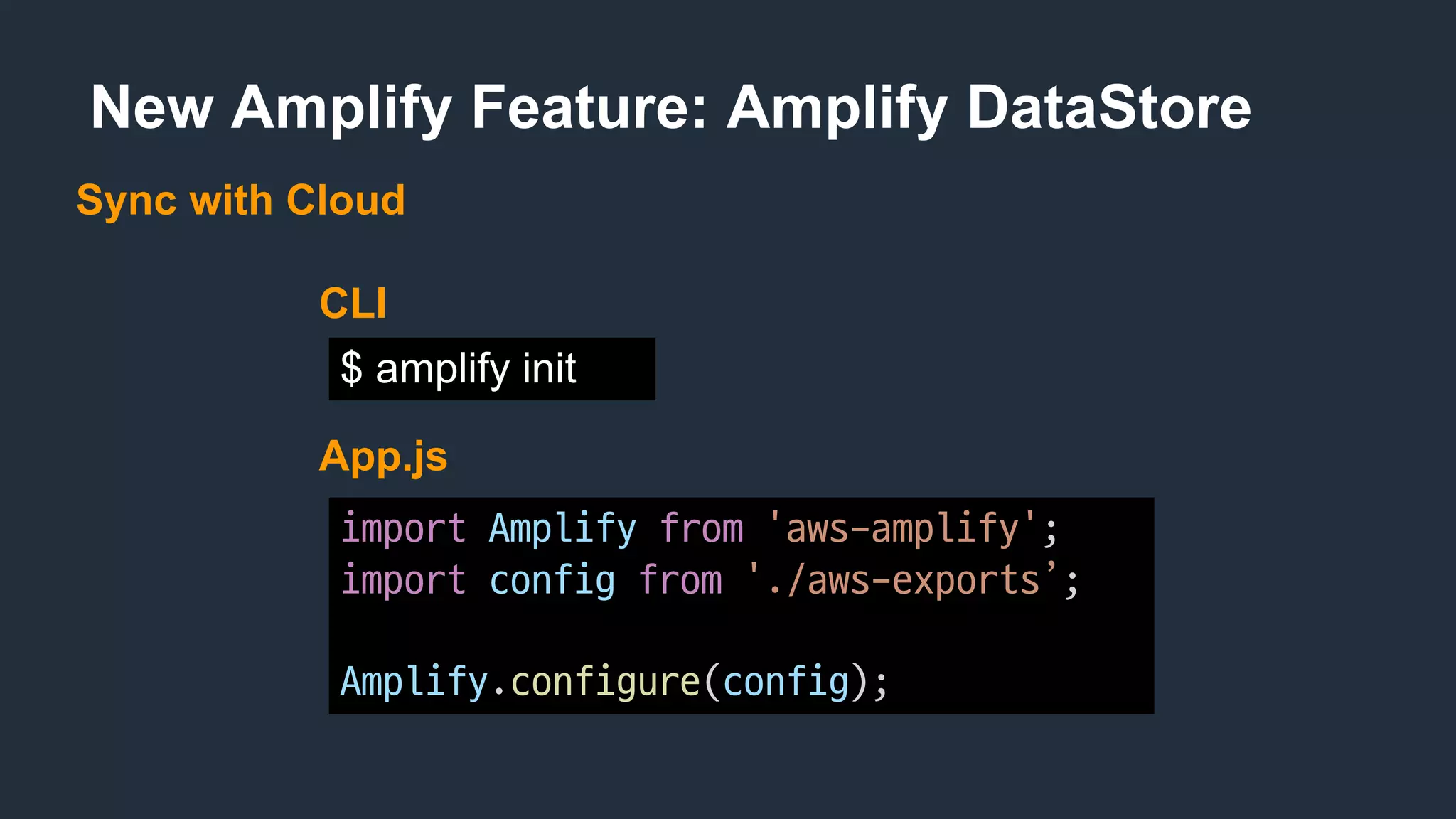

Sync with Cloud
import Amplify from 'aws-amplify';
import config from './aws-exports’;
Amplify.configure(config);
App.js
$ amplify init
CLI

$ amplify push
Sync with Cloud

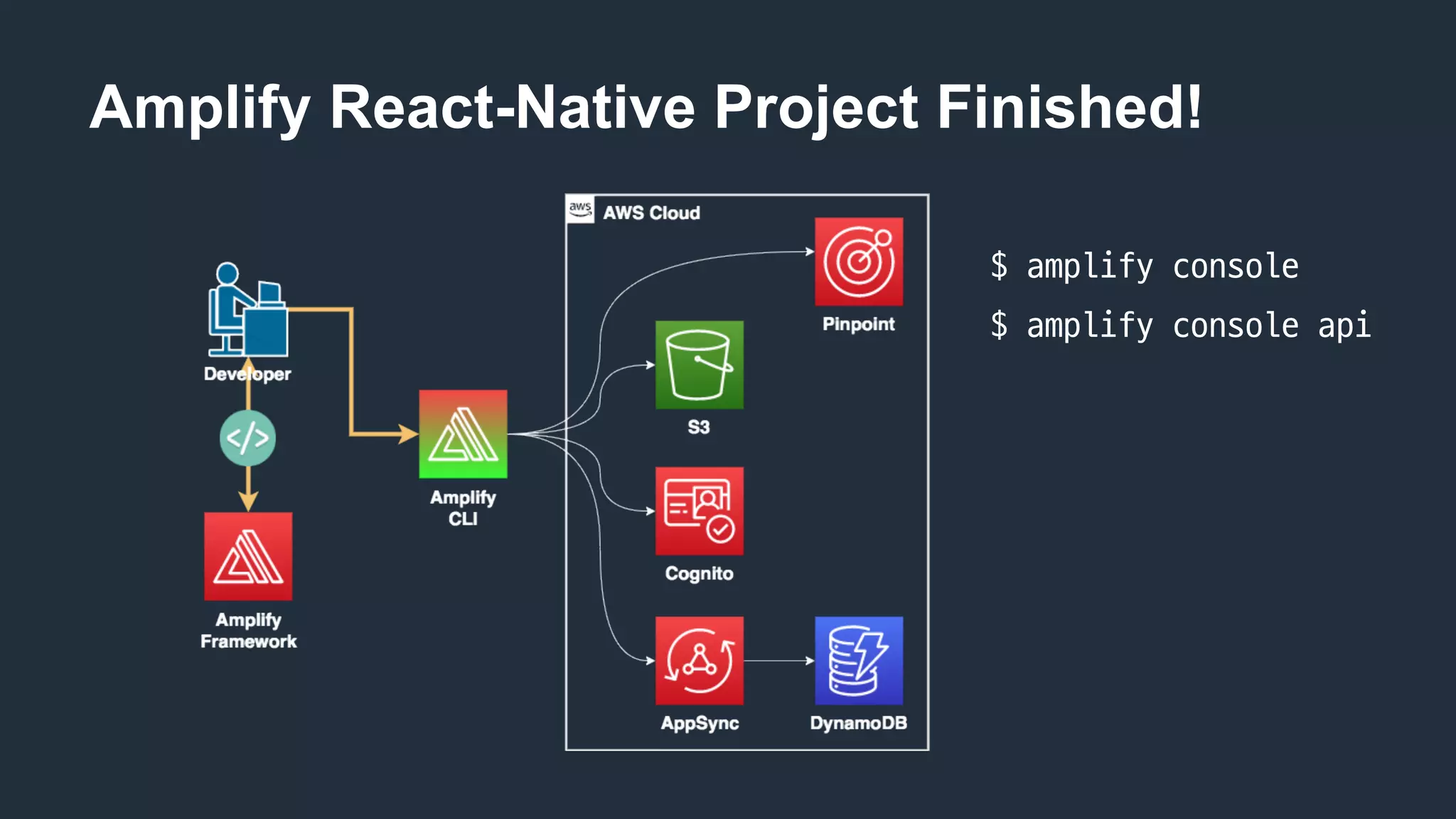

Amplify React-Native Project Finished!
$ amplify console
$ amplify console api

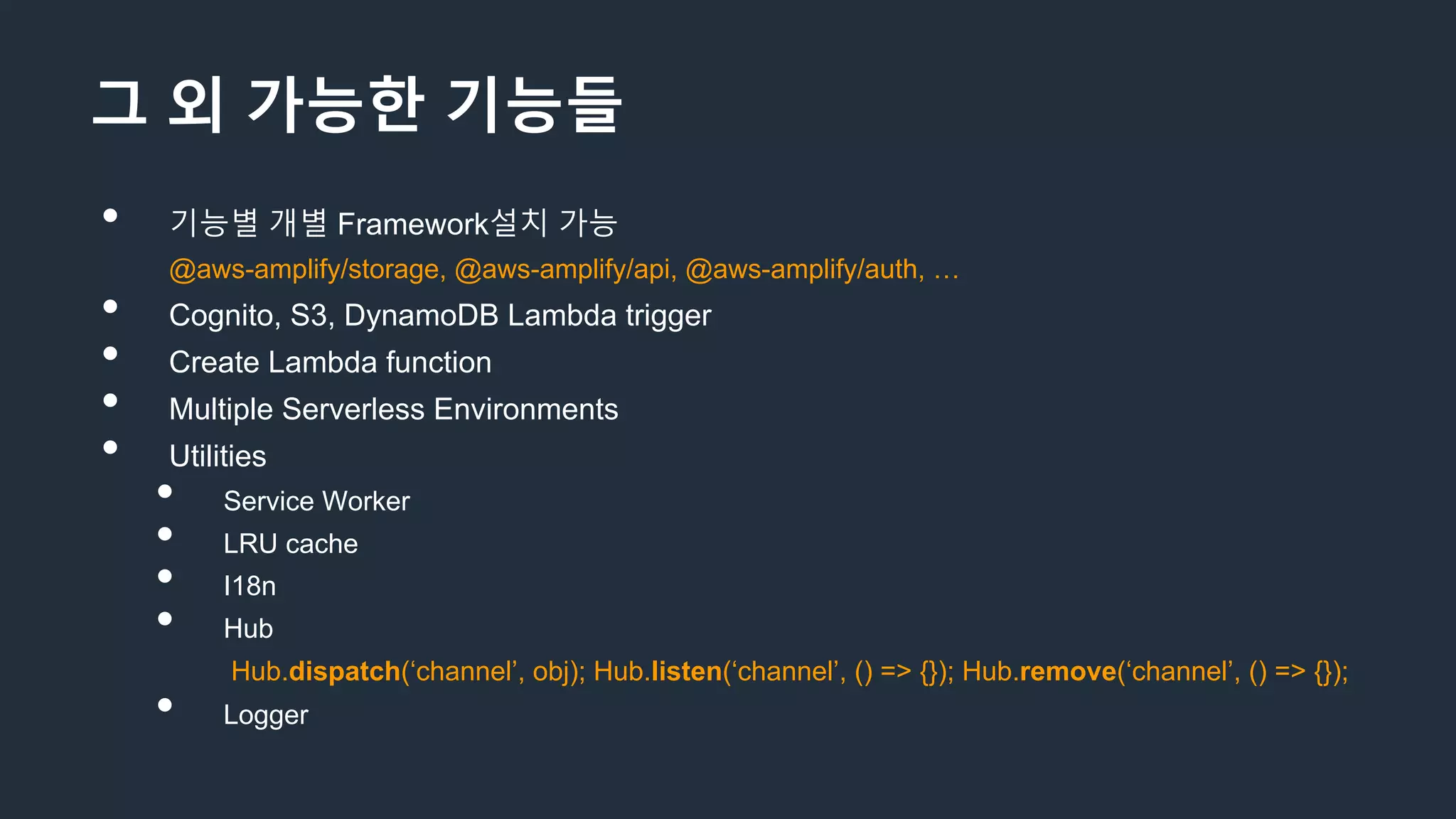

그 외 가능한 기능들
• 기능별 개별 Framework설치 가능
@aws-amplify/storage, @aws-amplify/api, @aws-amplify/auth, …
• Cognito, S3, DynamoDB Lambda trigger
• Create Lambda function
• Multiple Serverless Environments
• Utilities
• Service Worker
• LRU cache
• I18n
• Hub
Hub.dispatch(‘channel’, obj); Hub.listen(‘channel’, () => {}); Hub.remove(‘channel’, () => {});
• Logger

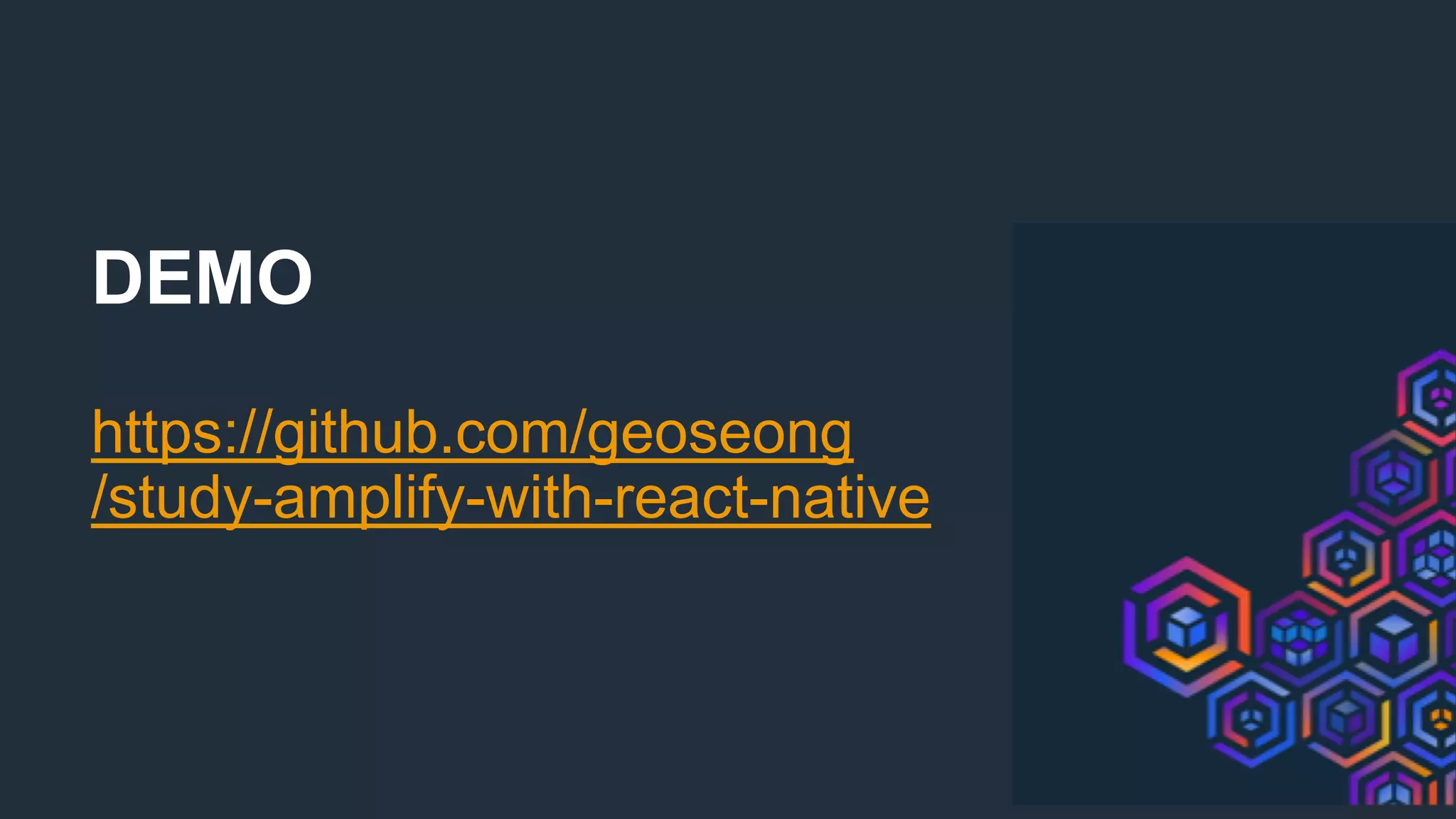

DEMO
https://github.com/geoseong
/study-amplify-with-react-native

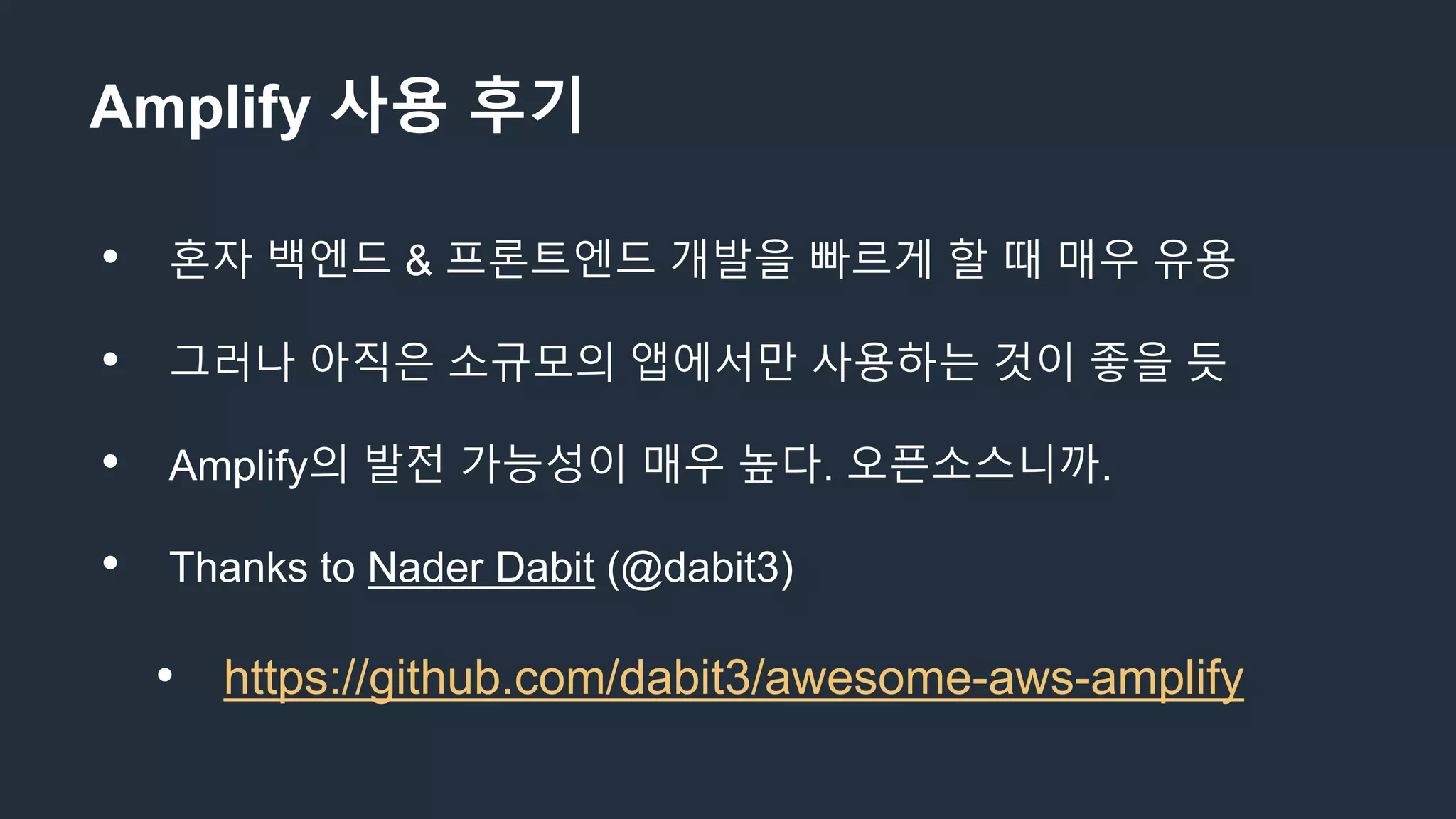

Amplify 사용 후기
• 혼자 백엔드 & 프론트엔드 개발을 빠르게 할 때 매우 유용
• 그러나 아직은 소규모의 앱에서만 사용하는 것이 좋을 듯
• Amplify의 발전 가능성이 매우 높다. 오픈소스니까.
• Thanks to Nader Dabit (@dabit3)
• https://github.com/dabit3/awesome-aws-amplify

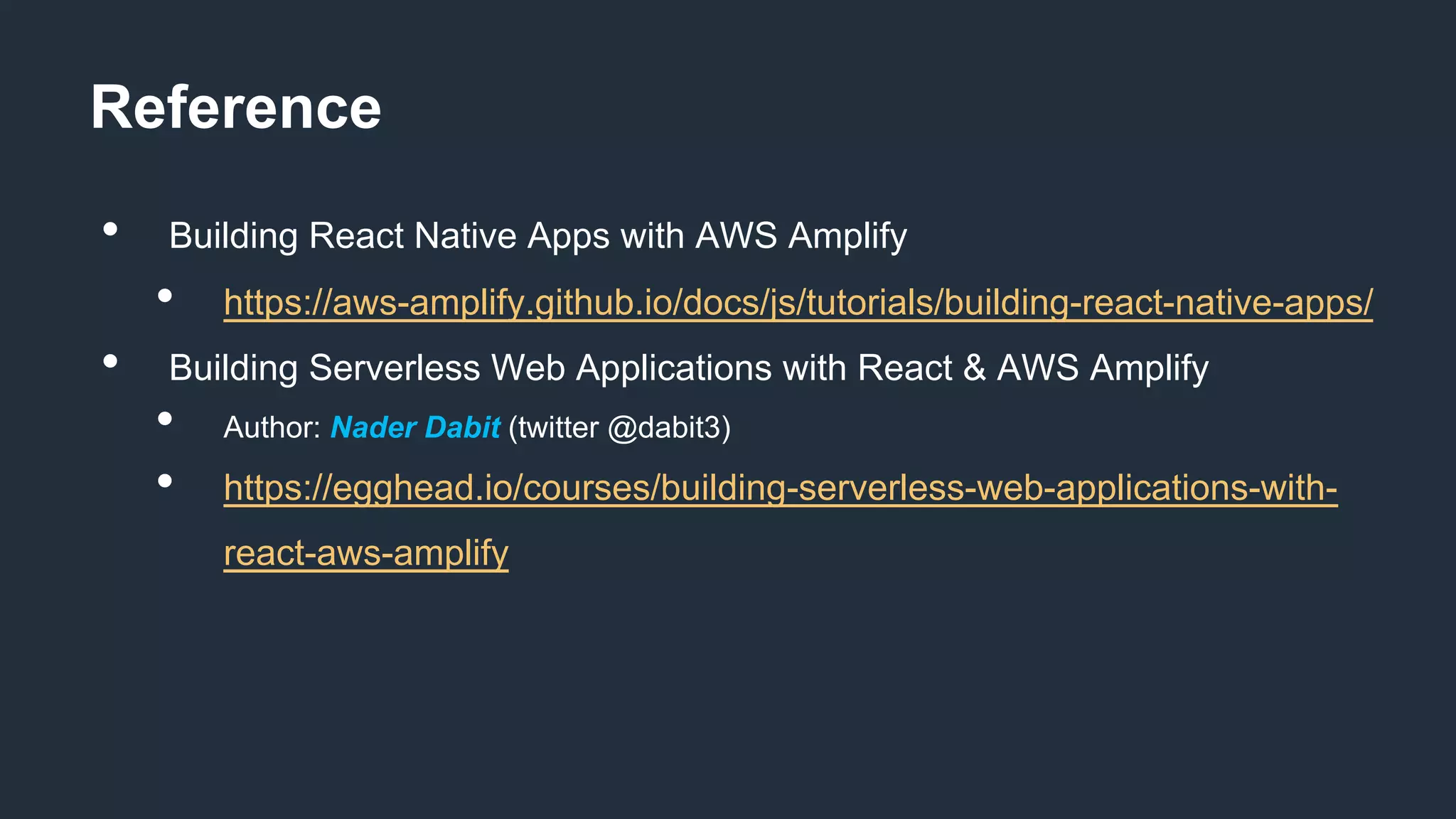

Reference
• Building React Native Apps with AWS Amplify
• https://aws-amplify.github.io/docs/js/tutorials/building-react-native-apps/
• Building Serverless Web Applications with React & AWS Amplify
• Author: Nader Dabit (twitter @dabit3)
• https://egghead.io/courses/building-serverless-web-applications-with-
react-aws-amplify

Join AWSKRUG Slack!
http://slack.awskr.org/

Amplify를 통해 클라우드 기반 모바일 앱 개발하기 - 박태성(IDEASAM) :: AWS Community Day 2020

More Related Content

What's hot

Similar to Amplify를 통해 클라우드 기반 모바일 앱 개발하기 - 박태성(IDEASAM) :: AWS Community Day 2020

More from AWSKRUG - AWS한국사용자모임

Recently uploaded

Amplify를 통해 클라우드 기반 모바일 앱 개발하기 - 박태성(IDEASAM) :: AWS Community Day 2020
