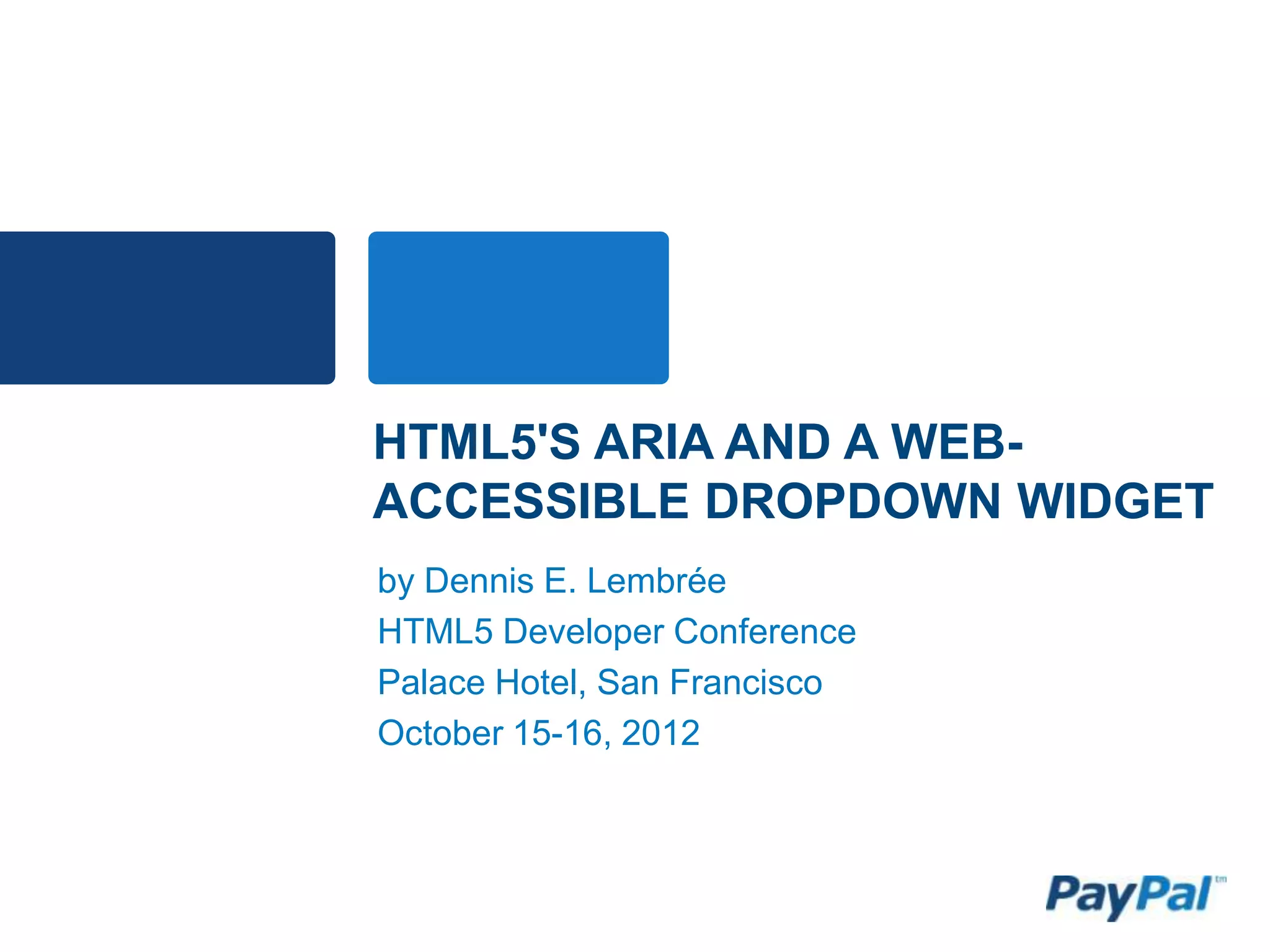

1. HTML5'S ARIA AND A WEB-
ACCESSIBLE DROPDOWN WIDGET
by Dennis E. Lembrée
HTML5 Developer Conference
Palace Hotel, San Francisco
October 15-16, 2012

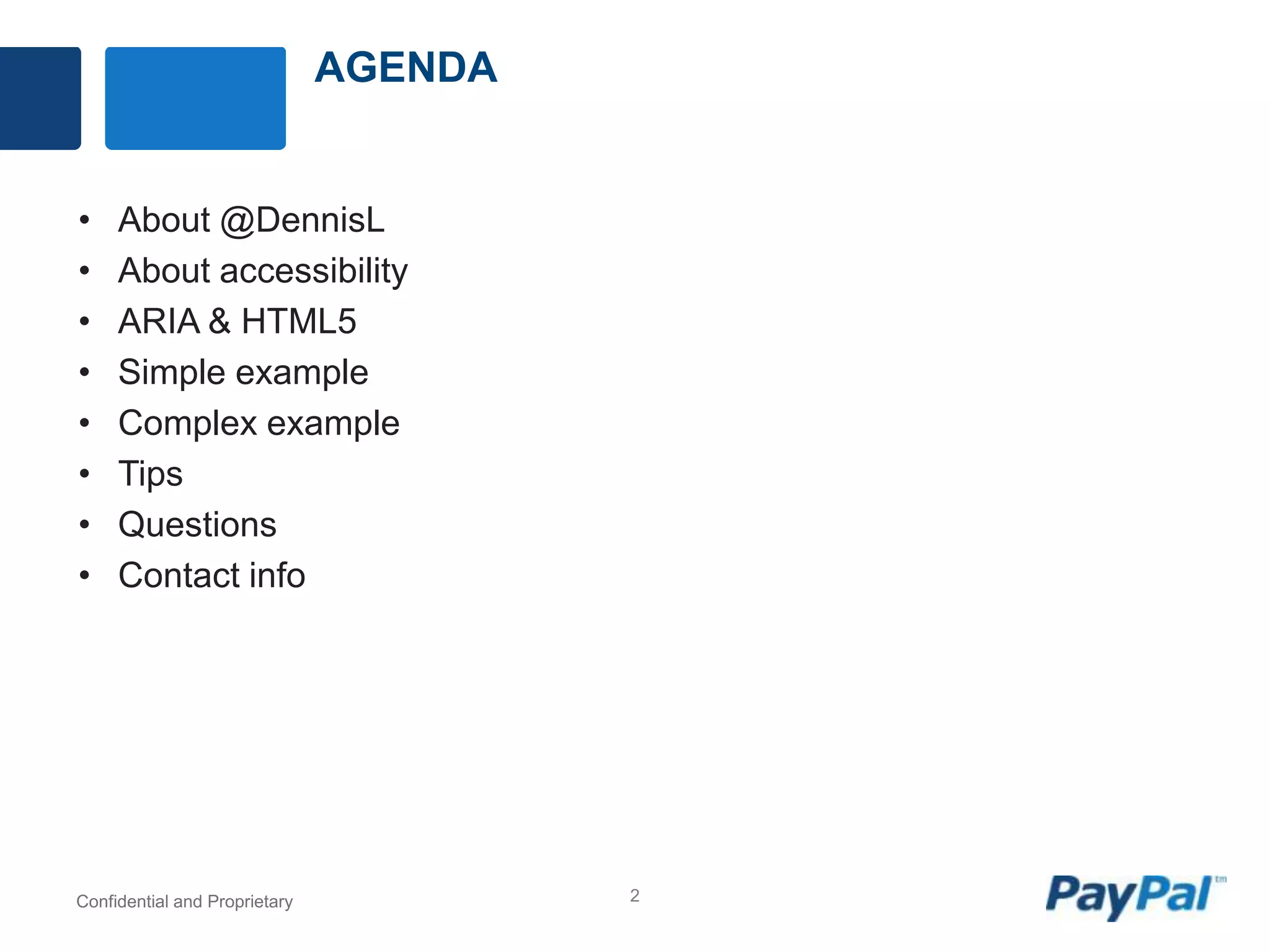

2. Confidential and Proprietary 2
AGENDA
• About @DennisL
• About accessibility
• ARIA & HTML5
• Simple example
• Complex example
• Tips
• Questions
• Contact info

4. Confidential and Proprietary 4

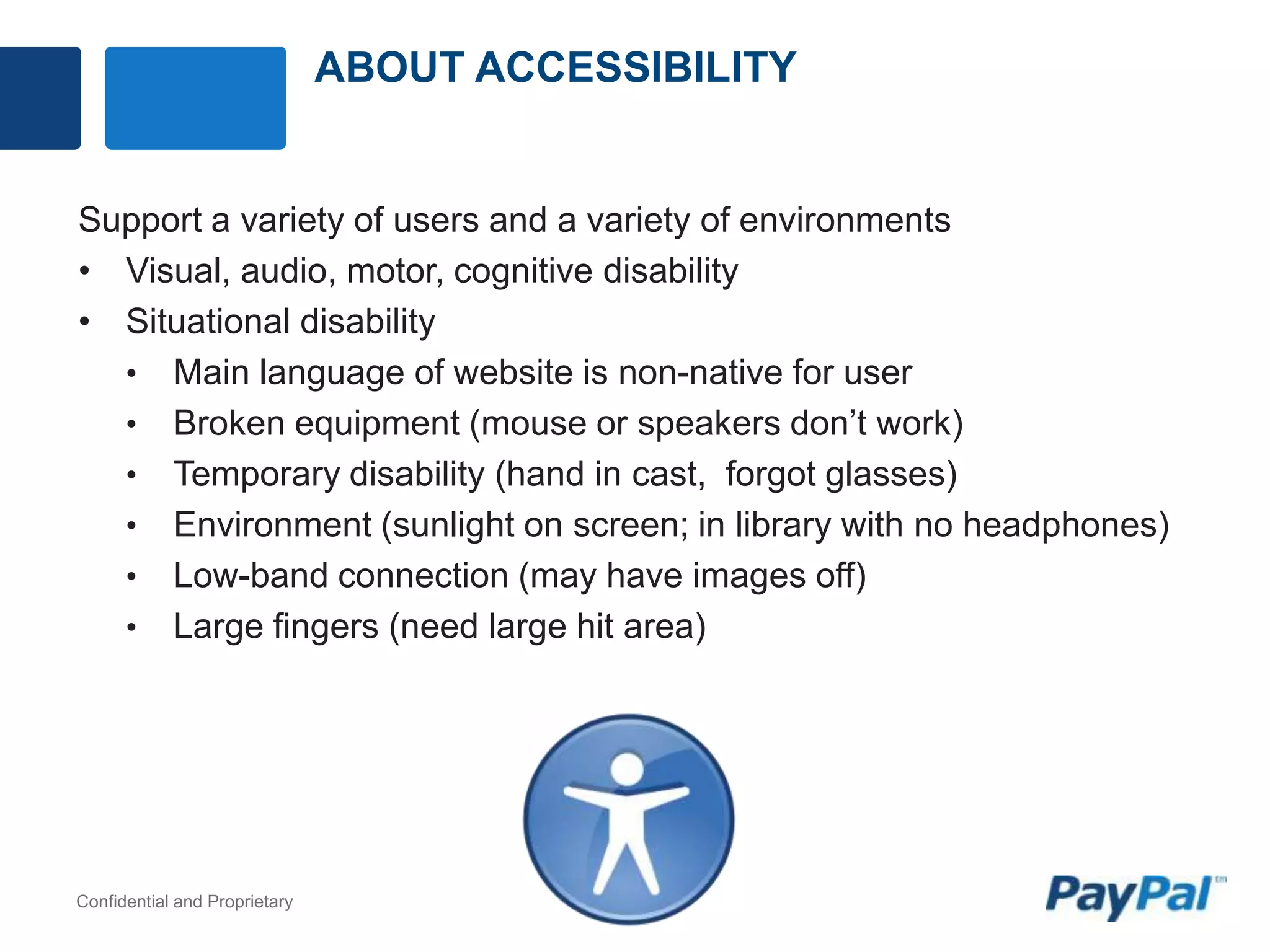

ABOUT ACCESSIBILITY
Support a variety of users and a variety of environments
• Visual, audio, motor, cognitive disability
• Situational disability
• Main language of website is non-native for user
• Broken equipment (mouse or speakers don’t work)
• Temporary disability (hand in cast, forgot glasses)
• Environment (sunlight on screen; in library with no headphones)
• Low-band connection (may have images off)
• Large fingers (need large hit area)

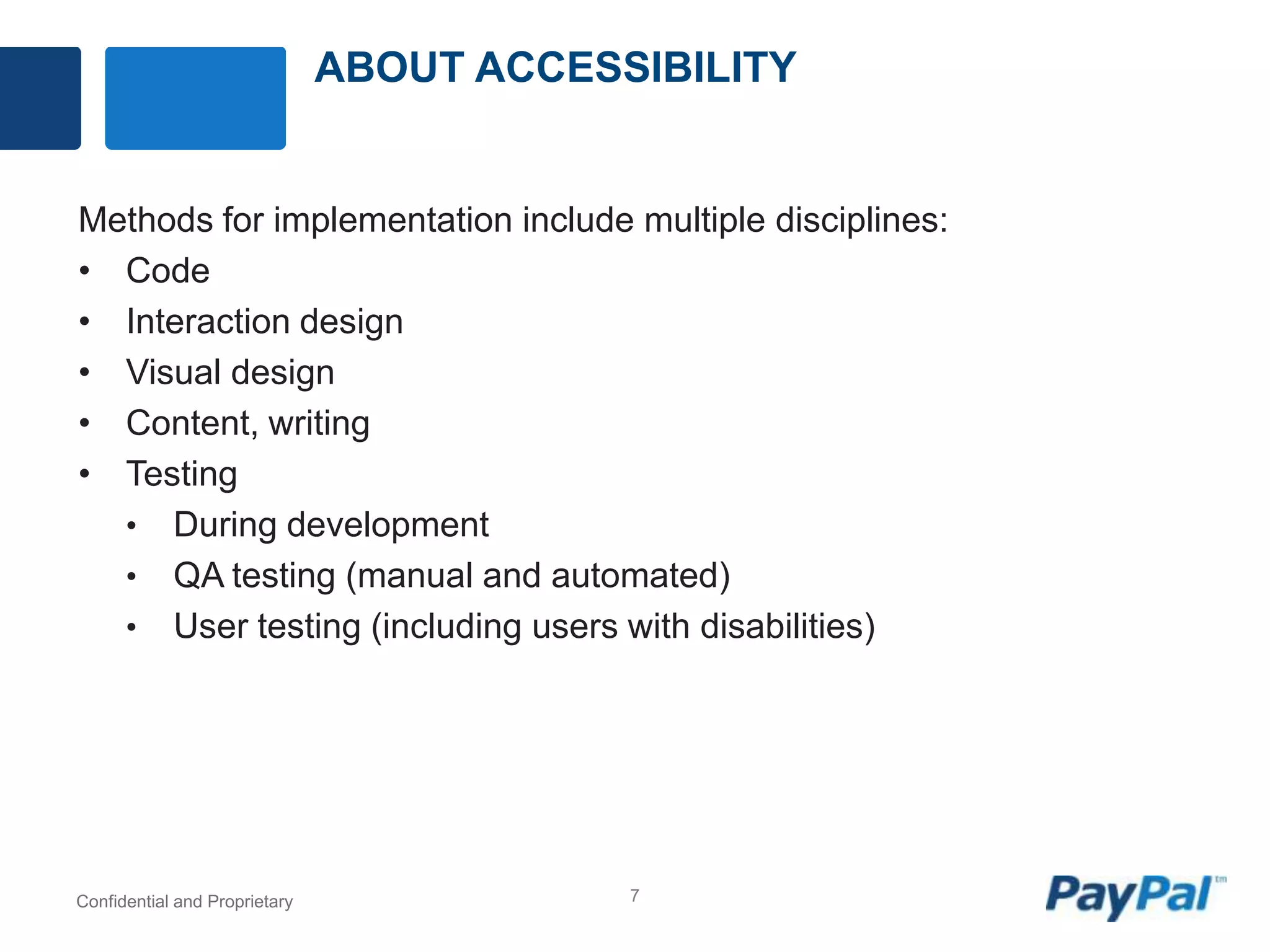

7. Confidential and Proprietary 7
ABOUT ACCESSIBILITY
Methods for implementation include multiple disciplines:
• Code
• Interaction design
• Visual design
• Content, writing
• Testing
• During development
• QA testing (manual and automated)
• User testing (including users with disabilities)

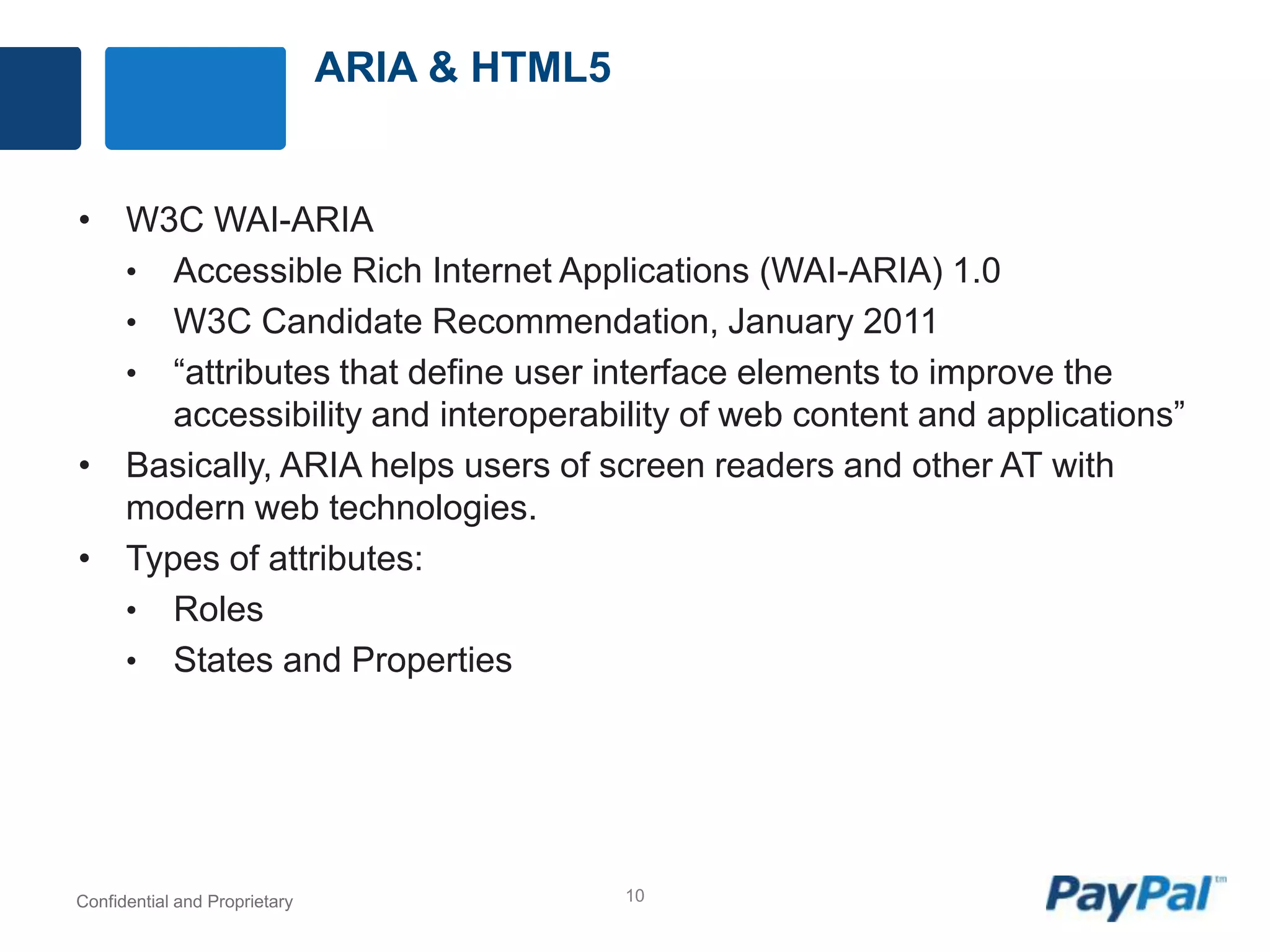

10. Confidential and Proprietary 10
ARIA & HTML5
• W3C WAI-ARIA
• Accessible Rich Internet Applications (WAI-ARIA) 1.0
• W3C Candidate Recommendation, January 2011
• “attributes that define user interface elements to improve the
accessibility and interoperability of web content and applications”
• Basically, ARIA helps users of screen readers and other AT with
modern web technologies.
• Types of attributes:
• Roles
• States and Properties

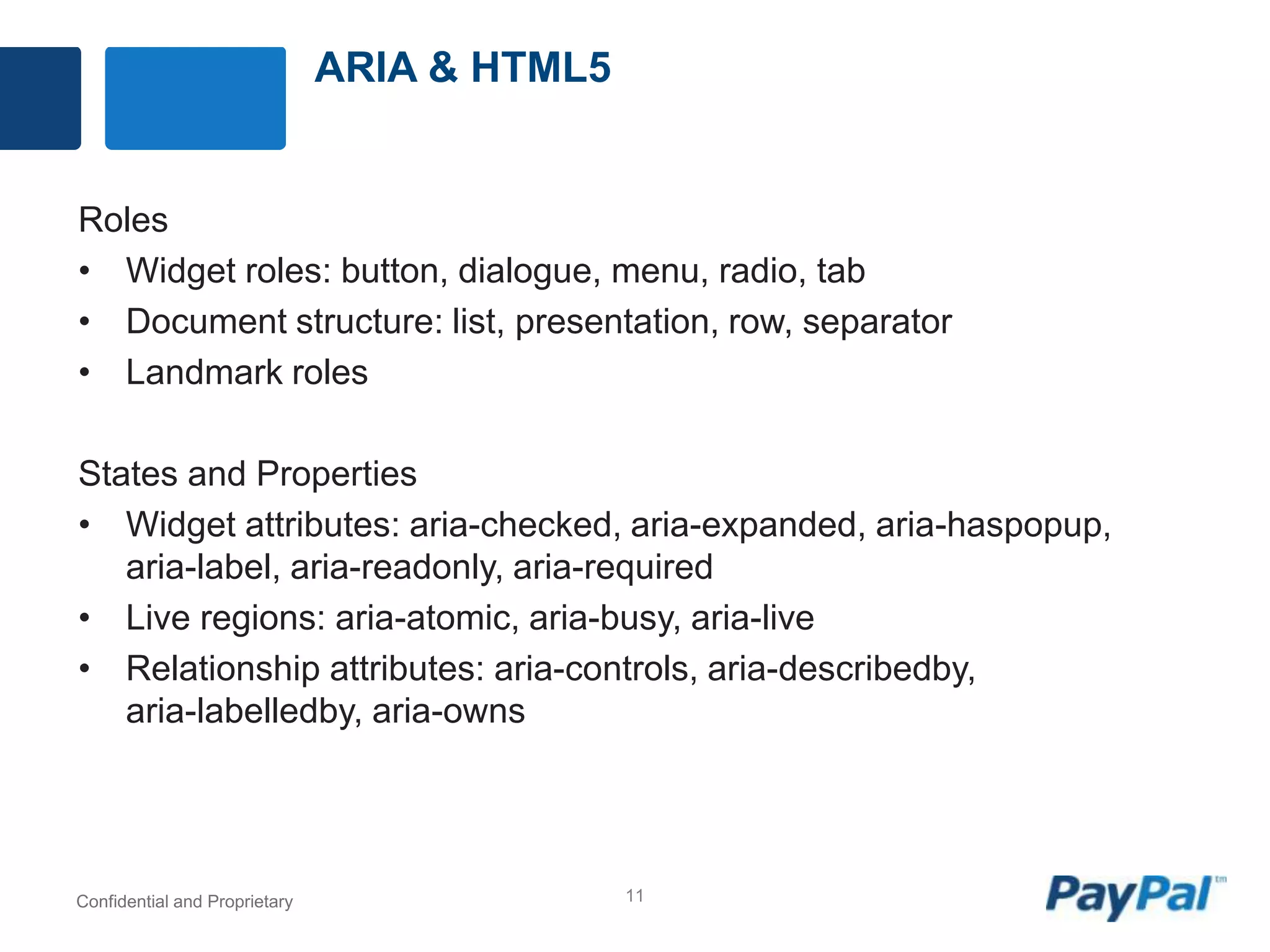

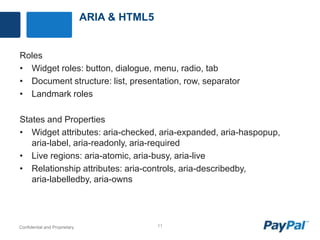

11. Confidential and Proprietary 11
ARIA & HTML5
Roles
• Widget roles: button, dialogue, menu, radio, tab
• Document structure: list, presentation, row, separator
• Landmark roles
States and Properties
• Widget attributes: aria-checked, aria-expanded, aria-haspopup,
aria-label, aria-readonly, aria-required
• Live regions: aria-atomic, aria-busy, aria-live
• Relationship attributes: aria-controls, aria-describedby,
aria-labelledby, aria-owns

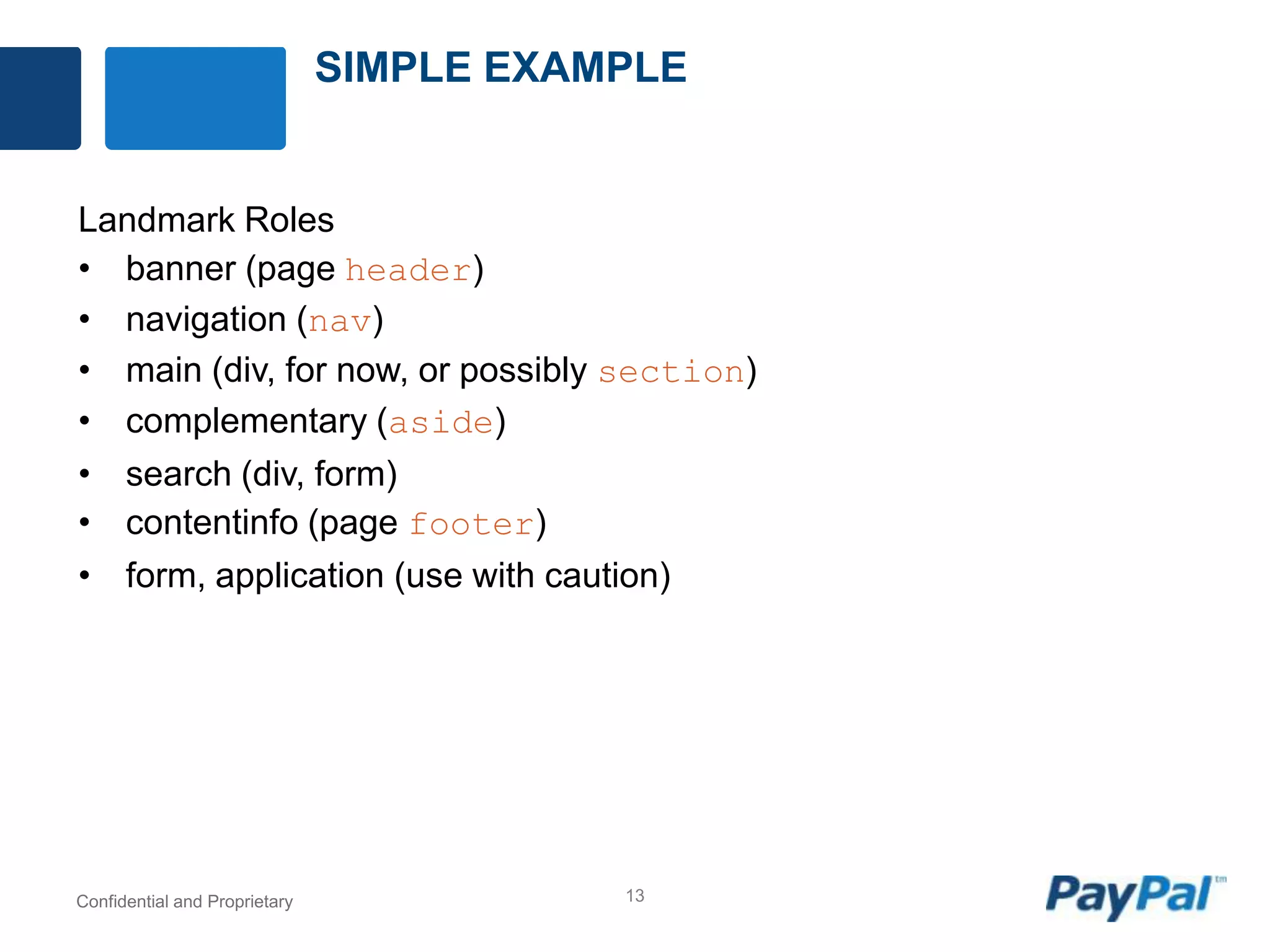

13. Confidential and Proprietary 13

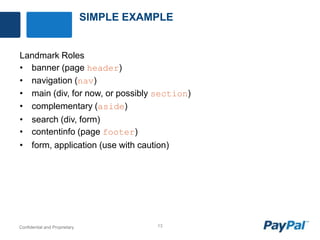

SIMPLE EXAMPLE
Landmark Roles
• banner (page header)
• navigation (nav)
• main (div, for now, or possibly section)
• complementary (aside)
• search (div, form)
• contentinfo (page footer)
• form, application (use with caution)

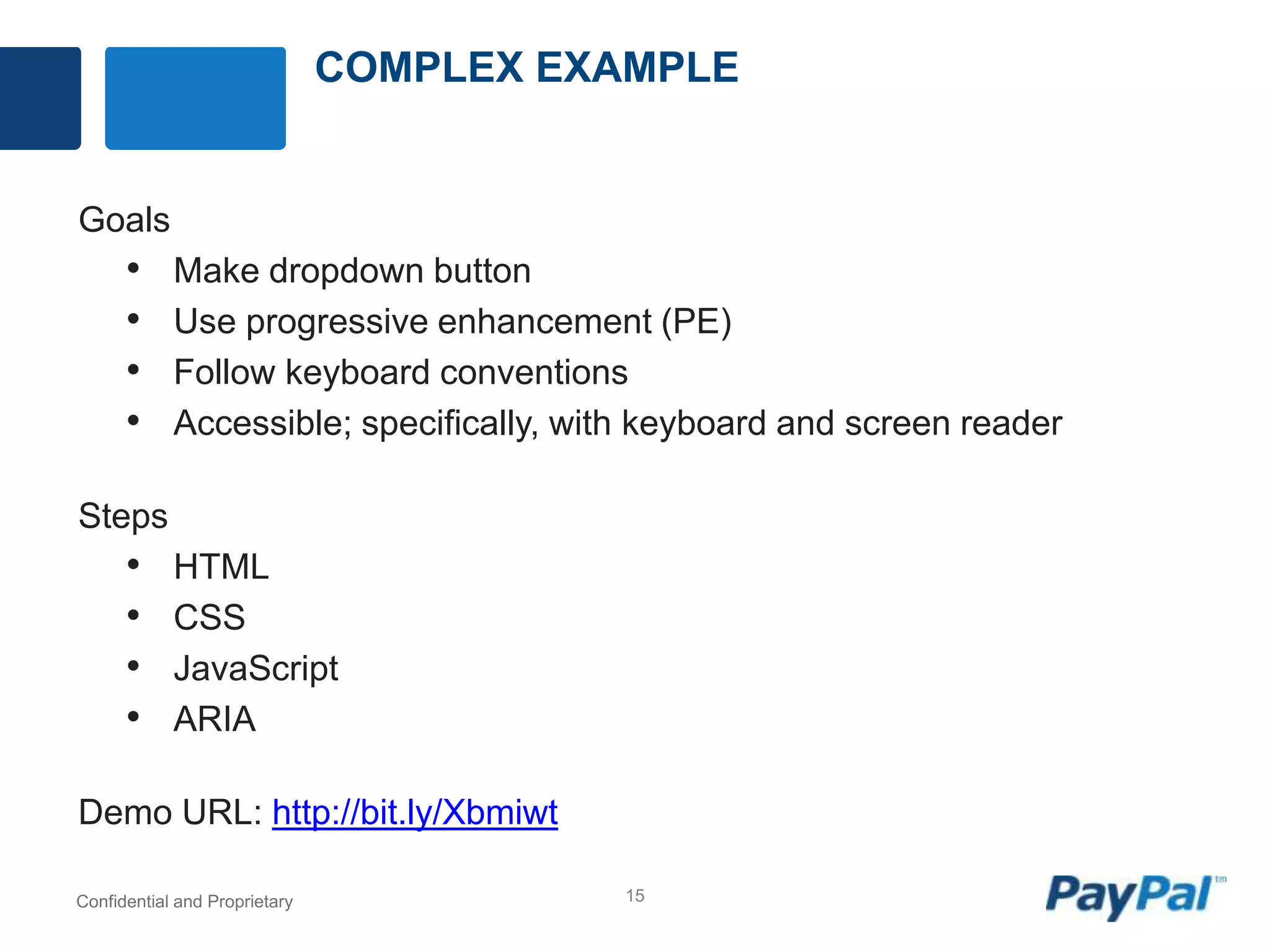

15. Confidential and Proprietary 15
COMPLEX EXAMPLE
Goals
• Make dropdown button
• Use progressive enhancement (PE)
• Follow keyboard conventions
• Accessible; specifically, with keyboard and screen reader
Steps
• HTML
• CSS
• JavaScript
• ARIA
Demo URL: http://bit.ly/Xbmiwt

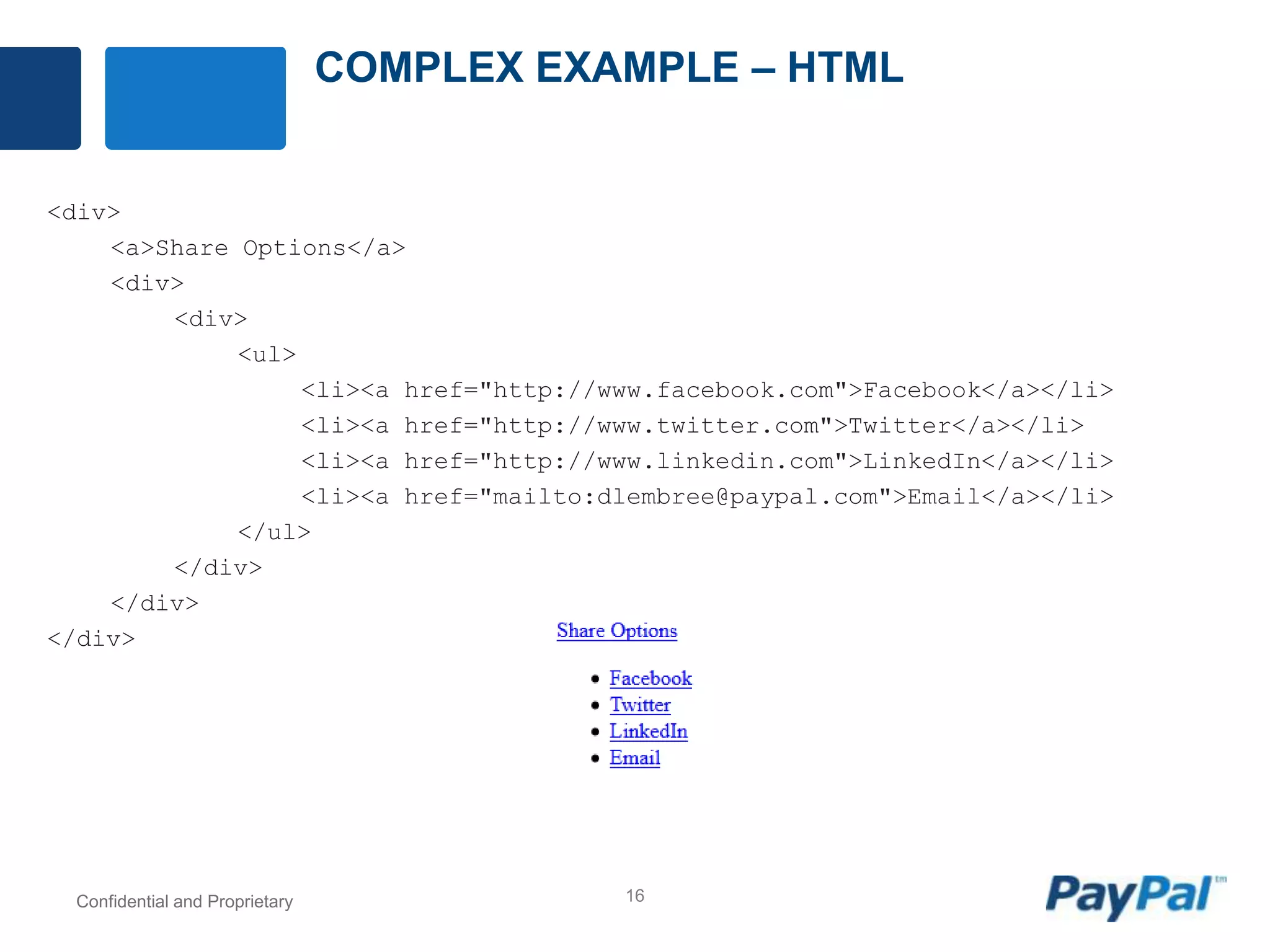

16. Confidential and Proprietary 16
COMPLEX EXAMPLE – HTML
<div>
<a>Share Options</a>
<div>
<div>
<ul>
<li><a href="http://www.facebook.com">Facebook</a></li>
<li><a href="http://www.twitter.com">Twitter</a></li>
<li><a href="http://www.linkedin.com">LinkedIn</a></li>
<li><a href="mailto:dlembree@paypal.com">Email</a></li>
</ul>
</div>
</div>
</div>

17. Confidential and Proprietary 17

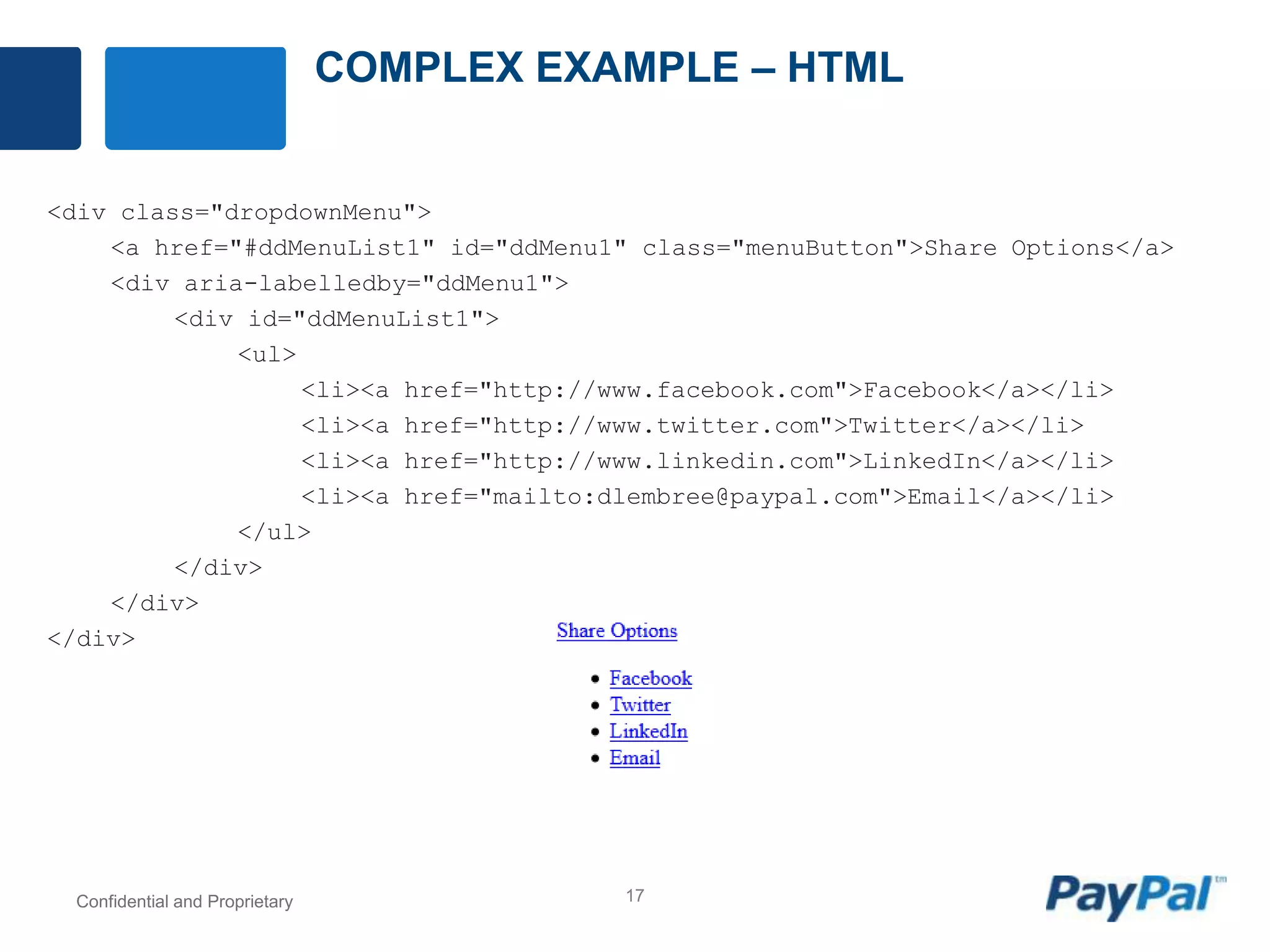

COMPLEX EXAMPLE – HTML
<div class="dropdownMenu">
<a href="#ddMenuList1" id="ddMenu1" class="menuButton">Share Options</a>
<div aria-labelledby="ddMenu1">
<div id="ddMenuList1">
<ul>
<li><a href="http://www.facebook.com">Facebook</a></li>
<li><a href="http://www.twitter.com">Twitter</a></li>
<li><a href="http://www.linkedin.com">LinkedIn</a></li>
<li><a href="mailto:dlembree@paypal.com">Email</a></li>
</ul>
</div>
</div>
</div>

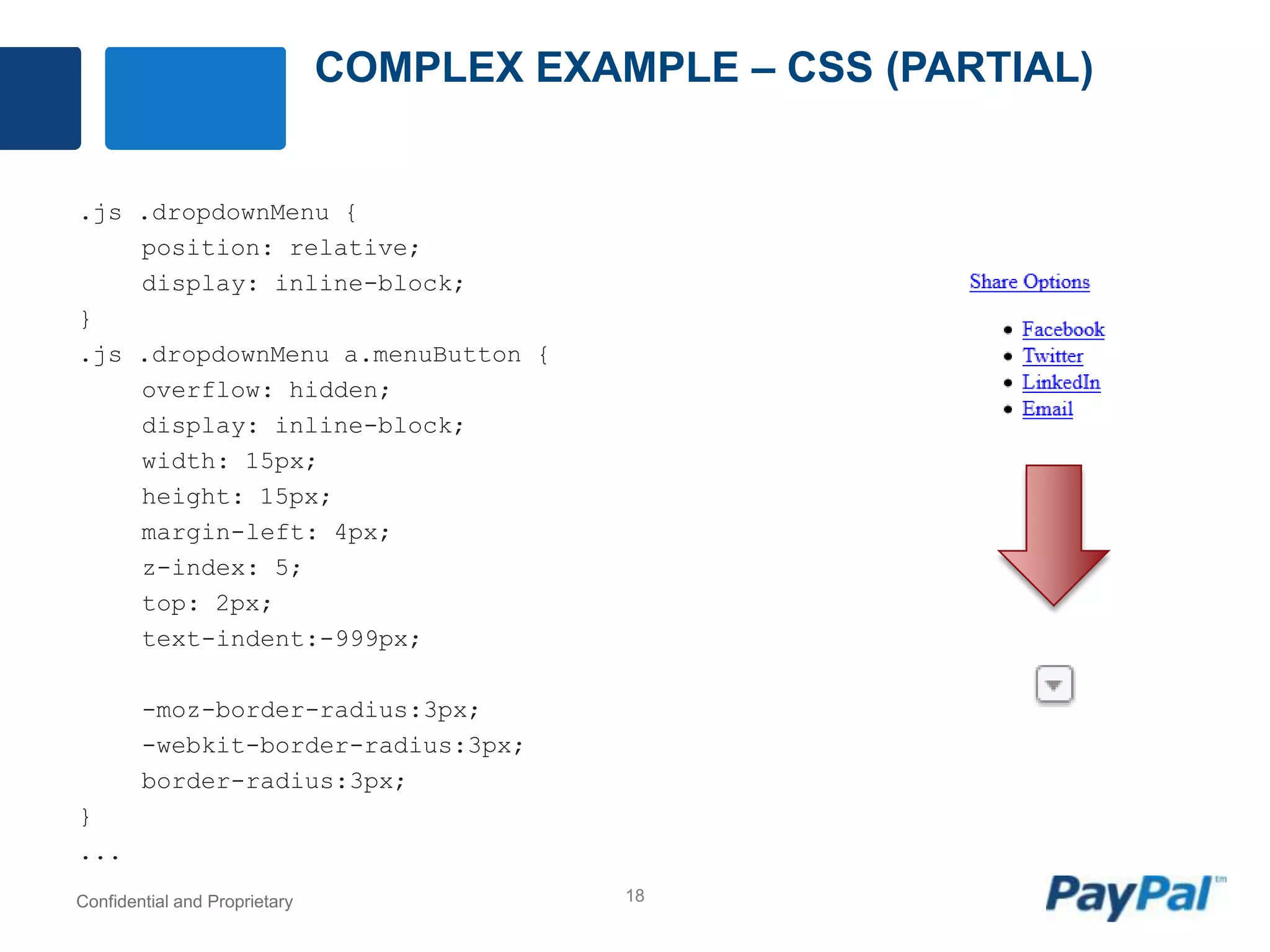

18. Confidential and Proprietary 18
COMPLEX EXAMPLE – CSS (PARTIAL)
.js .dropdownMenu {
position: relative;
display: inline-block;
}
.js .dropdownMenu a.menuButton {
overflow: hidden;
display: inline-block;
width: 15px;
height: 15px;
margin-left: 4px;
z-index: 5;
top: 2px;
text-indent:-999px;
-moz-border-radius:3px;
-webkit-border-radius:3px;
border-radius:3px;
}
...

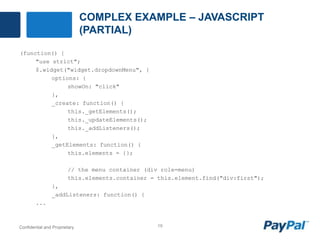

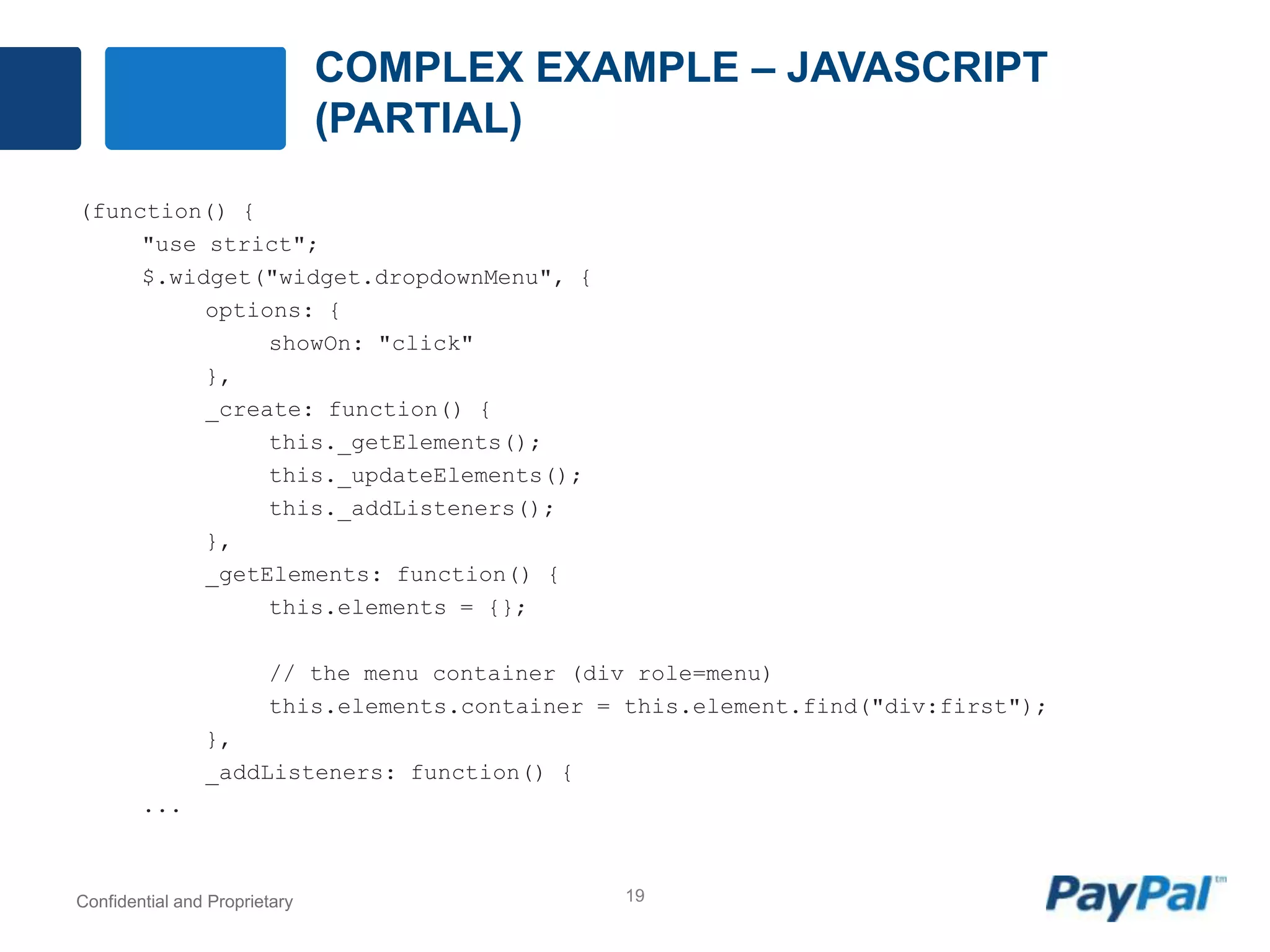

19. Confidential and Proprietary 19
COMPLEX EXAMPLE – JAVASCRIPT
(PARTIAL)
(function() {
"use strict";
$.widget("widget.dropdownMenu", {
options: {
showOn: "click"
},
_create: function() {
this._getElements();
this._updateElements();
this._addListeners();
},
_getElements: function() {
this.elements = {};
// the menu container (div role=menu)
this.elements.container = this.element.find("div:first");
},
_addListeners: function() {
...

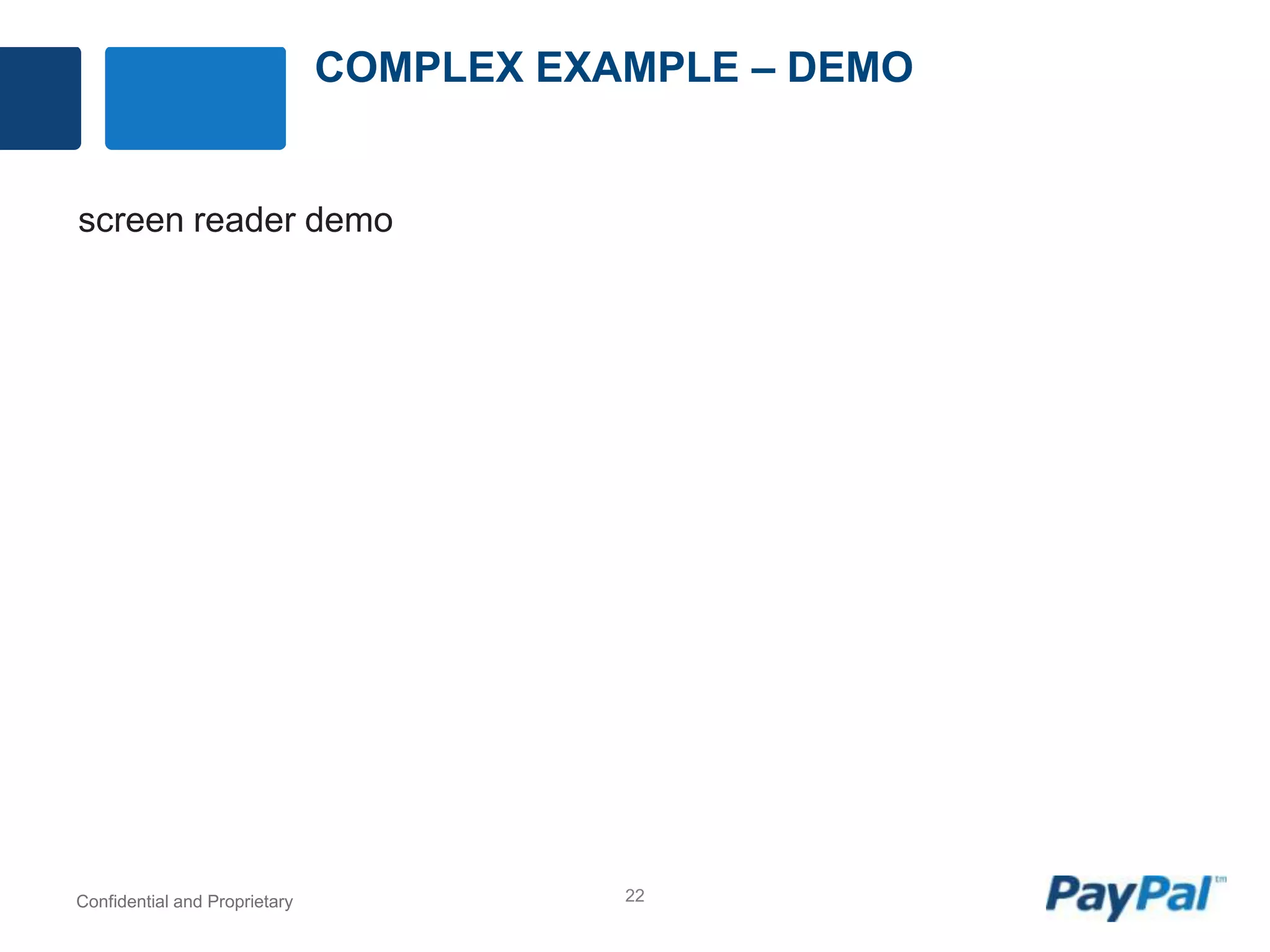

22. Confidential and Proprietary 22
COMPLEX EXAMPLE – DEMO
screen reader demo

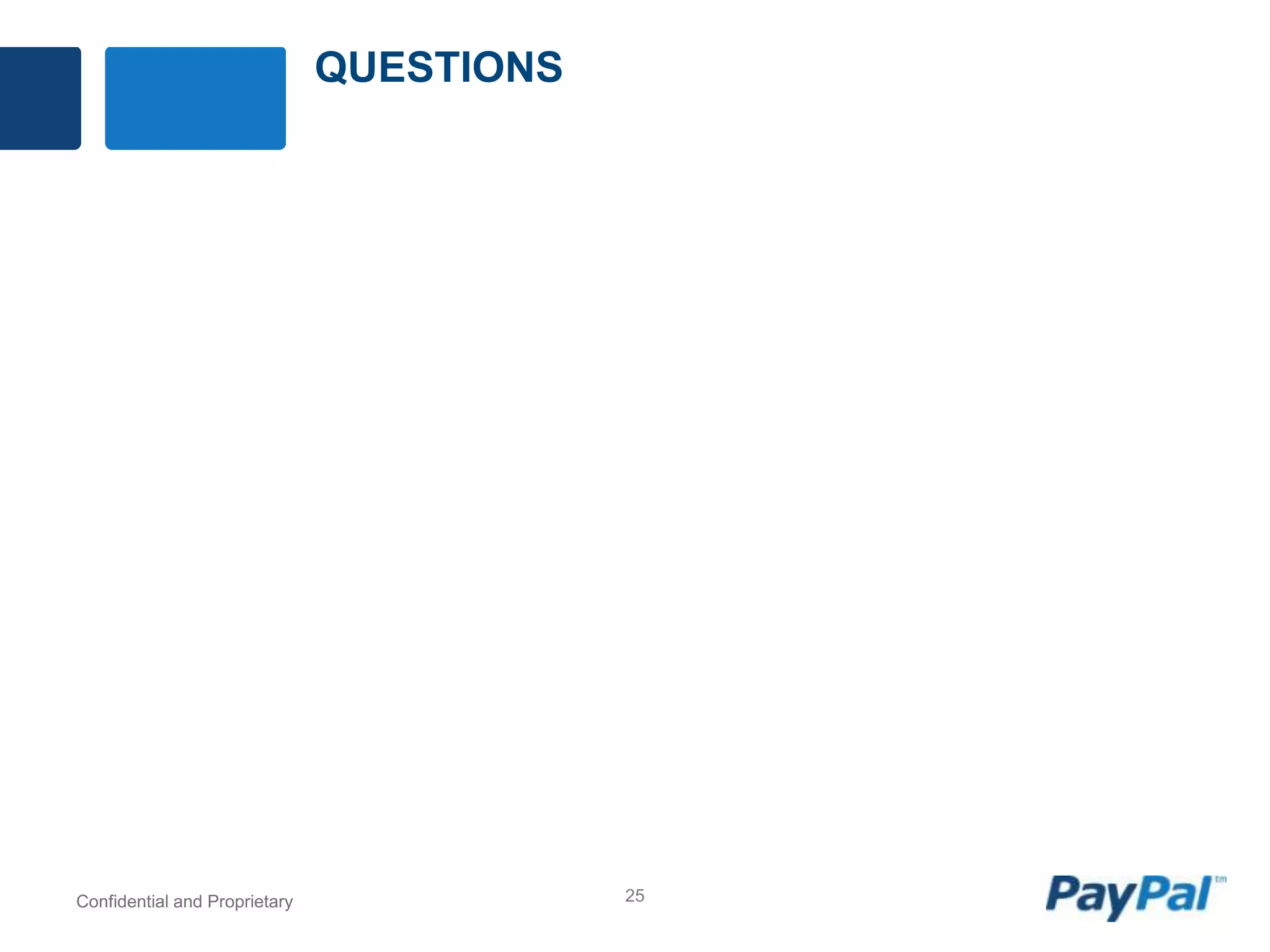

25. Confidential and Proprietary 25
QUESTIONS

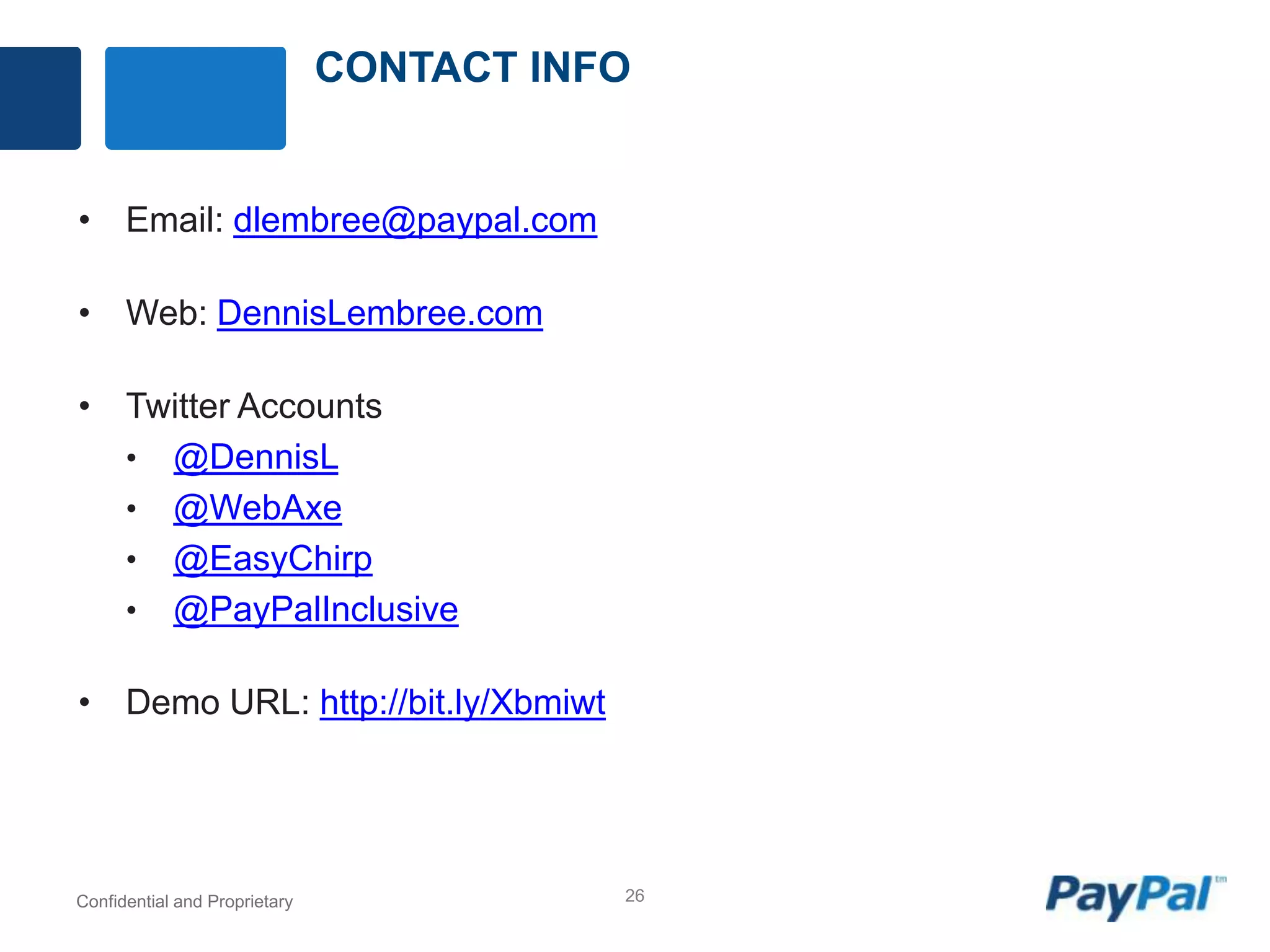

26. Confidential and Proprietary 26
CONTACT INFO
• Email: dlembree@paypal.com
• Web: DennisLembree.com
• Twitter Accounts
• @DennisL
• @WebAxe
• @EasyChirp
• @PayPalInclusive
• Demo URL: http://bit.ly/Xbmiwt
