This document provides an overview of high performance liquid chromatography (HPLC). It discusses how HPLC refined traditional liquid chromatography by using smaller particle sizes, smaller column diameters, and high fluid pressures to provide enhanced separations over shorter periods of time. Key aspects of HPLC systems and processes are summarized, including the use of pumps to deliver mobile phases at high pressure through columns containing small stationary phase particles. Separation is achieved based on how sample components partition between the mobile and stationary phases. Various detectors are also outlined.
In this slide contains principle, instrumentation, methodology, and application of gel chromatography.
Presented by: SATHEES CHANDRA (Department of pharmaceutical analysis).
RIPER, anantapur
In this slide contains principle, instrumentation, methodology, and application of gel chromatography.
Presented by: SATHEES CHANDRA (Department of pharmaceutical analysis).
RIPER, anantapur
Gel chromatography, Introduction, Theory, Instrumentation, Applications .pptxVandana Devesh Sharma
Affinity chromatography- Content-Introduction
Theory
Instrumentation
Applications
Gel chromatography is a type of partition chromatography used for separating different sized molecules.
Gel chromatography is also called Gel permeation chromatography or gel filtration or gel exclusion, size exclusion, molecular- sieve chromatography.
The separation is based on the analyte molecular sizes since the gel behaves like a molecular sieve.
In size exclusion chromatography, the stationary phase is a porous matrix made up of compounds like
cross-linked polystyrene, cross-like dextrans, polyacrylamide gels, agarose gels, etc.
The gel structure being used contains pores of different diameters upto maximum size.
1.The test molecules are washed through a gel column and molecules larger than the largest pores in the gel are excluded from the gel structure.
2. Smaller molecules penetrate the gel and the extent of penetration depends on the molecular size----- This delay their movement through the column
This technique is used for the separation of proteins, polysaccharides, enzymes, and synthetic polymers. Instrumentation- A. Stationary phase- It is composed of semi-permeable, porous polymer gel beads with a well-defined range of pore sizes. eg. Dextran, Agarose, Acrylamide. 2. sample size and concentration- sample is applied in small volume (1-5% of the total bed volume).3. Column parameters- use long column, ratio of column diameter to column length (1:20 to :100). The method or steps used for gel preparation. 4. Choice of eluent/mobile phase- Buffers Ex- Phosphate buffer pH 7, NaCl solution, Ammonium acetate (CH3COO-NH4+ ), Ammonium bicarbonate (NH₄HCO₃) ethylenediamine acetate. 5. Effect of Flow rate- maintain with the help of pump. Elution carried out with buffer at optimal flow rate (Eg- 0.25-5ml/min) to give maximum resolution with optimal separation time.6. Separation of components from the sample-
Separation of component from mixture is achieved with the help of column. The retention volume (VR).7. Detection- Using UV absorption detectors. A graph of Elution Volume (ml) Vs Molecular weight. 7. Detection- Using UV absorption detectors. A graph of Elution Volume (ml) Vs Molecular weight. For calibration of the gel in column – Calibrators - (Proteins of known molecular weight. Procedure for gel filtration technique-1. Preparation of column- 2. Washing of the column- 3. Loading of the sample-4. Elution using mobile phase (buffers)5. Detection of compounds . Applications
Instrumentation of HPLC, principle by kk sahuKAUSHAL SAHU
INTRODUCTION
Instrumentation of HPLC
TYPES OF HPLC
PARAMETERS
APPLICATION
CONCLUSION
REFERENCE
High-performance liquid chromatography ( HPLC) is a specific form of column chromatography generally used in biochemistry and analysis to separate, identify, and quantify the active compounds.
HPLC mainly utilizes a column that holds packing material (stationary phase), a pump that moves the mobile phase(s) through the column, and a detector that shows the retention times of the molecules.
This presentation contains all the topics related to column chromatography. That includes introduction, principle,apparatus, experimental aspects of column chromatography, application of column chromatography, advantage and disadvantage of column chromatography with reference.
powerpoint presentation on high performance liquid chromatography which include its definition, classification, principles of seperation, instrumentation and application.
Gel chromatography, Introduction, Theory, Instrumentation, Applications .pptxVandana Devesh Sharma
Affinity chromatography- Content-Introduction
Theory
Instrumentation
Applications
Gel chromatography is a type of partition chromatography used for separating different sized molecules.
Gel chromatography is also called Gel permeation chromatography or gel filtration or gel exclusion, size exclusion, molecular- sieve chromatography.
The separation is based on the analyte molecular sizes since the gel behaves like a molecular sieve.
In size exclusion chromatography, the stationary phase is a porous matrix made up of compounds like
cross-linked polystyrene, cross-like dextrans, polyacrylamide gels, agarose gels, etc.
The gel structure being used contains pores of different diameters upto maximum size.
1.The test molecules are washed through a gel column and molecules larger than the largest pores in the gel are excluded from the gel structure.
2. Smaller molecules penetrate the gel and the extent of penetration depends on the molecular size----- This delay their movement through the column
This technique is used for the separation of proteins, polysaccharides, enzymes, and synthetic polymers. Instrumentation- A. Stationary phase- It is composed of semi-permeable, porous polymer gel beads with a well-defined range of pore sizes. eg. Dextran, Agarose, Acrylamide. 2. sample size and concentration- sample is applied in small volume (1-5% of the total bed volume).3. Column parameters- use long column, ratio of column diameter to column length (1:20 to :100). The method or steps used for gel preparation. 4. Choice of eluent/mobile phase- Buffers Ex- Phosphate buffer pH 7, NaCl solution, Ammonium acetate (CH3COO-NH4+ ), Ammonium bicarbonate (NH₄HCO₃) ethylenediamine acetate. 5. Effect of Flow rate- maintain with the help of pump. Elution carried out with buffer at optimal flow rate (Eg- 0.25-5ml/min) to give maximum resolution with optimal separation time.6. Separation of components from the sample-
Separation of component from mixture is achieved with the help of column. The retention volume (VR).7. Detection- Using UV absorption detectors. A graph of Elution Volume (ml) Vs Molecular weight. 7. Detection- Using UV absorption detectors. A graph of Elution Volume (ml) Vs Molecular weight. For calibration of the gel in column – Calibrators - (Proteins of known molecular weight. Procedure for gel filtration technique-1. Preparation of column- 2. Washing of the column- 3. Loading of the sample-4. Elution using mobile phase (buffers)5. Detection of compounds . Applications
Instrumentation of HPLC, principle by kk sahuKAUSHAL SAHU
INTRODUCTION
Instrumentation of HPLC
TYPES OF HPLC
PARAMETERS
APPLICATION
CONCLUSION
REFERENCE
High-performance liquid chromatography ( HPLC) is a specific form of column chromatography generally used in biochemistry and analysis to separate, identify, and quantify the active compounds.
HPLC mainly utilizes a column that holds packing material (stationary phase), a pump that moves the mobile phase(s) through the column, and a detector that shows the retention times of the molecules.
This presentation contains all the topics related to column chromatography. That includes introduction, principle,apparatus, experimental aspects of column chromatography, application of column chromatography, advantage and disadvantage of column chromatography with reference.
powerpoint presentation on high performance liquid chromatography which include its definition, classification, principles of seperation, instrumentation and application.
The prostate is an exocrine gland of the male mammalian reproductive system
It is a walnut-sized gland that forms part of the male reproductive system and is located in front of the rectum and just below the urinary bladder
Function is to store and secrete a clear, slightly alkaline fluid that constitutes 10-30% of the volume of the seminal fluid that along with the spermatozoa, constitutes semen
A healthy human prostate measures (4cm-vertical, by 3cm-horizontal, 2cm ant-post ).
It surrounds the urethra just below the urinary bladder. It has anterior, median, posterior and two lateral lobes
It’s work is regulated by androgens which are responsible for male sex characteristics
Generalised disease of the prostate due to hormonal derangement which leads to non malignant enlargement of the gland (increase in the number of epithelial cells and stromal tissue)to cause compression of the urethra leading to symptoms (LUTS
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journeygreendigital
Tom Selleck, an enduring figure in Hollywood. has captivated audiences for decades with his rugged charm, iconic moustache. and memorable roles in television and film. From his breakout role as Thomas Magnum in Magnum P.I. to his current portrayal of Frank Reagan in Blue Bloods. Selleck's career has spanned over 50 years. But beyond his professional achievements. fans have often been curious about Tom Selleck Health. especially as he has aged in the public eye.
Follow us on: Pinterest
Introduction
Many have been interested in Tom Selleck health. not only because of his enduring presence on screen but also because of the challenges. and lifestyle choices he has faced and made over the years. This article delves into the various aspects of Tom Selleck health. exploring his fitness regimen, diet, mental health. and the challenges he has encountered as he ages. We'll look at how he maintains his well-being. the health issues he has faced, and his approach to ageing .
Early Life and Career
Childhood and Athletic Beginnings
Tom Selleck was born on January 29, 1945, in Detroit, Michigan, and grew up in Sherman Oaks, California. From an early age, he was involved in sports, particularly basketball. which played a significant role in his physical development. His athletic pursuits continued into college. where he attended the University of Southern California (USC) on a basketball scholarship. This early involvement in sports laid a strong foundation for his physical health and disciplined lifestyle.
Transition to Acting
Selleck's transition from an athlete to an actor came with its physical demands. His first significant role in "Magnum P.I." required him to perform various stunts and maintain a fit appearance. This role, which he played from 1980 to 1988. necessitated a rigorous fitness routine to meet the show's demands. setting the stage for his long-term commitment to health and wellness.
Fitness Regimen
Workout Routine
Tom Selleck health and fitness regimen has evolved. adapting to his changing roles and age. During his "Magnum, P.I." days. Selleck's workouts were intense and focused on building and maintaining muscle mass. His routine included weightlifting, cardiovascular exercises. and specific training for the stunts he performed on the show.
Selleck adjusted his fitness routine as he aged to suit his body's needs. Today, his workouts focus on maintaining flexibility, strength, and cardiovascular health. He incorporates low-impact exercises such as swimming, walking, and light weightlifting. This balanced approach helps him stay fit without putting undue strain on his joints and muscles.
Importance of Flexibility and Mobility
In recent years, Selleck has emphasized the importance of flexibility and mobility in his fitness regimen. Understanding the natural decline in muscle mass and joint flexibility with age. he includes stretching and yoga in his routine. These practices help prevent injuries, improve posture, and maintain mobilit
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...GL Anaacs
Contact us if you are interested:
Email / Skype : kefaya1771@gmail.com
Threema: PXHY5PDH
New BATCH Ku !!! MUCH IN DEMAND FAST SALE EVERY BATCH HAPPY GOOD EFFECT BIG BATCH !
Contact me on Threema or skype to start big business!!
Hot-sale products:
NEW HOT EUTYLONE WHITE CRYSTAL!!
5cl-adba precursor (semi finished )
5cl-adba raw materials
ADBB precursor (semi finished )
ADBB raw materials
APVP powder
5fadb/4f-adb
Jwh018 / Jwh210
Eutylone crystal
Protonitazene (hydrochloride) CAS: 119276-01-6
Flubrotizolam CAS: 57801-95-3
Metonitazene CAS: 14680-51-4
Payment terms: Western Union,MoneyGram,Bitcoin or USDT.
Deliver Time: Usually 7-15days
Shipping method: FedEx, TNT, DHL,UPS etc.Our deliveries are 100% safe, fast, reliable and discreet.
Samples will be sent for your evaluation!If you are interested in, please contact me, let's talk details.
We specializes in exporting high quality Research chemical, medical intermediate, Pharmaceutical chemicals and so on. Products are exported to USA, Canada, France, Korea, Japan,Russia, Southeast Asia and other countries.
micro teaching on communication m.sc nursing.pdfAnurag Sharma
Microteaching is a unique model of practice teaching. It is a viable instrument for the. desired change in the teaching behavior or the behavior potential which, in specified types of real. classroom situations, tends to facilitate the achievement of specified types of objectives.
These lecture slides, by Dr Sidra Arshad, offer a quick overview of physiological basis of a normal electrocardiogram.
Learning objectives:
1. Define an electrocardiogram (ECG) and electrocardiography
2. Describe how dipoles generated by the heart produce the waveforms of the ECG
3. Describe the components of a normal electrocardiogram of a typical bipolar leads (limb II)
4. Differentiate between intervals and segments
5. Enlist some common indications for obtaining an ECG
Study Resources:
1. Chapter 11, Guyton and Hall Textbook of Medical Physiology, 14th edition
2. Chapter 9, Human Physiology - From Cells to Systems, Lauralee Sherwood, 9th edition
3. Chapter 29, Ganong’s Review of Medical Physiology, 26th edition
4. Electrocardiogram, StatPearls - https://www.ncbi.nlm.nih.gov/books/NBK549803/
5. ECG in Medical Practice by ABM Abdullah, 4th edition
6. ECG Basics, http://www.nataliescasebook.com/tag/e-c-g-basics
These simplified slides by Dr. Sidra Arshad present an overview of the non-respiratory functions of the respiratory tract.
Learning objectives:
1. Enlist the non-respiratory functions of the respiratory tract
2. Briefly explain how these functions are carried out
3. Discuss the significance of dead space
4. Differentiate between minute ventilation and alveolar ventilation
5. Describe the cough and sneeze reflexes
Study Resources:
1. Chapter 39, Guyton and Hall Textbook of Medical Physiology, 14th edition
2. Chapter 34, Ganong’s Review of Medical Physiology, 26th edition
3. Chapter 17, Human Physiology by Lauralee Sherwood, 9th edition
4. Non-respiratory functions of the lungs https://academic.oup.com/bjaed/article/13/3/98/278874
Explore natural remedies for syphilis treatment in Singapore. Discover alternative therapies, herbal remedies, and lifestyle changes that may complement conventional treatments. Learn about holistic approaches to managing syphilis symptoms and supporting overall health.
263778731218 Abortion Clinic /Pills In Harare ,sisternakatoto
263778731218 Abortion Clinic /Pills In Harare ,ABORTION WOMEN’S CLINIC +27730423979 IN women clinic we believe that every woman should be able to make choices in her pregnancy. Our job is to provide compassionate care, safety,affordable and confidential services. That’s why we have won the trust from all generations of women all over the world. we use non surgical method(Abortion pills) to terminate…Dr.LISA +27730423979women Clinic is committed to providing the highest quality of obstetrical and gynecological care to women of all ages. Our dedicated staff aim to treat each patient and her health concerns with compassion and respect.Our dedicated group ABORTION WOMEN’S CLINIC +27730423979 IN women clinic we believe that every woman should be able to make choices in her pregnancy. Our job is to provide compassionate care, safety,affordable and confidential services. That’s why we have won the trust from all generations of women all over the world. we use non surgical method(Abortion pills) to terminate…Dr.LISA +27730423979women Clinic is committed to providing the highest quality of obstetrical and gynecological care to women of all ages. Our dedicated staff aim to treat each patient and her health concerns with compassion and respect.Our dedicated group of receptionists, nurses, and physicians have worked together as a teamof receptionists, nurses, and physicians have worked together as a team wwww.lisywomensclinic.co.za/
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...kevinkariuki227
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Verified Chapters 1 - 19, Complete Newest Version.pdf
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Verified Chapters 1 - 19, Complete Newest Version.pdf
Report Back from SGO 2024: What’s the Latest in Cervical Cancer?bkling
Are you curious about what’s new in cervical cancer research or unsure what the findings mean? Join Dr. Emily Ko, a gynecologic oncologist at Penn Medicine, to learn about the latest updates from the Society of Gynecologic Oncology (SGO) 2024 Annual Meeting on Women’s Cancer. Dr. Ko will discuss what the research presented at the conference means for you and answer your questions about the new developments.
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists Saeid Safari
Preoperative Management of Patients on GLP-1 Receptor Agonists like Ozempic and Semiglutide
ASA GUIDELINE
NYSORA Guideline
2 Case Reports of Gastric Ultrasound
Title: Sense of Taste
Presenter: Dr. Faiza, Assistant Professor of Physiology
Qualifications:
MBBS (Best Graduate, AIMC Lahore)
FCPS Physiology
ICMT, CHPE, DHPE (STMU)
MPH (GC University, Faisalabad)
MBA (Virtual University of Pakistan)
Learning Objectives:
Describe the structure and function of taste buds.
Describe the relationship between the taste threshold and taste index of common substances.
Explain the chemical basis and signal transduction of taste perception for each type of primary taste sensation.
Recognize different abnormalities of taste perception and their causes.
Key Topics:
Significance of Taste Sensation:
Differentiation between pleasant and harmful food
Influence on behavior
Selection of food based on metabolic needs
Receptors of Taste:
Taste buds on the tongue
Influence of sense of smell, texture of food, and pain stimulation (e.g., by pepper)
Primary and Secondary Taste Sensations:
Primary taste sensations: Sweet, Sour, Salty, Bitter, Umami
Chemical basis and signal transduction mechanisms for each taste
Taste Threshold and Index:
Taste threshold values for Sweet (sucrose), Salty (NaCl), Sour (HCl), and Bitter (Quinine)
Taste index relationship: Inversely proportional to taste threshold
Taste Blindness:
Inability to taste certain substances, particularly thiourea compounds
Example: Phenylthiocarbamide
Structure and Function of Taste Buds:
Composition: Epithelial cells, Sustentacular/Supporting cells, Taste cells, Basal cells
Features: Taste pores, Taste hairs/microvilli, and Taste nerve fibers
Location of Taste Buds:
Found in papillae of the tongue (Fungiform, Circumvallate, Foliate)
Also present on the palate, tonsillar pillars, epiglottis, and proximal esophagus
Mechanism of Taste Stimulation:
Interaction of taste substances with receptors on microvilli
Signal transduction pathways for Umami, Sweet, Bitter, Sour, and Salty tastes
Taste Sensitivity and Adaptation:
Decrease in sensitivity with age
Rapid adaptation of taste sensation
Role of Saliva in Taste:
Dissolution of tastants to reach receptors
Washing away the stimulus
Taste Preferences and Aversions:
Mechanisms behind taste preference and aversion
Influence of receptors and neural pathways
Impact of Sensory Nerve Damage:
Degeneration of taste buds if the sensory nerve fiber is cut
Abnormalities of Taste Detection:
Conditions: Ageusia, Hypogeusia, Dysgeusia (parageusia)
Causes: Nerve damage, neurological disorders, infections, poor oral hygiene, adverse drug effects, deficiencies, aging, tobacco use, altered neurotransmitter levels
Neurotransmitters and Taste Threshold:
Effects of serotonin (5-HT) and norepinephrine (NE) on taste sensitivity
Supertasters:
25% of the population with heightened sensitivity to taste, especially bitterness
Increased number of fungiform papillae
How to Give Better Lectures: Some Tips for Doctors
HPLC
1. From Liquid Chromatography to High
Performance Liquid Chromatography
Higher degree of separation!
Refinement of packing material (3 to 10 µm)
Reduction of analysis time!
Delivery of eluent by pump
Demand for special equipment that can withstand high pressures
The arrival of high performance liquid chromatography!
2. What is HPLC?
HPLC is really the automation of
traditional liquid chromatography
under conditions which provide for
enhanced separations during shorter
periods of time, utilizing very small
particles, small column diameters, and
very high fluid pressures.
3. HPLC principle
It is a technique by which a sample mixture
is separated into components for
identification, quantification and
purification of mixtures
4. When a mixture of components are introduced
into a HPLC column, they travel according to their
relative affinities towards the stationary phase.
The component which has more affinity towards
the adsorbent, travels slower.
The component which has less affinity towards
the stationary phase travels faster.
5. Partitioning
Separation is based on the analyte’s relative solubility between two liquid
phases
Stationary PhaseMobile Phase
Solvent Bonded Phase
6. HPLC instruments consist of a reservoir of mobile phase,
a pump, an injector, a separation column, and a
detector.
Compounds are separated by injecting a sample mixture
onto the column.
The different component in the mixture pass through
the column and differentiates due to differences in their
partition behavior between the mobile phase and the
stationary phase.
The mobile phase must be degassed to eliminate the
formation of air bubbles.
7. Column
The heart of a HPLC system is the column.
The column contains the particles that contains the stationary phase.
The mobile phase is pumped through the column by a pump
8. COMPOSITION OF A LIQUID
CHROMATOGRAPH SYSTEM

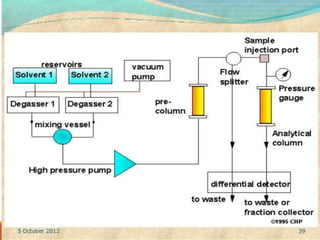

Degasser
Solvent Reservoir
Solvent Delivery System (Pump)
Pre gaurd column
Sample Injector System
Column
Detectors (Diode Array)
Recorder (Data Collection)and Integrators
Waste Collector
9.
10.
11.
12.
13. Pump
The role of the pump is to force a liquid (mobile phase) through the liquid
chromatograph at a specific flow rate.
A pump can deliver a constant mobile phase composition (isocratic) which the
mobile phase composition remains unchanged during the analysis.
or (gradient) in which the mobile phase changed during the analysis..
14. Pump
The solvents or mobile phases used must be passed
through the column at high pressure at about 1000 to 3000
psi. This is because as the particle size of stationary phase is
few µ (5-10µ), the resistance to the flow of solvent is high.
Hence such high pressure is recommended.
The choice of mobile phase is very important in HPLC
and the eluting power of the mobile phase is determined by
its overall polarity, the polarity of the stationary phase and
the nature of the sample components.
Mixing unit is used to mix the solvents in different
proportions and pass through the column.
15.
16.
17.
18.
19.
20.
21.

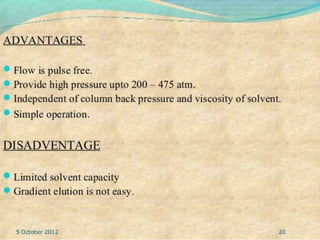

22.
23.
24.
25. Injector
•The injector serves to introduce the
liquid sample into the flow stream of
the mobile phase.
May be auto-sampler or manual
32. HPLC columns
The column is one of the most
important components of the HPLC
chromatograph.
Because the separation of the
sample components is achieved
when those components pass
through the column.
33.
34. Column has a diameter of 3 to 5mm
Normally, columns are filled with silica gel because its
particle shape, surface properties, and pore structure
help to get a good separation.
Silica is wetted by nearly every potential mobile
phase, is inert to most compounds and has a high
surface activity which can be modified easily with
water and other agents.
Silica can be used to separate a wide variety of
chemical compounds, and its chromatographic
behavior is generally predictable and reproducible.

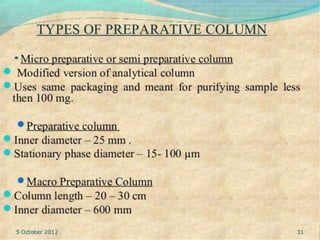

42. Solid Support - Backbone for bonded phases.
Usually 10µ, 5µ or 3µ silica or polymeric particles.
Bonded Phases - Functional groups firmly linked
(chemically bound) to the solid support.
Extremely stable
Reproducible
Guard - Protects the analytical column:
Particles
Interferences
Prolongs the life of the analytical column
Columns Characteristics
43.
44.
45. Selectivity Factor
K’ values tell us where bands elute relative to the void volume.
These values are unaffected by variables such as flow rate and column
dimensions. The value tell us where two peaks elute relative to each other.
This is referred to as the selectivity factor or separation factor.
46. Selectivity factor, α , which describes the
separation of two species (A and B) on the
column.
α = k 'B / k 'A
Where k’ is the retention factor
47. Sample Preparation
Dissolve the sample in the mobile phase or in a solvent
weaker than the mobile phase.
The sample volume should be kept as small as possible.
47
Sample in Mobile Phase Sample in Stronger Solvent
48.

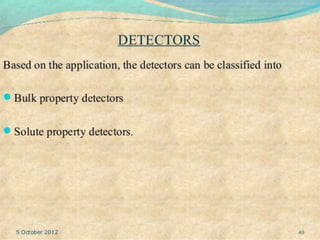

49.
50.
51.
52. U.V detectors:
• Based on electronic transitions
within molecules.
• Most common type of detector
for LC
• Fixed wavelength, Hg lamp 254
nm (π => π*)
•Tunable wavelength, selectable
for specific wavelengths,
monochromators or filters. Still
limited to single wavelengths.
•Solvent limitations with UV-vis
abs. Detectors
•Z-shape, flow-through cell.
53. Solvent UV-Cutoff/Transparency
53
Solvent UV Cutoff (nm)
Acetonitrile 190
Water 190
Cyclohexane 195
Hexane 200
Methanol 210
Ethanol 210
Diethyl Ether 220
Dichloromethane 220
Chloroform 240
Carbon Tet 265
Tetrahydrofuran 280
Toluene 285
UV cutoff is the
wavelength at which
absorbance equals 1,
measured in a 1 cm cell
with air as a reference.
54.
55.
56.
57.
58.
59. Refractive index detectors:
• Nearly universal but poor detection limit
• Passes visible light through 2 compartments, sample &reference.
• When the solvent composition are the same the light passed through the
compartments the light beam that passes through is recorded as zero.
• When a solute is in the sample compartment, refractive index changes will
shift the light beam from the detector.
• Limit of detection (LOD) 10 ng of solute
60.
61.

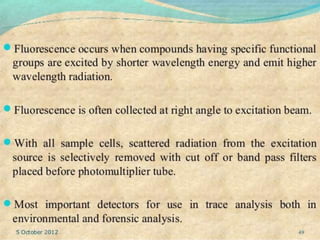

62. Fluorescence detectors:
• Review - based on emission of excited state molecules.
• Fluorescing species or fluorescent derivatives
63.
64.
65. Electro chemical detectors:
•Based on amperometric
response of analyte to electrode
usually held at constant potential.
•If the analyte is electro active,
can be highly sensitive since
response is based on a surface
phenomenon rather than a
solution bulk property (e.g. UV-
Vis absorbance)
•simplicity, convenience and
wide-spreading application
• Thin-layer flow cell of Teflon :
50μm thick, 1 ~ 5 μL volume
• Indictor E: Pt, Au, C
• Multi-electrode: simultaneous
detection or sample purity
indication.
66. Evaporative light scattering
detectors:
• Responds to any analyte
that is significantly less
volatile than the mobile
phase.
• Eluate is mixed with N2(g)
and forms a fine mist.
• Solvent (m.p.) evaporates
leaving fine particles of
analyte. The particles
themselves are detected by
light scattering.
• Response is proportional to
analyte mass.
67. IR detectors:
• Filter instrument or FTIR
• Similar cell as that of UV-Vis
• Limit: no suitable solvent, special optics
• FT-IR allows for spectrum records of flowing systems analogous to the
diode array system.
• Water/alcohols can be major interferences to solute detection
• LOD 100 ng
Photo diode array detector:
This is a recent one which is similar to U.V detector which
operates from 190-600 nm. Allows for the recording of the entire
spectrum of each solute as it passed through the diode array detector.
The resulting spectra is a 3-D or three dimensional plot of Response Vs
Time Vs Wave length.
69. WHAT AFFECTS SYSTEM
Column Parameters
Column Material
Deactivation
Stationary Phase
Coating Material
Instrument Parameters
Temperature
Flow
Signal
Sample Sensitivity
Detector
70. • Broad peaks occur due to the more conc. of sample,
large injection volume, column deterioration.
• Ghost peaks occur due to the contamination of the
column, compound from earlier injections.
• Negative peaks occur if mobile phase absorbance is
larger than sample absorbance.
• Peak doubling occurs due to the co- elution of
interfering compound, column over load, channeling
in column.
• Base line spikes occur due to the air bubbles in the
mobile phase and/or detector, column deterioration.
Peaks:
71. TYPES OF HPLC TECHNIQUES:
A. Based on modes of chromatography
1. Normal phase mode
2.Reverse phase mode
B. Based on principle of separation
1. Adsorption chromatography
2. Ion exchange chromatography
3. Ion pair chromatography
4.Size exclusion(or)Gel permeation chromatography
5. Affinity chromatography
6. Chiral phase chromatography
72. C. Based on elution technique
1. Isocratic separation
2. Gradient separation
D. Based on the scale of operation
1. Analytical HPLC
2. Preparative HPLC
E. Based on the type of analysis
1. Qualitative analysis
2. Quantitative analysis
73. Several types of column
Normal phase
Reverse phase
Size exclusion
Ion exchange
74. Normal phase
In this column type, the retention is governed by the interaction of the polar
parts of the stationary phase and solute.
For retention to occur in normal phase, the packing must be more polar than
the mobile phase with respect to the sample
75. Reverse phase
In this column the packing material is relatively nonpolar
and the solvent is polar with respect to the sample.
Retention is the result of the interaction of the nonpolar
components of the solutes and the nonpolar stationary
phase.
Typical stationary phases are nonpolar hydrocarbons,
waxy liquids, or bonded hydrocarbons (such as C18, C8,
etc.) and the solvents are polar aqueous-organic mixtures
such as methanol-water or acetonitrile-water.
76. Common Reverse Phase Solvents
Methanol CH3OH
• Acetonitrile CH3CN
• Tetrahydrofuran
• Water H2O
77. Size exclusion
In size exclusion the HPLC column is consisted of
substances which have controlled pore sizes and is able
to be filtered in an ordinarily phase according to its
molecular size.
Small molecules penetrate into the pores within the
packing while larger molecules only partially penetrate
the pores.
The large molecules elute before the smaller molecules.
78. Ion exchange
In this column type the sample components are
separated based upon attractive ionic forces
between molecules carrying charged groups of
opposite charge to those charges on the
stationary phase.
Separations are made between a polar mobile
liquid, usually water containing salts or small
amounts of alcohols, and a stationary phase
containing either acidic or basic fixed sites.
79. RECORDERS
Recorders are used to record the responses
obtained from detectors after amplification.
They record the base line and all the peaks
obtained, with respect to time.
Retention time for all the peaks can be found out
from such recordings, but the area of individual
peaks cannot be known.
80. Integrators are improved version of recorders with some
data processing capabilities.
They can record the individual peaks with retention
time, height and width of peaks, peak area, percentage
of area, etc.
Integrators provide more information on peaks than
recorders.
Now a days computers and printers are used for
recording and processing the obtained data and for
controlling several operations.
INTEGRATORS
81. PARAMETERS USED IN HPLC
1.Retention time
2.Retention volume
3.Seperation factor
4. Resolution
5. Height Equivalent to a Theoretical
Plate (HETP)
6. Asymmetry factor

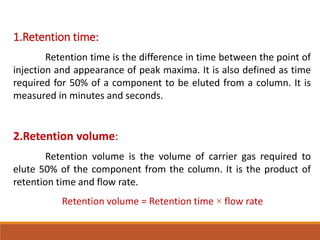

82. 1.Retention time:
Retention time is the difference in time between the point of
injection and appearance of peak maxima. It is also defined as time
required for 50% of a component to be eluted from a column. It is
measured in minutes and seconds.
2.Retention volume:
Retention volume is the volume of carrier gas required to
elute 50% of the component from the column. It is the product of
retention time and flow rate.
Retention volume = Retention time × flow rate
83. 4. Resolution:
Resolution is the measure of extent of separation of 2
components and the base line separation achieved.
Rs = 2 (Rt1-Rt2) / w1+w2
5. Height Equivalent to a Theoretical Plate (HETP):
A theoretical plate is an imaginary or hypothetical unit of a
column where distribution of solute between stationary phase and
mobile phase has attained equilibrium. It can also be called as a
functional unit of the column.
84. 6. Asymmetry factor:
A chromatographic peak should be symmetrical about its
centre and said to follow Gaussian distribution. But in
practice due to some factors, the peak is not symmetrical
and shows tailing or fronting.
Fronting is due to saturation of stationary phase and can
be avoided by using less quantity of sample.
Tailing is due to more active adsorption sites and can be
eliminated by support pretreatment.
Asymmetry factor (0.95 to 1.05) can be calculated
by AF = b/a (b, a calculated by 5% or 10% of the peak
height).
85. DERIVATISATION IN HPLC:
In order to increase the detectability of various
classes of compounds ( for which sensitive detectors are
not available ) derivatisation is carried out in HPLC. A good
amount of work has been performed on the labelling of
compounds with chromophores and flurophores for
detection using UV spectrometers and fluorimeters
respectively. There are 2 important types of derivatisation.
These are,
1. Pre column derivatisation
2. Post column derivatisation
86. PRE COLUMN DERIVATISATION:
•In pre column derivatisation there are no restrictions on
the solvents, reagents, or reaction rates chosen and excess
of reagents can be removed before the injection.
•However, artifact formation, if present, can be checked by
positive identification of the eluted peaks.
•For example, in the derivatisation of a triketone with more
than one functional group capable of being derivatised
there is a possibility of range of derivatives being formed
from one solute.
87. Examples of pre column derivatisation to form UV
chromophores include the treatment of ketosteroids
with 2,4, DNP
Benzoylation of hydroxy steroids
Esterification of fatty acids.
Similarly, fluorophores have been introduced into
amino acids, biogenic amines, and alkaloids by
treatment with dansyl chloride.
88. POST COLUMN DERIVATISATION
It is carried out on the separated solutes as they emerge from the
chromatographic column. In HPLC, this places serious restriction on the
derivatisation reactions, because dilution of the eluent peak must be
minimized. Consequently, very fast reactions must be used and the
reagents and mobile phase must be compatible.
Examples of post column derivatisation reactions for use with UV detectors
include:
A. Reaction of amino acids with ninhydrin and fluorescamine.
B. Reaction of fatty acid with ortho nitro phenol.
C. Reaction of ketones with 2, 4, DNP.
D. Thermal or acid treatment of carbohydrates.
An oxidation detector for the fluorimetric analysis of carbohydrates in
body fluids using Ce (III) flourescence has also been reported.
89. Parameters of HPLC
1- Qualitative analysis
the most common parameter for compound is retention time
(the time it takes for that specific compound to elute from the column
after injection)
90.
91. Capacity Factor (k’):
Is a measure for the position of a sample peak in the chromatogram.
k’ = (tR1-to)/to
92. 2- Quantitative Analysis
The measurement of the amount of compound in a sample (concentration)
1.determination of the peak height
2.determination of the peak area
93.
94. Resolution (RS)
Resolution of a column provides a quantitative measure of its
ability to separate two analytes
Rs = 2(TR2- TR1 ) / W2+W1

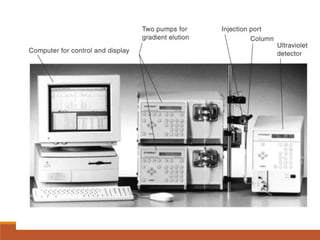

95.
96. The factors which influence the HPLC
performance
1. Internal diameter of column
- the smaller in diameter, the higher in sensitivity
2. Pump pressure
- the higher in pressure, the higher in separation
3. Sample size
4. The polarity of sample, solvent and column
5. Temperature
- the higher in temperature, the higher in separation
97. Chromatograms
A B
Conditions: A: 150mm x 4.6mm, 5µ.
Flow Rate: 1.5 mL/min
Conditions: B: 50mm x 4.6mm, 3µ.
Flow Rate: 3.0 mL/min
99. Uses of HPLC
This technique is used for chemistry and biochemistry research
analyzing complex mixtures, purifying chemical compounds,
developing processes for synthesizing chemical compounds,
isolating natural products, or predicting physical properties.
It is also used in quality control to ensure the purity of raw
materials, to control and improve process yields, to quantify assays
of final products, or to evaluate product stability and monitor
degradation.
In addition, it is used for analyzing air and water pollutants, for
monitoring materials that may jeopardize occupational safety or
health, and for monitoring pesticide levels in the environment.
Federal and state regulatory agencies use HPLC to survey food and
drug products, for identifying confiscated narcotics or to check for
adherence to label claims.
100. Application of HPLC
1. Pharmaceuticals industry
To control the drug stability
Quantity of drug determination frompharmaceutical dosage forms, ex.
Paracetamol determination in panadol tablet
Quantity of drug determination from biological fluids, ex: blood glucose
level
2. Analysis of natural contamination
- Phenol & Mercury from sea water
.
101. 3. Forensic test
Determination of steroid in blood, urine &
sweat.
Detection of psychotropic drug in plasma
Forensic analysis of textile dyes.
Determination of cocaine and metabolites.
4. Clinical test
Monitoring of hepatic cirrhosis patient through
aquaporin 2 in the urine.
Quantification of DEET in Human Urine.
Analysis of antibiotics.
Detection of endogenous neuropeptides in brain
extracellular fluids.
102. 5. Food and essence manufacture
• Sweetener analysis in the fruit juice
•Preservative analysis in sausage.
•Ensuring soft drink consistency and quality.
•Analysis of vicinal diketones in beer.
•Sugar analysis in fruit juices.
•Polycyclic aromatic hydrocarbons in Brazilian vegetables and
fruits.
•Trace analysis of military high explosives in agricultural crops.
•Stability of aspartamine in the presence of glucose and
vanillin.
103. 6. Environmental
•Phenols in Drinking Water.
•Identification of diphenhydramine in sediment samples.
•Biomonitoring of PAH pollution in high-altitude
mountain lakes through the analysis of fish bile.
•Estrogens in coastal waters - The sewage source.
•Toxicity of tetracyclines and tetracycline degradation
products to environmentally relevant bacteria.
•Assessment of TNT toxicity in sediment.
104. ADVANTAGES OF HPLC
1. Separations fast and efficient (high resolution power)
2. Continuous monitoring of the column effluent.
3. It can be applied to the separation and analysis of
very complex mixtures.
4. Accurate quantitative measurements.
5. Repetitive and reproducible analysis using the same
column.
6. Adsorption, partition, ion exchange and exclusion
column separations are excellently made.
105. ADVANTAGES OF HPLC
7. High separation capacity, enabling the batch analysis
of multiple components.
8. Superior quantitative capability and reproducibility.
9. Moderate analytical conditions.
◦ Unlike GC, the sample does not need to be vaporized.
10. Generally high sensitivity.
11. Low sample consumption.
12. Easy preparative separation and purification of
samples.
105
106. 13. HPLC is more versatile than GLC in some aspects,
because it has the advantage of not being restricted to
volatile and thermally stable solute and the choice of
mobile and stationary phases is much wider in HPLC
14. Both aqueous and non aqueous samples can be
analyzed with little or no sample pre treatment
15. A variety of solvents and column packings are
available, providing a high degree of selectivity for specific
analyses.
16. It provide a means for determination of multiple
components in a single analysis.
