1. How we scaled GitLab
for a 30k-employee company
Minqi Pan

2. Hello, I’m Minqi Pan
github.com/pmq20
twitter
@psvr

3. What’s GitLab?

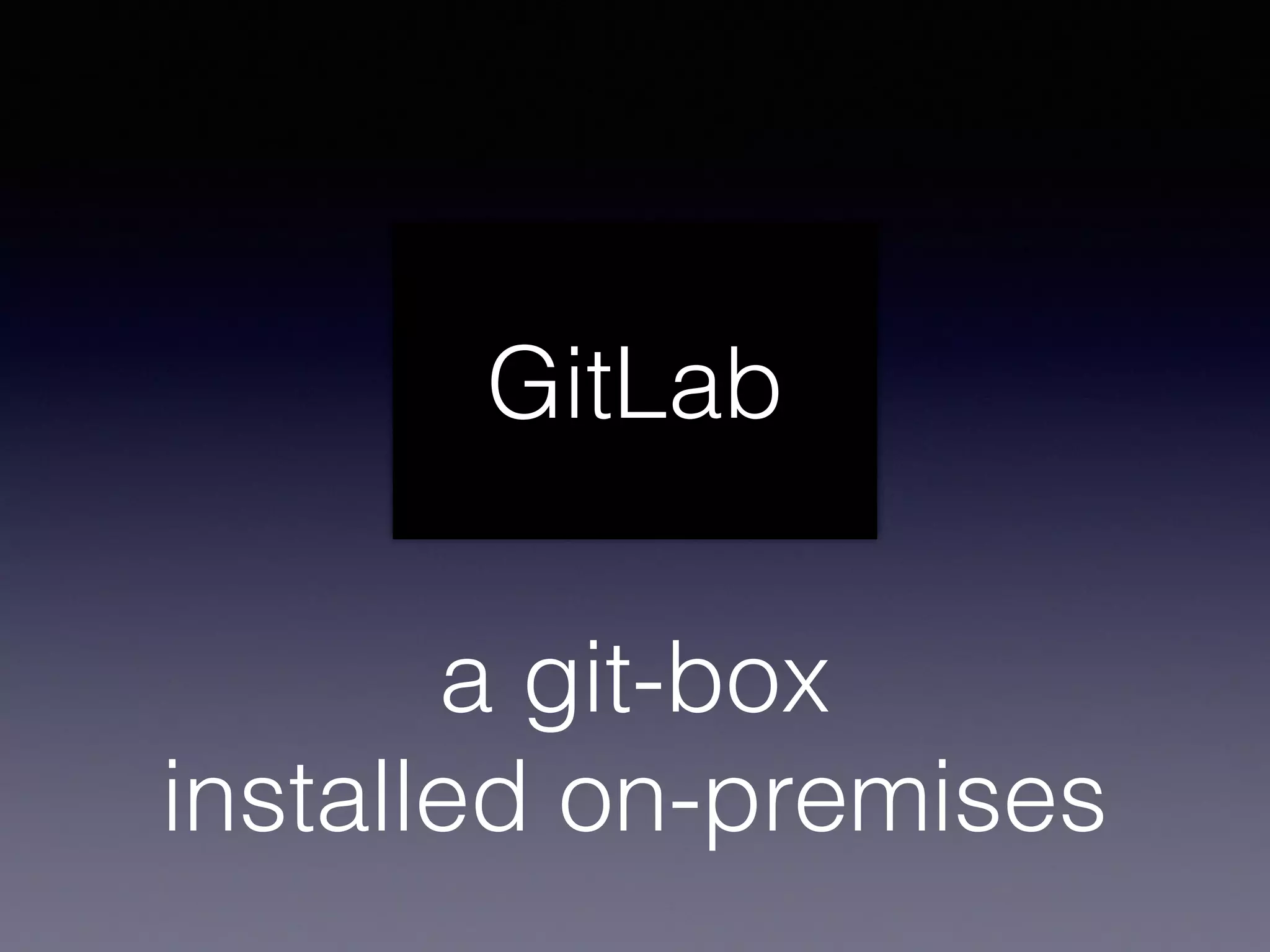

4. GitLab
a git-box
installed on-premises

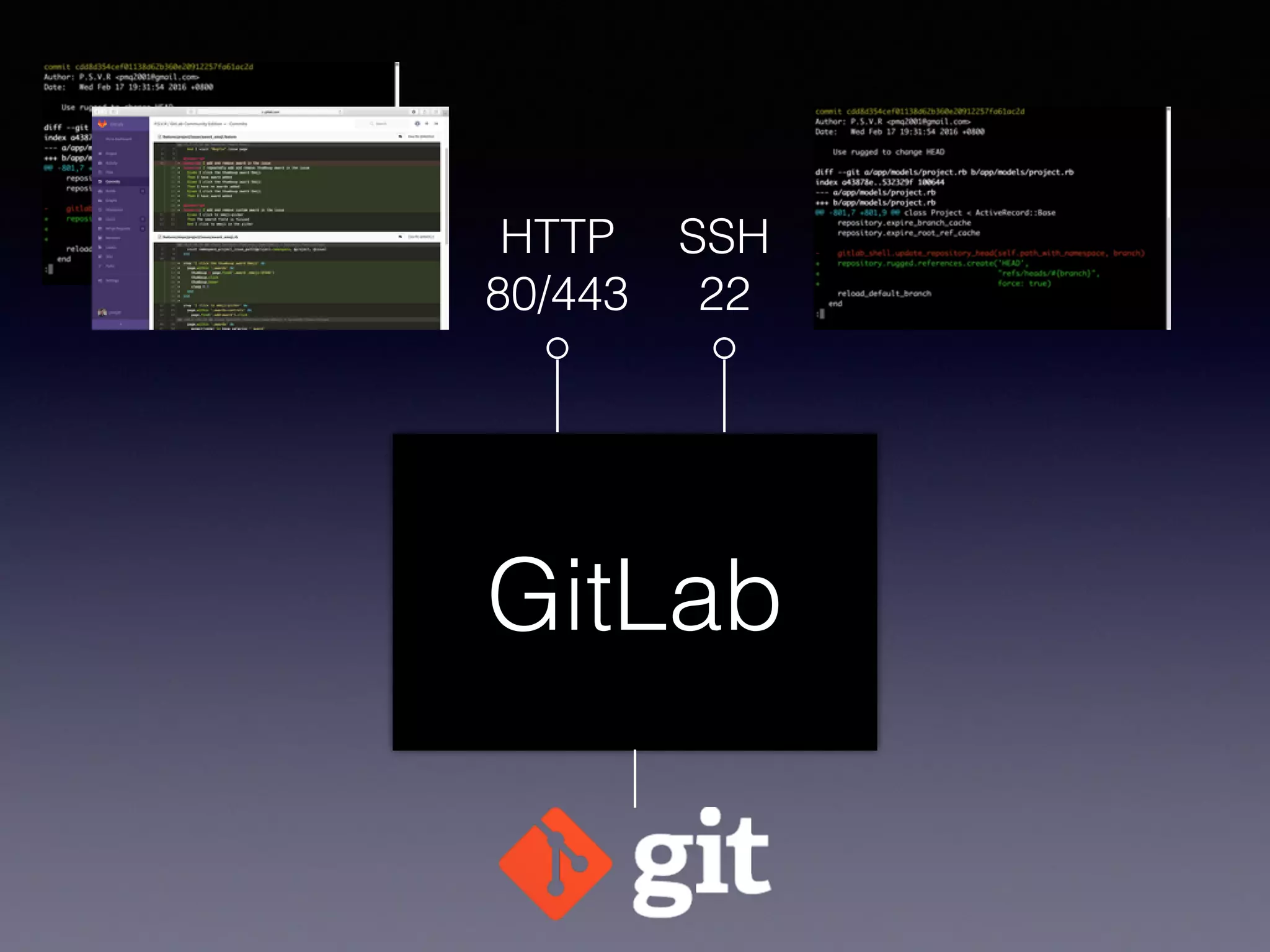

5. GitLab
HTTP
80/443
SSH
22

6. GitLab
HTTP
80/443
SSH
22

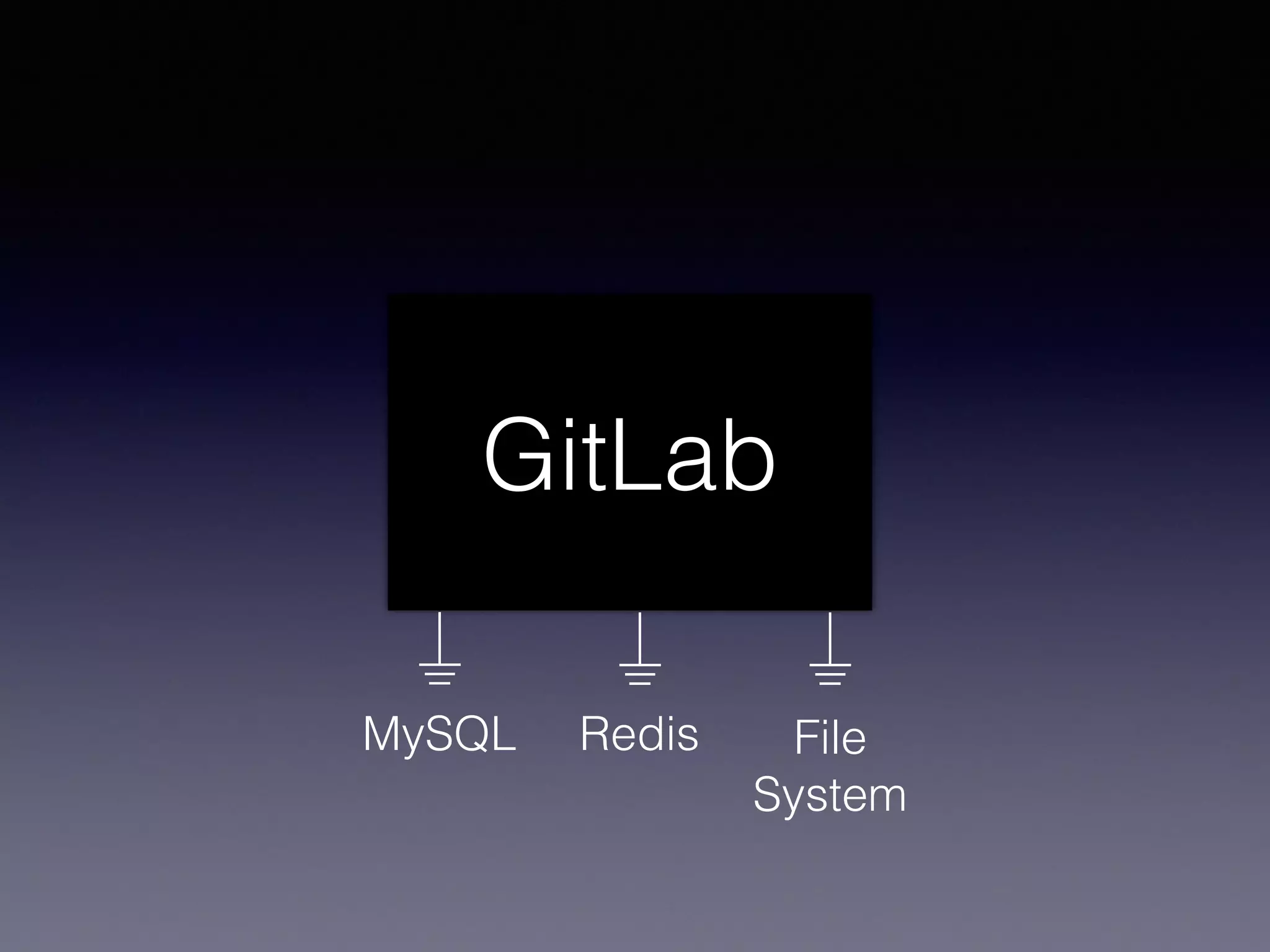

7. GitLab
RedisMySQL File
System

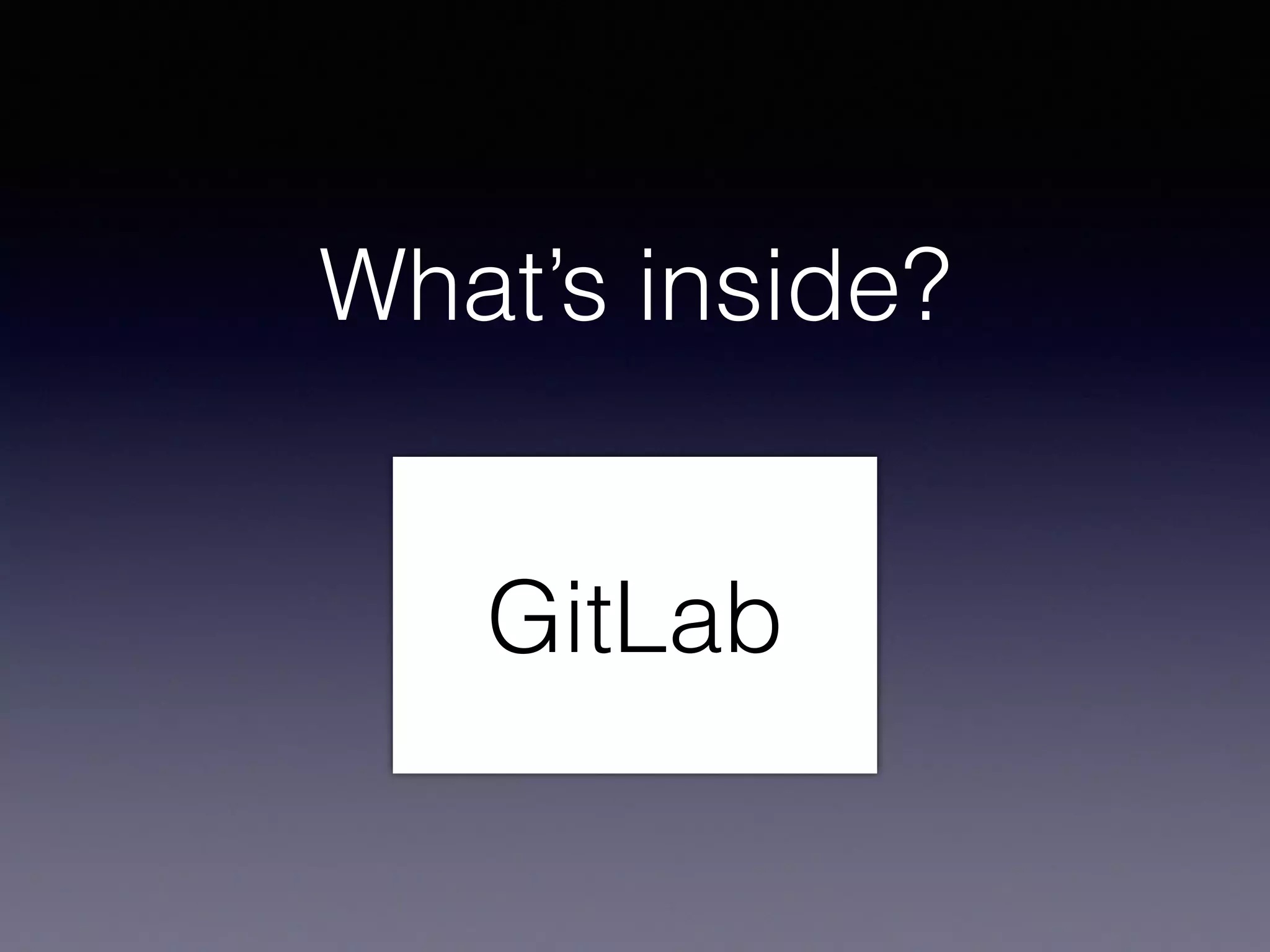

8. What’s inside?
GitLab

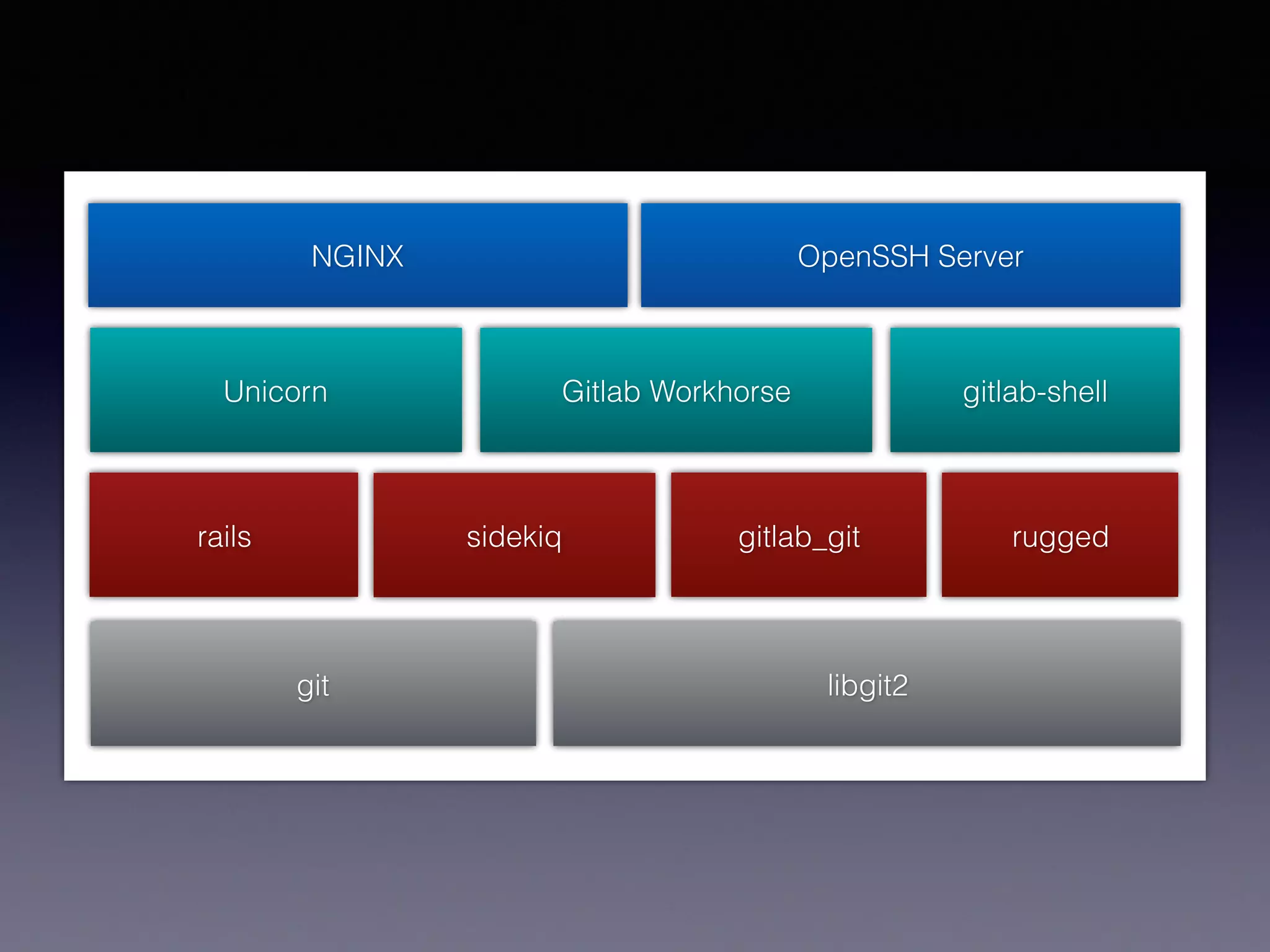

9. NGINX OpenSSH Server
Unicorn gitlab-shellGitlab Workhorse
git
gitlab_gitrails sidekiq rugged
libgit2

10. Works great
for small teams

11. However

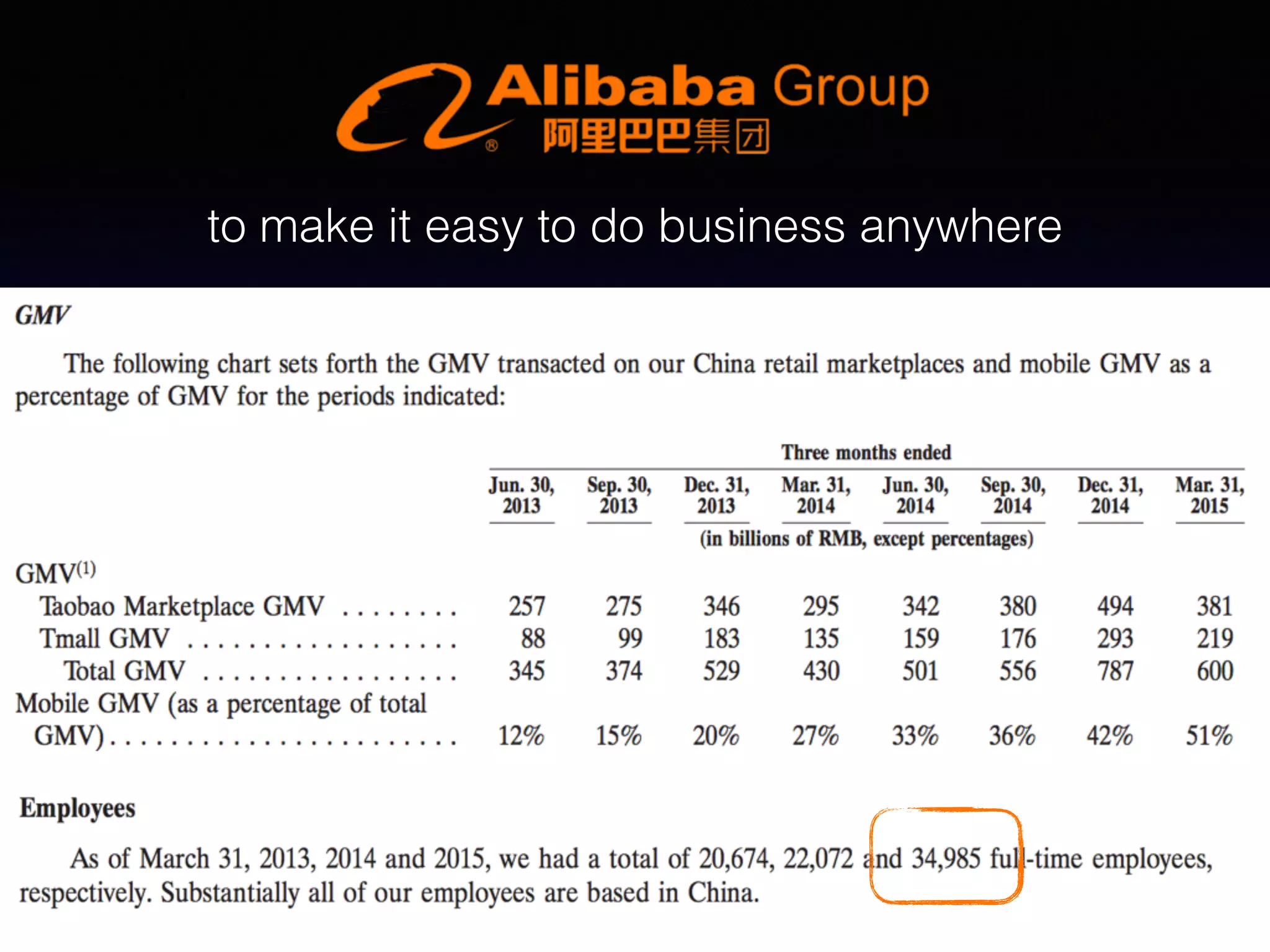

12. to make it easy to do business anywhere

13. Let’s scale it!

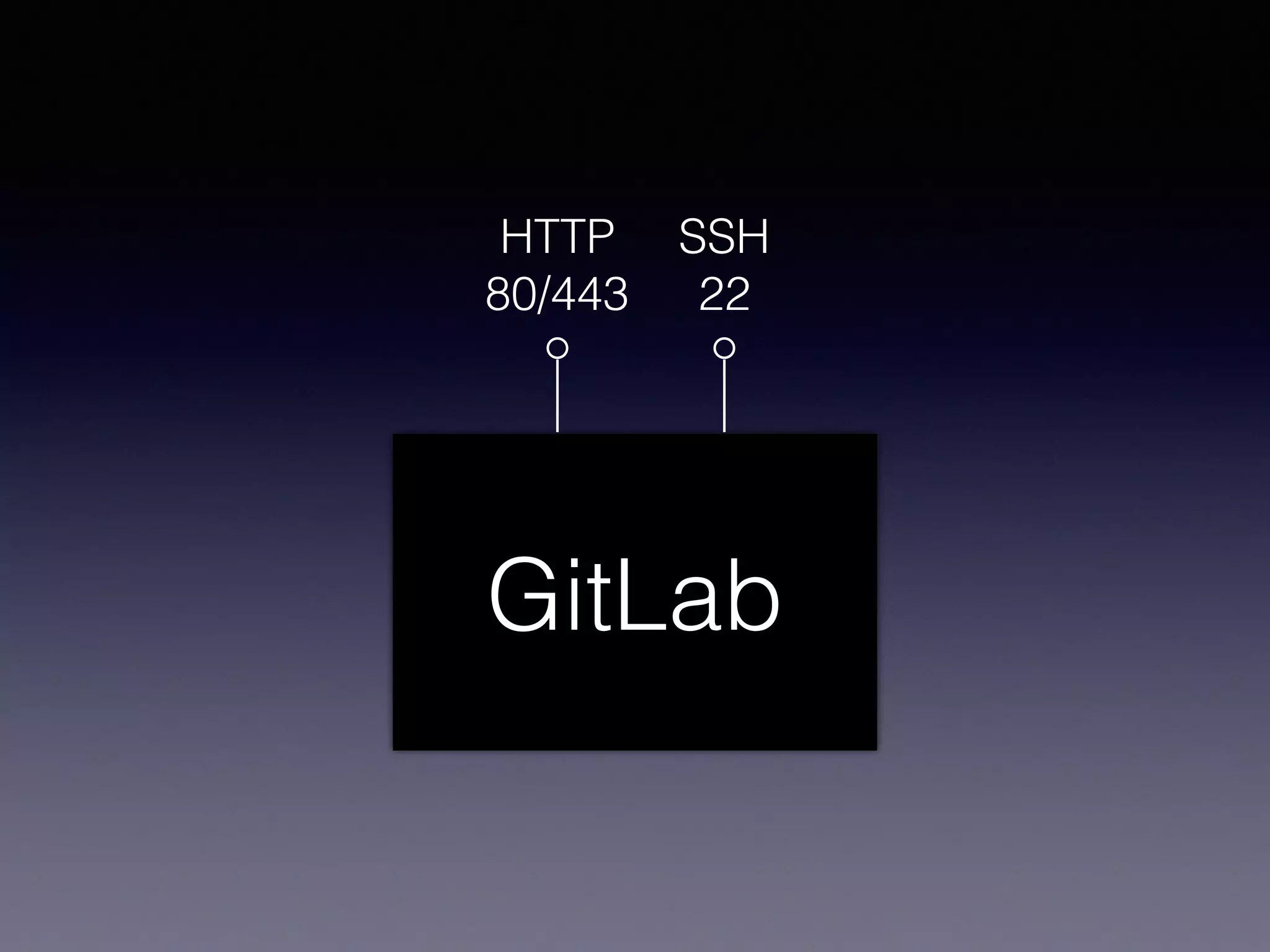

14. GitLab
HTTP
80/443
SSH
22

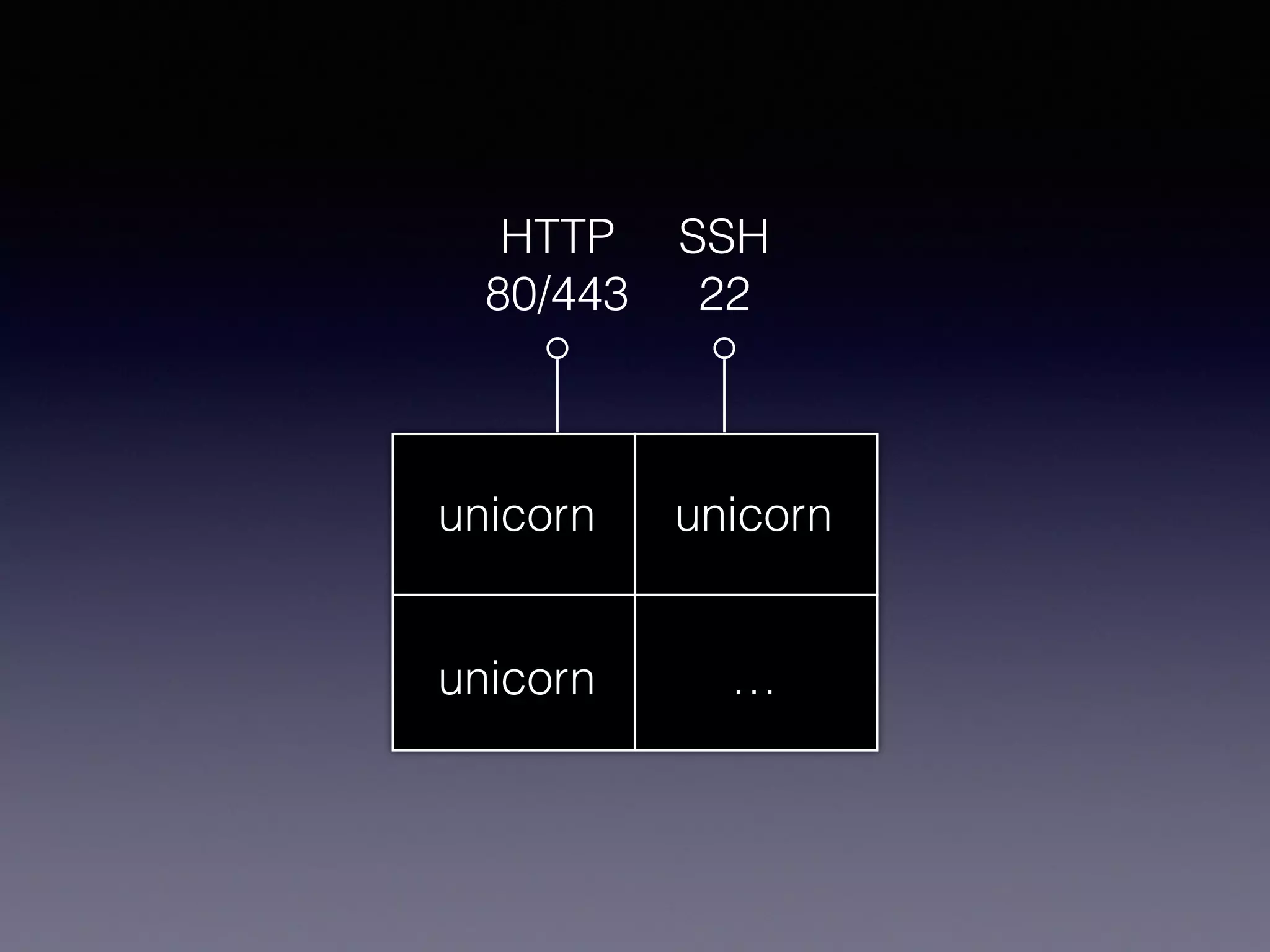

15. HTTP
80/443
SSH
22
unicorn unicorn
unicorn …

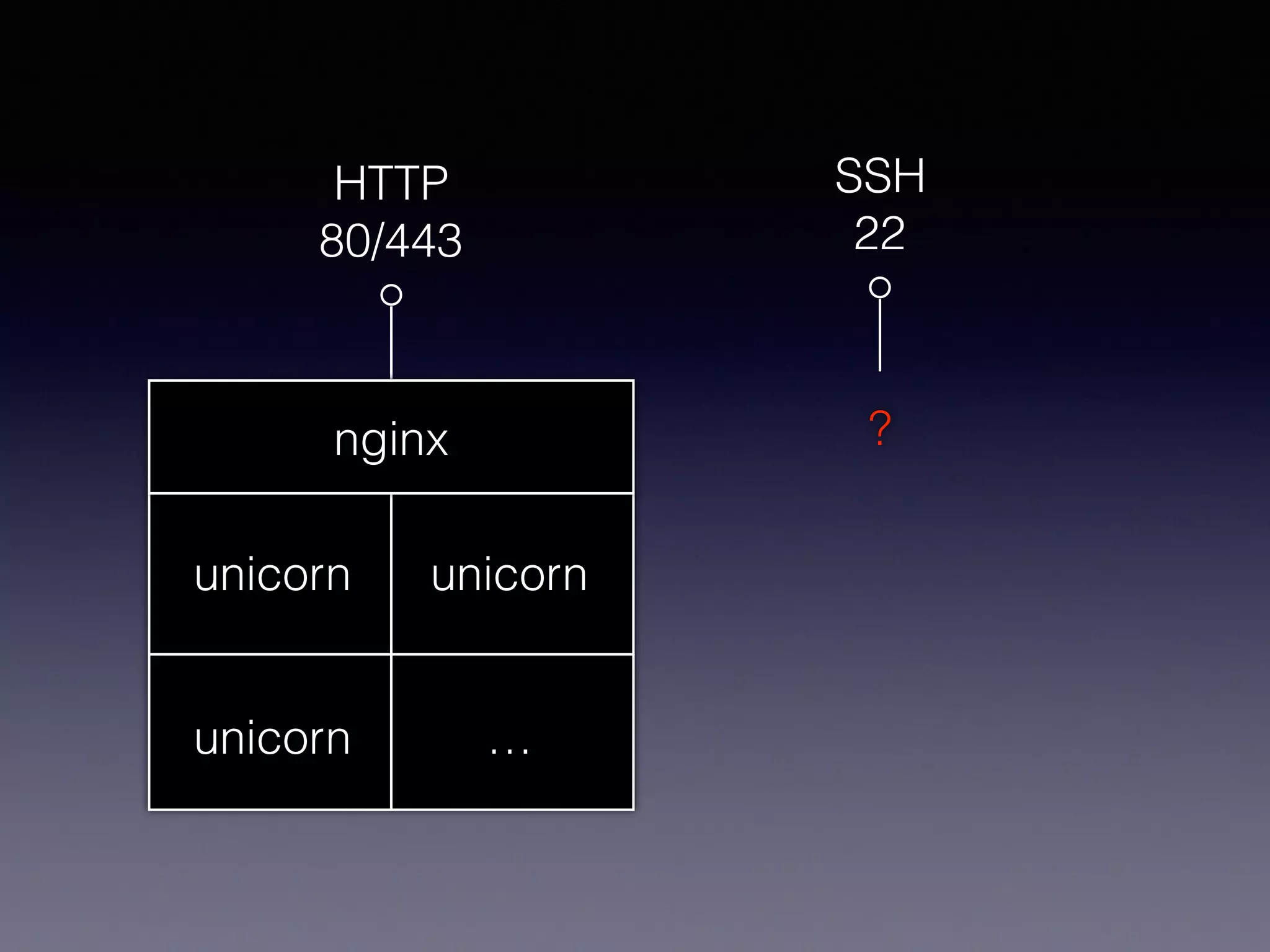

16. HTTP
80/443
SSH
22
unicorn unicorn
unicorn …
nginx ?

17. HTTP
80/443
SSH
22
unicorn unicorn
unicorn …
nginx

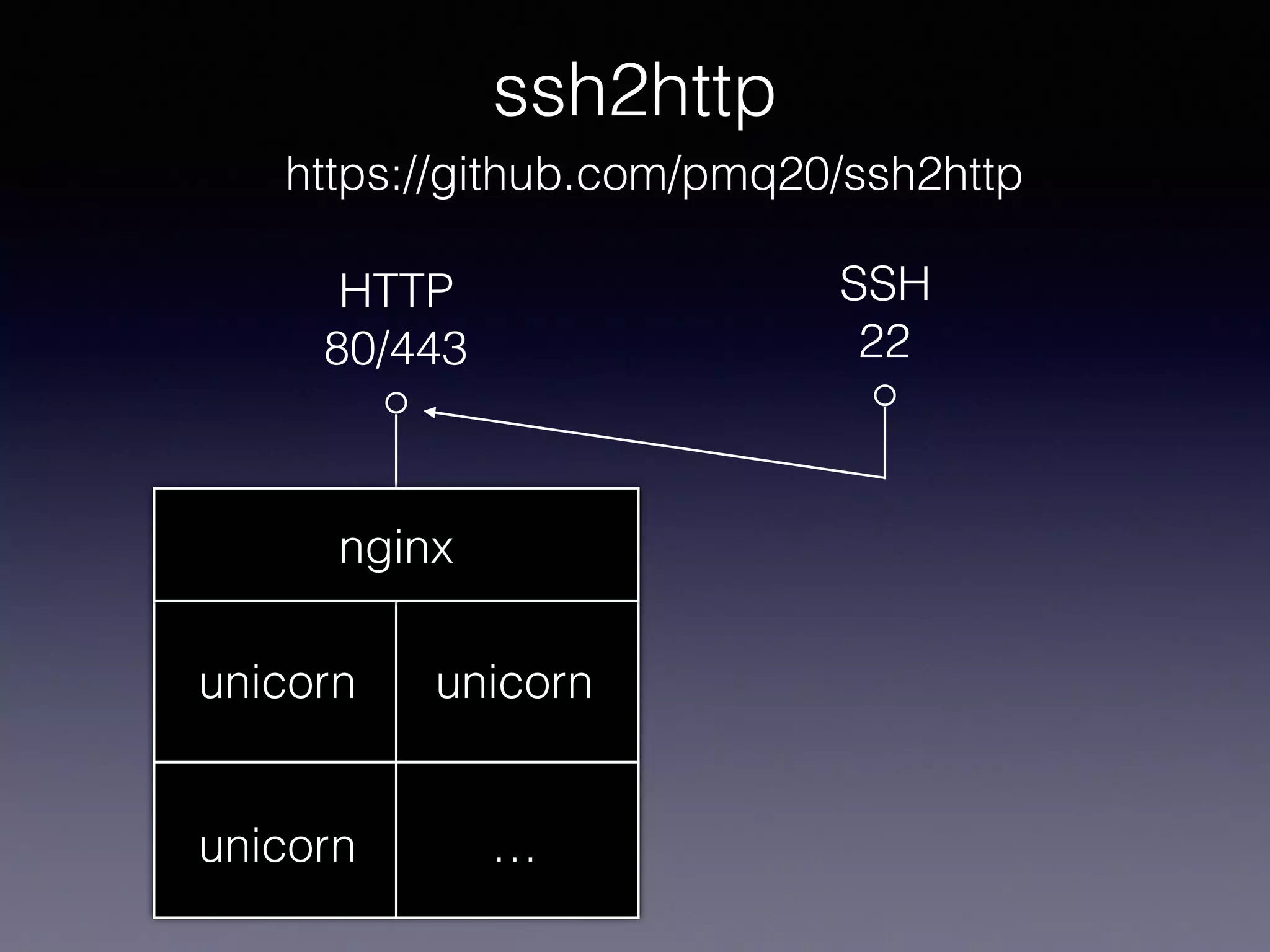

ssh2http
https://github.com/pmq20/ssh2http

18. unicorn unicorn
unicorn …
LVS (IPVS)
HTTP
80/443
SSH
22

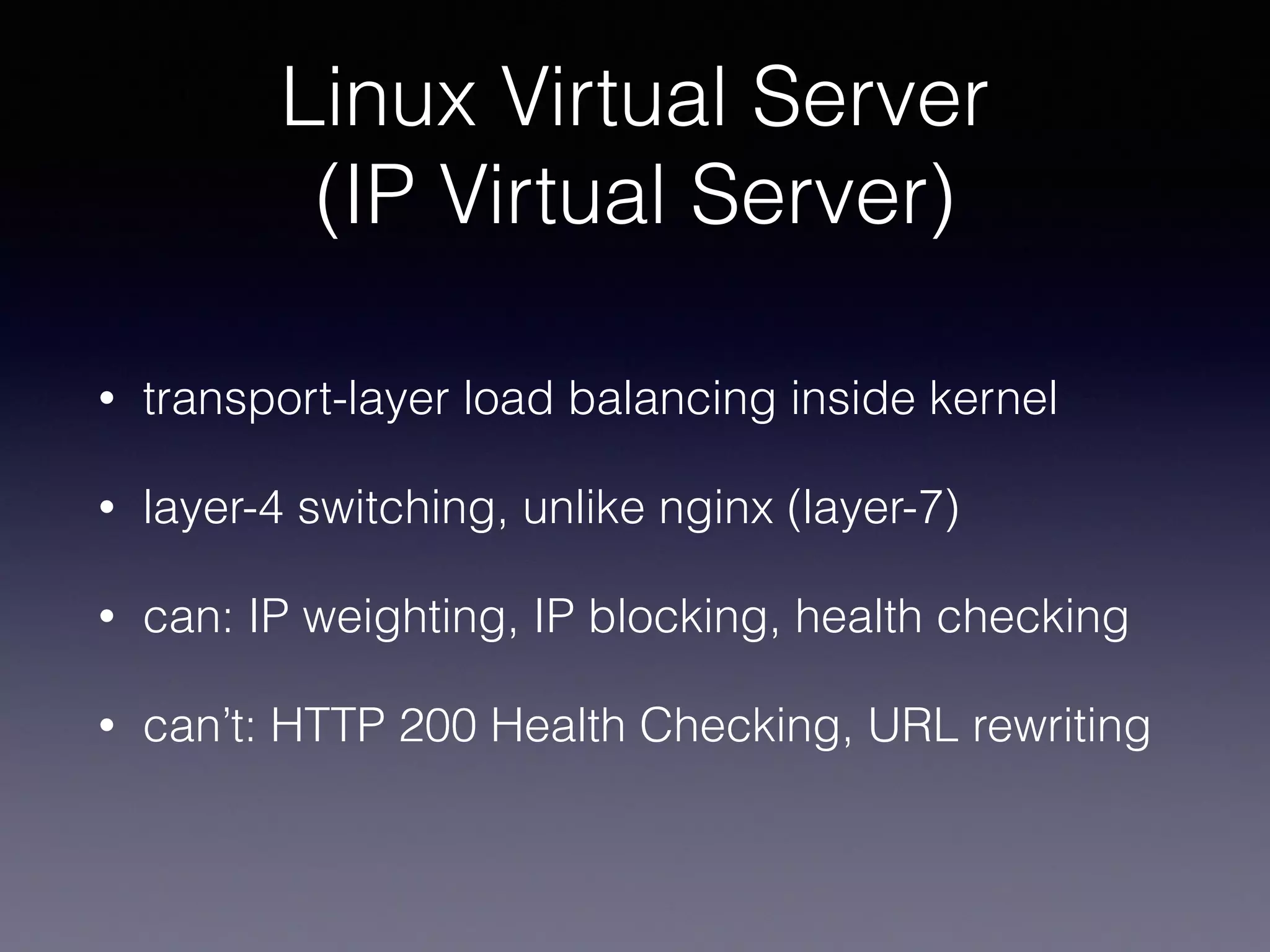

19. Linux Virtual Server
(IP Virtual Server)
• transport-layer load balancing inside kernel
• layer-4 switching, unlike nginx (layer-7)
• can: IP weighting, IP blocking, health checking
• can’t: HTTP 200 Health Checking, URL rewriting

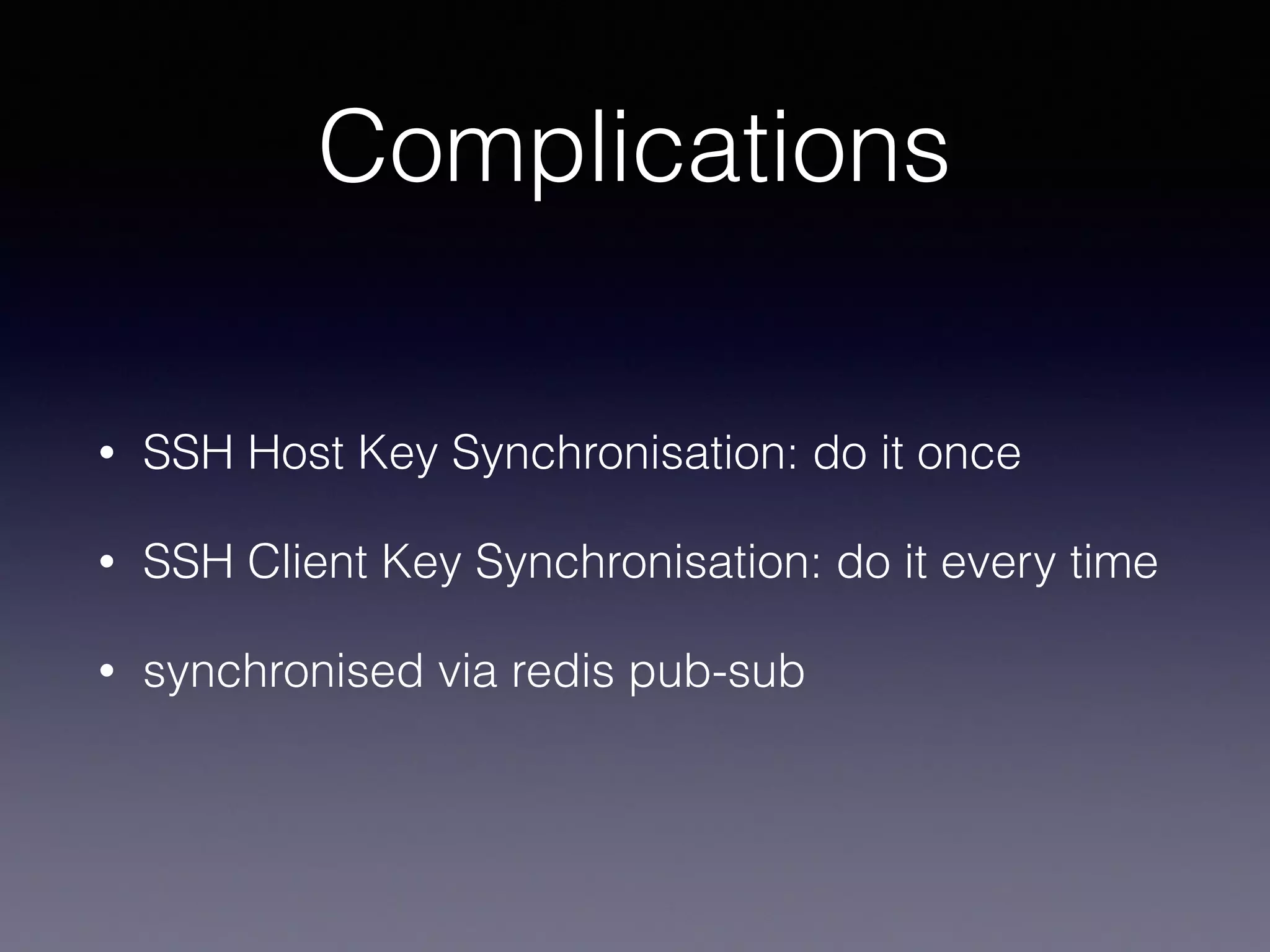

20. Complications
• SSH Host Key Synchronisation: do it once
• SSH Client Key Synchronisation: do it every time
• synchronised via redis pub-sub

21. Does it scale
in the backend?

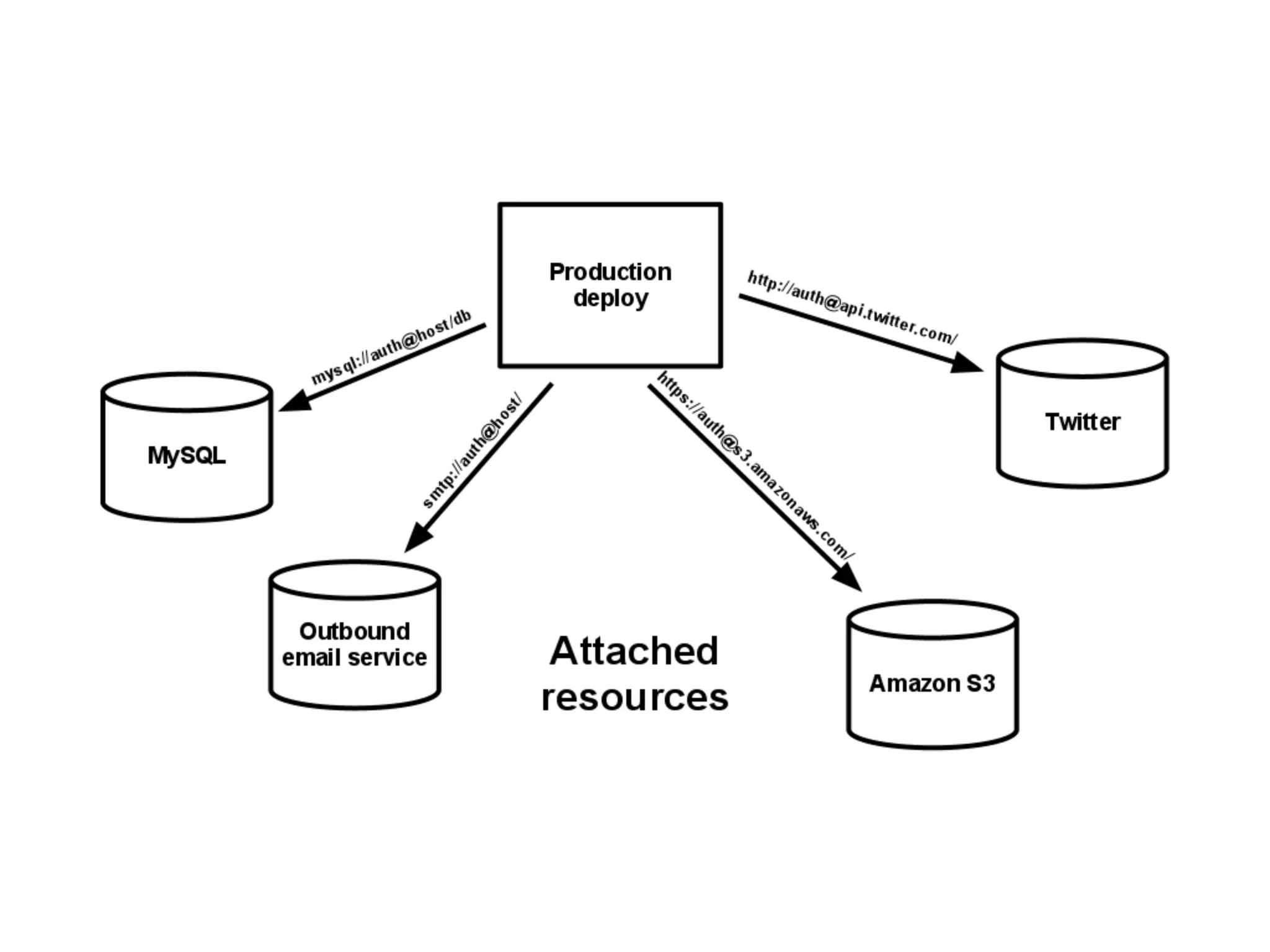

22. IV. Backing services
Treat backing services as attached resources

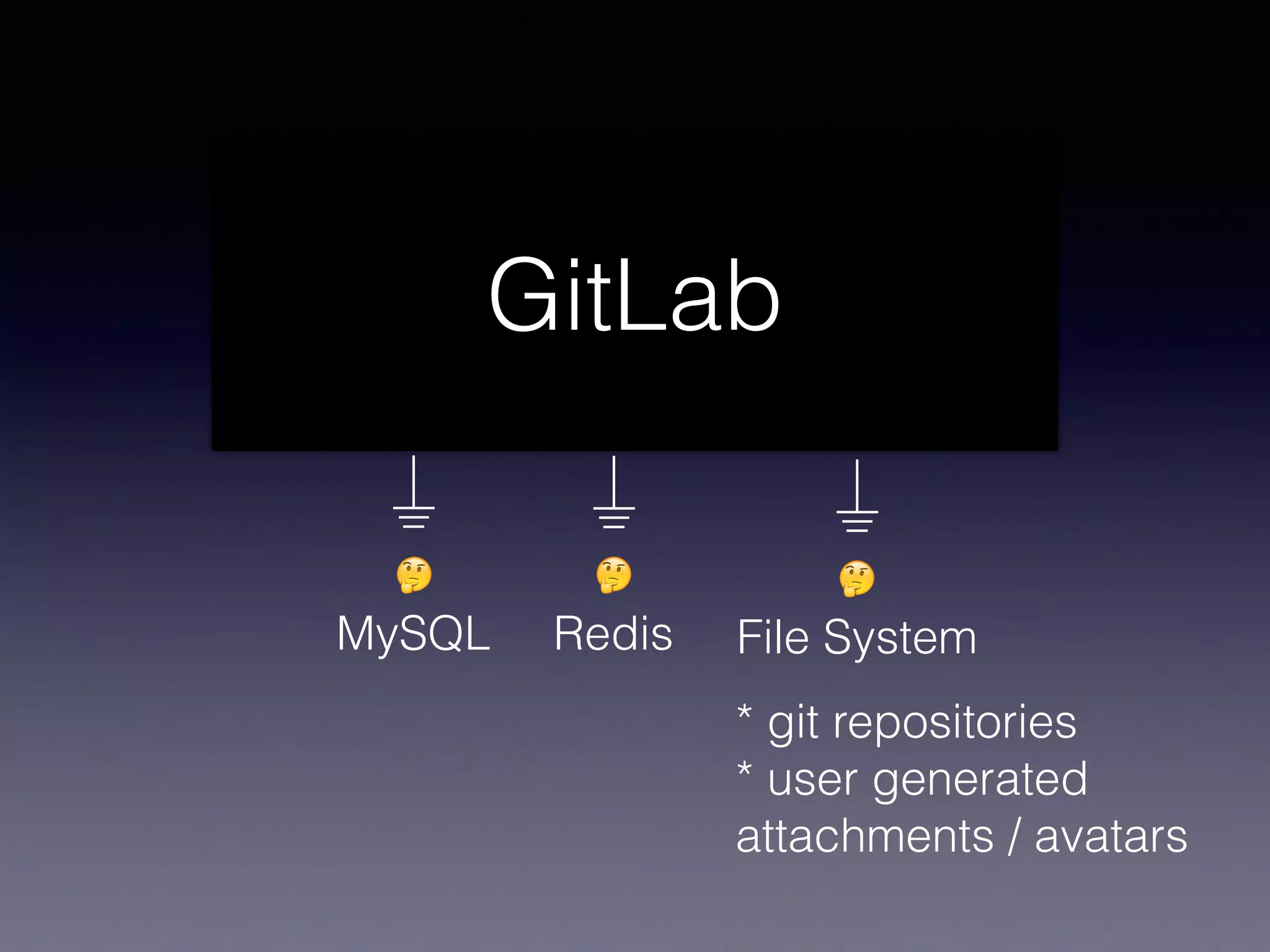

24. 🤔
Redis
🤔
MySQL
🤔
File System
GitLab
* git repositories
* user generated
attachments / avatars

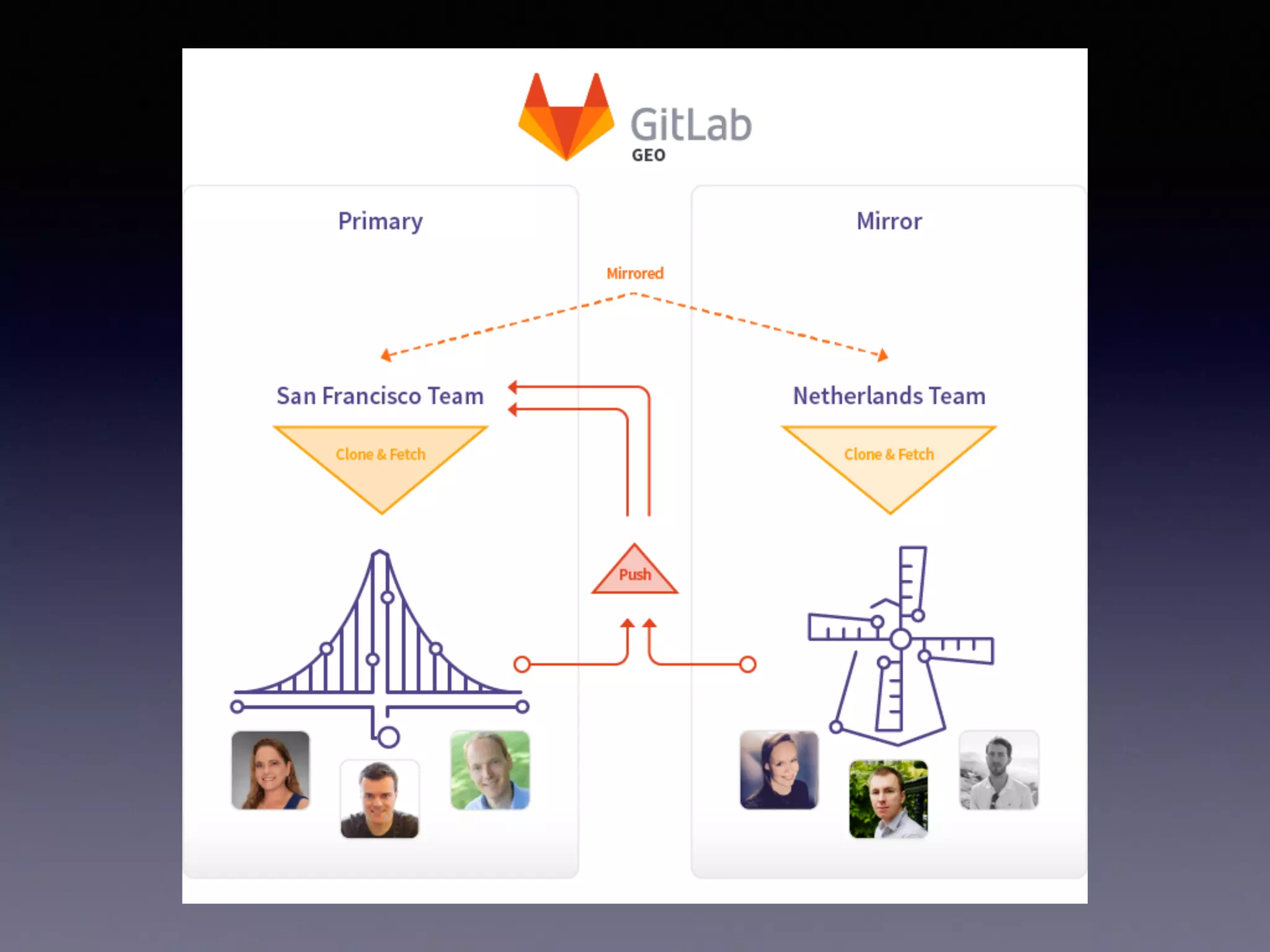

26. GitLab Geo
• introduced in GitLab 8.5 EE
• 1 Master N Slave Replication
• achieves A-P in C-A-P theorem
• no disaster recovery
• no sharing

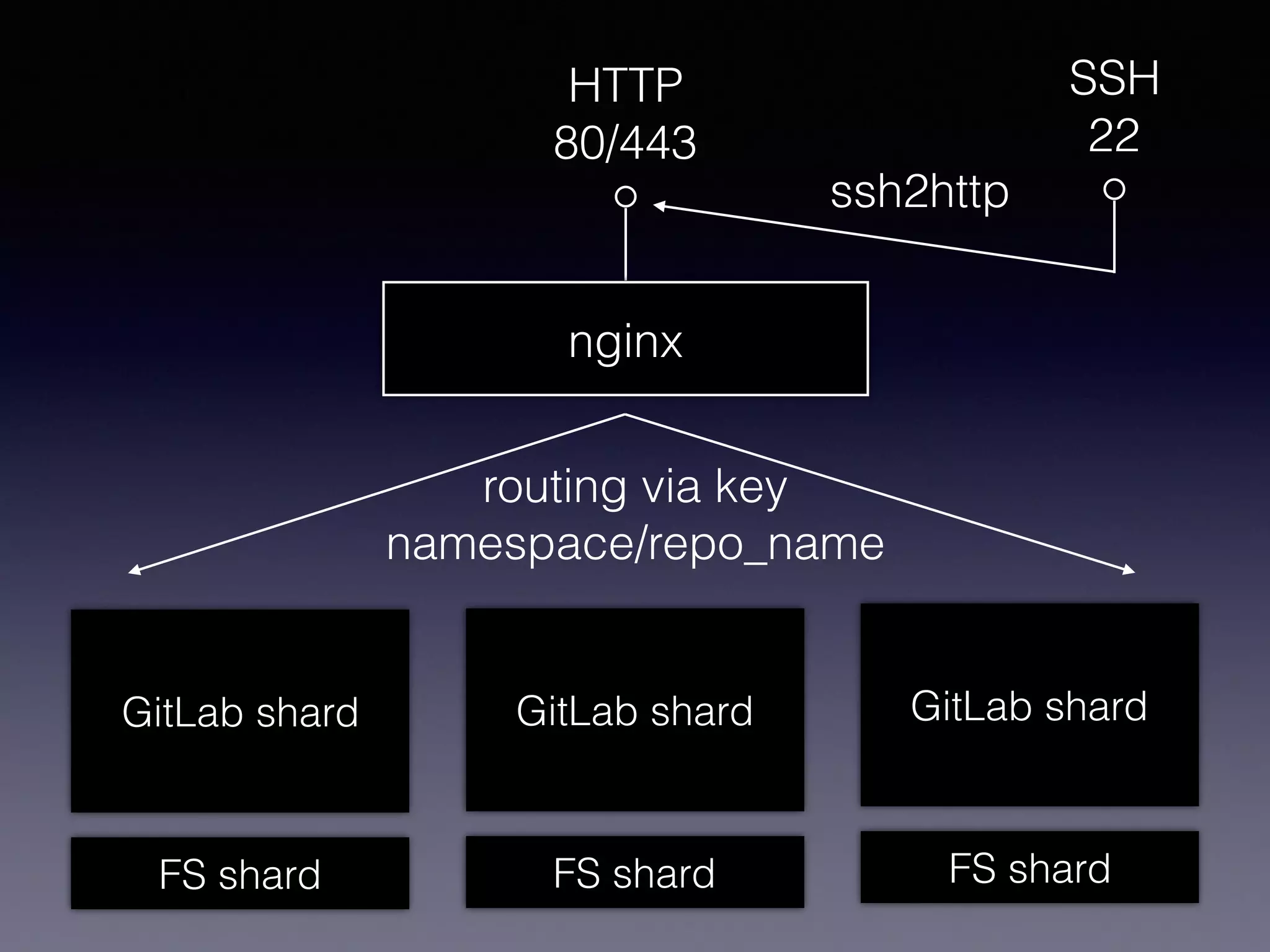

27. HTTP
80/443
SSH
22
nginx
ssh2http
routing via key
namespace/repo_name
GitLab shard
FS shard
GitLab shard
FS shard
GitLab shard
FS shard

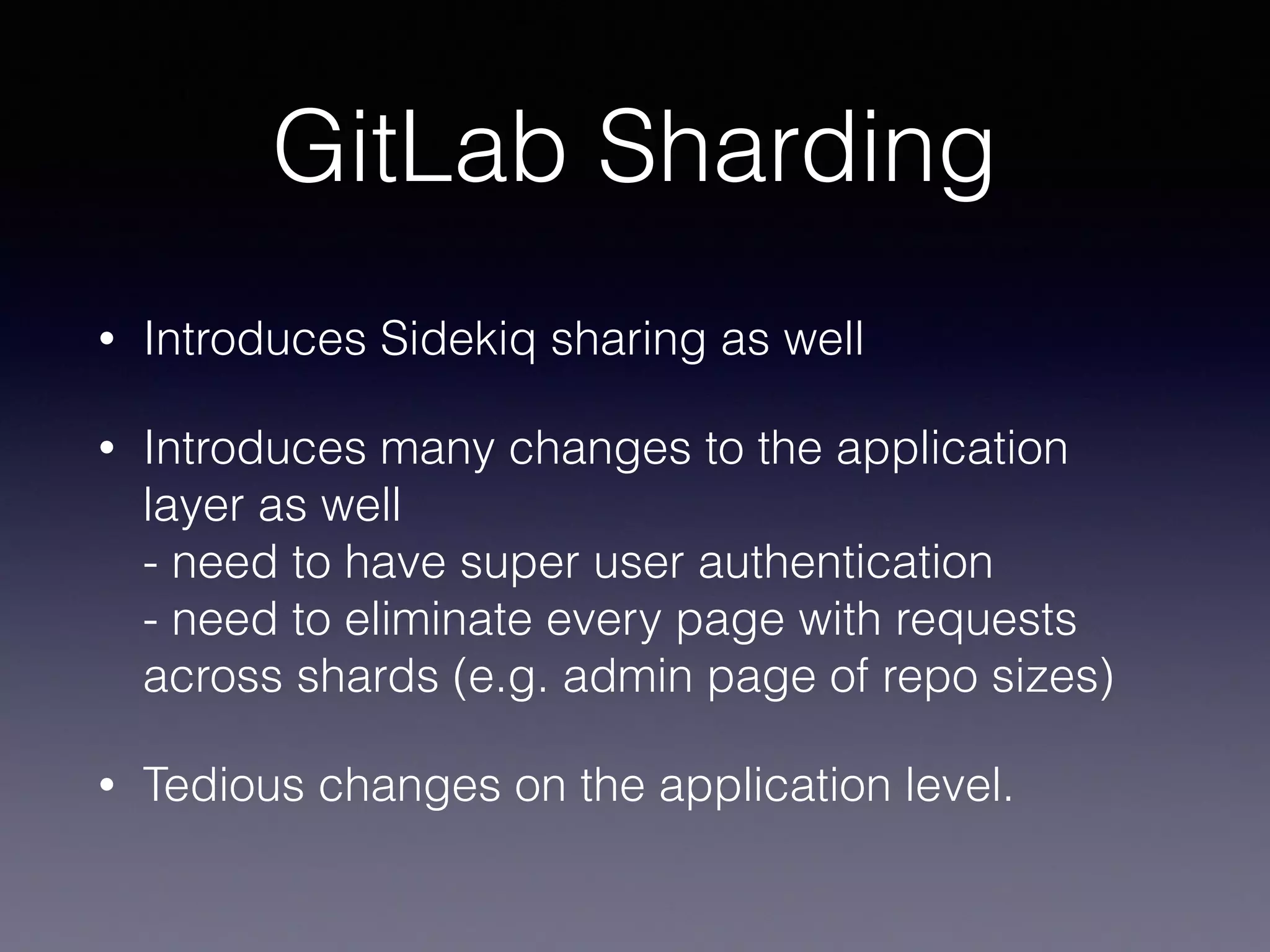

28. GitLab Sharding
• Introduces Sidekiq sharing as well
• Introduces many changes to the application
layer as well
- need to have super user authentication
- need to eliminate every page with requests
across shards (e.g. admin page of repo sizes)
• Tedious changes on the application level.

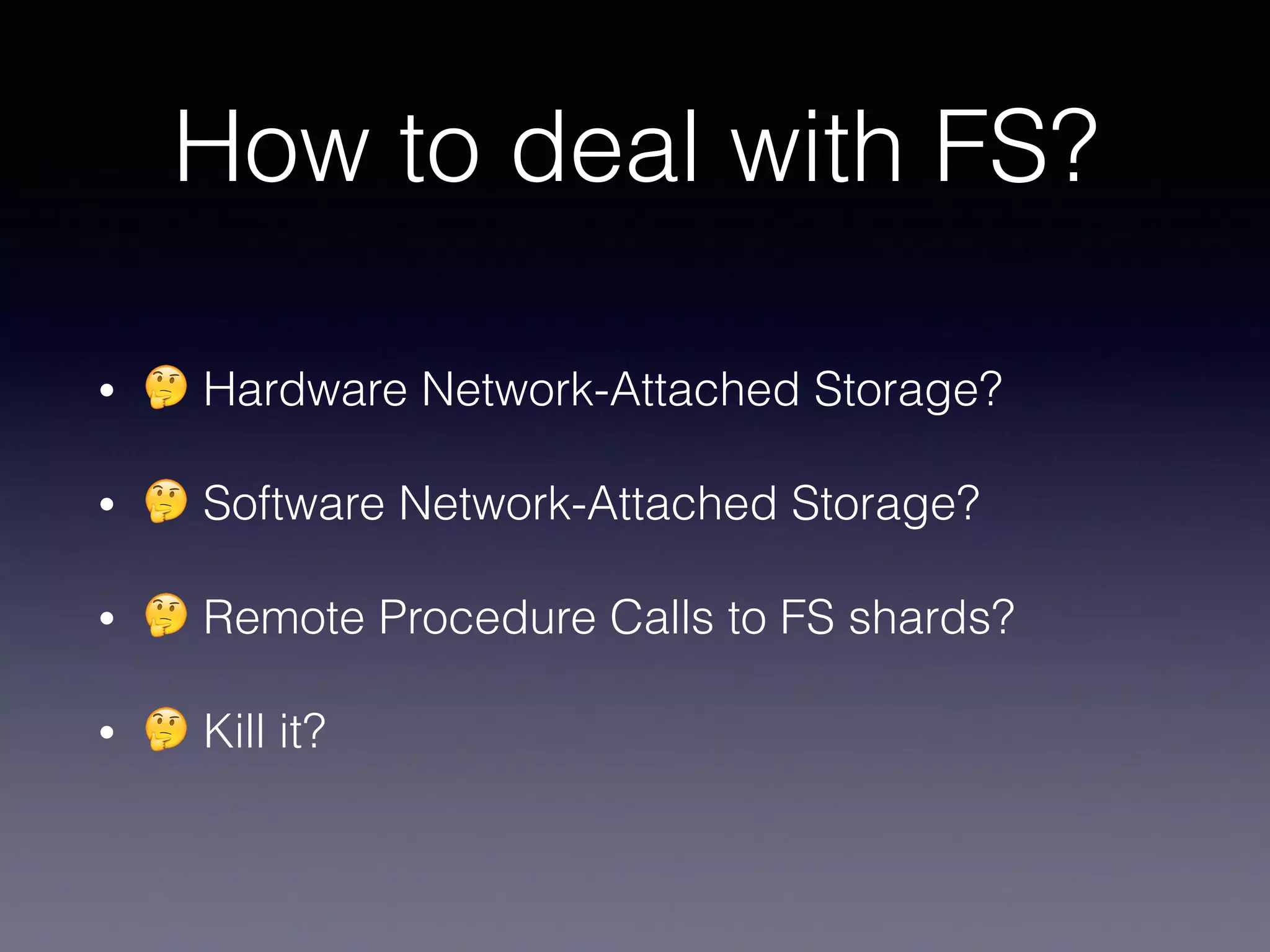

29. How to deal with FS?
• 🤔 Hardware Network-Attached Storage?
• 🤔 Software Network-Attached Storage?
• 🤔 Remote Procedure Calls to FS shards?
• 🤔 Kill it?

30. • Hard-NAS: Alibaba has non-IOE policies.
• Soft-NAS: Alibaba does not have it yet.
• RPC: GitRPC? Good. GitHub does that.
• Kill FS: Use the cloud. Try something new!

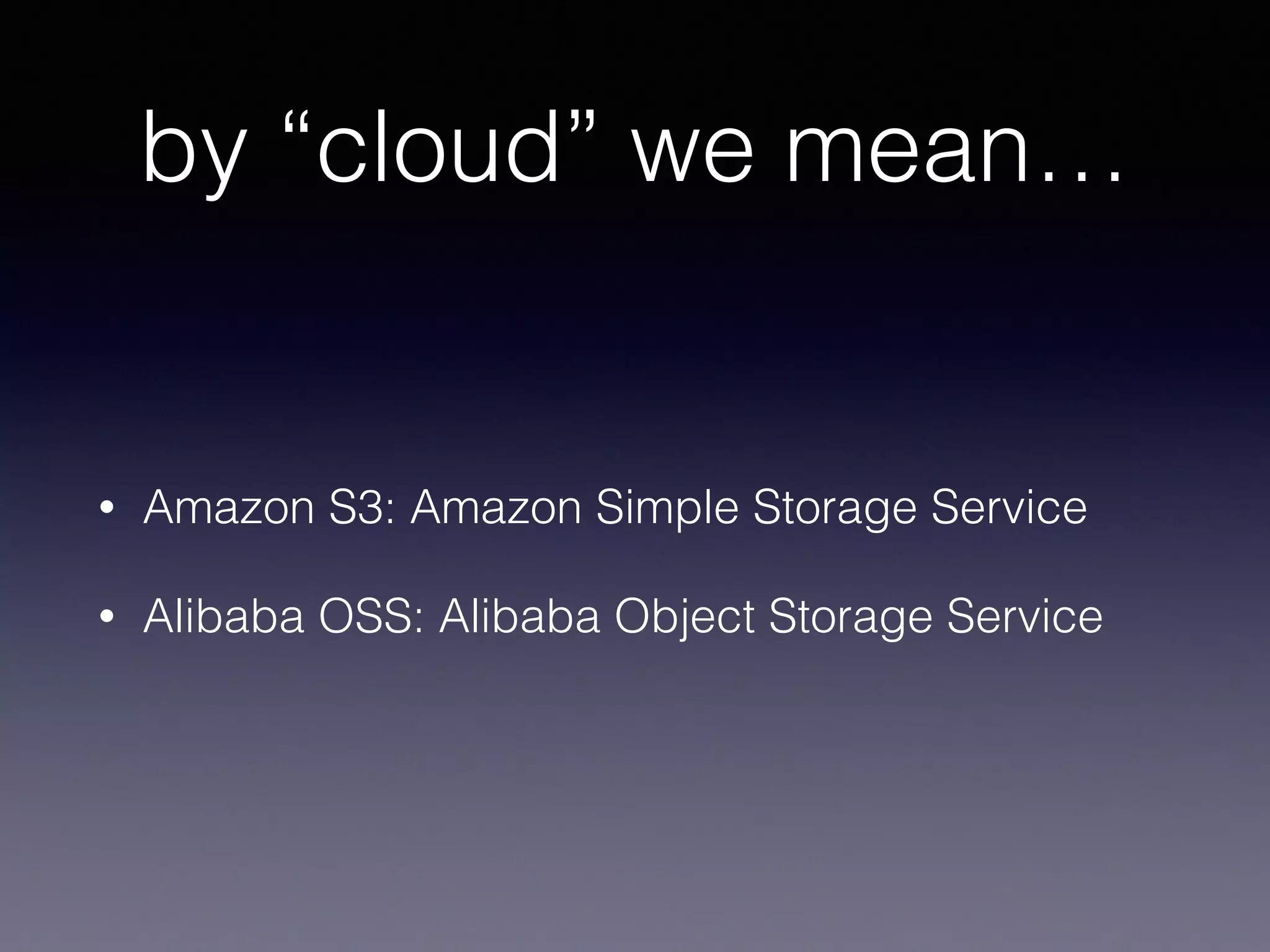

31. by “cloud” we mean…
• Amazon S3: Amazon Simple Storage Service
• Alibaba OSS: Alibaba Object Storage Service

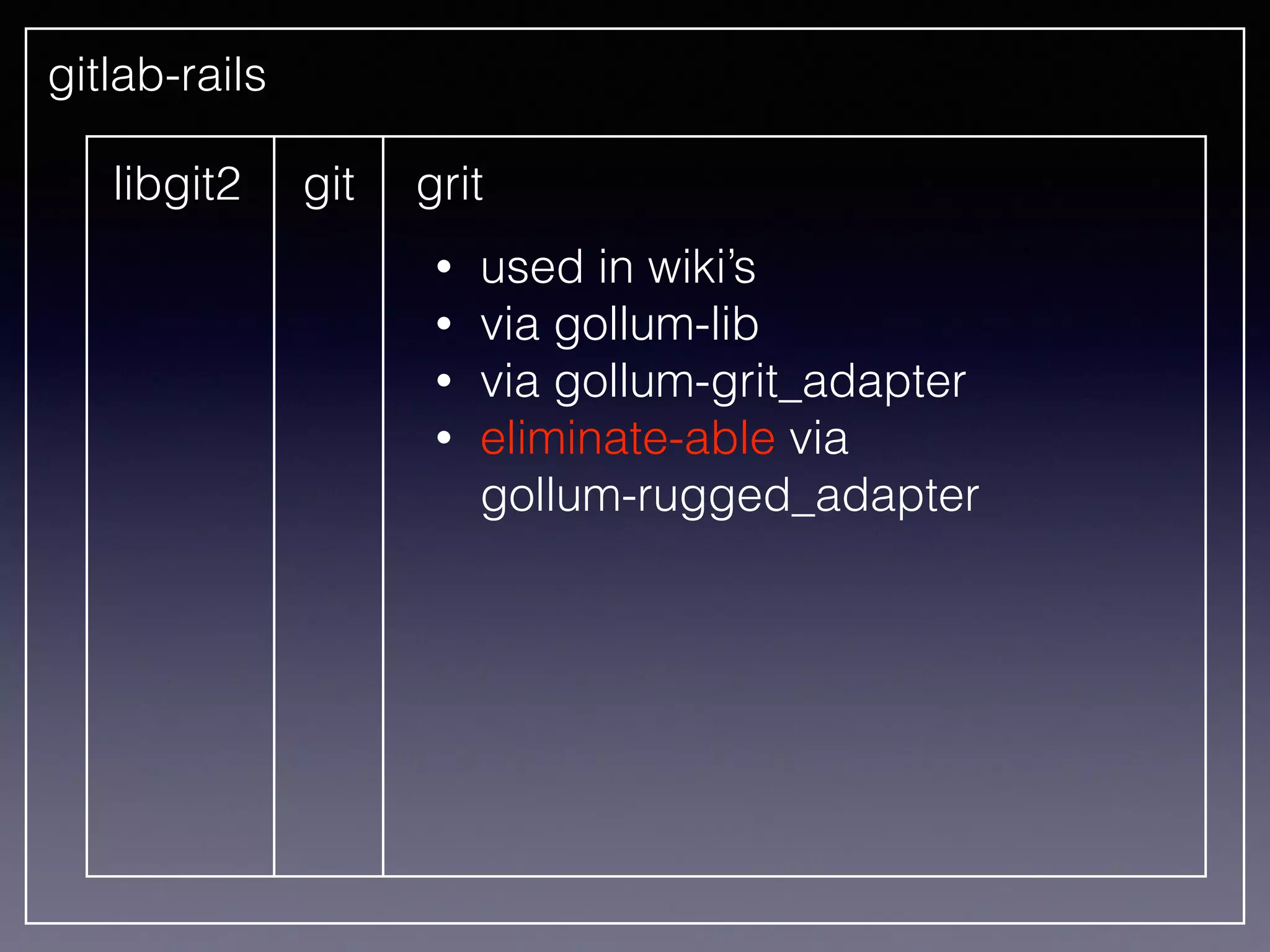

32. libgit2 git grit
• used in wiki’s
• via gollum-lib
• via gollum-grit_adapter
• eliminate-able via
gollum-rugged_adapter
gitlab-rails

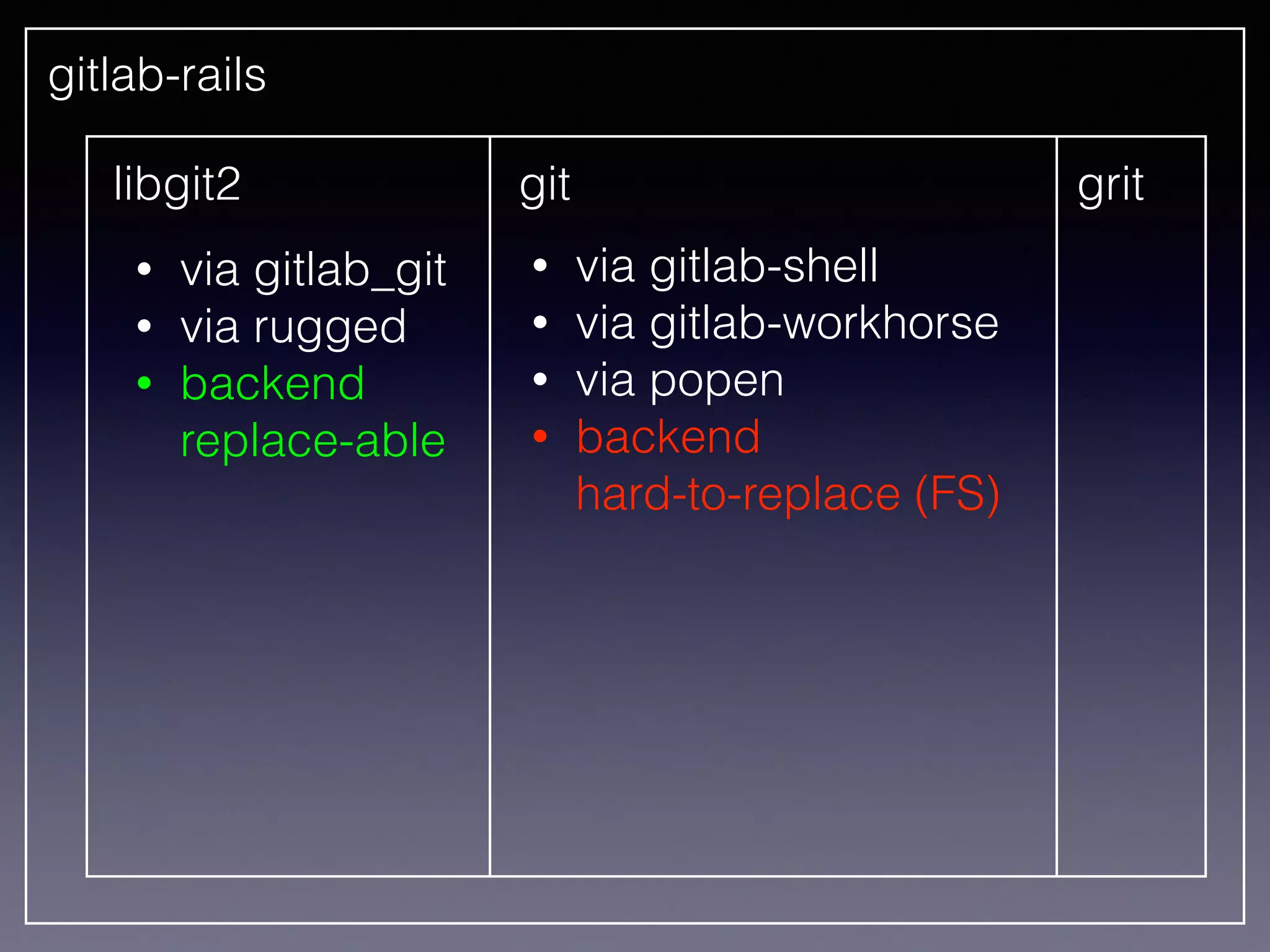

33. gitlab-rails
libgit2 git
• via gitlab_git
• via rugged
• backend
replace-able
• via gitlab-shell
• via gitlab-workhorse
• via popen
• backend
hard-to-replace (FS)
grit

34. Basic Idea

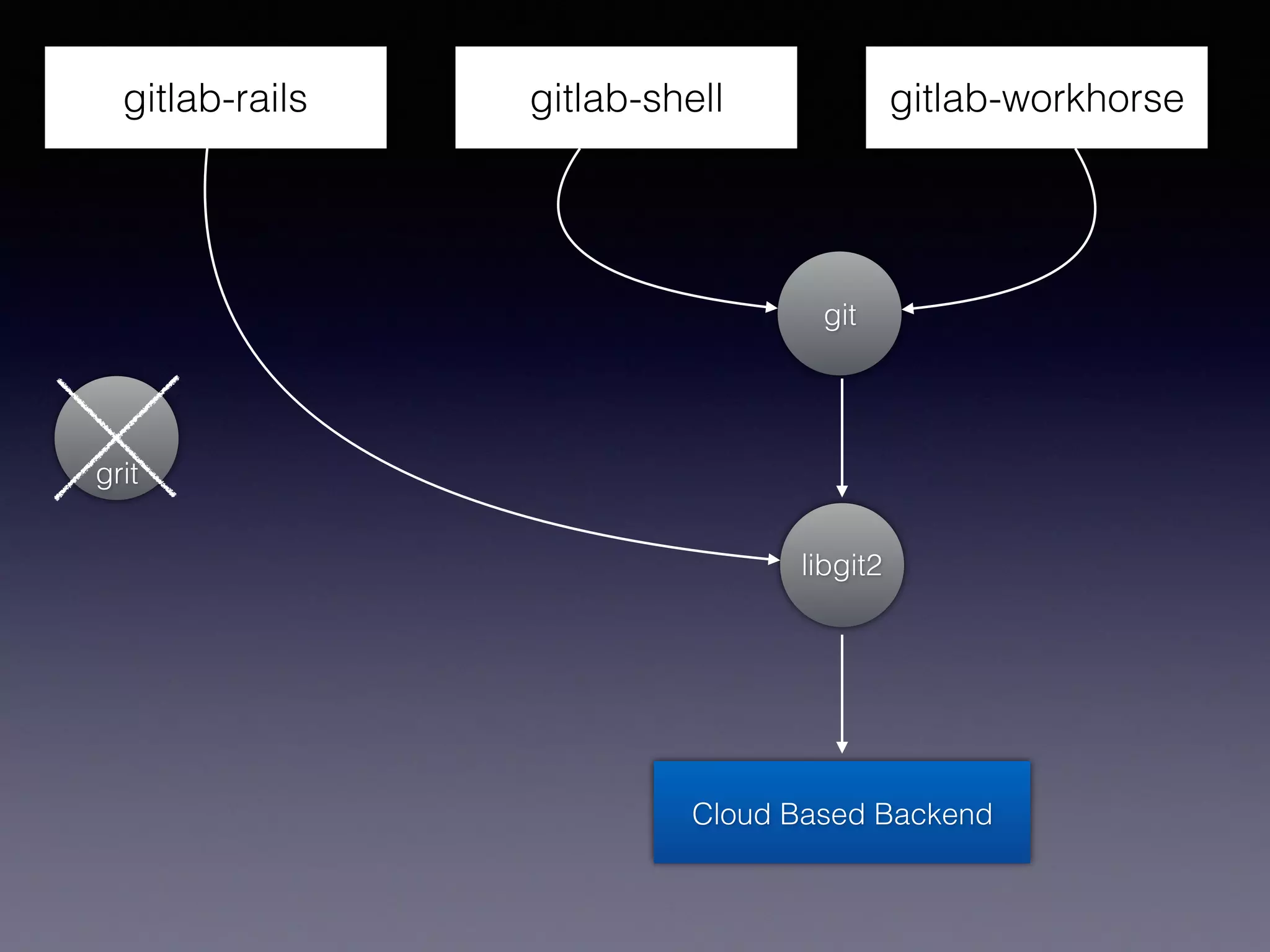

35. gitlab-workhorsegitlab-rails gitlab-shell
git
libgit2
Cloud Based Backend
grit

36. Cloud Based Backend

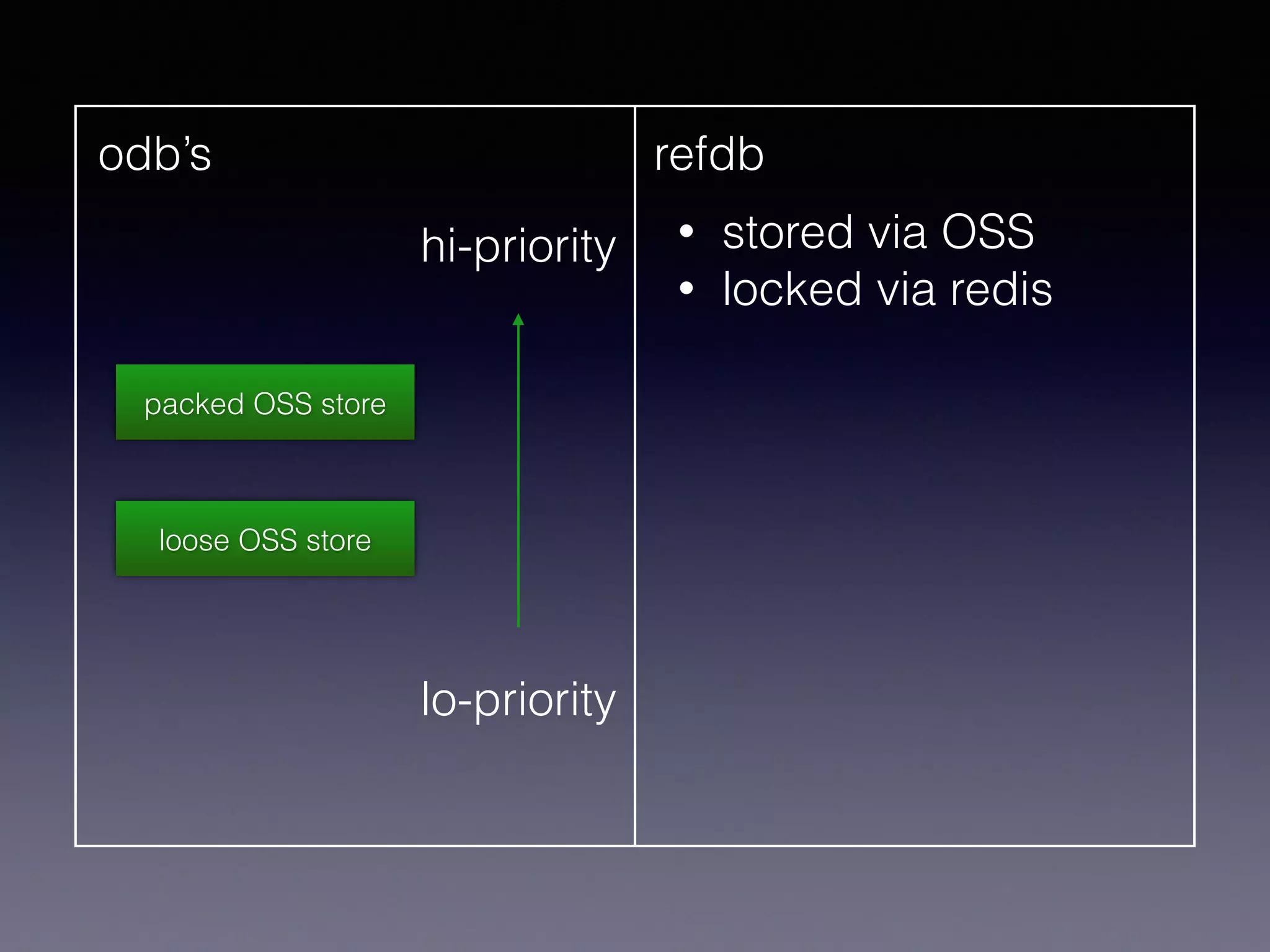

37. odb’s refdb
• stored via OSS
• locked via redis
hi-priority
lo-priority
loose OSS store
packed OSS store

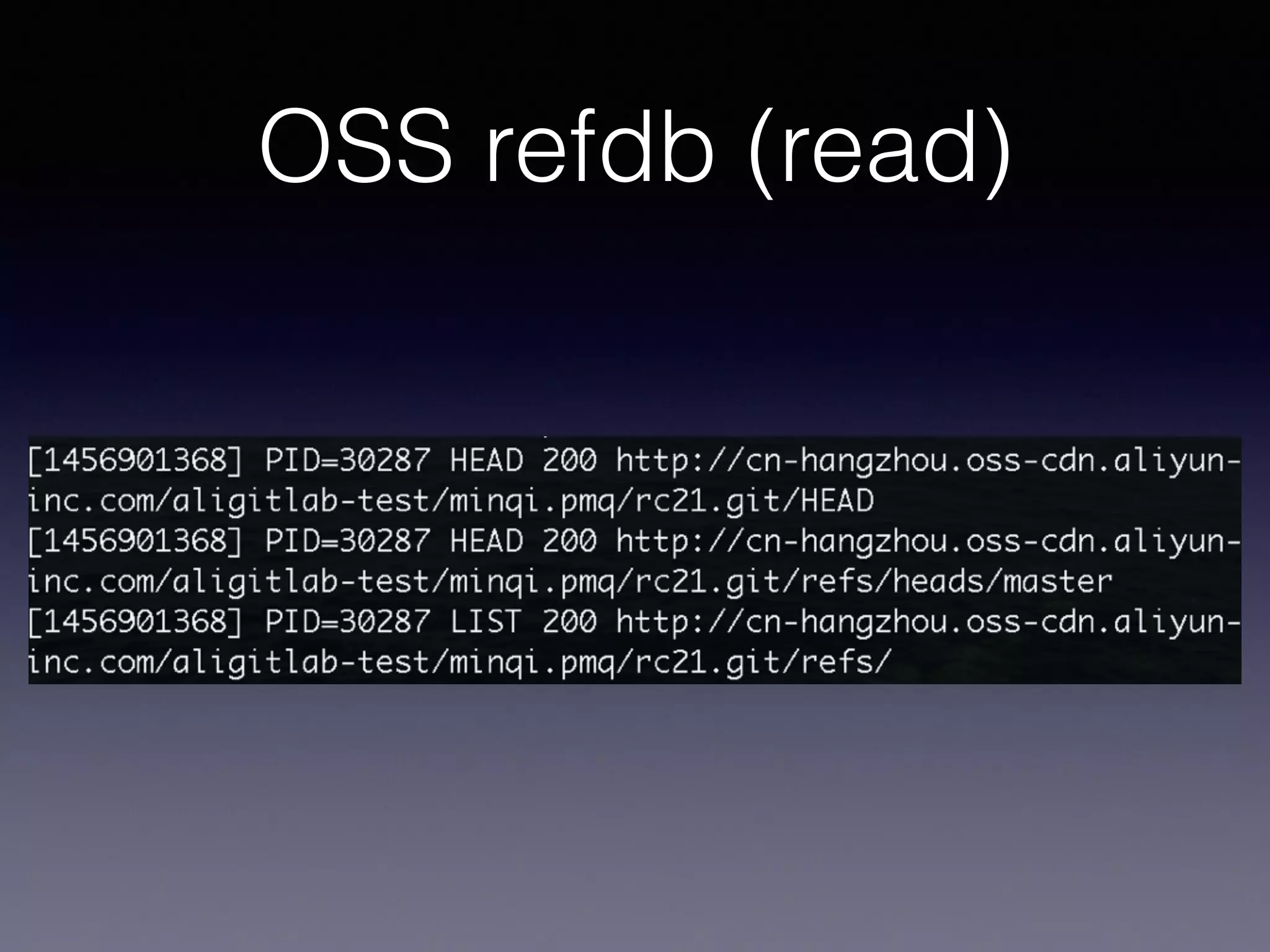

38. OSS refdb (read)

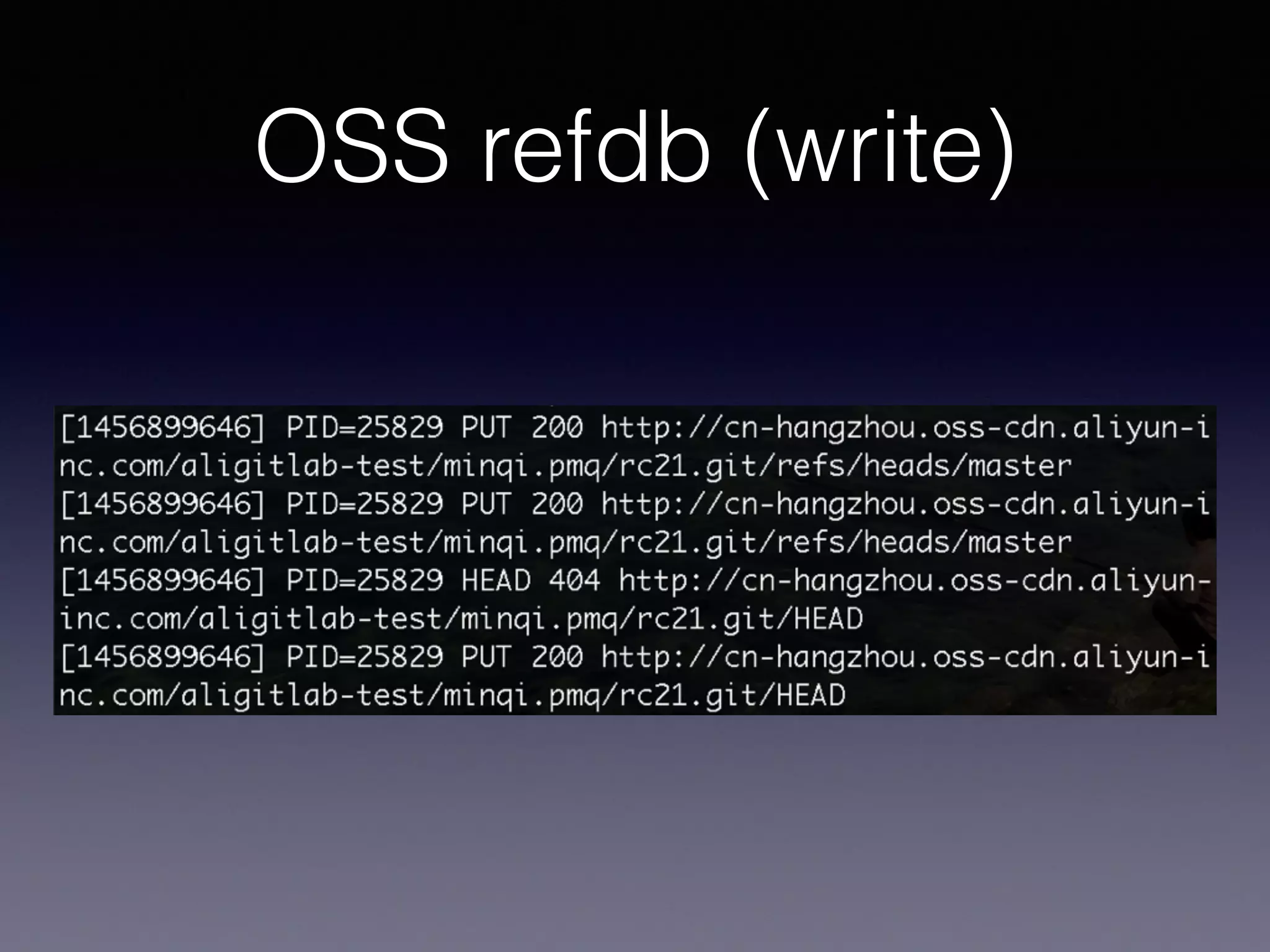

39. OSS refdb (write)

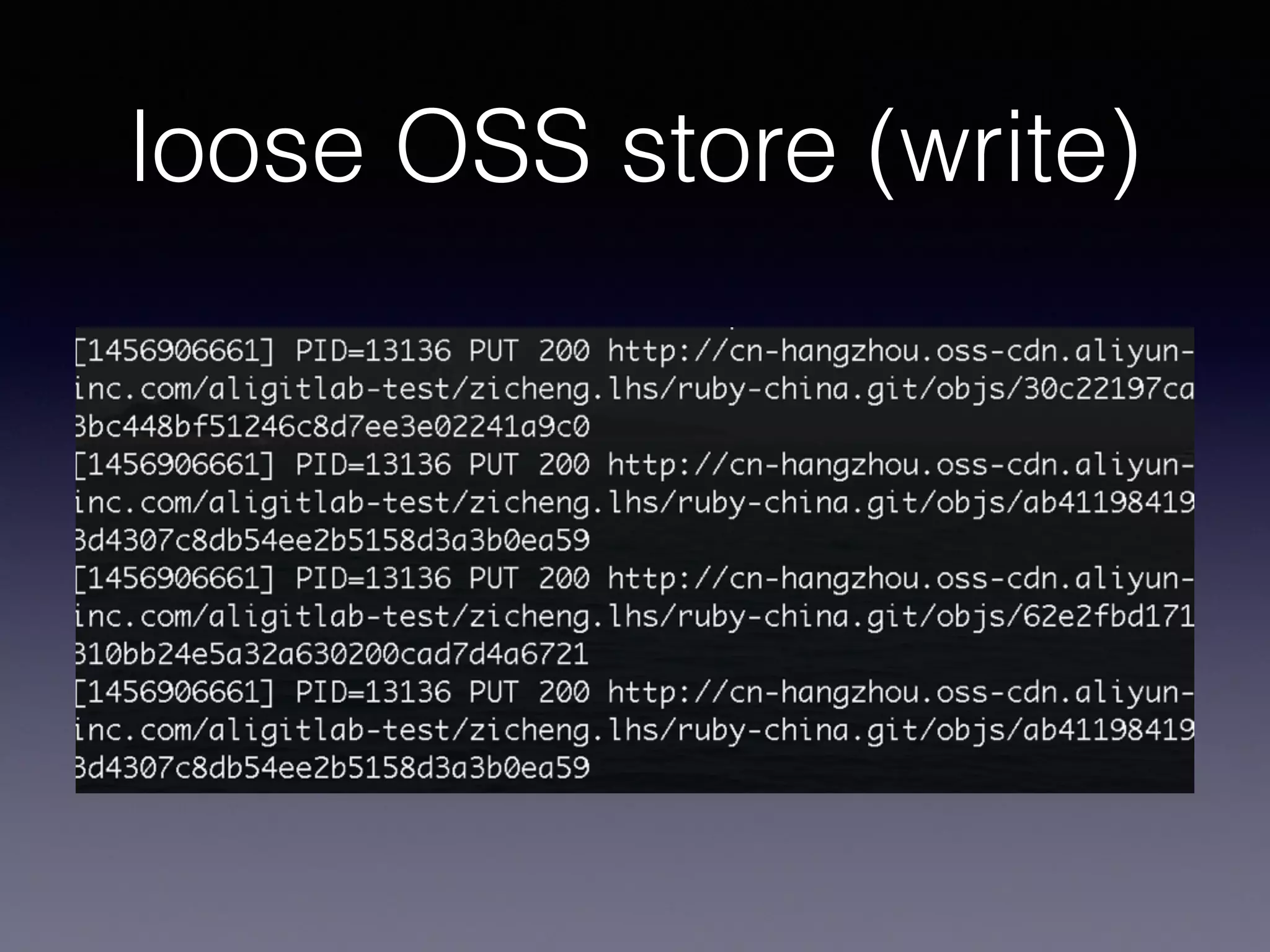

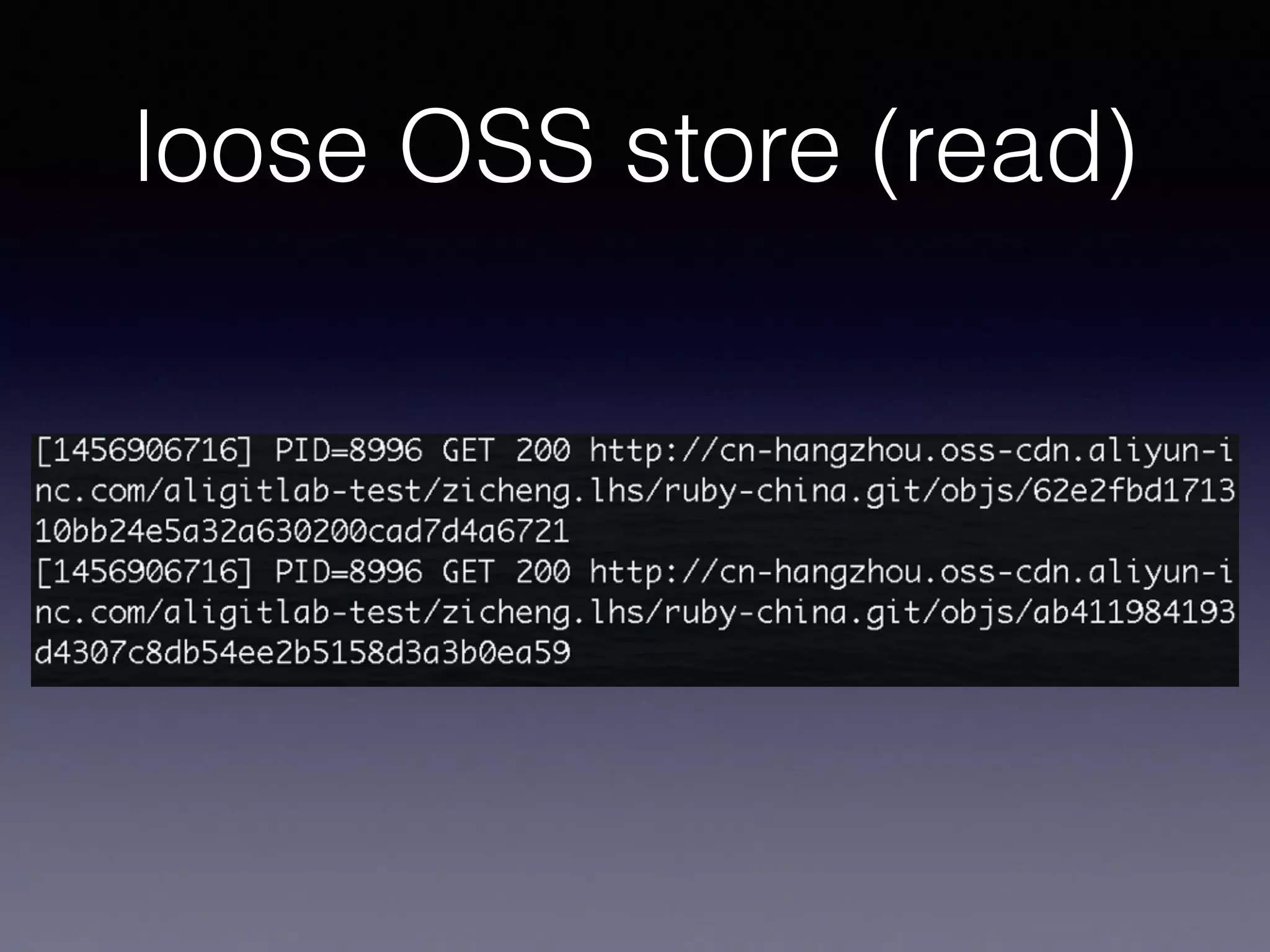

40. loose OSS store (write)

41. loose OSS store (read)

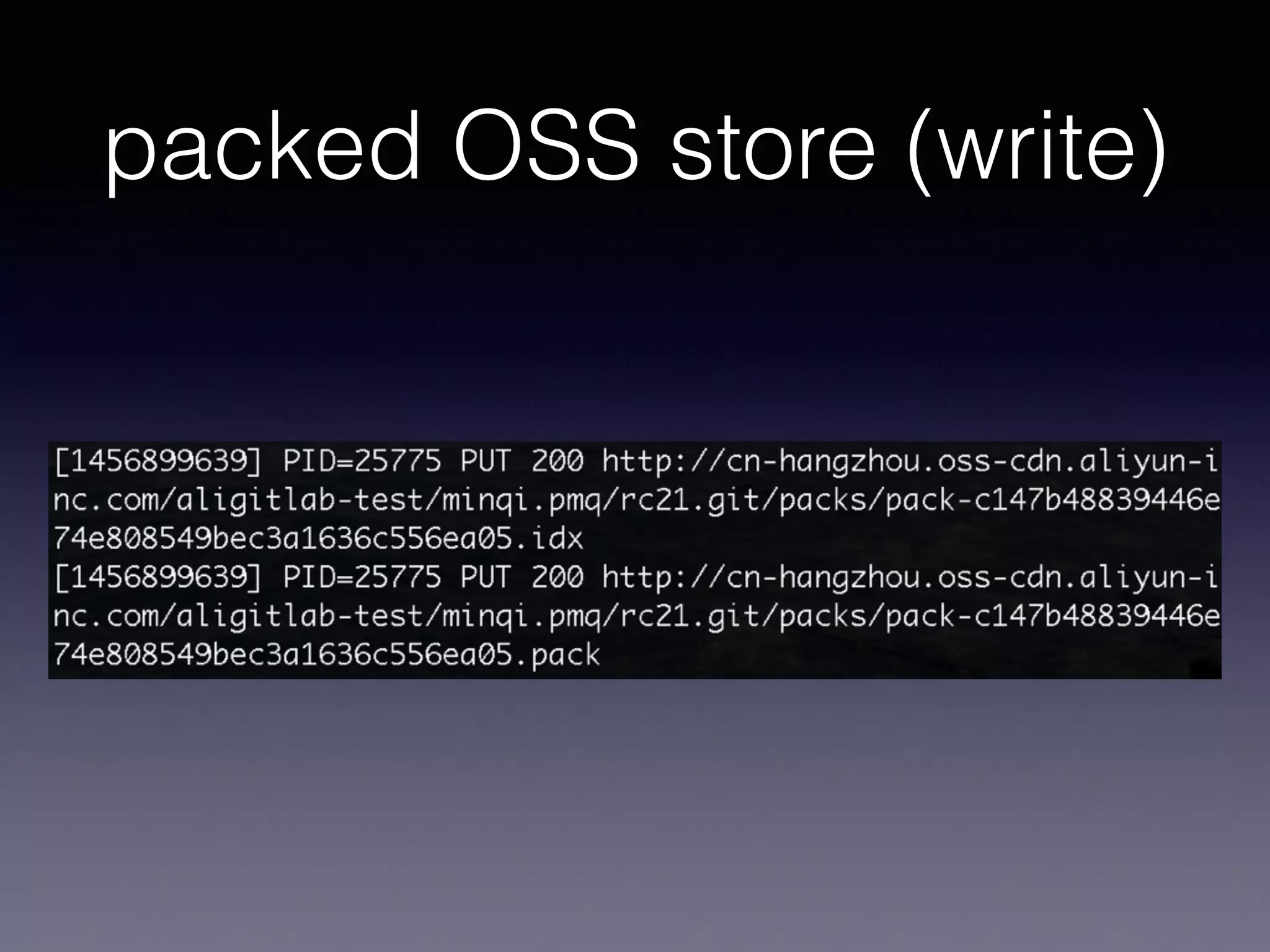

42. packed OSS store (write)

43. packed OSS store (read)

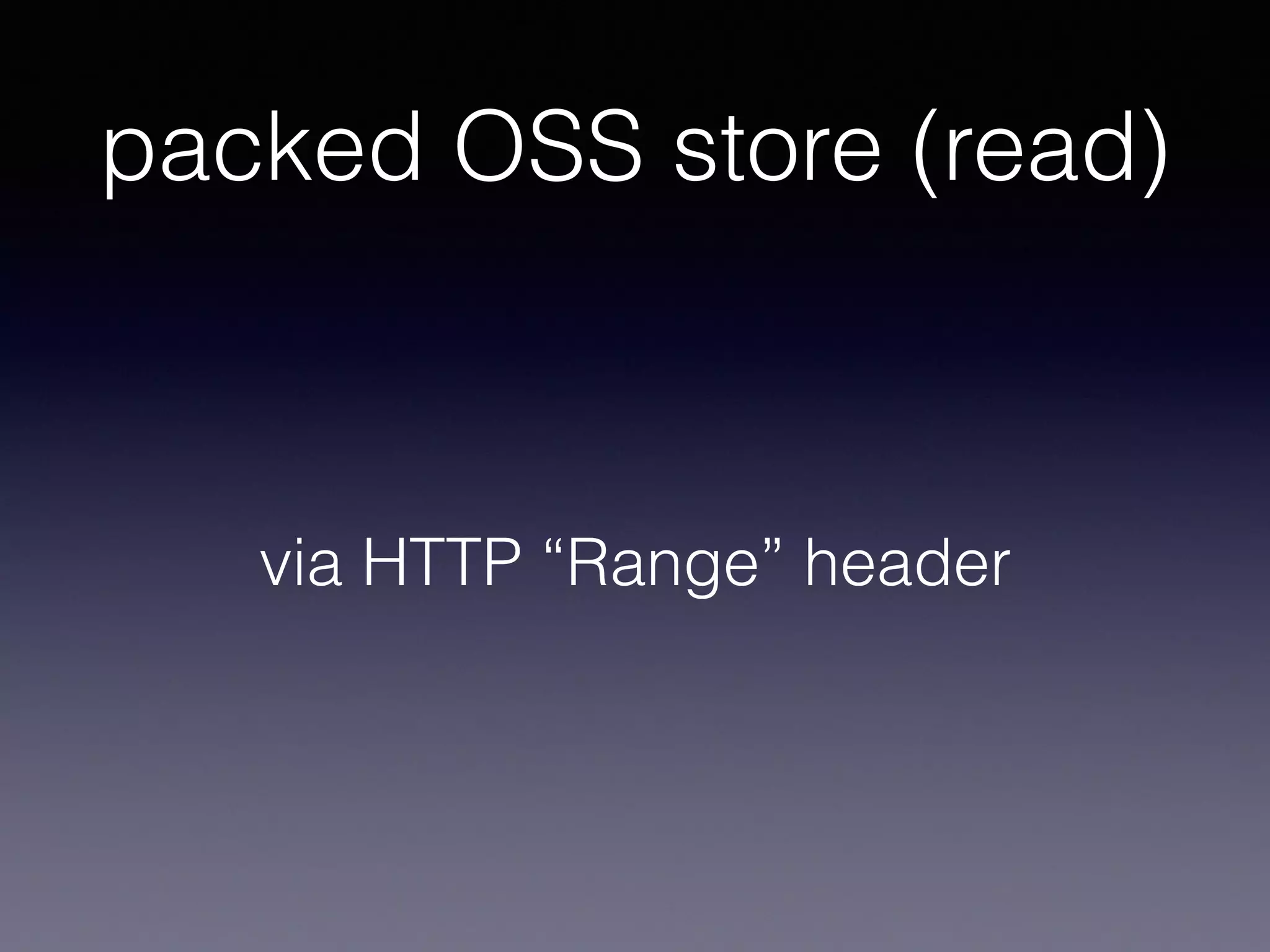

via HTTP “Range” header

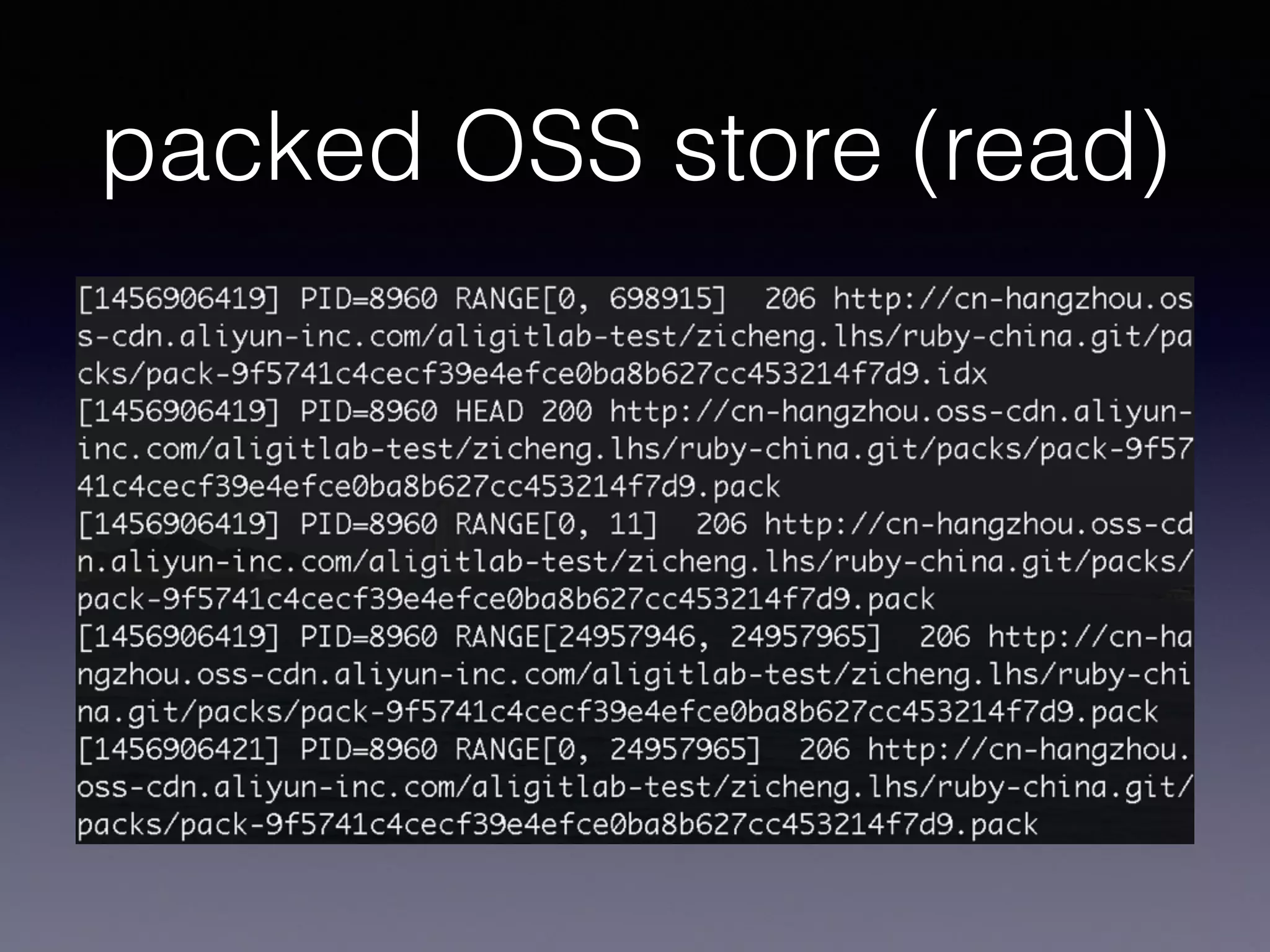

44. packed OSS store (read)

45. Example
• First byte of the name is 0x9f
• IDX[8 + (0x9f - 1) * 4] == 0x0403 == 1027
• IDX[8 + 0x9f * 4] == 0x0403 == 1029
• Object No. 1027 ~ 1029
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9

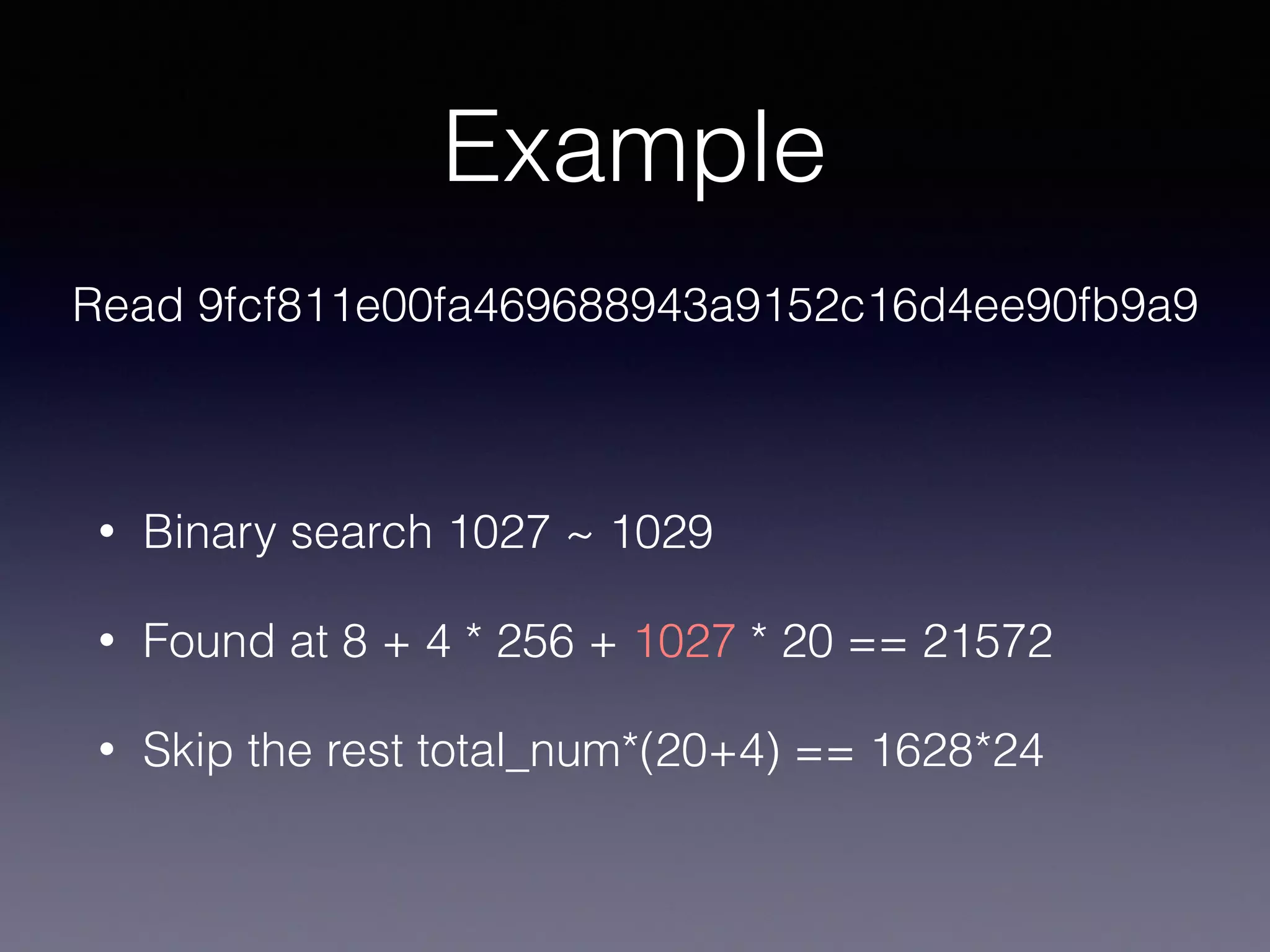

46. Example
• Binary search 1027 ~ 1029
• Found at 8 + 4 * 256 + 1027 * 20 == 21572
• Skip the rest total_num*(20+4) == 1628*24
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9

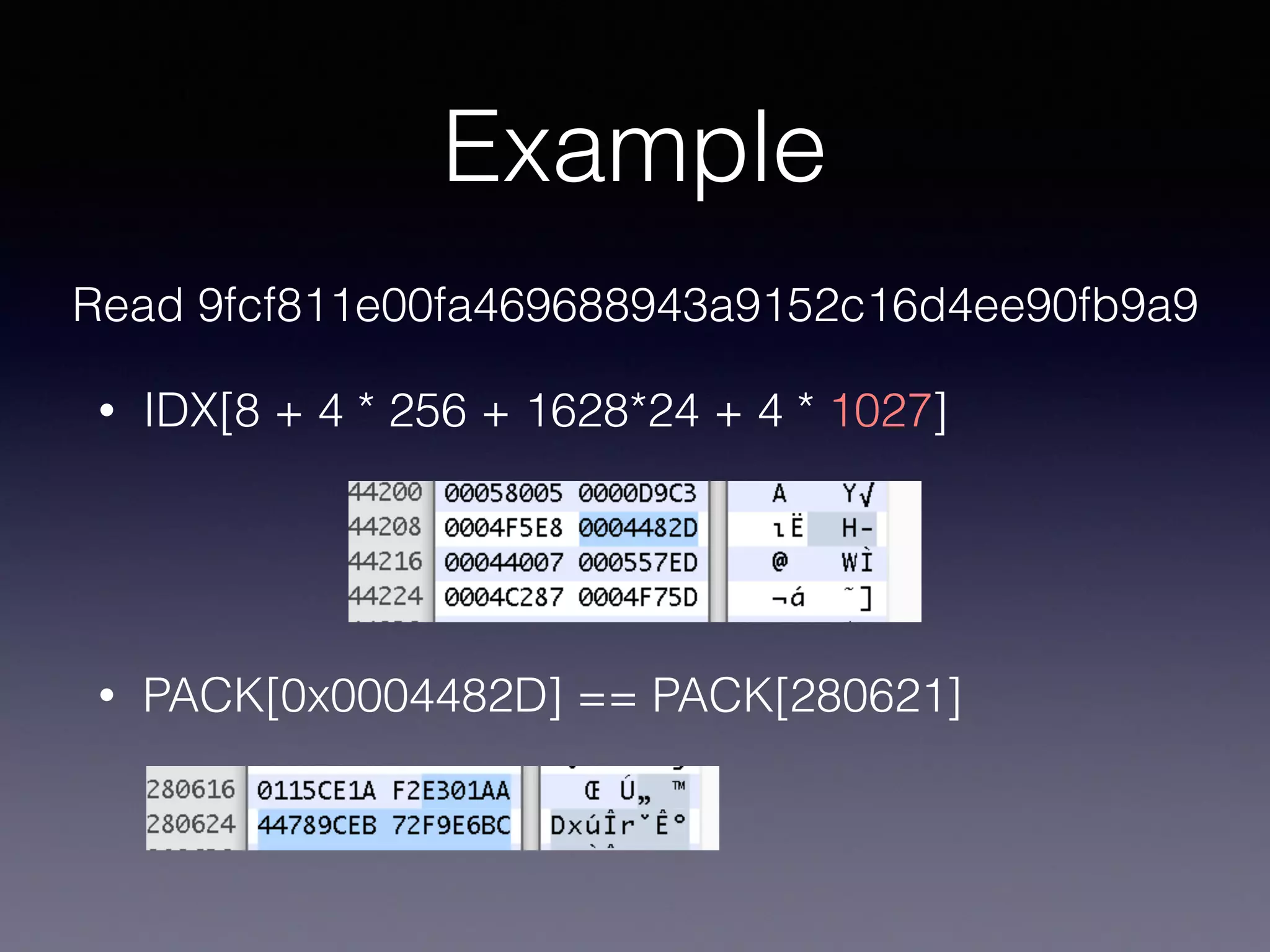

47. Example
• IDX[8 + 4 * 256 + 1628*24 + 4 * 1027]
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9
• PACK[0x0004482D] == PACK[280621]

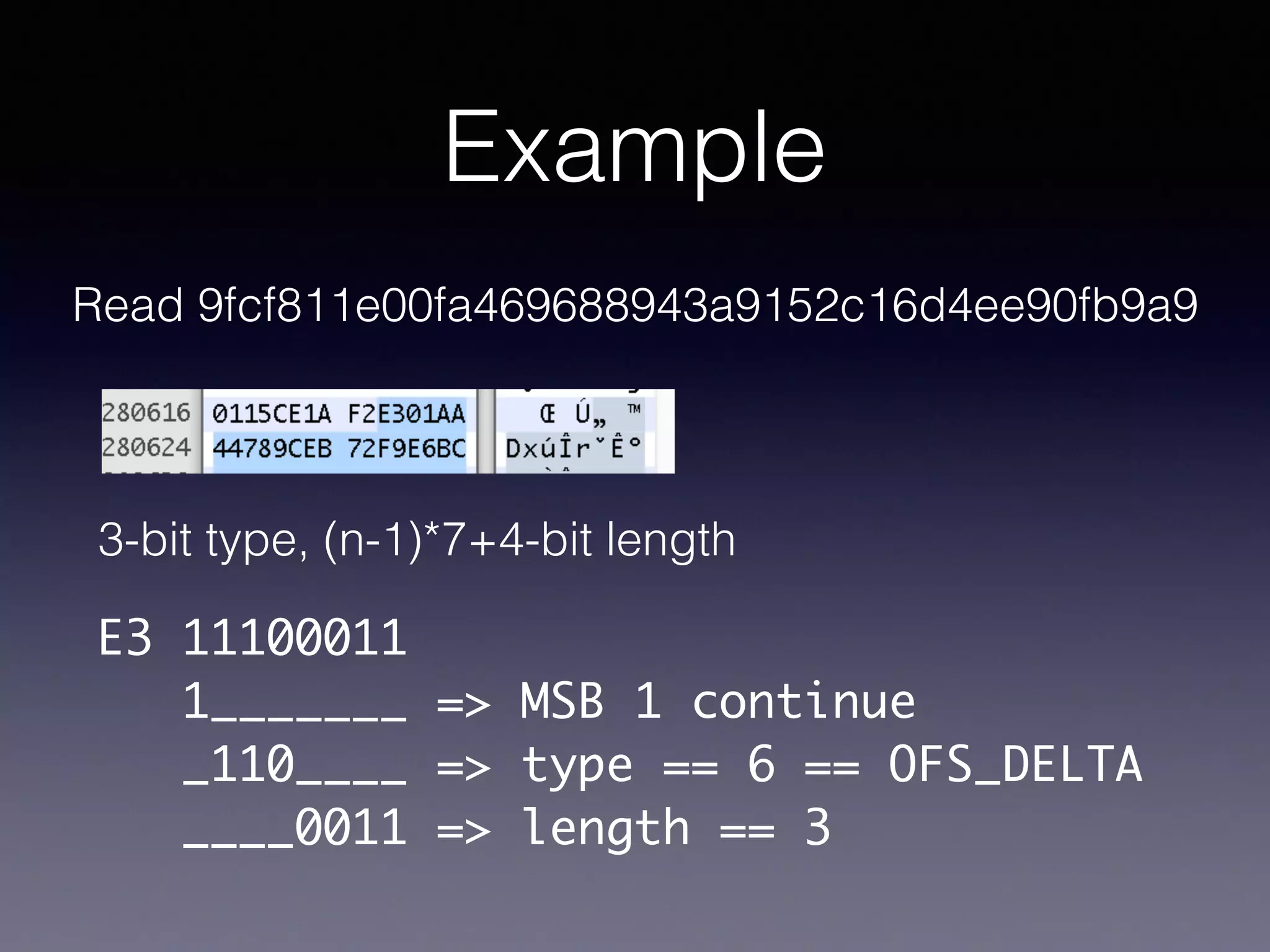

48. Example
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9
E3 11100011
1_______ => MSB 1 continue
_110____ => type == 6 == OFS_DELTA
____0011 => length == 3
3-bit type, (n-1)*7+4-bit length

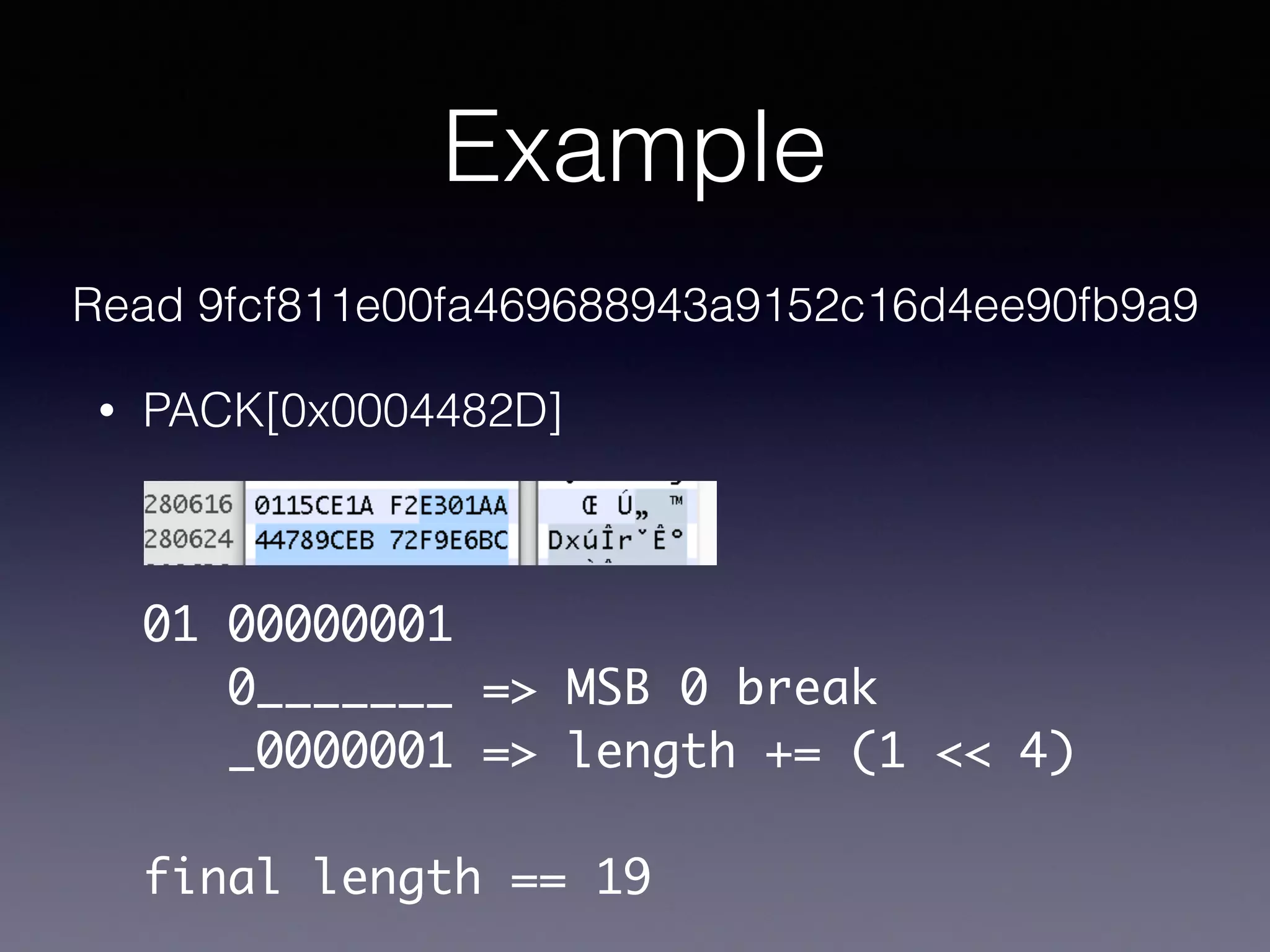

49. Example
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9
• PACK[0x0004482D]
01 00000001
0_______ => MSB 0 break
_0000001 => length += (1 << 4)
final length == 19

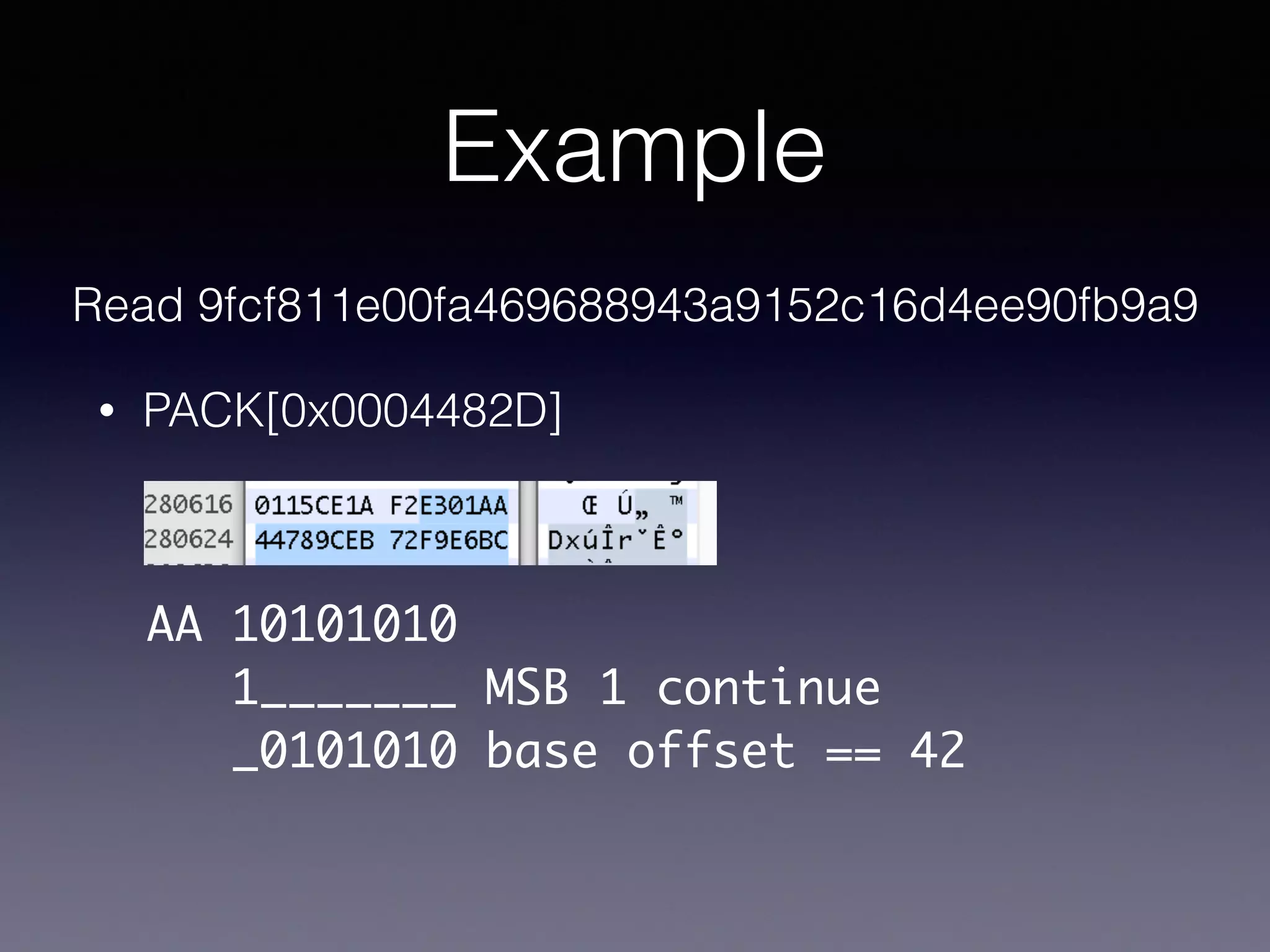

50. Example
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9
• PACK[0x0004482D]
AA 10101010
1_______ MSB 1 continue
_0101010 base offset == 42

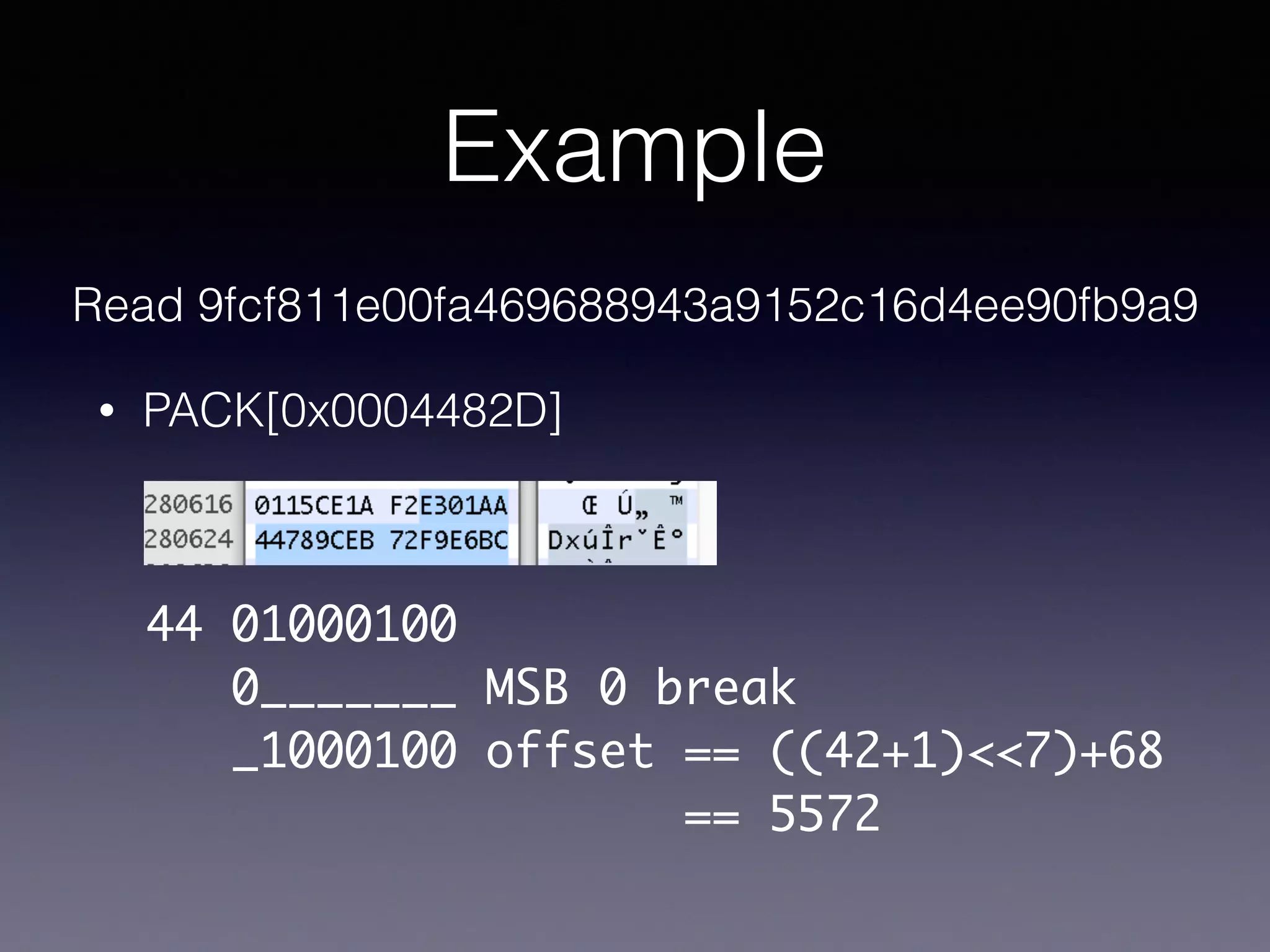

51. Example
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9
• PACK[0x0004482D]
44 01000100
0_______ MSB 0 break
_1000100 offset == ((42+1)<<7)+68
== 5572

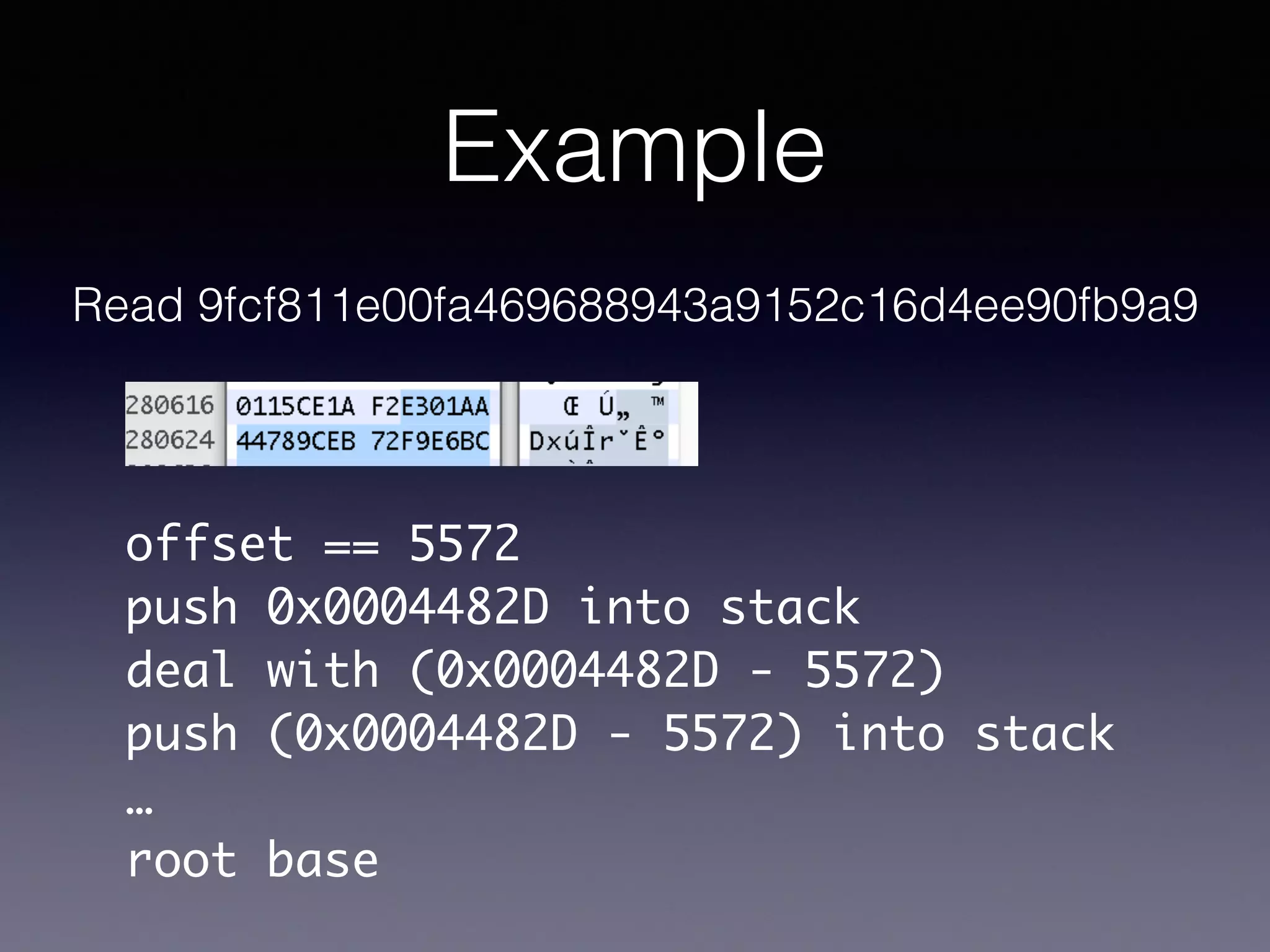

52. Example
Read 9fcf811e00fa469688943a9152c16d4ee90fb9a9
offset == 5572
push 0x0004482D into stack
deal with (0x0004482D - 5572)
push (0x0004482D - 5572) into stack
…
root base

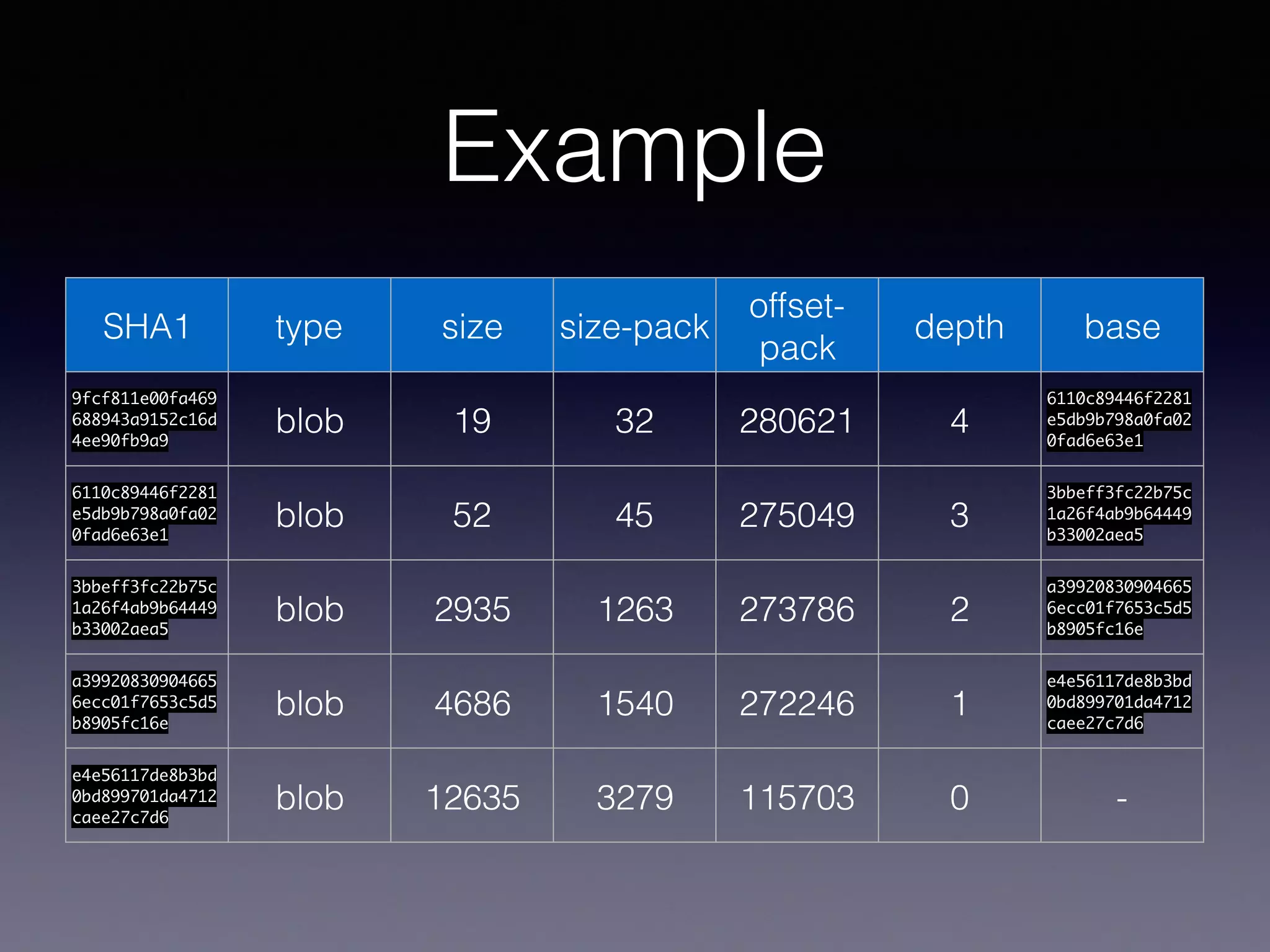

53. Example
SHA1 type size size-pack
offset-
pack
depth base
9fcf811e00fa469
688943a9152c16d
4ee90fb9a9
blob 19 32 280621 4
6110c89446f2281
e5db9b798a0fa02
0fad6e63e1
6110c89446f2281
e5db9b798a0fa02
0fad6e63e1
blob 52 45 275049 3
3bbeff3fc22b75c
1a26f4ab9b64449
b33002aea5
3bbeff3fc22b75c
1a26f4ab9b64449
b33002aea5
blob 2935 1263 273786 2
a39920830904665
6ecc01f7653c5d5
b8905fc16e
a39920830904665
6ecc01f7653c5d5
b8905fc16e
blob 4686 1540 272246 1
e4e56117de8b3bd
0bd899701da4712
caee27c7d6
e4e56117de8b3bd
0bd899701da4712
caee27c7d6
blob 12635 3279 115703 0 -

54. git → libgit2

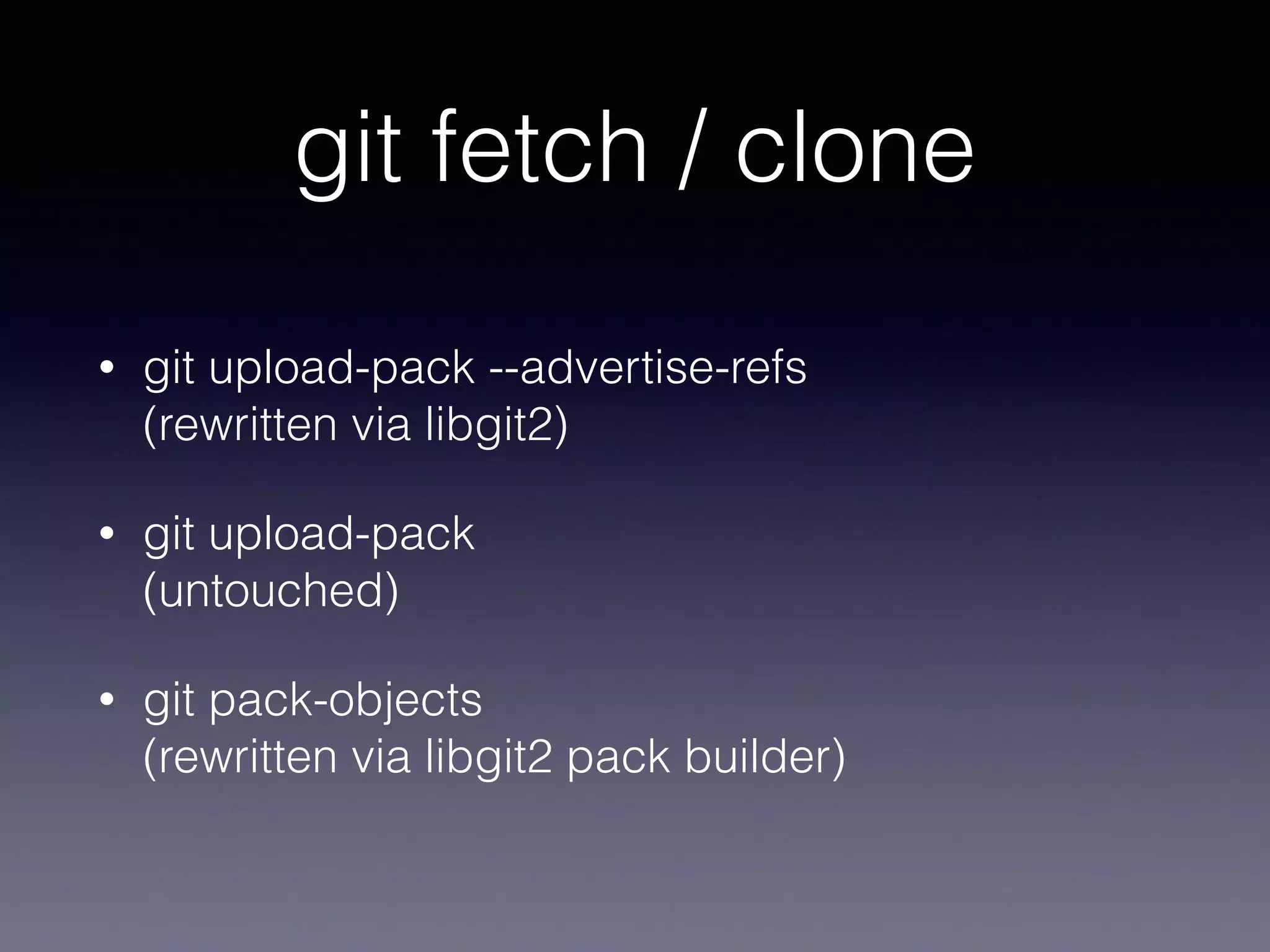

55. git fetch / clone
• git upload-pack --advertise-refs
(rewritten via libgit2)
• git upload-pack
(untouched)
• git pack-objects
(rewritten via libgit2 pack builder)

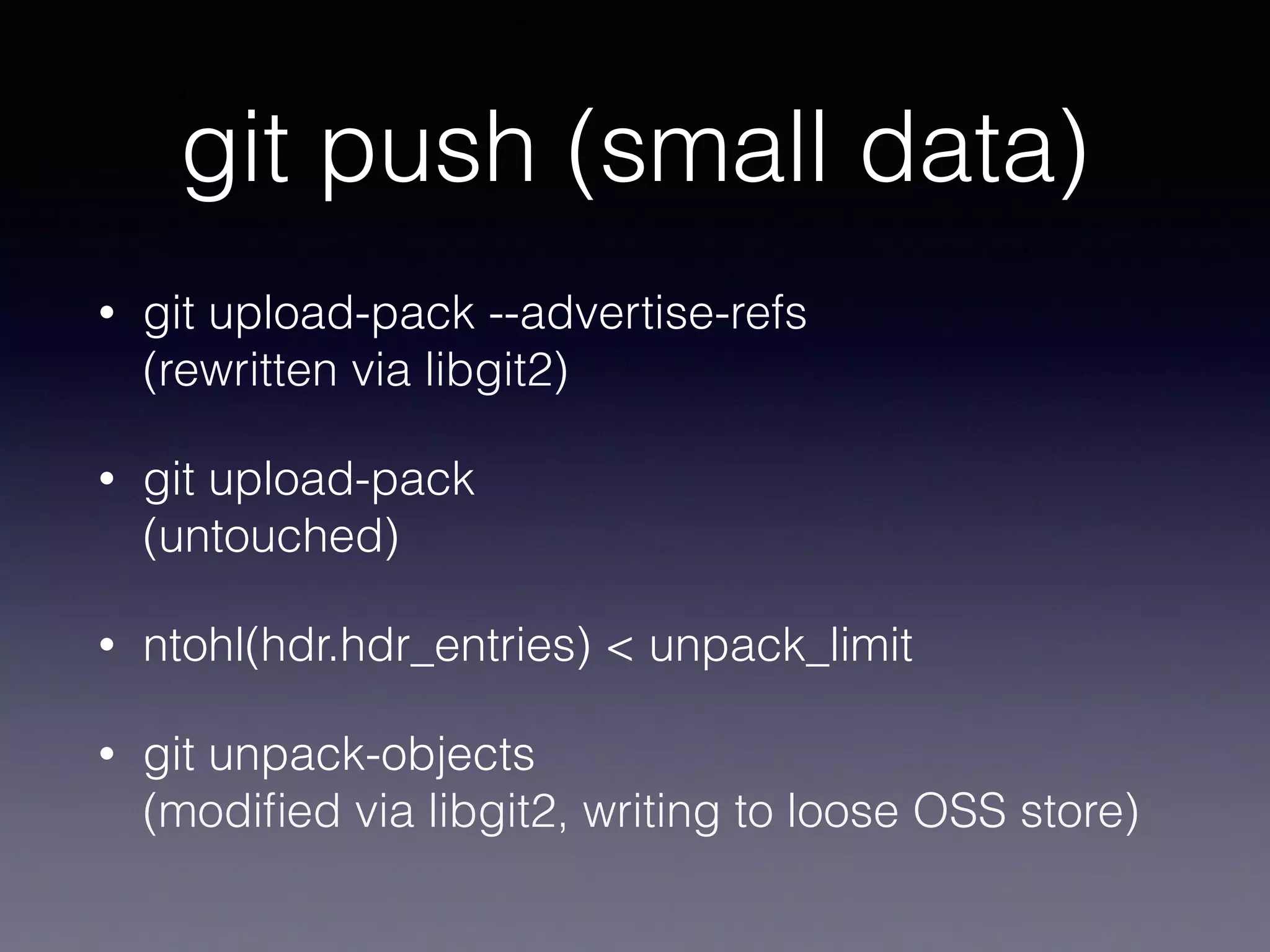

56. git push (small data)
• git upload-pack --advertise-refs
(rewritten via libgit2)
• git upload-pack
(untouched)
• ntohl(hdr.hdr_entries) < unpack_limit
• git unpack-objects
(modified via libgit2, writing to loose OSS store)

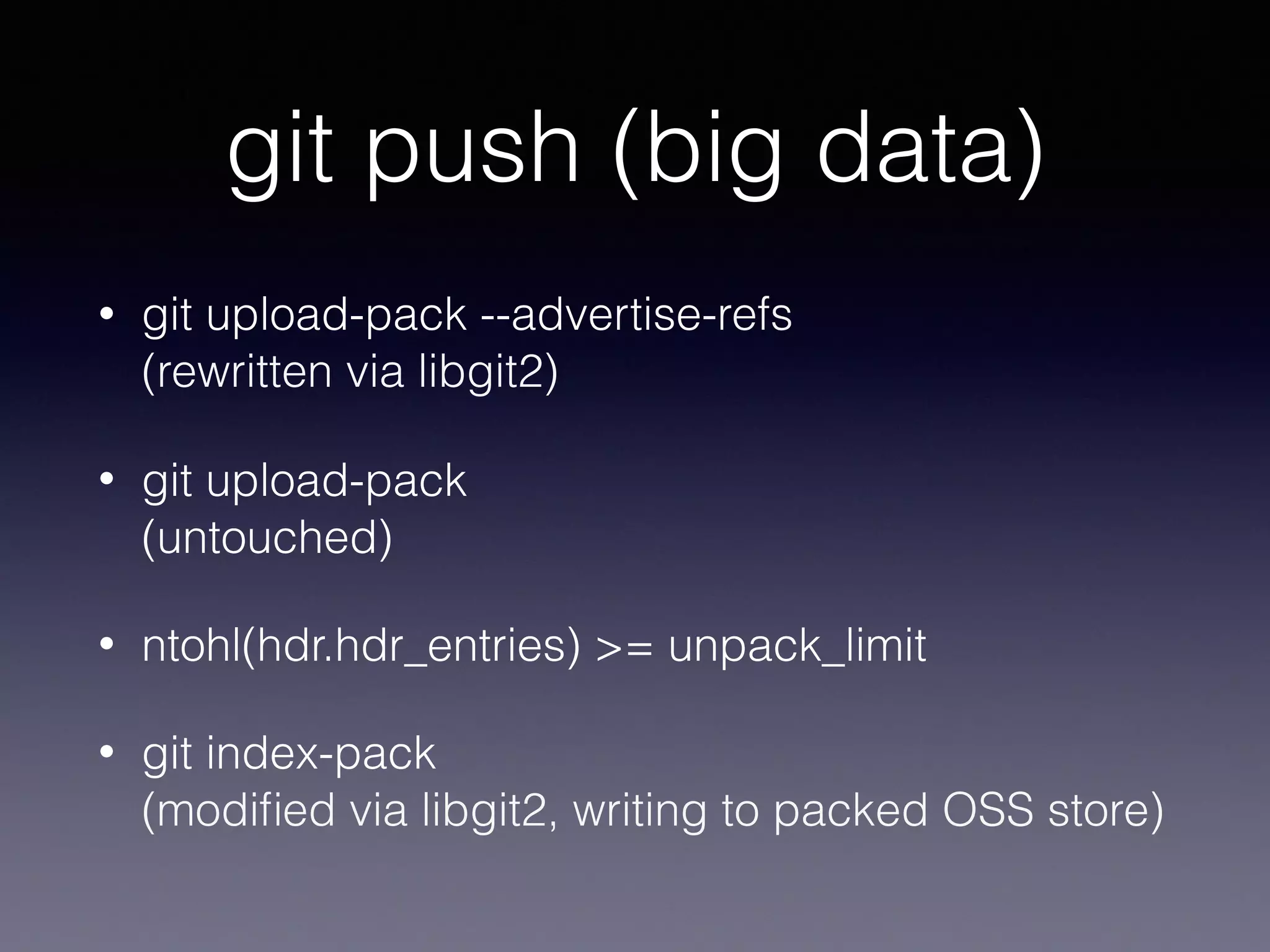

57. git push (big data)
• git upload-pack --advertise-refs
(rewritten via libgit2)
• git upload-pack
(untouched)
• ntohl(hdr.hdr_entries) >= unpack_limit
• git index-pack
(modified via libgit2, writing to packed OSS store)

58. Naked Benchmark
(no cache)

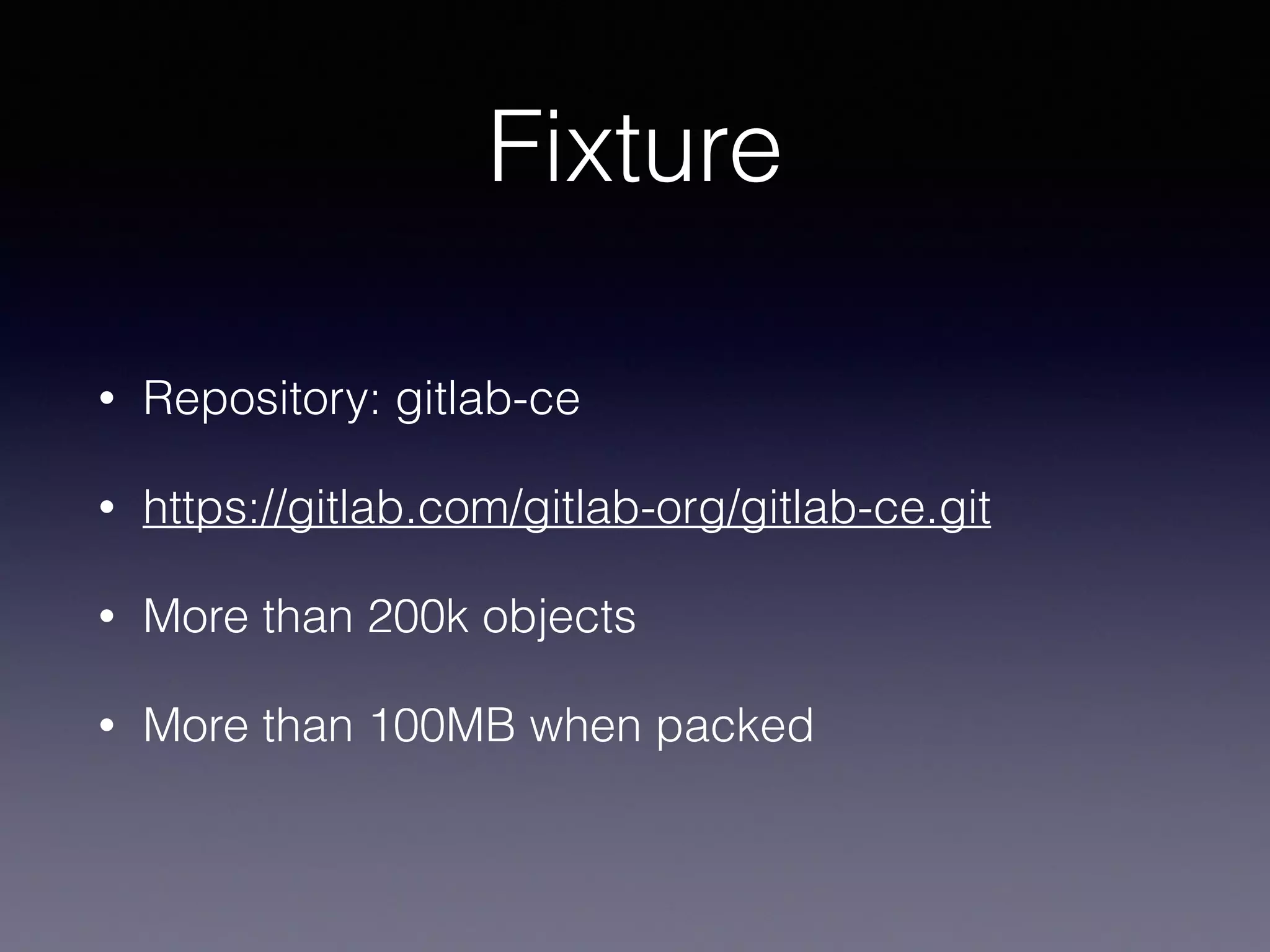

59. Fixture
• Repository: gitlab-ce
• https://gitlab.com/gitlab-org/gitlab-ce.git
• More than 200k objects
• More than 100MB when packed

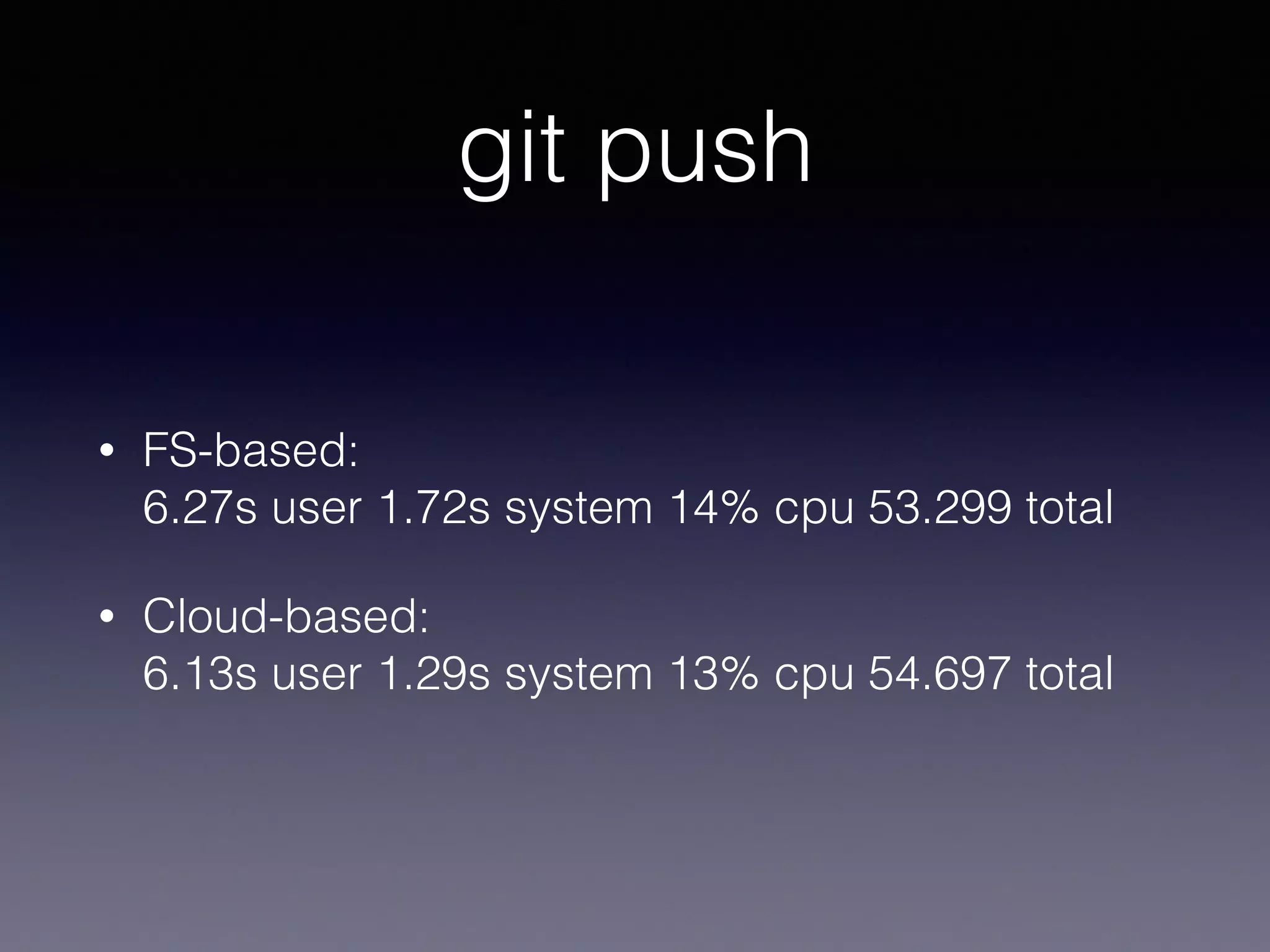

60. git push
• FS-based:
6.27s user 1.72s system 14% cpu 53.299 total
• Cloud-based:
6.13s user 1.29s system 13% cpu 54.697 total

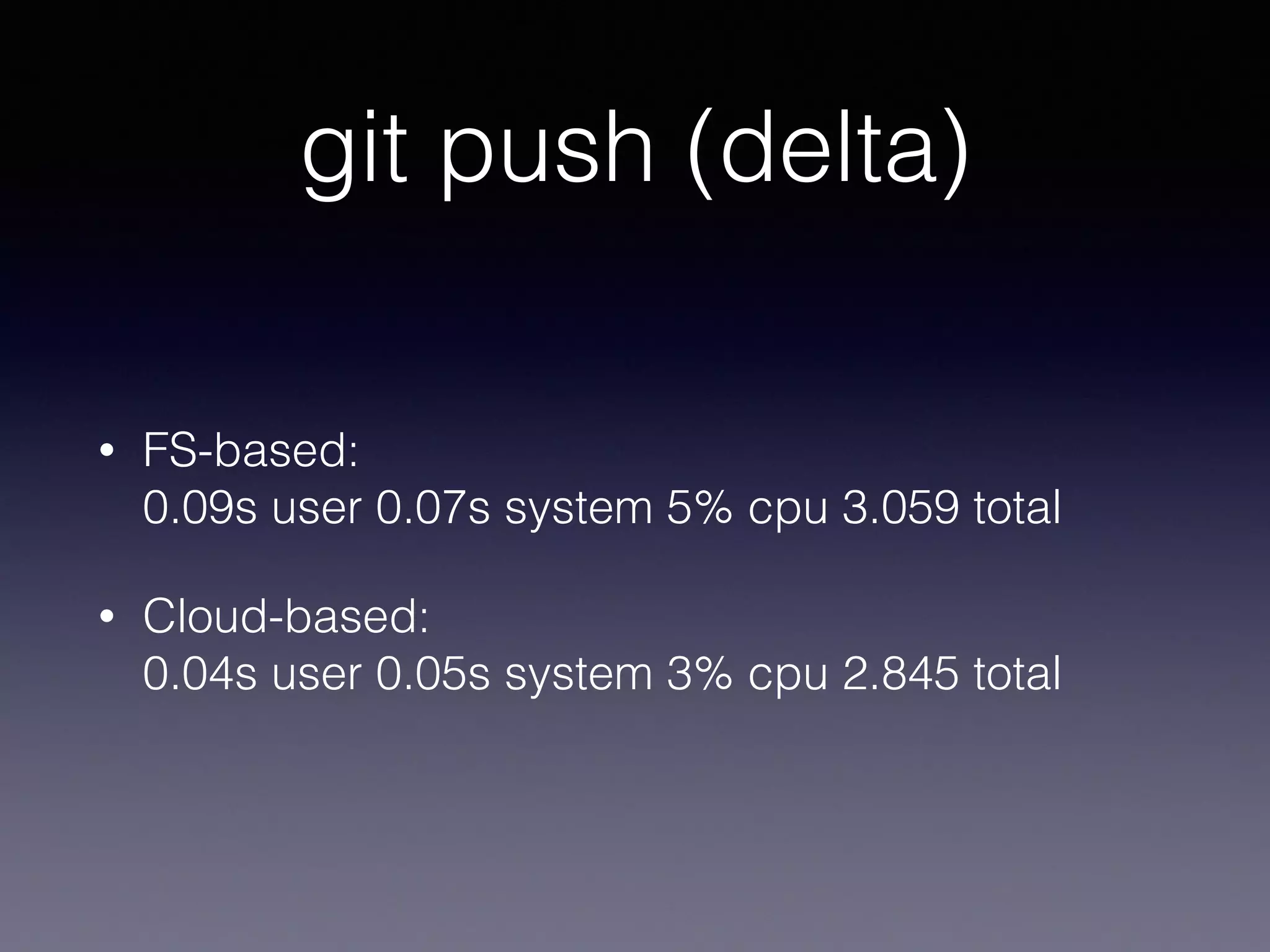

61. git push (delta)
• FS-based:
0.09s user 0.07s system 5% cpu 3.059 total
• Cloud-based:
0.04s user 0.05s system 3% cpu 2.845 total

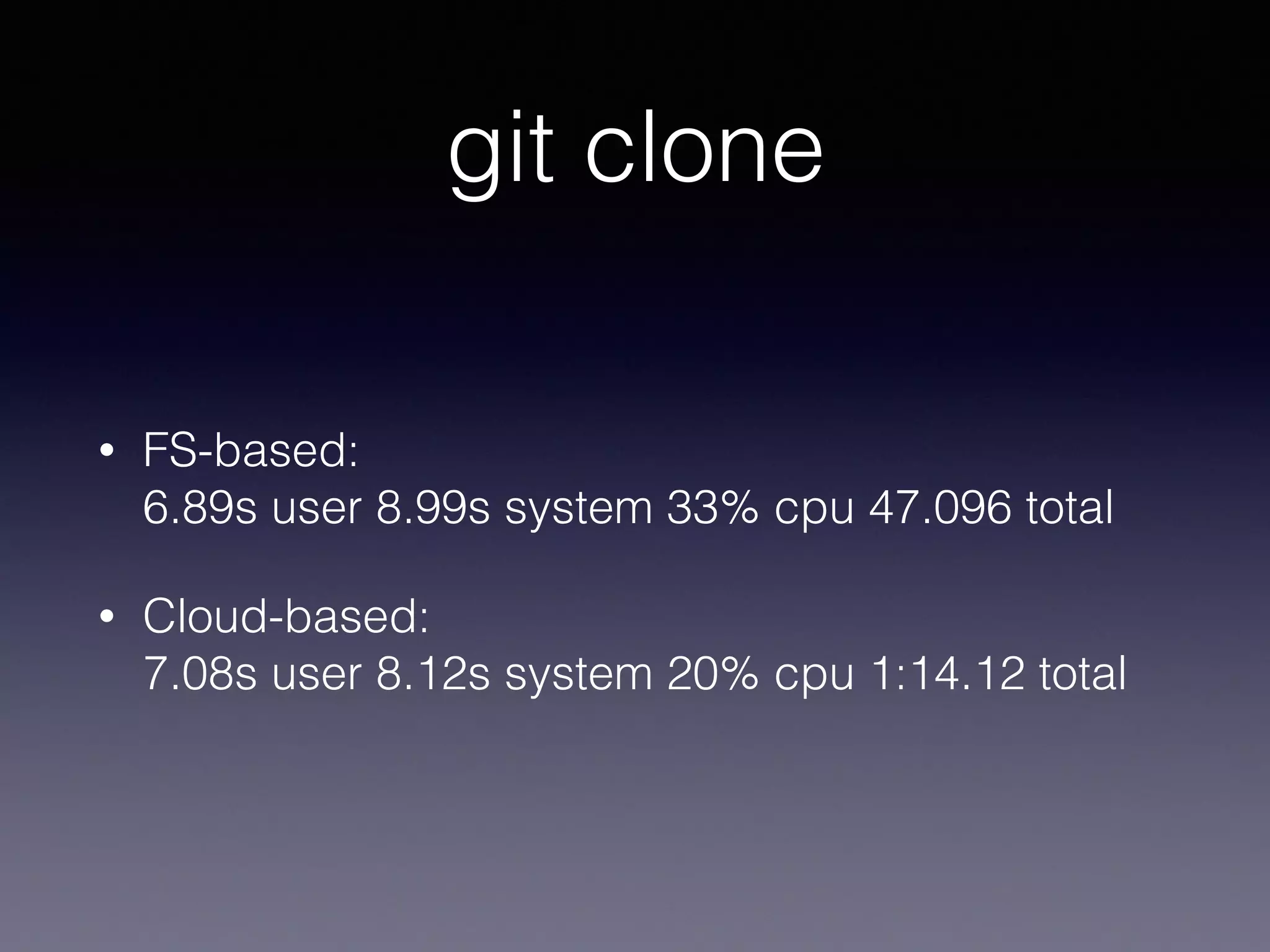

62. git clone
• FS-based:
6.89s user 8.99s system 33% cpu 47.096 total
• Cloud-based:
7.08s user 8.12s system 20% cpu 1:14.12 total

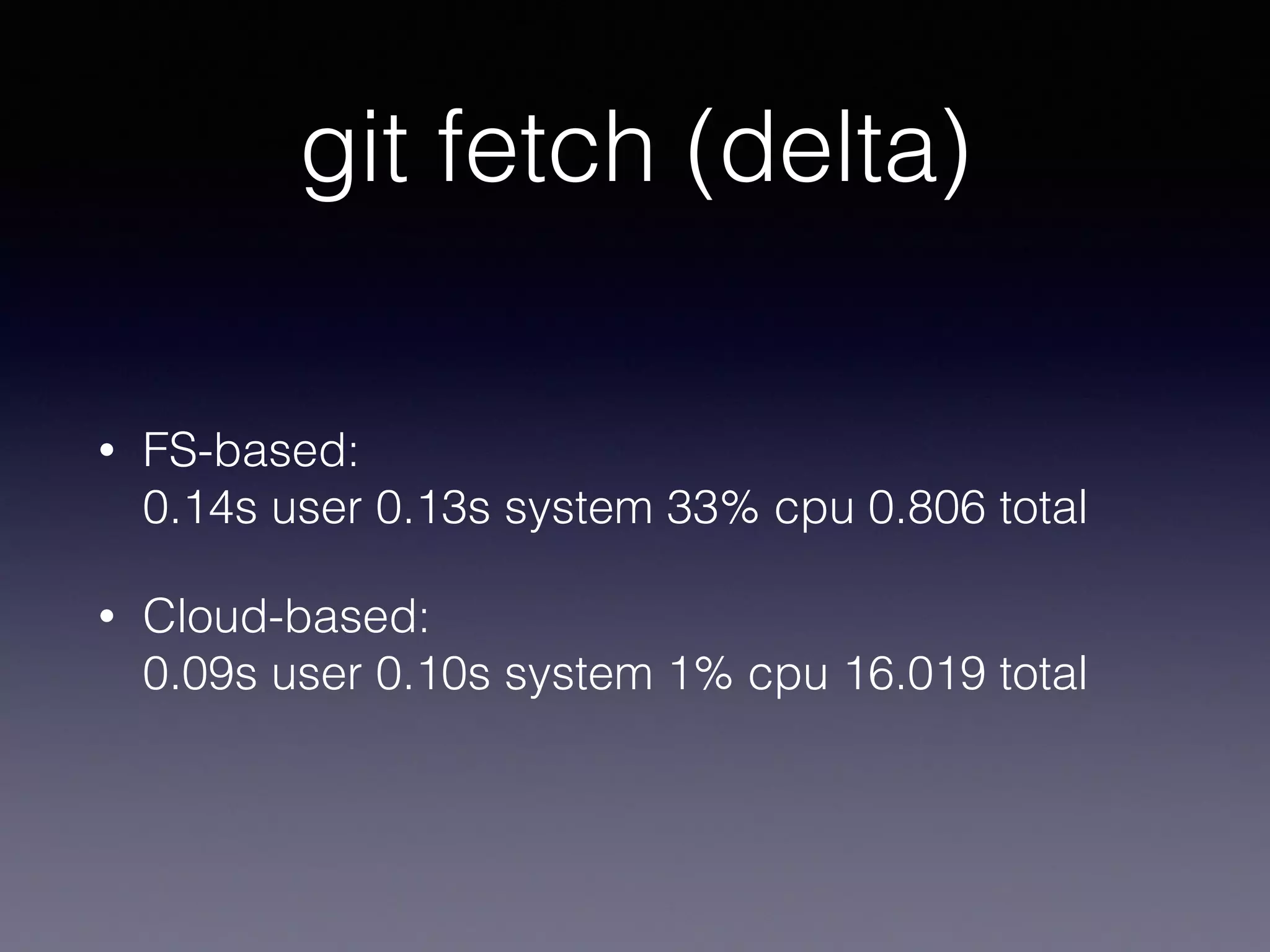

63. git fetch (delta)
• FS-based:
0.14s user 0.13s system 33% cpu 0.806 total
• Cloud-based:
0.09s user 0.10s system 1% cpu 16.019 total

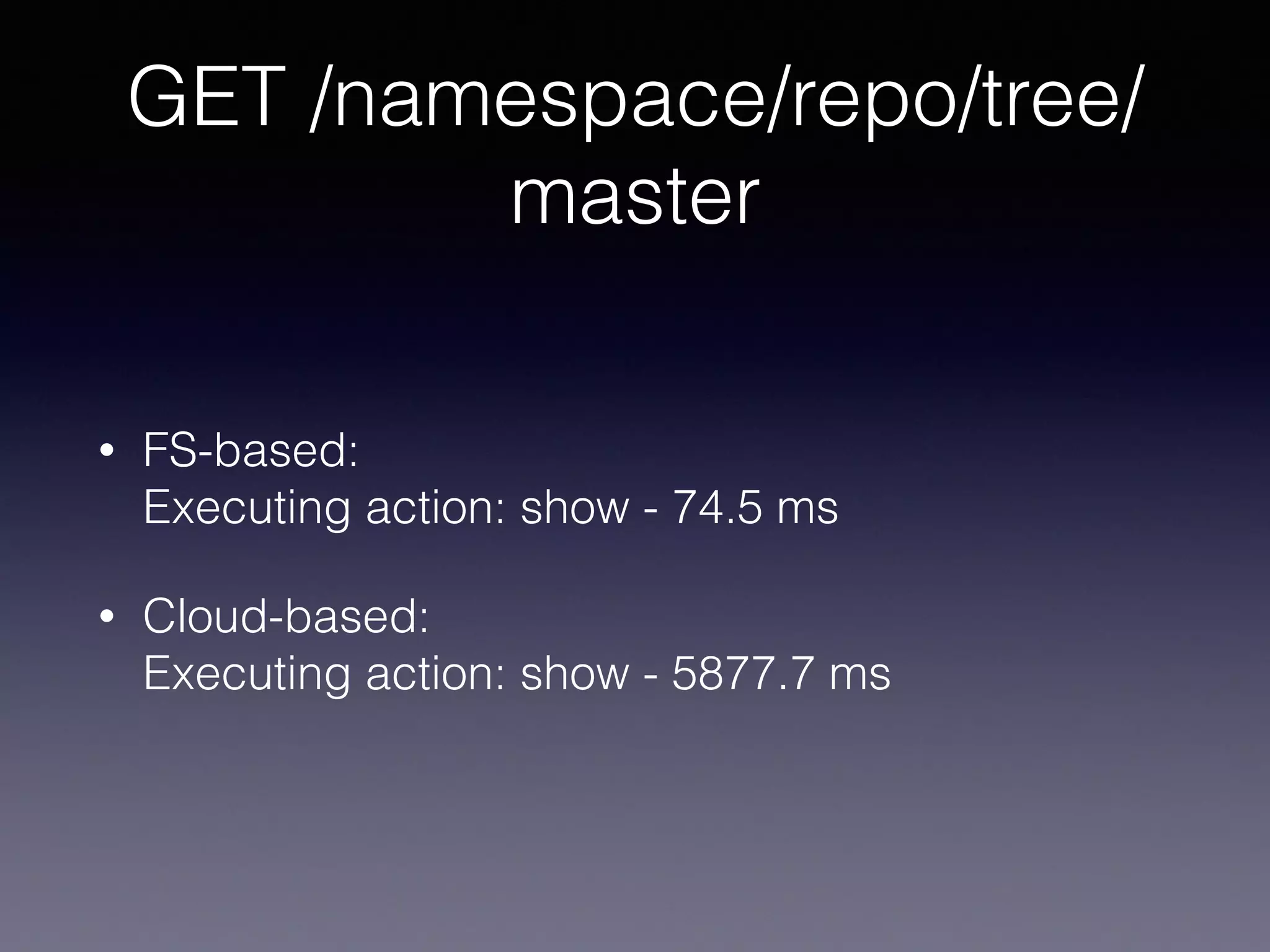

64. GET /namespace/repo/tree/
master
• FS-based:
Executing action: show - 74.5 ms
• Cloud-based:
Executing action: show - 5877.7 ms

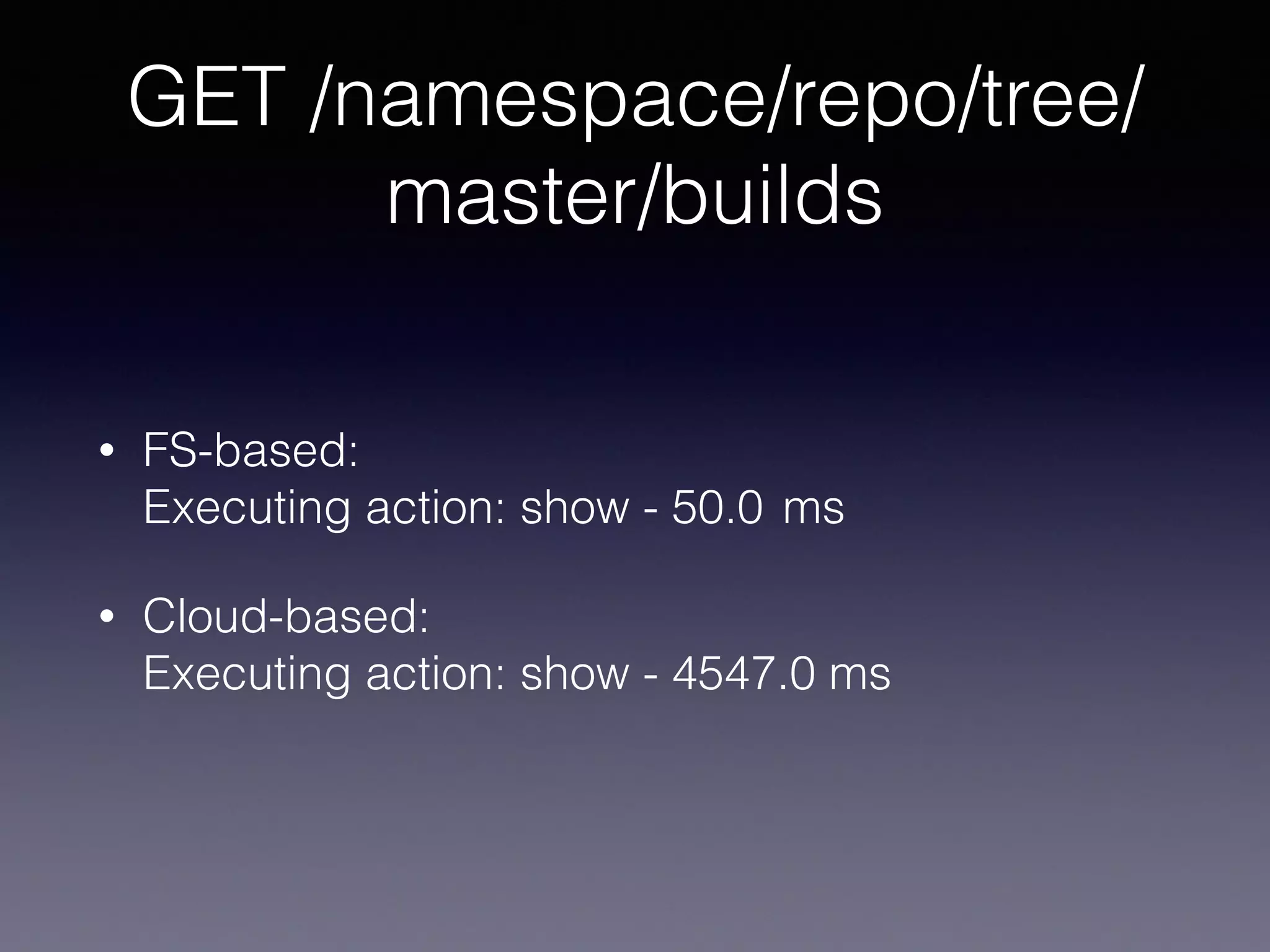

65. GET /namespace/repo/tree/
master/builds
• FS-based:
Executing action: show - 50.0 ms
• Cloud-based:
Executing action: show - 4547.0 ms

66. Cache

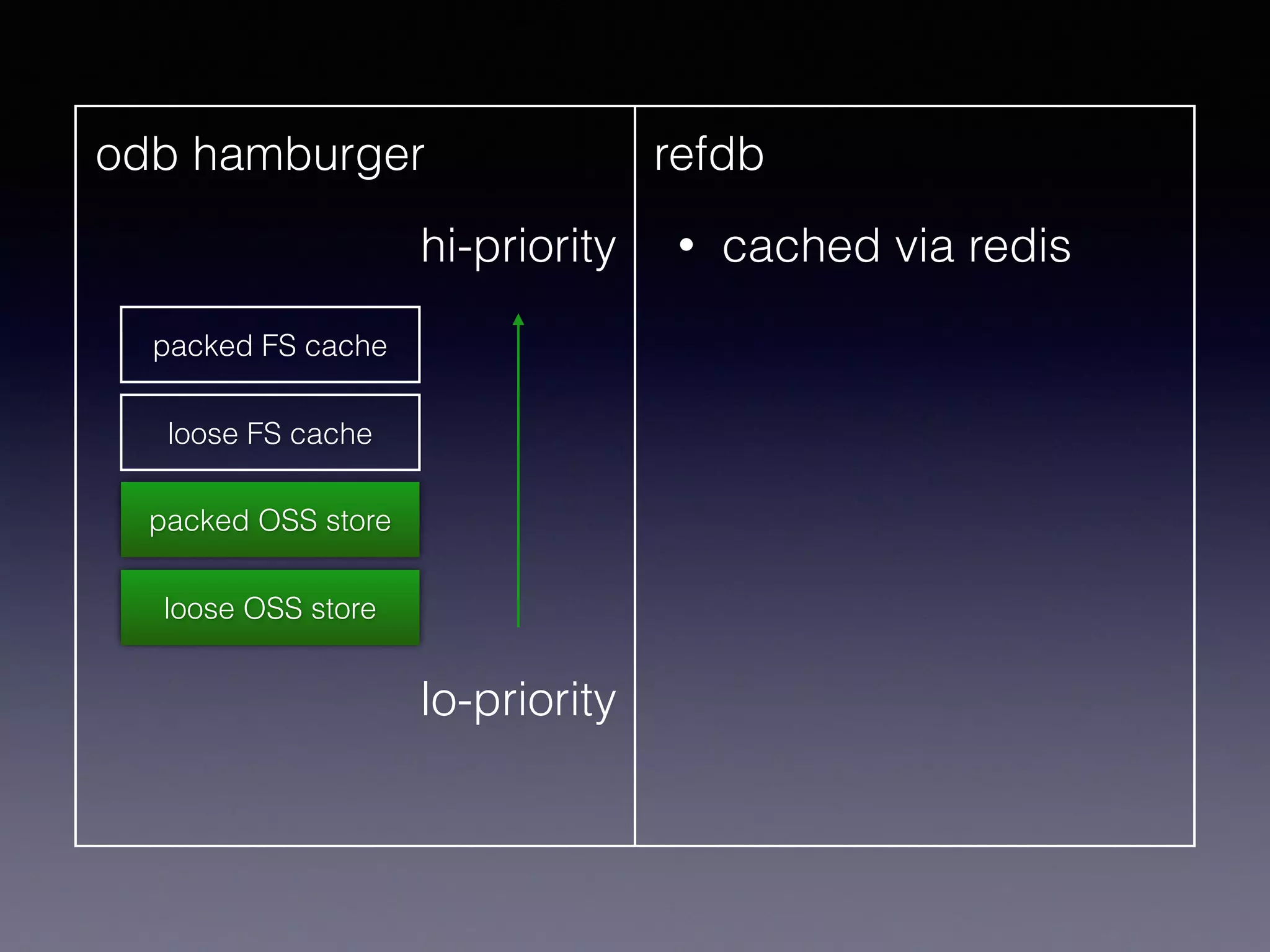

67. odb hamburger refdb
• cached via redishi-priority
lo-priority
loose OSS store
packed OSS store
loose FS cache
packed FS cache

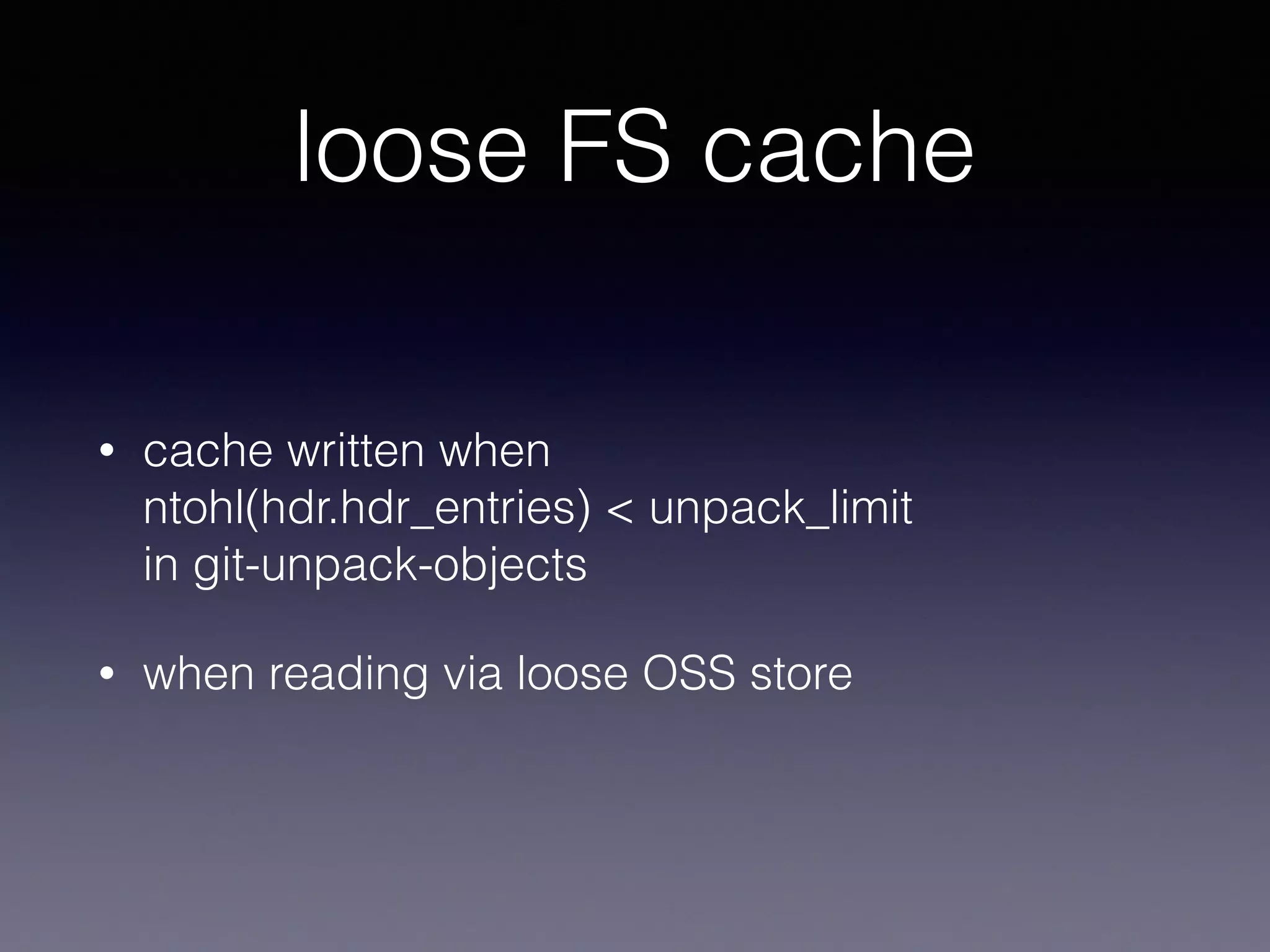

68. loose FS cache
• cache written when
ntohl(hdr.hdr_entries) < unpack_limit
in git-unpack-objects
• when reading via loose OSS store

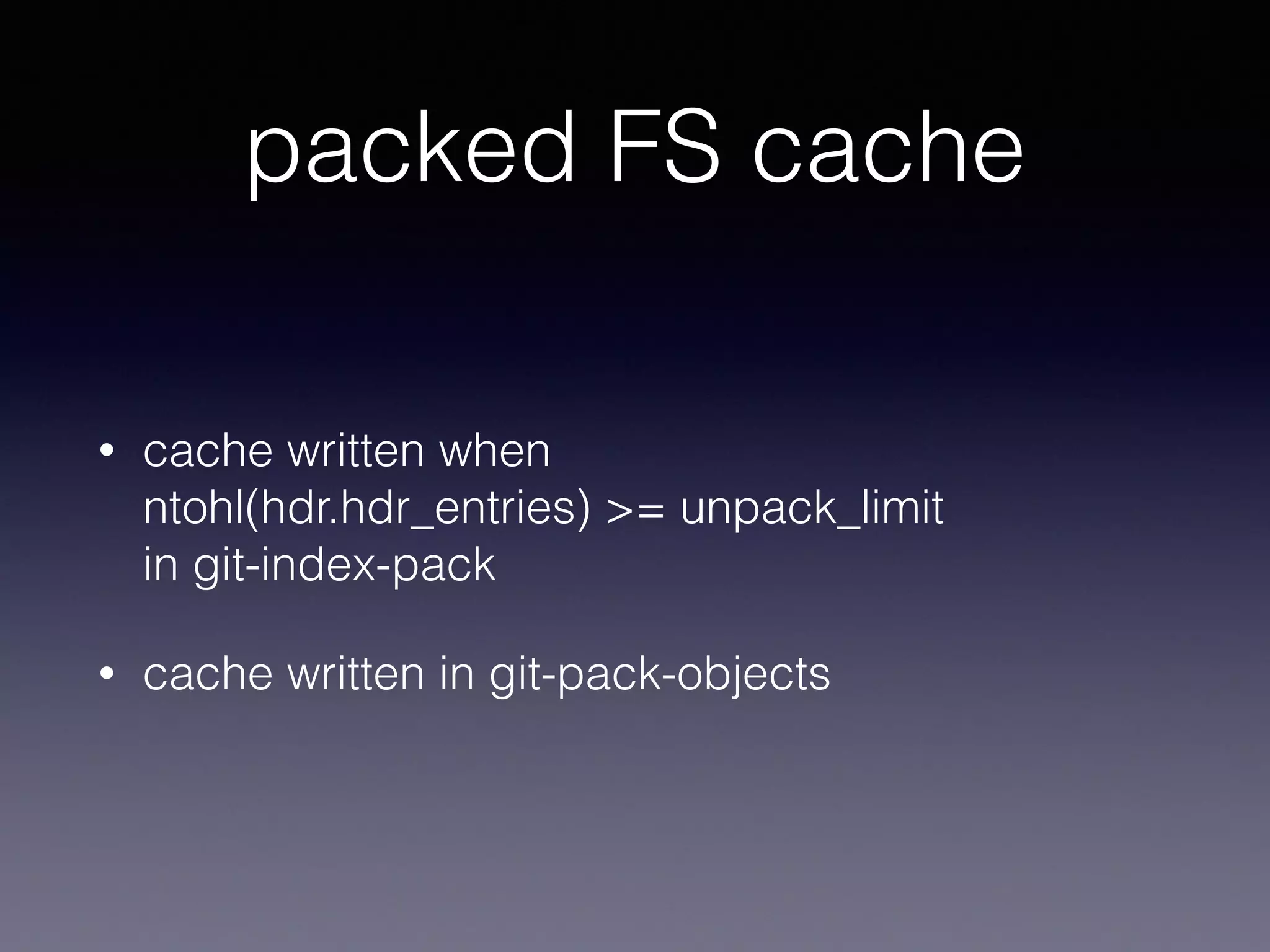

69. packed FS cache
• cache written when
ntohl(hdr.hdr_entries) >= unpack_limit
in git-index-pack
• cache written in git-pack-objects

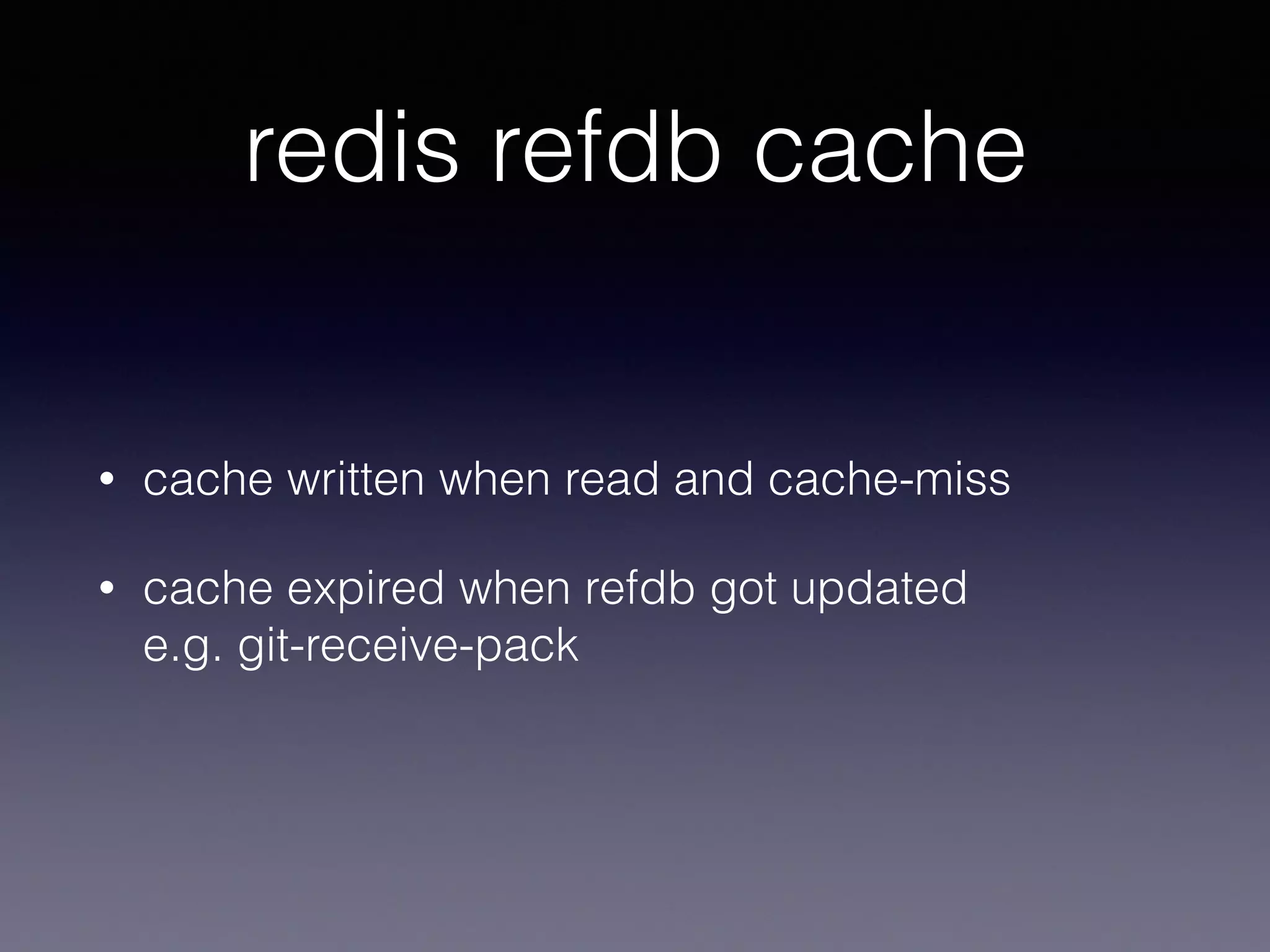

70. redis refdb cache
• cache written when read and cache-miss
• cache expired when refdb got updated
e.g. git-receive-pack

71. Future Work

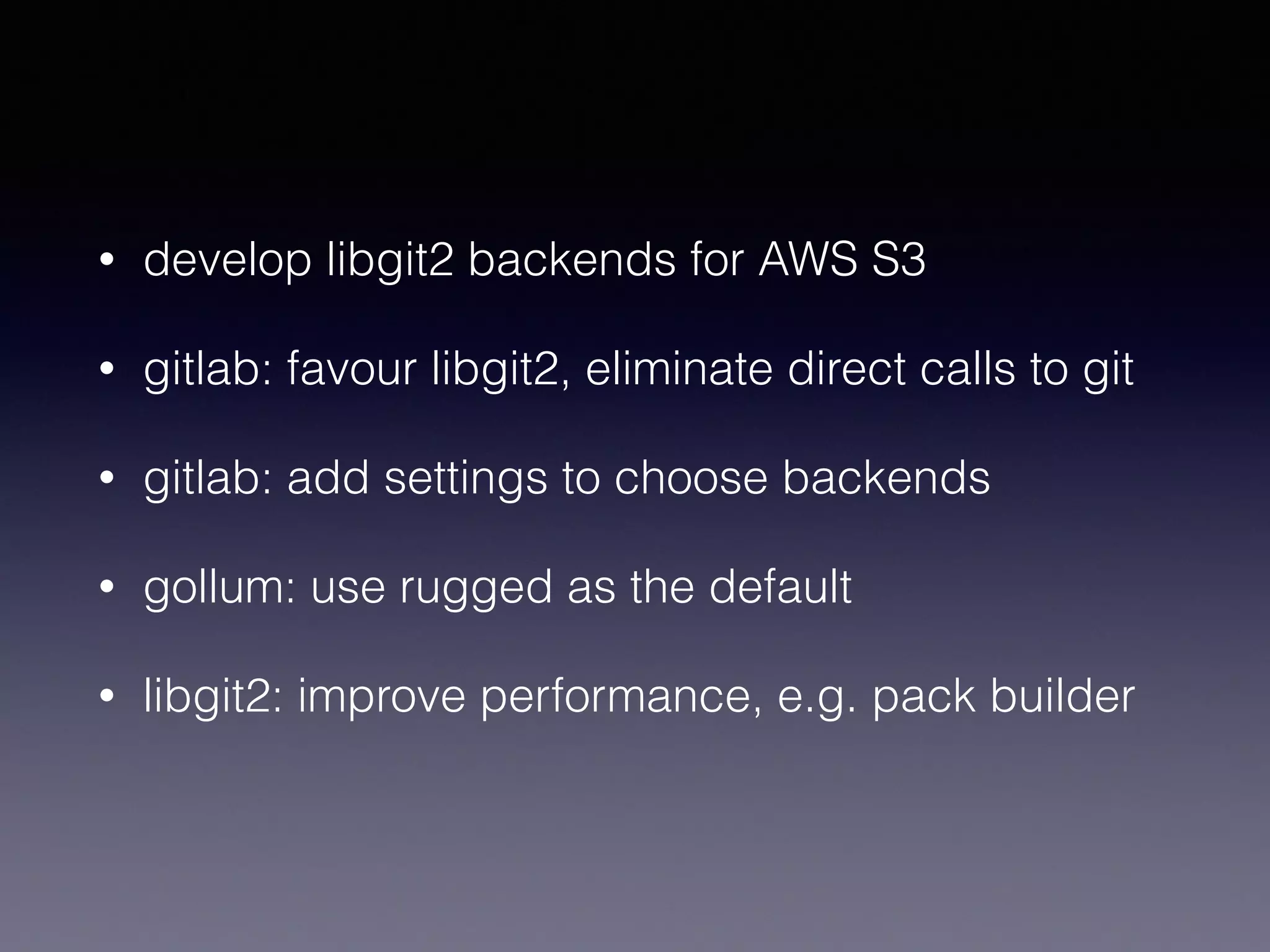

72. • develop libgit2 backends for AWS S3
• gitlab: favour libgit2, eliminate direct calls to git
• gitlab: add settings to choose backends
• gollum: use rugged as the default
• libgit2: improve performance, e.g. pack builder
