The document outlines the implementation of replication in QuestDB, a time-series database, including the architecture and mechanisms for handling high volumes of data from devices like smart meters and factory machines. It emphasizes features such as parallel write-ahead logging, multi-primary replication, and asynchronous coordination to ensure fault tolerance and robustness for real-time data ingestion. The presentation also discusses future enhancements like integration with parquet for improved data storage and query performance.

1. How We Added Replication to
QuestDB, a time-series database
Javier Ramírez
@supercoco9
Database Advocate

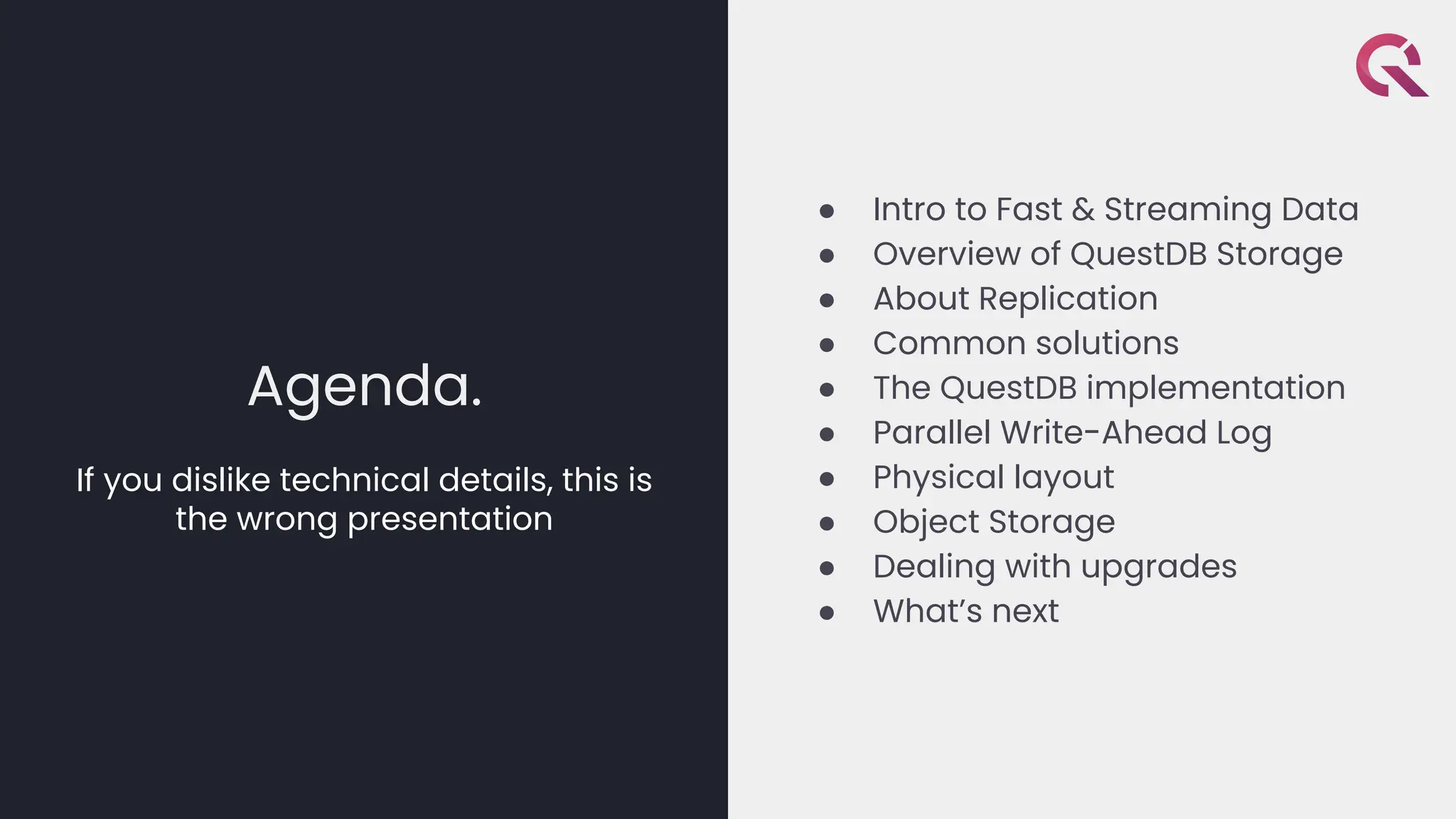

2. Agenda.
If you dislike technical details, this is
the wrong presentation
● Intro to Fast & Streaming Data
● Overview of QuestDB Storage
● About Replication
● Common solutions
● The QuestDB implementation
● Parallel Write-Ahead Log
● Physical layout
● Object Storage
● Dealing with upgrades
● What’s next

3. Not all data
problems are
the same

4. We have 400k smart meters, each
sending a record every 5 minutes.
~120 million rows per day
Real request from potential user

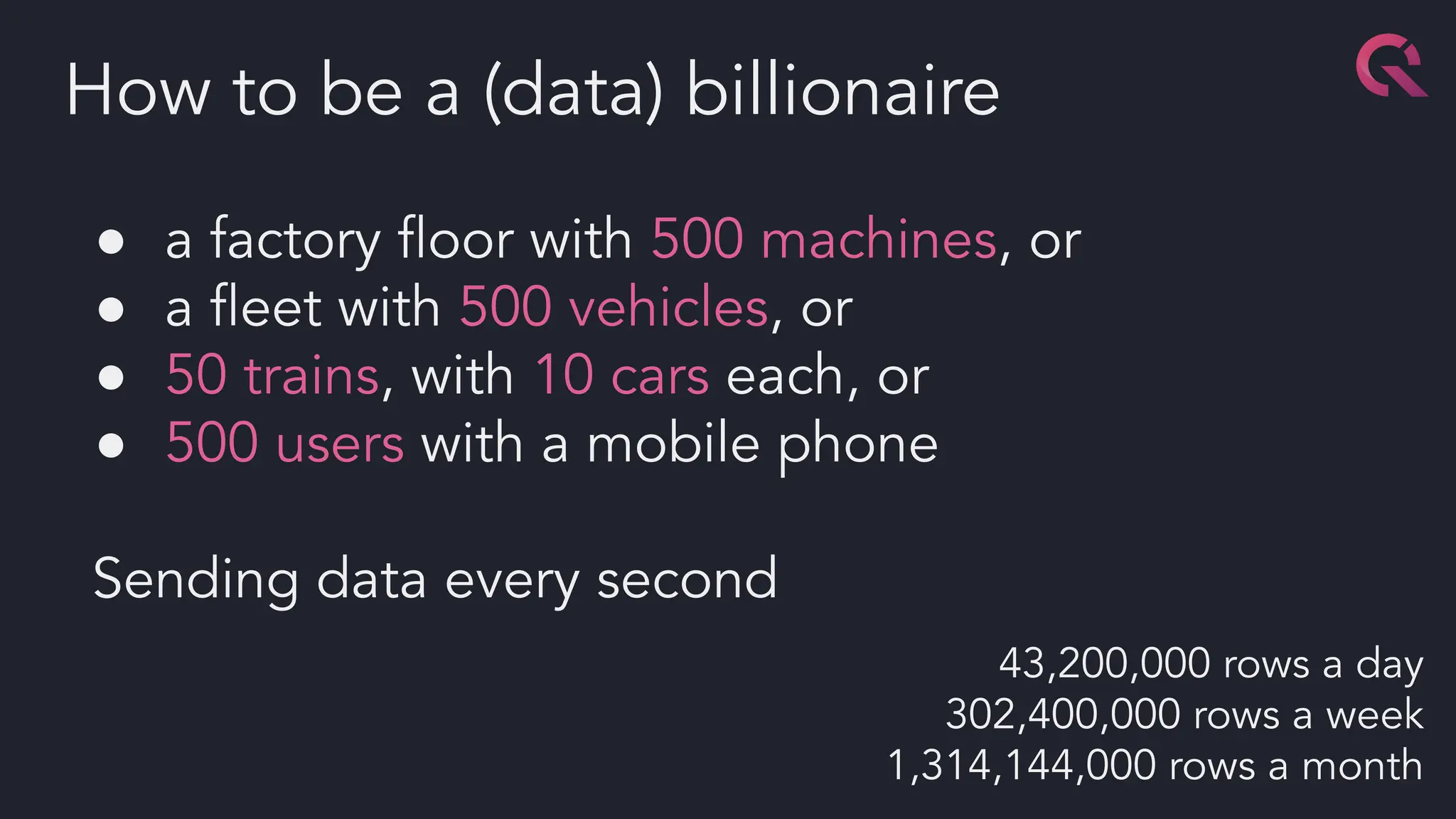

5. ● a factory floor with 500 machines, or
● a fleet with 500 vehicles, or
● 50 trains, with 10 cars each, or
● 500 users with a mobile phone
Sending data every second
How to be a (data) billionaire
43,200,000 rows a day
302,400,000 rows a week
1,314,144,000 rows a month

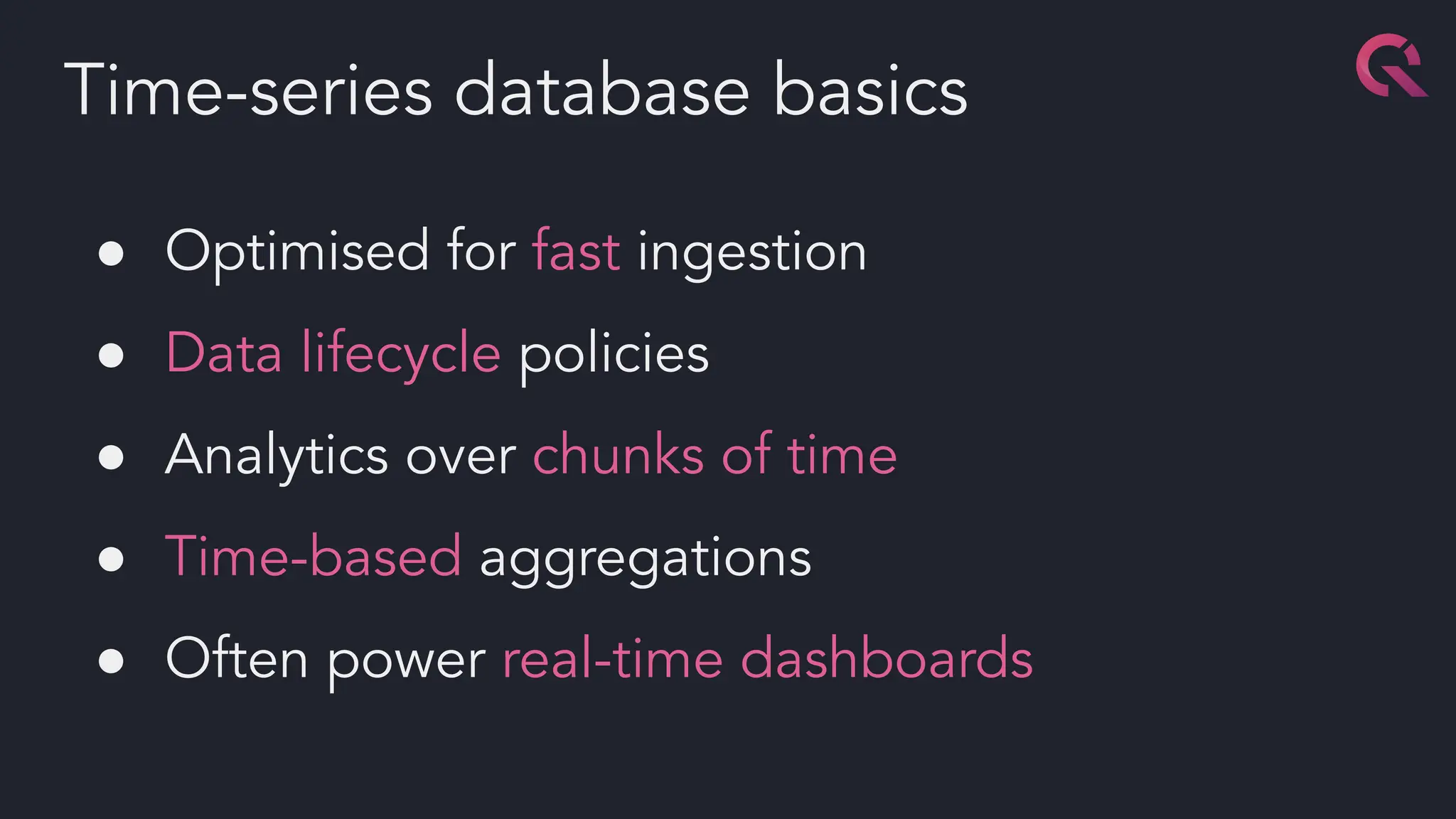

6. ● Optimised for fast ingestion
● Data lifecycle policies
● Analytics over chunks of time
● Time-based aggregations
● Often power real-time dashboards
Time-series database basics

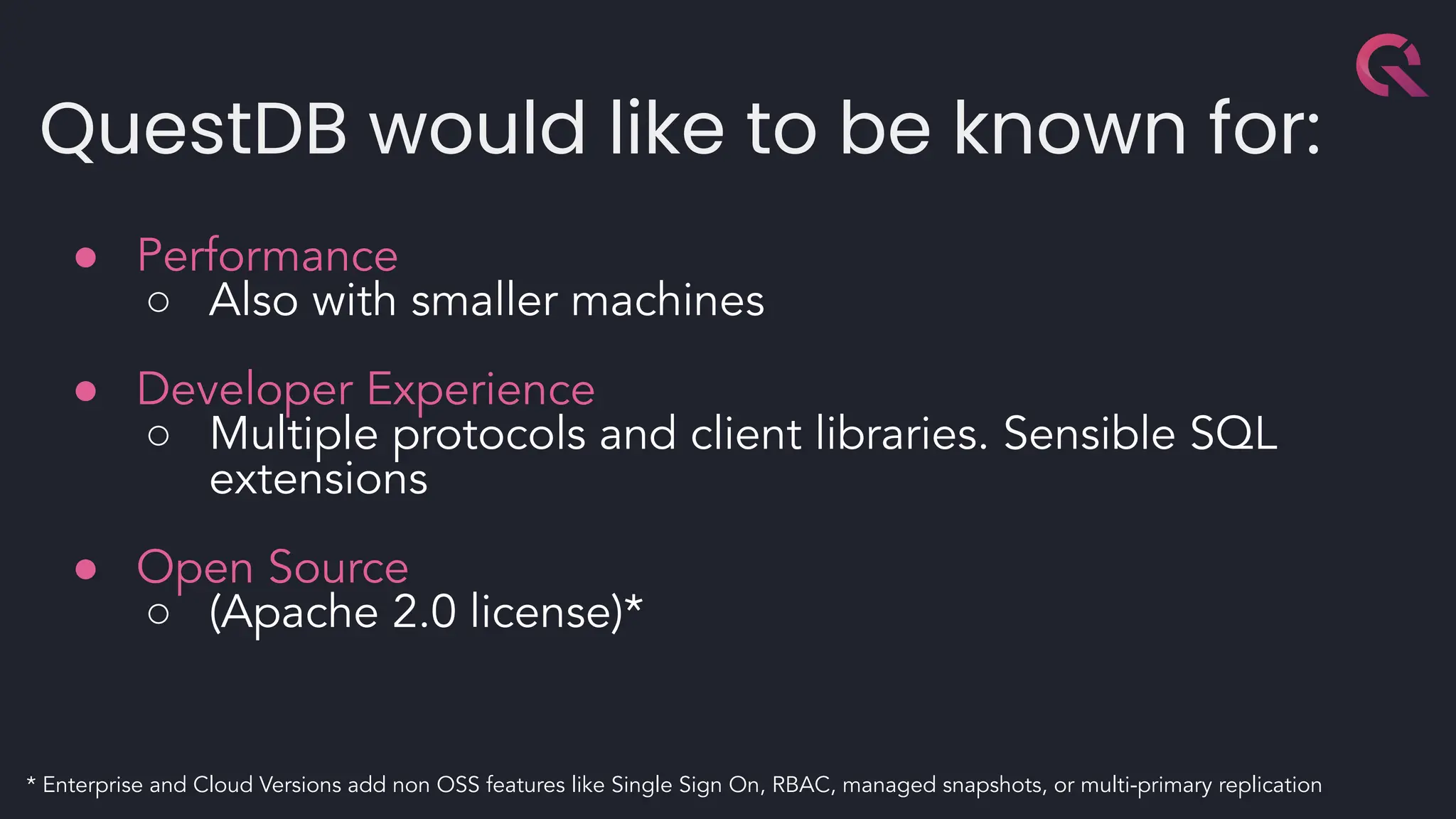

8. QuestDB would like to be known for:
● Performance
○ Also with smaller machines
● Developer Experience
○ Multiple protocols and client libraries. Sensible SQL
extensions
● Open Source
○ (Apache 2.0 license)*
* Enterprise and Cloud Versions add non OSS features like Single Sign On, RBAC, managed snapshots, or multi-primary replication

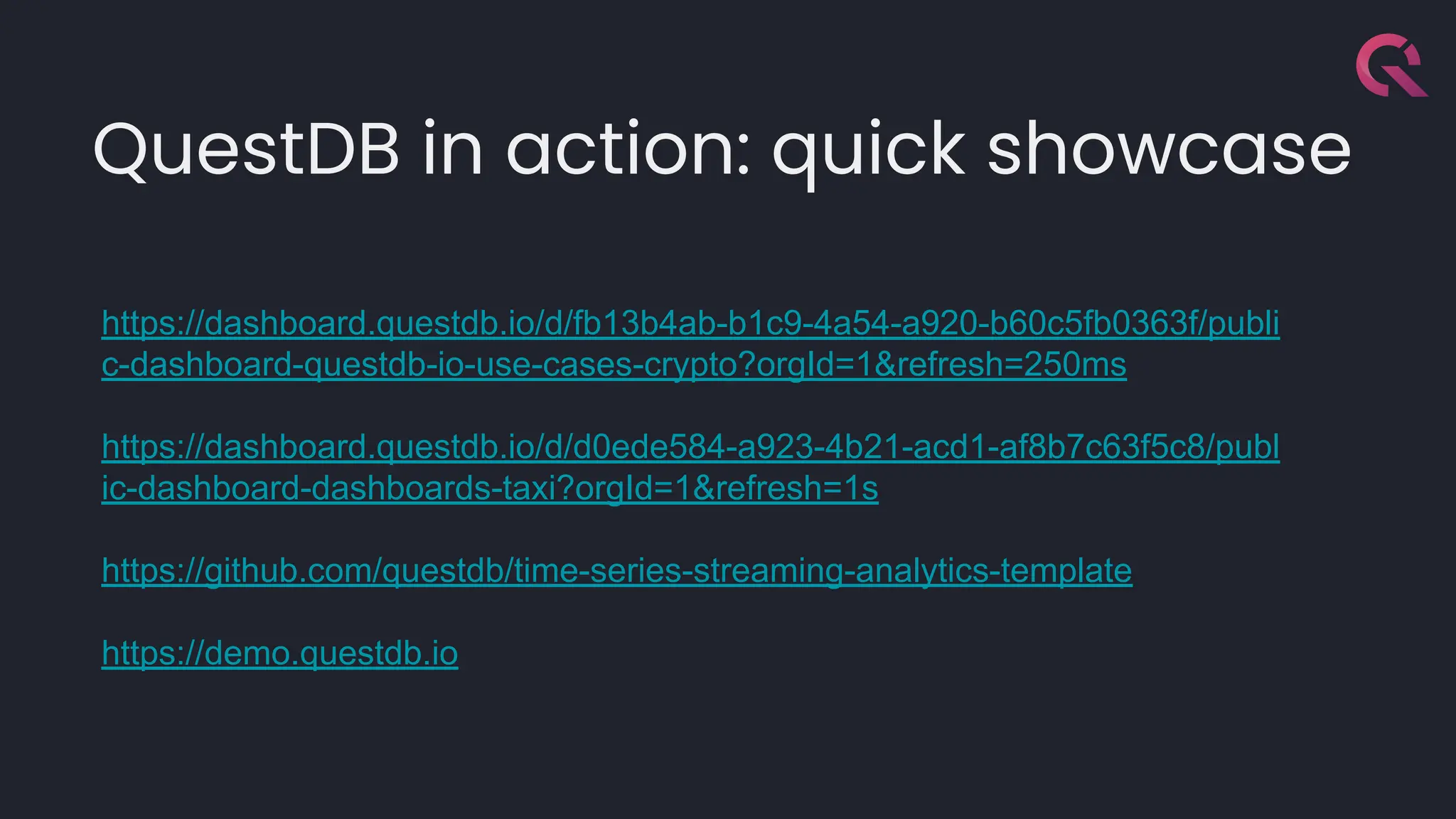

9. QuestDB in action: quick showcase
https://dashboard.questdb.io/d/fb13b4ab-b1c9-4a54-a920-b60c5fb0363f/publi
c-dashboard-questdb-io-use-cases-crypto?orgId=1&refresh=250ms
https://dashboard.questdb.io/d/d0ede584-a923-4b21-acd1-af8b7c63f5c8/publ
ic-dashboard-dashboards-taxi?orgId=1&refresh=1s
https://github.com/questdb/time-series-streaming-analytics-template
https://demo.questdb.io

10. A year ago

11. Production is a scary place
● Application errors
● Connectivity issues
● Network timeout/server busy
● Component temporarily
offline/restarting/updating
● Hardware failure
● Full disk
● Just how protocols work

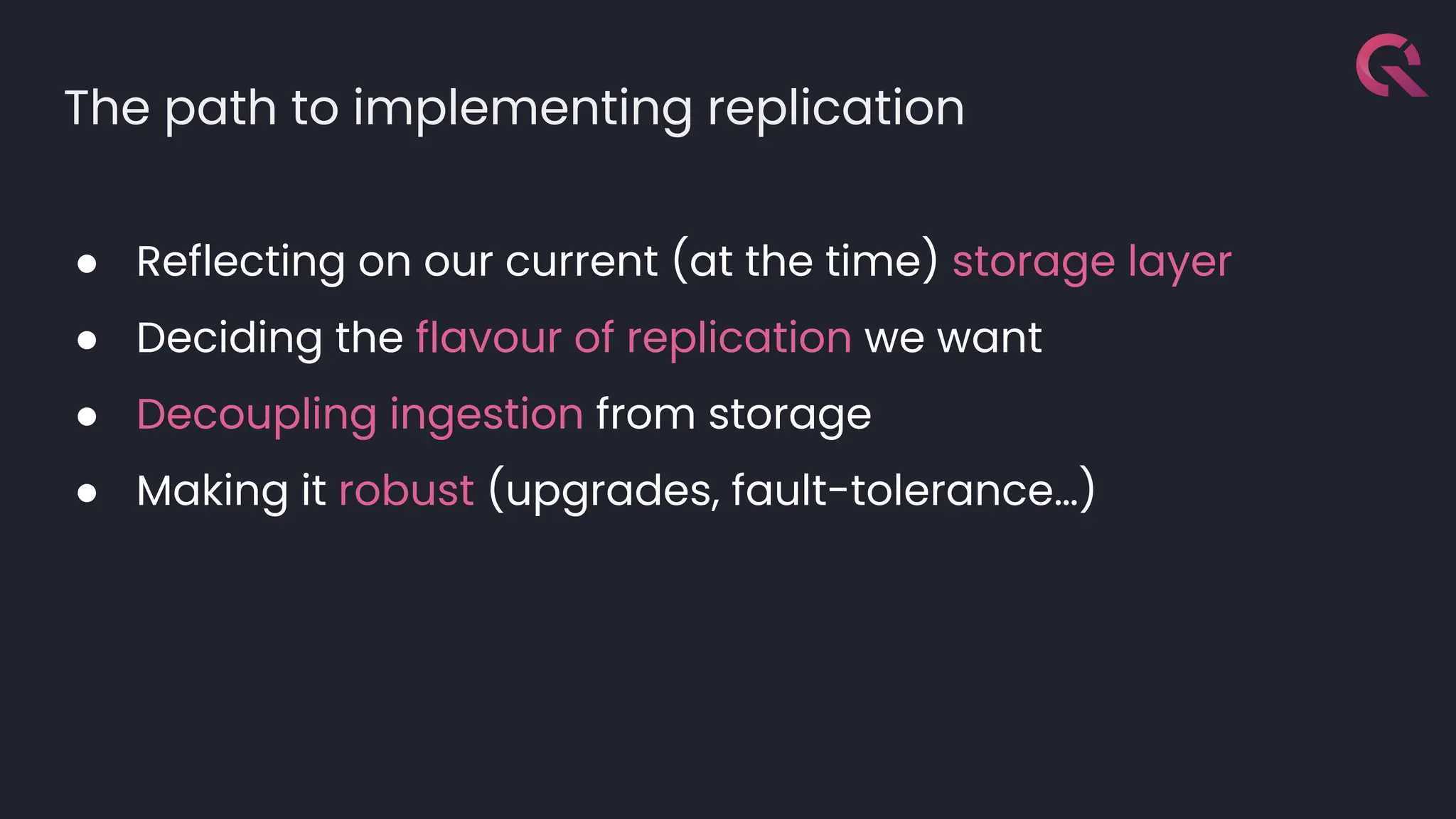

12. The path to implementing replication
● Reflecting on our current (at the time) storage layer
● Deciding the flavour of replication we want
● Decoupling ingestion from storage
● Making it robust (upgrades, fault-tolerance…)

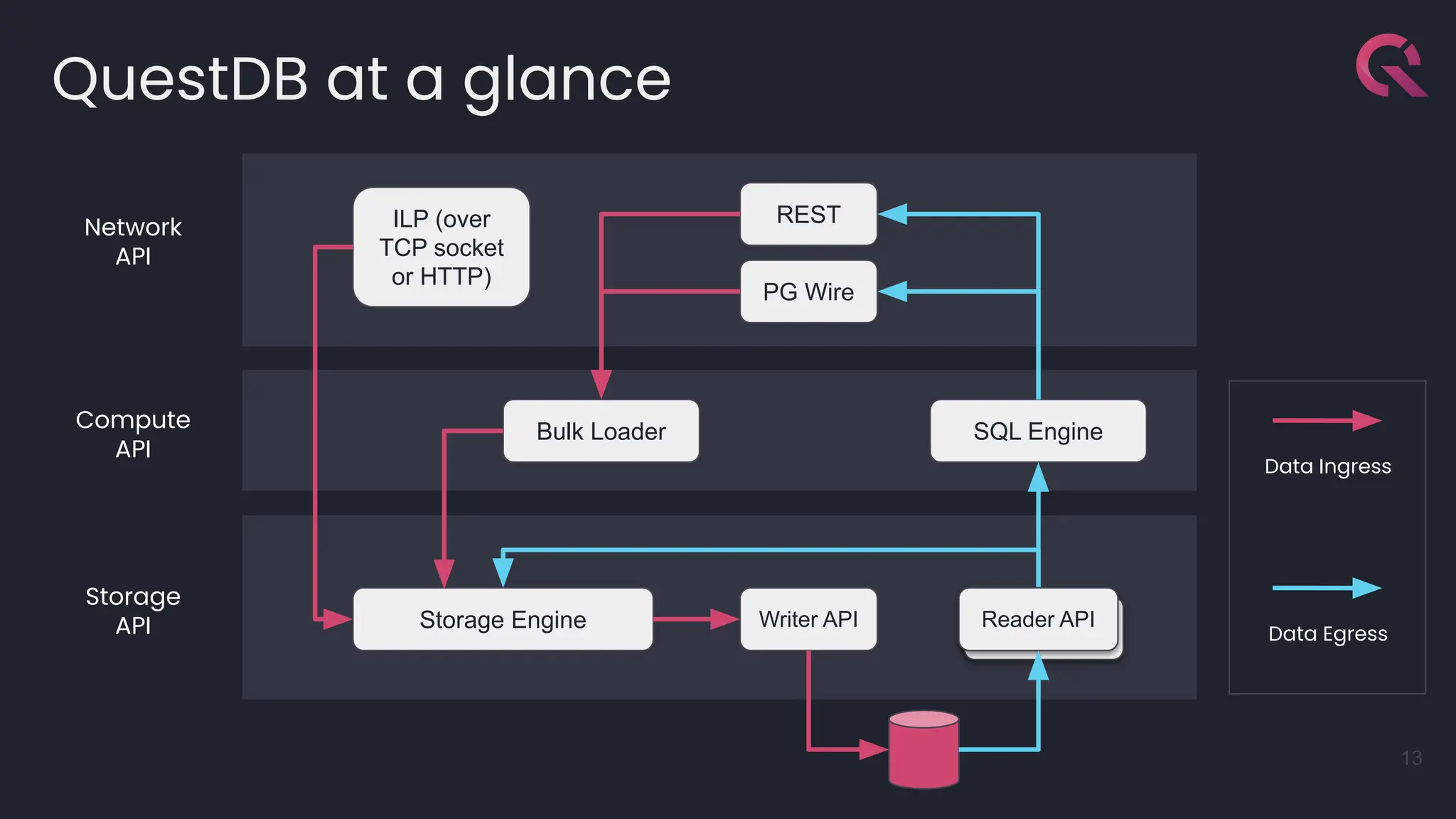

13. QuestDB at a glance
13
Network
API
Compute
API
Storage
API Storage Engine Writer API
ILP (over
TCP socket
or HTTP)
Bulk Loader SQL Engine
REST
PG Wire
Data Ingress
Data Egress
Reader API
Reader API

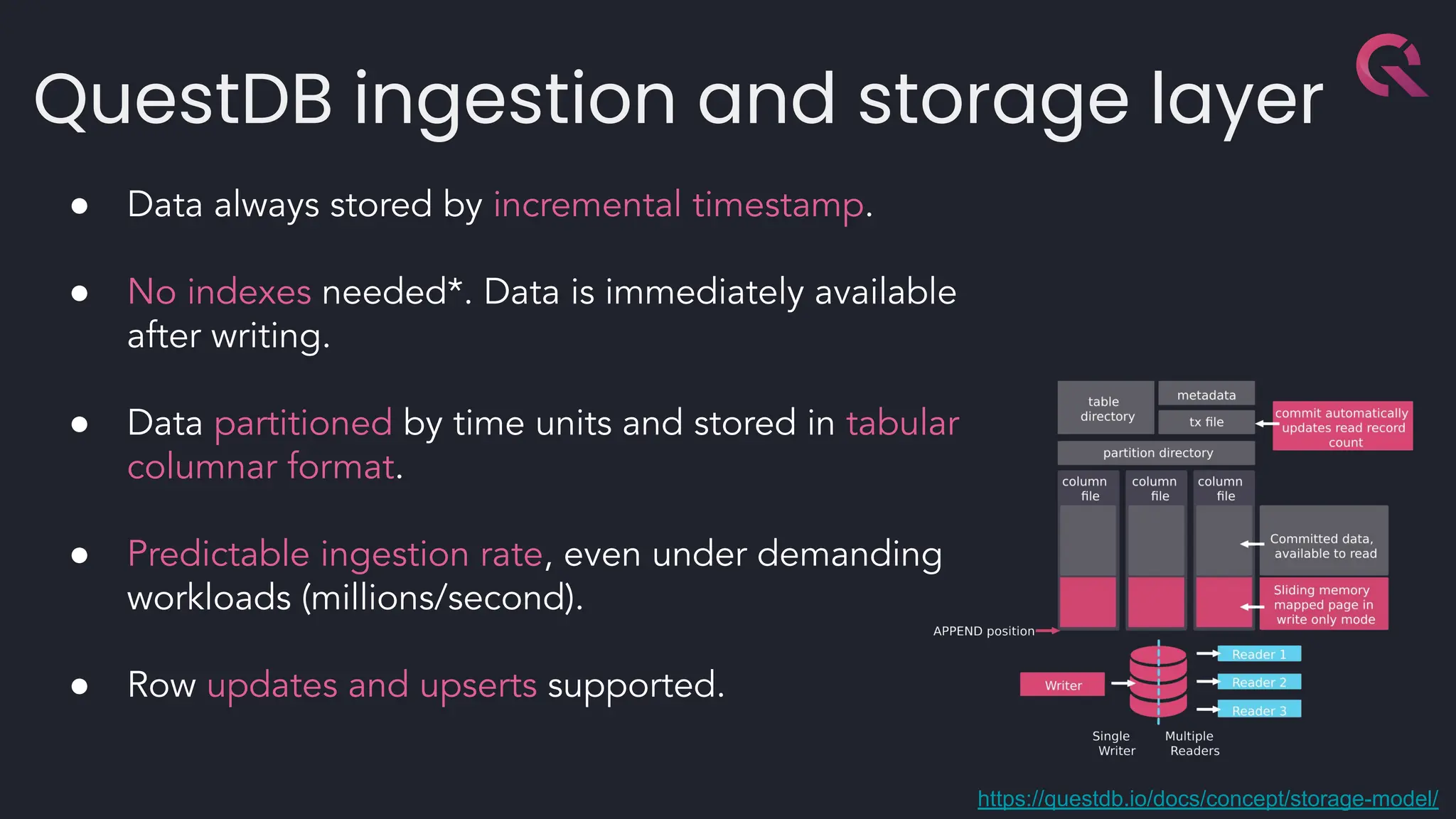

14. QuestDB ingestion and storage layer
● Data always stored by incremental timestamp.
● No indexes needed*. Data is immediately available
after writing.
● Data partitioned by time units and stored in tabular
columnar format.
● Predictable ingestion rate, even under demanding
workloads (millions/second).
● Row updates and upserts supported.
https://questdb.io/docs/concept/storage-model/

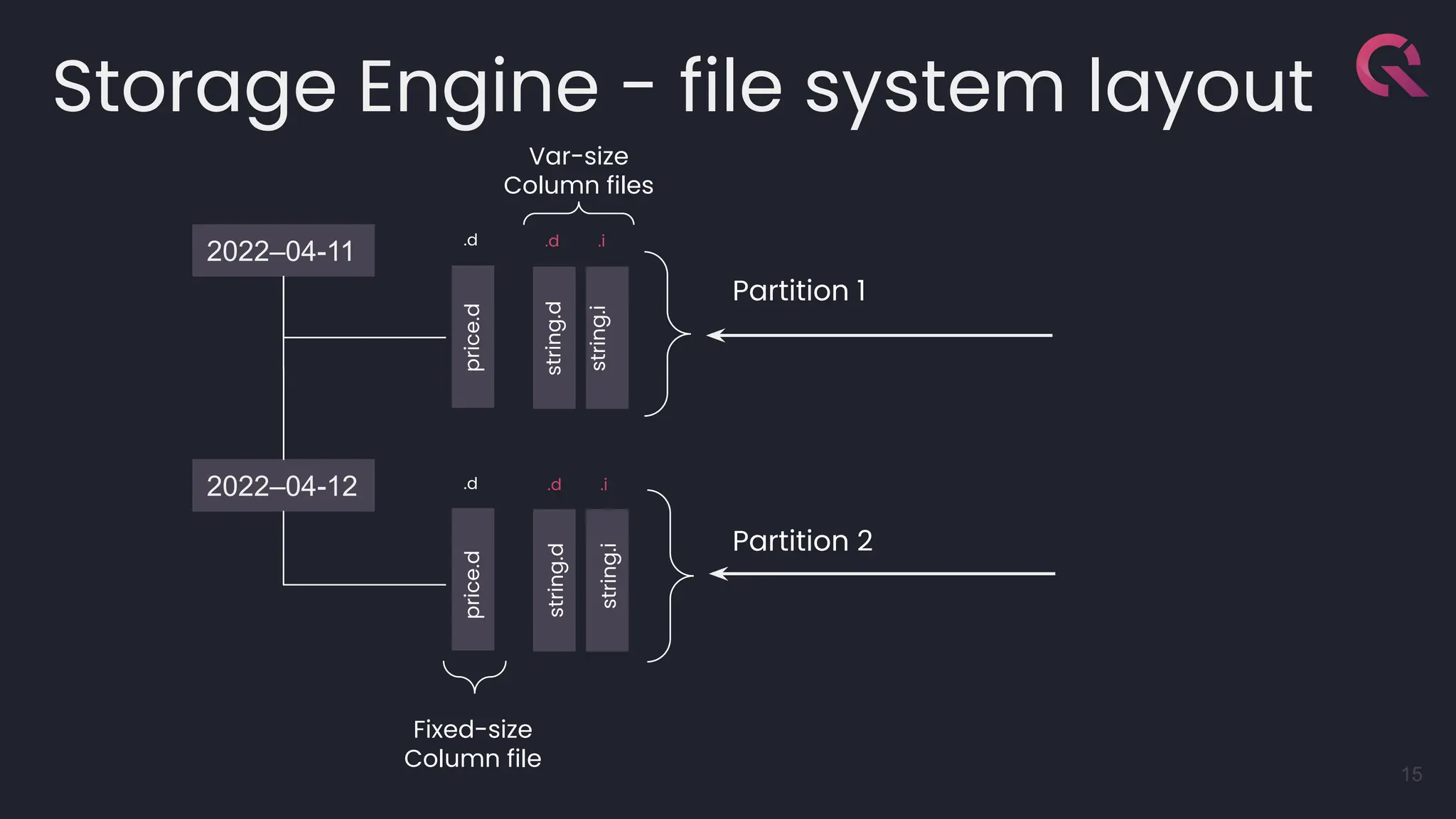

15. Storage Engine - file system layout
15
2022–04-11
2022–04-12
.d .d
.d
.i
.d .i
string.d
price.d
string.i
Partition 2
Partition 1
Fixed-size
Column file
Var-size
Column files
price.d
string.d
string.i

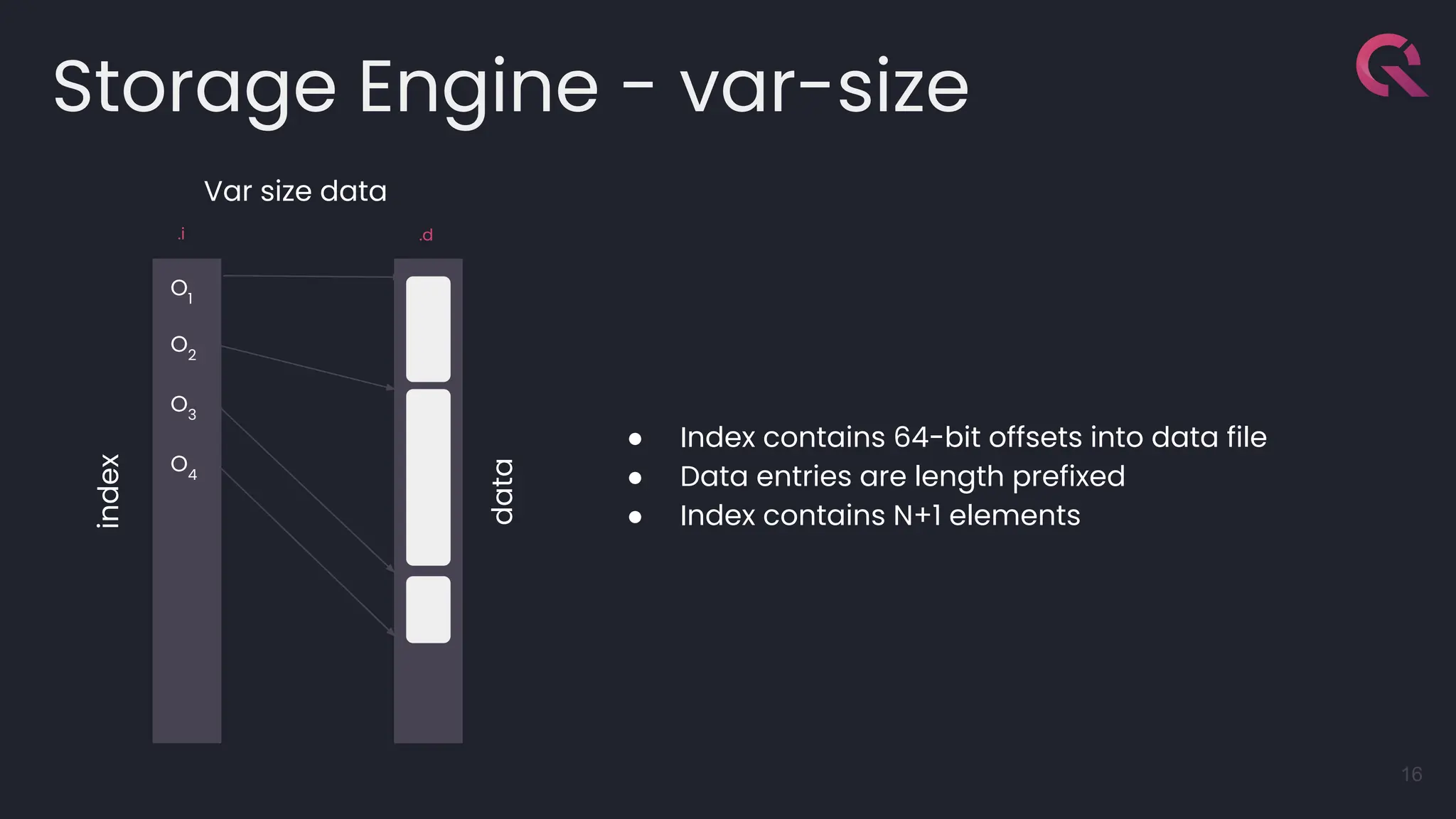

16. Storage Engine - var-size
16
O1
O2
.i
O3
.d
index
data
Var size data
● Index contains 64-bit offsets into data file
● Data entries are length prefixed
● Index contains N+1 elements
O4

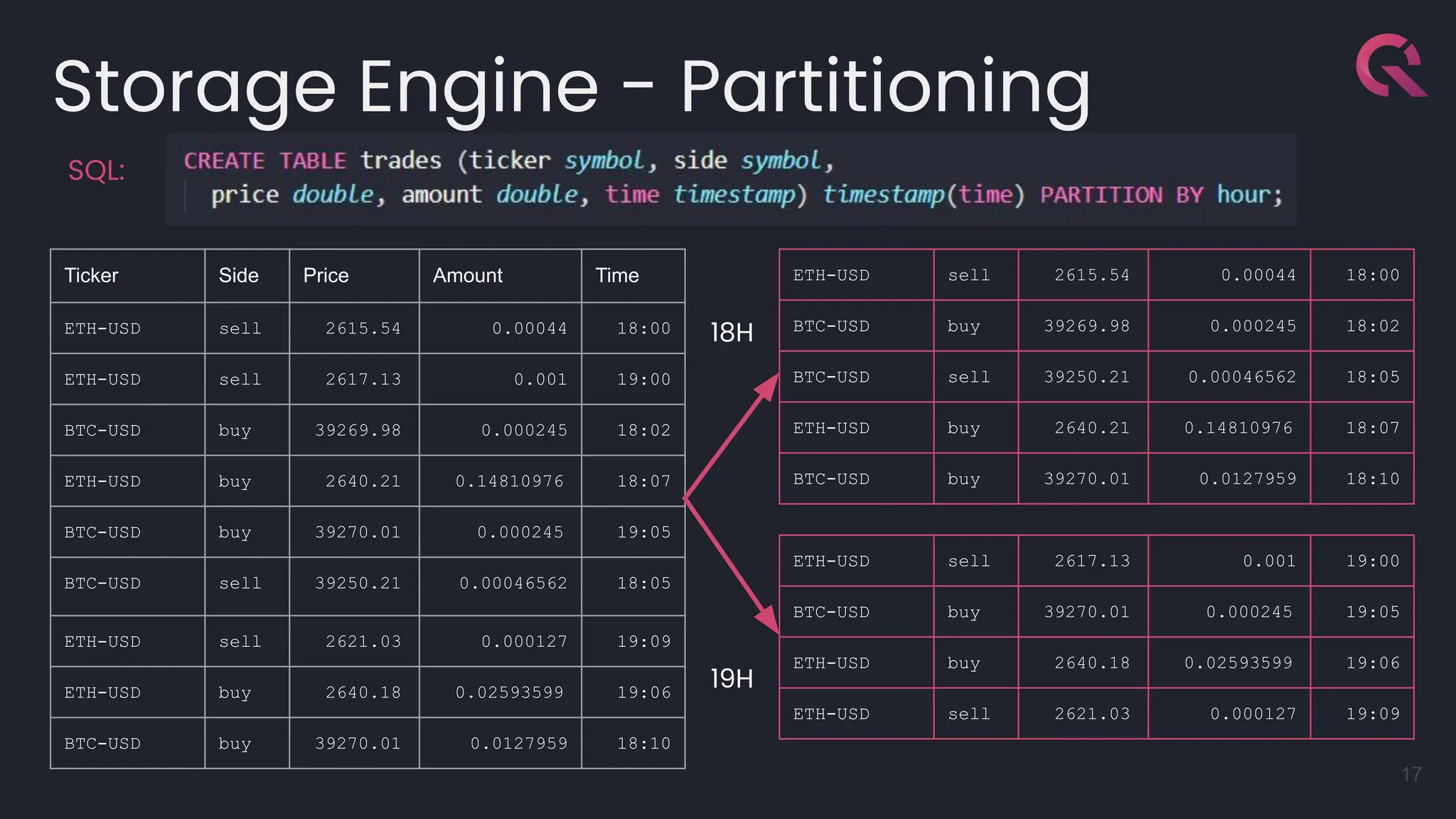

17. Storage Engine - Partitioning
17
Ticker Side Price Amount Time
ETH-USD sell 2615.54 0.00044 18:00
ETH-USD sell 2617.13 0.001 19:00
BTC-USD buy 39269.98 0.000245 18:02
ETH-USD buy 2640.21 0.14810976 18:07
BTC-USD buy 39270.01 0.000245 19:05
BTC-USD sell 39250.21 0.00046562 18:05
ETH-USD sell 2621.03 0.000127 19:09
ETH-USD buy 2640.18 0.02593599 19:06
BTC-USD buy 39270.01 0.0127959 18:10
ETH-USD sell 2615.54 0.00044 18:00
BTC-USD buy 39269.98 0.000245 18:02
BTC-USD sell 39250.21 0.00046562 18:05
ETH-USD buy 2640.21 0.14810976 18:07
BTC-USD buy 39270.01 0.0127959 18:10
ETH-USD sell 2617.13 0.001 19:00
BTC-USD buy 39270.01 0.000245 19:05
ETH-USD buy 2640.18 0.02593599 19:06
ETH-USD sell 2621.03 0.000127 19:09
18H
19H
SQL:

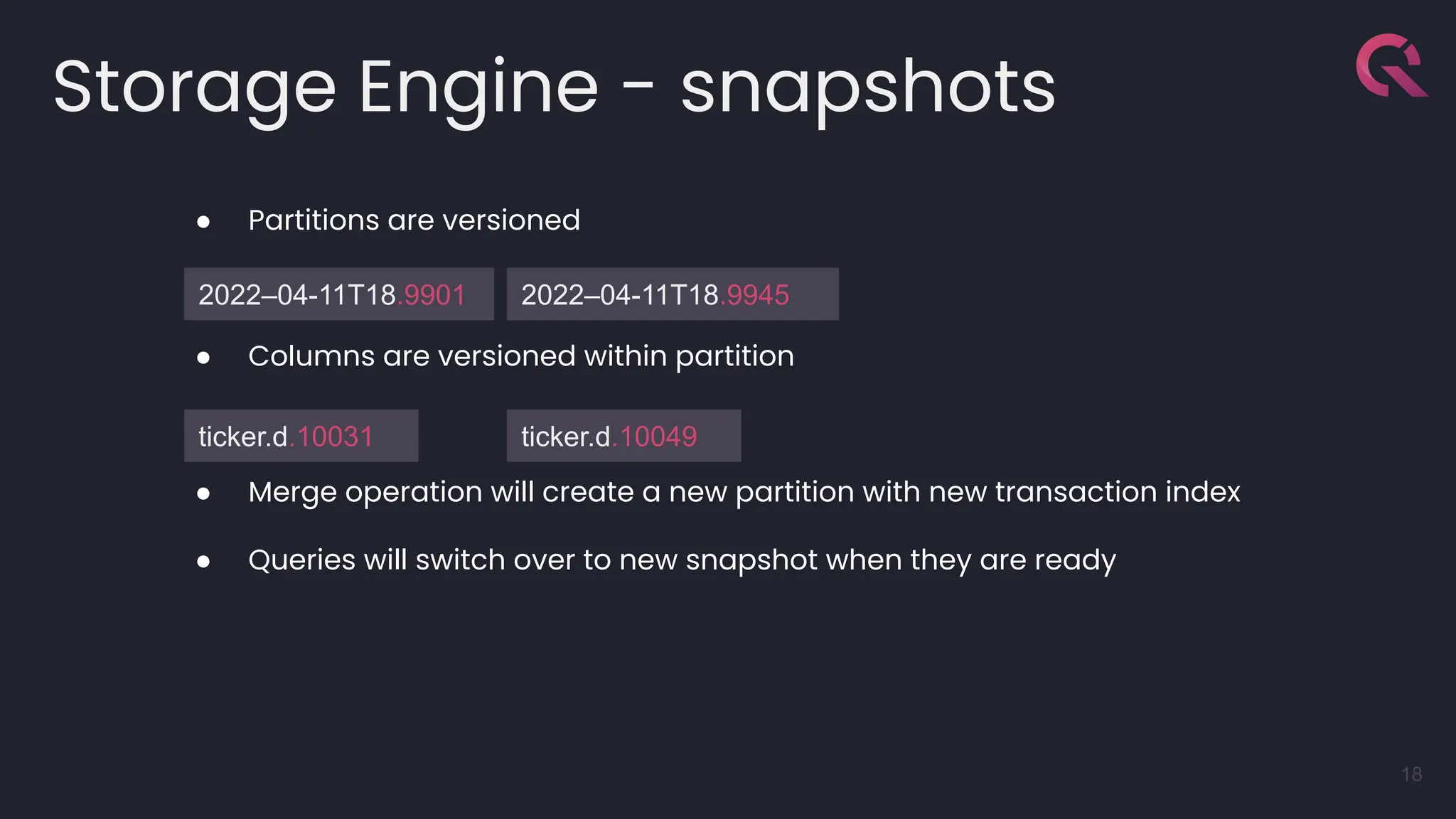

18. ● Partitions are versioned
● Columns are versioned within partition
● Merge operation will create a new partition with new transaction index
● Queries will switch over to new snapshot when they are ready
Storage Engine - snapshots
18
2022–04-11T18.9901
ticker.d.10031
2022–04-11T18.9945
ticker.d.10049

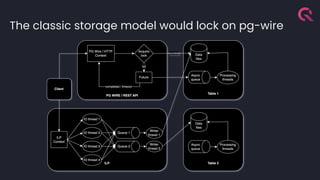

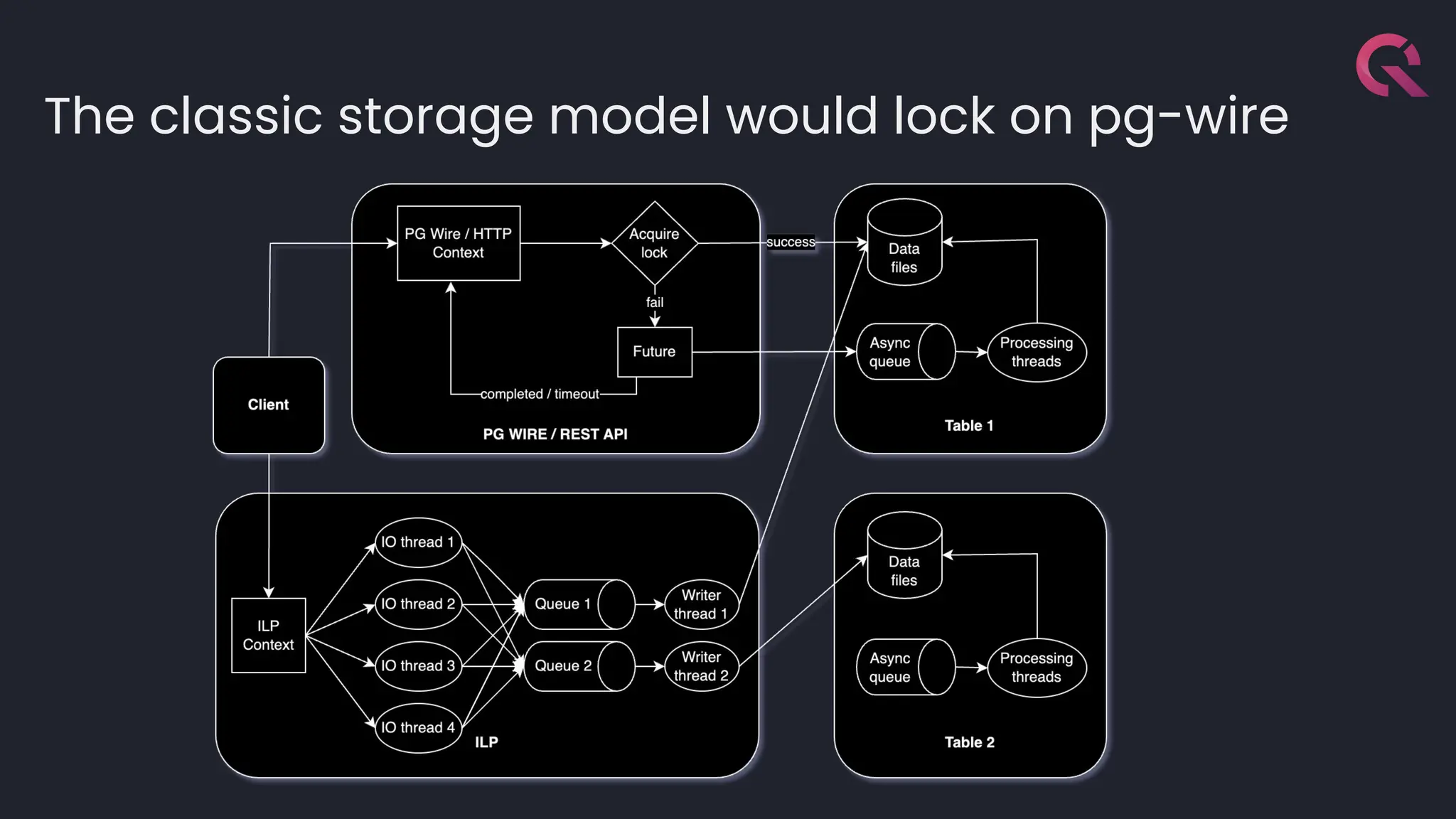

19. The classic storage model would lock on pg-wire

20. Enter Replication

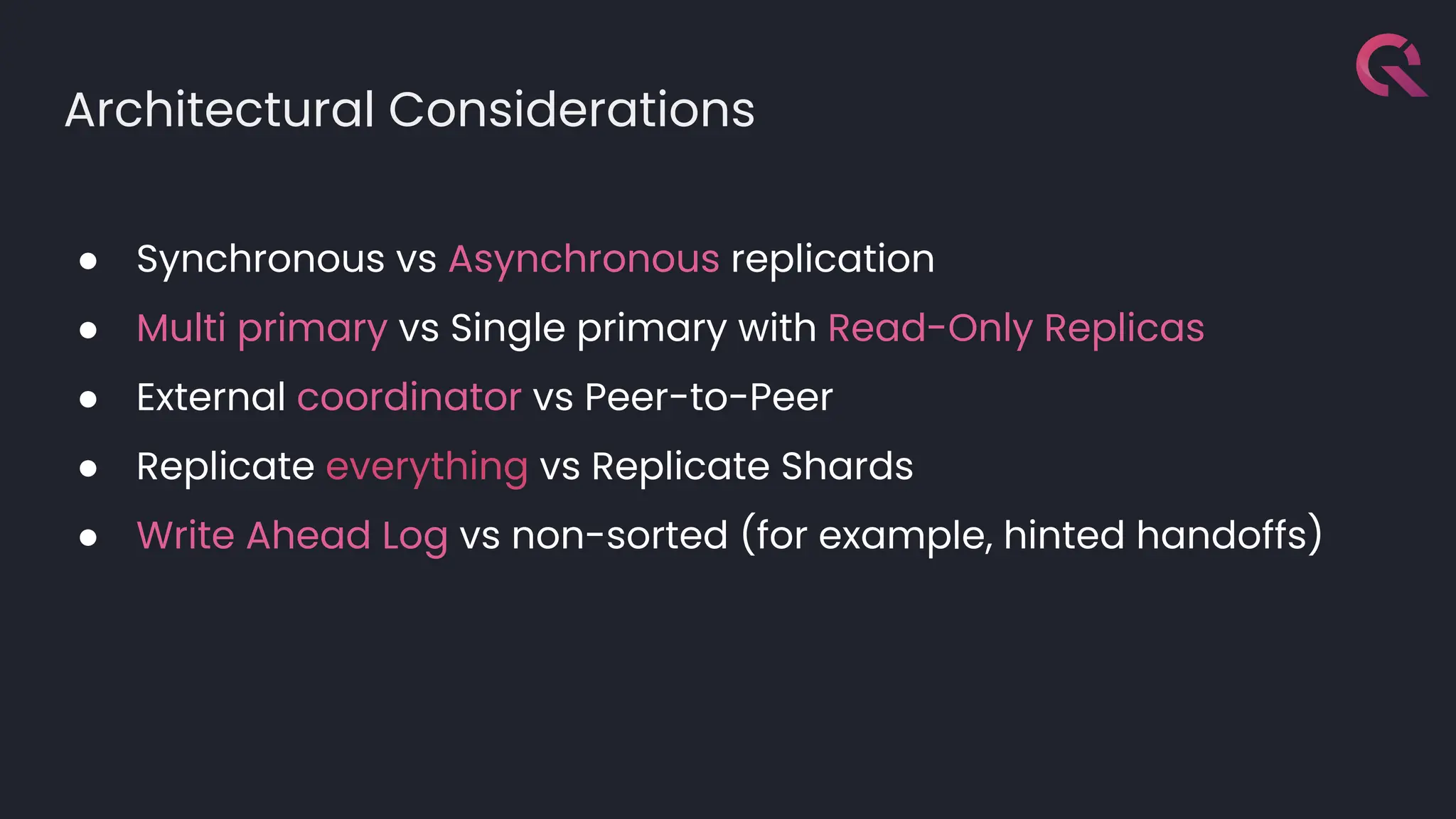

21. Architectural Considerations
● Synchronous vs Asynchronous replication
● Multi primary vs Single primary with Read-Only Replicas
● External coordinator vs Peer-to-Peer
● Replicate everything vs Replicate Shards
● Write Ahead Log vs non-sorted (for example, hinted handoffs)

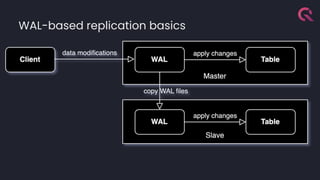

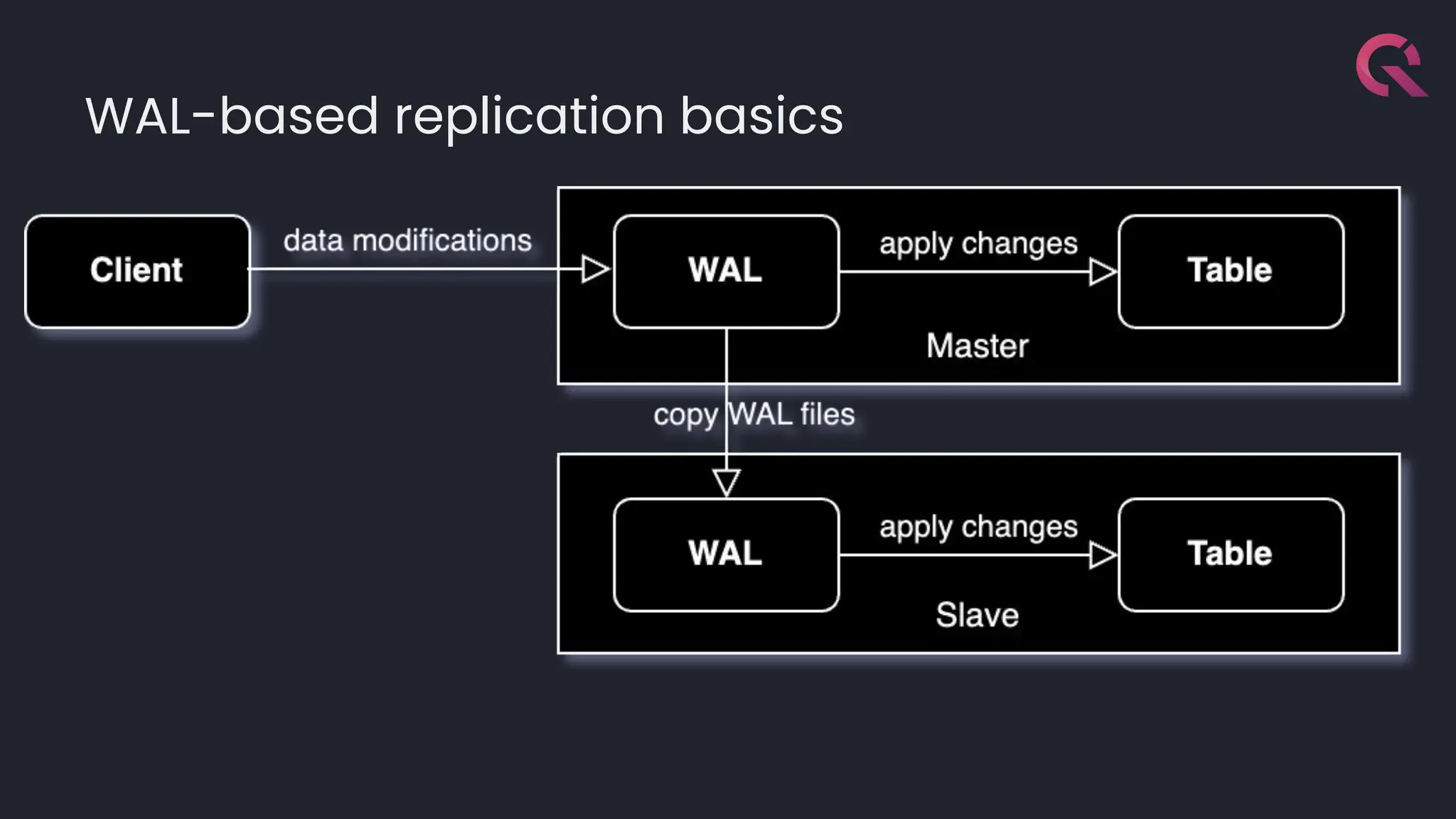

22. WAL-based replication basics

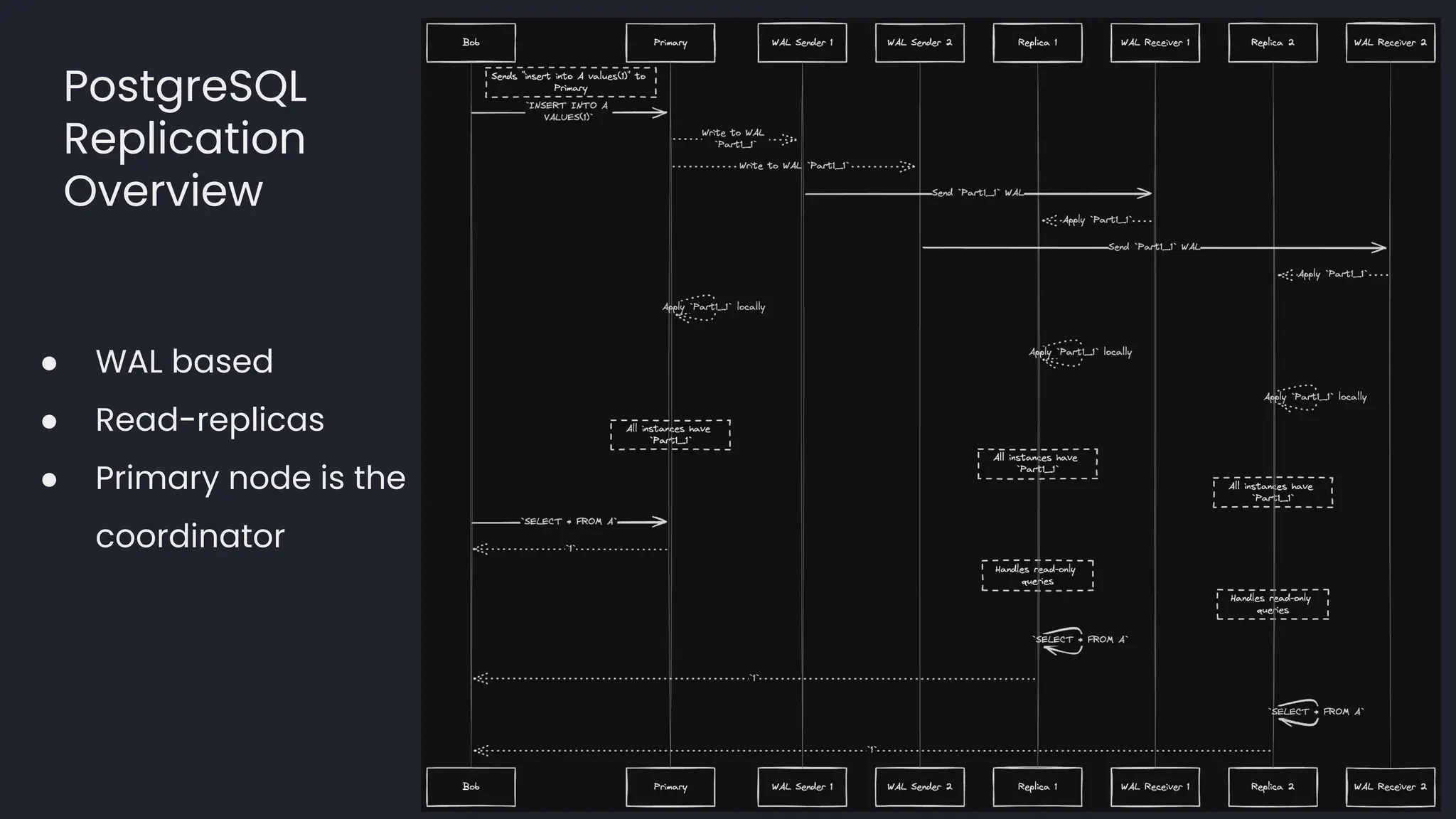

23. PostgreSQL
Replication
Overview
● WAL based
● Read-replicas
● Primary node is the
coordinator

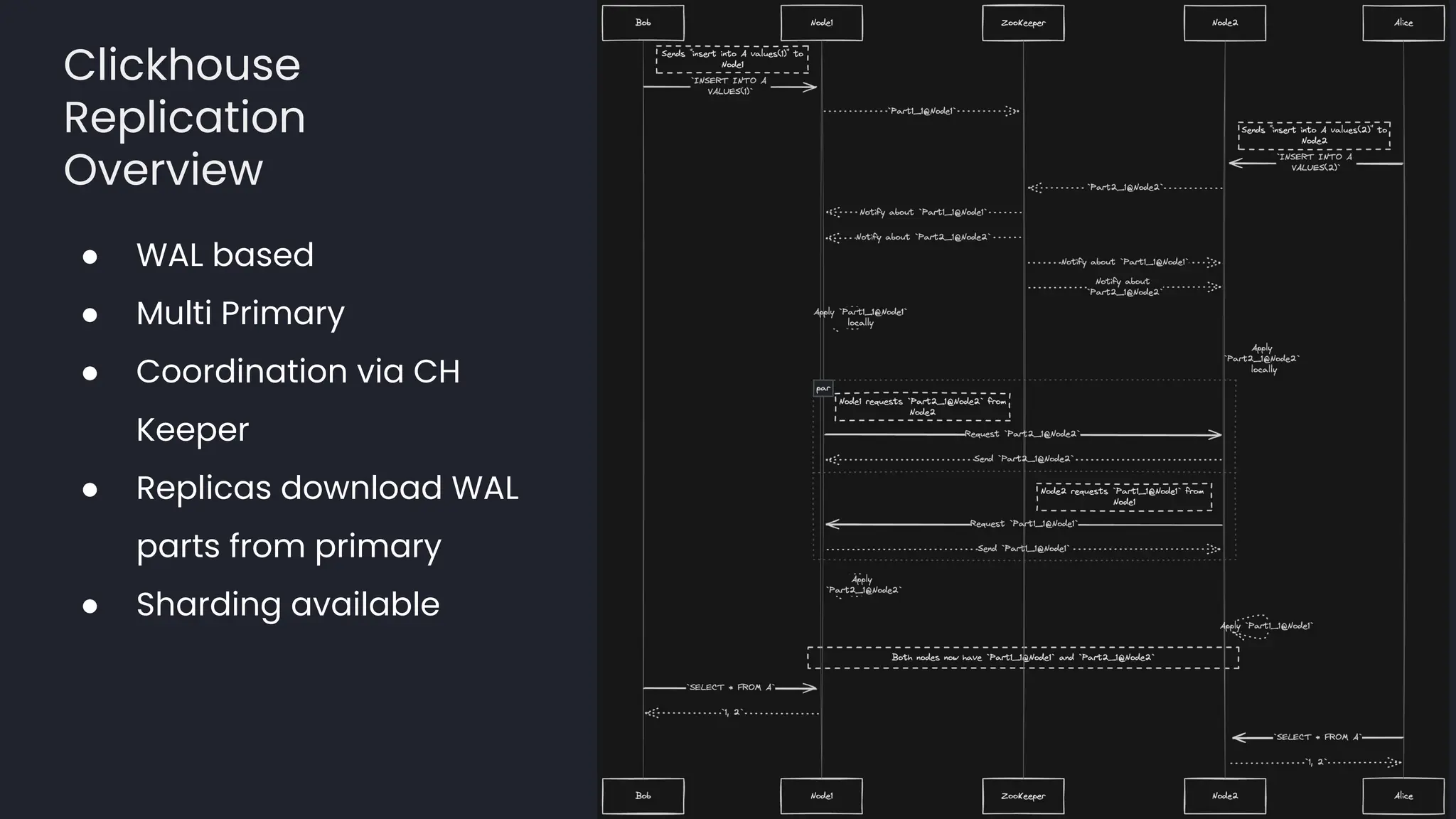

24. Clickhouse
Replication
Overview
● WAL based
● Multi Primary
● Coordination via CH
Keeper
● Replicas download WAL
parts from primary
● Sharding available

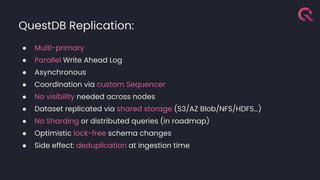

25. QuestDB Replication:
● Multi-primary
● Parallel Write Ahead Log
● Asynchronous
● Coordination via custom Sequencer
● No visibility needed across nodes
● Dataset replicated via shared storage (S3/AZ Blob/NFS/HDFS…)
● No Sharding or distributed queries (in roadmap)
● Optimistic lock-free schema changes
● Side effect: deduplication at ingestion time

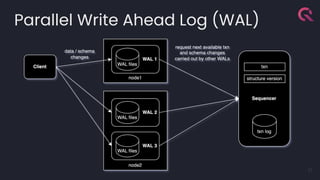

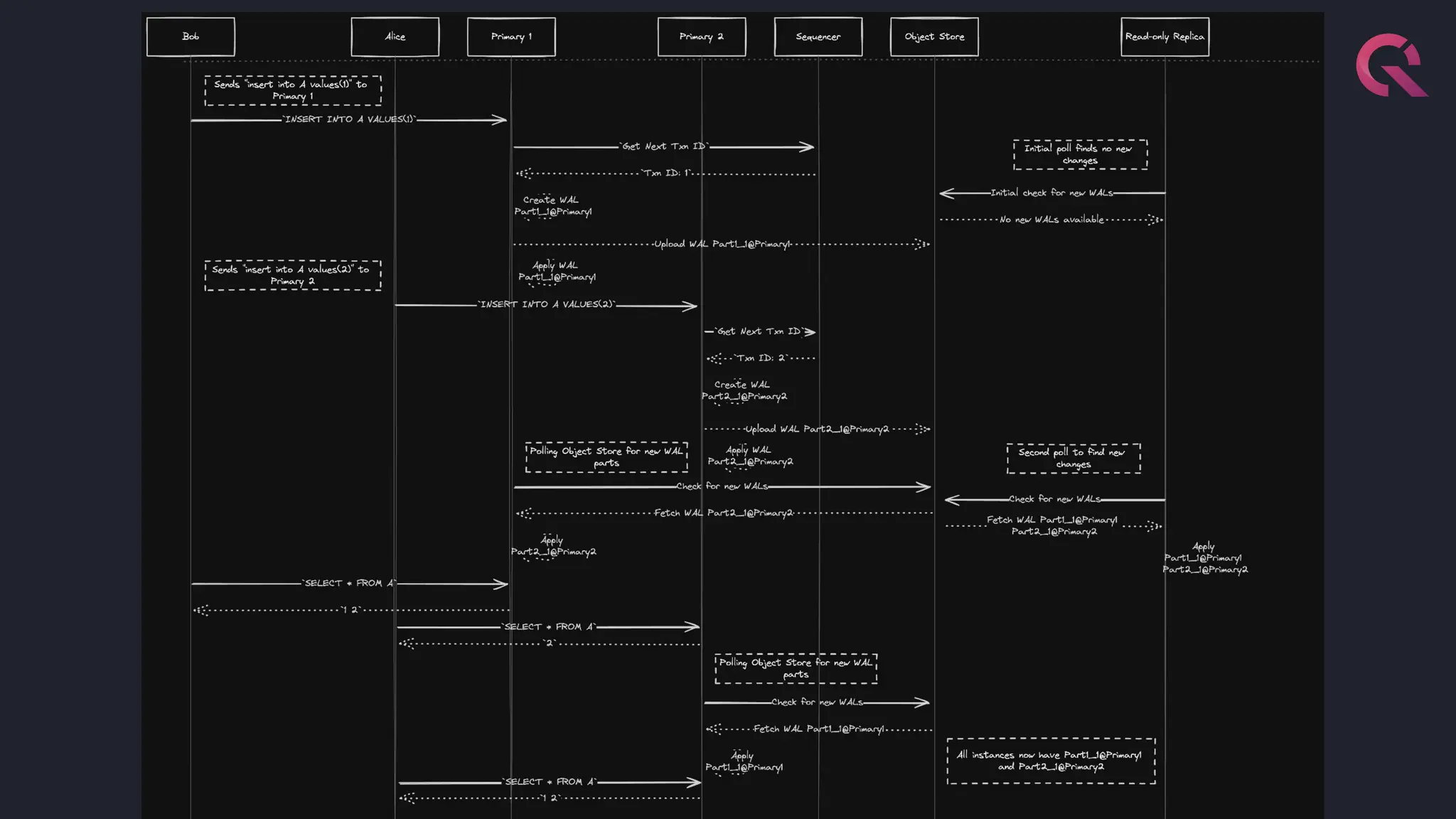

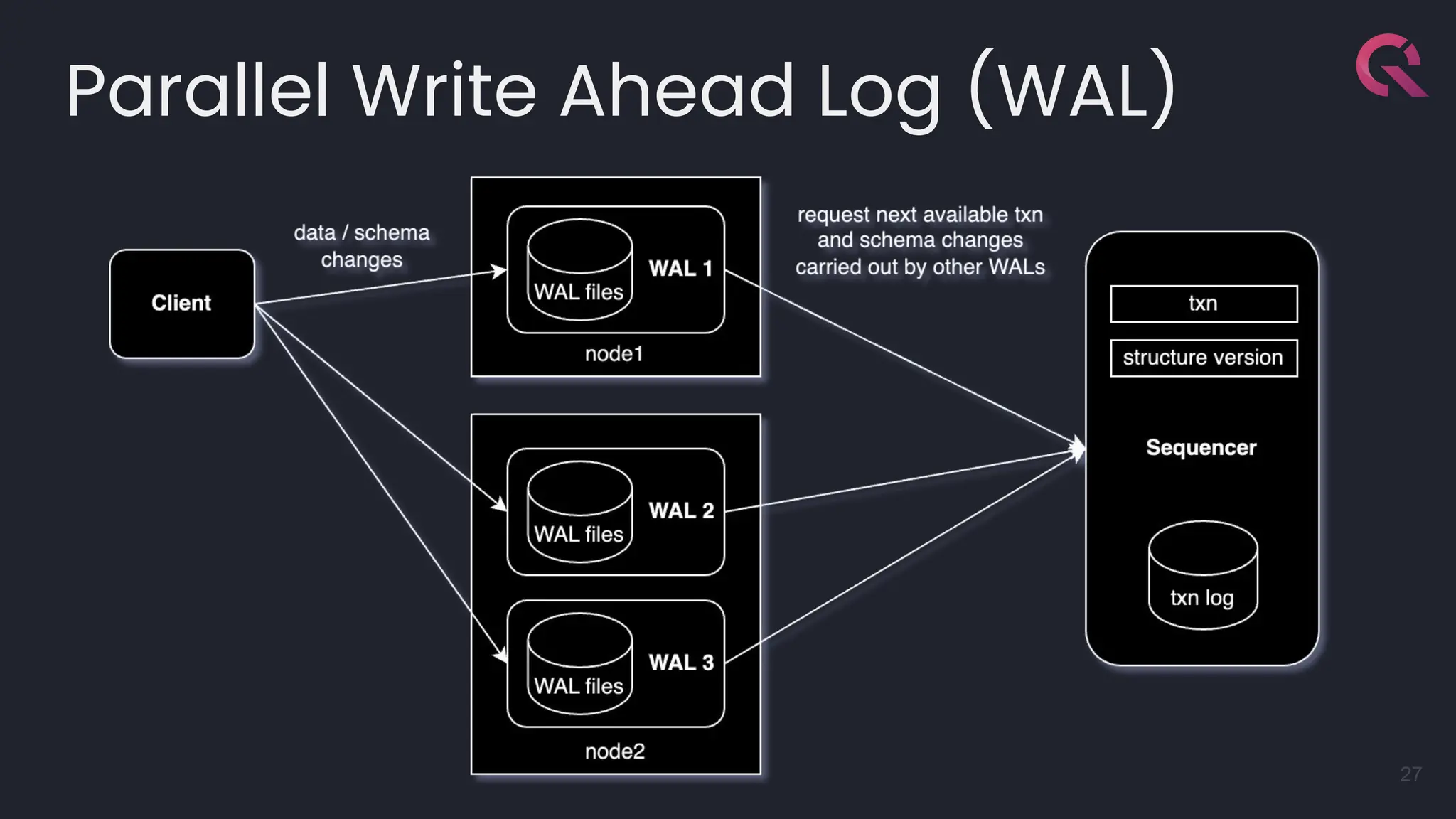

27. Parallel Write Ahead Log (WAL)
27

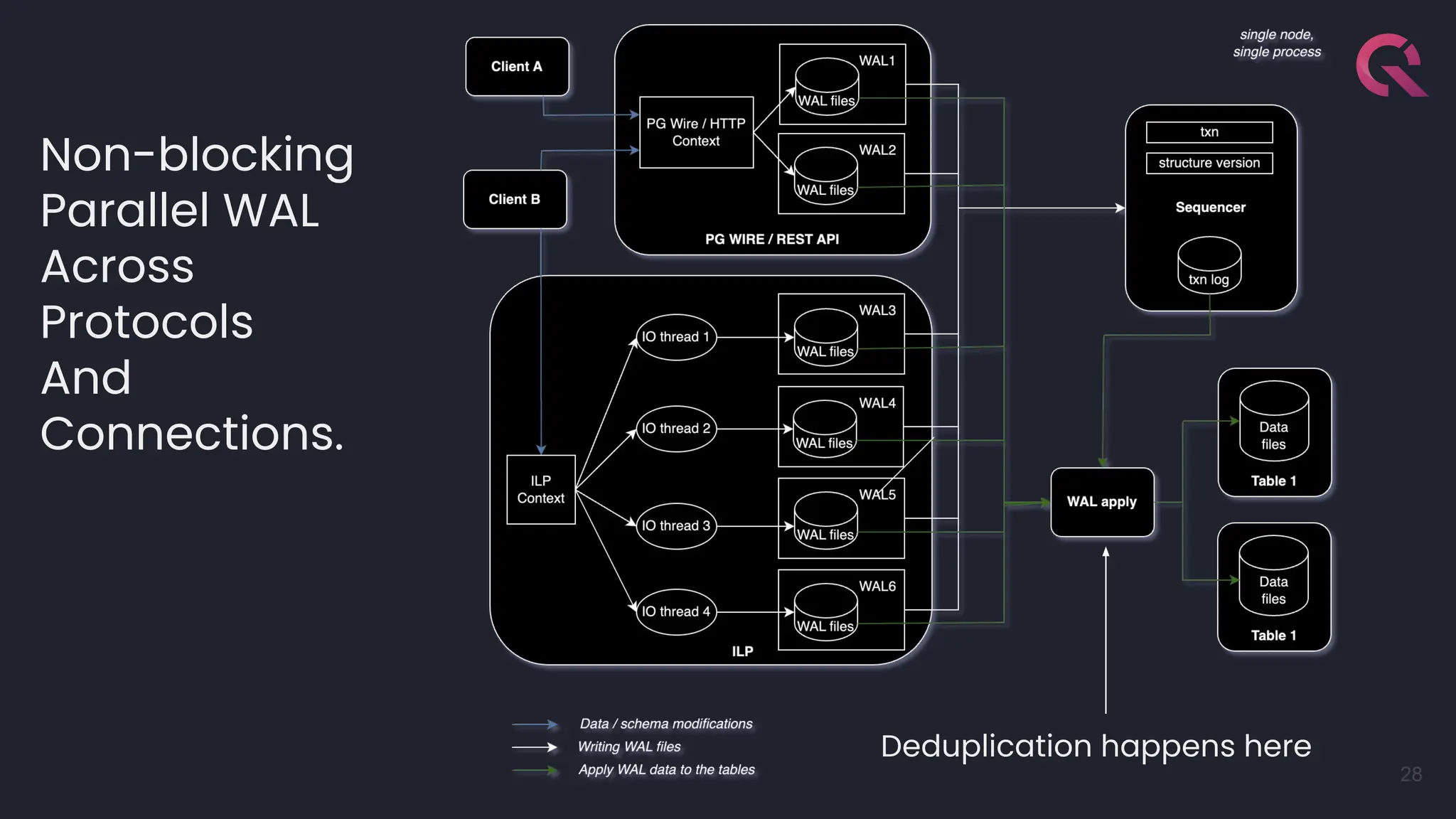

28. 28
Non-blocking
Parallel WAL
Across
Protocols
And
Connections.
Deduplication happens here

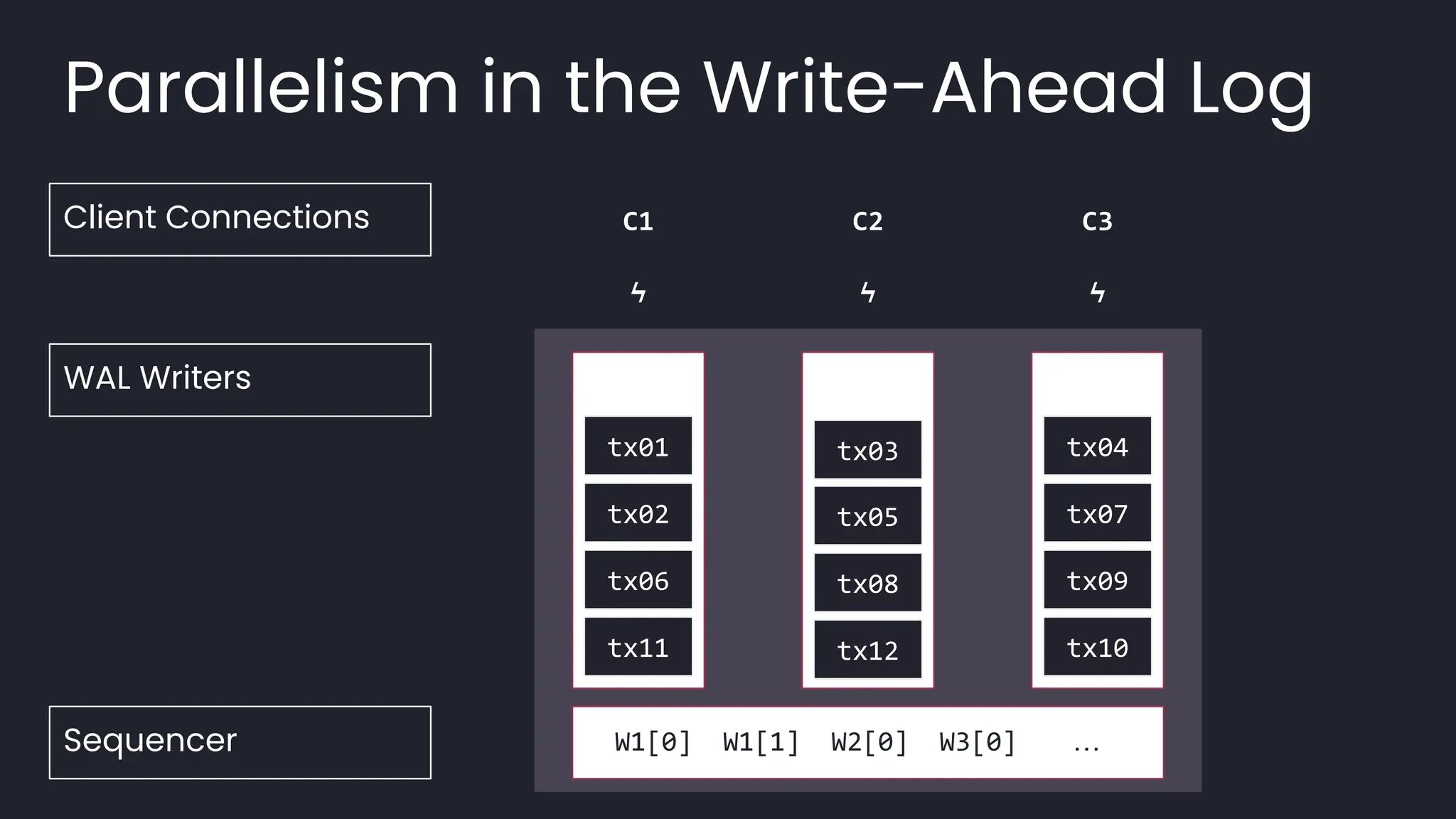

29. Parallelism in the Write-Ahead Log
Client Connections C1 C2 C3
ϟ ϟ ϟ
W3
W2
W1
WAL Writers
tx01 tx03 tx04
tx02
tx06
tx11
tx05
tx08
tx12
tx07
tx09
tx10
Sequencer W1[0] W1[1] W3[0]
W2[0] …

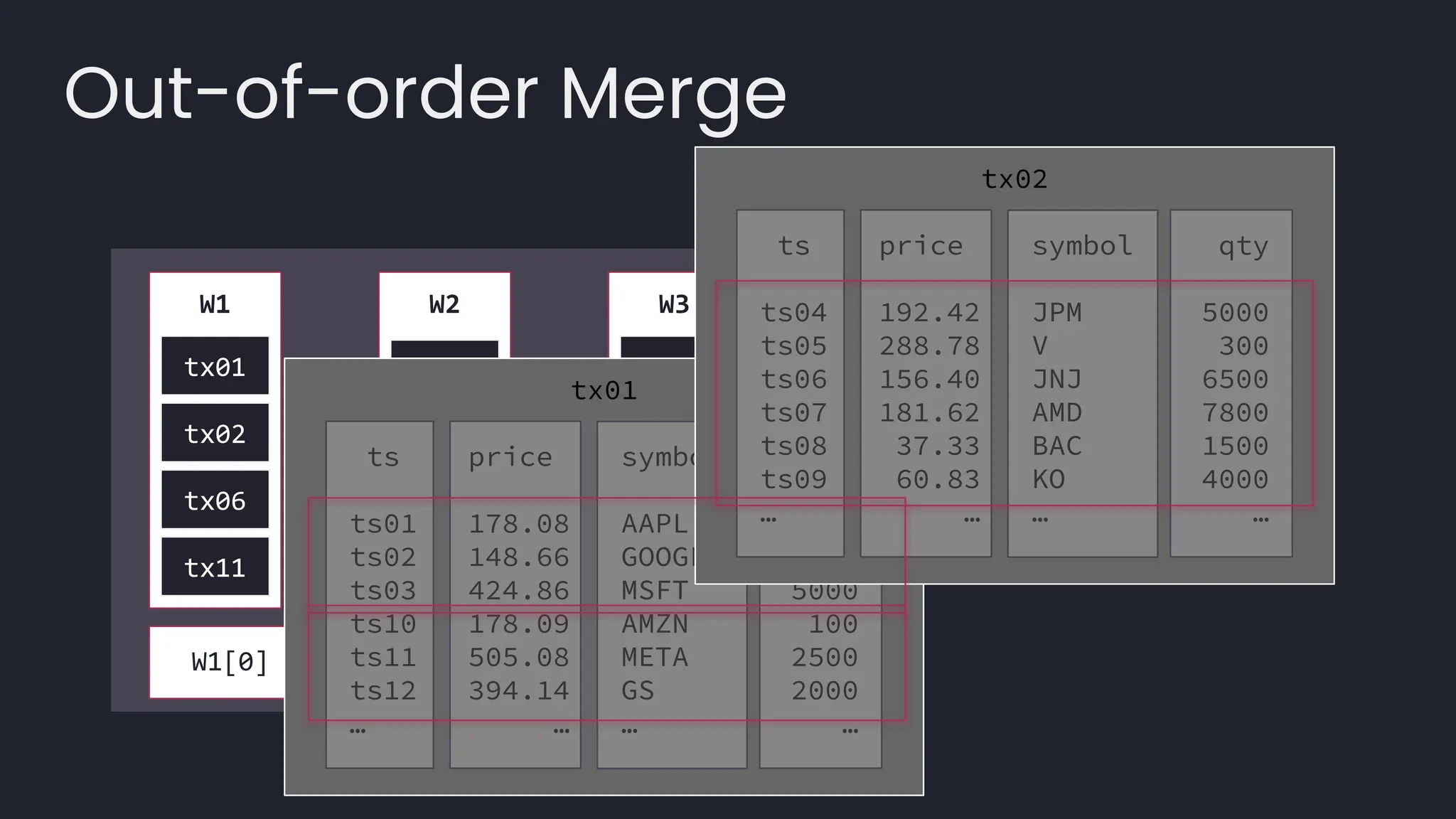

30. Out-of-order Merge
W3
W2
W1
tx01 tx03 tx04
tx02
tx06
tx11
tx05
tx08
tx12
tx07
tx09
tx10
W1[0] W1[1] W3[0]
W2[0] …
tx01
ts price symbol qty
ts01 178.08 AAPL 1000
ts02 148.66 GOOGL 400
ts03 424.86 MSFT 5000
ts10 178.09 AMZN 100
ts11 505.08 META 2500
ts12 394.14 GS 2000
… … … …
tx02
ts price symbol qty
ts04 192.42 JPM 5000
ts05 288.78 V 300
ts06 156.40 JNJ 6500
ts07 181.62 AMD 7800
ts08 37.33 BAC 1500
ts09 60.83 KO 4000
… … … …

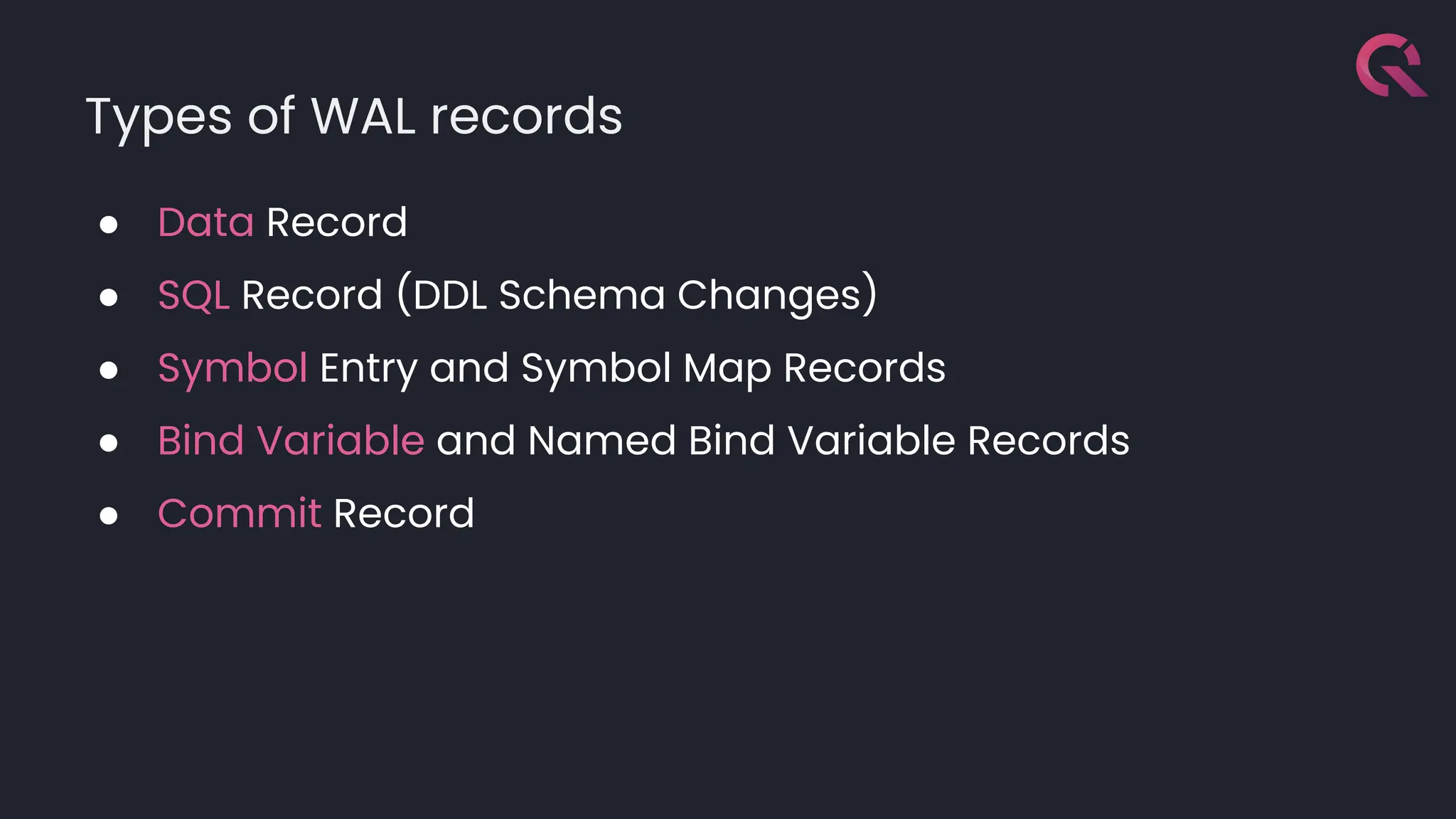

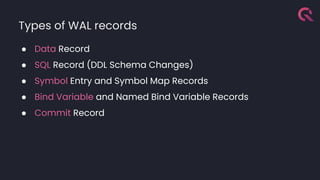

31. Types of WAL records
● Data Record
● SQL Record (DDL Schema Changes)
● Symbol Entry and Symbol Map Records
● Bind Variable and Named Bind Variable Records
● Commit Record

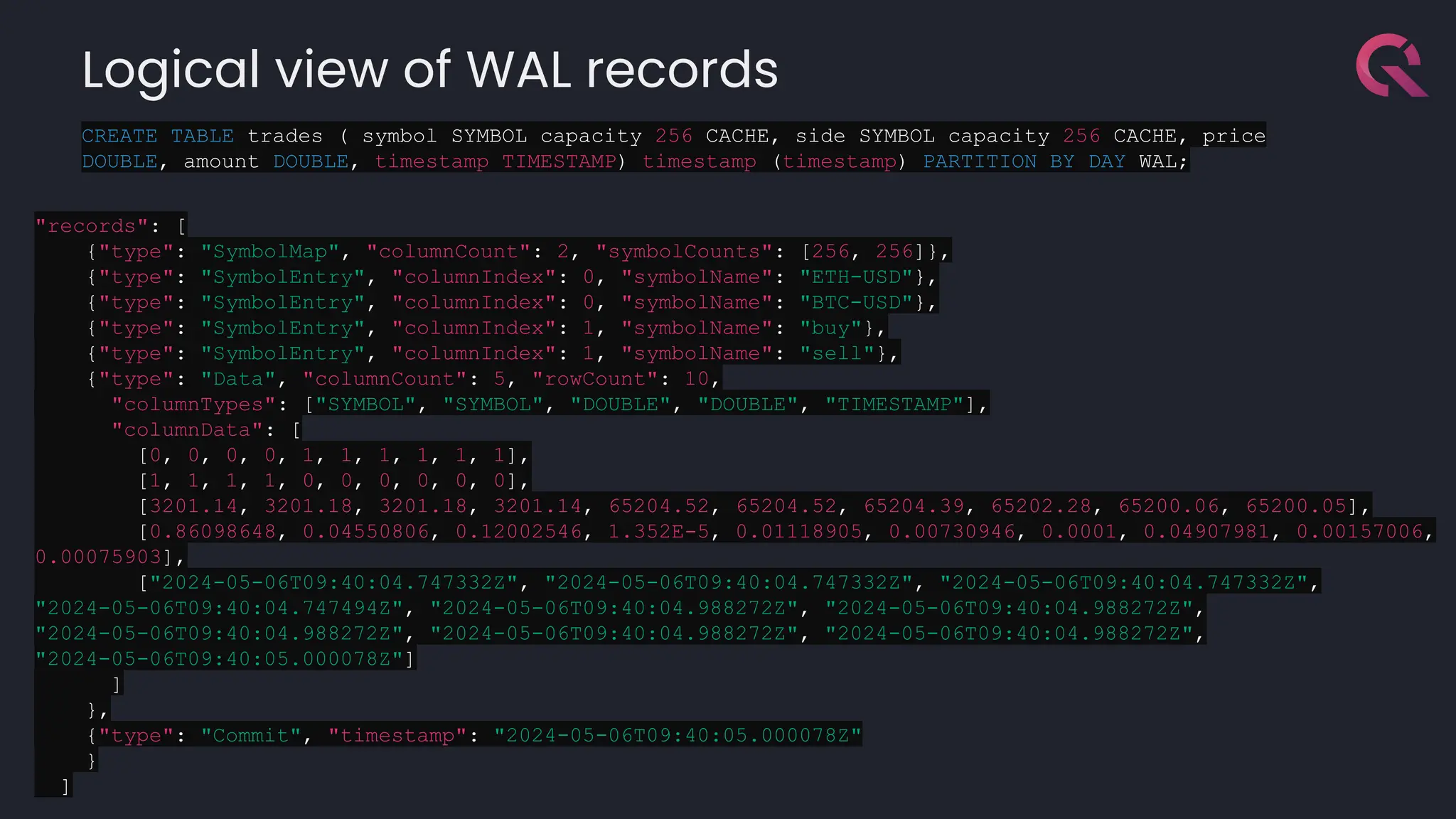

32. Logical view of WAL records
"records": [
{"type": "SymbolMap", "columnCount": 2, "symbolCounts": [256, 256]},
{"type": "SymbolEntry", "columnIndex": 0, "symbolName": "ETH-USD"},
{"type": "SymbolEntry", "columnIndex": 0, "symbolName": "BTC-USD"},
{"type": "SymbolEntry", "columnIndex": 1, "symbolName": "buy"},
{"type": "SymbolEntry", "columnIndex": 1, "symbolName": "sell"},
{"type": "Data", "columnCount": 5, "rowCount": 10,
"columnTypes": ["SYMBOL", "SYMBOL", "DOUBLE", "DOUBLE", "TIMESTAMP"],
"columnData": [
[0, 0, 0, 0, 1, 1, 1, 1, 1, 1],
[1, 1, 1, 1, 0, 0, 0, 0, 0, 0],
[3201.14, 3201.18, 3201.18, 3201.14, 65204.52, 65204.52, 65204.39, 65202.28, 65200.06, 65200.05],
[0.86098648, 0.04550806, 0.12002546, 1.352E-5, 0.01118905, 0.00730946, 0.0001, 0.04907981, 0.00157006,
0.00075903],
["2024-05-06T09:40:04.747332Z", "2024-05-06T09:40:04.747332Z", "2024-05-06T09:40:04.747332Z",
"2024-05-06T09:40:04.747494Z", "2024-05-06T09:40:04.988272Z", "2024-05-06T09:40:04.988272Z",
"2024-05-06T09:40:04.988272Z", "2024-05-06T09:40:04.988272Z", "2024-05-06T09:40:04.988272Z",
"2024-05-06T09:40:05.000078Z"]
]
},
{"type": "Commit", "timestamp": "2024-05-06T09:40:05.000078Z"
}
]
CREATE TABLE trades ( symbol SYMBOL capacity 256 CACHE, side SYMBOL capacity 256 CACHE, price
DOUBLE, amount DOUBLE, timestamp TIMESTAMP) timestamp (timestamp) PARTITION BY DAY WAL;

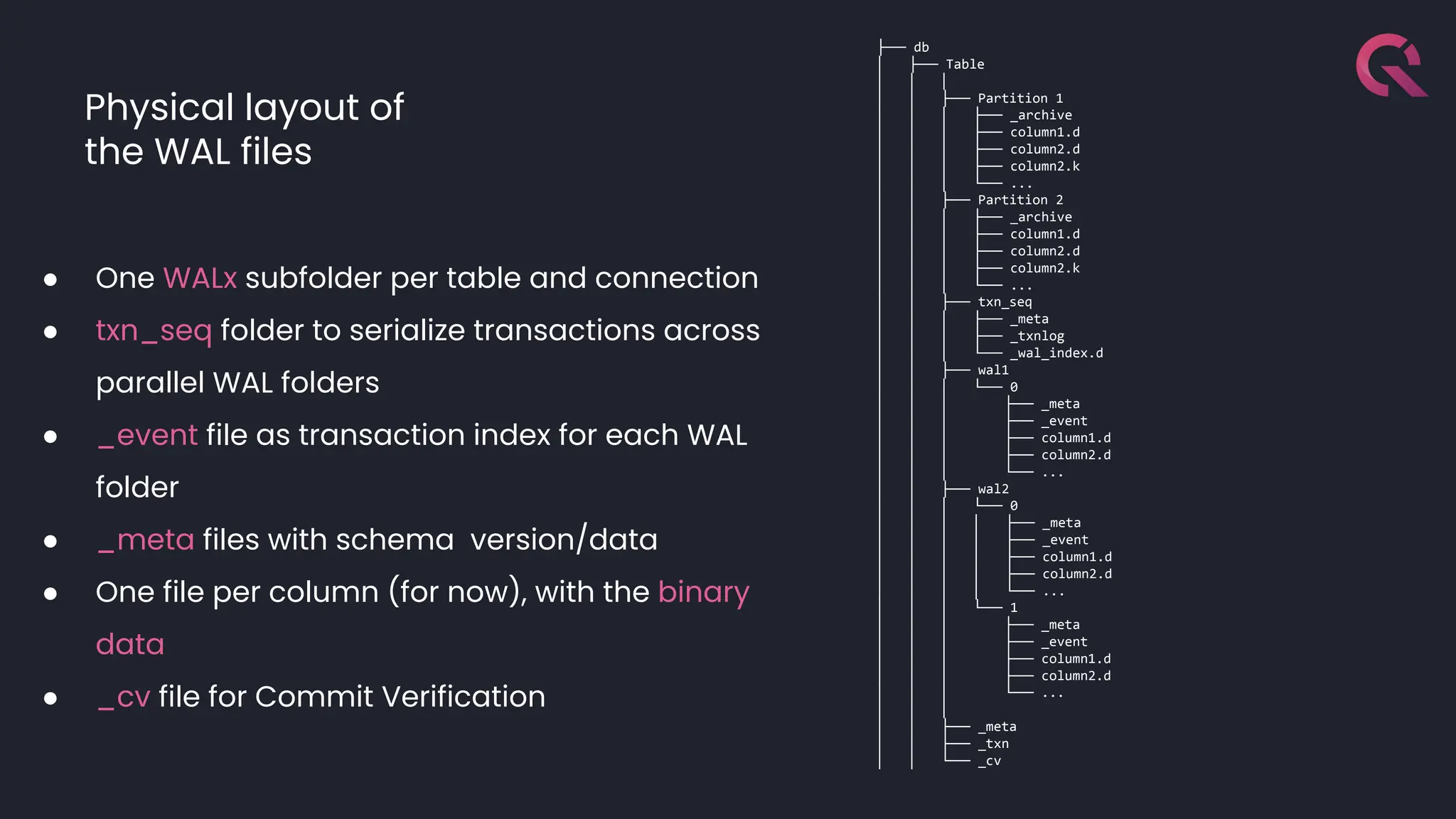

33. Physical layout of
the WAL files
├── db
│ ├── Table
│ │ │
│ │ ├── Partition 1
│ │ │ ├── _archive
│ │ │ ├── column1.d
│ │ │ ├── column2.d
│ │ │ ├── column2.k
│ │ │ └── ...
│ │ ├── Partition 2
│ │ │ ├── _archive
│ │ │ ├── column1.d
│ │ │ ├── column2.d
│ │ │ ├── column2.k
│ │ │ └── ...
│ │ ├── txn_seq
│ │ │ ├── _meta
│ │ │ ├── _txnlog
│ │ │ └── _wal_index.d
│ │ ├── wal1
│ │ │ └── 0
│ │ │ ├── _meta
│ │ │ ├── _event
│ │ │ ├── column1.d
│ │ │ ├── column2.d
│ │ │ └── ...
│ │ ├── wal2
│ │ │ └── 0
│ │ │ │ ├── _meta
│ │ │ │ ├── _event
│ │ │ │ ├── column1.d
│ │ │ │ ├── column2.d
│ │ │ │ └── ...
│ │ │ └── 1
│ │ │ ├── _meta
│ │ │ ├── _event
│ │ │ ├── column1.d
│ │ │ ├── column2.d
│ │ │ └── ...
│ │ │
│ │ ├── _meta
│ │ ├── _txn
│ │ └── _cv
● One WALx subfolder per table and connection
● txn_seq folder to serialize transactions across
parallel WAL folders
● _event file as transaction index for each WAL
folder
● _meta files with schema version/data
● One file per column (for now), with the binary
data
● _cv file for Commit Verification

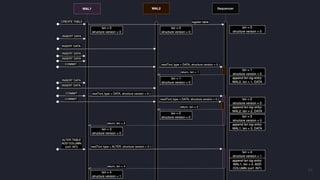

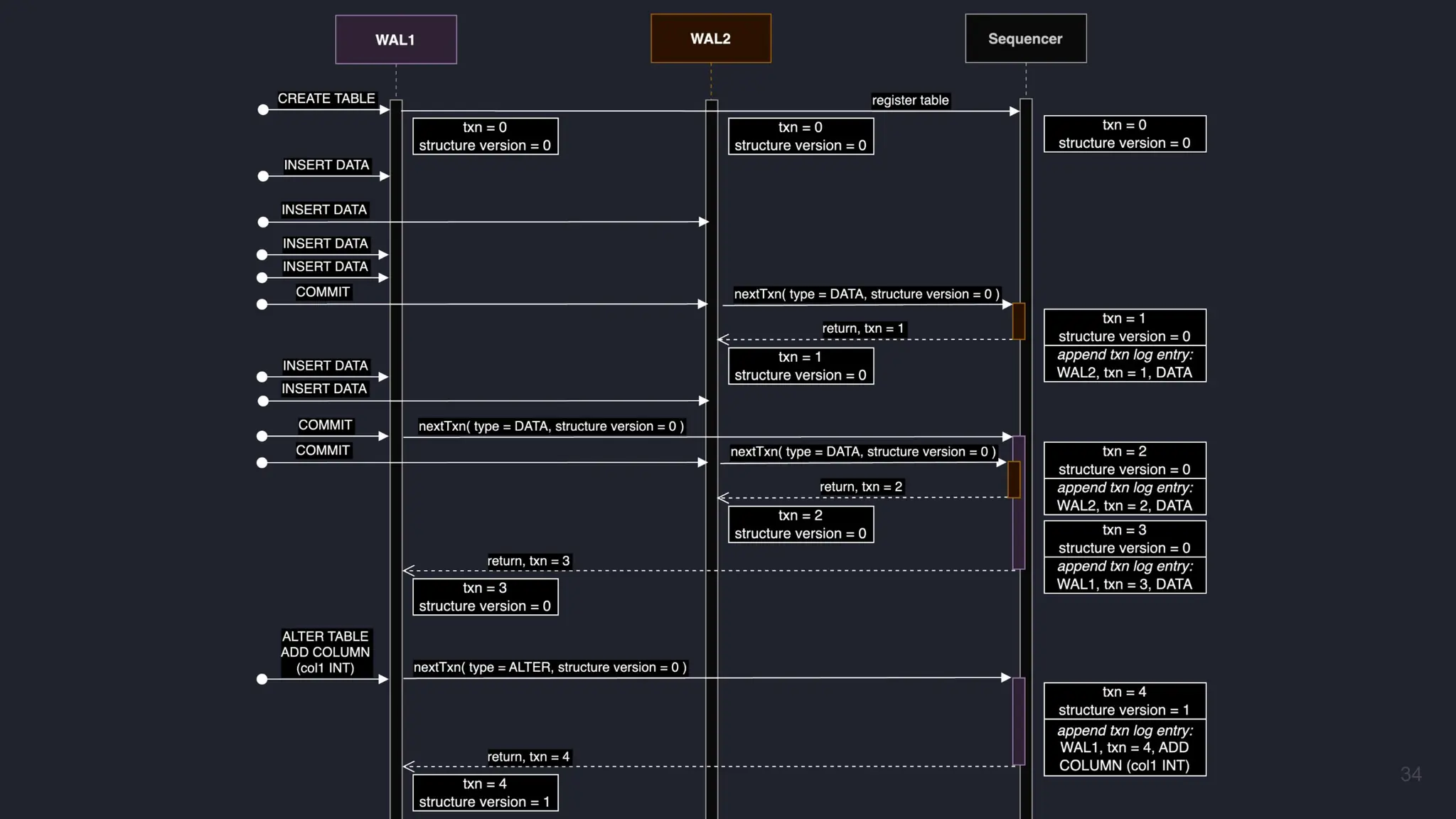

34. 34

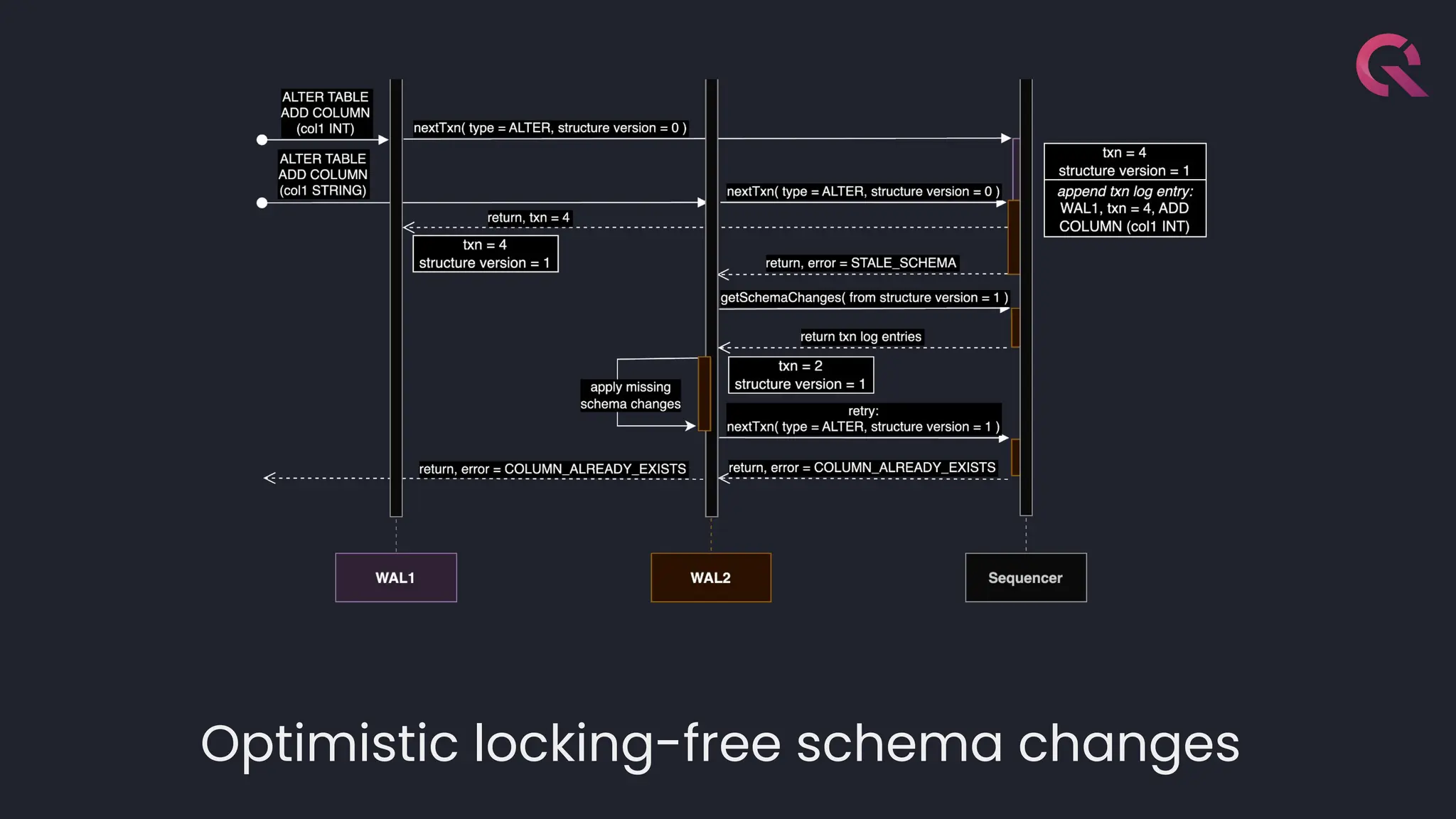

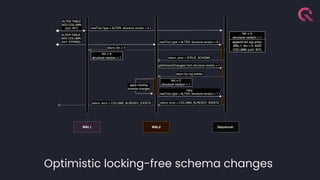

35. Optimistic locking-free schema changes

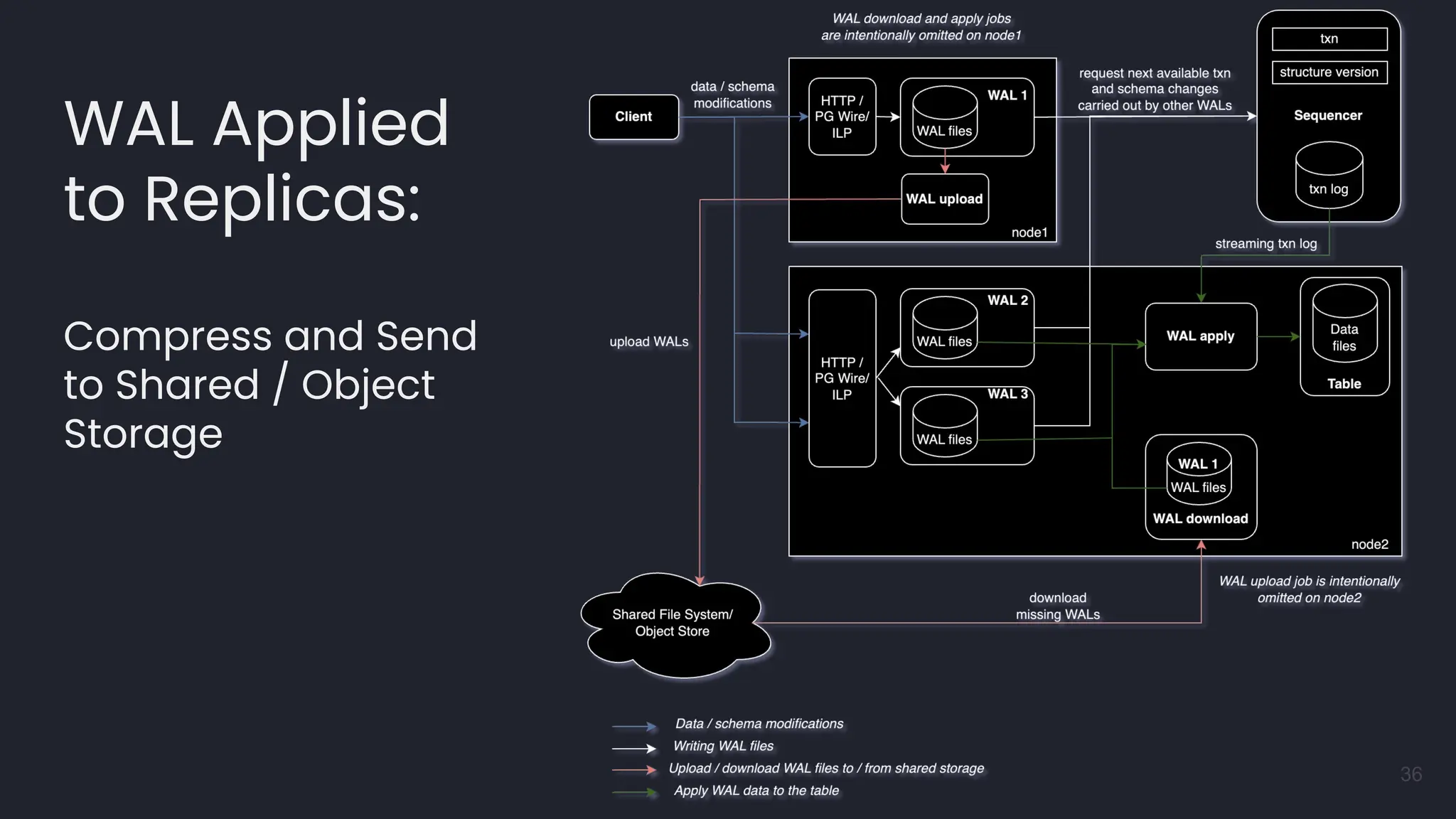

36. WAL Applied
to Replicas:
Compress and Send
to Shared / Object
Storage
36

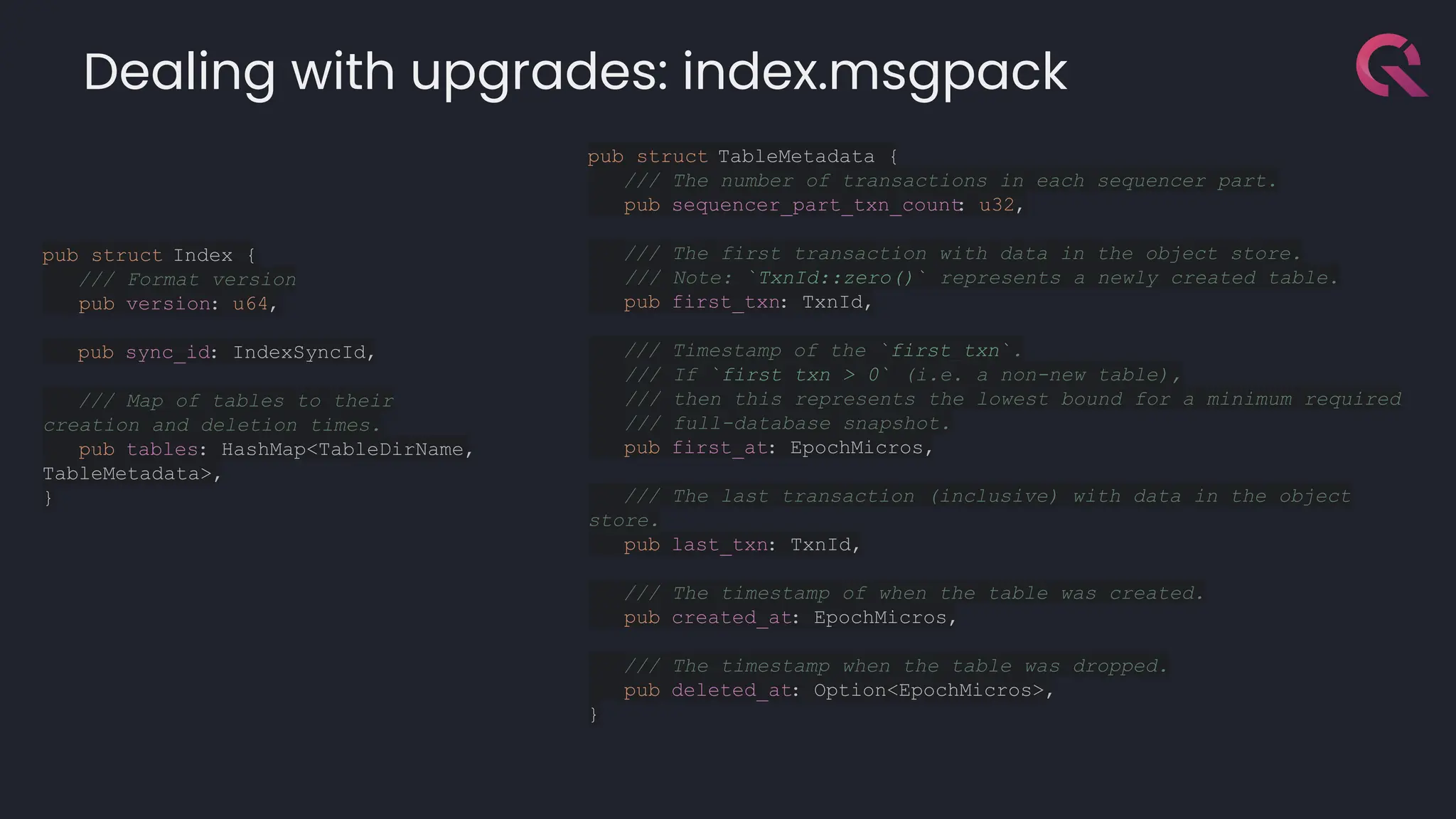

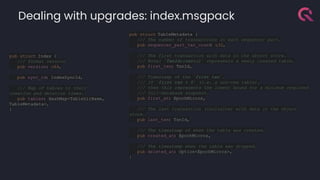

37. Dealing with upgrades: index.msgpack
pub struct TableMetadata {
/// The number of transactions in each sequencer part.
pub sequencer_part_txn_count
: u32,
/// The first transaction with data in the object store.
/// Note: `TxnId::zero()` represents a newly created table.
pub first_txn: TxnId,
/// Timestamp of the `first_txn`.
/// If `first_txn > 0` (i.e. a non-new table),
/// then this represents the lowest bound for a minimum required
/// full-database snapshot.
pub first_at: EpochMicros,
/// The last transaction (inclusive) with data in the object
store.
pub last_txn: TxnId,
/// The timestamp of when the table was created.
pub created_at: EpochMicros,
/// The timestamp when the table was dropped.
pub deleted_at: Option<EpochMicros>,
}
pub struct Index {
/// Format version
pub version: u64,
pub sync_id: IndexSyncId,
/// Map of tables to their
creation and deletion times.
pub tables: HashMap<TableDirName,
TableMetadata>,
}

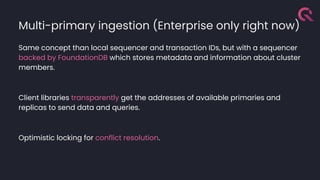

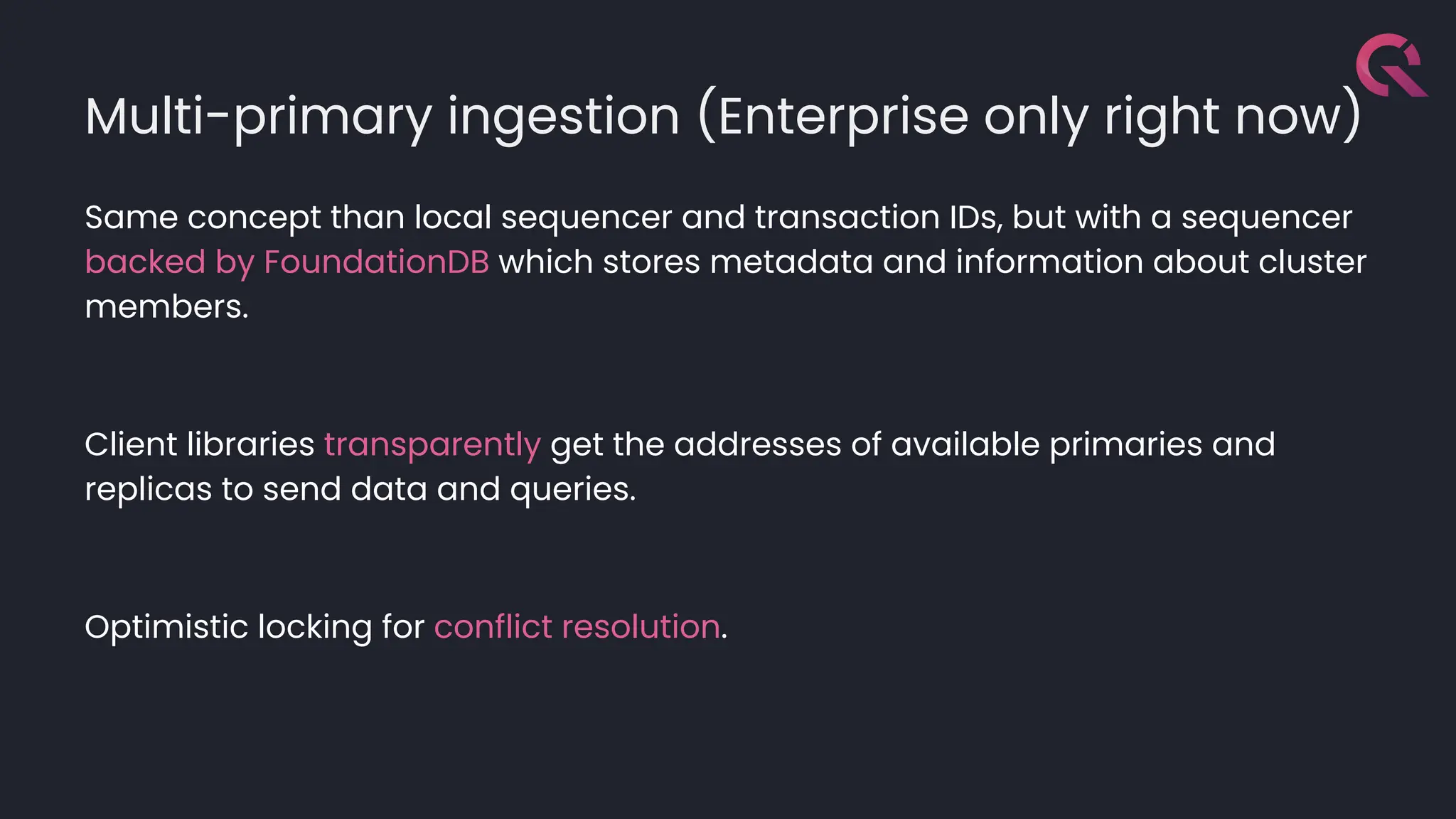

38. Multi-primary ingestion (Enterprise only right now)
Same concept than local sequencer and transaction IDs, but with a sequencer
backed by FoundationDB which stores metadata and information about cluster
members.
Client libraries transparently get the addresses of available primaries and
replicas to send data and queries.
Optimistic locking for conflict resolution.

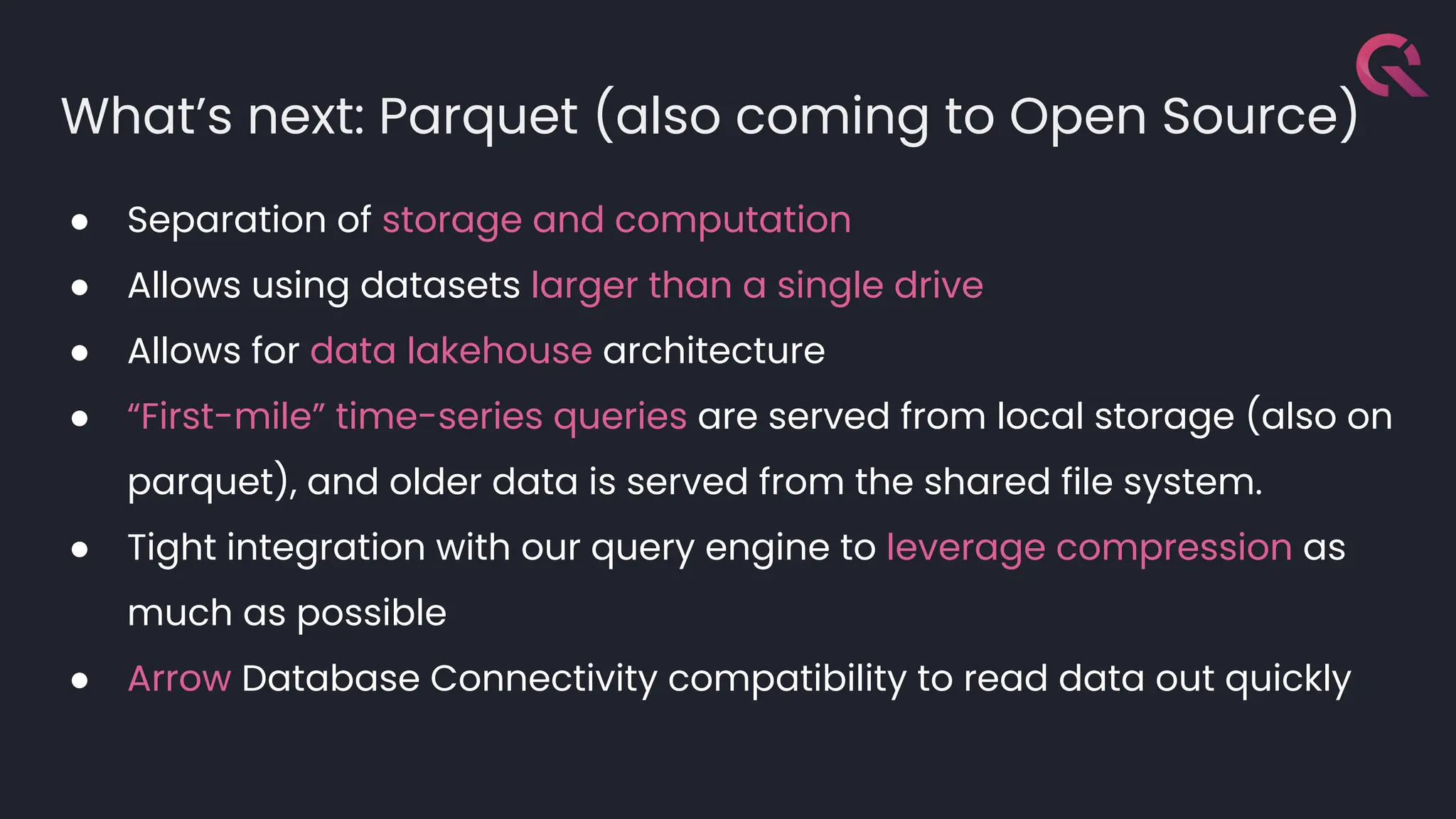

39. What’s next: Parquet (also coming to Open Source)
● Separation of storage and computation
● Allows using datasets larger than a single drive
● Allows for data lakehouse architecture
● “First-mile” time-series queries are served from local storage (also on
parquet), and older data is served from the shared file system.
● Tight integration with our query engine to leverage compression as
much as possible
● Arrow Database Connectivity compatibility to read data out quickly

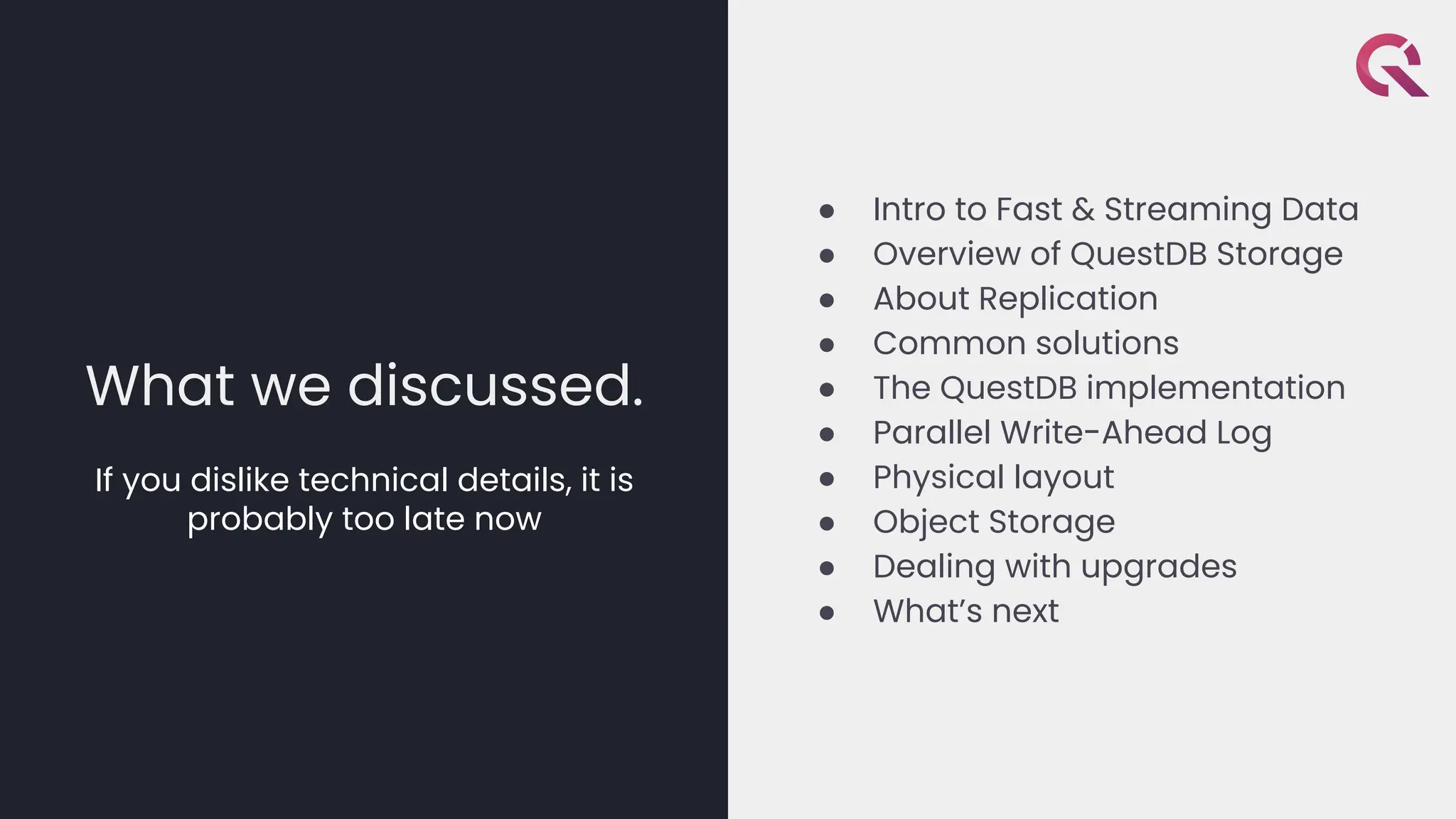

40. What we discussed.
If you dislike technical details, it is
probably too late now
● Intro to Fast & Streaming Data
● Overview of QuestDB Storage
● About Replication
● Common solutions
● The QuestDB implementation
● Parallel Write-Ahead Log
● Physical layout
● Object Storage
● Dealing with upgrades
● What’s next

41. QuestDB OSS
Open Source. Self-managed. Suitable for
production workloads.
https://github.com/questdb/questdb
QuestDB Enterprise
Licensed. Self-managed. Enterprise features like
RBAC, compression, replication, TLS on all
protocols, cold storage, K8s operator…
https://questdb.io/enterprise/
QuestDB Cloud
Fully managed, pay per usage environment,
with enterprise-grade features.
https://questdb.io/cloud/

42. 42
● github.com/questdb/questdb
● https://questdb.io
● https://demo.questdb.io
● https://slack.questdb.io/
● https://github.com/questdb/time-series-
streaming-analytics-template
We 💕 contributions
and GitHub ⭐ stars
Javier Ramírez
@supercoco9
Database Advocate
