- 1. How To Design, Build And Map IT And Business Services In Splunk Dan Byrd ITSI Specialist

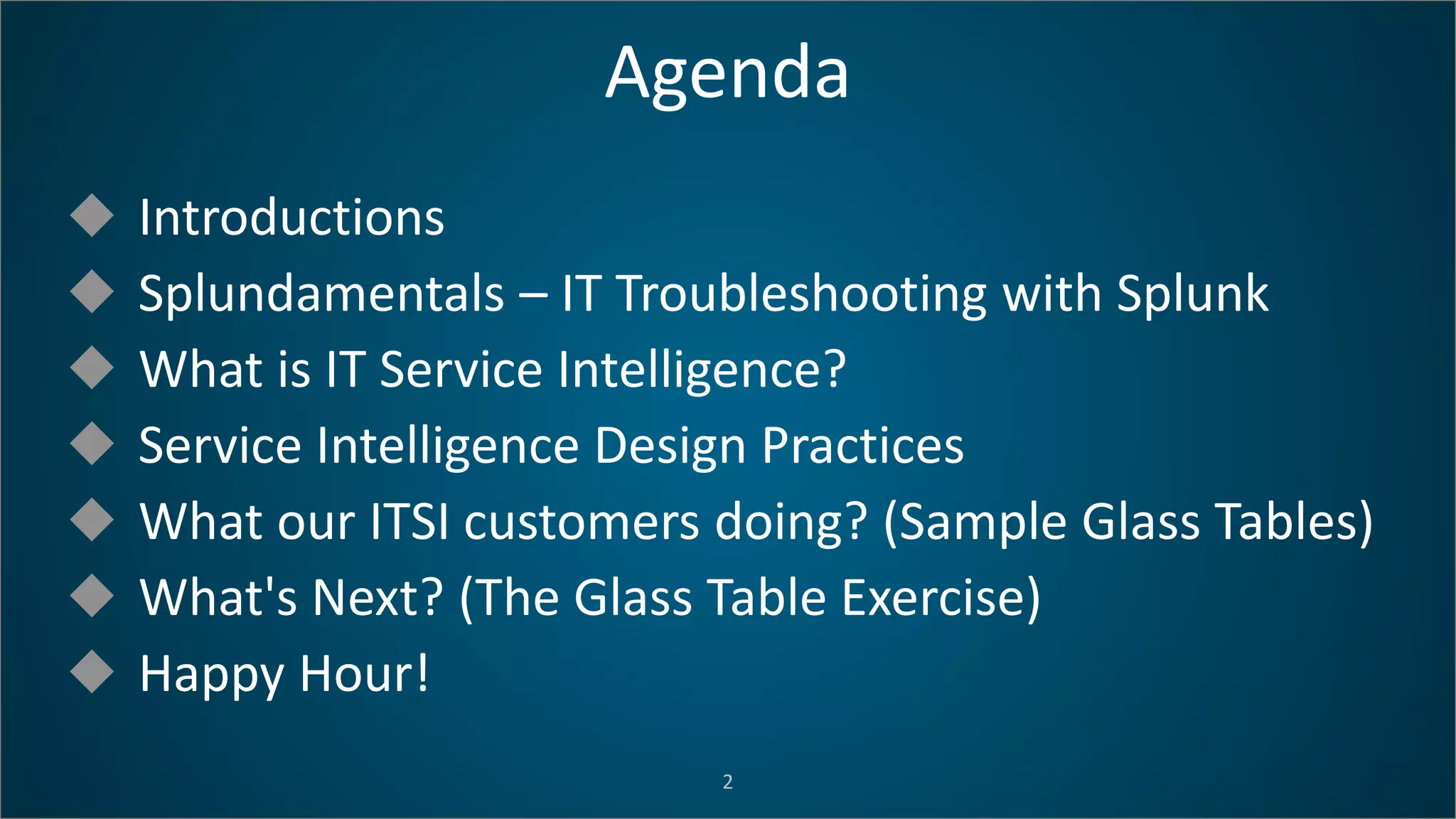

- 2. Agenda 2 Introductions Splundamentals – IT Troubleshooting with Splunk What is IT Service Intelligence? Service Intelligence Design Practices What our ITSI customers doing? (Sample Glass Tables) What's Next? (The Glass Table Exercise) Happy Hour!
- 3. Safe Harbor Statement During the course of this presentation, we may make forward looking statements regarding future events or the expected performance of the company. We caution you that such statements reflect our current expectations and estimates based on factors currently known to us and that actual events or results could differ materially. For important factors that may cause actual results to differ from those contained in our forward-looking statements, please review our filings with the SEC. The forward-looking statements made in this presentation are being made as of the time and date of its live presentation. If reviewed after its live presentation, this presentation may not contain current or accurate information. We do not assume any obligation to update any forward looking statements we may make. In addition, any information about our roadmap outlines our general product direction and is subject to change at any time without notice. It is for informational purposes only and shall not be incorporated into any contract or other commitment. Splunk undertakes no obligation either to develop the features or functionality described orto includeany suchfeatureor functionalityina futurerelease. 3
- 4. What is Service Intelligence? Enabling a business-aware IT Measuring and reporting on indicators that matter Unlocking operational efficiencies Collaborating across silos to improve service operations Using data-driven decision making Solving problems and anticipating pitfalls with sophisticated analytics and powerful insights from machine data
- 5. Key Takeaways 1 Build on what you are already doing with Splunk Service Intelligence design and configuration practices 3 What is possible with Splunk IT Service Intelligence
- 6. Splundamentals – IT Troubleshooting with Splunk
- 7. Splunk Approach to Machine Data 7 Structured RDBMS SQL Schema on Write Traditional ETL Search Schema on Read Splunk Universal Indexing Volume Velocity Variety Unstructured • Define Static schema • ETL into Schema • Enrich at write • New data = new columns • New questions = new columns • “Data at rest” (delayed info) • Labor Intensive & time consuming Ideal for Reporting • “Schema-on-the-Fly” • Data in native format • Enrich at read • New data = no changes needed • New questions = no changes needed • “Data in motion” (Real time) • Fast time to value Ideal for Investigation
- 8. 8 Turning Machine Data Into Business Value Index Untapped Data: Any Source, Type, Volume & any Use Case Ask Any Question Application Delivery Security, Compliance and Fraud IT Operations Business Analytics Industrial Data and the Internet of Things Servers RFID Networks GPS Location Packaged Applications Messaging Desktops Online Shopping Cart Storage Smartphones and Devices Energy Meters Web Clickstreams Telecom Databases Call Detail Records Web Services Online Services On- Premises Private Cloud Public Cloud Security Custom Applications Application Delivery Security, Compliance and Fraud IT Operations Business Analytics Industrial Data and the Internet of Things
- 9. 9 Turning Machine Data Into Business Value Ask Any Question Application Delivery Security, Compliance and Fraud IT Operations Business Analytics Industrial Data and the Internet of Things Servers RFID Networks GPS Location Packaged Applications Messaging Desktops Online Shopping Cart Storage Smartphones and Devices Energy Meters Web Clickstreams Telecom Databases Call Detail Records Web Services Online Services On- Premises Private Cloud Public Cloud Security Custom Applications Different people, Asking different questions, All using the SAME Data Splunk> becomes the Data Fabric Platform for multiple use cases Multiple Use Cases from a Single Data Platform = Increased value Lower cost Improved collaboration
- 10. 10 Turning Machine Data Into Business Value Ask Any Question Application Delivery Security, Compliance and Fraud IT Operations Business Analytics Industrial Data and the Internet of Things On- Premises Private Cloud Public Cloud Different people, Asking different questions, All using the SAME Data Splunk> becomes the Data Fabric Platform for multiple use cases
- 11. Why Traditional Approaches Fail Network InfrastructureLayer Storage Server 74% -36% ApplicationLayer Synthetic APM Byte Code Instrumentation Adaptive Thresholding HP Run-Time Service Model CA Service Operations Insight IBM NetCool/Omnibus Zenoss Service Dynamics ------------------------------------------ Service Model definition & Correlation Engine Business Layer Aggregation/Correlation/Visualization Service Layer Challenges • Too many disparate components • Difficult to define Service Model • Labor intensive • Most implementations fail • Very important source is missing! (machine data) or the ‘Why’ for troublshooting
- 12. Data Approach With Splunk> Network InfrastructureLayer Packet, Payload, Traffic, Utilization, Perf Storage Utilization, Capacity, Performance Server Performance, Usage, Dependency 74% -36% ApplicationLayer Synthetic APM Availability, Capacity, User Experience Byte Code Instrumentation Usage, Experience, Performance, Quality Adaptive Thresholding Apps, Services, Systems Splunk> is the missing link • Data Fidelity • Single Repository for ALL data • Easier to Manage Services • Reduced Integrations • Reduced Point Solutions • Collaborative Approach • Quick time to value MACHINE DATA Data Fabric Platform Service Intelligence
- 13. Machine learning-powered analytics for real-time service insights, simplified operations and root-cause isolation
- 14. Time Series Index Schema on Read Data Model IT Service Intelligence Value Stack 14 Machine Learning Adaptive threshold automation to minimize false alerts Behavior anomaly alerts to proactively address issues Correlates data into knowledge mitigating SME dependency Visualizes entire tech stack – bare metal through business layer View the entire ecosystem with customized views for executives 3 clicks to get the answer versus 10 Dynamic Service Model Accelerators minimizing SPL coding Trend aggregation to enable rapid visualization Multi KPI Alerts for Proactive irregularity identification Search Based KPIs Core Splunk
- 15. The possibilitiesfor Business… These are Heath Scores – a high level aggregation of the health of the underlying processes.
- 16. The possibilitiesfor IT Operations… Service Health
- 17. Software Development Life Cycle The possibilities for Software Development…
- 18. What is a Service? Service Requests Responses In ITSI, a Service is a logical group of technology components that a user deems need to be monitored together. It can often be generalized as a “black box” which we send requests, and expect responses 18
- 19. What is a Service? DNS Requests Responses Technical Services Auth Requests Responses Web Requests Responses Services can be lower level (technical) … 19
- 20. What is a Service? DNS Requests Responses Technical Services Order Entry Volume Revenue Business Services Auth Requests Responses Web Requests Responses Customer Care Requests SLA Compliance Services can also be higher level (business) … 20
- 21. What is a Service? Packet Network Hypervisor and Hosts RBMDBs Storage Tier API Services Web Services CustomerTransactions Mobile API/Middleware BusinessFunction DNS Services can encompass multiple tiers of the IT domain. Services may also depend upon other services 21
- 22. What is a KPI? DNS KPI: Request volume KPI: Error rate KPI: Average response time KPI: Server CPU load KPI: Configuration changes Customer Transactions KPI: Transaction volume KPI: Error rate KPI: Average response time KPI: Max response time KPI: Count of Change records KPIs and Health scores constitute the means by which Services are monitored. 22 Business Function KPI: Business volume KPI: Error rate KPI: Revenue rate KPI: Conversion rate KPI: Count of Incident tickets
- 23. Key Performance Indicators (KPIs) 23 A Key Performance Indicator (KPI) is powered by a Splunk search in ITSI that monitors a specific attribute like CPU utilization, Response Time, Number of Errors and so on. KPIs are contained within Services to measure their health.
- 24. Service Health Scores 24 A Health score is a score form 0-100 (0 being critical and 100 being normal) that measures the health of a Service. It is calculated based on all KPIs importance and its status (e.g. green, orange, red), once every minute.
- 26. Bring Subject Experts Together Design Before Configuring Best Practices for Service Intelligence Start With a Problem Worth Solving
- 27. Start With A Problem Worth Solving Review your organization’s critical services Identify a service that has impactful and measurable challenges
- 28. Buttercup Games – How Can We Help? Manufacturer of toys and games Desire to improve supply chain efficiency and customer satisfaction New online store has issues that impact customer experience and revenue
- 29. The Business Problem for Buttercup Games Supply Chain Limited Visibility Frequent Bottlenecks ERP Systems Business Impact $48,000/wk in revenue loss War rooms 32 hrs/wk ?? ? Failed Interactions Online Store Poor Customer Satisfaction
- 30. Bring Subject Experts Together Identify stakeholders and support personnel for the selected service Create awareness and invite their collaboration to solve the business challenge
- 31. Design Before Configuring Identify pains, performance indicators and measurement goals for the service Identify components and data needed to drive service insights Consolidate the mappings into an enterprise process/IT services map
- 32. Service Intelligence Goals for Buttercup Games Supply Chain Limited Visibility Frequent Bottlenecks ERP Systems Business Impact $48,000/wk in revenue loss War rooms 32 hrs/wk ?? ? Failed Interactions Online Store Poor Customer Satisfaction GOAL 1 Continuous improvement through visibility to key indicators of supply chain performance GOAL 2 Increase customer satisfaction and reduce cost through fewer failures and restoration activities
- 33. Service Decomposition – Buttercup Games Service Layer Manufacturing Shipping Fulfillment Supply Chain Infrastructure Layer Application Layer Online Store EDI Web Tier Middleware Business Layer Order Entry
- 34. Putting It All Together Infrastructure Layer Application Layer Business Layer Service Layer Order Entry Manufacturing Shipping Fulfillment Supply Chain Online Store EDI Web Tier Middleware • Total Orders • Total Revenue • Unit Count • Unit Failures • Service Level • Delivery Time • Online Orders • Online Revenue • Response Time • ServiceHealth • Incidents/Changes • Customer Satisfaction • HTTP Hits • Error Rate • CPU Load • Memory Used • Disk Used • IO Latency • CPU Load • Memory Used • Disk Used • IO Latency • Response Time • Error Rate • Response Time • Storage Free • Response Time • Availability
- 35. Typical Data Sources Infrastructure Layer Application Layer Business Layer Service Layer Order Entry Manufacturing Shipping Fulfillment Supply Chain Online Store EDI Web Tier Middleware • Application Logs • Corporate Databases • Service Management • Application Logs • Webserver Logs • DB Perf Counters • Wire data • Perf Counters • Access Logs • Network Logs
- 37. What our ITSI Customers are doing
- 38. Call Center Service Service Health Transactions ACD Analysis – Core Splunk Call Wait History Inbound Analysis Social Media Online Msg Social Media Mail SupportVOIP Service Inbound Calls
- 39. Online Transactions Internal Transfer Service External Wire Service Money Exchange Service Money Transfer Services Service Health Corporate Reconciliation Service Fed Exchange Service Core Splunk Searches Transaction History System Investigation Heat Map Analysis
- 40. CIO Scorecard Enterprise Service Status Major Incidents Service Health Continuous Operational Visibility Volume Revenue Incidents Changes Major Changes Service Health Volume Revenue Incidents Changes Service Health Volume Ontime DeliveryIncidents Changes Service Health VolumeRevenue Incidents Changes Service Health Volume Revenue Incidents Changes Container UtilService Health Throughput Incidents Changes
- 41. The Vision - Business Operations Center • Splunk ITSI has the fundamentals to deliver on the promise of real time business visualizations • Modeled after your Security, Network, and IT Operations Centers • Monitoring and diagnosis of important ecommerce and brick and mortar operations • Enhanced with process insight from end-to-end, alerts, machine learning and real-time response NOC SOC BOC
- 42. Sign Up Now – We’re here to help! Harness the creativity and domain knowledge of your organization to unlock the value of data and solve an important Business Service problem through a joint service intelligence workshop with key stakeholders Define methods for: › Proactive service monitoring › Reduced risk and failures › Faster issue resolution › Increased business performance What is it? › 1 Day Onsite Workshop › Tightly linked with value › Collaborative approach › Build your own Glass Table
- 45. 46 Service Decomposition – White Board
- 46. WebMobile IIS/Legacy DB2/zOS JDE/Sql Apache netScaler Tomcat ElasticSearch SQLServer Spotfire IIS Spotfire Firehose zOS/CICS Legacy UF System Que Que Match Customers Customers
- 47. 48 Splunk ITSI – Glass Table
- 48. 49
- 49. Thank you!
