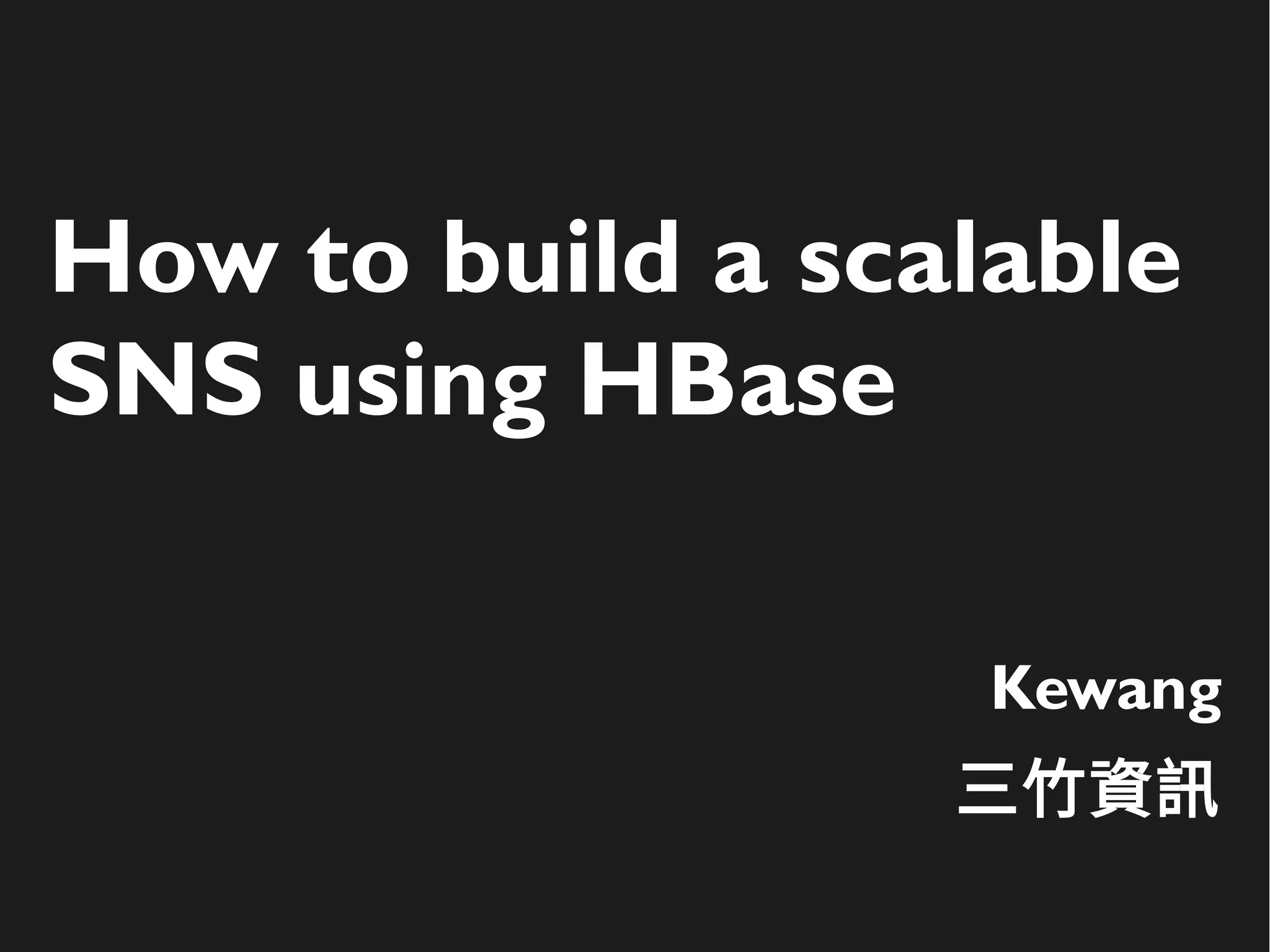

The document discusses various strategies for designing row keys in HBase. It covers techniques for avoiding hotspotting like salting, hashing, or reversing keys. It also discusses refining IDs by using shorter hashed values. Other sections provide examples for row keys that enable authentication with access tokens, comments linked to posts in a tree structure, access control lists for controlling data visibility, and organizing statistical data by time period and user. The overall goal of the document is to provide best practices for row key design in HBase to optimize performance and functionality.

1. How to build a scalable
SNS using HBase
Kewang
三竹資訊

2. Who I am
●
王慕羣
● Java / Node.js / AngularJS
● SQL-like / HBase
Github: kewang
Facebook: kewangtw
Linkedin: kewangtw
Slideshare: kewang
Mail: cpckewang@gmail.com

3. Who Mitake is
三竹資訊

4. Who Mitake is
三竹資訊
大家都唸 Mitake

5. Who Mitake is
三竹資訊

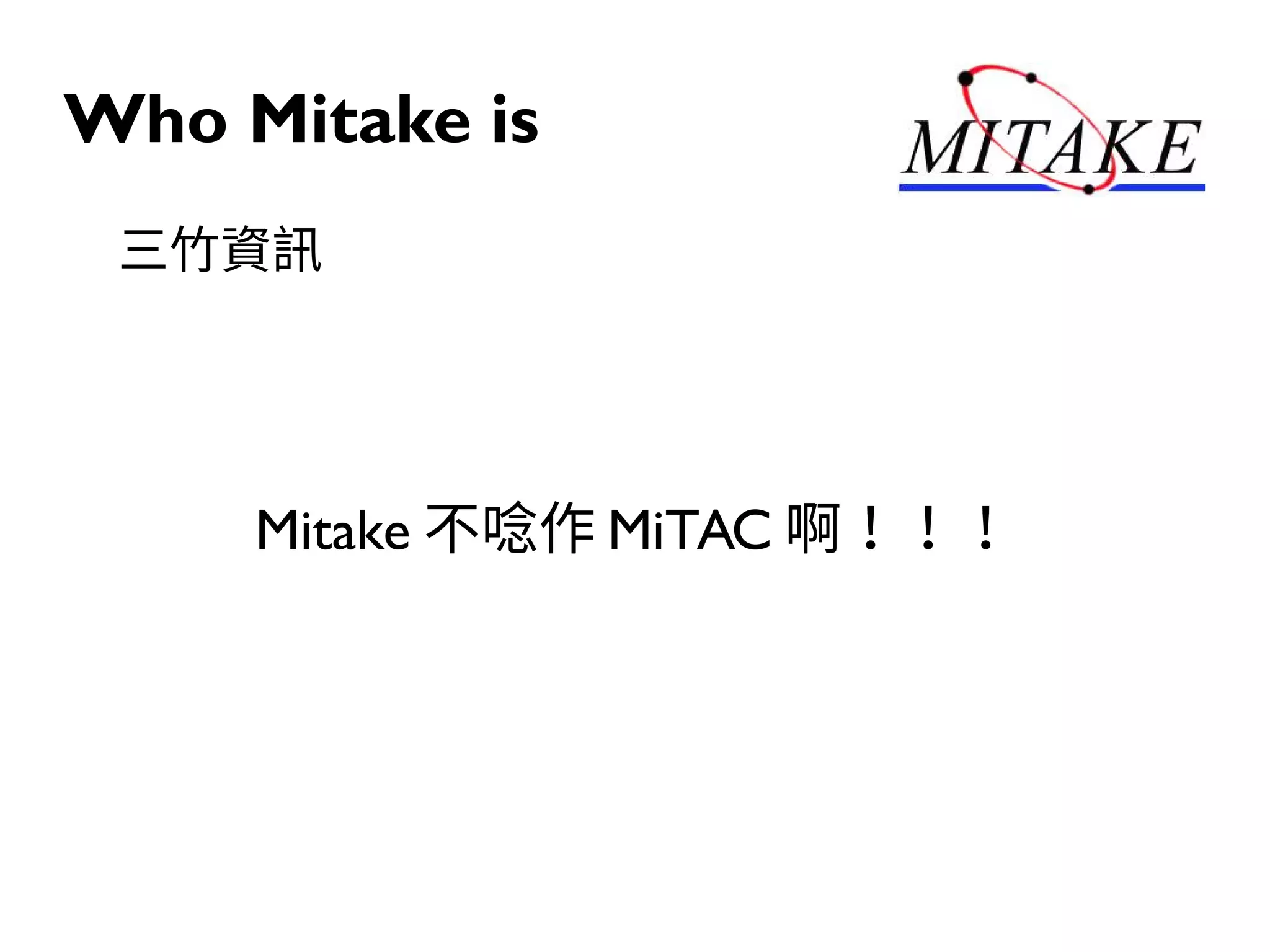

大家都唸 Mitake ，但我們公司都唸 Mitake

6. Who Mitake is
三竹資訊
Mitake 不唸作 MiTAC 啊！！！

7. Who Mitake is
三竹資訊

8. Who Mitake is
三竹資訊
●
簡訊平台

9. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：

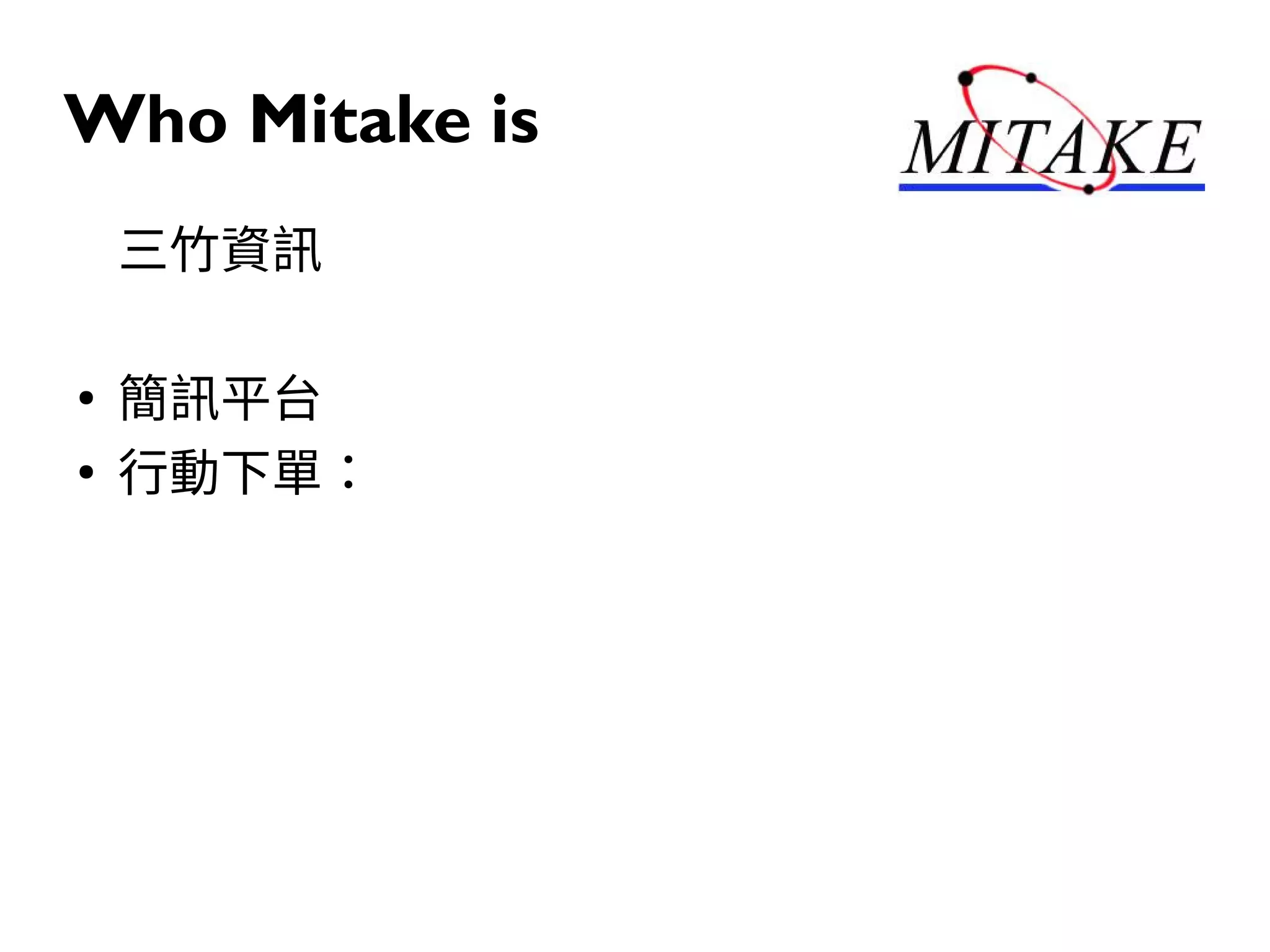

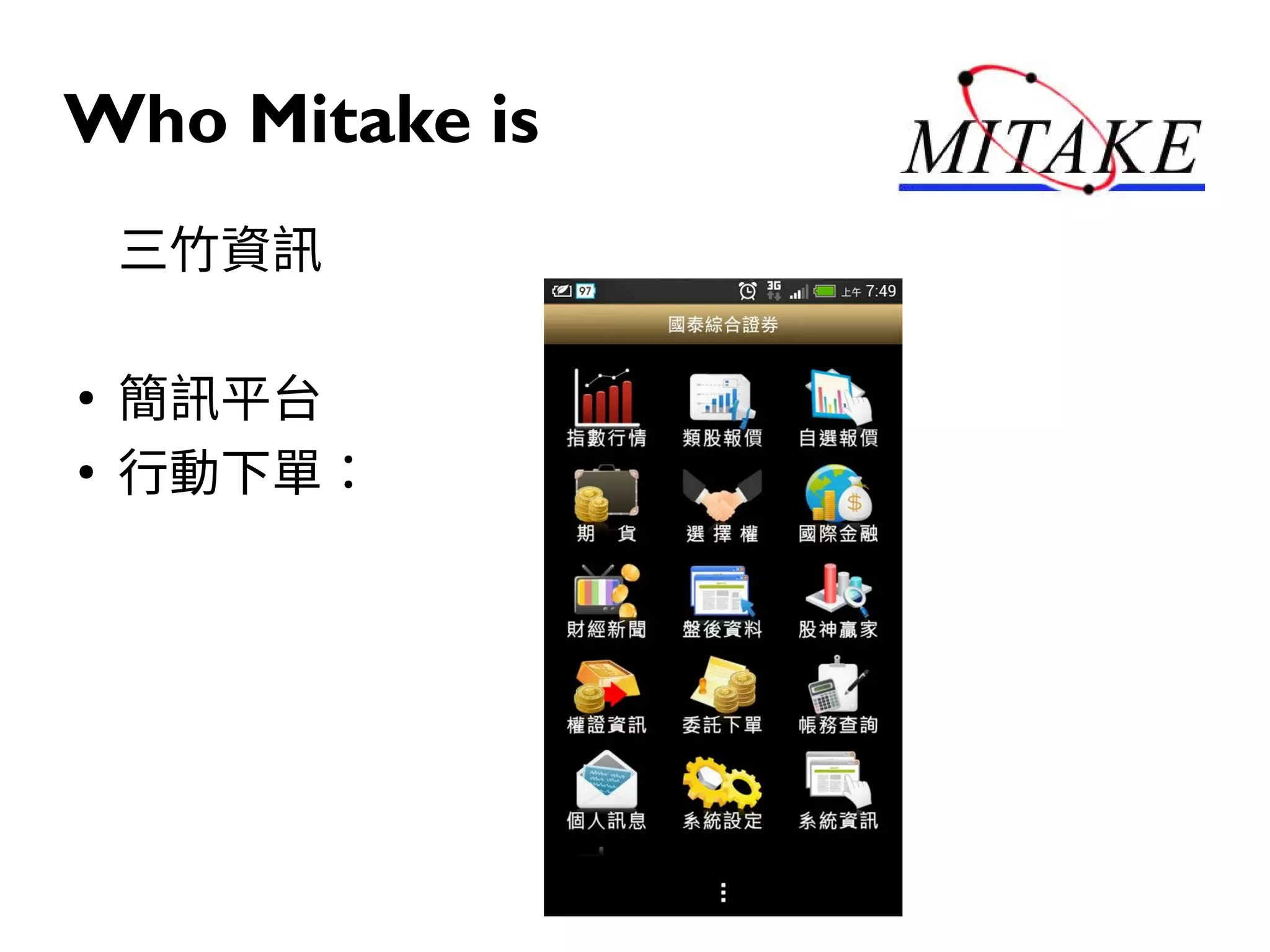

10. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：

11. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數

12. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數
●
行動銀行：

13. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數
●
行動銀行：臺銀、土銀、富邦、台新、聯邦、臺
企銀、遠銀、華南、澳盛、郵局、合庫、渣打 ...
等 18 家

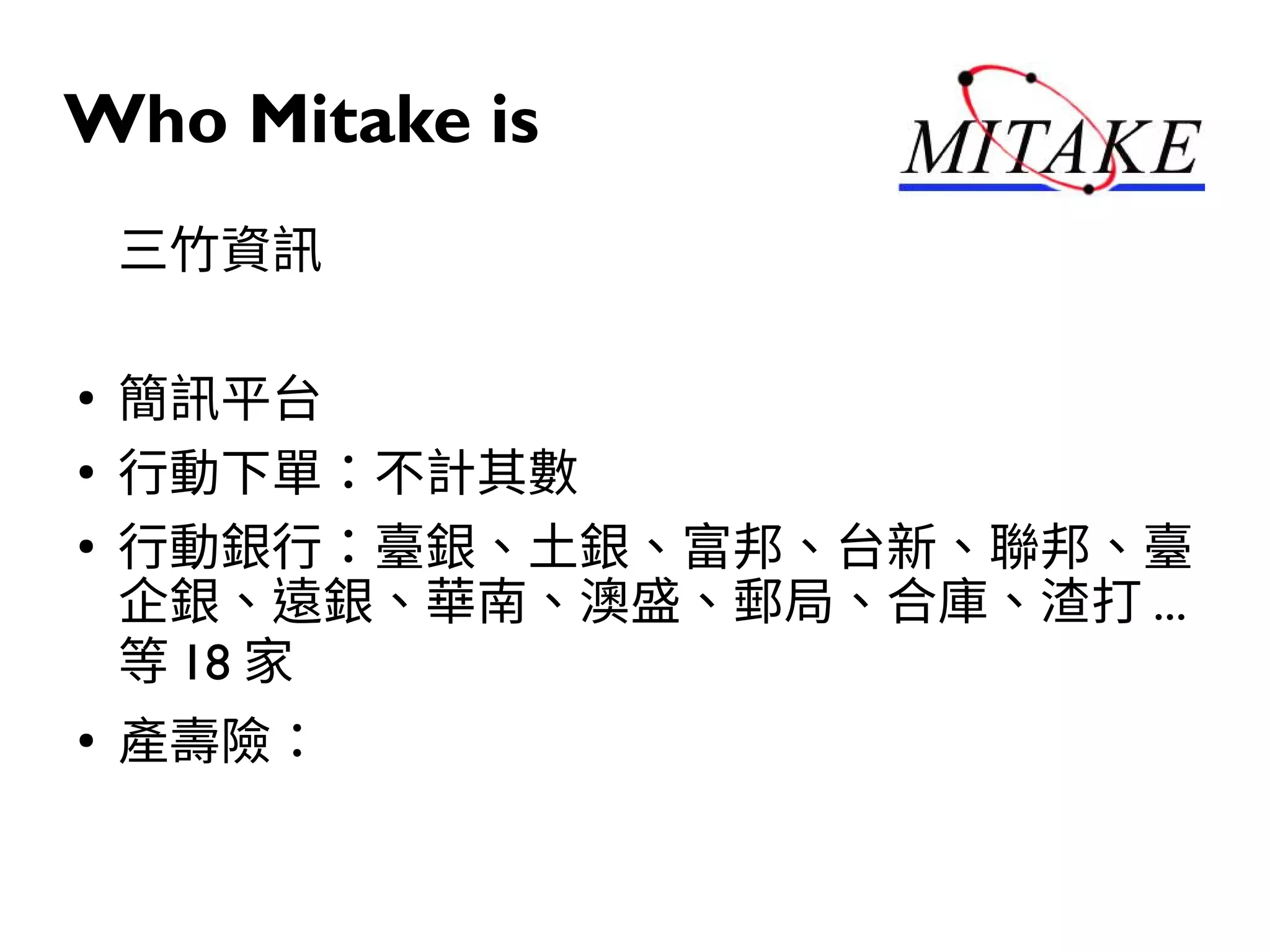

14. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數
●
行動銀行：臺銀、土銀、富邦、台新、聯邦、臺
企銀、遠銀、華南、澳盛、郵局、合庫、渣打 ...
等 18 家
●
產壽險：

15. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數
●
行動銀行：臺銀、土銀、富邦、台新、聯邦、臺企
銀、遠銀、華南、澳盛、郵局、合庫、渣打 ... 等 18
家
● 產壽險：全球、明台、新光、新安東京、富邦 ... 等

16. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數
●
行動銀行：臺銀、土銀、富邦、台新、聯邦、臺企
銀、遠銀、華南、澳盛、郵局、合庫、渣打 ... 等 18 家
● 產壽險：全球、明台、新光、新安東京、富邦 ... 等
●
其他：

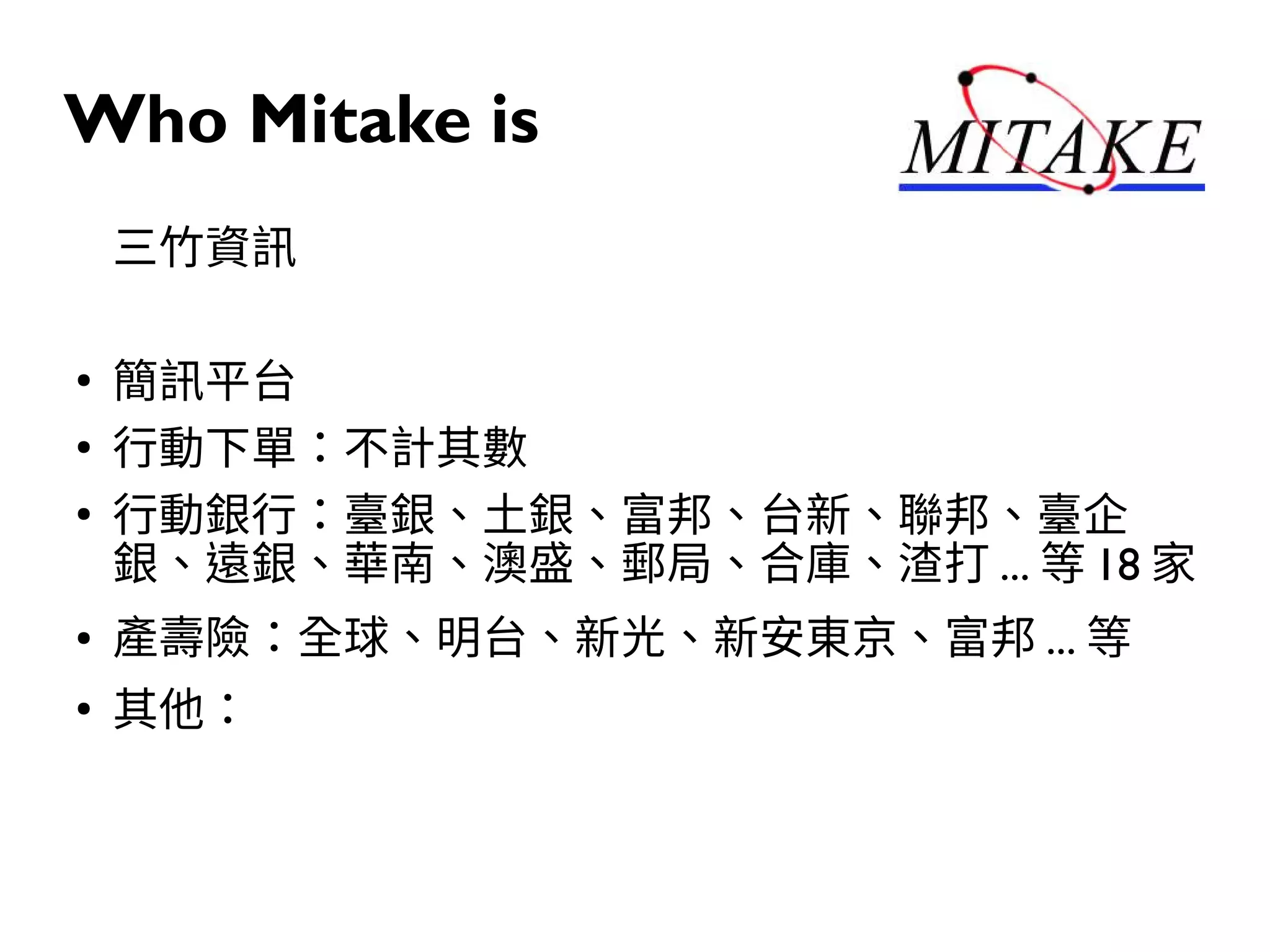

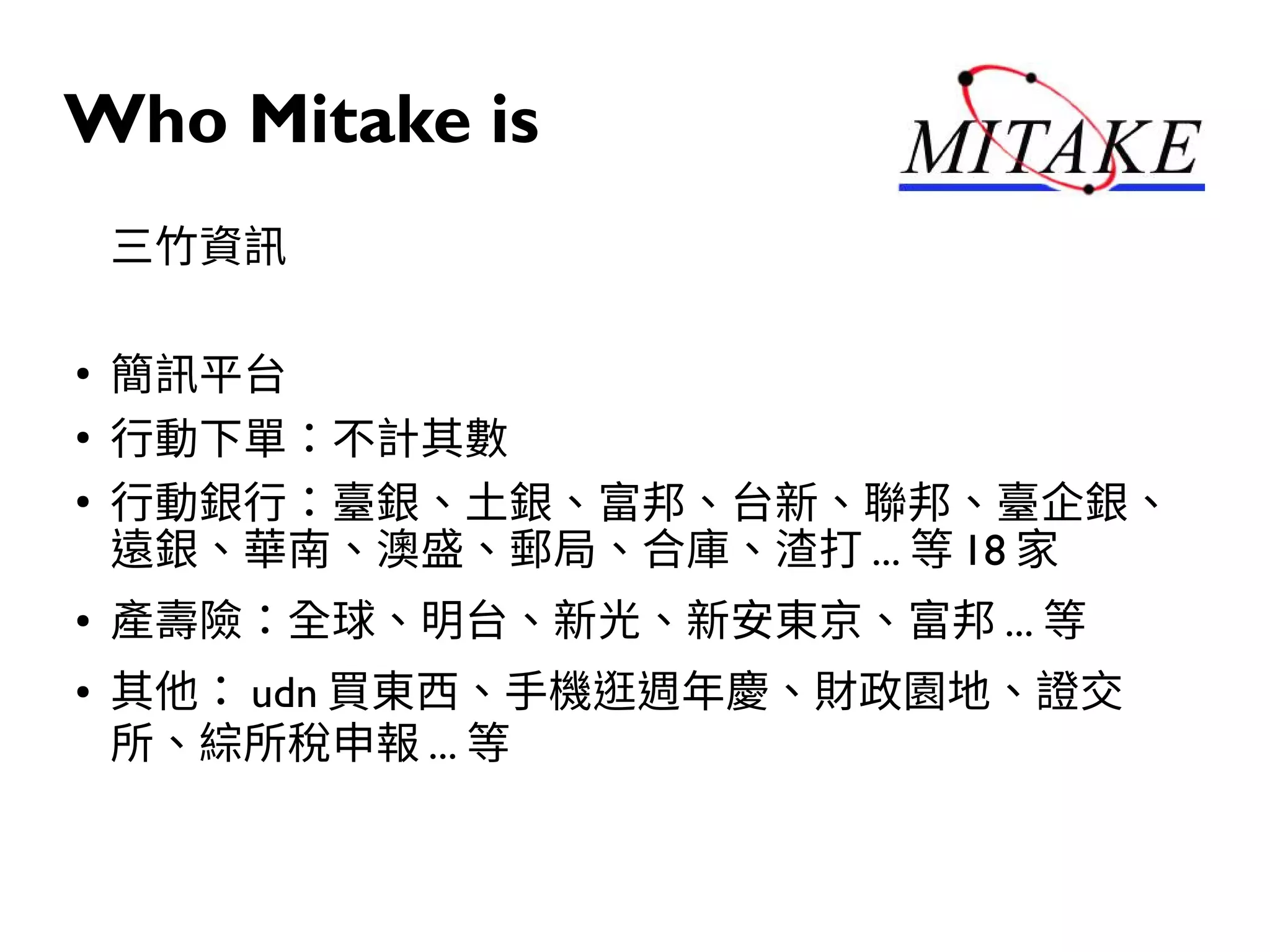

17. Who Mitake is
三竹資訊
●
簡訊平台
●
行動下單：不計其數
●
行動銀行：臺銀、土銀、富邦、台新、聯邦、臺企銀、
遠銀、華南、澳盛、郵局、合庫、渣打 ... 等 18 家
● 產壽險：全球、明台、新光、新安東京、富邦 ... 等
● 其他： udn 買東西、手機逛週年慶、財政園地、證交
所、綜所稅申報 ... 等

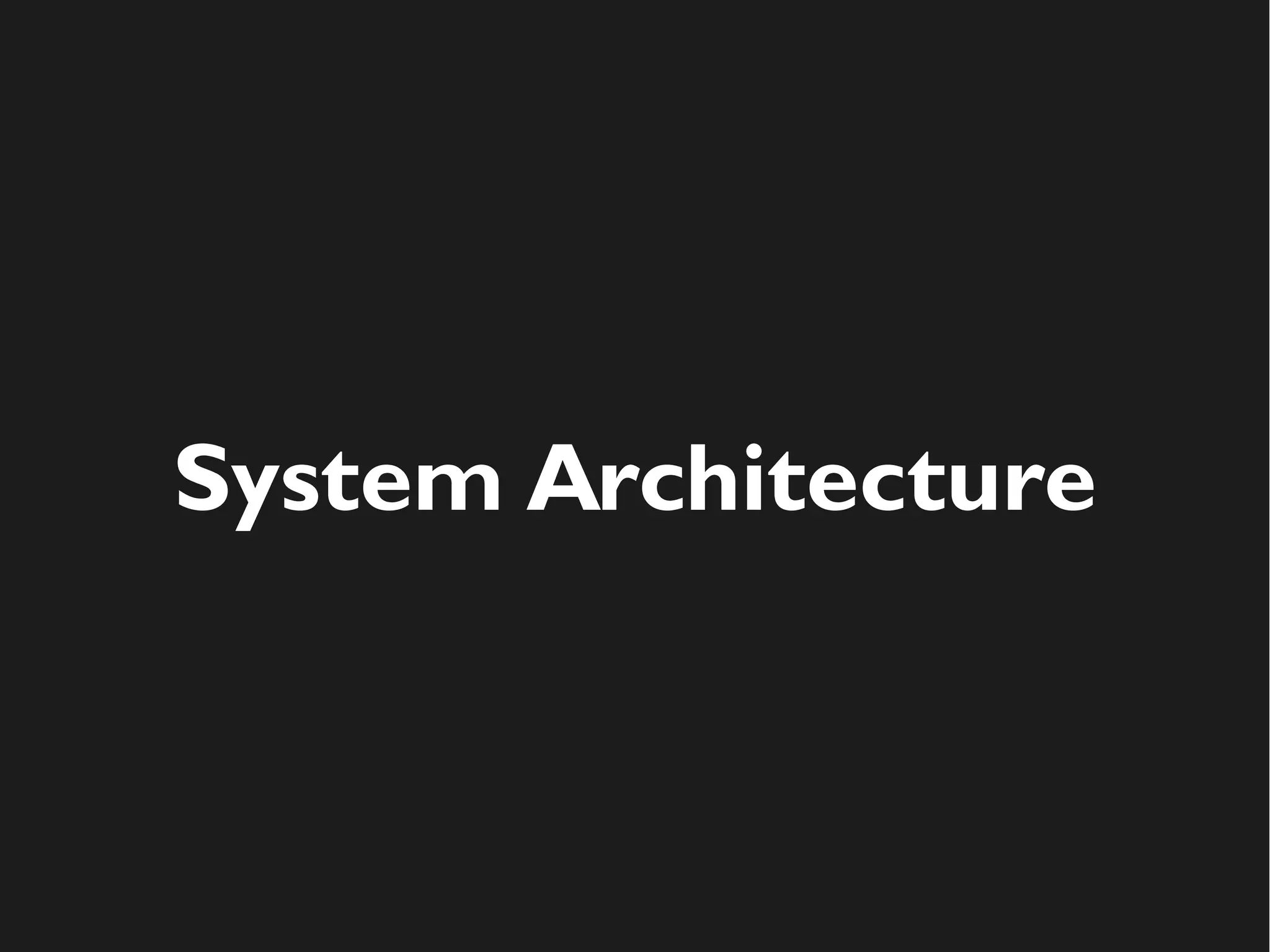

18. System Architecture

19. 19

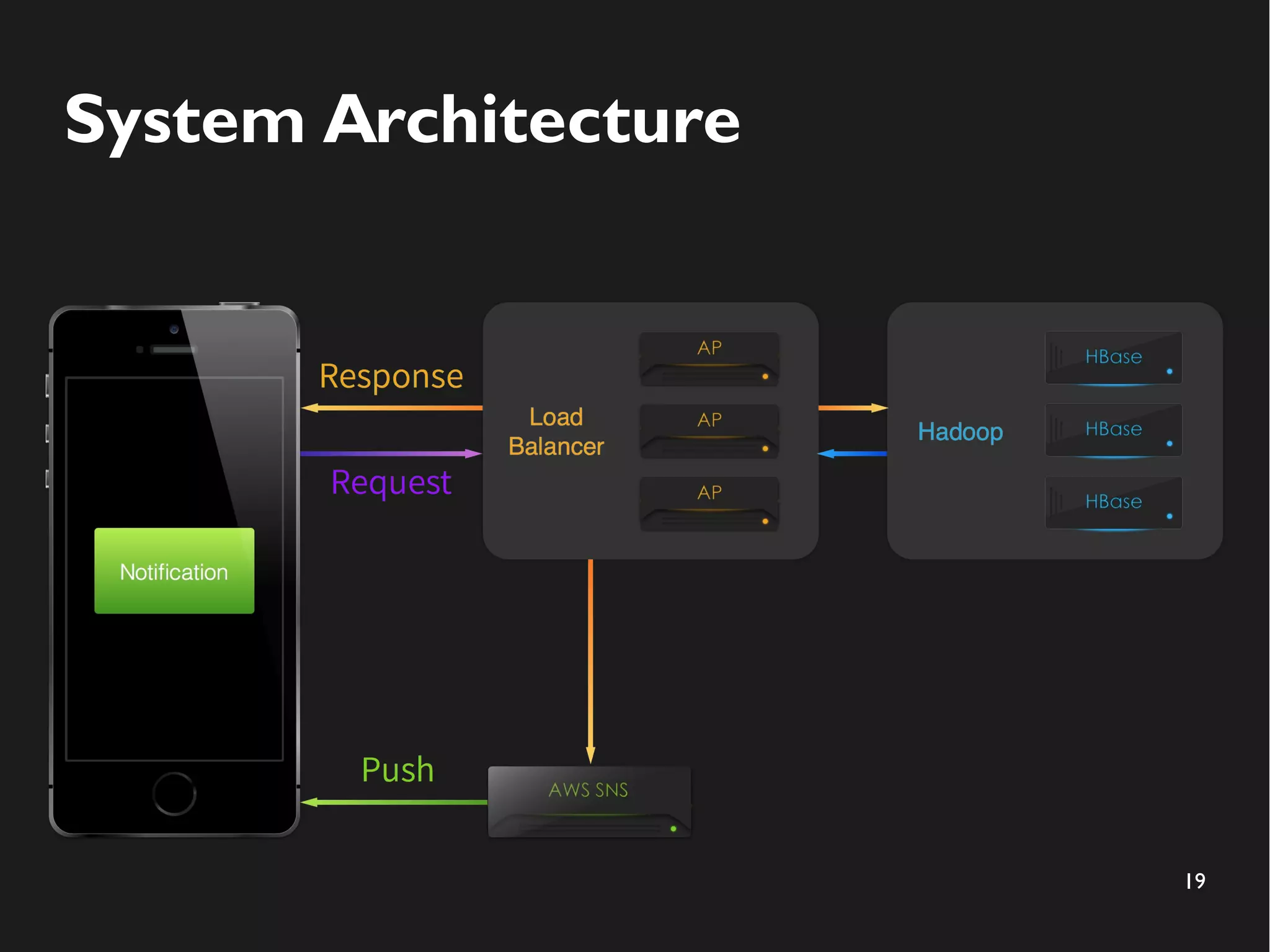

System Architecture

20. 20

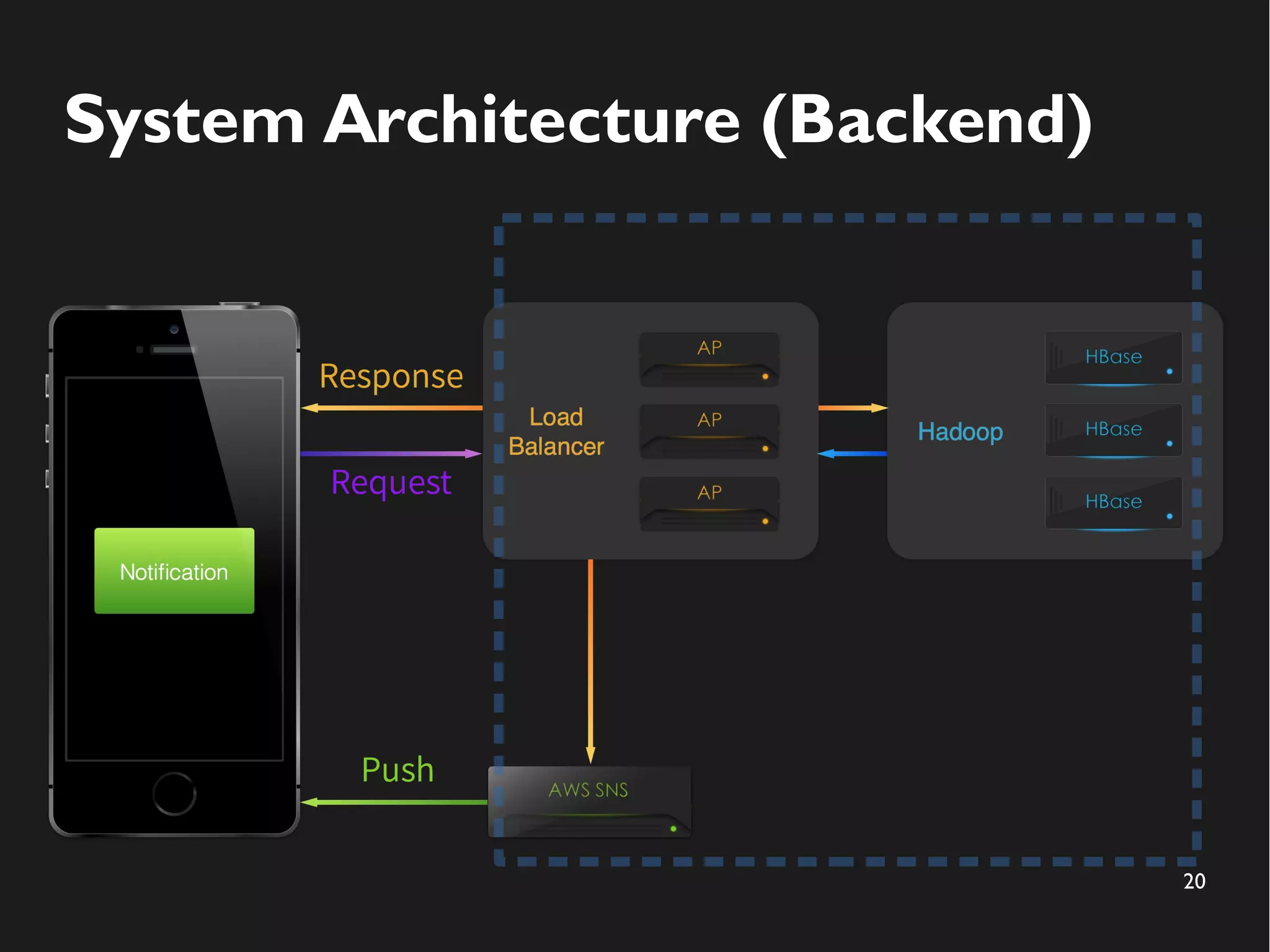

System Architecture (Backend)

21. 21

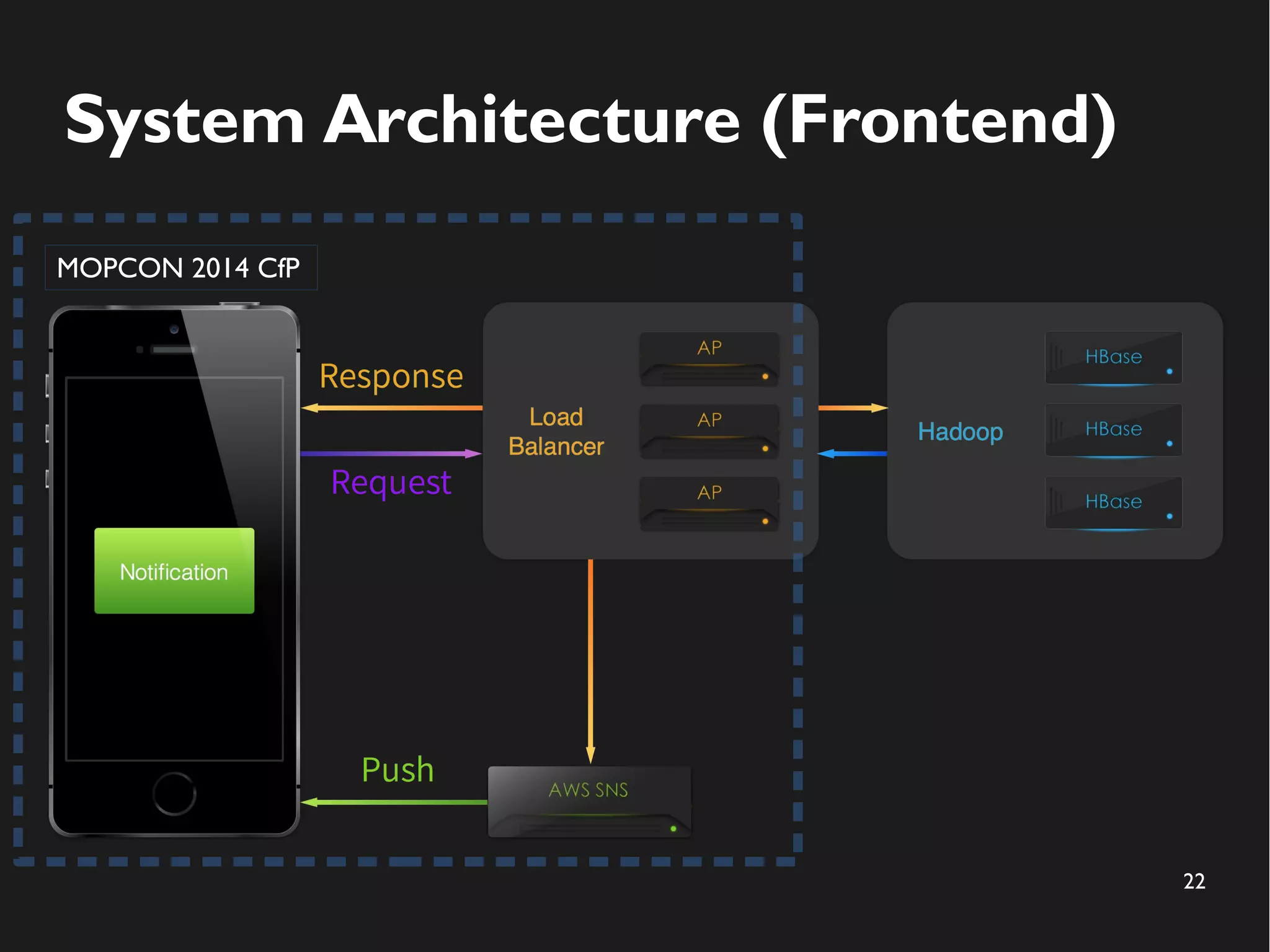

System Architecture (Frontend)

22. 22
System Architecture (Frontend)
MOPCON 2014 CfP

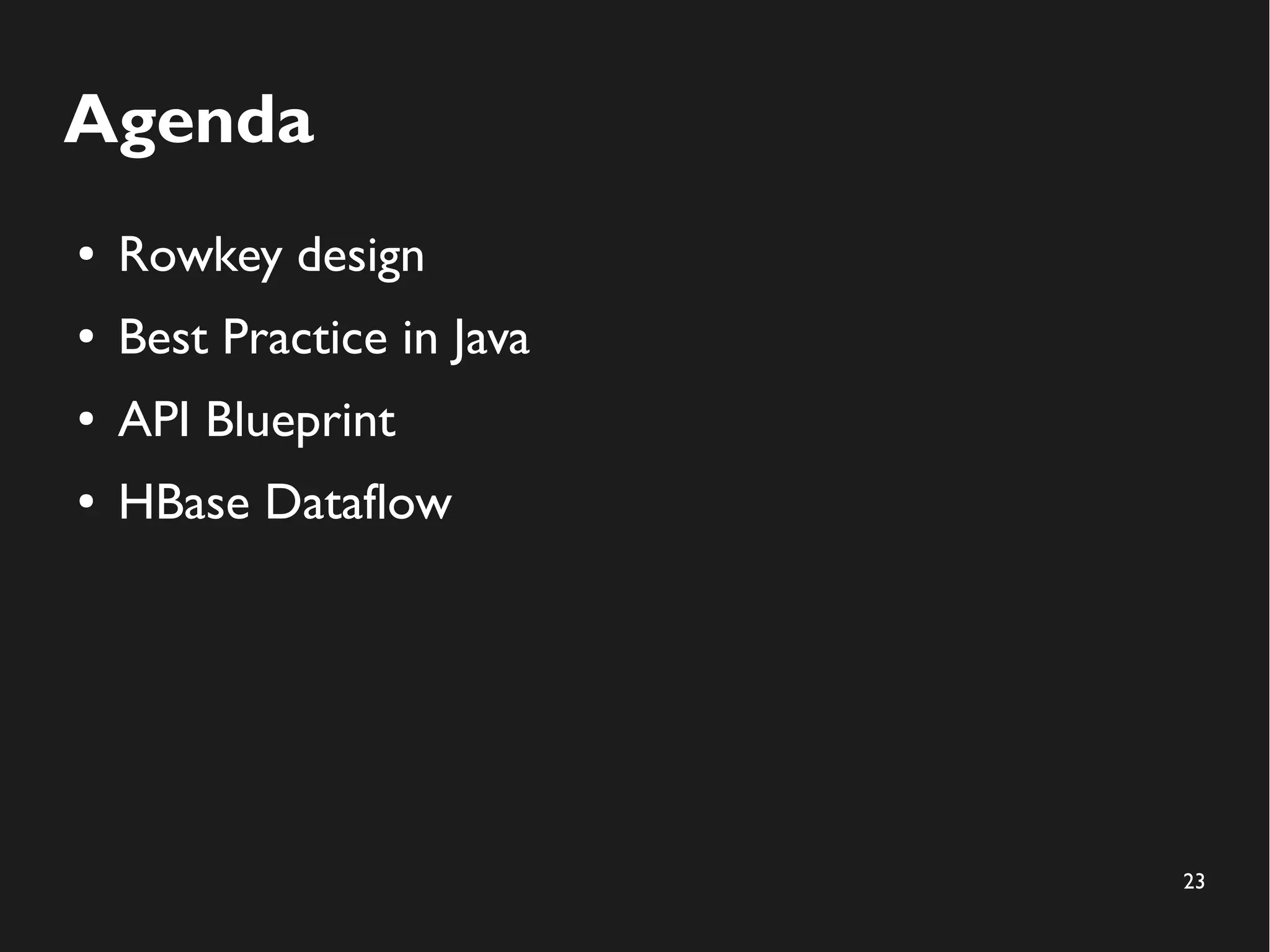

23. 23
Agenda
● Rowkey design
● Best Practice in Java
● API Blueprint
● HBase Dataflow

24. 24

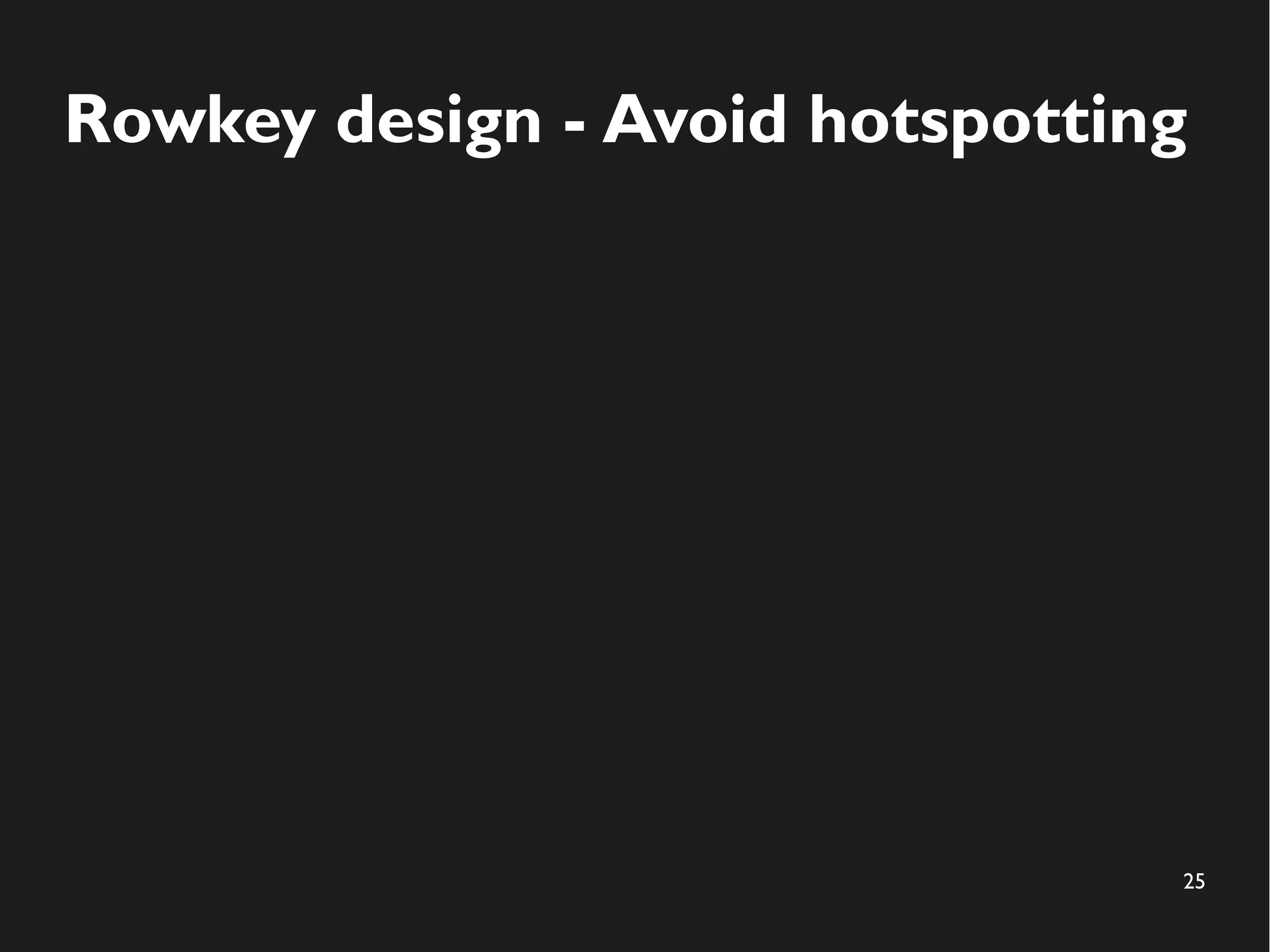

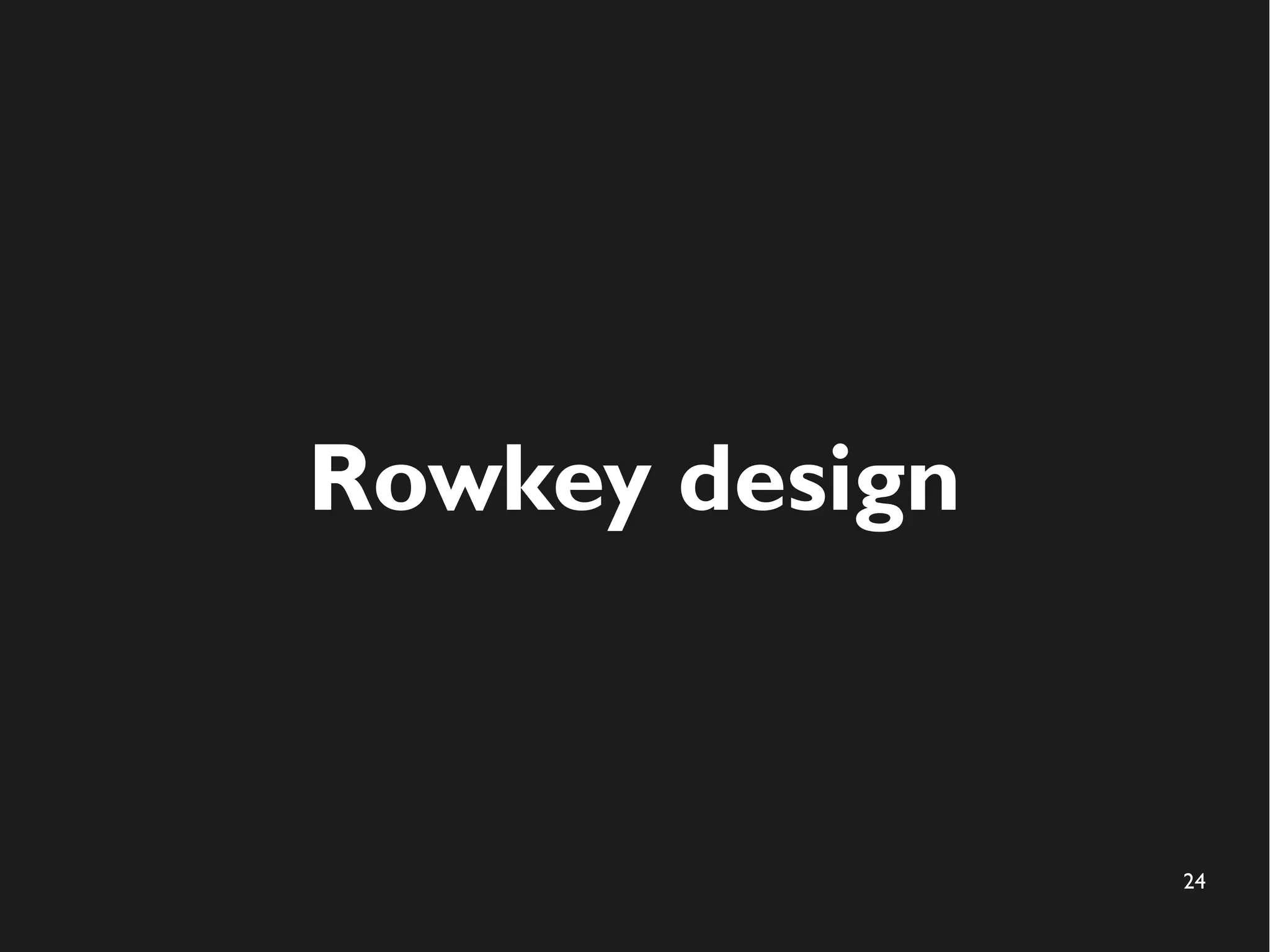

Rowkey design

25. 25
Rowkey design - Avoid hotspotting

26. 26

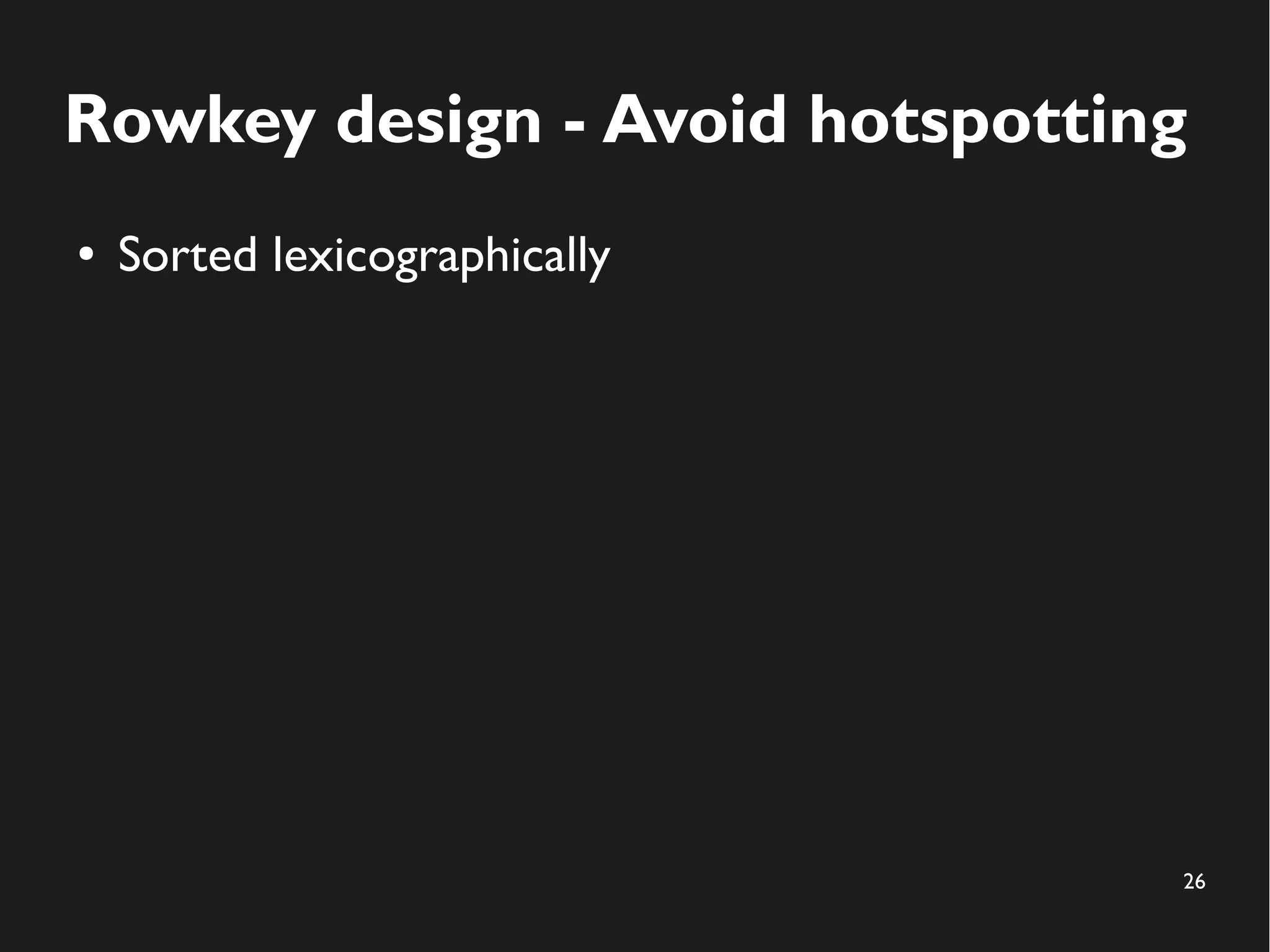

Rowkey design - Avoid hotspotting
● Sorted lexicographically

27. 27
Rowkey design - Avoid hotspotting
● Sorted lexicographically
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4

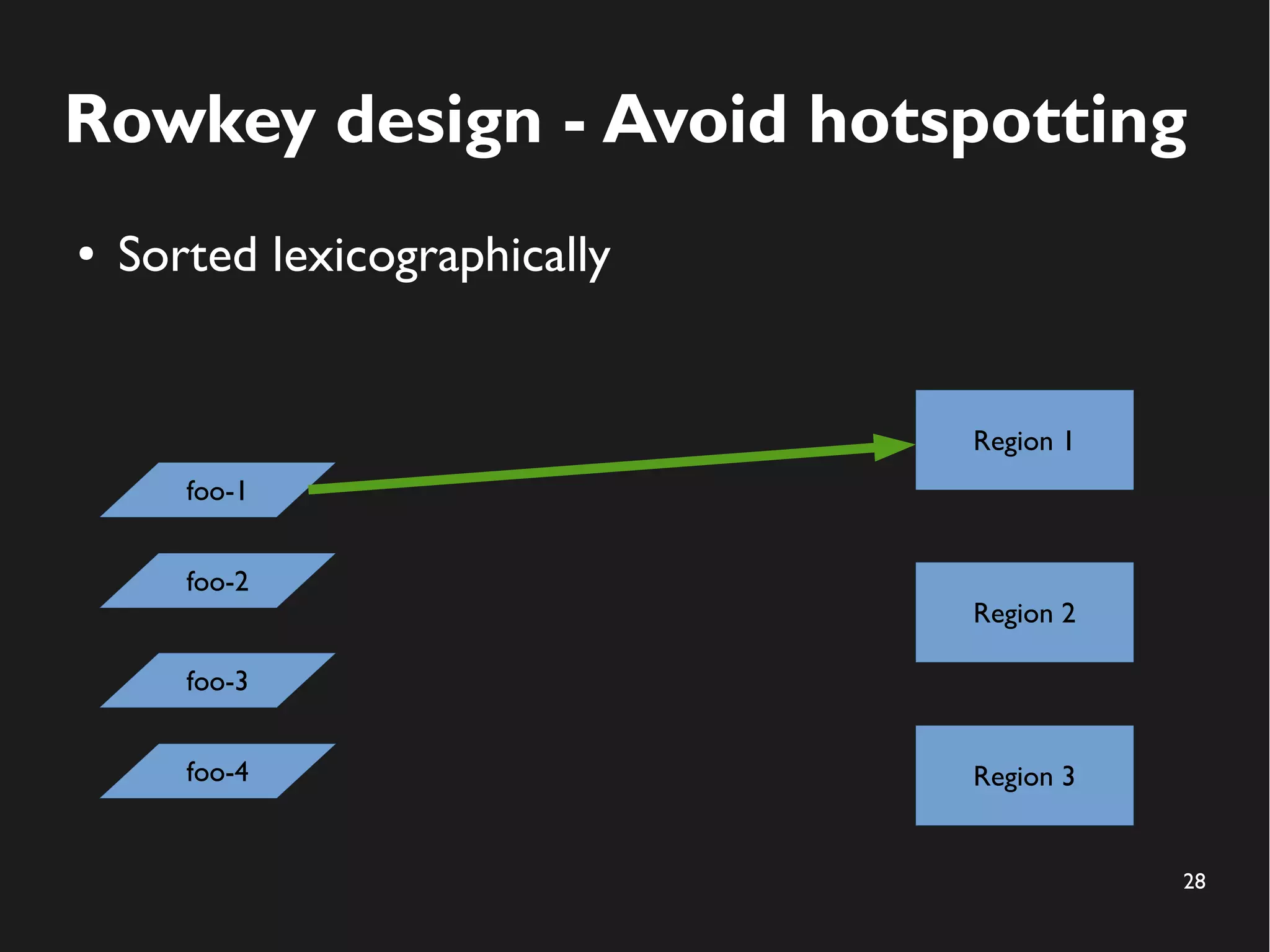

28. 28
Rowkey design - Avoid hotspotting
● Sorted lexicographically
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4

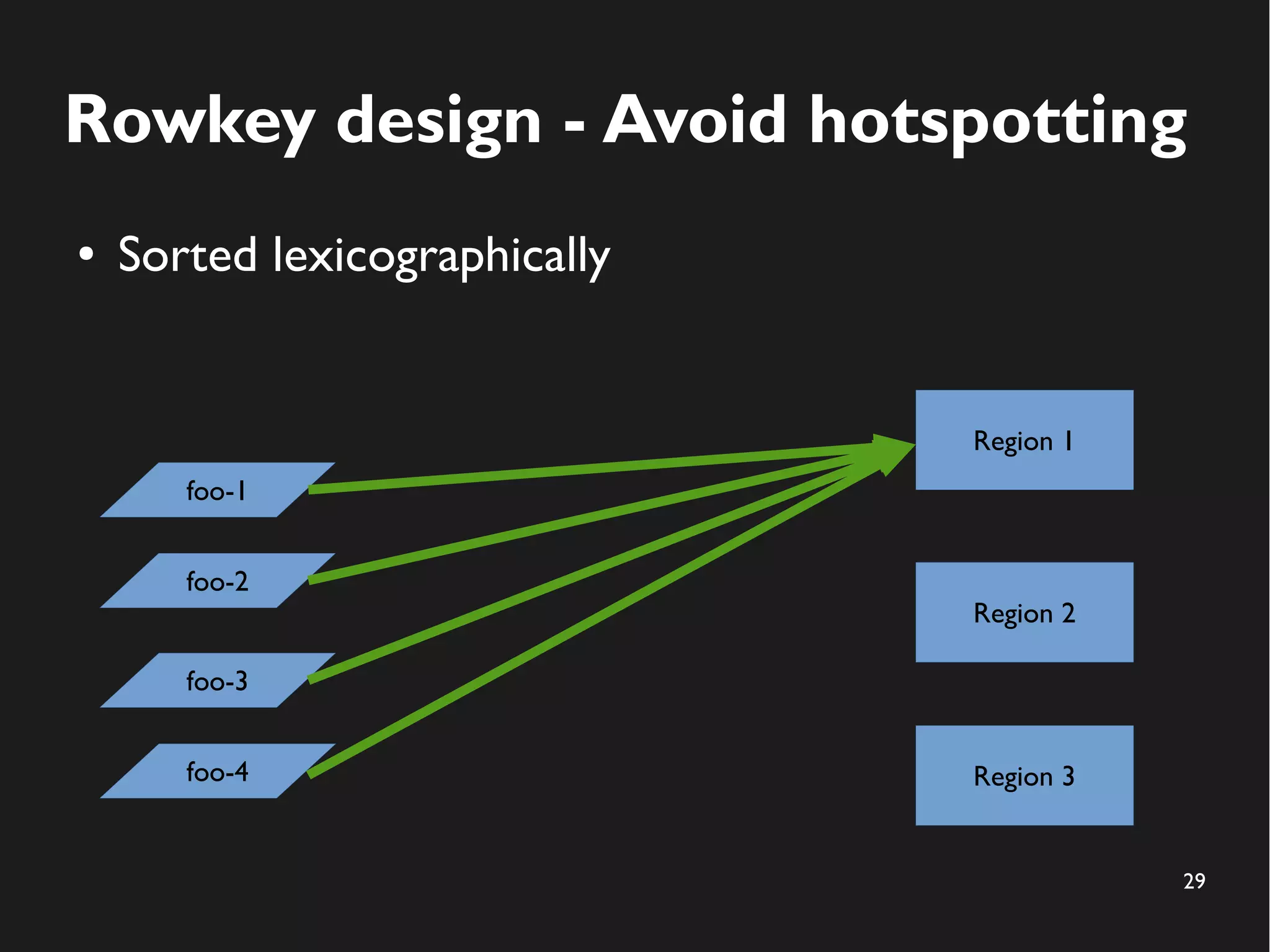

29. 29
Rowkey design - Avoid hotspotting
● Sorted lexicographically
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4

30. 30
Rowkey design - Avoid hotspotting
● Salting, Hashing or Reversing

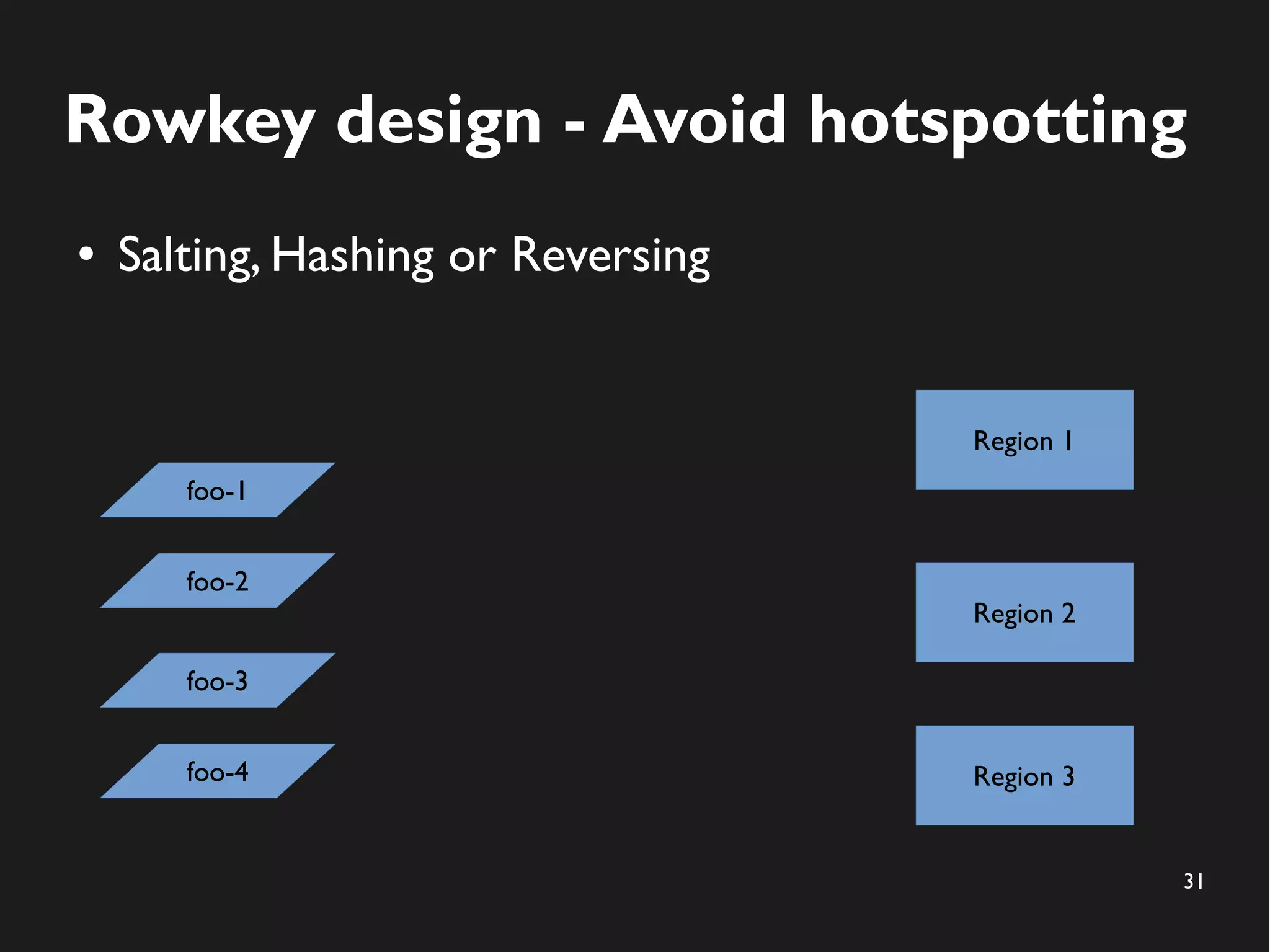

31. 31
Rowkey design - Avoid hotspotting
● Salting, Hashing or Reversing
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4

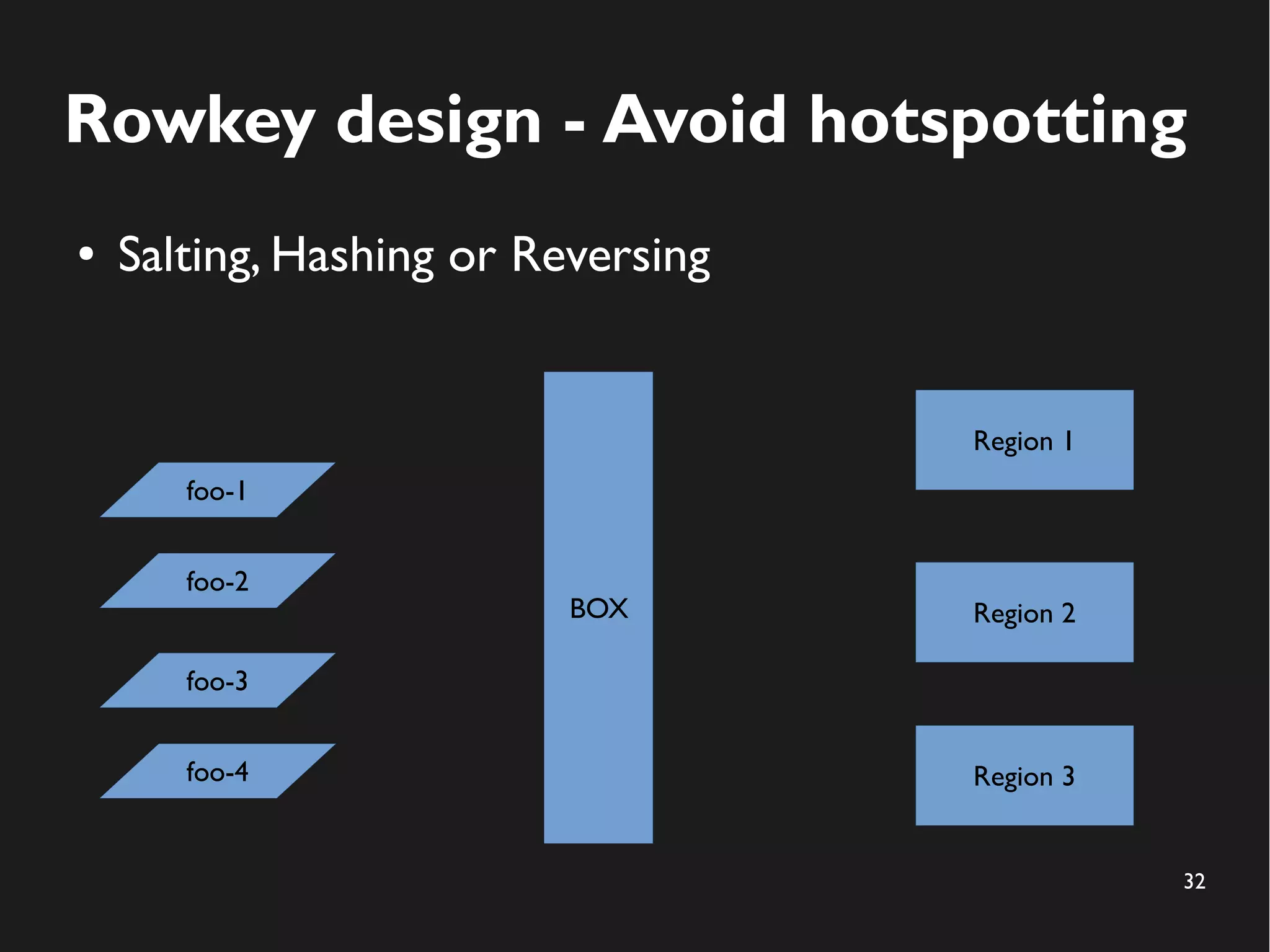

32. 32
Rowkey design - Avoid hotspotting
● Salting, Hashing or Reversing
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4
BOX

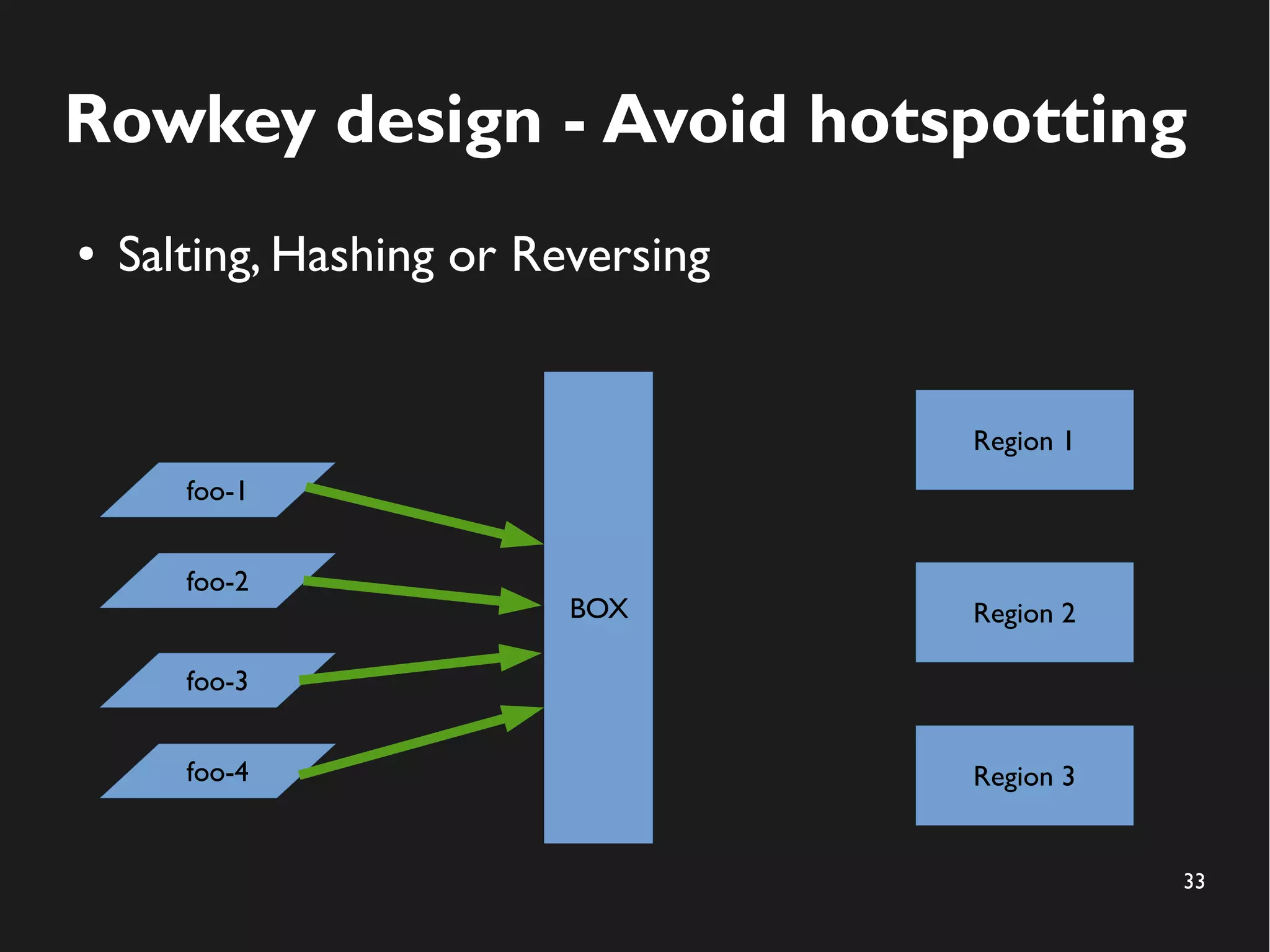

33. 33
Rowkey design - Avoid hotspotting
● Salting, Hashing or Reversing
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4
BOX

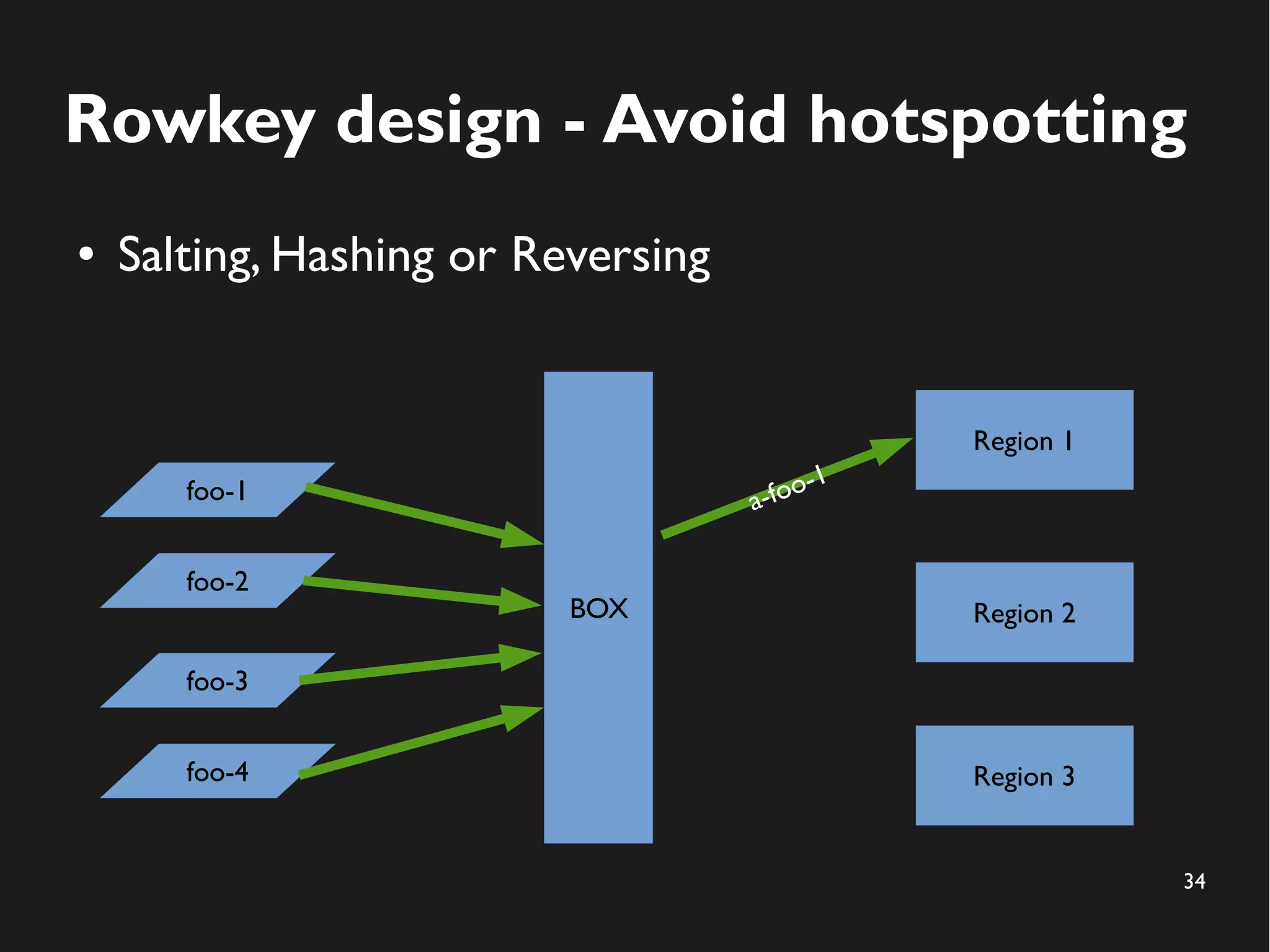

34. 34
Rowkey design - Avoid hotspotting
● Salting, Hashing or Reversing
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4
BOX
a-foo-1

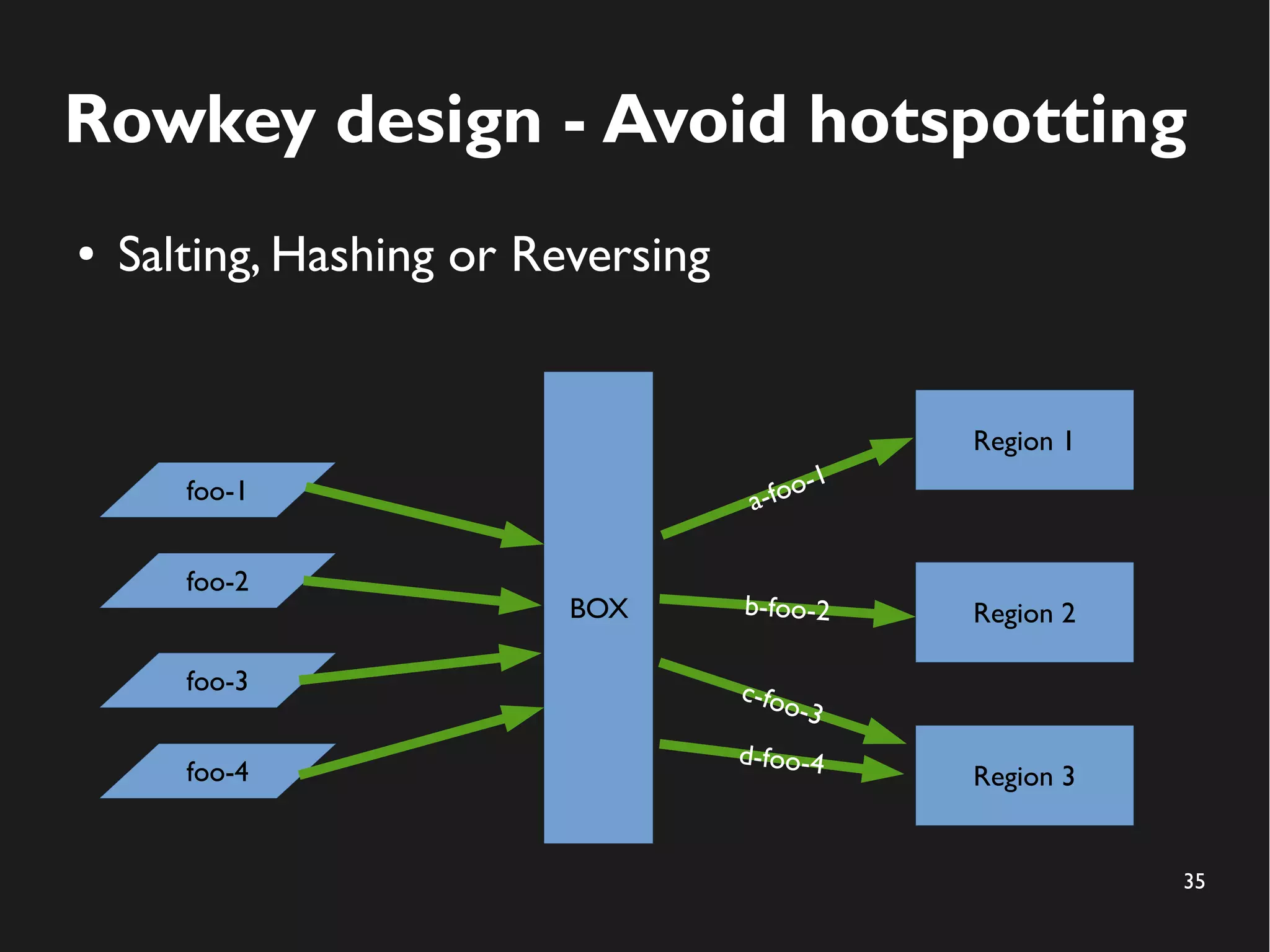

35. 35
Rowkey design - Avoid hotspotting
● Salting, Hashing or Reversing
Region 3
Region 1
Region 2
foo-1
foo-2
foo-3
foo-4
BOX
a-foo-1
b-foo-2
c-foo-3
d-foo-4

36. 36

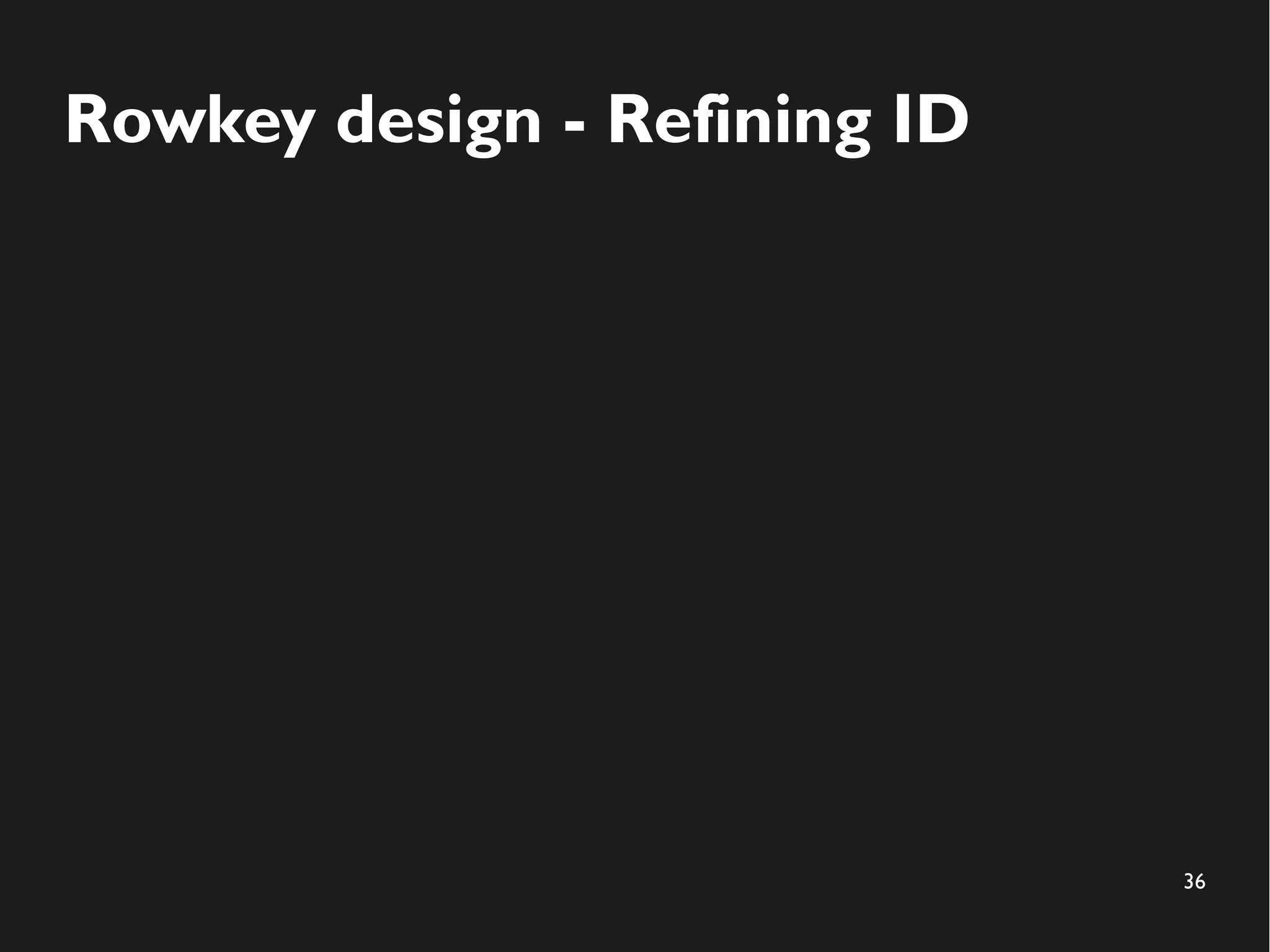

Rowkey design - Refining ID

37. 37
Rowkey design - Refining ID

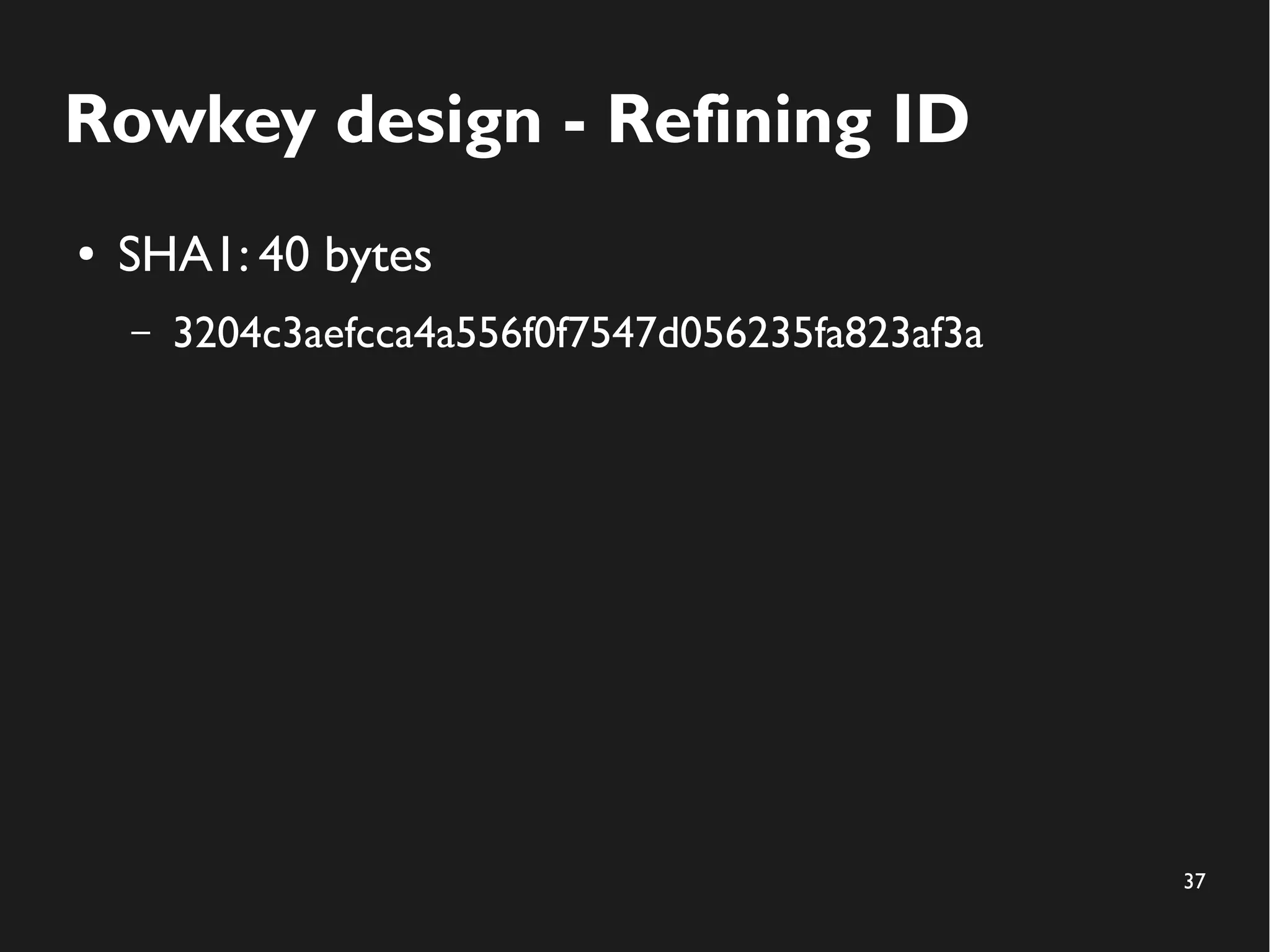

● SHA1: 40 bytes
– 3204c3aefcca4a556f0f7547d056235fa823af3a

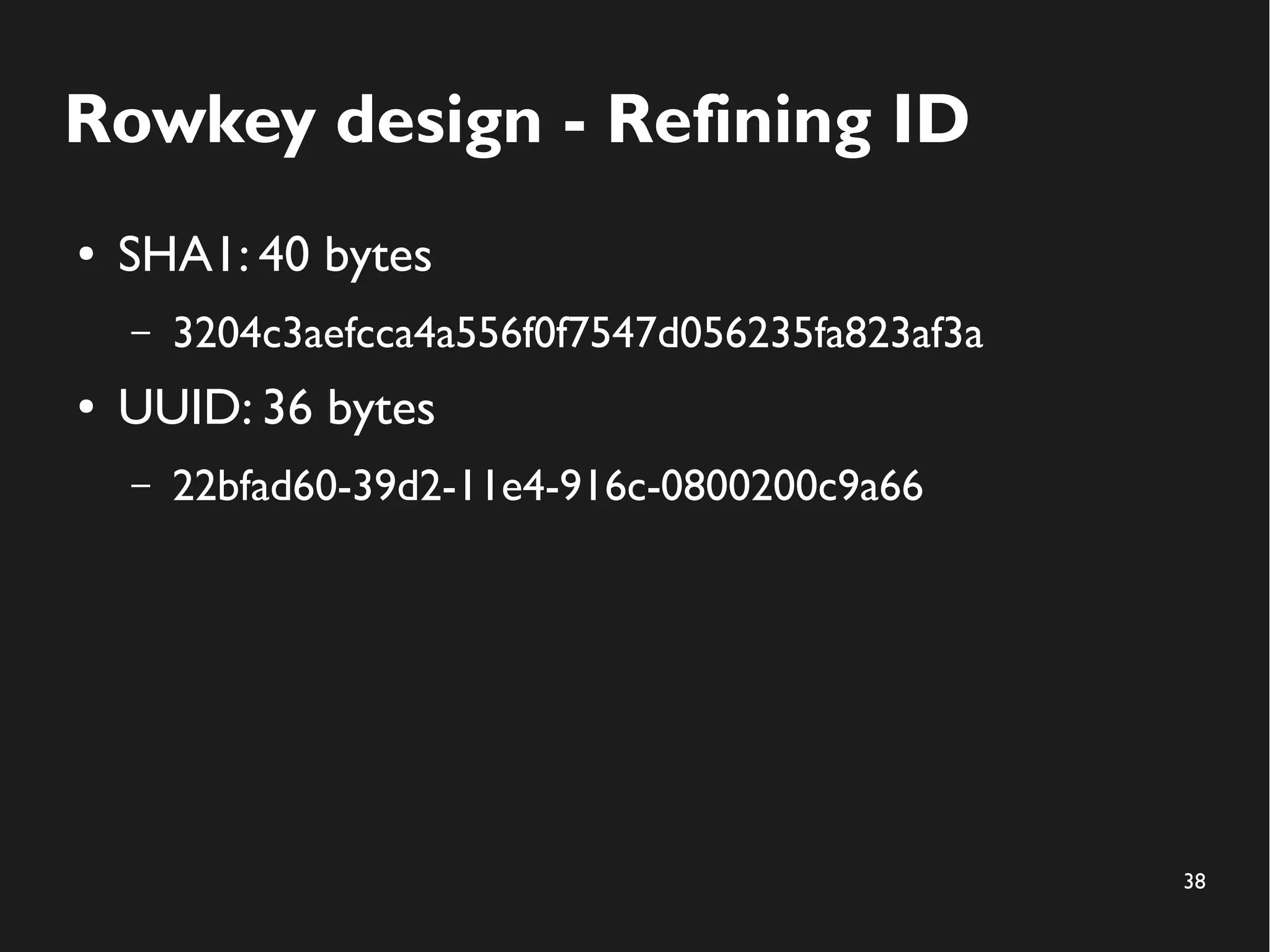

38. 38
Rowkey design - Refining ID
● SHA1: 40 bytes
– 3204c3aefcca4a556f0f7547d056235fa823af3a
● UUID: 36 bytes
– 22bfad60-39d2-11e4-916c-0800200c9a66

39. 39

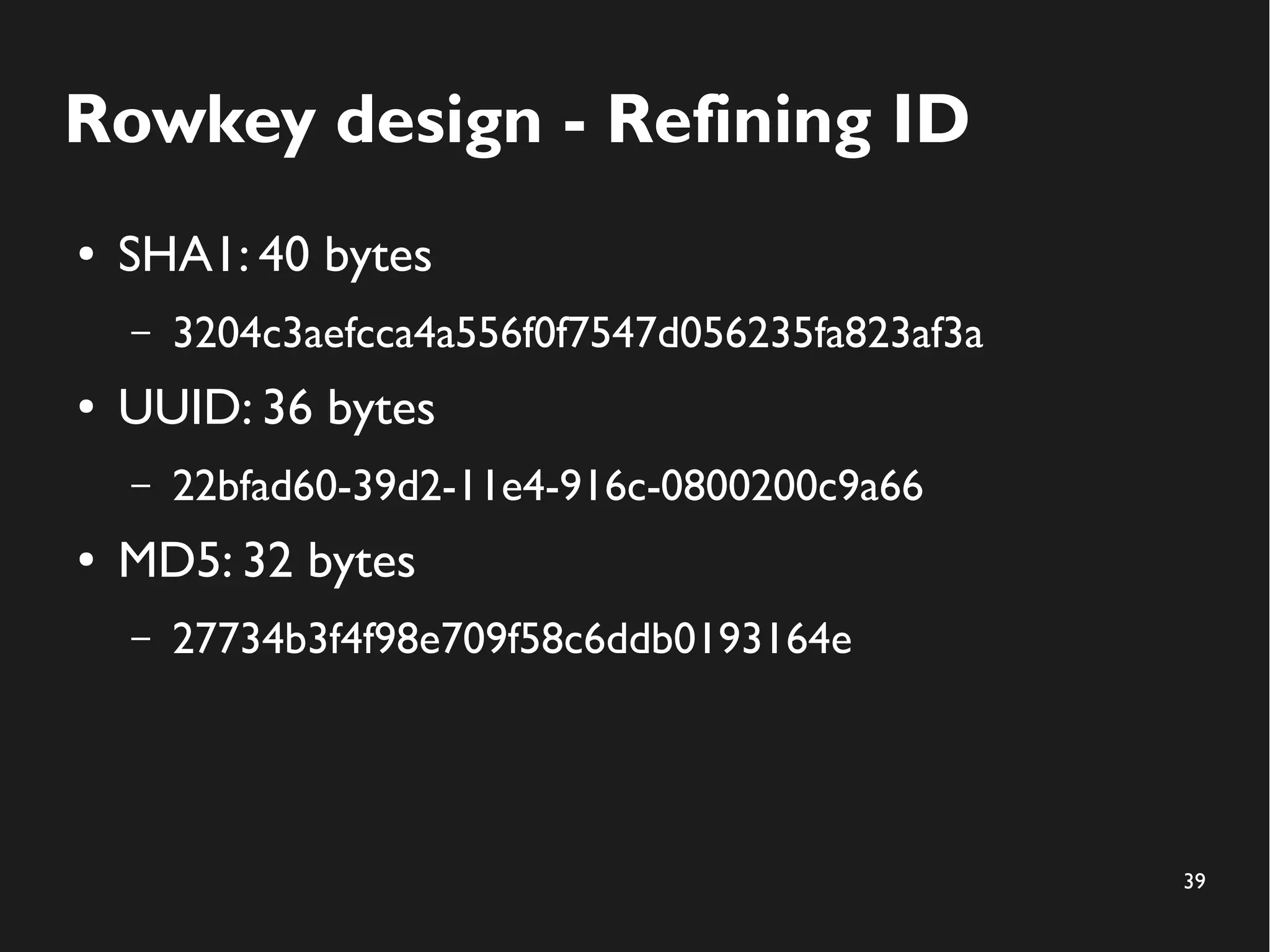

Rowkey design - Refining ID
● SHA1: 40 bytes
– 3204c3aefcca4a556f0f7547d056235fa823af3a
● UUID: 36 bytes
– 22bfad60-39d2-11e4-916c-0800200c9a66
● MD5: 32 bytes
– 27734b3f4f98e709f58c6ddb0193164e

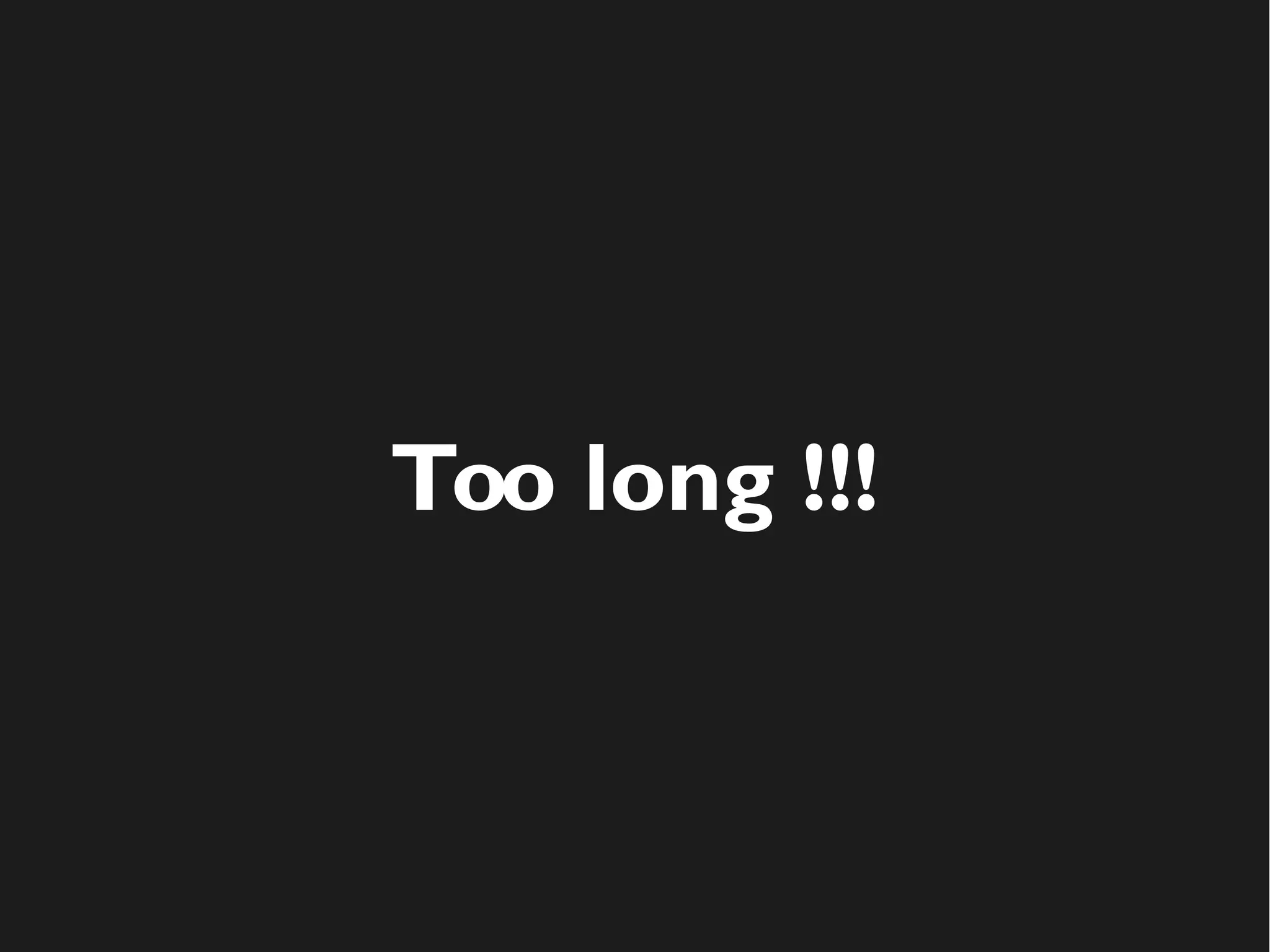

40. Too long !!!

41. 41
Rowkey design - Refining ID
● X Algorithm

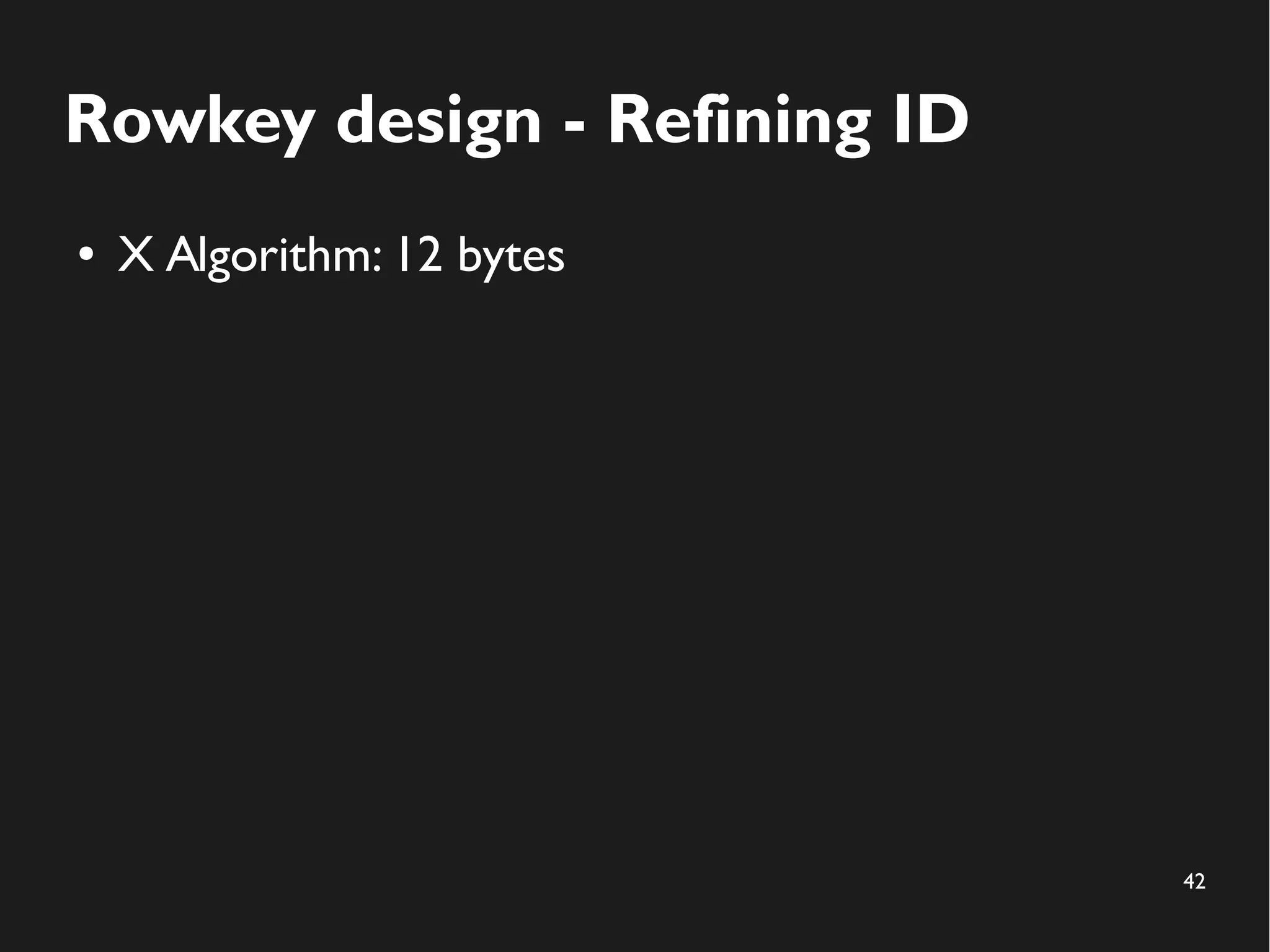

42. 42
Rowkey design - Refining ID
● X Algorithm: 12 bytes

43. 43
Rowkey design - Refining ID
● X Algorithm: 12 bytes
– Auto increment

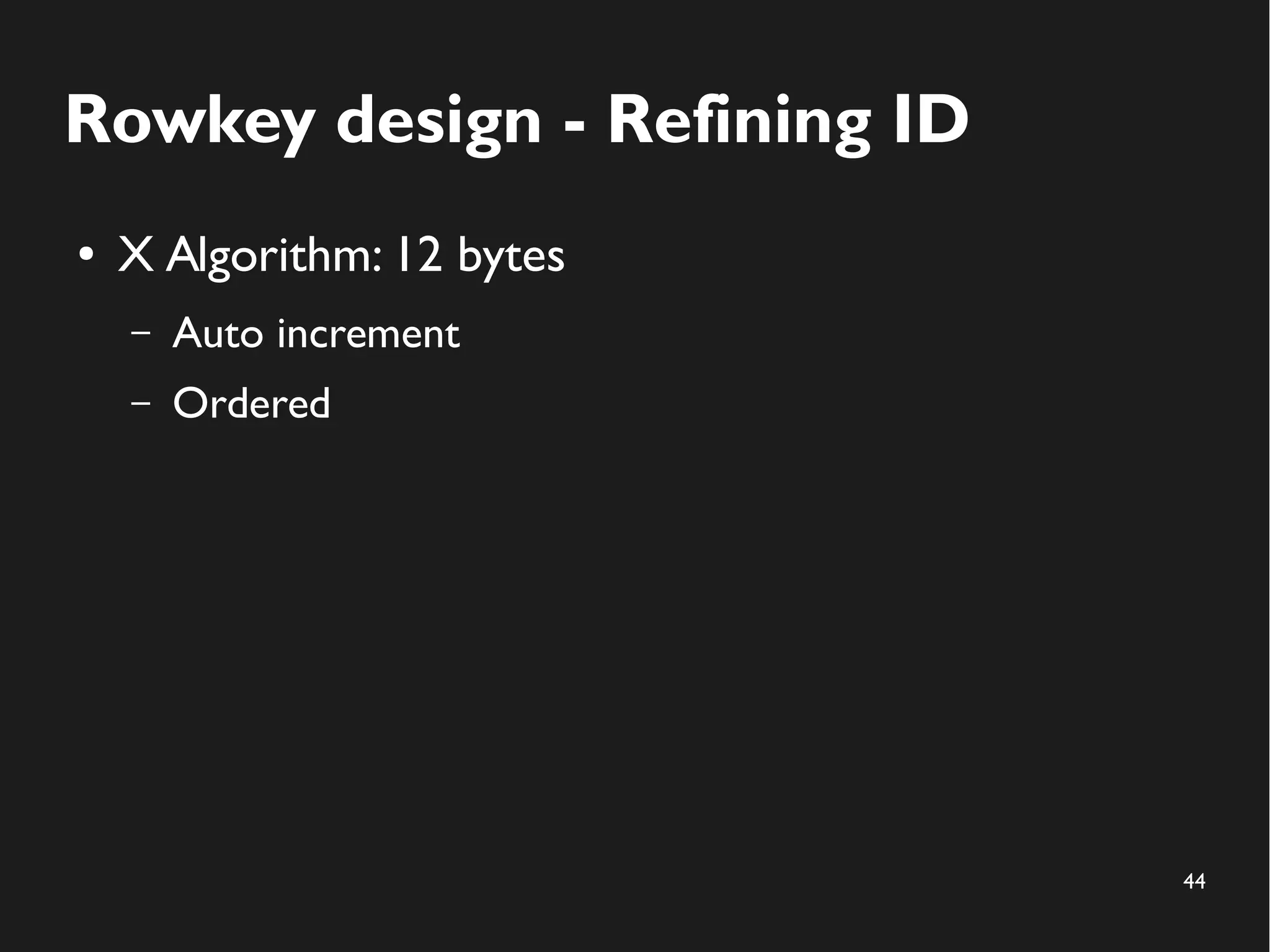

44. 44
Rowkey design - Refining ID
● X Algorithm: 12 bytes
– Auto increment
– Ordered

45. 45

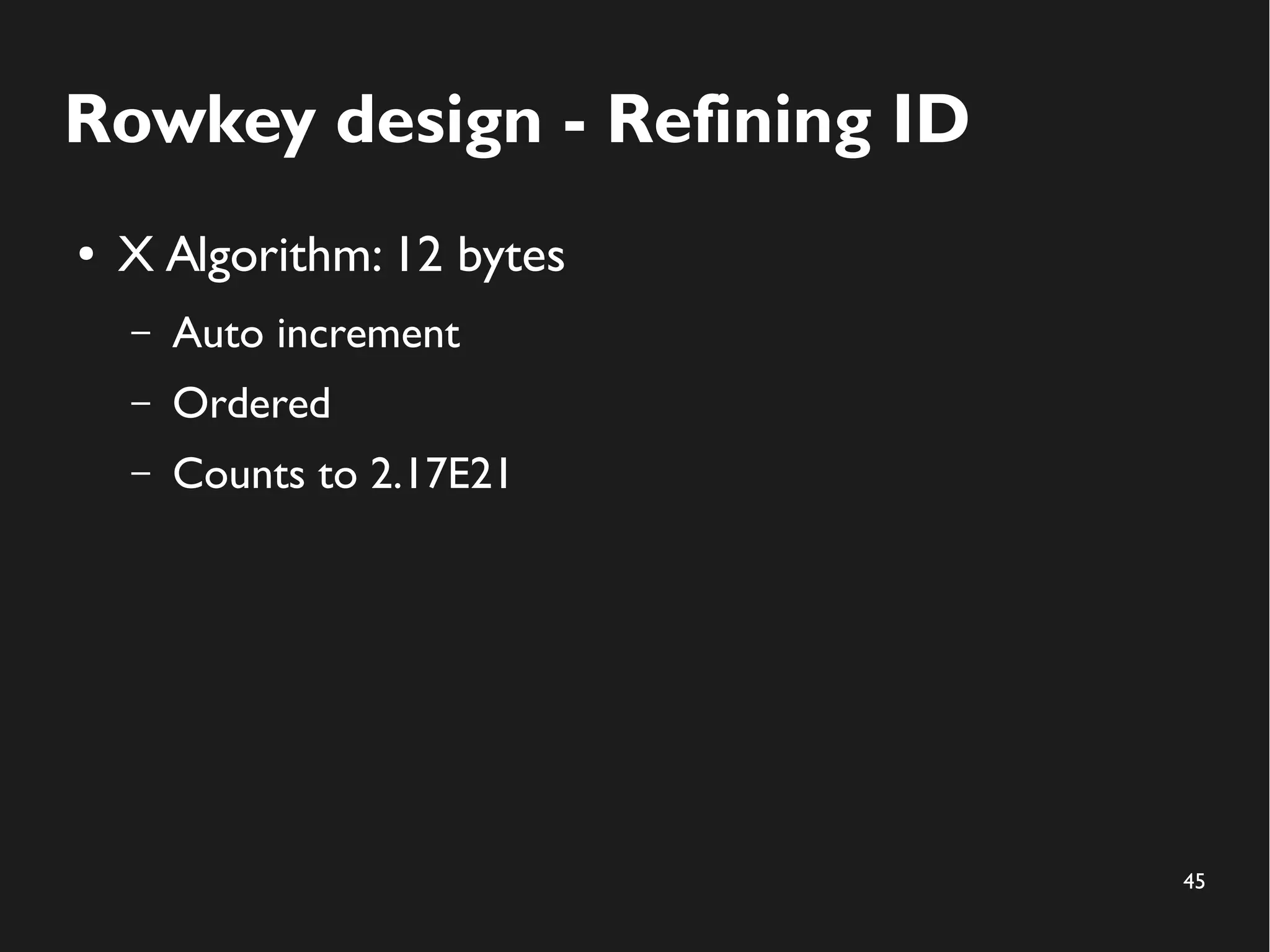

Rowkey design - Refining ID
● X Algorithm: 12 bytes
– Auto increment
– Ordered
– Counts to 2.17E21

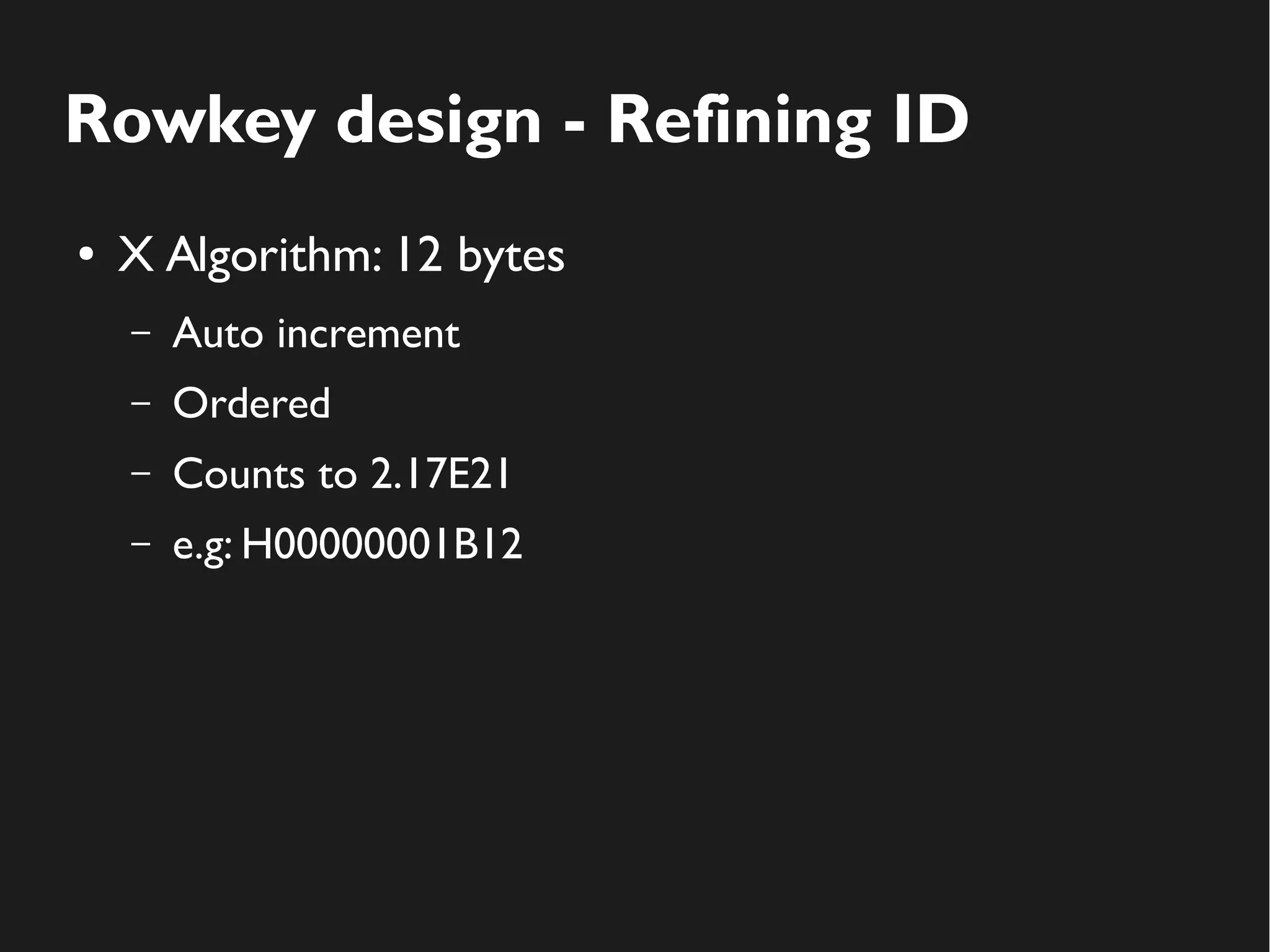

46. Rowkey design - Refining ID
● X Algorithm: 12 bytes
– Auto increment
– Ordered
– Counts to 2.17E21
– e.g: H00000001B12

47. 47

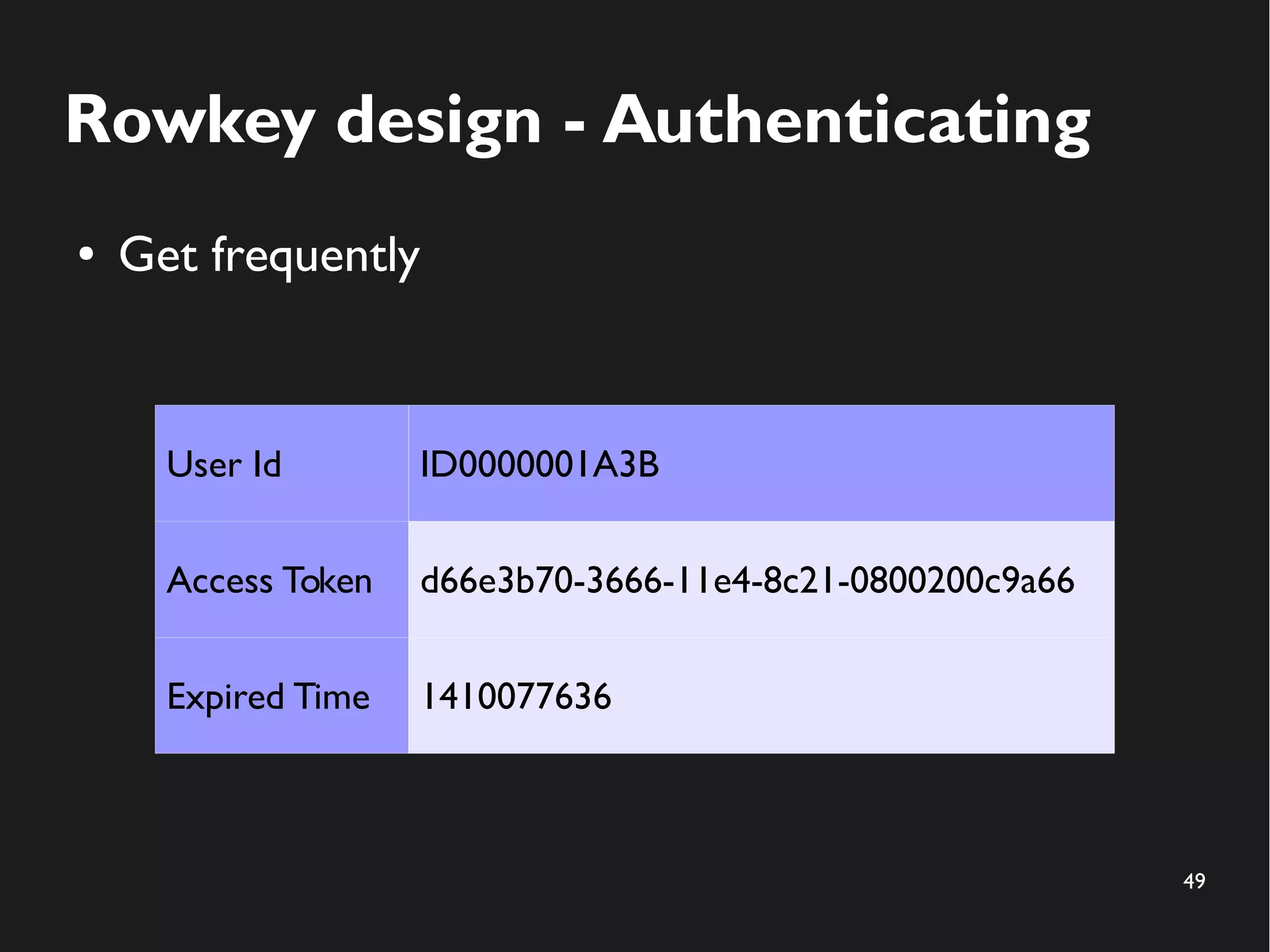

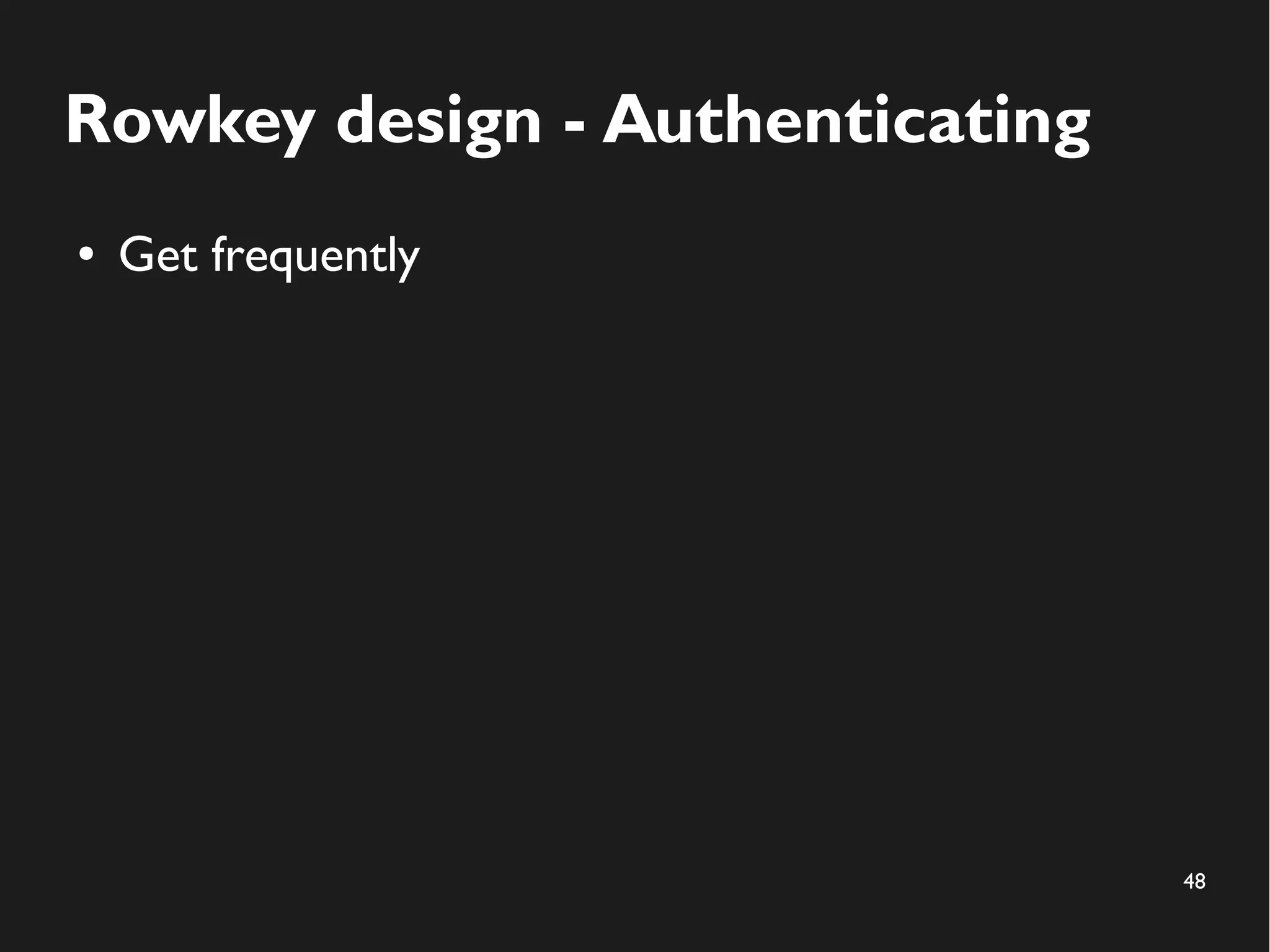

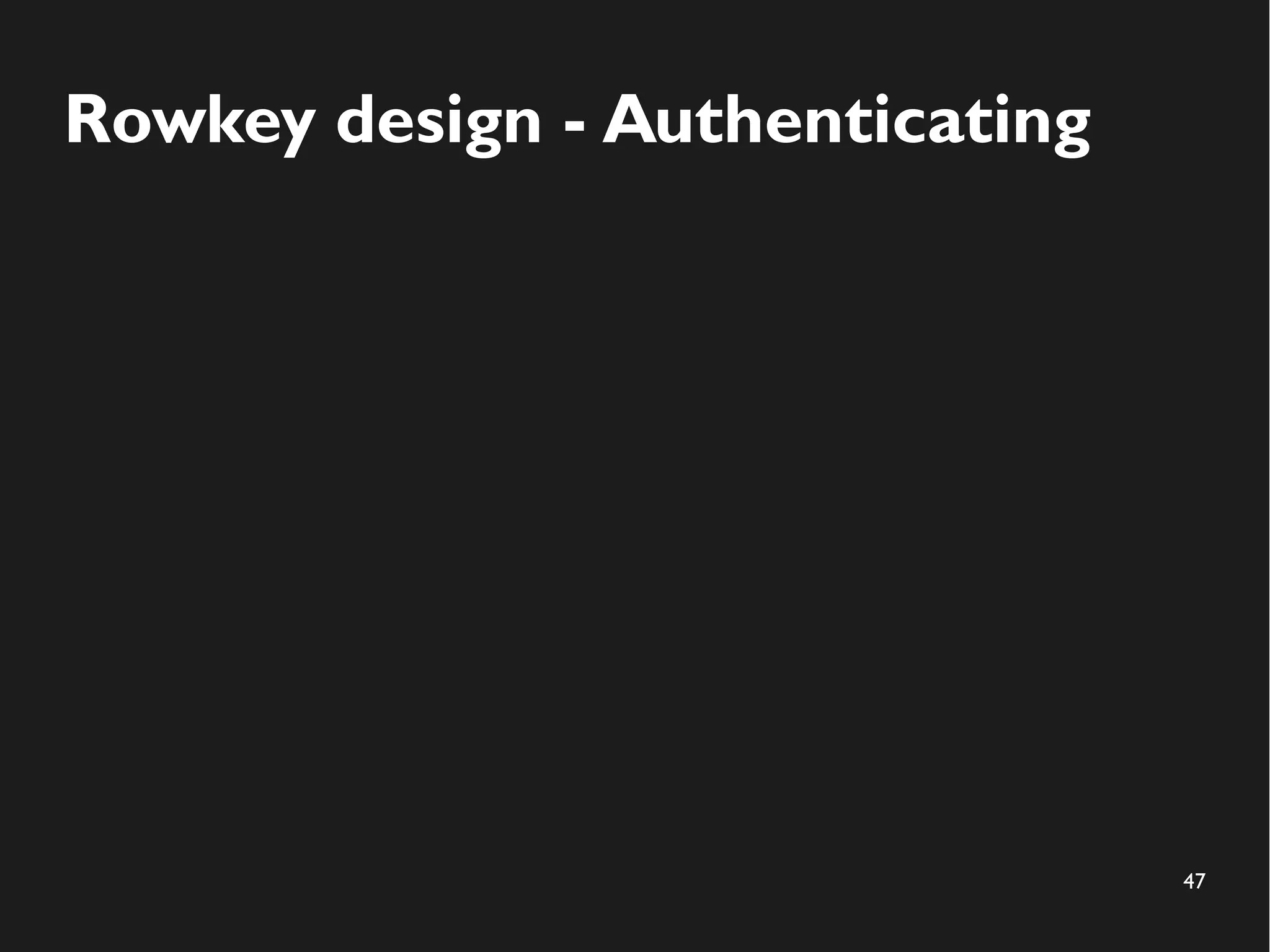

Rowkey design - Authenticating

48. 48
Rowkey design - Authenticating
● Get frequently

49. 49
Rowkey design - Authenticating
● Get frequently

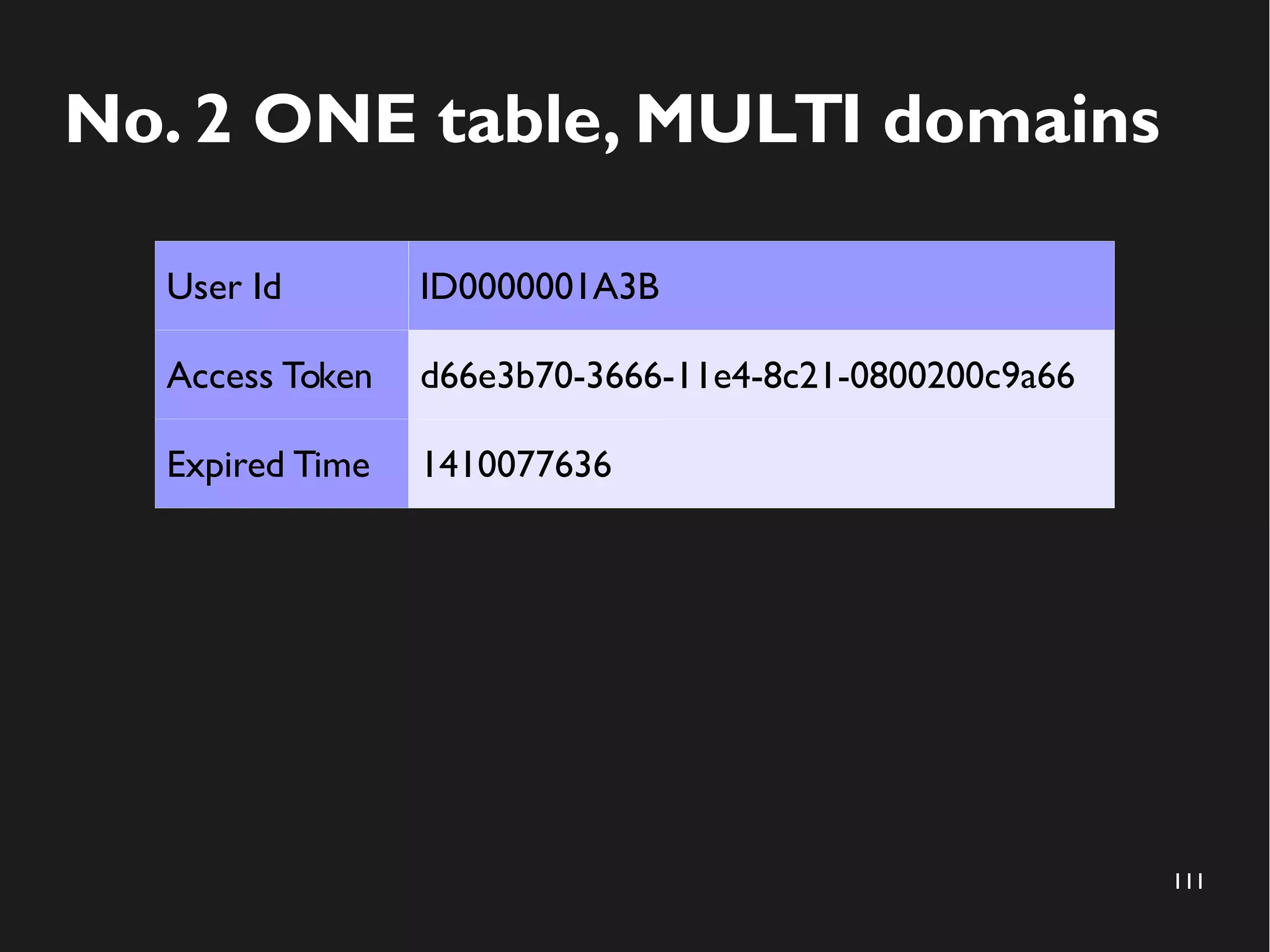

User Id ID0000001A3B
Access Token d66e3b70-3666-11e4-8c21-0800200c9a66
Expired Time 1410077636

50. 50
Rowkey design - Authenticating

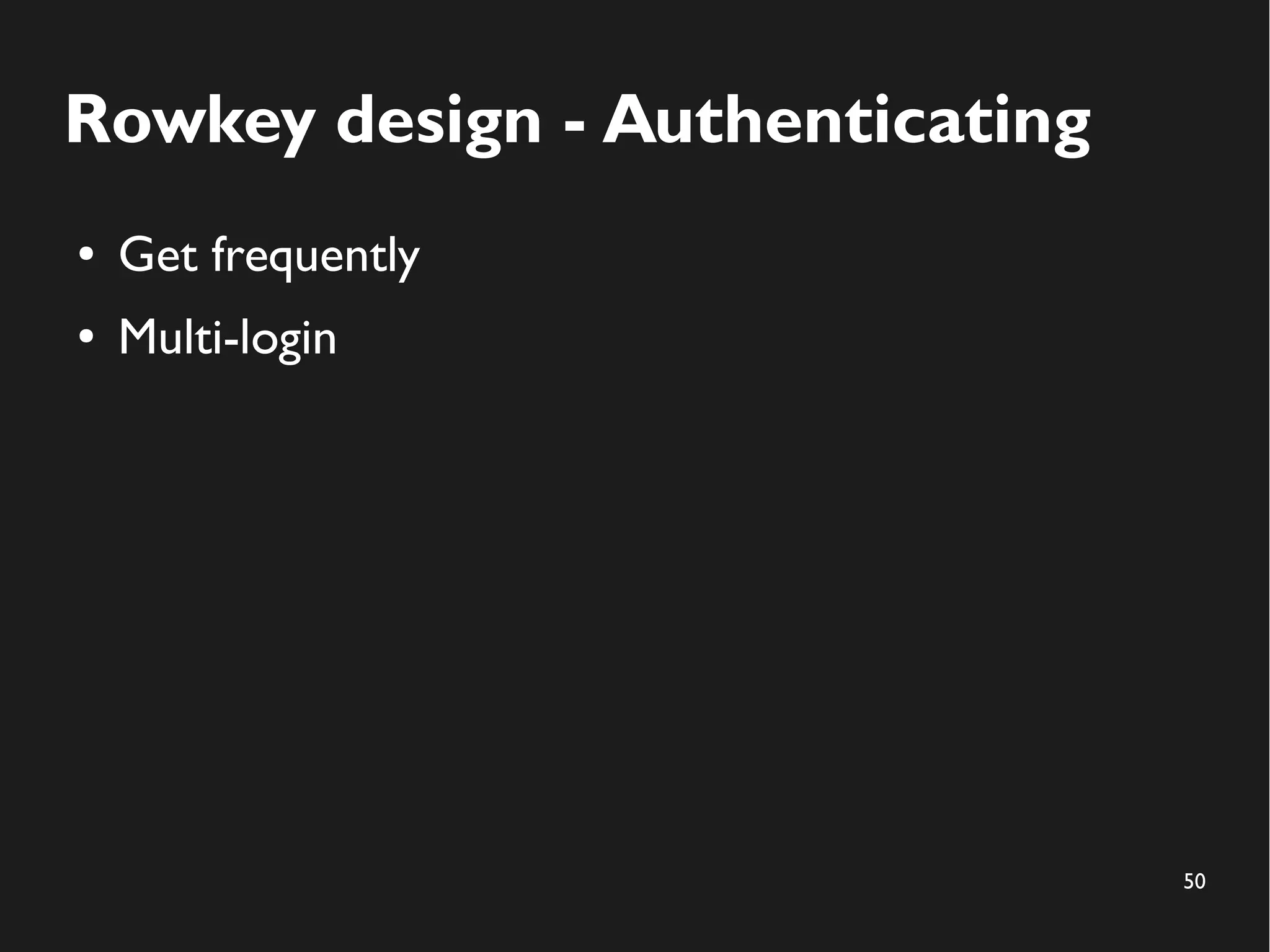

● Get frequently
● Multi-login

51. 51

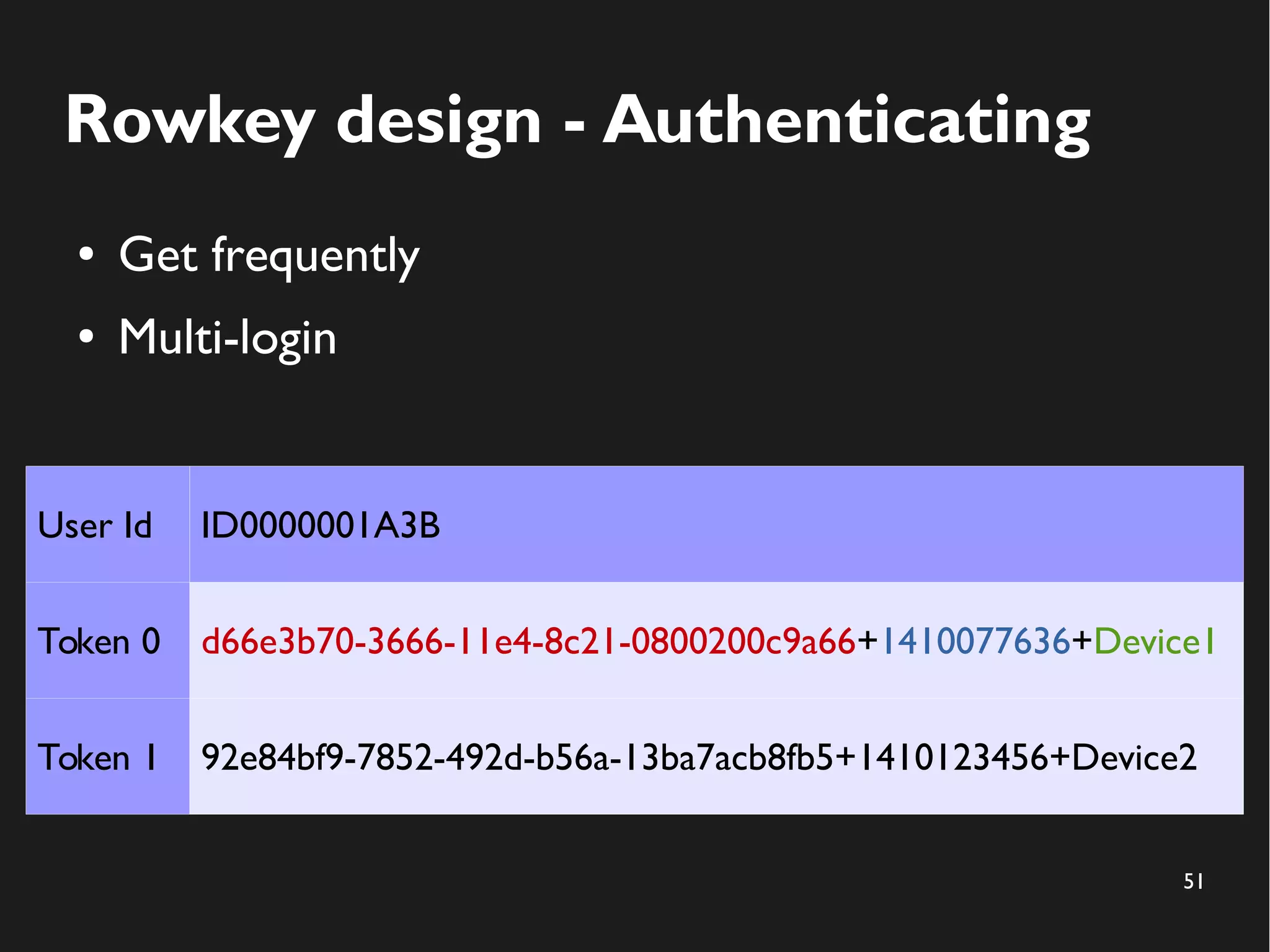

Rowkey design - Authenticating
● Get frequently
● Multi-login
User Id ID0000001A3B
Token 0 d66e3b70-3666-11e4-8c21-0800200c9a66+1410077636+Device1
Token 1 92e84bf9-7852-492d-b56a-13ba7acb8fb5+1410123456+Device2

52. 52

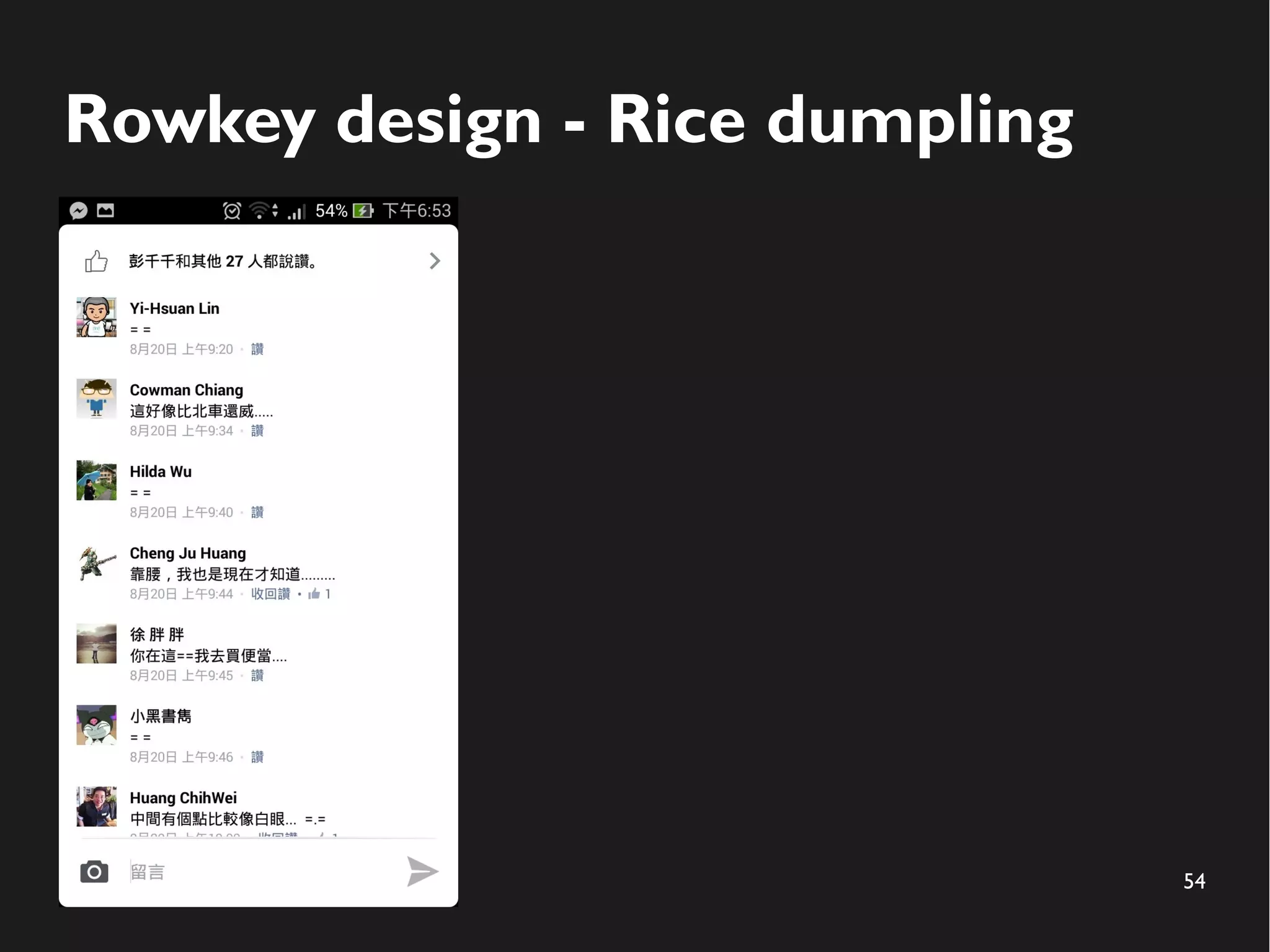

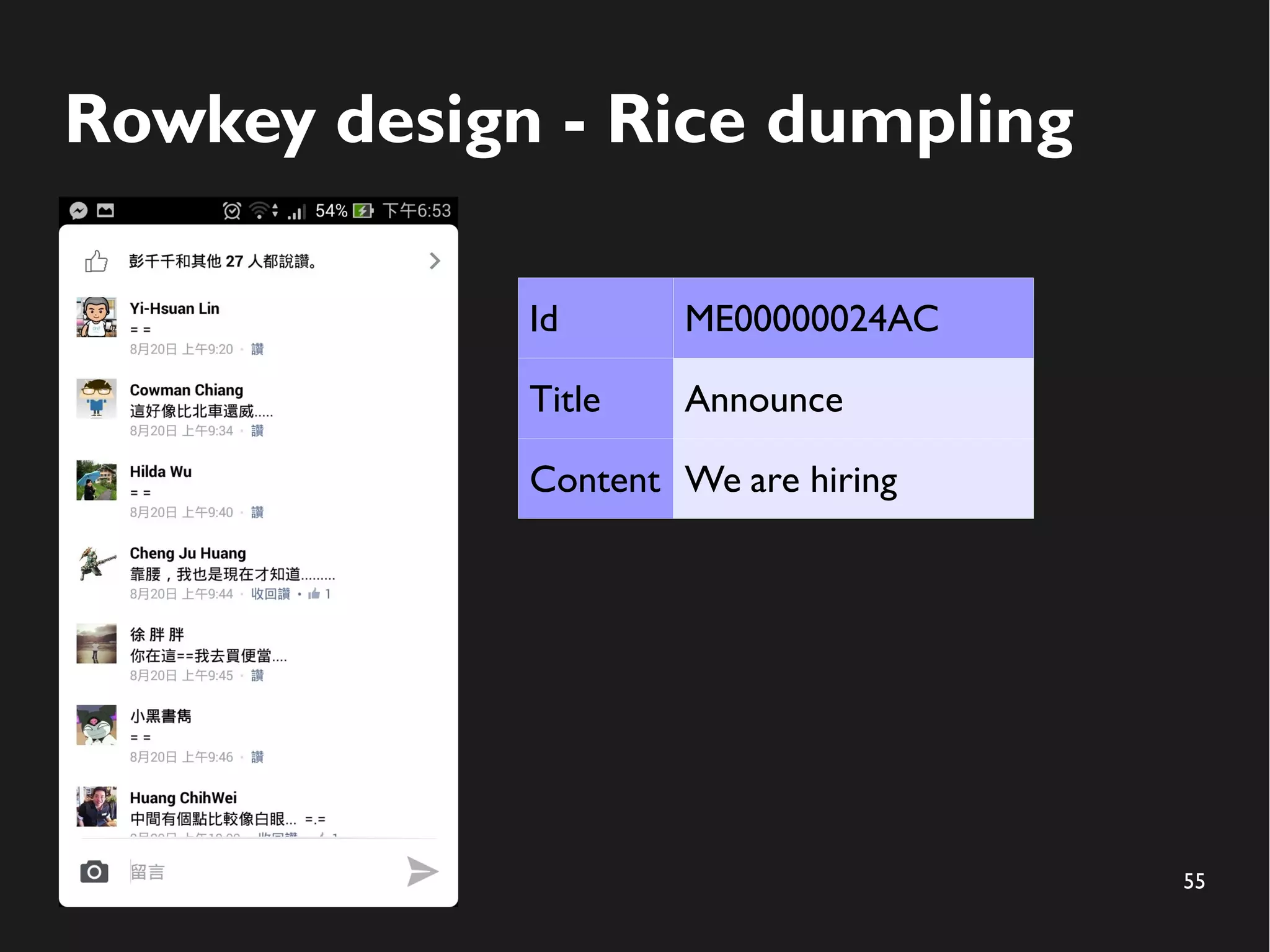

Rowkey design - Rice dumpling

53. 53
Rowkey design - Rice dumpling

54. 54
Rowkey design - Rice dumpling

55. 55
Rowkey design - Rice dumpling
Id ME00000024AC
Title Announce
Content We are hiring

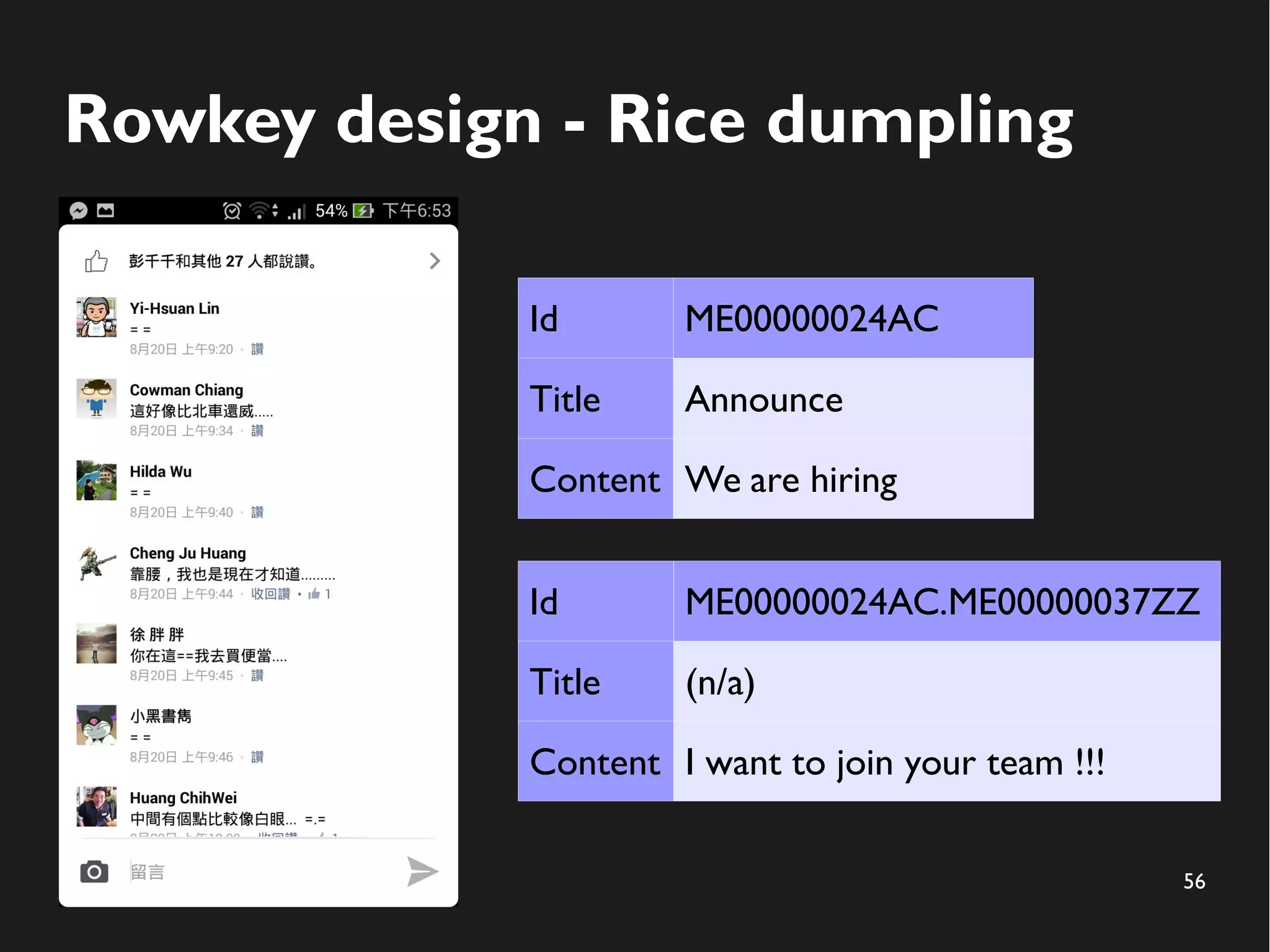

56. 56
Rowkey design - Rice dumpling
Id ME00000024AC
Title Announce
Content We are hiring
Id ME00000024AC.ME00000037ZZ
Title (n/a)
Content I want to join your team !!!

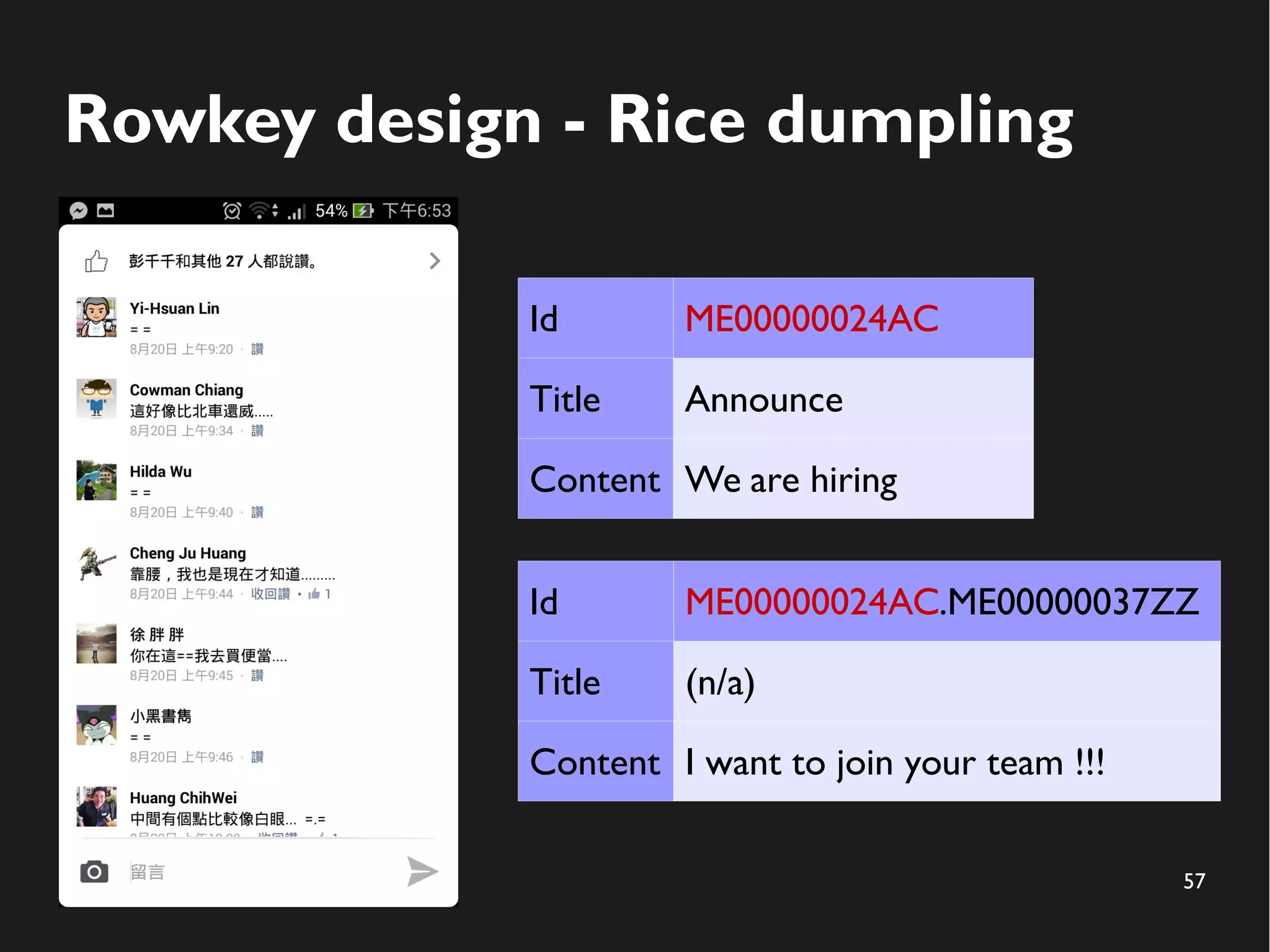

57. 57
Rowkey design - Rice dumpling
Id ME00000024AC
Title Announce
Content We are hiring
Id ME00000024AC.ME00000037ZZ
Title (n/a)
Content I want to join your team !!!

58. 58

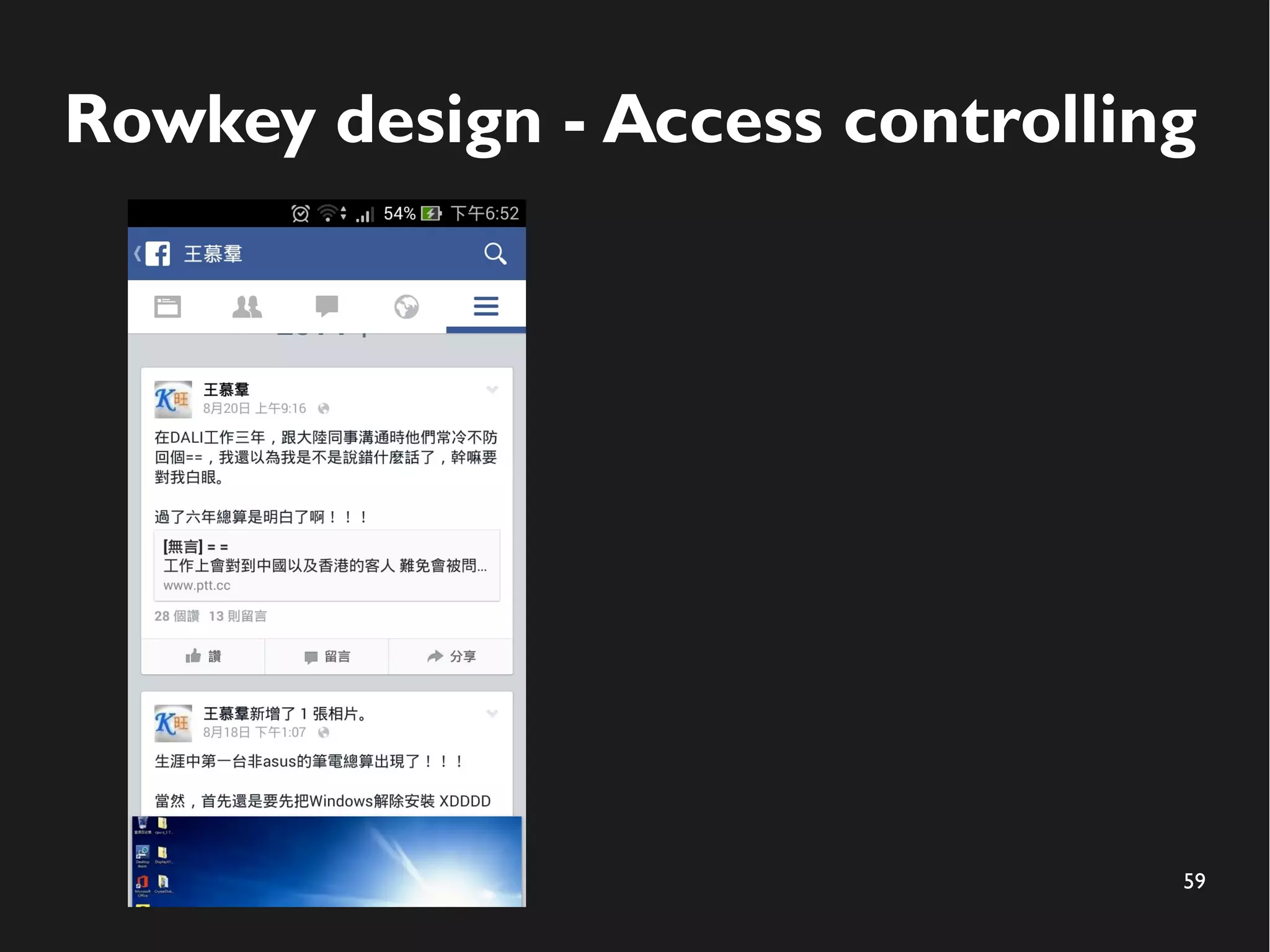

Rowkey design - Access controlling

59. 59
Rowkey design - Access controlling

60. 60
Rowkey design - Access controlling

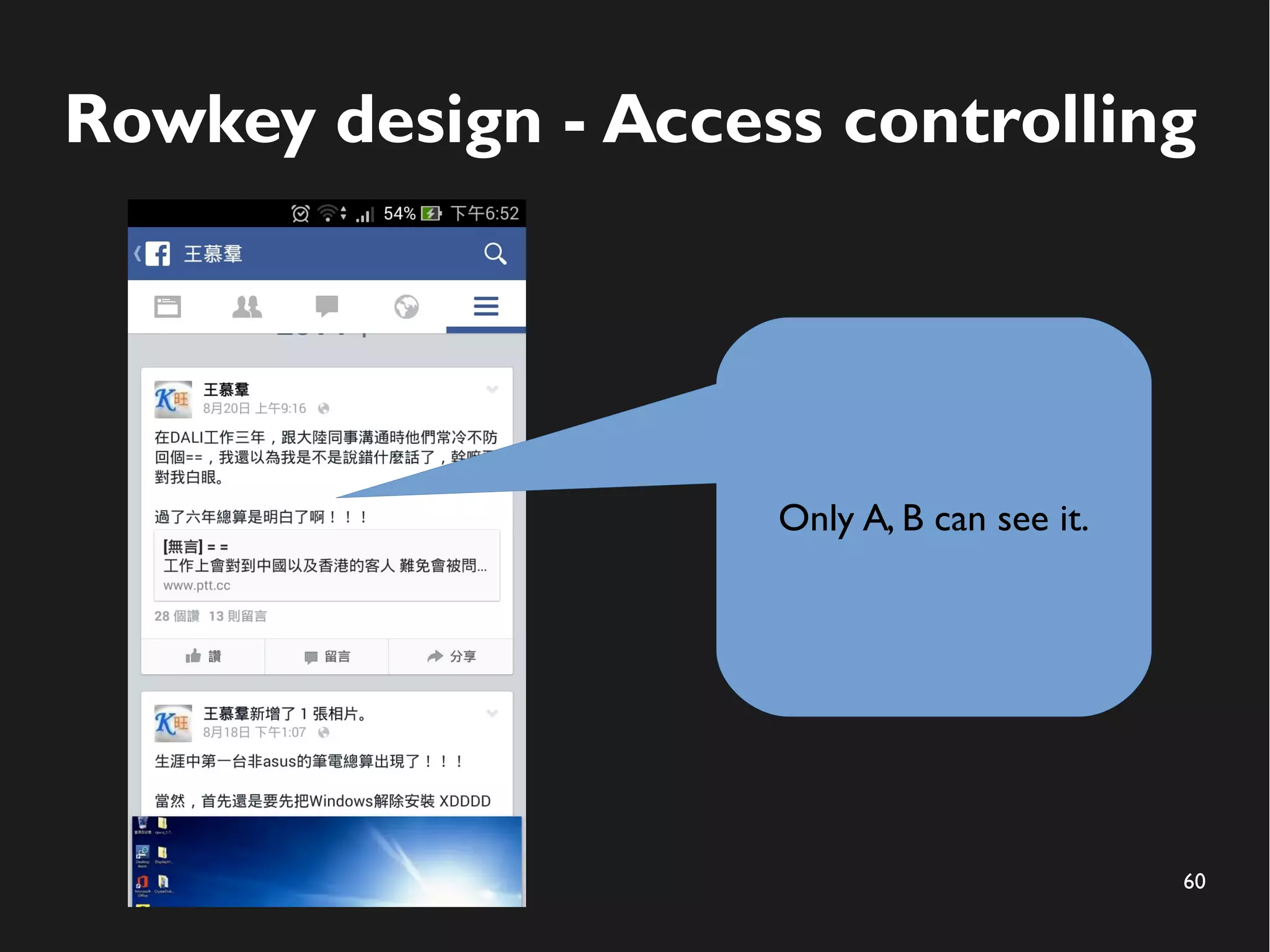

Only A, B can see it.

61. 61
Rowkey design - Access controlling
Only A, B can see it.
Of course, including me.

62. 62

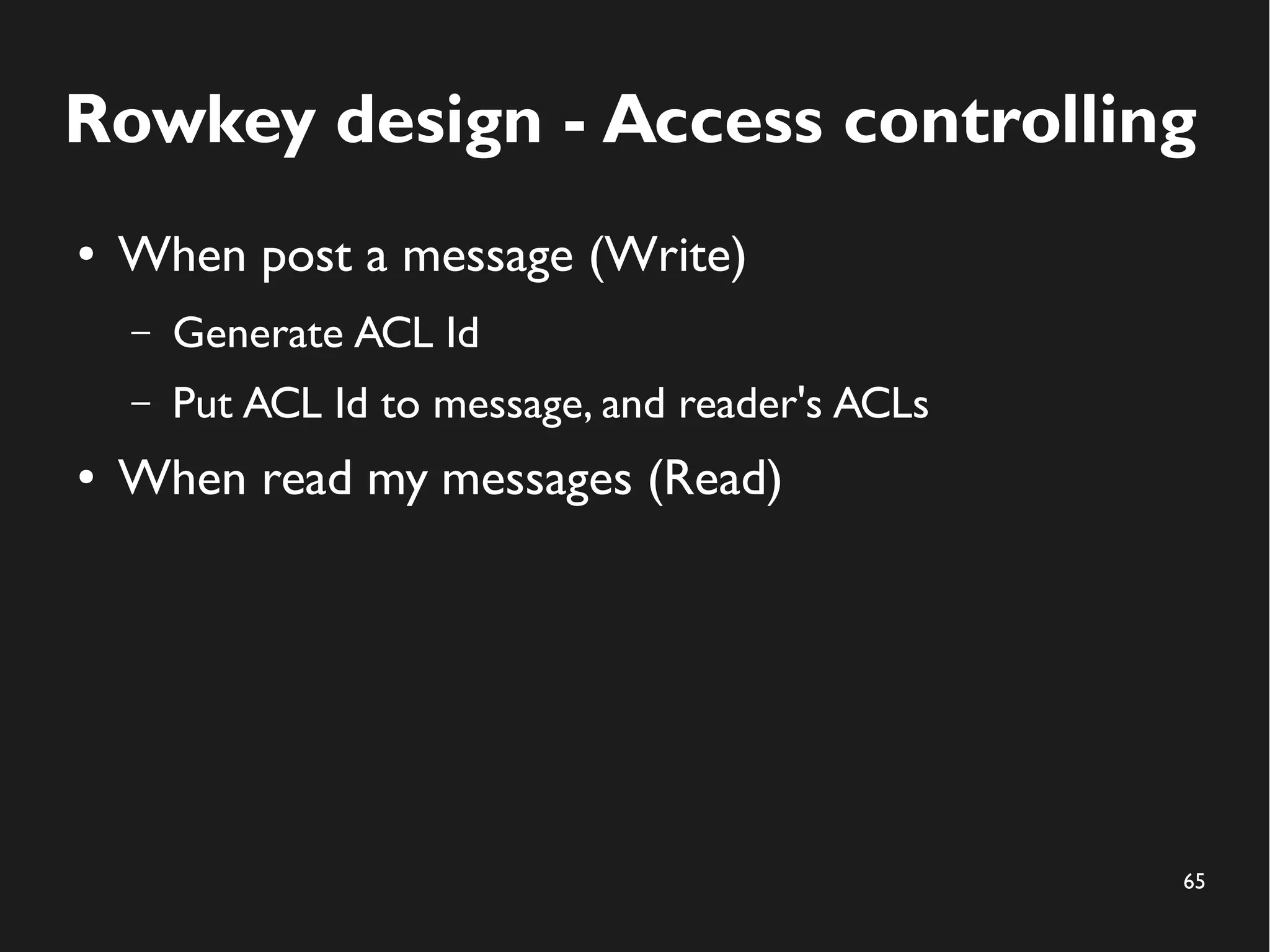

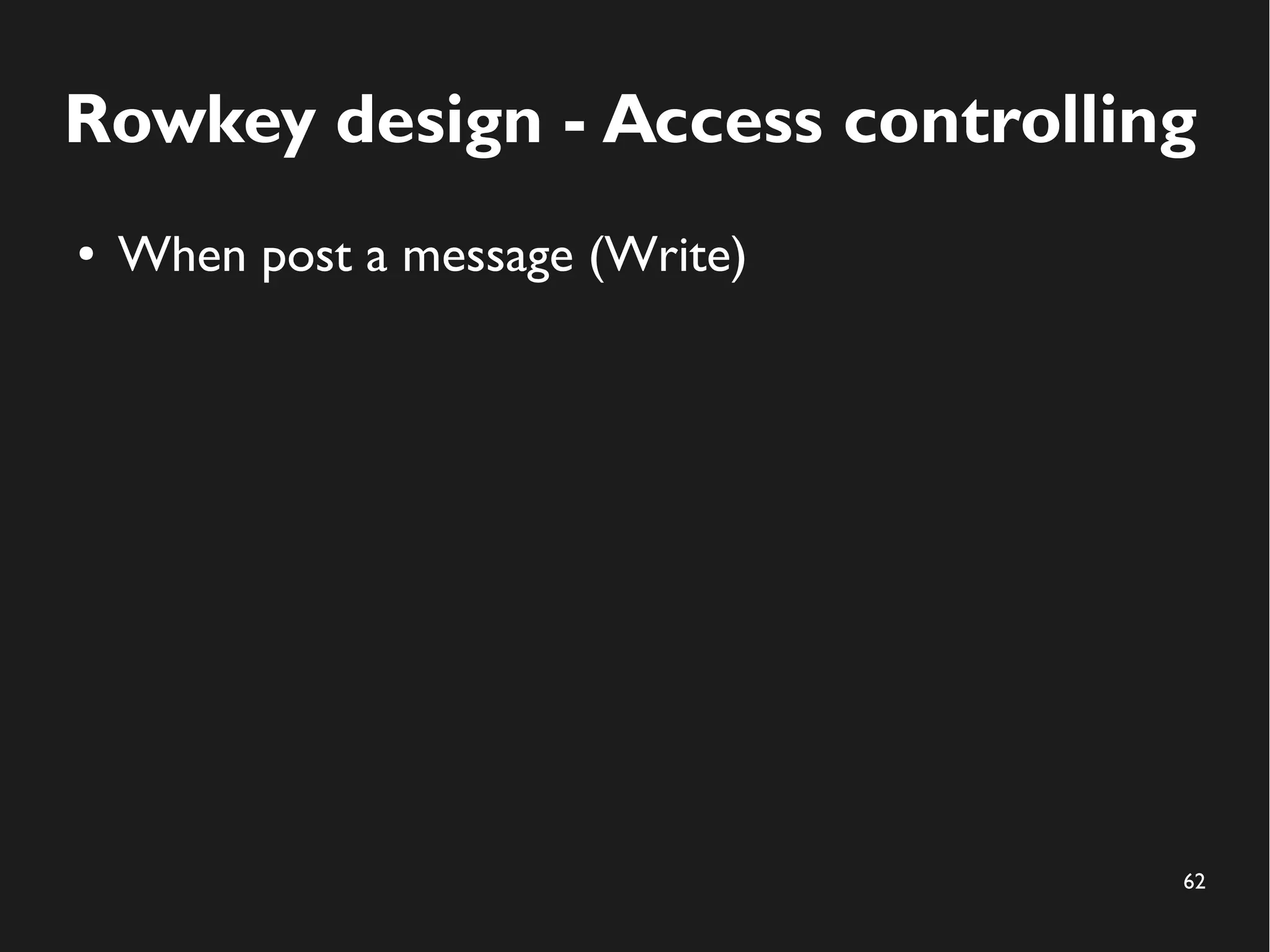

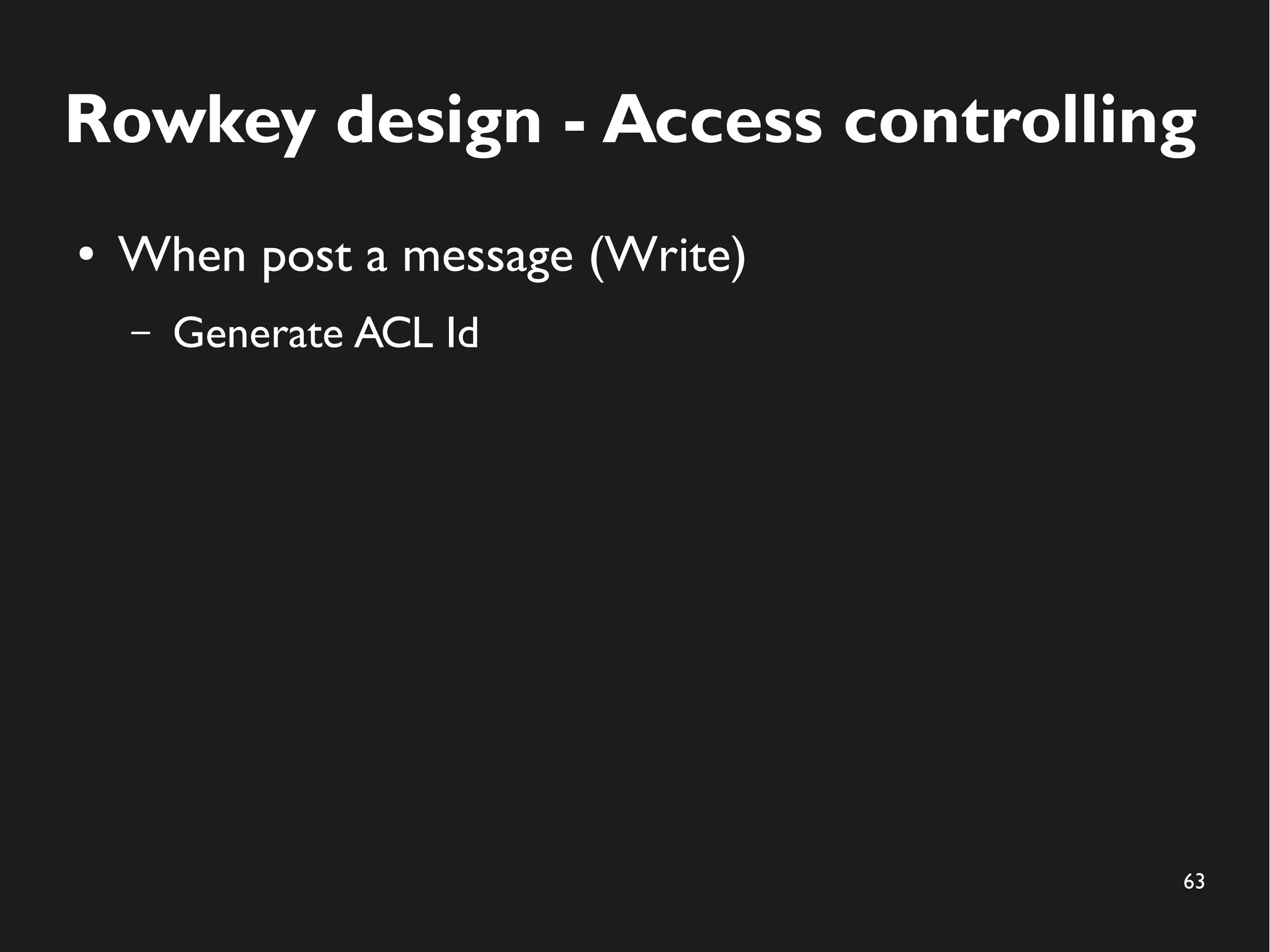

Rowkey design - Access controlling
● When post a message (Write)

63. 63
Rowkey design - Access controlling
● When post a message (Write)
– Generate ACL Id

64. 64
Rowkey design - Access controlling
● When post a message (Write)
– Generate ACL Id
– Put ACL Id to message, and reader's ACLs

65. 65
Rowkey design - Access controlling
● When post a message (Write)
– Generate ACL Id
– Put ACL Id to message, and reader's ACLs
● When read my messages (Read)

66. 66

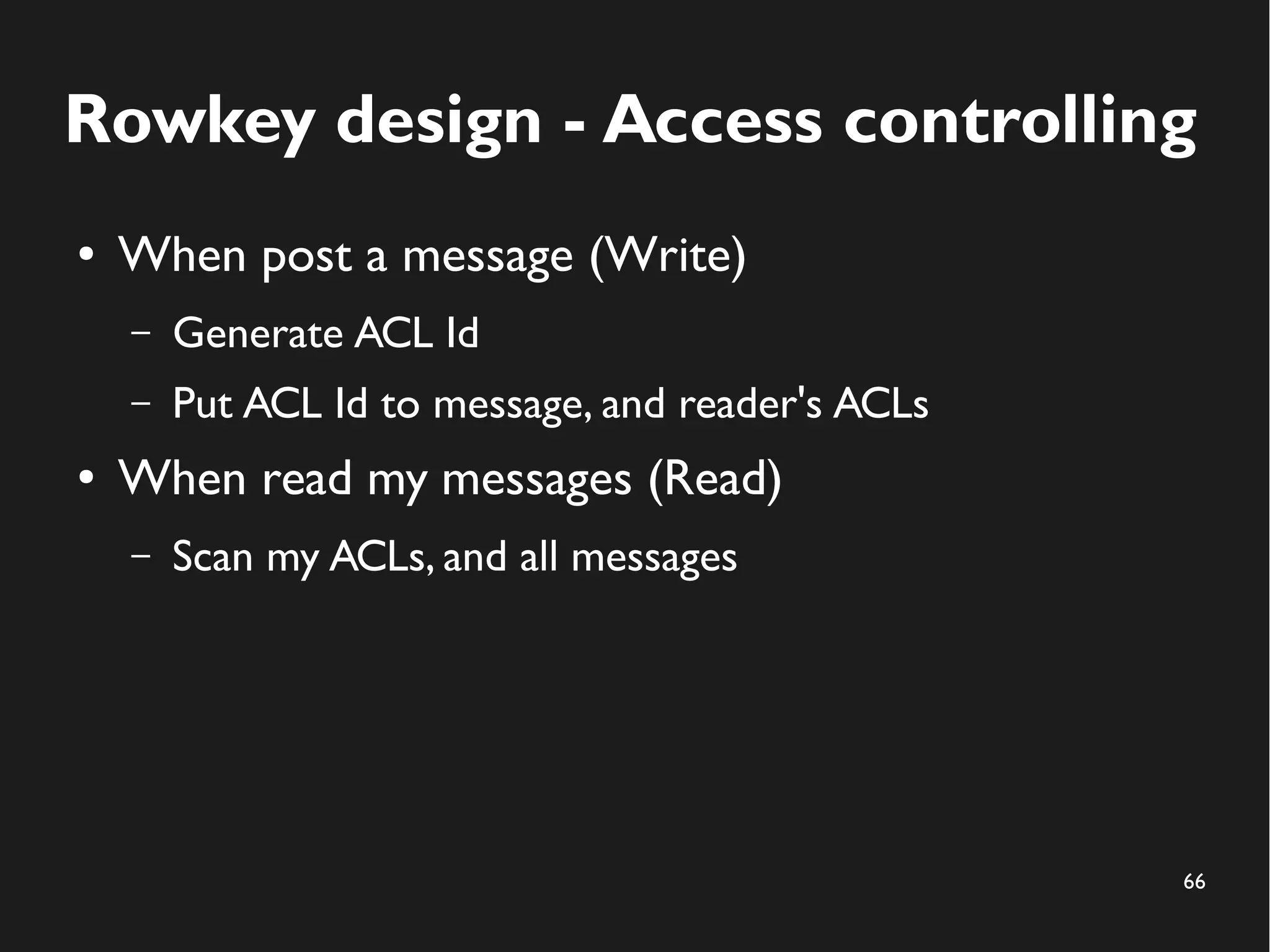

Rowkey design - Access controlling
● When post a message (Write)
– Generate ACL Id
– Put ACL Id to message, and reader's ACLs
● When read my messages (Read)
– Scan my ACLs, and all messages

67. 67

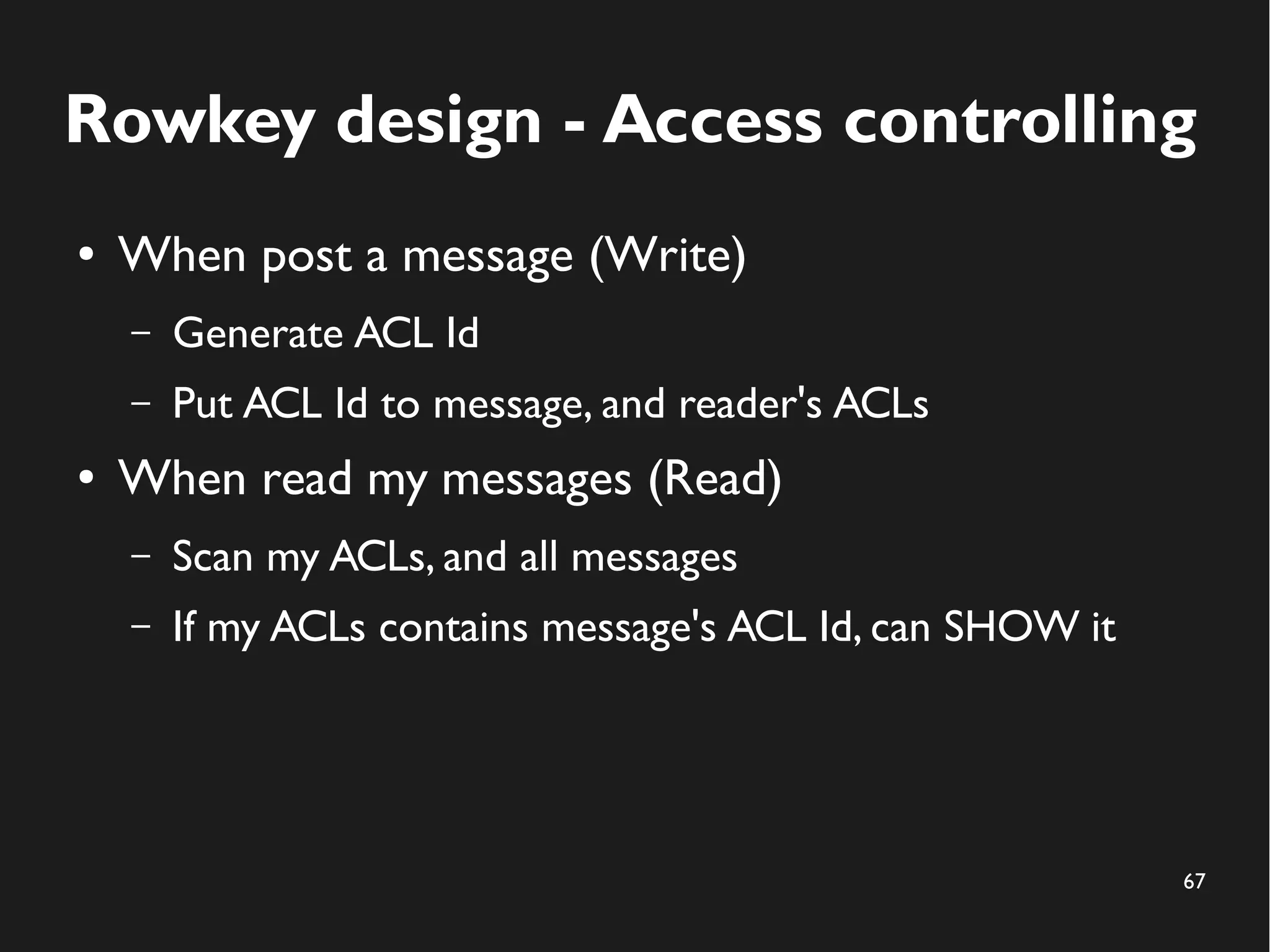

Rowkey design - Access controlling
● When post a message (Write)
– Generate ACL Id
– Put ACL Id to message, and reader's ACLs
● When read my messages (Read)
– Scan my ACLs, and all messages
– If my ACLs contains message's ACL Id, can SHOW it

68. 68
Rowkey design - Access controlling
Write

69. 69

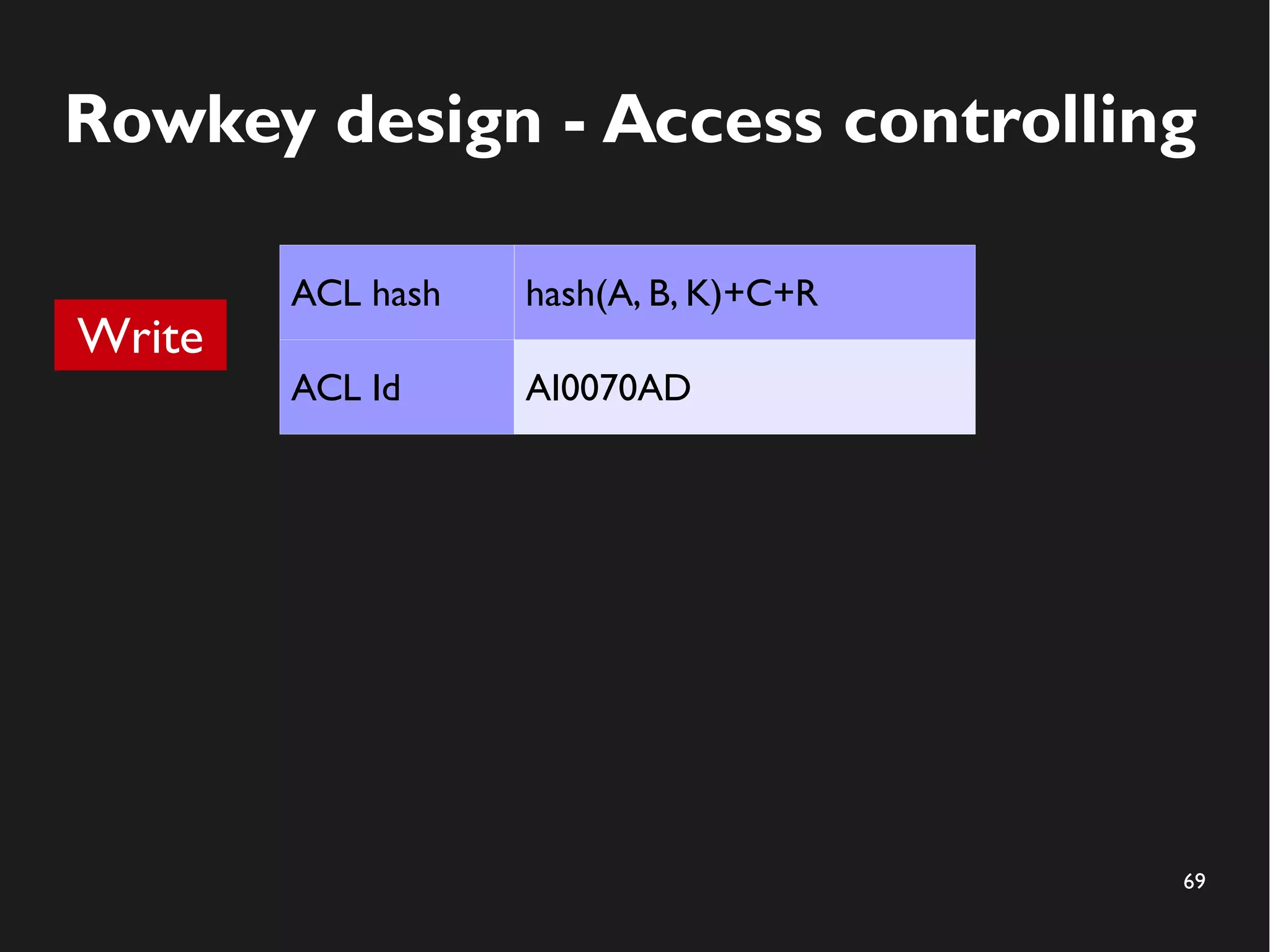

Rowkey design - Access controlling

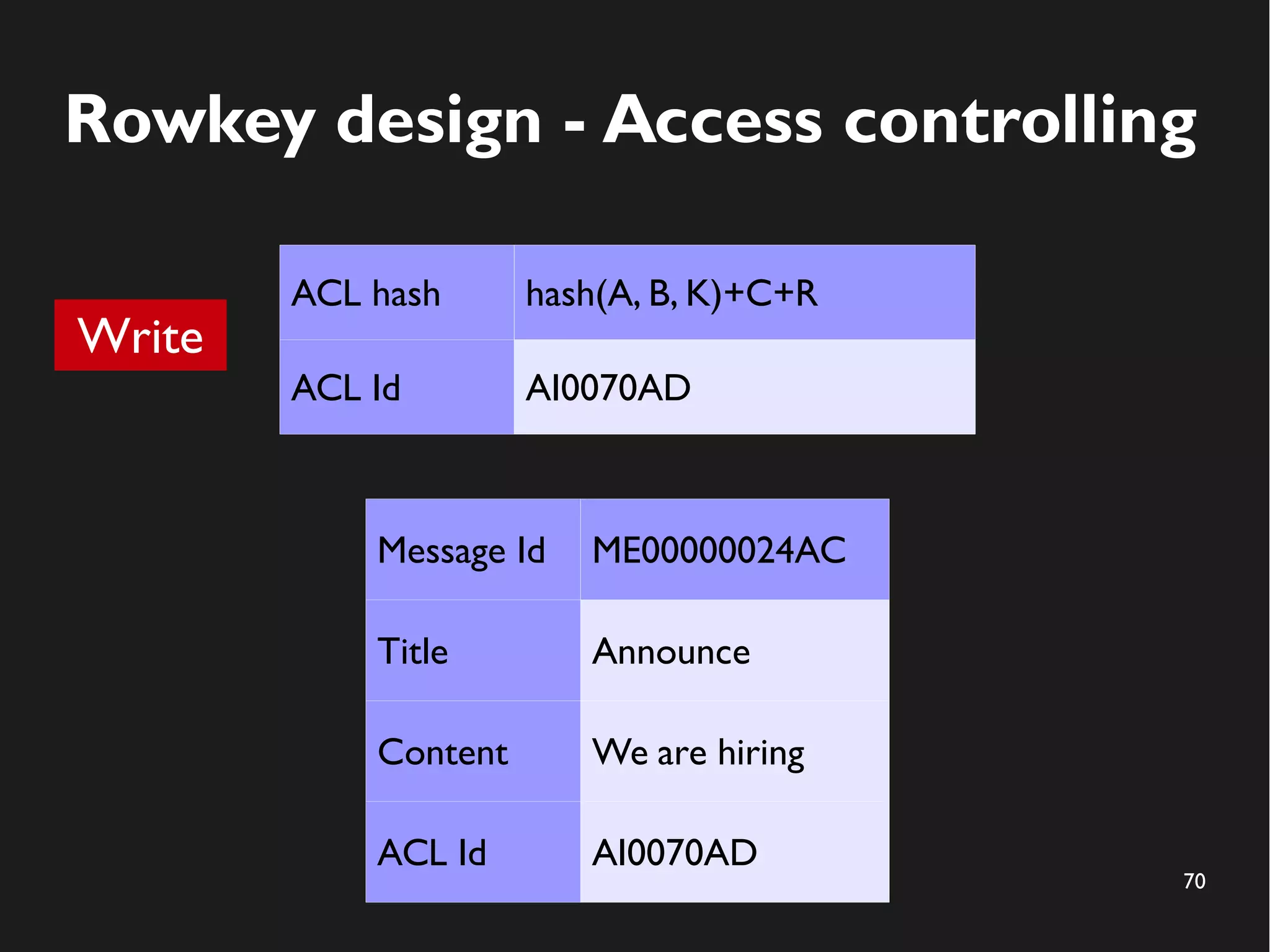

ACL hash hash(A, B, K)+C+R
ACL Id AI0070AD
Write

70. 70
Rowkey design - Access controlling
ACL hash hash(A, B, K)+C+R
ACL Id AI0070AD
Message Id ME00000024AC
Title Announce
Content We are hiring
ACL Id AI0070AD
Write

71. 71

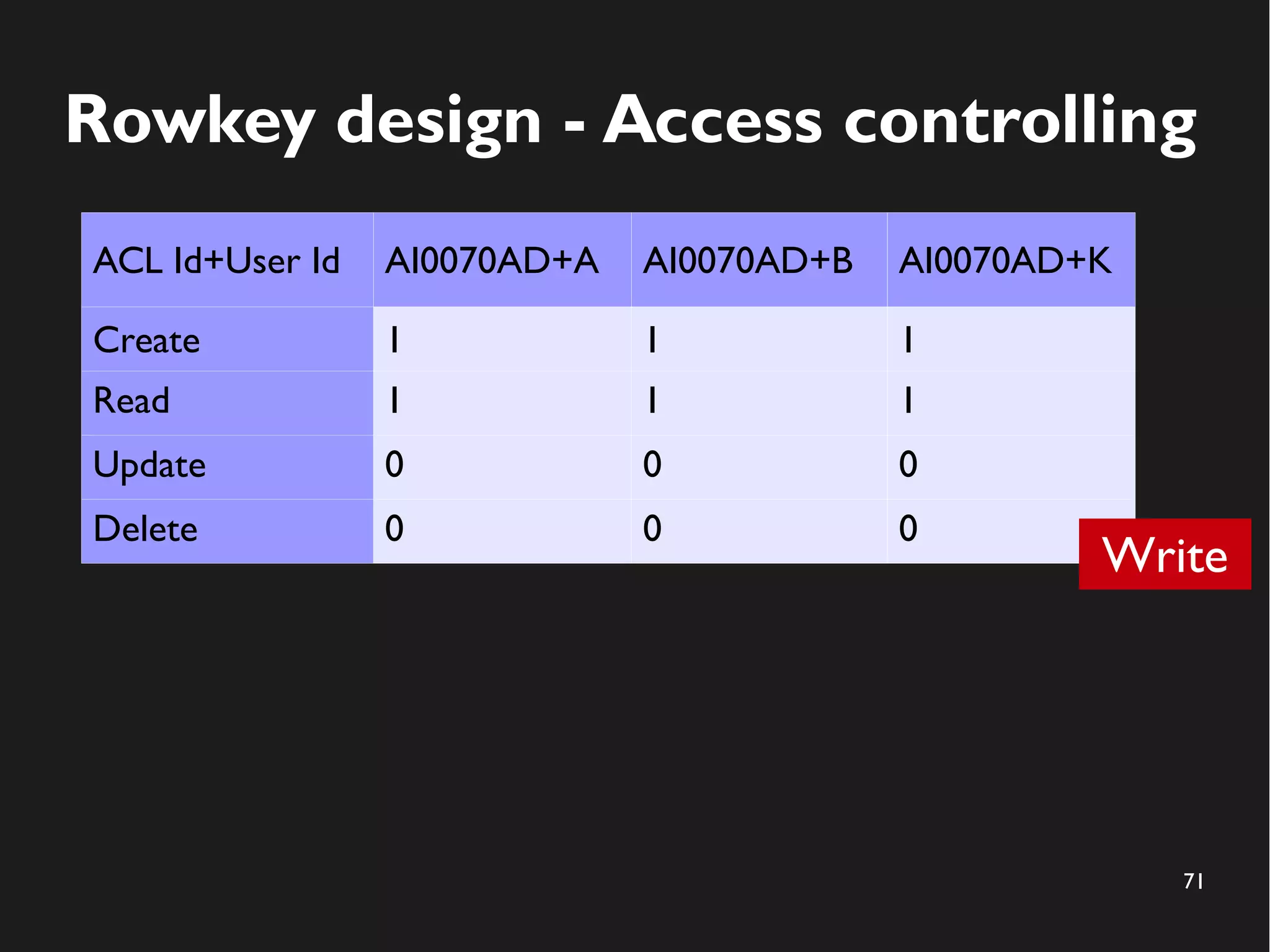

Rowkey design - Access controlling
ACL Id+User Id AI0070AD+A AI0070AD+B AI0070AD+K
Create 1 1 1
Read 1 1 1
Update 0 0 0
Delete 0 0 0
Write

72. 72

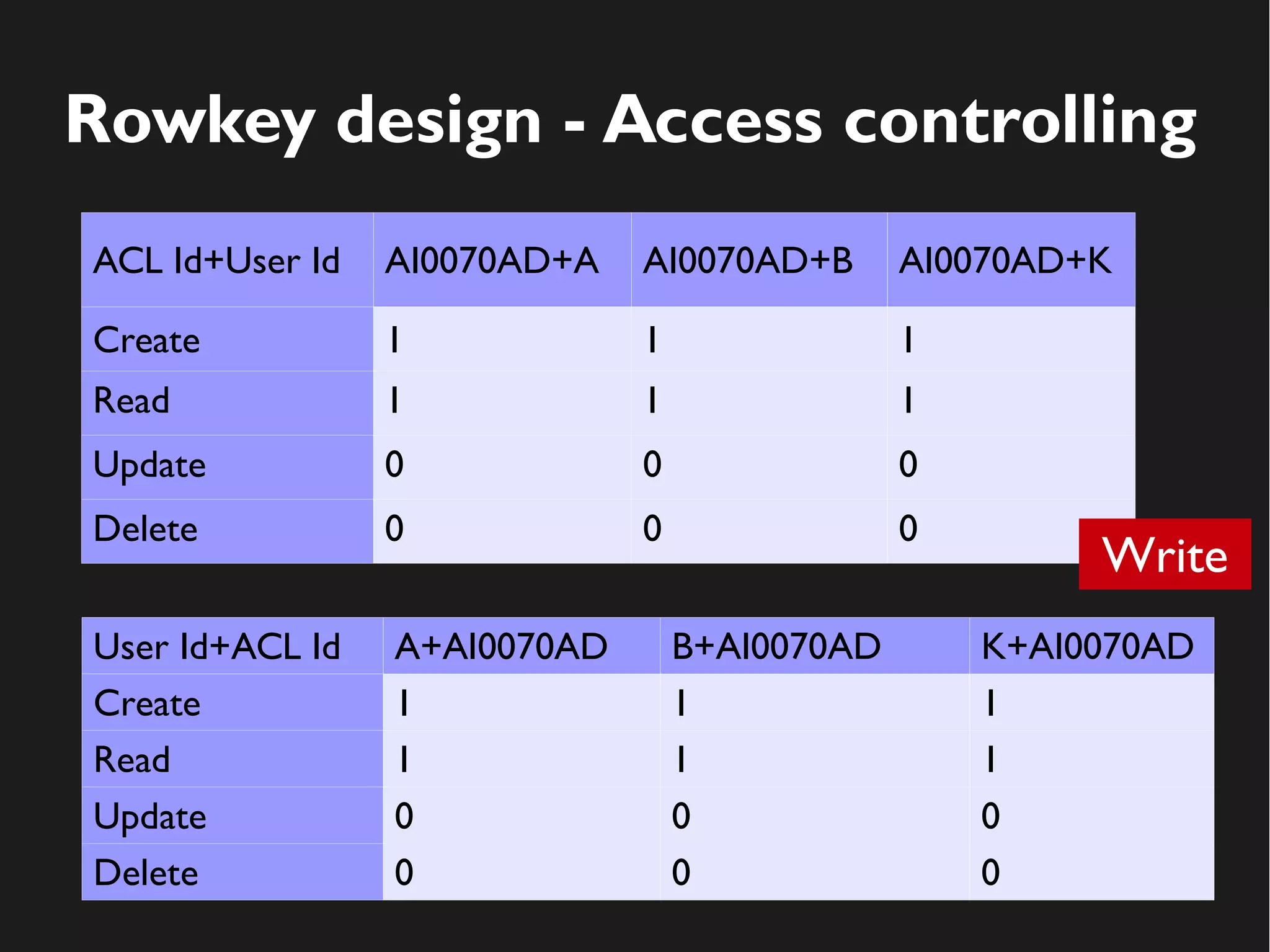

Rowkey design - Access controlling
User Id+ACL Id A+AI0070AD B+AI0070AD K+AI0070AD
Create 1 1 1
Read 1 1 1
Update 0 0 0
Delete 0 0 0
ACL Id+User Id AI0070AD+A AI0070AD+B AI0070AD+K
Create 1 1 1
Read 1 1 1
Update 0 0 0
Delete 0 0 0
Write

73. 73
Rowkey design - Access controlling
Read

74. 74

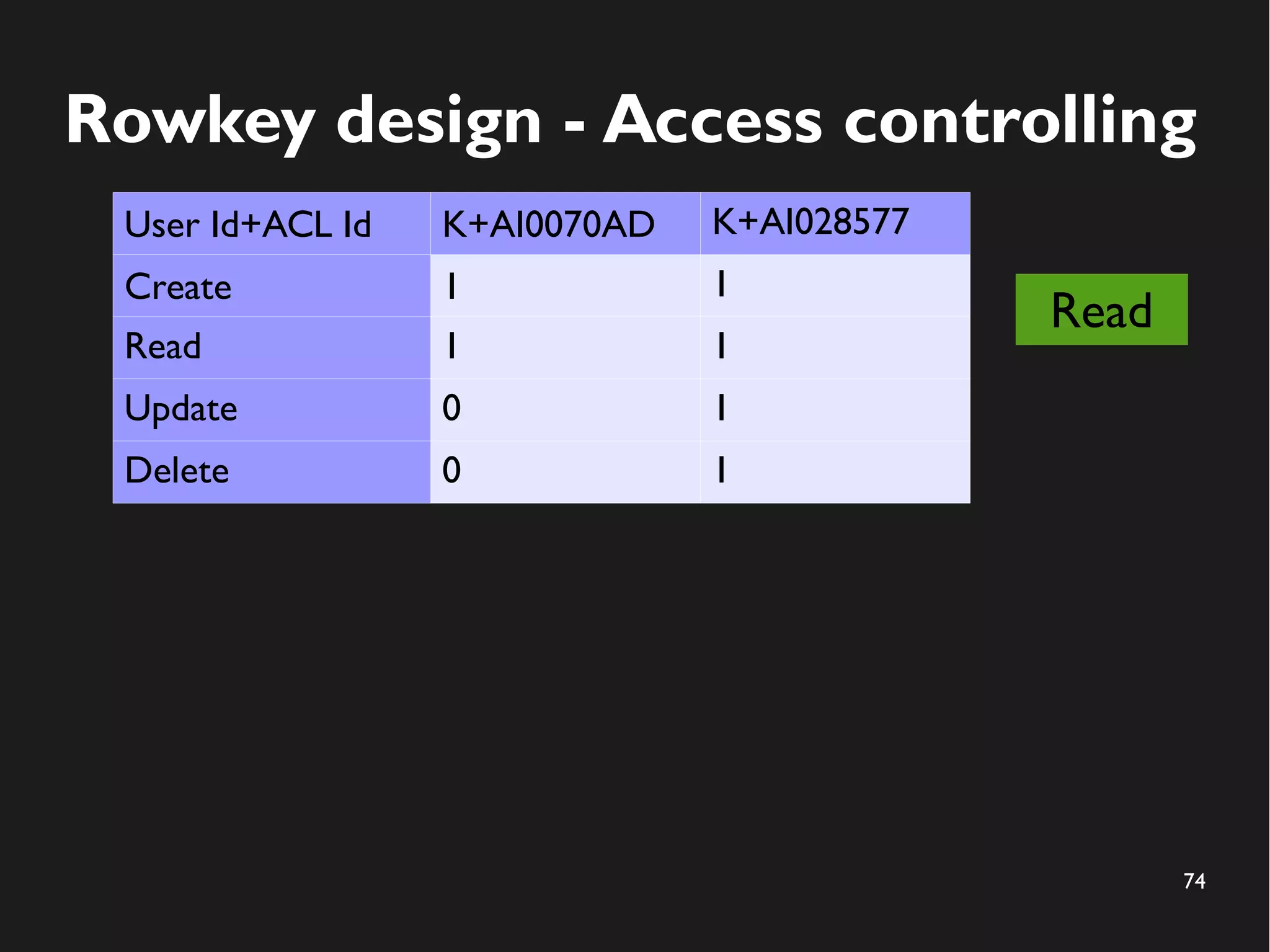

Rowkey design - Access controlling
User Id+ACL Id K+AI0070AD K+AI028577
Create 1 1
Read 1 1
Update 0 1
Delete 0 1
Read

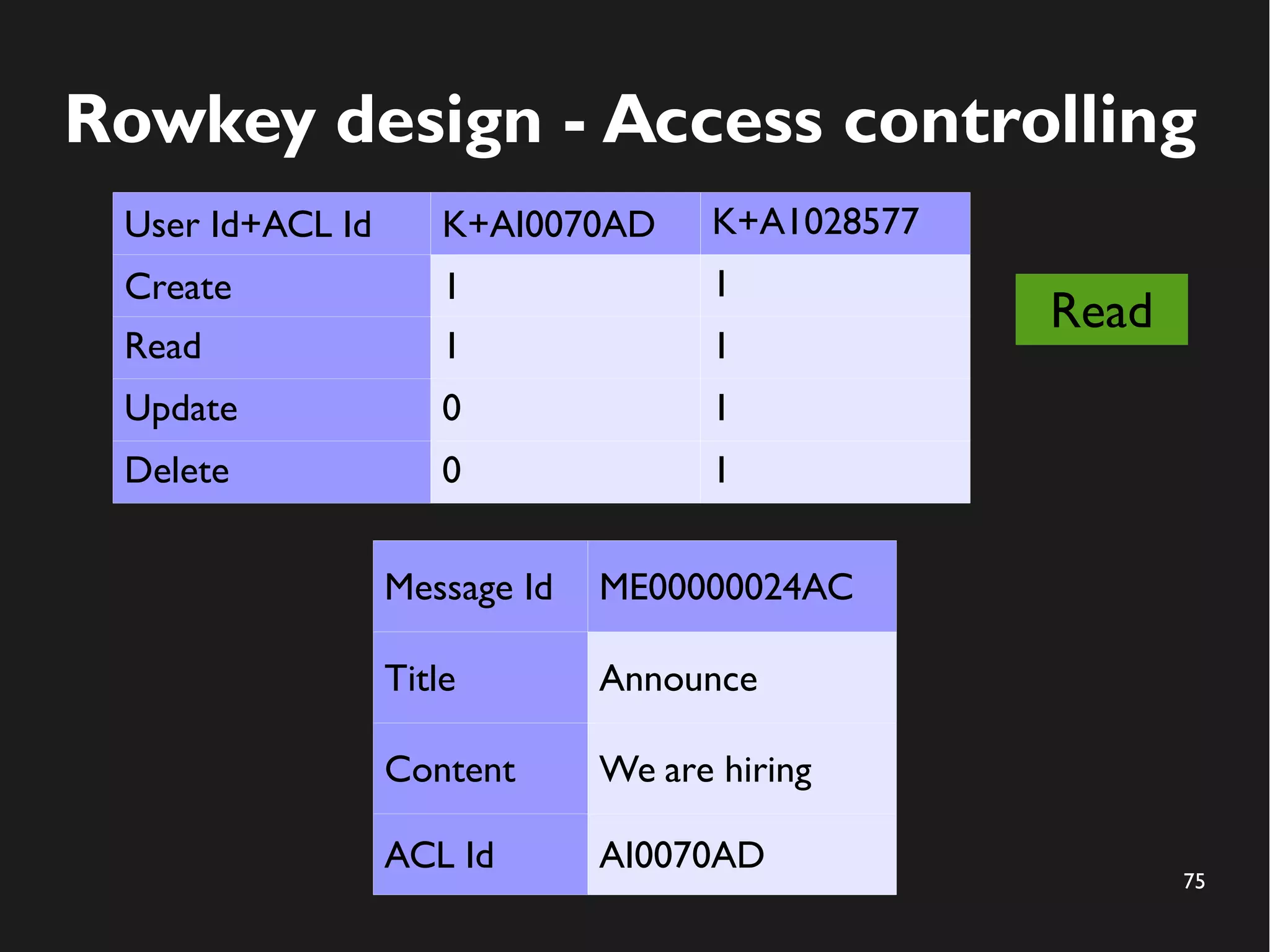

75. 75
Rowkey design - Access controlling
User Id+ACL Id K+AI0070AD K+A1028577
Create 1 1
Read 1 1
Update 0 1
Delete 0 1
Read
Message Id ME00000024AC
Title Announce
Content We are hiring
ACL Id AI0070AD

76. 76
Rowkey design - Access controlling
User Id+ACL Id K+AI0070AD K+A1028577
Create 1 1
Read 1 1
Update 0 1
Delete 0 1
Read
Message Id ME00000024AC
Title Announce
Content We are hiring
ACL Id AI0070AD

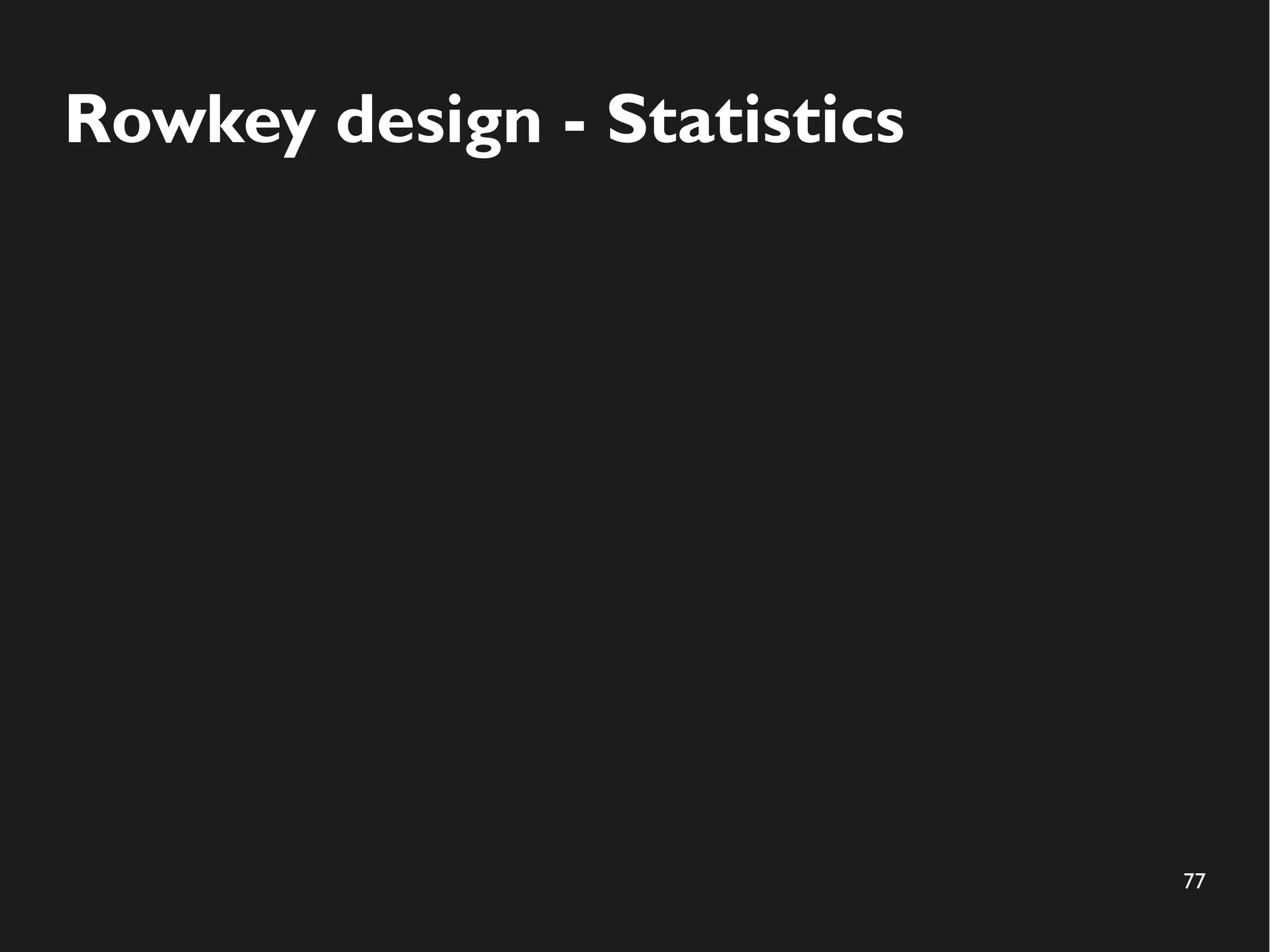

77. 77

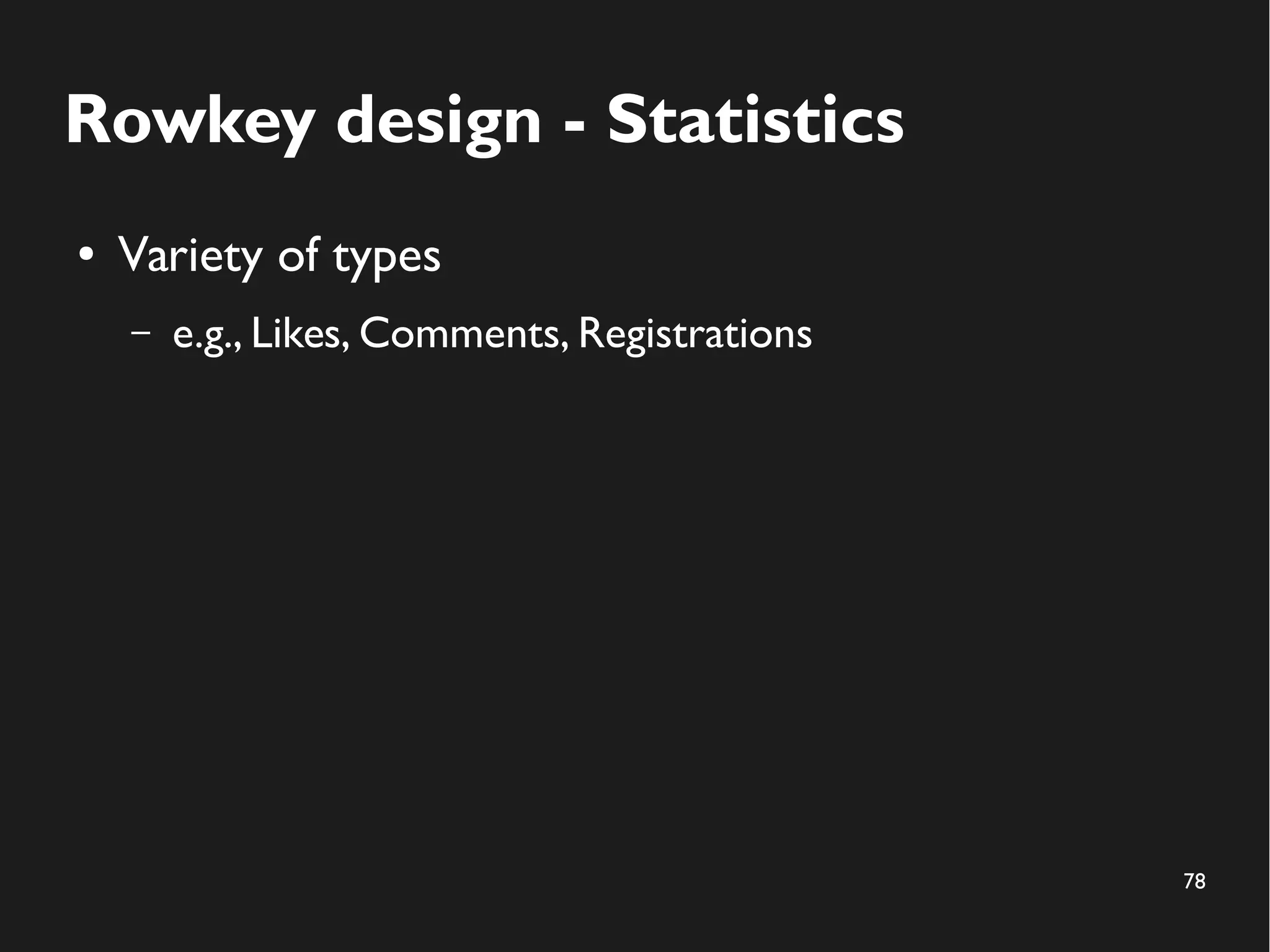

Rowkey design - Statistics

78. 78
Rowkey design - Statistics
● Variety of types
– e.g., Likes, Comments, Registrations

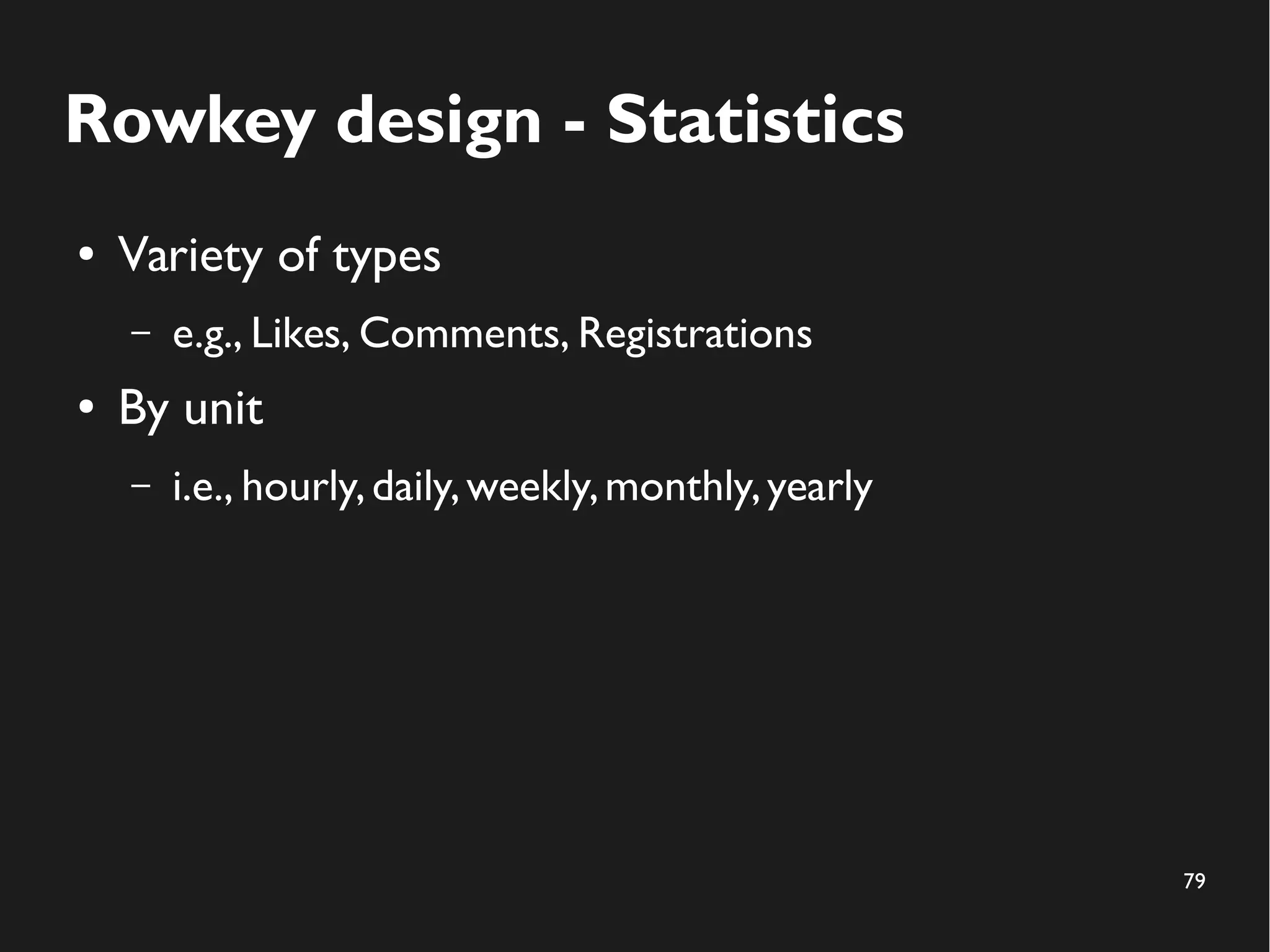

79. 79
Rowkey design - Statistics
● Variety of types
– e.g., Likes, Comments, Registrations
● By unit
– i.e., hourly,daily,weekly,monthly,yearly

80. 80

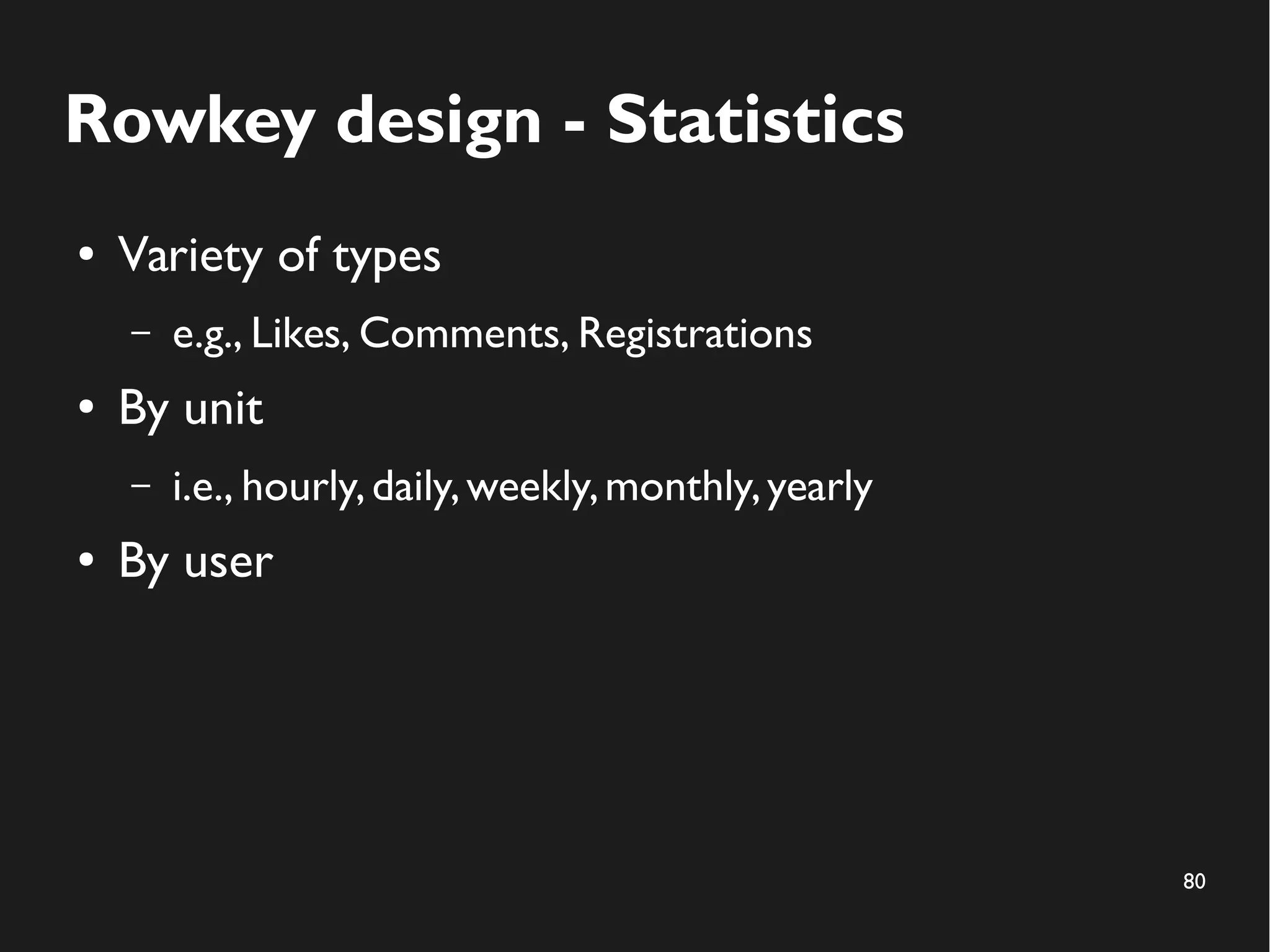

Rowkey design - Statistics
● Variety of types
– e.g., Likes, Comments, Registrations
● By unit
– i.e., hourly,daily,weekly,monthly,yearly
● By user

81. 81

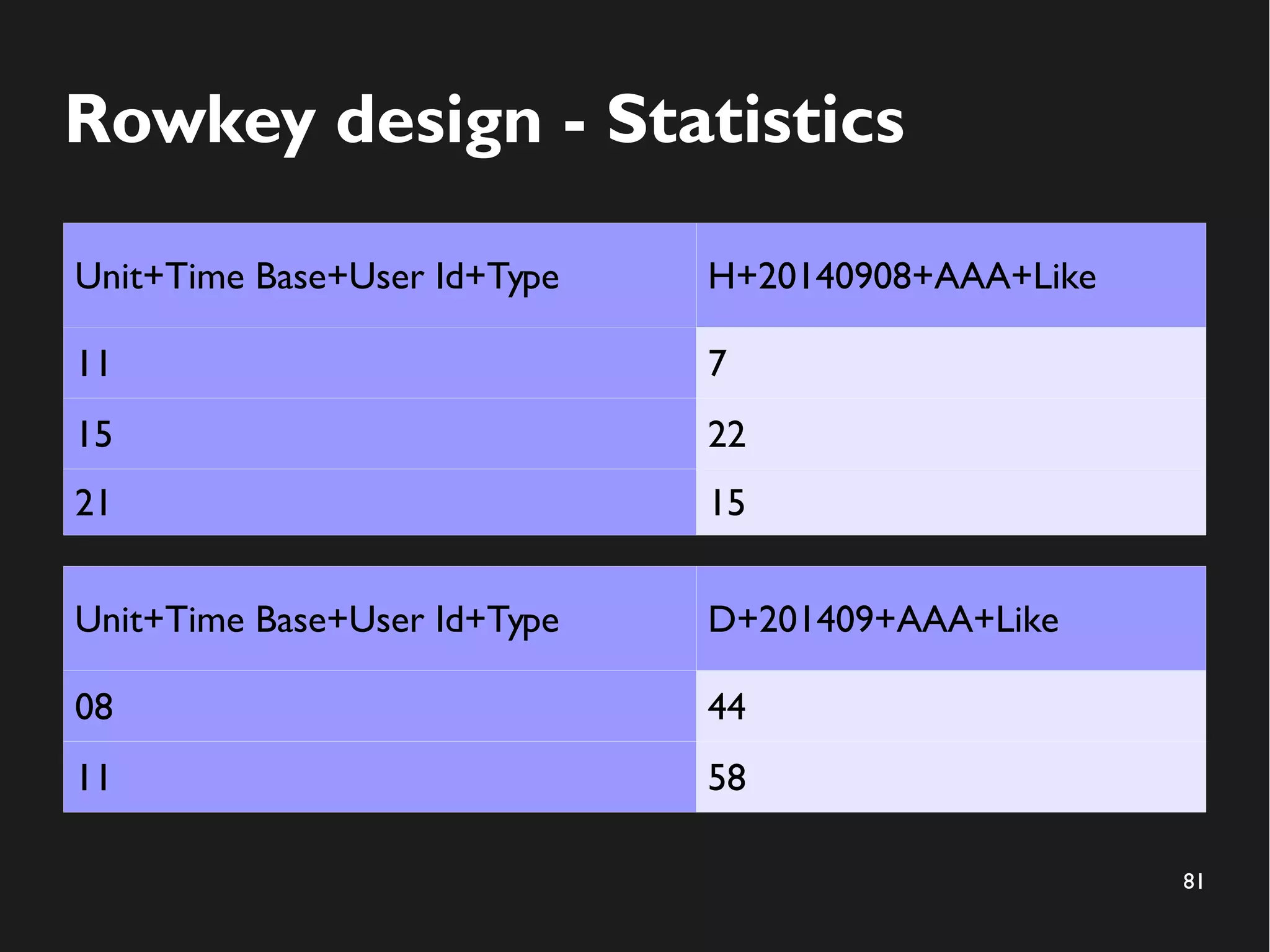

Rowkey design - Statistics
Unit+Time Base+User Id+Type H+20140908+AAA+Like
11 7
15 22
21 15
Unit+Time Base+User Id+Type D+201409+AAA+Like
08 44
11 58

82. 82
Rowkey design - Statistics
● Sum counts from 2014/9/7 to 2014/9/20 group by
user or counting type
Unit+Time Base+User Id+Type D+201409+AAA+Like
02 20
08 52
09 41
... ...
20 55

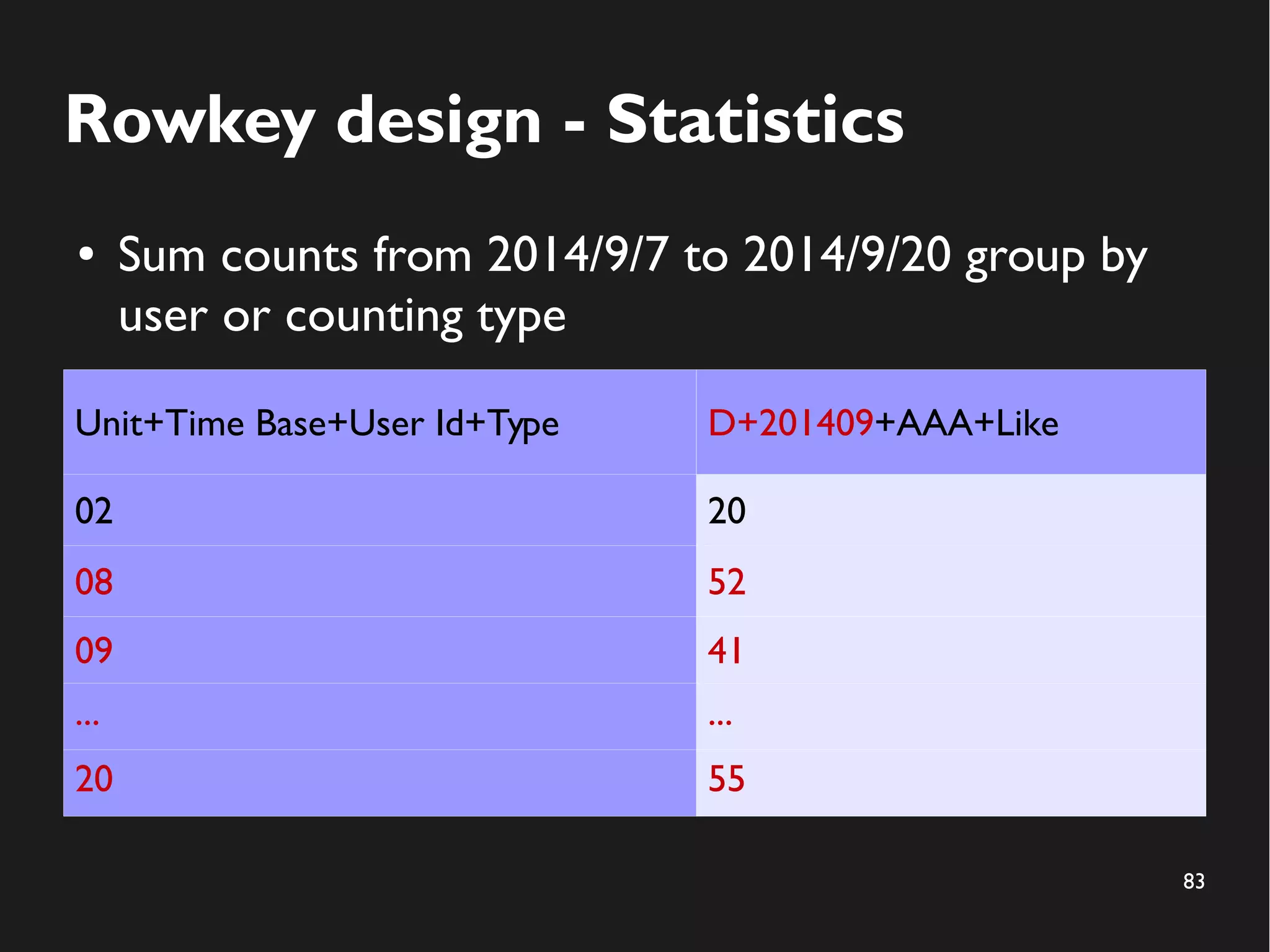

83. 83
Rowkey design - Statistics
● Sum counts from 2014/9/7 to 2014/9/20 group by
user or counting type
Unit+Time Base+User Id+Type D+201409+AAA+Like
02 20
08 52
09 41
... ...
20 55

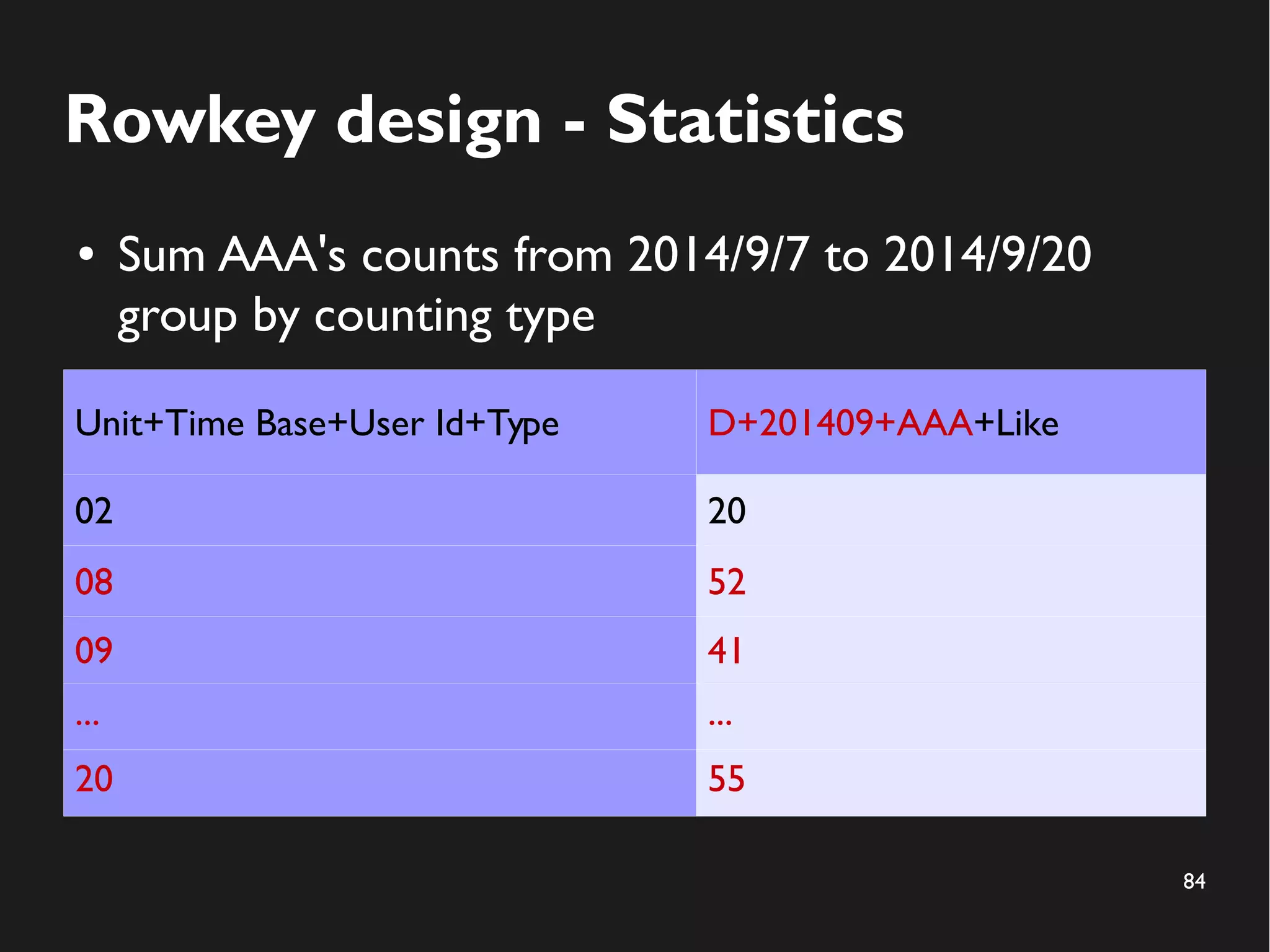

84. 84
Rowkey design - Statistics
● Sum AAA's counts from 2014/9/7 to 2014/9/20
group by counting type
Unit+Time Base+User Id+Type D+201409+AAA+Like
02 20
08 52
09 41
... ...
20 55

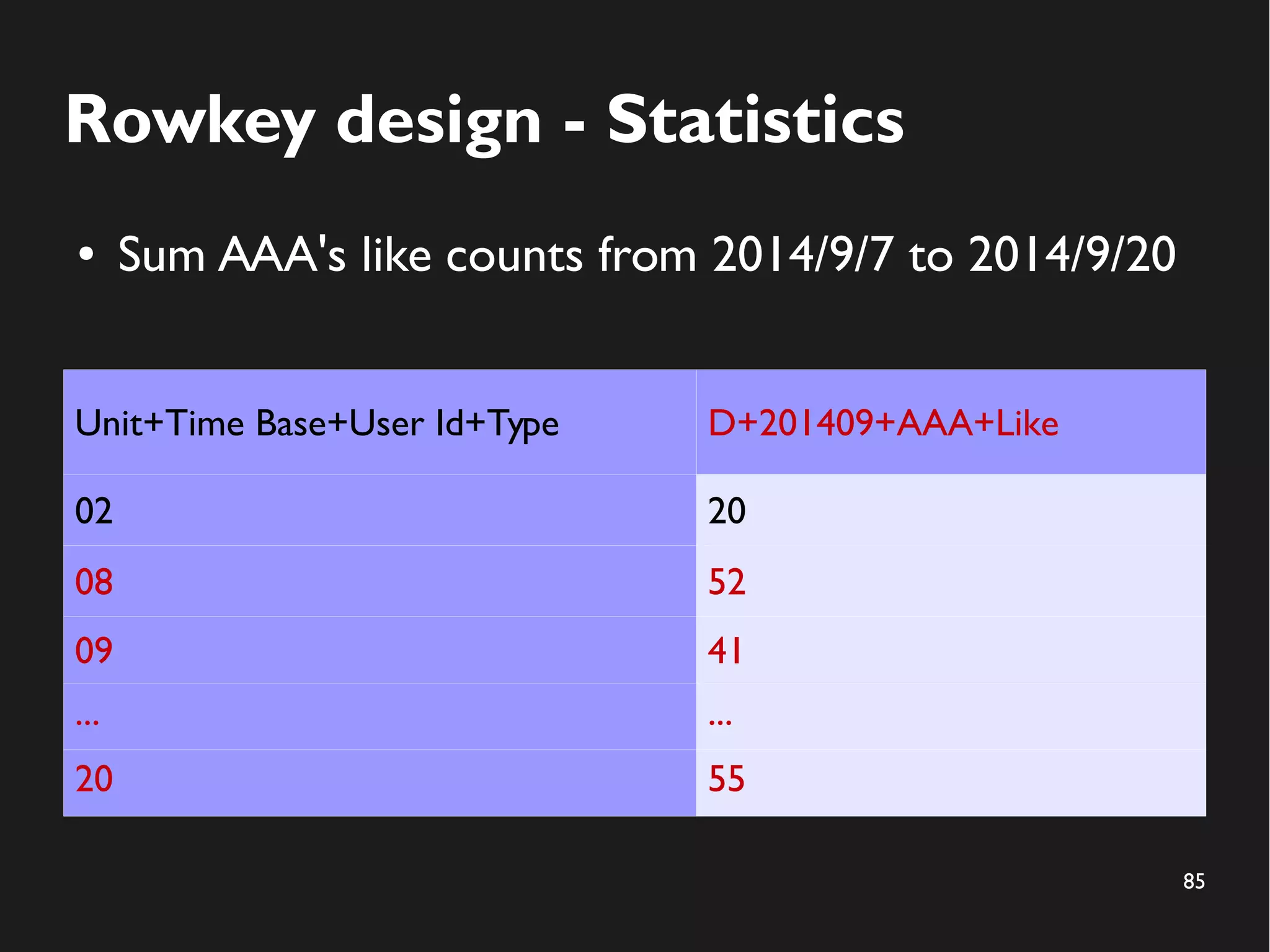

85. 85
Rowkey design - Statistics
● Sum AAA's like counts from 2014/9/7 to 2014/9/20
Unit+Time Base+User Id+Type D+201409+AAA+Like
02 20
08 52
09 41
... ...
20 55

86. 86

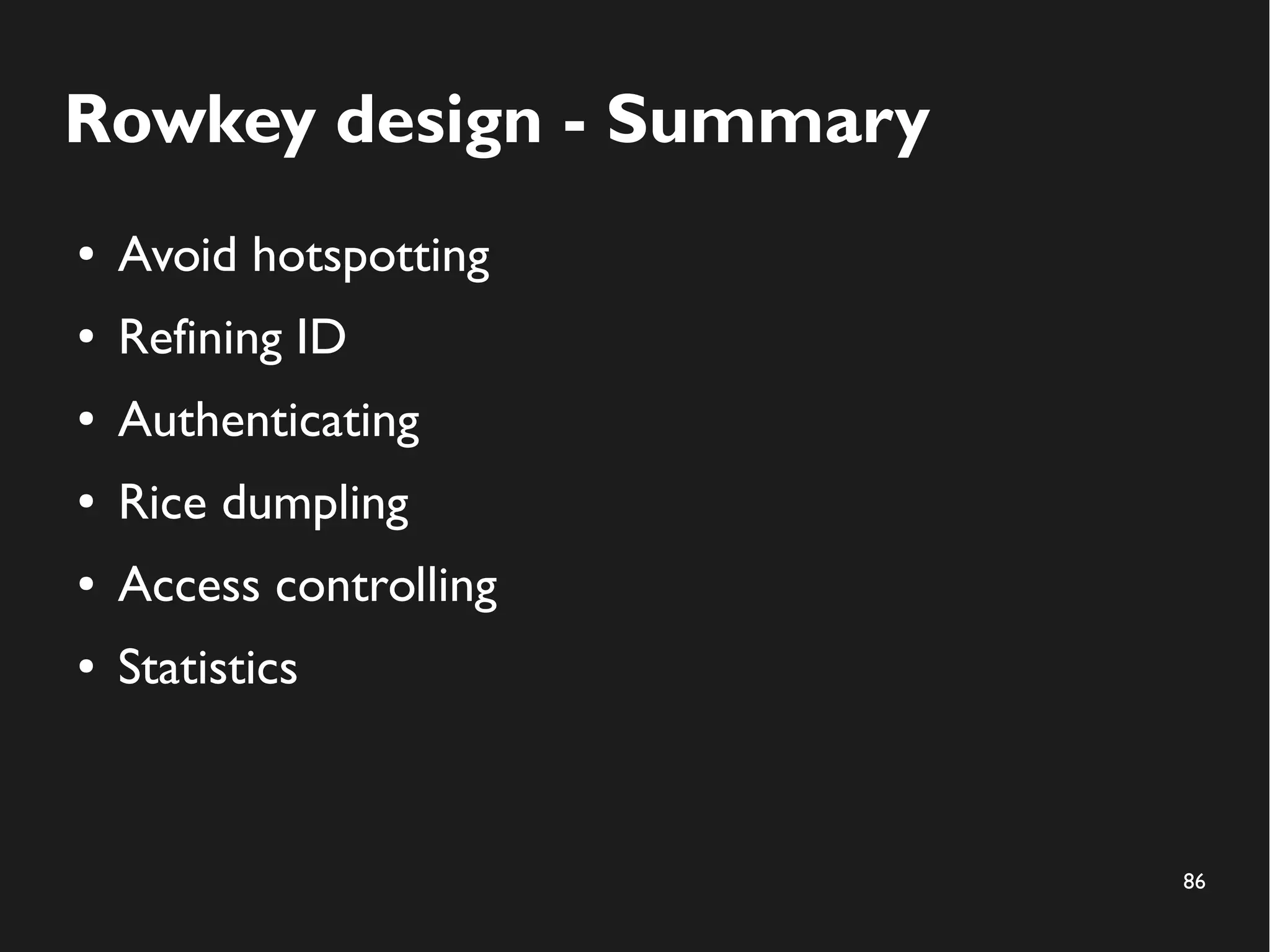

Rowkey design - Summary
● Avoid hotspotting
● Refining ID
● Authenticating
● Rice dumpling
● Access controlling
● Statistics

87. 87
Best Practice in Java

88. 88

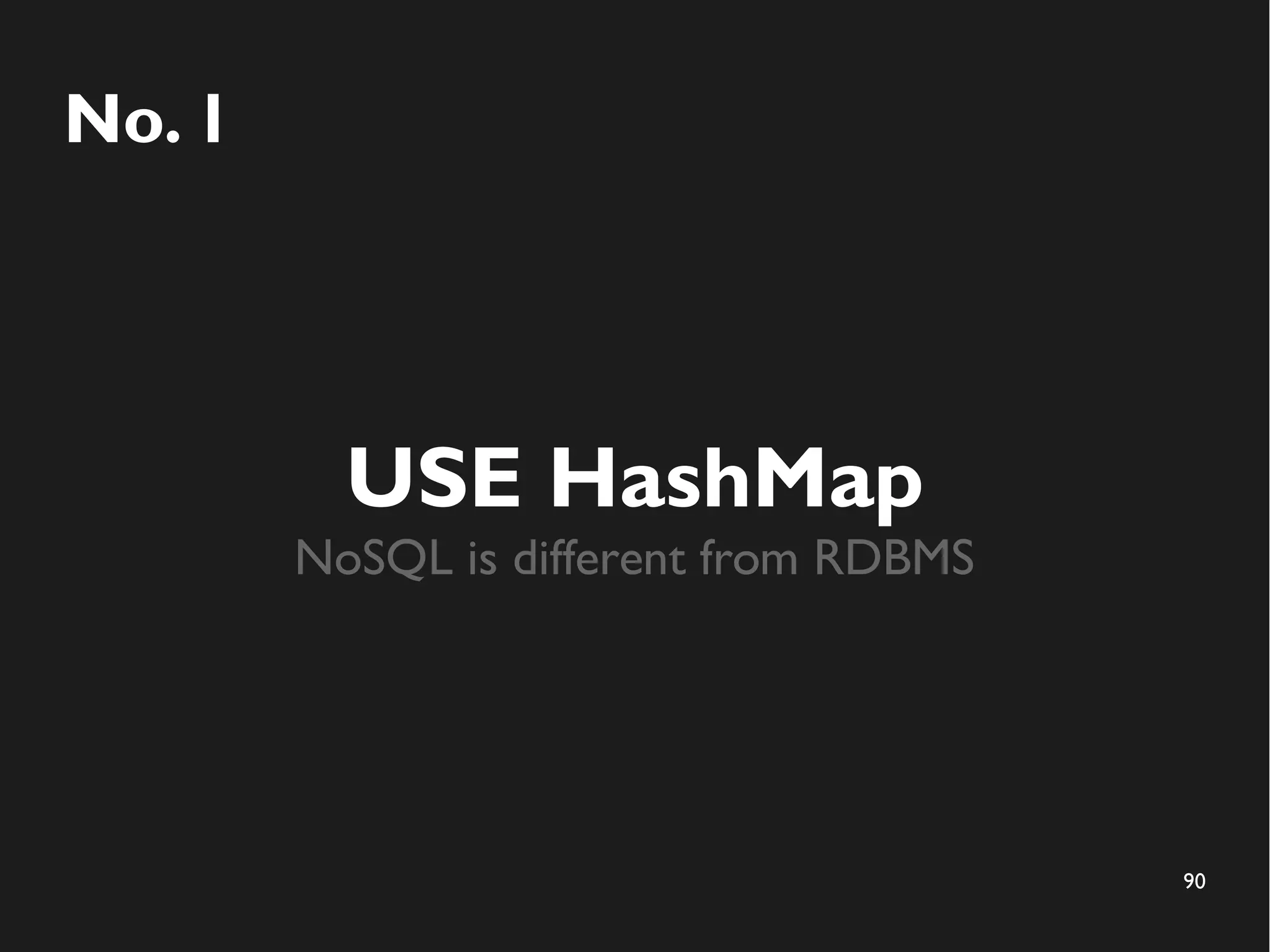

No. 1

89. 89
No. 1
USE HashMap

90. 90
No. 1
USE HashMap
NoSQL is different from RDBMS

91. 91
No. 1 USE HashMap

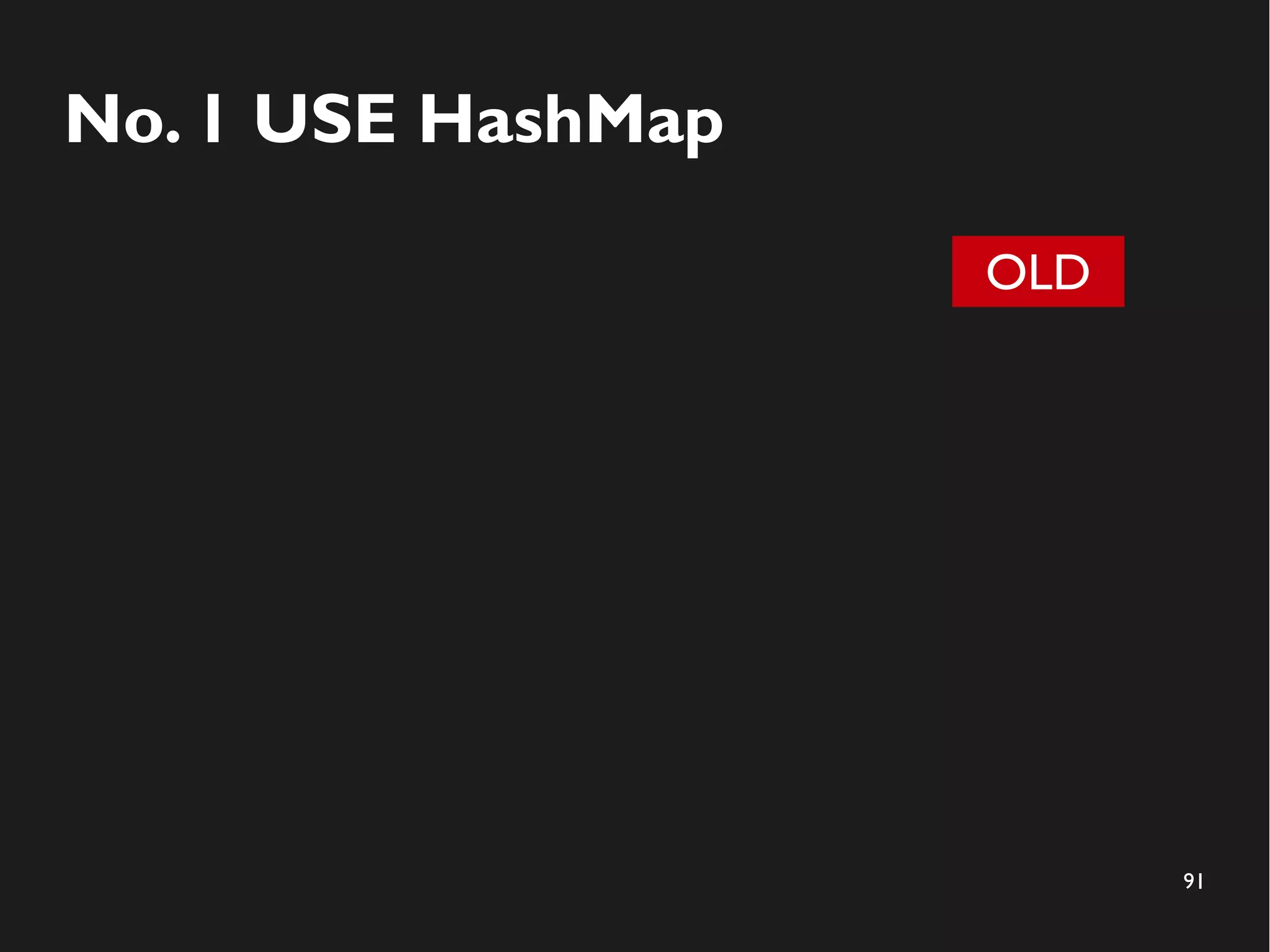

OLD

92. 92
No. 1 USE HashMap

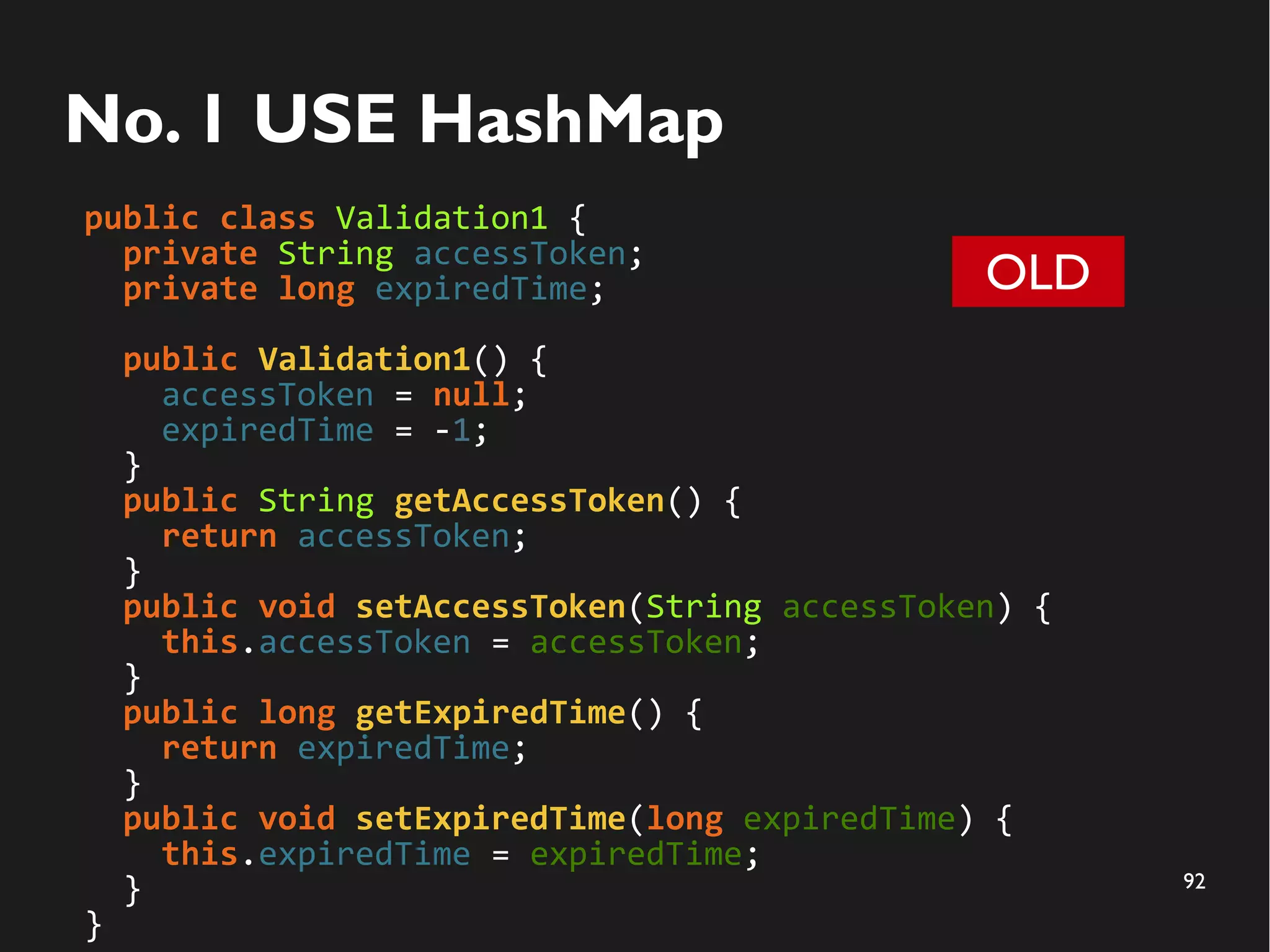

public class Validation1 {
private String accessToken;
private long expiredTime;
public Validation1() {
accessToken = null;
expiredTime = -1;
}
public String getAccessToken() {
return accessToken;
}
public void setAccessToken(String accessToken) {
this.accessToken = accessToken;
}
public long getExpiredTime() {
return expiredTime;
}
public void setExpiredTime(long expiredTime) {
this.expiredTime = expiredTime;
}
}
OLD

93. 93
No. 1 USE HashMap
NEW

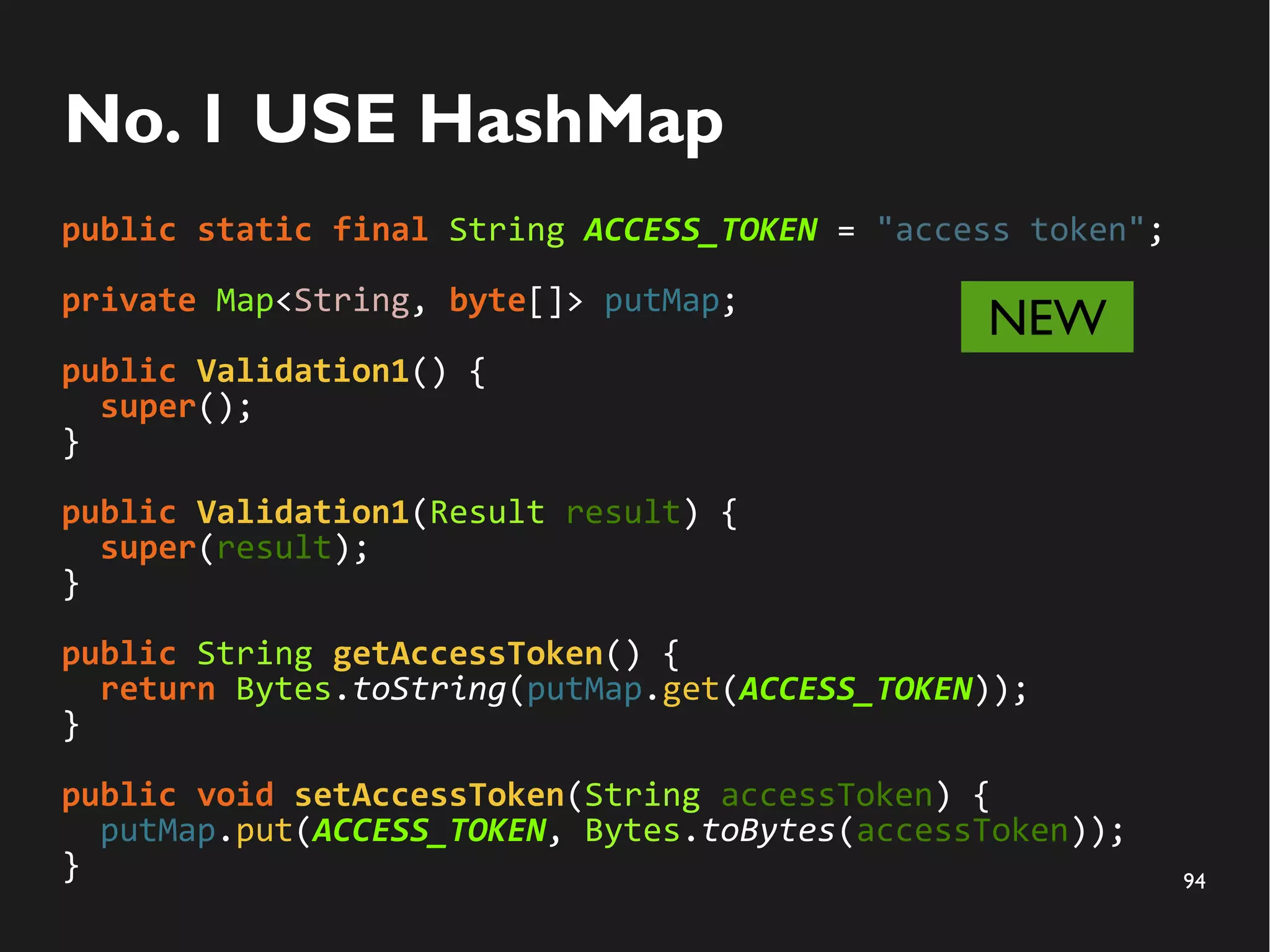

94. 94
No. 1 USE HashMap
public static final String ACCESS_TOKEN = "access token";
private Map<String, byte[]> putMap;
public Validation1() {
super();
}
public Validation1(Result result) {
super(result);
}
public String getAccessToken() {
return Bytes.toString(putMap.get(ACCESS_TOKEN));
}
public void setAccessToken(String accessToken) {
putMap.put(ACCESS_TOKEN, Bytes.toBytes(accessToken));
}
NEW

95. 95
No. 1 USE HashMap

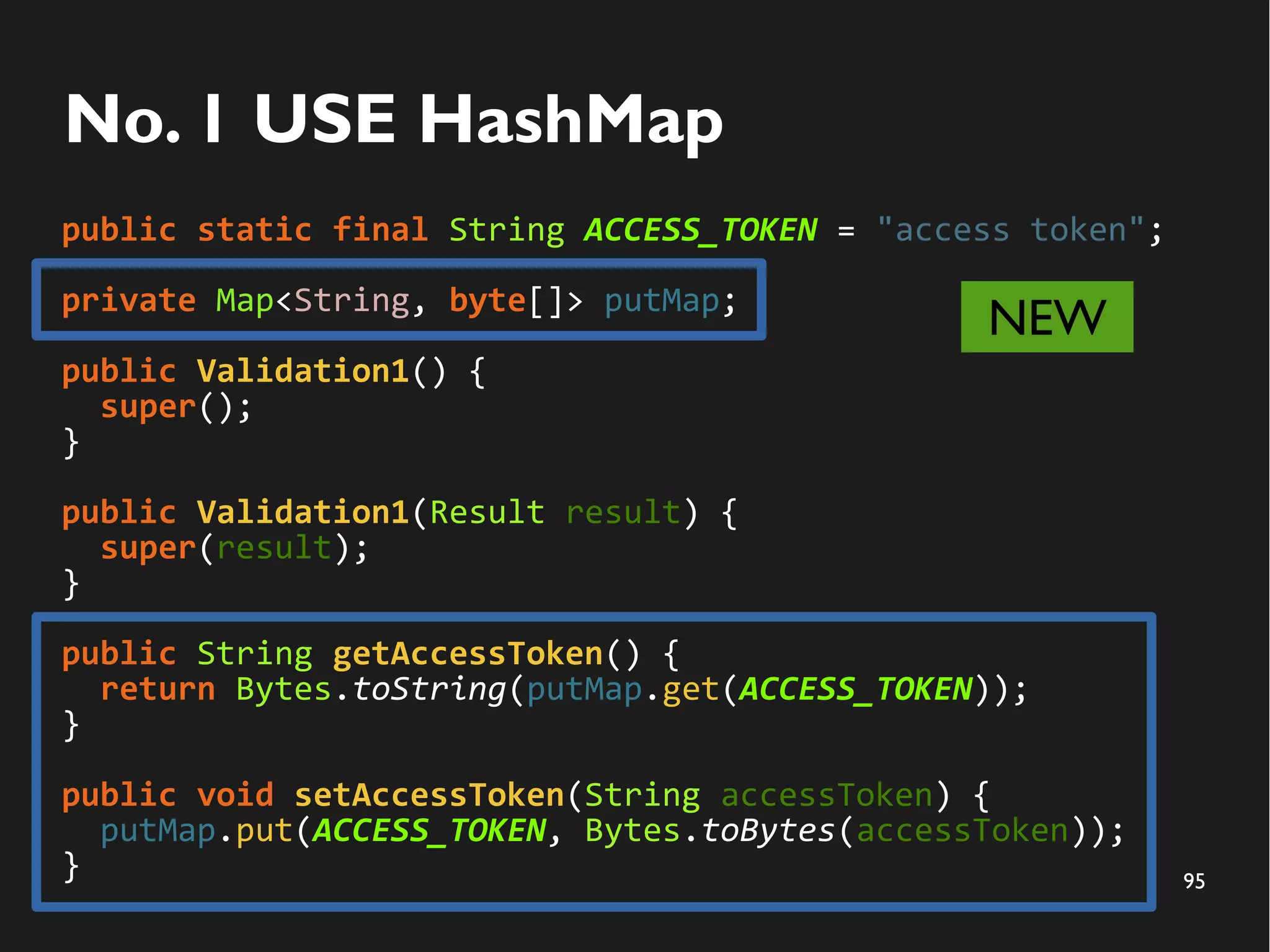

public static final String ACCESS_TOKEN = "access token";
private Map<String, byte[]> putMap;
public Validation1() {
super();
}
public Validation1(Result result) {
super(result);
}
public String getAccessToken() {
return Bytes.toString(putMap.get(ACCESS_TOKEN));
}
public void setAccessToken(String accessToken) {
putMap.put(ACCESS_TOKEN, Bytes.toBytes(accessToken));
}
NEW

96. 96

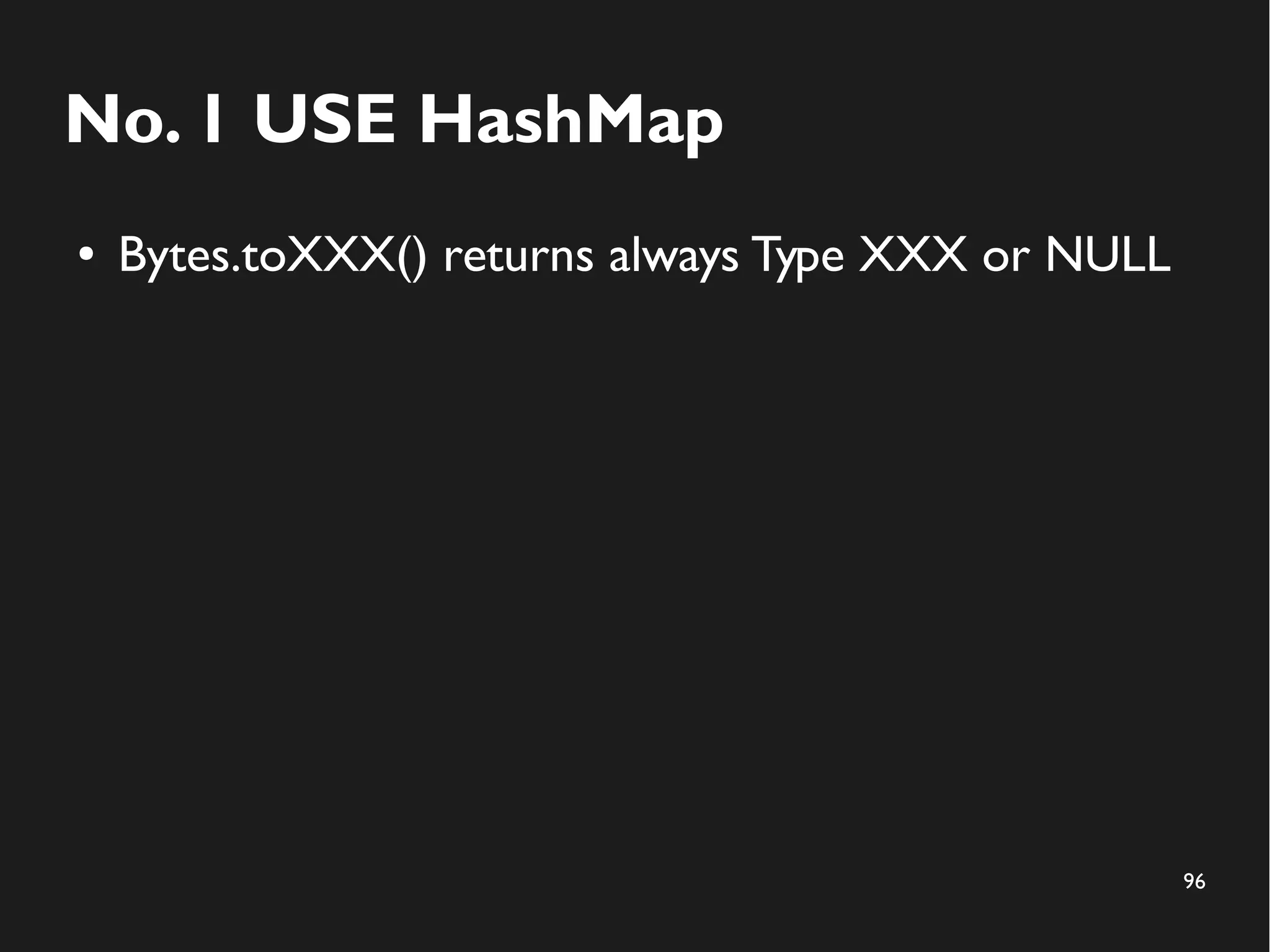

No. 1 USE HashMap
● Bytes.toXXX() returns always Type XXX or NULL

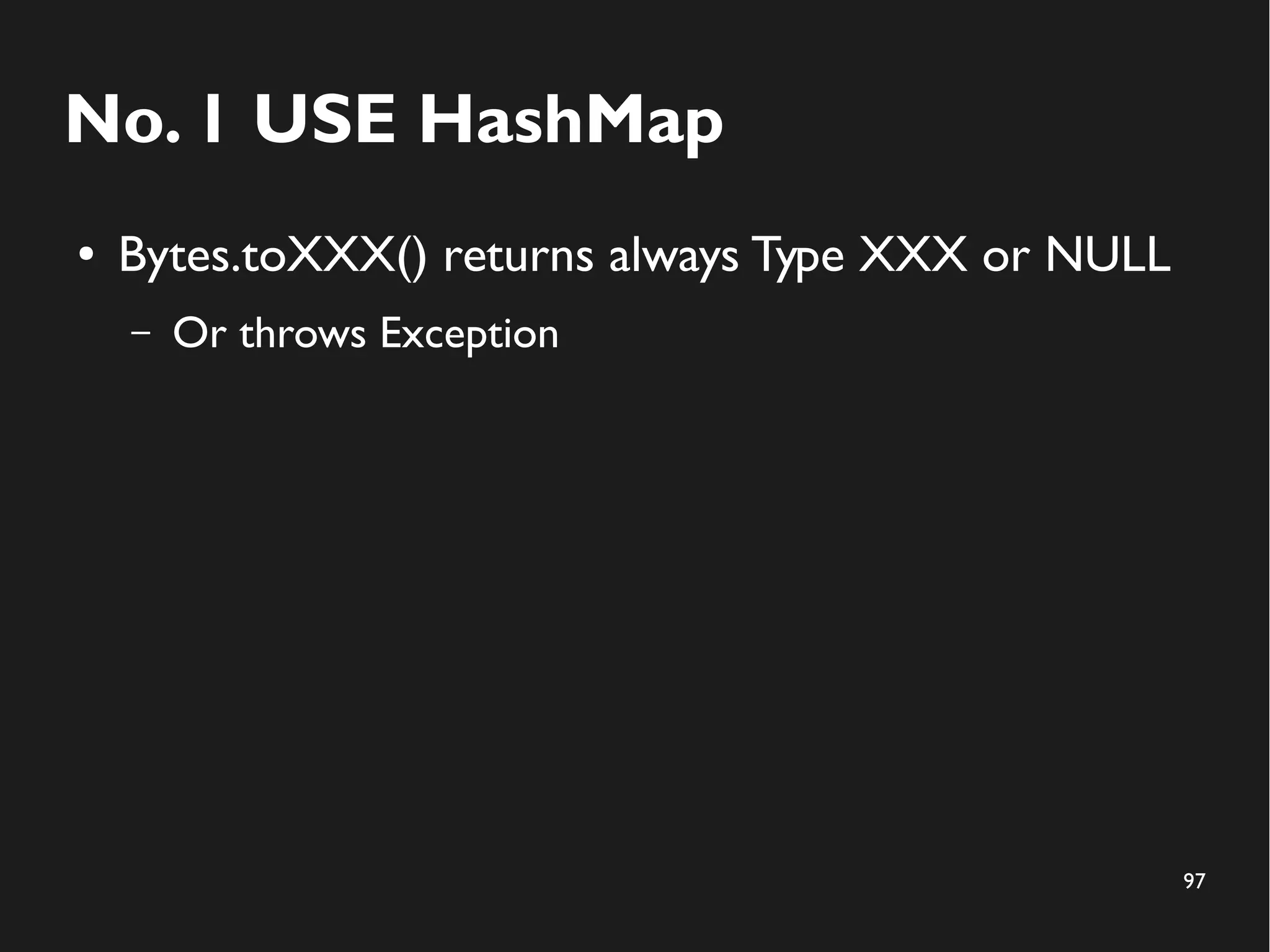

97. 97
No. 1 USE HashMap
● Bytes.toXXX() returns always Type XXX or NULL
– Or throws Exception

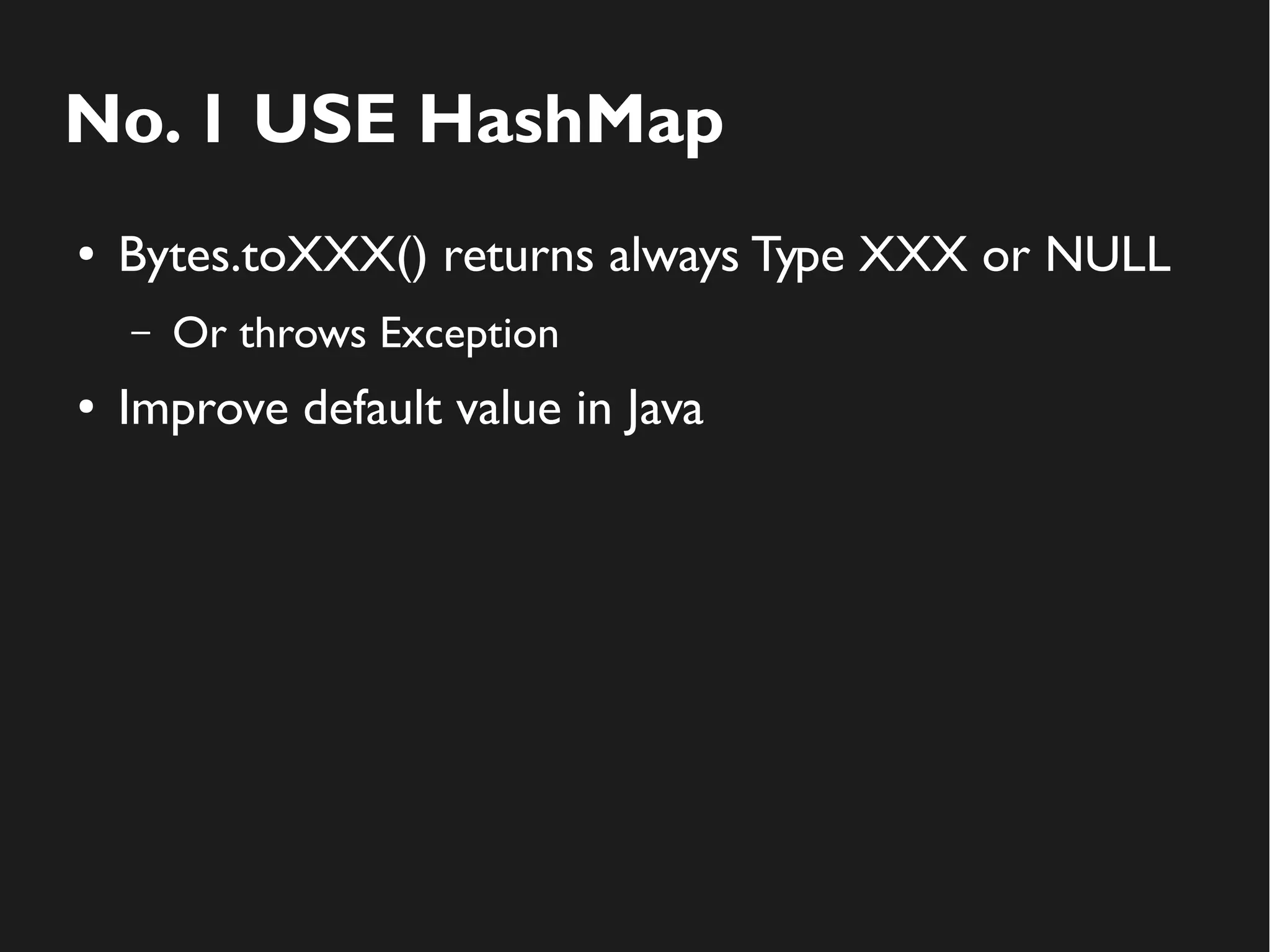

98. No. 1 USE HashMap
● Bytes.toXXX() returns always Type XXX or NULL
– Or throws Exception
● Improve default value in Java

99. 99

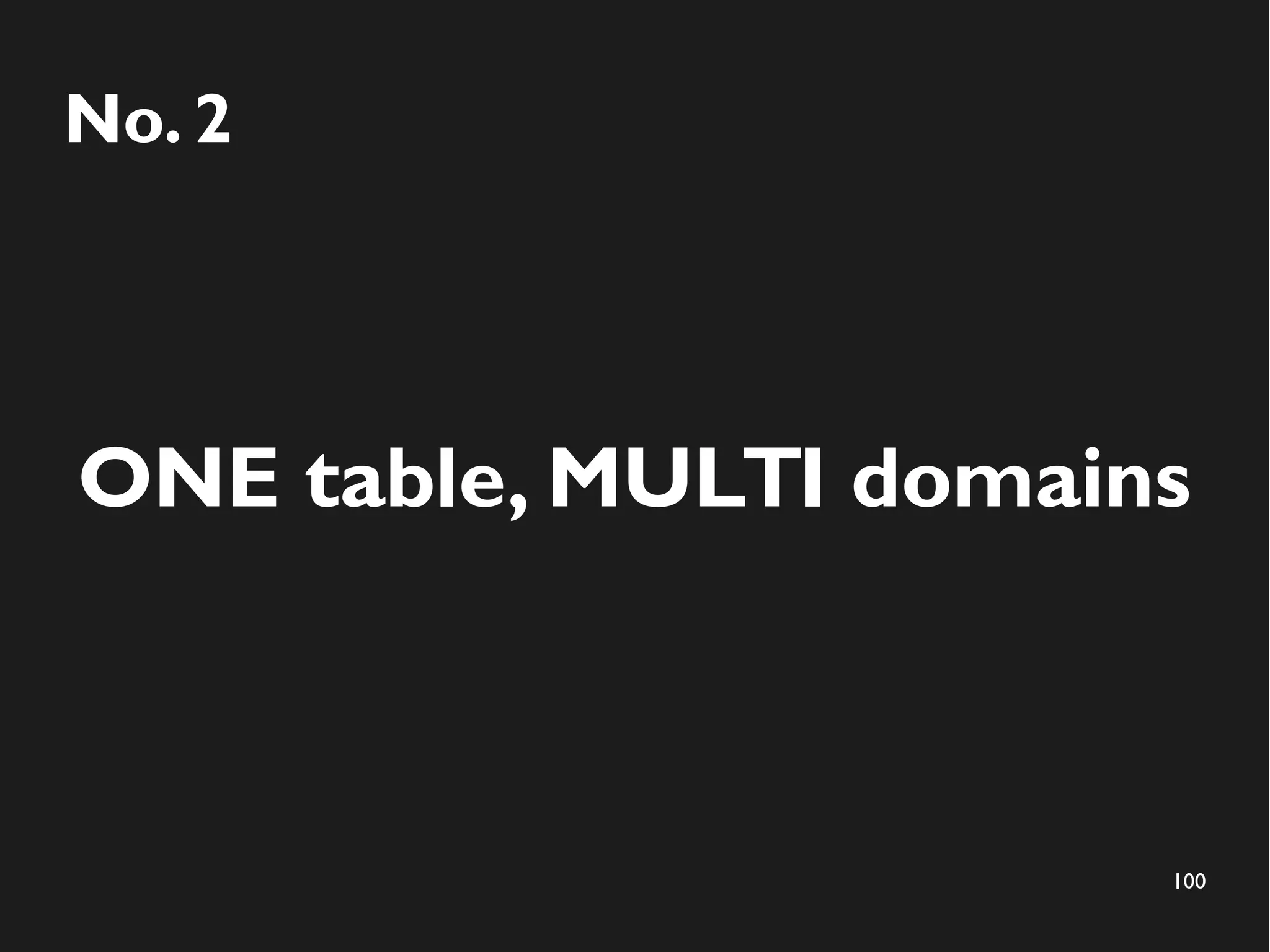

No. 2

100. 100
No. 2

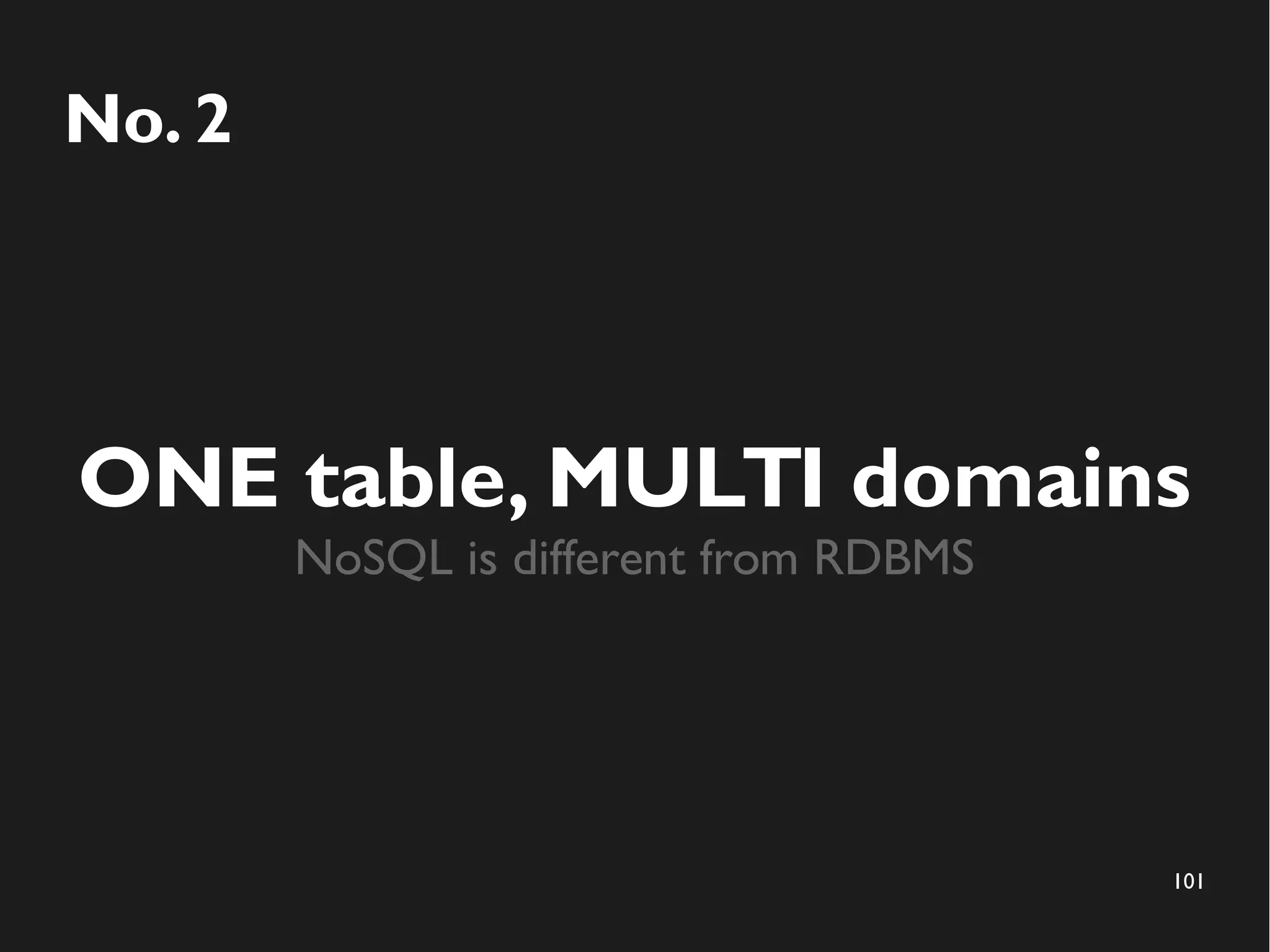

ONE table, MULTI domains

101. 101
No. 2
ONE table, MULTI domains
NoSQL is different from RDBMS

102. 102
No. 2 ONE table, MULTI domains
● In RDBMS
–
–
–
● In NoSQL
–
–
–

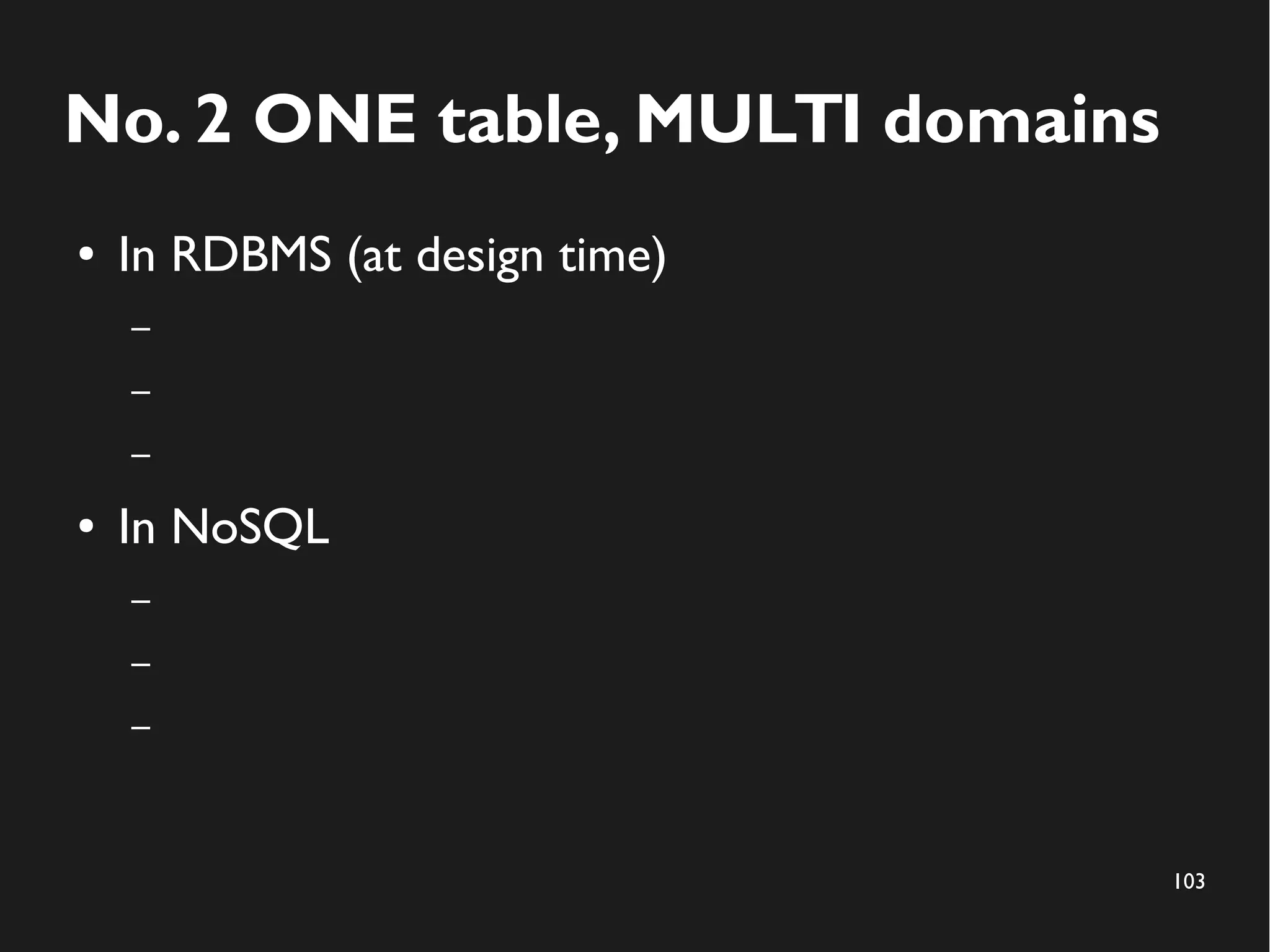

103. 103
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
–
–
–
● In NoSQL
–
–
–

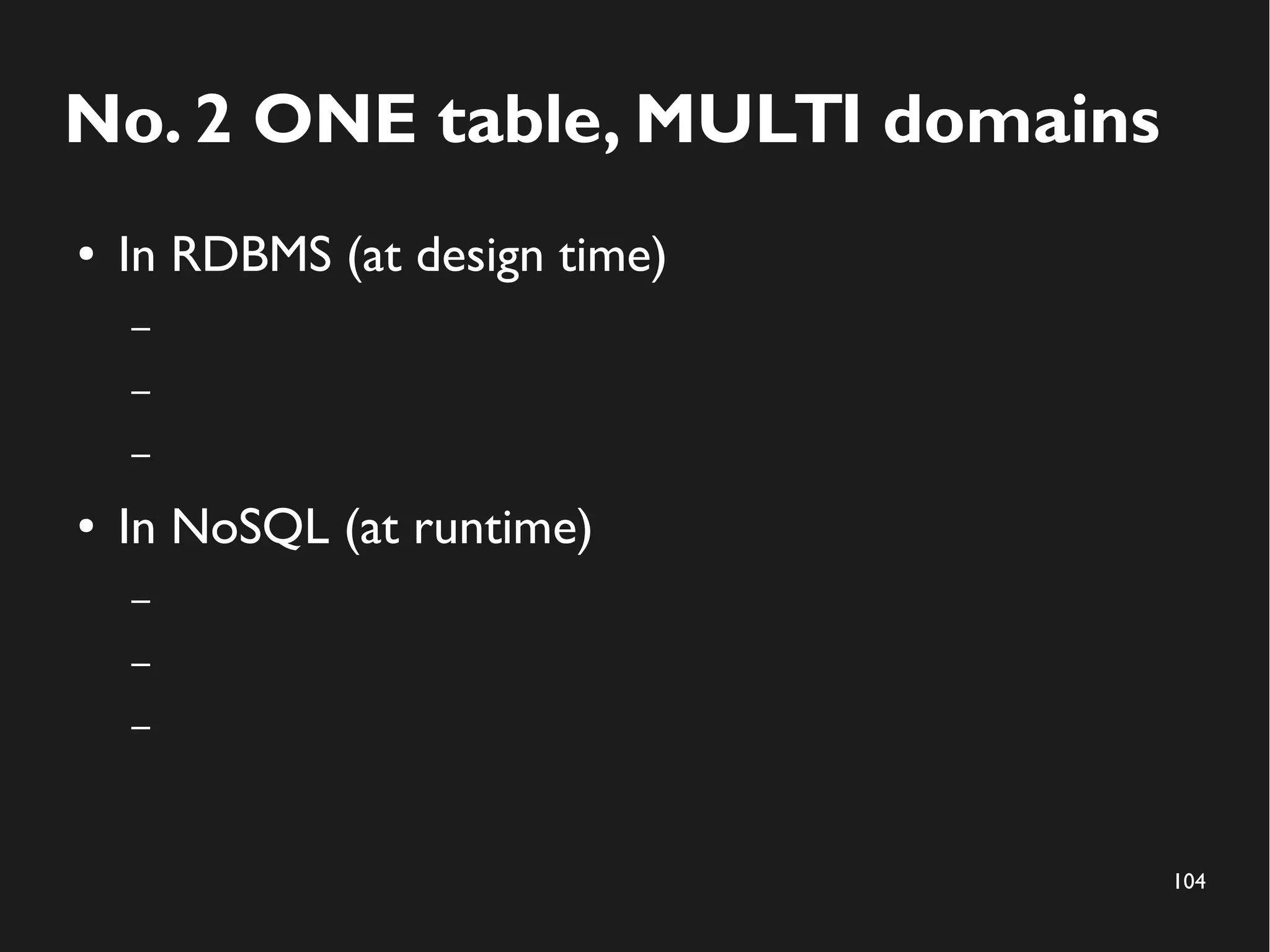

104. 104
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
–
–
–
● In NoSQL (at runtime)
–
–
–

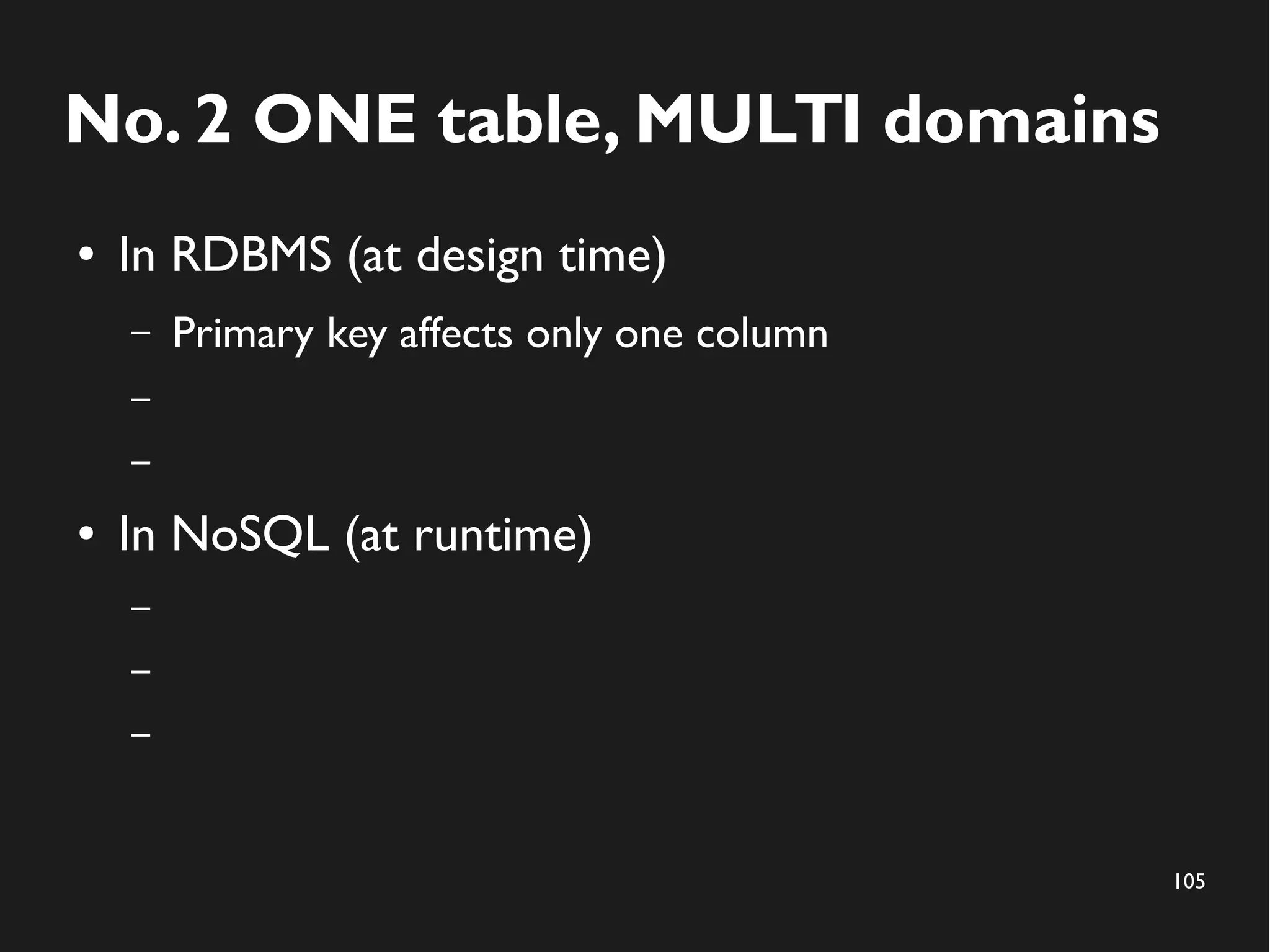

105. 105
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
– Primary key affects only one column
–
–
● In NoSQL (at runtime)
–
–
–

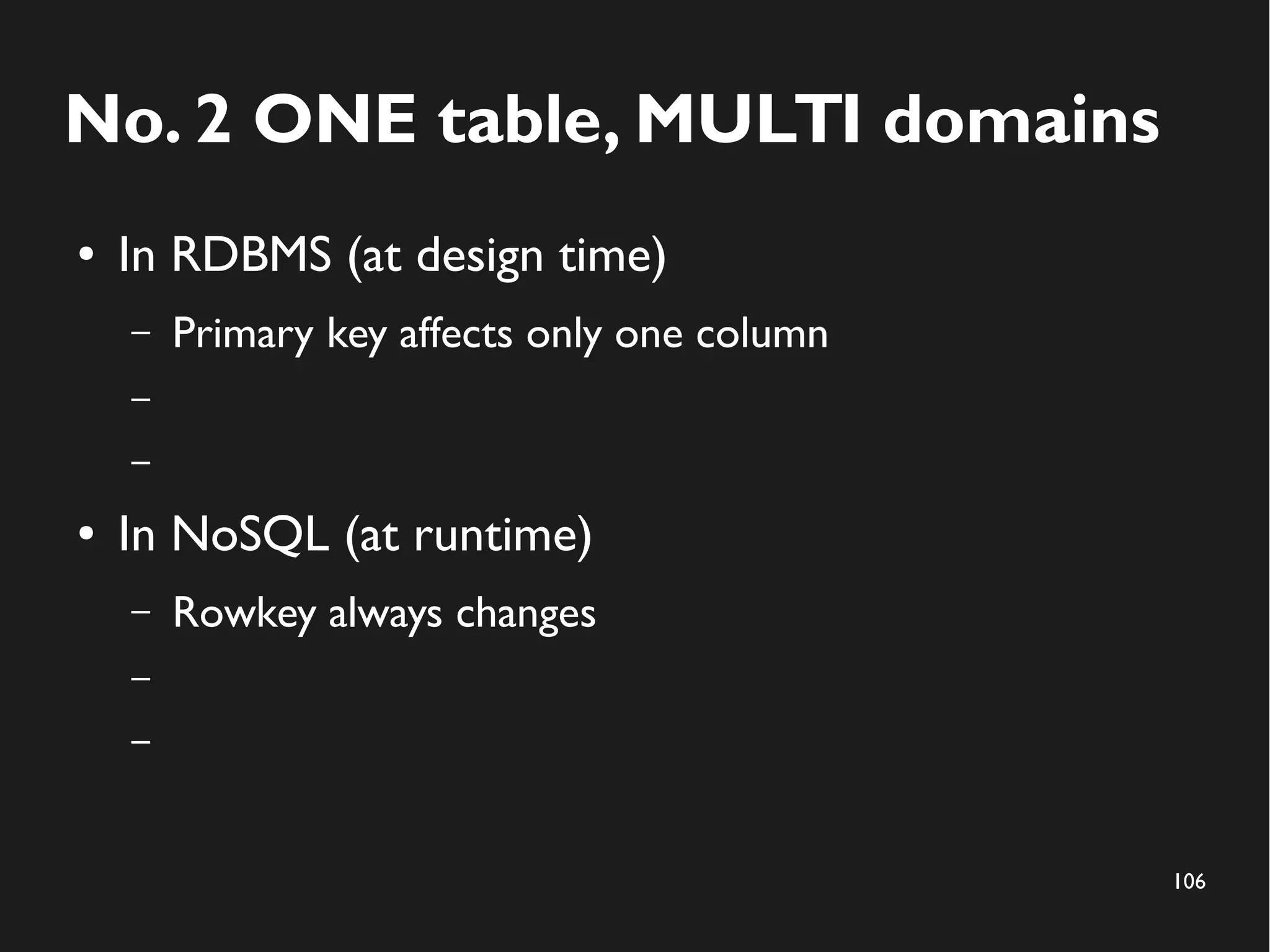

106. 106
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
– Primary key affects only one column
–
–
● In NoSQL (at runtime)
– Rowkey always changes
–
–

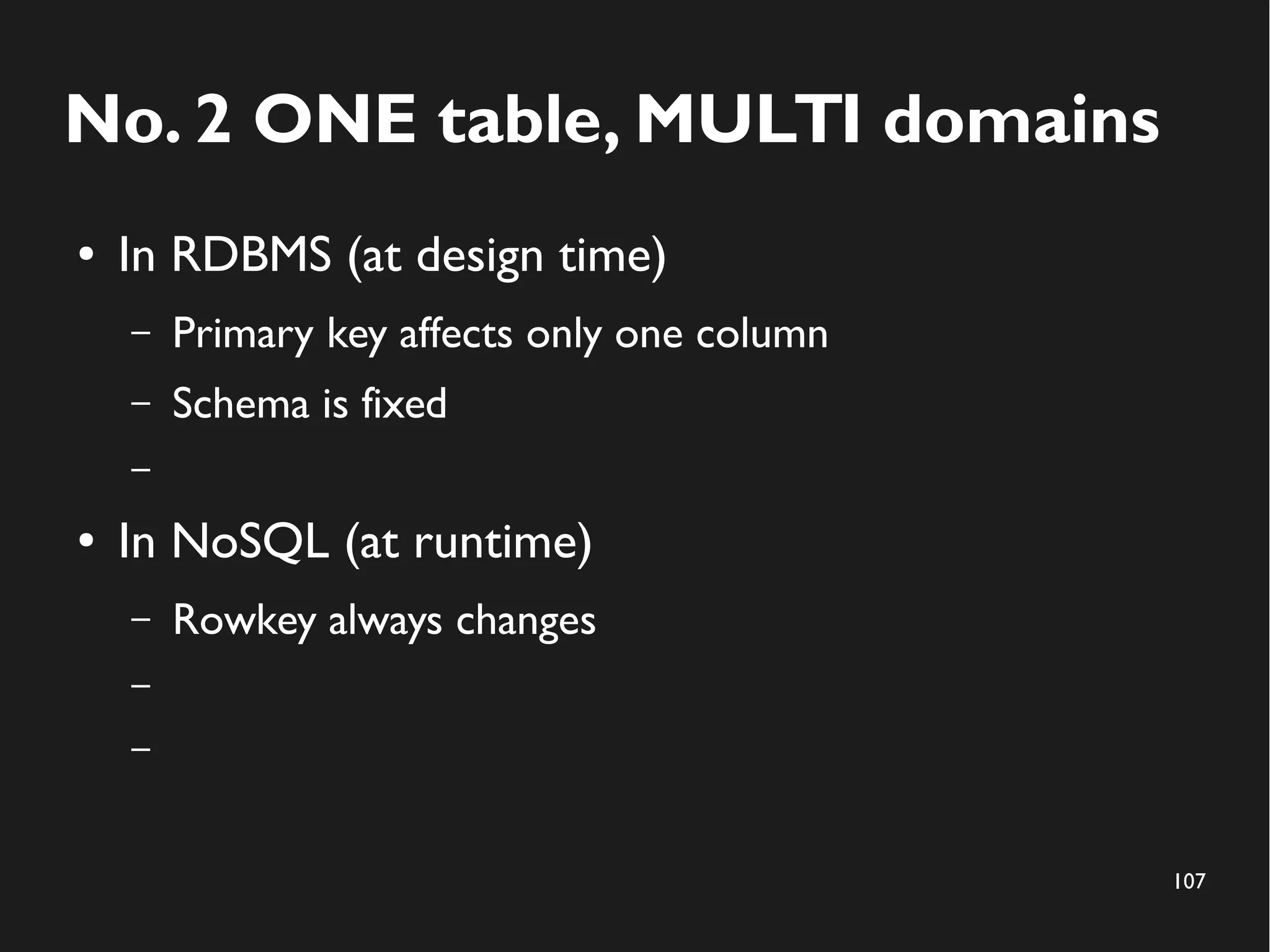

107. 107
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
– Primary key affects only one column
– Schema is fixed
–
● In NoSQL (at runtime)
– Rowkey always changes
–
–

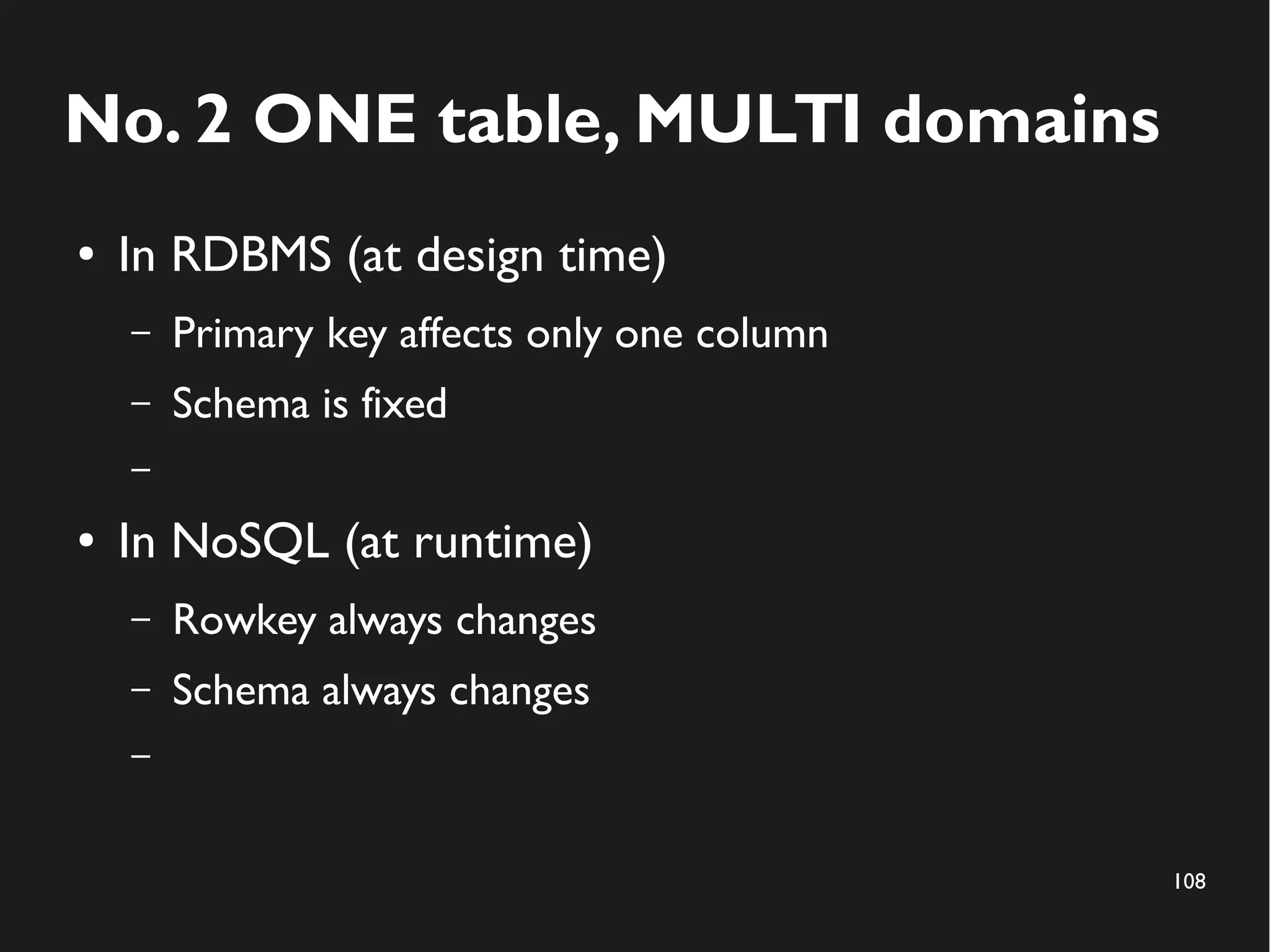

108. 108
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
– Primary key affects only one column
– Schema is fixed
–
● In NoSQL (at runtime)
– Rowkey always changes
– Schema always changes
–

109. 109

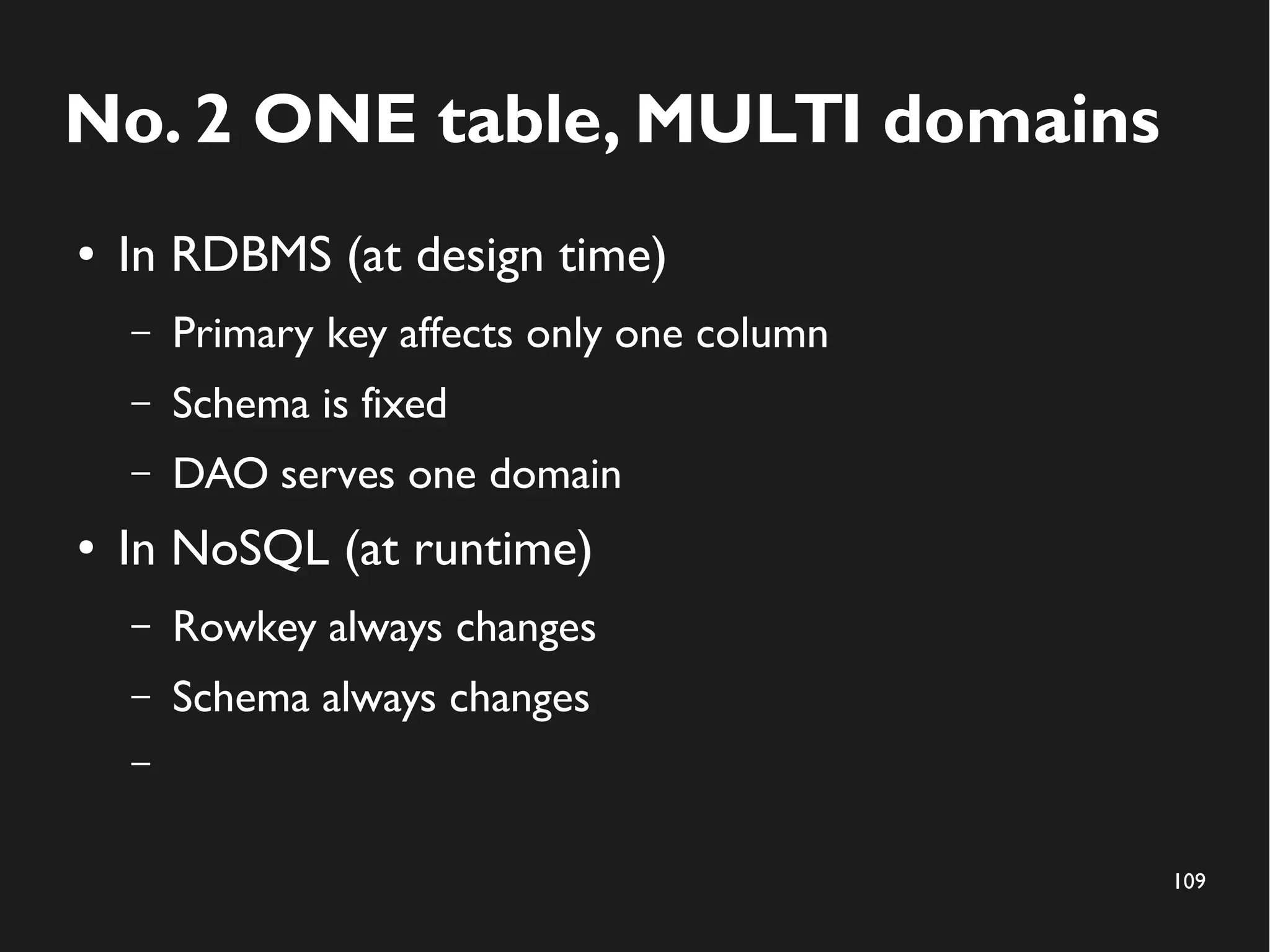

No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
– Primary key affects only one column
– Schema is fixed
– DAO serves one domain
● In NoSQL (at runtime)
– Rowkey always changes
– Schema always changes
–

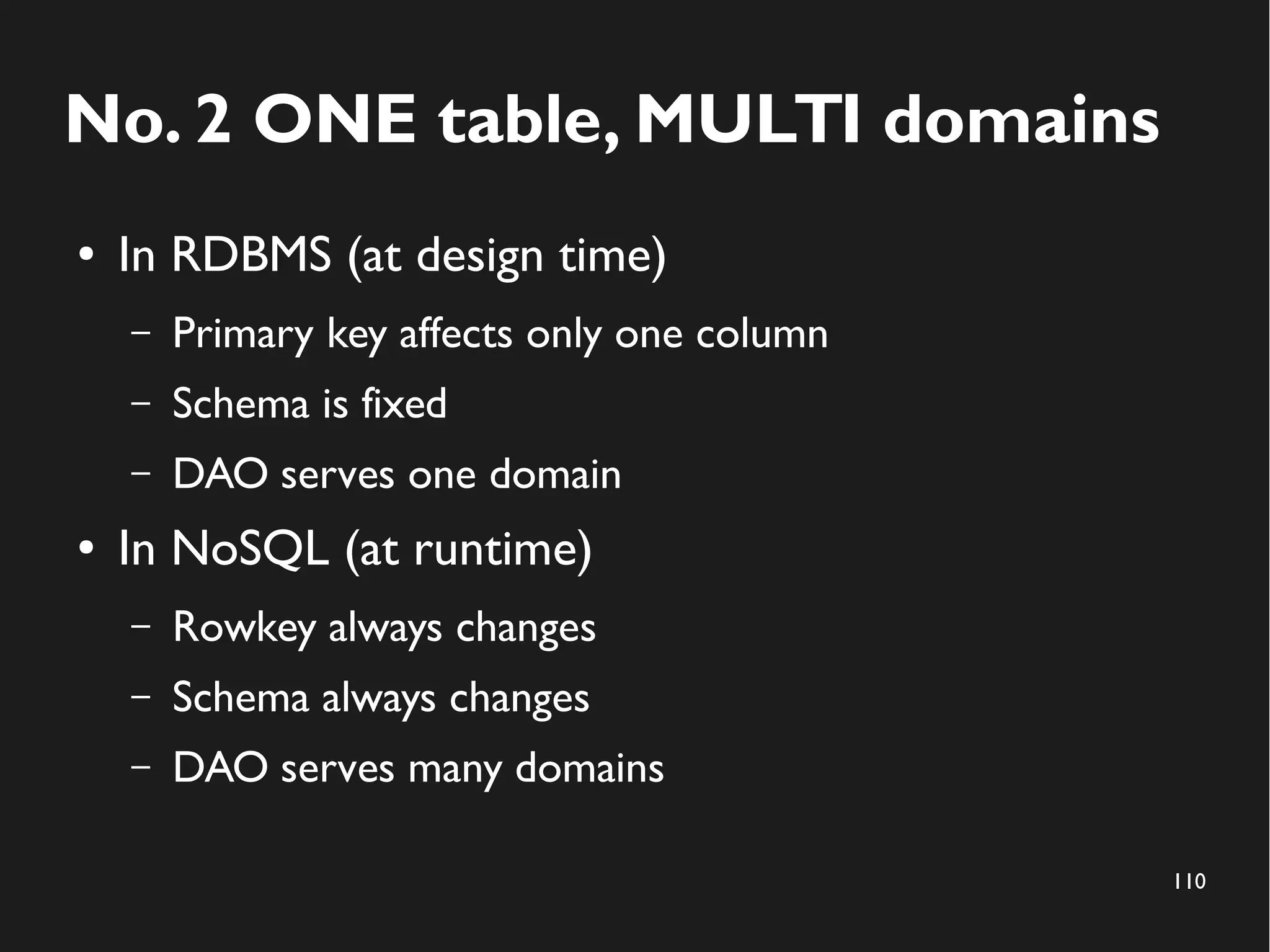

110. 110
No. 2 ONE table, MULTI domains
● In RDBMS (at design time)
– Primary key affects only one column
– Schema is fixed
– DAO serves one domain
● In NoSQL (at runtime)
– Rowkey always changes
– Schema always changes
– DAO serves many domains

111. 111
No. 2 ONE table, MULTI domains
User Id ID0000001A3B
Access Token d66e3b70-3666-11e4-8c21-0800200c9a66
Expired Time 1410077636

112. 112
No. 2 ONE table, MULTI domains
User Id ID0000001A3B
Access Token d66e3b70-3666-11e4-8c21-0800200c9a66
Expired Time 1410077636
User Id+ACL Id ID0000001A3B+AI0070AD
Create 1
Read 1
Update 0
Delete 0

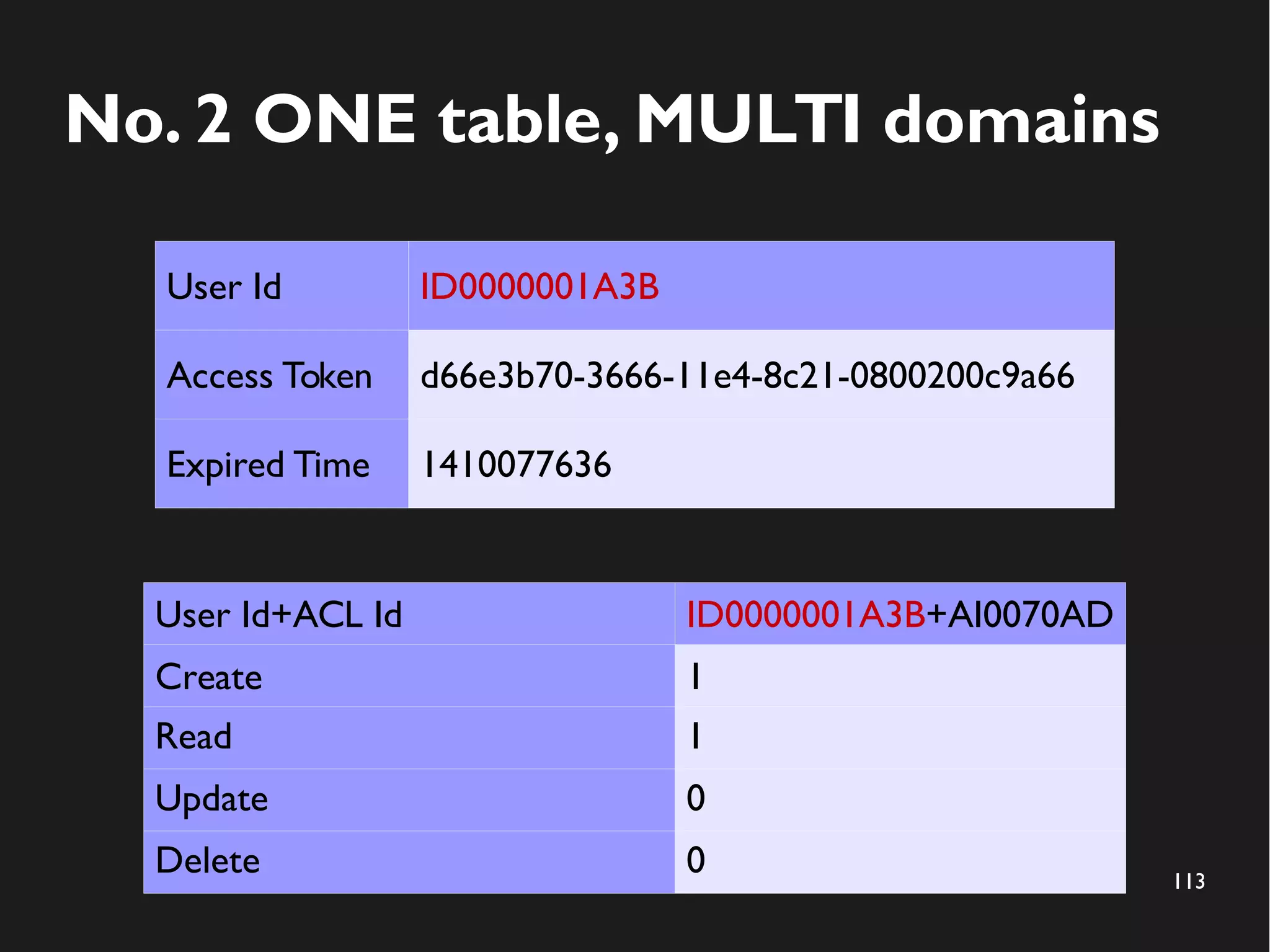

113. 113
No. 2 ONE table, MULTI domains
User Id ID0000001A3B
Access Token d66e3b70-3666-11e4-8c21-0800200c9a66
Expired Time 1410077636
User Id+ACL Id ID0000001A3B+AI0070AD
Create 1
Read 1
Update 0
Delete 0

114. 114
No. 2 ONE table, MULTI domains

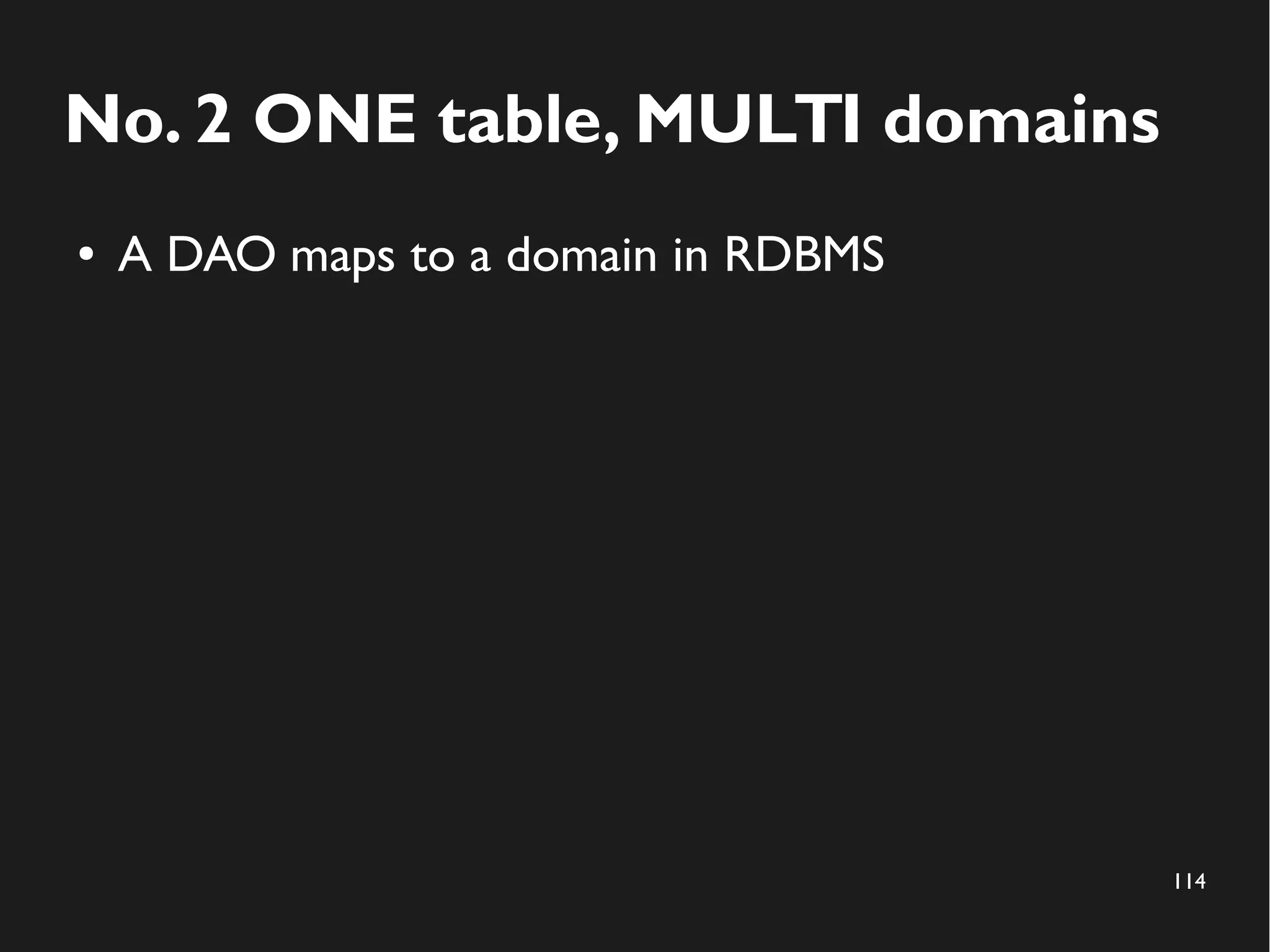

● A DAO maps to a domain in RDBMS

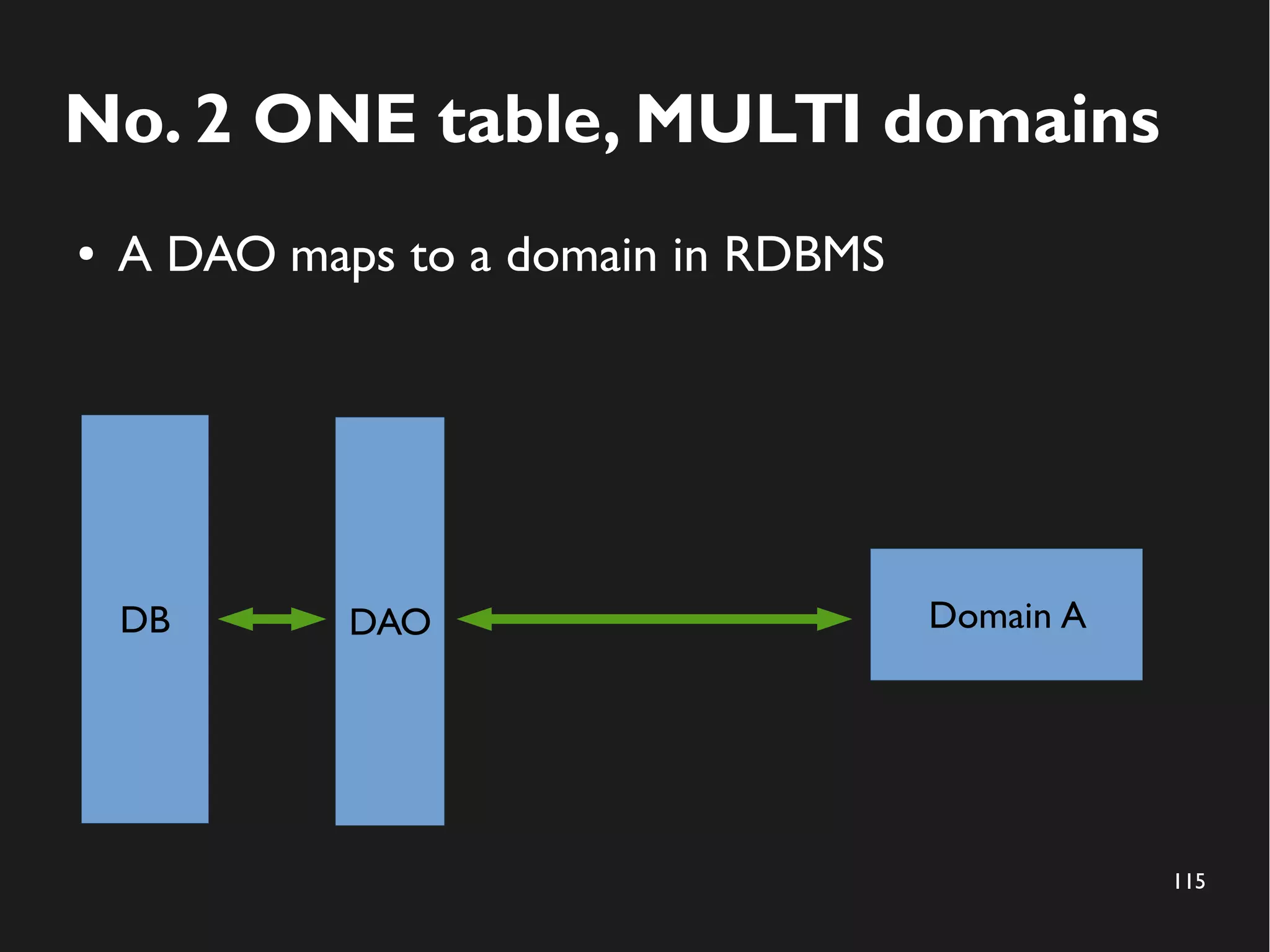

115. 115
No. 2 ONE table, MULTI domains
● A DAO maps to a domain in RDBMS
DB DAO Domain A

116. 116
No. 2 ONE table, MULTI domains
● A DAO maps to multiple domains in NoSQL

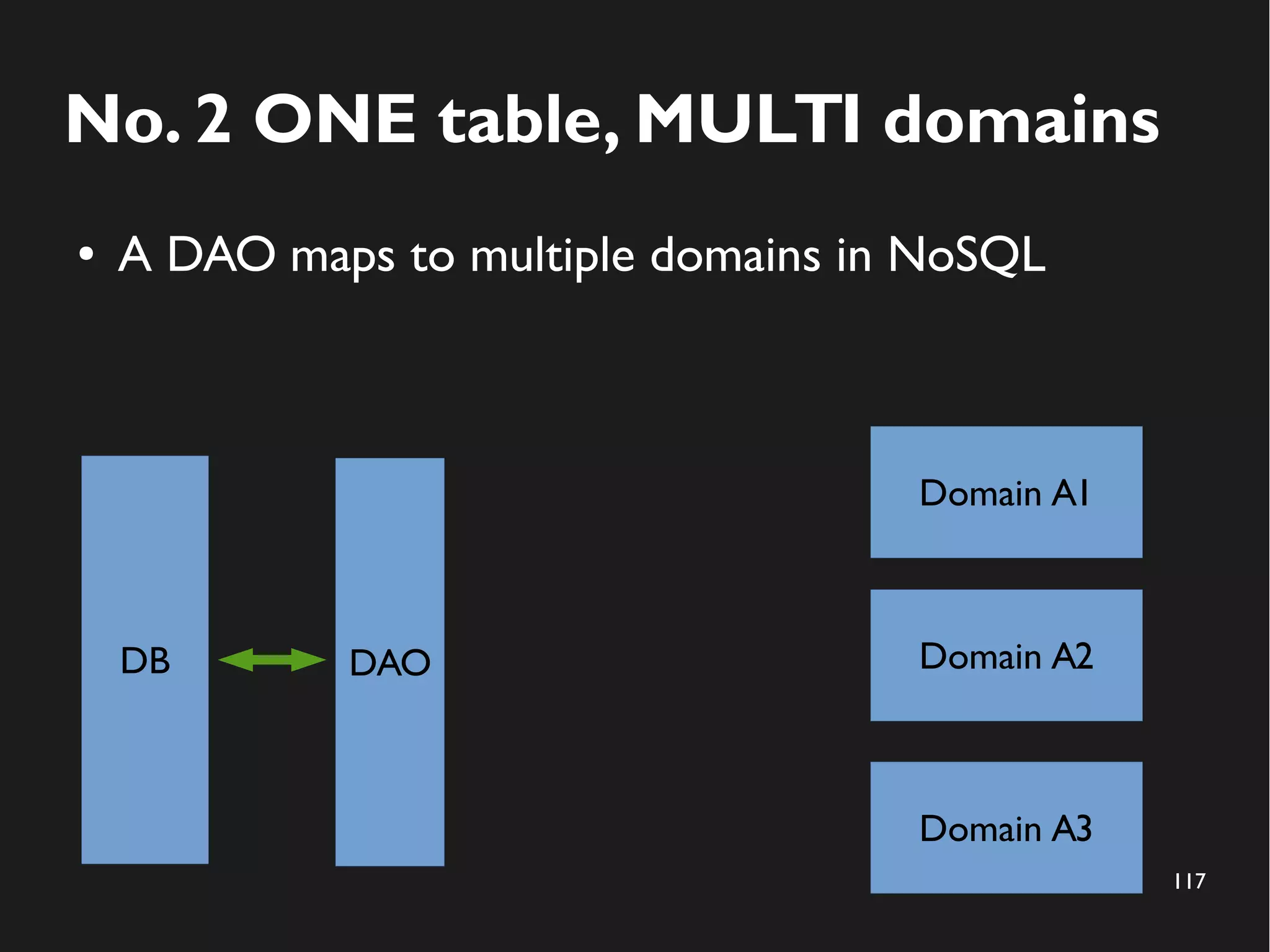

117. 117
No. 2 ONE table, MULTI domains
● A DAO maps to multiple domains in NoSQL
DB DAO
Domain A1
Domain A2
Domain A3

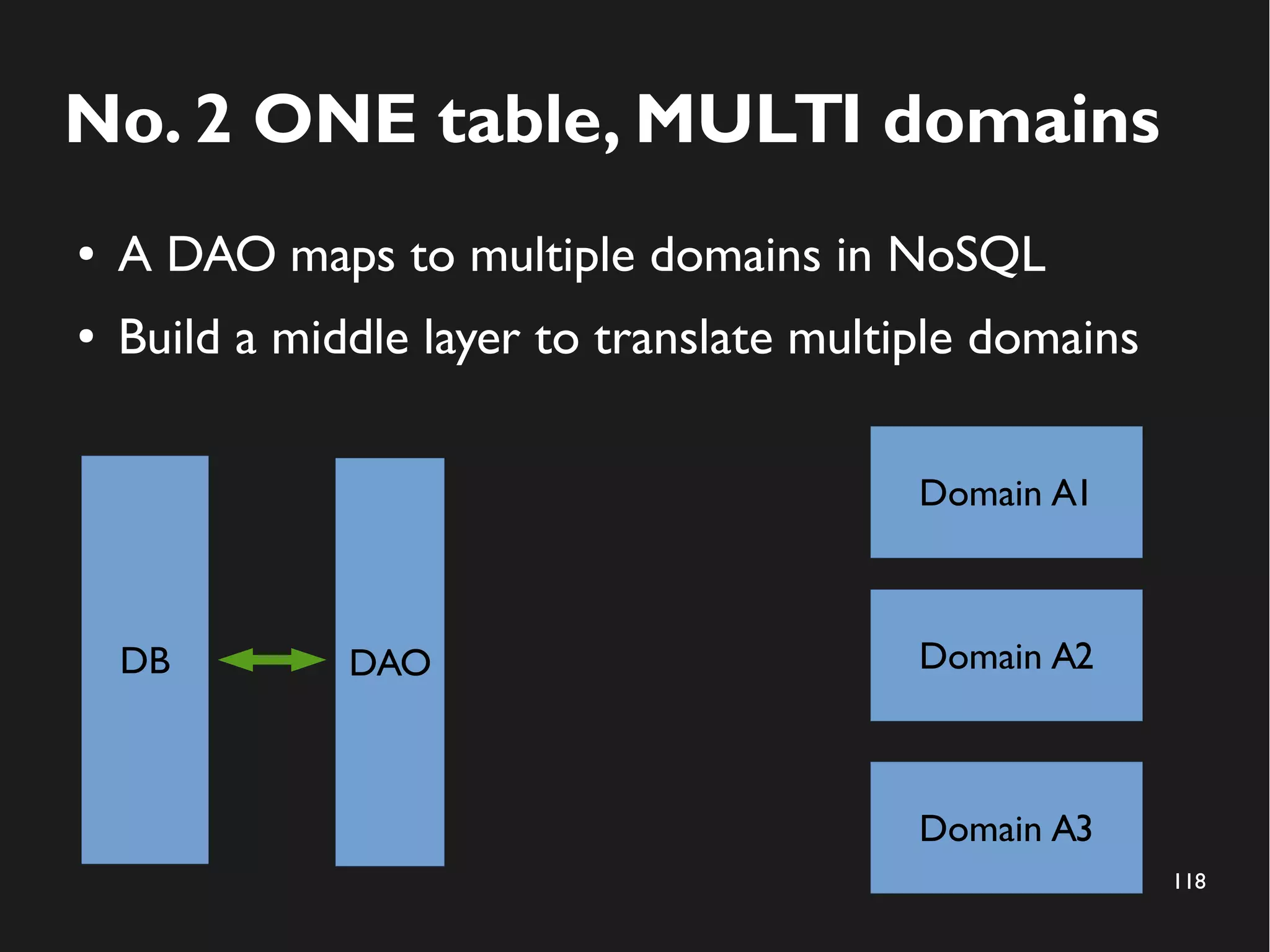

118. 118
No. 2 ONE table, MULTI domains
● A DAO maps to multiple domains in NoSQL
● Build a middle layer to translate multiple domains
DB DAO
Domain A1
Domain A2
Domain A3

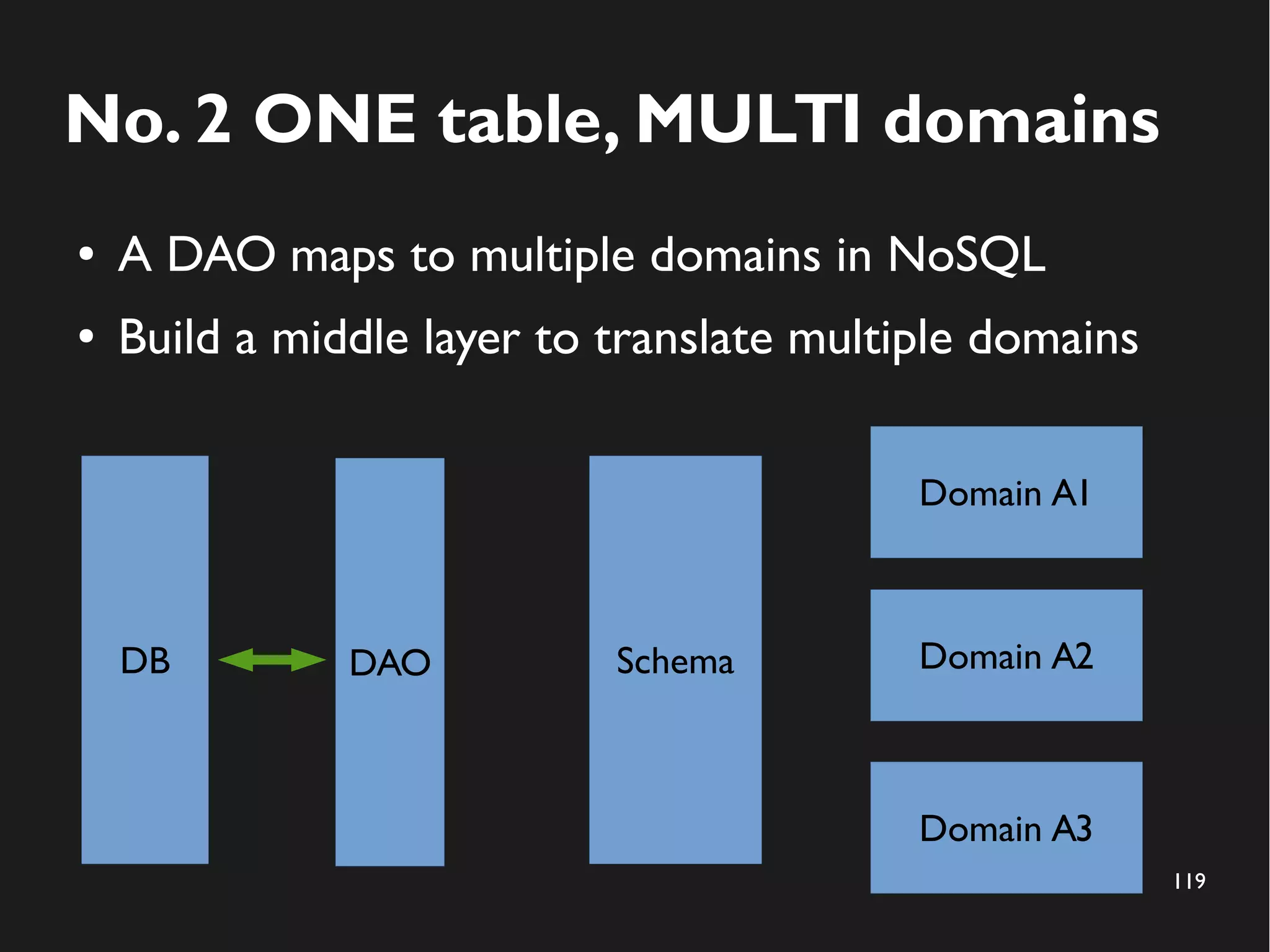

119. 119
No. 2 ONE table, MULTI domains
● A DAO maps to multiple domains in NoSQL
● Build a middle layer to translate multiple domains
DB DAO
Domain A1
Domain A2
Domain A3
Schema

120. 120
No. 2 ONE table, MULTI domains
● A DAO maps to multiple domains in NoSQL
● Build a middle layer to translate multiple domains
DB DAO
Domain A1
Domain A2
Domain A3
Schema

121. 121

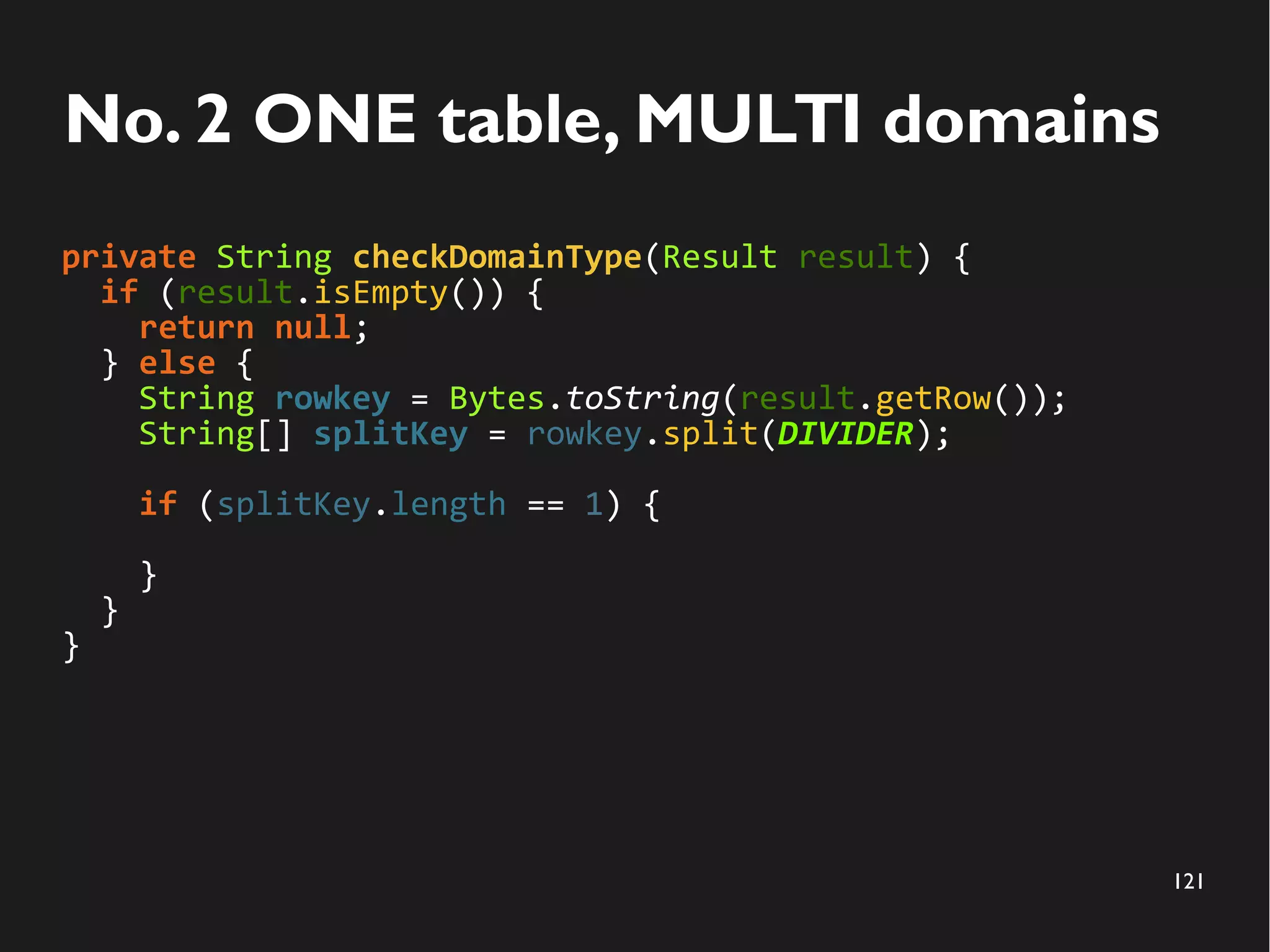

No. 2 ONE table, MULTI domains

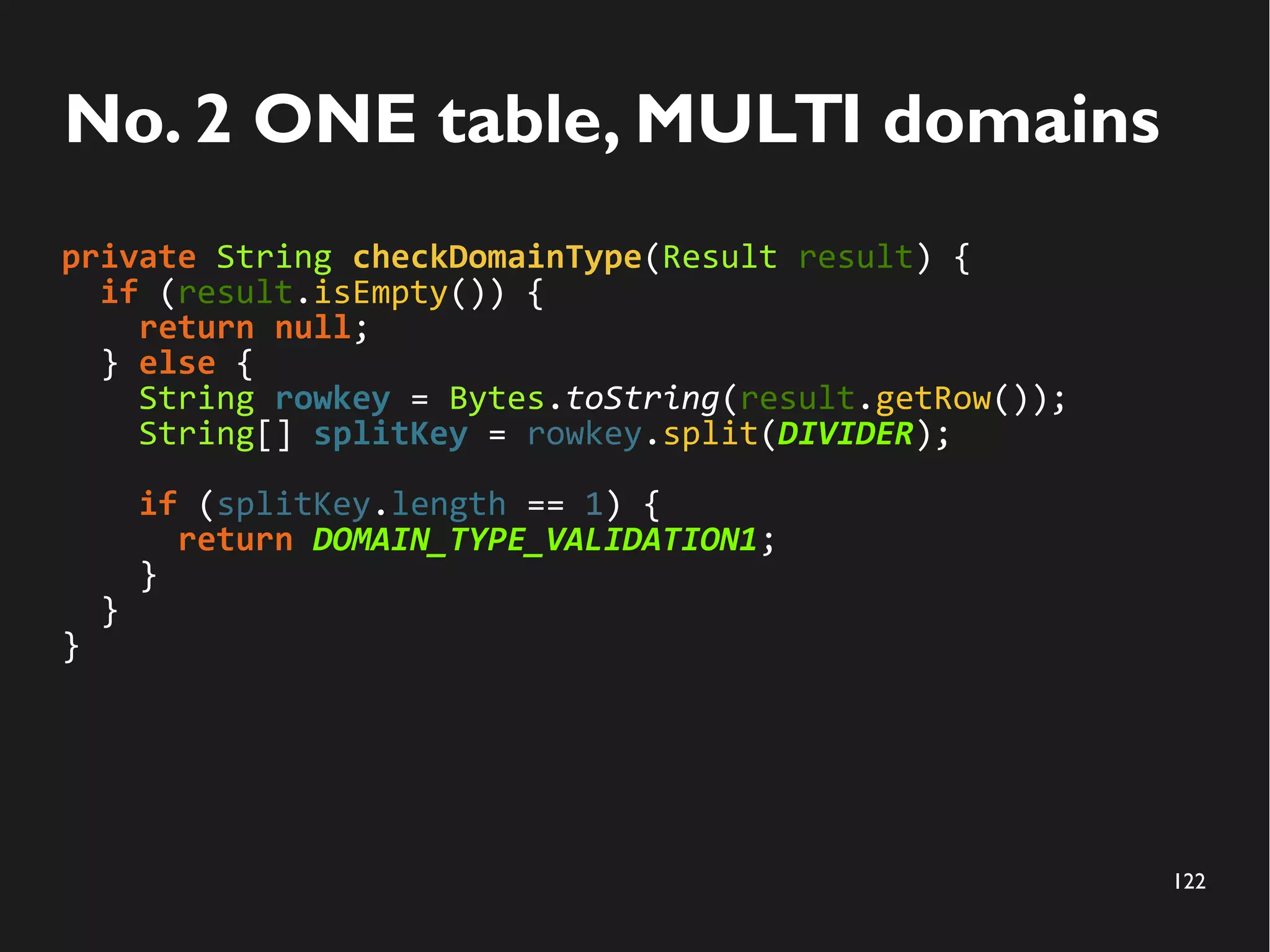

private String checkDomainType(Result result) {
if (result.isEmpty()) {
return null;
} else {
String rowkey = Bytes.toString(result.getRow());
String[] splitKey = rowkey.split(DIVIDER);
if (splitKey.length == 1) {
}
}
}

122. 122
No. 2 ONE table, MULTI domains
private String checkDomainType(Result result) {
if (result.isEmpty()) {
return null;
} else {
String rowkey = Bytes.toString(result.getRow());
String[] splitKey = rowkey.split(DIVIDER);
if (splitKey.length == 1) {
return DOMAIN_TYPE_VALIDATION1;
}
}
}

123. 123

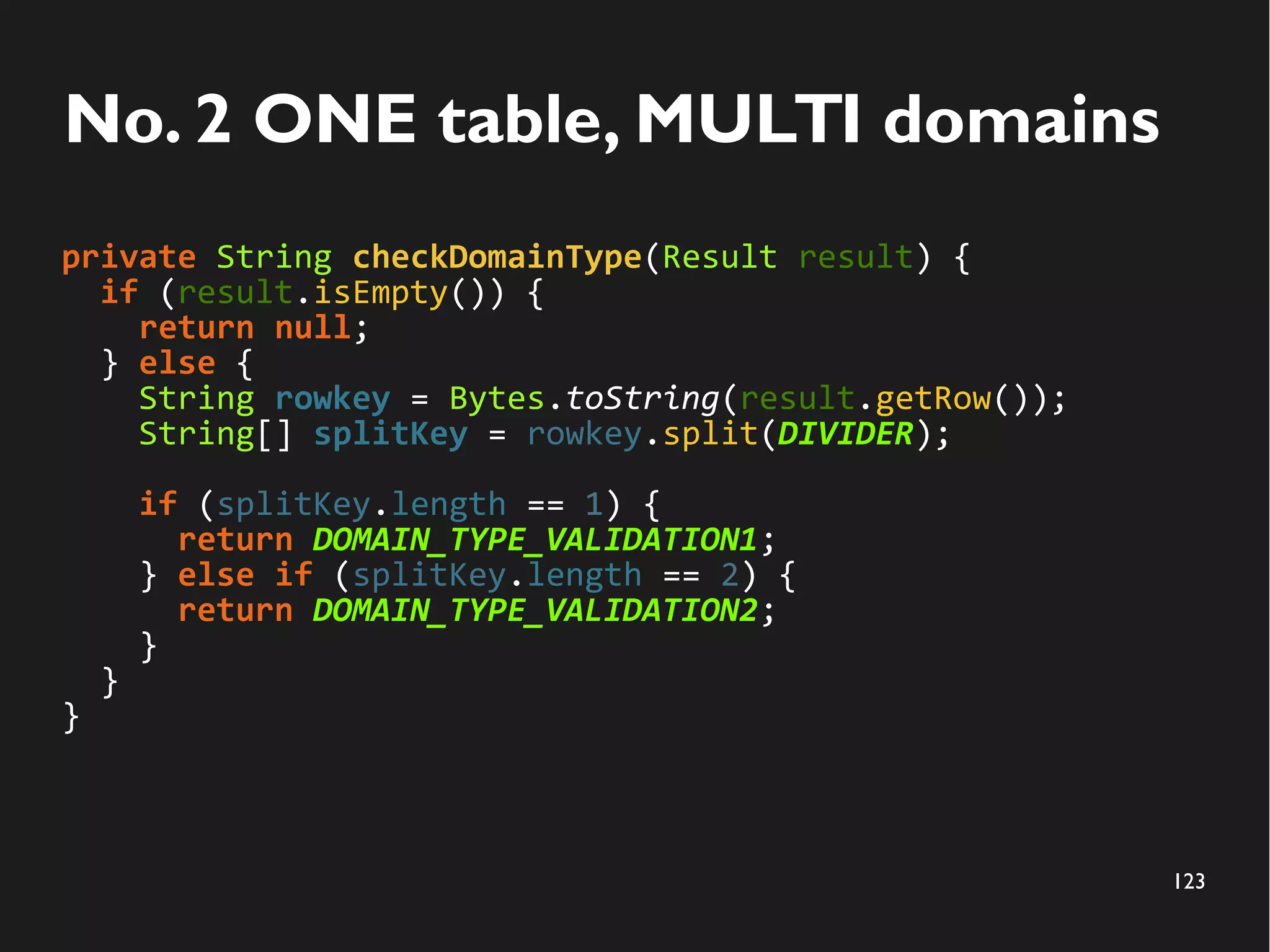

No. 2 ONE table, MULTI domains
private String checkDomainType(Result result) {
if (result.isEmpty()) {
return null;
} else {
String rowkey = Bytes.toString(result.getRow());
String[] splitKey = rowkey.split(DIVIDER);
if (splitKey.length == 1) {
return DOMAIN_TYPE_VALIDATION1;
} else if (splitKey.length == 2) {
return DOMAIN_TYPE_VALIDATION2;
}
}
}

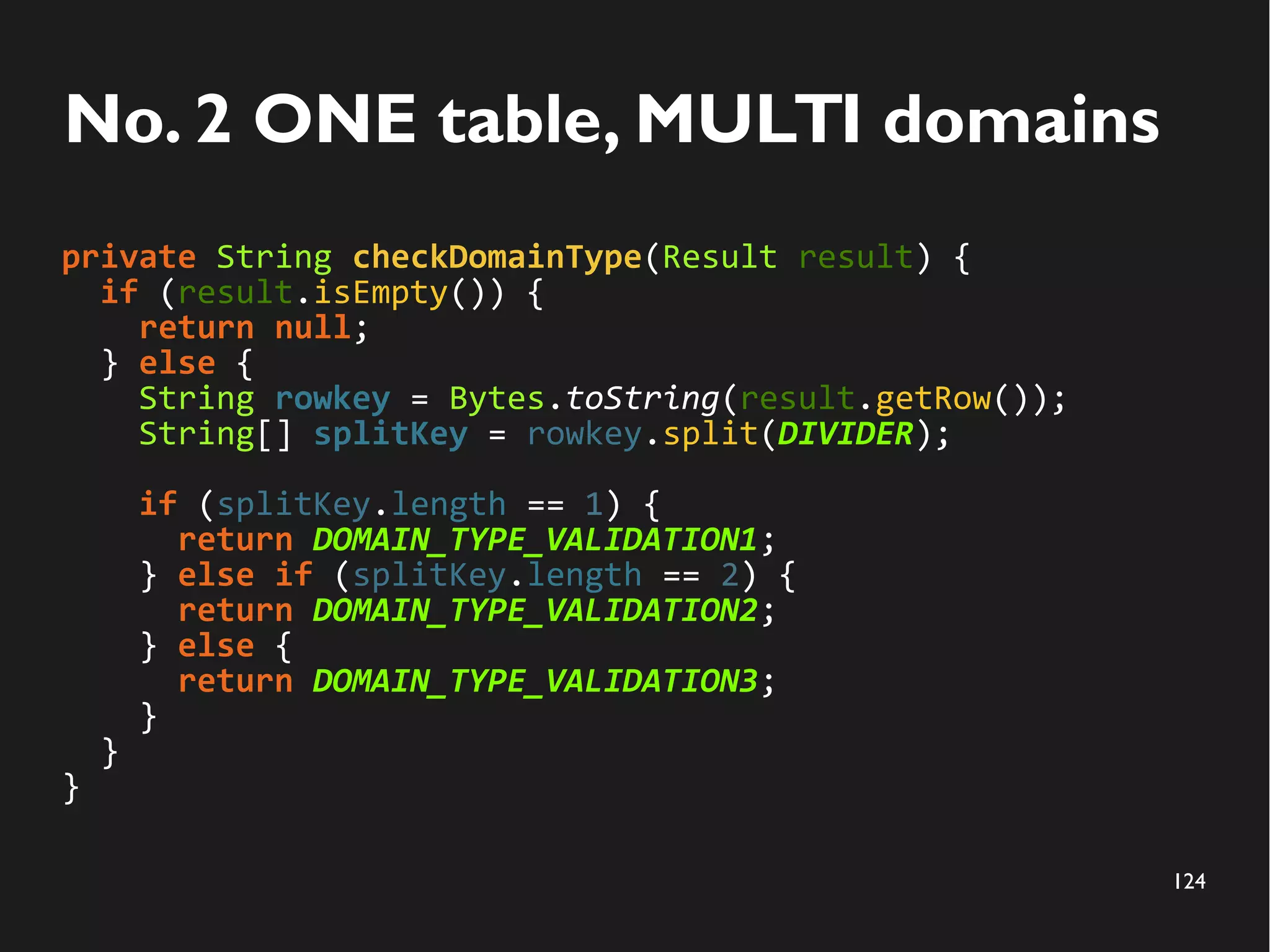

124. 124
No. 2 ONE table, MULTI domains
private String checkDomainType(Result result) {
if (result.isEmpty()) {
return null;
} else {
String rowkey = Bytes.toString(result.getRow());
String[] splitKey = rowkey.split(DIVIDER);
if (splitKey.length == 1) {
return DOMAIN_TYPE_VALIDATION1;
} else if (splitKey.length == 2) {
return DOMAIN_TYPE_VALIDATION2;
} else {
return DOMAIN_TYPE_VALIDATION3;
}
}
}

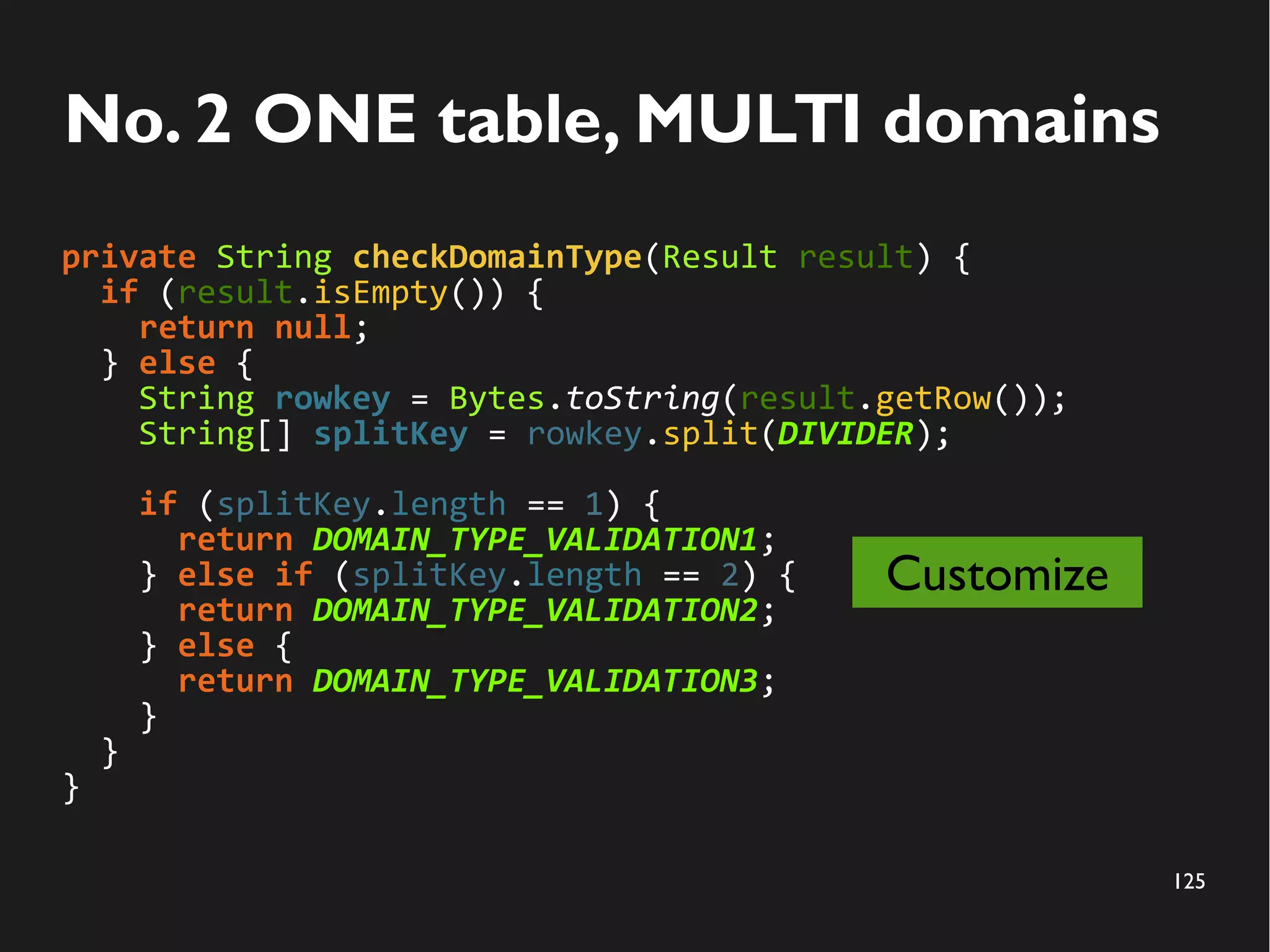

125. 125
No. 2 ONE table, MULTI domains
private String checkDomainType(Result result) {
if (result.isEmpty()) {
return null;
} else {
String rowkey = Bytes.toString(result.getRow());
String[] splitKey = rowkey.split(DIVIDER);
if (splitKey.length == 1) {
return DOMAIN_TYPE_VALIDATION1;
} else if (splitKey.length == 2) {
return DOMAIN_TYPE_VALIDATION2;
} else {
return DOMAIN_TYPE_VALIDATION3;
}
}
}
Customize

126. 126

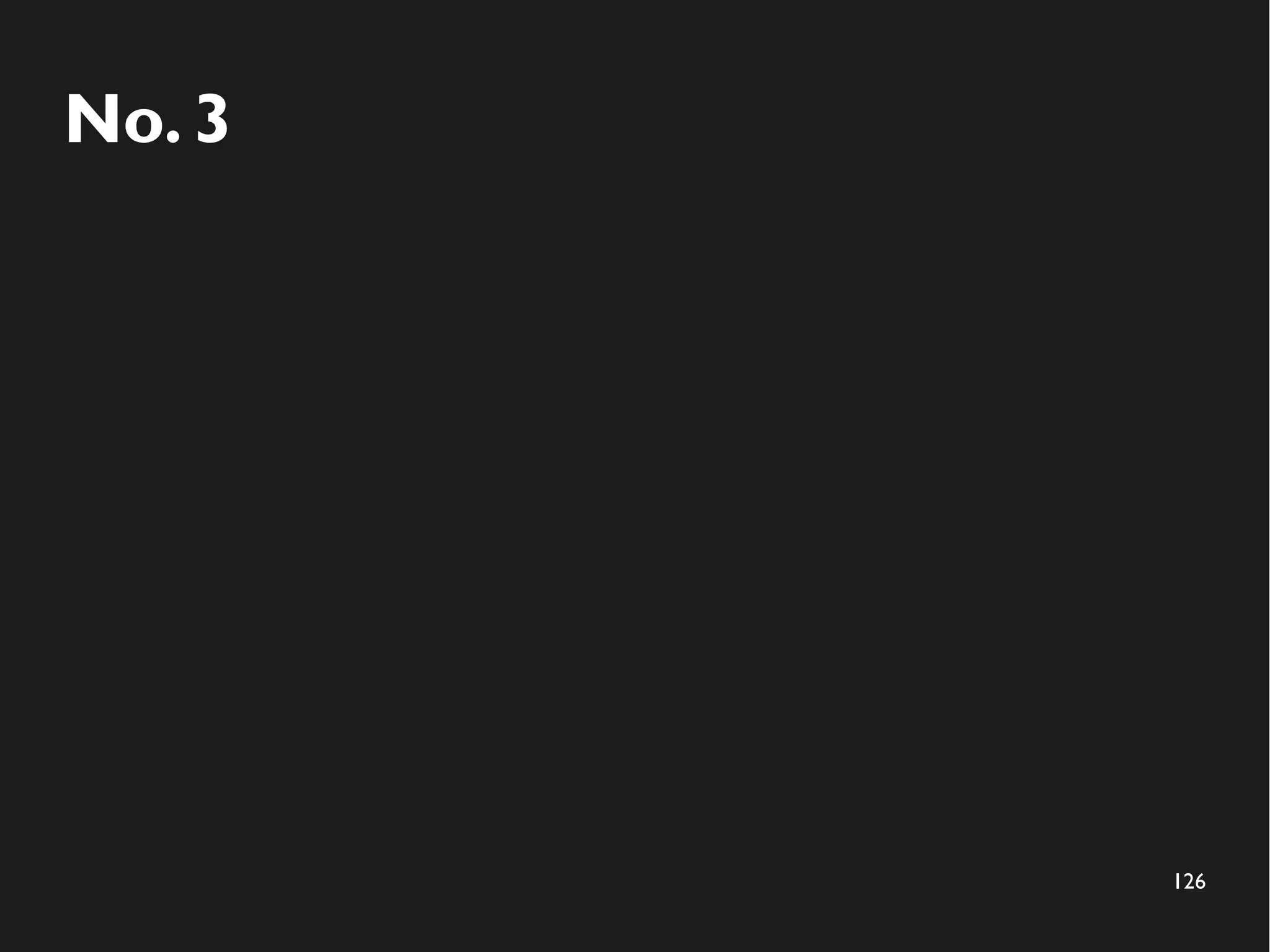

No. 3

127. 127
No. 3

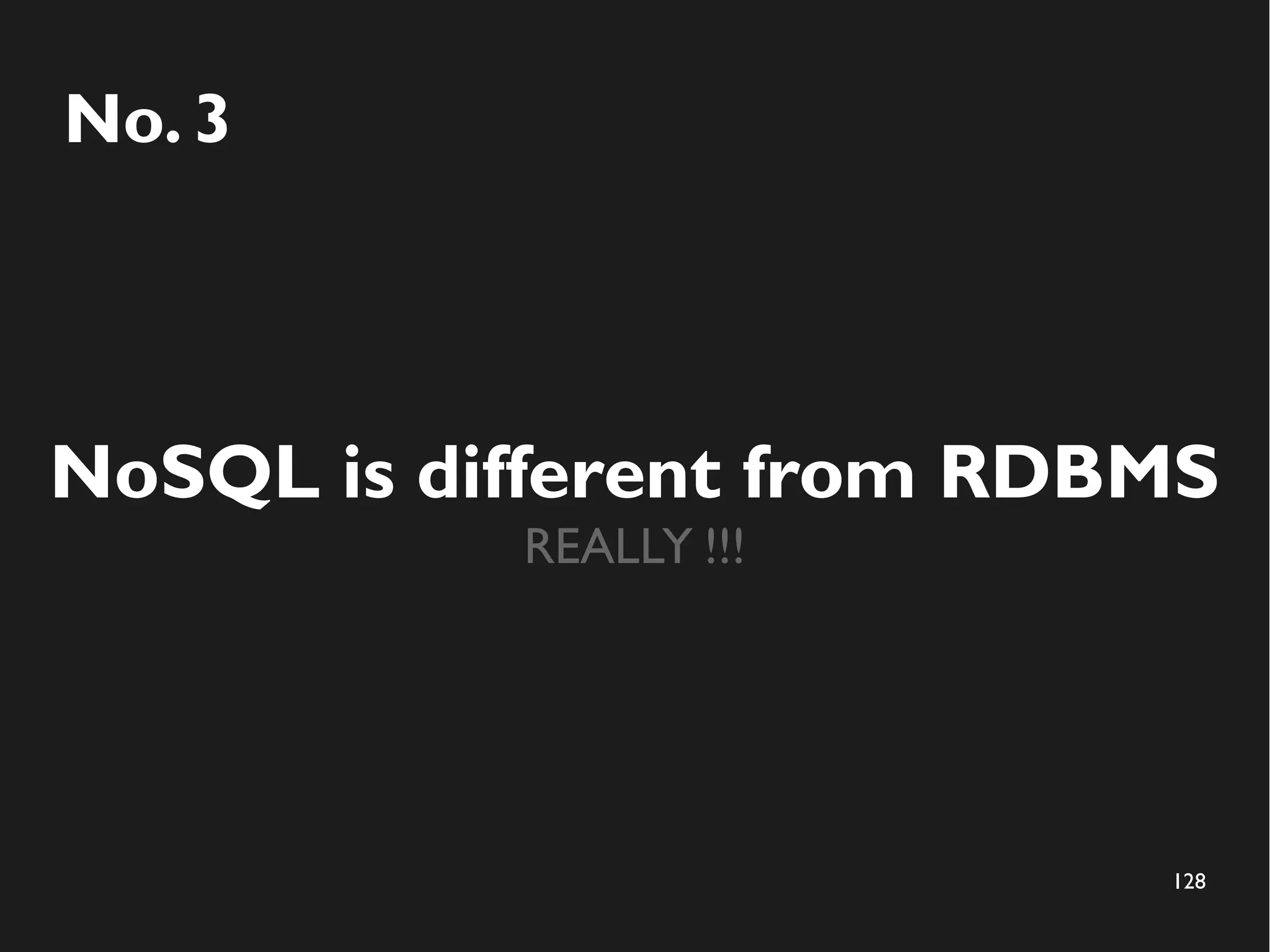

NoSQL is different from RDBMS

128. 128
No. 3
NoSQL is different from RDBMS
REALLY !!!

129. 129
API Blueprint

130. 130

131. 131

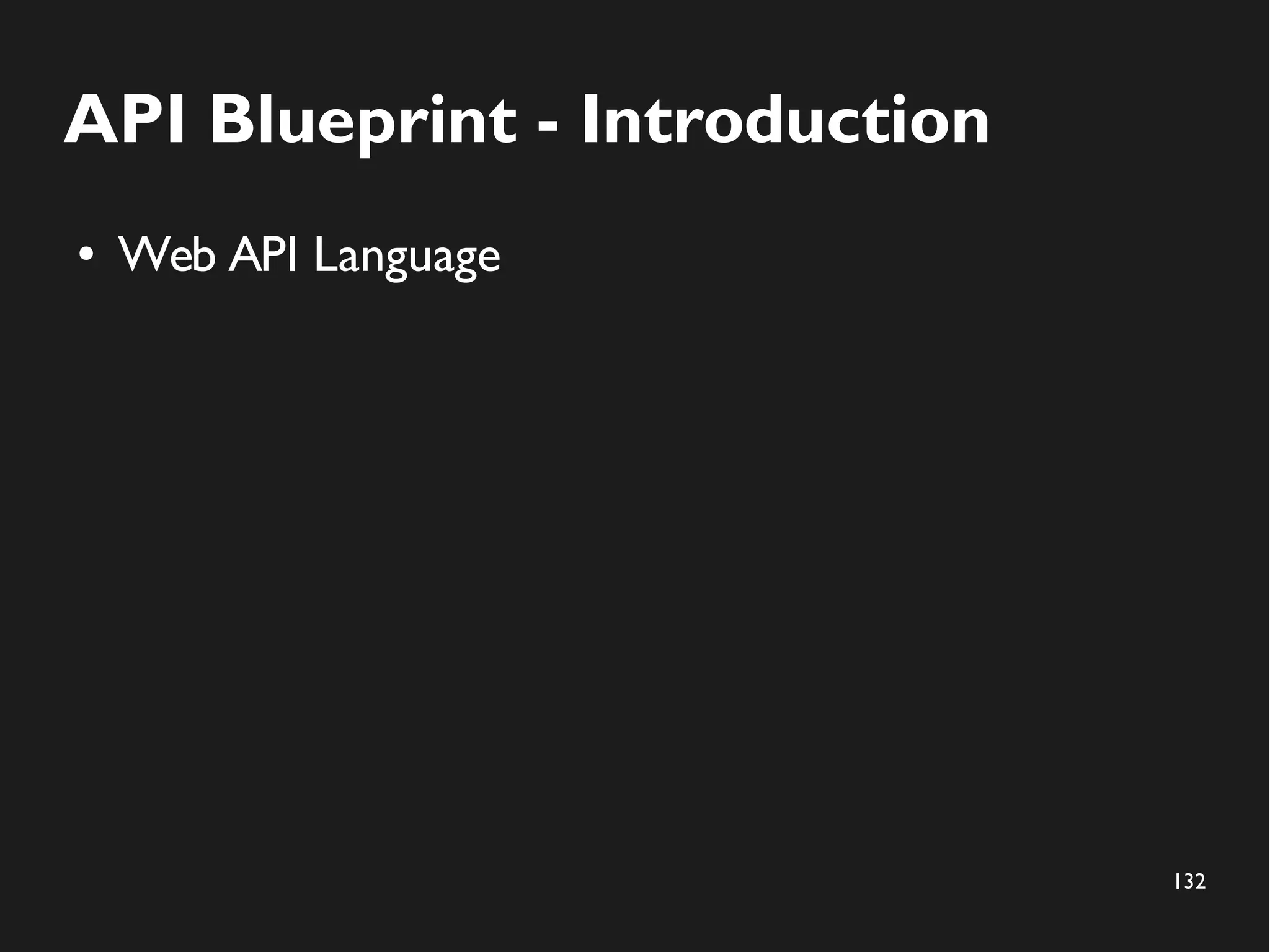

API Blueprint - Introduction

132. 132
API Blueprint - Introduction
● Web API Language

133. 133

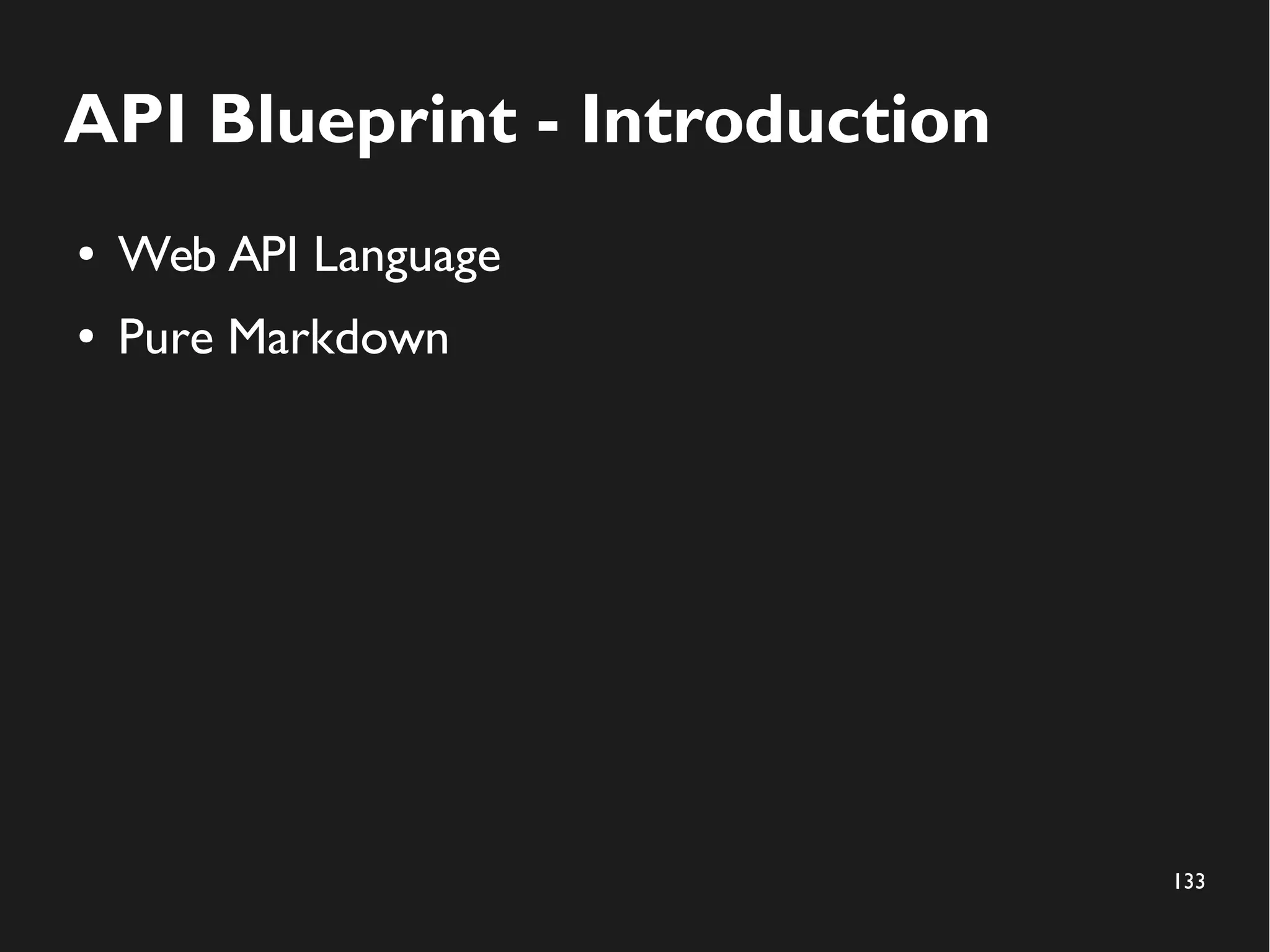

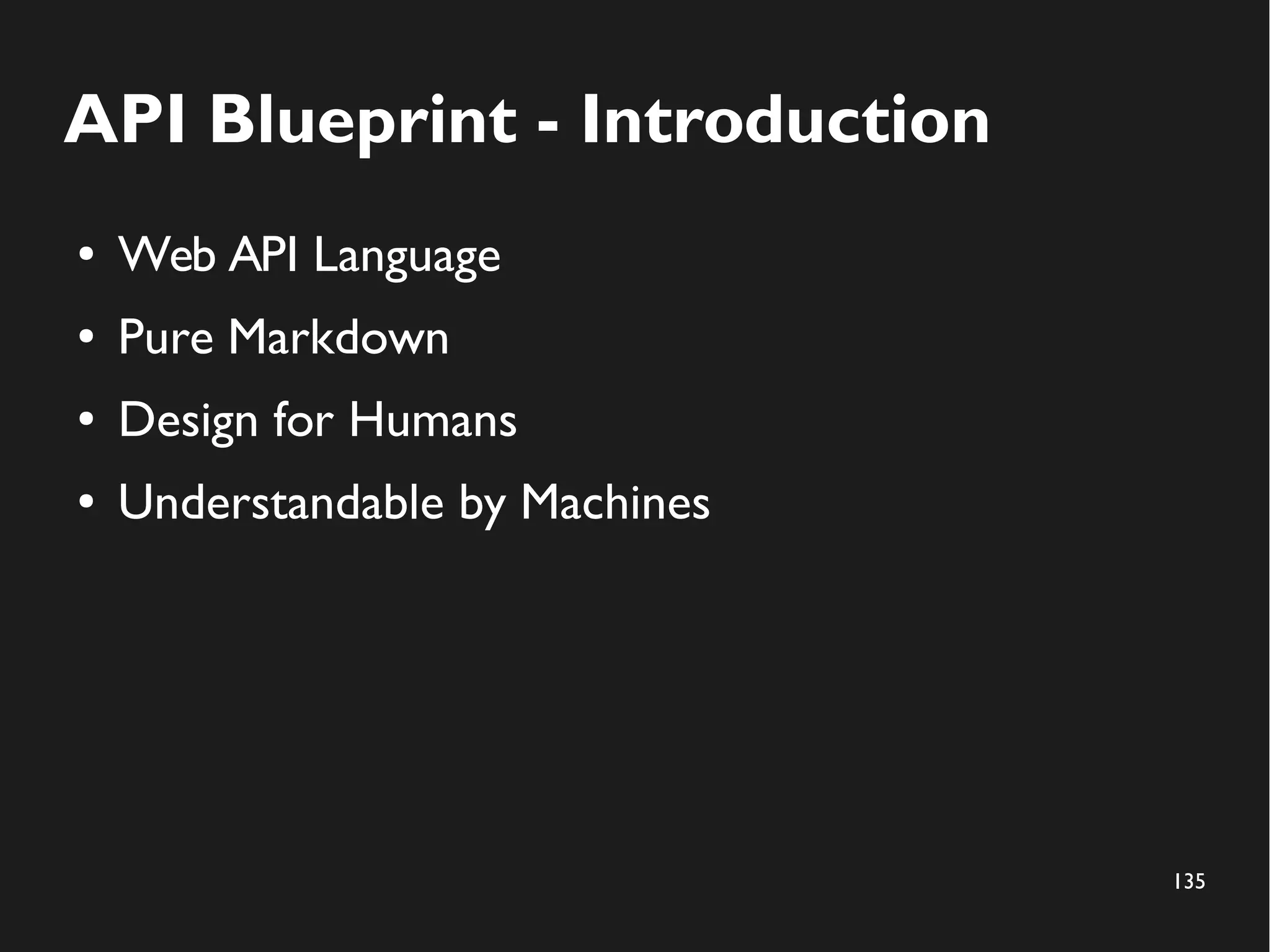

API Blueprint - Introduction
● Web API Language
● Pure Markdown

134. 134

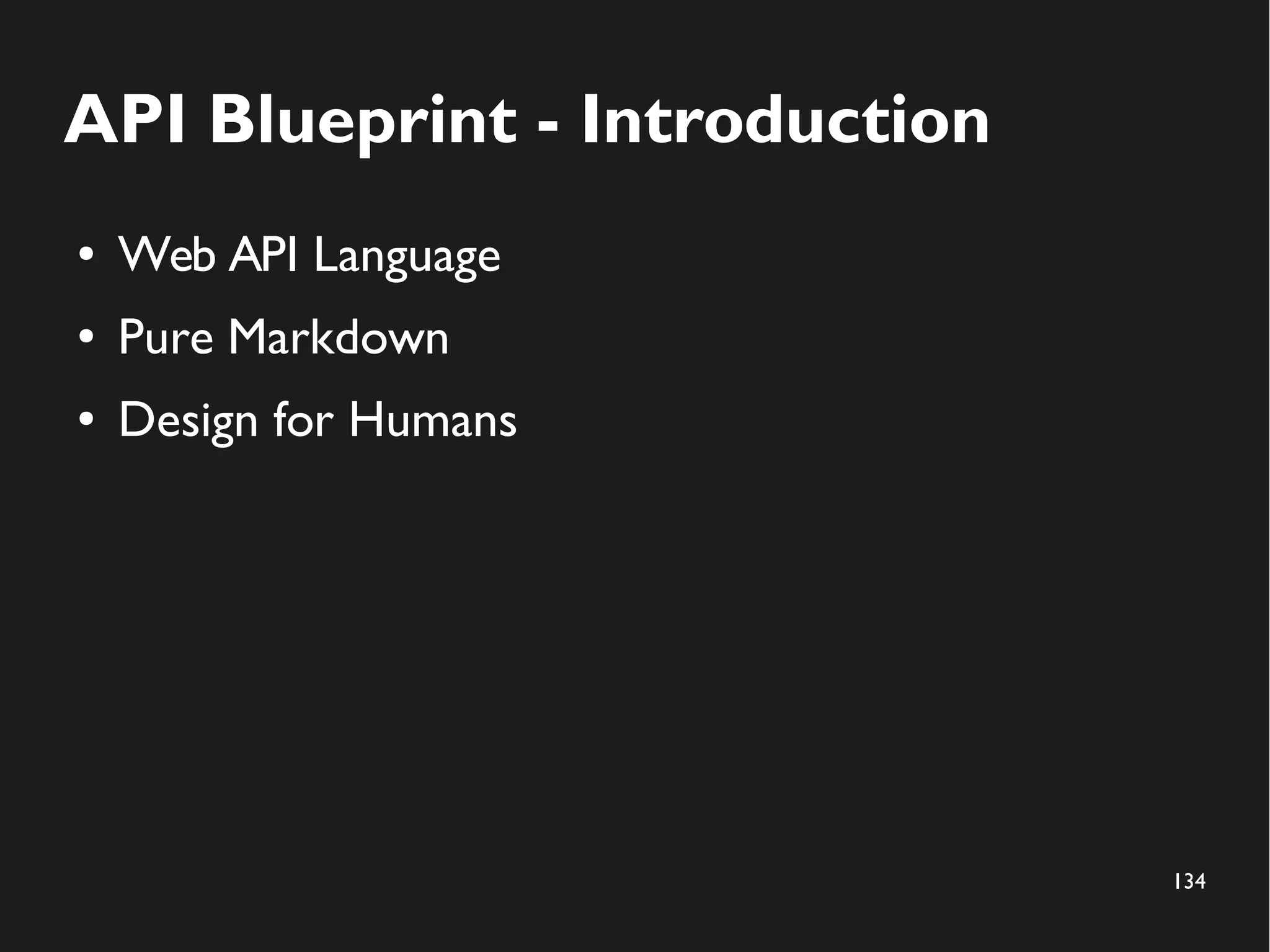

API Blueprint - Introduction
● Web API Language
● Pure Markdown
● Design for Humans

135. 135
API Blueprint - Introduction
● Web API Language
● Pure Markdown
● Design for Humans
● Understandable by Machines

136. 136

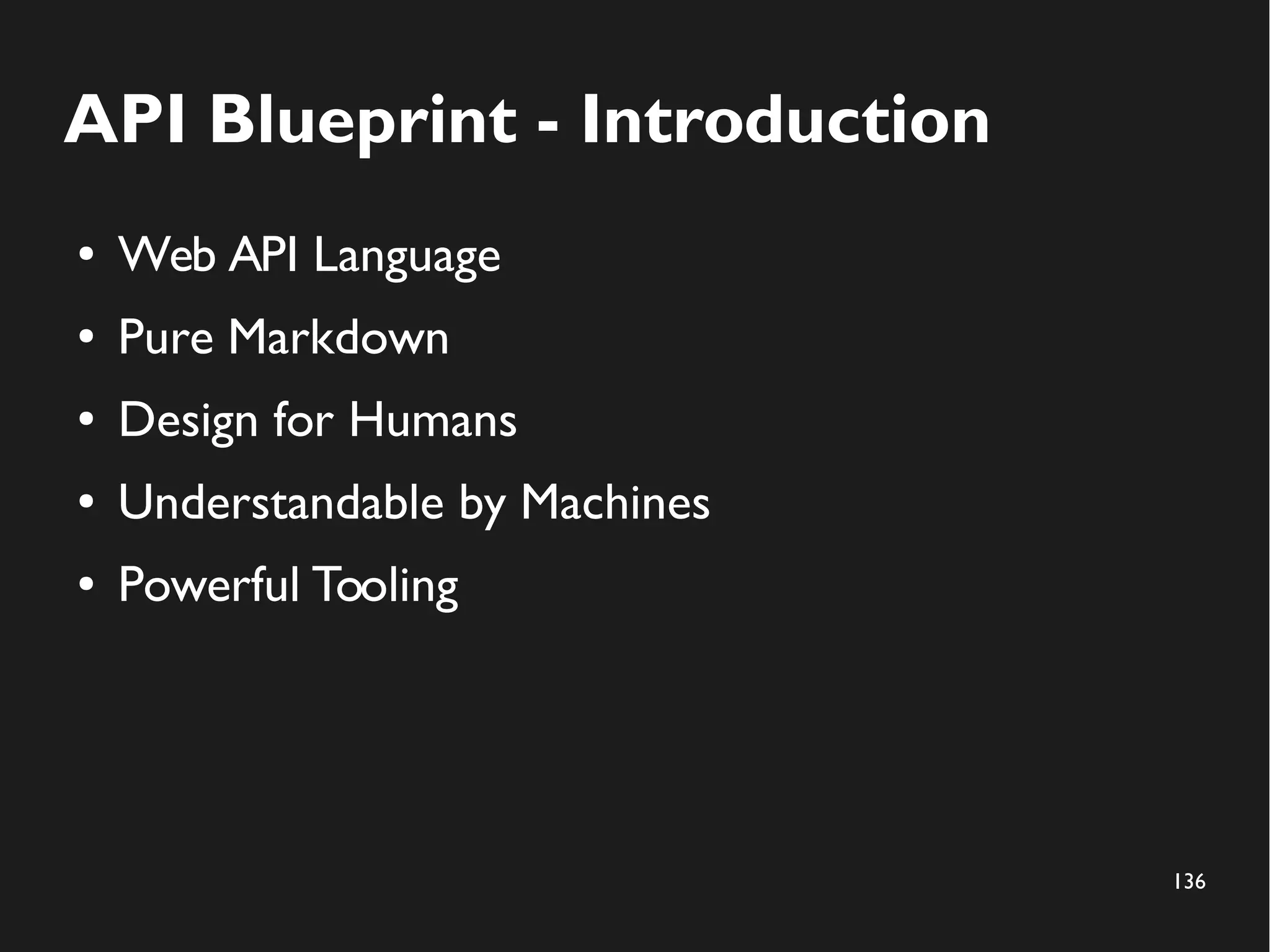

API Blueprint - Introduction
● Web API Language
● Pure Markdown
● Design for Humans
● Understandable by Machines
● Powerful Tooling

137. 137

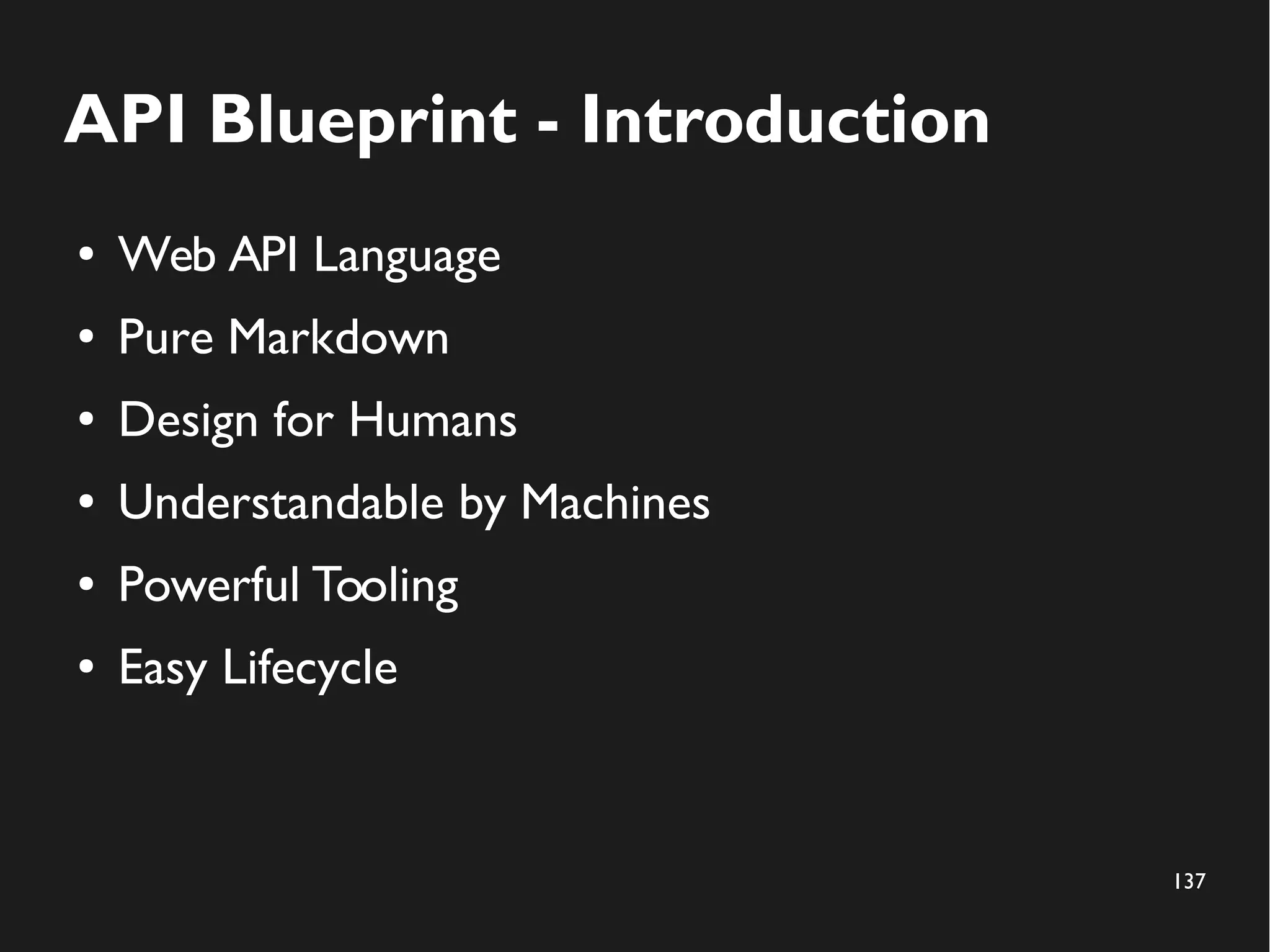

API Blueprint - Introduction
● Web API Language
● Pure Markdown
● Design for Humans
● Understandable by Machines
● Powerful Tooling
● Easy Lifecycle

138. 138

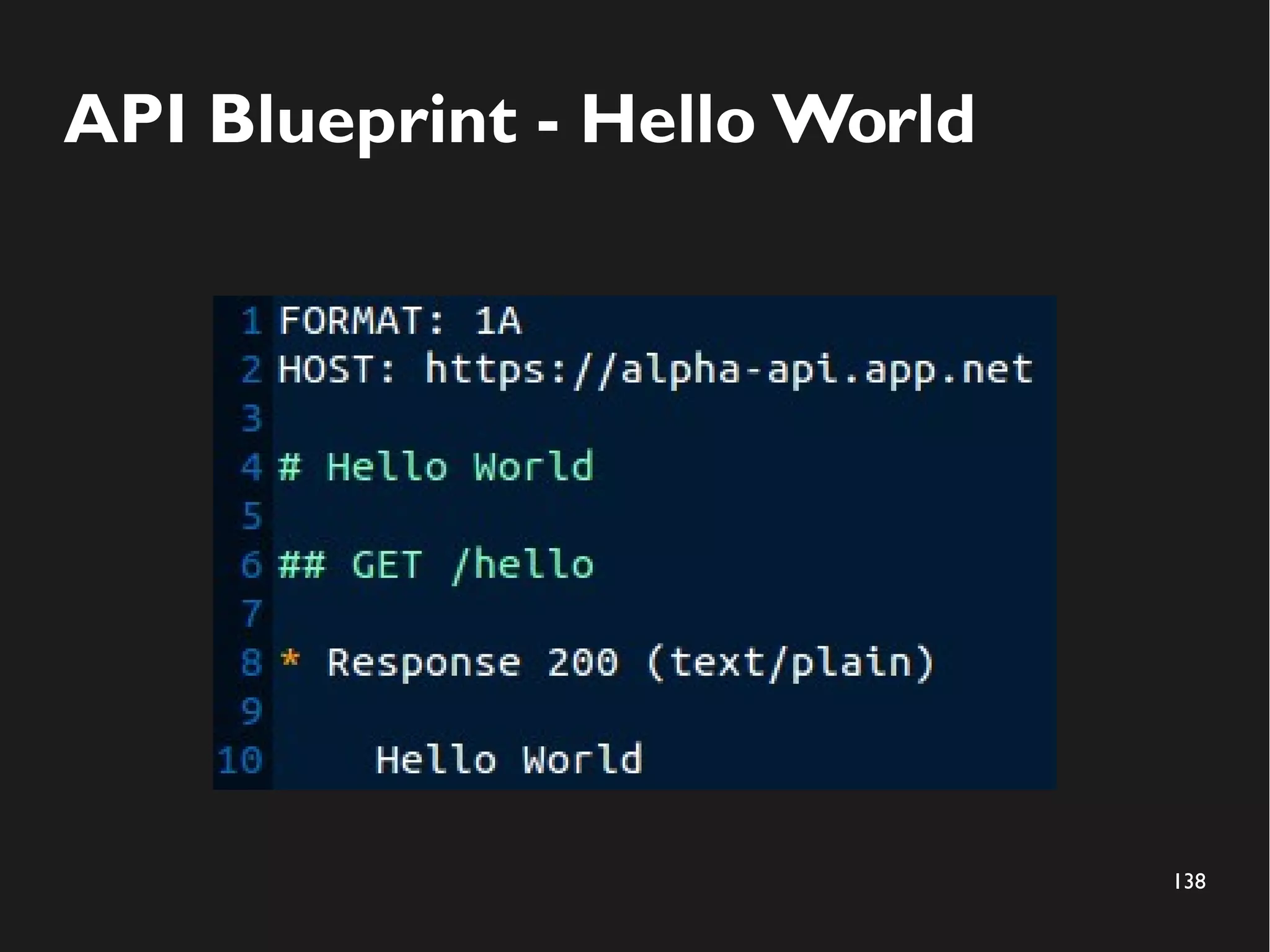

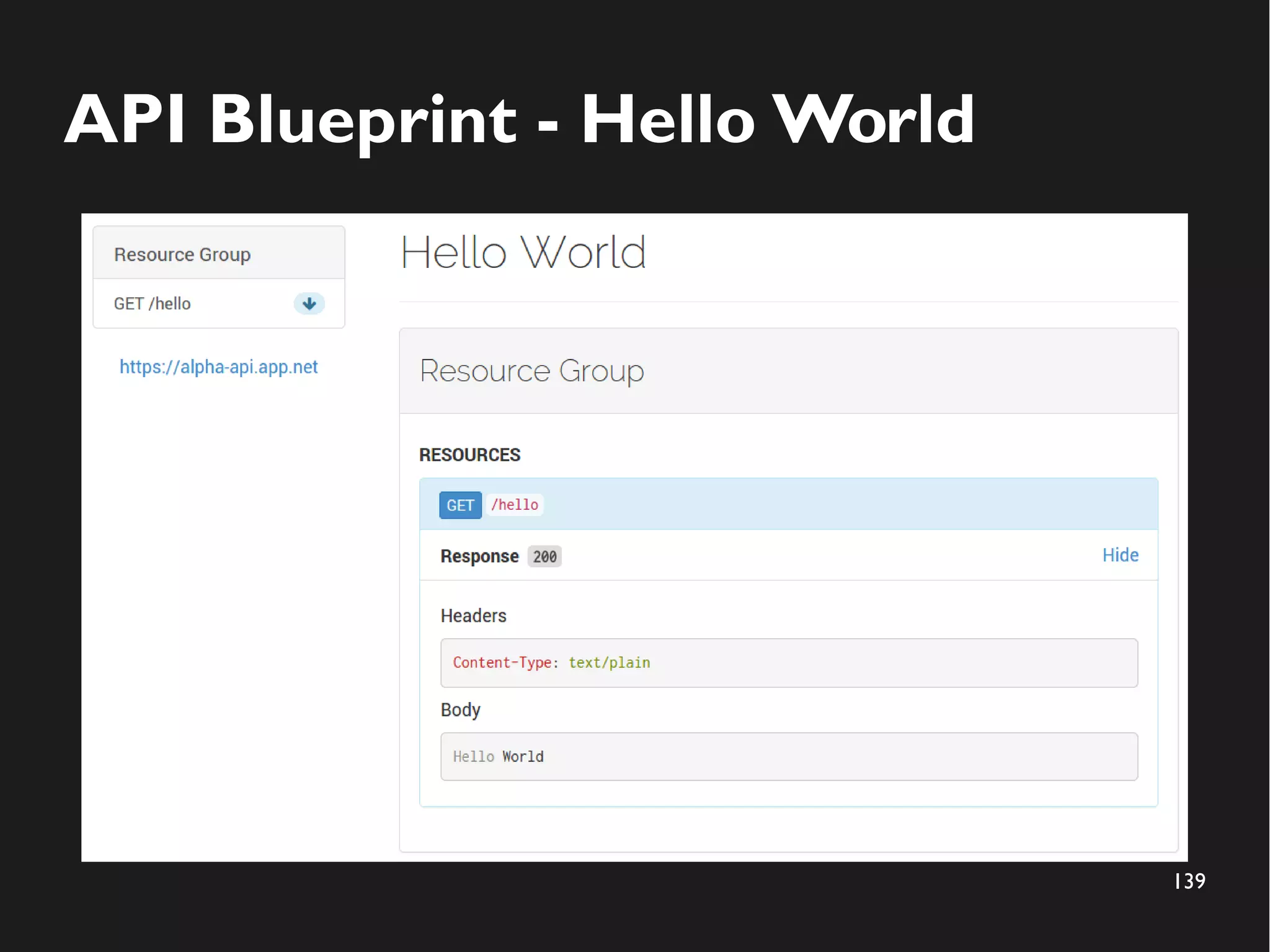

API Blueprint - Hello World

139. 139
API Blueprint - Hello World

140. 140

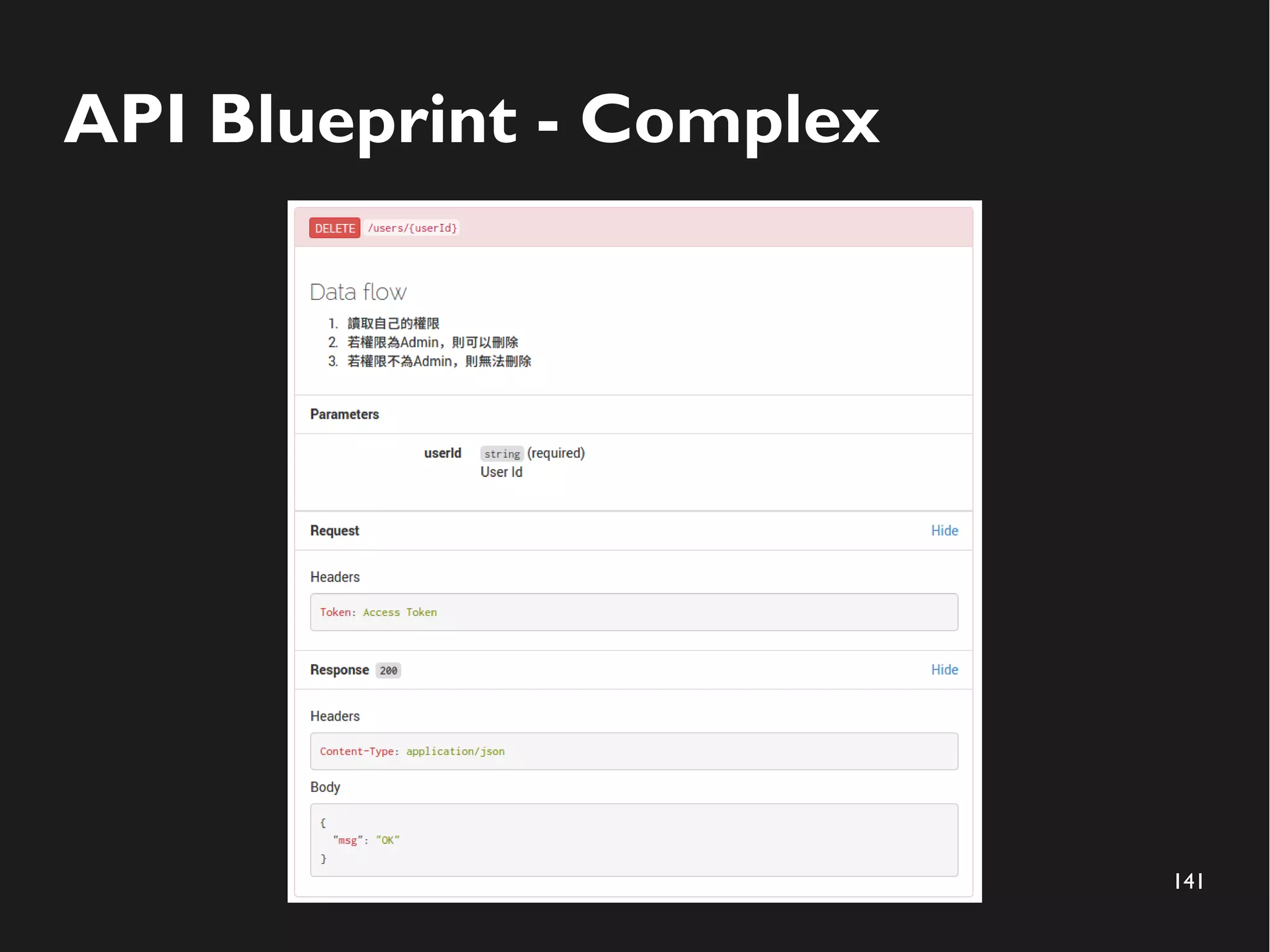

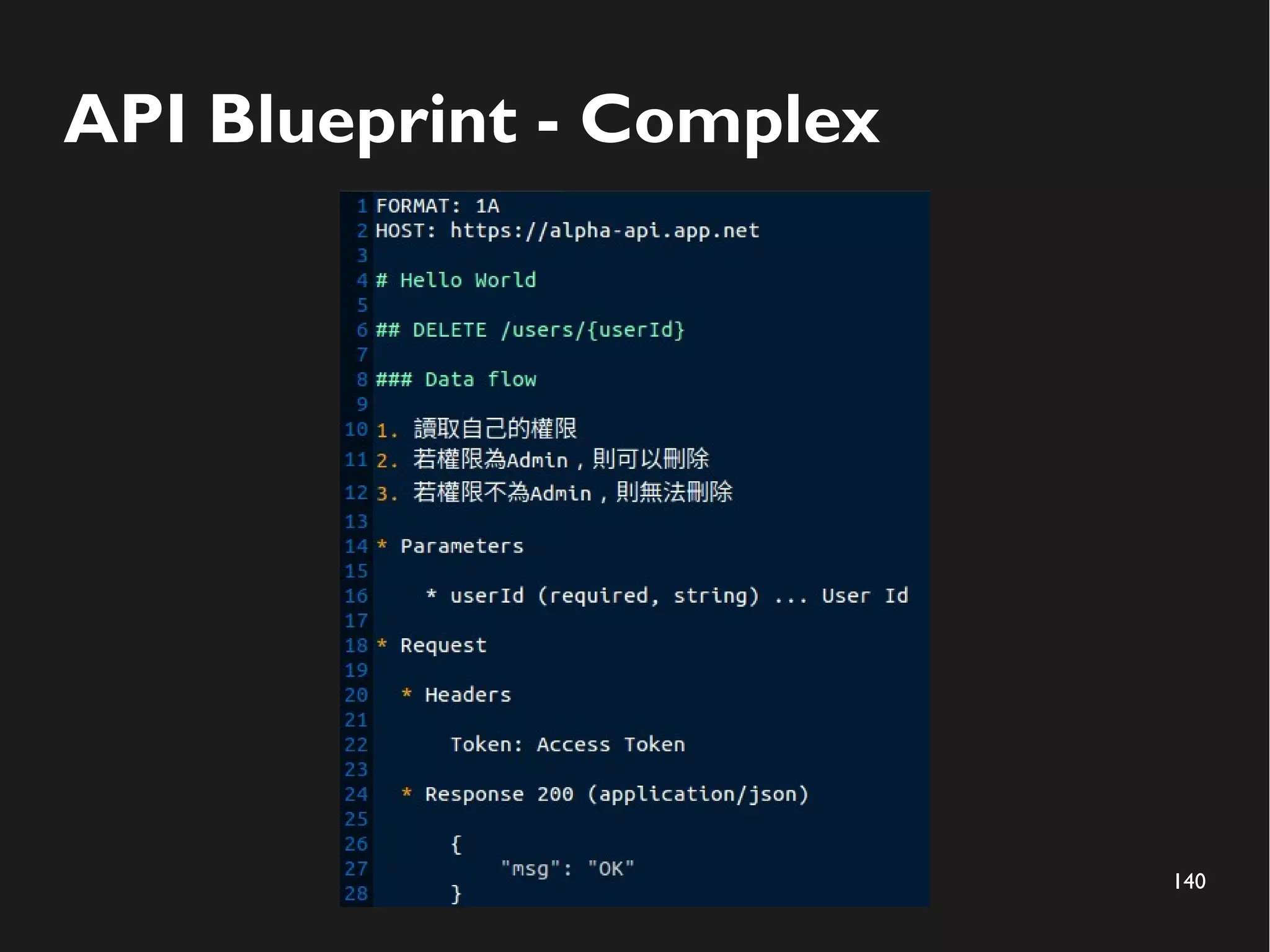

API Blueprint - Complex

141. 141
API Blueprint - Complex

142. 142

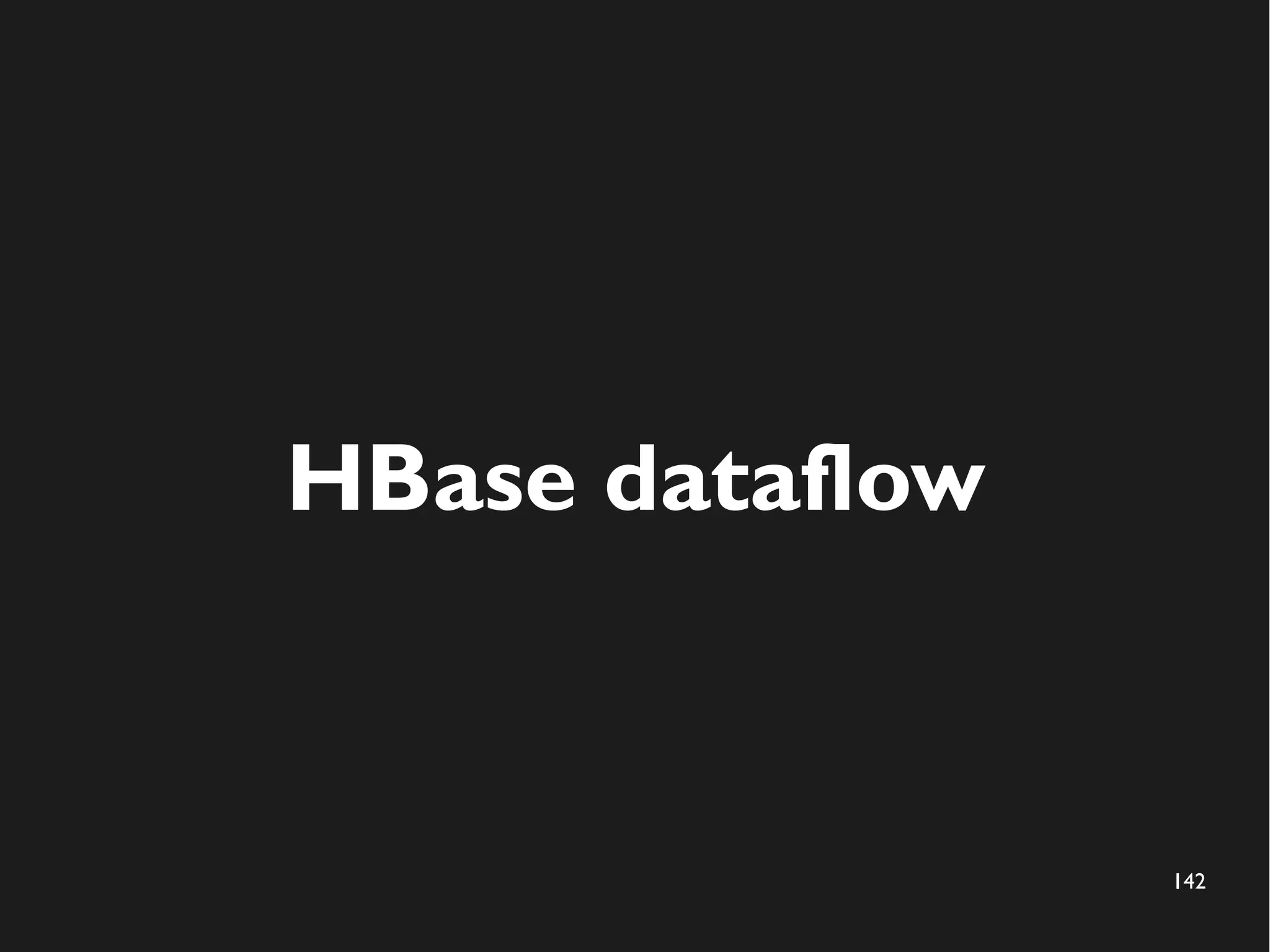

HBase dataflow

143. 143
HBase dataflow
conserve your domain know-how

144. 144

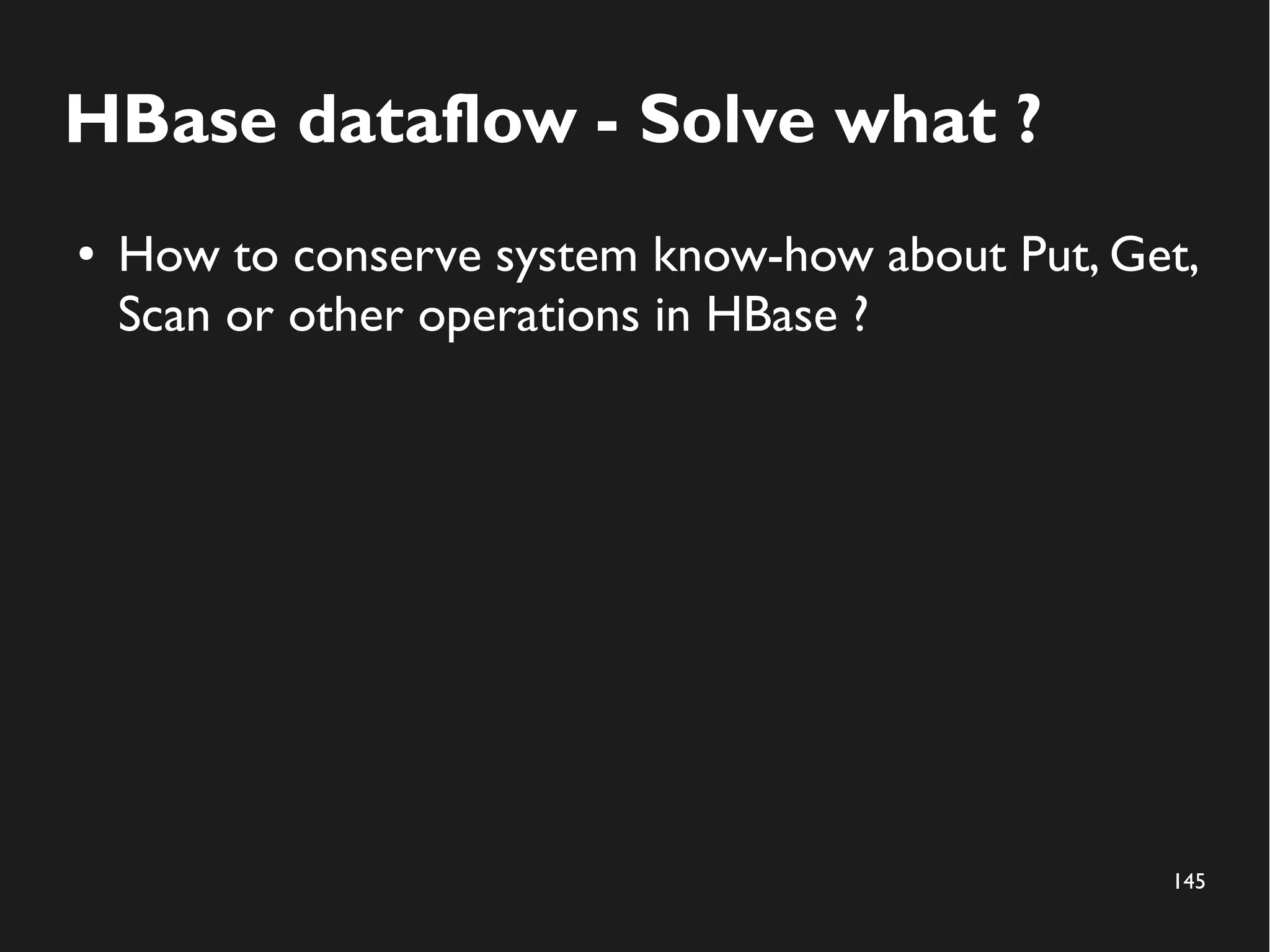

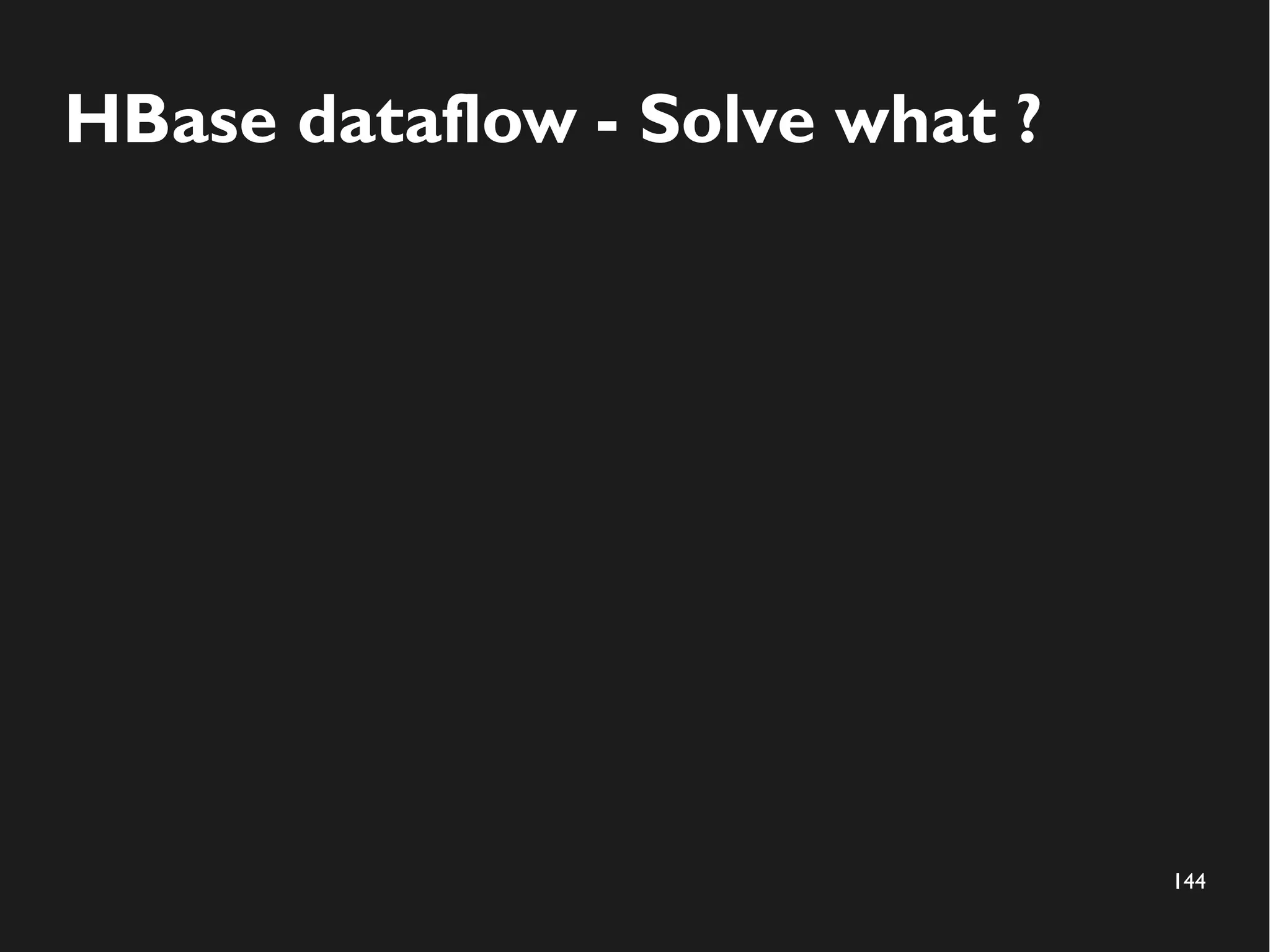

HBase dataflow - Solve what ?

145. 145
HBase dataflow - Solve what ?
● How to conserve system know-how about Put, Get,
Scan or other operations in HBase ?

146. 146
Paper & Pen ?

147. 147
Paper & Pen ?

148. 148
Redmine / KM ?

149. 149
Redmine / KM ?

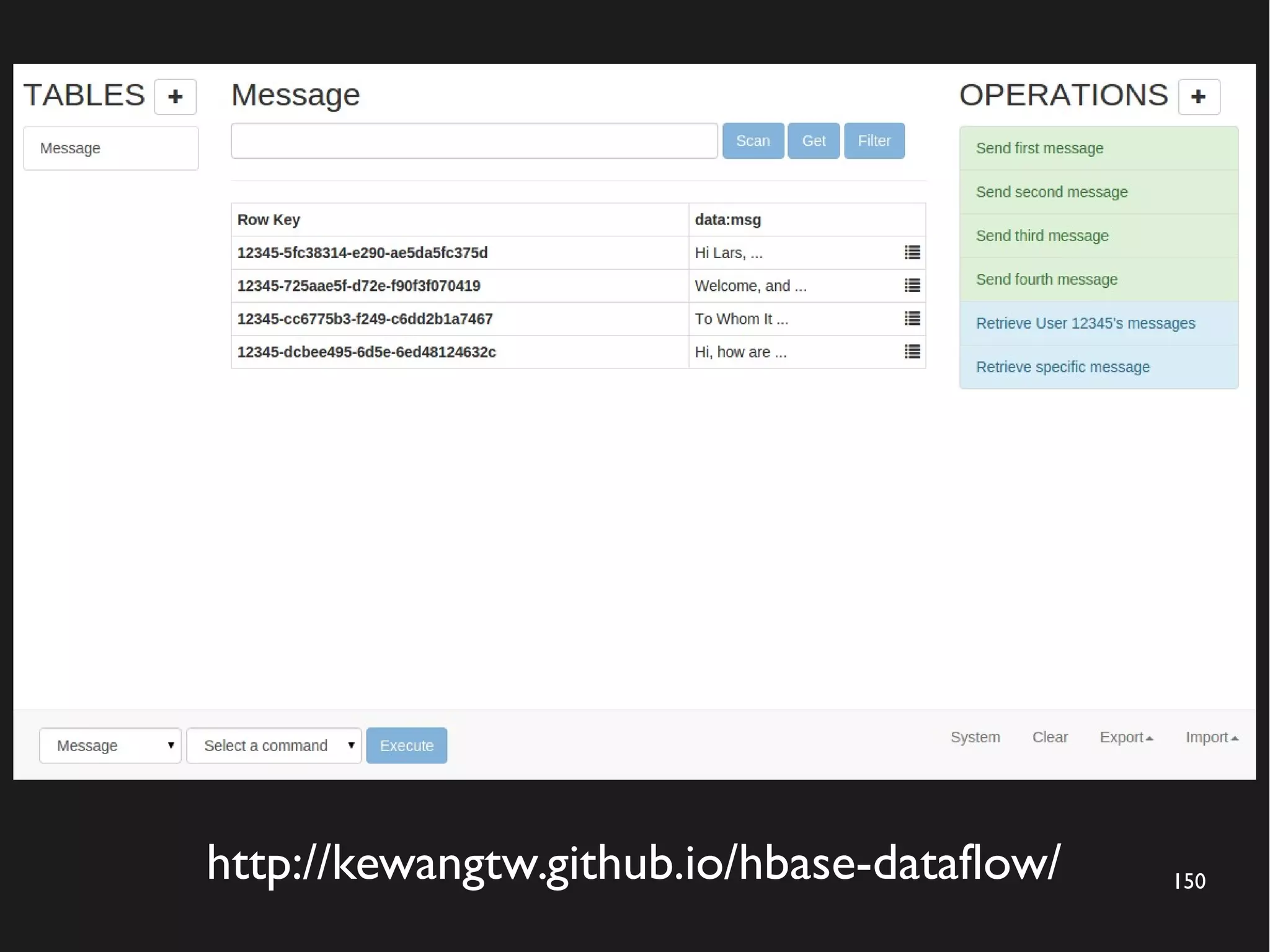

150. 150http://kewangtw.github.io/hbase-dataflow/

151. 151
HBase dataflow - introduction

152. 152

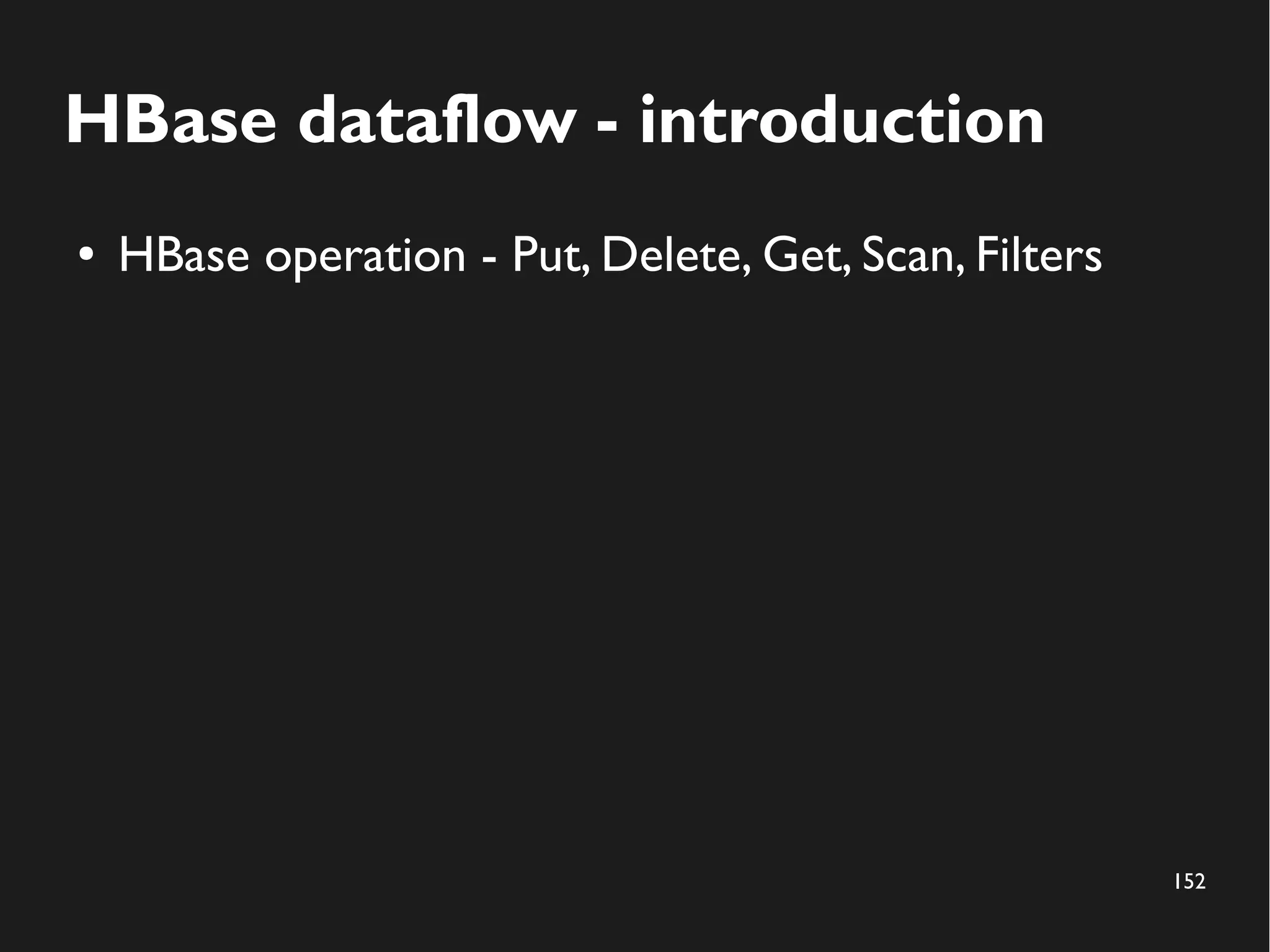

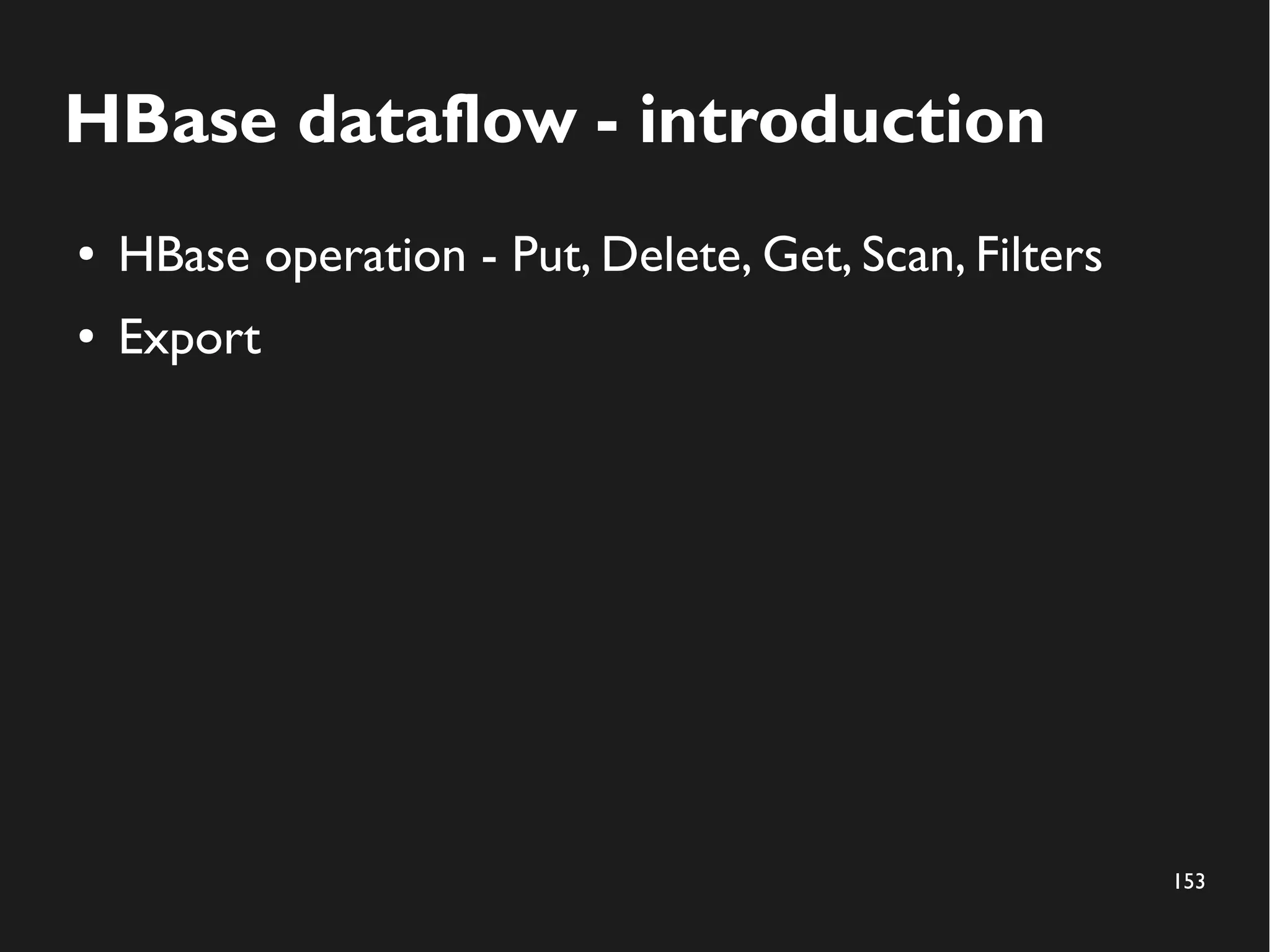

HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters

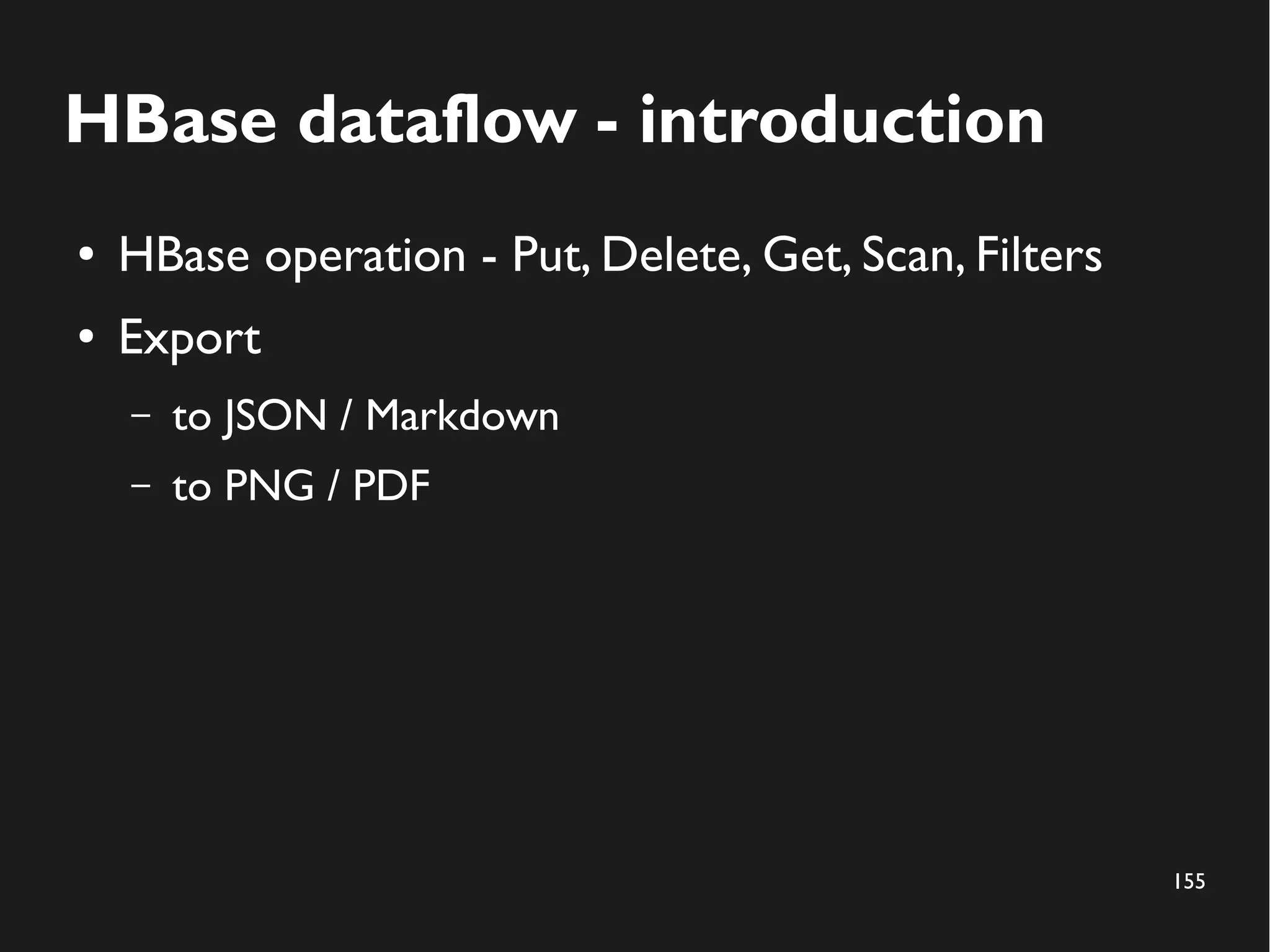

153. 153
HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters
● Export

154. 154

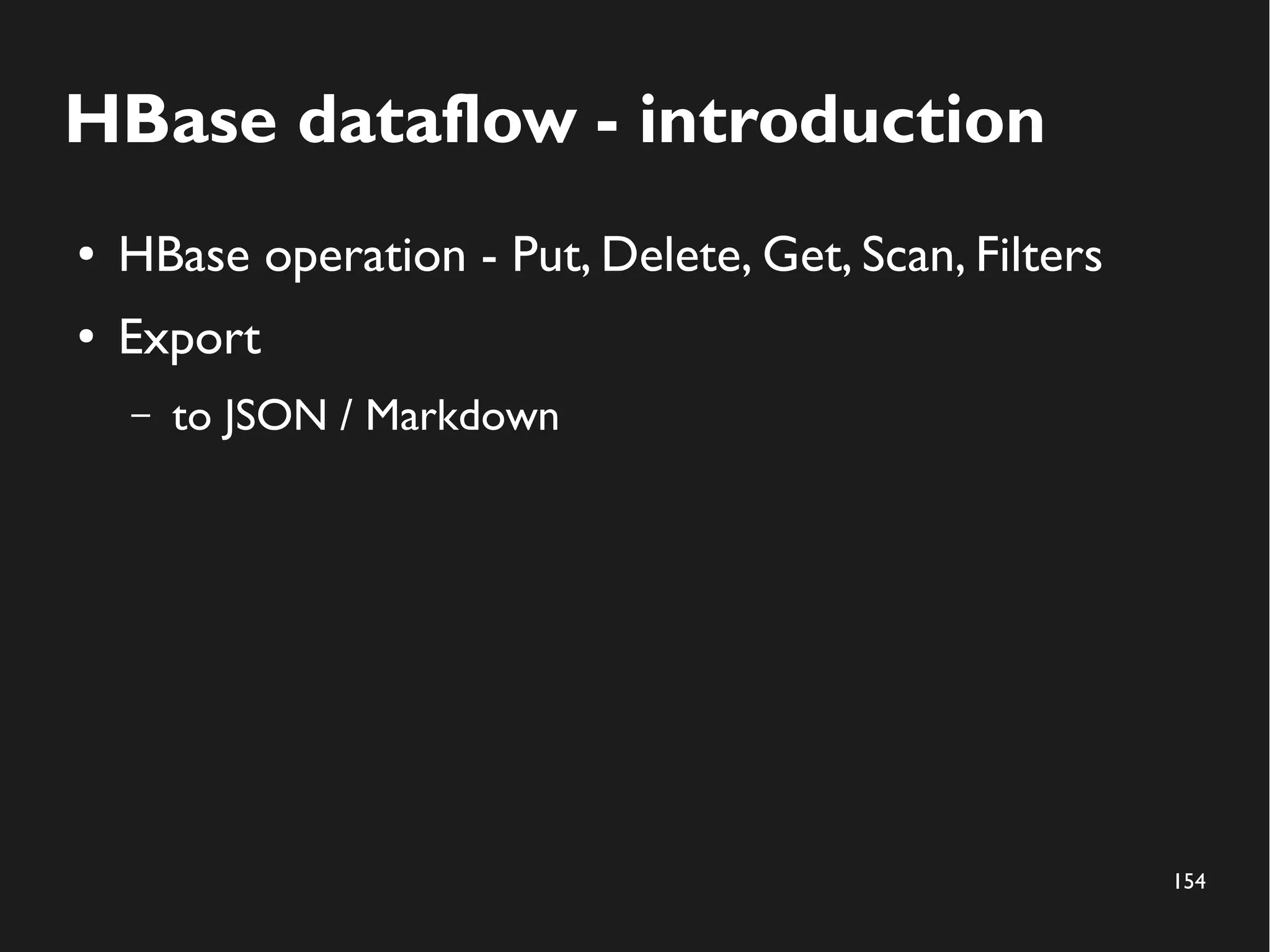

HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters
● Export
– to JSON / Markdown

155. 155
HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters
● Export
– to JSON / Markdown
– to PNG / PDF

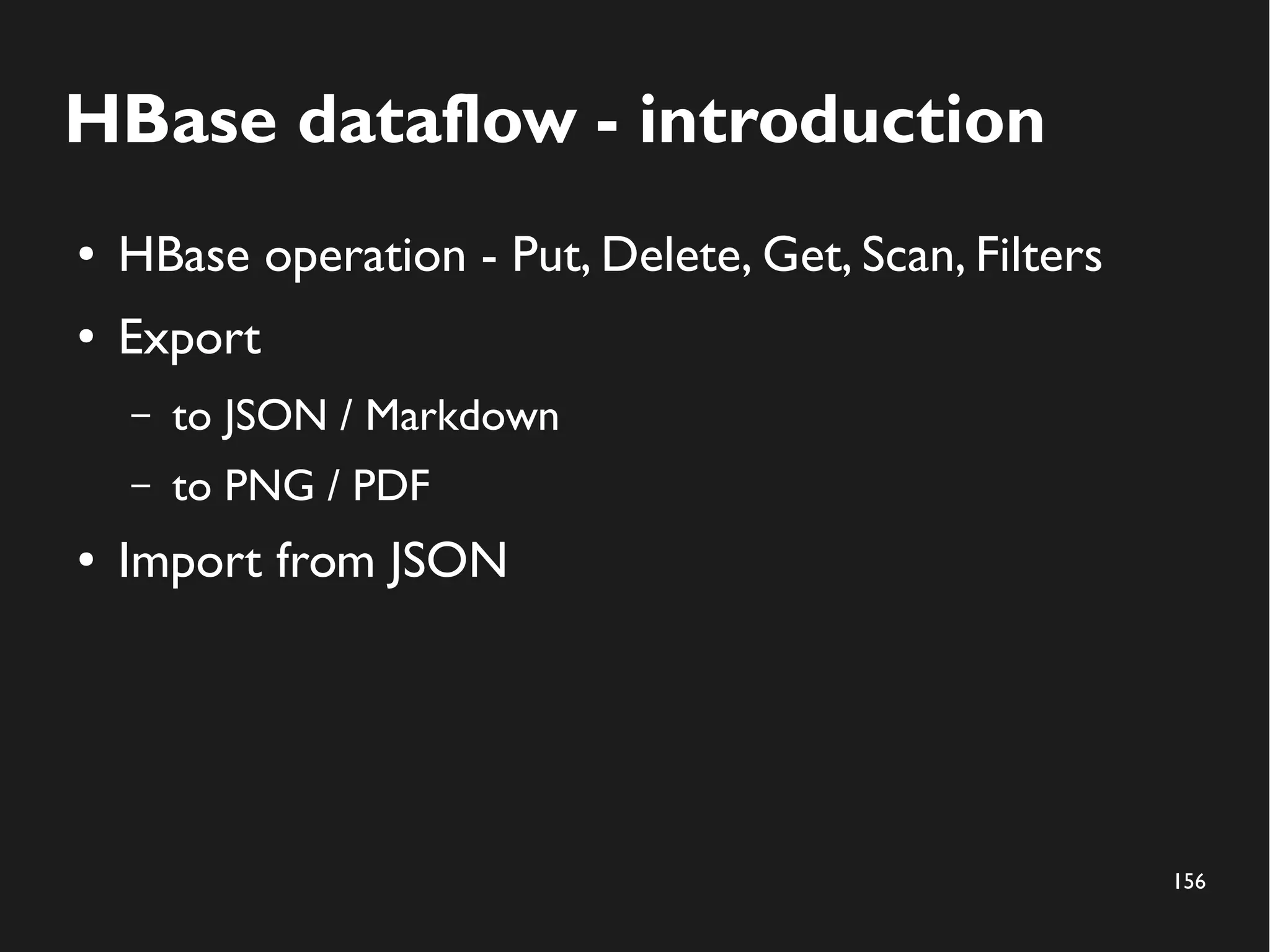

156. 156
HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters
● Export
– to JSON / Markdown
– to PNG / PDF
● Import from JSON

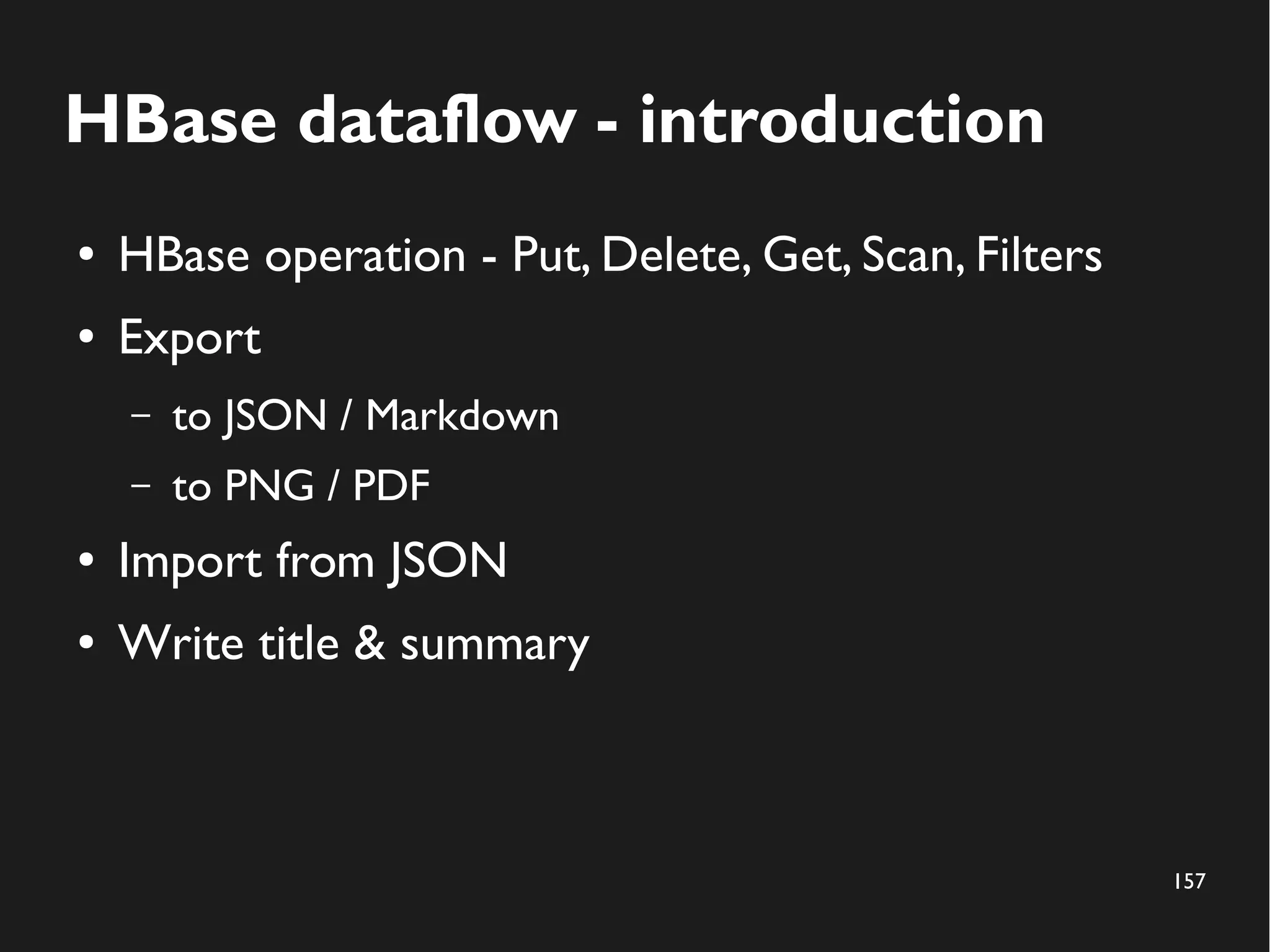

157. 157
HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters
● Export
– to JSON / Markdown
– to PNG / PDF
● Import from JSON
● Write title & summary

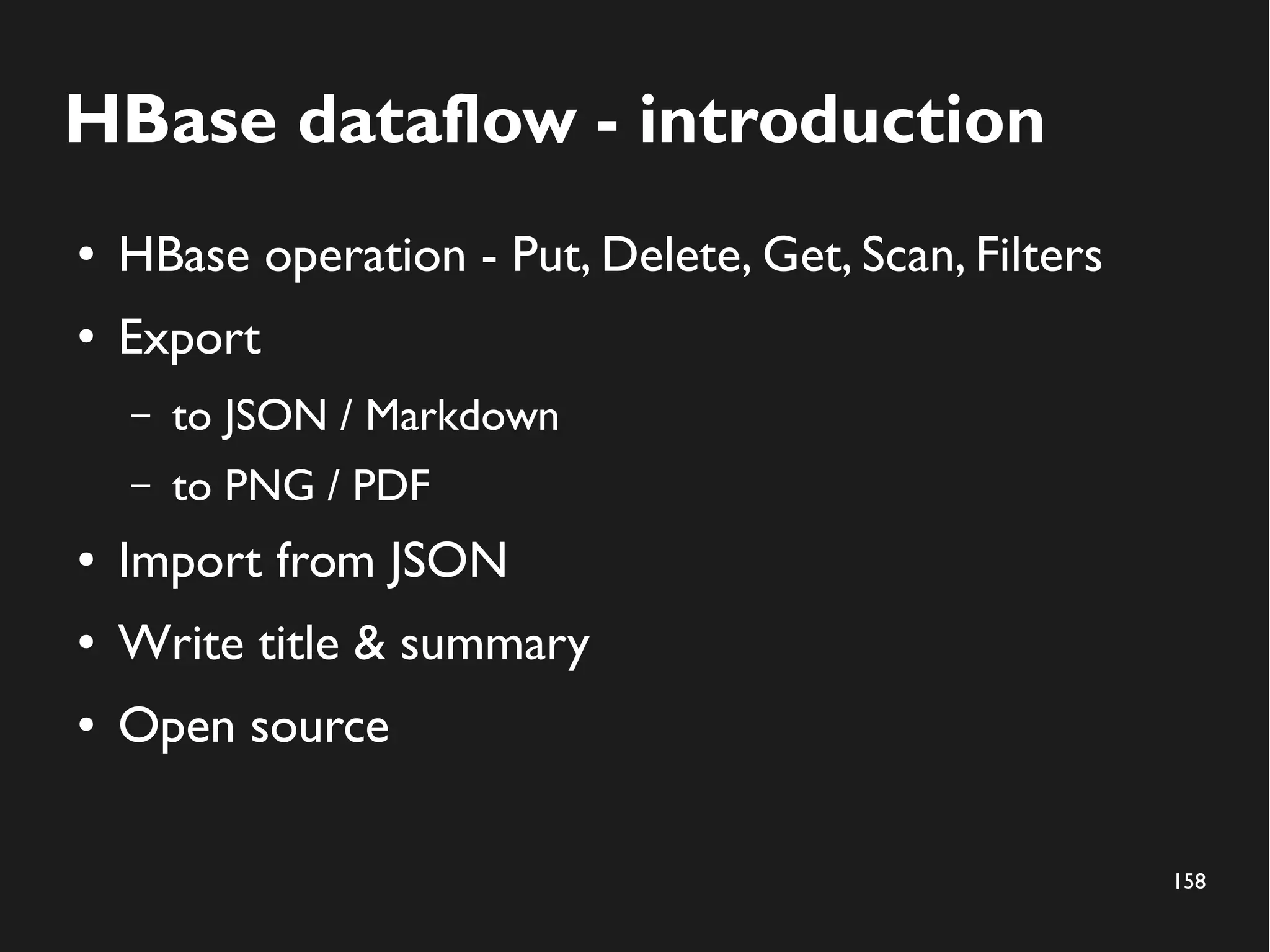

158. 158
HBase dataflow - introduction
● HBase operation - Put, Delete, Get, Scan, Filters
● Export
– to JSON / Markdown
– to PNG / PDF
● Import from JSON
● Write title & summary
● Open source

159. 159
Live DEMO

160. 160

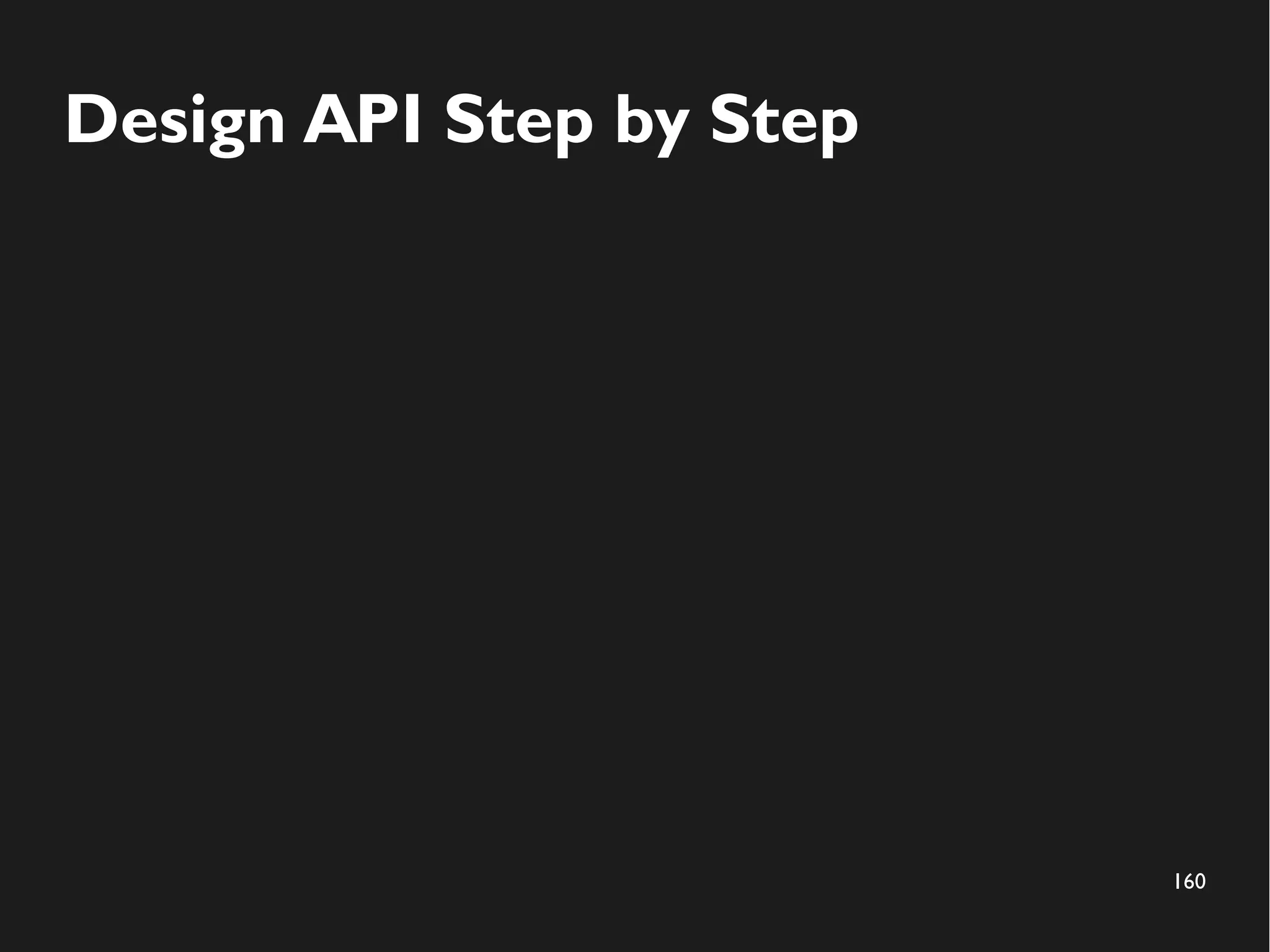

Design API Step by Step

161. 161
Design API Step by Step

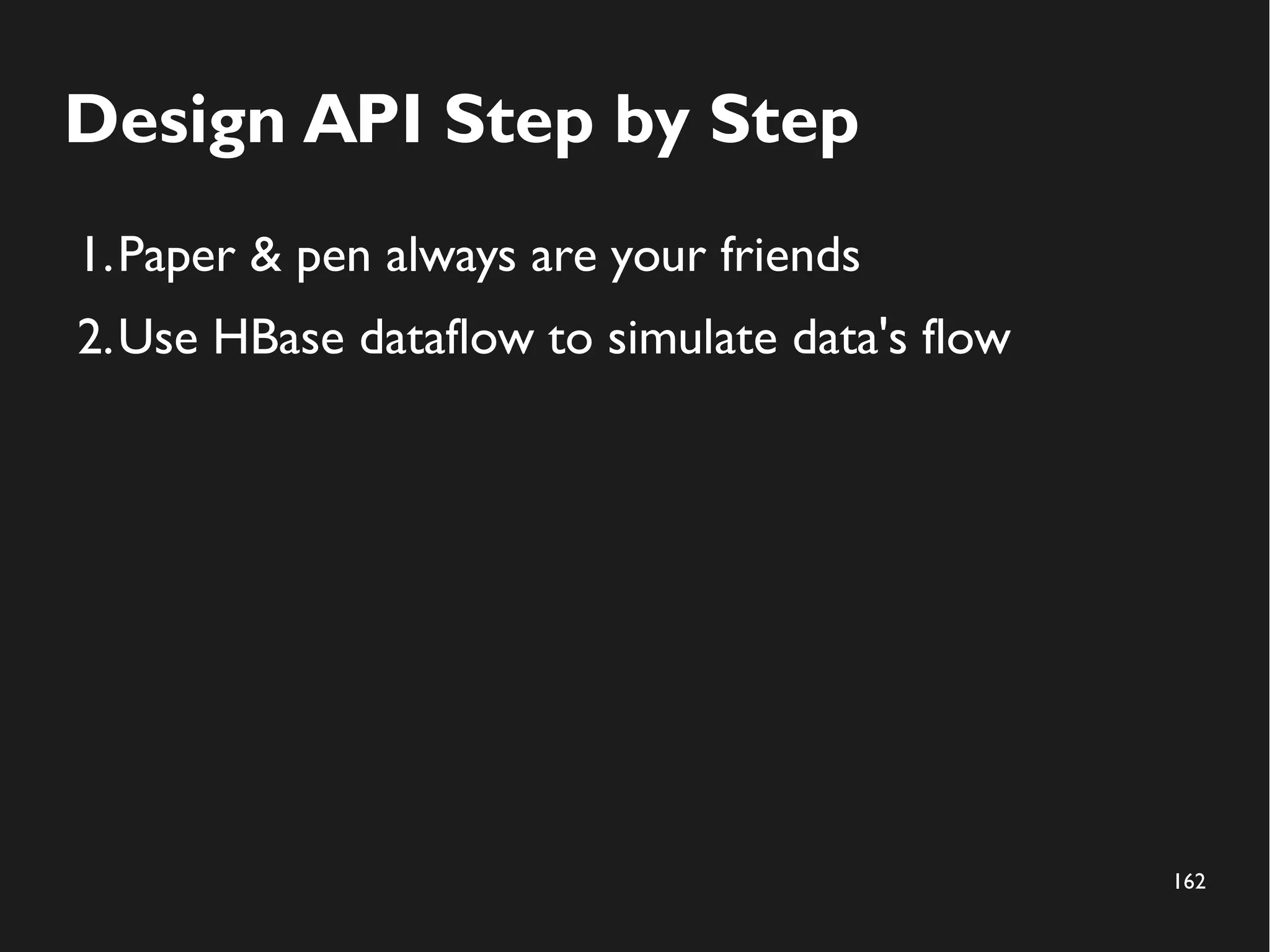

1.Paper & pen always are your friends

162. 162
Design API Step by Step
1.Paper & pen always are your friends
2.Use HBase dataflow to simulate data's flow

163. 163

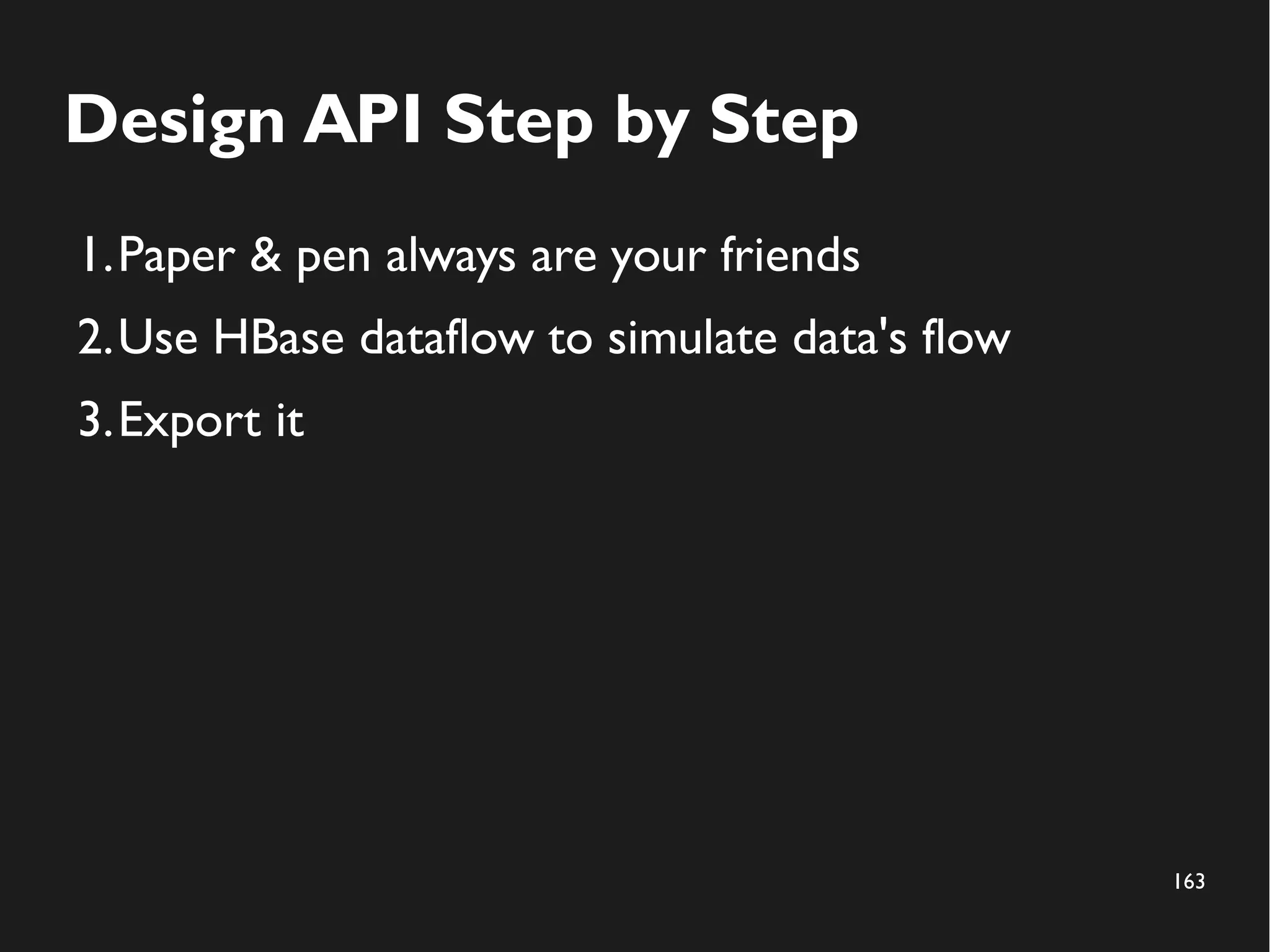

Design API Step by Step
1.Paper & pen always are your friends
2.Use HBase dataflow to simulate data's flow
3.Export it

164. 164

165. 165
References
● HBase in Action
● apiblueprint, aglio
● HBase dataflow

166. 166

167. 167
