The document discusses four main ways to add new functionality to MySQL: user defined functions (UDFs), plugins, components, and pull requests. UDFs allow adding SQL callable functions and are the basic/easy way. Plugins were the old way but are more complex with loading/unloading issues. Components are the new preferred way as they are extensible and allow communication between parts. Pull requests involve contributing code changes to MySQL source code and are for advanced users.

1. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
How to Add Stuff to MySQL
Georgi “Joro” Kodinov
Team Lead, SrvGen Team
A Guided Tour

2. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for
information purposes only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality, and should not be relied upon
in making purchasing decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remains at the sole discretion of Oracle.
2

3. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

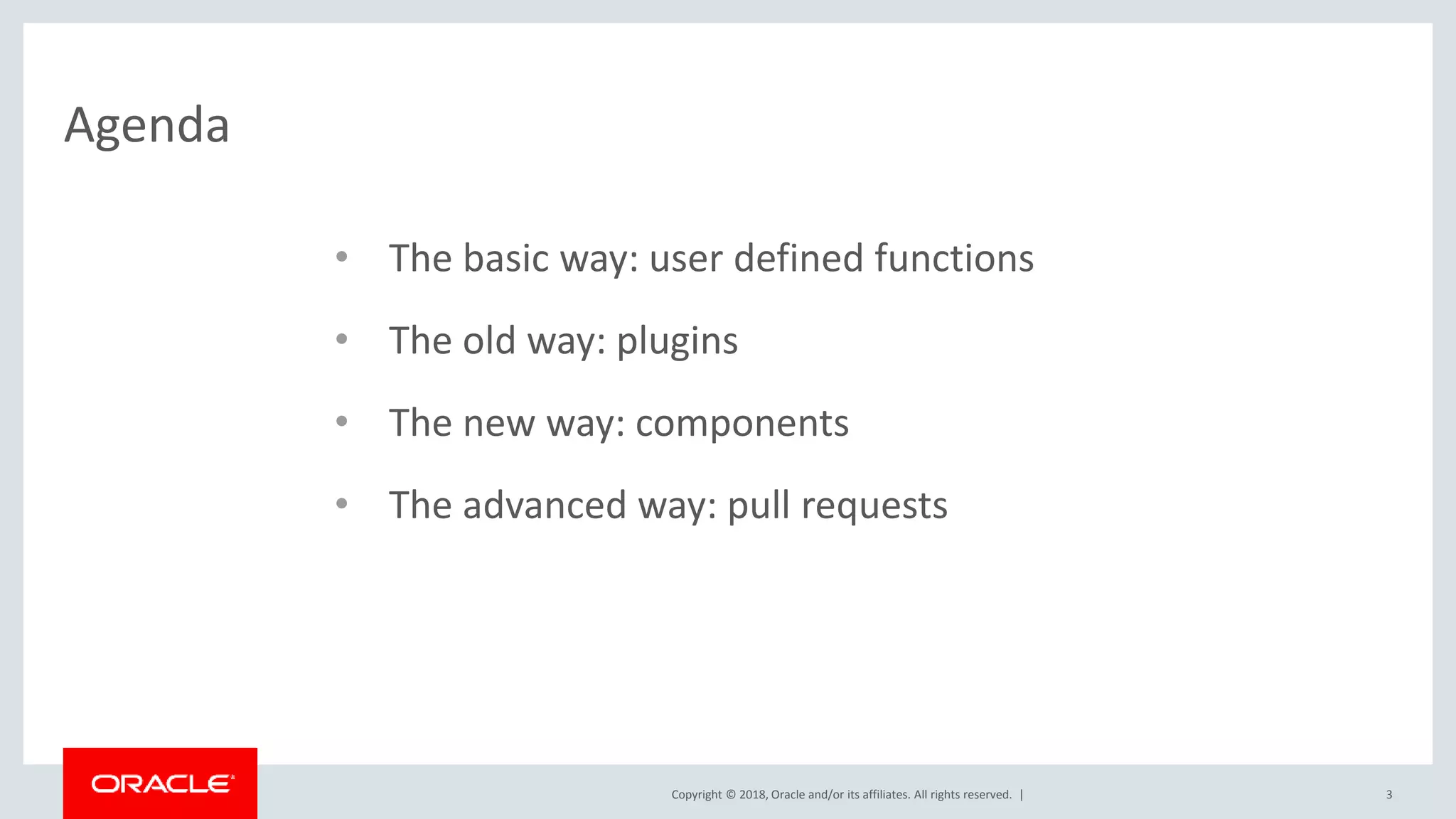

Agenda
3
• The basic way: user defined functions
• The old way: plugins
• The new way: components
• The advanced way: pull requests

4. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
User Defined Functions
The Basic Way
4

5. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Architecture of UDFs
5
SQL
UDF call
Result
Client Server UDF Library

6. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

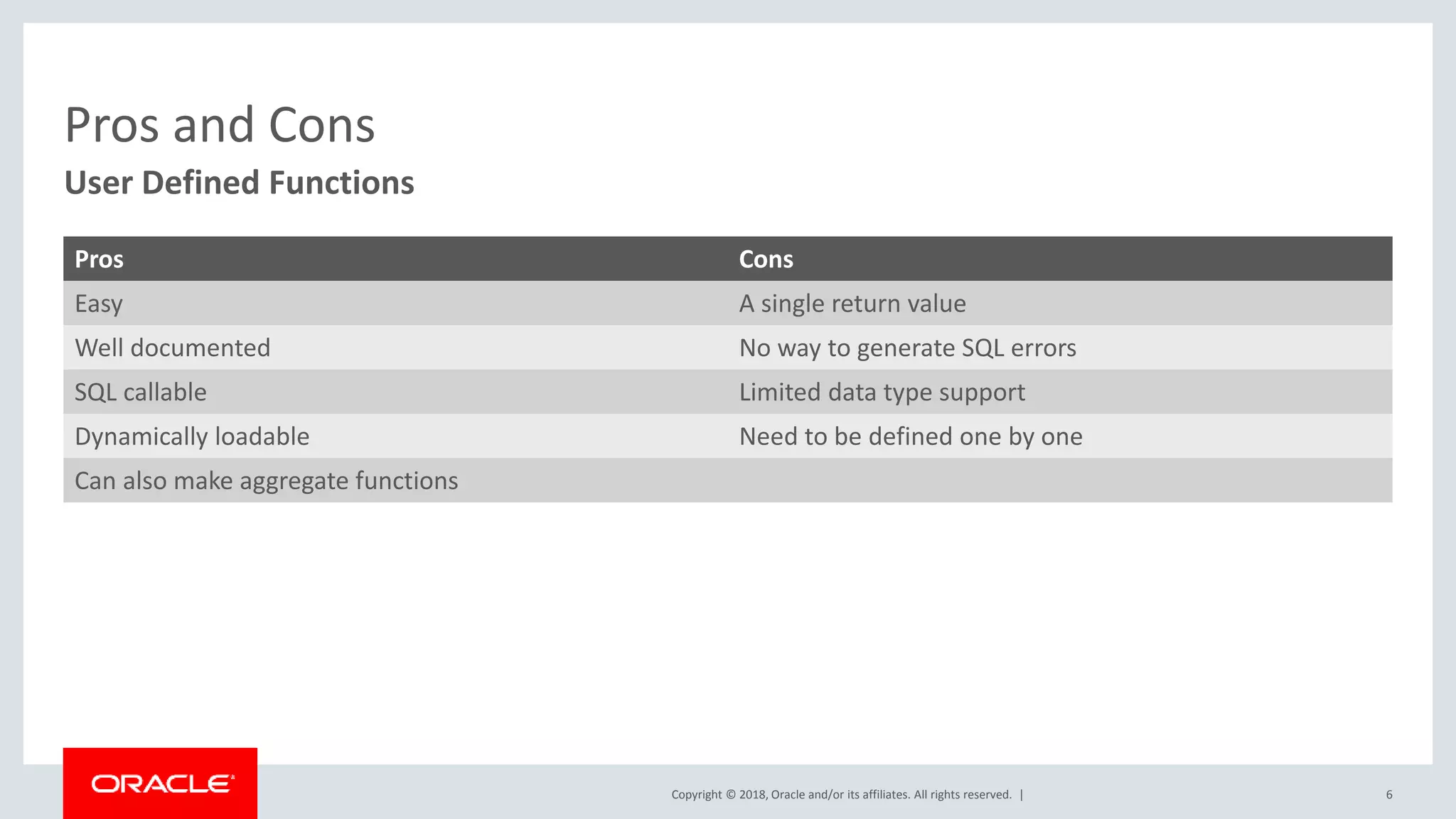

Pros and Cons
Pros Cons
Easy A single return value
Well documented No way to generate SQL errors
SQL callable Limited data type support
Dynamically loadable Need to be defined one by one
Can also make aggregate functions
6
User Defined Functions

7. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

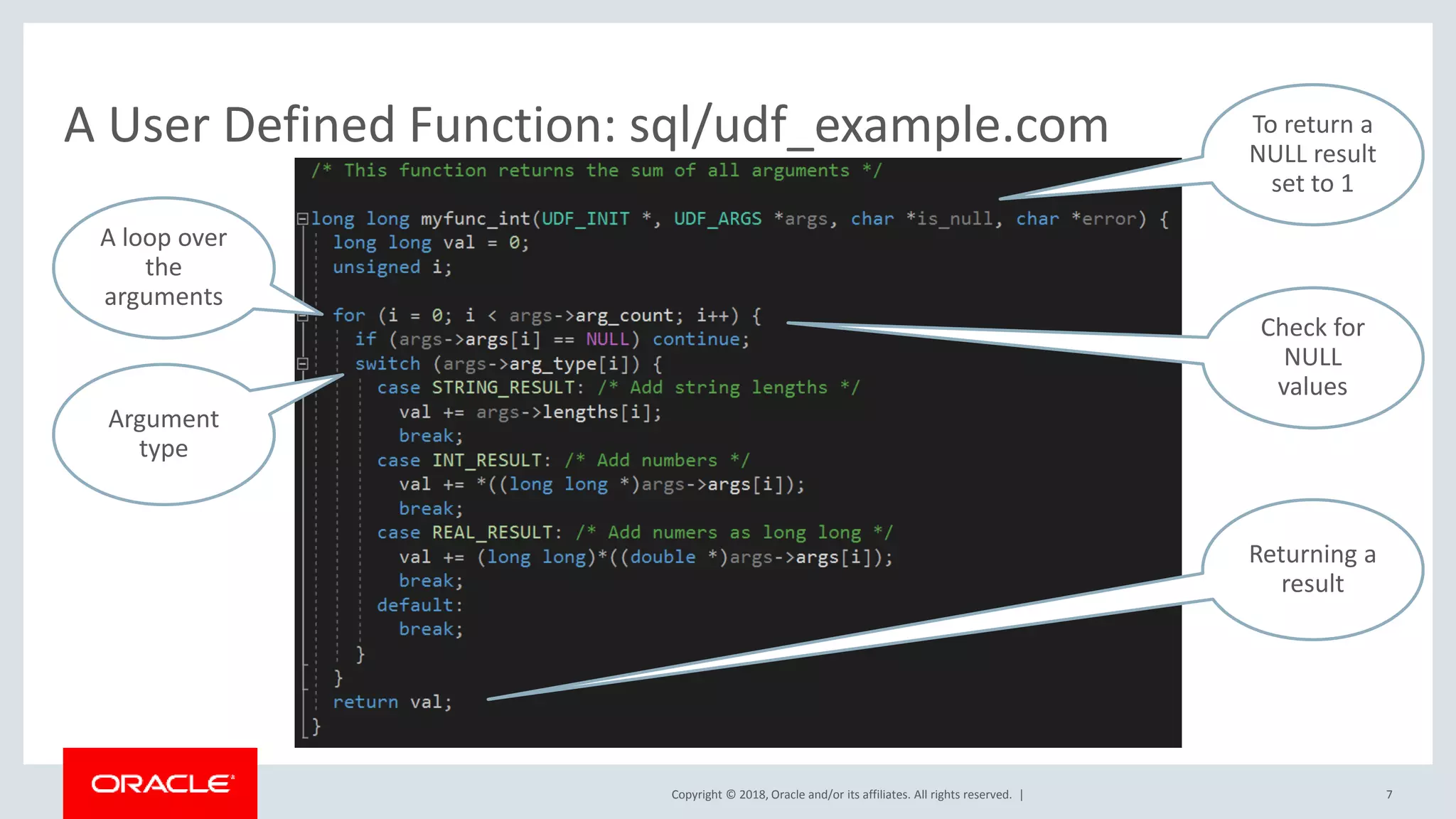

A User Defined Function: sql/udf_example.com
7
A loop over
the
arguments
Check for
NULL
values
Argument
type
Returning a
result
To return a
NULL result
set to 1

8. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

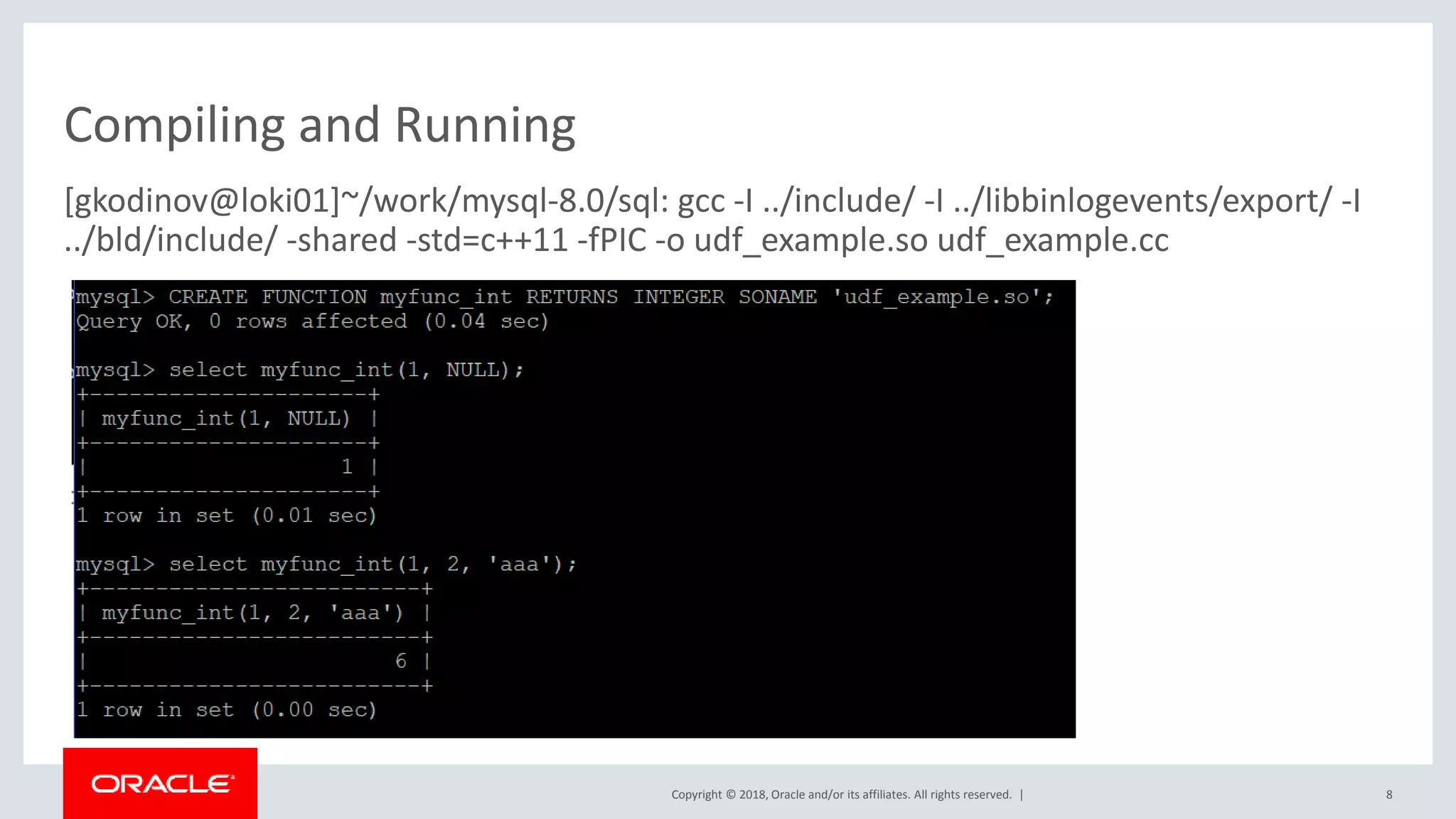

Compiling and Running
[gkodinov@loki01]~/work/mysql-8.0/sql: gcc -I ../include/ -I ../libbinlogevents/export/ -I
../bld/include/ -shared -std=c++11 -fPIC -o udf_example.so udf_example.cc
8

9. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Plugins
The Old Way
9

10. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

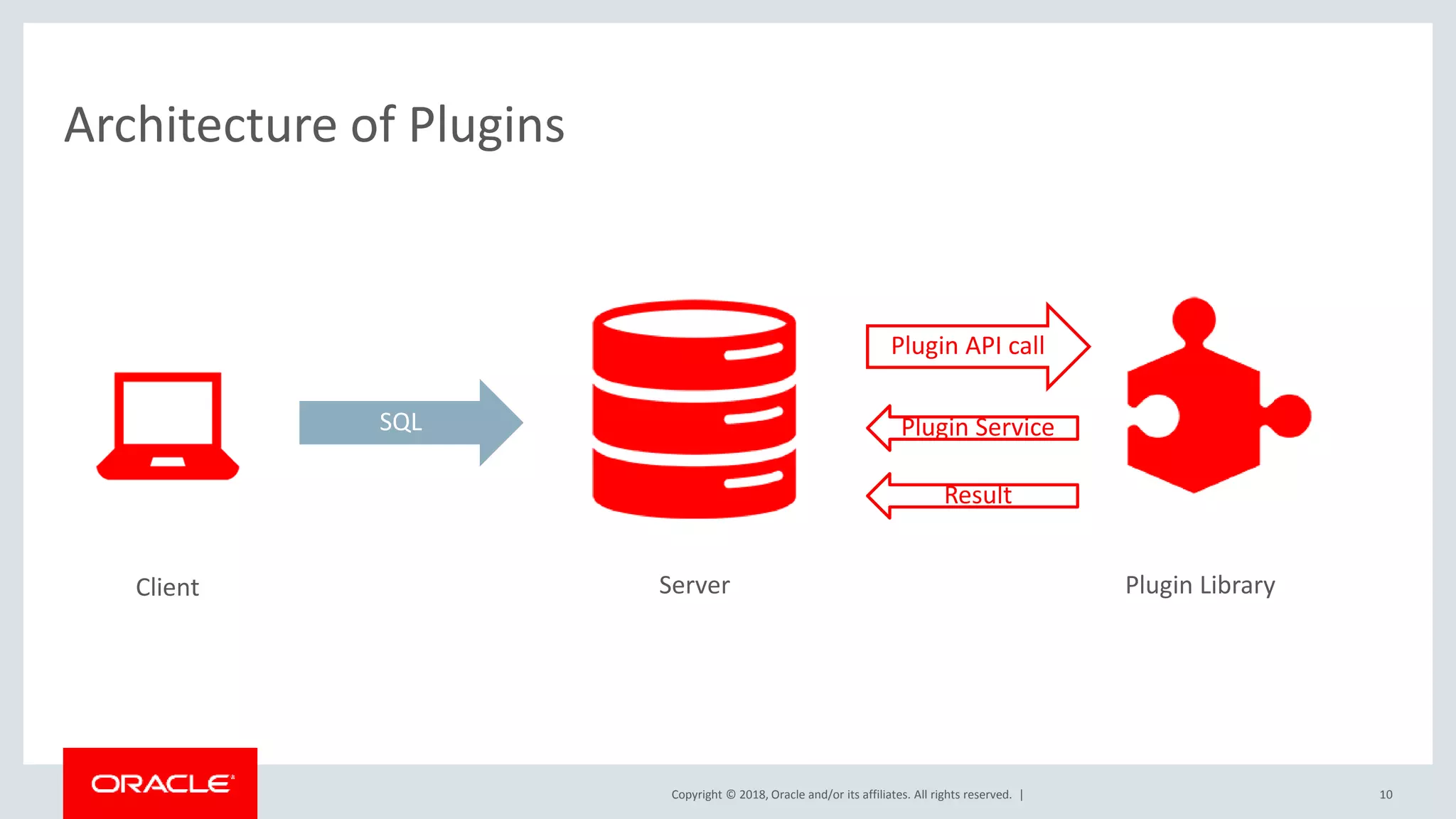

Architecture of Plugins
10
SQL
Plugin API call
Result
Client Server Plugin Library
Plugin Service

11. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

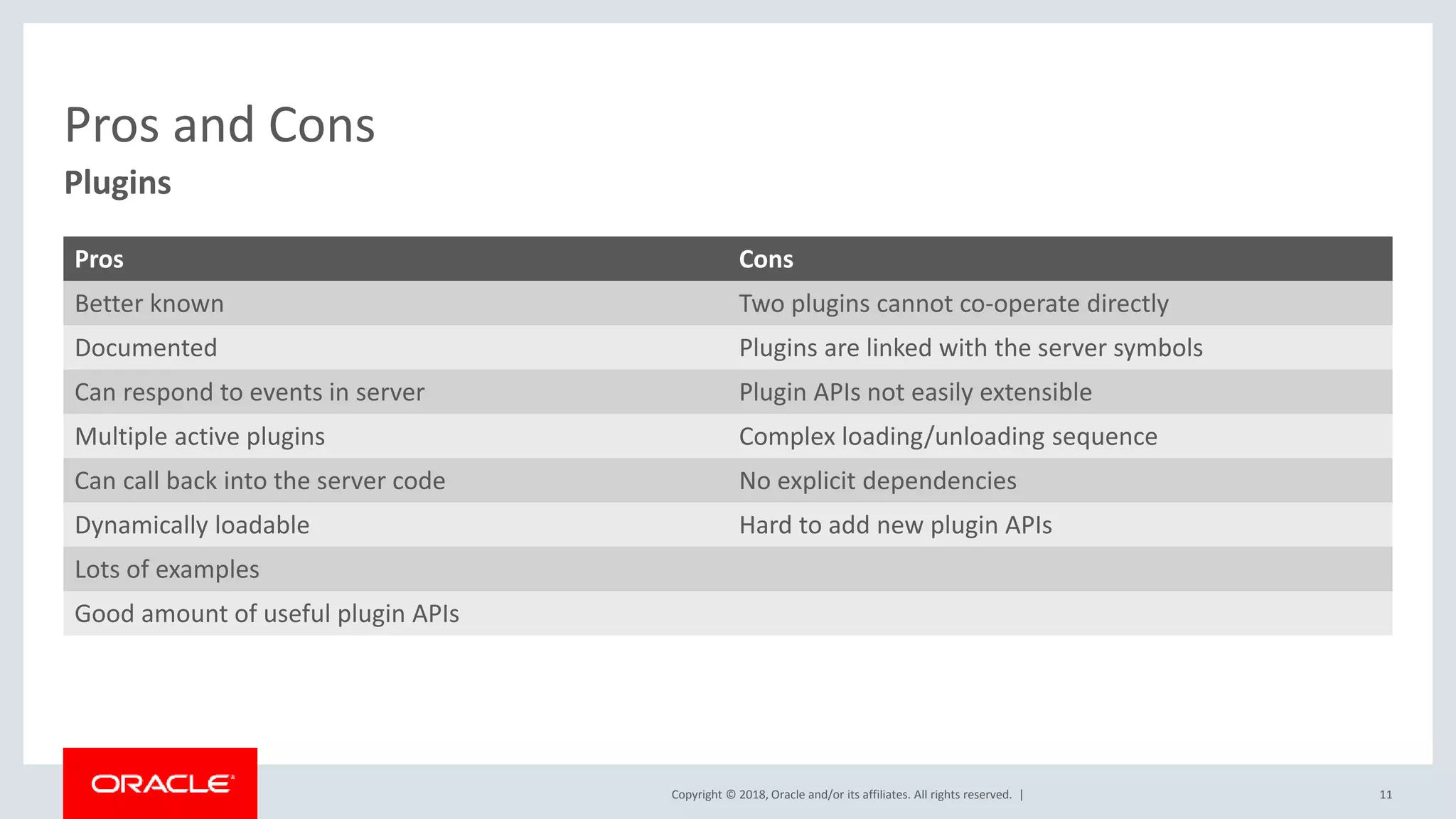

Pros and Cons
Pros Cons
Better known Two plugins cannot co-operate directly
Documented Plugins are linked with the server symbols
Can respond to events in server Plugin APIs not easily extensible
Multiple active plugins Complex loading/unloading sequence
Can call back into the server code No explicit dependencies
Dynamically loadable Hard to add new plugin APIs
Lots of examples
Good amount of useful plugin APIs
11
Plugins

12. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. | 12

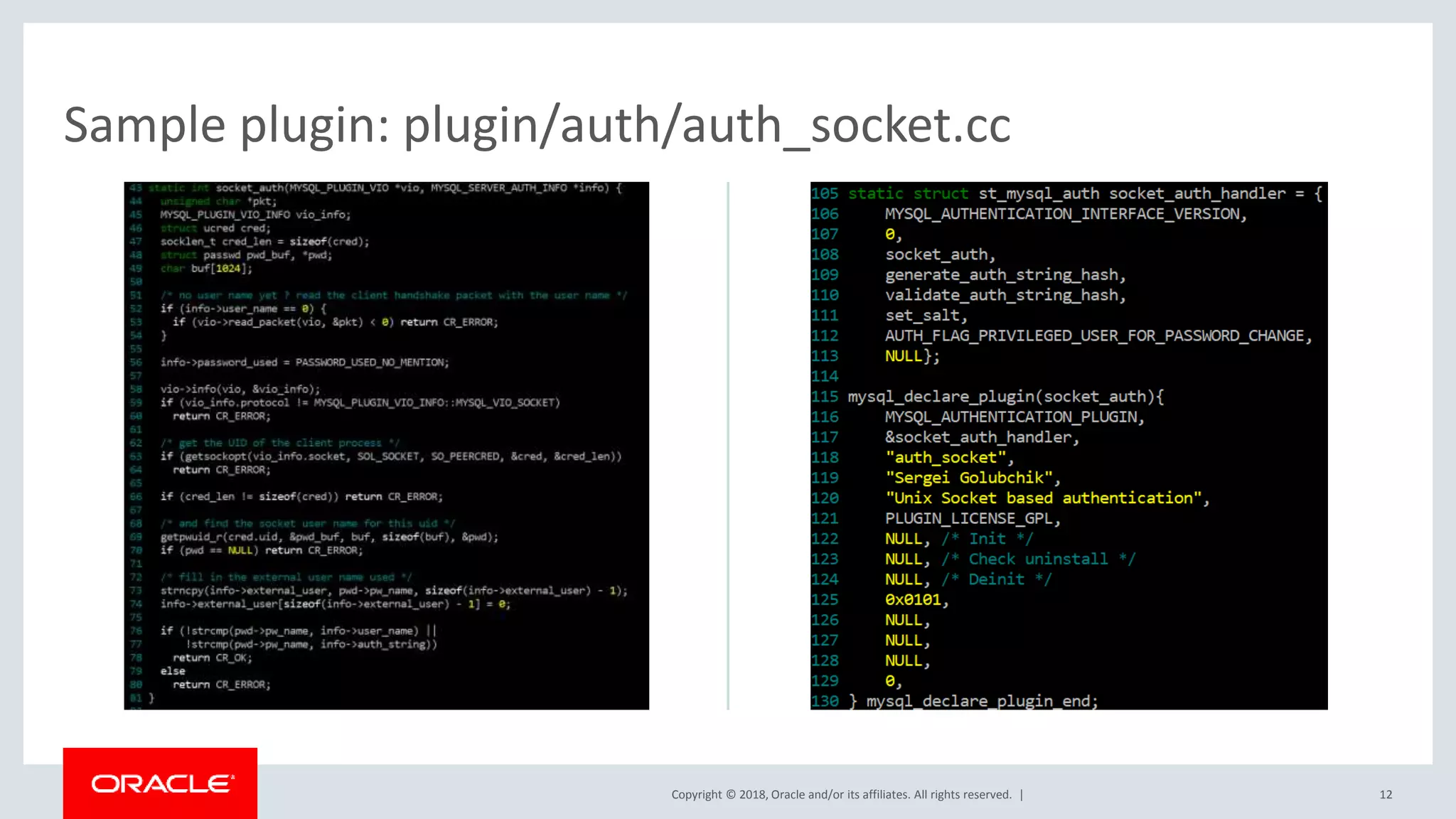

Sample plugin: plugin/auth/auth_socket.cc

13. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

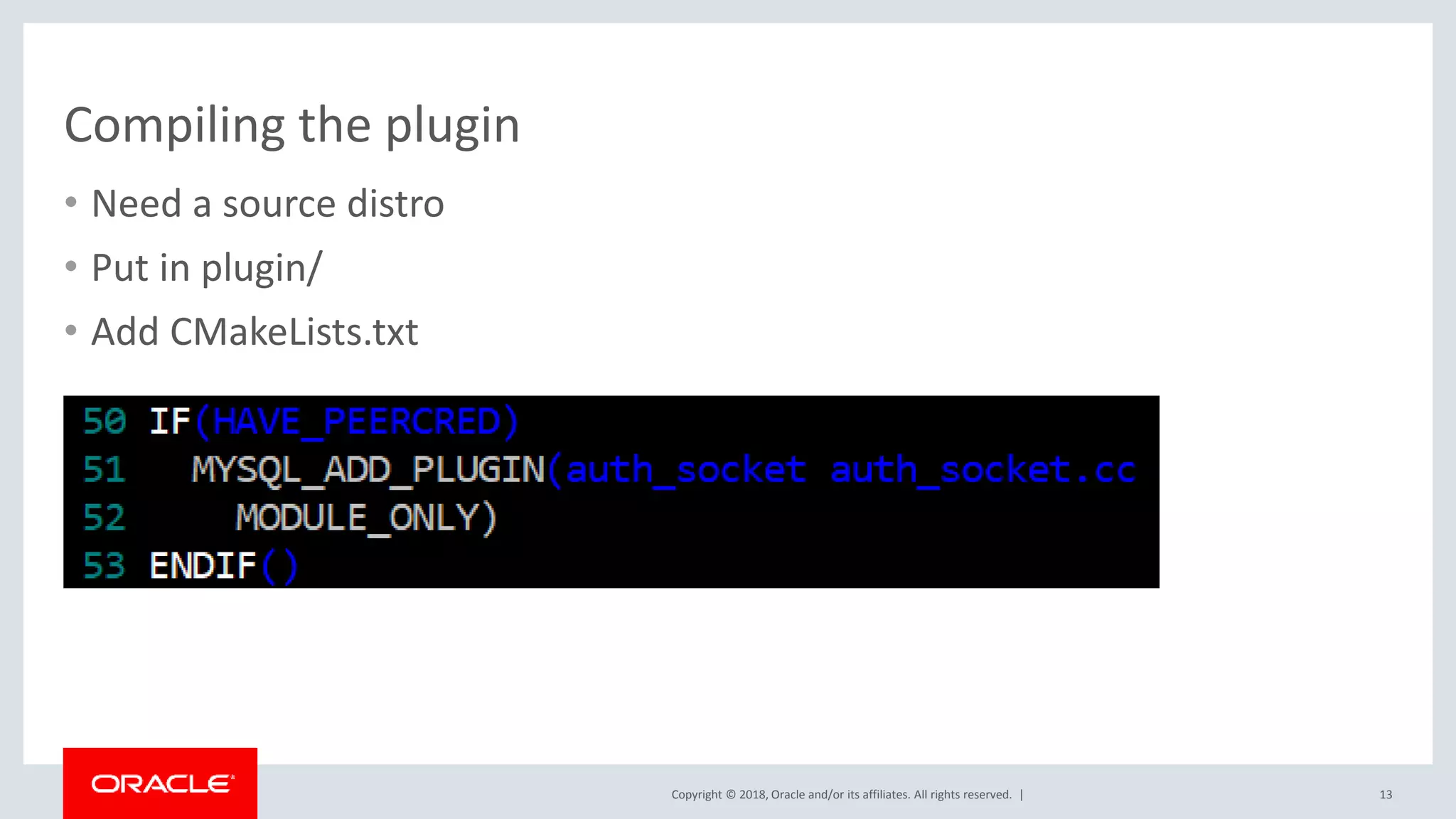

Compiling the plugin
• Need a source distro
• Put in plugin/
• Add CMakeLists.txt
13

14. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

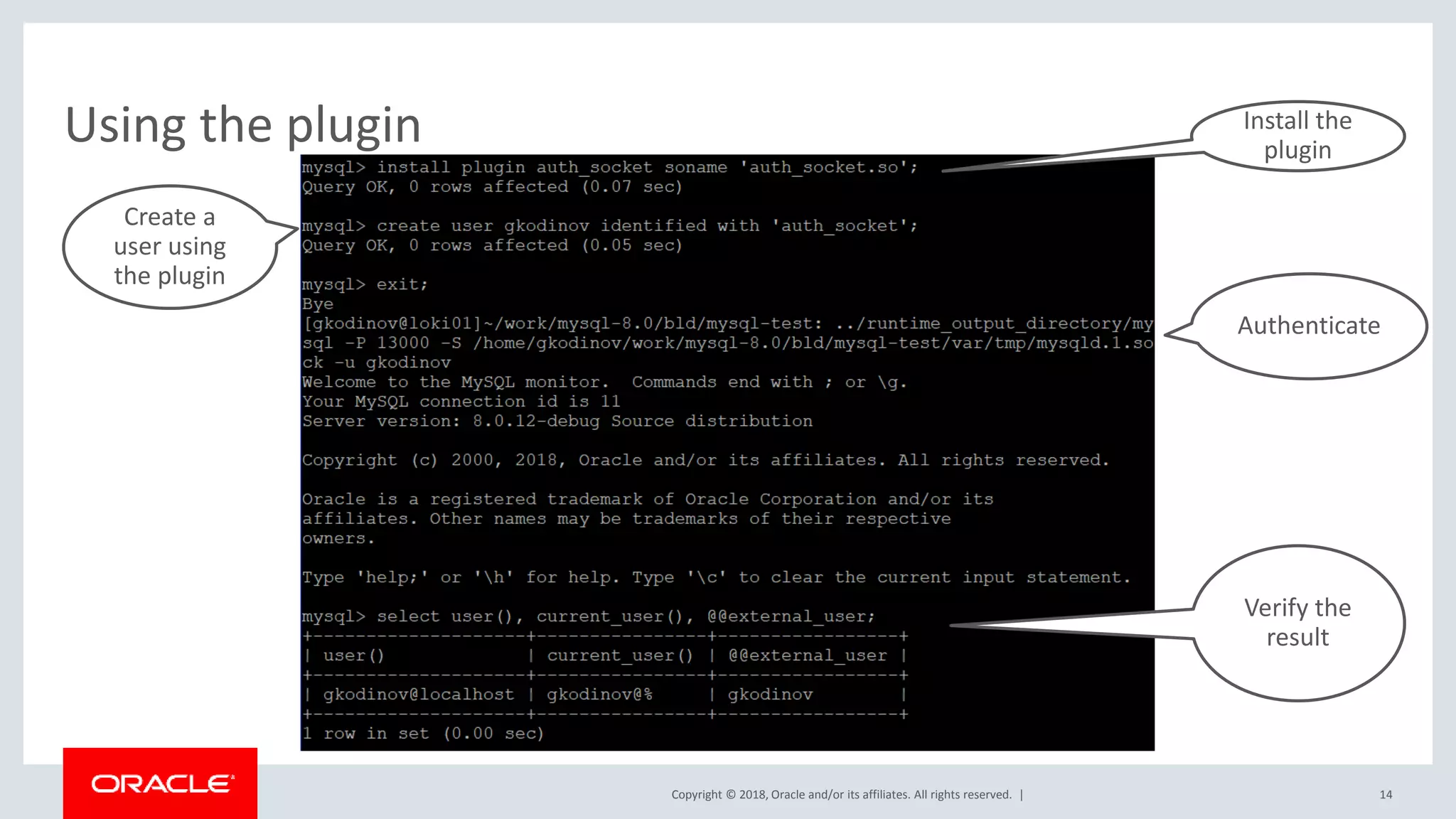

Using the plugin
14
Install the
plugin
Create a
user using
the plugin
Authenticate
Verify the
result

15. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Components
The New Way
15

16. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

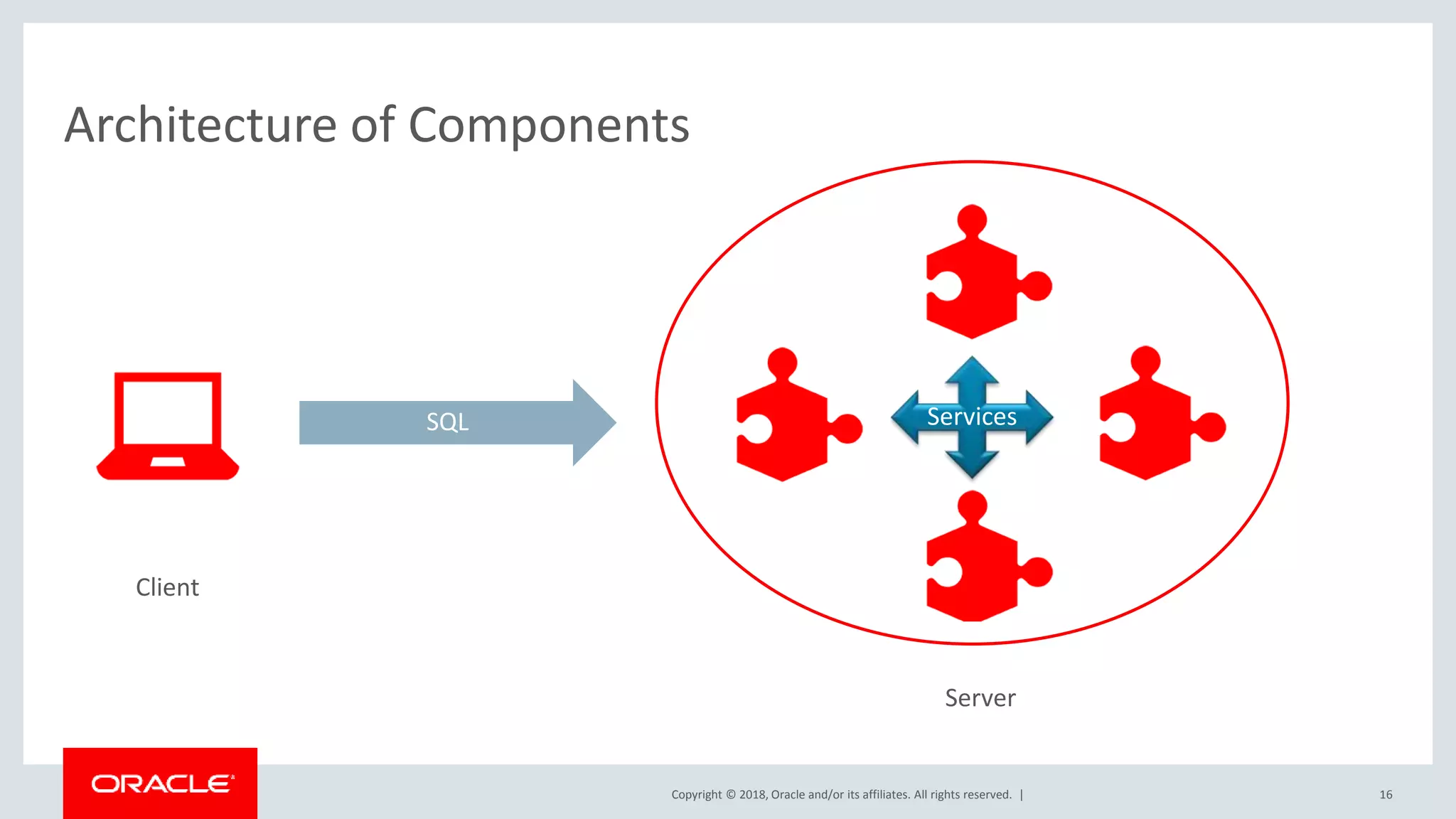

Architecture of Components
16
SQL
Client
Server
Services

17. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

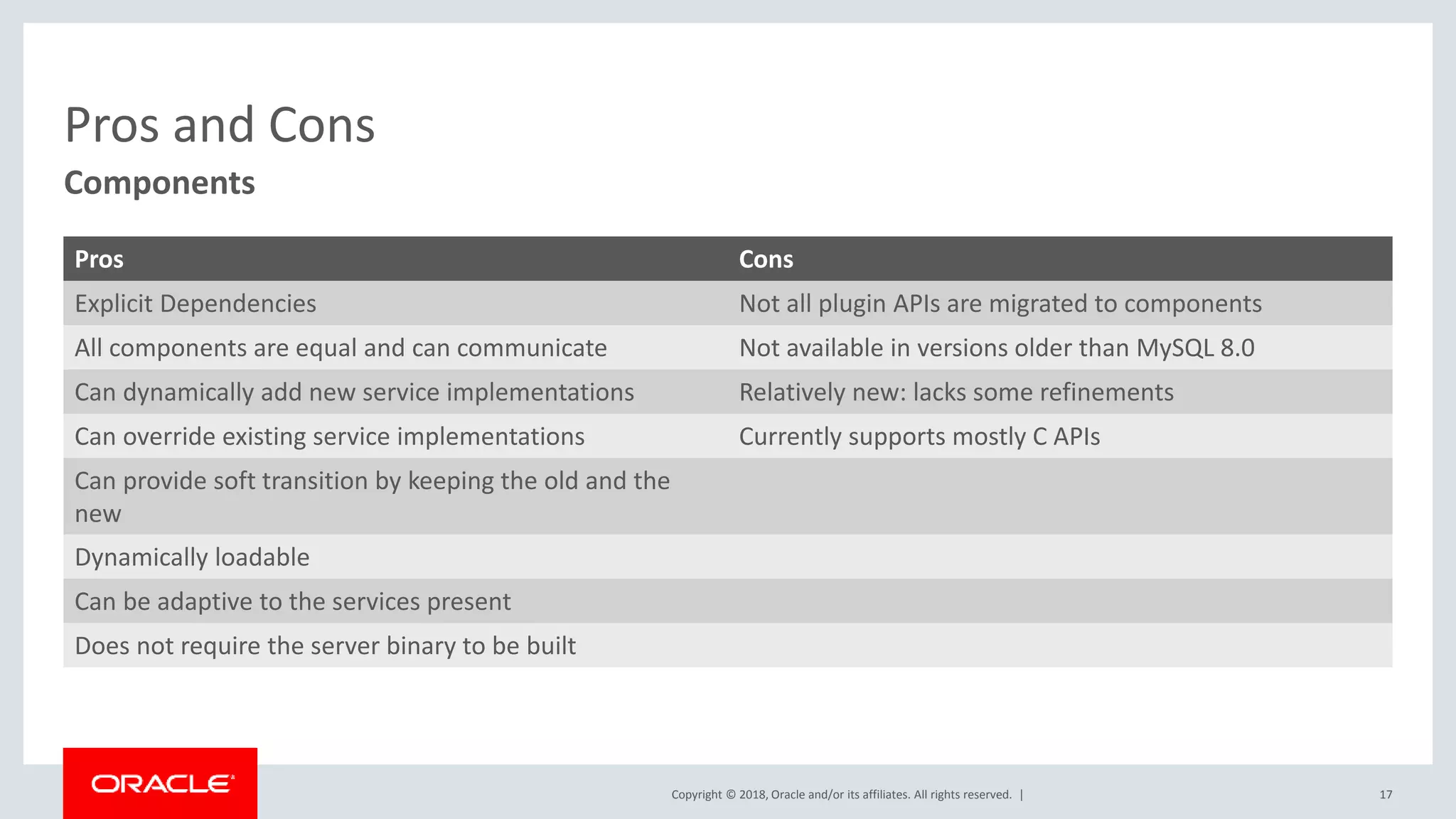

Pros and Cons
Pros Cons
Explicit Dependencies Not all plugin APIs are migrated to components
All components are equal and can communicate Not available in versions older than MySQL 8.0
Can dynamically add new service implementations Relatively new: lacks some refinements
Can override existing service implementations Currently supports mostly C APIs
Can provide soft transition by keeping the old and the
new
Dynamically loadable
Can be adaptive to the services present
Does not require the server binary to be built
17
Components

18. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

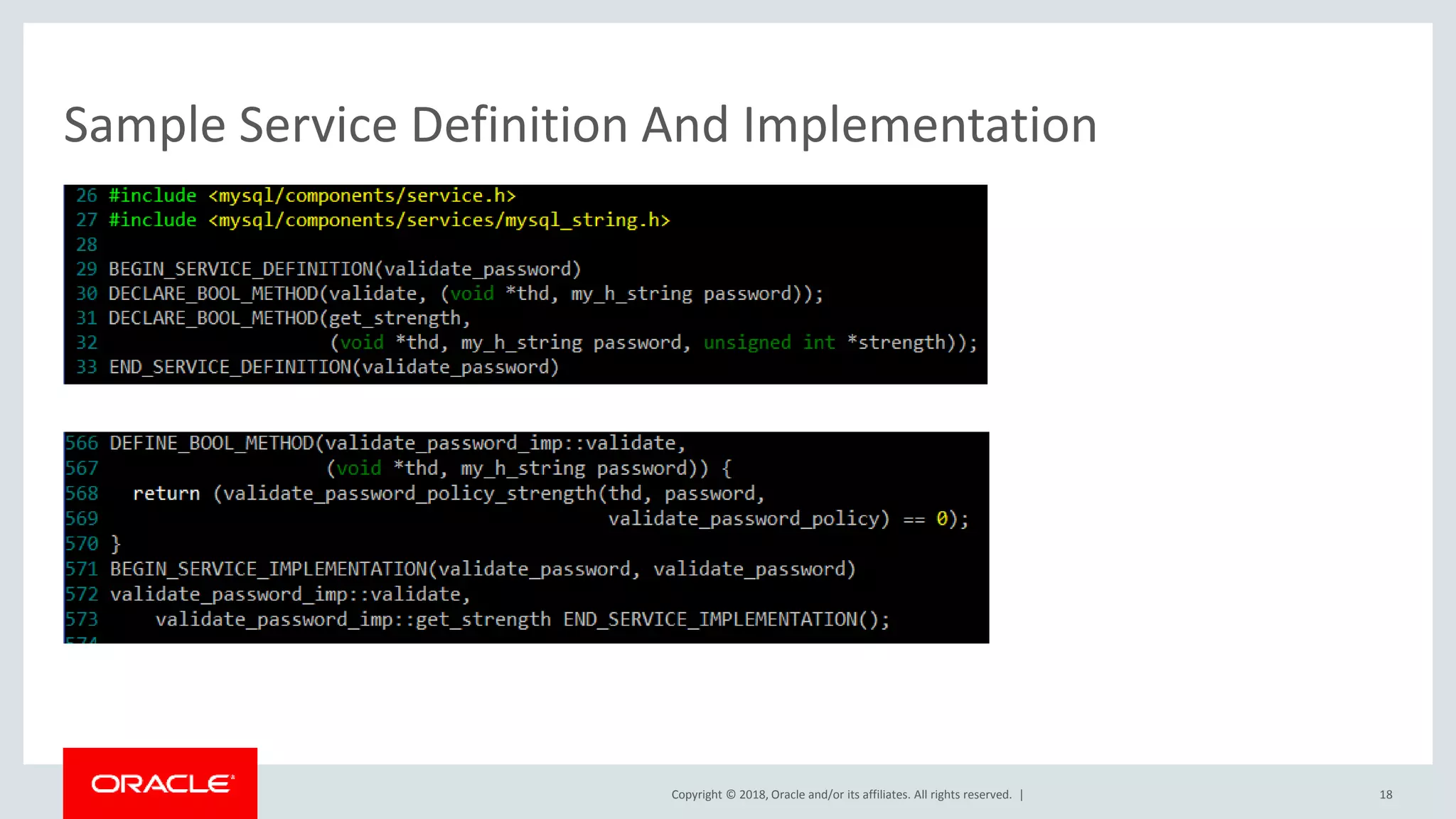

Sample Service Definition And Implementation
18

19. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

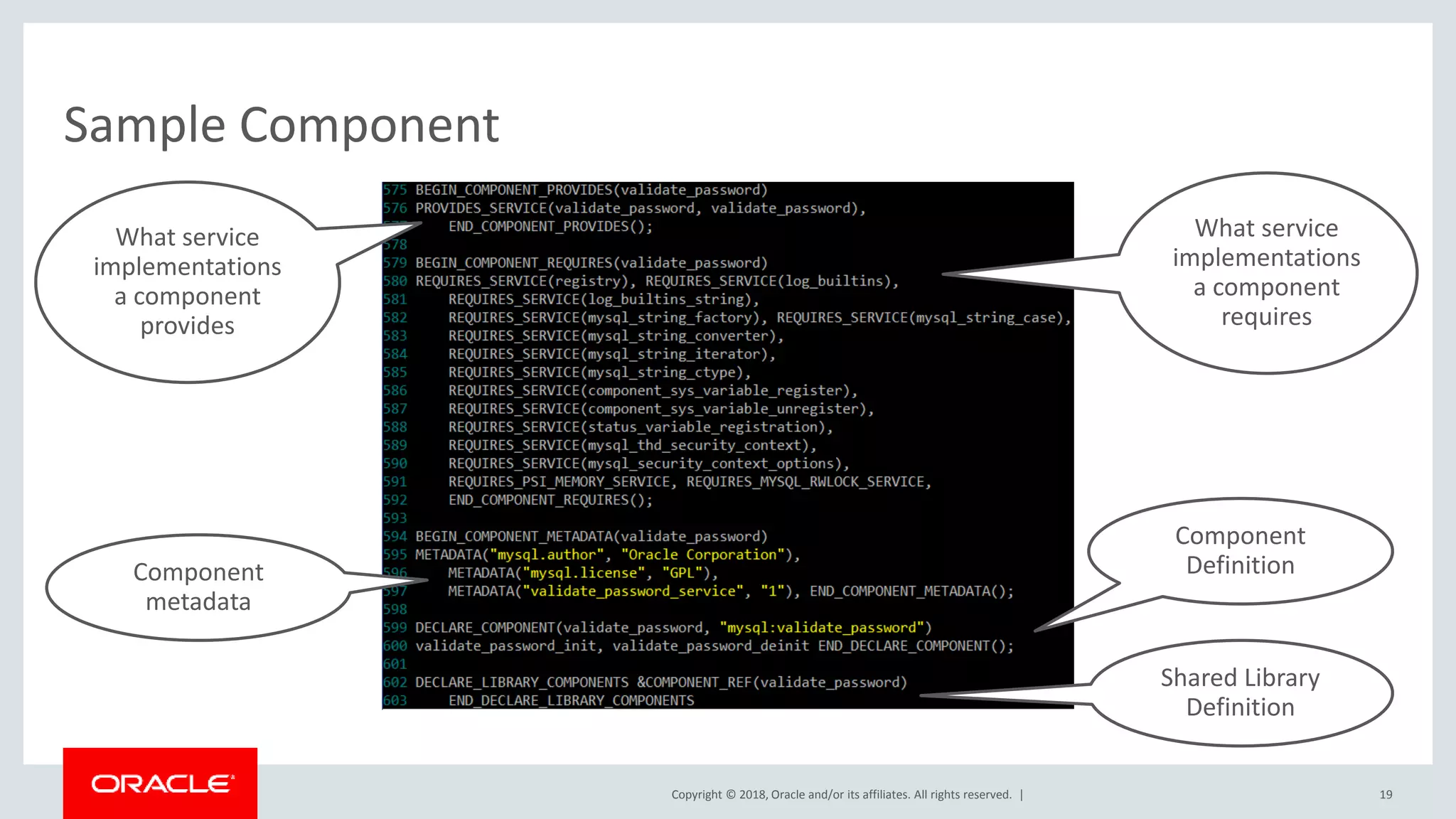

Sample Component
19
What service
implementations
a component
provides
What service
implementations
a component
requires
Component
metadata
Component
Definition
Shared Library
Definition

20. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

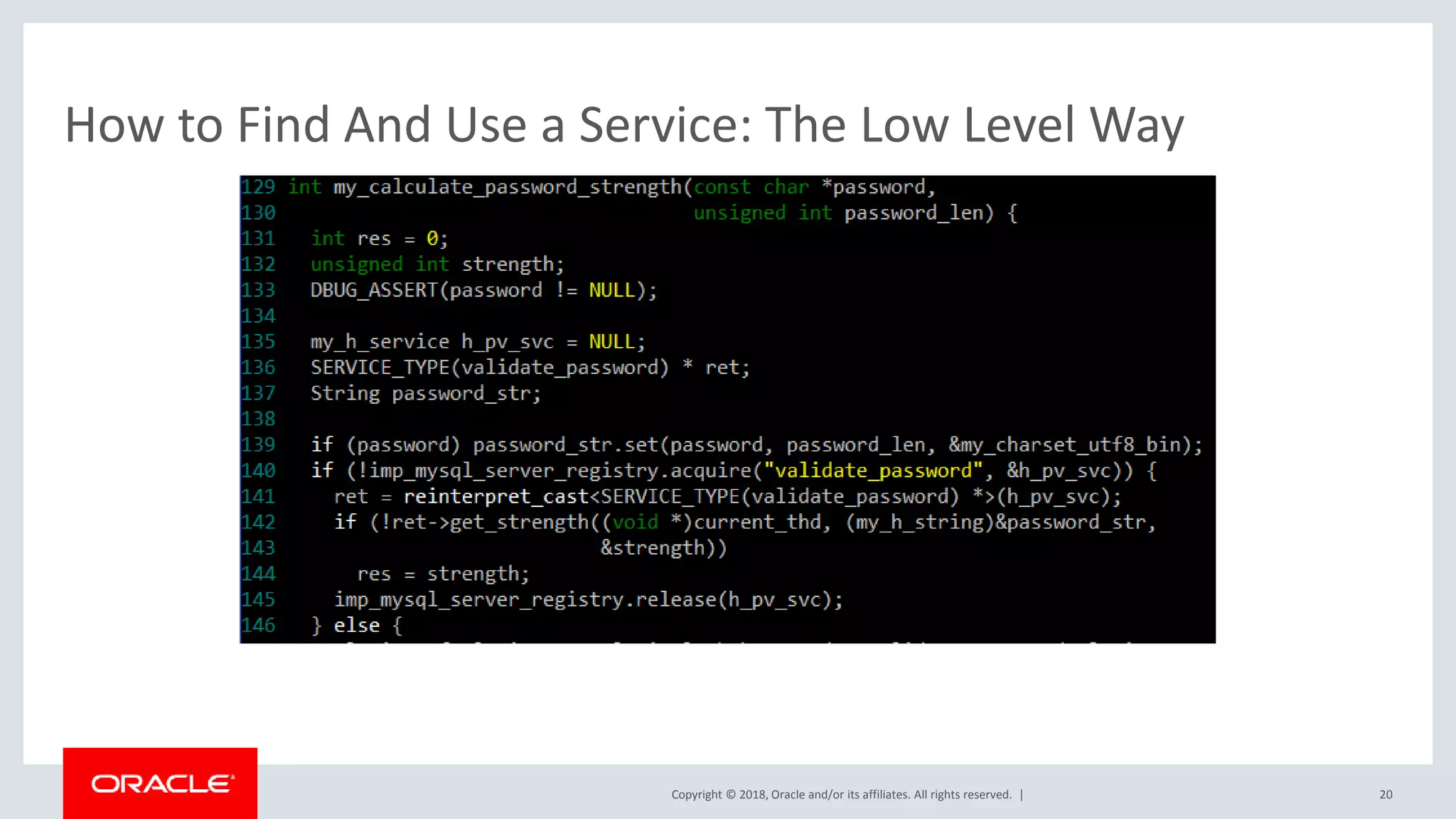

How to Find And Use a Service: The Low Level Way
20

21. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

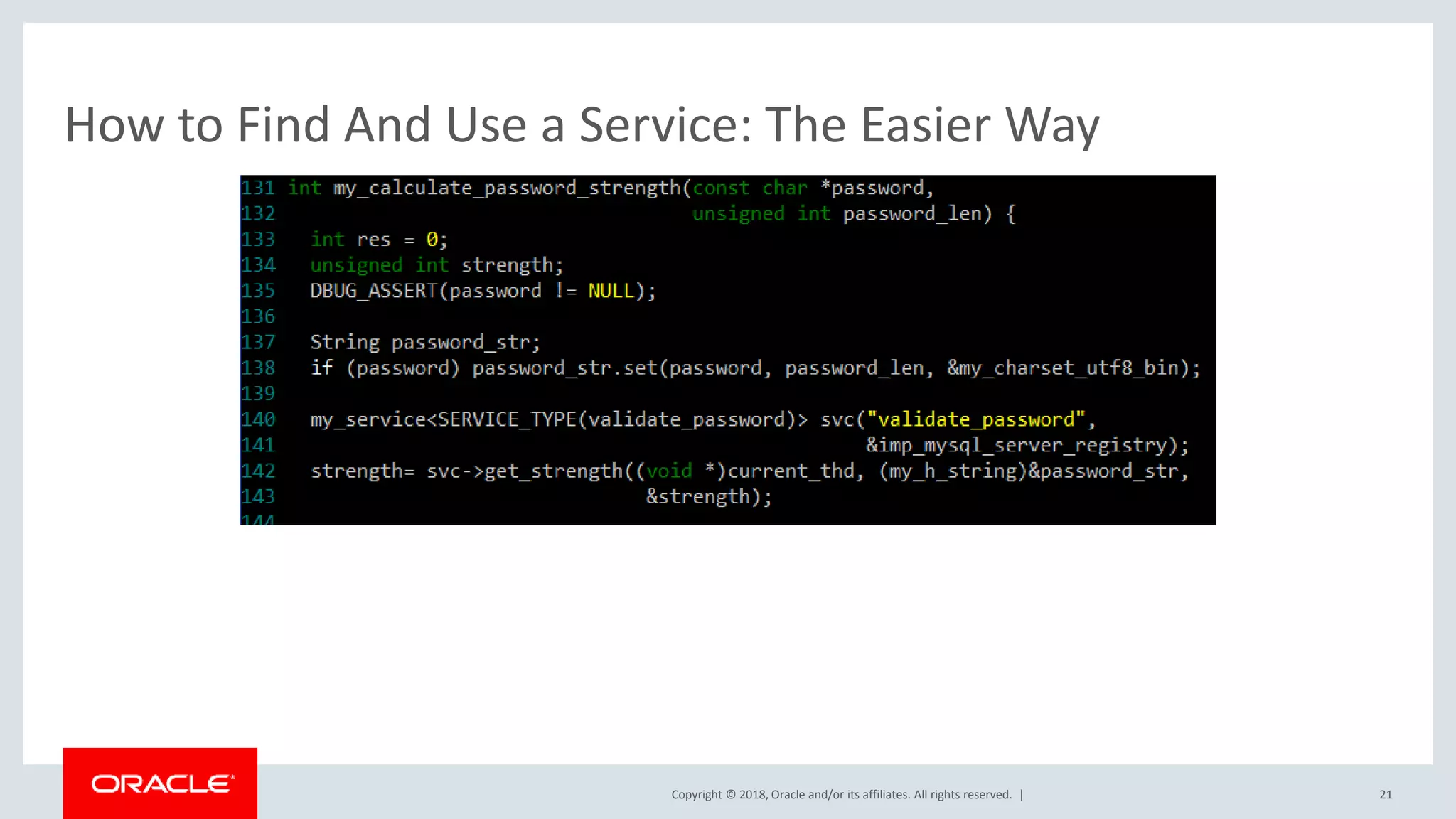

How to Find And Use a Service: The Easier Way
21

22. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Pull Requests
The Advanced Way
22

23. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. | 23

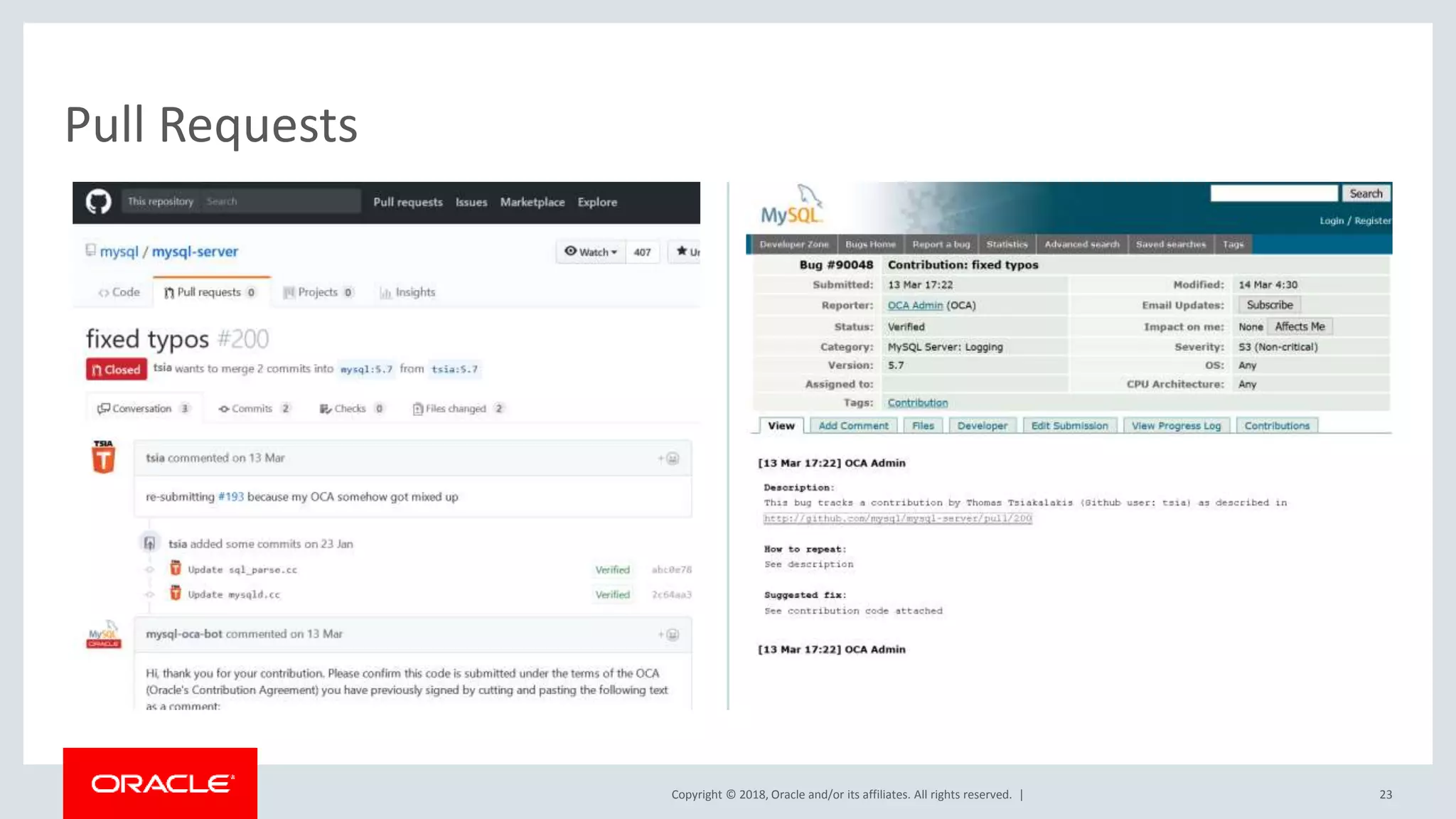

Pull Requests

24. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

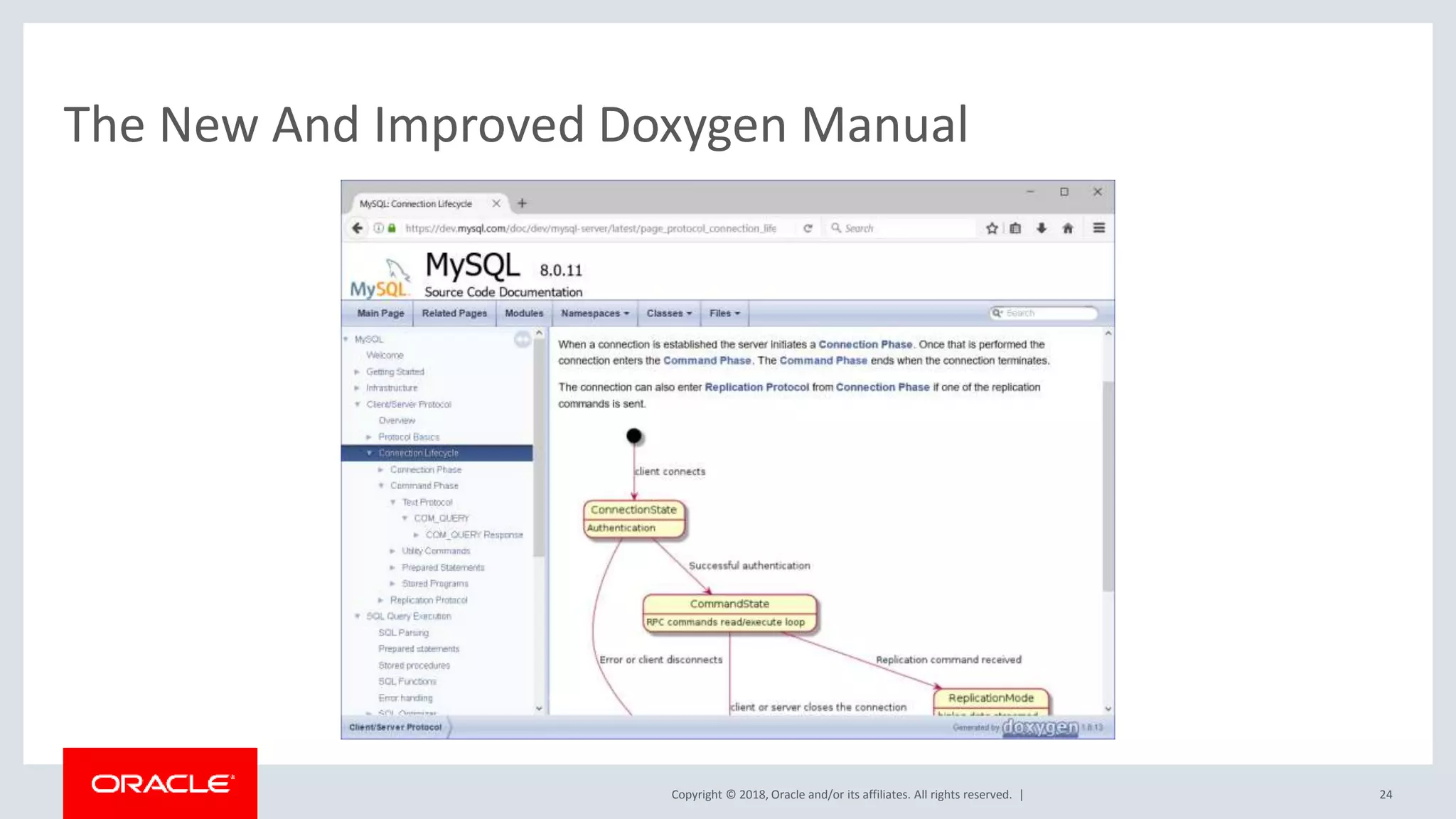

The New And Improved Doxygen Manual
24

25. Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |

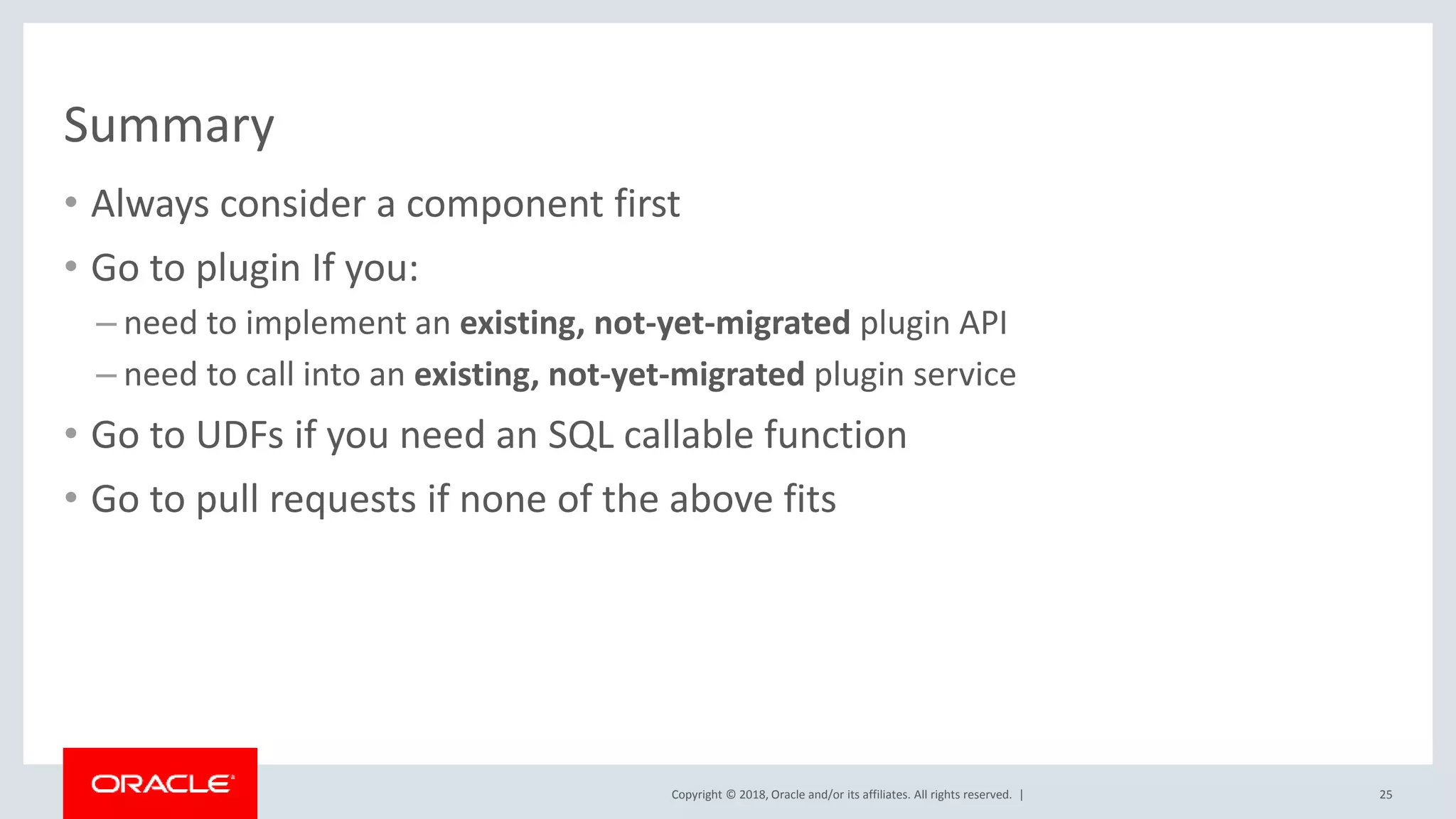

Summary
• Always consider a component first
• Go to plugin If you:
– need to implement an existing, not-yet-migrated plugin API
– need to call into an existing, not-yet-migrated plugin service
• Go to UDFs if you need an SQL callable function
• Go to pull requests if none of the above fits
25
