How Servo Renders the Web

1Samsung Open Source Group
How Servo Renders the Web
Adenilson Cavalcanti Msc.
Samsung Open Source Group
WebKit & Blink committer
W3C CSS WG member

2
MotivationMotivation
Rust and ServoRust and Servo
Concepts of Browser EnginesConcepts of Browser Engines
Servo High Level ArchitectureServo High Level Architecture
Anatomy of a CSS FeatureAnatomy of a CSS Feature
Summary

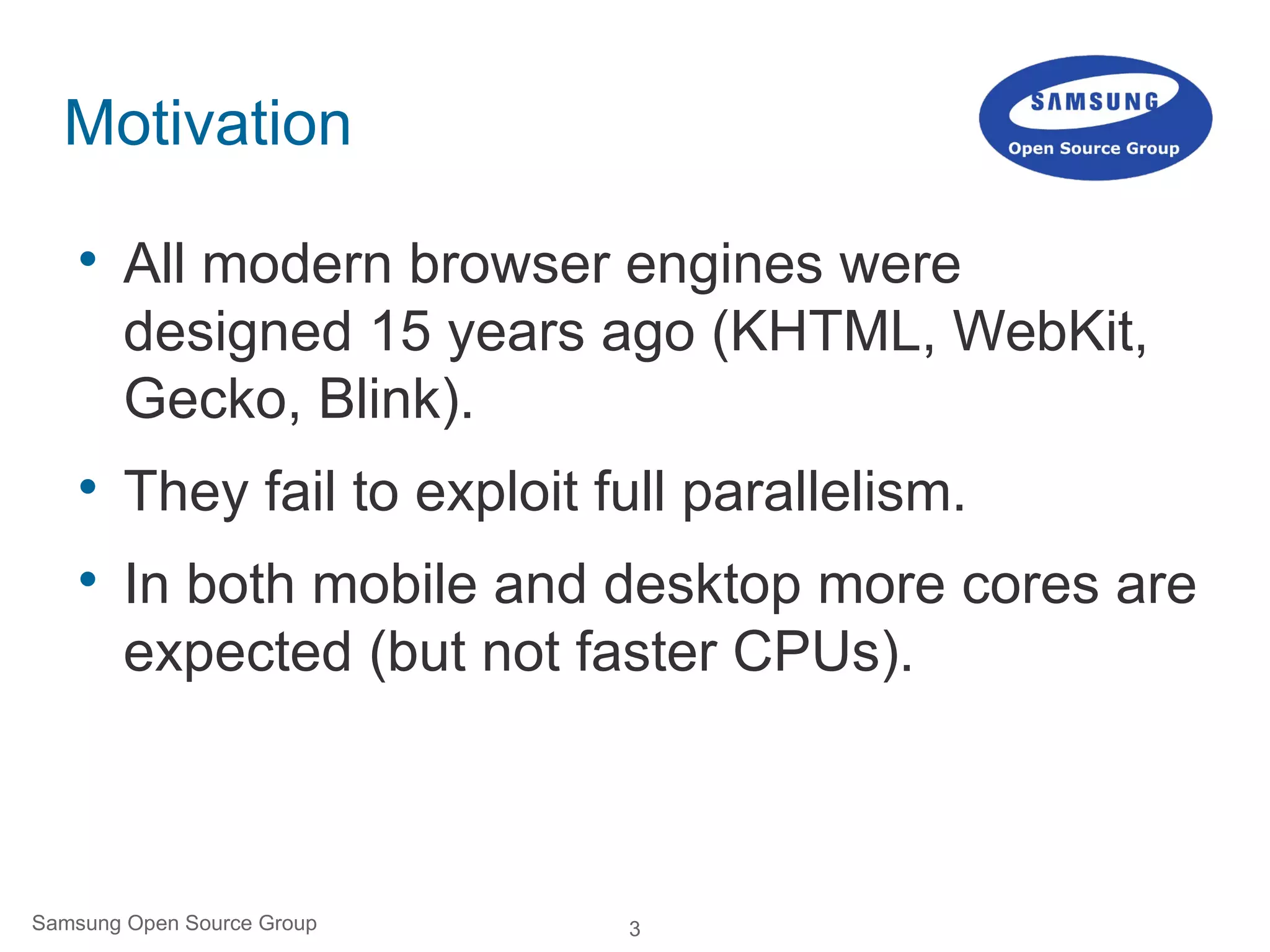

Motivation

All modern browser engines were
designed 15 years ago (KHTML, WebKit,
Gecko, Blink).

They fail to exploit full parallelism.

In both mobile and desktop more cores are
expected (but not faster CPUs).

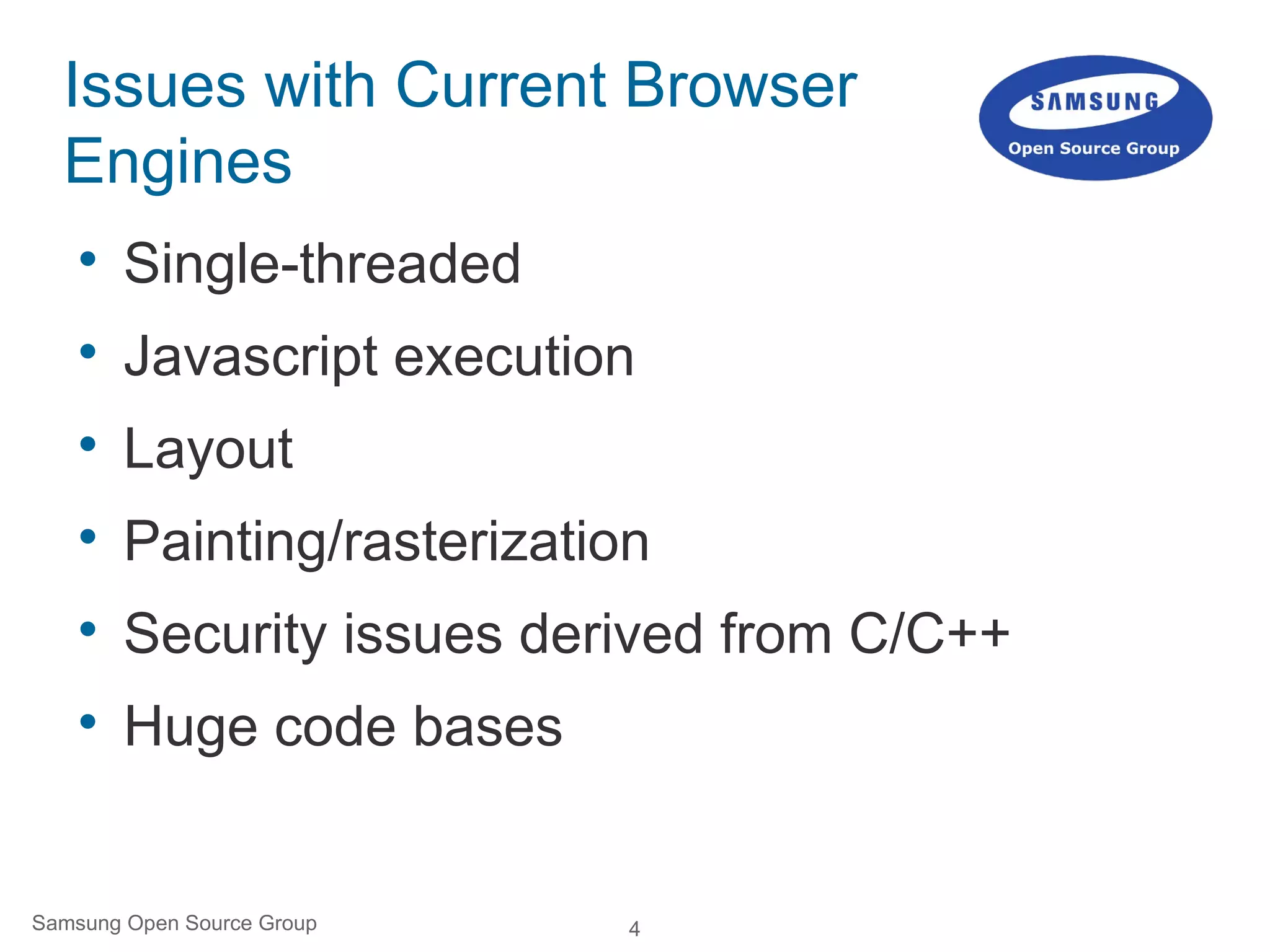

Issues with Current Browser
Engines

Single-threaded

Javascript execution

Layout

Painting/rasterization

Security issues derived from C/C++

Huge code bases

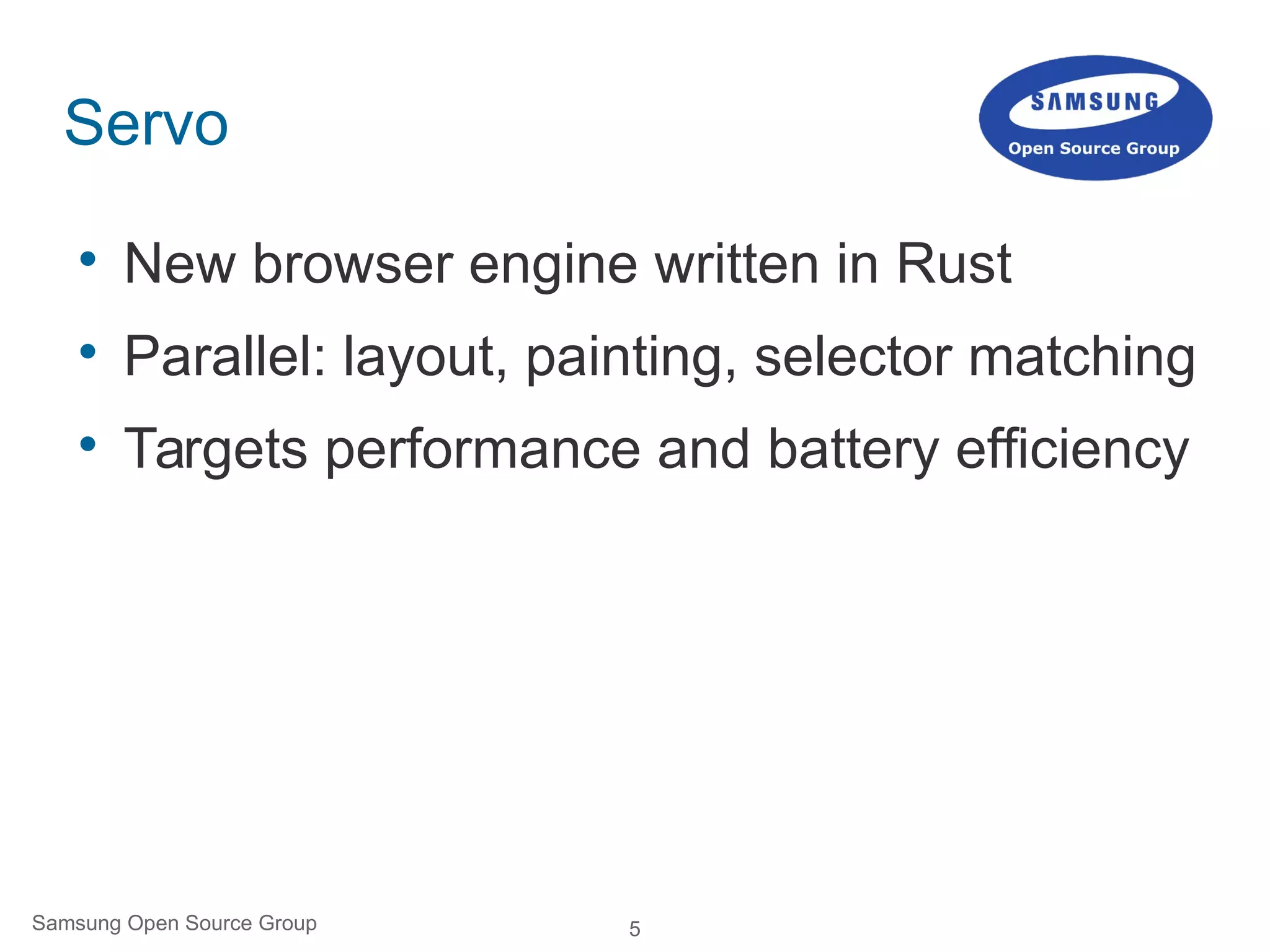

Servo

New browser engine written in Rust

Parallel: layout, painting, selector matching

Targets performance and battery efficiency

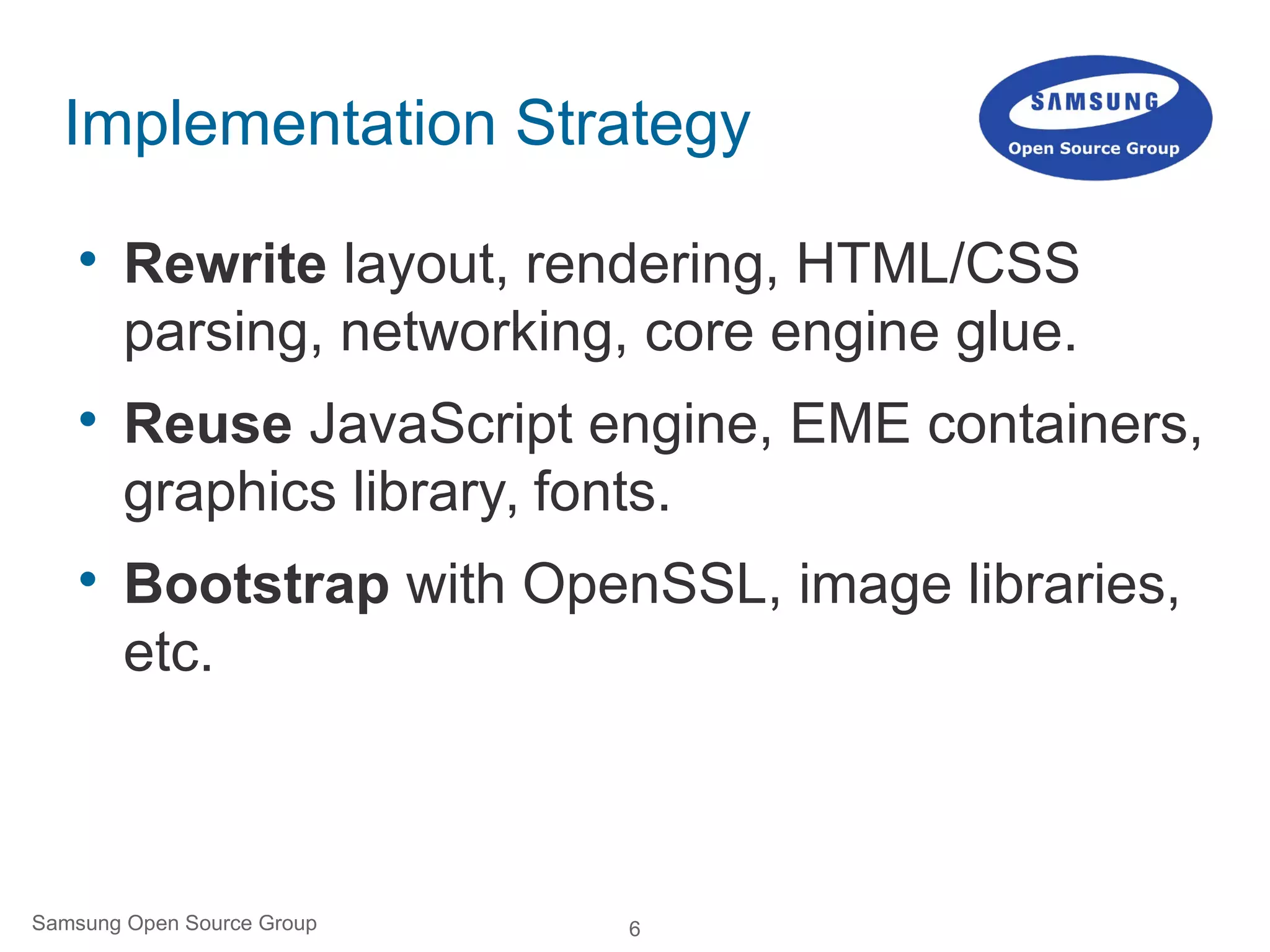

Implementation Strategy

Rewrite layout, rendering, HTML/CSS
parsing, networking, core engine glue.

Reuse JavaScript engine, EME containers,
graphics library, fonts.

Bootstrap with OpenSSL, image libraries,
etc.

Servo Status

Over 120 CSS properties are supported

Rendering real sites nearly correct

Competitive to perf in benchmarks

2x-3x speedups on 4 cores

Rust

What is Rust?
https://www.youtube.com/watch?v=oKwub2OpsG4

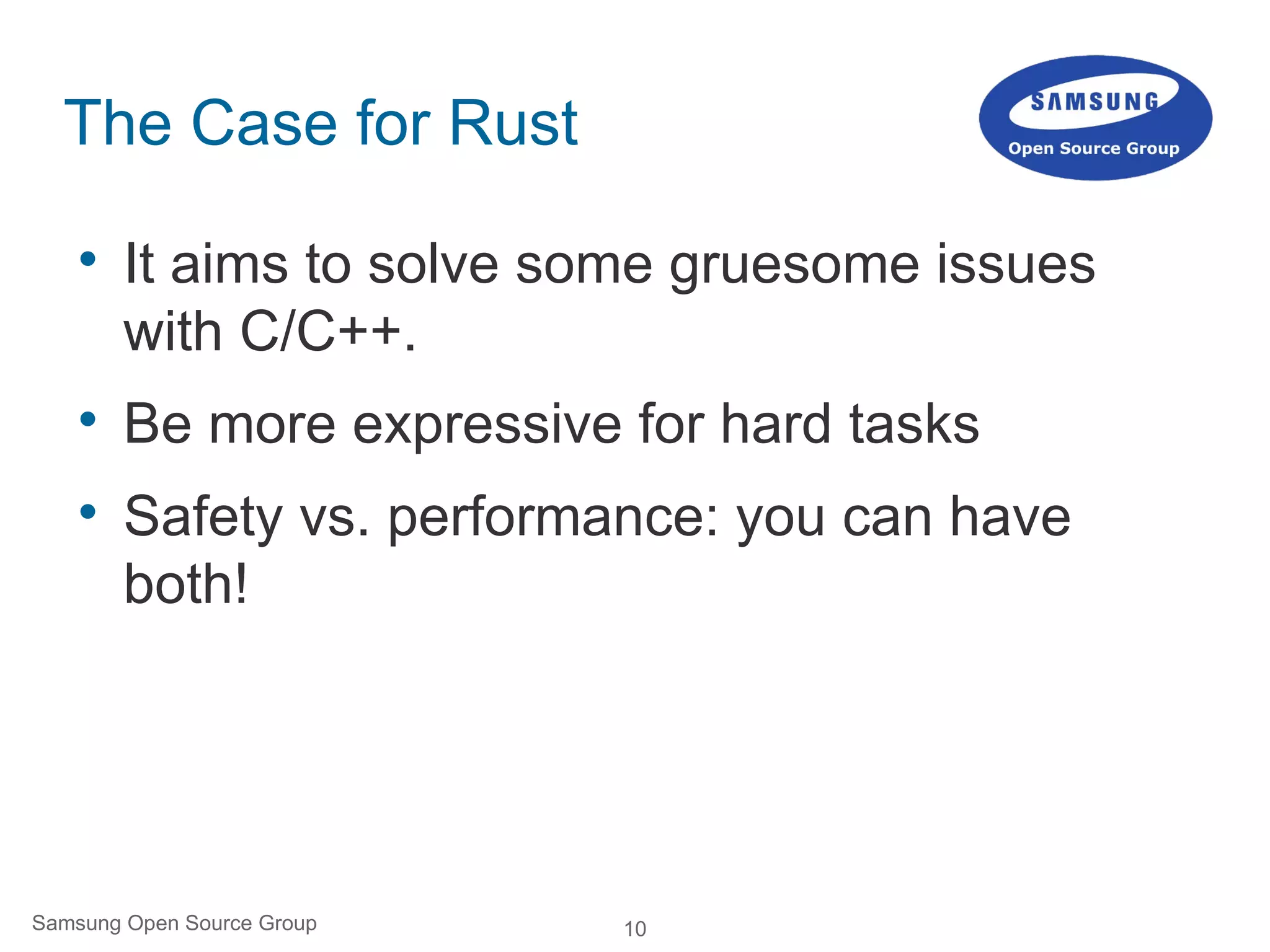

The Case for Rust

It aims to solve some gruesome issues
with C/C++.

Be more expressive for hard tasks

Safety vs. performance: you can have
both!

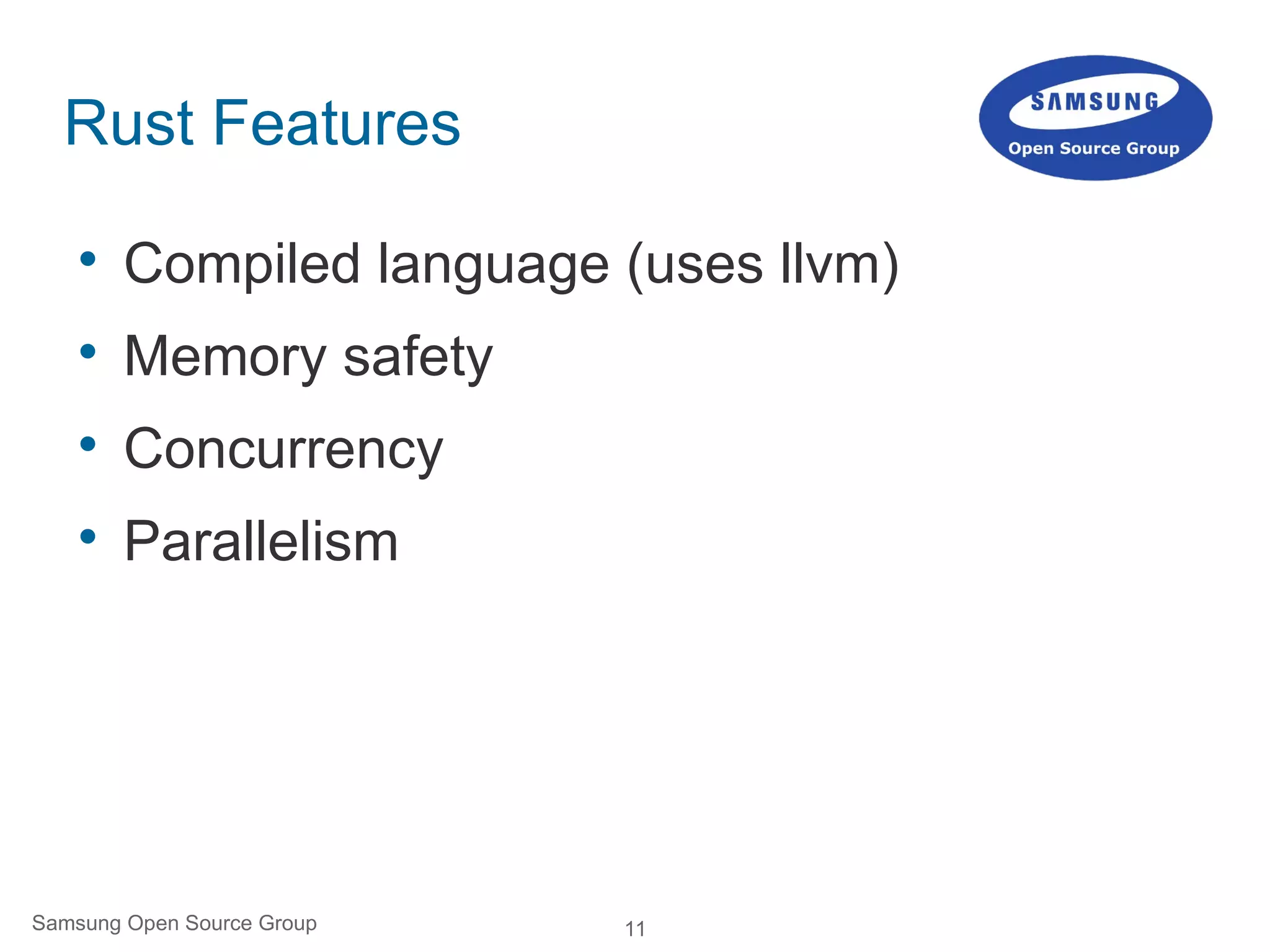

Rust Features

Compiled language (uses llvm)

Memory safety

Concurrency

Parallelism

C++ vs. Rust

13
http://doc.rust-
lang.org/nightly/intro.html#ownership

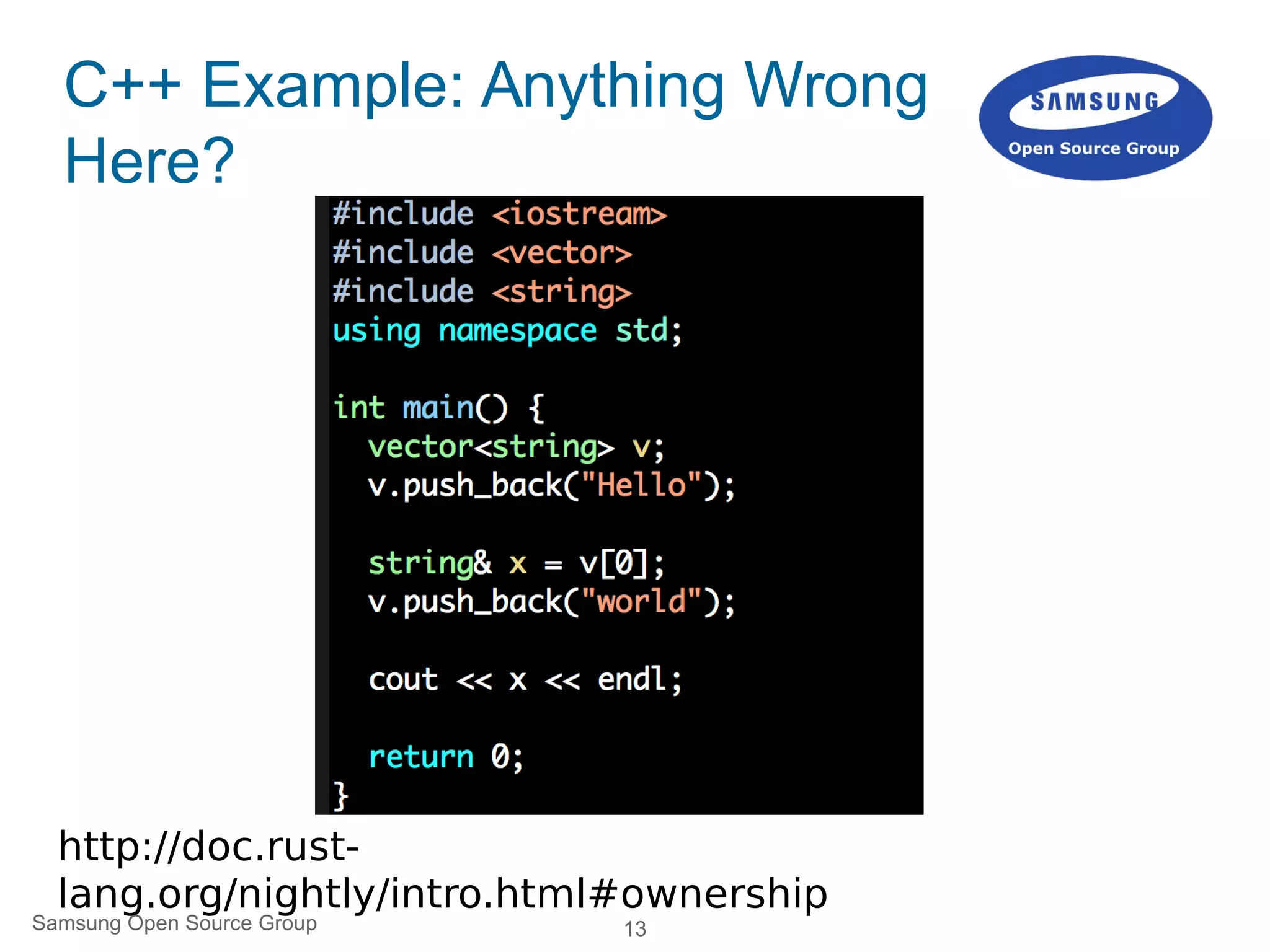

C++ Example: Anything Wrong
Here?

14

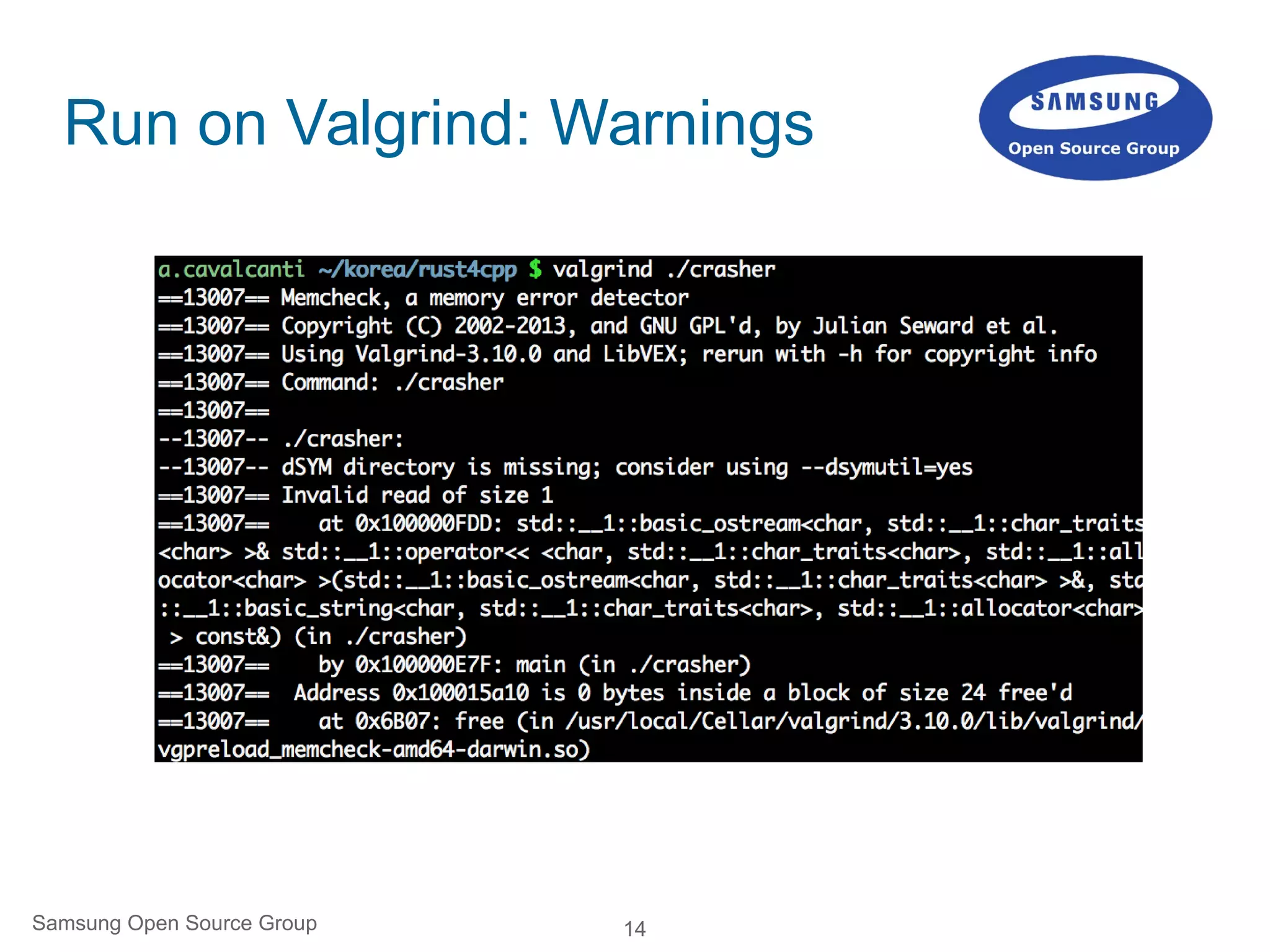

Run on Valgrind: Warnings

15

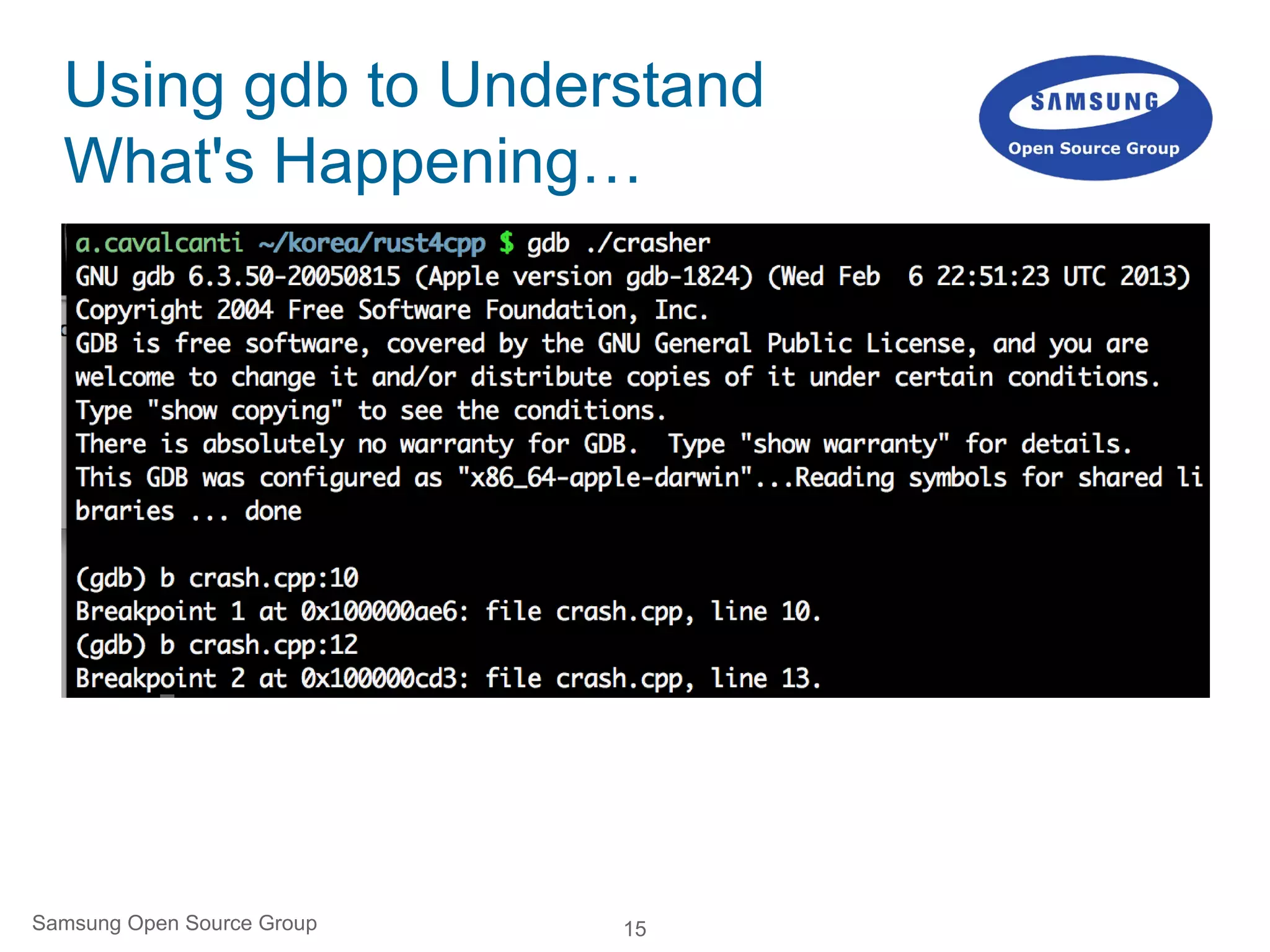

Using gdb to Understand
What's Happening…

16

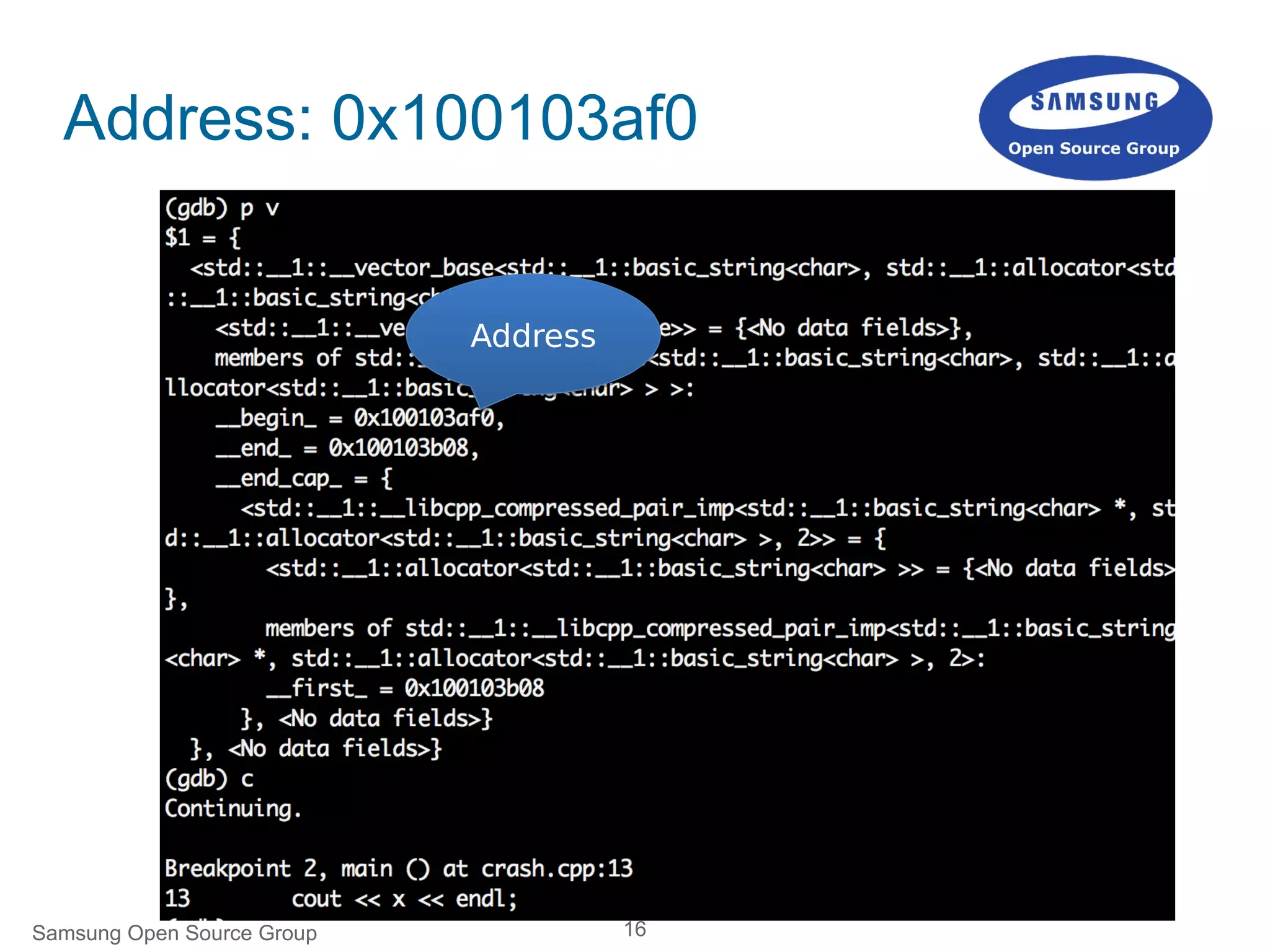

AddressAddress
Address: 0x100103af0

17

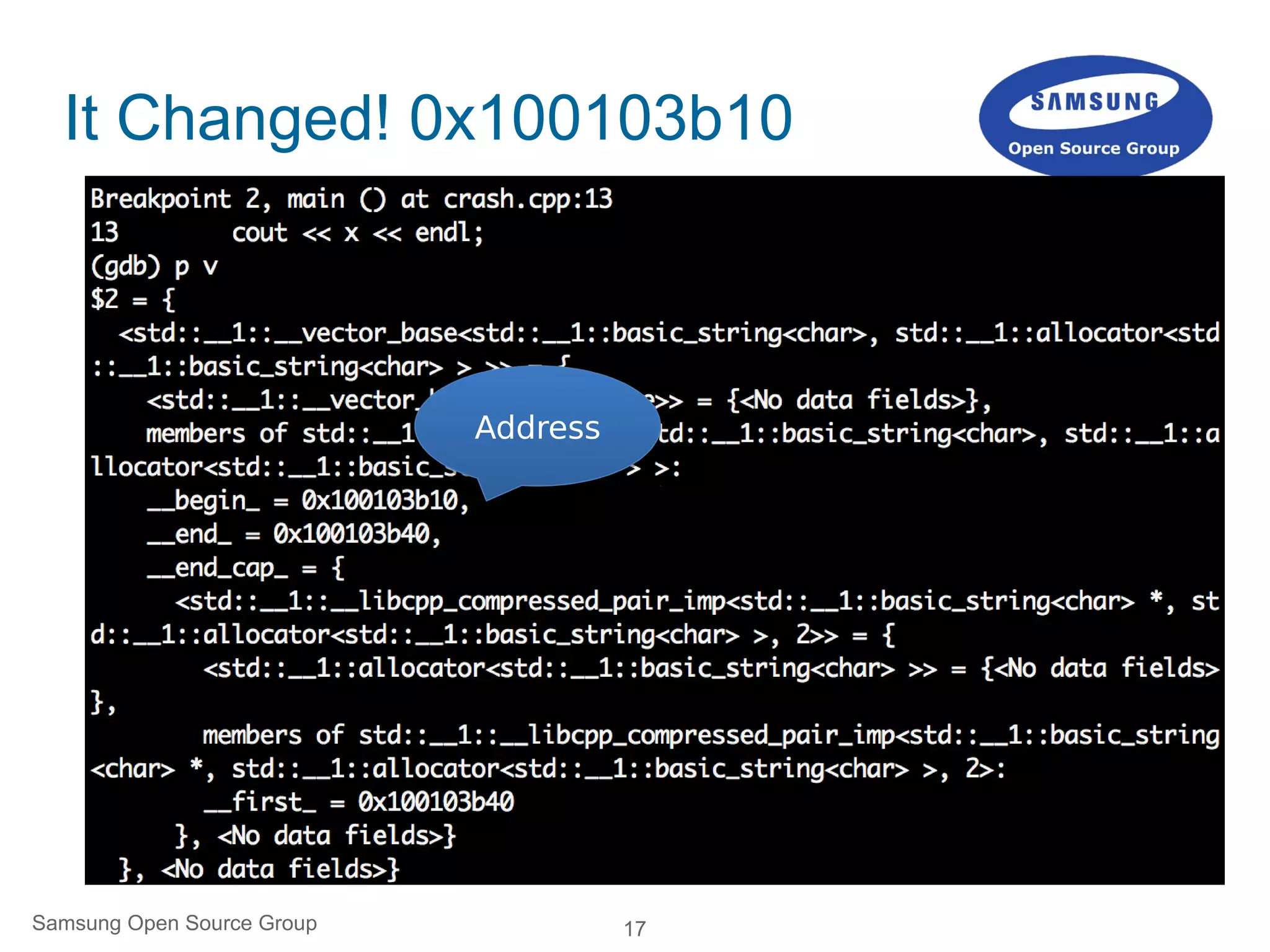

AddressAddress
It Changed! 0x100103b10

18

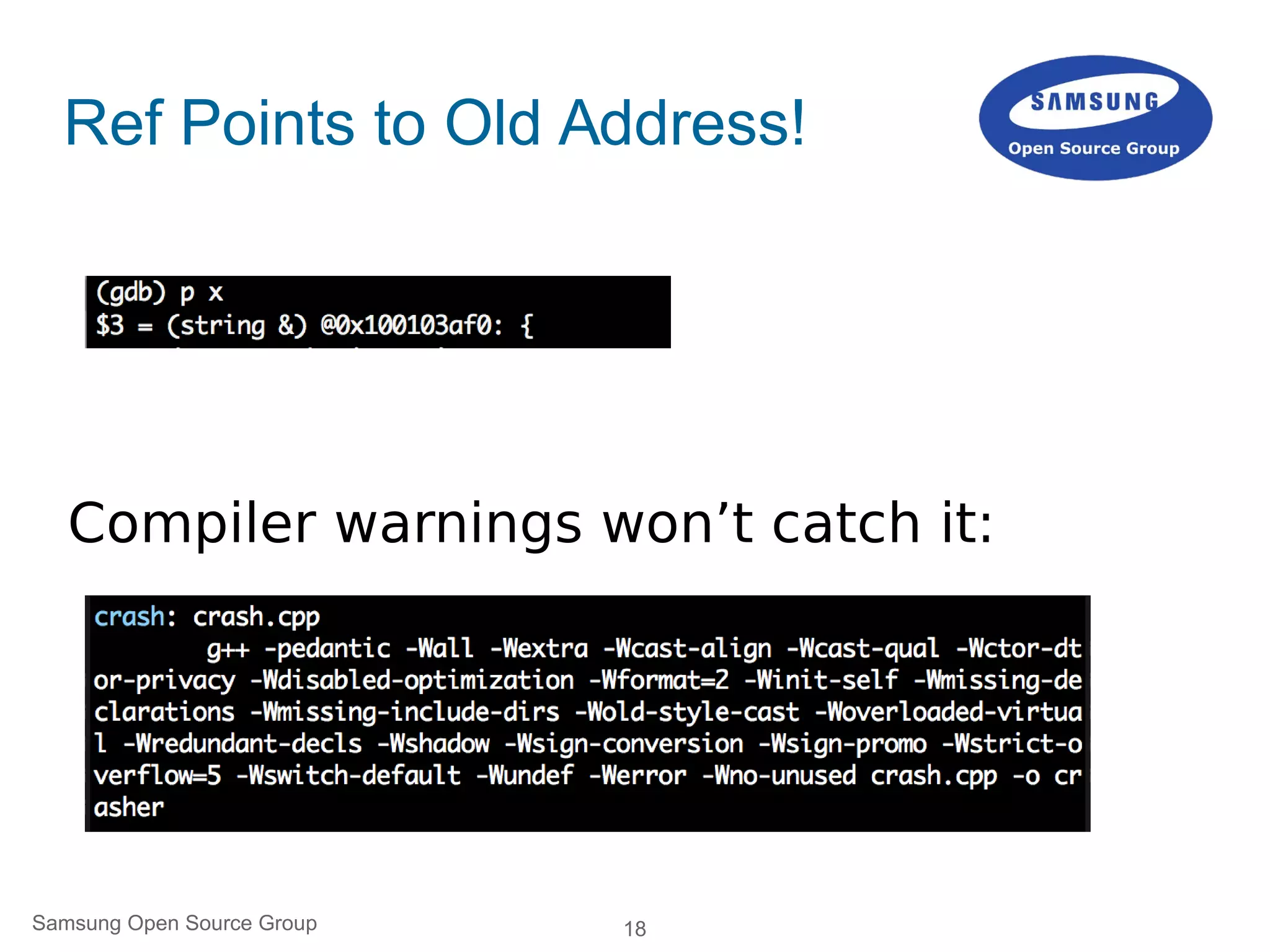

Compiler warnings won’t catch it:
Ref Points to Old Address!

19

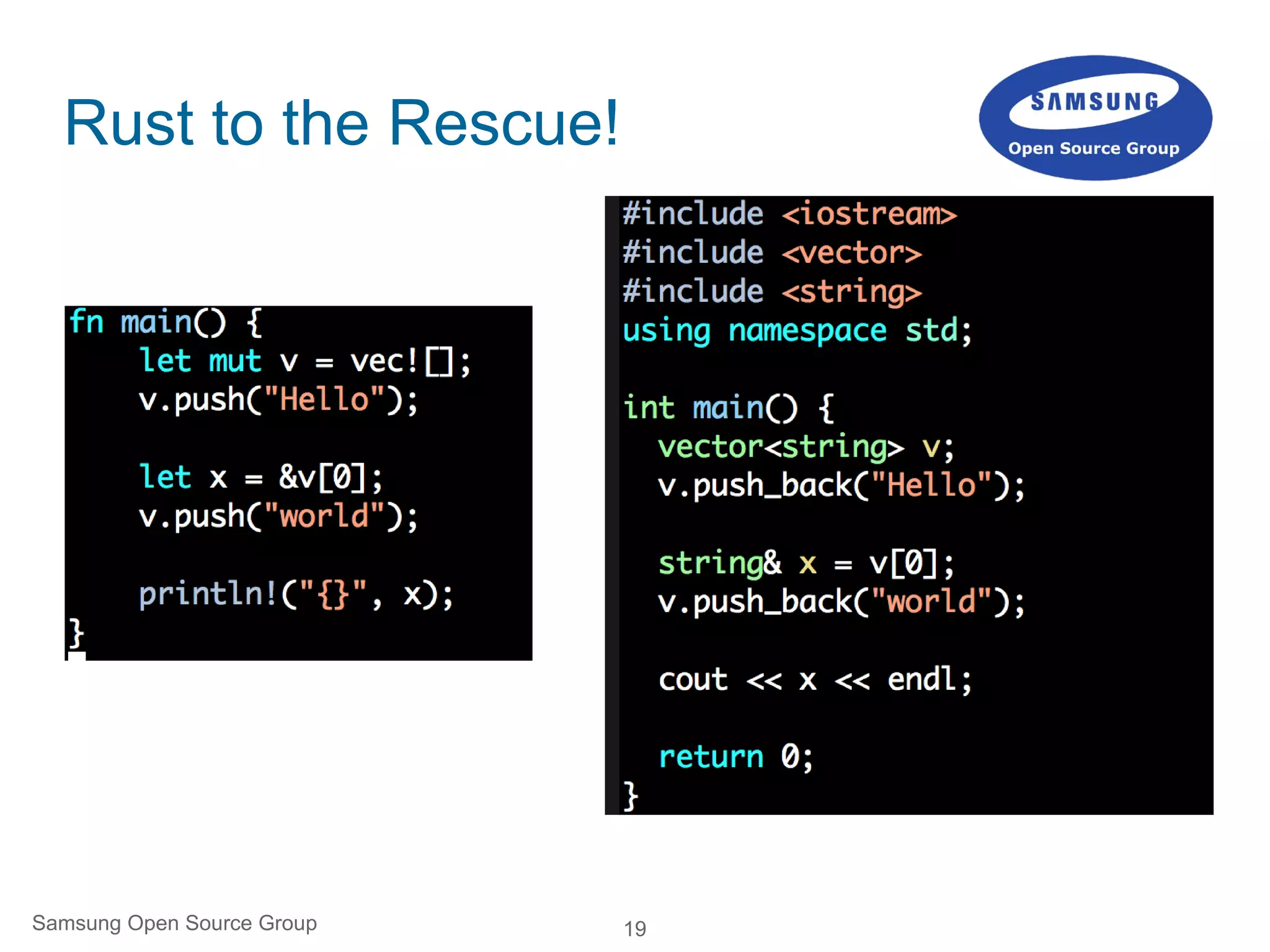

Rust to the Rescue!

20

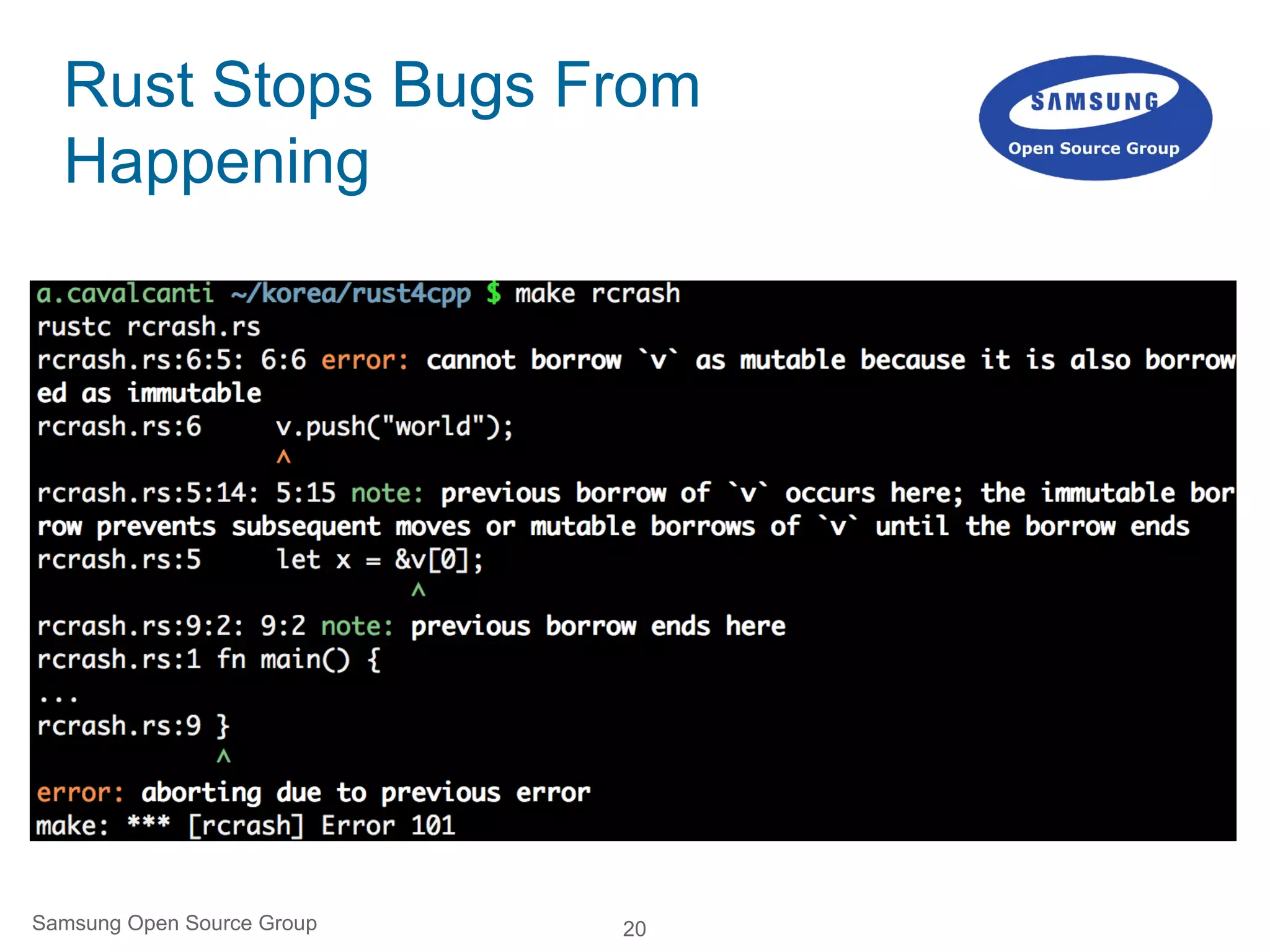

Rust Stops Bugs From
Happening



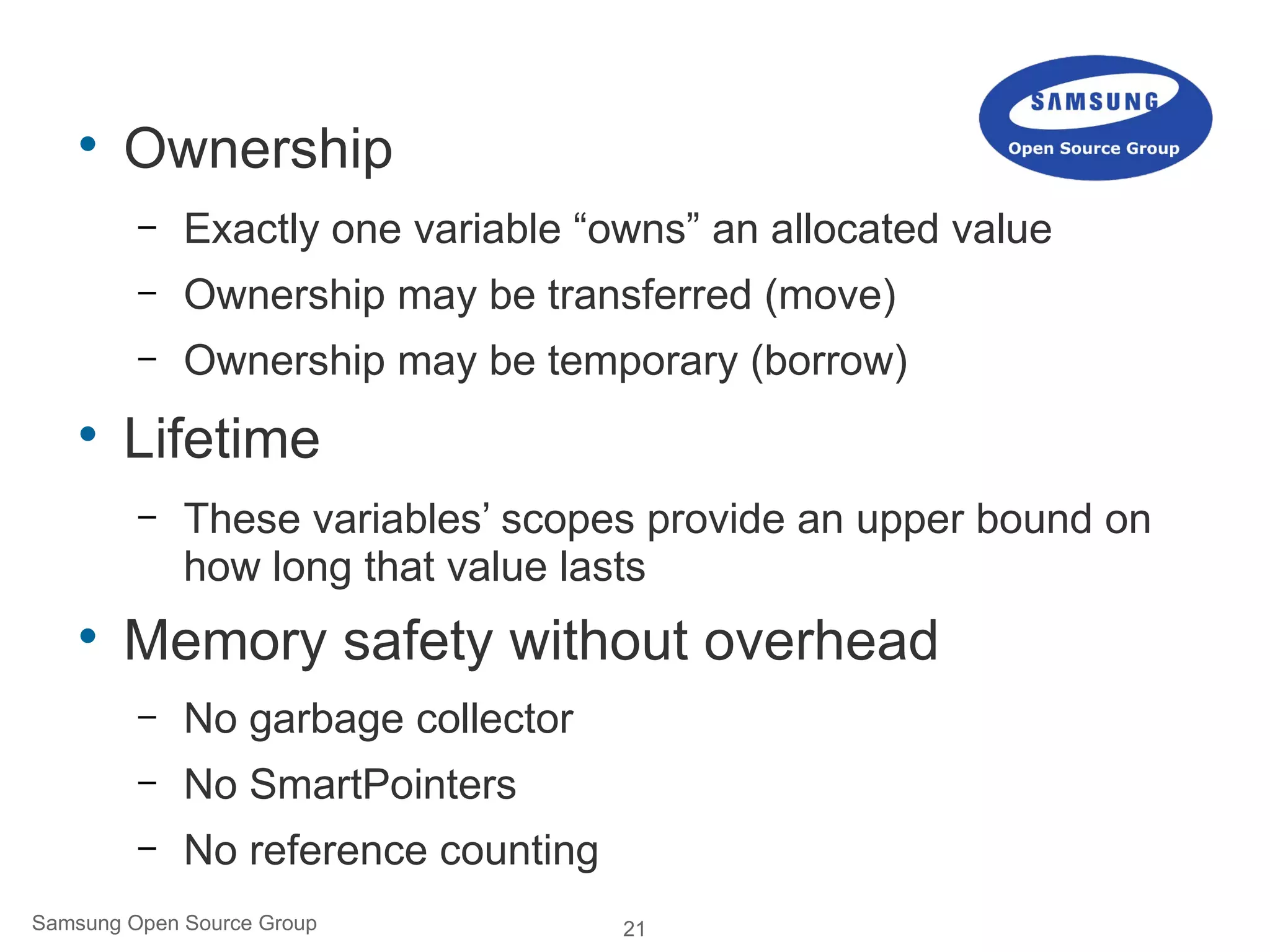

Ownership
– Exactly one variable “owns” an allocated value
– Ownership may be transferred (move)
– Ownership may be temporary (borrow)

Lifetime
– These variables’ scopes provide an upper bound on
how long that value lasts

Memory safety without overhead
– No garbage collector
– No SmartPointers
– No reference counting

Concepts of Browser
Engines

23
How a Browser Works…

24

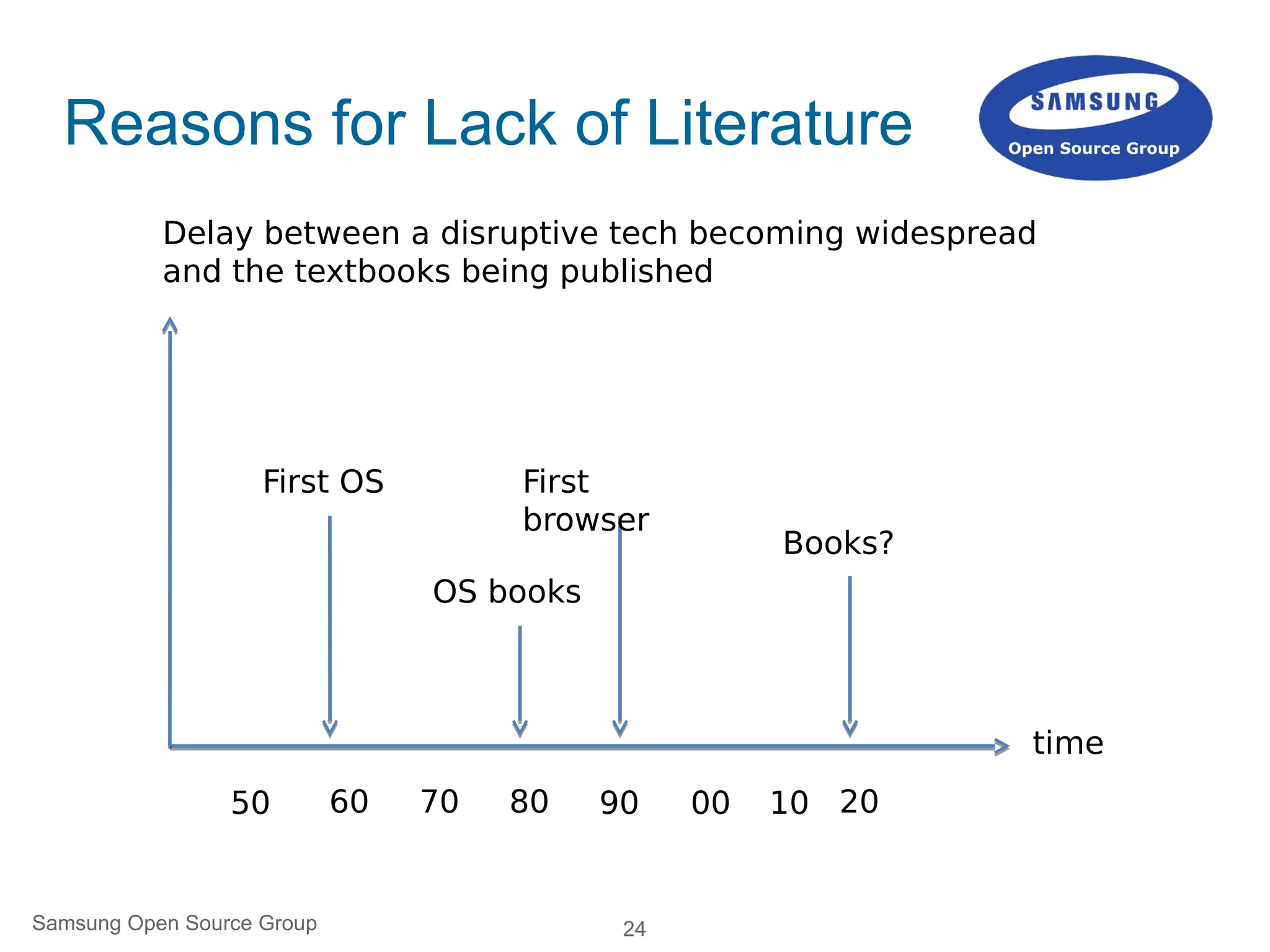

First OS
50 60 70 80 90 00 10 20
Books?
First
browser
OS books
time
Delay between a disruptive tech becoming widespread
and the textbooks being published
Reasons for Lack of Literature

25

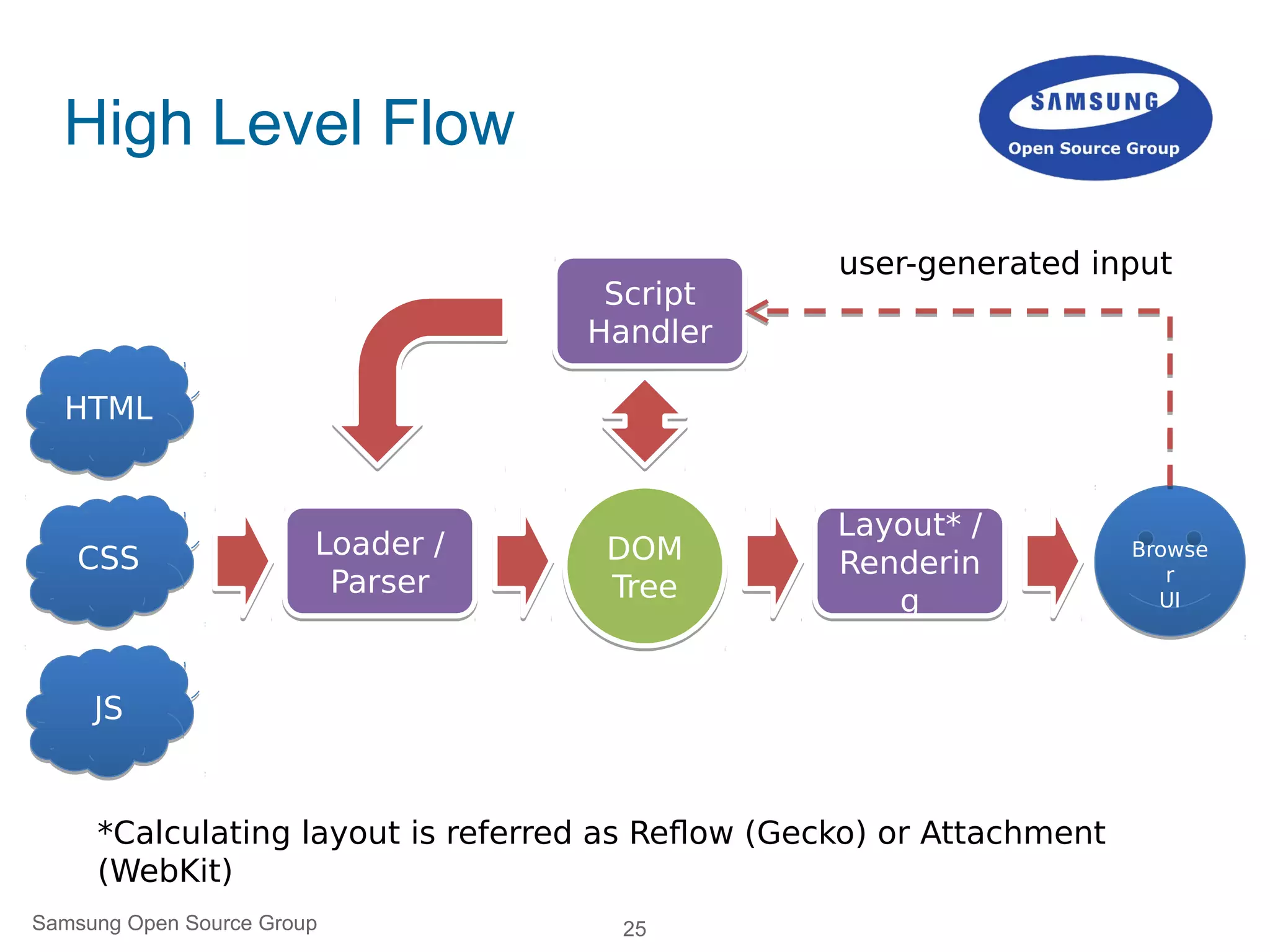

HTMLHTML
CSSCSS
JSJS
Loader /
Parser
Loader /
Parser
DOM
Tree
DOM
Tree
Script
Handler
Script
Handler
Browse
r
UI
Browse
r
UI
Layout* /
Renderin
g
Layout* /
Renderin
g
user-generated input
*Calculating layout is referred as Reflow (Gecko) or Attachment
(WebKit)
High Level Flow

26

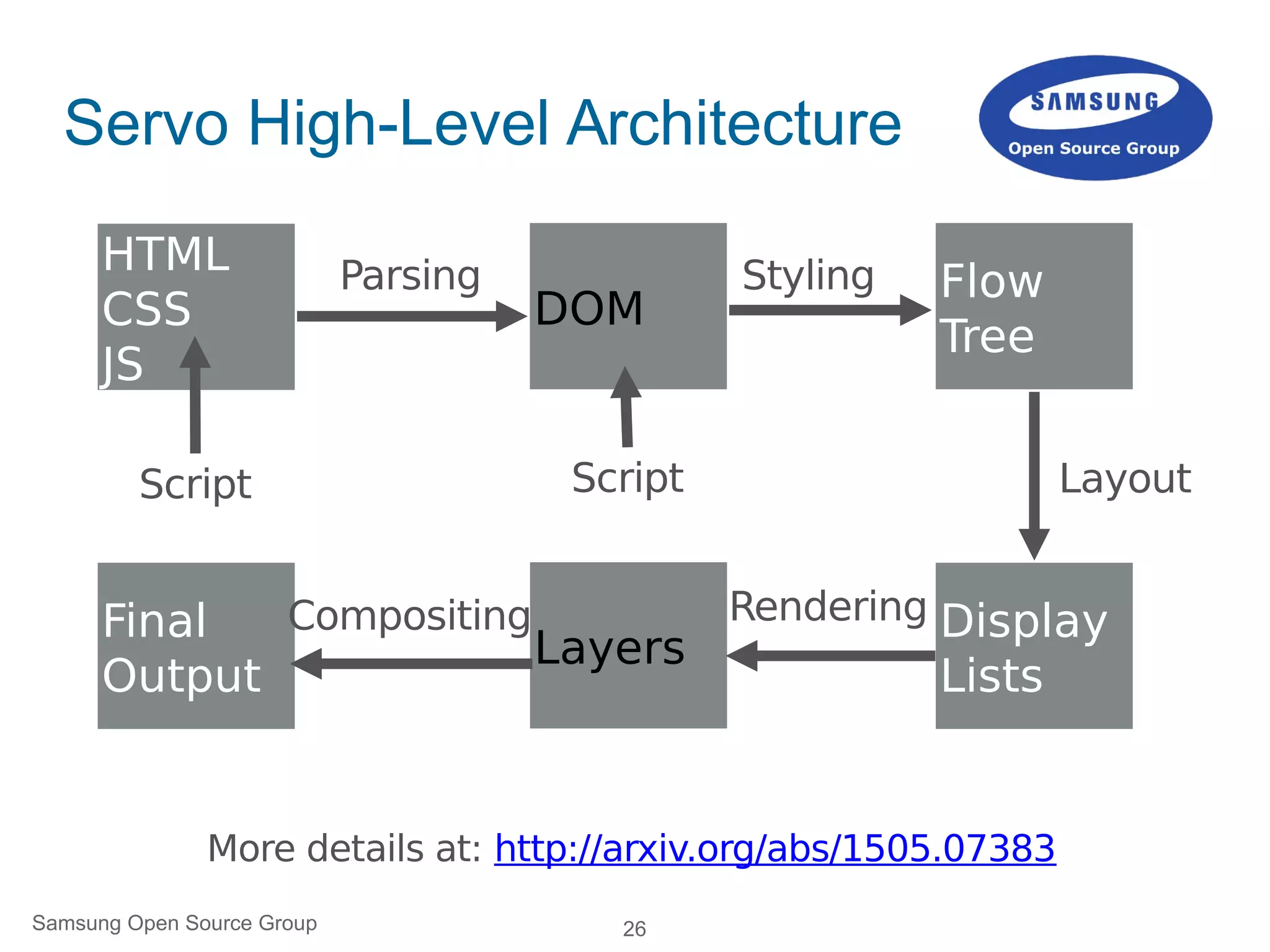

More details at: http://arxiv.org/abs/1505.07383
HTML
CSS
JS
DOM
Flow
Tree
Display
Lists
Layers
Final
Output
Parsing Styling
Layout
RenderingCompositing
ScriptScript
Servo High-Level Architecture

27

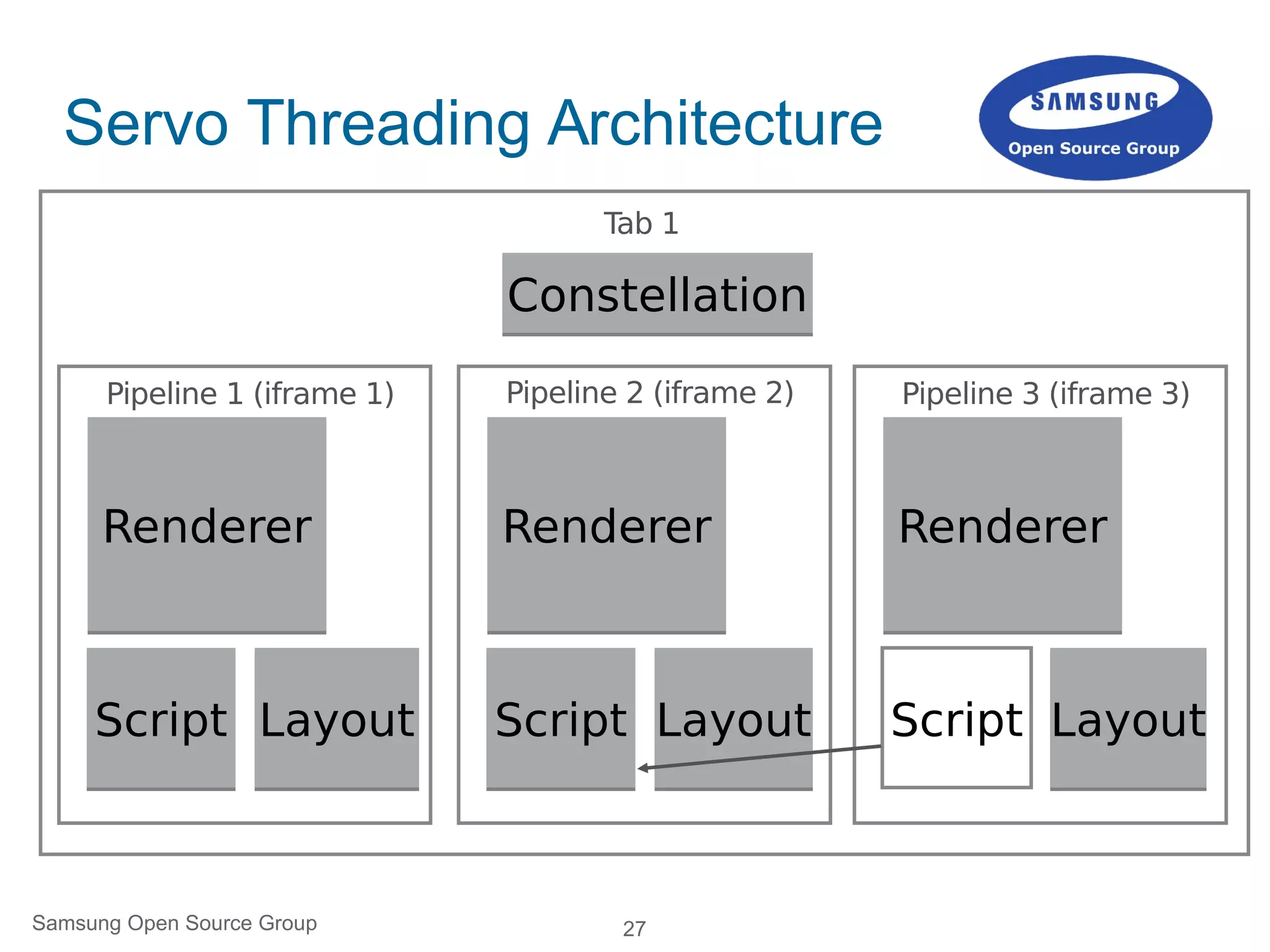

ConstellationConstellation
RendererRenderer
LayoutLayoutScriptScript
Pipeline 1 (iframe 1)
RendererRenderer
LayoutLayoutScriptScript
Tab 1
RendererRenderer
LayoutLayoutScript
Servo Threading Architecture

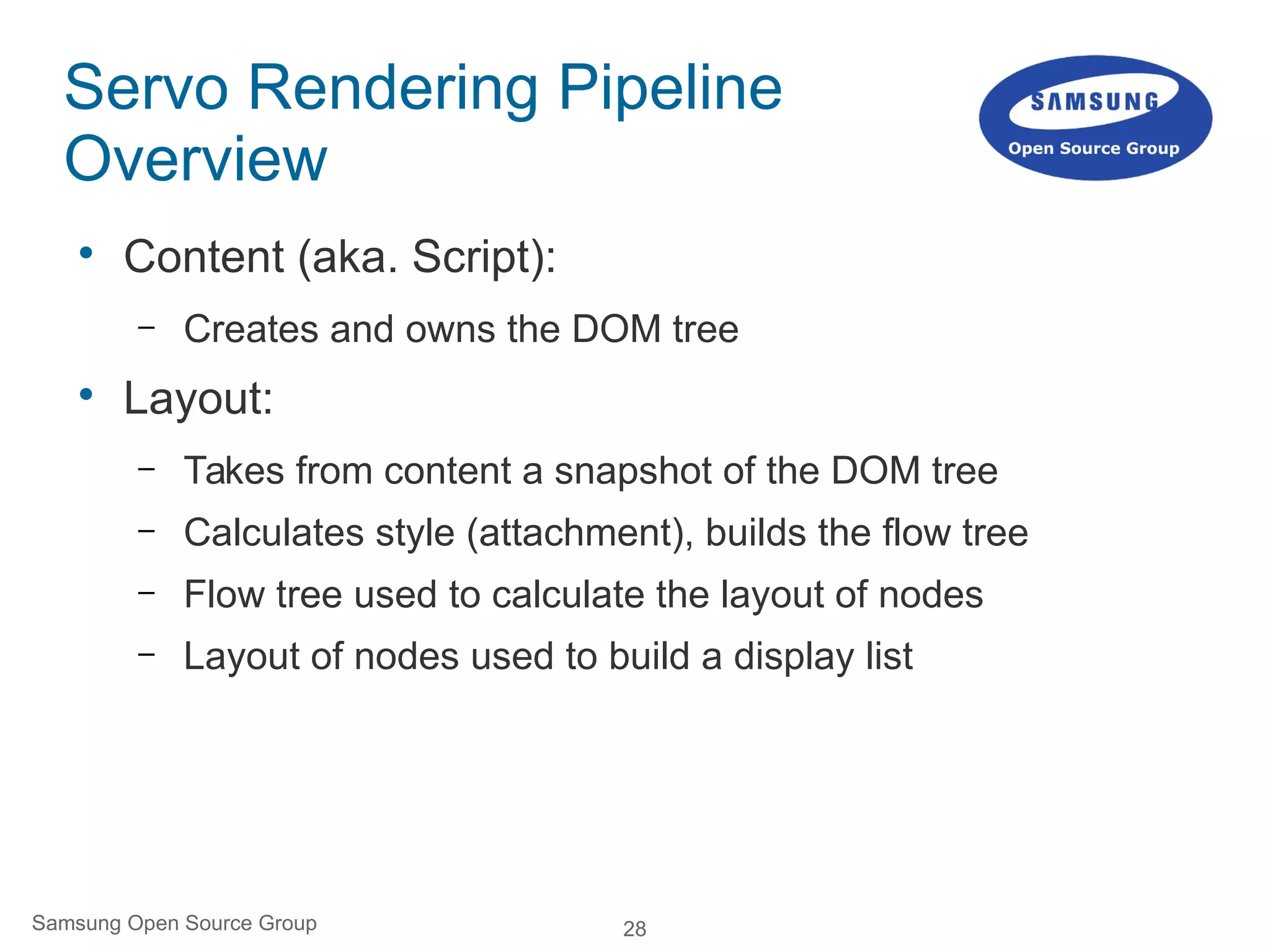

Servo Rendering Pipeline
Overview

Content (aka. Script):
– Creates and owns the DOM tree

Layout:
– Takes from content a snapshot of the DOM tree
– Calculates style (attachment), builds the flow tree
– Flow tree used to calculate the layout of nodes
– Layout of nodes used to build a display list

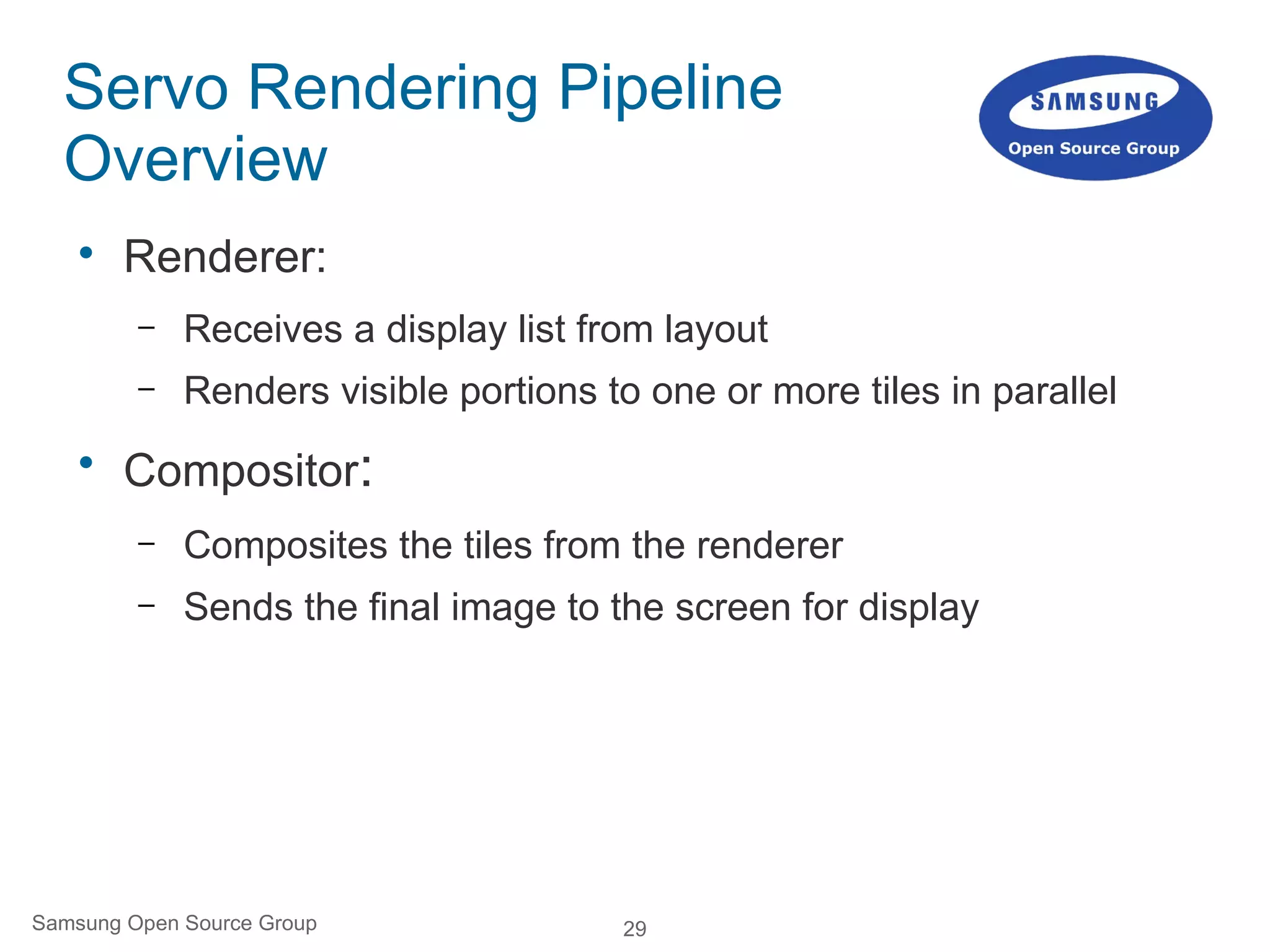

Servo Rendering Pipeline
Overview

Renderer:
– Receives a display list from layout
– Renders visible portions to one or more tiles in parallel

Compositor:
– Composites the tiles from the renderer
– Sends the final image to the screen for display

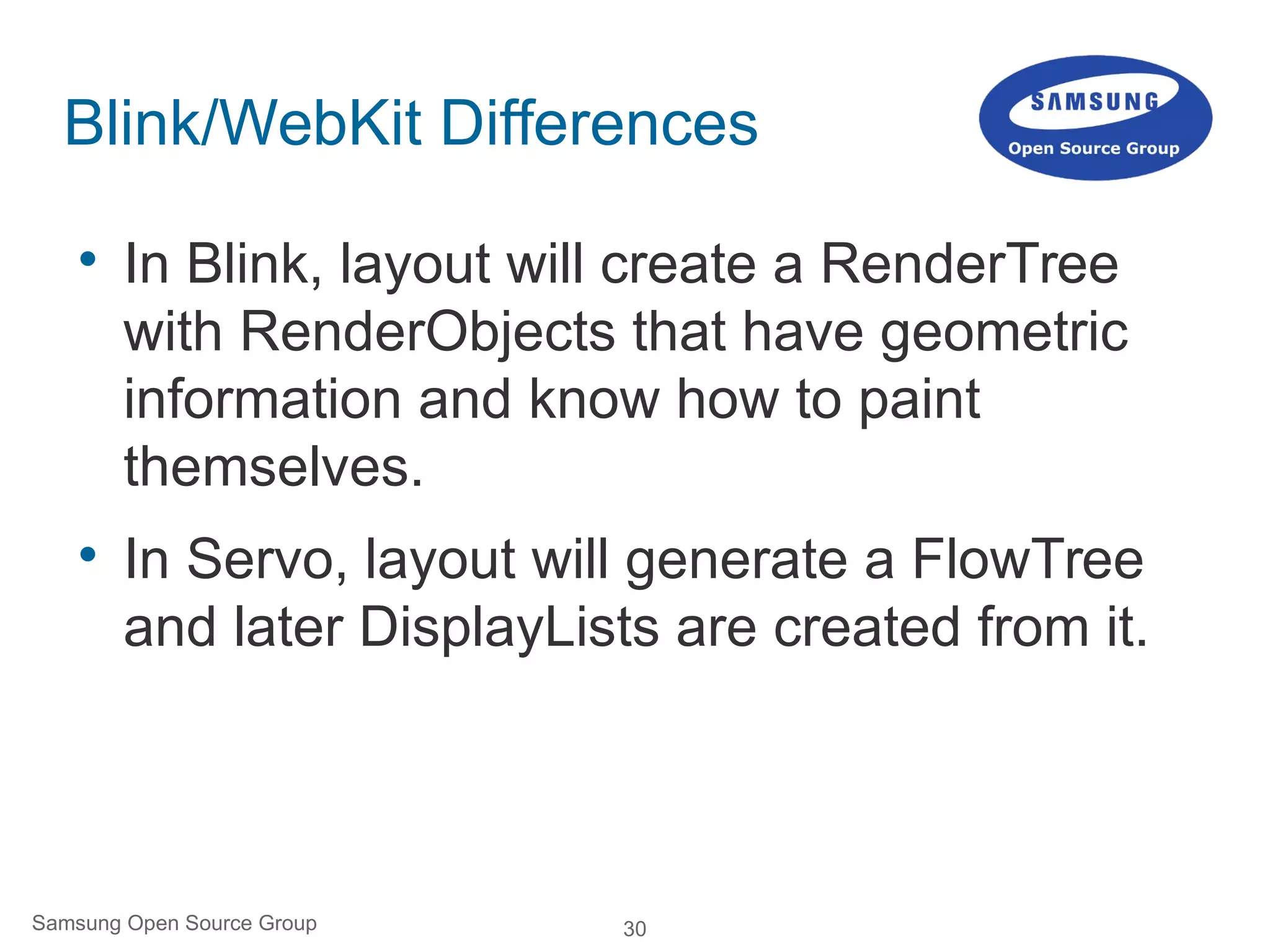

Blink/WebKit Differences

In Blink, layout will create a RenderTree
with RenderObjects that have geometric
information and know how to paint
themselves.

In Servo, layout will generate a FlowTree
and later DisplayLists are created from it.

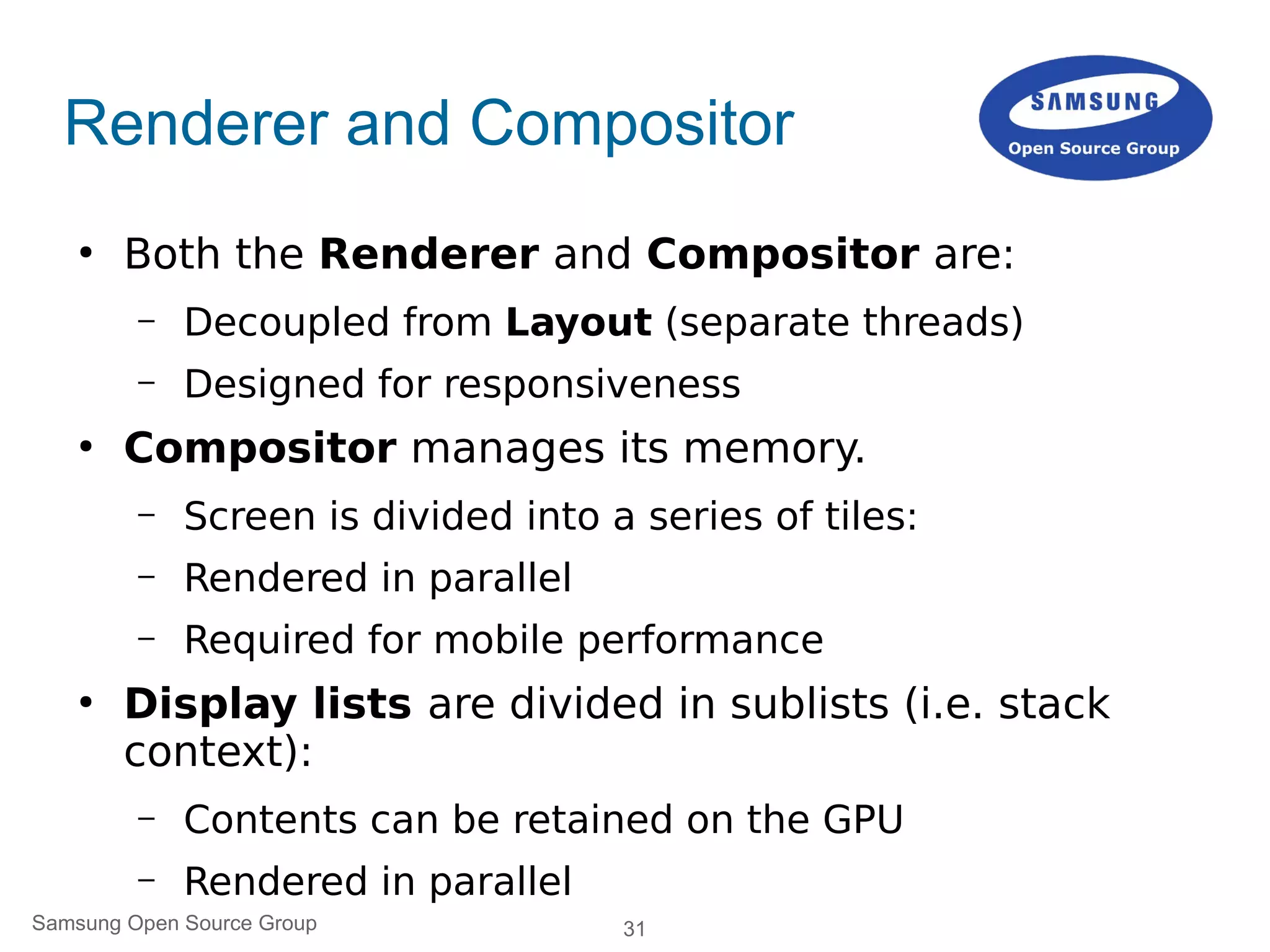

Renderer and Compositor
●
Both the Renderer and Compositor are:
– Decoupled from Layout (separate threads)
– Designed for responsiveness
●
Compositor manages its memory.
– Screen is divided into a series of tiles:
– Rendered in parallel
– Required for mobile performance
●
Display lists are divided in sublists (i.e. stack
context):
– Contents can be retained on the GPU
– Rendered in parallel

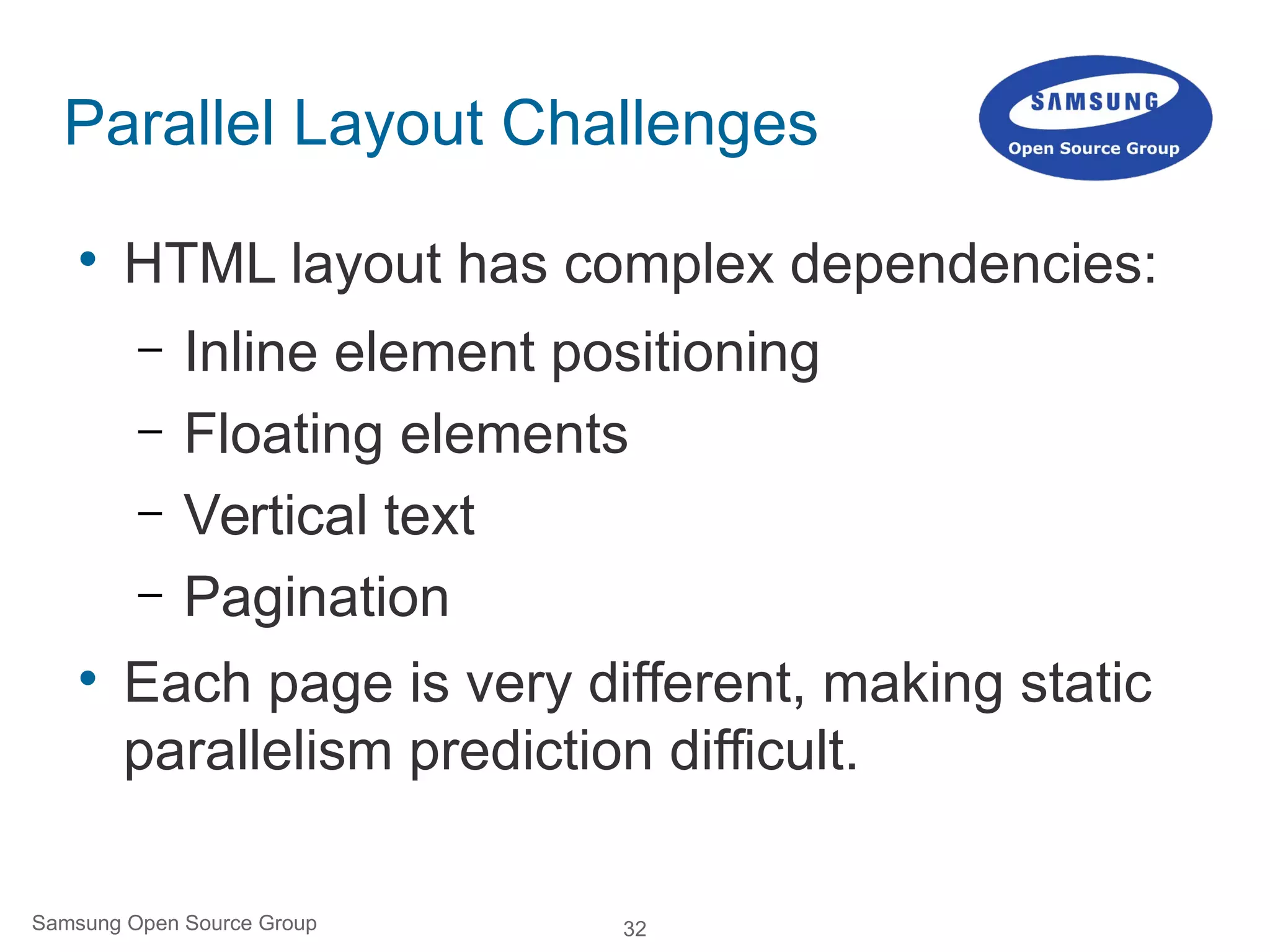

Parallel Layout Challenges

HTML layout has complex dependencies:
– Inline element positioning
– Floating elements
– Vertical text
– Pagination

Each page is very different, making static
parallelism prediction difficult.

33

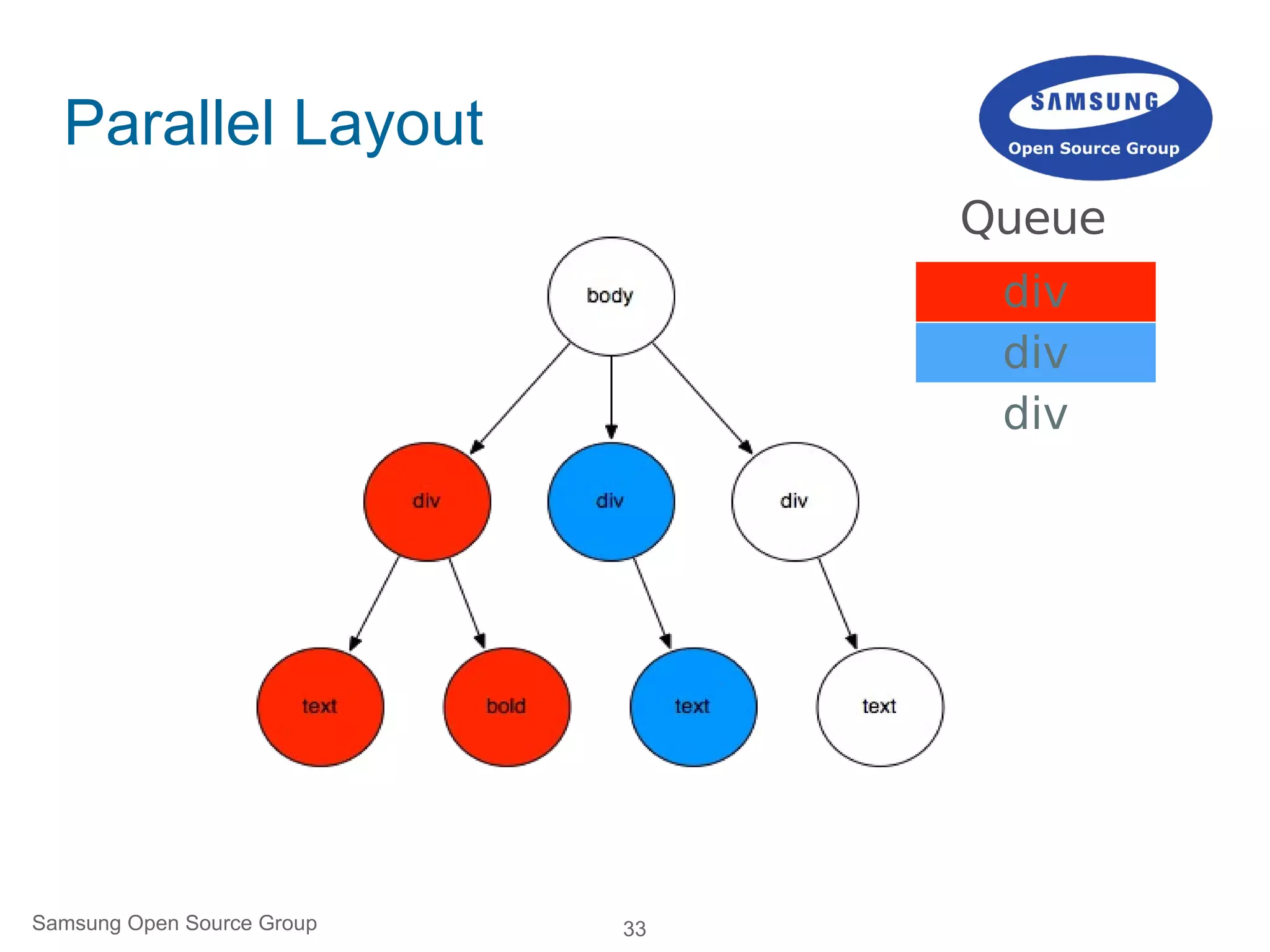

div
div
div
Queue
Parallel Layout

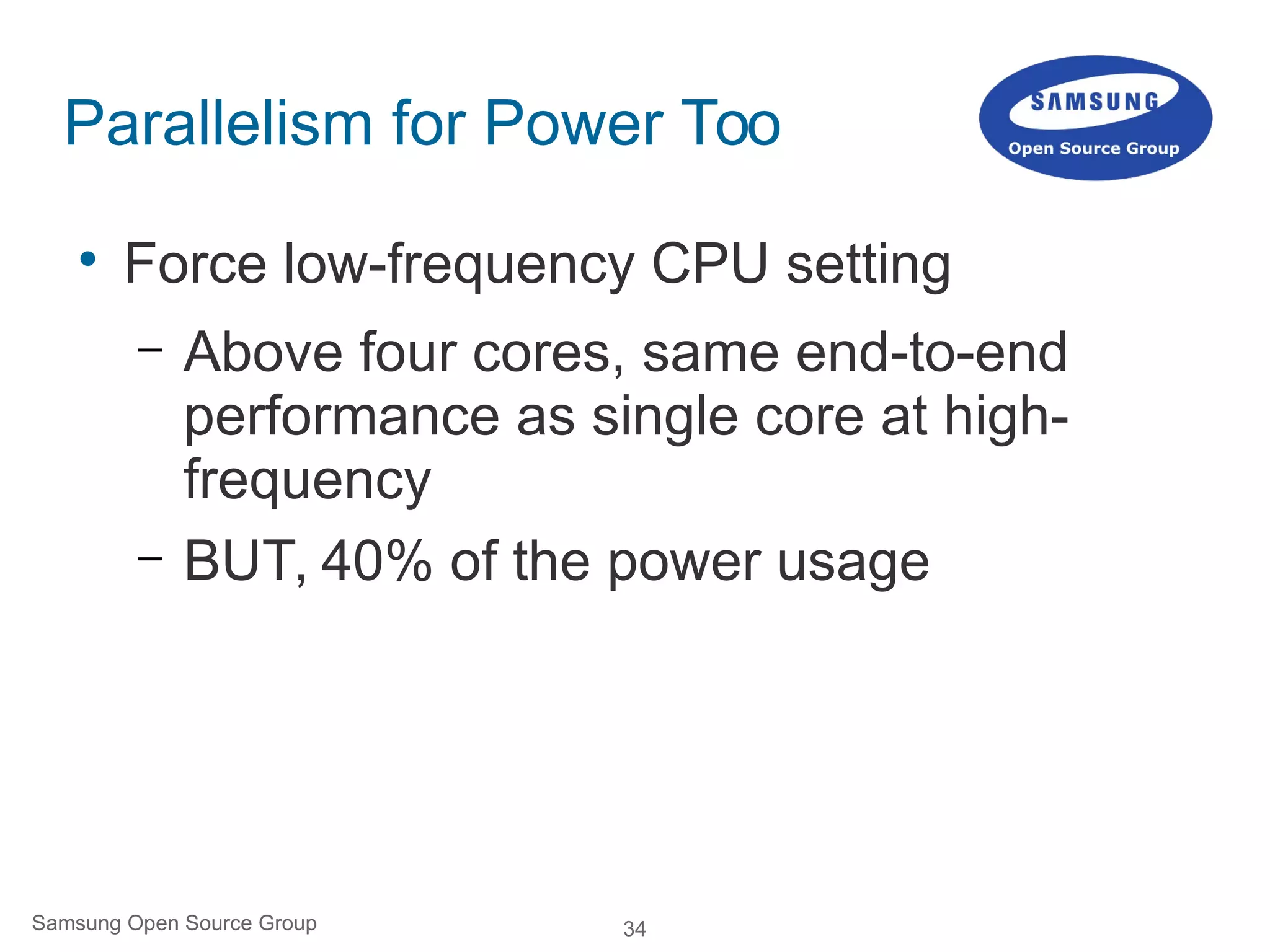

Parallelism for Power Too

Force low-frequency CPU setting
– Above four cores, same end-to-end
performance as single core at high-
frequency
– BUT, 40% of the power usage

35

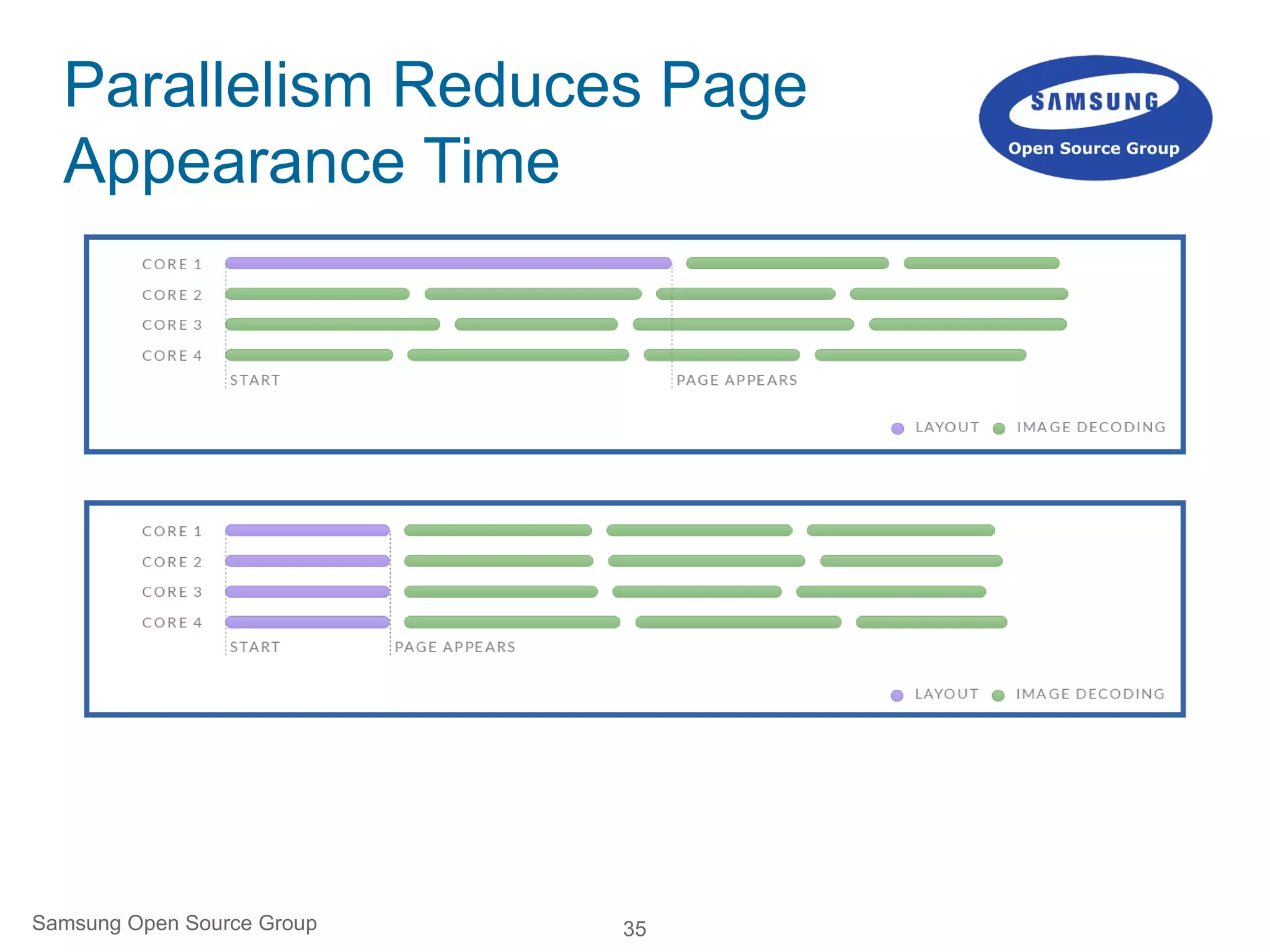

Parallelism Reduces Page
Appearance Time

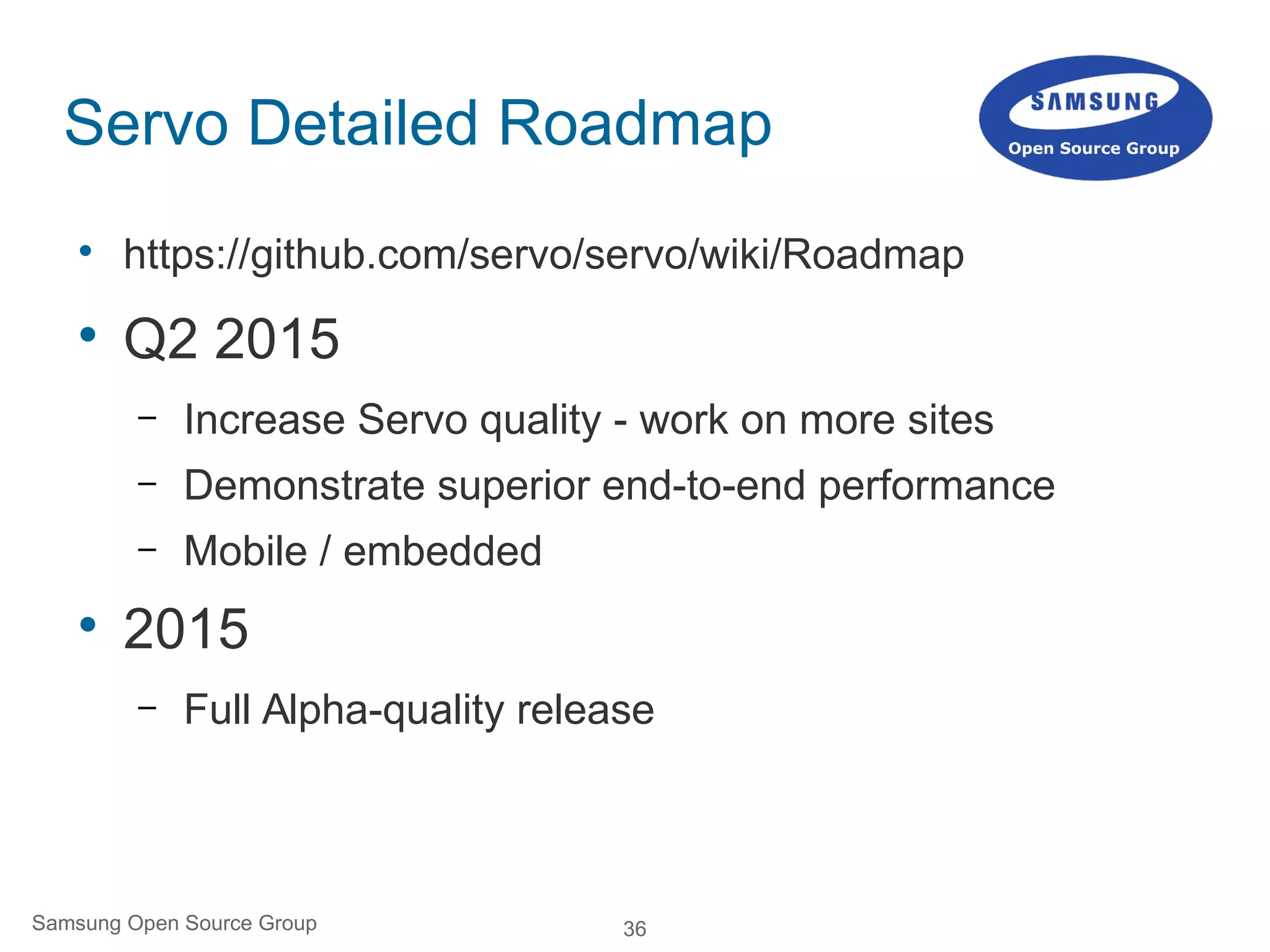

Servo Detailed Roadmap

https://github.com/servo/servo/wiki/Roadmap

Q2 2015
– Increase Servo quality - work on more sites
– Demonstrate superior end-to-end performance
– Mobile / embedded

2015
– Full Alpha-quality release

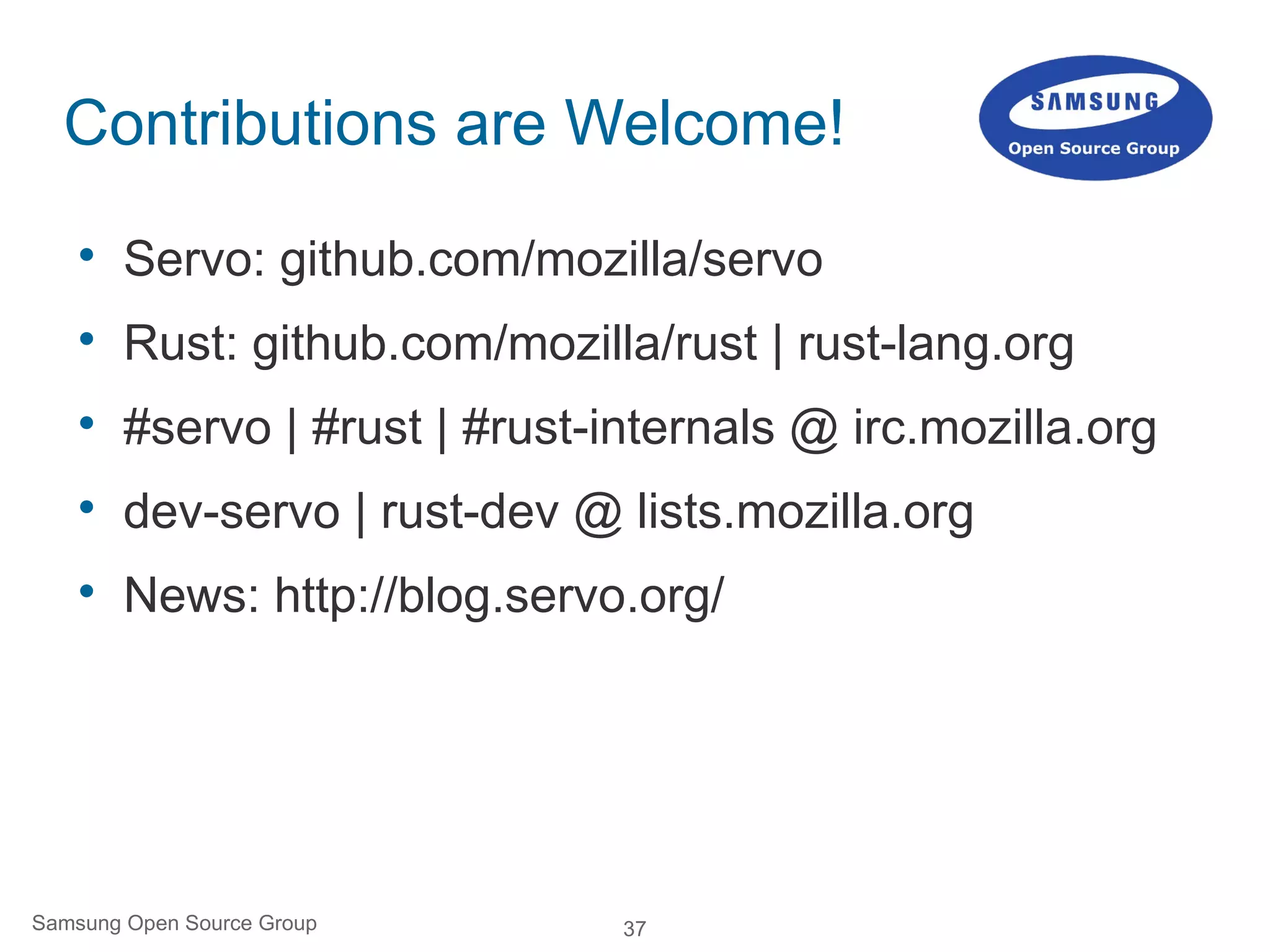

Contributions are Welcome!

Servo: github.com/mozilla/servo

Rust: github.com/mozilla/rust | rust-lang.org

#servo | #rust | #rust-internals @ irc.mozilla.org

dev-servo | rust-dev @ lists.mozilla.org

News: http://blog.servo.org/

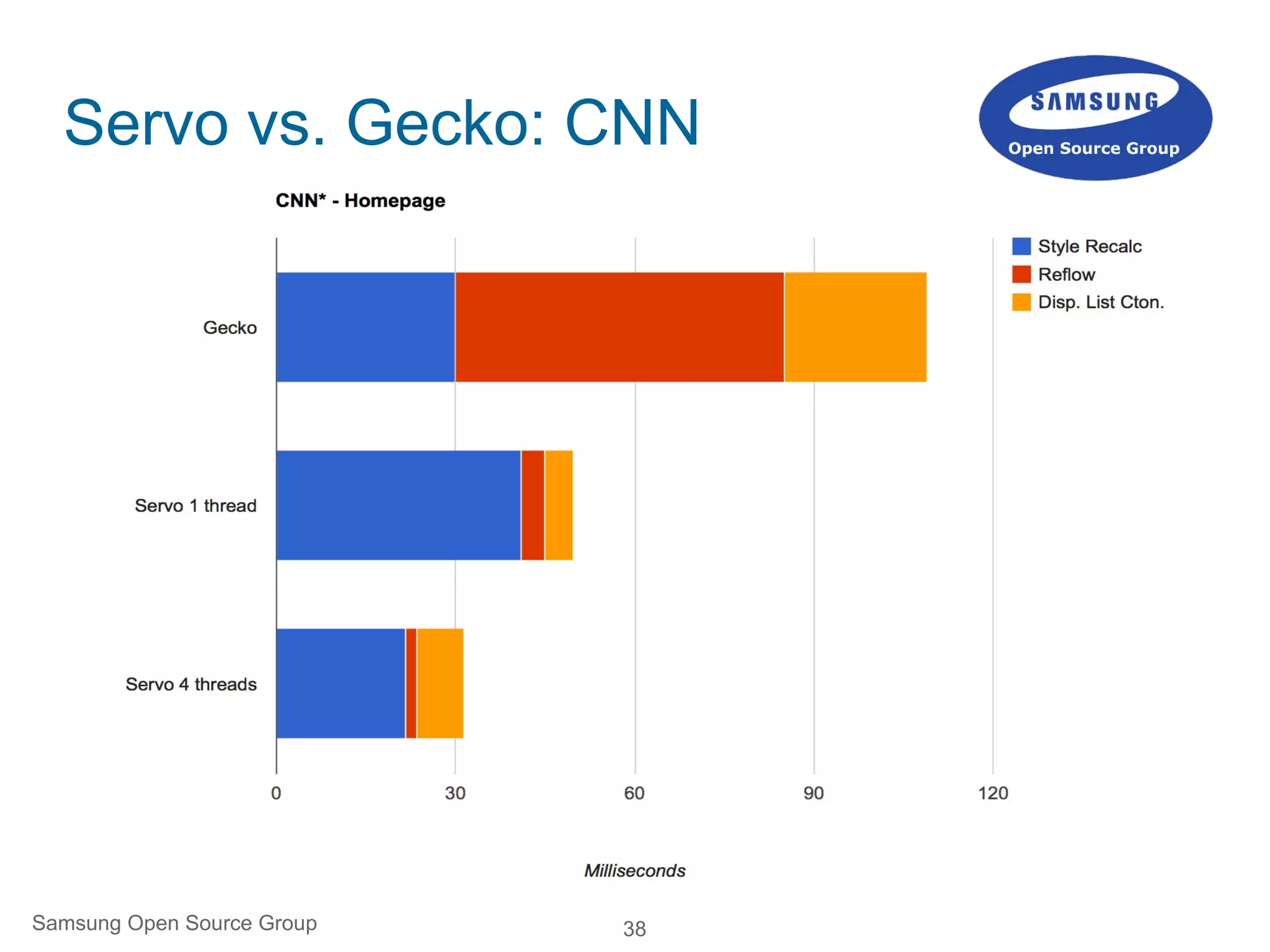

Servo vs. Gecko: CNN

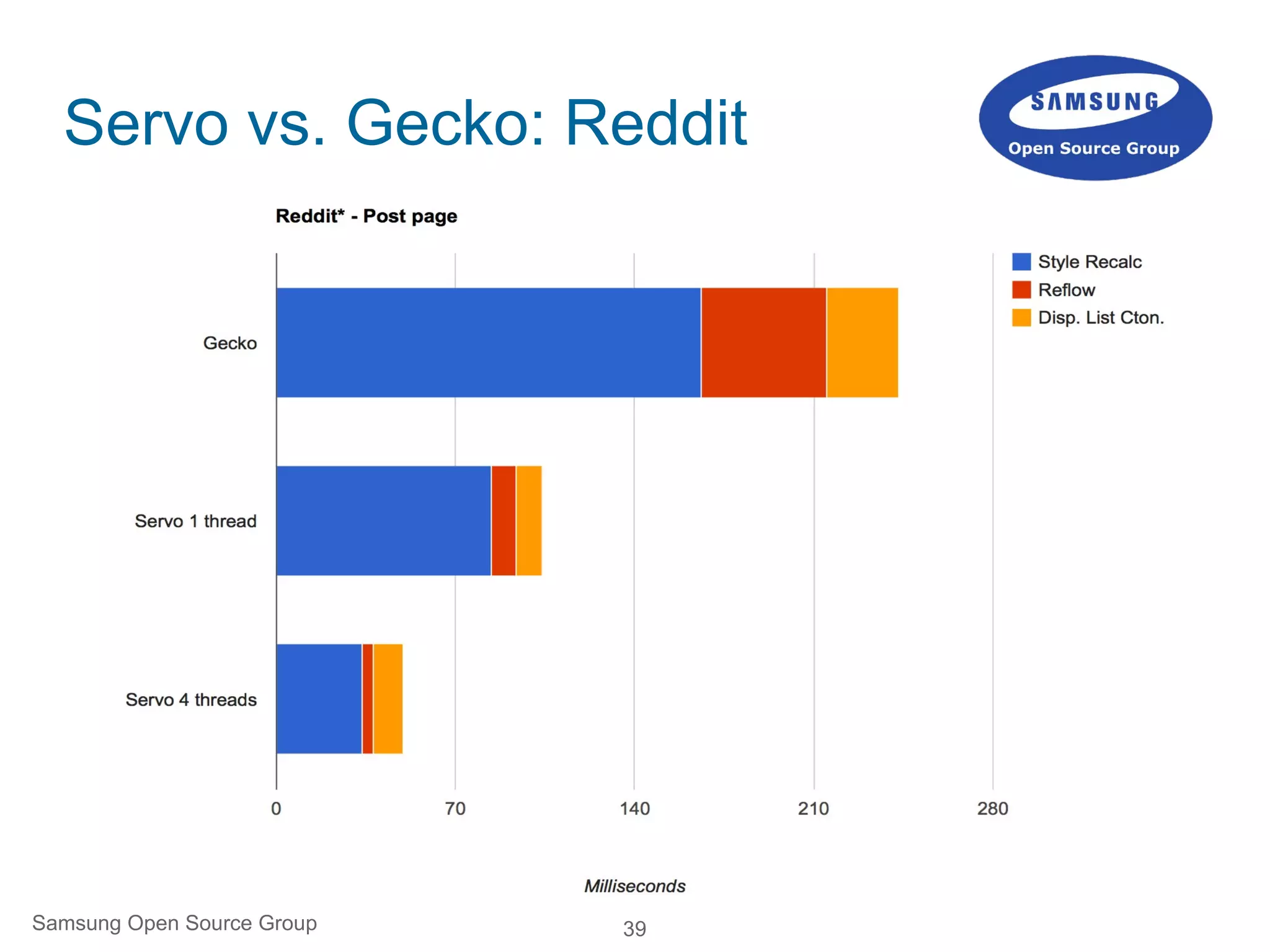

Servo vs. Gecko: Reddit

Thank You!
