Samsung Open Source Group 1 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
Philippe Coval + Ziran Sun
Samsung Open Source Group / SRUK
philippe.coval@osg.samsung.com
ziran.sun@samsung.com
From devices to cloud
Free and Open Source Developers' European Meeting
#FOSDEM, Brussels, Belgium <2017-02-04>
Samsung Open Source Group 2 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

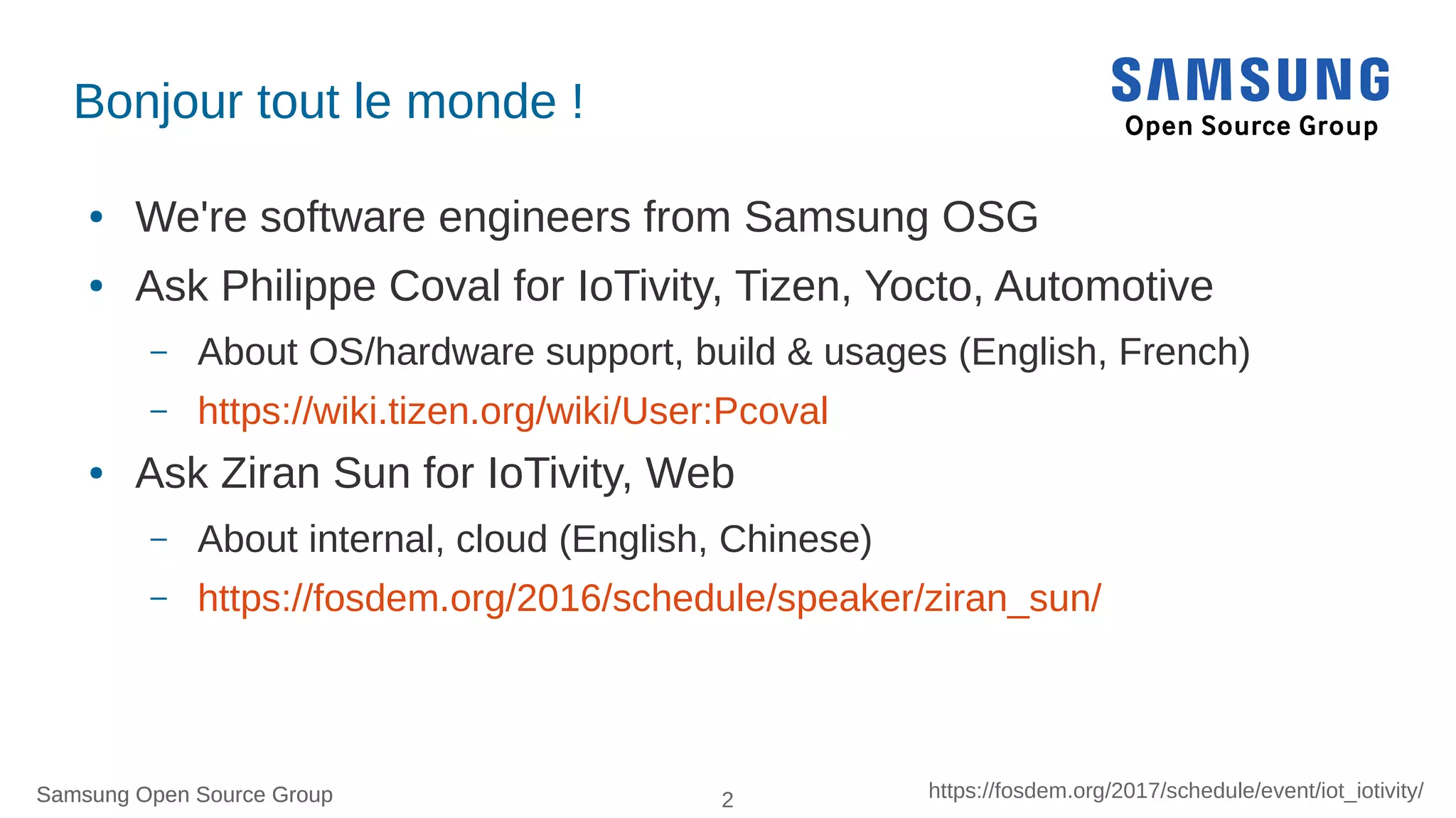

Bonjour tout le monde !
● We're software engineers from Samsung OSG
● Ask Philippe Coval for IoTivity, Tizen, Yocto, Automotive
– About OS/hardware support, build & usages (English, French)
– https://wiki.tizen.org/wiki/User:Pcoval
● Ask Ziran Sun for IoTivity, Web
– About internal, cloud (English, Chinese)
– https://fosdem.org/2016/schedule/speaker/ziran_sun/
Samsung Open Source Group 3 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

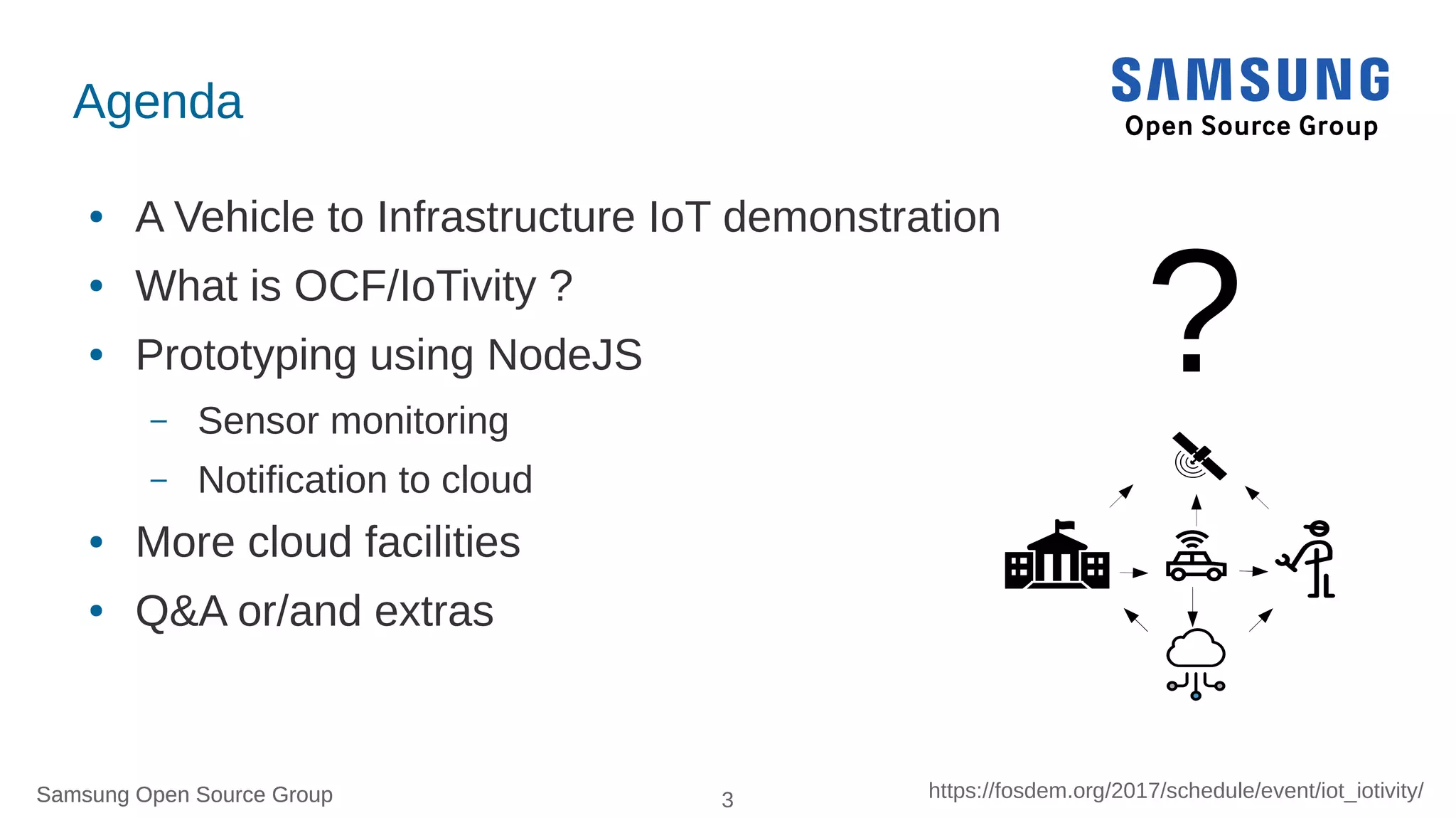

Agenda
● A Vehicle to Infrastructure IoT demonstration
● What is OCF/IoTivity ?
● Prototyping using NodeJS
– Sensor monitoring
– Notification to cloud
● More cloud facilities
● Q&A or/and extras
?
Samsung Open Source Group 4
“Any sufficiently
advanced technology
is indistinguishable
from magic.”
~ Arthur C. Clarke
Samsung Open Source Group 5 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

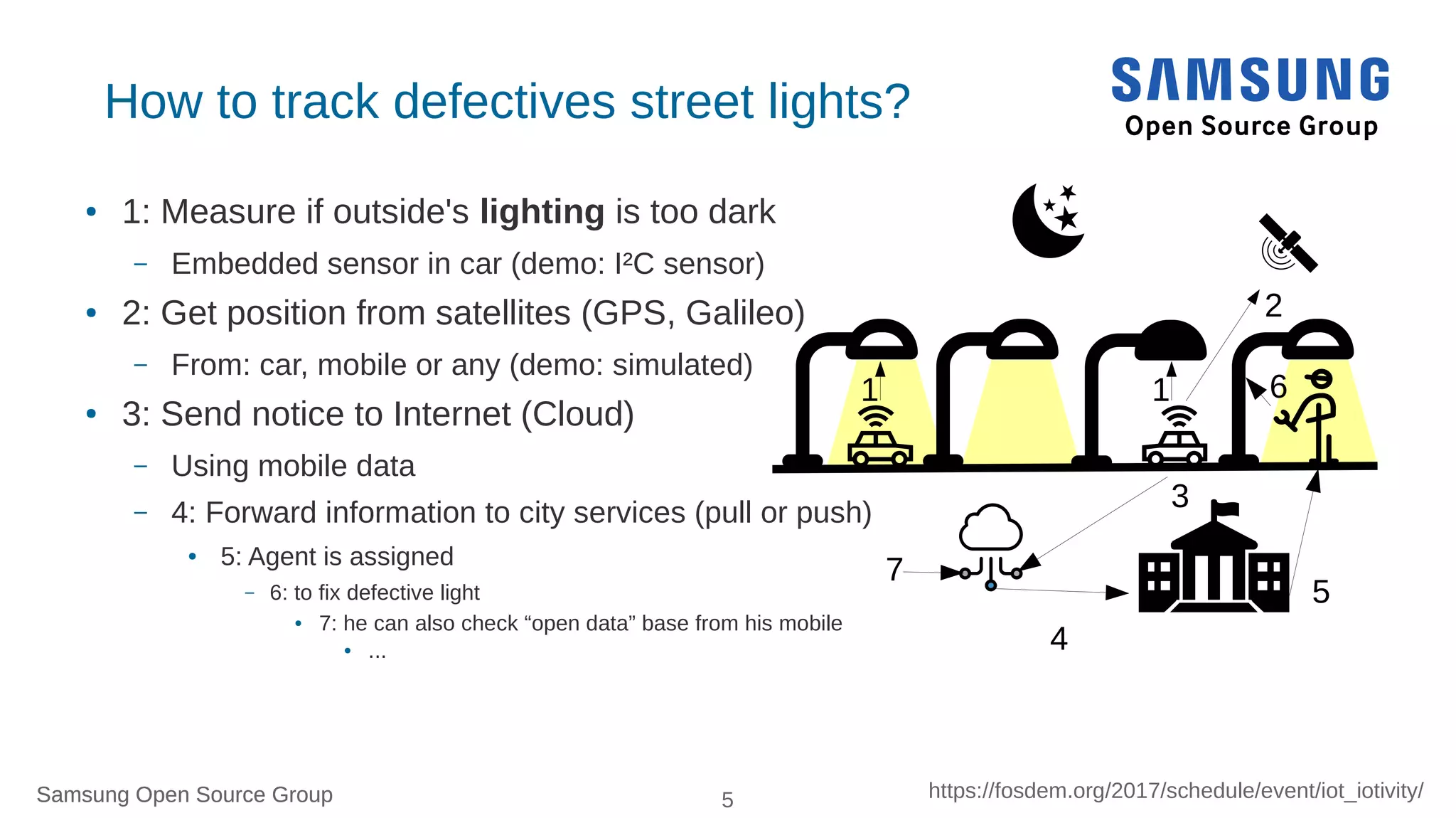

How to track defectives street lights?
● 1: Measure if outside's lighting is too dark
– Embedded sensor in car (demo: I²C sensor)
● 2: Get position from satellites (GPS, Galileo)
– From: car, mobile or any (demo: simulated)
● 3: Send notice to Internet (Cloud)
– Using mobile data
– 4: Forward information to city services (pull or push)
● 5: Agent is assigned
– 6: to fix defective light
● 7: he can also check “open data” base from his mobile
● ...
11
2
3
5
6
4
7
Samsung Open Source Group 6 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
From devices to cloud AutoLinux demo
https://vimeo.com/202478132#iotivity-artik-20170204rzr
Samsung Open Source Group 7 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
“Simplicity
is the ultimate sophistication.”
~Leonardo da Vinci
Samsung Open Source Group 8 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

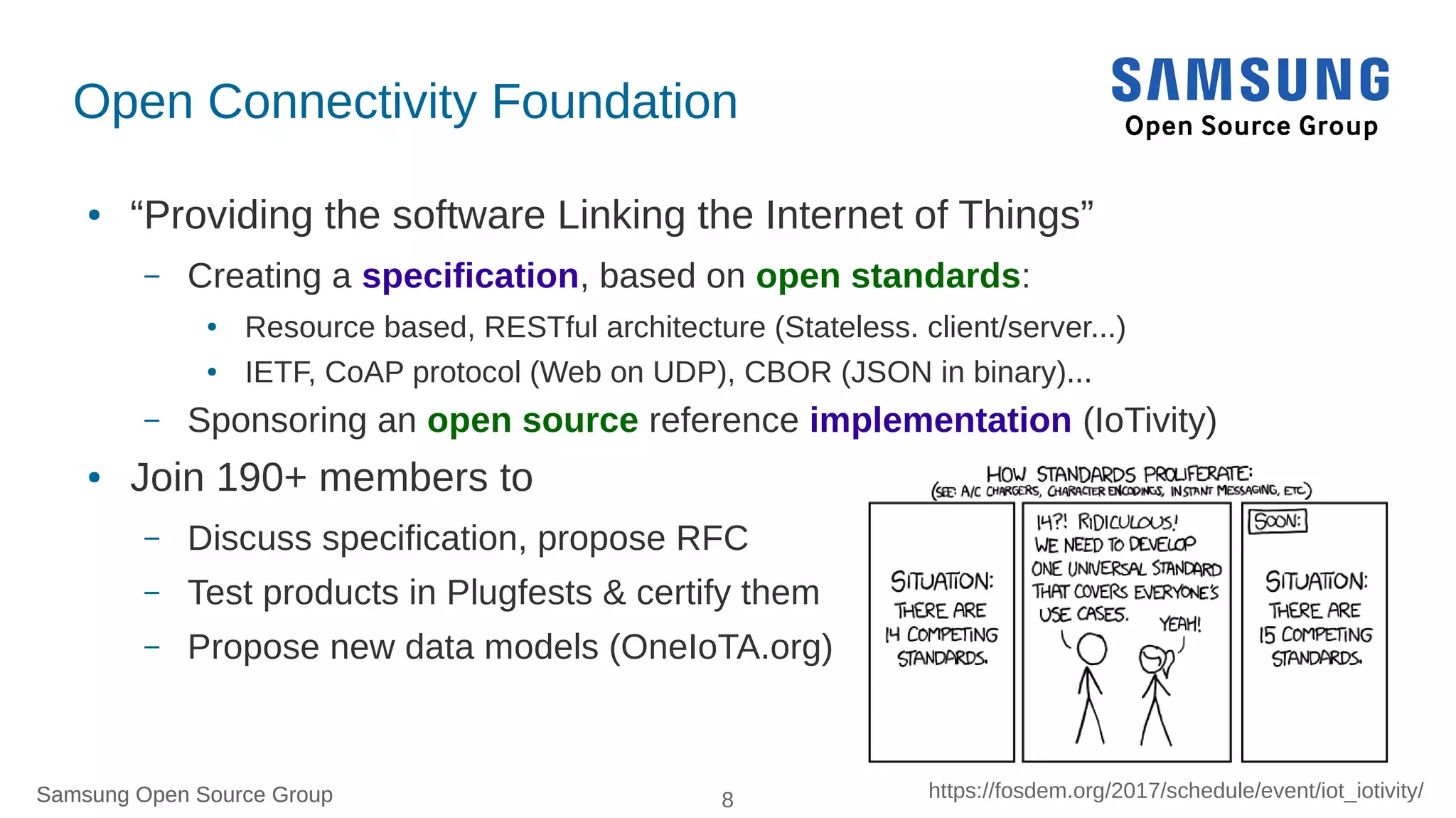

Open Connectivity Foundation
● “Providing the software Linking the Internet of Things”
– Creating a specification, based on open standards:
● Resource based, RESTful architecture (Stateless. client/server...)
● IETF, CoAP protocol (Web on UDP), CBOR (JSON in binary)...
– Sponsoring an open source reference implementation (IoTivity)
● Join 190+ members to
– Discuss specification, propose RFC
– Test products in Plugfests & certify them
– Propose new data models (OneIoTA.org)
Samsung Open Source Group 9 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

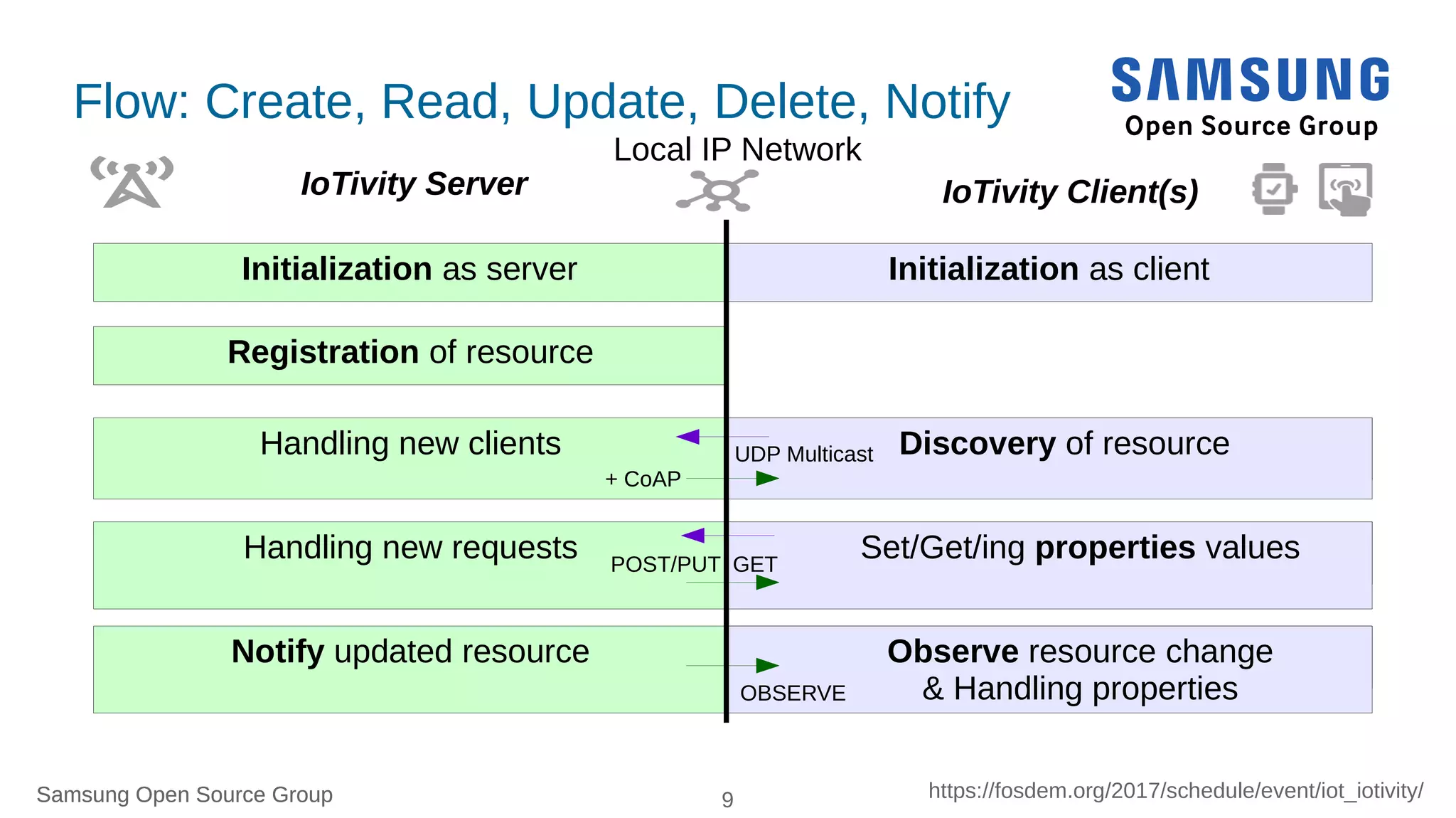

Flow: Create, Read, Update, Delete, Notify
IoTivity Server IoTivity Client(s)
Local IP Network
Registration of resource
Handling new requests Set/Get/ing properties values
Initialization as server Initialization as client
Handling new clients Discovery of resource
POST/PUT GET
UDP Multicast
+ CoAP
Notify updated resource Observe resource change
& Handling propertiesOBSERVE
Samsung Open Source Group 10 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

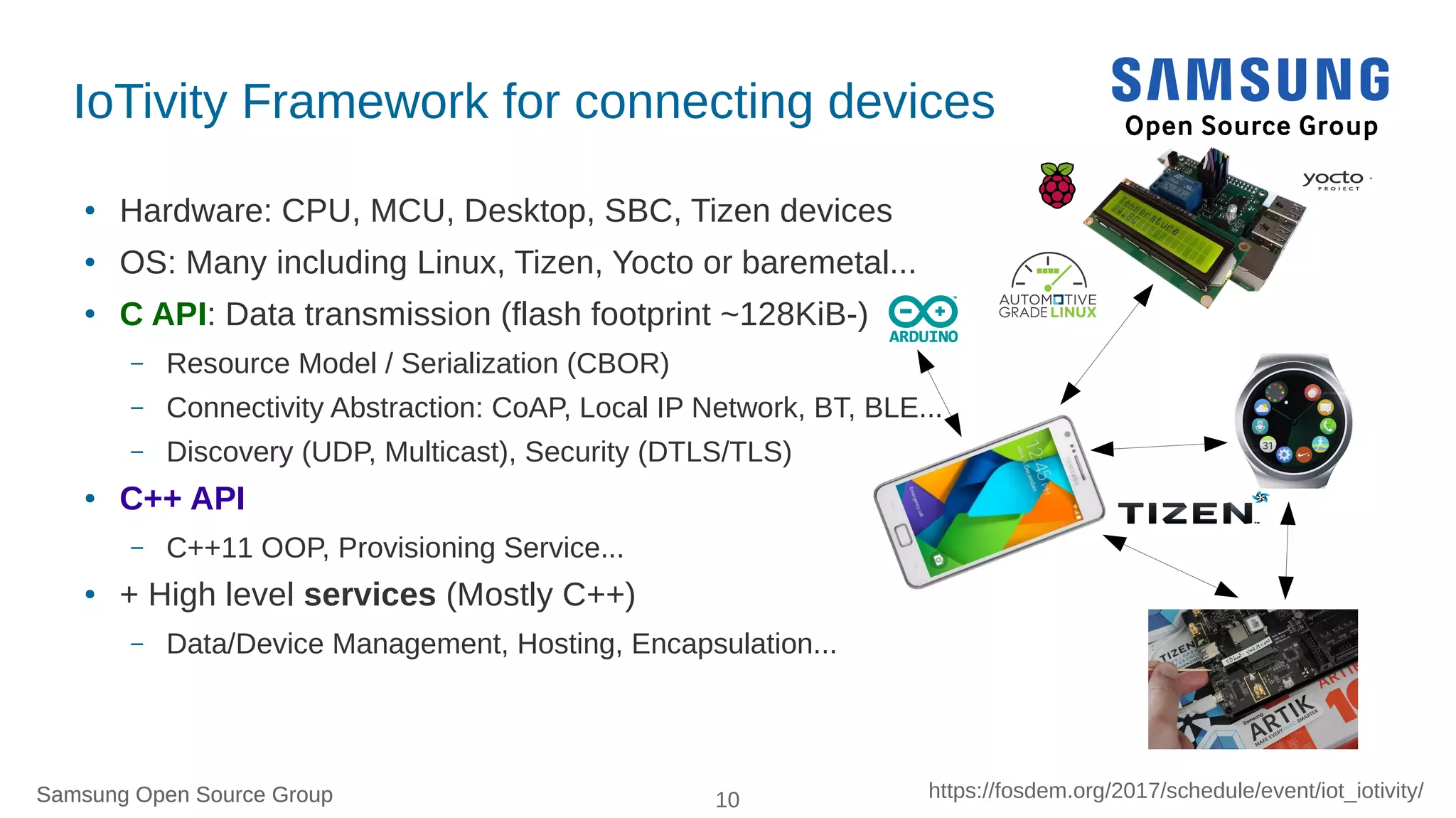

IoTivity Framework for connecting devices
● Hardware: CPU, MCU, Desktop, SBC, Tizen devices
● OS: Many including Linux, Tizen, Yocto or baremetal...
●
C API: Data transmission (flash footprint ~128KiB-)
– Resource Model / Serialization (CBOR)
– Connectivity Abstraction: CoAP, Local IP Network, BT, BLE...
– Discovery (UDP, Multicast), Security (DTLS/TLS)
● C++ API
– C++11 OOP, Provisioning Service...
● + High level services (Mostly C++)
– Data/Device Management, Hosting, Encapsulation...
Samsung Open Source Group 11
“Talk is cheap.
Show me the code.”
~ Linus Torvalds

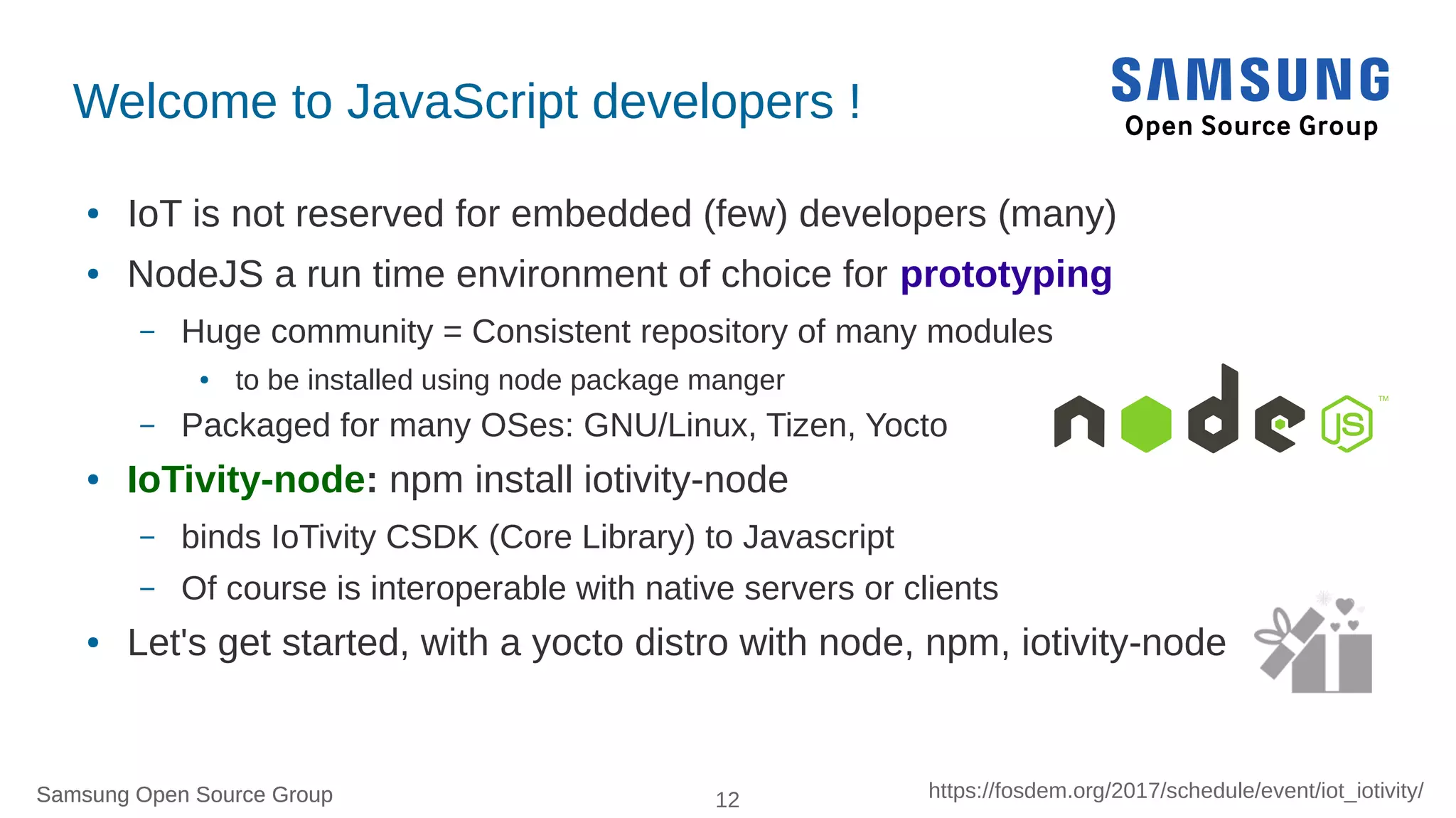

Samsung Open Source Group 12 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
Welcome to JavaScript developers !
● IoT is not reserved for embedded (few) developers (many)
● NodeJS a run time environment of choice for prototyping
– Huge community = Consistent repository of many modules
● to be installed using node package manger
– Packaged for many OSes: GNU/Linux, Tizen, Yocto
● IoTivity-node: npm install iotivity-node
– binds IoTivity CSDK (Core Library) to Javascript
– Of course is interoperable with native servers or clients
● Let's get started, with a yocto distro with node, npm, iotivity-node
Samsung Open Source Group 13 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

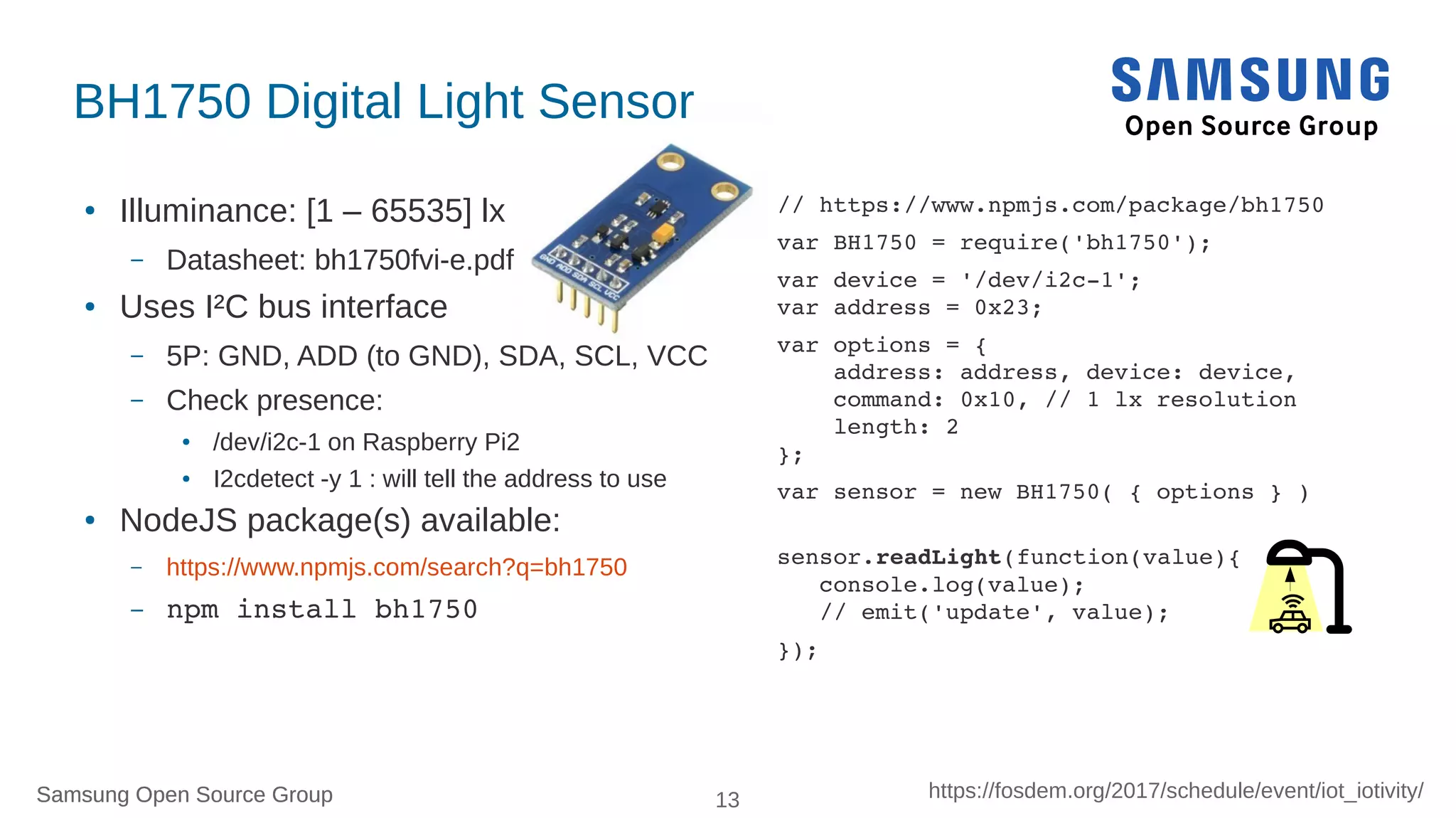

BH1750 Digital Light Sensor
● Illuminance: [1 – 65535] lx
– Datasheet: bh1750fvi-e.pdf
● Uses I²C bus interface
– 5P: GND, ADD (to GND), SDA, SCL, VCC
– Check presence:
● /dev/i2c-1 on Raspberry Pi2
● I2cdetect -y 1 : will tell the address to use
● NodeJS package(s) available:
– https://www.npmjs.com/search?q=bh1750
– npm install bh1750
// https://www.npmjs.com/package/bh1750
var BH1750 = require('bh1750');
var device = '/dev/i2c­1';
var address = 0x23;
var options = {
    address: address, device: device,
    command: 0x10, // 1 lx resolution
    length: 2
};
var sensor = new BH1750( { options } )
sensor.readLight(function(value){
   console.log(value);
   // emit('update', value);
});
Samsung Open Source Group 14 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

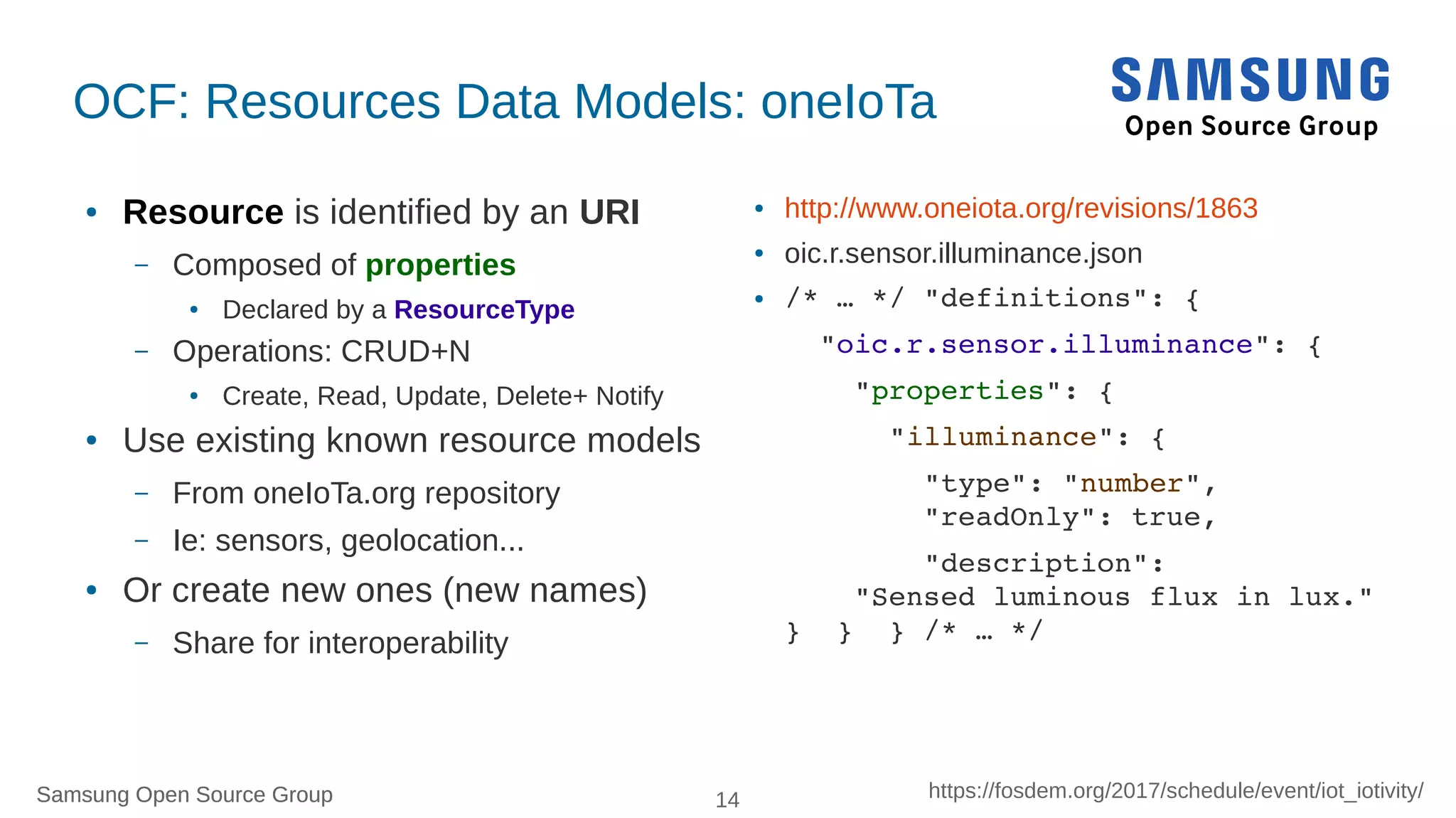

OCF: Resources Data Models: oneIoTa
● Resource is identified by an URI
– Composed of properties
● Declared by a ResourceType
– Operations: CRUD+N
● Create, Read, Update, Delete+ Notify
● Use existing known resource models
– From oneIoTa.org repository
– Ie: sensors, geolocation...
● Or create new ones (new names)
– Share for interoperability
● http://www.oneiota.org/revisions/1863
● oic.r.sensor.illuminance.json
● /* … */ "definitions": {
  "oic.r.sensor.illuminance": {
    "properties": {
      "illuminance": {
        "type": "number",
        "readOnly": true,
        "description":
    "Sensed luminous flux in lux."
}  }  } /* … */

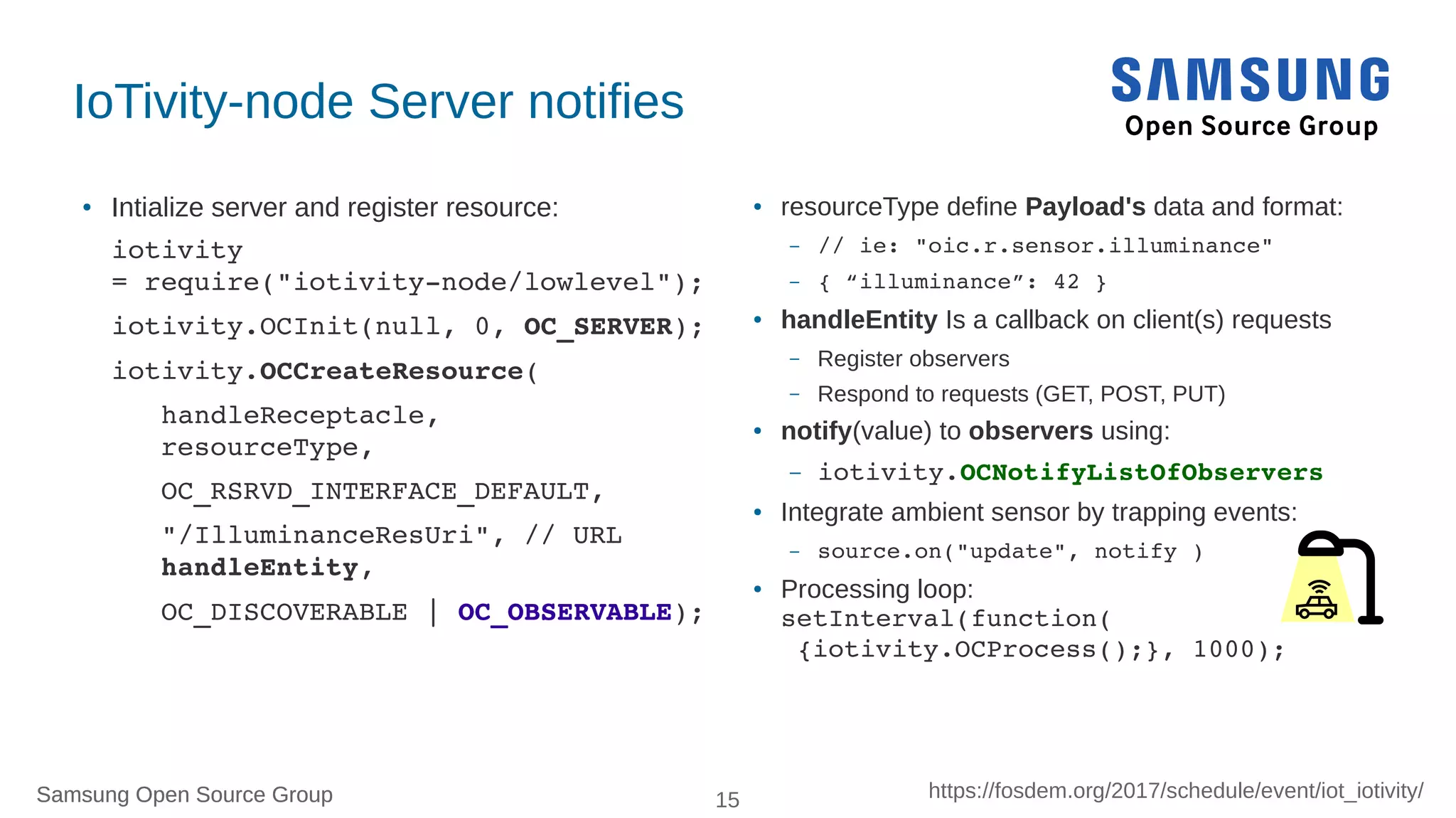

Samsung Open Source Group 15 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
IoTivity-node Server notifies
● Intialize server and register resource:
iotivity
= require("iotivity­node/lowlevel");
iotivity.OCInit(null, 0, OC_SERVER);
iotivity.OCCreateResource(
   handleReceptacle,
   resourceType,
   OC_RSRVD_INTERFACE_DEFAULT,
   "/IlluminanceResUri", // URL
   handleEntity,
   OC_DISCOVERABLE | OC_OBSERVABLE);
● resourceType define Payload's data and format:
– // ie: "oic.r.sensor.illuminance"
– { “illuminance”: 42 }
●
handleEntity Is a callback on client(s) requests
– Register observers
– Respond to requests (GET, POST, PUT)
● notify(value) to observers using:
– iotivity.OCNotifyListOfObservers
● Integrate ambient sensor by trapping events:
– source.on("update", notify )
● Processing loop:
setInterval(function(
 {iotivity.OCProcess();}, 1000);

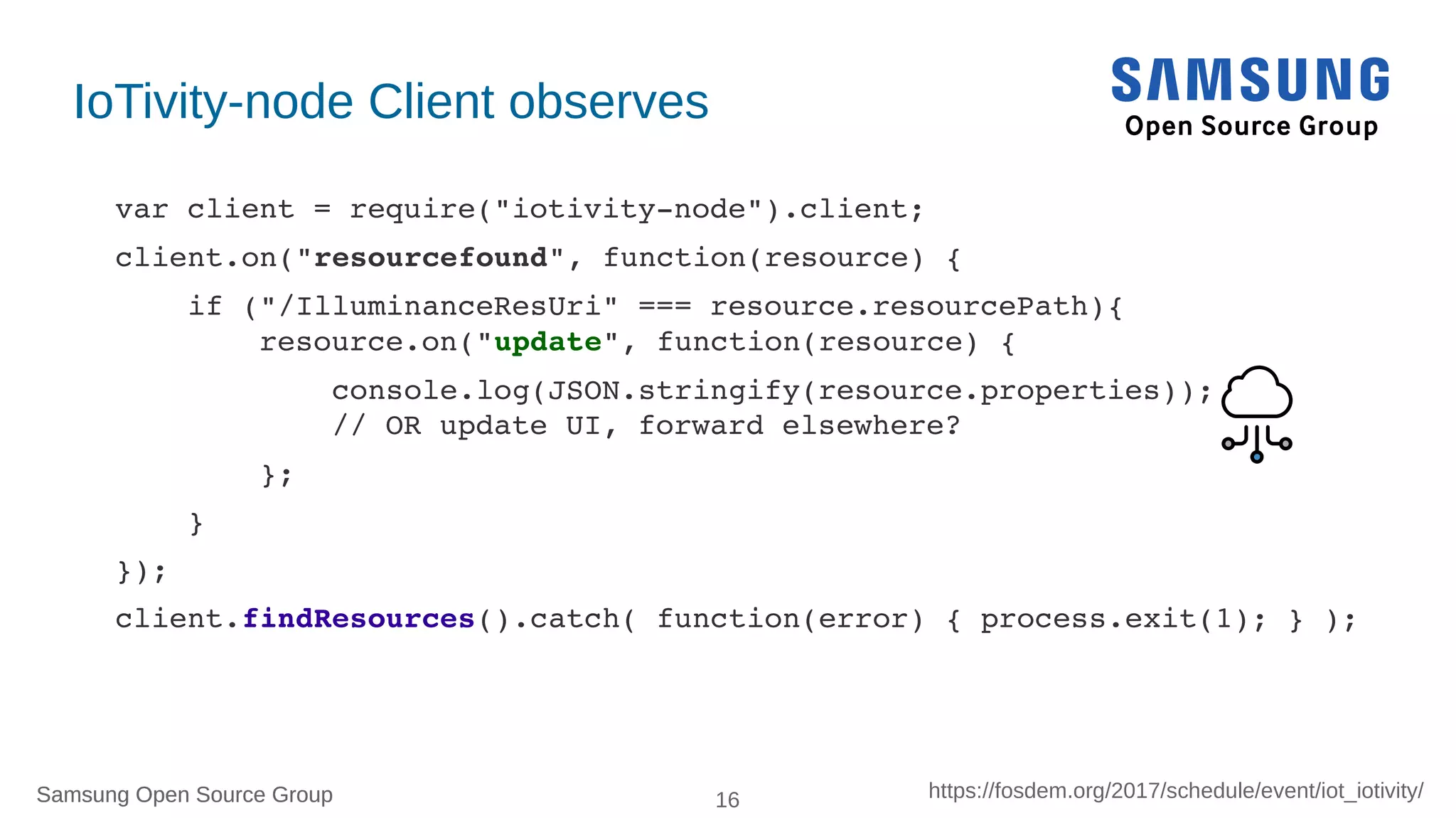

Samsung Open Source Group 16 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
IoTivity-node Client observes
var client = require("iotivity­node").client;
client.on("resourcefound", function(resource) {
    if ("/IlluminanceResUri" === resource.resourcePath){
        resource.on("update", function(resource) {
            console.log(JSON.stringify(resource.properties));
            // OR update UI, forward elsewhere?
        };
    }
});
client.findResources().catch( function(error) { process.exit(1); } );
Samsung Open Source Group 17 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

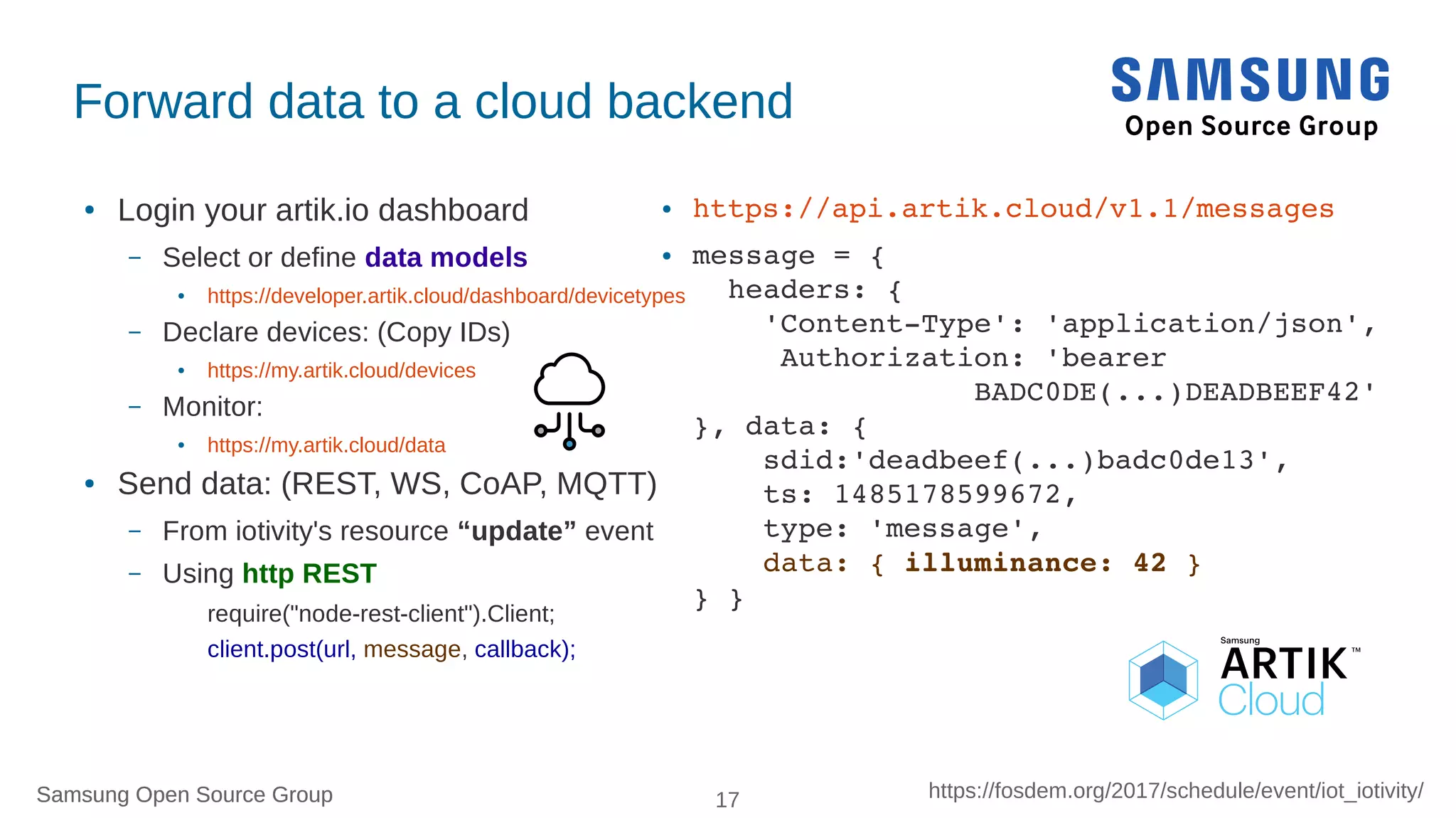

Forward data to a cloud backend
● Login your artik.io dashboard
– Select or define data models
● https://developer.artik.cloud/dashboard/devicetypes
– Declare devices: (Copy IDs)
● https://my.artik.cloud/devices
– Monitor:
● https://my.artik.cloud/data
● Send data: (REST, WS, CoAP, MQTT)
– From iotivity's resource “update” event
– Using http REST
require("node-rest-client").Client;
client.post(url, message, callback);
● https://api.artik.cloud/v1.1/messages
● message = {
  headers: {
    'Content­Type': 'application/json',
     Authorization: 'bearer
                BADC0DE(...)DEADBEEF42'
}, data: {
    sdid:'deadbeef(...)badc0de13',
    ts: 1485178599672,
    type: 'message',
    data: { illuminance: 42 }
} }
Samsung Open Source Group 18 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
/GeoLocationResURI
{
latitude: 52.165,
longitude: -2.21,
}
A Vehicle to Infrastructure notification service
function handle(illuminance) {
  if (gThreshold > illuminance) {
    var data= { illuminance: illuminance,
                latitude: gGeo.latitude, longitude: gGeo.longitude };
    sender.send(data); // { ARTIK's client.post(url...); }
} }
client.on("resourcefound", function(resource) {
  if ("/IlluminanceResURI" === resource.resourcePath) {
    resource.on("update", handle);
  } else if ("/GeolocationResURI" === resource.resourcePath) {
    resource.on("update",
      function(resource) { gGeo = resource.properties; });
} };
1
2
/IlluminanceResURI
{
illuminance: 42
}
https://api.artik.cloud/
{
illuminance: 42,
latitude: 52.165,
longitude: -2.21
}
3
1
Samsung Open Source Group 19
学无止境
There is no limits to knowledge

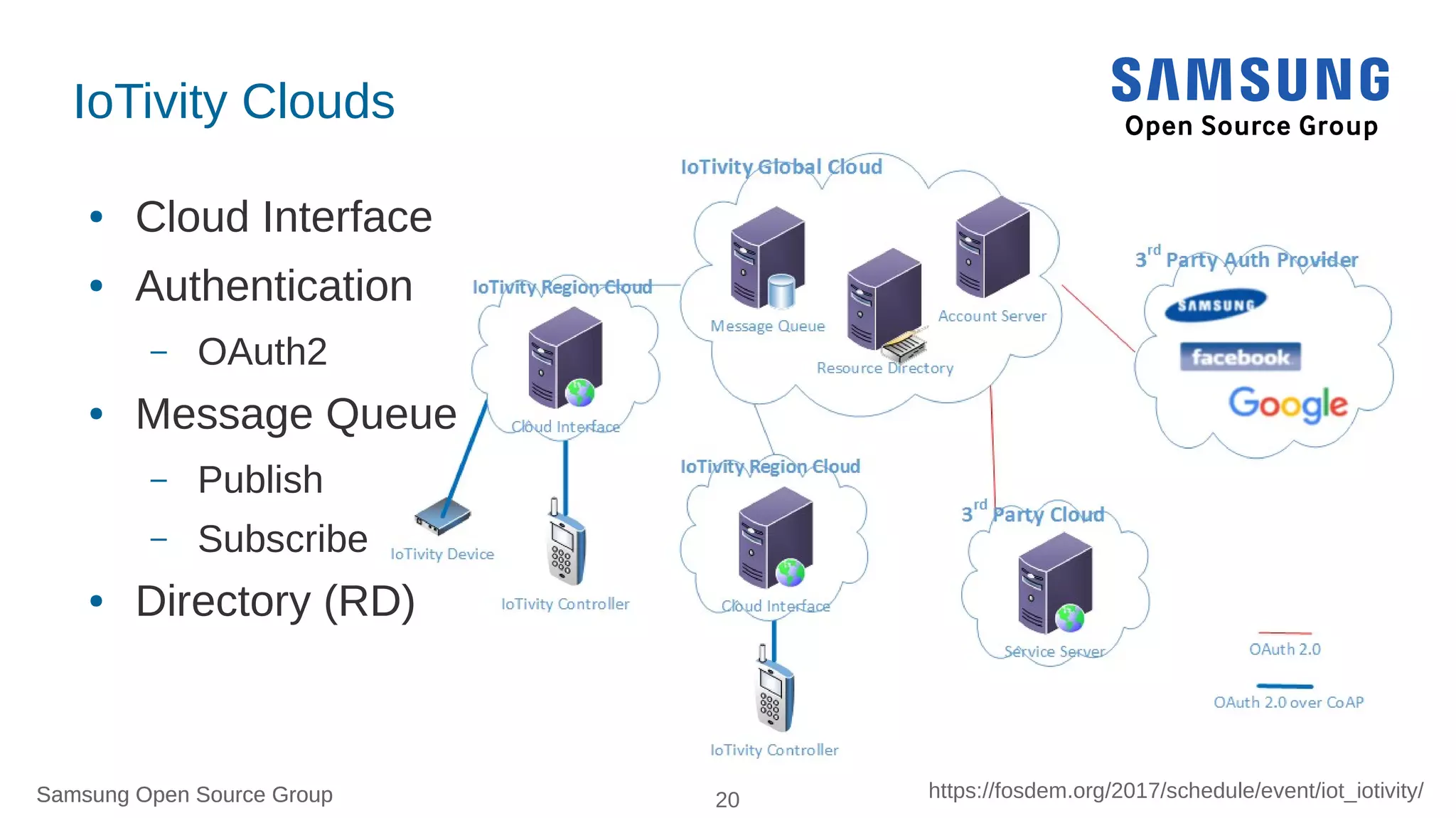

Samsung Open Source Group 20 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
IoTivity Clouds
● Cloud Interface
● Authentication
– OAuth2
● Message Queue
– Publish
– Subscribe
● Directory (RD)

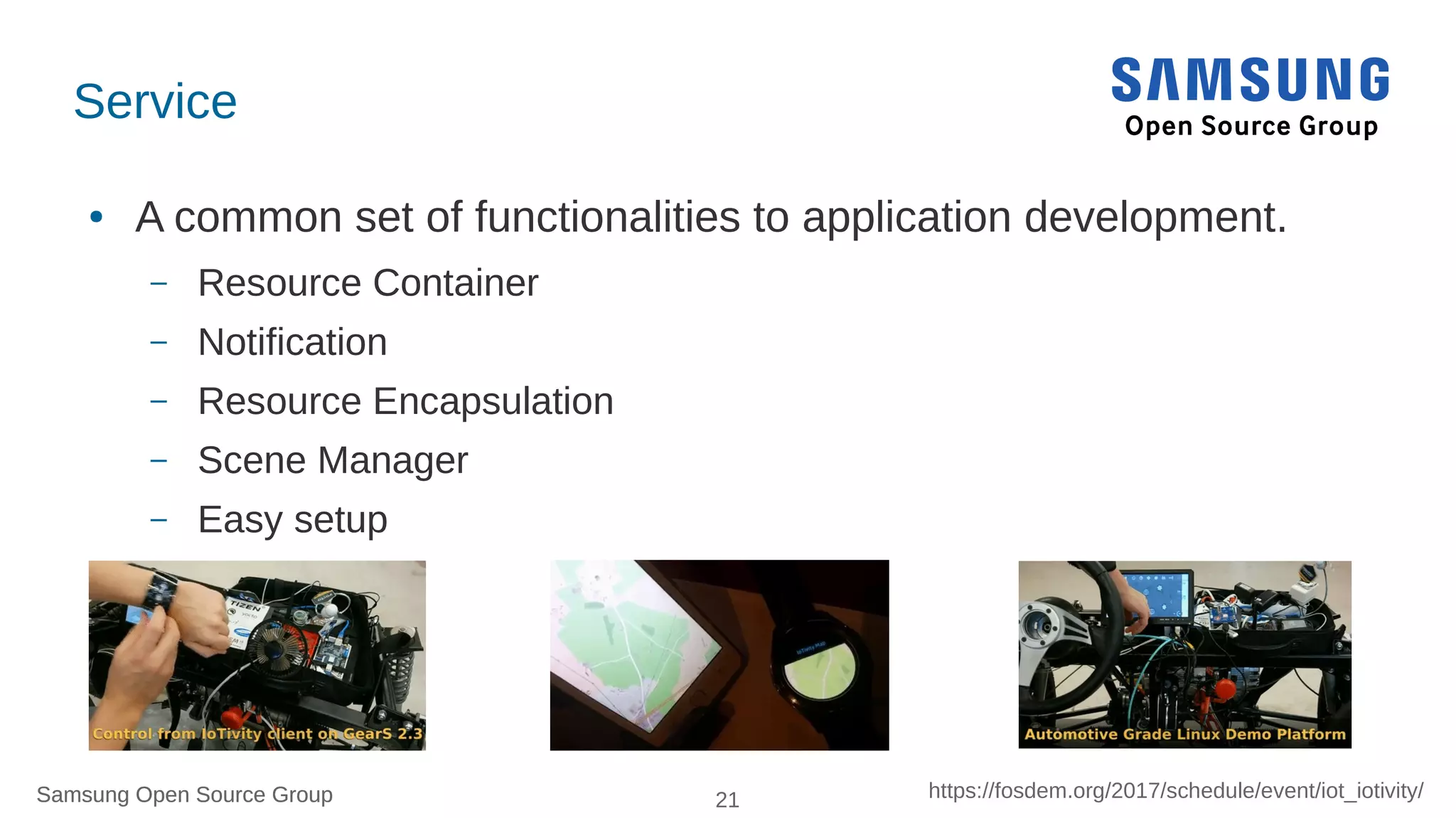

Samsung Open Source Group 21 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
IoTivity Services
● A common set of functionalities to application development.
– Resource Container
– Notification
– Resource Encapsulation
– Scene Manager
– Easy setup
–

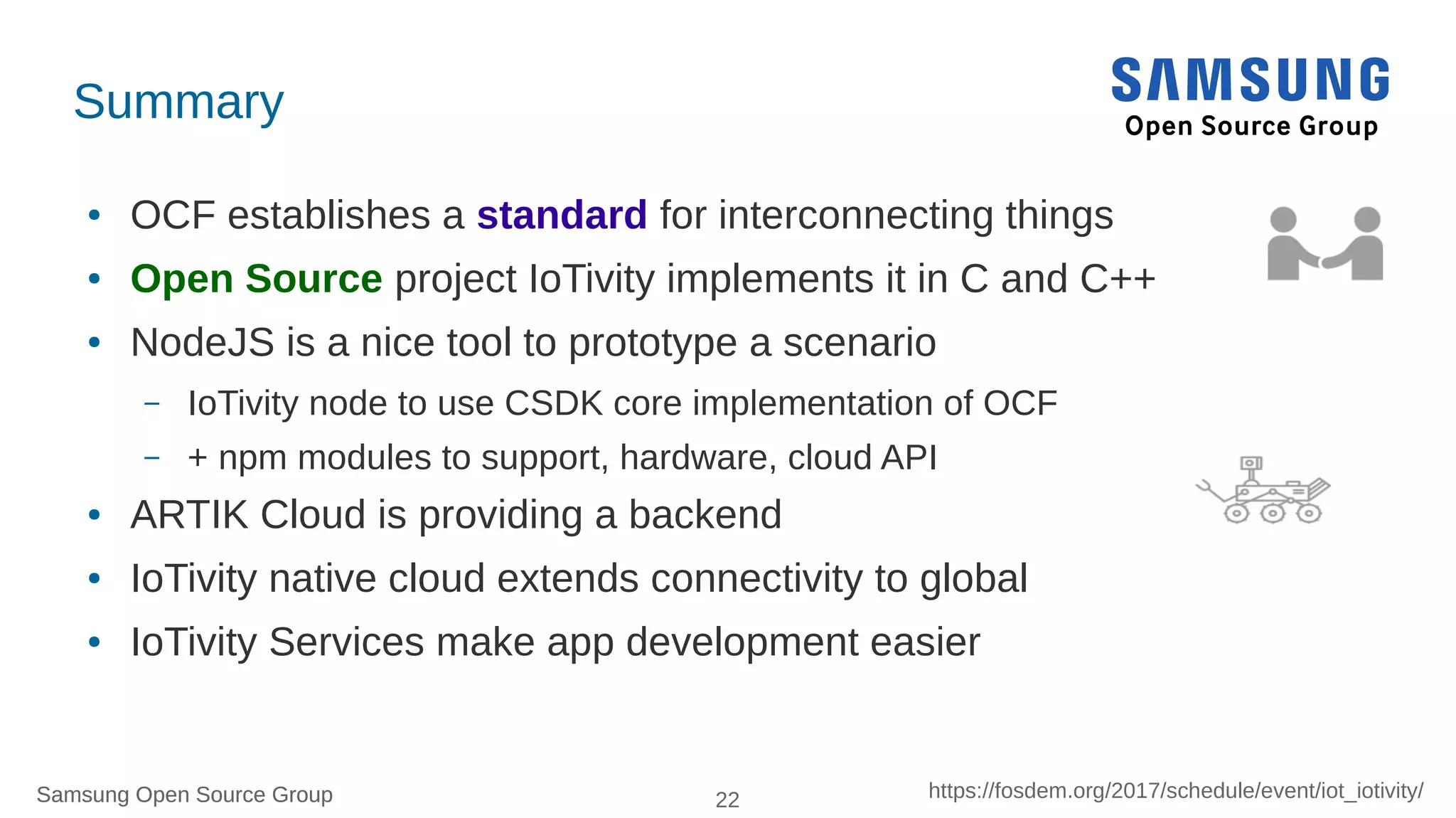

Samsung Open Source Group 22 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
Summary
● OCF establishes a standard for interconnecting things
● Open Source project IoTivity implements it in C and C++
● NodeJS is a nice tool to prototype a scenario
– IoTivity node to use CSDK core implementation of OCF
– + npm modules to support, hardware, cloud API
● ARTIK Cloud is providing a backend
● IoTivity native cloud extends connectivity to global
● IoTivity Service make app development easier
Samsung Open Source Group 23 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

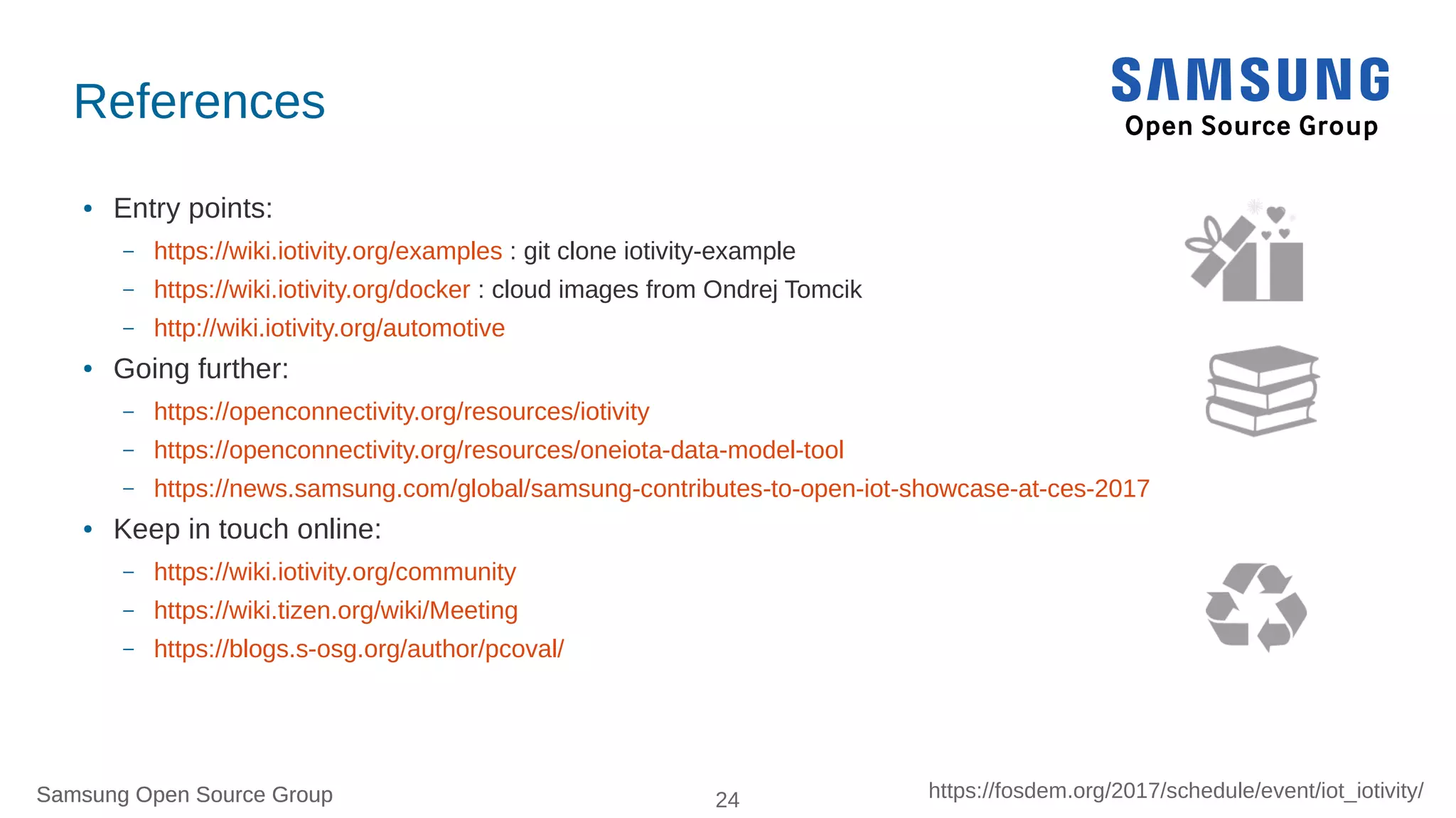

References
● Entry points:
– https://wiki.iotivity.org/examples : git clone iotivity-example
– https://wiki.iotivity.org/docker : cloud images from Ondrej Tomcik
– http://wiki.iotivity.org/automotive
● Going further:
– https://openconnectivity.org/resources/iotivity
– https://openconnectivity.org/resources/oneiota-data-model-tool
– https://news.samsung.com/global/samsung-contributes-to-open-iot-showcase-at-ces-2017
● Keep in touch online:
– https://wiki.iotivity.org/community
– https://wiki.tizen.org/wiki/Meeting
– https://blogs.s-osg.org/author/pcoval/
Samsung Open Source Group 24
Q&A or/and Extras ?
Samsung Open Source Group 25 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group

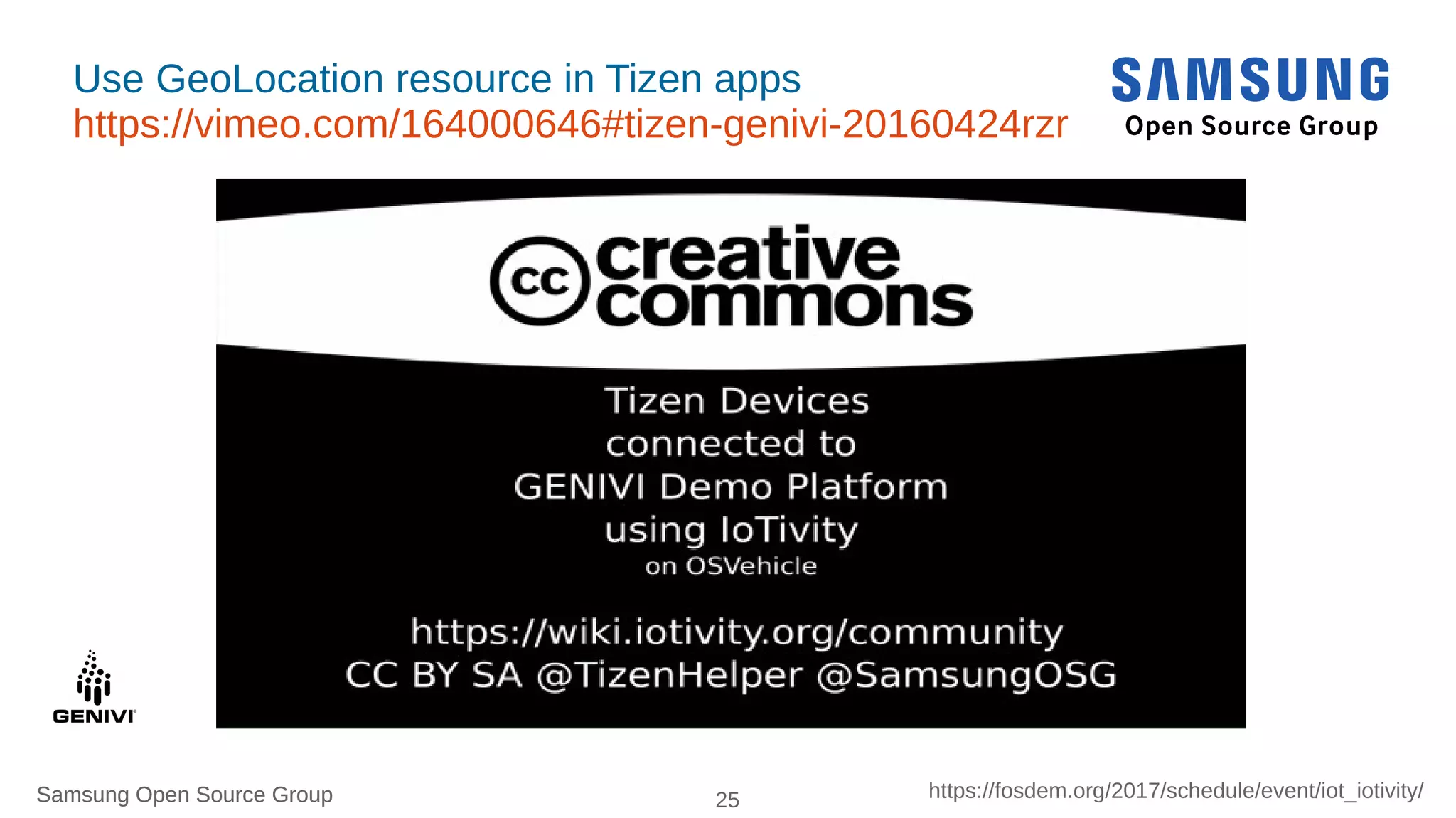

Use GeoLocation resource in Tizen apps
https://vimeo.com/164000646#tizen-genivi-20160424rzr
Samsung Open Source Group 26 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
CES2017: Smart Home & Automotive demos
https://youtu.be/3d0uZE6lHvo

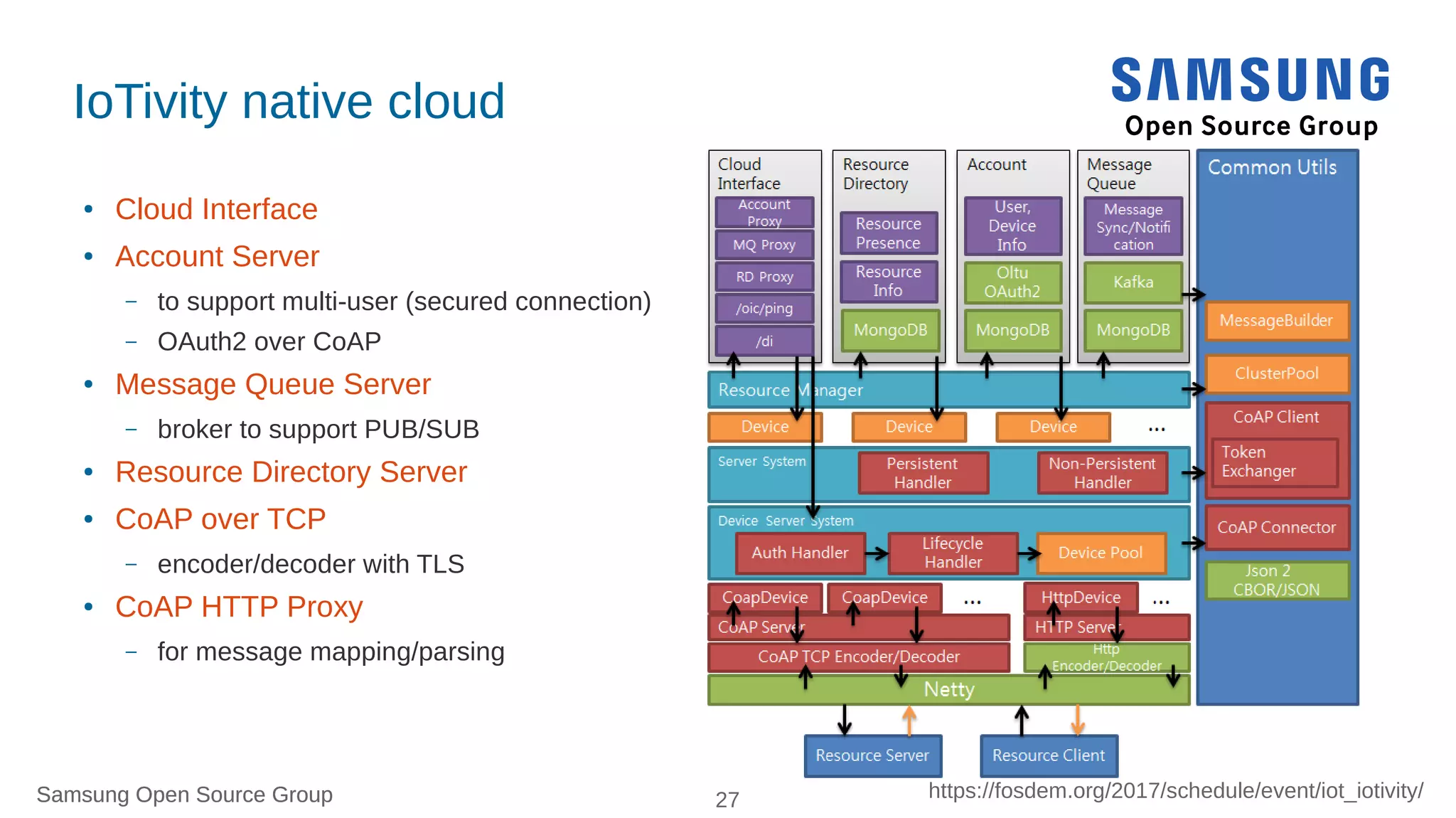

Samsung Open Source Group 27 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
IoTivity native cloud
● Cloud Interface
● Account Server
– to support multi-user (secured connection)
– OAuth2 over CoAP
● Message Queue Server
– broker to support PUB/SUB
● Resource Directory Server
● CoAP over TCP
– encoder/decoder with TLS
● CoAP HTTP Proxy
– for message mapping/parsing
Samsung Open Source Group 28 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group
Merci / 谢谢
Thanks / 고맙습니다
Samsung OSG, SRUK, SEF, SSI,
Open Connectivity Foundation and members, LinuxFoundation,
FLOSS Communities: Tizen, Yocto, EFL, AGL, GENIVI, eLinux,
Resources: xkcd.com, FlatIcons
(CC BY 3.0: Freepik,Scott de Jonge, Gregor Cresnar)
Tools: Libreoffice, openshot,
FOSDEM attendees & YOU !
Contact:
https://wiki.tizen.org/wiki/User:Pcoval

More Related Content

What's hot

MQTT IOT Protocol Introduction
MQTT IOT Protocol IntroductionMQTT IOT Protocol Introduction
MQTT IOT Protocol IntroductionPrem Sanil

Modbus introduction
Modbus introductionModbus introduction
Modbus introductionPrem Sanil

JAVA THREADS.pdf
JAVA THREADS.pdfJAVA THREADS.pdf
JAVA THREADS.pdfMohit Kumar

java.io - streams and files
java.io - streams and filesjava.io - streams and files
java.io - streams and filesMarcello Thiry

Protocols for IoT
Protocols for IoTProtocols for IoT
Protocols for IoTAmit Dev

LoRaWAN in Depth
LoRaWAN in DepthLoRaWAN in Depth
LoRaWAN in DepthAPNIC

CAN (Controller Area Network) Bus Protocol
CAN (Controller Area Network) Bus ProtocolCAN (Controller Area Network) Bus Protocol
CAN (Controller Area Network) Bus ProtocolAbhinaw Tiwari

[Advantech] PAC SW Multiprog Tutorial step by step
[Advantech] PAC SW Multiprog Tutorial step by step [Advantech] PAC SW Multiprog Tutorial step by step
[Advantech] PAC SW Multiprog Tutorial step by step Ming-Hung Hseih

IOT PROTOCOLS.pptx
IOT PROTOCOLS.pptxIOT PROTOCOLS.pptx
IOT PROTOCOLS.pptxDRREC

Network Function Virtualization : Overview
Network Function Virtualization : OverviewNetwork Function Virtualization : Overview
Network Function Virtualization : Overviewsidneel

Design challenges in embedded systems
Design challenges in embedded systemsDesign challenges in embedded systems
Design challenges in embedded systemsmahalakshmimalini

Java servlet life cycle - methods ppt
Java servlet life cycle - methods pptJava servlet life cycle - methods ppt
Java servlet life cycle - methods pptkamal kotecha


What's hot (20)

MQTT IOT Protocol Introduction
MQTT IOT Protocol IntroductionMQTT IOT Protocol Introduction
MQTT IOT Protocol Introduction

Introduction to spring boot
Introduction to spring bootIntroduction to spring boot
Introduction to spring boot

Modbus introduction
Modbus introductionModbus introduction
Modbus introduction

JAVA THREADS.pdf
JAVA THREADS.pdfJAVA THREADS.pdf
JAVA THREADS.pdf

java.io - streams and files
java.io - streams and filesjava.io - streams and files
java.io - streams and files

IoT Networking Part 2
IoT Networking Part 2IoT Networking Part 2
IoT Networking Part 2

RISC-V: The Open Era of Computing
RISC-V: The Open Era of ComputingRISC-V: The Open Era of Computing
RISC-V: The Open Era of Computing

IOT Networks
IOT NetworksIOT Networks
IOT Networks

Chapter 7
Chapter 7Chapter 7
Chapter 7

Protocols for IoT
Protocols for IoTProtocols for IoT
Protocols for IoT

LoRaWAN in Depth
LoRaWAN in DepthLoRaWAN in Depth
LoRaWAN in Depth

CAN (Controller Area Network) Bus Protocol
CAN (Controller Area Network) Bus ProtocolCAN (Controller Area Network) Bus Protocol
CAN (Controller Area Network) Bus Protocol

netconf and yang
netconf and yangnetconf and yang
netconf and yang

[Advantech] PAC SW Multiprog Tutorial step by step
[Advantech] PAC SW Multiprog Tutorial step by step [Advantech] PAC SW Multiprog Tutorial step by step
[Advantech] PAC SW Multiprog Tutorial step by step

CoAP - Web Protocol for IoT
CoAP - Web Protocol for IoTCoAP - Web Protocol for IoT
CoAP - Web Protocol for IoT

IOT PROTOCOLS.pptx
IOT PROTOCOLS.pptxIOT PROTOCOLS.pptx
IOT PROTOCOLS.pptx

Network Function Virtualization : Overview
Network Function Virtualization : OverviewNetwork Function Virtualization : Overview
Network Function Virtualization : Overview

Design challenges in embedded systems
Design challenges in embedded systemsDesign challenges in embedded systems
Design challenges in embedded systems

Jaxb
JaxbJaxb
Jaxb

Java servlet life cycle - methods ppt
Java servlet life cycle - methods pptJava servlet life cycle - methods ppt
Java servlet life cycle - methods ppt


Viewers also liked

IoTivity Tutorial: Prototyping IoT Devices on GNU/Linux
IoTivity Tutorial: Prototyping IoT Devices on GNU/LinuxIoTivity Tutorial: Prototyping IoT Devices on GNU/Linux
IoTivity Tutorial: Prototyping IoT Devices on GNU/LinuxSamsung Open Source Group

IoTivity for Automotive IoT Interoperability
IoTivity for Automotive IoT InteroperabilityIoTivity for Automotive IoT Interoperability
IoTivity for Automotive IoT InteroperabilitySamsung Open Source Group

IoT: From Arduino Microcontrollers to Tizen Products using IoTivity
IoT: From Arduino Microcontrollers to Tizen Products using IoTivityIoT: From Arduino Microcontrollers to Tizen Products using IoTivity
IoT: From Arduino Microcontrollers to Tizen Products using IoTivitySamsung Open Source Group

OCF/IoTivity for Healthcare/Fitness/Wearable
OCF/IoTivity for Healthcare/Fitness/WearableOCF/IoTivity for Healthcare/Fitness/Wearable
OCF/IoTivity for Healthcare/Fitness/WearableJonathan Jeon

JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...
JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...
JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...Samsung Open Source Group

Adding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux Device
Adding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux DeviceAdding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux Device
Adding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux DeviceSamsung Open Source Group

Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...
Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...
Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...Samsung Open Source Group

Introduction to AllJoyn
Introduction to AllJoynIntroduction to AllJoyn
Introduction to AllJoynAlex Gonzalez

Practical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under Linux
Practical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under LinuxPractical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under Linux
Practical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under LinuxSamsung Open Source Group

IoTivity 오픈소스 기술
IoTivity 오픈소스 기술IoTivity 오픈소스 기술
IoTivity 오픈소스 기술Wonsuk Lee

Async Http Client for Java and Scripting Language
Async Http Client for Java and Scripting LanguageAsync Http Client for Java and Scripting Language
Async Http Client for Java and Scripting Languagejfarcand

DTT OIC, OIP IoT platform
DTT OIC, OIP IoT platformDTT OIC, OIP IoT platform
DTT OIC, OIP IoT platformNguyen Trung

IoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devices
IoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devicesIoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devices
IoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devicesSamsung Open Source Group


Viewers also liked (20)

IoTivity Tutorial: Prototyping IoT Devices on GNU/Linux
IoTivity Tutorial: Prototyping IoT Devices on GNU/LinuxIoTivity Tutorial: Prototyping IoT Devices on GNU/Linux
IoTivity Tutorial: Prototyping IoT Devices on GNU/Linux

IoTivity for Automotive IoT Interoperability
IoTivity for Automotive IoT InteroperabilityIoTivity for Automotive IoT Interoperability
IoTivity for Automotive IoT Interoperability

IoT: From Arduino Microcontrollers to Tizen Products using IoTivity
IoT: From Arduino Microcontrollers to Tizen Products using IoTivityIoT: From Arduino Microcontrollers to Tizen Products using IoTivity
IoT: From Arduino Microcontrollers to Tizen Products using IoTivity

Tizen Connected with IoTivity
Tizen Connected with IoTivityTizen Connected with IoTivity
Tizen Connected with IoTivity

OCF/IoTivity for Healthcare/Fitness/Wearable
OCF/IoTivity for Healthcare/Fitness/WearableOCF/IoTivity for Healthcare/Fitness/Wearable
OCF/IoTivity for Healthcare/Fitness/Wearable

Development Boards for Tizen IoT
Development Boards for Tizen IoTDevelopment Boards for Tizen IoT
Development Boards for Tizen IoT

JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...
JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...
JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Thin...

Adding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux Device
Adding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux DeviceAdding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux Device
Adding IEEE 802.15.4 and 6LoWPAN to an Embedded Linux Device

IoTivity on Tizen: How to
IoTivity on Tizen: How toIoTivity on Tizen: How to
IoTivity on Tizen: How to

tdc2015-strategy-devel-20150916
tdc2015-strategy-devel-20150916tdc2015-strategy-devel-20150916
tdc2015-strategy-devel-20150916

tizen-upstream-coop-tdc2014-pcoval
tizen-upstream-coop-tdc2014-pcovaltizen-upstream-coop-tdc2014-pcoval
tizen-upstream-coop-tdc2014-pcoval

Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...
Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...
Connected Tizen: Bringing Tizen to Your Connected Devices Using the Yocto Pro...

Introduction to AllJoyn
Introduction to AllJoynIntroduction to AllJoyn
Introduction to AllJoyn

Toward "OCF Automotive" profile
Toward "OCF Automotive" profileToward "OCF Automotive" profile
Toward "OCF Automotive" profile

Practical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under Linux
Practical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under LinuxPractical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under Linux
Practical Guide to Run an IEEE 802.15.4 Network with 6LoWPAN Under Linux

Run Your Own 6LoWPAN Based IoT Network
Run Your Own 6LoWPAN Based IoT NetworkRun Your Own 6LoWPAN Based IoT Network
Run Your Own 6LoWPAN Based IoT Network

IoTivity 오픈소스 기술
IoTivity 오픈소스 기술IoTivity 오픈소스 기술
IoTivity 오픈소스 기술

Async Http Client for Java and Scripting Language
Async Http Client for Java and Scripting LanguageAsync Http Client for Java and Scripting Language
Async Http Client for Java and Scripting Language

DTT OIC, OIP IoT platform
DTT OIC, OIP IoT platformDTT OIC, OIP IoT platform
DTT OIC, OIP IoT platform

IoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devices
IoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devicesIoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devices
IoTivity Connects RVI from GENIVI's Develoment Platform to Tizen devices


Similar to IoTivity: From Devices to the Cloud

The complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, Paris
The complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, ParisThe complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, Paris
The complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, ParisOW2

The Complex IoT Equation (and FLOSS solutions)
The Complex IoT Equation (and FLOSS solutions)The Complex IoT Equation (and FLOSS solutions)
The Complex IoT Equation (and FLOSS solutions)Samsung Open Source Group

IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...
IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...
IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...WithTheBest

IoTivity for Automotive: meta-ocf-automotive tutorial
IoTivity for Automotive: meta-ocf-automotive tutorialIoTivity for Automotive: meta-ocf-automotive tutorial
IoTivity for Automotive: meta-ocf-automotive tutorialSamsung Open Source Group

webthing-iotjs-tizenrt-cdl2018-20181117rzr
webthing-iotjs-tizenrt-cdl2018-20181117rzrwebthing-iotjs-tizenrt-cdl2018-20181117rzr
webthing-iotjs-tizenrt-cdl2018-20181117rzrPhil www.rzr.online.fr

IPMI is dead, Long live Redfish
IPMI is dead, Long live RedfishIPMI is dead, Long live Redfish
IPMI is dead, Long live RedfishBruno Cornec

ONOS SDN-IP: Tutorial and Use Case for SDX
ONOS SDN-IP: Tutorial and Use Case for SDXONOS SDN-IP: Tutorial and Use Case for SDX
ONOS SDN-IP: Tutorial and Use Case for SDXAPNIC

Headless Android (Wearable DevCon 2014)
Headless Android (Wearable DevCon 2014)Headless Android (Wearable DevCon 2014)
Headless Android (Wearable DevCon 2014)Ron Munitz

Use open source software to develop ideas at work
Use open source software to develop ideas at workUse open source software to develop ideas at work
Use open source software to develop ideas at workSammy Fung

Create IoT with Open Source Hardware, Tizen and HTML5
Create IoT with Open Source Hardware, Tizen and HTML5Create IoT with Open Source Hardware, Tizen and HTML5
Create IoT with Open Source Hardware, Tizen and HTML5Leon Anavi

Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...
Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...
Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...Open Mobile Alliance

digital-twins-webthings-iotjs-20190512rzr
digital-twins-webthings-iotjs-20190512rzrdigital-twins-webthings-iotjs-20190512rzr
digital-twins-webthings-iotjs-20190512rzrPhil www.rzr.online.fr


Similar to IoTivity: From Devices to the Cloud (20)

Framework for IoT Interoperability
Framework for IoT InteroperabilityFramework for IoT Interoperability
Framework for IoT Interoperability

GENIVI + OCF Cooperation
GENIVI + OCF CooperationGENIVI + OCF Cooperation
GENIVI + OCF Cooperation

The complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, Paris
The complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, ParisThe complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, Paris
The complex IoT equation, and FLOSS solutions, OW2con'18, June 7-8, 2018, Paris

webthing-floss-iot-20180607rzr
webthing-floss-iot-20180607rzrwebthing-floss-iot-20180607rzr
webthing-floss-iot-20180607rzr

The Complex IoT Equation (and FLOSS solutions)
The Complex IoT Equation (and FLOSS solutions)The Complex IoT Equation (and FLOSS solutions)
The Complex IoT Equation (and FLOSS solutions)

Connected TIZEN
Connected TIZENConnected TIZEN
Connected TIZEN

Easy IoT with JavaScript
Easy IoT with JavaScriptEasy IoT with JavaScript
Easy IoT with JavaScript

IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...
IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...
IoT: From Arduino MicroControllers to Tizen Products Using IoTivity - Philipp...

IoTivity for Automotive: meta-ocf-automotive tutorial
IoTivity for Automotive: meta-ocf-automotive tutorialIoTivity for Automotive: meta-ocf-automotive tutorial
IoTivity for Automotive: meta-ocf-automotive tutorial

webthing-iotjs-tizenrt-cdl2018-20181117rzr
webthing-iotjs-tizenrt-cdl2018-20181117rzrwebthing-iotjs-tizenrt-cdl2018-20181117rzr
webthing-iotjs-tizenrt-cdl2018-20181117rzr

web-of-twins-20190604rzr
web-of-twins-20190604rzrweb-of-twins-20190604rzr
web-of-twins-20190604rzr

webthing-iotjs-20181027rzr
webthing-iotjs-20181027rzrwebthing-iotjs-20181027rzr
webthing-iotjs-20181027rzr

IPMI is dead, Long live Redfish
IPMI is dead, Long live RedfishIPMI is dead, Long live Redfish
IPMI is dead, Long live Redfish

ONOS SDN-IP: Tutorial and Use Case for SDX
ONOS SDN-IP: Tutorial and Use Case for SDXONOS SDN-IP: Tutorial and Use Case for SDX
ONOS SDN-IP: Tutorial and Use Case for SDX

Headless Android (Wearable DevCon 2014)
Headless Android (Wearable DevCon 2014)Headless Android (Wearable DevCon 2014)
Headless Android (Wearable DevCon 2014)

Use open source software to develop ideas at work
Use open source software to develop ideas at workUse open source software to develop ideas at work
Use open source software to develop ideas at work

Create IoT with Open Source Hardware, Tizen and HTML5
Create IoT with Open Source Hardware, Tizen and HTML5Create IoT with Open Source Hardware, Tizen and HTML5
Create IoT with Open Source Hardware, Tizen and HTML5

Introduction to NodeJS
Introduction to NodeJSIntroduction to NodeJS
Introduction to NodeJS

Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...
Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...
Enabling IoT Devices’ Hardware and Software Interoperability, IPSO Alliance (...

digital-twins-webthings-iotjs-20190512rzr
digital-twins-webthings-iotjs-20190512rzrdigital-twins-webthings-iotjs-20190512rzr
digital-twins-webthings-iotjs-20190512rzr


More from Samsung Open Source Group

More from Samsung Open Source Group (13)

Spawny: A New Approach to Logins
Spawny: A New Approach to LoginsSpawny: A New Approach to Logins
Spawny: A New Approach to Logins

Rapid SPi Device Driver Development over USB
Rapid SPi Device Driver Development over USBRapid SPi Device Driver Development over USB
Rapid SPi Device Driver Development over USB

Tizen RT: A Lightweight RTOS Platform for Low-End IoT Devices
Tizen RT: A Lightweight RTOS Platform for Low-End IoT DevicesTizen RT: A Lightweight RTOS Platform for Low-End IoT Devices
Tizen RT: A Lightweight RTOS Platform for Low-End IoT Devices

IoTivity: Smart Home to Automotive and Beyond
IoTivity: Smart Home to Automotive and BeyondIoTivity: Smart Home to Automotive and Beyond
IoTivity: Smart Home to Automotive and Beyond

Open Source Metrics to Inform Corporate Strategy
Open Source Metrics to Inform Corporate StrategyOpen Source Metrics to Inform Corporate Strategy
Open Source Metrics to Inform Corporate Strategy

SOSCON 2016 JerryScript
SOSCON 2016 JerryScriptSOSCON 2016 JerryScript
SOSCON 2016 JerryScript

JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Things
JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of ThingsJerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Things
JerryScript: An ultra-lighteweight JavaScript Engine for the Internet of Things

Clang: More than just a C/C++ Compiler
Clang: More than just a C/C++ CompilerClang: More than just a C/C++ Compiler
Clang: More than just a C/C++ Compiler

Introduction to Linux-wpan and Potential Collaboration
Introduction to Linux-wpan and Potential CollaborationIntroduction to Linux-wpan and Potential Collaboration
Introduction to Linux-wpan and Potential Collaboration

JerryScript on RIOT
JerryScript on RIOTJerryScript on RIOT
JerryScript on RIOT

OIC AGL Collaboration
OIC AGL CollaborationOIC AGL Collaboration
OIC AGL Collaboration

Introduction to IoT.JS
Introduction to IoT.JSIntroduction to IoT.JS
Introduction to IoT.JS

6LoWPAN: An Open IoT Networking Protocol
6LoWPAN: An Open IoT Networking Protocol6LoWPAN: An Open IoT Networking Protocol
6LoWPAN: An Open IoT Networking Protocol


Recently uploaded

Lessons Learned from Building a Serverless Notifications System.pdf
Lessons Learned from Building a Serverless Notifications System.pdfLessons Learned from Building a Serverless Notifications System.pdf
Lessons Learned from Building a Serverless Notifications System.pdfSrushith Repakula

Optimizing Operations by Aligning Resources with Strategic Objectives Using O...
Optimizing Operations by Aligning Resources with Strategic Objectives Using O...Optimizing Operations by Aligning Resources with Strategic Objectives Using O...
Optimizing Operations by Aligning Resources with Strategic Objectives Using O...OnePlan Solutions

Food Delivery Business App Development Guide 2024
Food Delivery Business App Development Guide 2024Food Delivery Business App Development Guide 2024
Food Delivery Business App Development Guide 2024Chirag Panchal

How to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabberHow to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabbereGrabber

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAShane Coughlan

Jax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckJax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckMarc Lester

OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024Shane Coughlan

Community is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea GouletCommunity is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea GouletAndrea Goulet

A Guideline to Zendesk to Re:amaze Data Migration
A Guideline to Zendesk to Re:amaze Data MigrationA Guideline to Zendesk to Re:amaze Data Migration
A Guideline to Zendesk to Re:amaze Data MigrationHelp Desk Migration

Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024Soroosh Khodami

IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024vaibhav130304

SQL Injection Introduction and Prevention
SQL Injection Introduction and PreventionSQL Injection Introduction and Prevention
SQL Injection Introduction and PreventionMohammed Fazuluddin

Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)Gáspár Nagy

StrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdf
StrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdfStrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdf
StrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdfsteffenkarlsson2

Workforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdfWorkforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdfDeskTrack

Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...
Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...
Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...Marko Lohert

Malaysia E-Invoice digital signature docpptx
Malaysia E-Invoice digital signature docpptxMalaysia E-Invoice digital signature docpptx
Malaysia E-Invoice digital signature docpptxMok TH

The Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test AutomationThe Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test AutomationElement34

Sourcing Success - How to Find a Clothing Manufacturer
Sourcing Success - How to Find a Clothing ManufacturerSourcing Success - How to Find a Clothing Manufacturer
Sourcing Success - How to Find a Clothing ManufacturerWave PLM


Recently uploaded (20)

Lessons Learned from Building a Serverless Notifications System.pdf
Lessons Learned from Building a Serverless Notifications System.pdfLessons Learned from Building a Serverless Notifications System.pdf
Lessons Learned from Building a Serverless Notifications System.pdf

Optimizing Operations by Aligning Resources with Strategic Objectives Using O...
Optimizing Operations by Aligning Resources with Strategic Objectives Using O...Optimizing Operations by Aligning Resources with Strategic Objectives Using O...
Optimizing Operations by Aligning Resources with Strategic Objectives Using O...

Food Delivery Business App Development Guide 2024
Food Delivery Business App Development Guide 2024Food Delivery Business App Development Guide 2024
Food Delivery Business App Development Guide 2024

How to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabberHow to install and activate eGrabber JobGrabber
How to install and activate eGrabber JobGrabber

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCA

Jax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckJax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined Deck

OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024OpenChain @ LF Japan Executive Briefing - May 2024
OpenChain @ LF Japan Executive Briefing - May 2024

Community is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea GouletCommunity is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea Goulet

A Guideline to Zendesk to Re:amaze Data Migration
A Guideline to Zendesk to Re:amaze Data MigrationA Guideline to Zendesk to Re:amaze Data Migration
A Guideline to Zendesk to Re:amaze Data Migration

Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024Secure Software Ecosystem Teqnation 2024
Secure Software Ecosystem Teqnation 2024

IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024IT Software Development Resume, Vaibhav jha 2024
IT Software Development Resume, Vaibhav jha 2024

SQL Injection Introduction and Prevention
SQL Injection Introduction and PreventionSQL Injection Introduction and Prevention
SQL Injection Introduction and Prevention

Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)
Tree in the Forest - Managing Details in BDD Scenarios (live2test 2024)

StrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdf
StrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdfStrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdf
StrimziCon 2024 - Transition to Apache Kafka on Kubernetes with Strimzi.pdf

Workforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdfWorkforce Efficiency with Employee Time Tracking Software.pdf
Workforce Efficiency with Employee Time Tracking Software.pdf

Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...
Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...
Reinforcement Learning – a Rewards Based Approach to Machine Learning - Marko...

Malaysia E-Invoice digital signature docpptx
Malaysia E-Invoice digital signature docpptxMalaysia E-Invoice digital signature docpptx
Malaysia E-Invoice digital signature docpptx

The Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test AutomationThe Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test Automation

5 Reasons Driving Warehouse Management Systems Demand
5 Reasons Driving Warehouse Management Systems Demand5 Reasons Driving Warehouse Management Systems Demand
5 Reasons Driving Warehouse Management Systems Demand

Sourcing Success - How to Find a Clothing Manufacturer
Sourcing Success - How to Find a Clothing ManufacturerSourcing Success - How to Find a Clothing Manufacturer
Sourcing Success - How to Find a Clothing Manufacturer


IoTivity: From Devices to the Cloud

  • 1. Samsung Open Source Group 1 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Philippe Coval + Ziran Sun Samsung Open Source Group / SRUK philippe.coval@osg.samsung.com ziran.sun@samsung.com From devices to cloud Free and Open Source Developers' European Meeting #FOSDEM, Brussels, Belgium <2017-02-04>
  • 2. Samsung Open Source Group 2 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Bonjour tout le monde ! ● We're software engineers from Samsung OSG ● Ask Philippe Coval for IoTivity, Tizen, Yocto, Automotive – About OS/hardware support, build & usages (English, French) – https://wiki.tizen.org/wiki/User:Pcoval ● Ask Ziran Sun for IoTivity, Web – About internal, cloud (English, Chinese) – https://fosdem.org/2016/schedule/speaker/ziran_sun/
  • 3. Samsung Open Source Group 3 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Agenda ● A Vehicle to Infrastructure IoT demonstration ● What is OCF/IoTivity ? ● Prototyping using NodeJS – Sensor monitoring – Notification to cloud ● More cloud facilities ● Q&A or/and extras ?
  • 4. Samsung Open Source Group 4 “Any sufficiently advanced technology is indistinguishable from magic.” ~ Arthur C. Clarke
  • 5. Samsung Open Source Group 5 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group How to track defectives street lights? ● 1: Measure if outside's lighting is too dark – Embedded sensor in car (demo: I²C sensor) ● 2: Get position from satellites (GPS, Galileo) – From: car, mobile or any (demo: simulated) ● 3: Send notice to Internet (Cloud) – Using mobile data – 4: Forward information to city services (pull or push) ● 5: Agent is assigned – 6: to fix defective light ● 7: he can also check “open data” base from his mobile ● ... 11 2 3 5 6 4 7
  • 6. Samsung Open Source Group 6 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group From devices to cloud AutoLinux demo https://vimeo.com/202478132#iotivity-artik-20170204rzr
  • 7. Samsung Open Source Group 7 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group “Simplicity is the ultimate sophistication.” ~Leonardo da Vinci
  • 8. Samsung Open Source Group 8 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Open Connectivity Foundation ● “Providing the software Linking the Internet of Things” – Creating a specification, based on open standards: ● Resource based, RESTful architecture (Stateless. client/server...) ● IETF, CoAP protocol (Web on UDP), CBOR (JSON in binary)... – Sponsoring an open source reference implementation (IoTivity) ● Join 190+ members to – Discuss specification, propose RFC – Test products in Plugfests & certify them – Propose new data models (OneIoTA.org)
  • 9. Samsung Open Source Group 9 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Flow: Create, Read, Update, Delete, Notify IoTivity Server IoTivity Client(s) Local IP Network Registration of resource Handling new requests Set/Get/ing properties values Initialization as server Initialization as client Handling new clients Discovery of resource POST/PUT GET UDP Multicast + CoAP Notify updated resource Observe resource change & Handling propertiesOBSERVE
  • 10. Samsung Open Source Group 10 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group IoTivity Framework for connecting devices ● Hardware: CPU, MCU, Desktop, SBC, Tizen devices ● OS: Many including Linux, Tizen, Yocto or baremetal... ● C API: Data transmission (flash footprint ~128KiB-) – Resource Model / Serialization (CBOR) – Connectivity Abstraction: CoAP, Local IP Network, BT, BLE... – Discovery (UDP, Multicast), Security (DTLS/TLS) ● C++ API – C++11 OOP, Provisioning Service... ● + High level services (Mostly C++) – Data/Device Management, Hosting, Encapsulation...
  • 11. Samsung Open Source Group 11 “Talk is cheap. Show me the code.” ~ Linus Torvalds
  • 12. Samsung Open Source Group 12 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Welcome to JavaScript developers ! ● IoT is not reserved for embedded (few) developers (many) ● NodeJS a run time environment of choice for prototyping – Huge community = Consistent repository of many modules ● to be installed using node package manger – Packaged for many OSes: GNU/Linux, Tizen, Yocto ● IoTivity-node: npm install iotivity-node – binds IoTivity CSDK (Core Library) to Javascript – Of course is interoperable with native servers or clients ● Let's get started, with a yocto distro with node, npm, iotivity-node
  • 13. Samsung Open Source Group 13 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group BH1750 Digital Light Sensor ● Illuminance: [1 – 65535] lx – Datasheet: bh1750fvi-e.pdf ● Uses I²C bus interface – 5P: GND, ADD (to GND), SDA, SCL, VCC – Check presence: ● /dev/i2c-1 on Raspberry Pi2 ● I2cdetect -y 1 : will tell the address to use ● NodeJS package(s) available: – https://www.npmjs.com/search?q=bh1750 – npm install bh1750 // https://www.npmjs.com/package/bh1750 var BH1750 = require('bh1750'); var device = '/dev/i2c­1'; var address = 0x23; var options = {      address: address, device: device,     command: 0x10, // 1 lx resolution     length: 2 }; var sensor = new BH1750( { options } ) sensor.readLight(function(value){    console.log(value);    // emit('update', value); });
  • 14. Samsung Open Source Group 14 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group OCF: Resources Data Models: oneIoTa ● Resource is identified by an URI – Composed of properties ● Declared by a ResourceType – Operations: CRUD+N ● Create, Read, Update, Delete+ Notify ● Use existing known resource models – From oneIoTa.org repository – Ie: sensors, geolocation... ● Or create new ones (new names) – Share for interoperability ● http://www.oneiota.org/revisions/1863 ● oic.r.sensor.illuminance.json ● /* … */ "definitions": {   "oic.r.sensor.illuminance": {     "properties": {       "illuminance": {         "type": "number",         "readOnly": true,         "description":     "Sensed luminous flux in lux." }  }  } /* … */
  • 15. Samsung Open Source Group 15 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group IoTivity-node Server notifies ● Intialize server and register resource: iotivity  = require("iotivity­node/lowlevel"); iotivity.OCInit(null, 0, OC_SERVER); iotivity.OCCreateResource(    handleReceptacle,    resourceType,    OC_RSRVD_INTERFACE_DEFAULT,    "/IlluminanceResUri", // URL    handleEntity,    OC_DISCOVERABLE | OC_OBSERVABLE); ● resourceType define Payload's data and format: – // ie: "oic.r.sensor.illuminance" – { “illuminance”: 42 }  ● handleEntity Is a callback on client(s) requests – Register observers – Respond to requests (GET, POST, PUT) ● notify(value) to observers using: – iotivity.OCNotifyListOfObservers ● Integrate ambient sensor by trapping events: – source.on("update", notify ) ● Processing loop: setInterval(function(  {iotivity.OCProcess();}, 1000);
  • 16. Samsung Open Source Group 16 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group IoTivity-node Client observes var client = require("iotivity­node").client; client.on("resourcefound", function(resource) {     if ("/IlluminanceResUri" === resource.resourcePath){         resource.on("update", function(resource) {             console.log(JSON.stringify(resource.properties));              // OR update UI, forward elsewhere?         };     } }); client.findResources().catch( function(error) { process.exit(1); } );
  • 17. Samsung Open Source Group 17 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Forward data to a cloud backend ● Login your artik.io dashboard – Select or define data models ● https://developer.artik.cloud/dashboard/devicetypes – Declare devices: (Copy IDs) ● https://my.artik.cloud/devices – Monitor: ● https://my.artik.cloud/data ● Send data: (REST, WS, CoAP, MQTT) – From iotivity's resource “update” event – Using http REST require("node-rest-client").Client; client.post(url, message, callback); ● https://api.artik.cloud/v1.1/messages ● message = {    headers: {     'Content­Type': 'application/json',       Authorization: 'bearer                  BADC0DE(...)DEADBEEF42' }, data: {     sdid:'deadbeef(...)badc0de13',     ts: 1485178599672,     type: 'message',     data: { illuminance: 42 }  } }
  • 18. Samsung Open Source Group 18 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group /GeoLocationResURI { latitude: 52.165, longitude: -2.21, } A Vehicle to Infrastructure notification service function handle(illuminance) {   if (gThreshold > illuminance) {     var data= { illuminance: illuminance,                 latitude: gGeo.latitude, longitude: gGeo.longitude };     sender.send(data); // { ARTIK's client.post(url...); } } } client.on("resourcefound", function(resource) {   if ("/IlluminanceResURI" === resource.resourcePath) {     resource.on("update", handle);   } else if ("/GeolocationResURI" === resource.resourcePath) {     resource.on("update",       function(resource) { gGeo = resource.properties; }); } }; 1 2 /IlluminanceResURI { illuminance: 42 } https://api.artik.cloud/ { illuminance: 42, latitude: 52.165, longitude: -2.21 } 3 1
  • 19. Samsung Open Source Group 19 学无止境 There is no limits to knowledge
  • 20. Samsung Open Source Group 20 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group IoTivity Clouds ● Cloud Interface ● Authentication – OAuth2 ● Message Queue – Publish – Subscribe ● Directory (RD)
  • 21. Samsung Open Source Group 21 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group IoTivity Services ● A common set of functionalities to application development. – Resource Container – Notification – Resource Encapsulation – Scene Manager – Easy setup –
  • 22. Samsung Open Source Group 22 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Summary ● OCF establishes a standard for interconnecting things ● Open Source project IoTivity implements it in C and C++ ● NodeJS is a nice tool to prototype a scenario – IoTivity node to use CSDK core implementation of OCF – + npm modules to support, hardware, cloud API ● ARTIK Cloud is providing a backend ● IoTivity native cloud extends connectivity to global ● IoTivity Service make app development easier
  • 23. Samsung Open Source Group 23 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group References ● Entry points: – https://wiki.iotivity.org/examples : git clone iotivity-example – https://wiki.iotivity.org/docker : cloud images from Ondrej Tomcik – http://wiki.iotivity.org/automotive ● Going further: – https://openconnectivity.org/resources/iotivity – https://openconnectivity.org/resources/oneiota-data-model-tool – https://news.samsung.com/global/samsung-contributes-to-open-iot-showcase-at-ces-2017 ● Keep in touch online: – https://wiki.iotivity.org/community – https://wiki.tizen.org/wiki/Meeting – https://blogs.s-osg.org/author/pcoval/
  • 24. Samsung Open Source Group 24 Q&A or/and Extras ?
  • 25. Samsung Open Source Group 25 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Use GeoLocation resource in Tizen apps https://vimeo.com/164000646#tizen-genivi-20160424rzr
  • 26. Samsung Open Source Group 26 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group CES2017: Smart Home & Automotive demos https://youtu.be/3d0uZE6lHvo
  • 27. Samsung Open Source Group 27 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group IoTivity native cloud ● Cloud Interface ● Account Server – to support multi-user (secured connection) – OAuth2 over CoAP ● Message Queue Server – broker to support PUB/SUB ● Resource Directory Server ● CoAP over TCP – encoder/decoder with TLS ● CoAP HTTP Proxy – for message mapping/parsing
  • 28. Samsung Open Source Group 28 https://fosdem.org/2017/schedule/event/iot_iotivity/Samsung Open Source Group Merci / 谢谢 Thanks / 고맙습니다 Samsung OSG, SRUK, SEF, SSI, Open Connectivity Foundation and members, LinuxFoundation, FLOSS Communities: Tizen, Yocto, EFL, AGL, GENIVI, eLinux, Resources: xkcd.com, FlatIcons (CC BY 3.0: Freepik,Scott de Jonge, Gregor Cresnar) Tools: Libreoffice, openshot, FOSDEM attendees & YOU ! Contact: https://wiki.tizen.org/wiki/User:Pcoval
