How does Apache DolphinScheduler (Incubator) support scheduling 100,000-level data tasks?
- 1. How does Apache DolphinScheduler (Incubator) support 100,000-level data task scheduling? Lidong Dai Apache DolphinScheduler PPMC & Committer

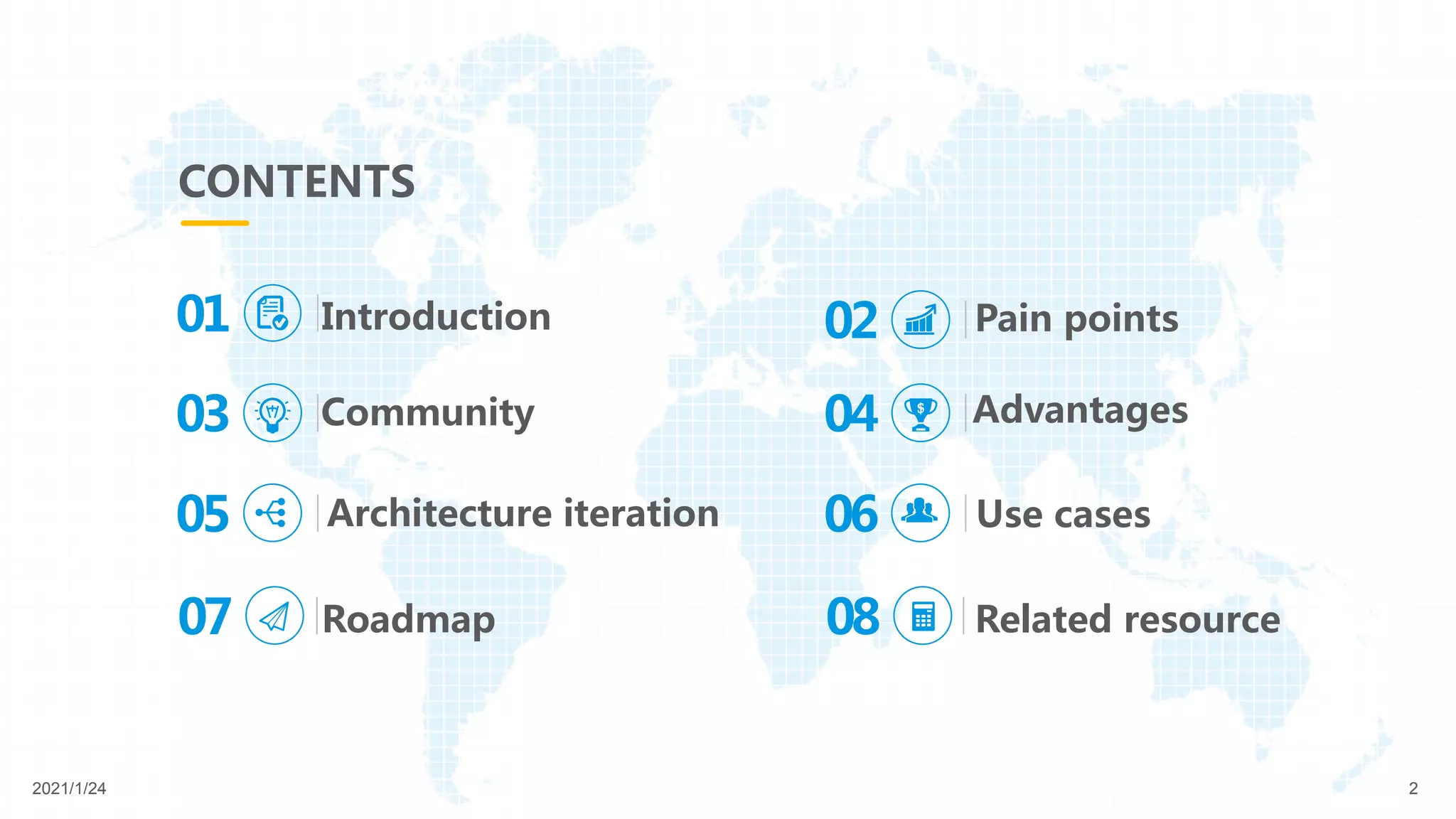

- 2. 2021/1/24 2 CONTENTS Introduction 01 Community 02 Architecture iteration 03 04 Advantages 05 Use cases 06 Roadmap 07 Related resource 08 Pain points
- 3. 2021/1/24 3 PART 1 DolphinScheduler Introduction
- 4. 4 Apache DolphinScheduler Introduction 1、Established in Analysys in 2017. 2、Open source in March 2019 and join Apache incubator in August. 3、Dedicated to solving the complex dependencies in data processing , it assembles Tasks in DAG, which can monitor the status of tasks in real time, and supports such operations as retrying, resuming from specified tasks, suspending and terminating tasks.
- 5. 2021/1/24 5 PART 2 Pain points
- 6. 6 Pain points Visual DAG Dependency High availability Alert mechanism 01 02 03 04 05 Simple and easy to operate View task status in real time Visual task log Workflow fault tolerance Failed retry, rollback, transfer Easy maintenance task self-dependency workflow dependency and so on Alert plugin：mail/sms/wechat… Warning Multi task types Cross language Custom task Plugin Easy to extend Complement re-fresh historical data 06
- 8. 8 Some user cases (no order)
- 9. 9 DolphinScheduler Community Construction Dmall Byte Dance Analysys Tencent JD Pingan HUAWEI MoMo Guan Data Alibaba FunPlus XiaoMi DiDi 10086 LiZhi Contributor company distribution 360 LY Community over code Code Contributor Document Contributor
- 11. 11 Advantages Simple and Easy High reliability Rich usage scenarios High scalability Decentralized multi-Master and multi- worker, self-supporting HA Task queue to avoid overload Fault-tolerant capability Process definitions are visualized through drag and drop Open API One-click deployment Support pause and resume operation. Support multi-tenancy Support more task types, such as spark, hive, mr, python, sub_process, shell Support custom task types Scheduling capacity grows linearly with the cluster Master and Worker support dynamic online and offline
- 12. 12 Main capabilities • Workflow can be timed, dependent, manual, pause/stop/resume • Tasks are associated in DAG form • Real-time monitoring of task status • Supports more than 10 task types such as Shell, MR, Spark, SQL, and dependency task type • Workflow priority, task priority, • global parameters and local parameters • Complete system monitoring, task overtime alarm/failure. • Supports multi-tenancy, online log viewing and resource online management • Supports stable operation of 100,000 data tasks per day • The decentralized design ensures the stability and high availability of the system
- 13. 13 Process definition visualized drag-and-drop configuration 1. Visualized drag-and-drop 2. Support multi data task type, includes Shell、DataSource、Spark、 Flink、MR、Python、Http， ChildProcess、and Task Dependency 3. Child Process • workflow building reuse, avoid repeated configuration,
- 14. 14 Visualization of workflow running process
- 15. 15 Visualize task rerun, retry and task execution
- 16. 16 Task management: multi-granularity monitoring of task status Tracking of task execution status Task status data statistics Process instance status view Task execution log online
- 17. 17 Data source management: visual configure multiple data source 1. Visualize Data sources include ：MySql、 PostgerSql、Hive、 Impala、Spark、 ClickHouse、Oracle、 SqlServer、DB2、 MongoDB. 2. Pluggable data source extension 3. Visualize data source management， Configure once, use everywhere.
- 18. 18 Workflow startup management Task failure strategy: 1. Continue 2. End Multi notification strategy 1. Success 2. Failure 3. All 4. None Workflow Priority Complement Data 1. Serial execution 2. Parallel execution
- 20. 20 DolphinScheduler 1.3 Feature – Datax Custom Template
- 21. 21 DolphinScheduler 1.3 Feature – Sqoop
- 22. 22 DolphinScheduler 1.3 Feature – Condition Task
- 23. 23 DolphinScheduler 1.3 Feature – Ambari Plugin
- 24. 24 DolphinScheduler 1.3 Feature – K8S Support Advantage: 1. Elastic scaling 2. Make full use of server resources 3. Environmental isolation Disadvantage: K8S maintenance experience Cloud native is the trend
- 25. 25 DolphinScheduler 1.3 Other Features Batch export and import workflow Process definition copy Delete process instance cascade delete task log Simplify configuration and optimize deployment experience
- 26. 2021/1/24 26 PART 5 Architecture iteration 2021/1/24 26
- 27. 27 DolphinScheduler 1.3 New Architecture Reduce the pressure on the database • Worker remove DB operation, Single responsibility • Master and Worker communicate directly to reduce latency • Master multi strategy to distribute tasks - Random, round-robin and linear maximum base on CPU & Memory
- 29. 29 Experience: Priority no priority design and fair scheduling design: • The task submitted first may be completed at the same time as the task submitted later • Low-priority services run first, occupying resources and not releasing Question： Solution： different process priority > process instance sequence > task instance priority > task instance sequence default: FIFO
- 30. 30 Experience: Task Dependency task dependency, task dependency check such as day process A depends on hour process B last day
- 31. 31 Experience: Data component integration Current more than 10 task types may not meet the business demand data sync task kettle task data quality ... SQL task procedure task business task Solution： task plugin hot pluggable
- 32. 2021/1/24 32 PART 6 Use cases 2021/1/24 32
- 33. 33 Practice of DolphinScheduler in Analysys • Analysys Qianfan is an App benchmarking analysis product. • Qianfan is a SaaS service app that needs to process tens of billions of data every day, 620 million monthly activities, and 6.8 PB of big data clusters through tens of thousands of ETL tasks processing every day. • In 2018, we started to use DolphinScheduler to schedule the entire ETL process. • The picture on the right is one of the workflows
- 34. 34 Practice of DolphinScheduler in Baosight Extensions implemented by Baosight: • Plugin type task • Resource cache • SQL function extension • Message triggered scheduling • Multiple data source access • Workflow concurrency control • Operation audit • Alert optimization • Configuration management • Access control • Operational data archiving
- 35. 35 Practice of DolphinScheduler in Qianxin 3 2 1 6 7 8 4 5 9 Online manage resource files don't worry about losing the jar Cluster high availability decentralization Support multi-tenant we can't use the same account Privilege management can only access authorized projects and resources Complex scheduling cron、dependent、manual scheduling Multi task types Visualization Distributed & easy to extend no single point of issue insufficient resources need extend spark、shell、mr、hive python… drag and drop to generate DAG Workflow Task failure retry/alarm retry times? interval? email? Why DolphinScheduler ？
- 37. 37 DolphinScheduler Roadmap Draft • Master refactor: api communicate with master, event-driven, etc. • Task parameter transfer • Task Plugin (doing) • Concurrency control of tasks • Workflow trigger • Data quality • List dependency (upstream dependency) • Support multi-cluster online release • Workflow version management • Permission redesign • Easy to use If you have more suggestions for Roadmap, please disscuss in dev mailing list
- 38. 38 Open source history 2017.12 2018.05 2019.02 2019.03 2019.05 2019.08 External seed users officially open sourced on March 30th - 1.0.0 Decided to open source cost 2 months refactoring Internal use qianfan product use DolphinScheduler Architecture design Enter apache incubator Release Version 1.0.1、1.0.2、1.0.3 First Apache Version 1.2.0 2019.12 … 1.3.2
- 39. 39 DolphinScheduler Slogan SUCCESS Choice good tools Use right scheduler Sleep very well Go home early z
- 41. 41 Online DEMO: http://106.75.43.194:8888/ website：https://dolphinscheduler.apache.org github ： https://github.com/apache/incubator-dolphinscheduler get help: Submit an issue Mail to dev-subscribe@dolphinscheduler.apache.org, follow the reply to subscribe the mail list. DolphinScheduler Resources Welcome to join the community. Joining open source starts from submitting the first PR. - try to find the “easy to fix” mark or some very easy issue, submit PR
