1. A FULL GUIDE
HOW DO BARCODES
WORK?
WELCOME
BARCODELIVE.ORG
BARCODELIVE

2. TABLE OF CONTENT
02/18
BARCODELIVE
What Is A Barcode?
Who Invented Barcodes?
How Do Barcodes Work?
What Do The Numbers On A Barcode Mean?
What Does A Barcode Do?
Barcoding Systems For Companies
BARCODELIVE.ORG

3. WHAT IS A BARCODE?
03/16
BARCODELIVE.ORG
BARCODELIVE
A barcode is a printed pattern of
parallel lines with various widths
and numbers & is used to identify
products

4. 2 TYPES OF BARCODE
04/16
BARCODELIVE.ORG
1 dimensional barcode
(1D)
2 dimensional barcode
(2D)
BARCODELIVE

5. WHO INVENTED
BARCODES?
05/16
BARCODELIVE.ORG
NORMAN
JOSEPH
WOODLAND
BERNARD
SILVER
BARCODELIVE

6. Woodland &
Silver invented
barcode but
failed (1948)
BARCODE HISTORY
They
abandoned
UV ink used in
the first
prototype
They devised a
form based on
Morse code
syntax
They received a
patent for
invention (1952)
BARCODELIVE
06/16
BARCODELIVE.ORG

7. 07/16
BARCODELIVE.ORG
HOW DO BARCODES
WORK?
A barcode is a means to put information
into a pattern that a barcode scanner
can read visually using black lines &
white gaps.
BARCODELIVE

8. 08/16
BARCODELIVE.ORG
These black & white bars can be
scanned by a barcode scanner &
converted into a line of text that can
be read by your retail point of sale
system
BARCODELIVE

9. 09/16
BARCODELIVE.ORG
WHAT DO THE
NUMBERS ON A
BARCODE MEAN?
Note: Most barcodes
show a twelve-digit
number
BARCODELIVE

10. 10/16
BARCODELIVE.ORG
BARCODE NUMBER MEANING
Type of product
The manufacturing code
The product code
The check digit
(First number) (Next 5 numbers on the right)
(Next 5 numbers) (Last number)
BARCODELIVE

11. 11/16
BARCODELIVE.ORG
Type of
product
Check
digit
Manufacturing
code
Product code
BARCODELIVE

12. 12/16
BARCODELIVE.ORG

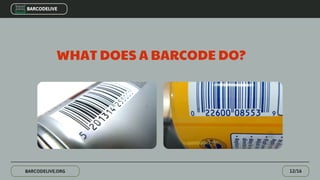

WHAT DOES A BARCODE DO?
BARCODELIVE

13. BARCODE BENEFITS
13/16
BARCODELIVE.ORG
Using a barcode is
an efficient way to
enter numerical
data
Using a barcode
helps simplify &
speed up processes
Using a barcode
helps identify
products
BARCODELIVE

14. 14/16
BARCODELIVE.ORG
BARCODING
SYSTEMS FOR
COMPANIES
BARCODELIVE

15. 15/16
BARCODELIVE.ORG
Barcodes are essential for businesses in
the delivery and monitoring of goods.
Barcoding in inventory management is
applied significantly as a barcode can
count the items that are stored
BARCODELIVE
