Hot Disaster Recovery Using Zerto
This document summarizes Disaster Recovery services from Datacomm using Zerto's virtual replication technology. Key points include: - Datacomm offers DR services hosted in Jakarta and Bandung data centers with 99.9% availability SLA and up to zero data loss protection. - Zerto's block-level replication technology allows for real-time data protection of both physical and virtual systems with checkpoints in seconds, and recovery of individual VMs or entire application groups. - Consistency groups ensure related VMs and applications are recovered together at the same recovery point, improving scalability and recoverability compared to individual VM recovery. - Customers can test disaster recovery with isolated VMs on demand without
More Related Content
Similar to Hot Disaster Recovery Using Zerto
More from PT Datacomm Diangraha
Hot Disaster Recovery Using Zerto
- 1. Hot Disaster RecoveryUsing Zerto Gilang Ginanjar, PreSales Team Lead
- 2. How About Your DisasterPlanning • How about Your Data Center? • On Premise or On Cloud? • Are You Prepare for Disaster? 2

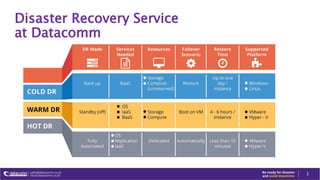

- 3. Disaster Recovery Service atDatacomm 3

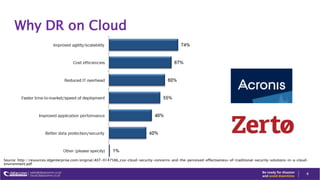

- 4. Why DR onCloud 4 Source: http://resources.idgenterprise.com/original/AST-0147586_cso-cloud-security-concerns-and-the-perceived-effectiveness-of-traditional-security-solutions-in-a-cloud- environment.pdf

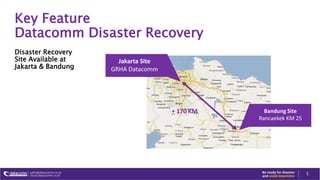

- 5. Key Feature Datacomm DisasterRecovery 5 Disaster Recovery Site Available at Jakarta & Bandung Jakarta Site GRHA Datacomm Bandung Site Rancaekek KM 25 + 170 KM

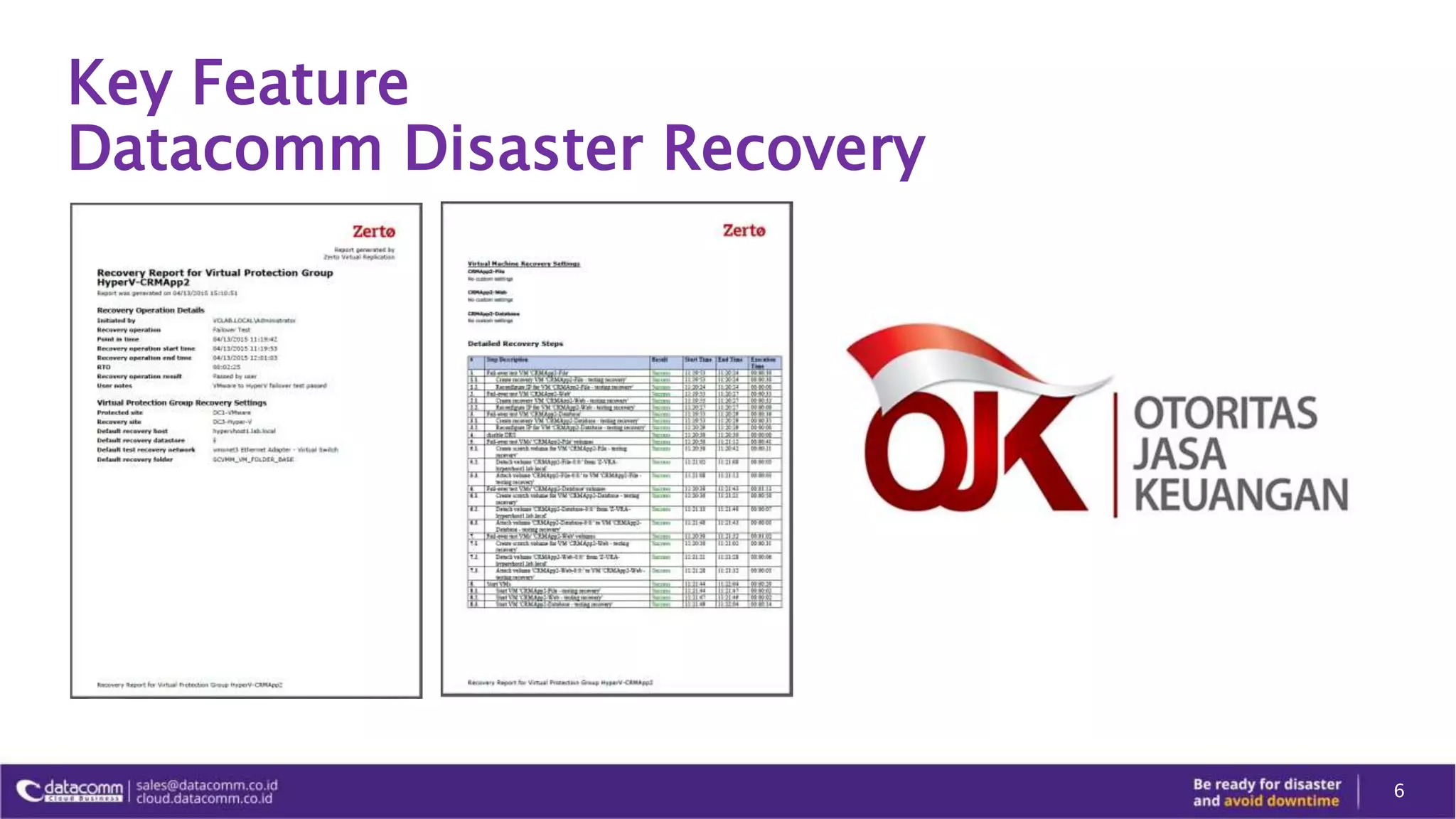

- 6. Key Feature Datacomm DisasterRecovery 6

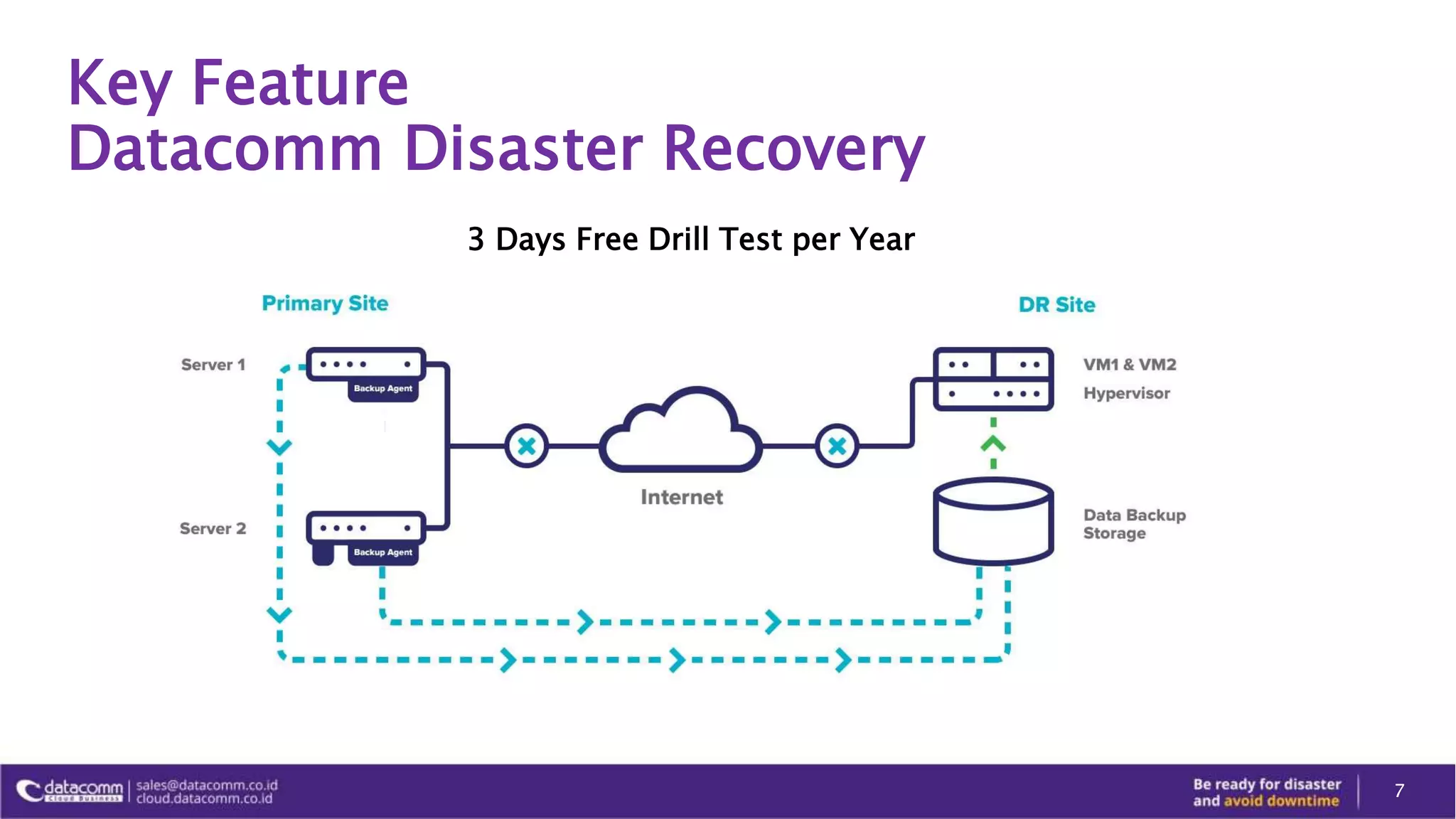

- 7. Key Feature Datacomm DisasterRecovery 7 3 Days Free Drill Test per Year

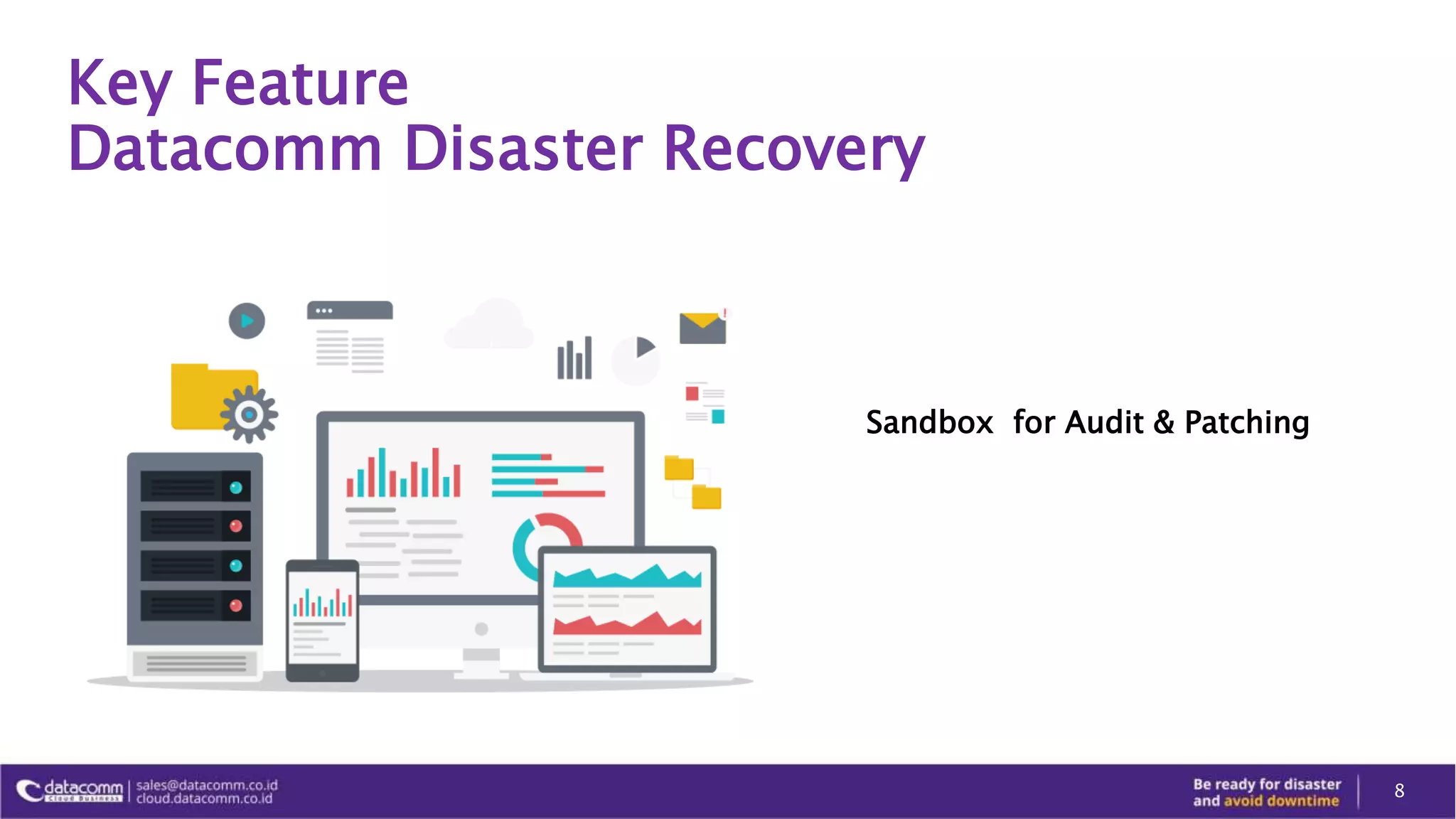

- 8. Key Feature Datacomm DisasterRecovery 8 Sandbox for Audit & Patching

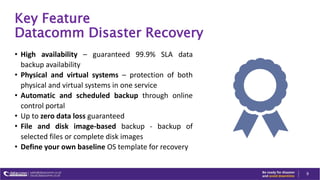

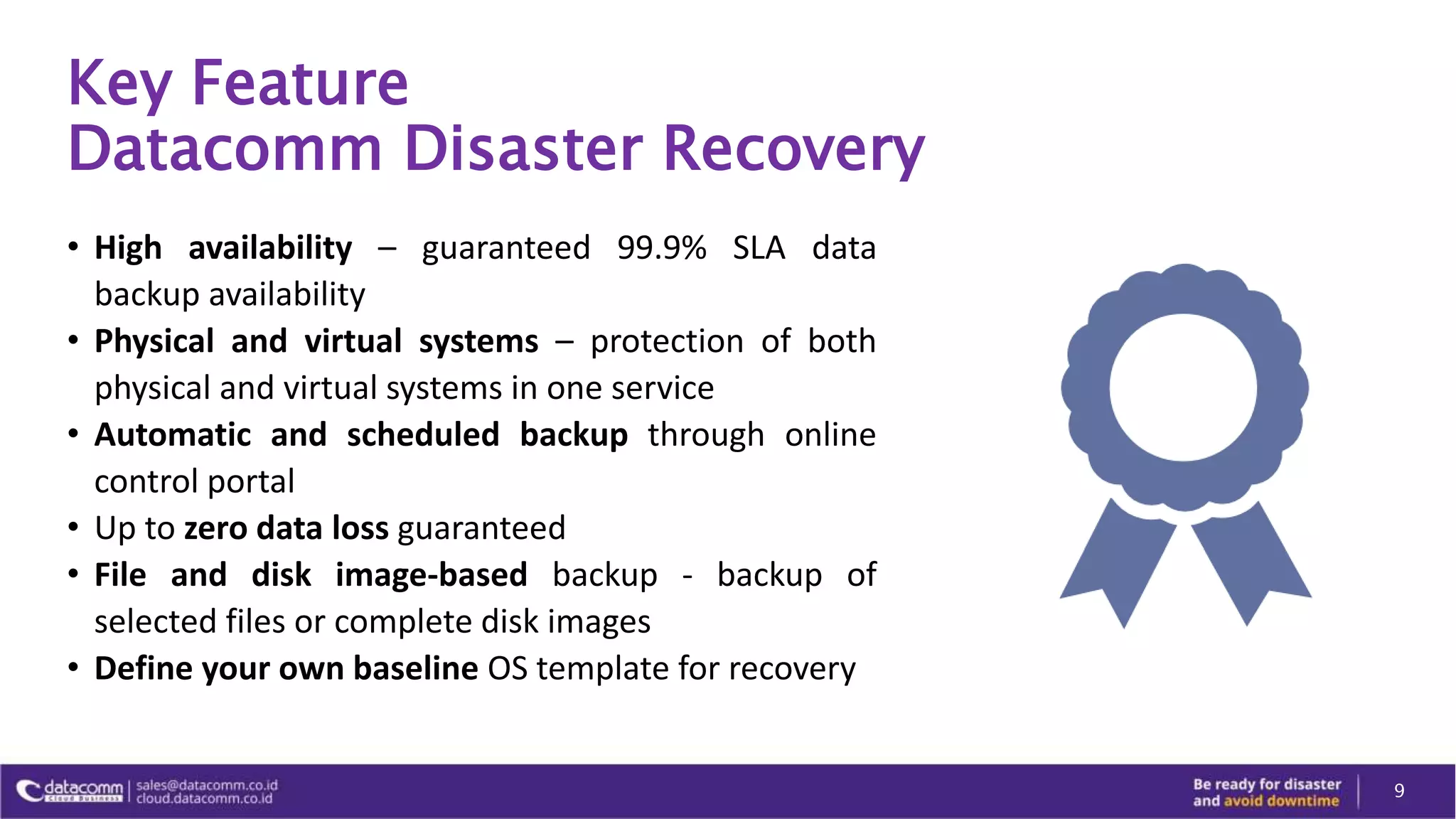

- 9. Key Feature Datacomm DisasterRecovery • High availability – guaranteed 99.9% SLA data backup availability • Physical and virtual systems – protection of both physical and virtual systems in one service • Automatic and scheduled backup through online control portal • Up to zero data loss guaranteed • File and disk image-based backup - backup of selected files or complete disk images • Define your own baseline OS template for recovery 9

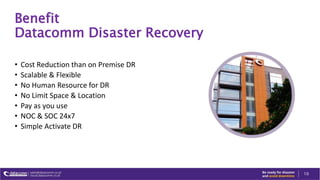

- 10. Benefit Datacomm Disaster Recovery •Cost Reduction than on Premise DR • Scalable & Flexible • No Human Resource for DR • No Limit Space & Location • Pay as you use • NOC & SOC 24x7 • Simple Activate DR 10

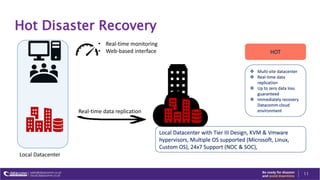

- 11. Hot Disaster Recovery 11 LocalDatacenter Real-time data replication • Real-time monitoring • Web-based interface Local Datacenter with Tier III Design, KVM & Vmware hypervisors, Multiple OS supported (Microsoft, Linux, Custom OS), 24x7 Support (NOC & SOC), HOT Multi-site datacenter Real-time data replication Up to zero data loss guaranteed Immediately recovery Datacomm cloud environment

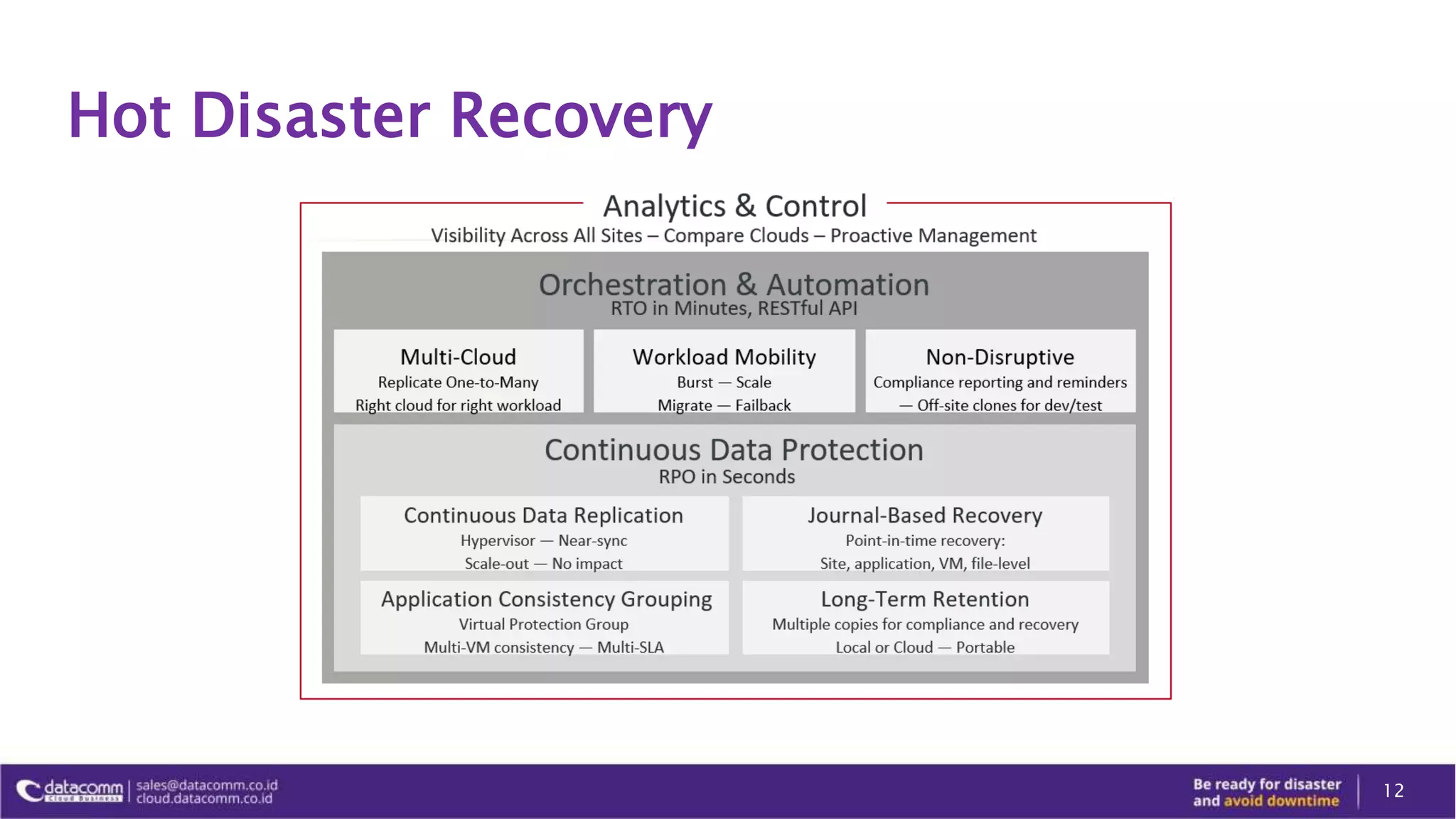

- 12.
- 13. Block-Level Replication 13 VM VRA VRA BC/DRSiteProduction Site vCenter VM-Level Replication Simple deployment No downtime install in minutes No impact protection and testing Block-level, no snapshots, no agents Powerful and resilient Scale-out, compression, throttling Continuous Data Protection Checkpoints in seconds, recover any-to-any vCenter VRAVRAZVM vDisk vDiskvDisk VM VM VM VM VM VM VM VM VM VM VM ZVM

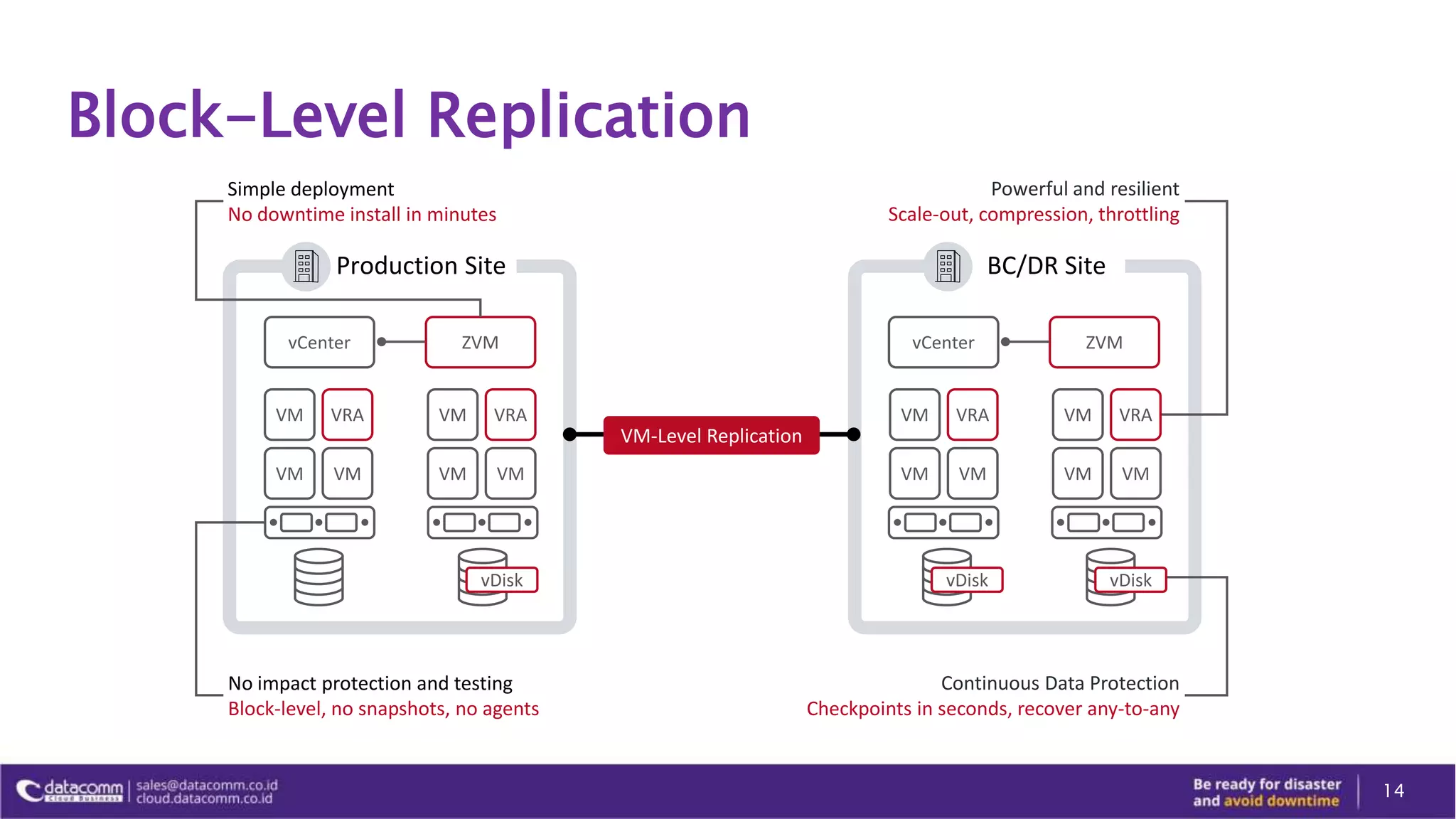

- 14. Block-Level Replication 14 BC/DR SiteProductionSite vCenter VM ZVM VRA VM VM VM VRA VM VM vDisk VM-Level Replication Simple deployment No downtime install in minutes No impact protection and testing Block-level, no snapshots, no agents Powerful and resilient Scale-out, compression, throttling Continuous Data Protection Checkpoints in seconds, recover any-to-any vCenter ZVM VM VRA VM VM VM VRA VM VM vDisk vDisk

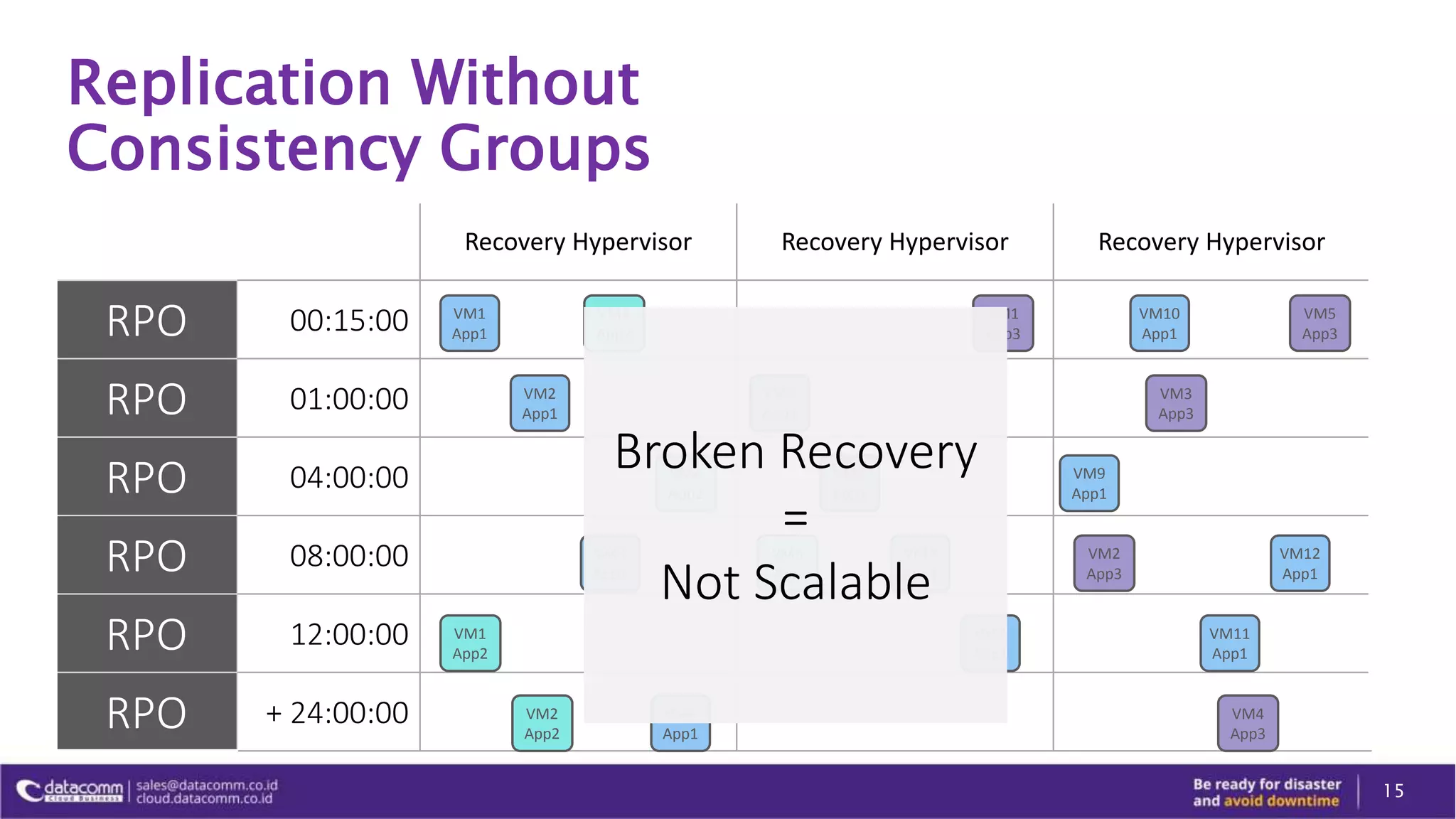

- 15. Replication Without Consistency Groups 15 RecoveryHypervisor Recovery Hypervisor Recovery Hypervisor RPO 00:15:00 RPO 01:00:00 RPO 04:00:00 RPO 08:00:00 RPO 12:00:00 RPO + 24:00:00 VM3 App2 VM4 App2 VM1 App2 VM2 App2 VM5 App VM1 App1 VM2 App1 VM3 App1 VM4 App1 VM5 App1 VM6 App1 VM7 App1 VM8 App1 VM10 App1 VM9 App1 VM12 App1 VM11 App1 VM1 App3 VM5 App3 VM3 App3 VM2 App3 VM4 App3 Broken Recovery = Not Scalable

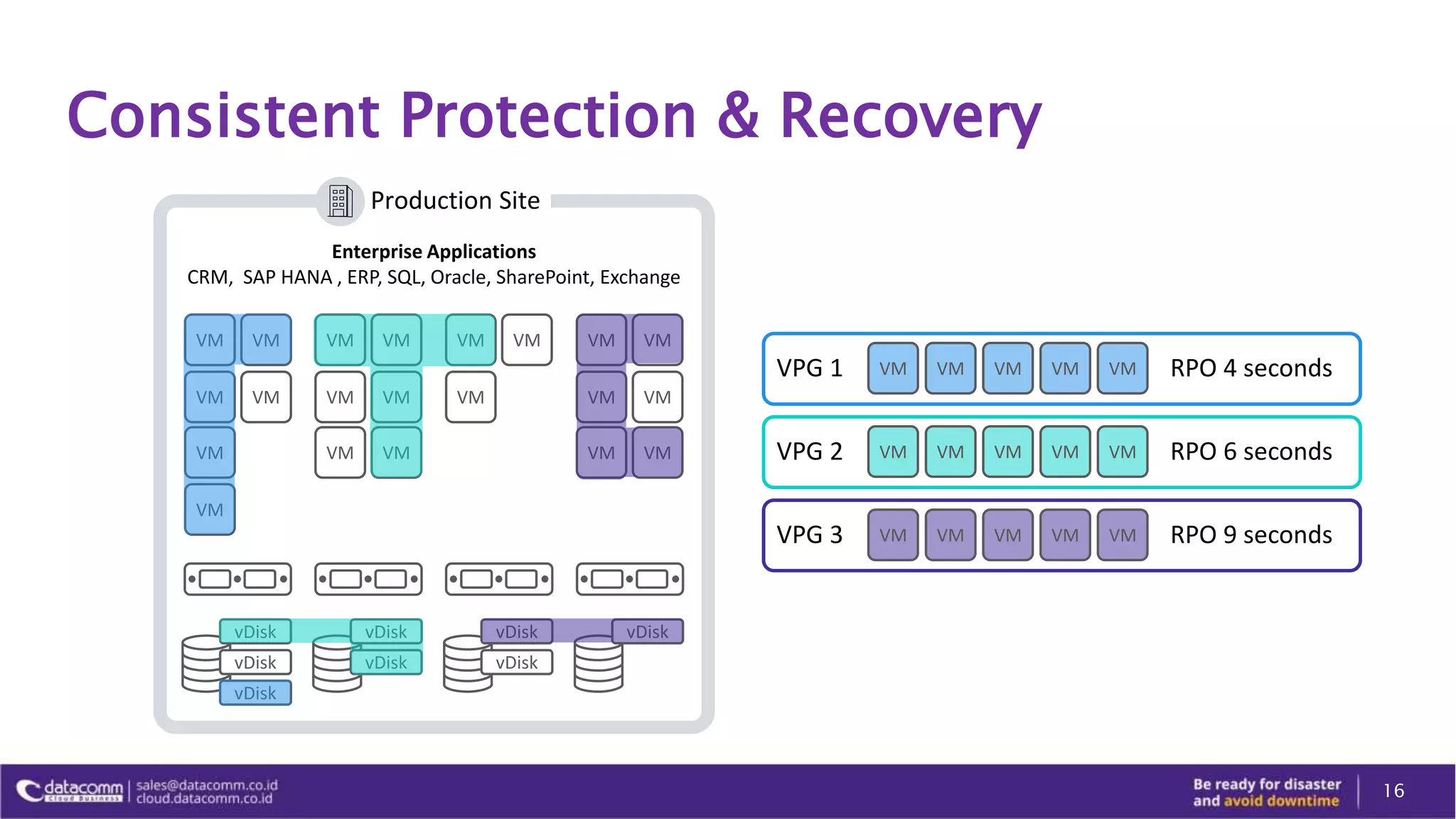

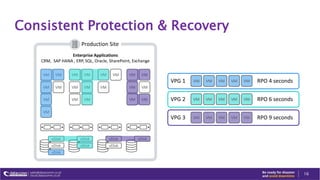

- 16. Consistent Protection &Recovery 16 VPG 1 RPO 4 secondsVM VM VM VM VM VPG 2 RPO 6 secondsVM VM VM VM VM VPG 3 RPO 9 secondsVM VM VM VM VM Production Site vDisk vDisk vDisk Enterprise Applications CRM, SAP HANA , ERP, SQL, Oracle, SharePoint, Exchange VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM vDisk vDisk vDisk vDisk vDisk
- 17. Replication with ConsistencyGroups 17 Recovery Hypervisor Recovery Hypervisor Recovery Hypervisor RPO 00:00:04 RPO 00:00:06 RPO 00:00:08 RPO 00:00:10 RPO 00:00:12 RPO 00:00:14 VM1 App1 VM2 App1 VM3 App1 VM4 App1 VM5 App1 VM6 App1 VM7 App1 VM8 App1 VM9 App1 VM10 App1 VM11 App1 VM12 App1 VM1 App3 VM3 App3 VM4 App3 VM5 App3 VM2 App3 VM1 App2 VM2 App2 VM3 App2 VM4 App2 VM5 App2 Consistent Recovery = Scalable
- 18. One-to-Many Rapid Recovery &Testing 18 Protected Site VM VM VM VM VM VM • Protect to DR site • Local and multi-cloud testing • Test on isolated servers, identical to production • Faster development • Higher quality QA • Faster time to market! VPG 3 VPG 4 VPG 7VPG 6VPG 5 VPG 1 VPG 2 Cloud

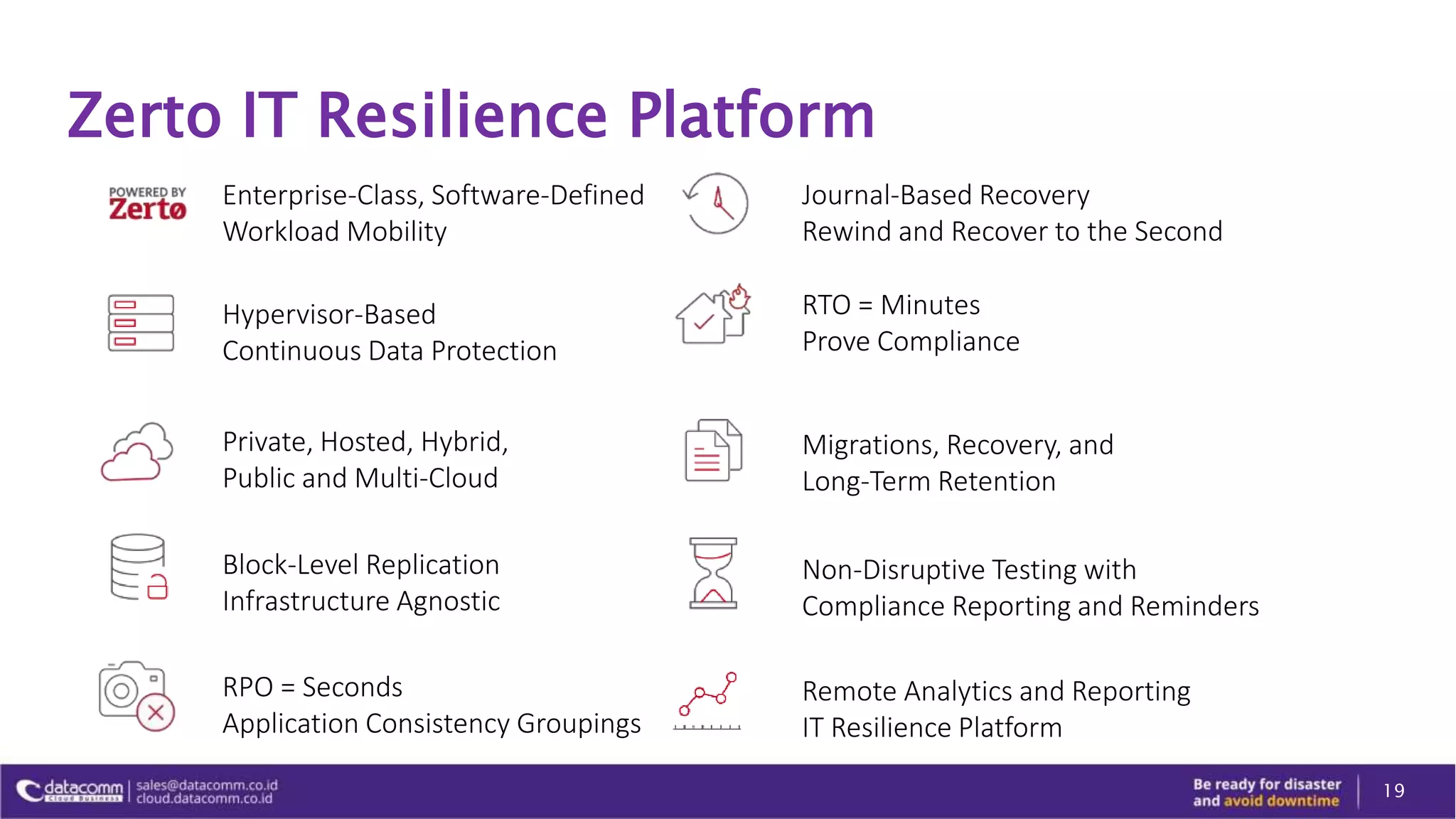

- 19. Zerto IT ResiliencePlatform 19 Non-Disruptive Testing with Compliance Reporting and Reminders RTO = Minutes Prove Compliance Journal-Based Recovery Rewind and Recover to the Second RPO = Seconds Application Consistency Groupings Block-Level Replication Infrastructure Agnostic Private, Hosted, Hybrid, Public and Multi-Cloud Enterprise-Class, Software-Defined Workload Mobility Hypervisor-Based Continuous Data Protection Migrations, Recovery, and Long-Term Retention Remote Analytics and Reporting IT Resilience Platform
- 20. THANK YOU Gilang Ginanjar,PreSales Team Lead
