SDN Meetup
Hitless Controller Upgrade

2. © 2018 LUMINA NETWORKS, INC.

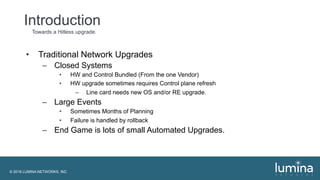

Introduction
Towards a Hitless upgrade.
• Traditional Network Upgrades
– Closed Systems
• HW and Control Bundled (From the one Vendor)
• HW upgrade sometimes requires Control plane refresh
– Line card needs new OS and/or RE upgrade.
– Large Events
• Sometimes Months of Planning
• Failure is handled by rollback
– End Game is lots of small Automated Upgrades.

3. © 2018 LUMINA NETWORKS, INC.

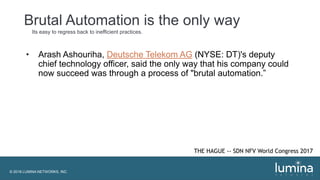

Brutal Automation is the only way
Its easy to regress back to inefficient practices.
• Arash Ashouriha, Deutsche Telekom AG (NYSE: DT)'s deputy
chief technology officer, said the only way that his company could
now succeed was through a process of "brutal automation.”
THE HAGUE -- SDN NFV World Congress 2017

4. © 2018 LUMINA NETWORKS, INC.
Controller Upgrade CI/CD Toolsets
Software Practices and Toolsets that need to be employed.
• Upgrades MUST be Automated.
• Automated Dev Test Framework.
– NO Shortcuts!
• Pre Validation Checks.
• Engineer Hands off Upgrade Process.
• Post Validation Checks.
• Automated Rollback.
• Post Rollback Validations.

5. © 2018 LUMINA NETWORKS, INC.

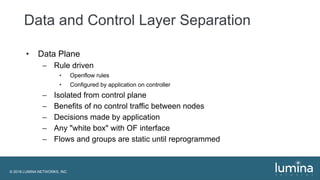

Data and Control Layer Separation
• Data Plane
– Rule driven
• Openflow rules
• Configured by application on controller
– Isolated from control plane
– Benefits of no control traffic between nodes
– Decisions made by application
– Any "white box" with OF interface
– Flows and groups are static until reprogrammed

6. © 2018 LUMINA NETWORKS, INC.

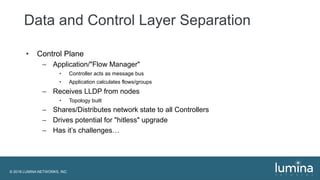

Data and Control Layer Separation
• Control Plane
– Application/"Flow Manager"
• Controller acts as message bus
• Application calculates flows/groups
– Receives LLDP from nodes
• Topology built
– Shares/Distributes network state to all Controllers
– Drives potential for "hitless" upgrade
– Has it’s challenges…

7. © 2018 LUMINA NETWORKS, INC.
Challenges with Openflow Hitless Upgrade
Can it be hitless?
Types of Changes we need to understand.
• Controller APP Change
– Path Computational change that requires an algorithm change
– Service Change (new way of using abstracted resources)
• Controller Change
– Project Updates - openflow plugin /stats manager /topology manager etc
– Plugin Updates - openflow 1.3 -> 1.4
– MDSAL/Model changes - yang model changes
• Dataplane Pipeline
– No Pipeline Change >>>> HITLESS ☺
• Flows, Groups, Tables stay the same
– Pipeline Change
• Flows, Groups, Tables are not supporting new Pipeline

8. © 2018 LUMINA NETWORKS, INC.

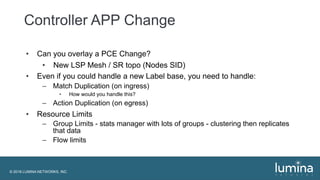

Controller APP Change
• Can you overlay a PCE Change?
• New LSP Mesh / SR topo (Nodes SID)
• Even if you could handle a new Label base, you need to handle:
– Match Duplication (on ingress)
• How would you handle this?
– Action Duplication (on egress)
• Resource Limits
– Group Limits - stats manager with lots of groups - clustering then replicates
that data
– Flow limits

9. © 2018 LUMINA NETWORKS, INC.

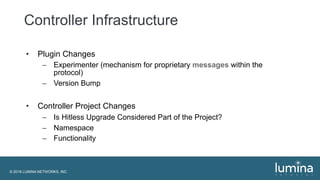

Controller Infrastructure
• Plugin Changes
– Experimenter (mechanism for proprietary messages within the
protocol)
– Version Bump
• Controller Project Changes
– Is Hitless Upgrade Considered Part of the Project?
– Namespace
– Functionality

10. © 2018 LUMINA NETWORKS, INC.

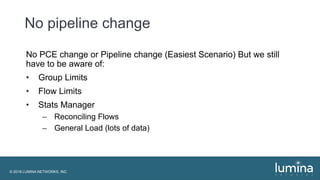

No PCE change or Pipeline change (Easiest Scenario) But we still
have to be aware of:
• Group Limits
• Flow Limits
• Stats Manager
– Reconciling Flows
– General Load (lots of data)
No pipeline change

11. © 2018 LUMINA NETWORKS, INC.
• Flow and or Group type changes.
– Flows actions you may need change
• Ingress flow now has a new action?
– Group Tables you may need change
• Change from All to a Hierarchy
– New Tables
• Table reassignment
• Flow and group tables perform different functions
• Packet match lookups/forwarding
Pipeline Change

12. © 2018 LUMINA NETWORKS, INC.

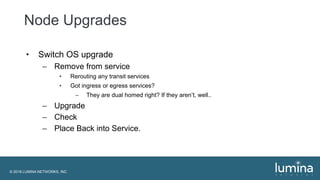

Node Upgrades
• Switch OS upgrade
– Remove from service
• Rerouting any transit services
• Got ingress or egress services?
– They are dual homed right? If they aren’t, well..
– Upgrade
– Check
– Place Back into Service.

13. © 2018 LUMINA NETWORKS, INC.

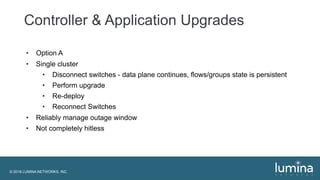

Controller & Application Upgrades
• Option A
• Single cluster
• Disconnect switches - data plane continues, flows/groups state is persistent
• Perform upgrade
• Re-deploy
• Reconnect Switches
• Reliably manage outage window
• Not completely hitless

14. © 2018 LUMINA NETWORKS, INC.

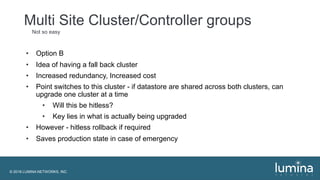

Multi Site Cluster/Controller groups
Not so easy
• Option B
• Idea of having a fall back cluster
• Increased redundancy, Increased cost
• Point switches to this cluster - if datastore are shared across both clusters, can
upgrade one cluster at a time
• Will this be hitless?
• Key lies in what is actually being upgraded
• However - hitless rollback if required
• Saves production state in case of emergency

15. © 2018 LUMINA NETWORKS, INC.

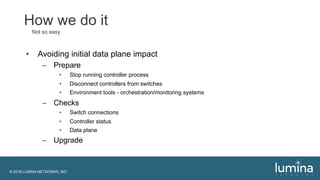

How we do it
Not so easy
• Avoiding initial data plane impact
– Prepare
• Stop running controller process
• Disconnect controllers from switches
• Environment tools - orchestration/monitoring systems
– Checks
• Switch connections
• Controller status
• Data plane
– Upgrade

16. © 2018 LUMINA NETWORKS, INC.

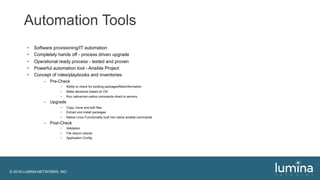

Automation Tools
• Software provisioning/IT automation
• Completely hands off - process driven upgrade
• Operational ready process - tested and proven
• Powerful automation tool - Ansible Project
• Concept of roles/playbooks and inventories
– Pre-Check
• Ability to check for existing packages/files/information
• Make decisions based on OS
• Run native/non-native commands direct to servers
– Upgrade
• Copy, move and edit files
• Extract and install packages
• Native Linux Functionality built into native ansible commands
– Post-Check
• Validation
• File cksum checks
• Application Config

17. © 2018 LUMINA NETWORKS, INC.
In-house DevOps Tools
• Compare and validate datastore with switches
• Use to understand current state of network -
– Nodes?
• LLDP received?
– Links?
• Is topology built internally?
• Is appropriate topology datastore populated correctly?
– Flows?
• Comparison of operational/config datastore
• Are flows reported on switches and in operational?
• Verify correct flow and group calculation

18. © 2018 LUMINA NETWORKS, INC.

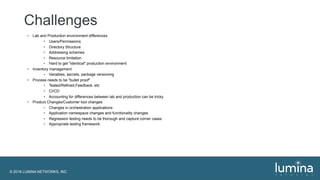

Challenges
• Lab and Production environment differences
• Users/Permissions
• Directory Structure
• Addressing schemes
• Resource limitation
• Hard to get "identical" production environment
• Inventory management
• Variables, secrets, package versioning
• Process needs to be "bullet proof"
• Tested/Refined,Feedback, etc
• CI/CD
• Accounting for differences between lab and production can be tricky
• Product Changes/Customer tool changes
• Changes in orchestration applications
• Application namespace changes and functionality changes
• Regression testing needs to be thorough and capture corner cases
• Appropriate testing framework

19. © 2018 LUMINA NETWORKS, INC.

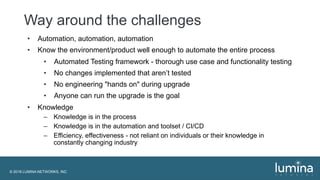

Way around the challenges
• Automation, automation, automation
• Know the environment/product well enough to automate the entire process
• Automated Testing framework - thorough use case and functionality testing
• No changes implemented that aren’t tested
• No engineering "hands on" during upgrade
• Anyone can run the upgrade is the goal
• Knowledge
– Knowledge is in the process
– Knowledge is in the automation and toolset / CI/CD
– Efficiency, effectiveness - not reliant on individuals or their knowledge in
constantly changing industry

20. © 2018 LUMINA NETWORKS, INC.
Thank you!
