Java EE vs. Spring
Smackdown
Mert Çalışkan, @mertcal
MuratYener, @yenerm

• MuratYener
• 10+Years of Java & Mobile
• Coder @ intel.com
• Google Developer Expert (Android)
• Proﬁle available @  
tr.linkedin.com/in/muratyener
• @yenerm
The Fighters
• Mert Çalışkan
• 10+Years of Enterprise Java
• Coder @ t2.com.tr
• Oracle Java Champion
• Proﬁle available @ 
tr.linkedin.com/in/mertcaliskan
• @mertcal

The Books that started it all…
http://amazon.com/author/murat http://amazon.com/author/mert

or DOYOU NEED SPECIAL
ABILITIES?
IS JAVA EE ENOUGH?
Come to the Spring Side..!

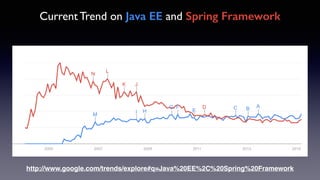

Current Trend on Java EE and Spring Framework
http://www.google.com/trends/explore#q=Java%20EE%2C%20Spring%20Framework

in 2 versions, one with Java EE 7 and one with Spring 4!
So we created a Sample Application named

No project, server, framework or even a POJO has been harmed
during the preparation on this talk.
Still we’re professionals so don’t try this at home (but you may
do try at work…)
Disclaimer

This talk is ﬁction, we are not messengers of either platform. We
both used each framework in a project at some point in our lifes
and we reserve to switch sides at any time in future.
Still for the sake of our book sells, we encourage you to pick the
best side and stick with it forever!
Disclaimer II

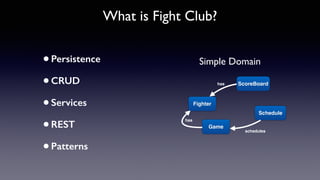

•Persistence
•CRUD
•Services
•REST
•Patterns
Simple Domain
Fighter
Schedule
ScoreBoard
Game
schedules
has
has
What is Fight Club?

J2EE
• Complete redesign of Enterprise Java
• Based on Spring
• Java EE and the Ewoks
Java EE

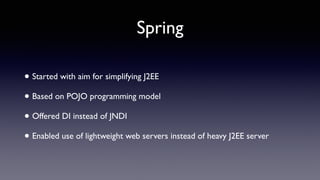

Spring
• Started with aim for simplifying J2EE
• Based on POJO programming model
• Offered DI instead of JNDI
• Enabled use of lightweight web servers instead of heavy J2EE server

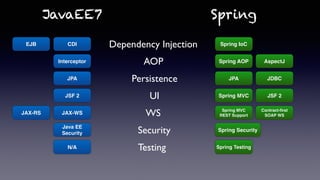

JavaEE7 Spring
CDI Spring IoC
Interceptor Spring AOP AspectJ
JPA Persistence
Dependency Injection
AOP
JPA JDBC
UIJSF 2 Spring MVC JSF 2
WSJAX-WSJAX-RS
Spring MVC
REST Support
Security Spring Security
Contract-ﬁrst
SOAP WS
TestingN/A Spring Testing
Java EE
Security
EJB

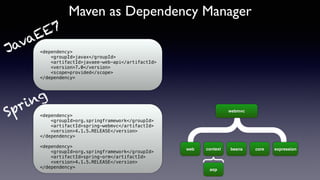

<dependency> 
<groupId>org.springframework</groupId> 
<artifactId>spring-webmvc</artifactId> 
<version>4.1.5.RELEASE</version> 
</dependency> 
 
<dependency> 
<artifactId>spring-orm</artifactId> 
</dependency>
<dependency> 
<groupId>javax</groupId> 
<artifactId>javaee-web-api</artifactId> 
<version>7.0</version> 
<scope>provided</scope> 
</dependency>
}
expressionbeanscontext coreweb
Maven as Dependency Manager
JavaEE7
Spring
webmvc
aop
}

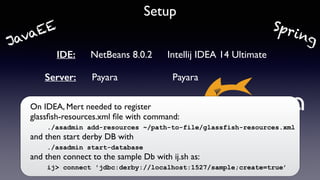

Setup
IDE: NetBeans 8.0.2 Intellij IDEA 14 Ultimate
Server: Payara Payara
On IDEA, Mert needed to register 
glassﬁsh-resources.xml ﬁle with command:  
./asadmin add-resources ~/path-to-file/glassfish-resources.xml 
and then start derby DB with  
./asadmin start-database 
and then connect to the sample Db with ij.sh as: 
ij> connect 'jdbc:derby://localhost:1527/sample;create=true’
SpringJavaEE

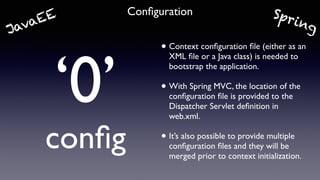

‘0’ 
config
Configuration
• Context configuration file (either as an
XML file or a Java class) is needed to
bootstrap the application.
• With Spring MVC, the location of the
configuration file is provided to the
Dispatcher Servlet definition in
web.xml.
• It’s also possible to provide multiple
configuration files and they will be
merged prior to context initialization.
SpringJavaEE

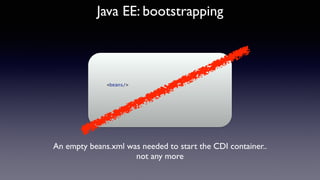

Java EE: bootstrapping
<beans/> 
An empty beans.xml was needed to start the CDI container..
not any more

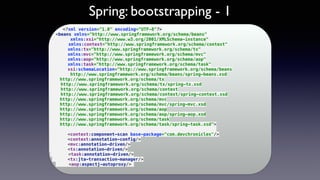

Spring: bootstrapping - 1
<?xml version="1.0" encoding="UTF-8"?> 
<beans xmlns="http://www.springframework.org/schema/beans" 
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" 
xmlns:context="http://www.springframework.org/schema/context" 
xmlns:tx="http://www.springframework.org/schema/tx" 
xmlns:mvc="http://www.springframework.org/schema/mvc" 
xmlns:aop="http://www.springframework.org/schema/aop" 
xmlns:task="http://www.springframework.org/schema/task" 
xsi:schemaLocation="http://www.springframework.org/schema/beans 
http://www.springframework.org/schema/beans/spring-beans.xsd 
http://www.springframework.org/schema/tx 
http://www.springframework.org/schema/tx/spring-tx.xsd 
http://www.springframework.org/schema/context 
http://www.springframework.org/schema/context/spring-context.xsd 
http://www.springframework.org/schema/mvc 
http://www.springframework.org/schema/mvc/spring-mvc.xsd 
http://www.springframework.org/schema/aop 
http://www.springframework.org/schema/aop/spring-aop.xsd 
http://www.springframework.org/schema/task 
http://www.springframework.org/schema/task/spring-task.xsd"> 
 
<context:component-scan base-package="com.devchronicles"/> 
<context:annotation-config/> 
<mvc:annotation-driven/> 
<tx:annotation-driven/> 
<task:annotation-driven/> 
<tx:jta-transaction-manager/> 
<aop:aspectj-autoproxy/>

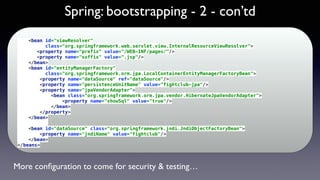

Spring: bootstrapping - 2 - con’td
<bean id="viewResolver" 
class="org.springframework.web.servlet.view.InternalResourceViewResolver"> 
<property name="prefix" value="/WEB-INF/pages/"/> 
<property name="suffix" value=".jsp"/> 
</bean> 
<bean id="entityManagerFactory" 
class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean"> 
<property name="dataSource" ref="dataSource"/> 
<property name="persistenceUnitName" value="fightclub-jpa"/> 
<property name="jpaVendorAdapter"> 
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter"> 
<property name="showSql" value="true"/> 
</bean> 
</property> 
</bean> 
 
<bean id="dataSource" class="org.springframework.jndi.JndiObjectFactoryBean"> 
<property name="jndiName" value="fightclub"/> 
</bean> 
</beans>
More conﬁguration to come for security & testing…

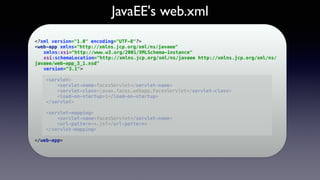

JavaEE's web.xml
<?xml version="1.0" encoding="UTF-8"?> 
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" 
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/
javaee/web-app_3_1.xsd" 
version="3.1"> 
 
<servlet> 
<servlet-name>facesServlet</servlet-name> 
<servlet-class>javax.faces.webapp.FacesServlet</servlet-class> 
<load-on-startup>1</load-on-startup> 
</servlet> 
 
<servlet-mapping> 
<servlet-name>facesServlet</servlet-name> 
<url-pattern>*.jsf</url-pattern> 
</servlet-mapping> 
 
</web-app>

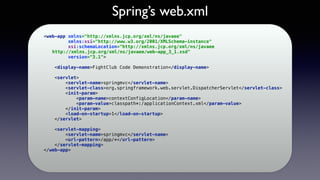

Spring’s web.xml
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" 
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee 
http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" 
version="3.1"> 
 
<display-name>FightClub Code Demonstration</display-name> 
 
<servlet> 
<servlet-name>springmvc</servlet-name> 
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> 
<init-param> 
<param-name>contextConfigLocation</param-name> 
<param-value>classpath*:/applicationContext.xml</param-value> 
</init-param> 
</servlet> 
 
<servlet-mapping> 
<url-pattern>/app/*</url-pattern> 
</servlet-mapping> 
</web-app>

Bean Declaration
JavaEE7 Spring
@Stateless 
@Path("fighter") 
public class FighterService { 
 
@PersistenceContext 
private EntityManager entityManager; 
 
@Inject  
Event<Fighter> event; 
 
@POST 
@Consumes({"application/xml",
"application/json"}) 
public void create(Fighter fighter) { 
entityManager.persist(fighter); 
event.fire(fighter); 
} 
}
@RestController 
@RequestMapping(value = "/fighters") 
public class FighterRestController { 
 
@PersistenceContext 
private EntityManager entityManager; 
 
@RequestMapping(value = "/create", method =
RequestMethod.POST) 
public void create(@RequestBody Fighter fighter) { 
entityManager.persist(fighter); 
} 
}

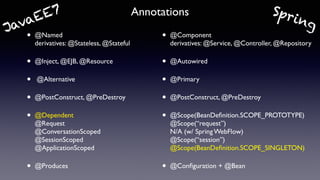

• @Named 
derivatives: @Stateless, @Stateful
• @Inject, @EJB, @Resource
• @Alternative
• @PostConstruct, @PreDestroy
• @Dependent 
@Request 
@ConversationScoped 
@SessionScoped 
@ApplicationScoped
• @Produces
Annotations
• @Component 
derivatives: @Service, @Controller, @Repository
• @Autowired
• @Primary
• @Scope(BeanDefinition.SCOPE_PROTOTYPE)  
@Scope(“request”) 
N/A (w/ Spring WebFlow) 
@Scope(“session”) 
@Scope(BeanDefinition.SCOPE_SINGLETON)
• @Configuration + @Bean
SpringJavaEE7

Design Patterns
@Singleton
@Observes
@Produces
@Decorator + XML (for order)
@Interceptor
@Inject++
@Asynchronous, Servlet 3.0+,
Websockets
@Schedule
@Component and its derivatives
N/A, github: spring-event-annotations
@Conﬁguration + @Bean
N/A, github: spring-decorator
@Aspect, @Around, @After, @AfterReturning,
@AfterThrowing, @Before, @Pointcut
@Autowired
@Async
@Scheduled
Singleton
Observer
Factory
Decorator
AOP
Dependency
Injection
Asynchronous
Programming
Timer
SpringJavaEE7

UI
• JSF
• Component Based Framework
• Using CDI beans as backing beans 
• FacesServlet configuration
• Others…
Angular + REST
GWT/Vaadin + CDI
• Spring MVC
• Action Based Framework
• Controllers and REST services to feed JSP
files and jQuery could be used (heavily…)
• DispatcherServlet configuraion
• Others…
Angular + REST
JSF, Vaadin, GWT
SpringJavaEE7

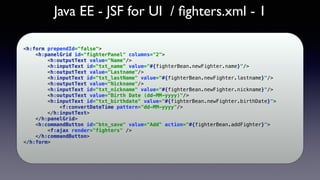

Java EE - JSF for UI / ﬁghters.xml - 1
<h:form prependId="false"> 
<h:panelGrid id="fighterPanel" columns="2"> 
<h:outputText value="Name"/> 
<h:inputText id="txt_name" value="#{fighterBean.newFighter.name}"/> 
<h:outputText value="Lastname"/> 
<h:inputText id="txt_lastName" value="#{fighterBean.newFighter.lastname}"/> 
<h:outputText value="Nickname"/> 
<h:inputText id="txt_nickname" value="#{fighterBean.newFighter.nickname}"/> 
<h:outputText value="Birth Date (dd-MM-yyyy)"/> 
<h:inputText id="txt_birthdate" value="#{fighterBean.newFighter.birthDate}"> 
<f:convertDateTime pattern="dd-MM-yyyy"/> 
</h:inputText> 
</h:panelGrid> 
<h:commandButton id="btn_save" value="Add" action="#{fighterBean.addFighter}"> 
<f:ajax render="fighters" /> 
</h:commandButton> 
</h:form>

Java EE - JSF for UI / ﬁghters.xml - 2 cont’d
<h:dataTable id="fighters"
value="#{fighterBean.fighters}" var="f"
border="1"> 
<h:column> 
<f:facet name="header"> 
<h:outputText value="Name"/> 
</f:facet> 
<h:outputText value="#{f.name}"/> 
</h:column> 
<h:column> 
<h:outputText value="Last Name"/> 
</f:facet> 
<h:outputText value="#{f.lastname}"/> 
</h:column> 
<h:column> 
<h:outputText value="Nickname"/> 
</f:facet> 
<h:outputText value="#{f.nickname}"/> 
</h:column>
<h:column> 
<h:outputText value="Birth Date"/> 
</f:facet> 
<h:outputText value="#{f.birthDate}"> 
<f:convertDateTime pattern="dd-MM-yyyy"/> 
</h:outputText> 
</h:column> 
<h:column> 
</f:facet> 
<h:commandLink
action="#{fighterBean.updateFighter(f)}"> 
<f:ajax render="fighterPanel fighters" /> 
<h:outputText value="Update" /> 
</h:commandLink> 
</h:column> 
<h:column> 
</f:facet> 
<h:commandLink
action="#{fighterBean.removeFighter(f)}"> 
<f:ajax render="fighterPanel fighters" /> 
<h:outputText value="Delete" /> 
</h:commandLink> 
</h:column> 
</h:dataTable>

Spring MVC for UI - 1
<mvc:form modelAttribute="fighter" action="saveFighter"> 
<table> 
<tr> 
<td><mvc:label path="name">Name</mvc:label></td> 
<td><mvc:input path="name" /></td> 
</tr> 
<tr> 
<td><mvc:label path="lastname">Last Name</mvc:label></td> 
<td><mvc:input path="lastname" /></td> 
</tr> 
<tr> 
<td><mvc:label path="nickname">Nick Name</mvc:label></td> 
<td><mvc:input path="nickname" /></td> 
</tr> 
<tr> 
<td><mvc:label path="birthDate">Birth Date (dd/MM/yyyy)</mvc:label></td> 
<td><mvc:input path="birthDate" /></td> 
</tr> 
<tr> 
<td colspan="2"> 
<input type="submit" value="Submit" /> 
</td> 
</tr> 
</table>

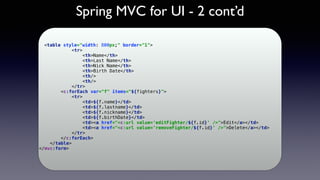

Spring MVC for UI - 2 cont’d
<table style="width: 800px;" border="1"> 
<tr> 
<th>Name</th> 
<th>Last Name</th> 
<th>Nick Name</th> 
<th>Birth Date</th> 
<th/>  
<th/> 
</tr> 
<c:forEach var="f" items="${fighters}"> 
<tr> 
<td>${f.name}</td> 
<td>${f.lastname}</td> 
<td>${f.nickname}</td> 
<td>${f.birthDate}</td> 
<td><a href="<c:url value='editFighter/${f.id}' />">Edit</a></td> 
<td><a href="<c:url value='removeFighter/${f.id}' />">Delete</a></td> 
</tr> 
</c:forEach> 
</table> 
</mvc:form>

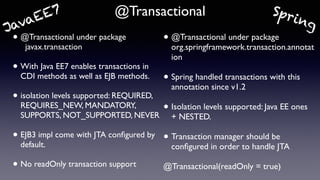

@Transactional
• @Transactional under package 
javax.transaction
• With Java EE7 enables transactions in
CDI methods as well as EJB methods.
• isolation levels supported: REQUIRED,
REQUIRES_NEW, MANDATORY,
SUPPORTS, NOT_SUPPORTED, NEVER
• EJB3 impl come with JTA conﬁgured by
default.
• No readOnly transaction support
• @Transactional under package
org.springframework.transaction.annotat
ion
• Spring handled transactions with this
annotation since v1.2
• Isolation levels supported: Java EE ones
+ NESTED.
• Transaction manager should be
conﬁgured in order to handle JTA
@Transactional(readOnly = true)
SpringJavaEE7

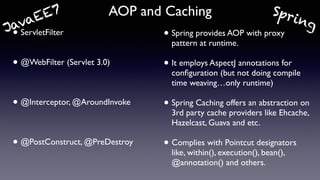

AOP and Caching
• ServletFilter 
• @WebFilter (Servlet 3.0) 
 
• @Interceptor, @AroundInvoke 
 
• Spring provides AOP with proxy
pattern at runtime.
• It employs AspectJ annotations for
conﬁguration (but not doing compile
time weaving…only runtime)
• Spring Caching offers an abstraction on
3rd party cache providers like Ehcache,
Hazelcast, Guava and etc.
• Complies with Pointcut designators
like, within(), execution(), bean(),
@annotation() and others.
SpringJavaEE7

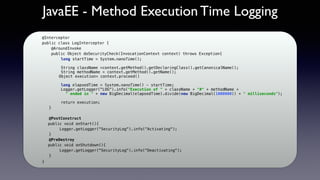

JavaEE - Method Execution Time Logging
@Interceptor
public class LogInterceptor {
@AroundInvoke
public Object doSecurityCheck(InvocationContext context) throws Exception{
long startTime = System.nanoTime(); 
 
String className =context.getMethod().getDeclaringClass().getCanonicalName(); 
String methodName = context.getMethod().getName();
Object execution= context.proceed()
 
long elapsedTime = System.nanoTime() - startTime; 
Logger.getLogger("LOG").info("Execution of " + className + "#" + methodName +
" ended in " + new BigDecimal(elapsedTime).divide(new BigDecimal(1000000)) + " milliseconds"); 
 
return execution;
}
@PostConstruct
public void onStart(){
Logger.getLogger("SecurityLog").info(“Activating");
}
@PreDestroy
public void onShutdown(){
Logger.getLogger("SecurityLog").info(“Deactivating");
}
}

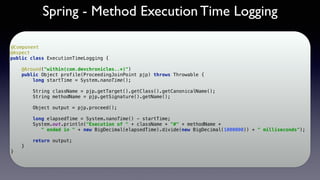

Spring - Method Execution Time Logging
@Component 
@Aspect 
public class ExecutionTimeLogging { 
 
@Around("within(com.devchronicles..*)") 
public Object profile(ProceedingJoinPoint pjp) throws Throwable { 
long startTime = System.nanoTime(); 
 
String className = pjp.getTarget().getClass().getCanonicalName(); 
String methodName = pjp.getSignature().getName(); 
 
Object output = pjp.proceed();
 
long elapsedTime = System.nanoTime() - startTime; 
System.out.println("Execution of " + className + "#" + methodName +
" ended in " + new BigDecimal(elapsedTime).divide(new BigDecimal(1000000)) + " milliseconds"); 
 
return output; 
} 
}

Security
• Declarative: (basic, form based, digest, client,
mutual)
• via resources: resource/pattern/role
• via annotations: @HttpMethodConstraint,
@HttpConstraint, @ServletSecurity
• Programmatic: request.login(userName,
password);
• Message Security: via header in SOAP
messages
• JAAS & web.xml security
• Alternatively..Apache Shiro
• Provides w/ subproject Spring Security
• Supports several different authentication
methods 
login form–based authentication, authentication with X509 user
certiﬁcates, LDAP authentication,Windows authentication over
legacy NTLM or Kerberos methods,  
basic and digest authentications.
• Separation of auth. methods from user
repositories i.e.: form-based auth from active
directory or a DB.
• Supports SSO w/ CAS, OpenID, SiteMinder,
and OAuth
• Guest login & built-in remember-me support
• HTTP/HTTPS support
JavaEE7 Spring

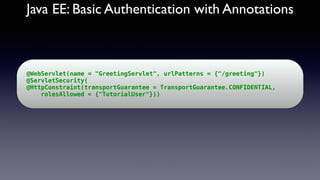

Java EE: Basic Authentication with Annotations
@WebServlet(name = "GreetingServlet", urlPatterns = {"/greeting"})
@ServletSecurity(
@HttpConstraint(transportGuarantee = TransportGuarantee.CONFIDENTIAL,
rolesAllowed = {"TutorialUser"}))

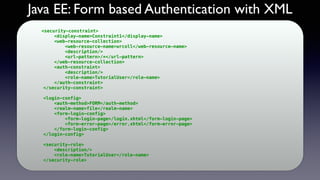

Java EE: Form based Authentication with XML
<security-constraint>
<display-name>Constraint1</display-name>
<web-resource-collection>
<web-resource-name>wrcoll</web-resource-name>
<description/>
<url-pattern>/*</url-pattern>
</web-resource-collection>
<auth-constraint>
<description/>
<role-name>TutorialUser</role-name>
</auth-constraint>
</security-constraint>
<login-config>
<auth-method>FORM</auth-method>
<realm-name>file</realm-name>
<form-login-config>
<form-login-page>/login.xhtml</form-login-page>
<form-error-page>/error.xhtml</form-error-page>
</form-login-config>
</login-config>
<security-role>
<description/>
<role-name>TutorialUser</role-name>
</security-role>

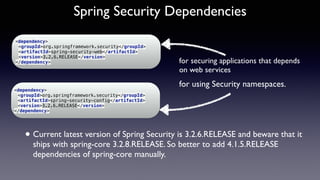

Spring Security Dependencies
<dependency> 
<groupId>org.springframework.security</groupId> 
<artifactId>spring-security-web</artifactId> 
</dependency>
for using Security namespaces.
for securing applications that depends  
on web services
<dependency> 
<groupId>org.springframework.security</groupId> 
<artifactId>spring-security-config</artifactId> 
</dependency>
• Current latest version of Spring Security is 3.2.6.RELEASE and beware that it
ships with spring-core 3.2.8.RELEASE. So better to add 4.1.5.RELEASE
dependencies of spring-core manually.

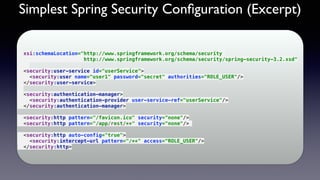

Simplest Spring Security Conﬁguration (Excerpt)
 
xsi:schemaLocation="http://www.springframework.org/schema/security  
http://www.springframework.org/schema/security/spring-security-3.2.xsd" 
 
<security:user-service id="userService"> 
<security:user name="user1" password="secret" authorities="ROLE_USER"/> 
</security:user-service> 
 
<security:authentication-manager> 
<security:authentication-provider user-service-ref="userService"/> 
</security:authentication-manager> 
 
<security:http pattern="/favicon.ico" security="none"/> 
<security:http pattern="/app/rest/**" security="none"/>
 
<security:http auto-config="true"> 
<security:intercept-url pattern="/**" access="ROLE_USER"/> 
</security:http>

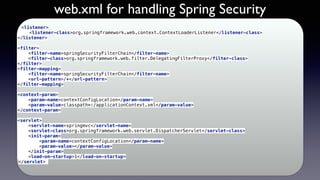

web.xml for handling Spring Security
<listener> 
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> 
</listener> 
 
<filter> 
<filter-name>springSecurityFilterChain</filter-name> 
<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class> 
</filter> 
<filter-mapping> 
<filter-name>springSecurityFilterChain</filter-name> 
<url-pattern>/*</url-pattern> 
</filter-mapping> 
 
<context-param> 
<param-value>classpath*:/applicationContext.xml</param-value> 
</context-param> 
 
<servlet> 
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> 
<init-param> 
<param-value></param-value> 
</init-param> 
</servlet>

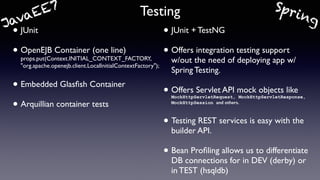

Testing
• JUnit
• OpenEJB Container (one line)
props.put(Context.INITIAL_CONTEXT_FACTORY,
"org.apache.openejb.client.LocalInitialContextFactory");
• Embedded Glasﬁsh Container
• Arquillian container tests
• JUnit + TestNG
• Offers integration testing support  
w/out the need of deploying app w/
Spring Testing.
• Offers Servlet API mock objects like
MockHttpServletRequest, MockHttpServletResponse,
MockHttpSession and others.
• Testing REST services is easy with the
builder API.
• Bean Proﬁling allows us to differentiate
DB connections for in DEV (derby) or
in TEST (hsqldb)
JavaEE7 Spring

Java EE - REST Service Testing
• JUnit
• Mockito
• Simple, just like Java SE

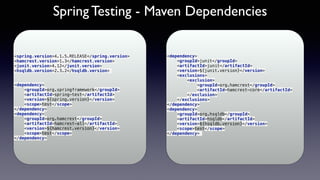

Spring Testing - Maven Dependencies
<spring.version>4.1.5.RELEASE</spring.version>
<hamcrest.version>1.3</hamcrest.version>
<junit.version>4.12</junit.version> 
<hsqldb.version>2.3.2</hsqldb.version>
 
<dependency> 
<artifactId>spring-test</artifactId> 
<version>${spring.version}</version> 
<scope>test</scope> 
</dependency> 
<dependency> 
<groupId>org.hamcrest</groupId> 
<artifactId>hamcrest-all</artifactId> 
<version>${hamcrest.version}</version> 
</dependency>
<dependency> 
<groupId>junit</groupId> 
<artifactId>junit</artifactId> 
<version>${junit.version}</version> 
<exclusions> 
<exclusion> 
<groupId>org.hamcrest</groupId> 
<artifactId>hamcrest-core</artifactId> 
</exclusion> 
</exclusions> 
</dependency> 
<dependency> 
<groupId>org.hsqldb</groupId> 
<artifactId>hsqldb</artifactId> 
<version>${hsqldb.version}</version> 
</dependency>

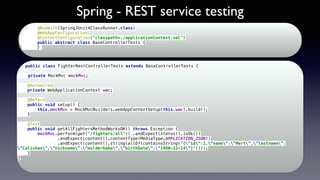

Spring - REST service testing
@RunWith(SpringJUnit4ClassRunner.class) 
@WebAppConfiguration 
@ContextConfiguration("classpath*:/applicationContext.xml") 
public abstract class BaseControllerTests { 
}
public class FighterRestControllerTests extends BaseControllerTests { 
 
private MockMvc mockMvc; 
 
@Autowired 
private WebApplicationContext wac; 
 
@Before 
public void setup() { 
this.mockMvc = MockMvcBuilders.webAppContextSetup(this.wac).build(); 
} 
 
@Test 
public void getAllFightersMethodWorksOK() throws Exception { 
mockMvc.perform(get("/fighters/all")) .andExpect(status().isOk()) 
.andExpect(content().contentType(MediaType.APPLICATION_JSON)) 
.andExpect(content().string(allOf(containsString("{"id":1,"name":"Mert","lastname":
"Caliskan","nickname":"mulderbaba","birthDate":"1980-12-14"}")))); 
} 
}

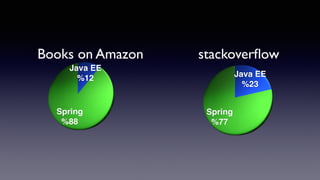

Books on Amazon stackoverﬂow

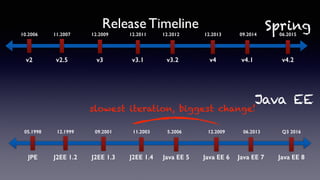

Release Timeline
10.2006
v2 v2.5
11.2007 12.2009 12.2011 12.2012 12.2013 09.2014 06.2015
v3 v3.1 v3.2 v4 v4.1 v4.2
Spring
Java EE
05.1998
JPE J2EE 1.2
12.1999 09.2001 11.2003 5.2006 12.2009 06.2013 Q3 2016
J2EE 1.3 J2EE 1.4 Java EE 5 Java EE 6 Java EE 7 Java EE 8
slowest iteration, biggest change!

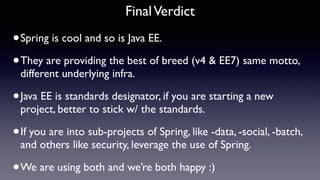

FinalVerdict
•Spring is cool and so is Java EE.
•They are providing the best of breed (v4 & EE7) same motto,
different underlying infra.
•Java EE is standards designator, if you are starting a new
project, better to stick w/ the standards.
•If you are into sub-projects of Spring, like -data, -social, -batch,
and others like security, leverage the use of Spring.
•We are using both and we’re both happy :)

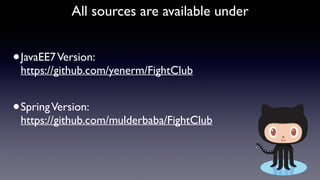

All sources are available under
•JavaEE7Version:  
https://github.com/yenerm/FightClub 
•SpringVersion:  
https://github.com/mulderbaba/FightClub

Any questions
you have, hmm?
@yenerm
@mertcal

jDays2015 - JavaEE vs. Spring Smackdown

More Related Content

What's hot

Similar to jDays2015 - JavaEE vs. Spring Smackdown

More from Mert Çalışkan

Recently uploaded

jDays2015 - JavaEE vs. Spring Smackdown
