The Gitflow workflow model provides a robust branching strategy for managing larger projects with multiple concurrent releases and features. It uses branches for features, releases, and hotfixes, with develop and master branches. Features are developed on feature branches off develop, releases are prepared on release branches off develop, and hotfixes are directly patched onto master.

1. Distributed Revision Control / Branching & Workflow Model
Hello Git / Git
Flow
Jason Hanson
@jayfour000

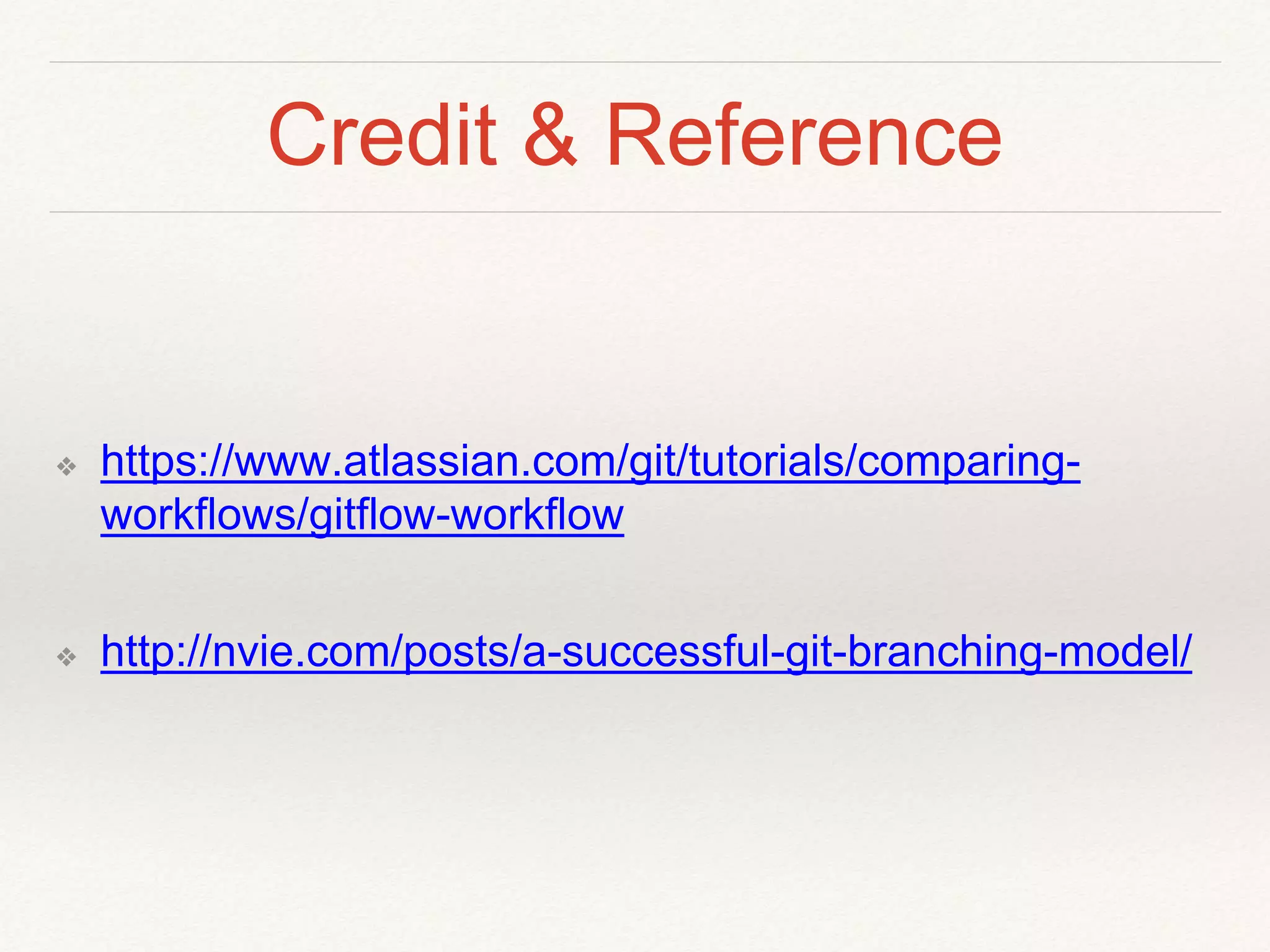

2. Credit & Reference
❖ https://www.atlassian.com/git/tutorials/comparing-
workflows/gitflow-workflow
❖ http://nvie.com/posts/a-successful-git-branching-model/

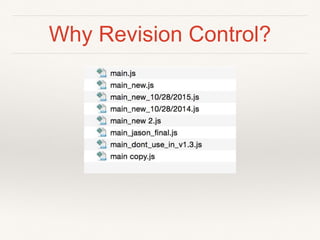

3. Why Revision Control?

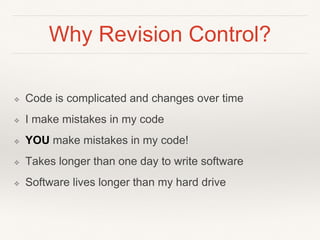

4. Why Revision Control?
❖ Code is complicated and changes over time
❖ I make mistakes in my code
❖ YOU make mistakes in my code!
❖ Takes longer than one day to write software
❖ Software lives longer than my hard drive

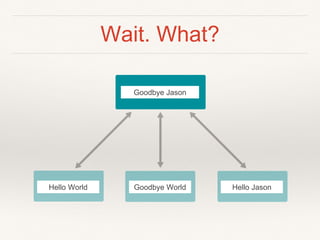

5. Wait. What?
Hello World Goodbye World Hello Jason
Goodbye Jason

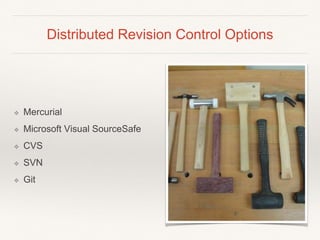

6. Distributed Revision Control Options
❖ Mercurial
❖ Microsoft Visual SourceSafe
❖ CVS
❖ SVN
❖ Git

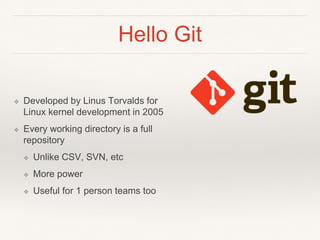

7. Hello Git
❖ Developed by Linus Torvalds for
Linux kernel development in 2005
❖ Every working directory is a full
repository
❖ Unlike CSV, SVN, etc
❖ More power
❖ Useful for 1 person teams too

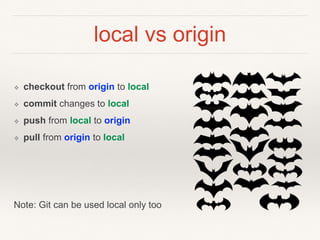

8. local vs origin
❖ checkout from origin to local
❖ commit changes to local
❖ push from local to origin
❖ pull from origin to local
Note: Git can be used local only too

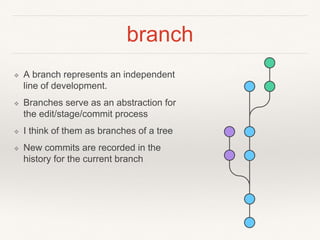

9. branch
❖ A branch represents an independent
line of development.
❖ Branches serve as an abstraction for
the edit/stage/commit process
❖ I think of them as branches of a tree
❖ New commits are recorded in the
history for the current branch

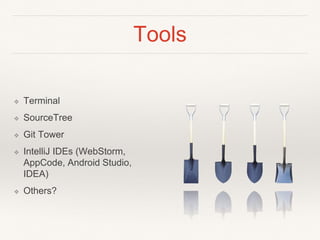

10. Tools
❖ Terminal
❖ SourceTree
❖ Git Tower
❖ IntelliJ IDEs (WebStorm,
AppCode, Android Studio,
IDEA)
❖ Others?

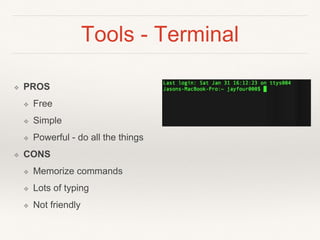

11. Tools - Terminal
❖ PROS
❖ Free
❖ Simple
❖ Powerful - do all the things
❖ CONS
❖ Memorize commands
❖ Lots of typing
❖ Not friendly

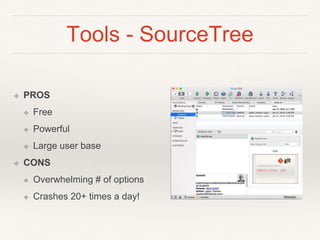

12. Tools - SourceTree
❖ PROS
❖ Free
❖ Powerful
❖ Large user base
❖ CONS
❖ Overwhelming # of options
❖ Crashes 20+ times a day!

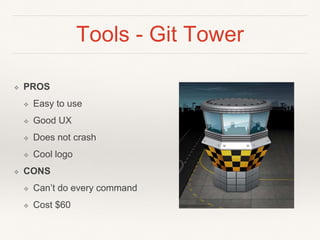

13. Tools - Git Tower
❖ PROS
❖ Easy to use
❖ Good UX
❖ Does not crash
❖ Cool logo
❖ CONS
❖ Can’t do every command
❖ Cost $60

14. Tools - Alt Options
❖ Comfort level
❖ What do you use?

17. Gitflow

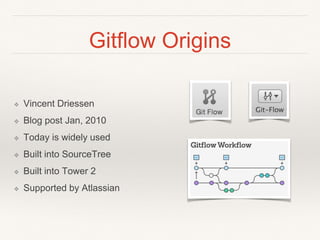

18. Gitflow Origins
❖ Vincent Driessen
❖ Blog post Jan, 2010
❖ Today is widely used
❖ Built into SourceTree
❖ Built into Tower 2
❖ Supported by Atlassian

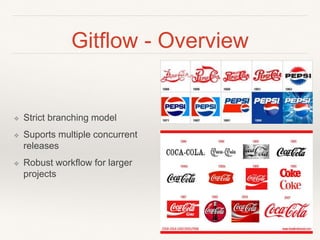

19. Gitflow - Overview
❖ Strict branching model
❖ Suports multiple concurrent
releases
❖ Robust workflow for larger
projects

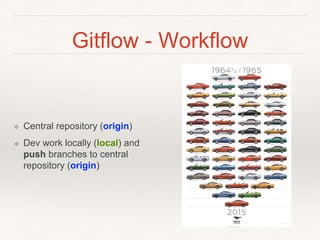

20. Gitflow - Workflow
❖ Central repository (origin)
❖ Dev work locally (local) and
push branches to central
repository (origin)

21. master

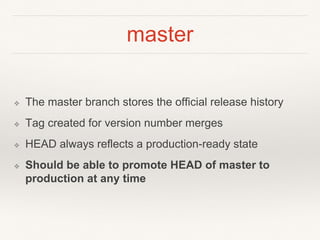

22. master
❖ The master branch stores the official release history
❖ Tag created for version number merges
❖ HEAD always reflects a production-ready state
❖ Should be able to promote HEAD of master to
production at any time

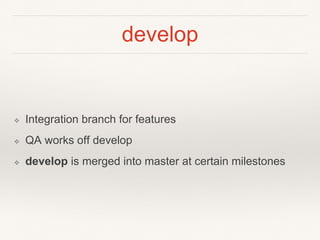

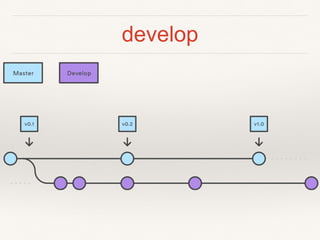

23. develop

24. develop
❖ Integration branch for features
❖ QA works off develop
❖ develop is merged into master at certain milestones

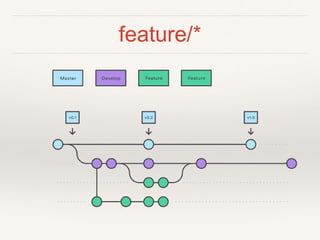

25. feature/*

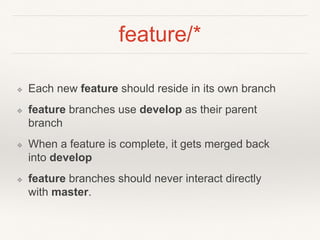

26. feature/*
❖ Each new feature should reside in its own branch
❖ feature branches use develop as their parent
branch
❖ When a feature is complete, it gets merged back
into develop
❖ feature branches should never interact directly
with master.

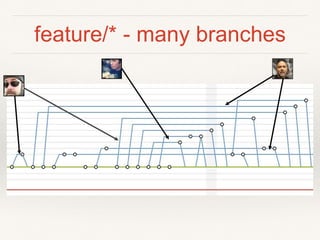

27. feature/* - many branches

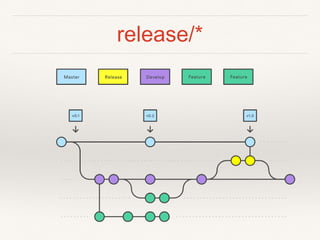

28. release/*

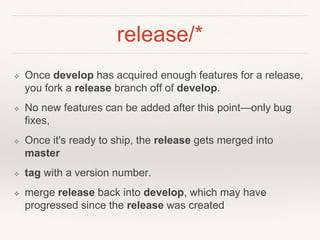

29. release/*
❖ Once develop has acquired enough features for a release,
you fork a release branch off of develop.
❖ No new features can be added after this point—only bug
fixes,
❖ Once it's ready to ship, the release gets merged into
master
❖ tag with a version number.
❖ merge release back into develop, which may have
progressed since the release was created

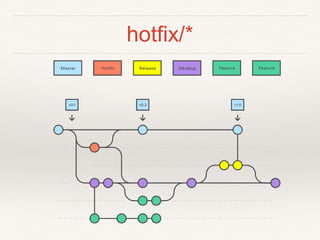

30. hotfix/*

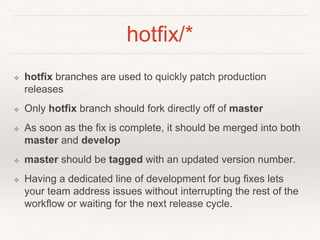

31. hotfix/*
❖ hotfix branches are used to quickly patch production
releases
❖ Only hotfix branch should fork directly off of master
❖ As soon as the fix is complete, it should be merged into both
master and develop
❖ master should be tagged with an updated version number.
❖ Having a dedicated line of development for bug fixes lets
your team address issues without interrupting the rest of the
workflow or waiting for the next release cycle.
