HPHelion OpenStack
Definition, ArchitectureandStatus
Bruno CORNEC, Open Source and Linux Strategist
WW Linux Community Lead - Open Source Profession

© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.2

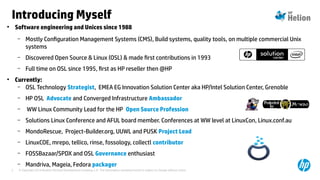

Introducing Myself
●
Software engineering and Unices since 1988
– Mostly Configuration Management Systems (CMS), Build systems, quality tools, on multiple commercial Unix
systems
– Discovered Open Source & Linux (OSL) & made first contributions in 1993
– Full time on OSL since 1995, first as HP reseller then @HP
●
Currently:
– OSL Technology Strategist, EMEA EG Innovation Solution Center aka HP/Intel Solution Center, Grenoble
– HP OSL Advocate and Converged Infrastructure Ambassador
– WW Linux Community Lead for the HP Open Source Profession
– Solutions Linux Conference and AFUL board member. Conferences at WW level at LinuxCon, Linux.conf.au
– MondoRescue, Project-Builder.org, UUWL and PUSK Project Lead
– LinuxCOE, mrepo, tellico, rinse, fossology, collectl contributor
– FOSSBazaar/SPDX and OSL Governance enthusiast
– Mandriva, Mageia, Fedora packager

HP Helion is a portfolio of cloud products and services based on OpenStack®
that enable organizations to build, manage and consume workloads in a hybrid
IT environment – the enabling path for our customers to the New Style of IT
HP Restricted Internal Use Only
Introducing HP Helion

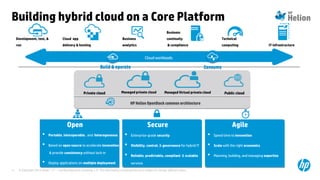

Building hybrid cloud on a Core Platform
Cloud workloads
Development, test, &
run
Cloud app
delivery & hosting
Business
analytics
Business
continuity
& compliance
Technical
computing IT infrastructure
Private cloud Public cloud
HP Helion OpenStack common architectureHP Helion OpenStack common architecture
Managed Virtual private cloudManaged private cloud
Build & operateBuild & operate ConsumeConsume
• Portable, interoperable, and heterogeneous
• Based on open source to accelerate innovation
& provide consistency without lock-in
• Deploy applications on multiple deployment
models
• Enterprise-grade security
• Visibility, control, & governance for hybrid IT
• Reliable, predictable, compliant & scalable
services
• Speed time to innovation
• Scale with the right economics
• Planning, building, and managing expertise
Open Secure Agile

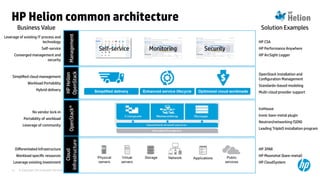

HP Helion common architecture
OpenStack®
HPHelion
OpenStack
Management
Cloud
Infrastructure
Self-service Monitoring Security
No vendor lock-in
Portability of workload
Leverage of community
Differentiated Infrastructure
Workload specific resources
Leverage existing investment
Simplified cloud management
Workload Portability
Hybrid delivery
Leverage of existing IT process and
technology
Self-service
Converged management and
security
HP 3PAR
HP Moonshot (bare-metal)
HP CloudSystem
IceHouse
Ironic bare-metal plugin
Neutron/networking (SDN)
Leading TripleO installation program
OpenStack Installation and
Configuration Management
Standards–based modeling
Multi-cloud provider support
HP CSA
HP Performance Anywhere
HP ArcSight Logger
Business Value Solution Examples

Enterprise-ready hybrid cloud platform
Automated patch and release mgmt
Standards based infra and app modeling
Cost effective from small to massive scale
Enterprise-ready hybrid cloud platform
Automated patch and release mgmt
Standards based infra and app modeling
Cost effective from small to massive scale
HP Helion OpenStackHP Helion OpenStack
Portability
Manageability
Scalability
Tested and hardened at scale
Converged Infrastructure enhancements & integration
Security focus
Enterprise grade
Tested and hardened at scale
Converged Infrastructure enhancements & integration
Security focus
Enterprise grade
HP Value addHP Value add
Open platform
Fastest growing open source project
Rapid innovations from a community of thousands
Significant interest from enterprises, xSP, and ISVs
HP is a top contributor
Open platform
Fastest growing open source project
Rapid innovations from a community of thousands
Significant interest from enterprises, xSP, and ISVs
HP is a top contributor
OpenStack®OpenStack®

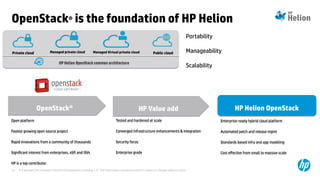

OpenStack® is the foundation of HP Helion
Private cloud Public cloud
HP Helion OpenStack common architectureHP Helion OpenStack common architecture
Managed Virtual private cloudManaged private cloud

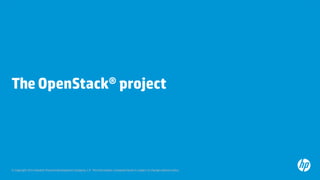

The OpenStack® project

“Open Source Cloud Computing platform that will meet the needs of public and private clouds”

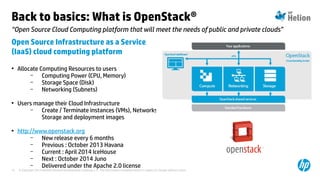

Back to basics: What is OpenStack®
Open Source Infrastructure as a Service
(IaaS) cloud computing platform
• Allocate Computing Resources to users
– Computing Power (CPU, Memory)
– Storage Space (Disk)
– Networking (Subnets)
• Users manage their Cloud Infrastructure
– Create / Terminate instances (VMs), Networks,
Storage and deployment images
• http://www.openstack.org
– New release every 6 months
– Previous : October 2013 Havana
– Current : April 2014 IceHouse
– Next : October 2014 Juno
– Delivered under the Apache 2.0 license

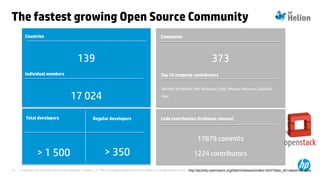

CountriesCountries
Individual members
Companies
17 024
373139
Total developers
> 1 500
Regular developers
> 350
Top 10 company contributors
Red Hat, HP, Mirantis, IBM, Rackspace, SUSE, VMware, eNovance, Canonical,
Intel
Code contribution (IceHouse release)
17879 commits
1224 contributors

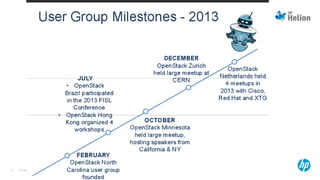

The fastest growing Open Source Community
http://activity.openstack.org/dash/releases/index.html?data_dir=data/icehouse

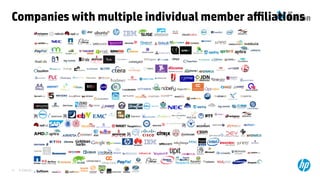

Companies with multiple individual member affiliations

Source: http://www.openstack.org/user-stories/
Who is using OpenStack® today ?

All sponsors of OpenStack®

Platinum & Gold sponsors of OpenStack®

Platinum sponsors of OpenStack®

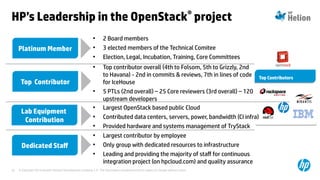

HP’s Leadership in the OpenStack® project
Platinum Member
Top Contributor
Lab Equipment
Contribution
Dedicated Staf
• 2 Board members
• 3 elected members of the Technical Comitee
• Election, Legal, Incubation, Training, Core Committees
• Top contributor overall (4th to Folsom, 5th to Grizzly, 2nd
to Havana) - 2nd in commits & reviews, 7th in lines of code
for IceHouse
• 5 PTLs (2nd overall) – 25 Core reviewers (3rd overall) – 120
upstream developers
• Largest OpenStack based public Cloud
• Contributed data centers, servers, power, bandwidth (CI infra)
• Provided hardware and systems management of TryStack
• Largest contributor by employee
• Only group with dedicated resources to infrastructure
• Leading and providing the majority of staff for continuous
integration project (on hpcloud.com) and quality assurance
Top ContributorsTop Contributors

Source: stackalytics.com

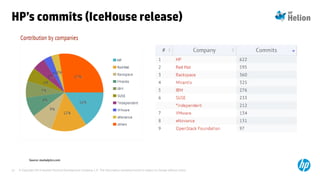

HP’s commits (IceHouse release)

Source: stackalytics.com as of 2014-06-20
HP’s reviews (Juno release)

Infrastructure Plug-insInfrastructure Plug-ins
OpenStack® Abstraction LayerOpenStack® Abstraction Layer
A series of interrelated projects that control pools of compute, storage, and networking infrastructure
exposed as a consistent and open layer (API) for a heterogeneous infrastructure environment. IaaS(+).
APIAPI
compute network storage
dashboard
Language bindings CLI

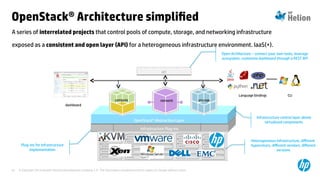

OpenStack® Architecture simplified
Open Architecture – connect your own tools, leverage
ecosystem, customize dashboard through a REST API
Infrastructure control layer above
virtualized components
Heterogeneous infrastructure, different
hypervisors, different vendors, different
versions
Plug-ins for infrastructure
implementation

13 integrated, 2 supporting with 200+ configuration items

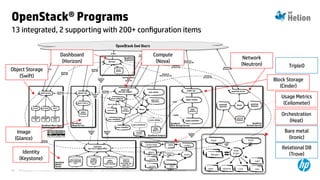

OpenStack® Programs
Identity
(Keystone)
Object Storage
(Swift)
Dashboard
(Horizon)
Network
(Neutron)
Block Storage
(Cinder)
Compute
(Nova)
(Glance)
Ceilomete
r api
queu
e
data
store
collec
tor
Age
nt
Compute
agent
nov
a
quant
um
cinde
r
glanc
e
poll
Heat
api
nov
a
Templa
tesTempla
tes
Heat
api-
cfn
Heat
Engin
e
cind
er
quantu
m
glan
ce
swif
t
Orchestration
(Heat)
Usage Metrics
(Ceilometer)
Bare metal
(Ironic)
Relational DB
(Trove)
TripleO

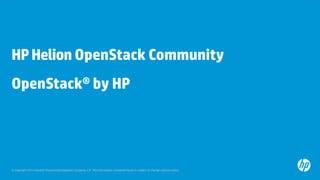

HPHelion OpenStack Community
OpenStack® by HP

PartnerOne for Cloud
Cloud builders • Cloud resellers • Cloud service providers
Integrated Cloud Solutions
•HP CloudSystem Enterprise
•HP CloudSystem Foundation
Cloud Software & Infrastructure
•HP Automation and Cloud Management
•HP Converged Infrastructure
OpenStack ® Software
•HP Helion OpenStack Community
•HP Helion OpenStack
Managed services
•HP Helion Managed Virtual Private Cloud
& Managed Private Cloud
•HP Helion Managed Business
Applications
Professional services
•Advisory
•Apps transform
•Implementation
•Design
•Strategy
•Operations
•Education
•Support
Public cloud & SaaS
•HP Helion Public Cloud
•HP SaaS applications
Best in class products, solutions, and services for hybrid IT

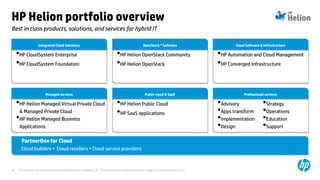

HP Helion portfolio overview

Enterprise Disaster Recovery and Backup
Volume backups – Restore from Swift to Cinder
3PAR driver for Cinder
Enterprise Disaster Recovery and Backup
Volume backups – Restore from Swift to Cinder
3PAR driver for Cinder
Enterprise-grade QA hardening and features
Top Code Contributor to OpenStack
OpenStack Continuous Integration management
Enterprise-grade QA hardening and features
Top Code Contributor to OpenStack
OpenStack Continuous Integration management
Enterprise scale through massive scale testing
Millions of VMs, billions of objects with 24/7 data
center operations
Enterprise scale through massive scale testing
Millions of VMs, billions of objects with 24/7 data
center operations
Enterprise Security
Keystone – domain specification, authentication
protocol, pluggable authorization system
Enterprise Security
Keystone – domain specification, authentication
protocol, pluggable authorization system
Committed to help make OpenStack technology enterprise-grade
HP advances OpenStack®

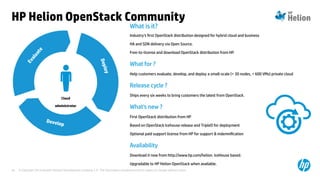

What is it?
Industry's first OpenStack distribution designed for hybrid cloud and business
HA and SDN delivery via Open Source.
Free-to-license and download OpenStack distribution from HP.
What for ?
Help customers evaluate, develop, and deploy a small-scale (< 30 nodes, < 600 VMs) private cloud
Release cycle ?
Ships every six weeks to bring customers the latest from OpenStack.
What's new ?
First OpenStack distribution from HP
Based on OpenStack Icehouse release and TripleO for deployment
Optional paid support license from HP for support & indemnification
Availability
Download it now from http://www.hp.com/helion. IceHouse based.
Upgradable to HP Helion OpenStack when available.
Evaluate
Deploy
Develop
Cloud
administrator
HP Helion OpenStack Community

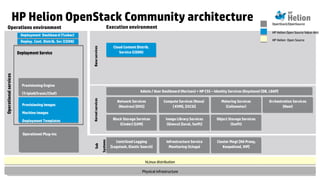

HP Helion OpenStack Community architecture
Deployment ServiceDeployment Service
Sub
Systems
Provisioning Engine
(TripleO/Ironic/Chef)
Provisioning Engine
Provisioning Images
Machine Images
Deployment Templates
Provisioning Images
Machine Images
Deployment Dashboard (Tuskar)Deployment Dashboard (Tuskar)
Operations environment
Operational Plug-insOperational Plug-ins
Operationalservices
hLinux distributionhLinux distribution
Execution environment
Cloud Content Distrib.
Service (CODN)
Service (CODN)
Baseservices
Network Services
(Neutron) [OVS]
Network Services
(Neutron) [OVS]
Kernelservices
OpenStack/OpenSource
HP Helion Open Source Value-Add
HP Helion Open Source
Physical infrastructurePhysical infrastructure
Admin / User Dashboard (Horizon) + HP CSS – Identity Services (Keystone) [DB, LDAP]Admin / User Dashboard (Horizon) + HP CSS – Identity Services (Keystone) [DB, LDAP]
Block Storage Services
(Cinder) [LVM]
(Cinder) [LVM]
Compute Services (Nova)
[ KVM], [iSCSI]
[ KVM], [iSCSI]
Image Library Services
(Glance) [local, Swift]
Object Storage Services
(Swift)
(Swift)
Metering Services
(Ceilometer)
Metering Services
(Ceilometer)
Orchestration Services
(Heat)
(Heat)
Centrlized Logging
[Logstash, Elastic Search]
Centrlized Logging
Infrastructure Service
Monitoring (Icinga)
Monitoring (Icinga)
Cluster Mngt [HA Proxy,
Keepalived, VIP]
Keepalived, VIP]
Deploy. Cont. Distrib. Svc (CODN)Deploy. Cont. Distrib. Svc (CODN)

HPHelion OpenStack
Added value from HP

World’s first OpenStack® based cloud technology platform for hybrid delivery!

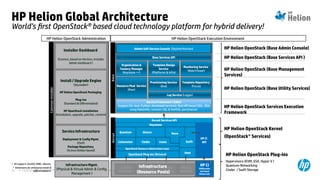

HP Helion Global Architecture
HP Helion OpenStack (Base Services API )
Ceilometer
Glance
Cinder
Quantum
Keystone
Ironic
HP CI
API
Nova
Swift
OpenStack Plug-ins (Drivers)
OpenStack Resource Abstraction Layer
Base Services API
Resource Pool Service
(Peer)
Organization &
Tenancy Manager
(Keystone ++)
Admin Self-Service Console (Skyline/Horizon)
Compute
Resources
Storage
Resources
Network
Resources
Storage
Resource
Kernel
Kernel Services API
HP Helion OpenStack Kernel
(OpenStack® Services)
HP Helion OpenStack (Base Utility Services)
• OS support: CentOS, RHEL, Ubuntu
• Extensions for enterprise needs &
differentiated CI
Service Framework ( Eden)
(support for Java, Python, developed services), Rest API based SOA, EDA
using RabbitMQ, common SQL & NoNSQL persistence)
HP Helion OpenStack Plug-ins
Hypervisors (KVM, ESX, Hyper V )
Quantum Networking
Cinder / Swift Storage
Log Service (Logger)
Monitoring Service
(WatchTower)
HP Helion OpenStack Services Execution
Framework
HP Helion OpenStack (Base Management
Services)
HP Helion OpenStack (Base Admin Console)
CommonInstaller
HP Helion OpenStack
Installer
Install / Upgrade Engine
(Skywalker)
HP Helion OpenStack Packaging
Plug-ins
(Standard & Differentiated)
HP OpenStack Installation
(Installation, upgrade, patches, content)
Installer Dashboard
(Cosmos, based on Horizon, includes
Admin dashboard )
Service Infrastructure
Deployment & Config Mgmt.
(Chef)
Package Repository
(hLinux Debian based)
HP Helion OpenStack Execution EnvironmentHP Helion OpenStack Administration
Base
Infrastructure Mgmt.
(Physical & Virtual Admin & Config.
Management )
HP CI
(Diferentia
ted Cloud
Resources)
Heat
Template Design
Service
(Platforms & Infra)
Template Repository
(Focus)
Provisioning Service
(Eve)
Infrastructure
(Resource Pools)

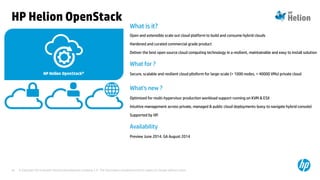

What is it?
Open and extensible scale out cloud platform to build and consume hybrid clouds
Hardened and curated commercial grade product
Deliver the best open source cloud computing technology in a resilient, maintainable and easy to install solution
What for ?
Secure, scalable and resilient cloud pltoform for large-scale (> 1000 nodes, > 40000 VMs) private cloud
What's new ?
Optimized for multi-hypervisor production workload support running on KVM & ESX
Intuitive management across private, managed & public cloud deployments (easy to navigate hybrid console)
Supported by HP.
Availability
Preview June 2014. GA August 2014
HP Helion OpenStack

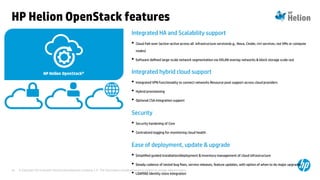

HP Helion OpenStack features
Integrated HA and Scalability support
• Cloud Fail-over (active-active across all infrastructure services(e.g., Nova, Cinder, ctrl services; not VMs or compute
nodes)
• Software defined large-scale network segmentation via VXLAN overlay networks & block storage scale-out
Integrated hybrid cloud support
• Integrated VPN functionality to connect networks Resource pool support across cloud providers
• Hybrid provisioning
• Optional CSA integration support
Security
• Security hardening of Core
• Centralized logging for monitoring cloud health
Ease of deployment, update & upgrade
• Simplified guided installation/deployment & Inventory management of cloud infrastructure
• Steady cadence of tested bug fixes, service releases, feature updates, with option of when to do major upgrades
• LDAP/AD Identity store integration

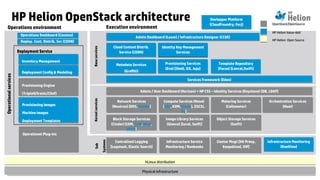

HP Helion OpenStack architecture
Deployment ServiceDeployment Service
Sub
Systems
Inventory ManagementInventory Management
Deployment Config & ModelingDeployment Config & Modeling
Provisioning Images
Machine Images
Provisioning Images
Machine Images
Operations Dashboard (Cosmos)Operations Dashboard (Cosmos)
Operations environment
Operational Plug-insOperational Plug-ins
hLinux distributionhLinux distribution
Execution environment
Admin Dashboard (Loom) / Infrastructure Designer (CCUE)Admin Dashboard (Loom) / Infrastructure Designer (CCUE)
Service (CODN)
Service (CODN)
Services framework (Eden)Services framework (Eden)
Network Services
(Neutron) [OVS, Aether]
Network Services
(Neutron) [OVS, Aether]
Physical infrastructurePhysical infrastructure
Metadata Services
(Graffiti)
Metadata Services
(Graffiti)
Identity Key Management
Services
Services
Provisioning Services
(Eve) [Shell, OO, Juju]
Provisioning Services
(Eve) [Shell, OO, Juju]
Template Repository
(Focus) [Lovcal,Swift]
Template Repository
(Focus) [Lovcal,Swift]
Admin / User Dashboard (Horizon) + HP CSS – Identity Services (Keystone) [DB, LDAP]Admin / User Dashboard (Horizon) + HP CSS – Identity Services (Keystone) [DB, LDAP]
(Cinder) [LVM, LHN, 3Par,
VMFS]
(Cinder) [LVM, LHN, 3Par,
VMFS]
[ESX, KVM, Ironic], [iSCSI,
FC]
[ESX, KVM, Ironic], [iSCSI,
FC]
(Swift)
(Swift)
Metering Services
(Ceilometer)
Metering Services
(Ceilometer)
(Heat)
(Heat)
Centralized Logging
Centralized Logging
Monitoring / Runbooks
Monitoring / Runbooks
Keepalived, VIP]
Keepalived, VIP]
Deploy. Cont. Distrib. Svc (CODN)Deploy. Cont. Distrib. Svc (CODN)
Operationalservices
BaseservicesKernelservices
OpenStack/OpenSource
HP Helion Value-Add
HP Helion Open Source
Provisioning Engine
Provisioning Engine
Services
Services
Infrastructure Monitoring
(OneView)
Infrastructure Monitoring
(OneView)
Devlopper Platform
(CloudFoundry, Forj)
Devlopper Platform
(CloudFoundry, Forj)

On demand compute instances to handle
unique workloads.
On-demand scalable storage capacity for archiving
and data backup.
Delivery of cached content to end users
powered by Akamai.
On-demand, scalable access to
application data
Multiple language development,
deployment, and management of apps
Network load balancing across VMs with
selectable routing algorithms
Real-time VM health and
performance metrics
Authoritative Domain Services for VM
hostname management
99.95%SLA
Alpha
High-performance, highly available local VM
storage solution.
In version 13.5:
• Deploy more resource-hungry
workloads
• Create a VPC with software-defined
networking (SDN)
• Easily manage multi-AZ deployments,
with one API endpoint per region
Networking
Configurable private IP ranges, subnets,
firewall rules, and more
Security hardened deployment with live support and leading SLAs
HP Public Cloud portfolio
PublicBeta

• Visit http://hp.com/helion/openstack
• Download the solution
• Set up support contract (optional)
• Go!
Linux® is the registered trademark of Linus Torvalds in the U.S. and other
countries.
The OpenStack word mark and the Square O Design, together or apart, are
trademarks or registered trademarks of OpenStack Foundation in the United
States and other countries, and are used with the OpenStack Foundation’s
permission.
Get started on the path to hybrid cloud

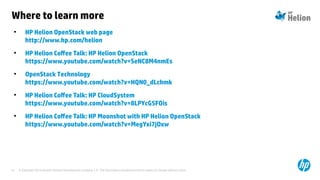

Where to learn more
●
HP Helion OpenStack web page
http://www.hp.com/helion
●
HP Helion Cofee Talk: HP Helion OpenStack
https://www.youtube.com/watch?v=SeNC8M4nmEs
●
OpenStack Technology
https://www.youtube.com/watch?v=HQN0_dLchmk
●
HP Helion Cofee Talk: HP CloudSystem
https://www.youtube.com/watch?v=8LPYcG5FOis
●
HP Helion Cofee Talk: HP Moonshot with HP Helion OpenStack
https://www.youtube.com/watch?v=MegYxi7jOxw

Making the new style of IT a reality
» 12+ years of success, world wide programs, including Cloud Center of
Excellence, Big Data Center of Excellence, Open Source Solutions
Initiative, RISC to HP Intel Architecture Migrations, NVF Center of
Excellence, EMEA Networking Customer Visit Center and more
» Complete IT (400+ systems, 3000+ network ports, 500+ TB storage)
» Portfolio of 40+ ready to demo solutions with access to our
ecosystem of Partners
» Complete test & validation environment
» Strategic partnership with Intel, 12-year long standing collaboration
» Strategic partnership with Red Hat 5-year collaboration (OSSI)
» A unique proof point in the industry with a proven service offering
Grenoble
Mission: Accelerate the adoption of new and² innovative solutions by creating
simple and rewarding end-to-end customer experiences that benefit our
customers and partners, in a compelling and engaging collaborative
environment. …more information available at http://www.hpintelco.net
EMEA SolutionInnovation Center
WorkshopPoCLivedemoCoE

HPHelion OpenStack
Architecture step by step

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
HP Helion OpenStack Architecture
step by step

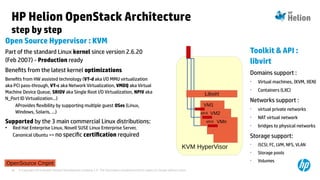

Open Source Hypervisor : KVM
Part of the standard Linux kernel since version 2.6.20
(Feb 2007) - Production ready
Benefits from the latest kernel optimizations
Benefits from HW assisted technology (VT-d aka I/O MMU virtualization
aka PCI pass-through, VT-c aka Network Virtualization, VMDQ aka Virtual
Machine Device Queue, SRIOV aka Single Root I/O Virtualization, NPIV aka
N_Port ID Virtualization...)
AProvides flexibility by supporting multiple guest OSes (Linux,
Windows, Solaris, ...)
Supported by the 3 main commercial Linux distributions:
●
Red Hat Enterprise Linux, Novell SUSE Linux Enterprise Server,
Canonical Ubuntu => no specific certification required
Toolkit & API :
libvirt
Domains support :
• Virtual machines, (KVM, XEN)
• Containers (LXC)
Networks support :
• virtual private networks
• NAT virtual network
• bridges to physical networks
Storage support:
• iSCSI, FC, LVM, NFS, VLAN
• Storage pools
• Volumes

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

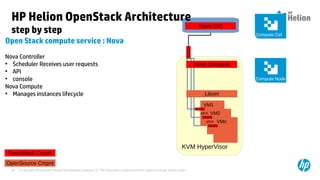

Open Stack compute service : Nova
Nova Controller
●
Scheduler Receives user requests
●
API
●
console
Nova Compute
●
Manages instances lifecycle
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

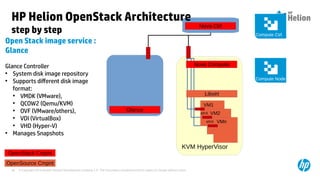

Open Stack image service :
Glance
Glance Controller
●
System disk image repository
●
Supports different disk image
format:
●
VMDK (VMware),
●
QCOW2 (Qemu/KVM)
●
OVF (VMware/others),
●
VDI (VirtualBox)
●
VHD (Hyper-V)
●
Manages Snapshots
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

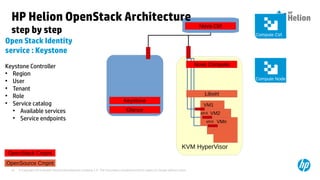

Open Stack Identity
service : Keystone
Keystone Controller
●
Region
●
User
●
Tenant
●
Role
●
Service catalog
●
Available services
●
Service endpoints
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

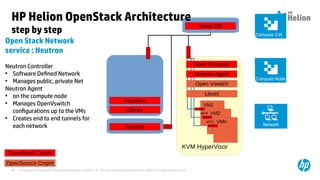

Open Stack Network
service : Neutron
Neutron Controller
●
Software Defined Network
●
Manages public, private Net
Neutron Agent
●
on the compute node
●
Manages OpenVswitch
configurations up to the VMs
●
Creates end to end tunnels for
each network
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone
Neutron
Neutron Agent
Network
Open Vswitch

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

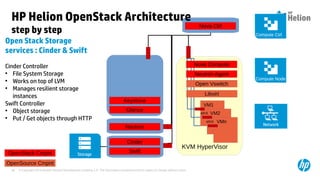

Open Stack Storage
services : Cinder & Swift
Cinder Controller
●
File System Storage
●
Works on top of LVM
●
Manages resilient storage
instances
Swift Controller
●
Object storage
●
Put / Get objects through HTTP
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone
Neutron
Neutron Agent
Network
Open Vswitch
Storage
Cinder
Swift

Storage
KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

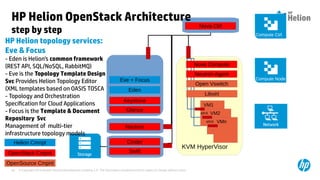

HP Helion topology services:
Eve & Focus
- Eden is Helion's common framework
(REST API, SQL/NoSQL, RabbitMQ)
- Eve is the Topology Template Design
Svc Provides Helion Topology Editor
(XML templates based on OASIS TOSCA
- Topology and Orchestration
Specification for Cloud Applications
- Focus is the Template & Document
Repository Svc
Management of multi-tier
infrastructure topology models
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone
Neutron
Neutron Agent
Network
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step
HP Helion resources pool
services: Graffiti
- Graffiti is Helion's Resource Pool
Registry and Abstraction Service
Resources can be images, storage,
flavours, scripts and come from public
or private OpenStack Clouds
- Calls Eve to use TOSCA topology
templates
- Provides service catalog portability
for hybrid Cloud configurations
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone
Neutron
Neutron Agent
Network
Open Vswitch
Storage
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

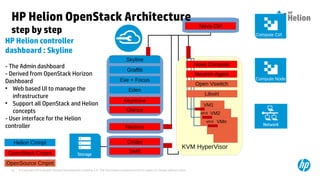

HP Helion controller
dashboard : Skyline
- The Admin dashboard
- Derived from OpenStack Horizon
Dashboard
●
Web based UI to manage the
infrastructure
●
Support all OpenStack and Helion
concepts
- User interface for the Helion
controller
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone
Neutron
Neutron Agent
Network
Open Vswitch
Storage
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step
HP Helion controller set
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Compute Node
Compute Ctrl
Glance
Keystone
Neutron
Neutron Agent
Network
Open Vswitch
Storage
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline
Compute controller
Cloud controller
Network controller
Storage controller

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

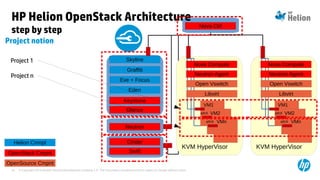

Project notion
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Glance
Keystone
Neutron
Neutron Agent
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline
KVM HyperVisor
VM1
VM2ethX
VMnethX
Libvirt
Nova Compute
Neutron Agent
Open Vswitch
Project 1
Project n

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step

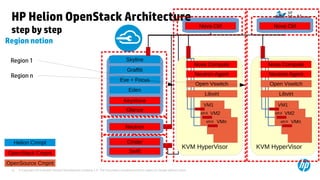

Region notion
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Glance
Keystone
Neutron
Neutron Agent
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline
KVM HyperVisor
VM1
VM2ethX
VMnethX
Libvirt
Nova Compute
Neutron Agent
Open Vswitch
Region 1
Region n
Nova Ctrl

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Glance
Keystone
Neutron
Neutron Agent
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Peer + Graffiti
Skyline
Helion Undercloud
The Admin node is
installed from a seed VM.
Meta controller to ease
Cloud creation
Help provision all nodes
(controller and compute)
Seed
VM

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Glance
Keystone
Neutron
Neutron Agent
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline

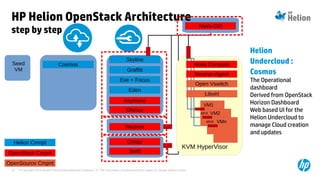

Helion
Undercloud :
Cosmos
The Operational
dashboard
Derived from OpenStack
Horizon Dashboard
Web based UI for the
Helion Undercloud to
manage Cloud creation
and updates
CosmosSeed
VM

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Glance
Keystone
Neutron
Neutron Agent
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline

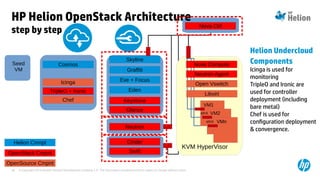

Helion Undercloud
Components
Icinga is used for
monitoring
TripleO and Ironic are
used for controller
deployment (including
bare metal)
Chef is used for
configuration deployment
& convergence.
Cosmos
TripleO + Ironic
Chef
Icinga
Seed
VM

KVM HyperVisor
VM1
VM2ethX
VMnethX
OpenSource Cmpnt
Libvirt
step by step
Nova Ctrl
Nova Compute
OpenStack Cmpnt
Glance
Keystone
Neutron
Neutron Agent
Open Vswitch
Cinder
Swift
Helion Cmnpt
Eden
Eve + Focus
Graffiti
Skyline

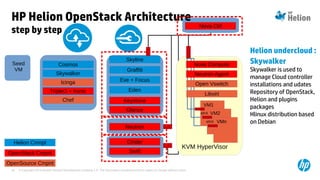

Helion undercloud :
Skywalker
Skywalker is used to
manage Cloud controller
installations and udates
Repository of OpenStack,
Helion and plugins
packages
Hlinux distribution based
on Debian
Seed
VM
Cosmos
TripleO + Ironic
Chef
Icinga
Skywalker

OpenSource Cmpnt

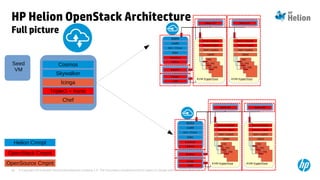

Full picture
OpenStack Cmpnt
Helion Cmnpt
Seed
VM
Cosmos
TripleO + Ironic
Chef
Icinga
Skywalker

Forj

A partir du catalogue

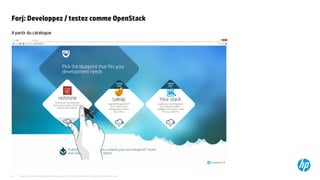

Forj: Developpez / testez comme OpenStack

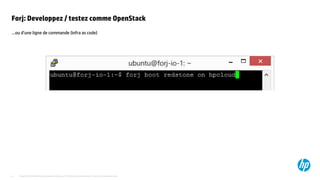

…ou d’une ligne de commande (infra as code)

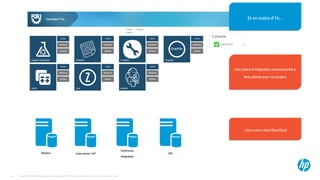

Forj: Developpez / testez comme OpenStack

Et en moins d’1h…Et en moins d’1h…
Une chaîne d’intégration continue prête à
être utilisée pour vos projets
Une chaîne d’intégration continue prête à
être utilisée pour vos projets
…dans votre cloud OpenStack…dans votre cloud OpenStack
Maestro
Continuous
Integration
Code review / GIT Util

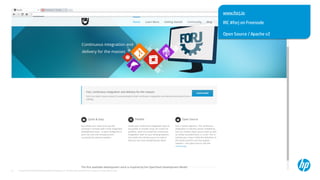

www.forj.io
IRC #forj on Freenode
Open Source / Apache v2
www.forj.io
IRC #forj on Freenode
Open Source / Apache v2

Thank you !

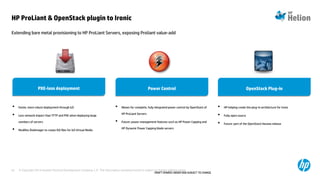

Extending bare metal provisioning to HP ProLiant Servers, exposing Proliant value-add
HP ProLiant & OpenStack plugin to Ironic
DRAFT-SHARED UNDER NDA-SUBJECT TO CHANGE
• Allows for complete, fully integrated power control by OpenStack of
HP ProLiant Servers
• Future: power management features such as HP Power Capping and
HP Dynamic Power Capping blade servers
• Faster, more robust deployment through iLO
• Less network impact than TFTP and PXE when deploying large
numbers of servers
• Modifies DiskImager to create ISO files for iLO Virtual Media
Power ControlPower ControlPXE-less deploymentPXE-less deployment
• HP helping create the plug-in architecture for Ironic
• Fully open source
• Future: part of the OpenStack Havana release
OpenStack Plug-inOpenStack Plug-in

Helion meetup-2014

More Related Content

What's hot

Similar to Helion meetup-2014

More from Bruno Cornec

Recently uploaded

Helion meetup-2014
