The best way to understand the cloud, is to have one of your own to kick around, poke, break, fix, and see what it looks like when it's running. In OpenStack we've got a whole project called Devstack which is designed to quickly bootstrap the latest git versions of all the OpenStack components and create an experimentation friendly OpenStack environment. This talk will introduce Devstack, how to get a running OpenStack with it, and how one might begin making changes and seeing them in action. We'll explore a few of the major OpenStack services, see what's going on, all with the intent to explain what OpenStack is by seeing not only the interface, but the internals at work. Presented at LinuxCon NA 2014

1. OpenStack in 10 minutes
with DevStack
Sean Dague / Aug 20th, 2014
Twitter: @sdague
Blog: dague.net
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.

2. OpenStack – A Constellation of IaaS Services
Horizon
Swift CCiinnddeerr Neutron
Nova
Glance
Keystone
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 2 without notice.
Ceilometer
Heat
Sahara
Trove

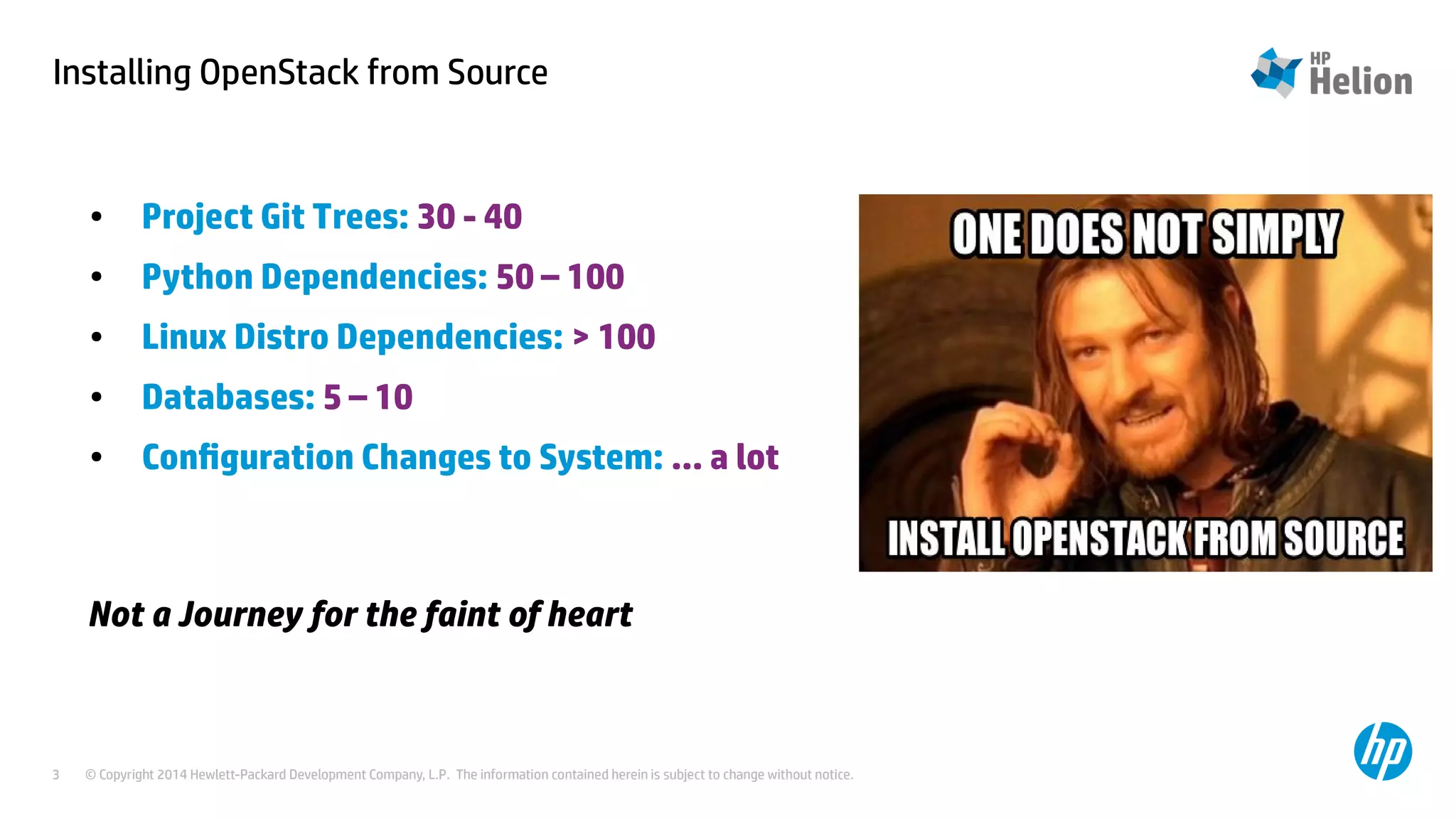

3. Installing OpenStack from Source
● Project Git Trees: 30 - 40
● Python Dependencies: 50 – 100
● Linux Distro Dependencies: > 100
● Databases: 5 – 10
● Configuration Changes to System: … a lot
Not a Journey for the faint of heart
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 3 without notice.

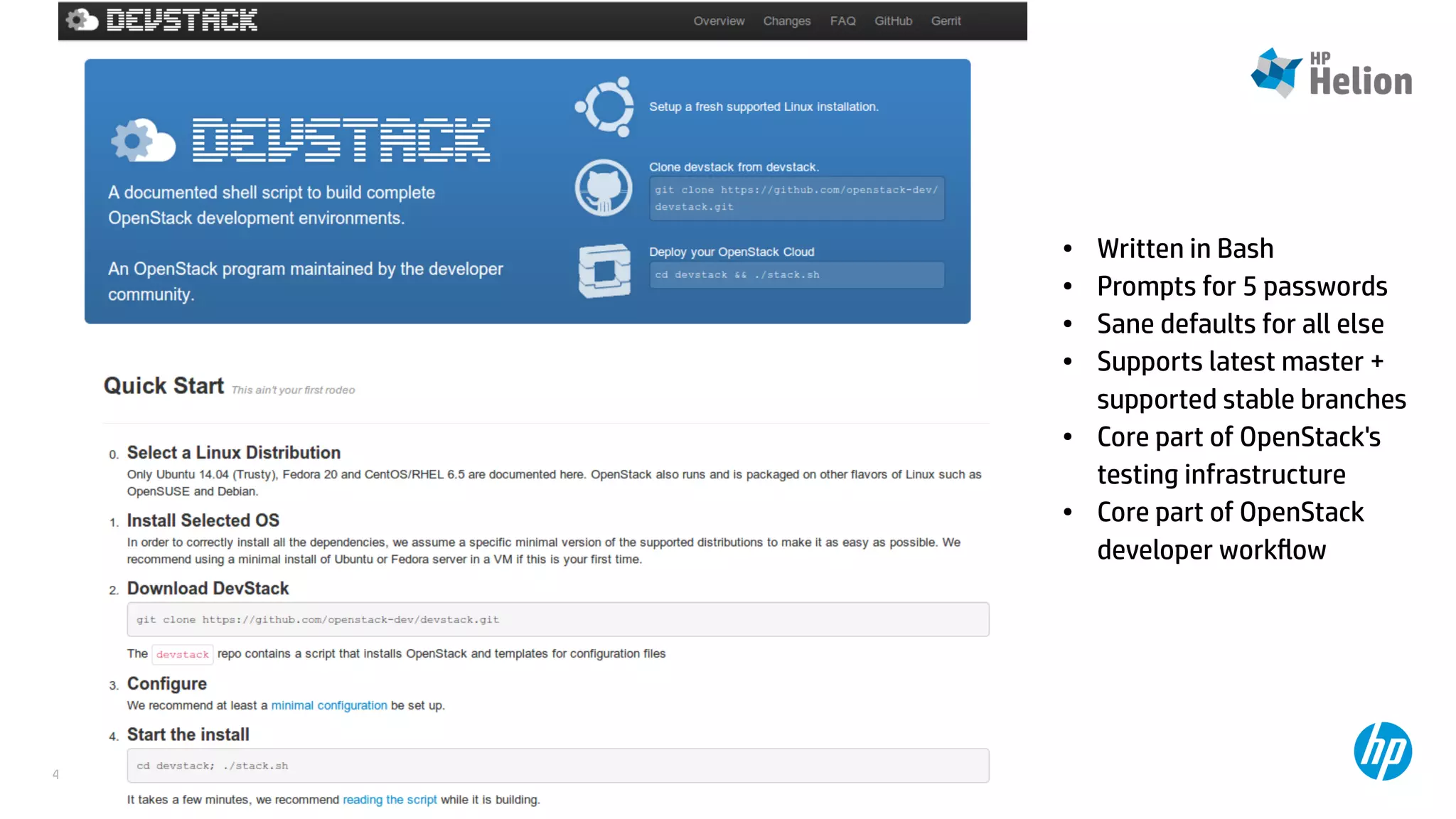

4. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 4 without notice.
● Written in Bash
● Prompts for 5 passwords
● Sane defaults for all else
● Supports latest master +
supported stable branches
● Core part of OpenStack's
testing infrastructure
● Core part of OpenStack
developer workflow

5. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 5 without notice. Let's kick off a DevStack run...

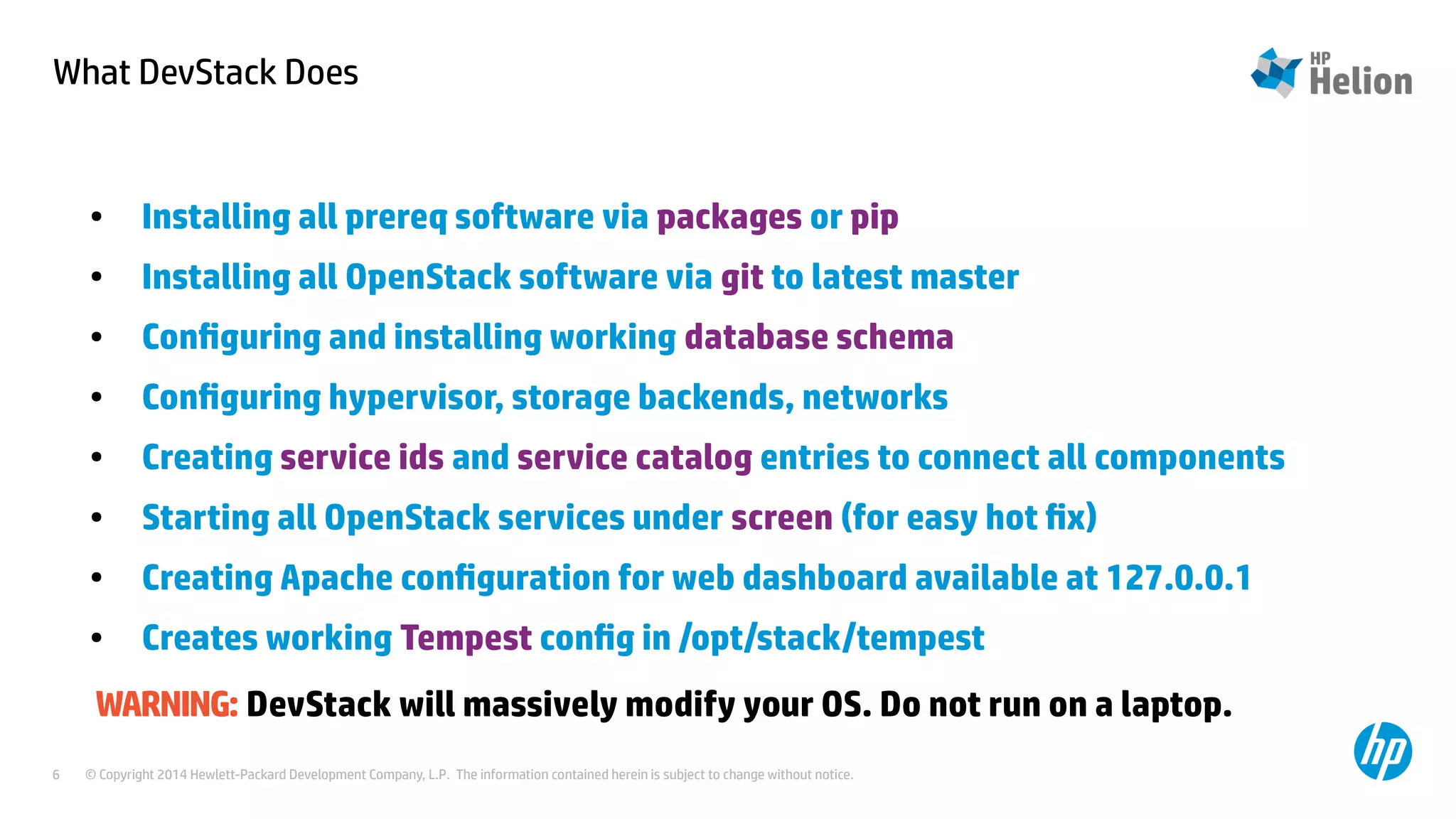

6. What DevStack Does
● Installing all prereq software via packages or pip
● Installing all OpenStack software via git to latest master
● Configuring and installing working database schema
● Configuring hypervisor, storage backends, networks
● Creating service ids and service catalog entries to connect all components
● Starting all OpenStack services under screen (for easy hot fix)
● Creating Apache configuration for web dashboard available at 127.0.0.1
● Creates working Tempest config in /opt/stack/tempest
WARNING: DevStack will massively modify your OS. Do not run on a laptop.
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 6 without notice.

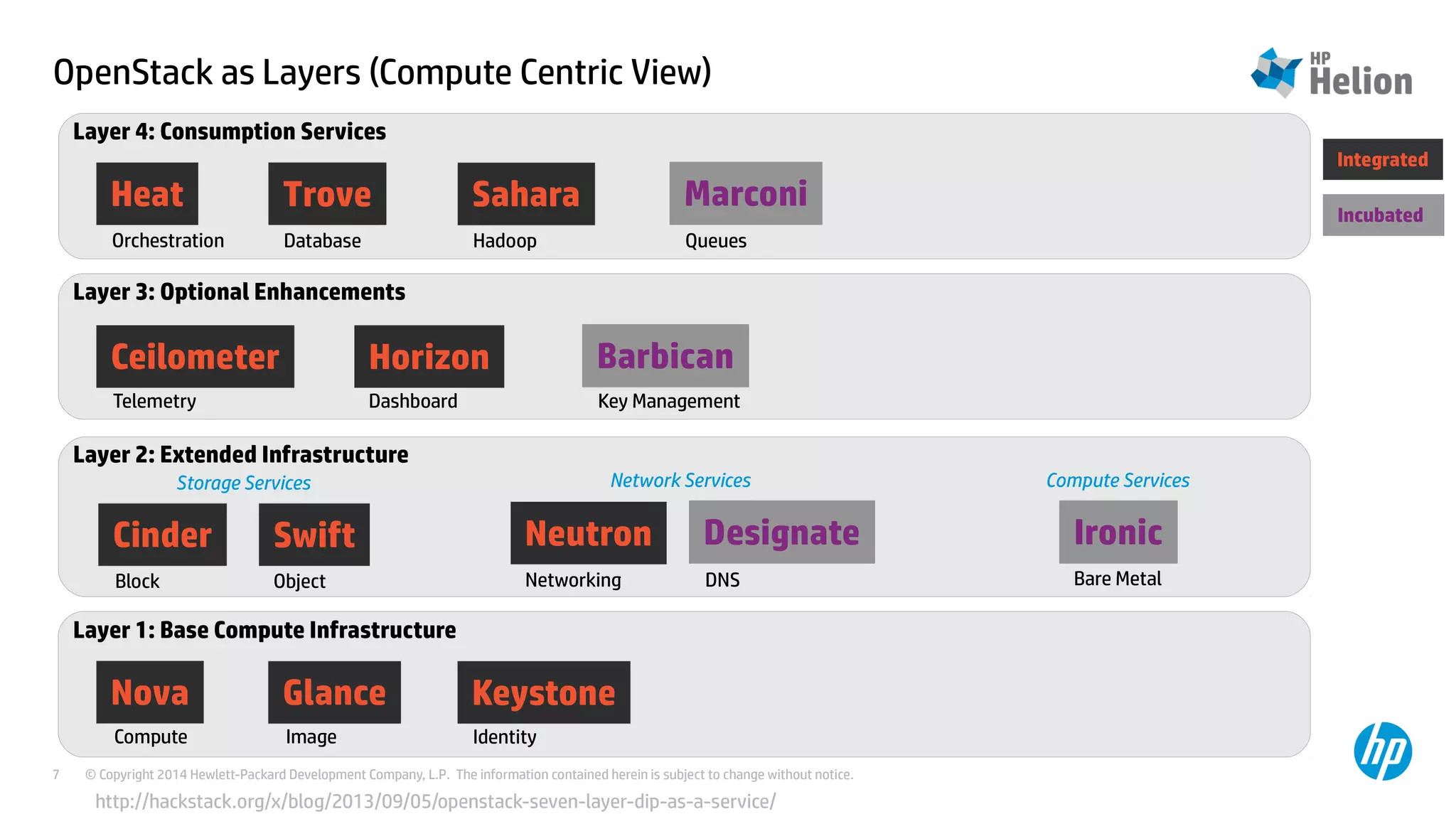

7. OpenStack as Layers (Compute Centric View)
Layer 4: Consumption Services
Heat Trove Sahara
Orchestration Database Hadoop Queues
Layer 3: Optional Enhancements
Ceilometer Horizon
Telemetry Dashboard Key Management
Layer 2: Extended Infrastructure
Storage Services Network Services Compute Services
Layer 1: Base Compute Infrastructure
Nova Glance Keystone
Marconi
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 7 without notice.
Ironic
Barbican
Compute Image
Bare Metal
Neutron Designate
Networking DNS
Cinder Swift
Block Object
Identity
Integrated
Incubated
http://hackstack.org/x/blog/2013/09/05/openstack-seven-layer-dip-as-a-service/

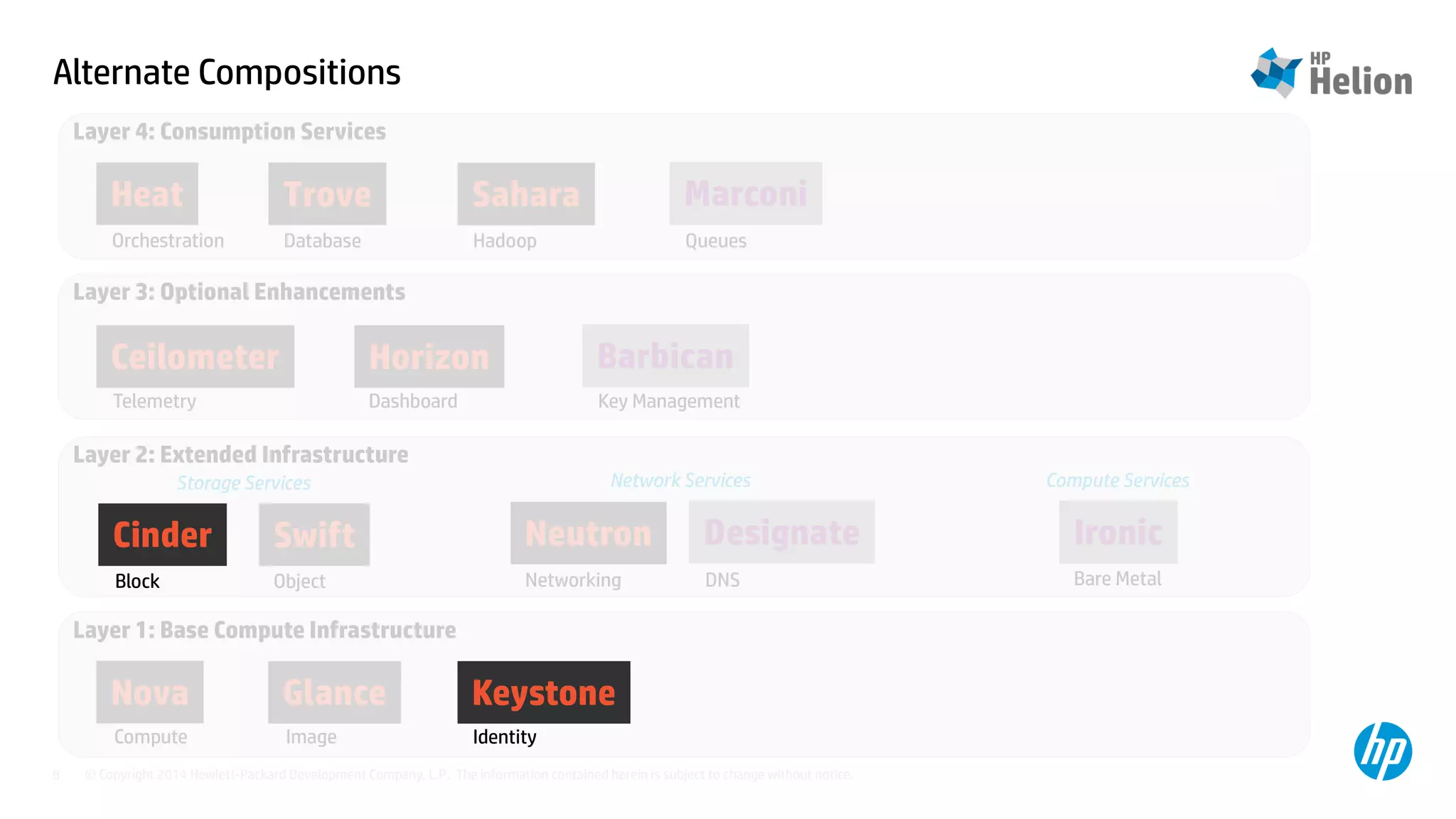

8. Alternate Compositions
Layer 4: Consumption Services
Heat Trove Sahara
Orchestration Database Hadoop Queues
Layer 3: Optional Enhancements
Ceilometer Horizon
Telemetry Dashboard Key Management
Layer 2: Extended Infrastructure
Storage Services Network Services Compute Services
Layer 1: Base Compute Infrastructure
Nova Glance
Marconi
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 8 without notice.
Ironic
Barbican
Compute Image
Bare Metal
Neutron Designate
Networking DNS
Swift
Object
Keystone
Identity
Cinder
Block

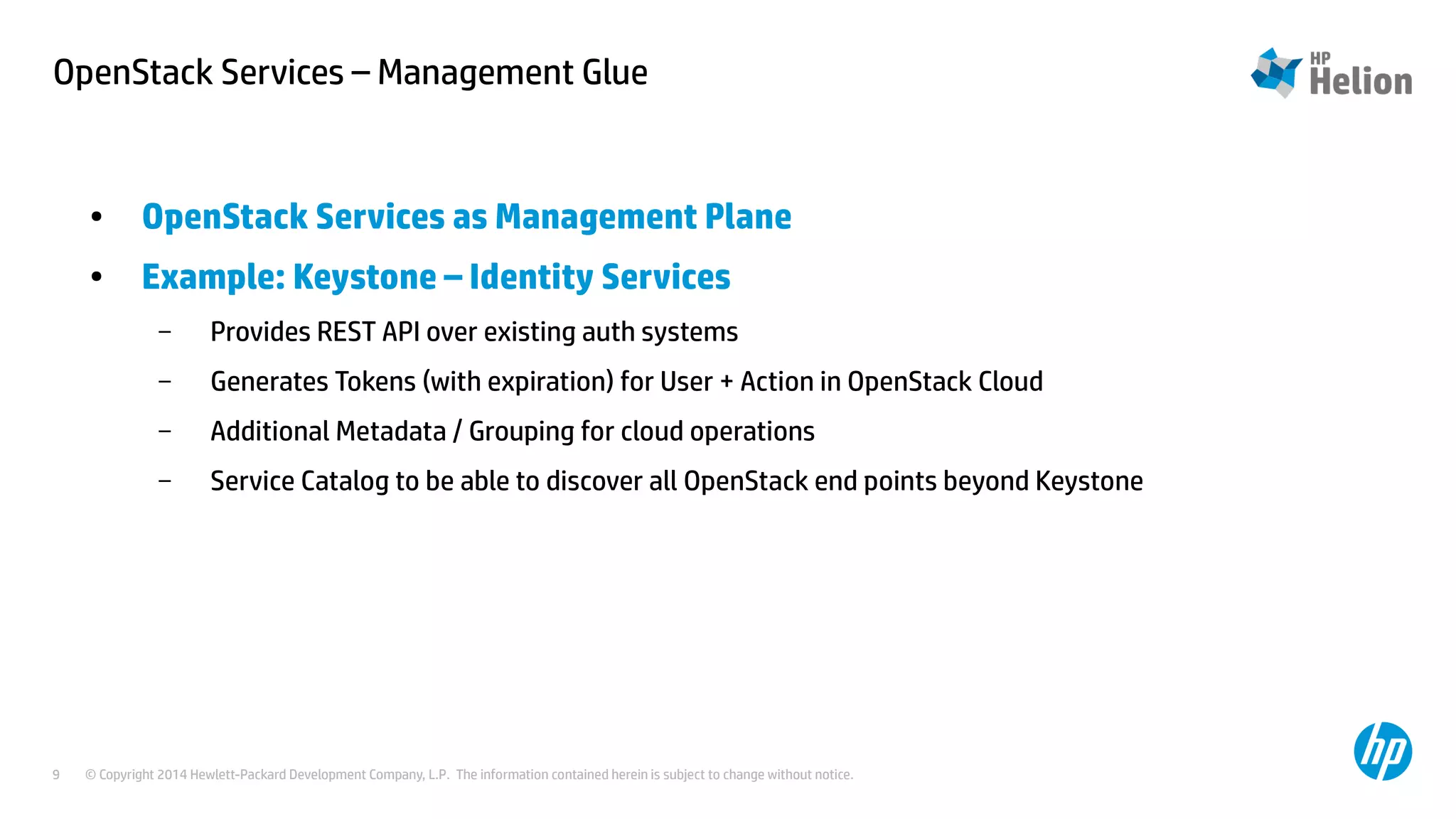

9. OpenStack Services – Management Glue
● OpenStack Services as Management Plane
● Example: Keystone – Identity Services
– Provides REST API over existing auth systems
– Generates Tokens (with expiration) for User + Action in OpenStack Cloud
– Additional Metadata / Grouping for cloud operations
– Service Catalog to be able to discover all OpenStack end points beyond Keystone
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 9 without notice.

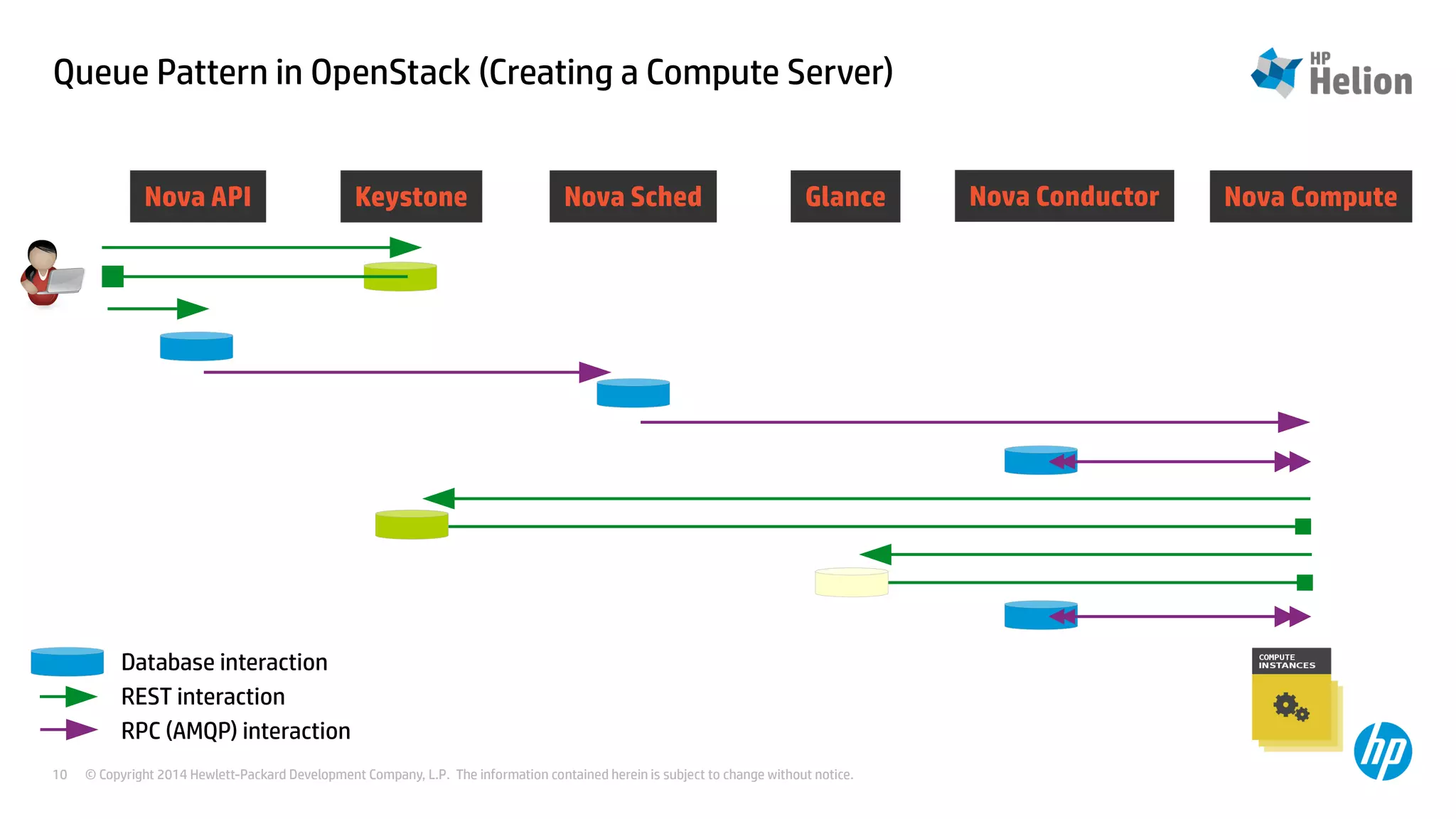

10. Queue Pattern in OpenStack (Creating a Compute Server)
Nova API Keystone Nova Sched Glance Nova Conductor Nova Compute
Database interaction
REST interaction
RPC (AMQP) interaction
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 10 without notice.

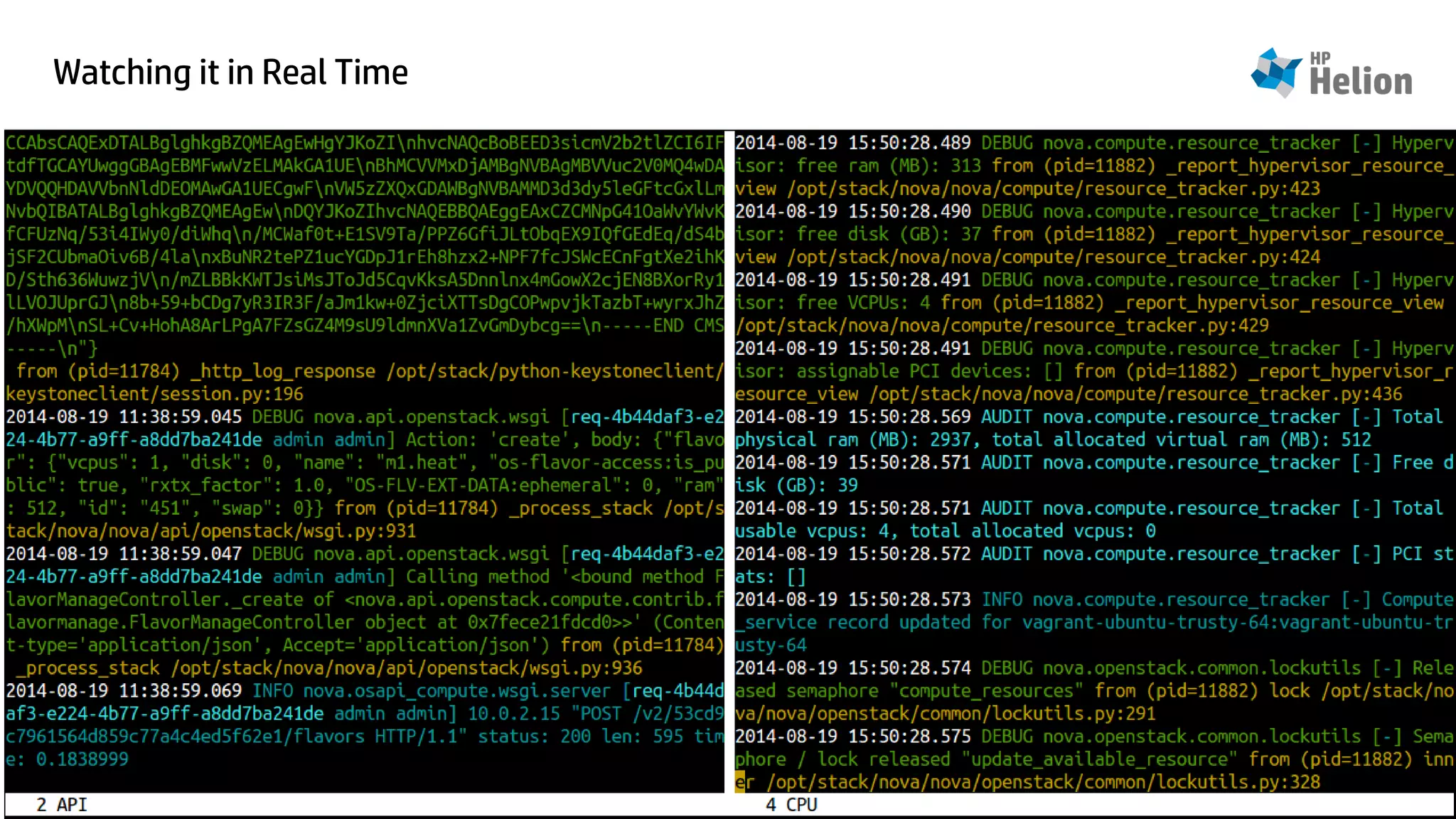

11. Watching it in Real Time
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 11 without notice.

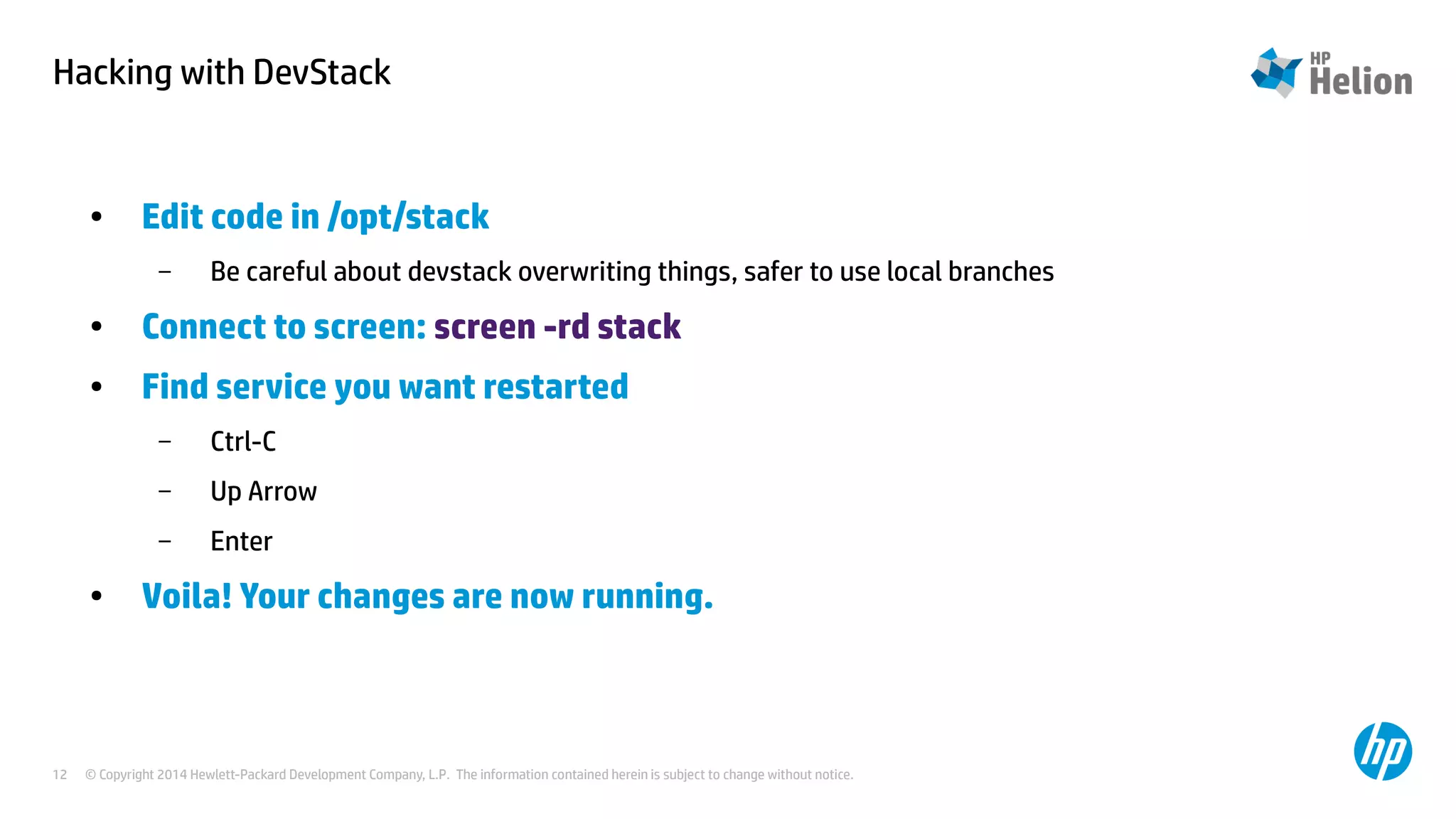

12. Hacking with DevStack
● Edit code in /opt/stack
– Be careful about devstack overwriting things, safer to use local branches
● Connect to screen: screen -rd stack
● Find service you want restarted
– Ctrl-C
– Up Arrow
– Enter
● Voila! Your changes are now running.
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 12 without notice.

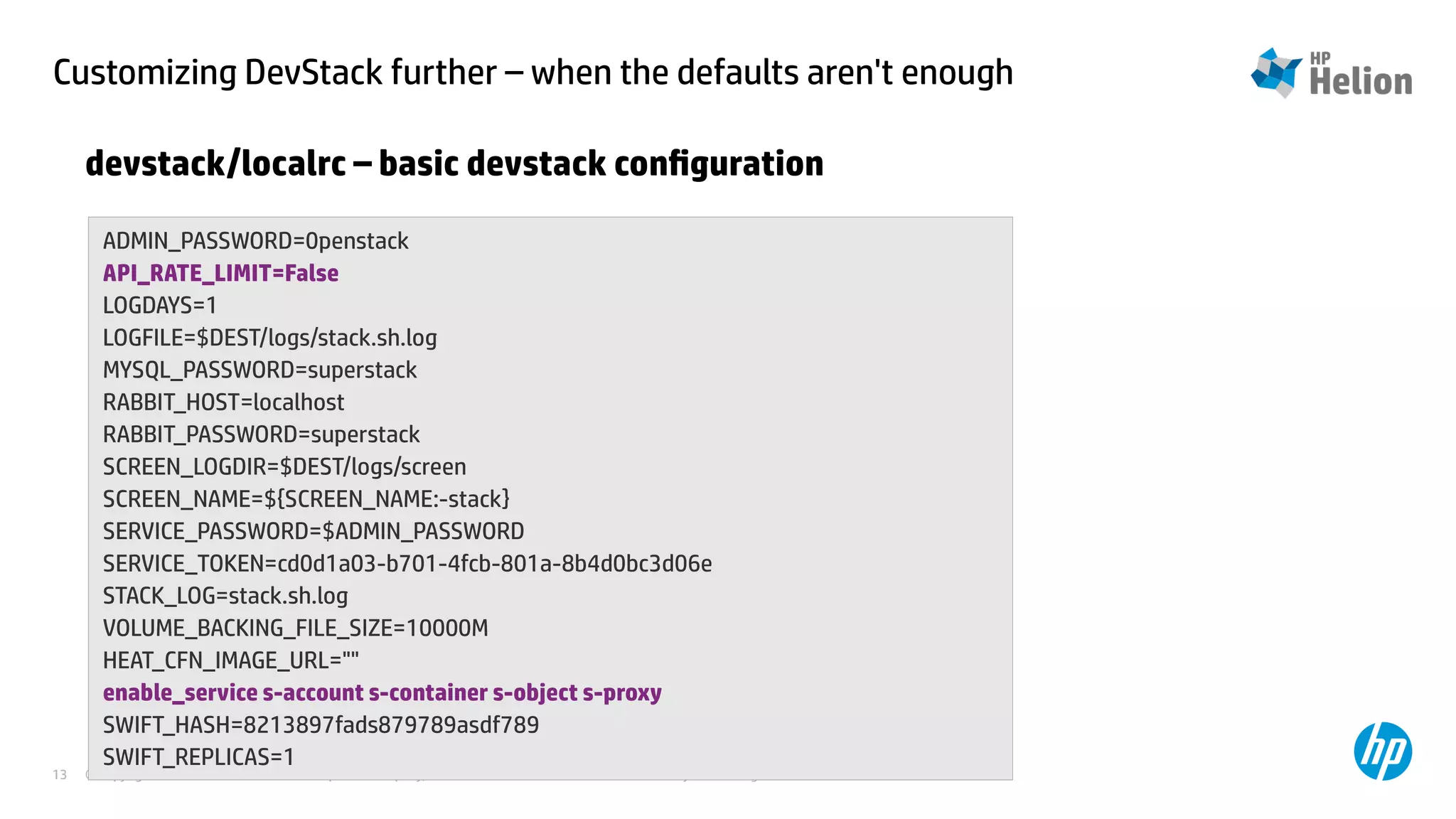

13. Customizing DevStack further – when the defaults aren't enough
devstack/localrc – basic devstack configuration
ADMIN_PASSWORD=0penstack
API_RATE_LIMIT=False
LOGDAYS=1
LOGFILE=$DEST/logs/stack.sh.log
MYSQL_PASSWORD=superstack
RABBIT_HOST=localhost
RABBIT_PASSWORD=superstack
SCREEN_LOGDIR=$DEST/logs/screen
SCREEN_NAME=${SCREEN_NAME:-stack}
SERVICE_PASSWORD=$ADMIN_PASSWORD
SERVICE_TOKEN=cd0d1a03-b701-4fcb-801a-8b4d0bc3d06e
STACK_LOG=stack.sh.log
VOLUME_BACKING_FILE_SIZE=10000M
HEAT_CFN_IMAGE_URL=""
enable_service s-account s-container s-object s-proxy
SWIFT_HASH=8213897fads879789asdf789
SWIFT_REPLICAS=1
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 13 without notice.

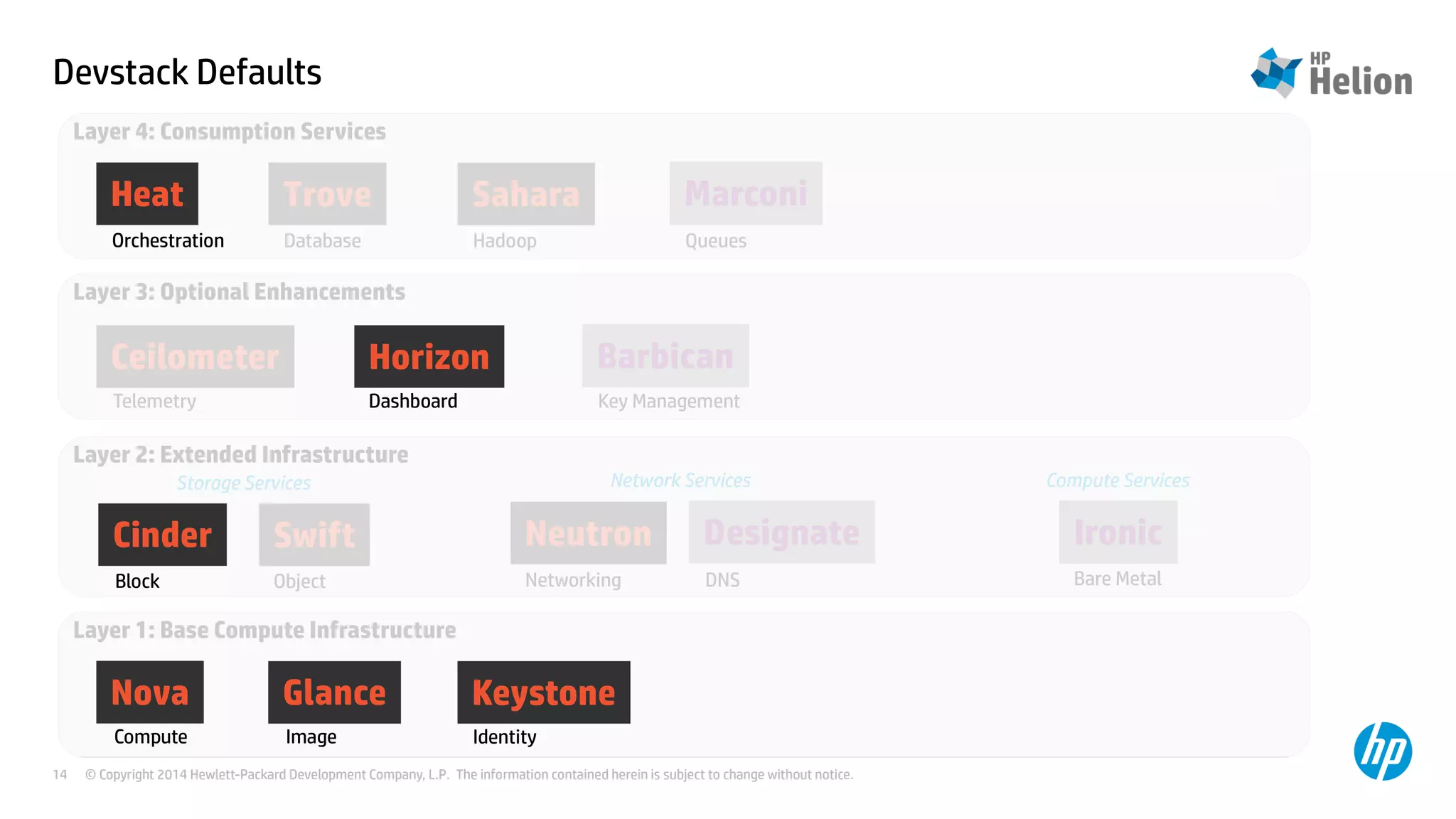

14. Devstack Defaults
Layer 4: Consumption Services
Trove Sahara
Database Hadoop Queues
Heat
Orchestration
Layer 3: Optional Enhancements
Ceilometer
Telemetry Key Management
Layer 2: Extended Infrastructure
Storage Services Network Services Compute Services
Layer 1: Base Compute Infrastructure
Marconi
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 14 without notice.
Ironic
Barbican
Bare Metal
Neutron Designate
Networking DNS
Swift
Object
Keystone
Identity
Cinder
Block
Horizon
Dashboard
Nova Glance
Compute Image

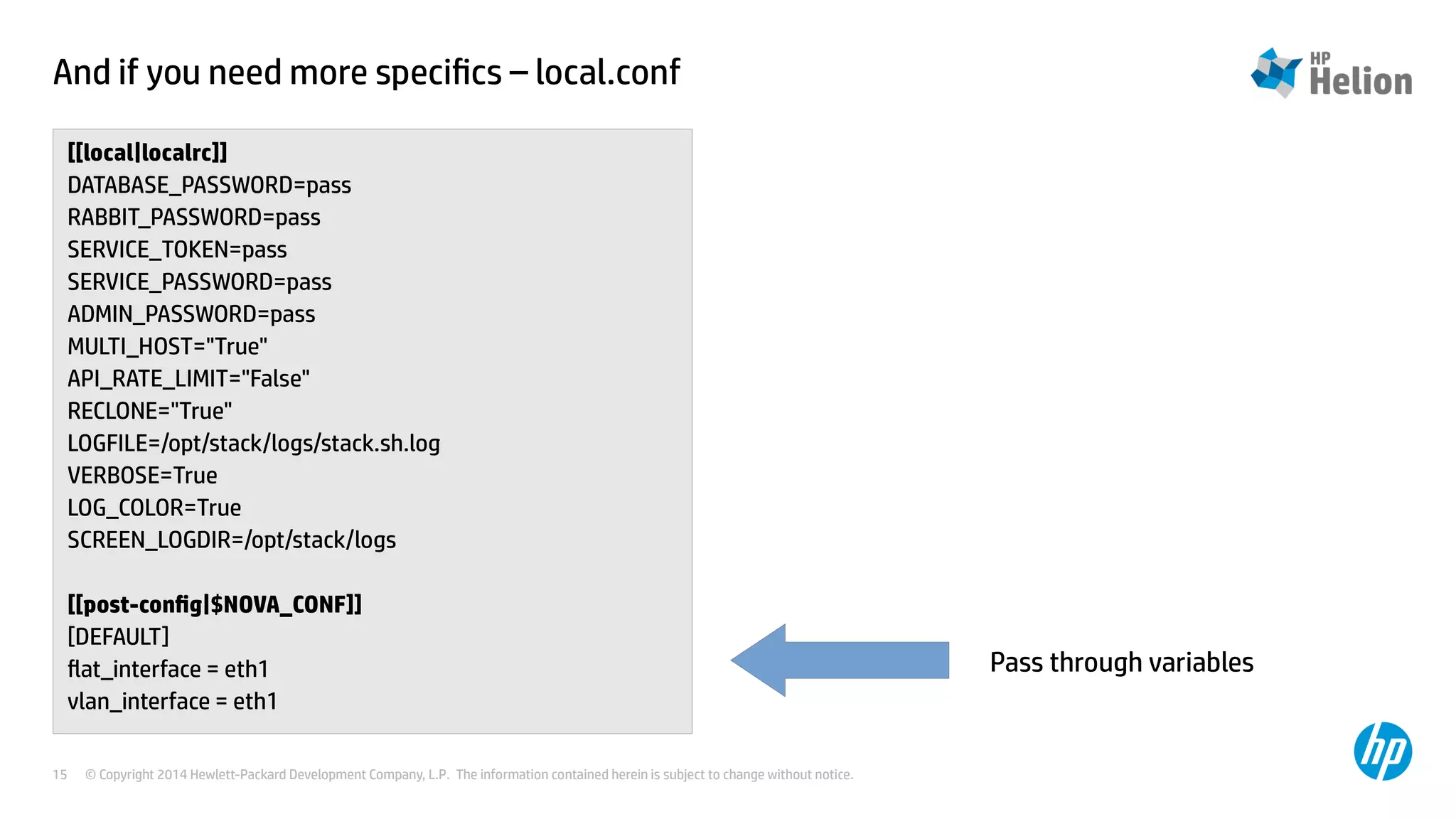

15. And if you need more specifics – local.conf
[[local|localrc]]
DATABASE_PASSWORD=pass
RABBIT_PASSWORD=pass
SERVICE_TOKEN=pass
SERVICE_PASSWORD=pass
ADMIN_PASSWORD=pass
MULTI_HOST="True"
API_RATE_LIMIT="False"
RECLONE="True"
LOGFILE=/opt/stack/logs/stack.sh.log
VERBOSE=True
LOG_COLOR=True
SCREEN_LOGDIR=/opt/stack/logs
[[post-config|$NOVA_CONF]]
[DEFAULT]
flat_interface = eth1
vlan_interface = eth1
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 15 without notice.
Pass through variables

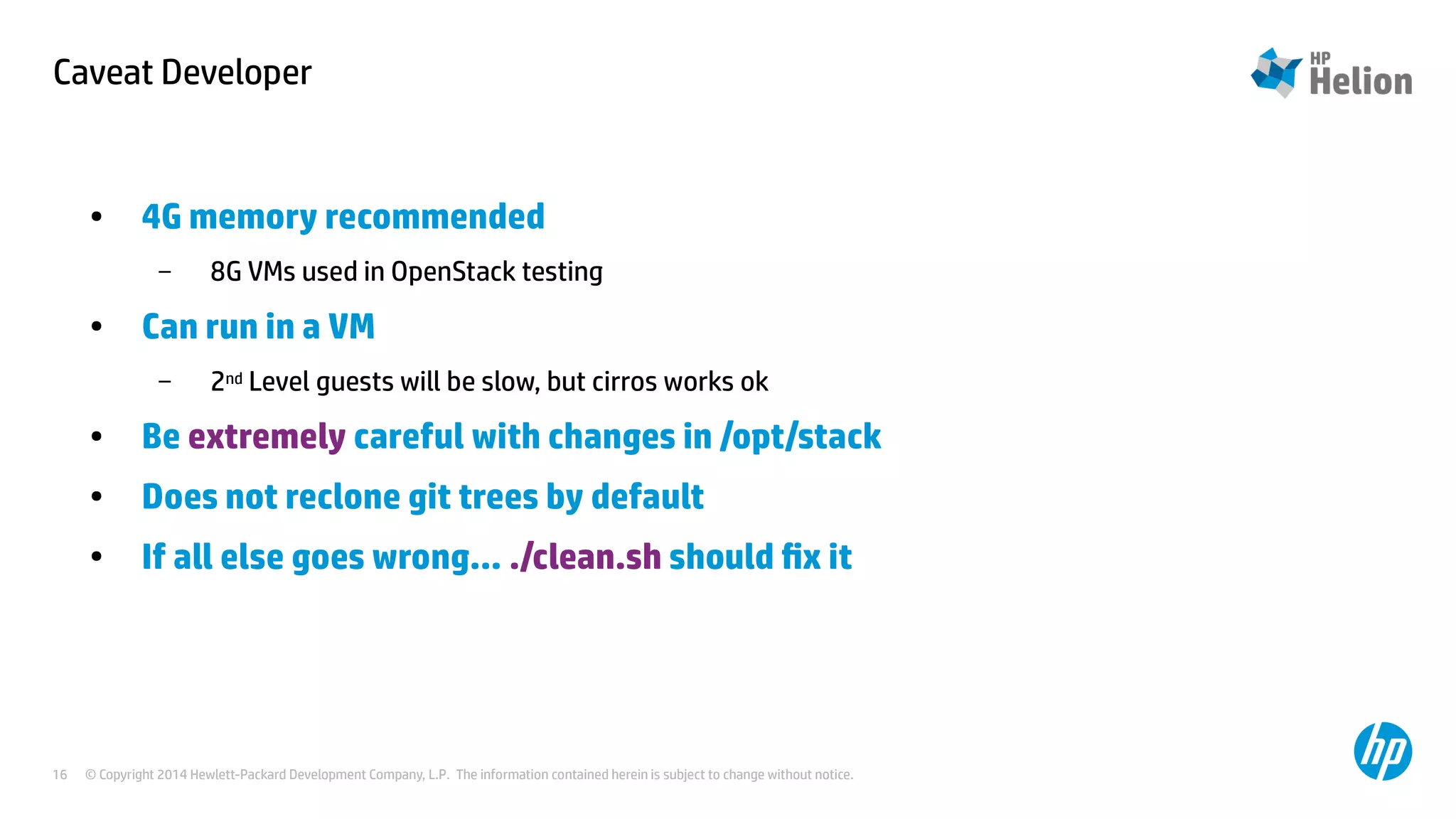

16. Caveat Developer
● 4G memory recommended
– 8G VMs used in OpenStack testing
● Can run in a VM
– 2nd Level guests will be slow, but cirros works ok
● Be extremely careful with changes in /opt/stack
● Does not reclone git trees by default
● If all else goes wrong... ./clean.sh should fix it
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 16 without notice.

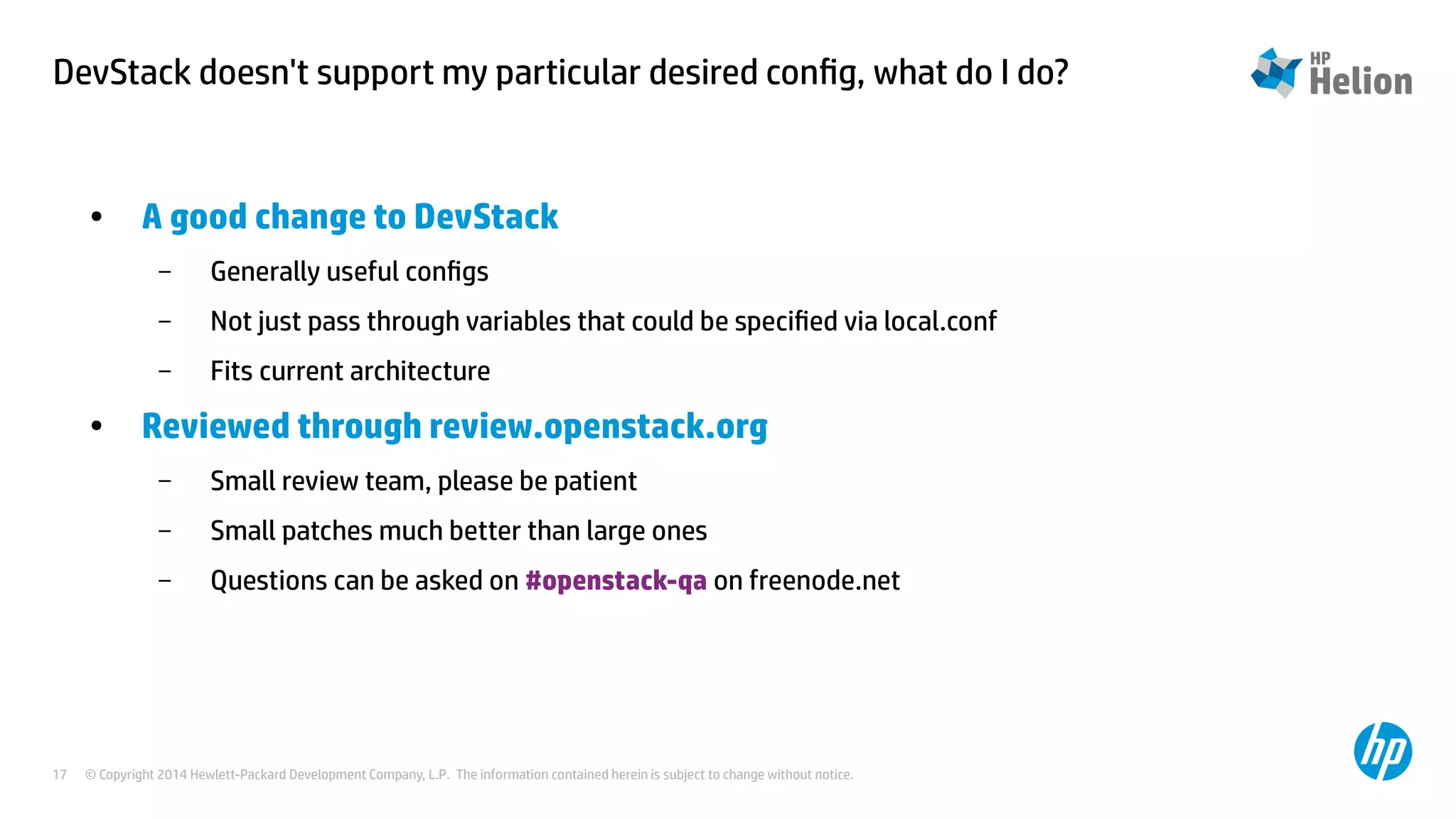

17. DevStack doesn't support my particular desired config, what do I do?
● A good change to DevStack
– Generally useful configs
– Not just pass through variables that could be specified via local.conf
– Fits current architecture
● Reviewed through review.openstack.org
– Small review team, please be patient
– Small patches much better than large ones
– Questions can be asked on #openstack-qa on freenode.net
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 17 without notice.

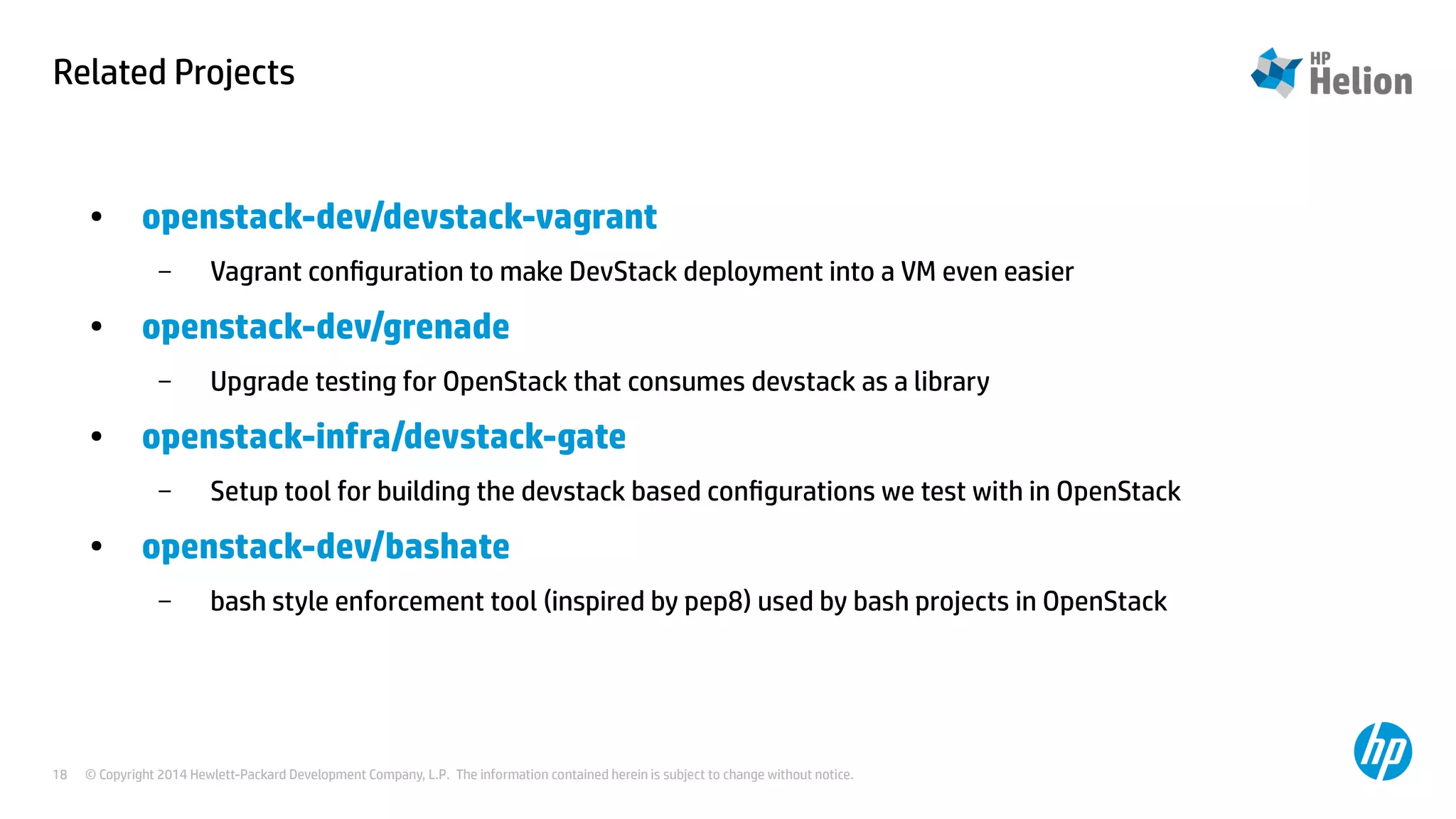

18. Related Projects
● openstack-dev/devstack-vagrant
– Vagrant configuration to make DevStack deployment into a VM even easier
● openstack-dev/grenade
– Upgrade testing for OpenStack that consumes devstack as a library
● openstack-infra/devstack-gate
– Setup tool for building the devstack based configurations we test with in OpenStack
● openstack-dev/bashate
– bash style enforcement tool (inspired by pep8) used by bash projects in OpenStack
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 18 without notice.

19. Thanks!
Layer 4: Consumption Services
Heat Trove Sahara
Orchestration Database Hadoop Queues
Layer 3: Optional Enhancements
Ceilometer Horizon
Telemetry Dashboard Key Management
Layer 2: Extended Infrastructure
Storage Services Network Services Compute Services
Layer 1: Base Compute Infrastructure
Nova Glance Keystone
Marconi
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change 19 without notice.
Ironic
Barbican
Compute Image
Bare Metal
Neutron Designate
Networking DNS
Cinder Swift
Block Object
Identity
Integrated
Incubated
http://hackstack.org/x/blog/2013/09/05/openstack-seven-layer-dip-as-a-service/
Questions?
