hbaseconasia2019 HBase at Tencent
- 2. HBase At Tencent AndrewCheng | 程广旭 Tencent | HBase Committer

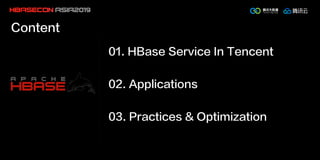

- 3. Content 01. HBase ServiceIn Tencent 02. Applications 03. Practices & Optimization
- 4. 01. HBase Service InTencent

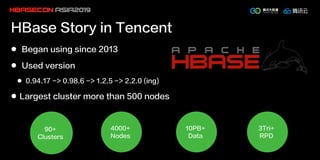

- 5. HBase Story inTencent l Began using since 2013 l Used version l 0.94.17 -> 0.98.6 -> 1.2.5 -> 2.2.0 (ing) l Largest cluster more than 500 nodes 90+ Clusters 4000+ Nodes 10PB+ Data 3Tri+ RPD

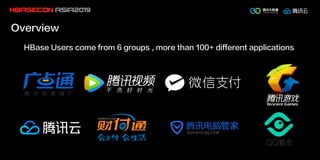

- 6. Overview HBase Users comefrom 6 groups , more than 100+ different applications
- 7. Architecture Tencent HBase Zookeeper OpenTSDB S2Graph SparkTookit HBase Api TDBank Lhotse RestServer ThriftServer Kylin Phoenix Tenpay Doss monitoring TNM2 Deploy CenterWepay Game Advertiseme nt …
- 8.
- 9. Tencent Ads –Real-Time Logjoin System Mixer Exposure TDBank Tencent HBase Model learning Freshness Budget control Report Association Table Flow Table Click … LogJoin LogJoin LogJoin LogJoin Data Source Transport Logical Storage Consumer

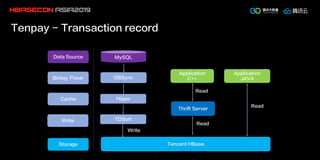

- 10. Tenpay - Transactionrecord Data Source MySQL Binlog Paser DBSync Cache Hippo Storage Tencent HBase Thrift Server Application C++ Read Read Write Application JAVA Read Write TDSort
- 11.

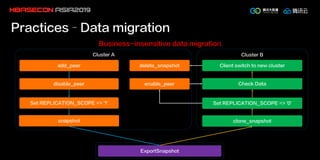

- 12. Practices–Data migration add_peer disable_peer Set REPLICATION_SCOPE=> '1' snapshot clone_snapshot Set REPLICATION_SCOPE => '0' Check Dataenable_peer Client switch to new cluster Cluster A Cluster B ExportSnapshot delete_snapshot Business-insensitive data migration
- 13. Practices–Table l Create tableper day l Large amount of data l TTL is short l Benefit l Reduce the amount of data in compaction l Easy to delete expired data

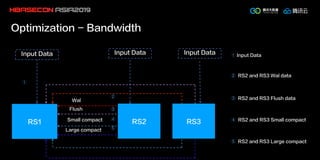

- 14. Optimization - Bandwidth ②RS2 and RS3 Wal data ① Input Data ③ RS2 and RS3 Flush data ⑤ RS2 and RS3 Large compact ④ RS2 and RS3 Small compact RS1 RS2 RS3 Input Data Wal Flush ① Small compact Large compact ② ③ ④ ⑤ Input Data Input Data

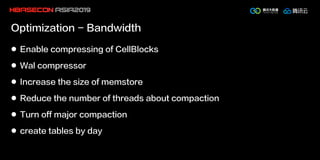

- 15. Optimization - Bandwidth lEnable compressing of CellBlocks l Wal compressor l Increase the size of memstore l Reduce the number of threads about compaction l Turn off major compaction l create tables by day

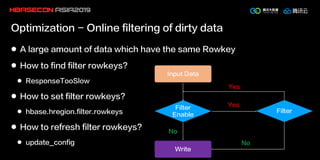

- 16. Optimization - Onlinefiltering of dirty data l A large amount of data which have the same Rowkey l How to find filter rowkeys? l ResponseTooSlow l How to set filter rowkeys? l hbase.hregion.filter.rowkeys l How to refresh filter rowkeys? l update_config Input Data Filter Enable Write Filter Yes Yes No No

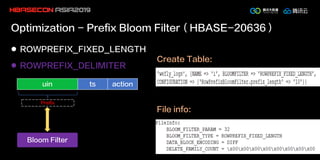

- 17. Optimization - PrefixBloom Filter（HBASE-20636） l ROWPREFIX_FIXED_LENGTH l ROWPREFIX_DELIMITER uin ts action Bloom Filter Prefix Create Table: File info:
- 18. Optimization - PrefixBloom Filter（HBASE-20636） Scan Not Filter StoreFile Same prefix? {StartKey,EndKey} Computer hash value Hit BloomFilter? Prefix length >= prefix_length Yes Yes No Filter StoreFile No No Get prefix key by prefix_length Yes Read Rowkey Get prefix key by prefix_length Computer hash value Set BloomFilter Last line? Input Data Write BloomFilter information to StoreFile metadata Yes No Write
- 19. Optimization - RestServer RestServerA Cluster A Cluster B Cluster C RestServer CRestServer B RestServer D User Nginx
- 20. Optimization - RestServer RestServerA Cluster A Cluster B Cluster C RestServer CRestServer B User Nginx Mysql

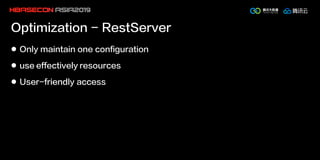

- 21. Optimization - RestServer lOnly maintain one configuration l use effectively resources l User-friendly access

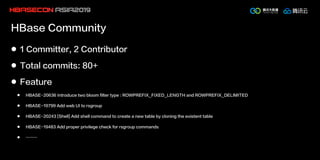

- 22. HBase Community l 1Committer, 2 Contributor l Total commits: 80+ l Feature l HBASE-20636 Introduce two bloom filter type : ROWPREFIX_FIXED_LENGTH and ROWPREFIX_DELIMITED l HBASE-19799 Add web UI to rsgroup l HBASE-20243 [Shell] Add shell command to create a new table by cloning the existent table l HBASE-19483 Add proper privilege check for rsgroup commands l ………
- 23.
- 24.
