Handling XML and JSON in the Database
1. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013

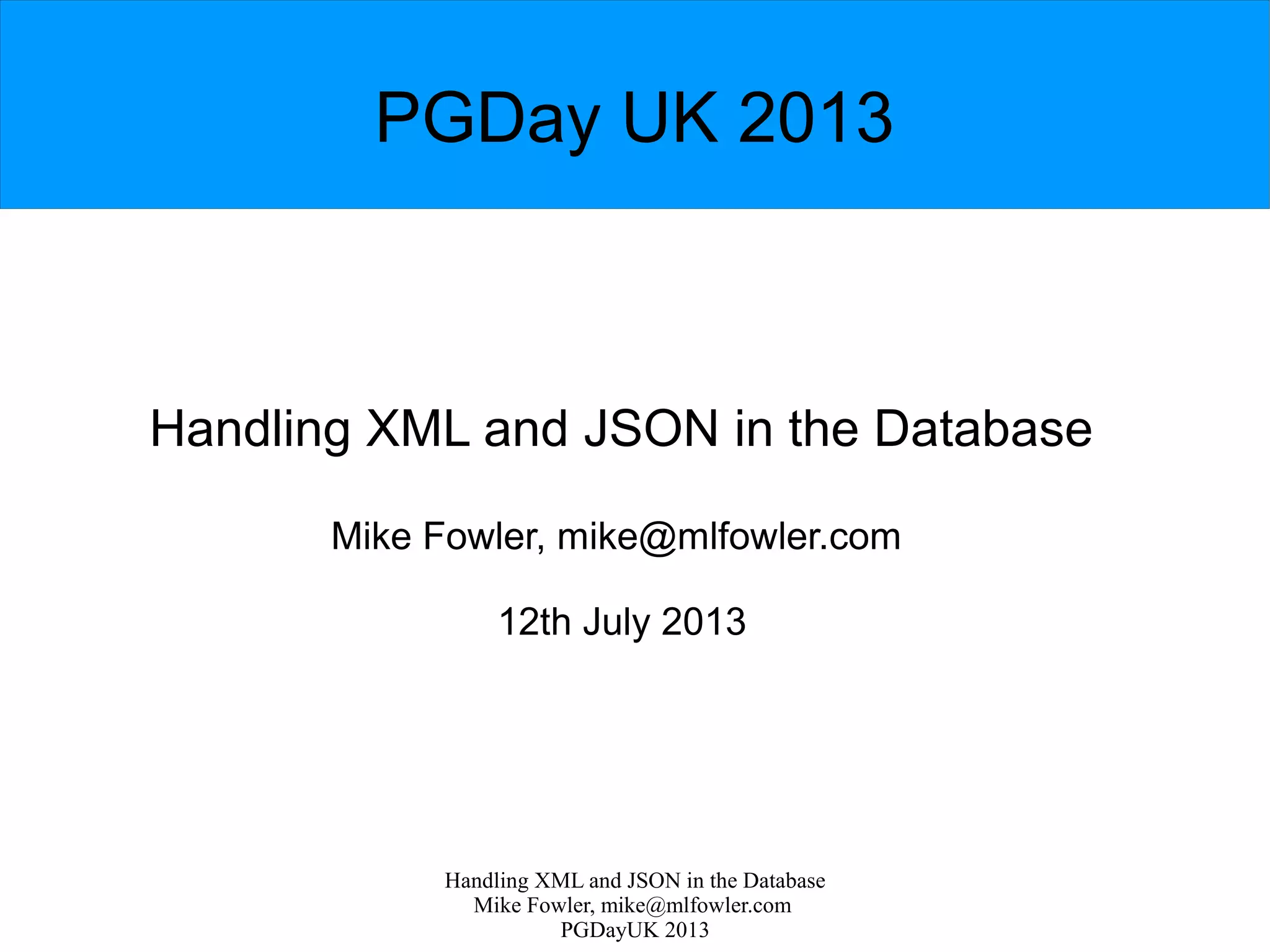

PGDay UK 2013
Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
12th July 2013
2. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013

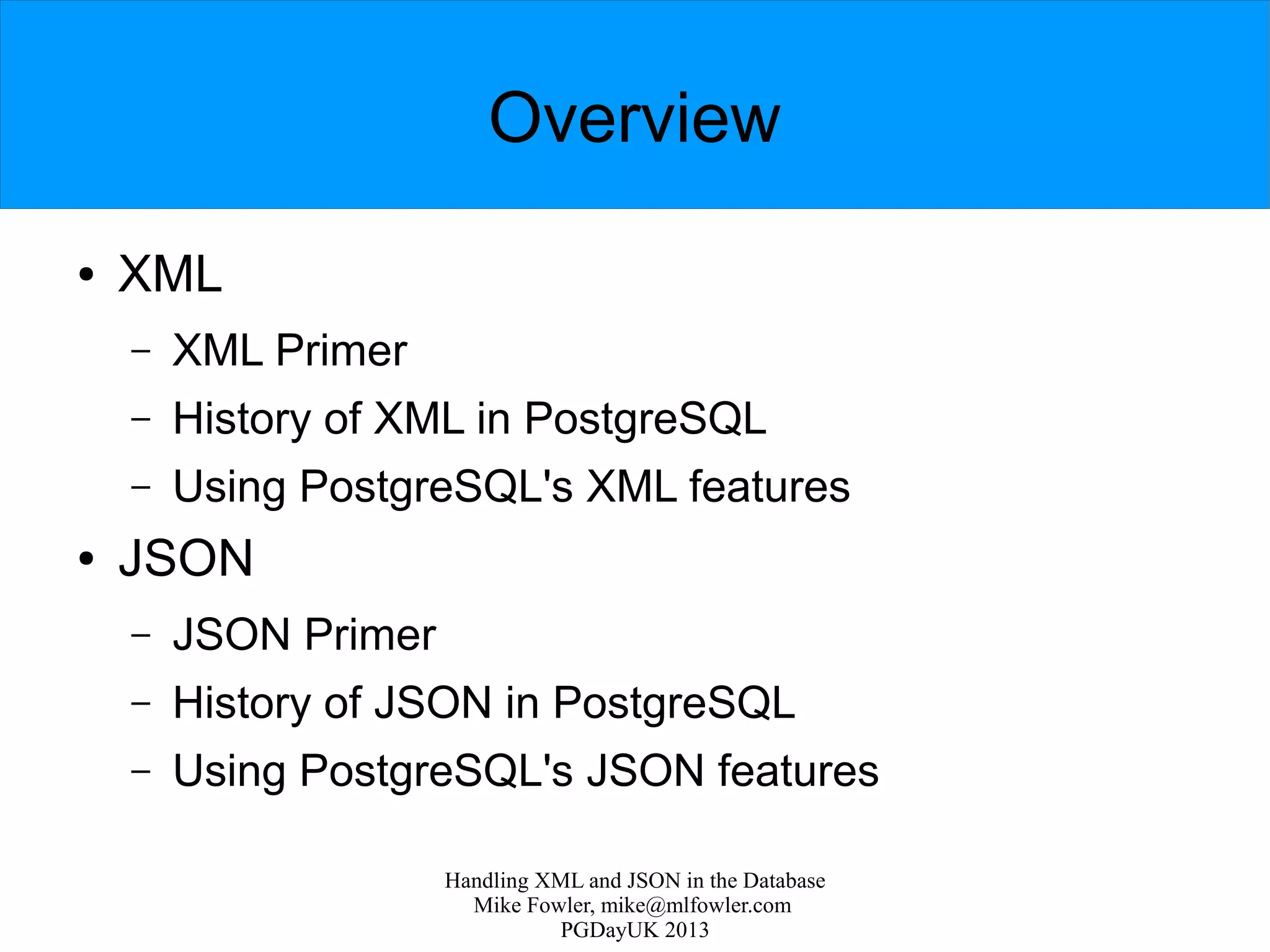

Overview
● XML
– XML Primer
– History of XML in PostgreSQL
– Using PostgreSQL's XML features
● JSON
– JSON Primer
– History of JSON in PostgreSQL
– Using PostgreSQL's JSON features
3. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
About Me
● Been using PostgreSQL for ~10 years
● Contributed some XML support
– XMLEXISTS/xpath_exists()
– xml_is_well_formed()
● Buildfarm member piapiac
– Amazon EC2 based build for JDBC driver
– Has lead to a number of bugfix patches for JDBC
http://www.pgbuildfarm.org/cgi-bin/show_status.pl?
member=piapiac
4. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
Reasons to store XML/JSON
● Client application uses it
– Configuration
– Serialised objects
● Data format/schema is highly complex/variable
● You just don't “care” about the data!
– Audit data
– Application log files
5. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
Primer: XML
● eXtensible Markup Language
● Human readable data interchange &
serialisation format
● Consists of a root element containing a mix of
child elements and text content with any
element having optional attributes
<root>
<child attribute=”value”>
text based content
</child>
</root>
6. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML Support
● ANSI and ISO standards exist
– Introduced in SQL/XML 2003
– Augmented in SQL/XML 2006
● Prior to 8.3 XML support was a contrib module
● Added to core in 8.3 but remains a compile
time option enabled with:
configure --with-libxml
7. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML Support
● xml datatype (internally stored as text)
● Keywords from the standards
– DOCUMENT, CONTENT
– XMLPARSE, XMLSERIALIZE ...
● Predicates, also from the standards
– IS [NOT] DOCUMENT
– XMLEXISTS (9.1)
● A number of support functions, not standard
– xmlconcat(), xpath() ...
8. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: The Hard Way
● Using “standard” SQL, XML is inserted:
INSERT INTO demo (data) VALUES (XMLPARSE (DOCUMENT '<?
xml version="1.0"?> <book> <title>Manual</title>
<chapter>...</chapter> </book>'))
● To retrieve using “standard” SQL:
SELECT XMLSERIALIZE(DOCUMENT data AS text) FROM ...
9. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: The Easy Way
● It's a normal datatype, use normal casting!
● INSERT (::xml is optional as text will
implicitly cast to xml even in 9.3)
pgday=# INSERT INTO demo (data) VALUES ('<?xml
version="1.0"?> pgday-# <book> <title>Manual</title>
pgday-# <chapter>...</chapter> </book>'::xml);
INSERT 0 1
10. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: The Easy Way
● SELECT (::text is optional as far as
rendering in the psql client is concerned)
pgday=# SELECT data::text FROM demo WHERE ...
data
----------------------------------------------------------
<book><title>Manual</title><chapter>...</chapter></book>
(1 row)
11. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: xmloption
● When casting without XMLPARSE or
XMLSERIALIZE the choice of DOCUMENT or
CONTENT is determined by the value of the 'XML
option' session variable
SET XML OPTION { DOCUMENT | CONTENT}
SET xmloption TO { DOCUMENT |
CONTENT}
12. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: Predicates
● IS DOCUMENT / IS NOT DOCUMENT
– Use to filter between DOCUMENT and CONTENT
– Only works with data that is already cast as XML
pgday=# SELECT XMLSERIALIZE(DOCUMENT data AS text)
FROM
pgday-# WHERE data IS DOCUMENT;
pgday=# SELECT XMLSERIALIZE(CONTENT data AS text)
FROM
pgday-# WHERE data IS NOT DOCUMENT;
13. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: Predicates
● xml_is_well_formed()
– Introduced in 9.1 and takes text as a parameter
– Sensitive to XMLOPTION
● SET xmloption DOCUMENT;
– Also xml_is_well_formed_documet() and
xml_is_well_formed_content()
14. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: xpath()
xpath(xpath, xml [, nsarray])
● Allows you to extract elements and text
● Supports namespaces
● Returns an array of XML
● Also returns empty arrays when there is no match
SELECT xpath('//title/text()',data)
FROM ...
15. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: XMLEXISTS
XMLEXISTS(text PASSING [BY REF] xml [BY REF])
● From the standard, useful for predicates
● First parameter is an xpath expression
SELECT xpath('//title/text()',data)
FROM demo WHERE XMLEXISTS('//title'
PASSING data);
16. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
XML: xpath_exists()
xpath_exists(xpath, xml [, nsarray])
● Serves the same purpose as XMLEXISTS but:
– Supports namespaces
– Syntax is simplier
SELECT xpath('//title/text()',data)
FROM demo WHERE
xpath_exists('//title', data);
17. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
Primer: JSON
● JavaScript Object Notation
● Also a human readable data interchange &
serialisation format
● { } denote objects containing a comma
separated list of name value pairs where
values can be nested objects or arrays
{
“name”:”value”,
“nestedObject”: {
“array”:[“value1”,”value2”]
},
“numeric”:13
}
18. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
JSON Support
● Not a SQL standard
● PostgreSQL is currently the only RDBMS with
native support
● Design borrows heavily from PostgreSQL's
existing XML support
– Internal storage format is TEXT
– Basic validation (e.g. well formed)
● Does not require special libraries to enable
19. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
JSON Support
● Basic support introduced in 9.2
– JSON datatype
– 2 support functions
● row_to_json()
● array_to_json()
● Operators and additional functions in 9.3
– ->,->>,#>,#>>
– 10 more support functions
20. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
JSON Support
● INSERT always ensures type validity
pgday=# INSERT INTO demo VALUES
pgday-# ('{"name":"Mike","hungry":true}');
INSERT 0 1
pgday=# INSERT INTO demo VALUES
pgday-# ('{"name":"Mike",hungry:true}');
ERROR: invalid input syntax for type json at
character 28
21. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
JSON: Operators
● Retrieve the value of an attribute
SELECT data->'name' AS name FROM …
● Use the value of an attribute in a predicate
SELECT data FROM demo WHERE
data->>'name' = 'Mike';
22. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
JSON: Functions
row_to_json(record [, pretty_bool])
Returns a result set where each row is a JSON object
pgday=# SELECT * FROM demo;
username | posts | email
----------+-------+-------------------
mlfowler | 121 | mike@mlfowler.com
fowlerm | 9 | mike@work.com
pgday=# SELECT row_to_json(demo) FROM demo;
row_to_json
-----------------------------------------------------------------
{"username":"mlfowler","posts":121,"email":"mike@mlfowler.com"}
{"username":"fowlerm","posts":9,"email":"mike@work.com"}
23. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
JSON: Functions
json_object_keys(json)
Returns all the keys in the top level
pgday=# SELECT json_object_keys(data) FROM demo;
json_object_keys
------------------
name
hungry
24. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
Caveats
● They are not indexable
– You will need to plan how best to retrieve
● Best used programmaticly
– Syntax of XML and JSON can be unwieldy
● Non-UTF8 encoded databases
● Not portable
25. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
Summary
● Using the PostgreSQL XML and JSON
datatypes allows you finer control of an
otherwise free format field
● PostgreSQL's XML non-standard support is
much easier to use than the standard
● JSON is still being very actively developed
26. Handling XML and JSON in the Database
Mike Fowler, mike@mlfowler.com
PGDayUK 2013
Thank you!
Mike Fowler
mike@mlfowler.com
