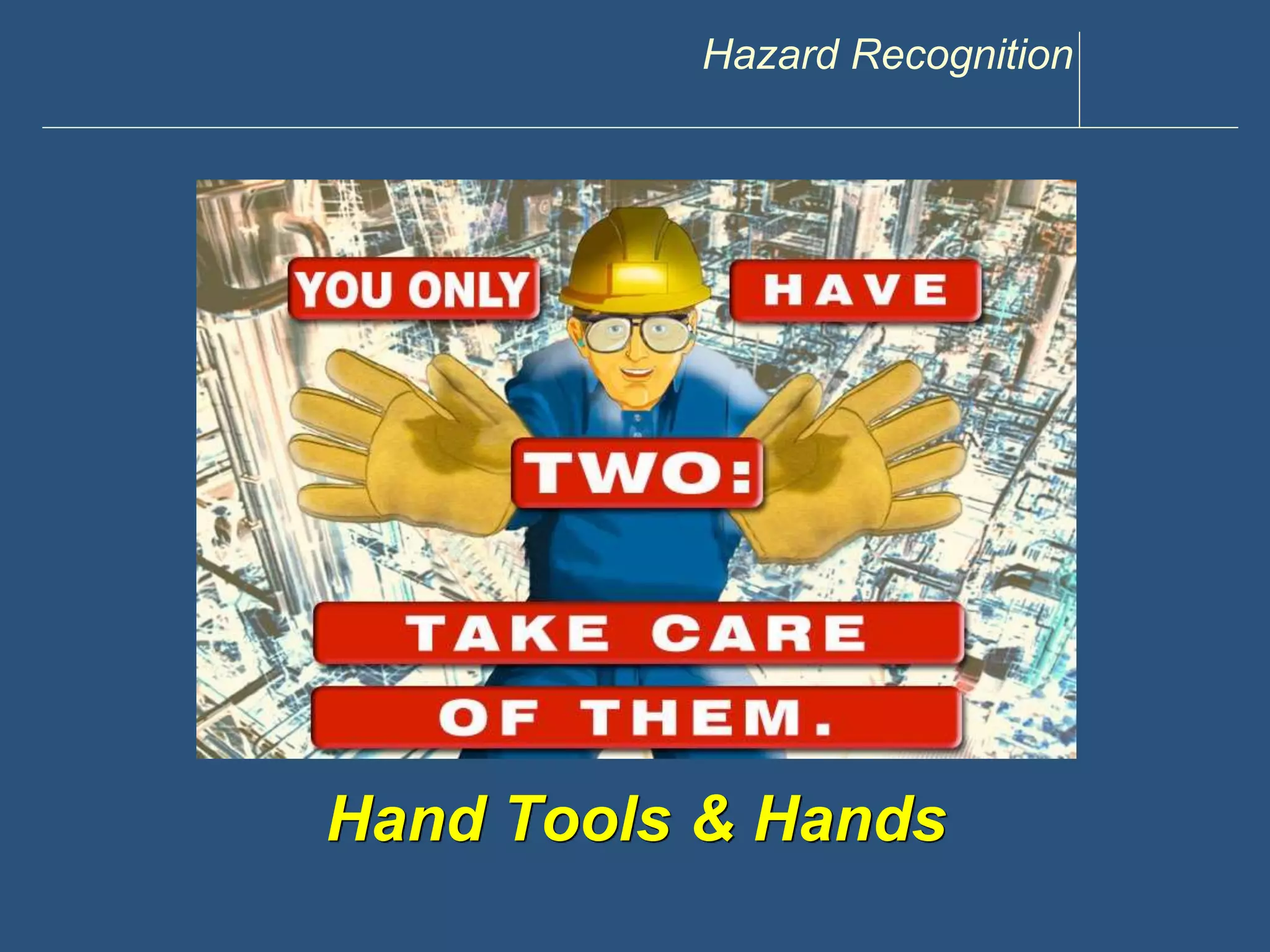

Hands are frequently injured, accounting for 30-35% of all injuries. Using the wrong tools, improper hand positioning, and lack of personal protective equipment can lead to hand injuries. It is important to carefully select the right tools for each task, position hands defensively away from hazards, wear proper gloves, and intervene if unsafe acts are observed.
2. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition

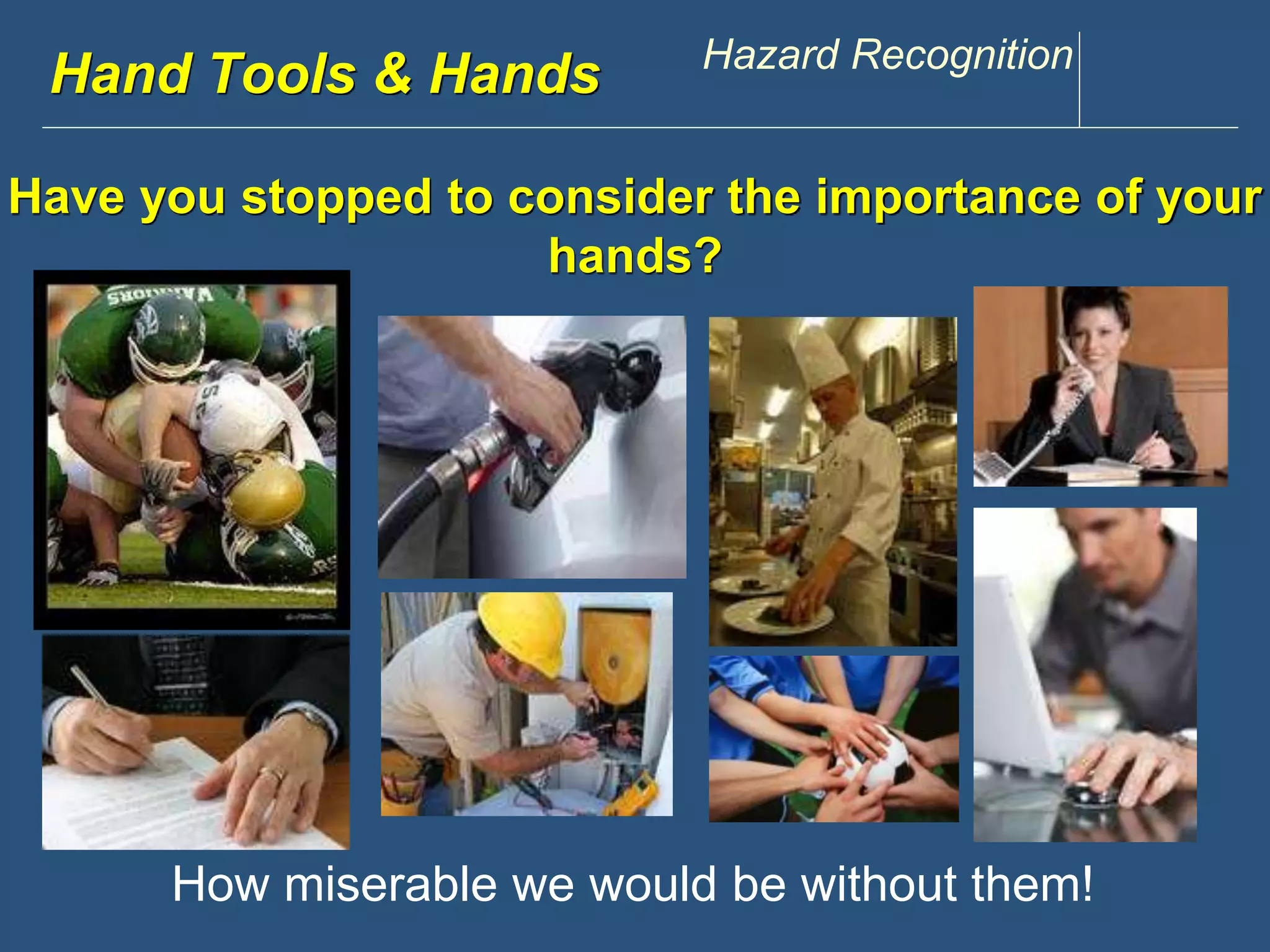

Have you stopped to consider the importance of your
hands?
How miserable we would be without them!
3. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition

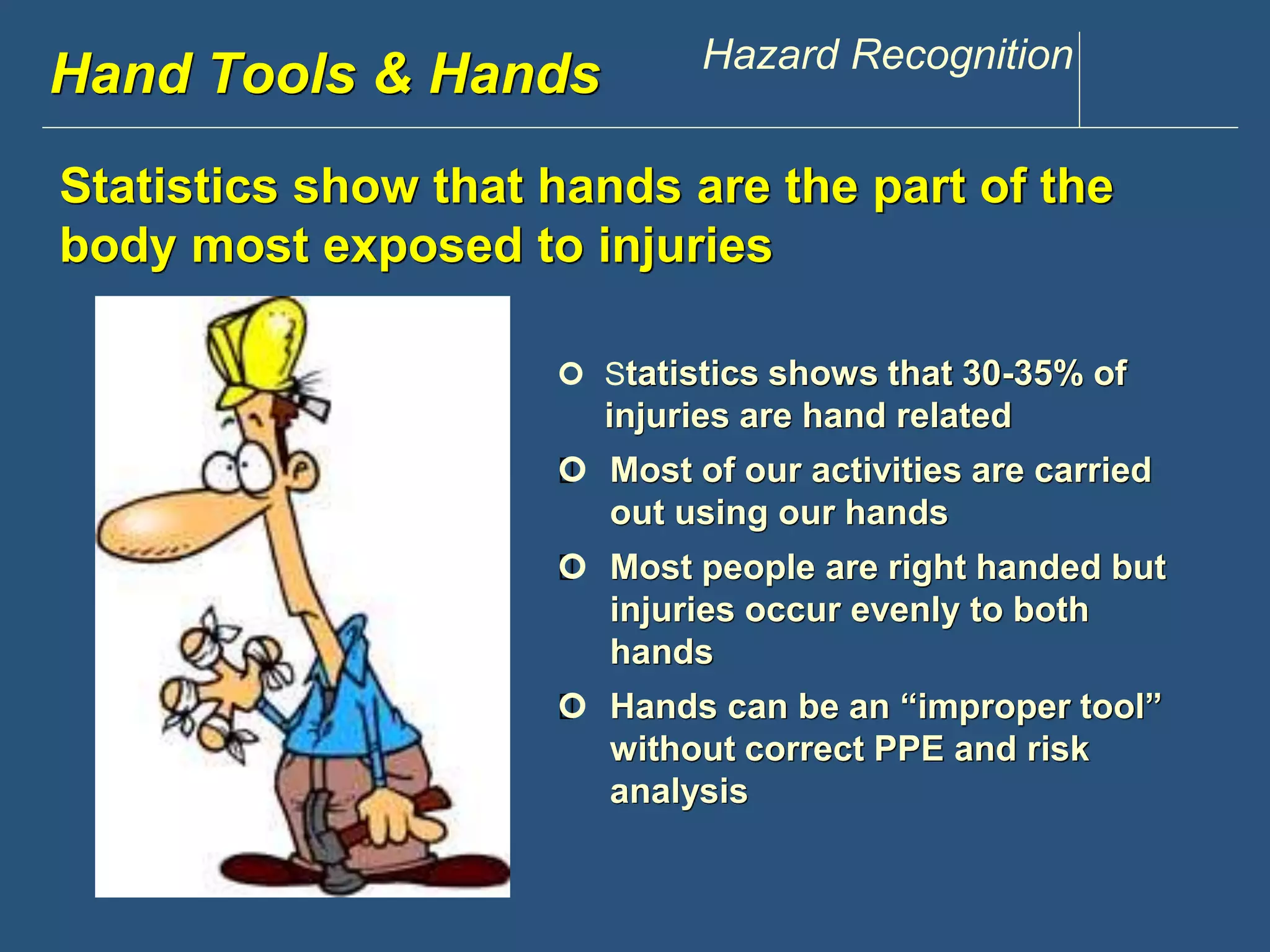

Statistics show that hands are the part of the
body most exposed to injuries
Statistics shows that 30-35% of
injuries are hand related
Most of our activities are carried
out using our hands
Most people are right handed but
injuries occur evenly to both
hands
Hands can be an “improper tool”
without correct PPE and risk
analysis
4. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition

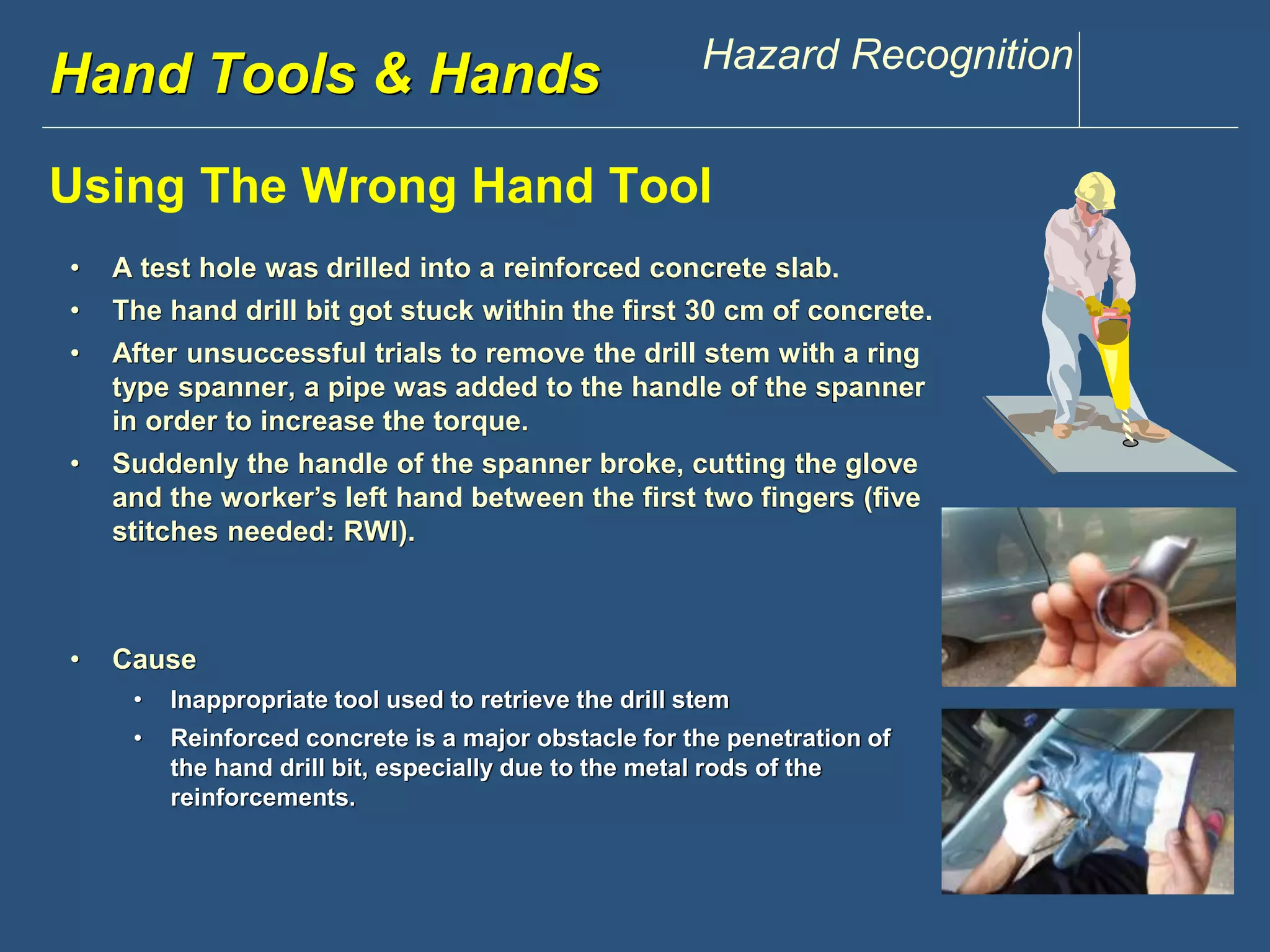

Using The Wrong Hand Tool
• A test hole was drilled into a reinforced concrete slab.
• The hand drill bit got stuck within the first 30 cm of concrete.
• After unsuccessful trials to remove the drill stem with a ring
type spanner, a pipe was added to the handle of the spanner
in order to increase the torque.
• Suddenly the handle of the spanner broke, cutting the glove
and the worker’s left hand between the first two fingers (five
stitches needed: RWI).
• Cause
• Inappropriate tool used to retrieve the drill stem
• Reinforced concrete is a major obstacle for the penetration of
the hand drill bit, especially due to the metal rods of the
reinforcements.
5. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition

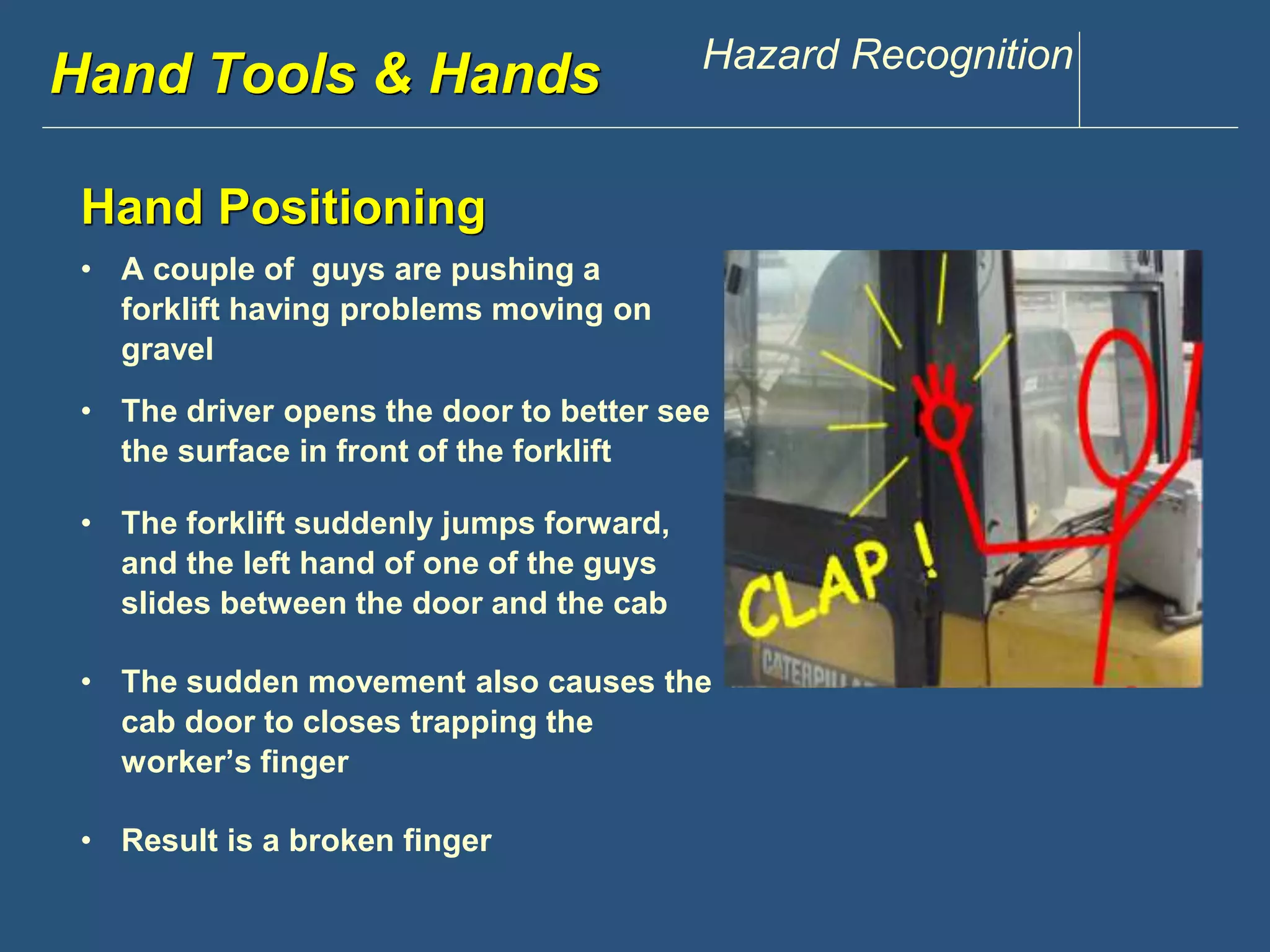

Hand Positioning
• A couple of guys are pushing a
forklift having problems moving on
gravel
• The driver opens the door to better see
the surface in front of the forklift
• The forklift suddenly jumps forward,
and the left hand of one of the guys
slides between the door and the cab
• The sudden movement also causes the
cab door to closes trapping the
worker’s finger
• Result is a broken finger

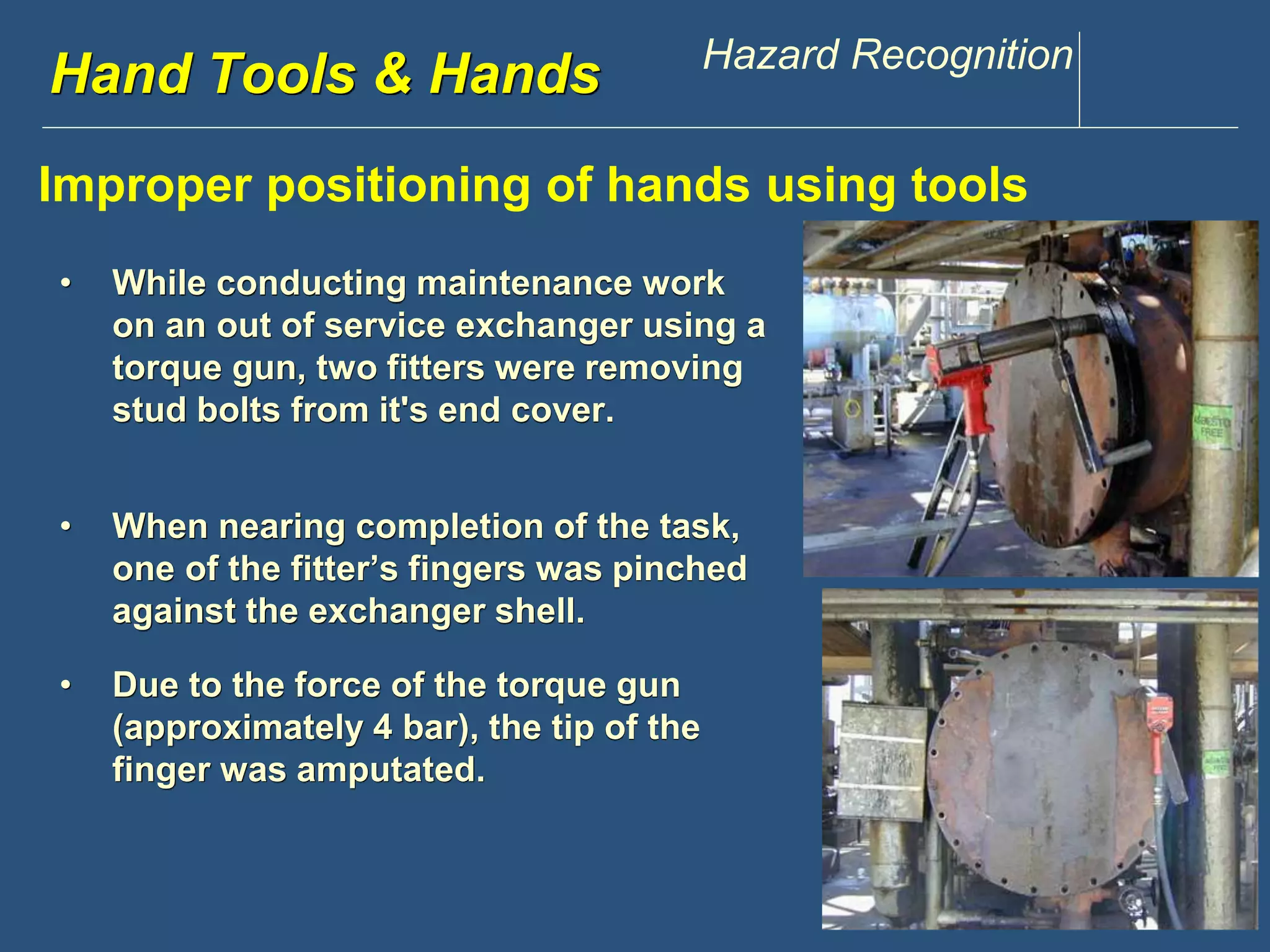

6. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition
Improper positioning of hands using tools
• While conducting maintenance work
on an out of service exchanger using a
torque gun, two fitters were removing
stud bolts from it's end cover.
• When nearing completion of the task,
one of the fitter’s fingers was pinched
against the exchanger shell.
• Due to the force of the torque gun
(approximately 4 bar), the tip of the
finger was amputated.

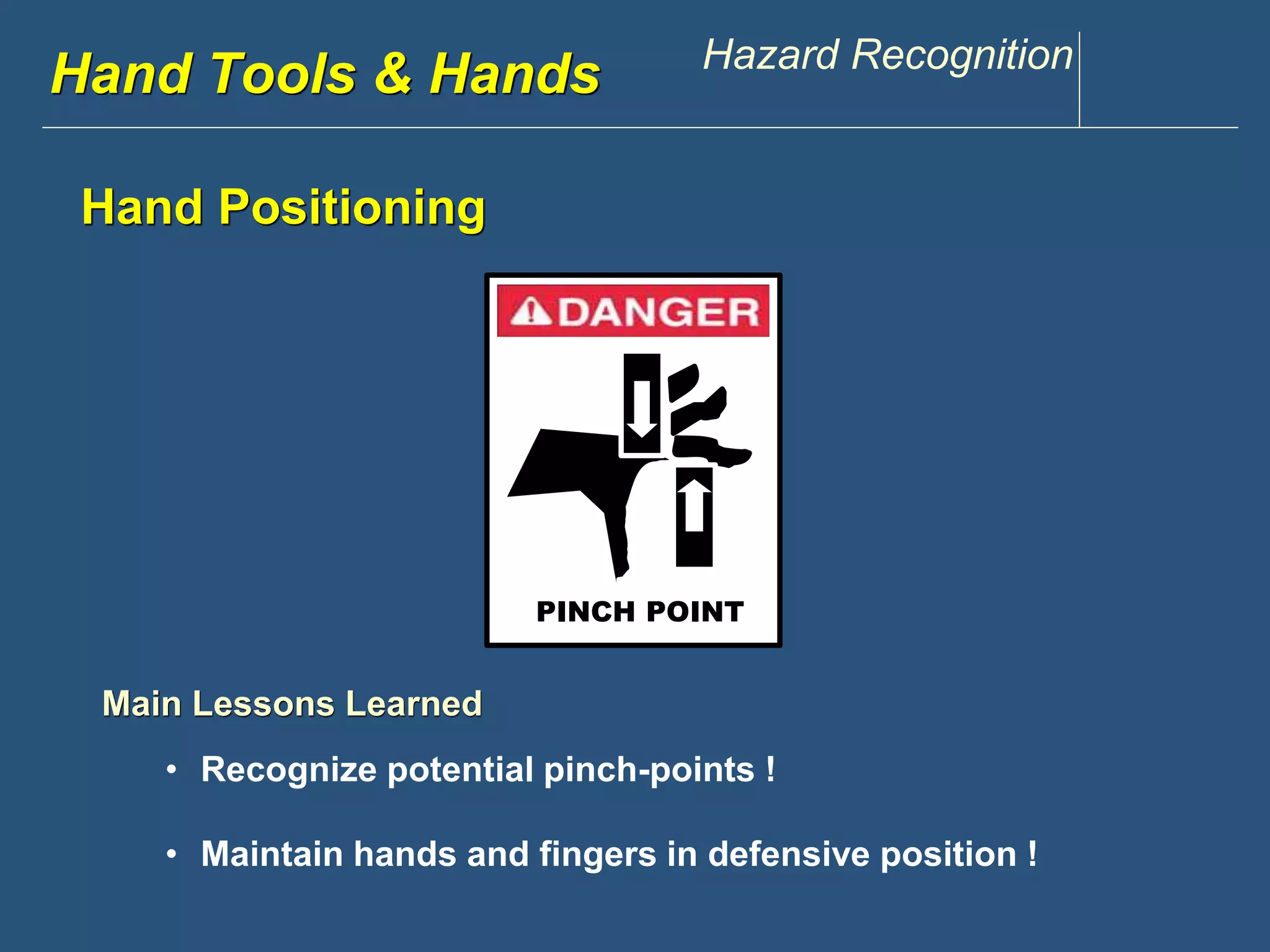

7. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition
Hand Positioning
PINCH POINT
Main Lessons Learned
• Recognize potential pinch-points !
• Maintain hands and fingers in defensive position !
8. www.discountppe.com Hazard Recognition

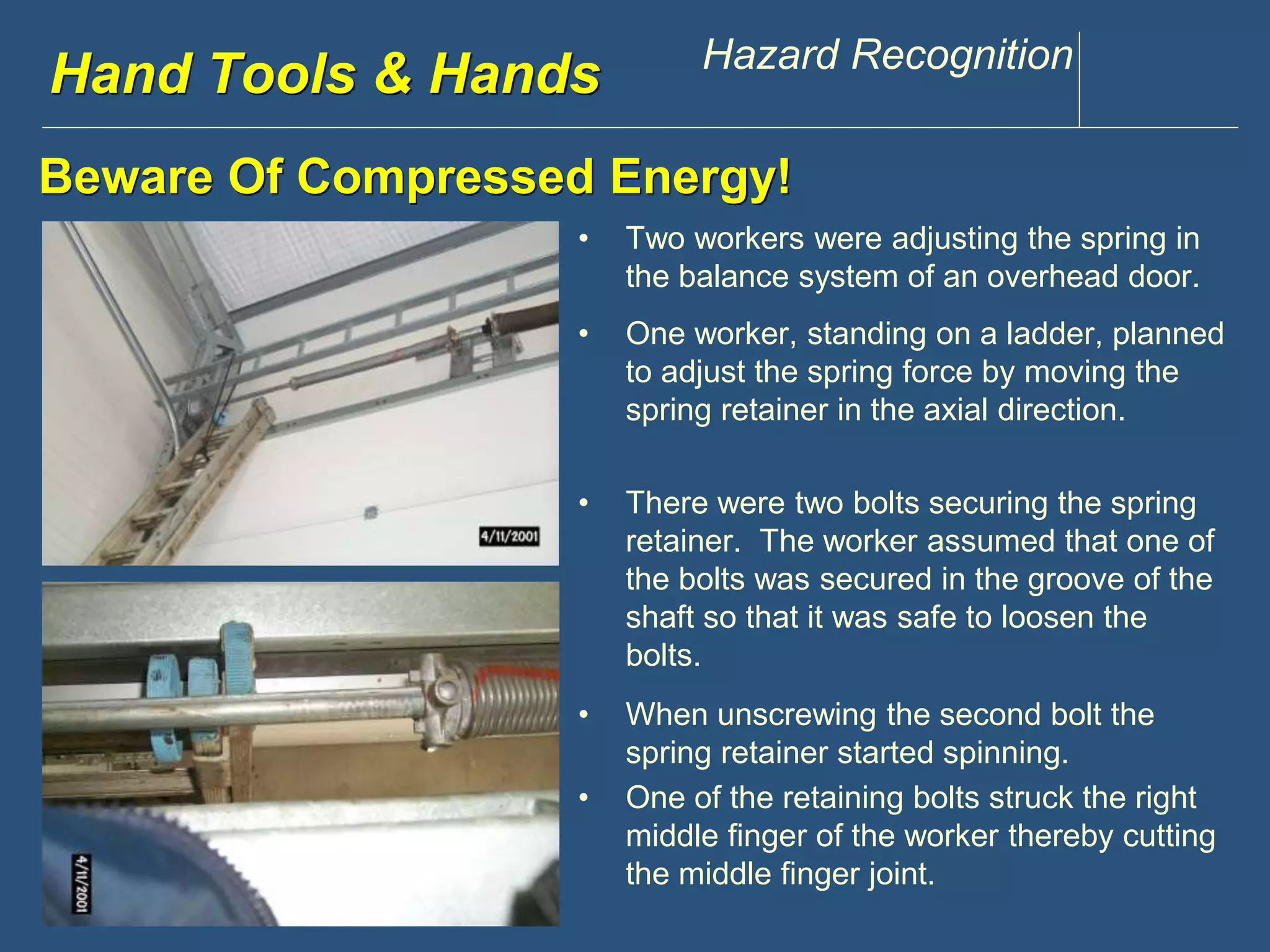

Reconstruction
• Two workers were adjusting the spring in
the balance system of an overhead door.
Hand Tools & Hands
Beware Of Compressed Energy!
• One worker, standing on a ladder, planned
to adjust the spring force by moving the
spring retainer in the axial direction.
• There were two bolts securing the spring
retainer. The worker assumed that one of
the bolts was secured in the groove of the
shaft so that it was safe to loosen the
bolts.
• When unscrewing the second bolt the
spring retainer started spinning.
• One of the retaining bolts struck the right
middle finger of the worker thereby cutting
the middle finger joint.

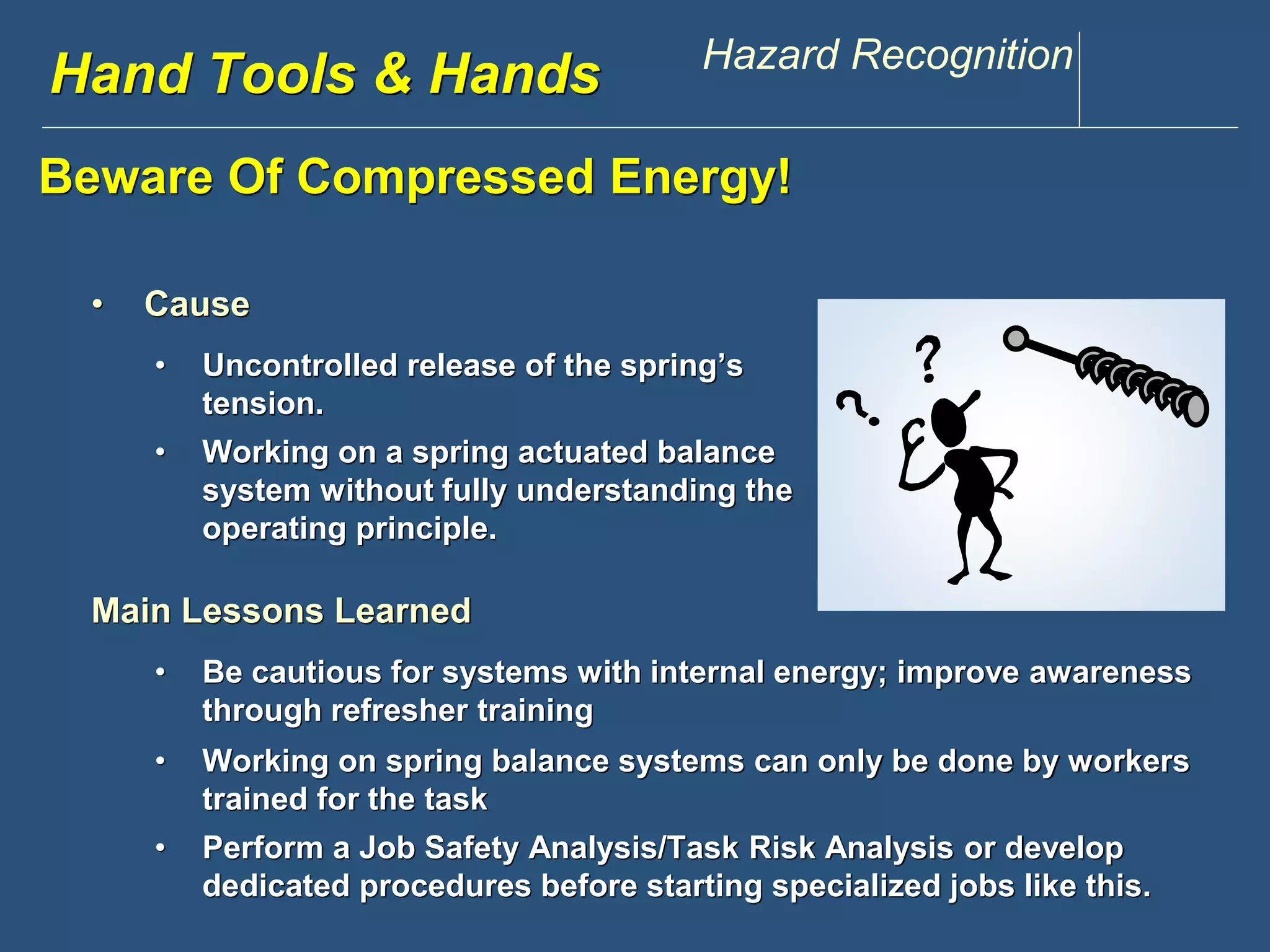

9. Hwawndw .Tdoisoclosu &n tHppaen.dcsom Hazard Recognition
Beware Of Compressed Energy!
• Cause
• Uncontrolled release of the spring’s
tension.
• Working on a spring actuated balance
system without fully understanding the
operating principle.
Main Lessons Learned
• Be cautious for systems with internal energy; improve awareness
through refresher training
• Working on spring balance systems can only be done by workers
trained for the task
• Perform a Job Safety Analysis/Task Risk Analysis or develop
dedicated procedures before starting specialized jobs like this.

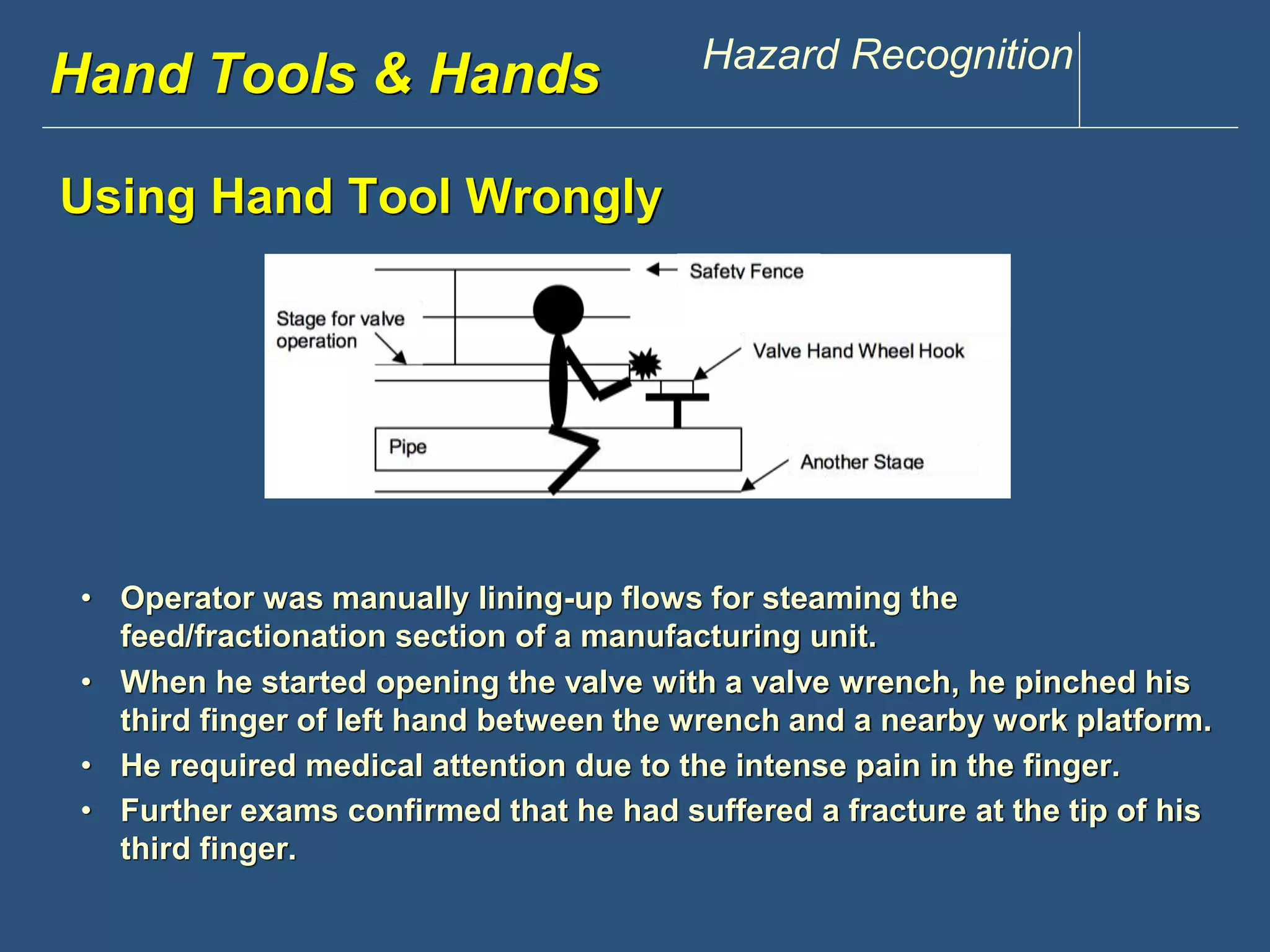

10. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Using Hand Tool Wrongly
• Operator was manually lining-up flows for steaming the
feed/fractionation section of a manufacturing unit.
• When he started Reconstruction
opening the valve with a valve wrench, he pinched his
third finger of left hand between the wrench and a nearby work platform.
• He required medical attention due to the intense pain in the finger.
• Further exams confirmed that he had suffered a fracture at the tip of his
third finger.

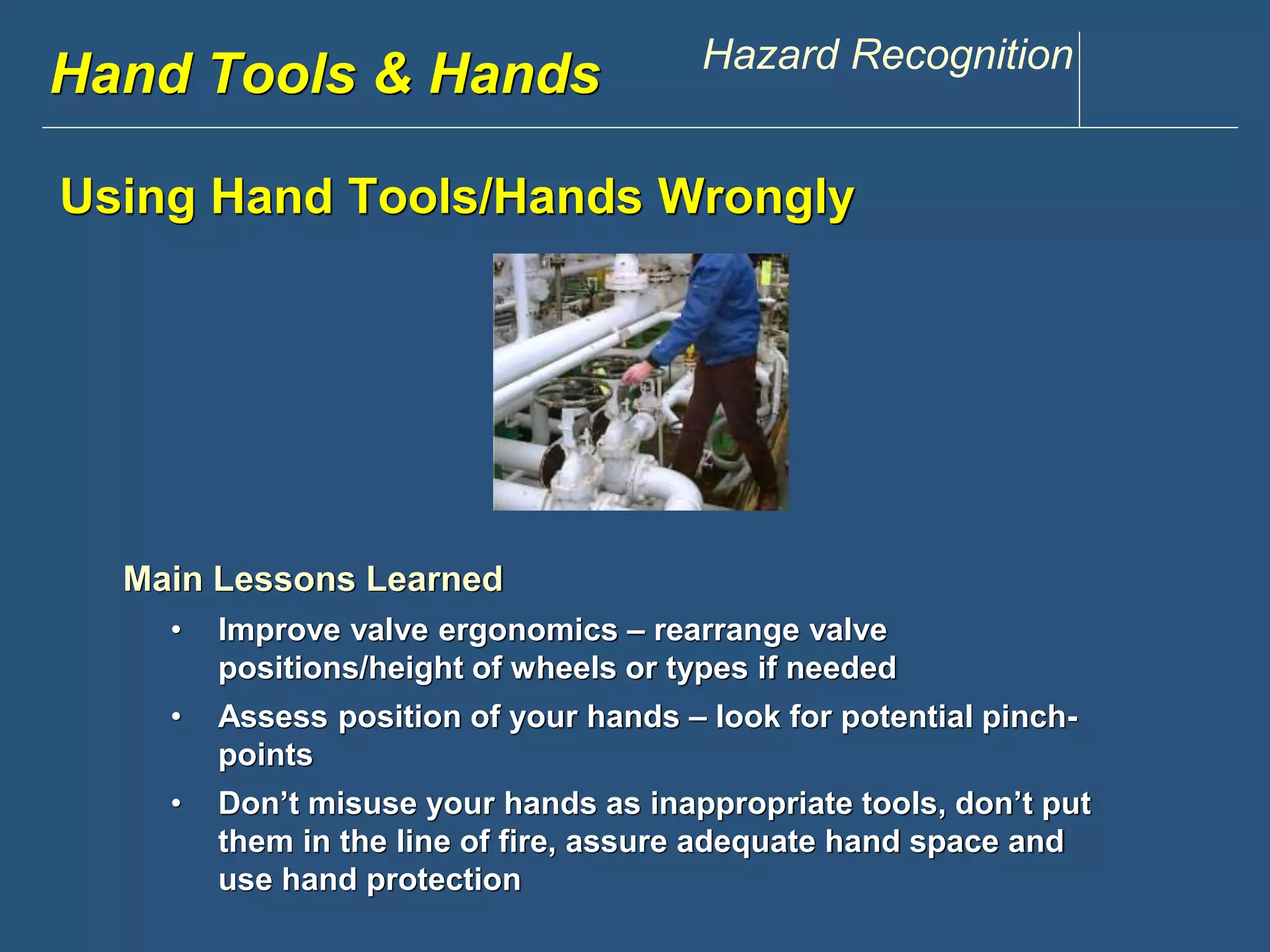

11. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Using Hand Tools/Hands Wrongly
Main Lessons Learned
• Improve valve ergonomics – rearrange valve
positions/height of wheels or types if needed
Reconstruction
• Assess position of your hands – look for potential pinch-points
• Don’t misuse your hands as inappropriate tools, don’t put
them in the line of fire, assure adequate hand space and
use hand protection

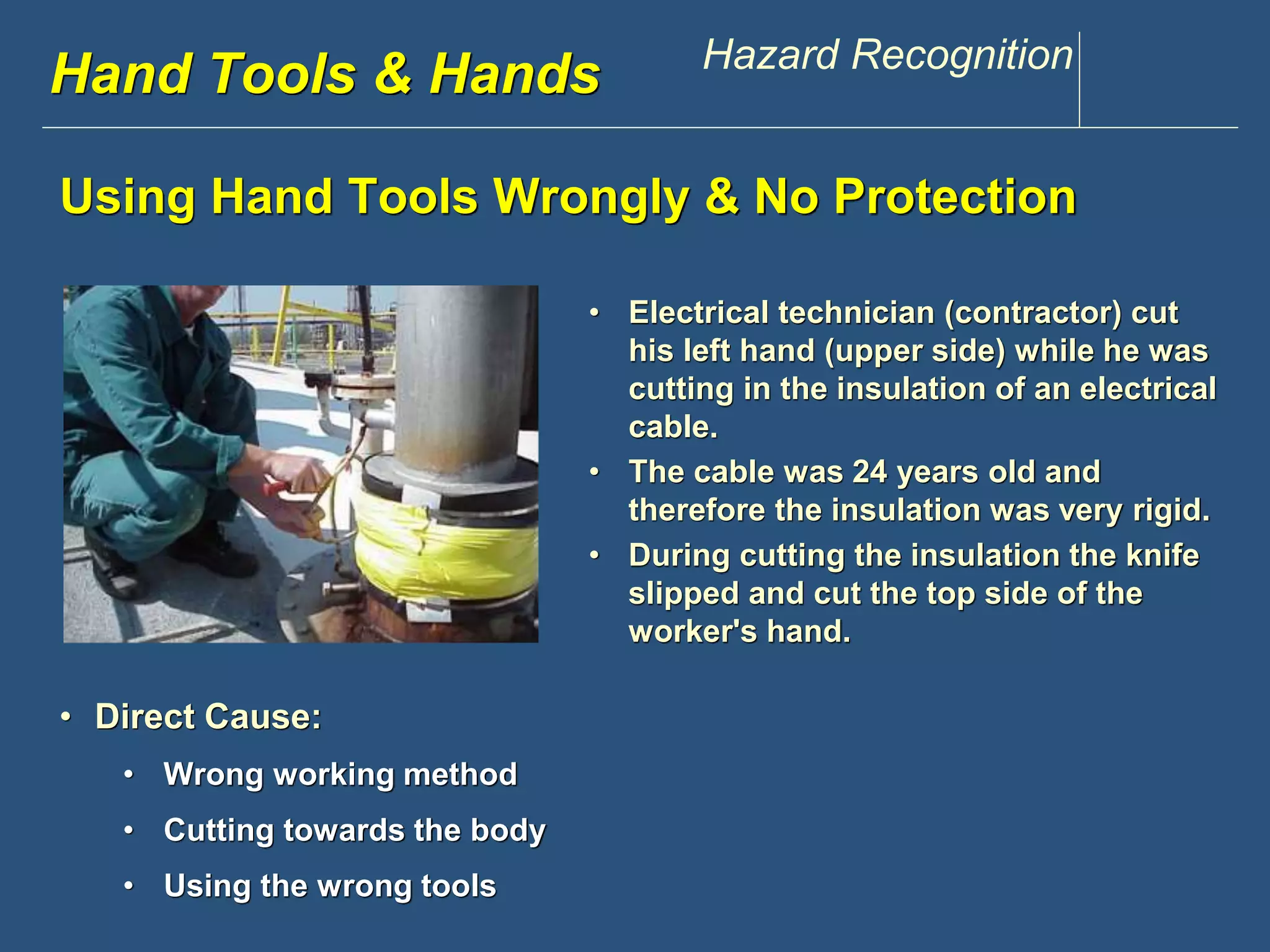

12. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Using Hand Tools Wrongly & No Protection
Reconstruction
• Electrical technician (contractor) cut
his left hand (upper side) while he was
cutting in the insulation of an electrical
cable.
• The cable was 24 years old and
therefore the insulation was very rigid.
• During cutting the insulation the knife
slipped and cut the top side of the
worker's hand.
• Direct Cause:
• Wrong working method
• Cutting towards the body
• Using the wrong tools
13. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Using Hand Tools Wrongly & No Protection

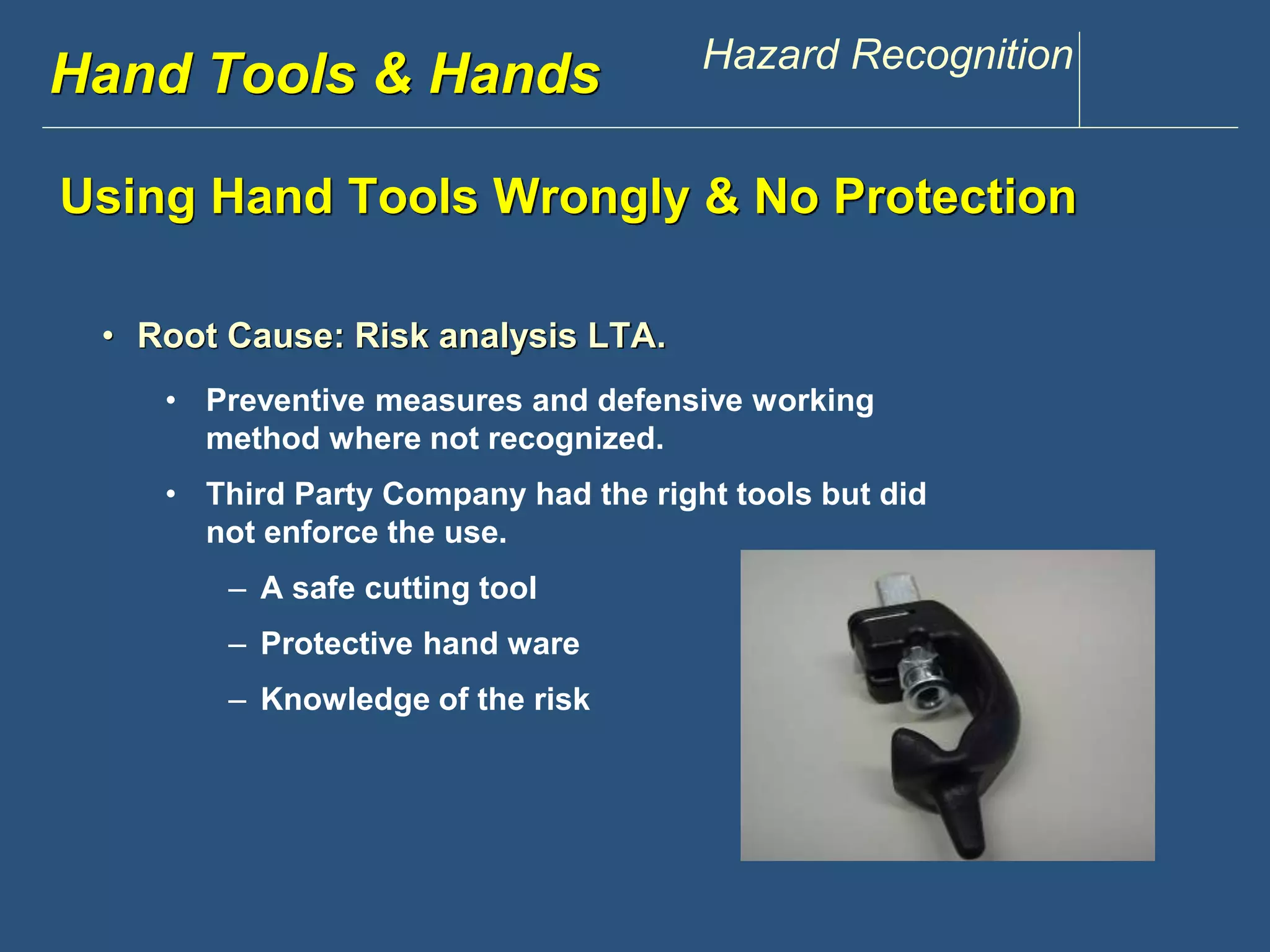

• Root Cause: Risk analysis LTA.
• Preventive measures and defensive working
method where not recognized.
• Third Party Company had the right tools but did
not enforce the use.
– A safe cutting tool
– Protective hand ware
– Knowledge Reconstruction
of the risk

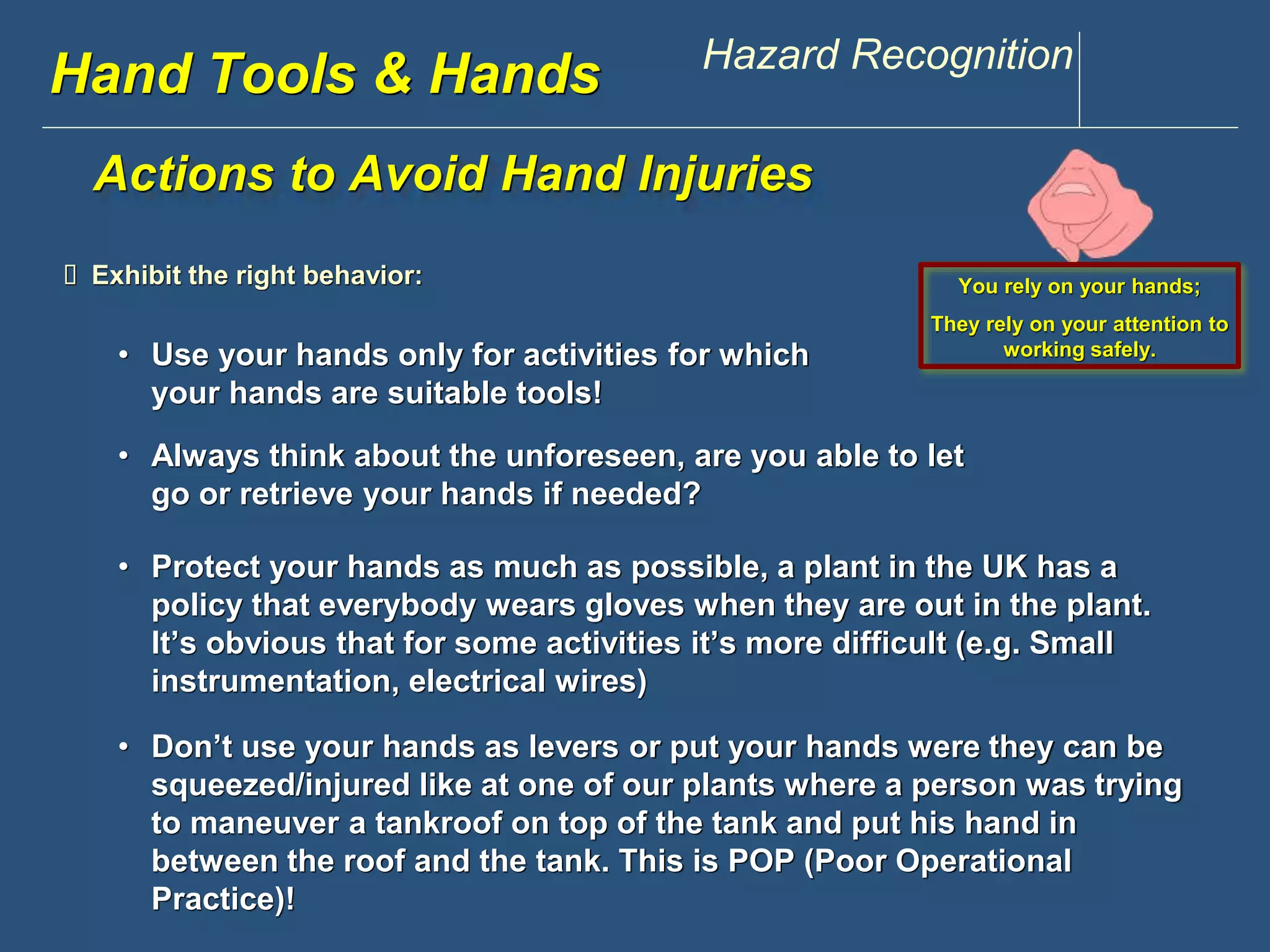

14. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Actions to Avoid Hand Injuries
Exhibit the right behavior:
• Use your hands only for activities for which
your hands are suitable tools!
Reconstruction
You rely on your hands;
They rely on your attention to
working safely.
• Always think about the unforeseen, are you able to let
go or retrieve your hands if needed?
• Protect your hands as much as possible, a plant in the UK has a
policy that everybody wears gloves when they are out in the plant.
It’s obvious that for some activities it’s more difficult (e.g. Small
instrumentation, electrical wires)
• Don’t use your hands as levers or put your hands were they can be
squeezed/injured like at one of our plants where a person was trying
to maneuver a tankroof on top of the tank and put his hand in
between the roof and the tank. This is POP (Poor Operational
Practice)!
15. www.discountppe.com Hazard Recognition
Hand Tools & Hands

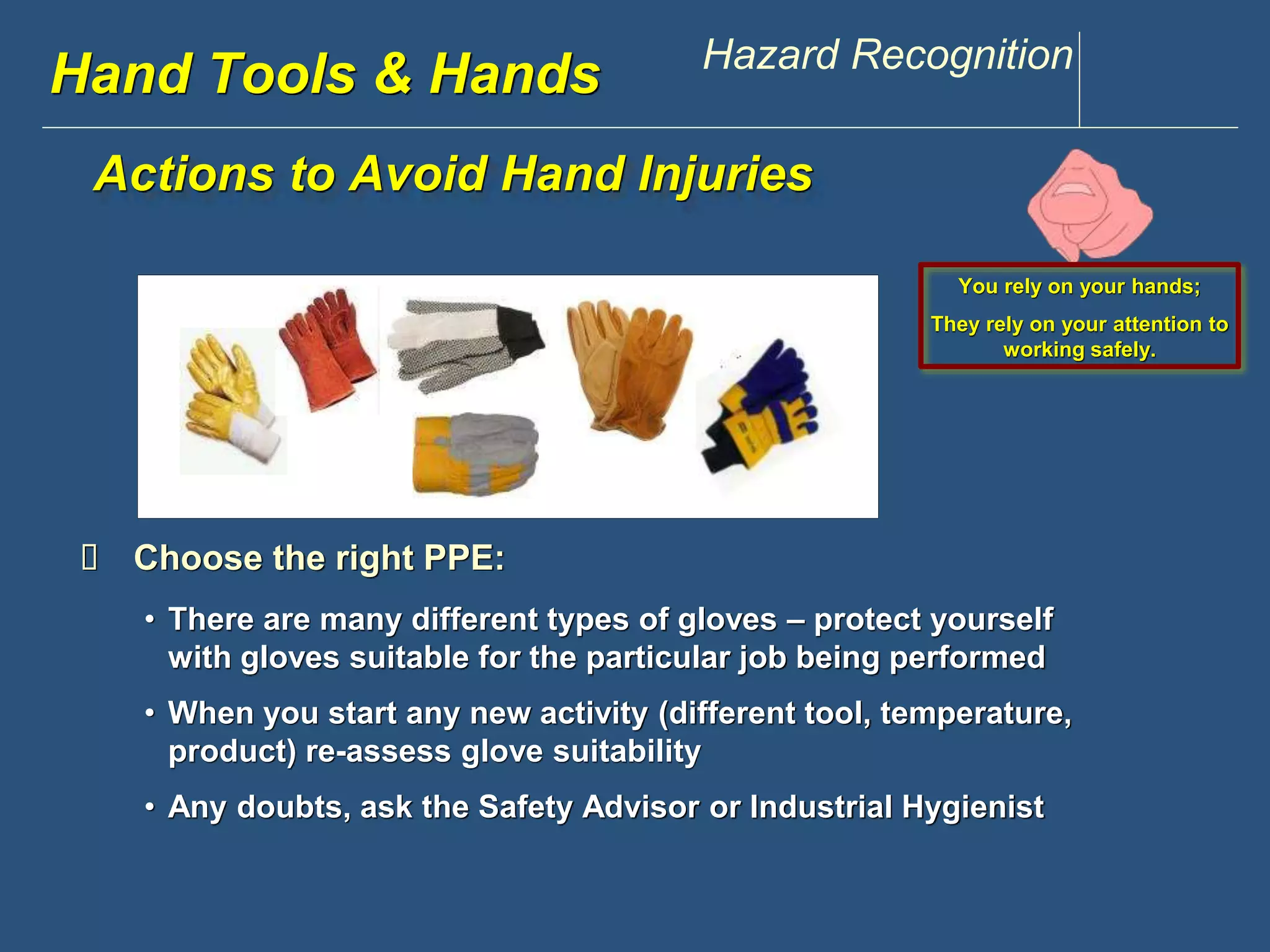

Actions to Avoid Hand Injuries
Choose the right PPE:
You rely on your hands;
They rely on your attention to
working safely.
• There are many different types of gloves – protect yourself
with gloves suitable for the particular job being performed
• When you start any new activity (different tool, temperature,
product) re-assess glove suitability
• Any doubts, ask the Safety Advisor or Industrial Hygienist

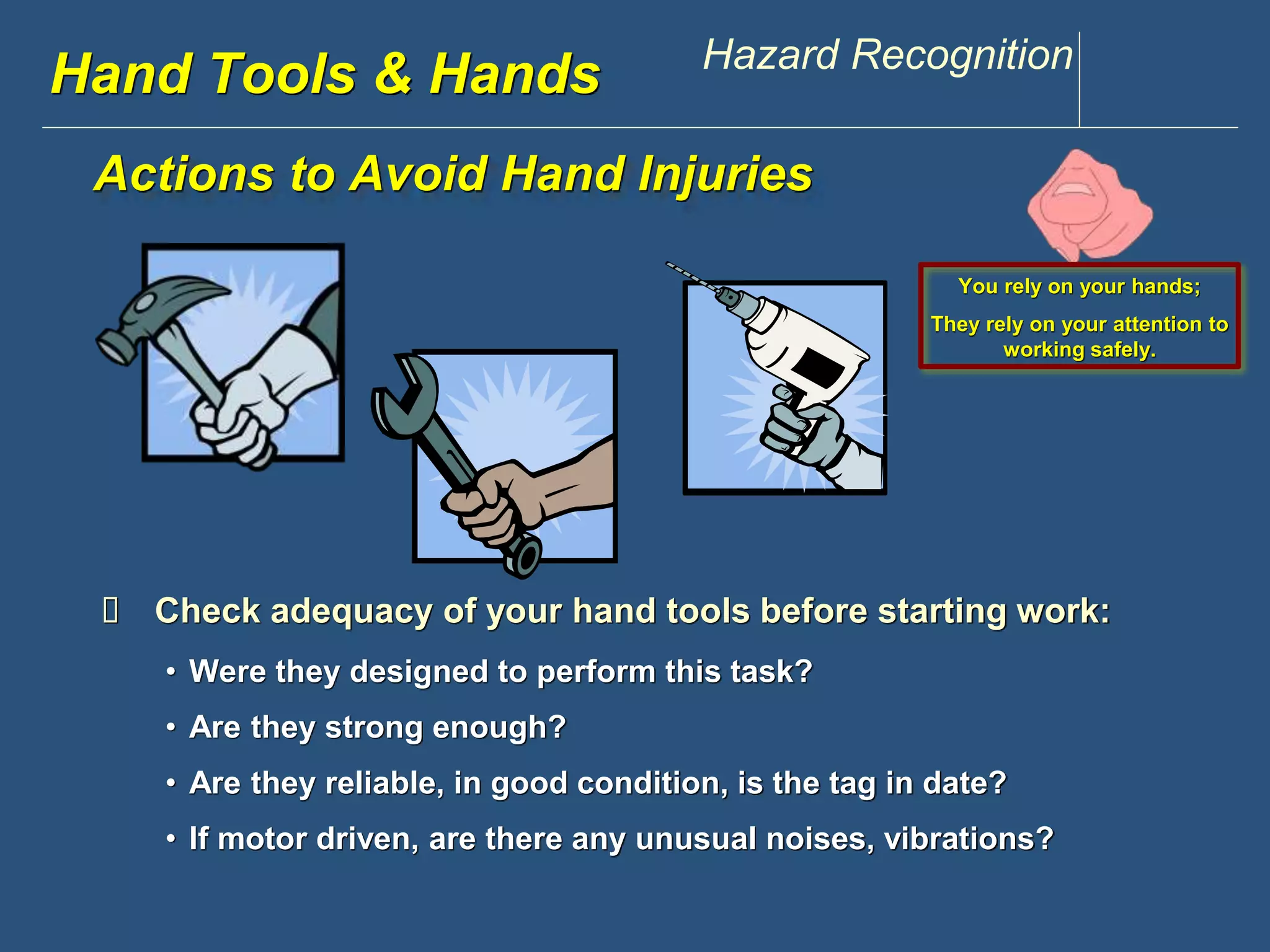

16. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Actions to Avoid Hand Injuries
You rely on your hands;
They rely on your attention to
working safely.
Check adequacy of your hand tools before starting work:
• Were they designed to perform this task?
• Are they strong enough?
• Are they reliable, in good condition, is the tag in date?
• If motor driven, are there any unusual noises, vibrations?
17. www.discountppe.com Hazard Recognition
Actions to Avoid Hand Injuries
Hand Tools & Hands
Adopting defensive work behavior by:
You rely on your hands;
They rely on your attention to
working safely.
• Using Last Minute Risk Assessment before starting
• Assuring that you can always see your hands while working
– Are you sure that nearby equipment (especially moving equipment
and/or tools) can’t become a “hand trap”?
– Have you positioned yourself and your hands out of the “line of fire”?
– Are you ensuring that you don’t apply excessive force?
18. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Actions to Avoid Hand Injuries

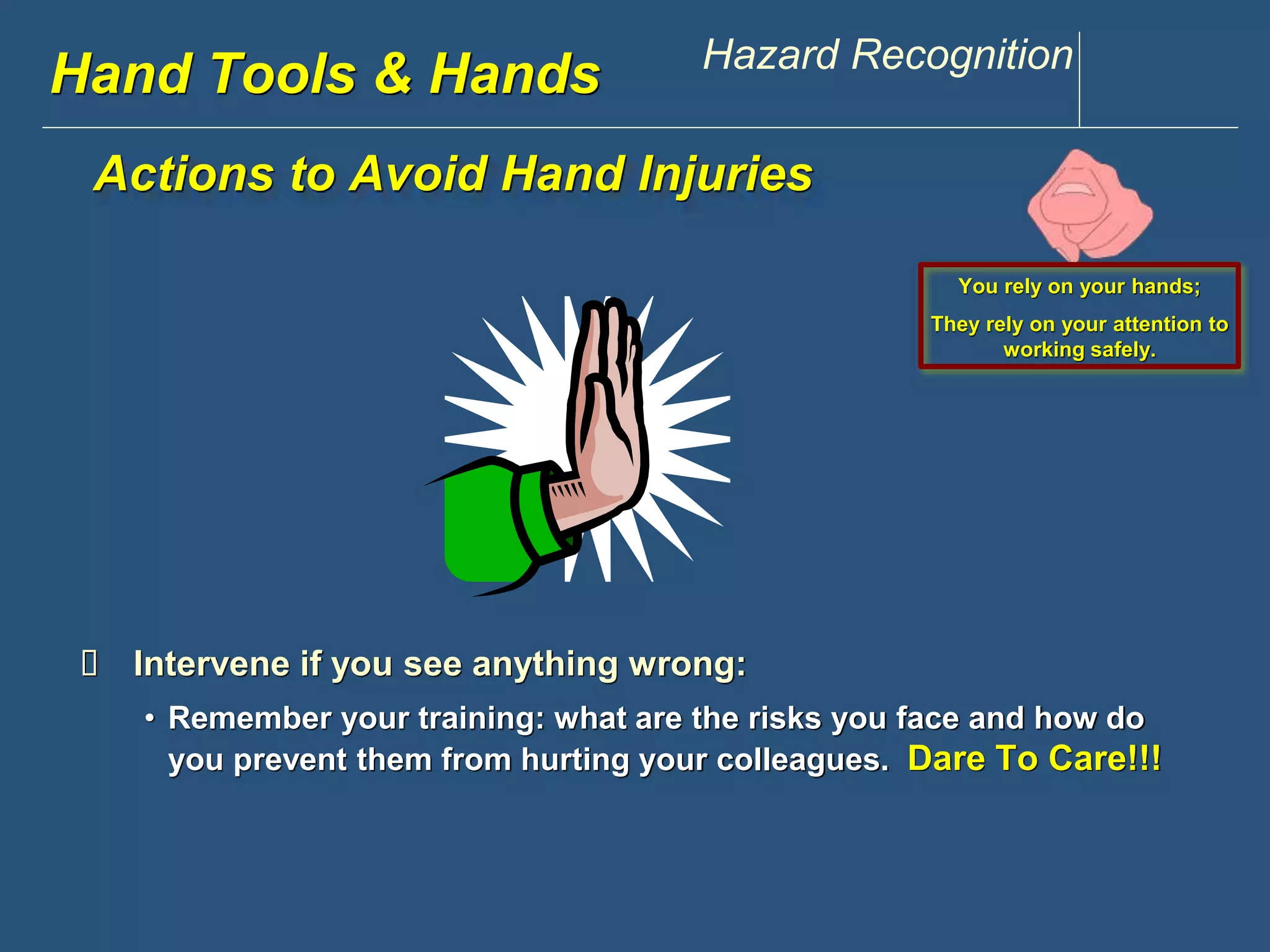

Intervene if you see anything wrong:
You rely on your hands;
They rely on your attention to
working safely.
• Remember your training: what are the risks you face and how do
you prevent them from hurting your colleagues. Dare To Care!!!

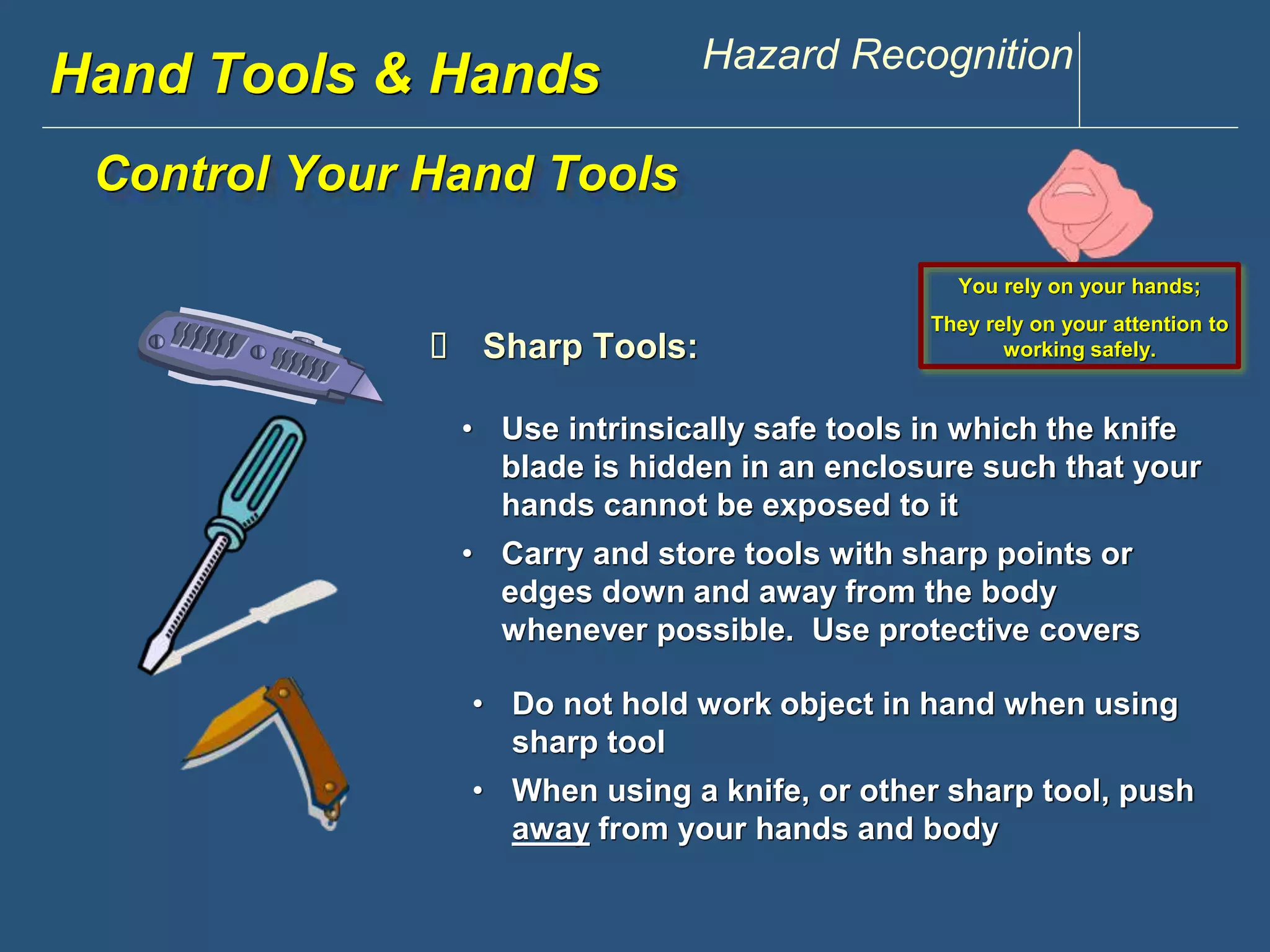

19. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Control Your Hand Tools
Sharp Tools:
You rely on your hands;
They rely on your attention to
working safely.
• Use intrinsically safe tools in which the knife
blade is hidden in an enclosure such that your
hands cannot be exposed to it
• Carry and store tools with sharp points or
edges down and away from the body
whenever possible. Use protective covers
• Do not hold work object in hand when using
sharp tool
• When using a knife, or other sharp tool, push
away from your hands and body
20. www.discountppe.com Hazard Recognition
Hand Tools & Hands

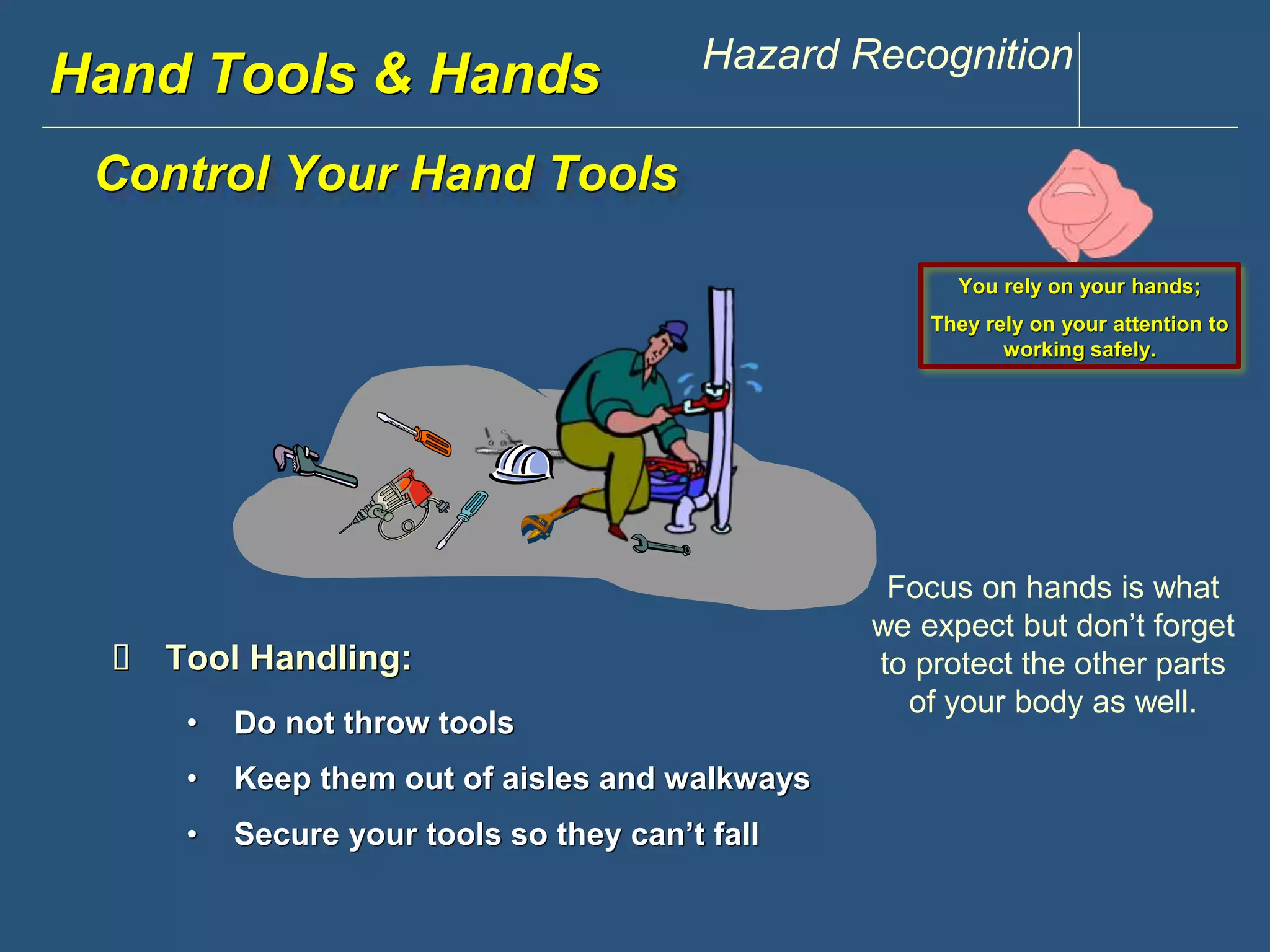

Control Your Hand Tools
Tool Handling:
• Do not throw tools
• Keep them out of aisles and walkways
• Secure your tools so they can’t fall
You rely on your hands;
They rely on your attention to
working safely.
Focus on hands is what
we expect but don’t forget
to protect the other parts
of your body as well.

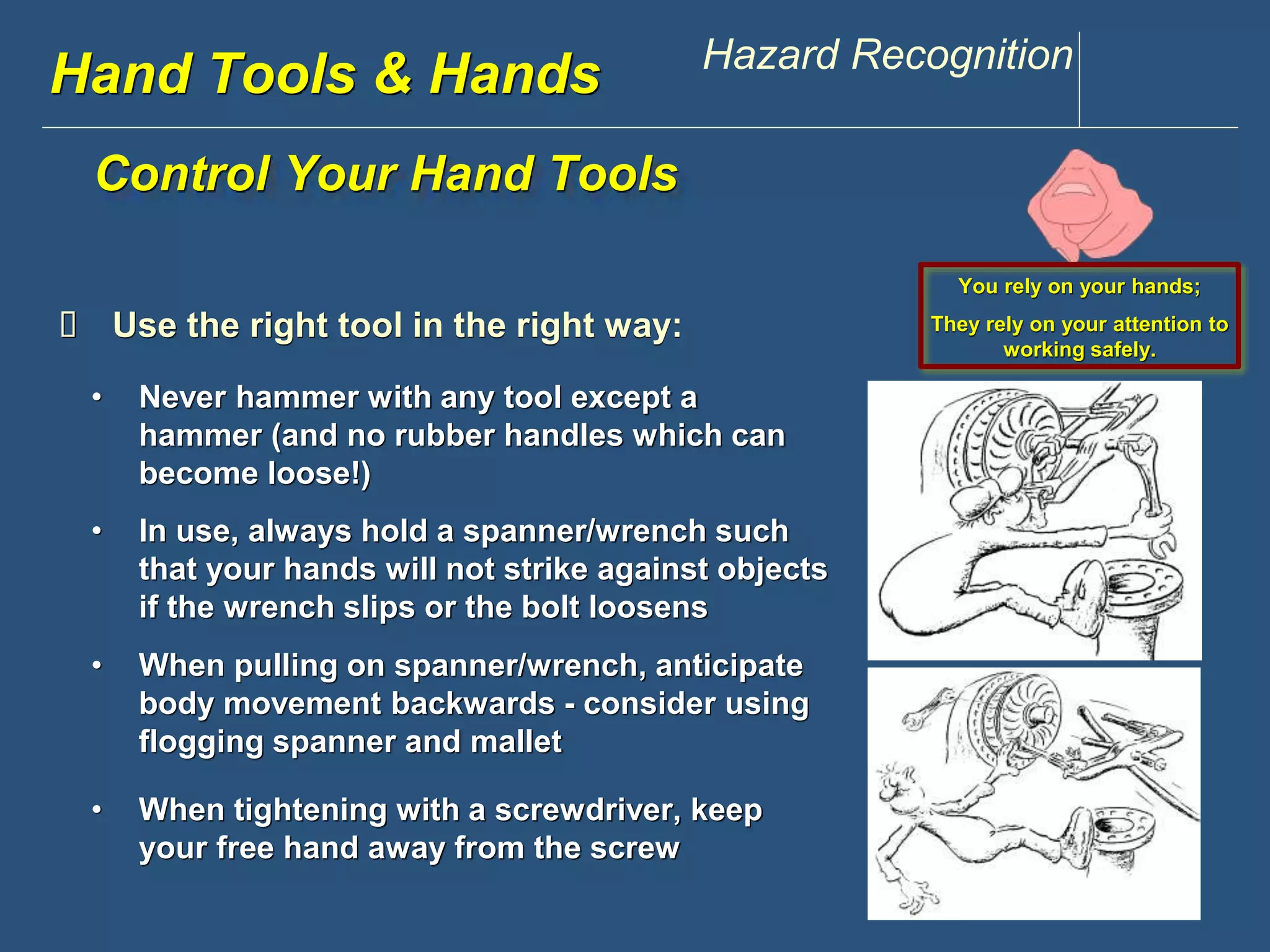

21. www.discountppe.com Hazard Recognition
Hand Tools & Hands
Control Your Hand Tools
Use the right tool in the right way:
• Never hammer with any tool except a
hammer (and no rubber handles which can
become loose!)
• In use, always hold a spanner/wrench such
that your hands will not strike against objects
if the wrench slips or the bolt loosens
• When pulling on spanner/wrench, anticipate
body movement backwards - consider using
flogging spanner and mallet
• When tightening with a screwdriver, keep
your free hand away from the screw
You rely on your hands;
They rely on your attention to
working safely.

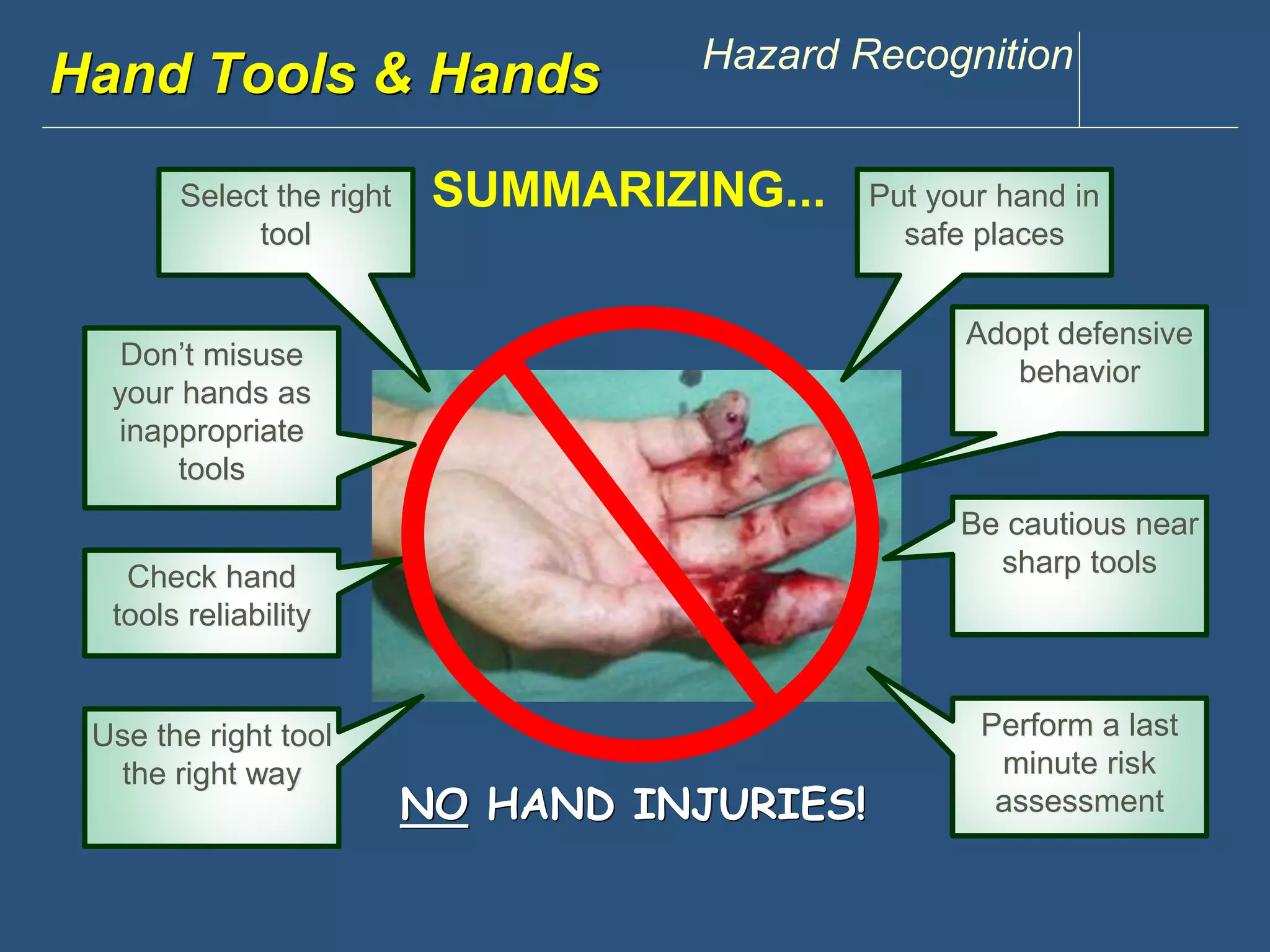

22. www.discountppe.com Hazard Recognition
Hand Tools & Hands
NO HAND INJURIES!
Select the right
tool
Check hand
tools reliability
Use the right tool
the right way
Adopt defensive
behavior
Be cautious near
sharp tools
Perform a last
minute risk
assessment
SUMMARIZING...
Don’t misuse
your hands as
inappropriate
tools
Put your hand in
safe places
Editor's Notes
Welcome participants to the Hand Tools / Hands Module of the Hazard Recognition Training course.
Cover, with the participants, the facility and amenities. (i.e. facilities layout, evacuation routes, accommodations such as restrooms, available cafeteria(s), and participant materials).
With facilities and amenities sufficiently covered start the module by stating:
Narrative:
As discussed in the “Hazard Recognition Basics” module, operational hazards are inherent to everything we do. The key to managing these hazards is to first recognize them and ensure the proper barriers are in place to minimize the likelihood of an incident.
In this module we will discuss hazards associated with hand tools and the actions required to minimize the probability of injury.
◄CUE► Next Slide
Narrative:
Have you ever thought about how important your hands are… and what life would be like if you did not have one or both of them? I can’t speak for you, but I would find it quite miserable without them. So we must stay aware of hazards that can harm our hands and take actions to protect them.
◄CUE► Next Slide
Narrative:
Despite how miserable life would be without our hands, our hands are the part of our body most exposed to injuries.
Read and discuss bullet items as they automatically reveal on the slide.
◄CUE► Next Slide
Narrative:
Incidents involving hand injuries are not uncommon. Lets look at some incidents that resulted in hand injuries. Let’s start by reviewing an incident where the wrong tool for the job resulted in an injury.
◄CUE► slide to reveal details of incident. Read and discuss with participants the details.
Repeat until all items are revealed. (5)
◄CUE► Next Slide
Narrative:
This next incident illustrates the importance of the hand’s position and recognizing hazards around your hands.
◄CUE► slide to reveal details of incident. Read and discuss with participants the details.
Repeat until all items are revealed. (4)
◄CUE► Next Slide
Narrative:
In this next incident, we will look at how the tool itself can be harmful.
◄CUE► slide to read and discuss the incident statements as they are revealed. Repeat until all bulleted items are discussed. (3)
◄CUE► Next Slide
Narrative:
There are a couple of important items we should learn from these incident.
◄CUE► slide and discuss the lessons learned from the incident. Repeat until all items are discussed. (2)
◄CUE► Next Slide
Narrative:
Hazards to your hands are not always obvious. In this next incident, an injury occurred due to release of stored energy from a compressed spring improperly addressed by a mechanic.
◄CUE► slide to reveal details of incident. Read and discuss with participants the details.
Repeat until all items are revealed. (5)
◄CUE► Next Slide
Narrative:
So what caused this incident?
◄CUE► slide to reveal and discuss causes.
Narrative:
What are some of important items we should learn from this incident?
◄CUE► slide and discuss the lessons learned from the incident. Repeat until all items are discussed. (3)
◄CUE► Next Slide
Narrative:
Tools are designed to help us do our job. However, when used improperly, serious consequences can occur. Let’s look at a couple of incidents that resulted in juries due to not using the tools properly.
◄CUE► slide to reveal details of incident. Read and discuss with participants the details.
Repeat until all items are revealed. (4)
Note:
The valve was intended to be operated from a higher level platform, using a valve wrench with an extended handle.
The operator chose to open the valve whilst standing on a lower level, using a smaller valve wrench
◄CUE► Next Slide
Narrative:
There are a few important items we should learn from this incident.
◄CUE► slide and discuss the lessons learned from the incident. Repeat until all items are discussed. (3)
◄CUE► Next Slide
Narrative:
Let’s look at one more incident…
◄CUE► slide to reveal details of incident. Read and discuss with participants the details.
Repeat until all items are revealed. (4)
◄CUE► Next Slide
Narrative:
The root cause for this incident is …
◄CUE► slide to reveal root causes. Read and discuss with participants the details.
Repeat until all items are revealed. (2)
◄CUE► Next Slide
Narrative:
We rely on our hands to do our job. Our hands rely on us to work safely and keep them safe and intact.
So, how can we keep our hands safe from injury?
◄CUE► slide to reveal: ”Exhibit the Right Behavior”.
Read and discuss the bullet item.
Repeat for remaining bullet items. (4)
◄CUE► Next Slide
Continue to discuss actions to keep hands safe.
Read topic from slide.
◄CUE► slide to reveal and discuss items related to right PPE.
Repeat for remaining bullet items. (3)
◄CUE► Next Slide
Continue to discuss actions to keep hands safe.
Read topic from slide.
◄CUE► slide to reveal and discuss items related to tool adequacies.
Repeat for remaining bullet items. (4)
◄CUE► Next Slide
Continue to discuss actions to keep hands safe.
Narrative:
Adapting a defensive work behavior. So, what does a defensive work behavior mean?
◄CUE► slide to reveal and discuss items related to defensive work behavior.
Repeat for remaining bullet items. (2)
◄CUE► Next Slide
Continue to discuss actions to keep hands safe.
Narrative:
Don’t be afraid to intervene if something is wrong. Remember your training! It is better to stop someone before they get hurt than to say, “I knew that was going to happen, but did not stop him.”
◄CUE► Next Slide
Continue to discuss actions to keep hands safe.
Narrative:
We cannot do our jobs without tools. Whether it is a torque gun to remove bolts from a heat exchanger or a stapler used to staple a report together. Proper use and control of these tools is essential to ensuring our hand safety. Let’s first look at controlling sharp tools.
◄CUE► slide to read and discuss the item revealed.
Repeat until all items are revealed. (3)
◄CUE► Next Slide
Continue to read and discuss tool control.
◄CUE► slide to read and discuss the item revealed.
Repeat until all items are revealed. (3)
◄CUE► slide to read and re-enforce that we cannot forget about other parts of our body when handling tools.
◄CUE► Next Slide
Continue to read and discuss tool control.
◄CUE► slide to read and discuss the item revealed.
Repeat until all items are revealed. (4)
◄CUE► Next Slide
Narrative:
Let’s summarize what we have just discussed.
First off, the overall goal is NO HAND INJURIES.
How are we to achieve this goal:
◄CUE► slide By ensuring we are using the right tool for the job.
◄CUE► slide By not misuse your hands as inappropriate tools
◄CUE► slide By ensuring our tools are reliable, in good working condition, and if applicable, are within test dates.
◄CUE► slide By using the tool the way it was designed to be used.
◄CUE► slide By ensuring your hand are in a safe places
◄CUE► slide By adapting a defensive work behavior. Stay aware of your surrounding and always be thinking “What If”.
◄CUE► slide Be cautious when working with and around sharp tools.
◄CUE► slide And most importantly, perform a task risk analysis. A LMRA may be the difference between eating a nice home cooked meal with your family or learning how to hold the fork with your toes.
◄CUE► Next Slide
