Big data processing using - Hadoop Technology

S
11/3/2014
Hadoop
Technology
Solution to BIG DATA processing
Shital Katkar
VJTI, MUMBAI

1 | H A D O O P T e c h n o l o g y

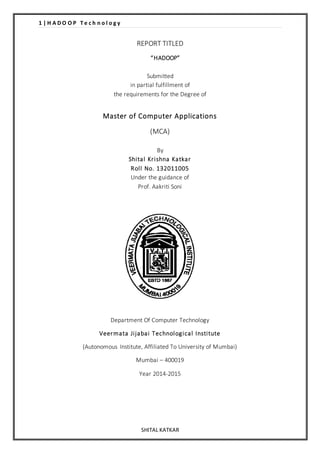

REPORT TITLED
“ HADOOP”
Submitted
in partial fulfillment of
the requirements for the Degree of
Master of Computer Applications
(MCA)
By
Shi tal Kr ishna Katkar
Rol l No. 132011005
Under the guidance of
Prof. Aakriti Soni
Department Of Computer Technology
Veermata Ji jabai Technological Insti tute
(Autonomous Institute, Affiliated To University of Mumbai)
Mumbai – 400019
Year 2014-2015
SHITAL KATKAR

VEERMATA JIJABAI TECHNOLOGICAL INSTITUTE
MATUNGA, MUMBAI – 400019
CERTIFICATE
This is to certify that the seminar report titled
“HADOOP”
BY
SHITAL KRISHNA KATKAR
Roll No. 132011005
Class: MCA-(SEM-III)
in Academic year 2014-2015
Evaluator:
Date:
SHITAL KATKAR

SHITAL KATKAR

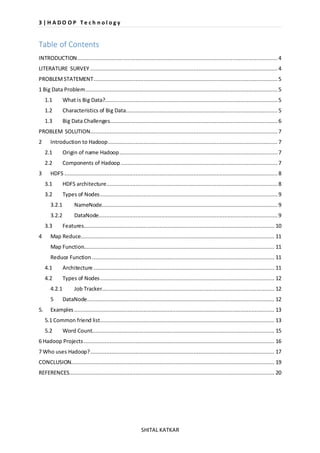

Table of Contents
INTRODUCTION ............................................................................................................................ 4
LITERATURE SURVEY .................................................................................................................... 4
PROBLEM STATEMENT .................................................................................................................. 5
1 Big Data Problem ....................................................................................................................... 5
1.1 What is Big Data?........................................................................................................... 5
1.2 Characteristics of Big Data .............................................................................................. 5
1.3 Big Data Challenges........................................................................................................ 6
PROBLEM SOLUTION.................................................................................................................... 7
2 Introduction to Hadoop ......................................................................................................... 7
2.1 Origin of name Hadoop .................................................................................................. 7
2.2 Components of Hadoop ................................................................................................. 7
3 HDFS .................................................................................................................................... 8
3.1 HDFS architecture .......................................................................................................... 8
3.2 Types of Nodes .............................................................................................................. 9
3.2.1 NameNode............................................................................................................. 9
3.2.2 DataNode............................................................................................................... 9
3.3 Features ...................................................................................................................... 10

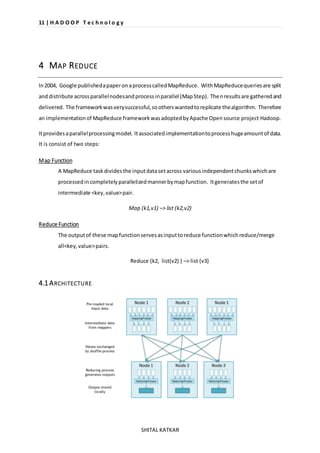

4 Map Reduce........................................................................................................................ 11
Map Function...................................................................................................................... 11
Reduce Function ................................................................................................................. 11
4.1 Architecture ................................................................................................................ 11

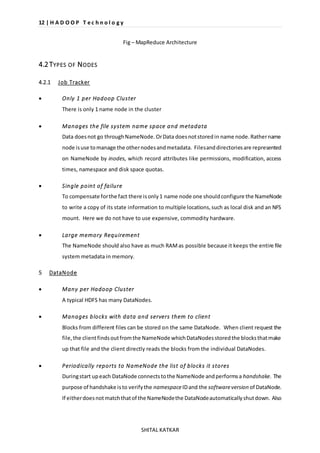

4.2 Types of Nodes ............................................................................................................ 12
4.2.1 Job Tracker........................................................................................................... 12
5 DataNode .................................................................................................................... 12
5. Examples ............................................................................................................................ 13

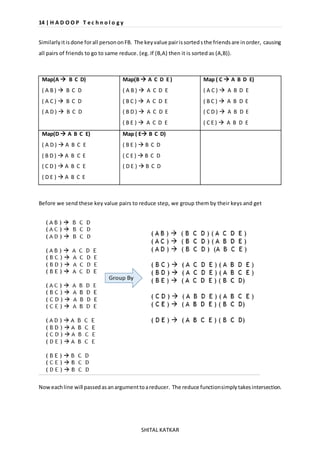

5.1 Common friend list ............................................................................................................ 13

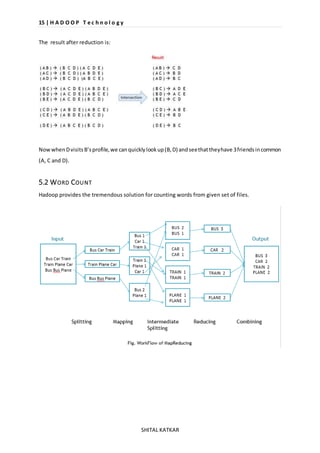

5.2 Word Count................................................................................................................. 15

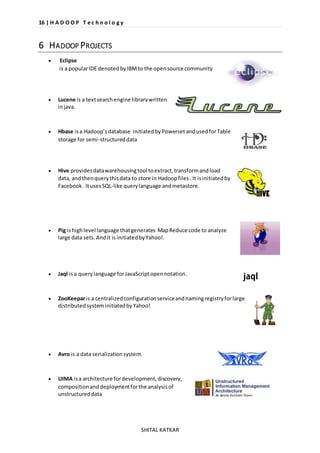

6 Hadoop Projects ...................................................................................................................... 16

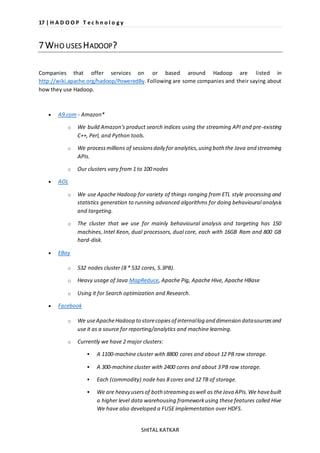

7 Who uses Hadoop? .................................................................................................................. 17
CONCLUSION.............................................................................................................................. 19

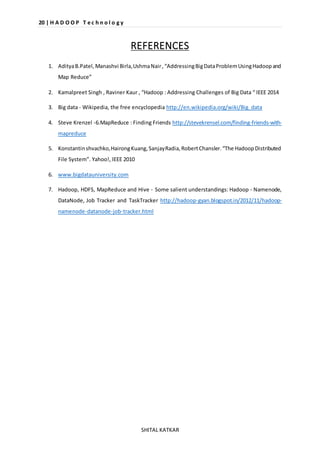

REFERENCES ............................................................................................................................... 20

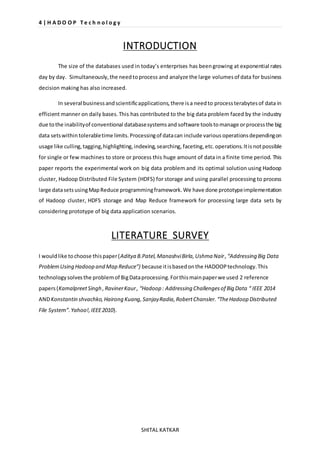

INTRODUCTION
The size of the databases used in today’s enterprises has been growing at exponential rates
day by day. Simultaneously, the need to process and analyze the large volumes of data for business
decision making has also increased.
In several business and scientific applications, there is a need to process terabytes of data in
efficient manner on daily bases. This has contributed to the big data problem faced by the industry
due to the inability of conventional database systems and software tools to manage or process the big
data sets within tolerable time limits. Processing of data can include various operations depending on
usage like culling, tagging, highlighting, indexing, searching, faceting, etc. operations. It is not possible
for single or few machines to store or process this huge amount of data in a finite time period. This
paper reports the experimental work on big data problem and its optimal solution using Hadoop
cluster, Hadoop Distributed File System (HDFS) for storage and using parallel processing to process
large data sets using Map Reduce programming framework. We have done prototype implementation
of Hadoop cluster, HDFS storage and Map Reduce framework for processing large data sets by
considering prototype of big data application scenarios.
LITERATURE SURVEY
I would like to choose this paper (Aditya B.Patel, Manashvi Birla, Ushma Nair , “Addressing Big Data
Problem Using Hadoop and Map Reduce”) because it is based on the HADOOP technology. This
technology solves the problem of Big Data processing. For this main paper we used 2 reference
papers (Kamalpreet Singh , Raviner Kaur , “Hadoop : Addressing Challenges of Big Data “ IEEE 2014
AND Konstantin shvachko, Hairong Kuang, Sanjay Radia, Robert Chansler. “The Hadoop Distributed
File System”. Yahoo!, IEEE 2010).
SHITAL KATKAR

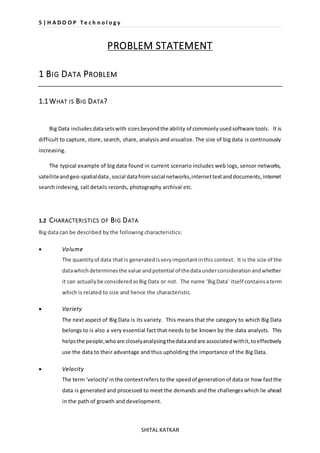

PROBLEM STATEMENT
SHITAL KATKAR
1 BIG DATA PROBLEM
1.1 WHAT IS BIG DATA?
Big Data includes data sets with sizes beyond the ability of commonly used software tools. It is
difficult to capture, store, search, share, analysis and visualize. The size of big data is continuously
increasing.
The typical example of big data found in current scenario includes web logs, sensor networks,
satellite and geo-spatial data , social data from social networks, internet text and documents, internet
search indexing, call details records, photography archival etc.
1.2 CHARACTERISTICS OF BIG DATA
Big data can be described by the following characteristics:
 Volume
The quantity of data that is generated is very important in this context. It is the size of the
data which determines the value and potential of the data under consideration and whether
it can actually be considered as Big Data or not. The name ‘Big Data’ itself contains a term
which is related to size and hence the characteristic.
 Variety
The next aspect of Big Data is its variety. This means that the category to which Big Data
belongs to is also a very essential fact that needs to be known by the data analysts. This
helps the people, who are closely analysing the data and are associated with it, to effectively
use the data to their advantage and thus upholding the importance of the Big Data.
 Velocity
The term ‘velocity’ in the context refers to the speed of generation of data or how fast the
data is generated and processed to meet the demands and the challenges which lie ahead
in the path of growth and development.

SHITAL KATKAR
 Variability
This is a factor which can be a problem for those who analyse the data. This refers to the
inconsistency which can be shown by the data at times, thus hampering the process of being
able to handle and manage the data effectively.
 Complexity
Data management can become a very complex process, especially when large volumes of
data come from multiple sources. These data need to be linked, connected and correlated
in order to be able to grasp the information that is supposed to be conveyed by these data.
This situation, is therefore, termed as the ‘complexity’ of Big Data.
1.3 BIG DATA CHALLENGES
Following are the various challenges faced in large data management
 Scalability
 Unstructured data
 Accessibility
 Real Time analytics
 Fault Tolerance

PROBLEM SOLUTION

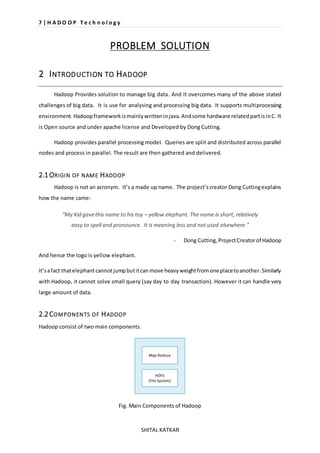

2 INTRODUCTION TO HADOOP
Hadoop Provides solution to manage big data. And it overcomes many of the above stated
challenges of big data. It is use for analysing and processing big data. It supports multiprocessing
environment. Hadoop framework is mainly written in java. And some hardware related part is in C. It
is Open source and under apache license and Developed by Dong Cutting.
Hadoop provides parallel processing model. Queries are split and distributed across parallel
nodes and process in parallel. The result are then gathered and delivered.
SHITAL KATKAR
2.1 ORIGIN OF NAME HADOOP
Hadoop is not an acronym. It’s a made up name. The project’s creator Dong Cutting explains
how the name came:
“My Kid gave this name to his toy – yellow elephant. The name is short, relatively
easy to spell and pronounce. It is meaning less and not used elsewhere.”
- Dong Cutting, Project Creator of Hadoop
And hence the logo is yellow elephant.
It’s a fact that elephant cannot jump but it can move heavy weight from one place to another. Similarly
with Hadoop, it cannot solve small query (say day to day transaction). However it can handle very
large amount of data.
2.2 COMPONENTS OF HADOOP
Hadoop consist of two main components.
Fig. Main Components of Hadoop

MapReduce is processing part of Hadoop and manages the job. HDFS refers Hadoop Distributed File
System and it stores all the data redundantly requires for computation.
Hadoop’s origin came from google file system (GFS) and MapReduce which become apache HDFS and
apache MapReduce.
SHITAL KATKAR

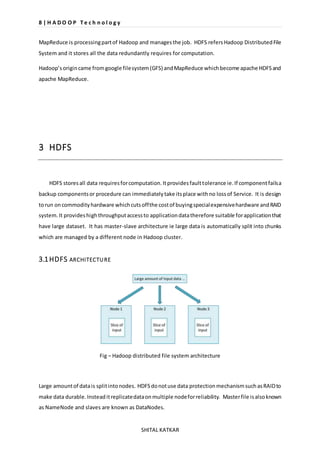

3 HDFS
HDFS stores all data requires for computation. It provides fault tolerance ie. If component fails a
backup components or procedure can immediately take its place with no loss of Service. It is design
to run on commodity hardware which cuts off the cost of buying special expensive hardware and RAID
system. It provides high throughput access to application data therefore suitable for application that
have large dataset. It has master-slave architecture ie large data is automatically split into chunks
which are managed by a different node in Hadoop cluster.
3.1 HDFS ARCHITECTURE
Fig – Hadoop distributed file system architecture
Large amount of data is split into nodes. HDFS do not use data protection mechanism such as RAID to
make data durable. Instead it replicate data on multiple node for reliability. Master file is also known
as NameNode and slaves are known as DataNodes.

SHITAL KATKAR

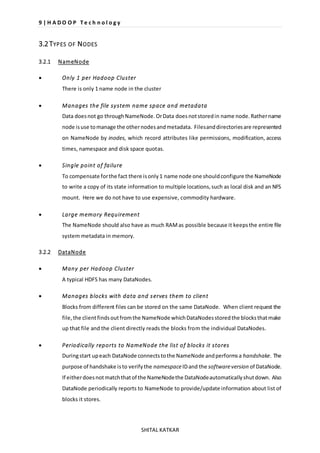

3.2 TYPES OF NODES
3.2.1 NameNode
 Only 1 per Hadoop Cluster
There is only 1 name node in the cluster
 Manages the file system name space and metadata
Data does not go through NameNode. Or Data does not stored in name node. Rather name
node is use to manage the other nodes and metadata. Files and directories are represented
on NameNode by inodes, which record attributes like permissions, modification, access
times, namespace and disk space quotas.
 Single point of failure
To compensate for the fact there is only 1 name node one should configure the NameNode
to write a copy of its state information to multiple locations, such as local disk and an NFS
mount. Here we do not have to use expensive, commodity hardware.
 Large memory Requirement
The NameNode should also have as much RAM as possible because it keeps the entire file
system metadata in memory.
3.2.2 DataNode
 Many per Hadoop Cluster
A typical HDFS has many DataNodes.
 Manages blocks with data and s erves them to client
Blocks from different files can be stored on the same DataNode. When client request the
file, the client finds out from the NameNode which DataNodes stored the blocks that make
up that file and the client directly reads the blocks from the individual DataNodes.
 Periodically reports to NameNode the list of blocks it stores
During start up each DataNode connects to the NameNode and performs a handshake. The
purpose of handshake is to verify the namespace ID and the software version of DataNode.
If either does not match that of the NameNode the DataNode automatically shut down. Also
DataNode periodically reports to NameNode to provide/update information about list of
blocks it stores.

 Suitable for inexpensive, commodity hardware
DataNode do not require expensive enterprise hardware or replication at the hardware
layer. The DataNodes are design to run on commodity hardware and replication is provided
at software layer.
SHITAL KATKAR
3.3 FEATURES
 HDFS is rack aware
HDFS is rack aware in the sense that the namenode and the job tracker obtain a list of rack
ids corresponding to each of the slave nodes (data nodes) and creates a mapping between
the IP address and the rack id. HDFS uses this knowledge to replicate data across different
racks so that data is not lost in the event of a complete rack power outage or switch failure.
 Job Performance
Hadoop does speculative execution where if a machine is slow in the cluster and the
map/reduce tasks running on this machine are holding on to the entire map/reduce phase,
then it runs redundant jobs on other machines to process the same task, and whichever task
gets completed first reports back to the job tracker and results from the same are carried
forward into the next phase.
 Fault Tolerance
The task tracker spawns different JVM processes to ensure that process failures do not bring
down the task tracker.
The task tracker keeps sending heartbeat messages to the job tracker to say that it is alive
and to keep it updated with the number of empty slots available for running more tasks.
The job tracker does some check pointing of its work in the file system. Whenever, it starts
up it checks what was it up to till the last CP and resumes any incomplete jobs. Earlier, if the
job tracker went down, all the active job information used to get lost.

SHITAL KATKAR
4 MAP REDUCE
In 2004, Google published a paper on a process called MapReduce. With MapReduce queries are split
and distribute across parallel nodes and process in parallel (Map Step). Then results are gathered and
delivered. The framework was very successful, so others wanted to replicate the algorithm. Therefore
an implementation of MapReduce framework was adopted by Apache Open source project Hadoop.
It provides a parallel processing model. It associated implementation to process huge amount of data.
It is consist of two steps:
Map Function
A MapReduce task divides the input data set across various independent chunks which are
processed in completely parallelized manner by map function. It generates the set of
intermediate <key, value> pair.
Map (k1,v1) –> list (k2,v2)
Reduce Function
The output of these map function serves as input to reduce function which reduce/merge
all<key, value> pairs.
Reduce (k2, list(v2) ) –> list (v3)
4.1 ARCHITECTURE

Fig – MapReduce Architecture
SHITAL KATKAR
4.2 TYPES OF NODES
4.2.1 Job Tracker
 Only 1 per Hadoop Cluster
There is only 1 name node in the cluster
 Manages the file system name space and metadata
Data does not go through NameNode. Or Data does not stored in name node. Rather name
node is use to manage the other nodes and metadata. Files and directories are represented
on NameNode by inodes, which record attributes like permissions, modification, access
times, namespace and disk space quotas.
 Single point of failure
To compensate for the fact there is only 1 name node one should configure the NameNode
to write a copy of its state information to multiple locations, such as local disk and an NFS
mount. Here we do not have to use expensive, commodity hardware.
 Large memory Requirement
The NameNode should also have as much RAM as possible because it keeps the entire file
system metadata in memory.
5 DataNode
 Many per Hadoop Cluster
A typical HDFS has many DataNodes.
 Manages blocks with data and servers them to client
Blocks from different files can be stored on the same DataNode. When client request the
file, the client finds out from the NameNode which DataNodes stored the blocks that make
up that file and the client directly reads the blocks from the individual DataNodes.
 Periodically reports to NameNode the list of blocks it stores
During start up each DataNode connects to the NameNode and performs a handshake. The
purpose of handshake is to verify the namespace ID and the software version of DataNode.
If either does not match that of the NameNode the DataNode automatically shut down. Also

DataNode periodically reports to NameNode to provide/update information about list of
blocks it stores.
 Suitable for inexpensive, commodity hardware
DataNode do not require expensive enterprise hardware or replication at the hardware
layer. The DataNodes are design to run con commodity hardware and replication is provided
at software layer.
SHITAL KATKAR
5. EXAMPLES
5.1 COMMON FRIEND LIST
Consider one social networking site (let say Facebook).
(NOTE: Facebook may or may not actually do this implementation. It is just an example)
Facebook has a list of friends. Note that friends are bidirectional thing on Facebook (i.e. I’m your friend
then you’re mine). When you visit someone’s profile, you see a list of friends that you have in
common. Do you think that Facebook will calculate it on the spot? No! it serves millions of requests
every second. So they pre-compute calculations everyday where they can reduce the processing time
of request.
Assume that there are 5 people A,B,C,D,E on Facebook. Friend list is denoted by Persons -> (List of
Friends). So here our friend list is :
• A  B C D
• B  A C D E
• C  A B D E
• D  A B C E
• E  B C D
i.e. A is a friend of B, C and D. B is a friend of A, C, D and E. So on. Each line will be an argument to
mapper step. For every fiend in the list of fiends the mapper will output key values pair. The key will
be a friend along with the person and value will be list of friends.
For MAP(A  B C D)
( A B )  B C D
( A C )  B C D
( A D )  B C D

Similarly it is done for all person on FB. The key value pair is sorted s the friends are in order, causing
all pairs of friends to go to same reduce. (eg. If (B,A) then it is sorted as (A,B)).
SHITAL KATKAR
Map(A  B C D)
( A B )  B C D
( A C )  B C D
( A D )  B C D
Map(B  A C D E )
( A B )  A C D E
( B C )  A C D E
( B D )  A C D E
( B E )  A C D E
Map ( C  A B D E)
( A C )  A B D E
( B C )  A B D E
( C D )  A B D E
( C E )  A B D E
Map(D  A B C E)
( A D )  A B C E
( B D )  A B C E
( C D )  A B C E
( D E )  A B C E
Map ( E B C D)
( B E )  B C D
( C E )  B C D
( D E )  B C D
Before we send these key value pairs to reduce step, we group them by their keys and get
Now each line will passed as an argument to a reducer. The reduce function simply takes intersection.

SHITAL KATKAR
The result after reduction is:
Now when D visits B’s profile, we can quickly look up (B, D) and see that they have 3 friends in common
(A, C and D).
5.2 WORD COUNT
Hadoop provides the tremendous solution for counting words from given set of files.

SHITAL KATKAR
6 HADOOP PROJECTS
 Eclipse
is a popular IDE denoted by IBM to the open source community
 Lucene is a text search engine library written
in java.
 Hbase is a Hadoop’s database initiated by Powerset and used for Table
storage for semi-structured data
 Hive provides data warehousing tool to extract, transform and load
data, and then query this data to store in Hadoop files . It is initiated by
Facebook. It uses SQL-like query language and metastore.
 Pig is high level language that generates Map Reduce code to analyze
large data sets. And it is initiated by Yahoo!.
 Jaql is a query language for JavaScript open notation.
 ZooKeepar is a centralized configuration service and naming registry for large
distributed system initiated by Yahoo!
 Avro is a data serialization system.
 UIMA is a architecture for development, discovery,
composition and deployment for the analysis of
unstructured data

SHITAL KATKAR
7 WHO USES HADOOP?
Companies that offer services on or based around Hadoop are listed in
http://wiki.apache.org/hadoop/PoweredBy. Following are some companies and their saying about
how they use Hadoop.
 A9.com - Amazon*
o We build Amazon's product search indices using the streaming API and pre-existing
C++, Perl, and Python tools.
o We process millions of sessions daily for analytics, using both the Java and streaming
APIs.
o Our clusters vary from 1 to 100 nodes
 AOL
o We use Apache Hadoop for variety of things ranging from ETL style processing and
statistics generation to running advanced algorithms for doing behavioural analysis
and targeting.
o The cluster that we use for mainly behavioural analysis and targeting has 150
machines, Intel Xeon, dual processors, dual core, each with 16GB Ram and 800 GB
hard-disk.
 EBay
o 532 nodes cluster (8 * 532 cores, 5.3PB).
o Heavy usage of Java MapReduce, Apache Pig, Apache Hive, Apache HBase
o Using it for Search optimization and Research.
 Facebook
o We use Apache Hadoop to store copies of internal log and dimension data sources and
use it as a source for reporting/analytics and machine learning.
o Currently we have 2 major clusters:
 A 1100-machine cluster with 8800 cores and about 12 PB raw storage.
 A 300-machine cluster with 2400 cores and about 3 PB raw storage.
 Each (commodity) node has 8 cores and 12 TB of storage.
 We are heavy users of both streaming as well as the Java APIs. We have built
a higher level data warehousing framework using these features called Hive
We have also developed a FUSE implementation over HDFS.

SHITAL KATKAR
 LinkedIn
o We have multiple grids divided up based upon purpose.
 Twitter
o We use Apache Hadoop to store and process tweets, log files, and many other types
of data generated across Twitter. We store all data as compressed LZO files.
o We use both Scala and Java to access Hadoop's MapReduce APIs
o We use Apache Pig heavily for both scheduled and ad-hoc jobs, due to its ability to
accomplish a lot with few statements.
o We employ committers on Apache Pig, Apache Avro, Apache Hive, and Apache
Cassandra, and contribute much of our internal Hadoop work to opensource .
 Yahoo!
o More than 100,000 CPUs in >40,000 computers running Hadoop
o Our biggest cluster: 4500 nodes (2*4cpu boxes w 4*1TB disk & 16GB RAM)
 Used to support research for Ad Systems and Web Search
 Also used to do scaling tests to support development of Apache Hadoop on
larger clusters
o >60% of Hadoop Jobs within Yahoo are Apache Pig jobs.

CONCLUSION
In this work, we have explored the solution to big data problem using Hadoop data cluster, HDFS and
Map Reduce programming framework using big data prototype application scenarios. The results
obtained from various experiments indicate favourable results of above approach to address big
data problem
As big data continues down its path of growth, there is no doubt that these innovative approaches –
utilizing Hadoop software – will be central to allowing companies reach full potential with data.
Additionally, this rapid advancement of data technology has sparked a rising demand to hire the
next generation of technical geniuses who can build up this powerful infrastructure. The cost of the
technology and the talent may not be cheap, but for all of the value that big data is capable of
bringing to table, companies are finding that it is a very worthy investment.
SHITAL KATKAR

REFERENCES
1. Aditya B.Patel, Manashvi Birla, Ushma Nair , “Addressing Big Data Problem Using Hadoop and
SHITAL KATKAR
Map Reduce”
2. Kamalpreet Singh , Raviner Kaur , “Hadoop : Addressing Challenges of Big Data “ IEEE 2014
3. Big data - Wikipedia, the free encyclopedia http://en.wikipedia.org/wiki/Big_data
4. Steve Krenzel -6.MapReduce : Finding Friends http://stevekrensel.com/finding-friends-with-mapreduce
5. Konstantin shvachko, Hairong Kuang, Sanjay Radia, Robert Chansler. “The Hadoop Distributed
File System”. Yahoo!, IEEE 2010
6. www.bigdatauniversity.com
7. Hadoop, HDFS, MapReduce and Hive - Some salient understandings: Hadoop - Namenode,
DataNode, Job Tracker and TaskTracker http://hadoop-gyan.blogspot.in/2012/11/hadoop-namenode-
datanode-job-tracker.html

Big data processing using - Hadoop Technology

More Related Content

What's hot

Similar to Big data processing using - Hadoop Technology

More from Shital Kat

Recently uploaded

Big data processing using - Hadoop Technology
