Selendroid - Selenium for Android
Dominik Dary
Google Test Automation Conference 2014
Who am I?
Dominik Dary
Engineering Manager @
Twitter: @dominikdary
Github: http://github.com/dominikdary
Disclaimer: My Opinions are my own.

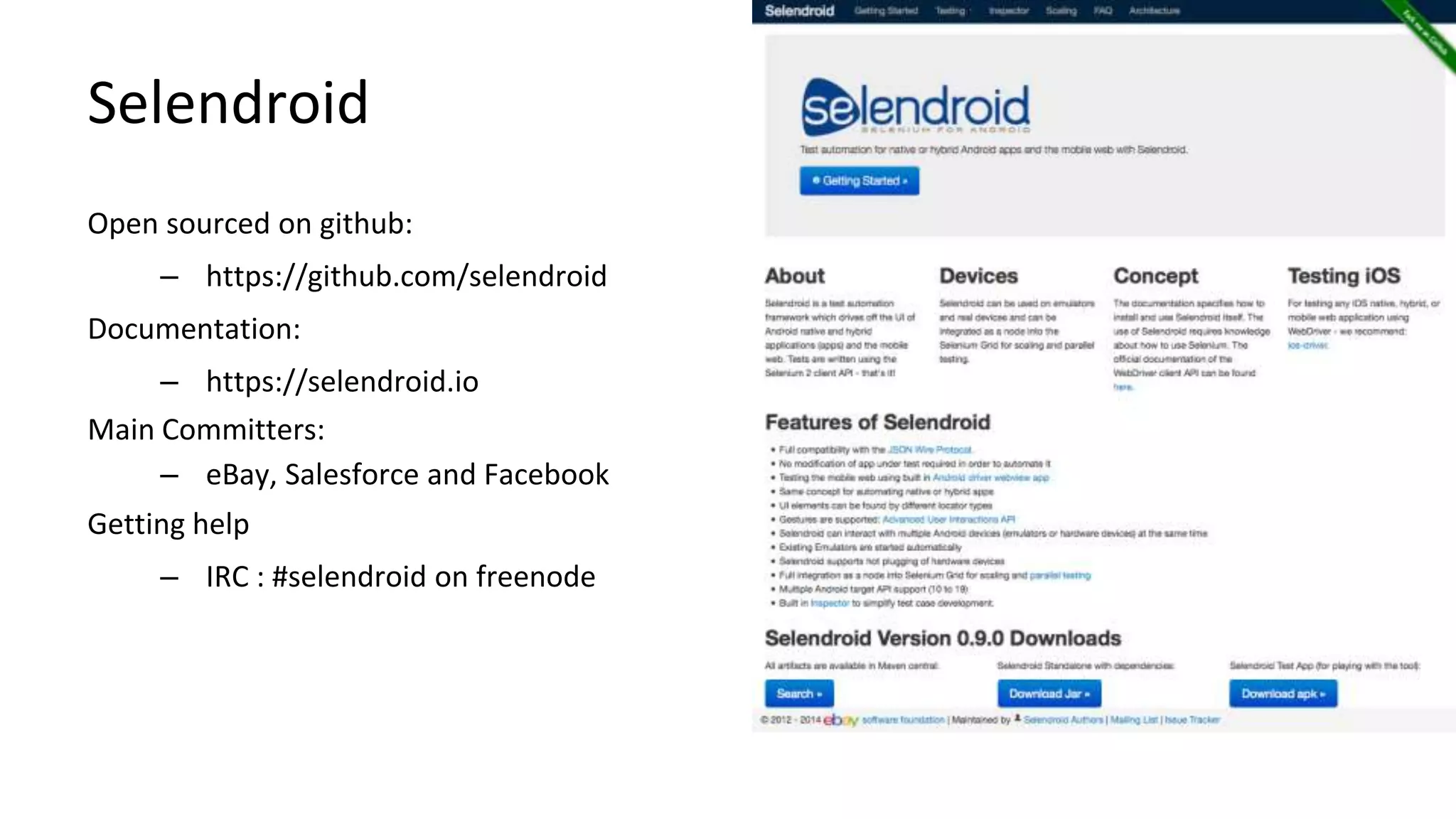

Selendroid
Open sourced on github:
– https://github.com/selendroid
Documentation:
– https://selendroid.io
Main Committers:
– eBay, Salesforce and Facebook
Getting help
– IRC : #selendroid on freenode
Android Test Automation

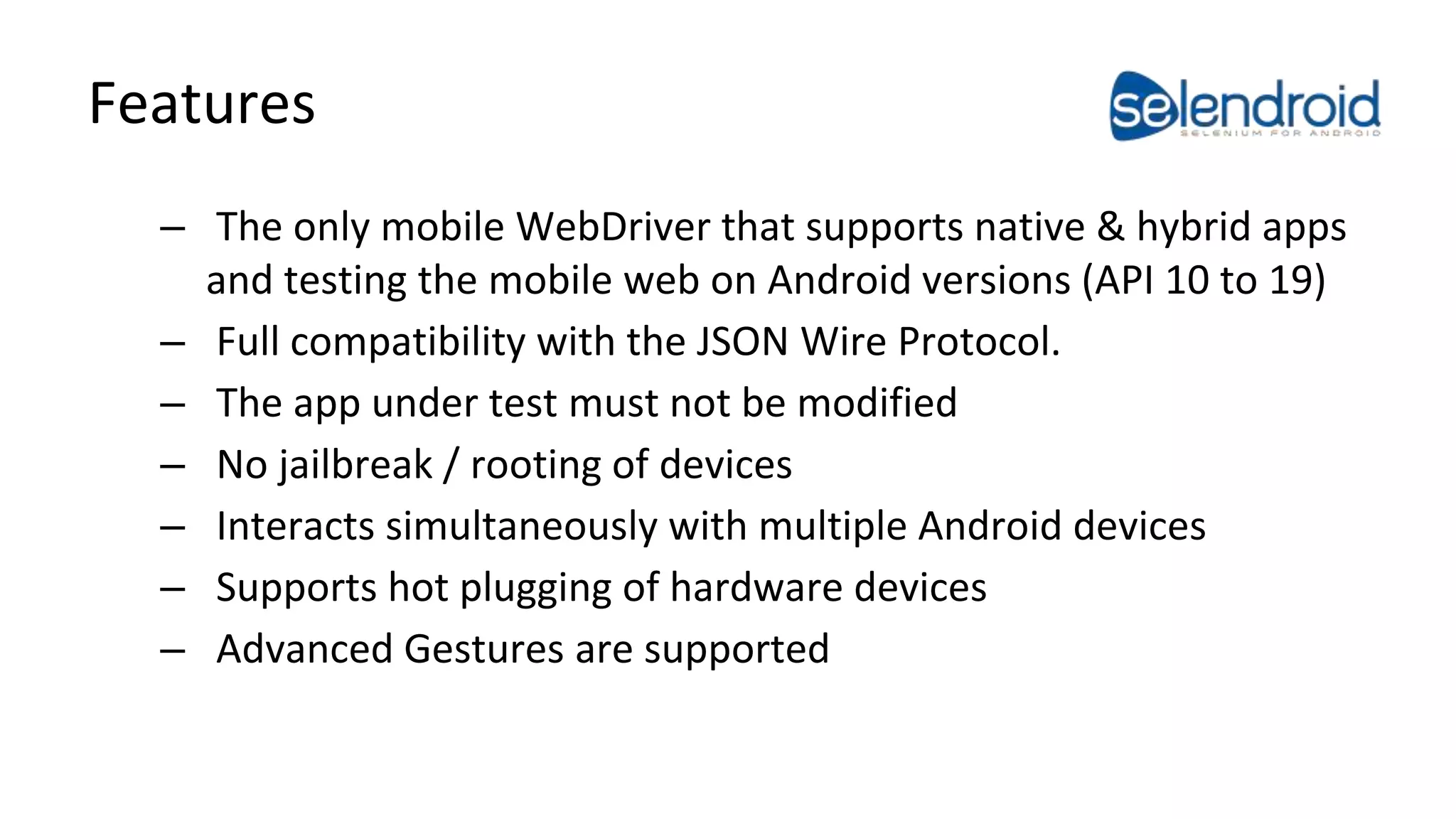

Features
– The only mobile WebDriver that supports native & hybrid apps
and testing the mobile web on Android versions (API 10 to 19)
– Full compatibility with the JSON Wire Protocol.
– The app under test must not be modified
– No jailbreak / rooting of devices
– Interacts simultaneously with multiple Android devices
– Supports hot plugging of hardware devices
– Advanced Gestures are supported

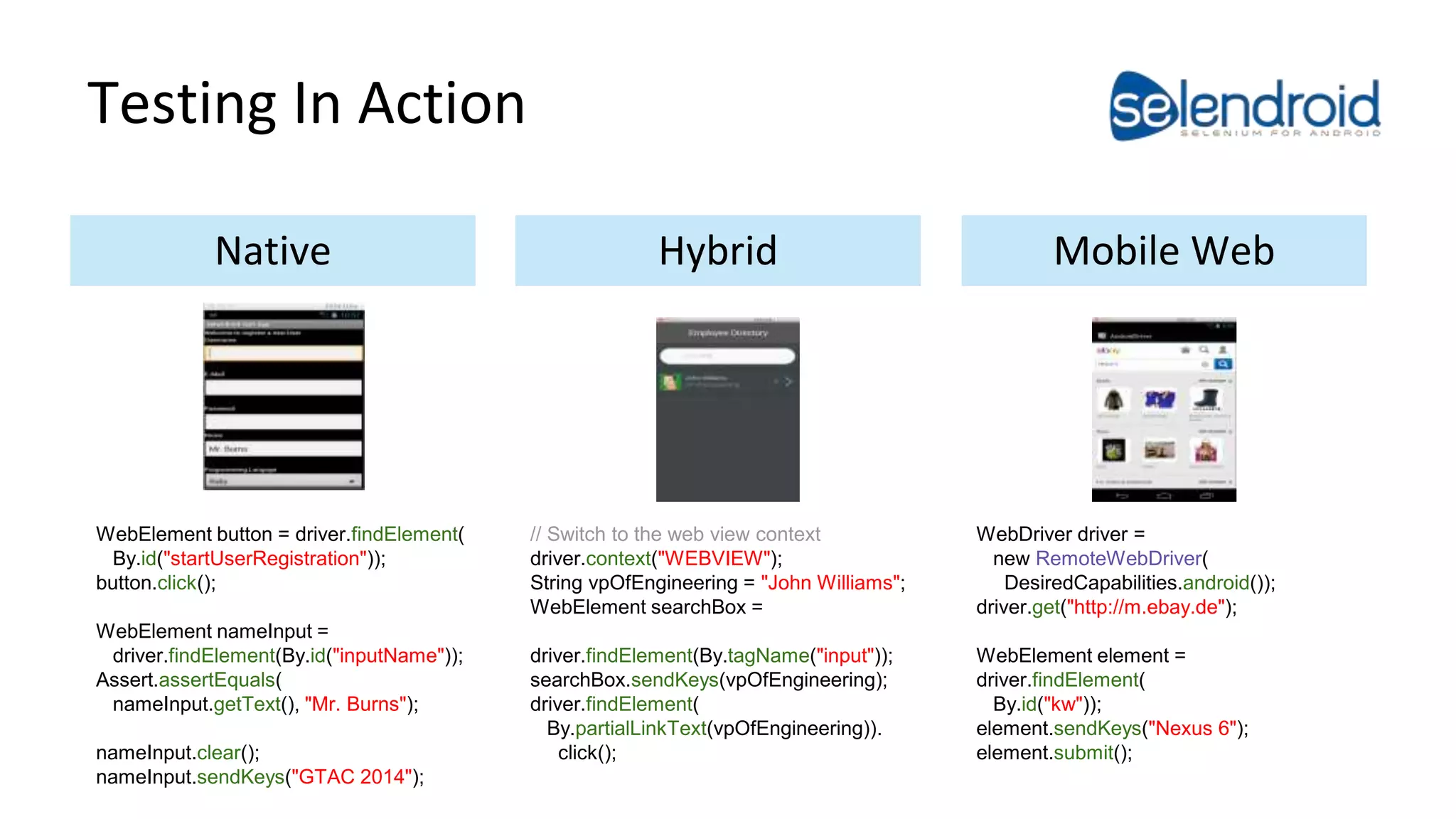

Testing In Action
Native Hybrid Mobile Web
WebElement button = driver.findElement(
By.id("startUserRegistration"));
button.click();
WebElement nameInput =
driver.findElement(By.id("inputName"));
Assert.assertEquals(
nameInput.getText(), "Mr. Burns");
nameInput.clear();
nameInput.sendKeys("GTAC 2014");
// Switch to the web view context
driver.context("WEBVIEW");
String vpOfEngineering = "John Williams";
WebElement searchBox =
driver.findElement(By.tagName("input"));
searchBox.sendKeys(vpOfEngineering);
driver.findElement(
By.partialLinkText(vpOfEngineering)).
click();
WebDriver driver =
new RemoteWebDriver(
DesiredCapabilities.android());
driver.get("http://m.ebay.de");
WebElement element =
driver.findElement(
By.id("kw"));
element.sendKeys("Nexus 6");
element.submit();

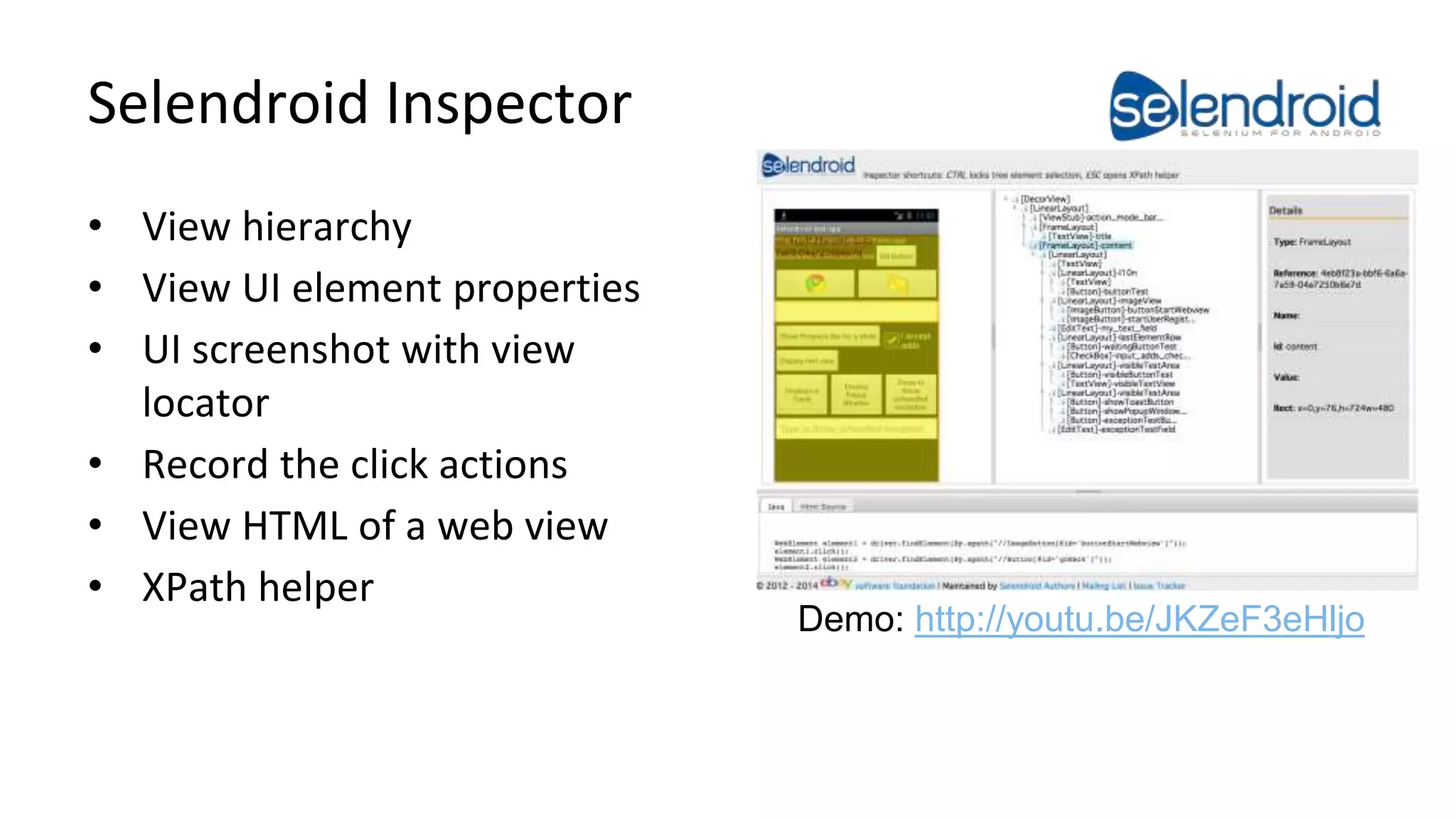

Selendroid Inspector
• View hierarchy
• View UI element properties
• UI screenshot with view
locator
• Record the click actions
• View HTML of a web view
• XPath helper
Demo: http://youtu.be/JKZeF3eHljo
Android Test Automation

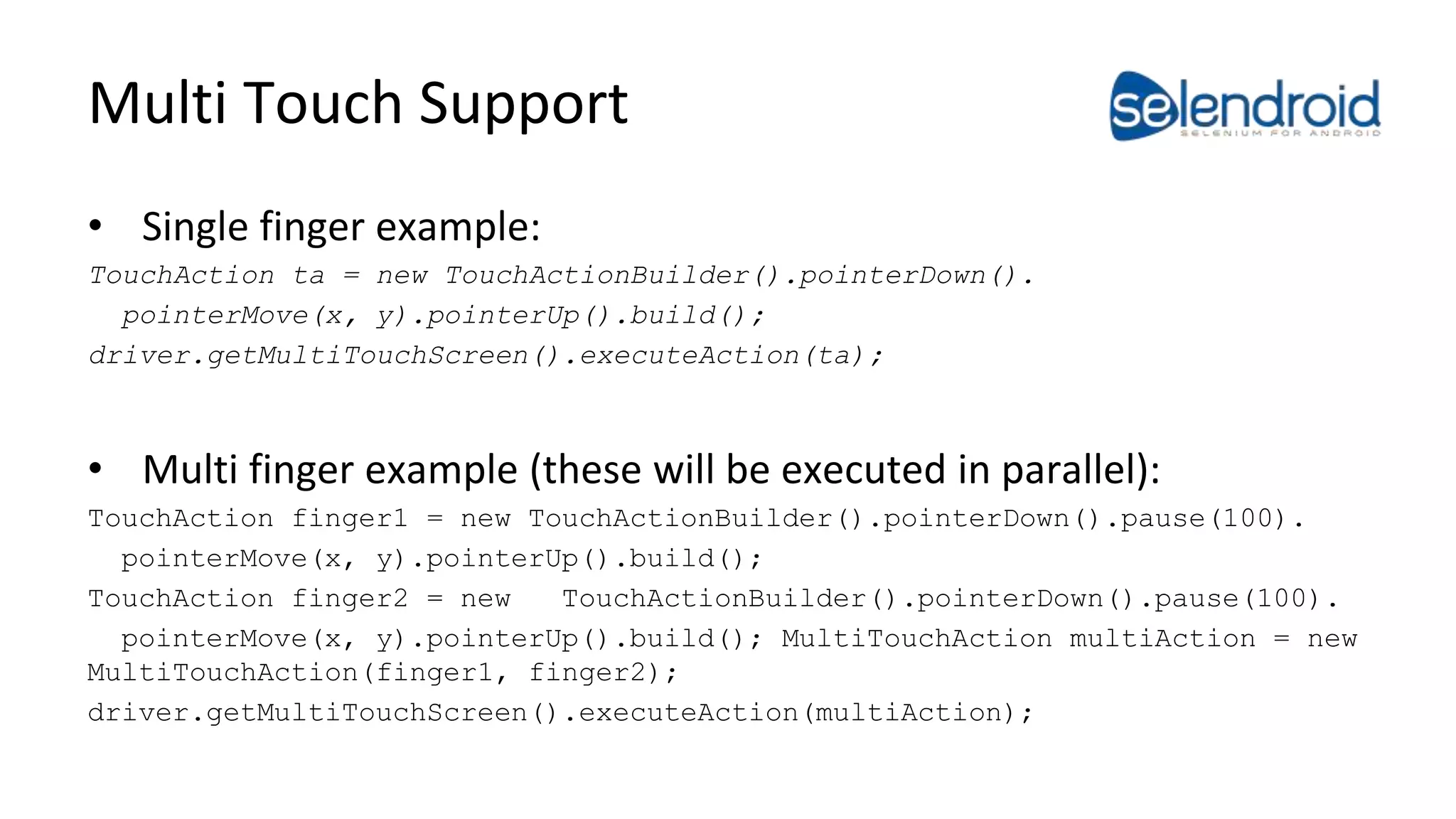

Multi Touch Support
• Single finger example:
TouchAction ta = new TouchActionBuilder().pointerDown().
pointerMove(x, y).pointerUp().build();
driver.getMultiTouchScreen().executeAction(ta);
• Multi finger example (these will be executed in parallel):
TouchAction finger1 = new TouchActionBuilder().pointerDown().pause(100).
pointerMove(x, y).pointerUp().build();
TouchAction finger2 = new TouchActionBuilder().pointerDown().pause(100).
pointerMove(x, y).pointerUp().build(); MultiTouchAction multiAction = new
MultiTouchAction(finger1, finger2);
driver.getMultiTouchScreen().executeAction(multiAction);

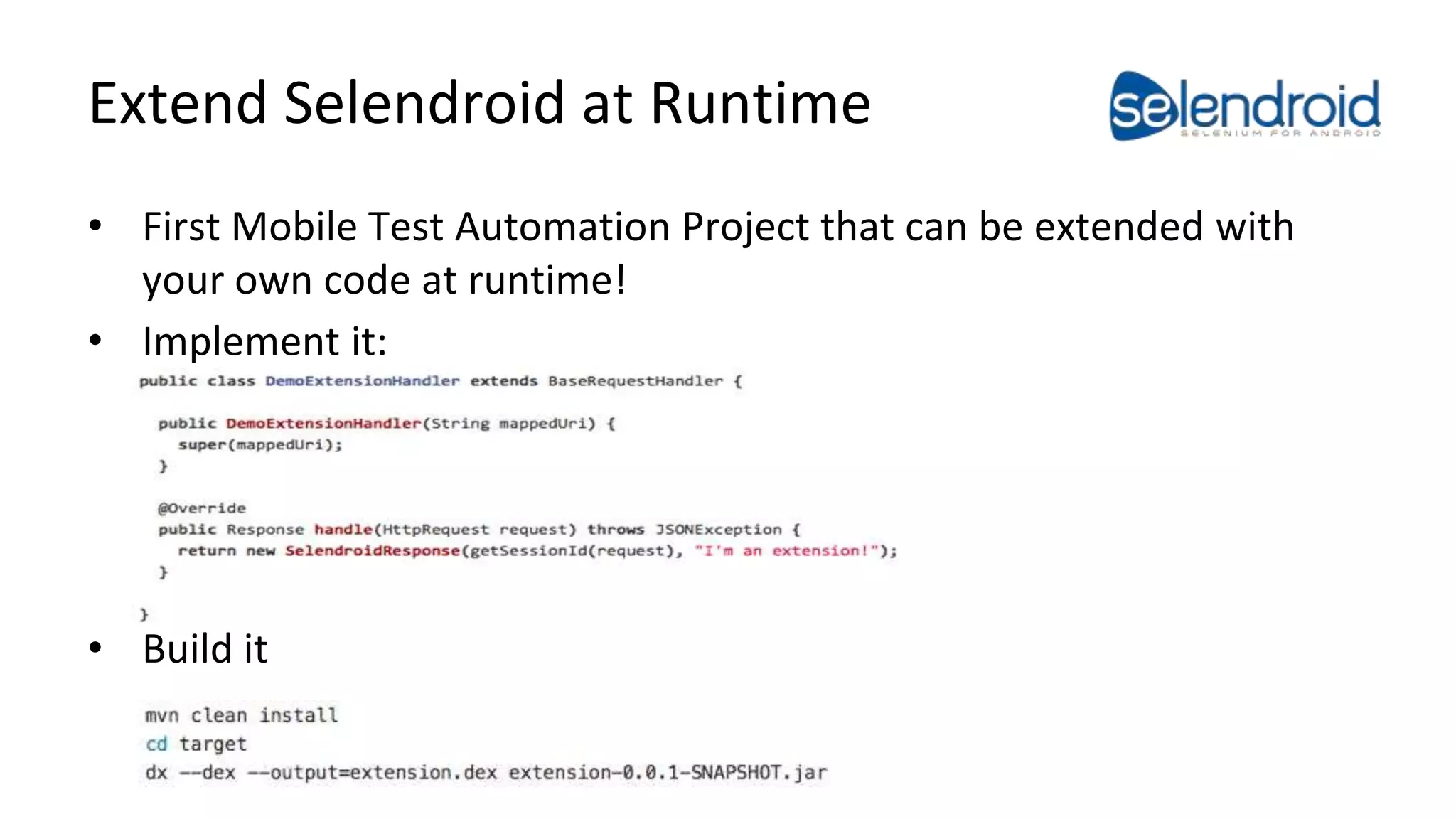

Extend Selendroid at Runtime
• First Mobile Test Automation Project that can be extended with
your own code at runtime!
• Implement it:
• Build it

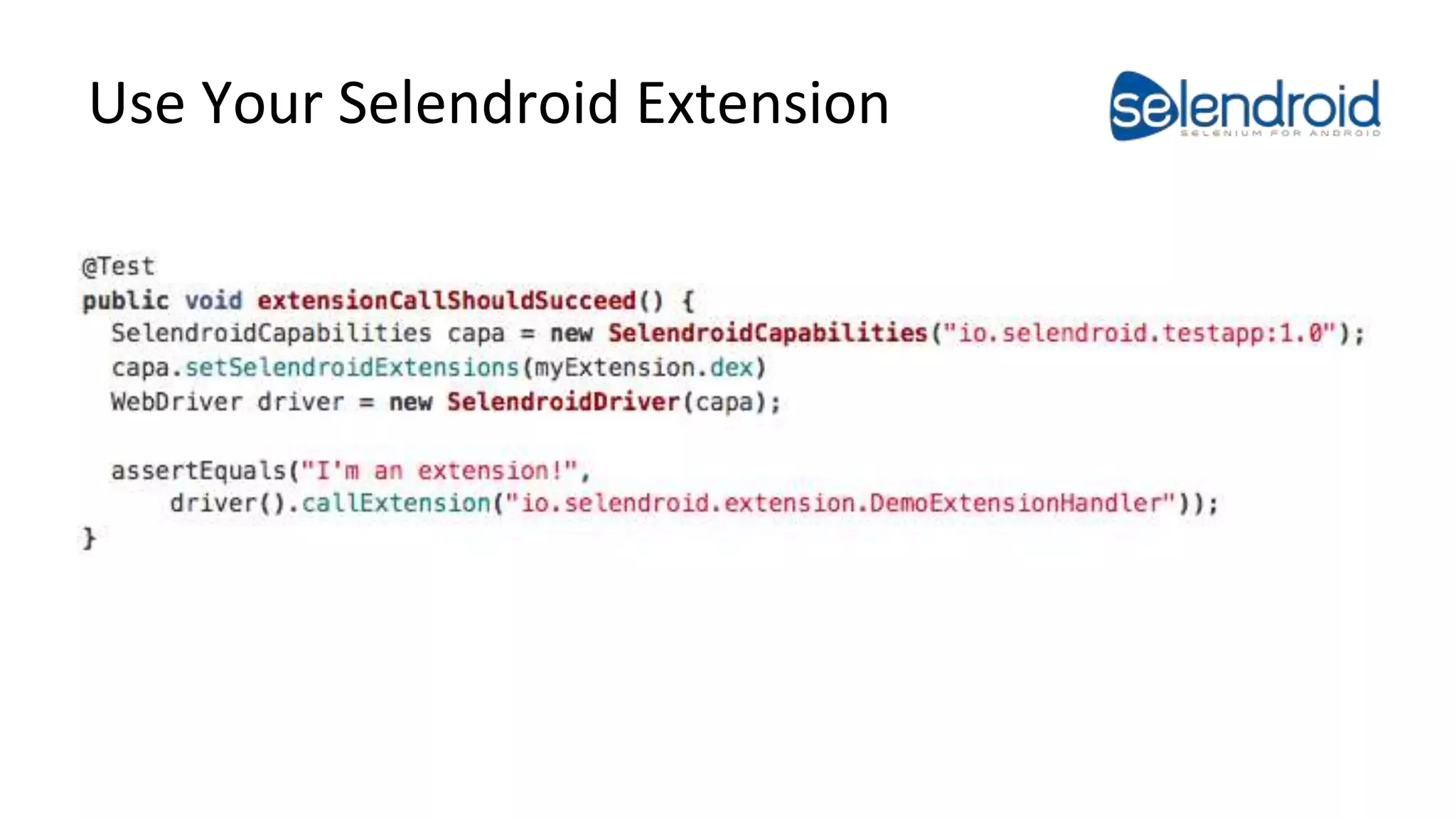

Use Your Selendroid Extension
Scaling using the Selenium Grid
Android Test Automation
Client
Client GRID Hub server
CI
server
server
There is one more thing
We are proud to announce that we have shipped:
Selendroid 0.12.0
Thank You!
Questions or Comments?

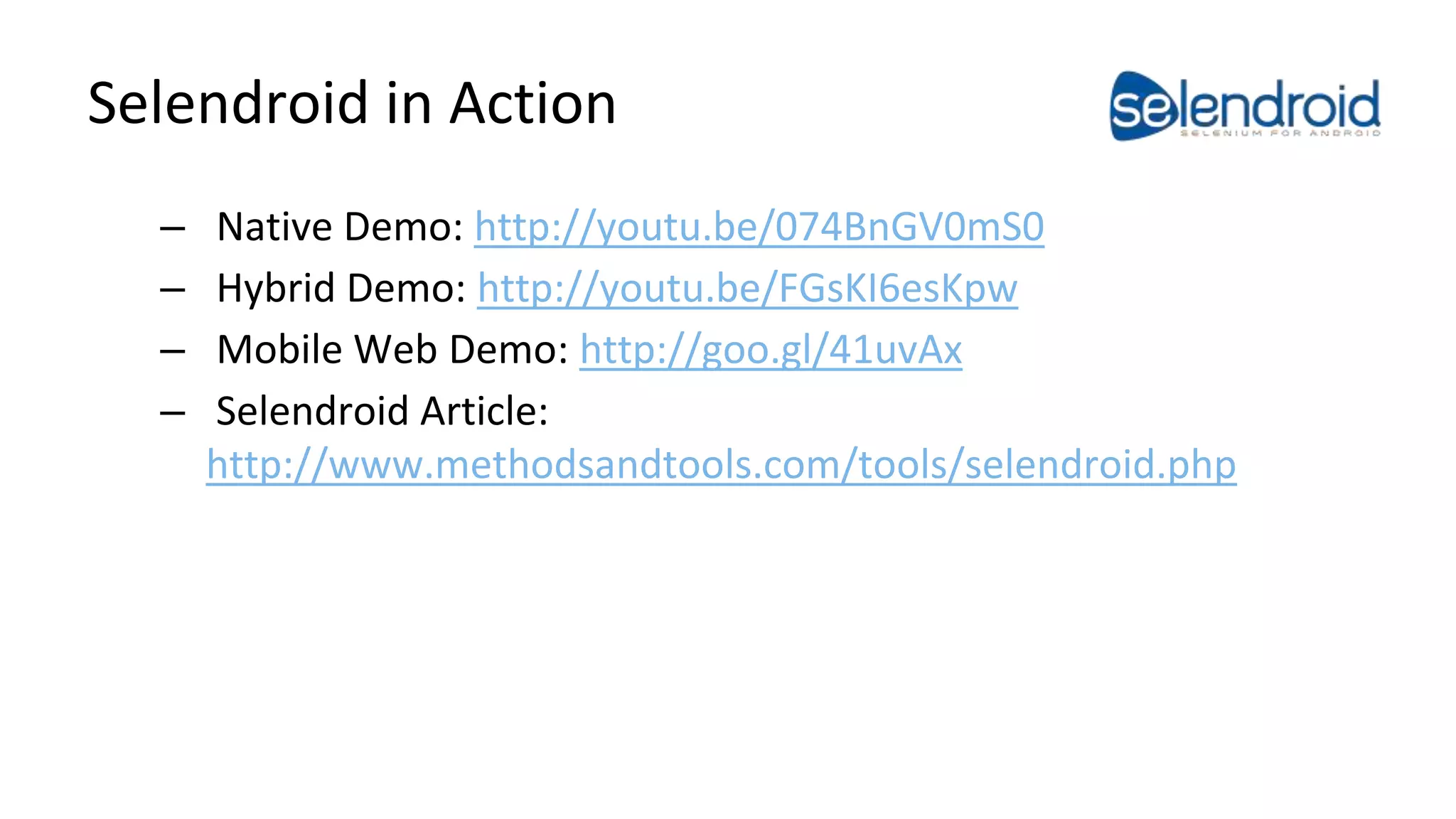

Selendroid in Action
– Native Demo: http://youtu.be/074BnGV0mS0
– Hybrid Demo: http://youtu.be/FGsKI6esKpw
– Mobile Web Demo: http://goo.gl/41uvAx
– Selendroid Article:
http://www.methodsandtools.com/tools/selendroid.php
