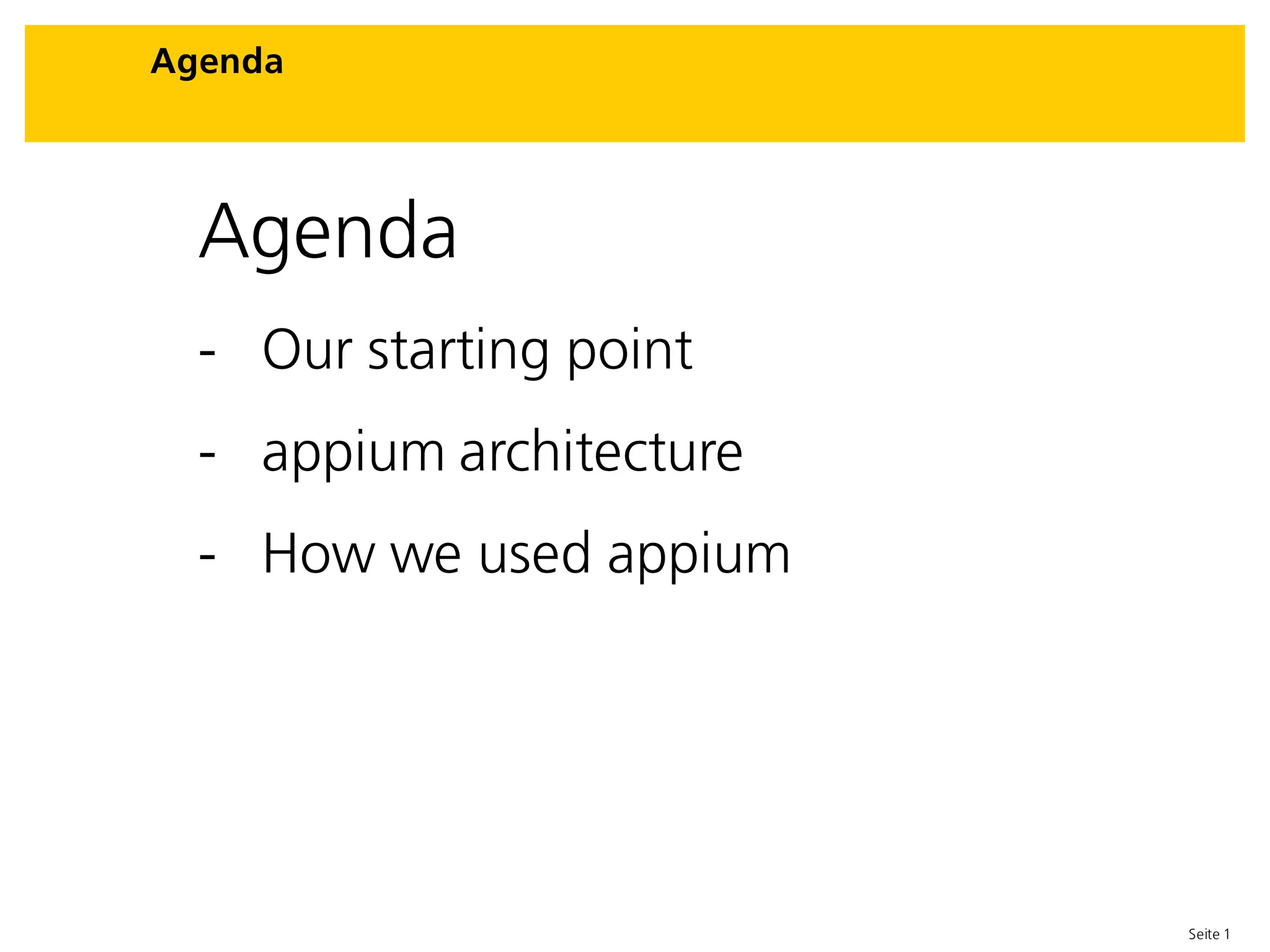

Agenda
Agenda
- Our starting point
- appium architecture
- How we used appium

2. Seite 2
Android
Hybrid
GWT

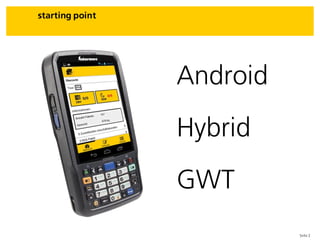

starting point

3. Seite 3
10 months
20 – 30 apps
600 Features
7 scrum teams
60+ developers
some figures

4. Seite 4
The Building Blocks we have to deal with
App
core
library

5. Seite 5

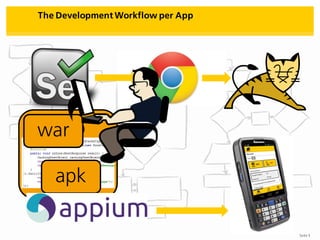

The Development Workflow per App
App
apk
war

6. Seite 6

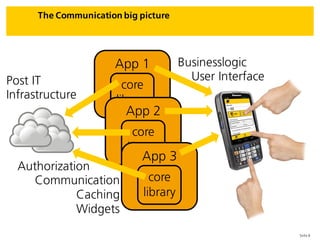

The Communication big picture
App 1
core
library
App 2
core
library
App 3
core
library
Post IT
Infrastructure
Authorization
Communication
Caching
Widgets
Businesslogic
User Interface

7. Seite 7
The Development Workflow the big picture
core
library
Team Post
App
2
App
1
App
3
App
4
Team 1
Team 2
Team 3
Team 4
2 Weeks 2 Weeks

8. Seite 8
Quality
available mobile test tools
appium
selendroid
ios-driver
calabash

9. Seite 9
appium Architecture
appium Architecture
Appium is an HTTP server that creates
and handles webdriver sessions.
Appium Server is written in node.js

10. Seite 10

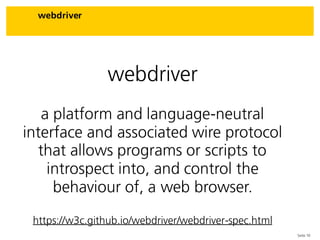

webdriver
webdriver
a platform and language-neutral
interface and associated wire protocol
that allows programs or scripts to
introspect into, and control the
behaviour of, a web browser.
https://w3c.github.io/webdriver/webdriver-spec.html

11. Seite 11
webdriver

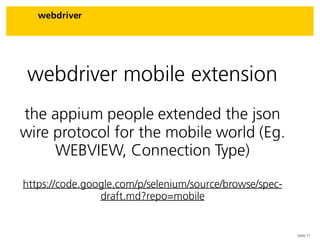

webdriver mobile extension
the appium people extended the json
wire protocol for the mobile world (Eg.
WEBVIEW, Connection Type)
https://code.google.com/p/selenium/source/browse/spec-
draft.md?repo=mobile

12. Seite 12
appium Architecture
appium Architecture
appium starts a test case on the device
that spawns a server and listens for
proxied commands

13. Seite 13
appium Architecture
appium Architecture

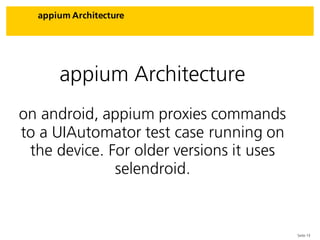

on android, appium proxies commands
to a UIAutomator test case running on
the device. For older versions it uses
selendroid.

14. Seite 14
appium Architecture
appium Architecture
as clients you can use the standard
selenium drivers or the specific client
libraries with the mobile json wire
protocol extension.
https://github.com/appium/java-client

15. Seite 15

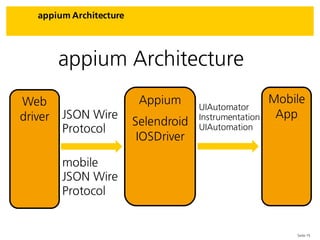

appium Architecture
appium Architecture
Web
driver
Appium
Selendroid
IOSDriver
Mobile
AppJSON Wire
Protocol
UIAutomator
Instrumentation
UIAutomation
mobile
JSON Wire
Protocol

16. Seite 16

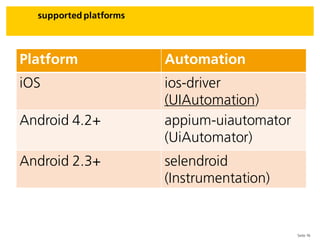

supported platforms
appium Architecture
Platform Automation
iOS ios-driver
(UIAutomation)
Android 4.2+ appium-uiautomator
(UiAutomator)
Android 2.3+ selendroid
(Instrumentation)

17. Seite 17
selendroid
selendroid Architecture
Selendroid is a test automation
framework which drives off the UI of
Android native and hybrid applications
and the mobile web. Tests are written
using the Selenium 2 client API

18. Seite 18
selendroid
selendroid Architecture
Selendroid is based on the Android
instrumentation framework.
Android instrumentation is a set of control
methods or "hooks" in the Android system.
These hooks control an Android component
independently of its normal lifecycle. They
also control how Android loads applications.

19. Seite 19
selendroid

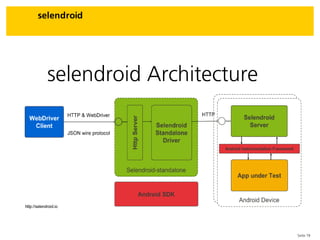

selendroid Architecture

20. Seite 20
appium Android

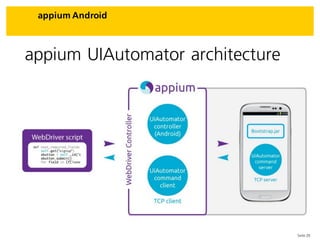

appium UIAutomator architecture

21. Seite 21

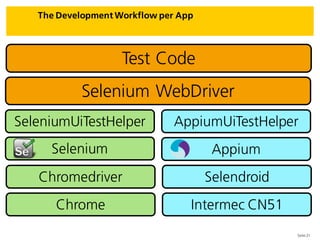

The Development Workflow per App
SeleniumUiTestHelper
Test Code
AppiumUiTestHelper
Selenium WebDriver
Selenium Appium
Chromedriver Selendroid
Chrome Intermec CN51

22. Seite 22
Demo
Demo

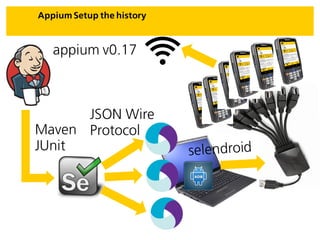

23. Appium Setup the history
JSON Wire
ProtocolMaven
JUnit
appium v0.17

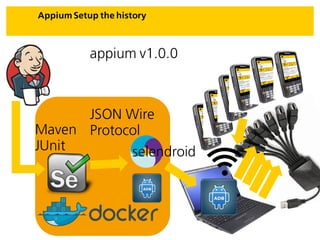

24. Appium Setup the history
JSON Wire
Protocol
appium v1.0.0
Maven
JUnit selendroid

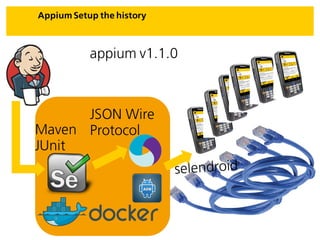

25. Appium Setup the history
JSON Wire
Protocol
appium v1.1.0
Maven
JUnit

26. Seite 26

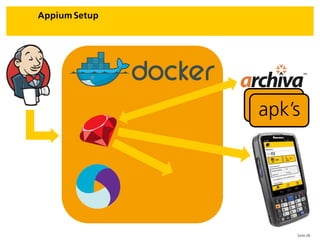

Appium Setup
apkapk’s

27. Seite 27

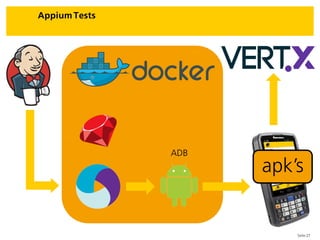

Appium Tests
apk’s
ADB

28. Seite 28

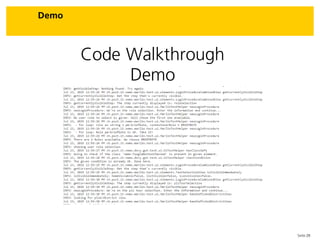

Demo
Code Walkthrough
Demo

29. Seite 29
scaling
scaling possibilities
selenium grid
docker
test load balancer

30. Seite 30

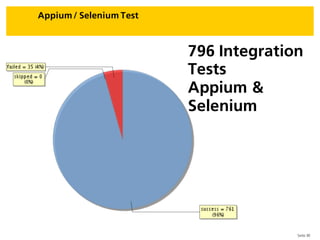

Appium / Selenium Test
796 Integration
Tests
Appium &
Selenium

31. Seite 31

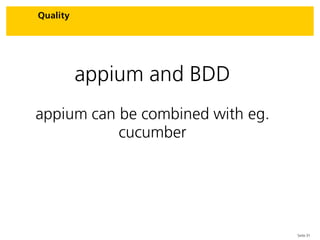

Quality
appium and BDD
appium can be combined with eg.
cucumber

32. Seite 32
Quality

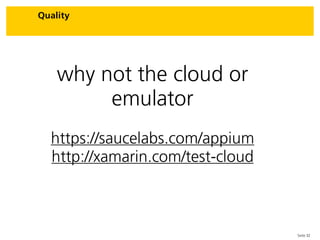

why not the cloud or
emulator
https://saucelabs.com/appium
http://xamarin.com/test-cloud

33. Seite 33
Appium Tests
The pain

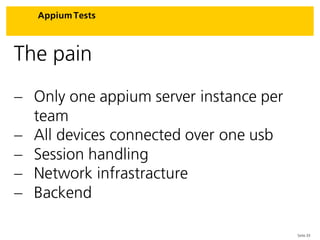

 Only one appium server instance per
team
 All devices connected over one usb
 Session handling
 Network infrastracture
 Backend

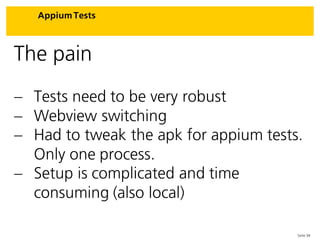

34. Seite 34
Appium Tests
The pain
 Tests need to be very robust
 Webview switching
 Had to tweak the apk for appium tests.
Only one process.
 Setup is complicated and time
consuming (also local)

35. Seite 35
Appium Tests
The pain
 Sometimes devices just fail, because of
other reasons than your code
 Hard to reproduce failures (eg. waiting
for element fails), we built in a retry
 Appium tests are slow

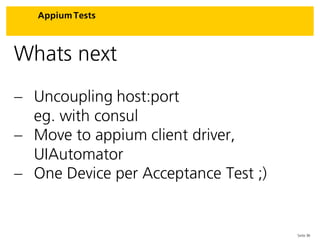

36. Seite 36
Appium Tests
Whats next
 Uncoupling host:port
eg. with consul
 Move to appium client driver,
UIAutomator
 One Device per Acceptance Test ;)

37. Seite 37
Questions & Answer
